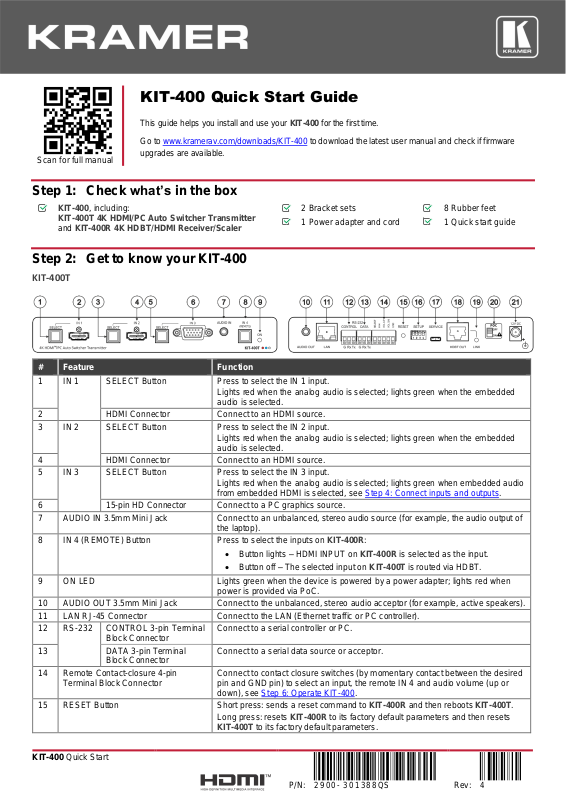

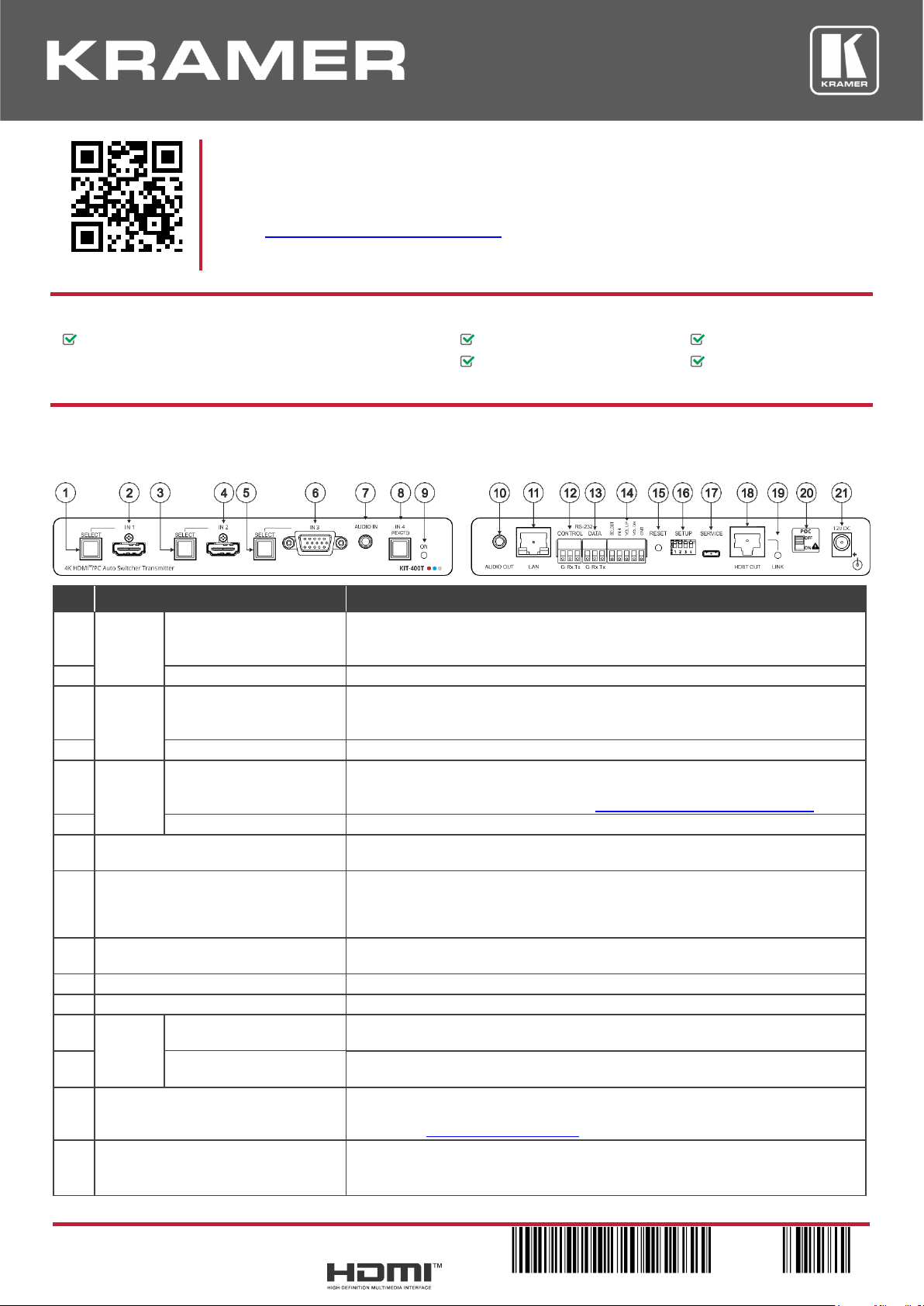

KIT-400 Quick Start

P/N:

2900- 301388QS

Rev:

Scan for full manual

KIT-400 Quick Start Guide

This guide helps you install and use your KIT-400 for the first time. Go to www.kramerav.com/downloads/KIT-400 to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

KIT-400, including: KIT-400T 4K HDMI/PC Auto Switcher Transmitter

and KIT-400R 4K HDBT/HDMI Receiver/Scaler

2 Bracket sets

8 Rubber feet

1 Power adapter and cord

1 Quick start guide

Step 2: Get to know your KIT-400

KIT-400T

Feature

Function

IN 1 SELECT Button

Press to select the IN 1 input. Lights red when the analog audio is selected; lights green when the embedded audio is selected.

HDMI Connector

Connect to an HDMI source.

IN 2 SELECT Button

Press to select the IN 2 input. Lights red when the analog audio is selected; lights green when the embedded audio is selected.

HDMI Connector

Connect to an HDMI source.

IN 3 SELECT Button

Press to select the IN 3 input. Lights red when the analog audio is selected; lights green when embedded audio

from embedded HDMI is selected, see Step 4: Connect inputs and outputs.

15-pin HD Connector

Connect to a PC graphics source.

AUDIO IN 3.5mm Mini Jack

Connect to an unbalanced, stereo audio source (for example, the audio output of the laptop).

IN 4 (REMOTE) Button

Press to select the inputs on KIT-400R:

• Button lights – HDMI INPUT on KIT-400R is selected as the input.

• Button off – The selected input on KIT-400T is routed via HDBT.

ON LED

Lights green when the device is powered by a power adapter; lights red when power is provided via PoC.

AUDIO OUT 3.5mm Mini Jack

Connect to the unbalanced, stereo audio acceptor (for example, active speakers).

LAN RJ-45 Connector

Connect to the LAN (Ethernet traffic or PC controller).

RS-232

CONTROL 3-pin Terminal Block Connector

Connect to a serial controller or PC.

13 DATA 3-pin Terminal Block Connector

Connect to a serial data source or acceptor.

Remote Contact-closure 4-pin Terminal Block Connector

Connect to contact closure switches (by momentary contact between the desired pin and GND pin) to select an input, the remote IN 4 and audio volume (up or down), see Step 6: Operate KIT-400.

RESET Button

Short press: sends a reset command to KIT-400R and then reboots KIT-400T. Long press: resets KIT-400R to its factory default parameters and then resets

KIT-400T to its factory default parameters.

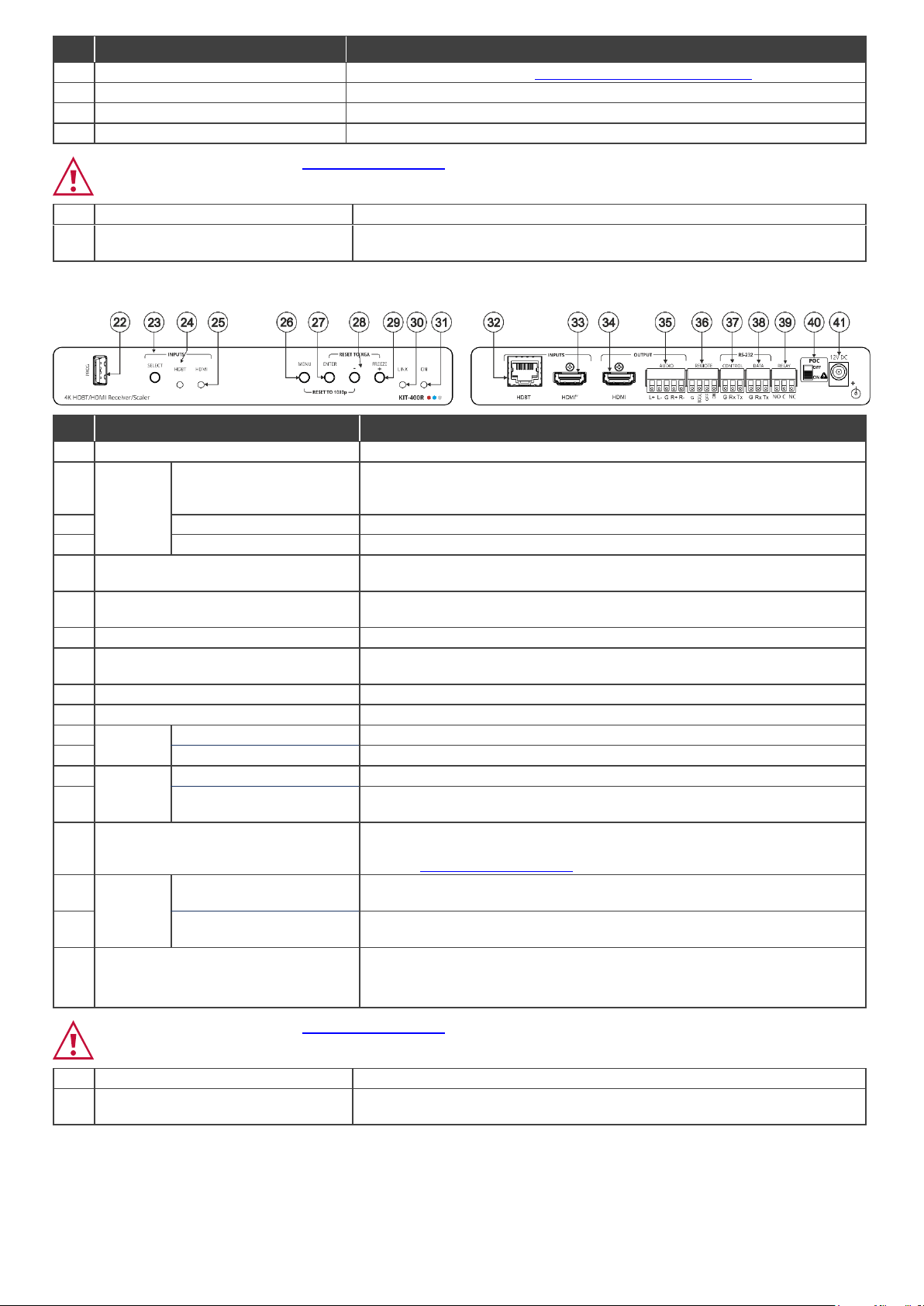

Page 2

Feature

Function

SETUP 4-way DIP-switch

Set the device behavior, see Step 4: Connect inputs and outputs.

SERVICE Mini USB Connector

Connect to a PC to perform a firmware upgrade.

HDBT OUT RJ-45 Connector

Connect to KIT-400R.

LINK LED

Lights blue when a link is established with the receiver.

Follow powering instructions in Step 5: Connect power. Failure to use PoC and power connector correctly may destroy the devices!

PoC (Power over Cable) Switch

Set the PoC switch to ON on both KIT-400T and KIT-400R.

12V DC Connector

Connect to the supplied power adapter, unless the power adapter is connected to KIT-400R.

KIT-400R

Feature

Function

PROG USB Connector

Connect to a USB stick to perform firmware upgrades.

INPUTS

SELECT Button

Press to select the input (HDBT or HDMI). By default, the SELECT button is locked. You can unlock it via the ADVANCED menu in the OSD.

24 HDBT LED

Lights blue when the HDBT input is selected.

25 HDMI LED

Lights blue when the HDMI input is selected.

MENU Button

Press to enter/exit the on-screen display (OSD) menu. Press together with the – button to reset to 1080p.

ENTER Button

In OSD, press to choose the highlighted menu item. Press together with the FREEZE/+ button to reset to XGA.

–

In OSD, press to move back through menus or decrement parameter values.

FREEZE/+ Button

In OSD, press to move forward through menus or increment parameter values. When not in OSD, press to freeze the display.

LINK LED

Lights blue when a link is established with the transmitter.

ON LED

Lights green when device is powered.

INPUTS

HDBT RJ-45 Connector

Connect to KIT-400T.

33 HDMI™ Connector

Connect to an HDMI source.

OUTPUT

HDMI Connector

Connect to an HDMI acceptor.

35 AUDIO 5-pin Terminal Block Connector

Connect to a balanced stereo audio acceptor.

REMOTE Contact-Closure 4-pin Terminal Block Connector

Connect to contact closure switches, an occupancy sensor and/or toggle switches (contact between the desired pin and GND pin), to turn display on or off. See Step 6: Operate KIT-400.

RS-232

CONTROL 3-pin Terminal Block Connector

Connect to a serial controller or PC.

38 DATA 3-pin Terminal Block Connector

Connect to a serial data source or acceptor.

RELAY 3-pin Terminal Block Connector

Connections to the internal relay: Normally open (NO), normally closed (NC), and common (C). Connect to devices to be controlled by relay (for example, a motorized projection screen).

Follow powering instructions in Step 5: Connect power. Failure to use PoC and power connector correctly may destroy the devices!

PoC (Power Over Cable) Switch

Set the PoC switch to ON on both KIT-400T and KIT-400R.

12V DC Connector

Connect to the supplied power adapter, unless the power adapter is connected to KIT-400T.

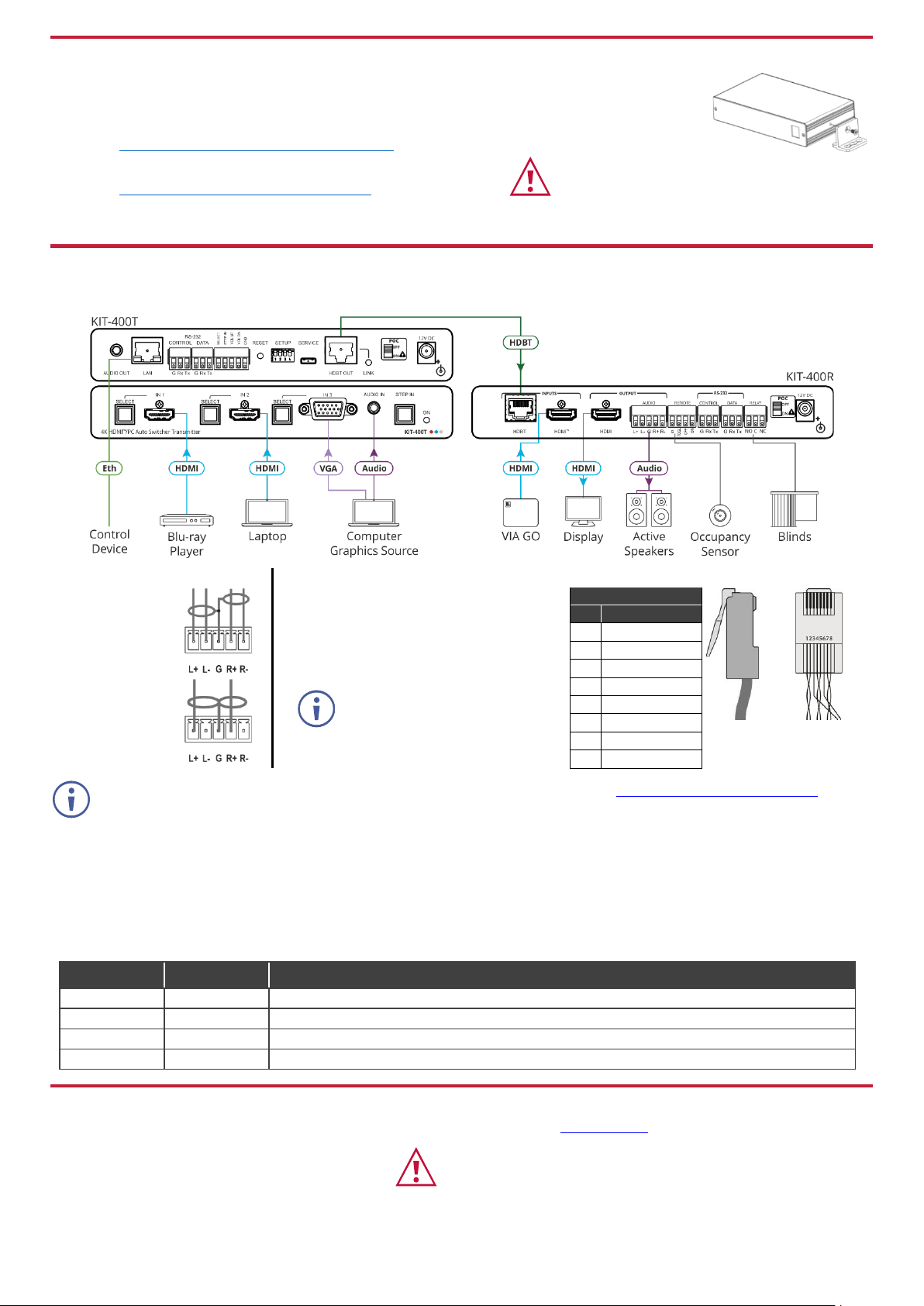

Page 3

Step 3: Mount KIT-400

Install KIT-400 using one of the following methods:

• Attach the rubber feet and place the unit on a flat surface.

• Fasten a bracket (included) on each side of the unit and attach it to a flat surface

(see www.kramerav.com/downloads/KIT-400).

• Mount the unit in a rack using the recommended rack adapter

(see www.kramerav.com/product/KIT-400).

• Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.

• Avoid uneven mechanical loading.

• Appropriate consideration of equipment nameplate ratings should be

used for avoiding overloading of the circuits.

• Reliable earthing of rack-mounted equipment should be maintained.

• Maximum mounting height for the device is 2 meters.

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your KIT-400.

Connecting the audio output

Wiring the RJ-45 connectors

To a balanced stereo audio acceptor:

This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.

EIA /TIA 568B

Wire Color

Orange / White

Orange

Green / White

To an unbalanced stereo audio acceptor:

For HDBT cables, it is recommended that the cable ground shielding be connected/soldered to the connector shield.

Blue

Blue / White

Green

Brown / White

Brown

To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/KIT-400. Using third-party cables may cause damage!

Setting the KIT-400T DIP-switches

A switch that is down is on; a switch that is up is off. By default, all the switches are up (off). After changing a DIP-switch you must power cycle the device to implement the change.

DIP-switch 1 set to off (up). DIP-switch 2 set to off (up).

Audio Switching Selection

DIP-switch 3

DIP-switch 4

Audio Input Selection

Off (up)

Automatic – Priority selection: Embedded HDMI  analog Audio In (high to low priority).

Off (up)

On (down)

Automatic – Priority selection: Analog Audio In  embedded HDMI (high to low priority).

On (down)

Off (up)

Embedded HDMI.

On (down)

Analog Audio In

Step 5: Connect power

To power the devices:

1. Set the PoC switches to ON on both

devices.

2. Connect the power adapter to one of the

devices (KIT-400T or KIT-400R).

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.

• There are no operator serviceable parts inside the unit.

Warning:

• Failure to use PoC and power connector correctly may destroy the devices!

• Use only the power cord that is supplied with the unit.

Disconnect the power and unplug the unit from the wall before installing.

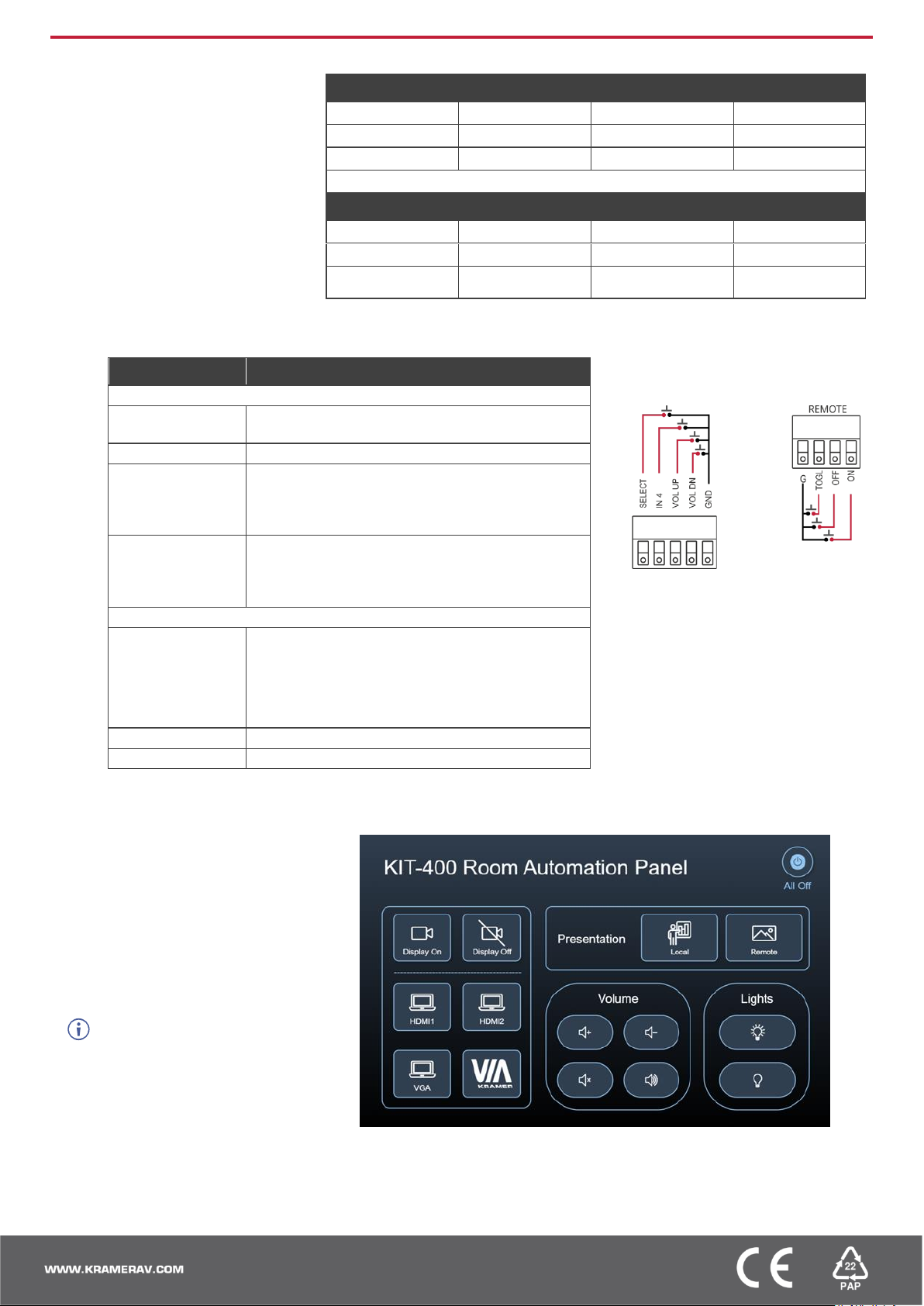

Page 4

Step 6: Operate KIT-400

Operate KIT-400 via:

• Front panel buttons

• Remotely, by RS-232 serial

commands transmitted by a touch screen system, PC, or other serial controller

• Embedded web pages via the Ethernet

• Remote control switches.

• Room Automation Panel.

RS-232 Control / Protocol 3000

Baud Rate:

115,200

Parity:

None

Data Bits:

Command Format:

ASCII

Stop Bits:

Example: (Set the Audio out volume level to 75): #AUD-LVL 1,1,75

Default Ethernet Parameters

IP Address:

192.168.1.39

UDP Port #:

50000

Subnet mask:

255.255.0.0

TCP Port #:

5000

Gateway:

0.0.0.0.

Operating via the remote control switches

Momentarily connect the desired pin to the GND pin to select an input:

Pin Name

Function

KIT-400T

KIT-400R

KIT-400T

SELECT

Short press – Select the input. Long press – Adjust the VGA phase shift.

IN 4

Select the IN 4 input on KIT-400R.

VOL UP

Increase the analog audio output level. Short press – Increase volume by one step. Long Press – Increase the volume from 0 to 100% in

10 seconds.

VOL DN

Decrease the analog audio output level. Short press – Decrease volume by one step. Long Press – Decrease the volume from 100% to 0

in 10 seconds.

KIT-400R

TOGL

One button toggles between display on and display off (instead of using two separate buttons for on and off). Alternatively, using the KIT-400R OSD, configure turning the DISPWLAY on or off according to whether a switch is open or closed (for example, when using an occupancy sensor).

OFF

Turn off the display.

Turn on the display.

Operating via Room Automation Panel

Control KIT-400 via any of Kramer’s touch panels which include the Kramer Aware app (for example, KT-1010).

To operate KIT-400 via room automation panel:

1. Open Kramer Aware app on your touch panel.

2. Enter KIT-400R IP address. The KIT-400 default control screen appears.

You can change the default control screen configuration via the KIT-400 embedded web pages.

Kramer Aware App can be connected

to KIT-400 only if password protection (Authentication) is disabled. You can disable authentication via the KIT-400 web page.
