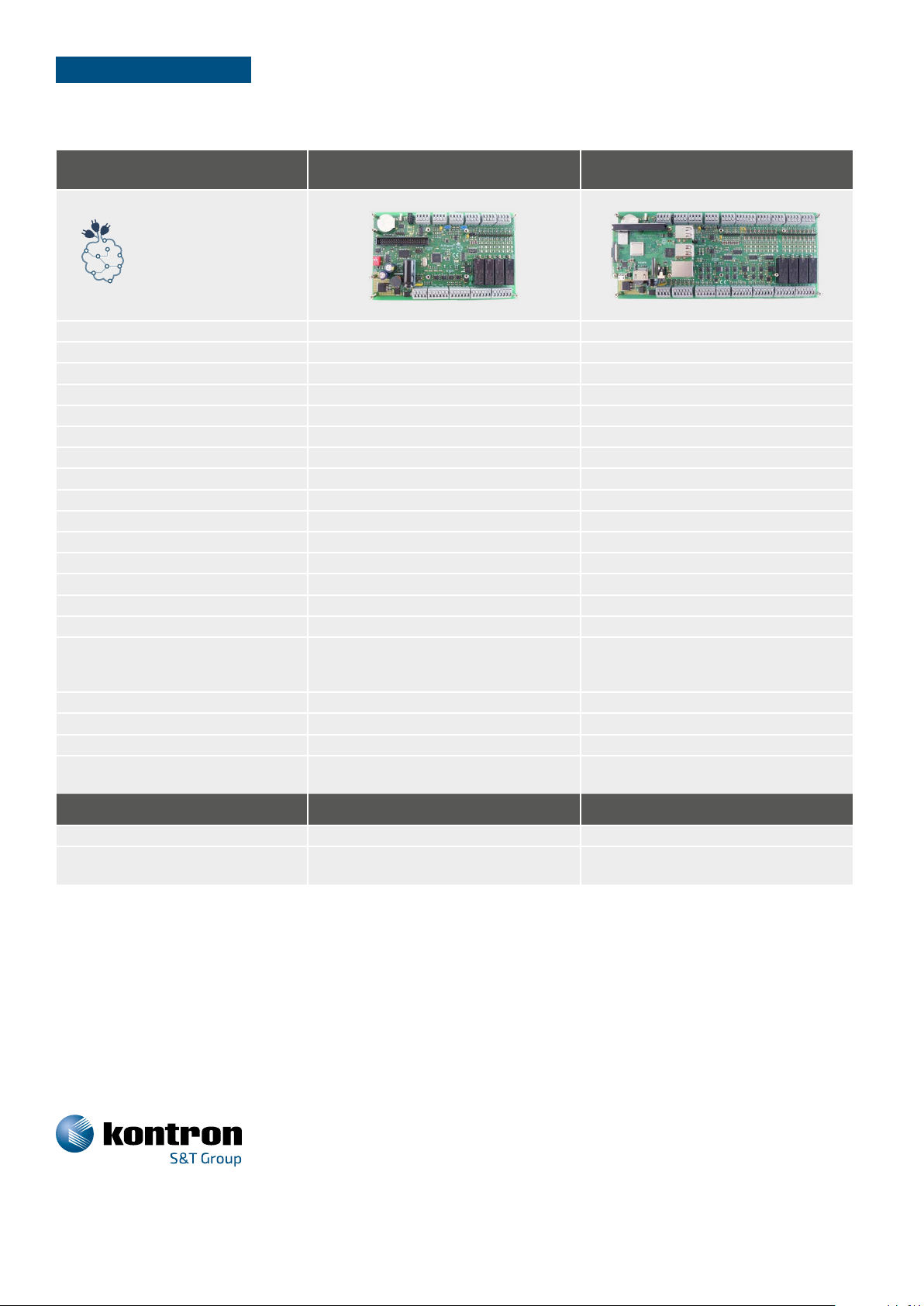

TECHNICAL DATA
HARDWARE PiXtend® V2 -S- PiXtend® V2 -L-
PiXtend
®
Power supply 24V DC ±20% 24V DC ±20%
Retain-/Remanence memory 32 Bytes Flash EEPROM 64 Bytes Flash EEPROM
Real Time Clock (RTC) With batter y buering With batter y buering
Temperature- and Air Humidity Sensors Up to 4 DHT 11, DHT22, AM2302 Up to 4 DHT 11, DHT22, AM2302
CAN bus
-
RS232 1x 1x *
RS485 Via USB-Dongle 1x*, Modbus RTU capable
Digital inputs (DI) 8x 3,3 / 5 / 12 / 24V 16x 3,3 / 5 / 12 / 24V
Digital outputs (DO) 4x PNP 5 / 12 / 24V, 0,5A 12x PNP 5 / 12 / 24V, 0,5A
Analog voltage inputs (AI-U) 2x 0…5V, 0…10V, 10 Bit 4x 0…5V, 0…10V, 10 Bit
Analog current inputs (AI-I)
-
Analog outputs (AO) 2x 0…10V, 10 Bit 2x 0…10V, 10 Bit
Relais 4x, max. 230V / 6A 4x, max. 230V / 6A
PWM-/Servo outputs 4x, 16 Bit resolution, 5V 6x, 16 Bit resolution, 5V
GPIO 4x 5V GPIO 4x 5V GPIO
Interfaces and I/Os Short circuit proof, supply with reverse
polarity and overload protection
(self-resetting safety device)
Short circuit proof, supply with reverse
polarity and overload protection
(self-resetting safety device)
Max. temperature range 0°C...50°C 0°C...50°C
Dimension – without housing 166.3 x 101.8 x 27 mm 236.3 x 101.8 x 27 mm
Top hat rail housing Aluminium Aluminium
Supported RPI models 1 B+, 2B, 3 B, 3 B+ 4 B (Extension Board &
1 B+, 2B, 3 B, 3 B+ 4 B (Extension Board &
Basic)
1x **
2x 0…20mA, 10 Bit
Basic)
SOFTWARE
Short cycle times 2.5 ms (400 Hz) 5 ms (200 Hz)
Support for CODESYS V3, C- and Phyton Library, FHEM,
Node-RED
* RS232 & RS485 can not be used simultaneously
** if CAN is used, the analog outputs (AO) can not be used at the same time
