Konica Minolta SCAN DUAL I, DIMAGE SCAN DUAL I User Manual

Windows Version

Thank you for purchasing the Minolta Dimâge Scan Dual. The Dimâge Scan Dual is a dual format film scanner capable of scanning 35mm and, with the optional AD-10 APS Adapter, Advanced Photo System film.

This manual has been designed to help you understand the operation of your scanner. To realize all the benefits of your scanner, please read this manual thoroughly.

Your scanner has been packaged with the DS Dual twain driver software for Adobe Photoshop™/ Adobe PhotoDeluxe

™

. Before using the Minolta Dimâge Scan Dual, we recommend you have a working knowledge of the PC and its operating conventions. Familiarity with the mouse and Windows

menus and commands is necessary before

operating the Minolta Dimâge Scan Dual driver software. This manual does not instruct in the basic use of the PC, the Windows

95, Windows®98, or

Windows NT

operating systems, Adobe Photoshop™, or Adobe PhotoDeluxe™.

This mark certifies that this product meets the requirements of the EU (European Union) concerning interference causing equipment regulations. CE stands for Conformité Européenne.

This Class B digital apparatus meets all the requirements of the Canadian InterferenceCausing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

• Changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• Every necessary caution has been taken to ensure the accuracy of this instruction manual. Please contact us if you have any questions, find any errors, or notice missing information.

• Minolta is not responsible for loss, damage, or other results occurring during the operation of this product.

MS, MS-DOS, Microsoft, Windows®, Windows®95, Windows 98®, and Windows NT®are registered trademarks of the Microsoft Corporation. Adobe

Photoshop™, and Adobe PhotoDeluxe™are registered trademarks of Adobe Systems Inc. Corel Draw™ is a trademark of the Corel Corporation. Other corporate and product names are the trademarks and registered trademarks of their respective companies.

Tested by the Minolta Corporation

101 Williams Drive Ramsey, New Jersey 07446 USA

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To meet FCC regulations, the SCSI cables used with this scanner must be equipped with ferrite cores.

Dimâge Scan Dual

FOR PROPER AND SAFE USE

Please read and understand each caution before using this product.

To avoid fire or electric shock:

• Only use the voltage specified for this unit.

• Do not expose this unit to liquids.

• Do not insert metal objects into this unit.

• Do not touch the cord or plug if your hands are wet.

• Unplug this unit when it is not in use.

Improper use of the power cord may result in fire or electric shock.

• Insert the plug securely into an electrical outlet.

• Do not pull on the cord. Grasp the plug when removing the power cord from an outlet.

• Do not scratch, twist, modify, heat, or place a heavy object on the power cord.

• Do not connect the ground to a gas pipe, telephone ground, or a water pipe. Improper grounding can result in electric shock.

This product must have sufficient ventilation while in use. Blocked ventilation ducts may cause the unit to overheat, increasing the risk of fire.

• Do not use or store this product in dusty or very humid areas.

If there is smoke, a strange smell, or any other unusual conditions, shut down and unplug the unit, then contact a Minolta Service Facility.

CAUTION

Unexpected damage may occur if this unit is left unattended near young children.

Do not attempt to disassemble this product. It contains high-voltage circuits. Take the product to a Minolta Service facility for repairs.

1. Minolta Dimâge Scan Dual

2. 35mm Slide and Negative holders

3. SCSI cable SC-11

4. AC power cord

5. DS Dual installer CD ROM

6. Instruction Manuals (2)

7. Warranty card

8. Photoshop LE CD ROM

PACKAGE CONTENTS / SYSTEM REQUIREMENTS

The following contents should be included in this package.

System Requirements

CPU: IBM PC/AT compatible with a 486SX-25 MHz processor or better. A

Pentium is recommended to obtain all the benefits of this software.

• Support cannot be provided for custom or home built machines.

Operating System: Windows 95, Windows 98, or Windows NT Memory: A minimum of 8 MB application RAM in addition to the requirements for

the OS and Adobe Photoshop (or PhotoDeluxe). 32 MB of RAM is recommended to obtain all the benefits of this software. 60 MB of available hard disk space.

SCSI Board: The following Adaptec SCSI boards are recommended for this device:

AHA-1520B AHA-1540CP AHA-2940J AHA-2940U AHA2940AU AHA-2910B AVA-2902E AVA-1505AE*

* Applicable for use with Windows 95 only.

• Support will not be provided for malfunctions or problems caused by the use of untested SCSI boards.

Monitor: High Colour (16 bit) VGA monitor and video card or better. Other: Photoshop 3.0.5, Photoshop 4.0.1, Photoshop 5.0.1, PhotoDeluxe (ver.

1.0 and 2.0), Corel DRAW (ver 7 and 8), and Corel Photopaint (in Corel DRAW) have been fully tested for use with the TWAIN driver software.

• Use TWAIN 32 to acquire images into Corel Draw and Photopaint. Using CorelScan

to access the DS_Dual driver software may cause sizing errors.

Dimâge Scan Dual

TABLE OF CONTENTS

FOR PROPER AND SAFE USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

SYSTEM REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

NAMES OF PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

SCANNER SETUP

Setting the SCSI ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Connecting the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

STANDARD OPERATION

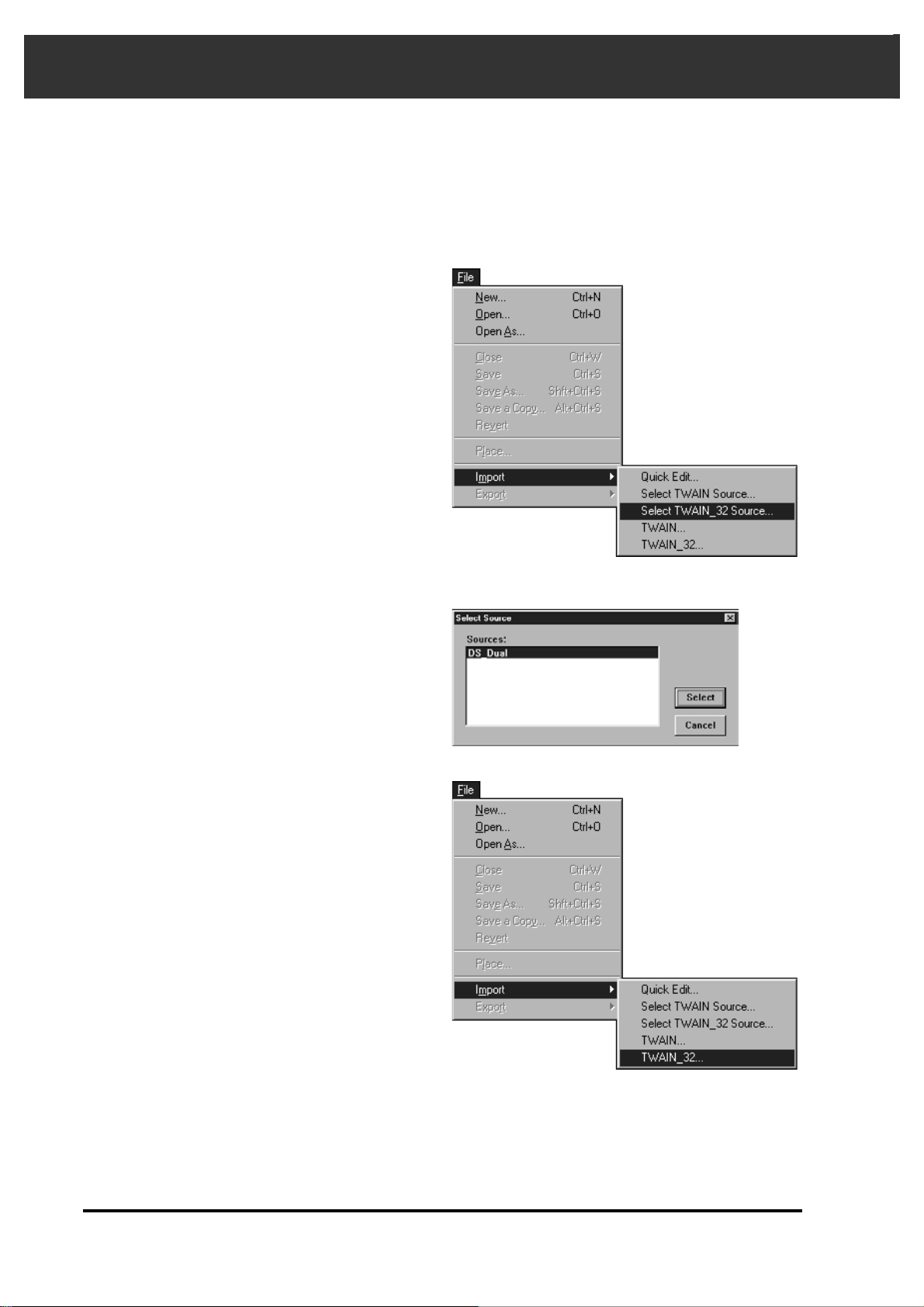

Launching the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Standard Control Window - Names of Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Preview Window - Names of Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Preferences Dialog Box - Names of Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Setting the Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

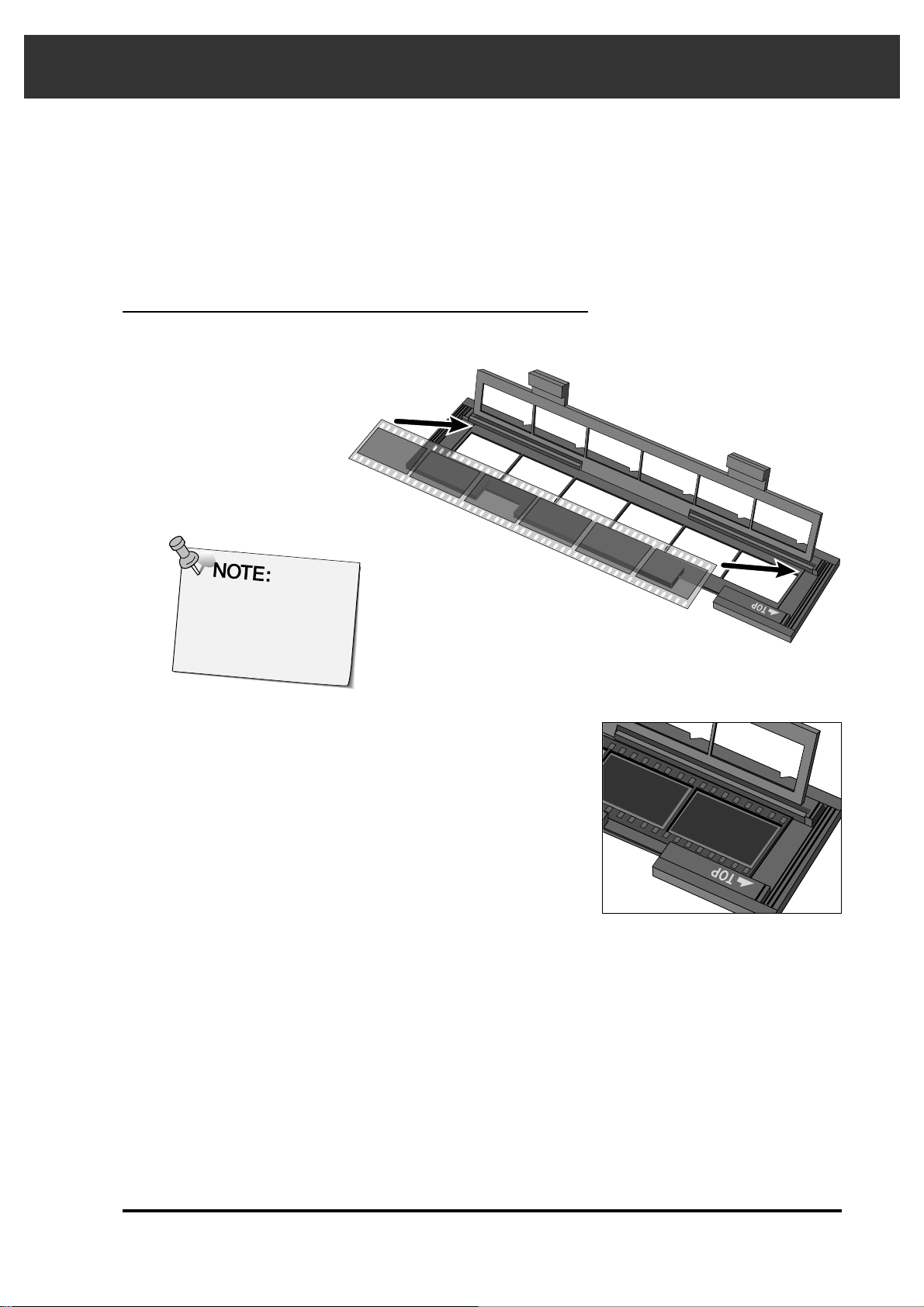

Loading the Film Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

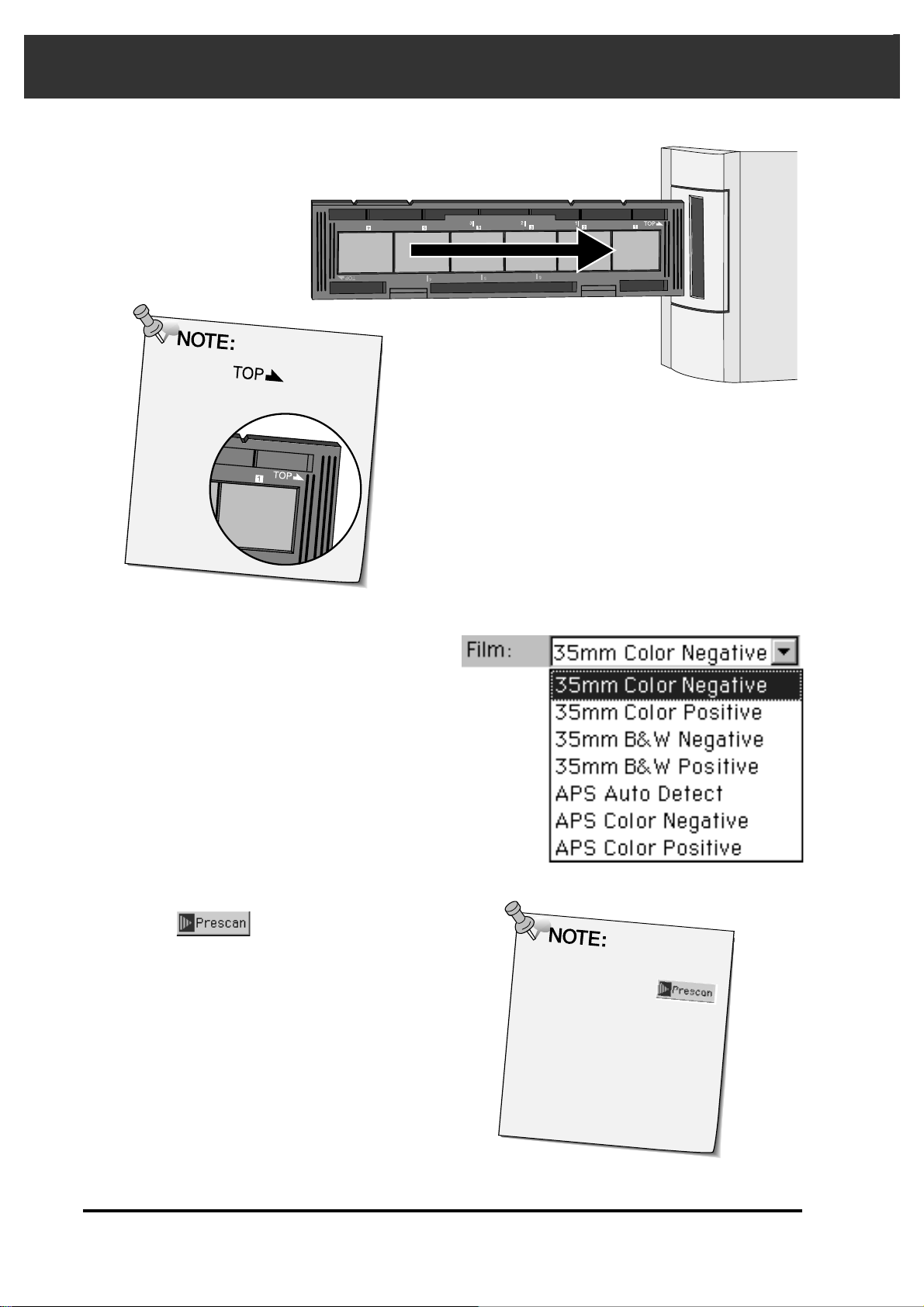

Inserting the Film Holder into the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Setting the Film Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Prescan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

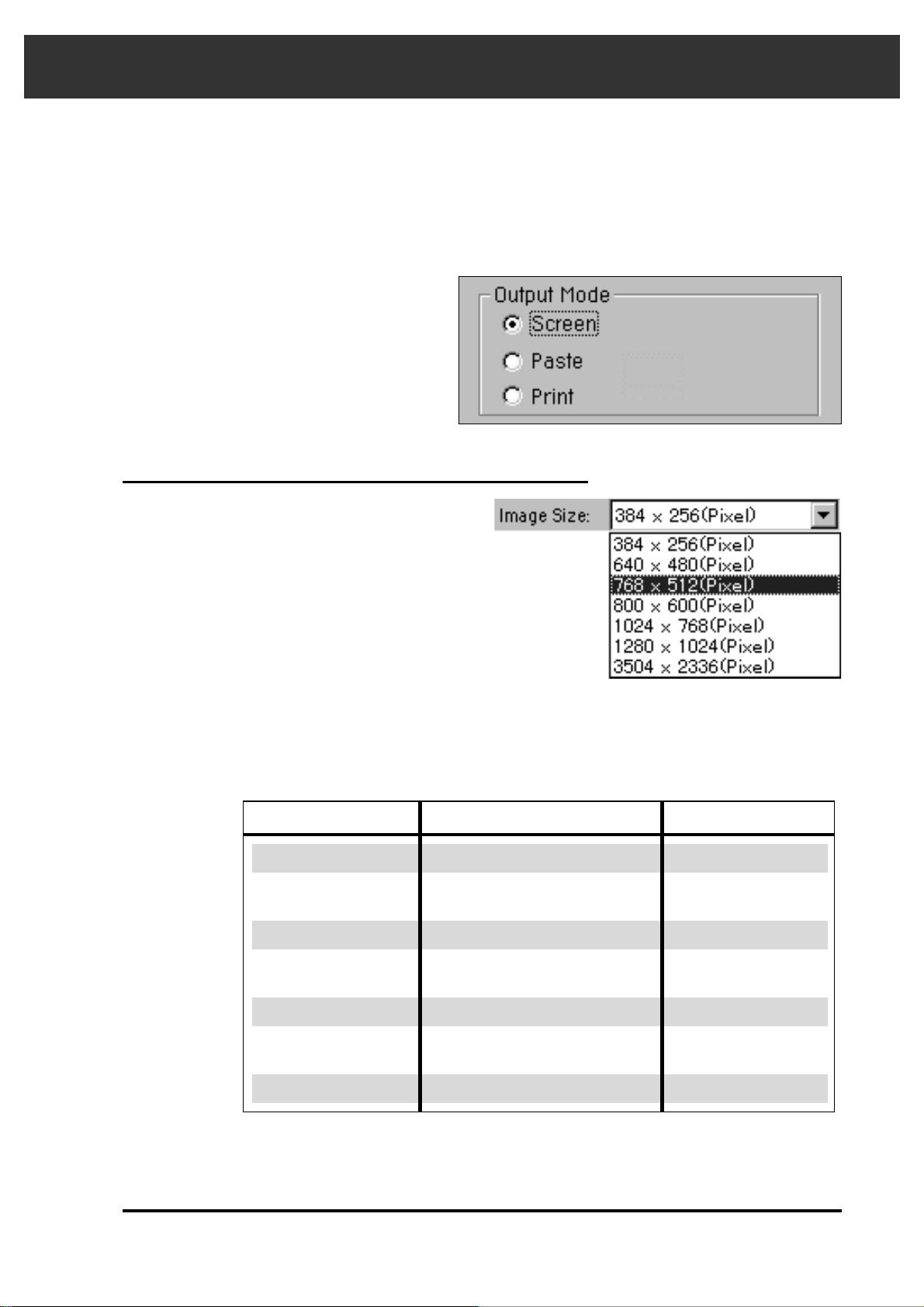

Selecting the Usage Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

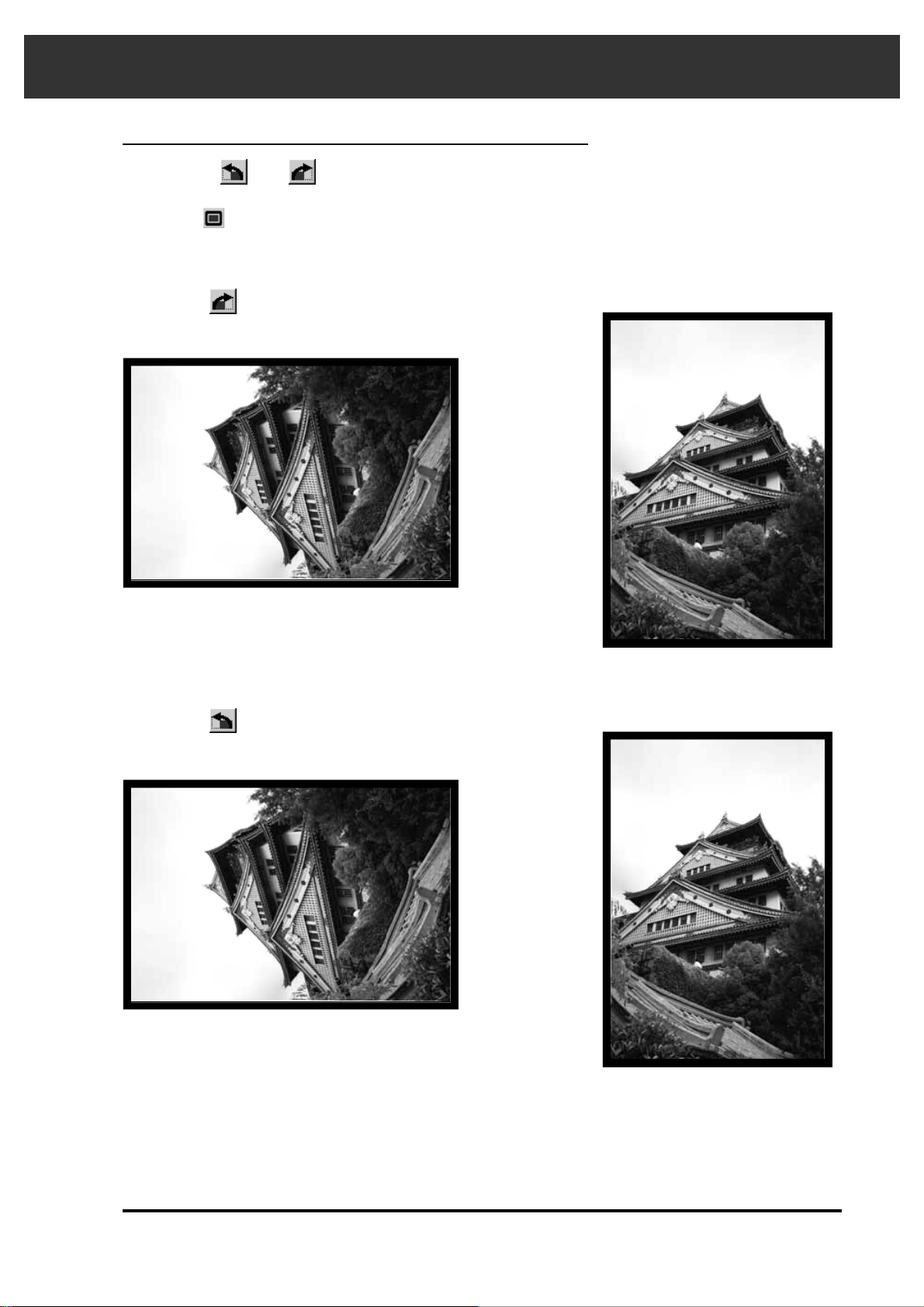

Orienting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Variation Dialog Box - Names of Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Image Correction - Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Scanning and Saving the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

PRECISION OPERATION

Precission Operation - Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Precision Control Window - Names of Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Loading and Prescan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Orienting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

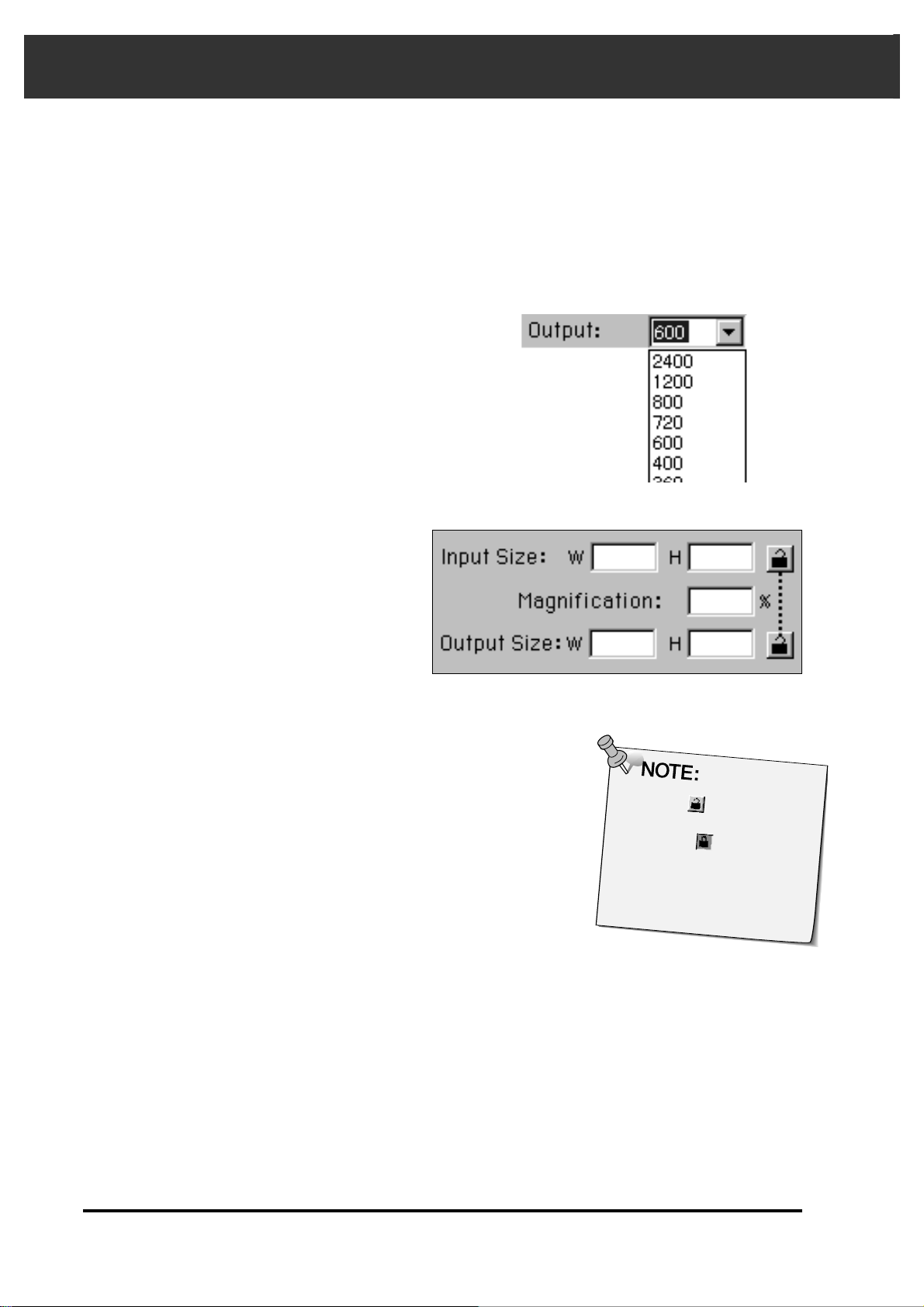

Setting the Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Resolution Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Scan Settings - Save and Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Histogram Dialog Box - Names of Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Image Correction - Histogram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Tone Curve Dialog Box - Names of Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Image Correction - Tone Curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Scanning and Saving the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

SCANNING APS FILM

Launching the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Setting the Film Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

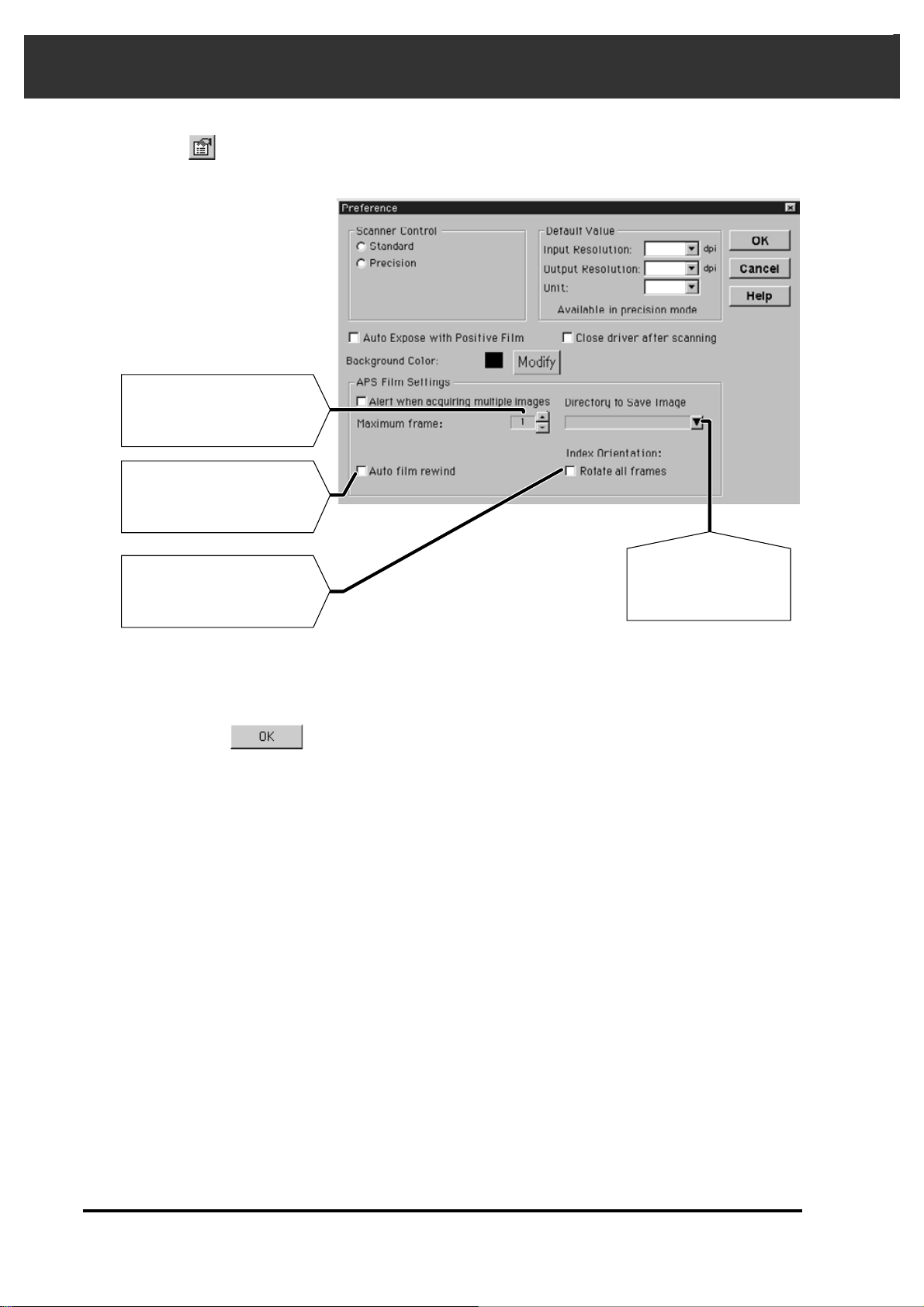

Setting the APS Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

APS Adapter - Names of Parts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Loading the APS Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Inserting the APS Adapter into the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

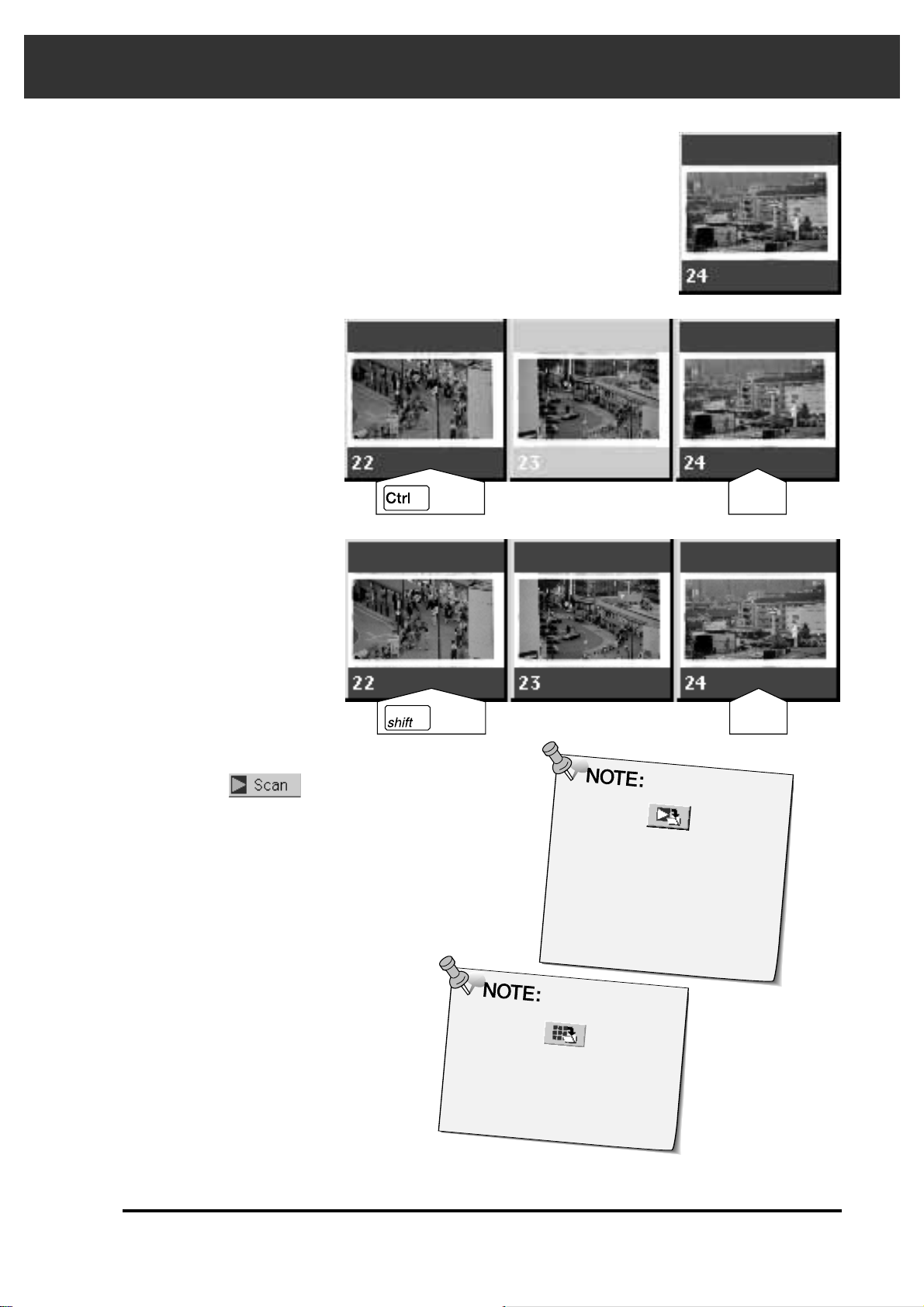

Index Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Prescan and Image Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Scanning the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Quitting the APS Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

APPENDIX

Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

User Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Installing Adobe PhotoDeluxe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

SCANNER - NAMES OF PARTS

1. Indicator lamp

2. Film slot

3. Film door

4. Power switch

5. SCSI port - DB25

6. Terminator power switch

7. SCSI ID switches

8. SCSI port - SCSI-1

9. AC socket

SCANNER SETUP

Turn off the PC and all the devices in the SCSI chain down before changing SCSI IDs, connecting, or disconnecting SCSI cables. Hardware damage may occur if this precaution is not followed.

SETTING THE SCSI ID

A SCSI ID is a unique address you assign to each SCSI device connected to your PC. The SCSI ID range of your PC is from 0 to 7. Do not use a SCSI ID for more than one SCSI device.

1. Turn off the PC and all connected SCSI devices.

Setting the SCSI ID

SCSI ID Dip Switch Settings

3. Using a pointed object, set the switches to an unused SCSI ID.

• The Dimâge Scan Dual’s SCSI ID is factory preset to 5. If 5 is not occupied, there is no need to change the SCSI ID.

• Two operating SCSI devices in the same SCSI chain cannot share a SCSI ID.

2. Determine which SCSI IDs are not being used.

Dimâge Scan Dual

CONNECTING THE HARDWARE

3. Plug the other end of the SCSI cable) into the back of the scanner.

• Either SCSI port can be used, there is no dedicated in or out port.

1. Place the scanner on a level surface.

2. Plug the SCSI cable SC-11 into the SCSI port on the rear of the PC.

Connecting the SCSI Cable

The SCSI cable SC-11 (DB25-to-SCSI-1) has been packaged with the Dimâge Scan Dual. See your dealer if you require a different SCSI cable.

• To meet FCC regulations, the SCSI cables used with this scanner must be equipped with ferrite cores.

BEFORE YOU BEGIN… TURN THE COMPUTER AND ALL CONNECTED DEVICES OFF.

CONNECTING THE HARDWARE

4. Plug the SCSI cable from the next device in your SCSI chain into the open port on the back of the scanner.

If there are other devices in your SCSI chain…

5. Plug the power cord into the scanner’s AC socket, then plug it into a grounded outlet.

Terminating the SCSI chain helps

to suppress electronic noise in

the SCSI chain.

Not terminating the SCSI chain

can cause slowdowns, data

errors, crashes, and other

unpredictable errors.

Dimâge Scan Dual

5. Plug the power cord into the scanner’s AC socket, then plug it into a grounded outlet.

4. Turn the terminator power switch (switch 4) to ON.

• An external terminator is not necessary with this scanner.

If the Dimâge Scan Dual is the last or only device in your SCSI chain…

CONNECTING THE HARDWARE

INSTALLING THE SOFTWARE

1. Turn on the Dimâge Scan Dual, then turn on your PC.

2. Start Windows.

Dimâge Scan Dual for Windows Setup installs the Twain and Twain_32 driver software into the drive and folder you select. Photoshop, PhotoDeluxe, Corel DRAW, or Corel PhotoPaint should be installed before you launch this installer.

• The appearance and/or wording of some dialog boxes may vary depending on the version of Windows running on your machine.

• The install instructions assume drive D is the CD ROM drive.

• The Device Wizard dialog box will appear.

This step varies with your specific operating software...

Windows 95

Windows 95 Release 2 (OSR2) and Windows 98

• The New Hardware Found dialog box will appear.

3. Click on Cancel.

• This dialog box may appear several times. Repeat step 3 until the dialog box no longer appears.

3. Click on Next until the Unknown Device window appears…

then click on Finish.

• This dialog box may appear several times. Repeat step 3 until the dialog box no longer appears.

Windows NT

3. Select Start > Settings > Control Panel, then double-click on the SCSI Adapters icon. Confirm that Minolta #2882 appears as a connected device for your SCSI board.

• If Minolta #2884 does not appear, turn the system off and check all the connections. Repeat the procedure.

Dimâge Scan Dual

INSTALLING THE SOFTWARE

Continued on the following page.

5. Select Run from the Start menu. The Run dialog box will appear.

6. Select D:\ENGLISH\Setup.exe from the Open

drop-down list, then click on .

• If your CD-ROM drive is not the D drive, replace the D with the appropriate designation for your CD-ROM drive.

The installer flash will appear.

4. Insert the Dimâge Scan Speed CD-ROM into the CD-ROM drive.

7. Click on .

INSTALLING THE SOFTWARE

9. After reading the agreement, click on .

• If you do not agree to the conditions stated in the End-User License Agreement, click on N

o and the software will not be installed.

The Software License Agreement will appear.

8. Click on .

The Welcome dialog box will appear.

INSTALLING THE SOFTWARE

Dimâge Scan Dual

Continued on the following page.

10. Select the desired option, then click on .

The Setup Options dialog box will appear.

The Select Program Folder dialog box will appear.

11. Click on .

• Setup will begin.

INSTALLING THE SOFTWARE

Dimage Scan Dual for Window Setup has placed the following files onto your computer.

DSDual.ds DSDual.du DSDual.hlp dsd_tw.ini Twain.dll Twain_32.dll Twunk_16.exe Twunk_32.exe readme.txt

13. Click on .

Please read the Read Me file before proceeding with this manual.

The following dialog box will appear.

The Setup Successful dialog box will appear.

12. Click on .

STANDARD OPERATION

SCAN FLOW

Set the Preferences

Launch the Software

Load the Film Holder

Insert the Film Holder

Specify the Film Type

Prescan

Select the Output Mode

Orient the Image

Correct the Brightness,

Contrast, and Colour

Save

Scan

LAUNCHING THE SOFTWARE

1. Turn on the Minolta Dimâge Scan Dual, then turn on your PC.

2. Launch Adobe Photoshop.

3. Select File > Import > Select Twain_32 Source

4. Select DS_dual, then click on Select

The Select Source dialog box appears.

The following instructions detail the import procedure for Adobe Photoshop. Refer to the online manual to import images into Adobe PhotoDeluxe.

5. Select File > Import > Twain–32

The setup screen will appear.

LAUNCHING THE SOFTWARE

Dimâge Scan Dual

The Dimâge Scan Dual’s standard control and preview windows appear after initialization is complete (approx. 2 min.).

STANDARD CONTROL WINDOW – NAMES OF PARTS

1. Image use option buttons

2. Image orientation option buttons

3. File size

4. Saving drive storage capacity

5. Preference button

6. Help button

7. Status window

8. Exit button

9. Scan button

10. Prescan button

11. Reset button

12. Relative image size option buttons

13. Image/Paper size list box

14. Film type list box

Dimâge Scan Dual

PREVIEW WINDOW – NAMES OF PARTS

1. Grab button

2. Enlarge button

3. Flip vertical

4. Rotate 90° right

5. Rotate 90° left

6. Flip horizontal

7. Reduce button

8. RGB values under cursor

9. Full-screen display button

10. Revert to prescan settings button

11. Histogram button

12. Curves button

13. Variations button

14. Cropping frame dimensions

15. Cropping frame

16. Preview window

PREFERENCES DIALOG BOX – NAMES OF PARTS

1. Scanner control option buttons

2. Close driver after scan checkbox

3. Auto expose positive film checkbox

4. Background colour modify button

5. Preview window size list box

6. Scratch disk list box

1. Click on .

The Preferences dialog box will appear.

7. Unit list box

8. Output resolution list box

9. Input resolution list box

10. Help button

11. Cancel changes button

12. OK Button

Dimâge Scan Dual

SETTING THE PREFERENCES

2. Click on the Standard option button.

3. Click on this checkbox if you want to use the auto-exposure system when scanning slides.

• You will obtain better scans from underexposed slide film when this checkbox is selected.

Continued on the following page.

4. Select the desired preview window size from the drop-down list.

5. Select the saving directory.

• The number of options depends on the number of drives connected to your system.

6. Click on the “Close driver after scanning” checkbox to automatically shut down the driver software after scanning.

SETTING THE PREFERENCES

9. Click on to accept the new preference settings.

8. Click on the desired background colour, then click on .

1. Click on D

efine Custom Colours to open

the colour field.

2. Click on and drag the pointer to select a custom colour.

3. Click on and drag the brightness slider to lighten or darken the colour.

4. Click on A

dd to Custom Colours to add the

new colour to the custom colours options.

7. Click on to change the background colour of the full screen display.

• The colour chip displays the background colour currently selected.

Defining Custom Colours

The Colour Palette dialog box will appear.

2. Place the film in the film holder emulsion side down.

• The film holder will accept film strips up to 6 frames long.

• Brush dust off the film before placing it into the film holder.

Dimâge Scan Dual

LOADING THE FILM HOLDER

Using the included 35mm negative and slide holders, the Minolta Dimâge Scan Dual can scan mounted or unmounted…

• 35mm colour negatives • 35mm colour slides

• 35mm black & white negatives • 35mm black & white positives

Advanced Photo System negatives and slides can also be scanned using the optional AD-10 APS Adapter. See page 57.

1. Open the film holder.

3. Align the frames within the scanning windows.

4. Snap the film holder closed.

Loading the Negative Holder

The frame numbers and text are backwards when the film’s emulsion side is

up.

Insert slides into the slide holder emulsion side down.

• Brush dust off the the slide before placing it into the film holder.

• Slide mounts must be thicker than 1 mm and thinner than 2 mm to fit into the slide holder.

• Orient the slides horizontally, not vertically.

LOADING THE FILM HOLDER

Loading the Slide Holder

Do not scan glass mounted

slides. Glass mounts bend

the light from the line

scanner, producing bad

results.

The white mark

should be upright.

INSERTING THE FILM HOLDER INTO THE SCANNER

Dimâge Scan Dual

The notches in the film and slide holders identify the position of the scanning windows. Push the holder in all the way in to scan the last frame on that side of the film holder. Remove, flip, then reinsert the film holder to scan the frames on the other side of the holder.

Remove, flip, then reinsert the negative holder to scan frames 4, 5, or 6.

• Frames 3 or 4 with the slide holder.

• The blue mark should be upright

Insert the negative holder into the scanner’s film slot to scan frames 1, 2, or 3.

• Frames 1 or 2 with the slide holder.

Click on to preview the image.

• The indicator lamp blinks slowly (0.5 Hz) during prescan.

Setting the type of film you are scanning is necessary to accurately reproduce the image. When 35mm film is being scanned, select colour negative, colour positive, black & white negative, or black & white positive. Refer to pages 54-62 when you are scanning Advanced Photo System film.

Select the type of film you are scanning from the film type dropdown list.

• The selected film type will be displayed in the film type window.

• Refer to pages 54-62 if you are scanning an APS film type.

SETTING THE FILM TYPE / PRESCAN

The prescanned image will appear in preview window.

• The Preview and Control windows can be moved to any convenient location on the screen. Grab the title bar to move the preview or control windows.

Prescan

Press the option key

when clicking on

to improve the colour

accuracy of the prescan

image.

• The film will be prescanned twice. The first scan will set the exposure. The second

prescans the image.

2. Select the desired image size from the image size drop-down list.

• When selected, your image will be scanned at a 96 dpi resolution.

1. Click on the option button for the desired usage mode.

Dimâge Scan Dual

SELECTING THE USAGE MODE

Screen

Standard mode has three image usage options to simplify operation of the Dimâge Scan Dual for beginners.

Screen – Image will be viewed on a monitor (image data base or home page). Paste – Image will be imported into a word processing document. Print – Image will be printed or modified using Photoshop or PhotoDeluxe.

The table below lists the display size for each image size in the drop-down list for monitors with a screen resolution of 72 dpi.

Image Size (pixels) Approx. File Size

384 x 256 263K 640 x 480 907K 768 x 512 1.2MB 800 x 600 1.4MB

1024 x 768 2.3MB 1280 x 1024 3.9MB 3504 x 2336 24.2MB

Approx. Screen Image Size

4.83 x 3.56 in.

8.89 x 6.67 in.

10.67 x 7.11 in.

11.11 x 8.33 in.

14.22 x 10.67 in.

17.78 x 14.22 in.

48.67 x 32.44 in.

Continued on the following page.

4. Click on the desired image size option button.

• The actual size of the image depends on the paper size selected in step 2.

• The image will be scanned at a resolution of 180 dpi.

SELECTING THE USAGE MODE

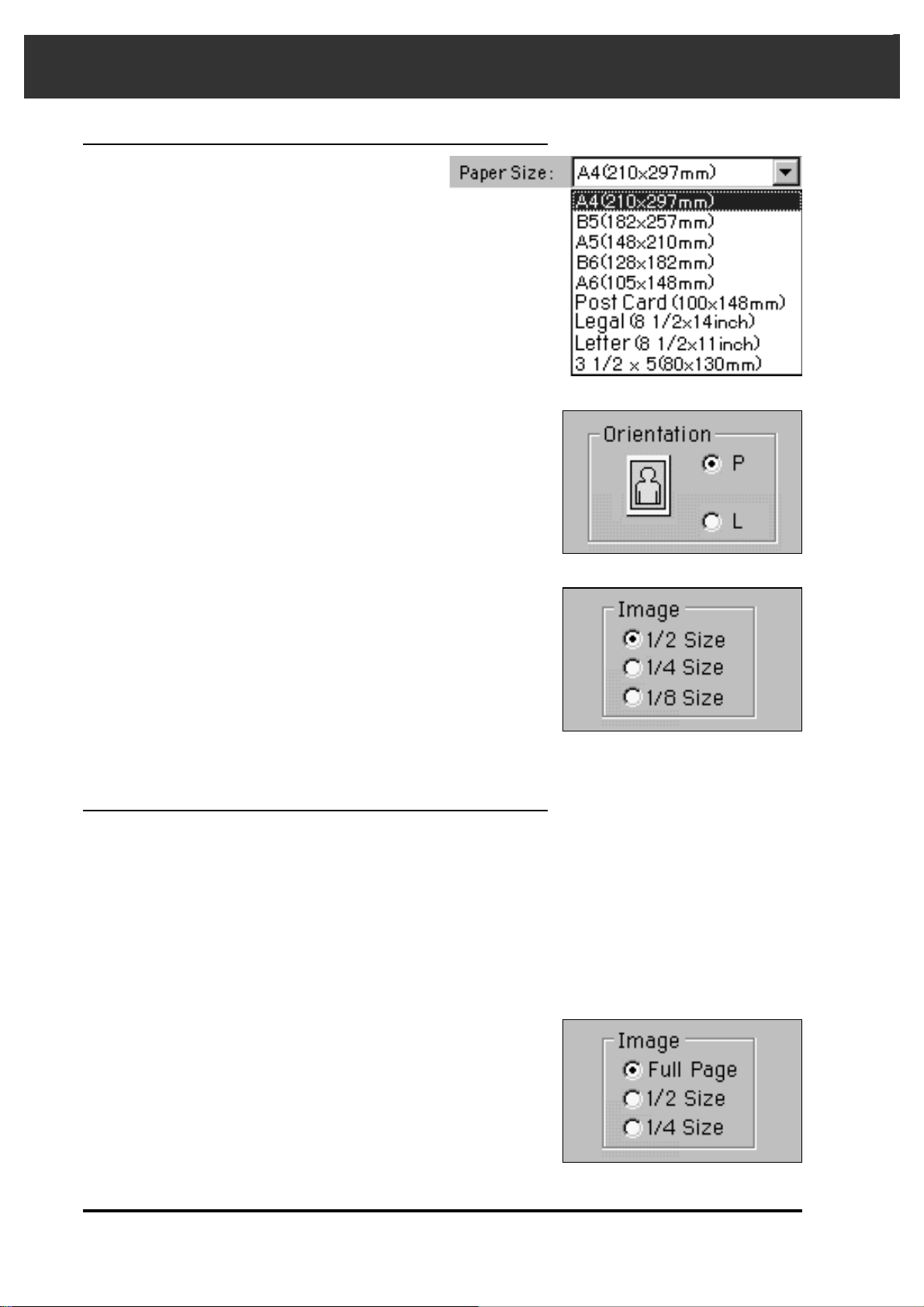

Paste

2. Select the word processing document’s paper size from the paper size drop-down list.

2. Select a paper size from the paper size dropdown list.

• Image orientation only affects the orientation of the prescan and scanned images. Set the correct paper orientation in your printer driver.

4. Click on the desired image size option button.

• The actual size of the image depends on the paper size selected in step 2.

• The image will be scanned at a resolution of 96 dpi.

• The page orientation icon changes according to the image size selected.

3. Click on the landscape (horizontal) or portrait (vertical) print orientation option button.

• Image orientation only affects the orientation of the prescan and scanned images. Set the correct paper orientation in your printer driver and word processing application.

3. Click on the landscape (horizontal) or portrait (vertical) print orientation option button.

Dimâge Scan Dual

ORIENTING THE IMAGE

Click on the and buttons to correct the orientation of your image before scanning. Changes will be reflected in the preview image.

• Click on to view the image inside the cropping window full screen.

Rotate

Click on to rotate the image 90° clockwise.

Click on to rotate the image 90° counter-clockwise.

Continued on the following page.

ORIENTING THE IMAGE

The and buttons let you flip the image left to right or top to bottom before scanning. Changes will be reflected in the preview image.

• Click on to view the image inside the cropping window full screen.

Flip

Click on to flip the image left-to-right.

Click on to flip the image top to bottom.

• The image is upside down compared to the original prescan.

• Image is backwards compared to the original scan.

Dimâge Scan Dual

ORIENTING THE IMAGE

Click on the corners and drag…

Click on the inside of the cropping frame and drag.

The cropping frame is the box surrounding the image area you want to scan. The height to width ratio of the scan area is fixed in standard mode. Use precision mode when you want to change the height to width ratio of the scanning area .

• Click on to view the image inside the cropping window full screen.

Cropping

or click on sides and drag.

To enlarge or reduce the size of the cropping frame…

To move the cropping frame…

Click on or to

enlarge or reduce the

image in the preview

window.

Click on to move

an enlarged image.

The Variation dialog box will appear.

1. Click on in the preview window.

VARIATION DIALOG BOX – NAMES OF PARTS

The variation dialog box lets you quickly correct the brightness and contrast of your image by clicking on simulations that represent varying amounts correction to your image. Correct the colour by clicking on the colour you want to add to your image.

• Click on to view a full screen display of the control and preview windows.

1. RGB levels

2. Colour picker

3. Control image

4. Brightness Level

5. Full-screen display button

6. Reset button

7. Contrast level

8. Contrast-level slider

9. Status window

10. Brightness slider

11. Image simulation windows

12. Preview image

13. Help button

14. Cancel button

15. OK button

3. Place the colour correction you want to apply to your image within the the cursor, then click the mouse button.

• The pointer will move to the new position on the colour map.

• The RGB correction values are displayed to the right of the colour picker.

Dimâge Scan Dual

2. Click on the appropriate window or move the sliders to increase or decrease the contrast and/or brightness.

• The changes are automatically applied to the preview image.

• Additional contrast and brightness simulations will be mapped around the center image.

IMAGE CORRECTION – VARIATION

Adjusting the Brightness and Contrast

Adjusting the Colour

The colour picker consists of a colour map and a pointer. Adjust the colour of your image +/– 20 points in any direction by clicking on any colour tone within the colour map. Colour corrections at the edge of the colour map are more saturated (stronger). Colour corrections closer to the center are less saturated. Colour corrections are automatically applied to all of the image simulations.

The image simulation windows map contrast and brightness changes to the preview image. The windows display a one step change in the brightness and contrast, but up to 10 steps (+/-) can be applied. The current colour, brightness, and contrast changes are automatically applied to the preview image

4. Click on to apply the changes to your scan.

• Click on to cancel all corrections and start over.

• Click on to close the variations window without applying any corrections.

Cursor

Pointer

Correcting the

brightness and

contrast may

eliminate the need for

colour corrections.

SCANNING AND SAVING THE IMAGE

When you have finished making all the desired adjustments to the image, you are ready to scan the film.

1. Click on .

• The cursor will change to an hourglass and a progress bar will appear.

• To cancel the scan, click on or press the escape key until the Cancelling Operation message box appears.

3. Save the image using the instructions from your photo application software.

Do not remove the film holder until the scan is finished. Interfering with the scanner during scan could result in image distortion.

2. Click on to exit the Dimâge Scan Dual driver software. The image will be opened in your photo application software.

• The driver window will automatically close after each scan if “Close driver after scanning” was selected in the preferences dialog box.

4. Remove the film holder from the scanner.

Multiple images can be scanned before closing the software if Photoshop is

the host software. PhotoDeluxe, Corel DRAW and Corel Photopaint can

only acquire one image at

a time.

PRECISION OPERATION

SCAN FLOW

Set Preferences

Launch the Software

Load the Film Holder

Insert the Film Holder

Specify the Film Type

Prescan

Orient the Image

Set the Resolution

Correct the Brightness,

Contrast, and Colour

Scan

Save

The startup procedure

on pages 16 and 17

can also be used

PRECISION OPERATION – STARTUP

3. Select File > Import > Select TWAIN_32 Source…

• The select source dialog box will appear.

4. Click on DS_Dual, then click

on .

5. Select File > Acquire > TWAIN_32.

• The Minolta Dimâge Scan Dual control and preview windows appear after initialization is complete.

1. Click on to open the preferences dialog box.

• The preferences dialog box will open.

2. Click on the Precision mode option button.

Launch the Software

Set the Preferences

4. Click on to accept the new preference settings.

1. Turn on the Minolta Dimâge Scan Dual, then turn on your PC.

2. Launch Adobe Photoshop.

3. Specify the default input resolution, output resolution, and units settings from the drop-down lists.

• We recommend setting the default input resolution to the

highest resolution your output

device (printer etc.) can

handle.

Dimâge Scan Dual

PRECISION CONTROL WINDOW – NAMES OF PARTS

1. Input size text box

2. Magnification window

3. Output size text box

4. Load scan settings button

5. Save scan settings button

The precision mode control window will appear with the preview window.

6. Units list box

7. Lock buttons

8. Output resolution list box

9. Input resolution list box

LOADING AND PRESCAN

Load and insert the film holder.

Specify the film type.

Click on .

• The indicator lamp blinks slowly (0.5 Hz) during prescan.

The white mark

should be upright.

Press the option key

when clicking on

to improve the colour

accuracy of the prescan

image.

• The film will be prescanned twice. The first scan will set

the exposure. The second prescans the image.

Click on the corners of the cropping frame to resize the scan area proportionally.

Click on the sides of the cropping frame to resize the scan area non-proportionally.

ORIENTING THE IMAGE

Dimâge Scan Dual

Rotate, flip, and crop the image as desired.

1. Select the desired output resolution from the output resolution drop-down list.

• Values can also be entered directly to the output resolution list box.

• This menu is dimmed and cannot be accessed when the units menu is set to pixels.

SETTING THE RESOLUTION

4. The input resolution list box displays the lowest input (scan) resolution necessary to achieve the desired output size and resolution.

• Input scan resolutions can also be selected from the drop-down list or entered directly into the input resolution list boxes.

2. The dimensions of the cropping frame are displayed in the input size text boxes.

• Values can also be entered directly to the input size list boxes.

• The values will change if a different unit of measure is selected.

3. Enter the desired output size (maximum 3 digits).

• The output size is limited by the maximum resolution of the scanner.

• The values will change if a different unit of measure is selected.

• The output size windows are dimmed when the units menu is set to pixels.

• Click on to lock the input size settings. The icon will

change to . Click again to

unlock.

• The magnification window displays the output/input size

ratio as a percentage.

Image resolution is the number of pixels per inch (ppi or dpi) that represent your scanned image. Image size and resolution determine the size of your image file. Lower input resolutions result in shorter scan times. Higher input resolutions make larger output sizes and higher output resolutions possible.

The rule to follow when scanning is, “bigger is better”. We recommend you set the output resolution to the highest value your output device (printer, monitor, etc.) can handle. The input resolution will vary with the size of the scan area, magnification, and output size.

Dimâge Scan Dual

RESOLUTION NOTES

Resampling up occurs when pixel values are interpolated to create an output resolution higher than the input resolution value. Resampling up generally results lower image quality.

Users of the Dimâge Scan Dual need to be aware of resampling because image corrections entered in the driver software are applied after the image has been scanned and sent to the CPU. Resampling up will occur when the scanner’s output resolution is set higher than the input resolution at magnification greater than 100.

Resolution and Output Size

Output resolution is determined by hardware. The Dimâge Scan Dual driver software automatically determines the correct scan resolution to obtain the desired output size and resolution.

To determine the final dimensions of a displayed or printed image yourself, multiply the dimensions of the scan area by the scan resolution (input resolution), then divide by the resolution of the output device (output resolution).

Resampling Up

Incorrectly Scanned Image Correctly Scanned Image

SCAN SETTINGS – SAVE AND LOAD

Saving Scan Settings

1. Click on .

• The resolution, scan area, magnification, and units settings are saved to a data (dat) file.

The save file dialog box will appear.

2. Enter a file name and the location to save the file, then click on

Loading Scan Settings

1. Click on .

2. Select the data file you want to use, then click on

• The settings in the selected file are applied to the current image.

The open file dialog box will appear.

The scan settings

files for colour and

black and white film are not interchangeable.

The button in the precision control window saves the resolution, scan area, magnification,

and units settings to a data file. The button lets you retrieve those settings and

apply them to a new image

Dimâge Scan Dual

HISTOGRAM DIALOG BOX – NAMES OF PARTS

The histogram dialog box displays the frequency of occurrence of the 256 levels of brightness for each of the colour channels that make up the image area inside the cropping frame. Level 0 is minimum brightness. Level 255 is maximum brightness. The midtones fall in-between.

• The histograms represent the red, green, and blue brightness levels for the control image. Click on and hold to view the histograms for the preview image.

Click on in the preview window.

The Histogram dialog box will appear.

1. Control image

2. White point button

3. Black point button

4. Gray point button

5. Output histogram button

6. RGB synchro button

7. Load settings button

Continued on the following page.

8. Save settings button

9. Shadow sliders

10. Midtone slider

11. Highlight sliders

12. Output level sliders

13. Input level sliders

14. Preview image

IMAGE CORRECTION – HISTOGRAM

1. Click on , then click on the tone in the control image that should be scanned as the brightest neutral white in your image.

• The cursor will change to .

• The RGB brightness values of the selected tone will be changed to 255.

2. Click on , then click on the tone in the control image that should be scanned as the darkest neutral black in your image.

• The cursor will change to .

• The RGB brightness values of the selected tone will be changed to 0.

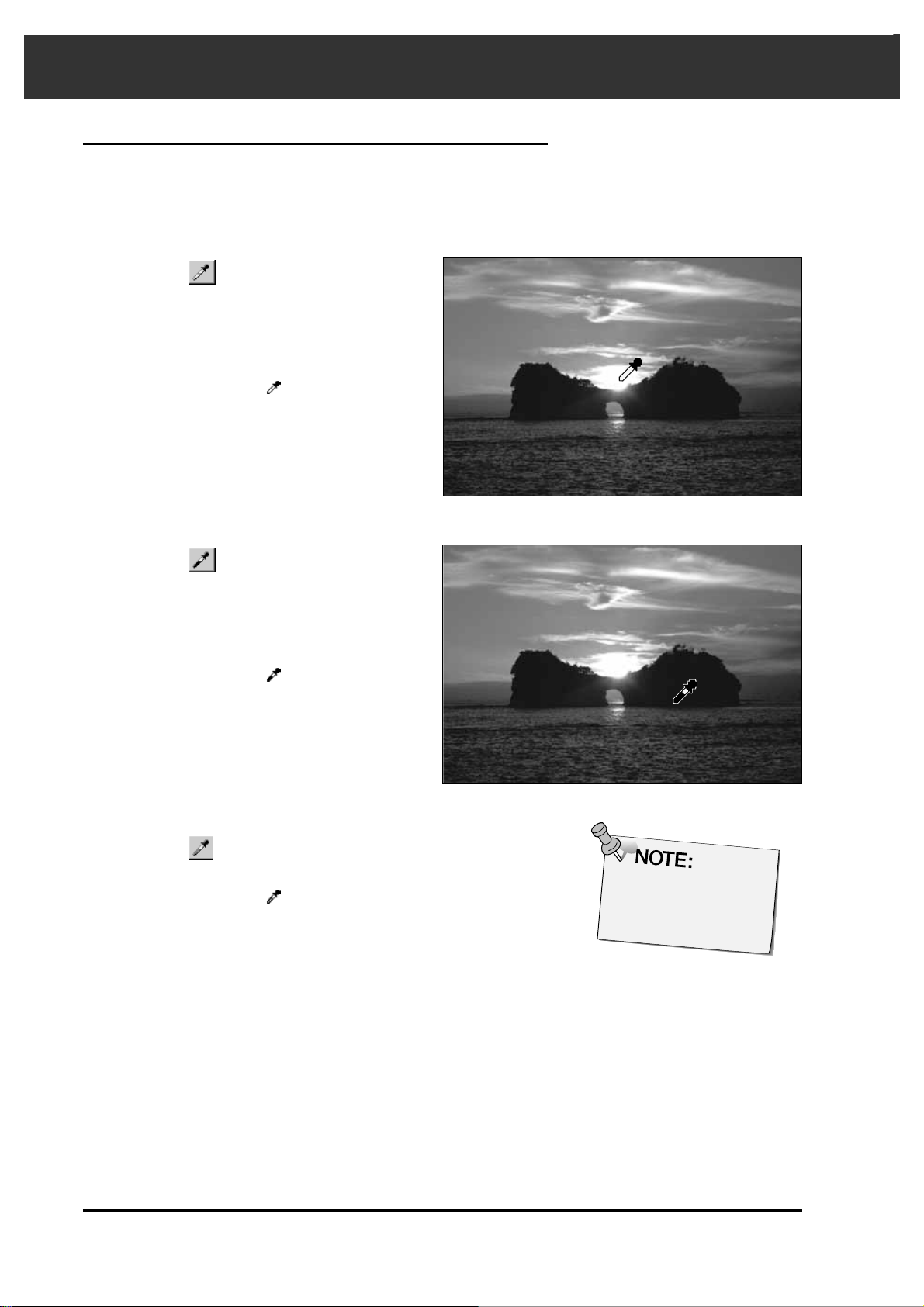

Setting the White, Black, and Gray Points

Properly setting an image’s white and black points will usually correct the colour cast and midtone distribution.

• Changes are automatically applied to the preview image.

3. Click on , then click on the tone in the control image that should be scanned as middle gray.

• The cursor will change to .

• The RGB brightness values of the selected tone will be changed to 127.

Setting the gray point

is not necessary for

most images.

Dimâge Scan Dual

When RGB synchro is selected, moving the levels sliders remaps the pixel values without changing the colour balance. Correcting the highlight and shadow values with the histogram sliders, may produce better results on images without neutral highlights or shadows.

Using the Histogram Sliders - RGB Synchro

1. Click on

• Changes applied to one colour channel will be reflected in the other two.

2. Click on and move the input level highlight and shadow sliders to the edges of the flat line area.

• Changes are automatically applied to the preview image.

• Values to the right of the highlight slider will be scanned as pure white (level 255). Values to the left of the shadow slider will be scanned as pure black (level 0).

3. Click on and slide the output level sliders until the preview image has the desired image contrast.

• Click on to view the control and preview images full screen.

4. Click on and hold to view the output level histograms.

If the histogram contains large flat line areas…

The brightness level

for the currently selected slider is displayed next to the

histogram.

Input Level Histograms

Input level highlight sliders moved to the edge of the flat line area.

Output Level Histograms

Pixel values have been spread to better utilize the brightness range.

Continued on the following page.

IMAGE CORRECTION – HISTOGRAM

Click on to apply or to cancel the corrections.

Applying or Cancelling Corrections

Adjusting Individual Colour Channels

2. Click on and move the R, G, and B sliders to the desired locations.

• Changes are automatically applied to the preview image.

• Click on to view the control and preview images full screen.

Changing the slider positions for individual channels affects the colour balance of the output image.

3. Click on and hold to view the output level histograms.

Input Level Histograms

The red input level highlight slider is moved to the edge of the red flat line area.

Output Level Histograms

Only the red pixel values have been remapped. Remapping the values of a single colour channel usually affects the colour balance.

1. Click on to deselect RGB Synchro.

Dimâge Scan Dual

Saving Histogram Settings

1. Click on .

• The histogram settings are saved to a data (dat) file.

2. Enter a file name and the location to save the file, then click on .

Loading Histogram Settings

1. Click on .

2. Select the data file you want to use, then click on

• The settings in the selected file are applied to the current image.

IMAGE CORRECTION – HISTOGRAM

The open file dialog box will appear.

The save file dialog box will appear.

The histogram

settings files for

colour and black

and white film are

not interchangeable.

The button in the histogram dialog box lets you save the histogram settings to a data

file. The button lets you retrieve those settings and apply them to a new image

TONE CURVE DIALOG BOX – NAMES OF PARTS

Click on in the preview window.

The Tone Curve dialog box will appear.

The tone curve dialog box displays correction curves for the prescanned image. Here you can control the brightness, contrast, and colour of the output image.

1. Control image

2. Colour channel list box

3. White point button

4. Black point button

5. Free curve

6. Calculate button

7. Output brightness value

8. Input brightness value

9. Preview image

Dimâge Scan Dual

1. Click on , then click on the tone in the control image that should be scanned as the brightest neutral white in your image.

• The cursor changes to .

• The RGB brightness values of the selected tone will be changed to 255.

2. Click on , then click on the tone in the control image that should be scanned as the darkest neutral black in your image.

• The cursor changes to .

• The RGB brightness values of the selected tone will be changed to 0.

Setting the White and Black Points

Properly setting an images white and black points will usually correct the colour cast and midtone distribution.

• Changes are automatically applied to the preview image.

Continued on the following page.

IMAGE CORRECTION – CURVES

IMAGE CORRECTION – TONE CURVE

Changing the shape of a correction curve changes the output brightness level for each corresponding input brightness level. Changing the shape of the red, green, or blue curves affects colour balance of the image. Changes to the RGB curve affect the image contrast and brightness.

1. Select the channel you want to adjust from the colour channel drop-down list.

2. Click on and drag the portion of the curve you want to change.

• Changes are automatically applied to the preview image.

Click on to draw a correction curve freehand. Click on to smooth out the final correction

curve.

Click on the curve to fix an anchor

point. Anchor points let you modify part

of the curve with little or no affect to the

remaining values.

Correcting the Tone Curves

Pull down to decrease the output level.

Pull up to increase the output level.

Anchor Point

Clicking on draws a

smooth curve based on

the intersect

ion of the

corrected curve through

seven

input brightness

values (31, 63, 95, 127,

159, 191, 223, and 255).

Dimâge Scan Dual

Saving Tone Curve Settings

1. Click on .

• The tone curve settings are saved to a data (dat) file.

2. Enter a file name and select the location to save the file, then click on

Loading Tone Curve Settings

1. Click on .

2. Select the data file you want to use, then click on

• The settings in the selected file are applied to the current image.

Click on to apply or to cancel the corrections.

Applying or Cancelling Corrections

IMAGE CORRECTION – CURVES

The save file dialog box will appear.

The open file dialog box will appear.

The tone curve

settings files for

colour and black

and white film are

not interchangeable.

The button in the tone curve dialog box lets you save the tone curve settings to a data file.

The button lets you retrieve those settings and apply them to a new image

SCANNING AND SAVING THE IMAGE

When you have finished making all the desired adjustments to the image, you are ready to scan the film.

1. Click on .

• The cursor will change to an hourglass and a progress bar will appear.

• To cancel the scan, click on or press the escape key until the Cancelling Operation message box appears.

Do not remove the film holder until the scan is finished. Interfering with the scanner during scan could result in image distortion.

2. Click on to exit the Dimâge Scan Dual driver software. The image will be opened in your photo application software.

• The driver window will automatically close after each scan if “Close driver after scanning” was selected in the preferences dialog box.

3. Save the image using the instructions from your photo application software.

4. Remove the film holder from the scanner.

Multiple images can be scanned before closing the software if Photoshop is

the host software. PhotoDeluxe, Corel DRAW and Corel Photopaint can

only acquire one image at

a time.

SCANNING APS FILM

Set Preferences

Launch Software

Load and Insert

APS Adapter

Specify APS Film Type

Prescan

Scan

Save

Index Scan

Select Frame(s)

to Prescan from

Index Print

Select Frame(s) to

Prescan

Orient and Crop

Correct the Contrast,

Brightness and Colour

SCAN FLOW

LAUNCHING THE SOFTWARE

1. Turn on the Minolta Dimâge Scan Dual, then turn on your PC.

2. Launch Adobe Photoshop.

3. Select File > Import > Select Twain_32 Source

4. Select DS_dual, then click on Select

The Select Source dialog box appears.

5. Select File > Import > Twain_32

The Dimâge Scan Dual’s standard control and preview windows appear after initialization is complete (approx. 2 min.).

Dimâge Scan Dual

SETTING THE FILM TYPE

The APS control and index windows will appear.

Select an APS film type from the film type drop-down list.

• APS Auto Detect will identify the APS film type automatically.

• The selected film type will be displayed in the film type list box.

• The optional AD-10 APS Adapter is required to scan APS film with the Dimâge Scan Dual.

1. Rewind button

2. Save index button

3. Scan & Save button

4. Index scan button

5. Reverse frame order

6. Image box

SETTING THE APS PREFERENCES

1. Click on

The APS Preferences window will open.

2. Set the preferences as desired (pages 20 and 21), then click on .

Click on this checkbox to automatically rewind the film when the driver software is closed.

Set the maximum number of frames that can be scanned at the same time.

Click on this checkbox to automatically rotate all frames in the index scan 180°.

Click here to select the saving folder for scans and index images

APS ADAPTER

Dimâge Scan Dual

The AD-10 APS Adapter is an optional accessory. The Dimâge Scan Dual can not scan Advanced Photo System film (IX-240 type) without the AD-10 APS Adapter.

Names of Parts

Loading the APS Adapter

1. Slide the film-chamber release as shown.

• The film-chamber door will open.

2. Insert the film cassette into the film chamber with the VEI on top.

• Only load cassettes with the mark current.

3. Close the film-chamber door.

• The film-chamber door will not close if the mark is not current. Forcing the door shut could damage the cassette.

1. Film-chamber door

2. Film-chamber release

3. Scanner contacts* * Do not touch

then open the scanner’s film door.

INSERTING THE APS ADAPTER INTO THE SCANNER

1. Press to unlock,…

2. Insert the APS Adapter into the scanner.

Dimâge Scan Dual

INDEX SCAN

Click on

• All frames on the cassette will be scanned and opened in the Index window.

Index scan performs a low resolution scan of each image on the cassette and displays them in the index window. The time required for an index scan will vary, depending on the performance of your machine.

If you don’t want to index scan the entire roll, select the frame number of the image you want to scan from the index print provided by your photofinisher. Click on the appropriate image box in the index window to select an image for prescanning or scanning.

Click here to reverse the display order.

• To cancel the index scan, press the escape key until the Cancelling Index

Scan message box appears.

• The completed index scans will appear in the index window.

• Frames that have not been index scanned can still be selected for

prescanning and scanning.

1. Click on an image or an image box, then click on . The image will be prescanned, then

opened in the Preview window.

4. Click on to return to the index window.

3. Apply contrast, brightness, and colour corrections.

• See pages 27-33 for Standard mode corrections.

• See pages 39-51 for Precision mode corrections.

PRESCAN AND IMAGE CORRECTION

2. Orient and crop the image as desired.

Click here to specify an APS format (C, H, or P) trimming area. Available in Precision mode only.

Press the option key

when clicking on

to improve the colour

accuracy of the prescan

image.

• The film will be prescanned twice. The first scan will set

the exposure. The second prescans the image.

Dimâge Scan Dual

SCANNING THE IMAGE

1. Click on an image to select it for scanning.

• Selected images are surrounded by a dark gray frame.

2. Click on to scan the selected image(s).

• The scan is cancelled if more than the number of frames set for multiple acquire are selected. See Setting APS Preferences on page 56.

• Adobe PhotoDeluxe, Corel DRAW and Corel Photopaint can only acquire one image at a time.

• The image will be opened in your photo application software when the Dimâge Scan Dual’s driver software is closed.

• Press the shift key while clicking to select all the frames between the current frame and the last frame selected.

• Press the control key while clicking to select additional frames for scanning.

• Press the control key while clicking to deselect an image.

Click on to save

the index as an image

file.

• The image will be saved in JPEG format.

Click on to save

the scans directly to a

file.

• The scans will be saved in BMP format.

• The scans will not be automatically opened in a

Photoshop window.

CLICK CLICK

1. Click on to rewind the film into the cassette.

• This step is not necessary when the auto rewind option in the APS preference window is selected.

3. Click on to exit the Dimâge Scan Dual driver software.

• The driver window will close automatically after each scan if “Close driver after scanning” was selected in the Preferences dialog box..

2. Remove the APS adapter from the scanner and close the film door.

4. Open the APS adapter’s film chamber door and remove the cassette.

QUITTING THE APS WINDOW

Multiple images can be scanned before closing the software if Photoshop is

the host software. PhotoDeluxe, Corel DRAW and Corel Photopaint can

only acquire one image at

a time.

APPENDIX

TROUBLE SHOOTING

SYMPTOM or MESSAGE SOLUTION

•Load film into the film holder.

•Scanner door opened during setup. Close scanner door.

The computer will not start up after connecting the scanner.

•Shut down the computer and all the devices in your SCSI chain, then check the SCSI cables, SCSI ID connection, power cord, and SCSI ID.

DS Dual does not appear in the Select Source drop-down menu.

•Make sure the driver software has been installed.

“Could not establish connection with scanner.”

•Indicator lamp is off - Turn the Dimâge Scan Dual on, then restart your system.

•Check that the SCSI ID is not being used by another SCSI device.

“Setting up now. Remove the film holder.”

•Remove the film holder and click on OK.

“Set film properly…”

Indicator lamp blinking rapidly (8Hz).

“Set 35mm film holder properly.”

•Set the correct film type.

“Set APS film holder properly.” • Set the correct film type.

“Could not recognize the film type.”

•Set the film type manually.

“Insufficient Memory” •Increase the memory requirements for the

host application.

•If you have scanned multiple images, close and relaunch the host application. In some cases it may be necessary to shut down and restart the computer.

“Setting up now. Remove the film holder.” appears when the film holder is not loaded.

•Contact a Minolta Service Facility to change the fluorescent lamp.

USER TECHNICAL SUPPORT

Dimâge Scan Dual

Please contact your dealer for information regarding installation, SCSI-2 interface recommendations, or application compatibility. If you dealer is unable to help you., contact us toll free.

Technical Support

1-800-808-4888

Monday - Friday 8:30 - 5:00 (EST)

Minolta corporation

101 Williams Dr.

Ramsey, NJ 07446

(201) 825-4000

Please have the following information ready when calling Minolta Technical Support.

Determining the version number of your driver software:

Place the cursor on MINOLTA at the top of the standard or precision mode control panels. The version number will be displayed in the status window.

Make and Model of your computer: Available application RAM: Operating System version: Other connected SCSI devices and their SCSI ID numbers: DS Dual driver version number: Symptoms:

Messages that appear on the screen when the problem occurs:

Frequency of occurrence:

NOTES

Konica Minolta SCAN DUAL I, DIMAGE SCAN DUAL I User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
