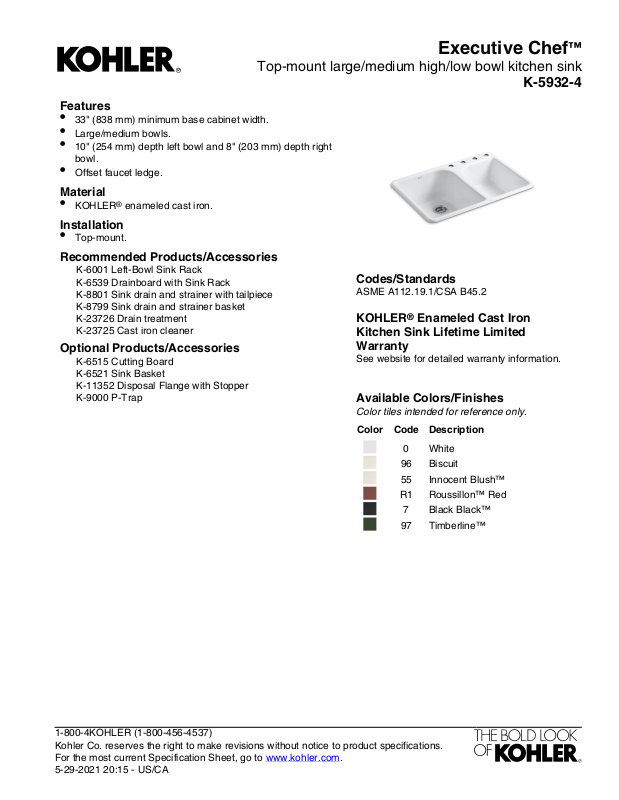

Page 1
Executive Chef
Features
•
33" (838 mm) minimum base cabinet width.
•
Large/medium bowls.
•
10" (254 mm) depth left bowl and 8" (203 mm) depth right
bowl.
•
Offset faucet ledge.
Material
•
KOHLER® enameled cast iron.
Installation
•
Top-mount.
Recommended Products/Accessories
K-6001 Left-Bowl Sink Rack
K-6539 Drainboard with Sink Rack
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
K-6515 Cutting Board
K-6521 Sink Basket
K-11352 Disposal Flange with Stopper
K-9000 P-Trap
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Enameled Cast Iron
Kitchen Sink Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
55 Innocent Blush™
R1 Roussillon™ Red
7 Black Black™
97 Timberline™
™
Top-mount large/medium high/low bowl kitchen sink
K-5932-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 20:15 - US/CA
Page 2
Executive Chef
8-1/2"
(216 mm)
4" (102 mm)
2" (51 mm)
18-1/2" (470 mm)
6" (152 mm)
22"
(559 mm)
33" (838 mm)
1/2" (13 mm)
11"
(279 mm)
12-3/4"
(324 mm)
8-5/8"
(219 mm)
14"
(356 mm)
10-5/8"
(270 mm)
1-1/2" OD
16"
(406 mm)
4" (102 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Off-set Large/small
Installation: Top-mount
Cutout: Top-mount, 31-7/8" x 20-3/4" (810 mm
x 527 mm) with 1-1/2" (38 mm) radius
corners
Min. base cabinet
width:
33" (838 mm)
Bowl area (Left): Length: 16" (406 mm)
Width: 19" (483 mm)
Bowl depth: 9-3/4" (248 mm)
Bowl area (Right): Length: 12" (305 mm)
Width: 17" (432 mm)
Bowl depth: 7-3/4" (197 mm)
Number of deck
holes:
4
Faucet hole spacing: 4" (102 mm)
Faucet hole(s): 1-3/8" (35 mm)
Drain hole: 3-5/8" (92 mm)
Notes
Install this product according to the installation
instructions.
™
Top-mount large/medium high/low bowl kitchen sink
K-5932-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 20:15 - US/CA
