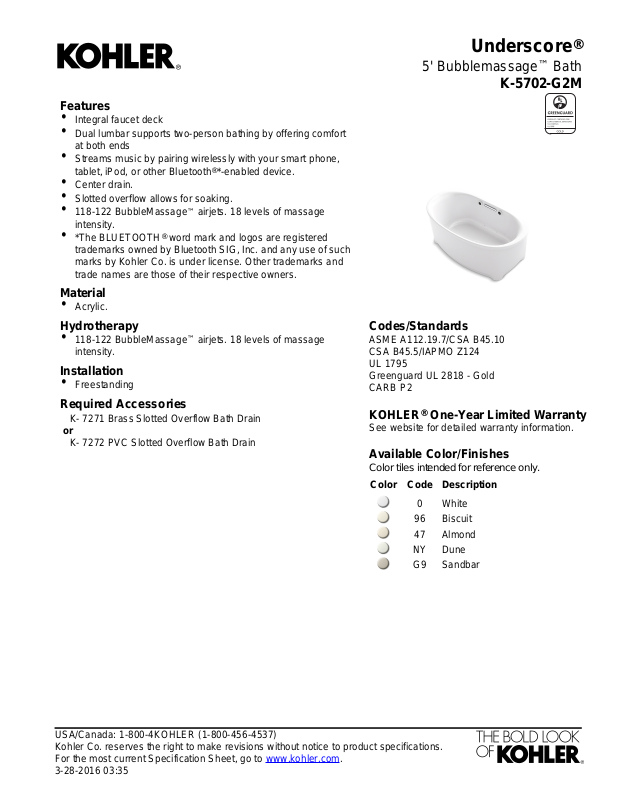

Kohler K-5702-G2M User Manual
Features
•
Integral faucet deck
•
Dual lumbar supports two-person bathing by offering comfort
at both ends
•
Streams music by pairing wirelessly with your smart phone,
tablet, iPod, or other Bluetooth®*-enabled device.
•
Center drain.
•
Slotted overflow allows for soaking.
•
118-122 BubbleMassage™ airjets. 18 levels of massage
intensity.
•
*The BLUETOOTH® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Kohler Co. is under license. Other trademarks and
trade names are those of their respective owners.
Material
•
Acrylic.
Underscore
®
5' Bubblemassage™ Bath
K-5702-G2M
Hydrotherapy
•
118-122 BubbleMassage™ airjets. 18 levels of massage
intensity.
Installation
•
Freestanding
Required Accessories
K- 7271 Brass Slotted Overflow Bath Drain
or
K- 7272 PVC Slotted Overflow Bath Drain
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
UL 1795
Greenguard UL 2818 - Gold
CARB P2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-28-2016 03:35
19"
Underscore
®
5' Bubblemassage™ Bath
K-5702-G2M
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzBlower, Amplifier:
Technical Information
All product dimensions are nominal.
FreestandingInstallation:
CenterDrain location:
43" x 25-5/8" (1093 mm x 651 mm)Basin area, bottom:
55-9/16" x 28-3/8" (1411 mm x 720 mm)Basin area, top:
94.5 lbs (42.9 kg)Weight:
Template:
Electrical component
rating:
45.4 lbs/ft² (221.7 kg/m²)Minimum floor load:
16-5/16" (415 mm)Water depth:
72.017 gal (272.6 L)Water capacity:
Footprint, 1265462, not required, not
included
Blower: 120 V, 3 A, 60 Hz, 300 W
Amplifier: 100-240 V, 1.2 A, 50/60 Hz
VariableBlower speed:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Included amplifer can be located within the bath
shroud or in a remote location (recommended).
For rough-in details, reference the amplifier
Specification Sheet for additional information.
Remote blower installation is required. Relocation
kit is included.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-28-2016 03:35
