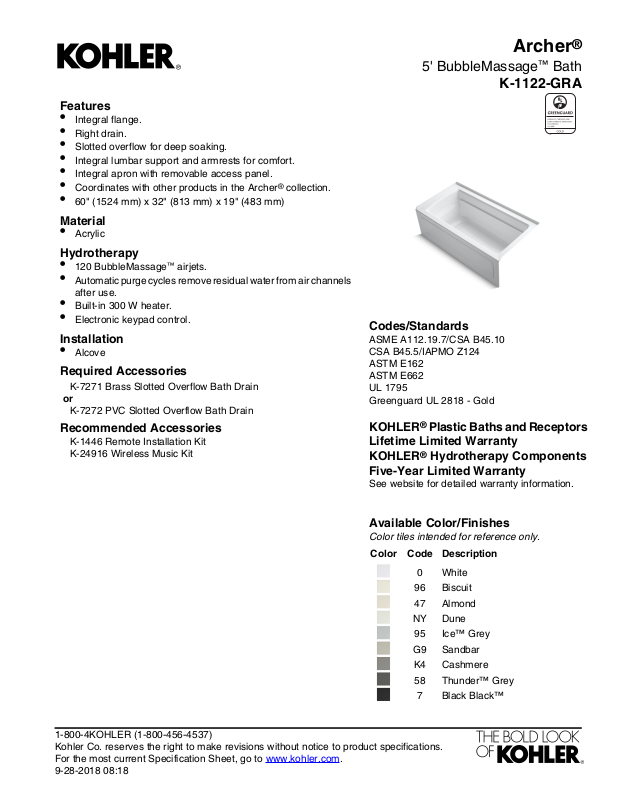

Kohler K1122GRA95, K1122GRA47 Specifications
Features
•
Integral flange.
•
Right drain.
•
Slotted overflow for deep soaking.
•
Integral lumbar support and armrests for comfort.
•
Integral apron with removable access panel.
•
Coordinates with other products in the Archer® collection.
•
60" (1524 mm) x 32" (813 mm) x 19" (483 mm)
Material
•
Acrylic
Hydrotherapy
•
120 BubbleMassage™ airjets.
•
Automatic purge cycles remove residual water from air channels
after use.
•
Built-in 300 W heater.
•
Electronic keypad control.
Installation
•
Alcove
Required Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Accessories
K-1446 Remote Installation Kit
K-24916 Wireless Music Kit
Archer
®
5' BubbleMassage™ Bath
K-1122-GRA
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
Greenguard UL 2818 - Gold
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
KOHLER® Hydrotherapy Components
Five-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-28-2018 08:18
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
CashmereK4
Thunder™ Grey58
Black Black™7
1-1/4"
Archer
®
5' BubbleMassage™ Bath
K-1122-GRA
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzBlower:
Technical Information
All product dimensions are nominal.
3-Wall AlcoveInstallation:
RightDrain location:
45-1/8" x 19-11/16" (1146 mm x 500 mm)Basin area, bottom:
52-3/4" x 25-5/16" (1340 mm x 643 mm)Basin area, top:
100 lbs (45.4 kg)Weight:
46 lbs/ft² (224.6 kg/m²)Minimum floor load:
15" (381 mm)Water depth:
58 gal (219.6 L)Water capacity:
Blower: 120 V, 10 A, 60 HzElectrical component
rating:
2-3/16" (56 mm)Minimum flat for door:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
Provide one grounded electrical outlet within 24"
(610 mm) of each component.
Remote blower installation kit is available for
relocating the blower. Provide access for servicing
the blower.
Do not relocate or alter the PVC tee or coiled
flexible tubing connected to the blower. Follow
the blower relocation instructions exactly.
