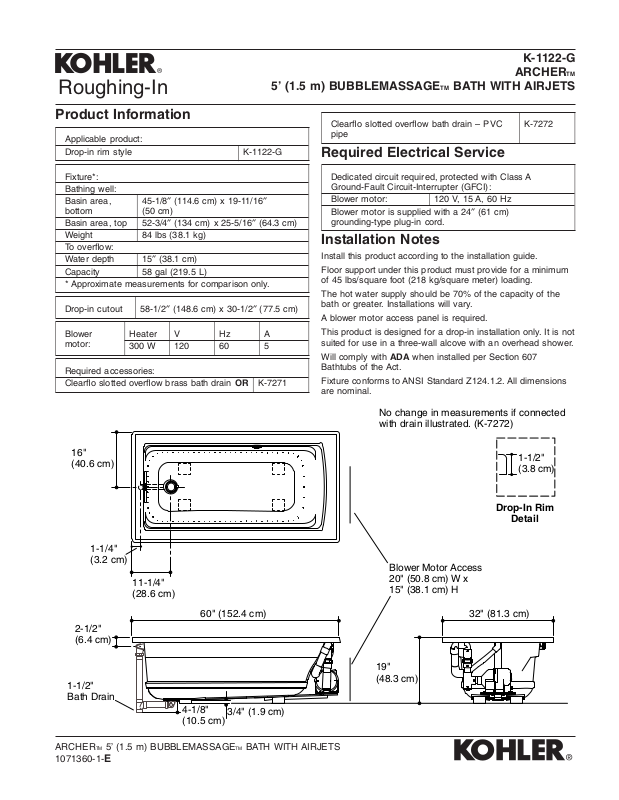

Kohler K1122G0 Specifications

Roughing-In

K-1122-G

ARCHER

TM

5’ (1.5 m) BUBBLEMASSAGETM BATH WITH AIRJETS

Product Information

Applicable product:
Drop-in rim style K-1122-G

Fixture*:
Bathing well:
Basin area,

bottom
Basin area, top 52-3/4″ (134 cm) x 25-5/16″ (64.3 cm)
Weight 84 lbs (38.1 kg)
To overflow:
Water depth 15″ (38.1 cm)
Capacity 58 gal (219.5 L)
* Approximate measurements for comparison only.

Drop-in cutout 58-1/2″ (148.6 cm) x 30-1/2″ (77.5 cm)

Blower
motor:

Required accessories:
Clearflo slotted overflow brass bath drain OR K-7271

45-1/8″ (114.6 cm) x 19-11/16″
(50 cm)

Heater V Hz A
300 W 120 60 5

Clearflo slotted overflow bath drain – PVC
pipe

K-7272

Required Electrical Service

Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI):

Blower motor: 120 V, 15 A, 60 Hz
Blower motor is supplied with a 24″ (61 cm)

grounding-type plug-in cord.

Installation Notes

Install this product according to the installation guide.

Floor support under this product must provide for a minimum
of 45 lbs/square foot (218 kg/square meter) loading.

The hot water supply should be 70% of the capacity of the
bath or greater. Installations will vary.

A blower motor access panel is required.

This product is designed for a drop-in installation only. It is not
suited for use in a three-wall alcove with an overhead shower.

Will comply with ADA when installed per Section 607
Bathtubs of the Act.

Fixture conforms to ANSI Standard Z124.1.2. All dimensions
are nominal.

16"
(40.6 cm)

1-1/4"
(3.2 cm)

2-1/2"
(6.4 cm)

1-1/2"
Bath Drain

11-1/4"
(28.6 cm)

60" (152.4 cm)

4-1/8"
(10.5 cm)

No change in measurements if connected
with drain illustrated. (K-7272)

1-1/2"
(3.8 cm)

Drop-In Rim

Detail

Blower Motor Access
20" (50.8 cm) W x
15" (38.1 cm) H

32" (81.3 cm)

19"
(48.3 cm)

3/4" (1.9 cm)

ARCHERTM 5’ (1.5 m) BUBBLEMASSAGETM BATH WITH AIRJETS
1071360-1-

E
