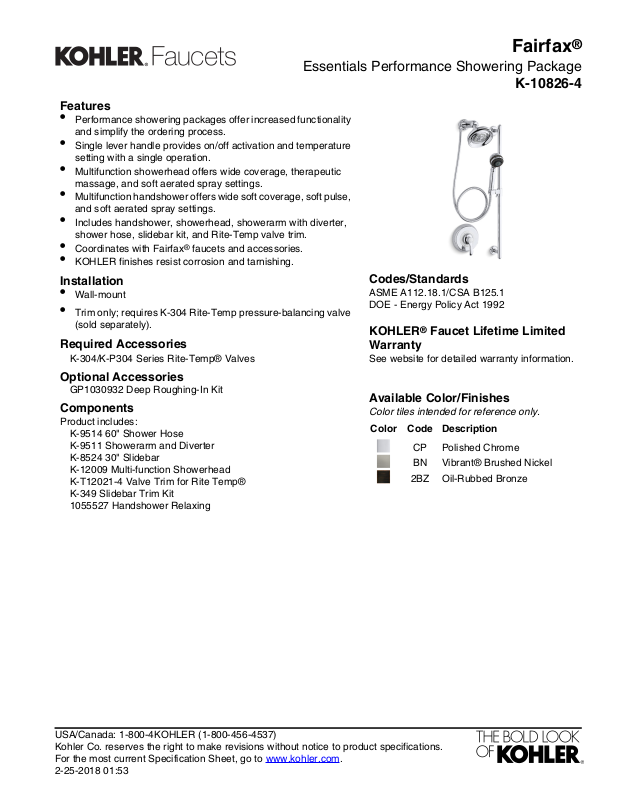

Kohler K108264CP Specifications

Essentials Performance Showering Package

Features

•

Performance showering packages offer increased functionality and simplify the ordering process.

•

Single lever handle provides on/off activation and temperature setting with a single operation.

•

Multifunction showerhead offers wide coverage, therapeutic massage, and soft aerated spray settings.

•

Multifunction handshower offers wide soft coverage, soft pulse, and soft aerated spray settings.

•

Includes handshower, showerhead, showerarm with diverter, shower hose, slidebar kit, and Rite-Temp valve trim.

•

Coordinates with Fairfax® faucets and accessories.

•

KOHLER finishes resist corrosion and tarnishing.

Fairfax

K-10826-4

Installation

•

Wall-mount

•

Trim only; requires K-304 Rite-Temp pressure-balancing valve (sold separately).

Required Accessories

K-304/K-P304 Series Rite-Temp® Valves

Optional Accessories

GP1030932 Deep Roughing-In Kit

Components

Product includes:

K-9514 60" Shower Hose K-9511 Showerarm and Diverter K-8524 30" Slidebar K-12009 Multi-function Showerhead K-T12021-4 Valve Trim for Rite Temp® K-349 Slidebar Trim Kit 1055527 Handshower Relaxing

Codes/Standards

ASME A112.18.1/CSA B125.1 DOE - Energy Policy Act 1992

KOHLER® Faucet Lifetime Limited Warranty

See website for detailed warranty information.

Available Color/Finishes

Color tiles intended for reference only.

DescriptionCodeColor

Polished ChromeCP

Vibrant® Brushed NickelBN

Oil-Rubbed Bronze2BZ

USA/Canada: 1-800-4KOHLER (1-800-456-4537) Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com. 2-25-2018 01:53

Ø 6-1/2"

Fairfax

Essentials Performance Showering Package

K-10826-4

Technical Information

All product dimensions are nominal.

Handshower:

2.5 gal/min (9.5 l/min)Rated maximum flow: 80 psi (5.5 bar)Pressure:

Showerhead/Body Spray:

2.5 gal/min (9.5 l/min)Rated maximum flow: 80 psi (5.5 bar)Pressure:

Notes

Install this product according to the installation guide.

Install the Rite-Temp® valve according to the valve installation guide.
