Indigo Quadrant
Enclosure
with integrated
CFI230G
Mira Magna Shower System
(646)
Slide Rail
4
3
2
1
Fixed Head
4
3
2
1
Kohler Daryl Limited
Alfred Road, Wallasey, Wirral, CH44 7HY England
Tel 44 (0)151 606 5000 Fax 44 (0)151 638 0303
www.daryl-showers.co.uk
E-mail Daryl@daryl-showers.co.uk
Fitting Instructions
CUSTOMER SERVICE
Kohler Daryl and Kohler Mira
Daryl Showering have more than 38 years experience of manufacturing and designing shower enclosures of
exceptional quality. For over 80 years, Mira Showers have had the same reputation for shower systems.
Your new showering product has been created by these two specialist organisations from within the same
leading world-wide bathroom company Kohler. They are both bound by the same values of delivering beauty,
quality, innovation, reliability and service.
We take the question of customer service seriously. Consequently, there is one initial point of contact – Daryl
Showering Technical Services (0151-606-5000). This team will ensure that the quality of support you require is
provided by specialists appropriate to that field; i.e. for matters relating to the shower enclosure, you will be
aided by Daryl Showering and for the shower system (including the Digital Mixer), your call will be supported by
Mira Showers personnel.
Your contact for all queries is Daryl Showering Customer Services (0151-606-5000)
Guarantees of quality
Daryl Showering and Mira Showers guarantee your product against any defect in materials or workmanship for
the period shown in the respective Guarantee Registration Documents. The Daryl Showering documentation can
be found in the Shower Enclosure box. The Mira Showers documentation can be found in the Integrated Mira
Magna Column box.
The Shower Enclosure is subject to the Daryl Showering Lifetime Guarantee and for the Shower System, the
Mira Showers 5-year guarantee applies.
Please refer to the Guarantee Registration Documents for full details of the terms and conditions of these
guarantees. If you require copies of these terms and conditions or any other details, please contact Daryl
Showering Technical Services on 0151-606-5000.
To validate the Guarantees, please return your completed registration document cards.
Before using your shower
Please take time to read and understand the operating and safety instructions detailed in this manual.
What to do if something goes wrong
If, when you first use your shower it does not function correctly, first contact your installer to check that
installation and commissioning are satisfactory and in accordance with the instructions in this manual. We are
on-hand to offer you or your installer any advice that may be required. Should this not resolve the difficulty,
simply contact the Daryl Showering Customer Services department which will provide assistance and if
necessary arrange for a service engineer to visit.
If, over time, the performance of your shower declines, consult this manual to see whether simple home
maintenance is required. Please call our Technical Services Department to talk the difficulty through, request
service under guarantees (if applicable) or take advantage of our after-sales service.
As part of our quality and training programme, calls may be recorded or monitored.
Daryl Showering Customer Services – Tel: 0151-606-5000
E-mail – daryl@daryl-showers.co.uk
CFI230G
27
The Daryl Care Programme
Indigo Quadrant
Keeping your enclosure beautiful throughout its lifetime is easy with
products from the Daryl care programme
Using state of the art bespoke machinery combined with the
latest technology, all Daryl doors and panels are coated with
a glass protector in highly controlled factory conditions.
The protector acts as an invisible barrier on the glass to
prevent build up of limescale, soap scum, stains and dirt.
The factory applied protector will last from months to years
depending on use and the hardness of water in your area.
It will never crack, peel, discolour or build up. Coated
surfaces are kept clean simply by rinsing or wiping with a
damp cloth and regular use of Daryl Glass Cleaner.
There are two separate elements to caring for your Daryl
shower door, enclosure or bath screen.
1 Daryl Glass Cleaner for the regular cleaning of your
shower door, enclosure or screen
2 Daryl Care Kit comprising of Glass Treatment and
Glass Protector suitable for use where glass protector
has not already been applied or for topping up factory
coated protector
Daryl Glass Cleaner
For occasional cleaning of glass treated with Daryl Glass
Protector or for more regular maintenance of untreated
surfaces, we recommend using Daryl Glass Cleaner. The
Cleaner cleans and polishes without smearing or streaking
and rejuvenates the Glass Protector.
Daryl Glass Treatment and Daryl Glass Protector
Available in one care kit, the Treatment and Protector are
used on new or existing shower installations where
Protector has not already been applied and for topping up
factory coated glass after a reasonable length of time. The
Treatment must always be used on existing shower
installations to prepare for the Protector. The Treatment is a
cleaning material that is applied to the glass to ensure it is in
the cleanest condition possible prior to application of the
Protector. If this process is not undertaken, there is the
likelihood of locking in dust, dirt and stains under the
Protector.
Daryl Protector acts as an invisible barrier on the glass to
prevent the build up of lime scale, soap scum, stains and
dirt. Applied like a polish, one application will last from
months to years depending on use and the hardness of
water in your area. It will never crack, peel, discolour or build
up. Coated surfaces are kept clean simply by rinsing or
wiping with a damp cloth and regular use of Daryl Glass
Cleaner.
Regular cleaning
• Mildew thrives in damp, unventilated areas. It is, therefore,
important to always wipe down, with a soft cloth or towel,
the glass and metal sections inside the shower every time
it is used
• Do not allow water to remain on glass and metal sections
for long periods of time
• Every week or two, use Daryl Glass Cleaner to polish the
enclosure (including metal sections) ensuring all surfaces
are wiped down
• In hard water areas, do not allow lime scale to build up.
Stubborn deposits of lime scale can usually be removed
by using a 50:50 solution of vinegar and water, which
should be rinsed off thoroughly and dried after use
• Regular cleaning is required to remove the small
amounts of residue that are not repelled by the Protector
Everyday Care
Wipe down the glass and metal sections with a soft cloth or
towel and warm water after each time the shower is used.
Do not allow water to remain on glass and metal sections
for long periods, do not allow the build up of lime scale and
do not use caustic cleaners or abrasives.
Daryl showers trays
If you have a Daryl shower tray scuffs and marks on acrylic
trays can often be removed by the light use of a mildly
abrasive cleaner applied with a damp cloth and polished off.
Other cleaning materials
Ensure that if you use a non-Daryl cleaning product, it has a
pH level between 4 & 8 and is non-abrasive. Prolonged use
of cleaners with a pH level outside the specified range can
cause damage to metal sections and possibly affect the
safe operation of your Daryl Shower. All cleaning material
(including Daryl’s) must be wiped down after application.
Do not use ‘spray and leave’ cleaning products on the metal
surface as these may cause damage to your door or
enclosure.
Enclosure
with integrated
Mira Magna Shower System
Contents
Page 3 Introduction
Page 3 Safety Precautions
Page 4 Components
Page 6 Enclosure Installation
Page 19 Commissioning
Page 21 Operation
Page 24 Troubleshooting
Page 25 Cleaning
Page 26 The Daryl Care Programme
Page 27 Customer Service
Introduction
The following pages aim to provide comprehensive installation instructions, plus
advice on how to care and maintain your product.
We recommend that the unit is installed by a qualified Plumber or Engineer.
Please retain this document for future reference.
Note: Due to our desire to always improve our products, Kohler Daryl reserve the
right to change specification without prior notice
Safety Precautions
Wear protective
footwear when
lifting panels
Glass panels should be handled with care and protective packaging along glass
edges should be kept in place for as long as possible to prevent damage before
installation
People not familiar with the fitting of Daryl Products may require
the assistance from another person at certain stages of the
procedure. We have indicated these points in the process with
the Caution Symbol.
Wear Safety
glasses when
drilling
26
CFI230G
Caution
CFI230G
3
Lintel
COMPONENTS
Standard Top Caps
CLEANING
The unit should be cleaned regularly.
LH
Side Panel
Cap
x2
RH
Door
Use a non abrasive cleaner (ideally with a pH value of 4 to 8)
applied with a soft cloth.
Parking
Block
Under no circumstances should scourers or powerful
detegents be used as these can damage the metallic
surface of the frame and also tarnish the glass coating.
Nylon Grub
Screw
x2

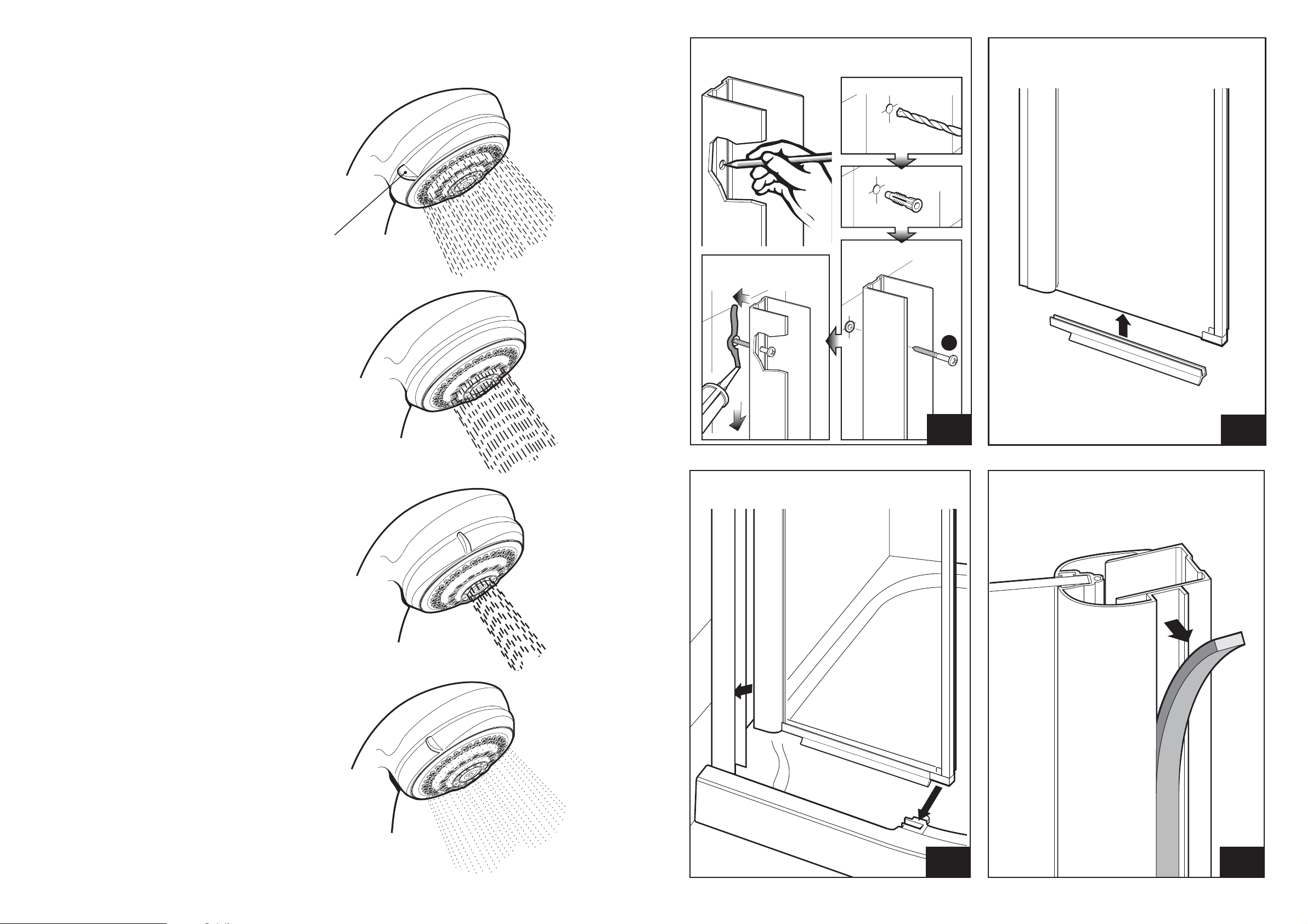

To avoid limescale, use your thumb or a soft cloth
to wipe any limescale from the soft rubber nozzles
and the front face of the showerhead.
CFI230G
4
Splashguard
Fixed Roller
Cap
CFI230G
25
TROUBLESHOOTING
COMPONENTS
The information below gives details on what you can do as a user should you encounter difficulties whilst
operating the shower.
If there is a problem with the shower control some of the push buttons will flash very fast.
Malfunction Cause Remedy
Push buttons are
flashing on the shower
control and / or the
shower will not operate
Water supply isolated
Damaged or broken cable
connection
Electrical supply isolated
or fuse blown
Digital Mixer Valve
breakdown
Check water supply
Check cable connections
Check electrical supply
Isolate product and turn
back on after 30 seconds
If the problem still
persists note the
sequence of the flashing
push buttons and
contact Customer
Services
Roller Securing Caps
Fixed Head
Water Delivery
System
OR
Slider Rail
Water Delivery
System
Water Delivery
Top Caps
LH
RH
Water Delivery Wall
Jamb & Wall Channel
Glass Panel
Aligning
Roller
Blanking
Cap
No flow or low flow rate
from the Shower Fittings
Drip from spray plate
assembly on handset
Incorrect shower
temperature
Spray plate assembly
blocked
Hose blocked or twisted
A small amount of water
may be retained in the
shower fitting after the
shower control has been
turned off. This may drain
over a few minutes
Digital Mixer Valve
malfunction
Maximum temperature
incorrectly set
Refer to Cleaning
Clear blockage or
release twist in hose
This is quite normal.
Changing the angle of
the shower fitting may
vary the draining time
Solenoid fault. May
require cleaning or
replacement. Contact
Customer Services
Refer to Commissioning,
Maximum temperature
setting
NOTE:
The Water Delivery
System is supplied
attached to the Wall
Jamb & Wall Channel
Splashguard
5mm
A
x13
Door
Stop Vinyl
3mm
x5
B
x3
C
x13
24
CFI230G
Digital Mixer incorrectly
fitted
Make sure that the hot
and cold water supplies
are connected correctly
2m Pipe and
Connector
Electrical
Cable
6mm
3mm
CFI230G
5

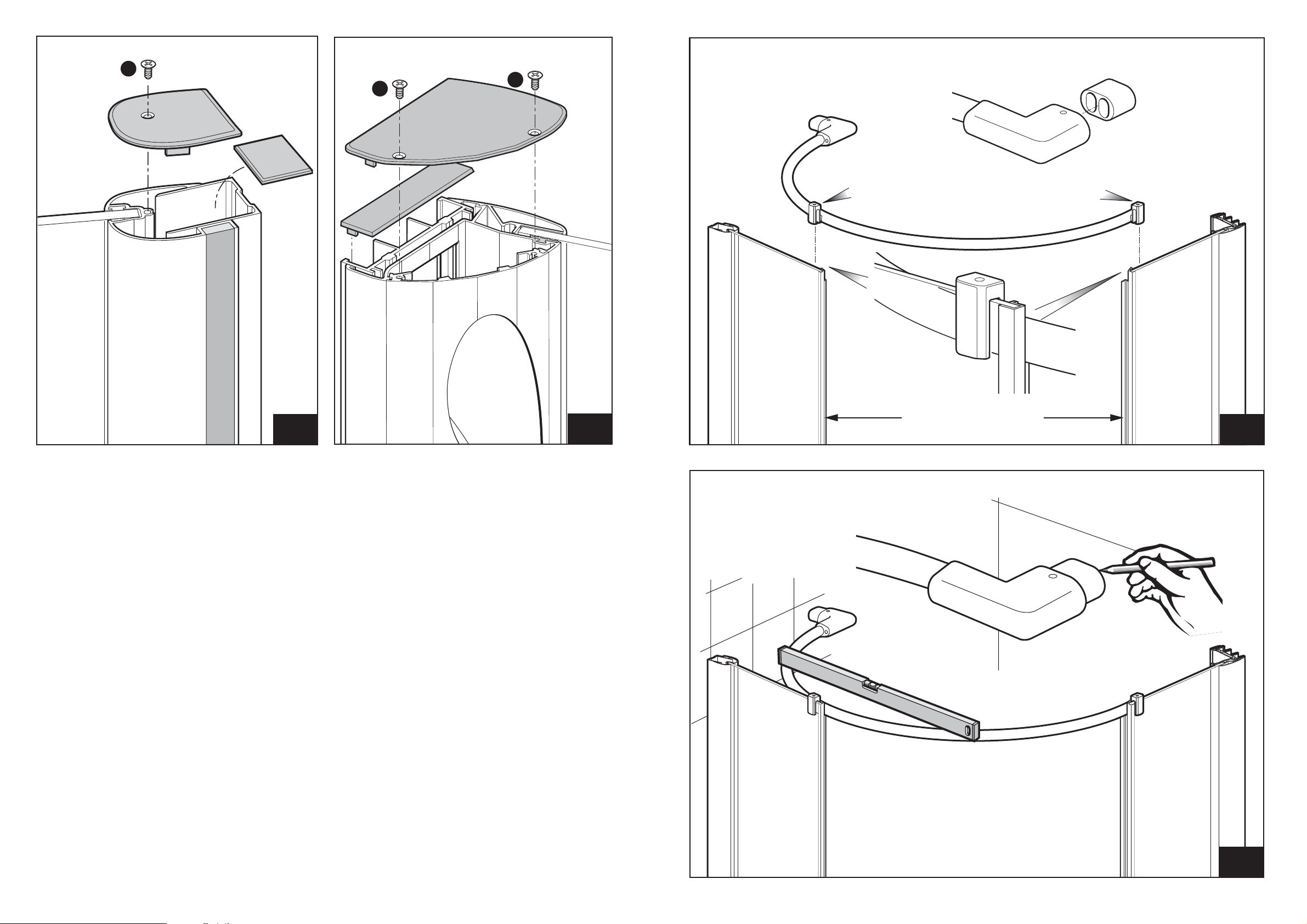

ENCLOSURE INSTALLATION
Non Water Delivery Side only
Loosely fit wall channel into glass panel jamb
STEP
1
Carefully lift the assembly onto the tray. The end
of the glass panel fits into slot ‘A’ on the tray.
The wall channel end sits on the flat section of
the tray ‘B’
B
A
STEP
2
B
A

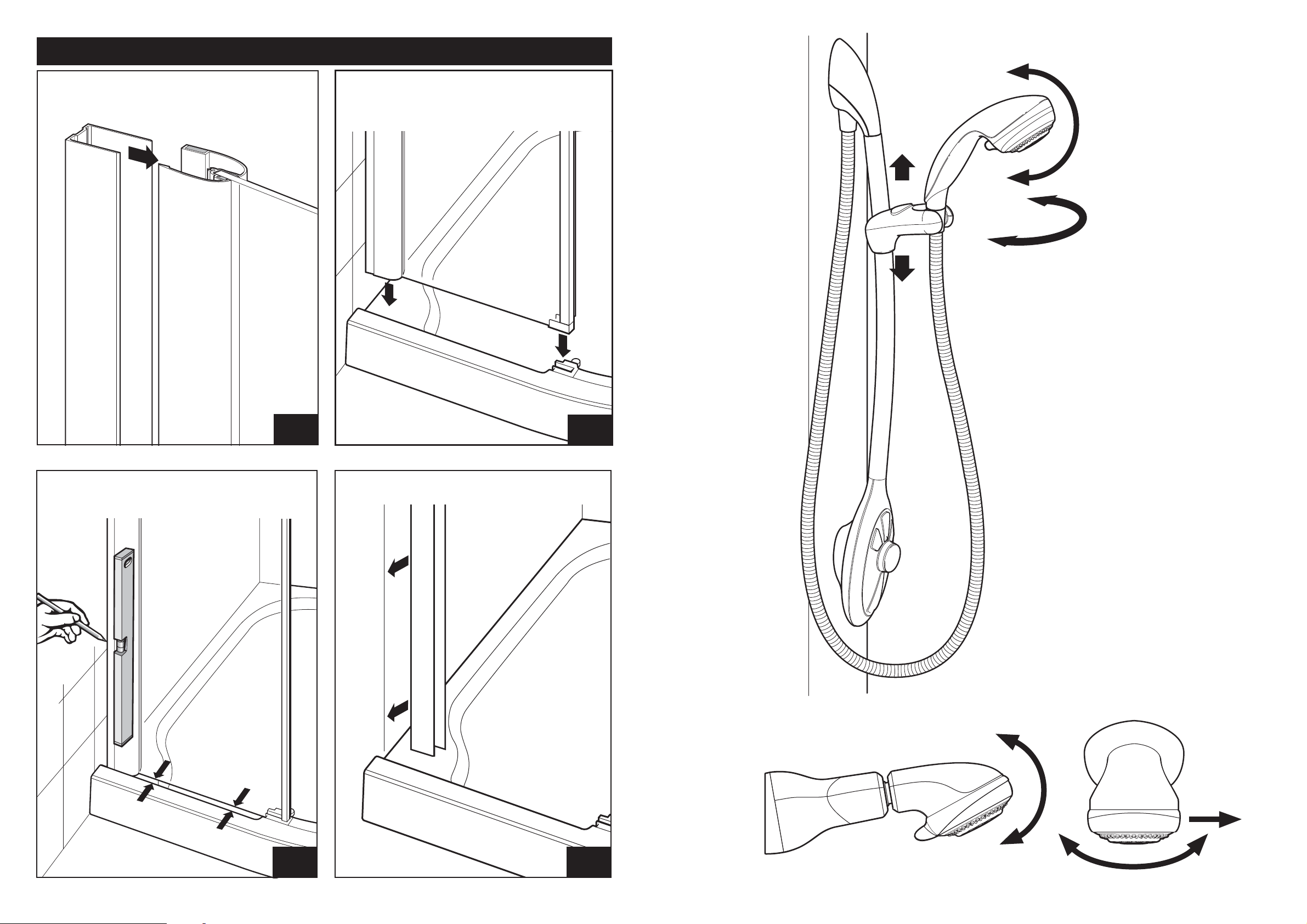

Handset Adjustment
To adjust the height of the handset press
the release button ‘A’ and slide the clamp
bracket assembly up or down to the
desired position.
The handset can be moved both vertically
and horizontally until the desired position
is reached ‘B’. A friction mechanism in the
clamp bracket will hold the handset in
place.
Adjust wall jamb until glass is parallel to the
edge of the tray ‘A’. When jamb is vertical mark
edge of wall channel on the wall ‘B’.
B
A
Remove wall channel from jamb and place
against mark on wall
4
3
2
1
Fixed Head Adjustment
Move the spray head to the required
position. The spray head is adjustable in
both the horizontal and vertical
directions.
CFI230G
6
STEP
3
STEP
4
CFI230G
23
Spray Settings
The handset has three different spray actions: Start, Soothe and Massage and an Eco setting. To adjust the
spray setting turn the spray plate as follows:
1. Start - Water flows from the outer set of holes.
To select the Start setting, turn the spray plate
anticlockwise from the full clockwise position
until it clicks once.
Spray Plate
Check the wall channel is vertical and mark
through the 3 holes ‘A’
Drill 3 x 6mm holes
A
Fit plugs
Loosely fit screws
Seal behind channel
and tighten screws
Fit the splash guard to the bottom of the panel.
Note: lip faces to the outside of Enclosure
and cutout is towards the wall end of the glass
2. Soothe - Water flows from the middle set of holes.
To select the Soothe setting, turn the spray plate
anticlockwise from the full clockwise position until it
clicks twice.
3. Massage - Water flows from the inner set of holes.
To select the Massage setting, turn the spray plate
anticlockwise from the full clockwise position until
it clicks three times.
STEP
Slide glass panel into slot in tray “A’ and fit
jamb into wall channel ‘B’
A
5
STEP
6
On the inside of the enclosure. pull the rubber
strip away from the wall jamb
4. Eco - Water flows from the outer set of holes at a
reduced flow rate.
To select the Economy setting, turn the spray
plate fully clockwise.
CFI230G
22
B
A
STEP
7
STEP
8
CFI230G
7
Ensure glass panel is vertical
Drill 4 x 3mm holes
through jamb into wall
channel
Check glass is vertical. If not
remove screws, re-drill and
re-fit as required.
Re-fit rubber strip over
screws
OPERATION
Low, Medium or High Flow Button - Buttons glow BLUE when pressed
Temperature
Control Knob
Fit 4 x screws
STEP
9
Carefully remove the Water Delivery System
from the Water Delivery Wall Jamb.
B
B
STEP
10
Slacken screws ‘A’. Push the glass panel into
the wall jamb. The glass should be 2mm lower
than the top of the wall jamb. Tighten screws ‘A’
when the glass is in the correct position
A
Warm Up/Off Button
- glows BLUE
when powered
STEP
11
Warm Up Function (Optional)
1. Press the Warm Up push-button.
2. The unit delays turning on to allow you to get out
of the shower.
3. The Warm Up push-button flashes for a number of
seconds until water comes out of the handset at the desired temperature.
4. When the water is at the desired temperature the unit turns off waiting for you to shower.
To Operate the Shower
1. Press the Low, Medium or High flow push-button.
2. Water will come out of the handset at the desired temperature.
3. To alter the showering temperature, turn the temperature control knob. Whilst the showering temperature
stabilises, the selected flow push-button will flash.
4. Press the Off push-button at the end of your shower.
CFI230G
8
STEP
12
STEP
13
Caution!
Anyone who may have difficulty understanding or operating the controls of any shower should be attended
whilst showering. Particular consideration should be given to:
• the young
• the elderly
• the infirm
• the disabled
• anyone who suffers from a medical condition that can result in temporary incapacity (e.g. epilepsy or
blackouts).
• anyone inexperienced in the correct operation of the controls.
CFI230G
21
The lock mode may be activated when the unit is OFF in which case the unit cannot be switched ON
unless the mode is cancelled as above.
Removing power from the unit also cancels the mode
4. Timeout
Note! Timeout allows you to run the shower for a set period of time before it automatically shuts off. This can
only be set when the unit has not been used for a period of 10 minutes.
4.1. Timeout Selection - Set the temperature control knob to the desired position, as per the table below.
Temperature Control Timeout (Minutes)
Knob Position
1 30
Carefully lift the assembly onto the tray. The end
of the glass panel fits into slot ‘A’ on the tray.
The wall channel end sits on the flat section of
the tray ‘B’
Adjust wall jamb until glass is parallel to the
edge of the tray ‘A’ and vertical at ‘B’.
B
2 30
3 3
4 4
5 5
6 6
7 7
8 8
9 9
4.2. Enabling - Press and momentarily hold the Warm Up and Low keys at the same time.The two keys will
flash twice and beep three times to confirm the selection is successful.
B
A
Take care not to
damage pipe and
cable protruding
from wall
Spot drill through 4 fixing holes in the
wall jamb and mark the wall. Only 4 of the
8 holes are using alternate sides ‘A’.
Carefully remove the panel from the tray
STEP
A
14
Drill 4 x 8mm holes
Carefully lift the panel
back into postion
A
STEP
15
Fit plugs
B
20
CFI230G
STEP
16
Loosely fit
4 x screws
A
A
Seal behind
the wall channel
and tighten
screws
STEP
17
CFI230G
9
Check the wall channel and jamb is vertical.
Loosen screws ‘A’ to adjust from side to side.
Re-tighten screws
A
The edge of the glass should fit against the end
of the slot in the tray ‘B’. To adjust the glass
loosen the 4 screws ‘C’ and move the panel until
it is the correct postion. Re-tighten screws
C
Check end of
glass is vertical
COMMISSIONING
1. General
1.1. Turn on the water supply to the Digital Mixer.
1.2. Check for leaks over the complete system.
1.3. Turn on the electrical supply to the Digital Mixer.
For the Pumped Version with the Slider Rail Shower System, pump priming can be helped by removing the
handset and lowering the end of the hose into the shower tray.
2. Set the Maximum Temperature
Note! The maximum temperature of the unit can only be set when the unit has not been used for a period of
10 minutes.
2.1. Temperature Selection - Set the temperature control knob to the desired position, as per the table
below.
Temperature Control Temperature Selection oC
Knob Position
1 Factory Set 45
STEP
18
If the any further adjustment is required to make
the glass panel vertical turn the 4 screws ‘D’
until the panel is in the correct position
B
STEP
19
Measure the distance of the glass between
the wall jamb and the tray ‘A’. Cut the
splashguard to size cutting at the wall jamb end.
Fit the splashguard to the bottom of the glass
A
2 39
3 40
4 42
5 43
6 44
7 45
7. 5 4 6
8 47
9 48
2.2. Enabling - Press and momentarily hold the Warm Up and High keys at the same time. Release the
push-button and reselect within 2 seconds. The two keys will flash twice and beep three times to
confirm the selection is successful.
10
CFI230G
D
STEP
20
STEP
21
3. Lock Mode
Note! Allows you to lock the unit during operation.
3.1. Selection - Press and momentarily hold the Warm Up and Medium keys at the same time. The two
keys will flash twice and beep three times to confirm the selection is successful.
3.2. Operation - This mode locks out all the keys except the Warm Up/Off key. It also locks the temperature
control knob. Once selected it is only possible to turn the unit OFF.
Selecting Warm Up/Off and Medium at the same time again, cancels the lock mode.
CFI230G
19
Fit top cap - Non Water delivery side
C
Fit top cap - Water delivery side
C
C
Loosely fit the parking block into the wall mount ‘A’. Lift the lintel onto the glass. The panel clamps
fit over the top edge of the glass and should be equally spaced on each panel
A
Note:
The lintel is supplied as a RH unit.
For LH versions loosen the panel clamps
and turn them through 180
o
STEP
46
STEP
47
Ensure glass panels
are parallel to each other
Check top rail is level. Draw around parking block
STEP
22
18
CFI230G
STEP
23
CFI230G
11
Remove the lintel from glass and remove the parking block
1. Match parking block
to mark on wall
2. Spot drill hole positions
3. Drill holes with 6mm drill
4. Plug holes
Fixed Head Water Delivery Only
Carefully lift the Water
Delivery System column
and place the bottom
into the jamb assembly
Be very careful not
to scratch or damage
the tray
Support the weight of the column. Plug the
electrical cable into the connector on the cable
from the Water Delivery System
Caution
5. Screw parking block to wall
A
Check the lintel is level.
If adjustment is required turn screw ‘A’
on the panel clamps to lift or lower the rail.
Note: If the lintel cannot be made level by
adjusting the clamps remove the grub screws
and fit the longer ones supplied in the parts pack.
6. Re-fit lintel to glass
and push wall mount
on to the parking block
B
7. Secure the lintel to
parking block by
tightening allen
screw ‘A’
A
STEP
24
A
STEP
42
Support the weight of the column. Connect
the water pipe to the connector from
at the top of the column.
STEP
43
Push top of column
into jamb assembly
until it locks in place
When the lintel is level tighten screw ‘B’ on
each panel clamp until it grips the glass.
IMPORTANT - DO NOT OVER TIGHTEN
Fit caps to lintel ‘C’
C
STEP
25
Caution
STEP
44
STEP
45
12
CFI230G
CFI230G
17
Fit the Suppression Ferrite close to
the Water Delivery connector
Note:
The Suppression Ferrite is packed with the
Digital Mixer
Place the cable in the
suppression ferrite. Wrap
the cable around the cover
and through the ferrite
again and then close the
cover until it snaps shut
Slider Rail Water Delivery Only
(See Step 42 for the Fixed Head Water Delivery)
Carefully lift the Water
Delivery System column
and place the bottom
into the jamb assembly
Be very careful not
to scratch or damage
the tray
Fit the fixed roller to the tray on the same side as
lintel wall fixing.
Note: The seal ‘A’ on the glass panel will need
to be pulled away, to allow the roller to be fitted,
and re-fitted afterwards.
Push the roller onto the slot in the tray until it
locks in place ensuring the plastic glass
guide is retained inside the roller body
A
Fit the blanking cover on the other side
of the tray.
Note: The seal ‘A’ on the glass panel will need
to be pulled away, to allow the cover to be fitted,
and re-fitted afterwards.
STEP
Support the weight of the column. Connect
the water pipe to the connector from
at the top of the column.
Plug the electrical cable into the connector
from the Water Delivery System at the top
of the column.
Caution
38
Push top of column
into jamb assembly
until it locks in place
STEP
39
STEP
Push the door stop vinyl into the track and
against the fixed roller
26
STEP
27
Carefully lift door into the enclosure
Important: Requires a minimum of 2 people
Caution
16
CFI230G
STEP
40
PROCEED TO
STEP 47
STEP
41
STEP
28
STEP
29
CFI230G
13
Loosen the screw fixing the bottom roller to
the glass with a 3mm allen key
Locate other side of glass door panel between
the roller and plastic glass guide
Caution
Fit door retainers to both top roller brackets.
Caps will ‘click’ and lock in place
Lift bottom roller up and tighten the fixing
screw with a 3mm allen key.
Fit the cap to cover the screw
STEP
30
Whilst supporting the weight of the door slide
the bottom roller into the bottom track
Caution
STEP
31
Lift the glass door up and slide the rollers onto
the lintel
Caution
Cut the 2 metre pipe
to size. Measure from
the centre line of the
connector.
Bottom Entry
‘A’ = 1750mm
Top Entry
‘A’ = 320mm
A
STEP
34
STEP
35
Connect pipework
Bottom Entry Top Entry
14
CFI230G
STEP
32
STEP
33
STEP
36
STEP
37
CFI230G
15
Loading...
