KOHLER BH93 Installation Manual

Installation Guide

Cleansing Seat

M product numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
M corresponden a México (e.j.
K-12345M)
Français, page “Français-1”
Español, pagina “Español-1”

1321454-2-A

Before You Begin

WARNING: Risk of electric shock, fire, or personal injury.

This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or
Residual Current Device (RCD).
WARNING: Risk of electric shock. Do not immerse or flush
the product with water.

IMPORTANT! Risk of product damage. Do not install this product
in a location exposed to excessive moisture where condensation
might form on the product surface.

IMPORTANT! Risk of product or property damage. Pushing or
pulling on the water supply connections may cause water leakage.

IMPORTANT! Risk of product damage. Do not supply electrical
power to the unit until the plumbing installation work has been
completed, as it may cause the product to malfunction.

Observe all local plumbing, electrical, and building codes.
Only connect the seat to a drinking quality cold water supply

with a pressure of 20 (139 kPa) - 80 psi (551 kPa).

CAUTION: Risk of property damage. Damaged water
connections may leak. Do not push or pull on the water
supply connections between the seat and the water supply
stop.

NOTICE: To avoid possible product malfunction, do not plug in the
seat until instructed.

NOTICE: Do not install this seat in a location where: (1) water
might be splashed on the product or (2) excessive moisture, high
humidity levels, or condensation are present. This will avoid
damage to the electronic components.

NOTICE: Do not use an extension cord with this product.

1321454-2-A 2 Kohler Co.

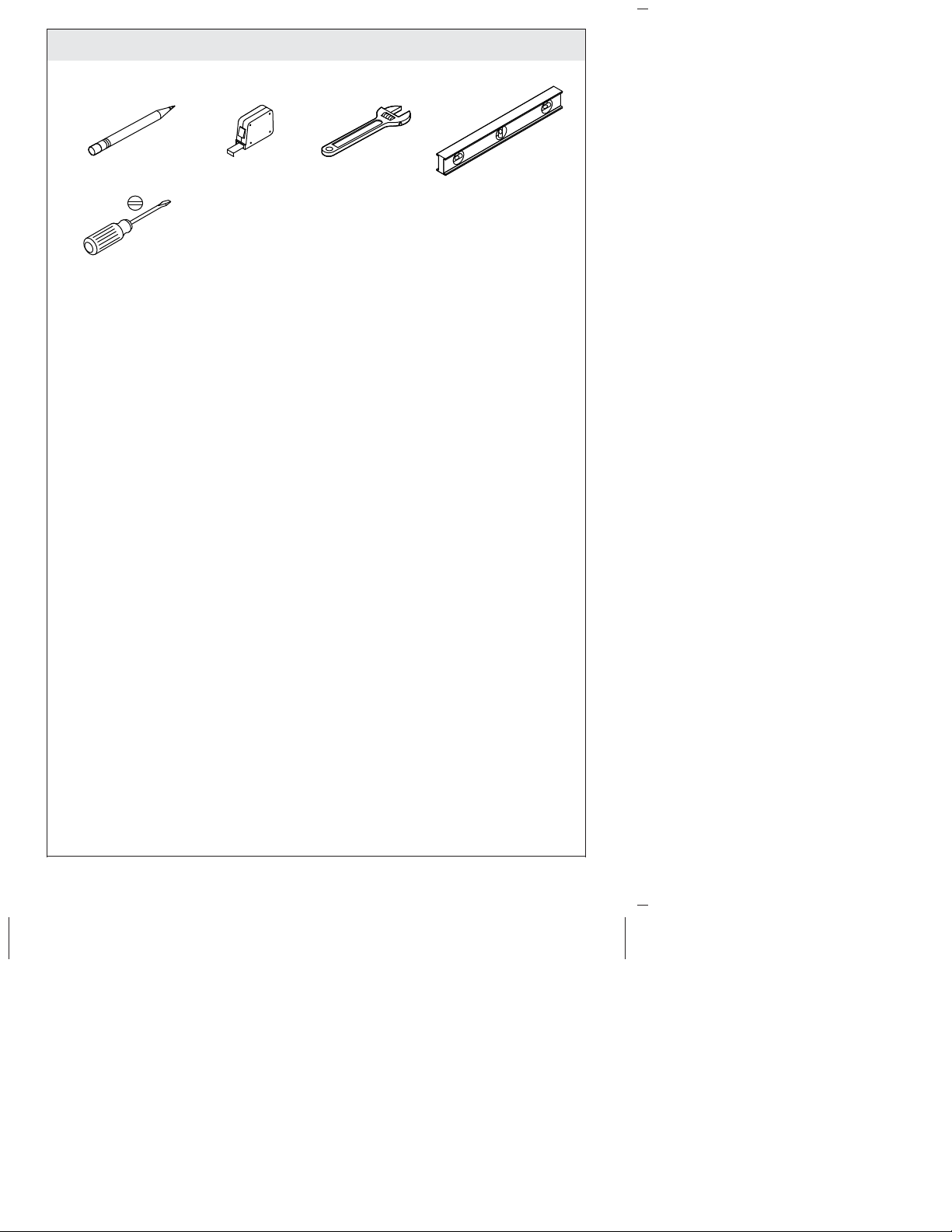

Tools and Materials

PLUS:

• Plastic Wrap

• Common plumbing and
woodworking tools and materials

Kohler Co. 3 1321454-2-A

38" (965 mm) - 66" (1676 mm)

36"
(914 mm)

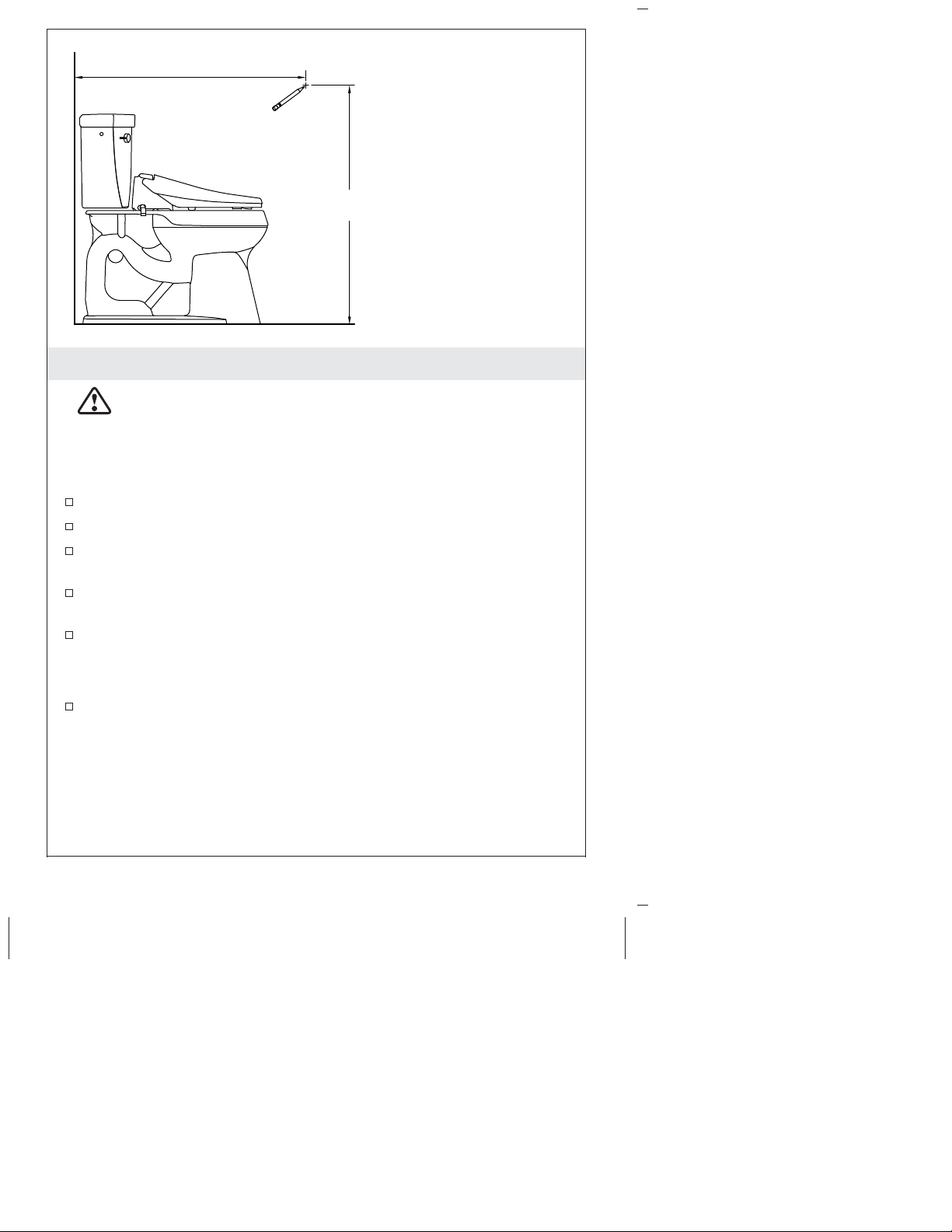

1. Prepare the Site

WARNING: Risk of electric shock, fire, or personal injury.

This product must be grounded and connected only to a
dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or

Residual Current Device (RCD).
If applicable, remove the existing toilet seat.
Turn off the water supply to the toilet.
Flush the toilet to relieve any pressure from the water supply

hose.
Disconnect the water supply hose from the toilet fill valve.
Use a pencil to mark the remote control installation location on

the wall.

Install an Electrical Outlet

Determine the electrical outlet location. Locate the electrical outlet
within 12″ (305 mm) of the toilet.

IMPORTANT! Do not plug the seat into the electrical outlet at this
time.

Install and ground the electrical outlet. This electrical outlet must
be a dedicated, nominal 120 VAC, 60 Hz circuit protected by a
minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or
Residual Current Device (RCD).

1321454-2-A 4 Kohler Co.

Adapter

Grounded
Outlet

Grounding
Plug

Temporary ConnectionPreferred Connection

Cover
Screw

2. Grounding Instructions

This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.

DANGER: Risk of electric shock. Improper use of the

grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not

connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or
without yellow stripes is the grounding wire.

Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt whether the product is properly grounded.

Grounding
Screw Tab

NOTICE: Follow local codes when determining the connection
type. The temporary connection may not be permitted by local
electrical codes.

NOTICE: To avoid possible product malfunction, do not plug in the
seat until instructed.

Preferred Connection

Connect the grounding plug into a grounded outlet that has the
same configuration as the plug.

Kohler Co. 5 1321454-2-A

Grounding Instructions (cont.)

Temporary Connection

NOTICE: Unless the outlet cover screw is grounded through the
house wiring, attaching the adapter grounding screw tab to the
cover screw will NOT ground the unit. If there is any doubt
whether the cover screw is grounded, have it checked by a qualified
electrician or service professional.

A temporary connection with a two-prong adapter may be used
where local codes permit, provided the adapter is grounded.

1321454-2-A 6 Kohler Co.

Bolt

Mounting Plate

Washer

Gasket

Flat
Washer

Nut

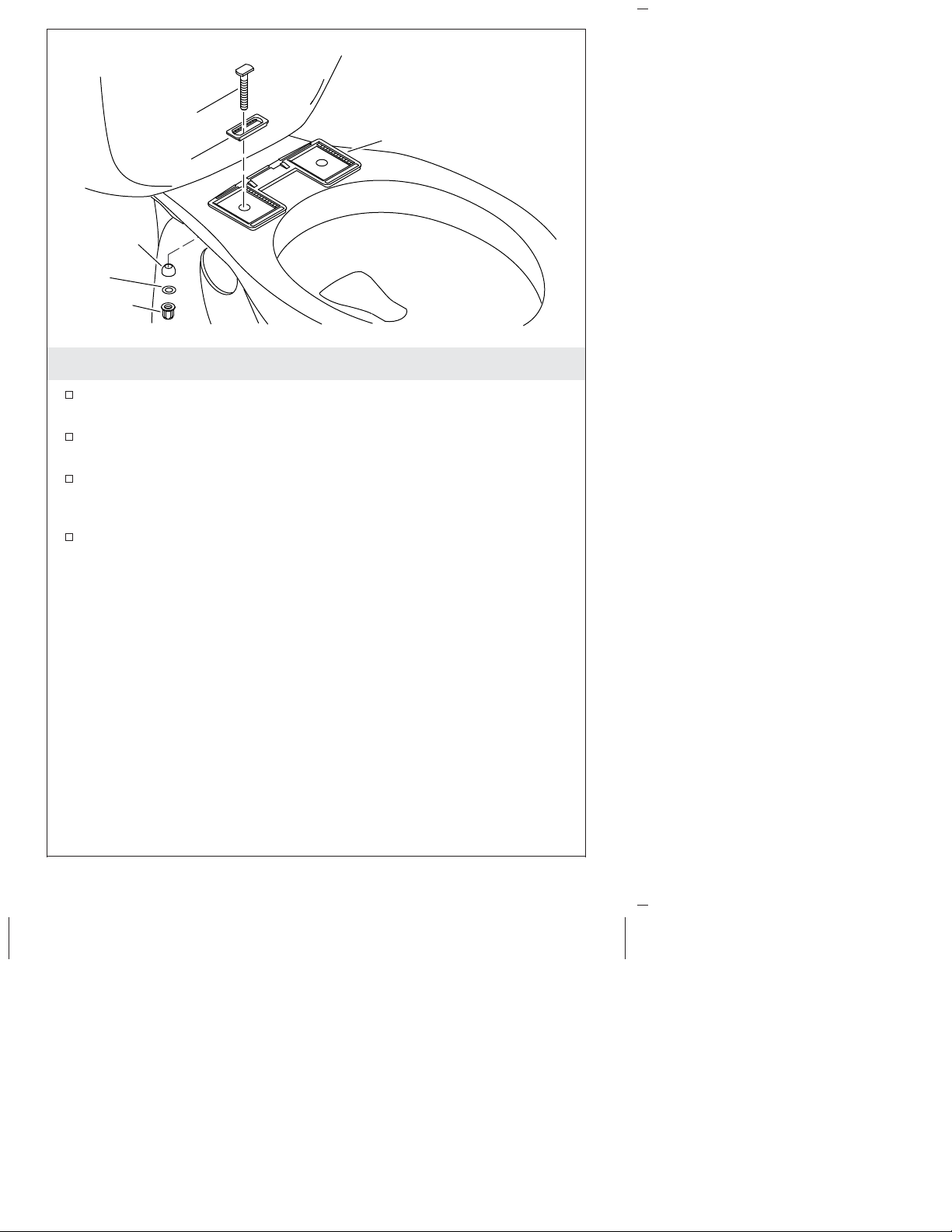

3. Install the Mounting Plate

Position the mounting plate over the mounting holes on the bowl.
Position the washers to rest in the mounting plate grooves.
For toilets with threaded mounting holes: Insert the bolts

through the washers and thread into the mounting holes. Do not
fully tighten at this time.

For all other installations: Insert the bolts through the washers
and into the mounting holes. Thread a nut, gasket, and flat
washer onto each bolt. Do not fully tighten at this time.

Kohler Co. 7 1321454-2-A

Mounting Plate

Release
Button

Hose

4. Install the Seat and Hose

Position the Seat

Slide the seat onto the mounting plate until you feel it snap into
place.

Check the positioning of the seat. Adjust the position if needed.

Adjust the Seat

Remove the seat by pressing in the release button and sliding the
seat forward.

Loosen the bolts, and disengage the washers from the mounting
plate.

Reposition the mounting plate as needed.
Reinstall the washers, and tighten the bolts to secure.

Install the Seat

Securely tighten the mounting plate bolts and nuts.
Slide the seat onto the mounting plate until you feel it snap into

place.

Install the Hose

IMPORTANT! Risk of product damage. Do not cross-thread the
hose-to-seat connection.

Connect the seat supply hose to the cleansing seat. Do not
overtighten.

1321454-2-A 8 Kohler Co.

Install the Seat and Hose (cont.)

Use the supplied clips to attach the power cord and seat supply
hose together.

Kohler Co. 9 1321454-2-A

Batteries

Remote Control

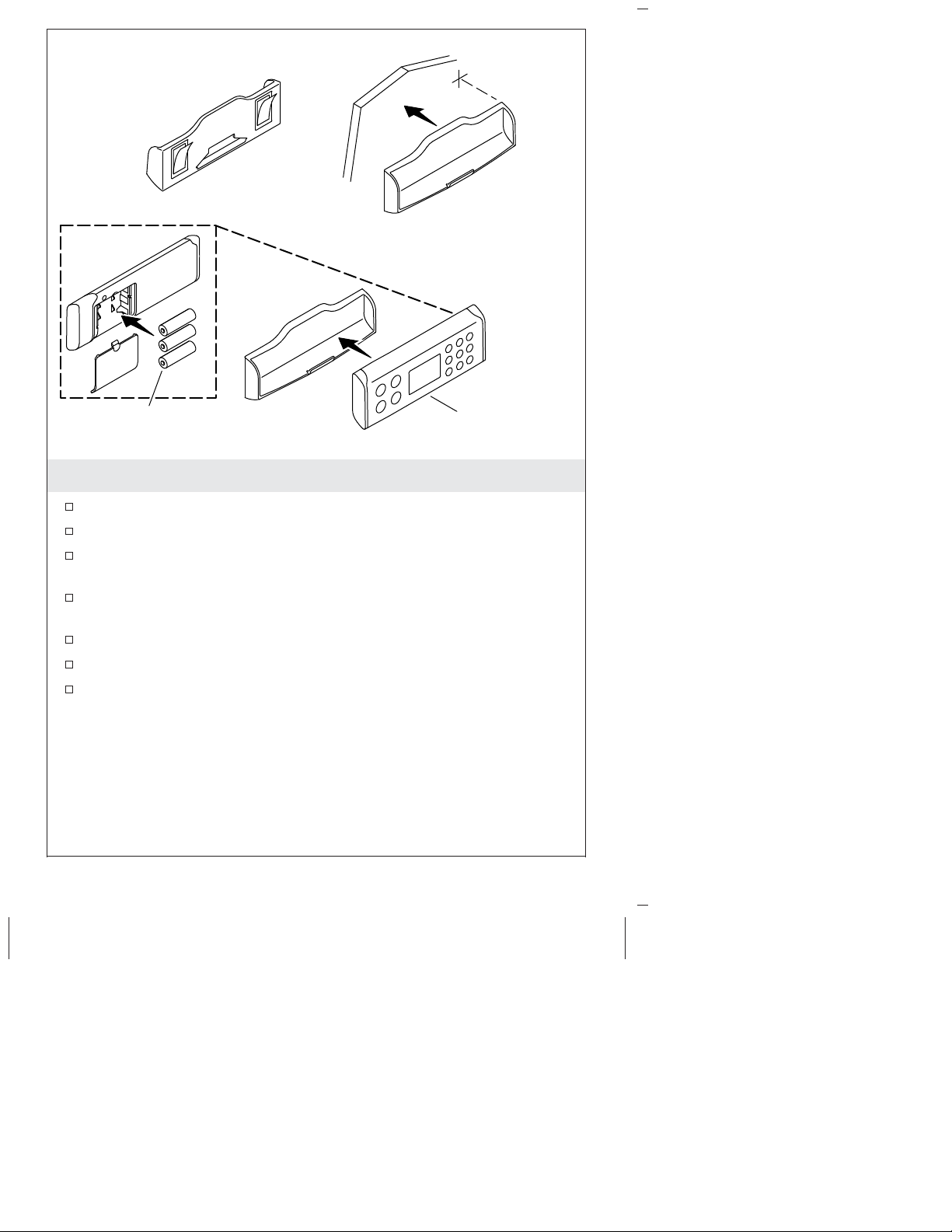

5. Install the Remote Control

Attach the double-sided tape to the back of the docking station.
Peel the backing from the double-sided tape.
Press the docking station onto the wall at the marked location,

making sure that the holder is level.
Open the battery compartment on the back of the remote control,

and install three AA batteries.
Close the battery compartment.
Position the remote control in the docking station.
Check for proper operation of the remote control while you sit on

the seat.

1321454-2-A 10 Kohler Co.

Gasket

T-Valve

Supply Hose

Supply Stop

Hose

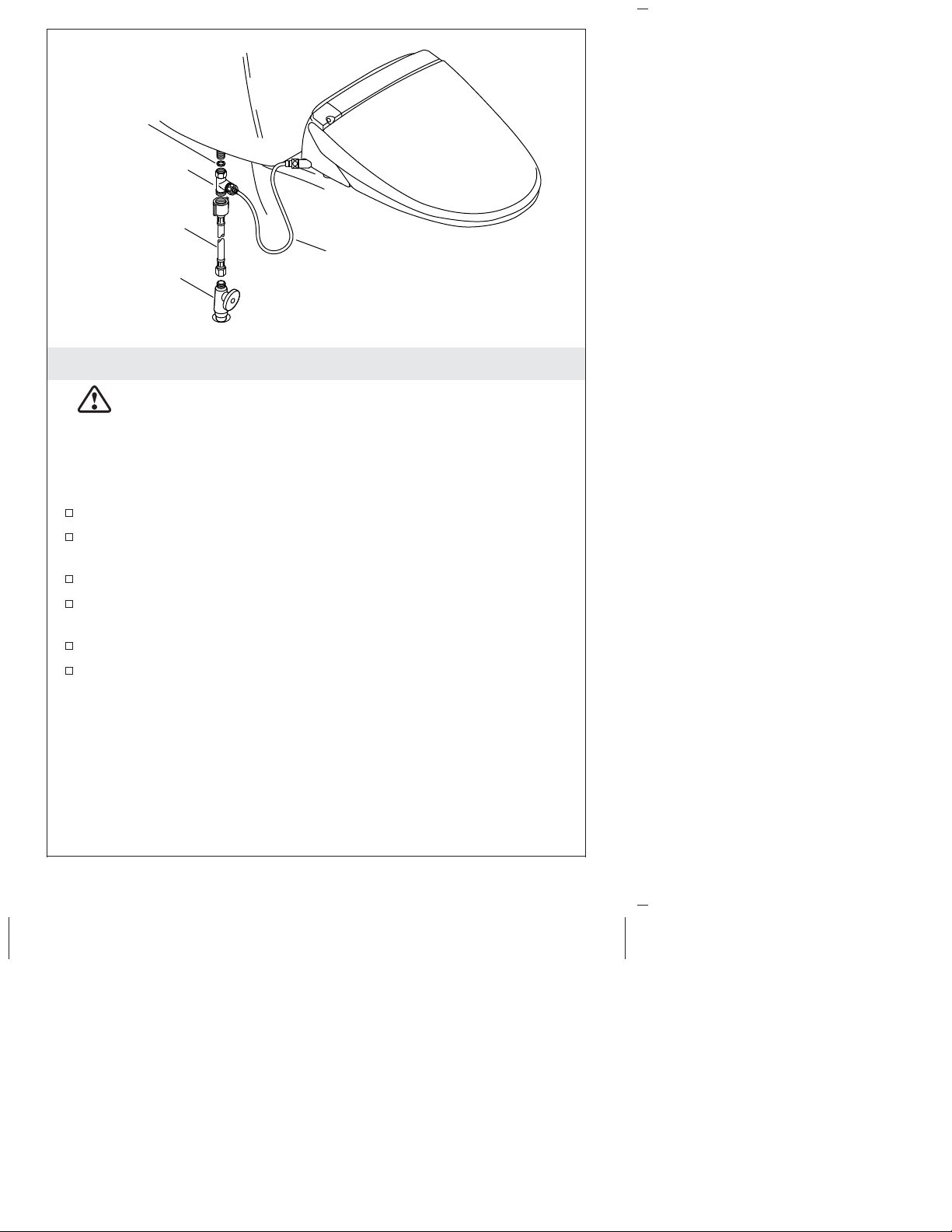

6. Connect the Water Supply

CAUTION: Risk of property damage. Do not push or pull

on the water connection between the seat and the water

supply stop. This will prevent water leakage.

NOTICE: Use care to avoid cross threading or overtightening the
connections. Use an adjustable wrench to tighten one-quarter turn
past hand tight.

Connect the T-valve to the seat hose.
If needed, connect the supply hose to the supply stop.
Connect the supply hose to the T-valve.
Connect the T-valve to the water inlet on the toilet tank.
Turn on the water supply.
Check all connections for leaks and make any adjustments as

needed.

Kohler Co. 11 1321454-2-A

Seat Sensor

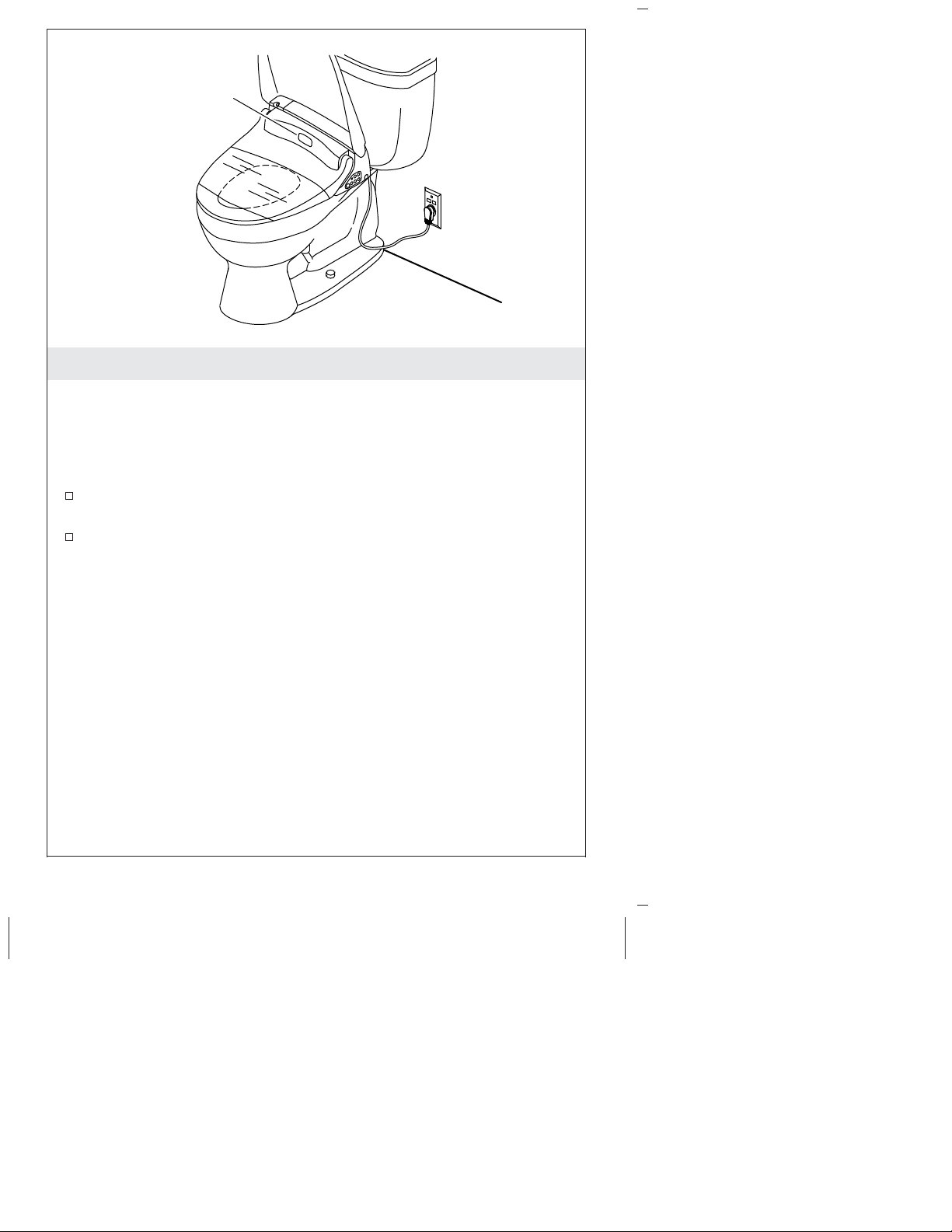

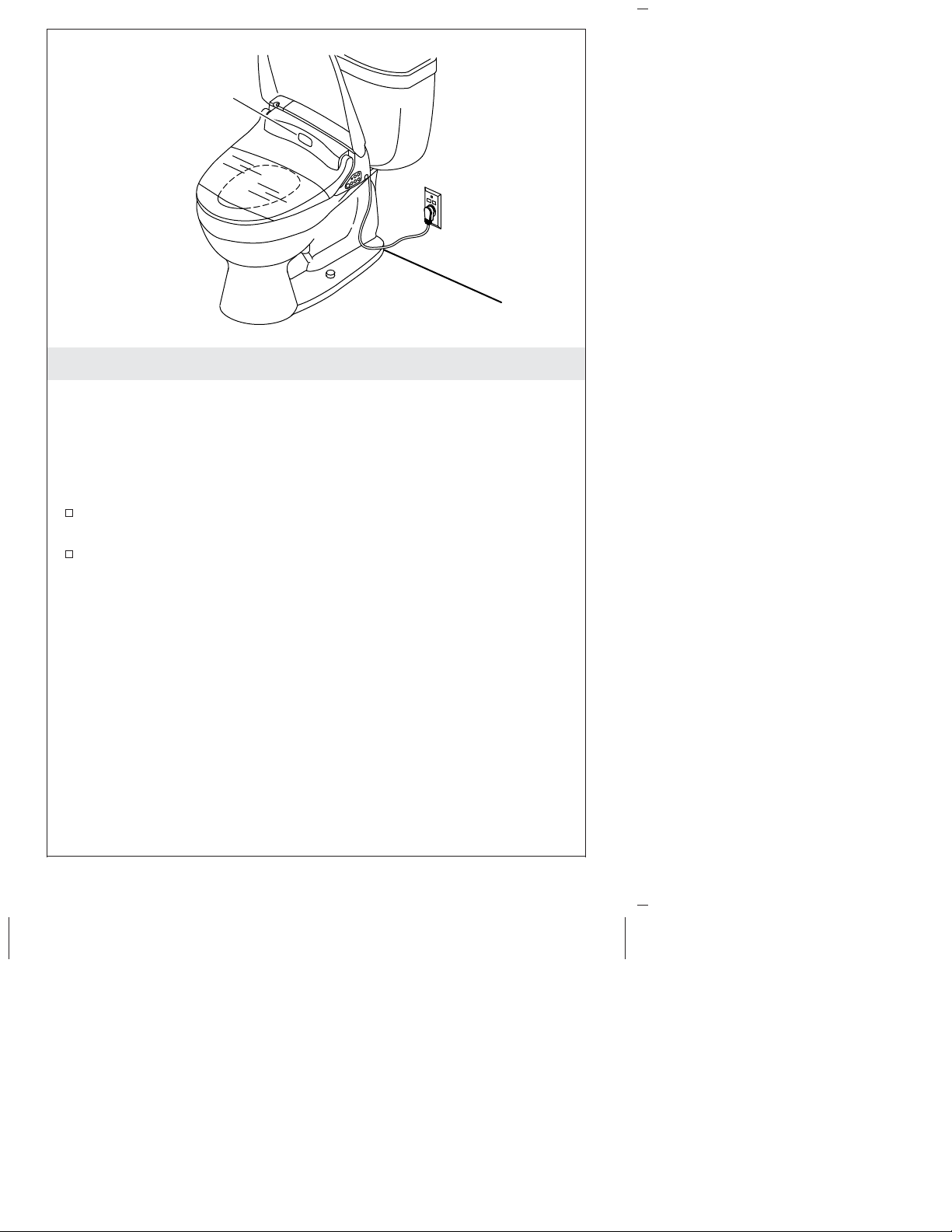

7. Installation Checkout

NOTE: Covering the seat with plastic wrap is optional. You can test
the features while sitting on the cleansing seat or covering the wand
with your hand.

NOTE: When testing the features, activate the sensor with your
hand or by sitting on the cleansing seat.

Plug the power cord into the electrical outlet. The seat will go
through a power-up sequence.

Refer to the Homeowners Guide to test the various seat features.

1321454-2-A 12 Kohler Co.
