Watertile Showerhead
Installation and User Guide
MODEL NUMBERS
8022A, 8023A
Important! Please quote the above model number(s) when ordering spares
IMPORTANT
INSTALLER: THIS MANUAL IS THE PROPERTY OF THE
CUSTOMER AND MUST BE RETAINED WITH THE PRODUCT
FOR MAINTENANCE AND OPERATIONAL PURPOSES.
1
1063864-AN2-E 17/02/12
2
1063864-AN2-E 17/02/12
BEFORE YOU BEGIN
All information is based on the latest product information available at the time
of publication. Kohler Co. reserves the right to make changes in product
characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer.
NOTES:
1. Flush the water supply pipes thoroughly to remove any debris.
2. An in line water filter must be used with this product.
3. Inspect the supply pipes for damage. Replace as necessary.
4. Observe local plumbing codes.
5. The recommended working pressure for the shower head is 150KPa to
500KPa. If the pressure exceeds 500KPa a pressure reducer is required.
6. Maximum water and environmental temperature for the shower head is
60C. Note: If a heater is present, make sure to keep it away from the shower
head as otherwise the environmental temperature may exceed 60C.
7. All installations should comply with the relevant requirements of AS/NZS
3500 and AS/NZS 6400.
DIMENSIONS
121
127
8033A
121
8022A
127
137
45°
95
121
10
6
SPECIFICATION
Pressures
For multiple outlets an operating pressure of 3.0 bar or greater is
recommended to ensure optimum performance.
(Hot) and Cold (C) inlets must be connected to the
Plumbing Connections
correct inlet supplies.
Building in Depth
Minimum building in depth is 79 mm. It is recommended that
a minimum stud wall cavity of 100 mm is provided to ease installation.
3
1063864-AN2-E 17/02/12
Elbow
Finished
Wall
Nipple
29 mm
41 mm Max.
Cutout
Ø 76 mm
G ½”
IONINSTALLAT
Before you Begin
1. Turn off the water supply.
2. Make sure that the Watertile showerhead is installed by a competent
installer.
3. Before installation carefully inspect the new fixture for any signs of damage.
4. Kohler Co. reserves the right to make revisions in the design of products without
notice.
Install the Pipe and Elbow
1. Install the water supply pipes.
2. Install the wall mount elbow to the end
of the water supply pipe at the shower
head installation location.
Note! The wall mount elbow, wall plugs
and fixing screws are not supplied with
the product. The installer should use an
appropriate wall fixing arrangement to
suit the wall type or surface.
3. Mark the position of the Wall Mount Elbow. For solid walls
drill the wall Mount Elbow holes with a 7mm diameter drill and
insert the wall plugs (Supplied). For other types of wall structure
alternative fixing may be required (Not supplied)
4. Fix the Wall Mount Elbow to a solid wall or to a frame mounting using the
fixing Screws supplied.
5. Finish the wall leaving a Ø76mm cutout.
6. Temporarily install the Elbow to the nipple. Do not use any sealant.
7. Make sure that the nipple extends 29mm from the finished wall.
If necessary cut the long leg of the nipple to the required length
8. Apply thread sealant to the long leg of the Nipple and install it into the Elbow
9. Run water through the system to flush out any dirt or debris.
4
1063864-AN2-E 17/02/12

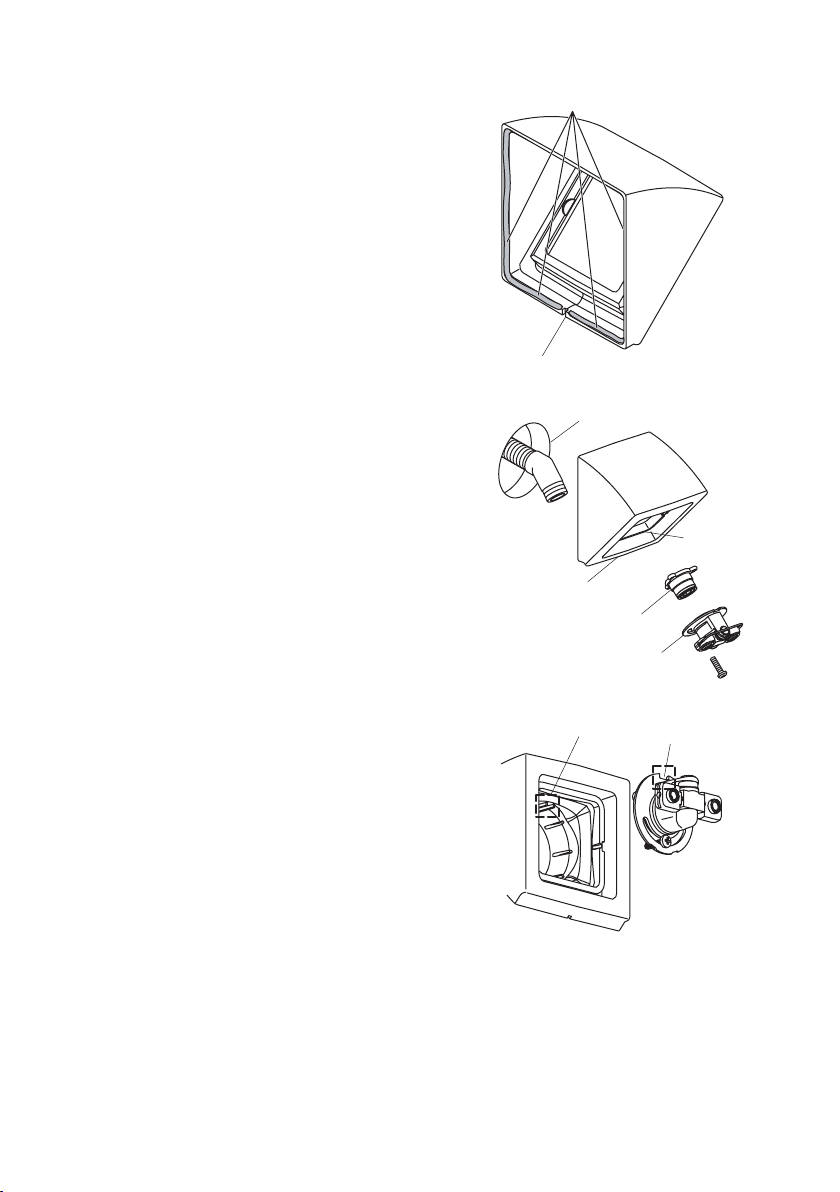

Install the Watertile Showerhead
Finished Wall
Housing
Waterway
Adaptor
Double Ribs
Slot
Apply Silicone Sealant
Weep Hole
Leak Shield
Prepare the Housing:
1. Position the housing so that the back of
the leak shield is facing you.
2. Apply a bead of silicone sealant in
the groove around the outside of the
housing. Do not apply silicone sealant
in or near the weep hole.
3. Allow the silicone sealant to cure.
Install the Components:
1. Position the housing with the sealant
side towards the finished wall and
the narrow end of the housing facing
down.
2. Position the so that the nipple is through
the centre and press firmly against the
finished wall.
3. Thread the adaptor onto the nipple.
Install the Waterway:
1. Press the waterway into place over the
adaptor.
2. Secure the waterway to the adaptor
with the screw provided. The waterway
will be secure once the housing is
completely seated against the wall and
does not turn or move.
5
1063864-AN2-E 17/02/12
Finish the Installation
Hex Screws
Waterway
Sprayhead
Groove
Ribs
Nozzle
Membrane
Finished Wall
Ribs
Sprayface
Setscrews
1. With the ribs of the sprayhead facing up,
attach the sprayhead to the waterway.
2. Using a 3/16” hexagonal key, secure
the sprayhead to the waterway with the
2 securing screws (supplied). Do not
overtighten.
3. Check the sprayhead for upward and
downward movement and that it sits
squarely within the housing.
4. Place the nozzle membrane over the
sprayhead
Note! For optimum performance make
sure that the membrane is applied
evenly.
5. Tilt the sprayhead downward so that
the ribs on top of the sprayhead are
exposed.
Attach the Sprayhead
6. Insert the grooves of the sprayface over
the ribs of the sprayhead.
7. Press the sprayface down to cover the
sprayhead, as illustrated.
8. Tilt the sprayhead upwards to expose
the setscrew holes on the bottom of the
sprayhead.
Important! The setscrews must be flush
with the edge of the sprayface frame. If
the setscrews protrude outside of the
sprayface frame product damage will
occur.
9. Using a 7/64” hexagonal key, turn the
setscrews anti-clockwise
flush with the edge of the sprayface
frame.
until they are
Attach the Sprayface
6
1063864-AN2-E 17/02/12
1056030
Elbow
SPARE PARTS
1079599
Grommet
1036043
Shield
1045773
Base (includes
clamps)
1043560**
Housing
1045769
Sprayhead
1048768
Sprayhead
1036044
Clamp
1041575
Nozzle
1055233
Adapter
1036044
Clamp
1039746
Nozzle
1036041**
Spray Face
1041573**
Spray Face
** Finish/colour code must be specified when ordering.
7
1063864-AN2-E 17/02/12
CARE AND CLEANING
Like anything of lasting quality, Kohler tapware and fittings require a certain amount of
periodic care to preserve their lustrous finish. Clean your new Kohler tapware and fittings
with a mild soap, rinse thoroughly with warm water and dry with a clean, soft cloth.
The ideal cleaning technique is to always blot dry any water from metal surfaces.
Allowing water to evaporate on metal will form water deposits. It is important to use a
dabbing action to dry metal, not an abrasive or rubbing action.
Never use cleaners containing abrasive cleansers, ammonia, bleach, acids, or chemicals
that can damage the finish. By taking the time to dry your tapware often, soap and water
deposits can be prevented.
Failure to comply with these cleaning instructions may void Kohler’s warranty obligations.
