Kodak F350 User Manual

Kodak

Camera Identification

F350 AutoCamera

Unfold front and back cover flaps of manual to view camera diagrams.

Consumer Imaging

EASTMAN KODAK COMPANY

Rochester, NY 14650

[Photo goes here]

ENGLISH/ESPAÑOL/FRANÇAIS

Unfold front and back cover flaps of manual to view camera diagrams.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: Your model camera has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits provide reasonable protection against interference in residential use. The camera generates, uses and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause interference to radio communications. There is no guarantee that interference will not occur. If this camera does cause interference to radio or television reception, which can be determined by turning the camera off and on, you may reduce the interference by the following: — Reorient or relocate the receiving antenna. — Increase the separation between the camera and the receiver. — Consult the dealer or an experienced radio/television technician for help. Changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

LCD Panel

KODAK ADV ANTIX

F350 Auto Camera

NEED HELP WITH YOUR CAMERA OR MORE INFORMA TION ABOUT THE ADV ANCED PHOTO SYSTEM?

Go to our Web site at http://www.kodak.com (for US) or http: www.kodak.ca (for Canada) or call: Kodak (US only) from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday through Friday at 1-800-242-2424.

Kodak (Canada only) from 8:00 a.m. to 5:00 p.m. (Eastern time) Monday through Friday at 1-800-465-6325, ext. 36100; for the Toronto area, call 416-766-8233, ext. 36100. When you call,

please have your camera available. For warranty purposes, please keep your sales receipt as proof

of the date of purchase.

ENGLISH

CAMERA FEA TURES

Triple format selection

• You can take three different size pictures: Classic (C), Group/ HDTV (H), and Panoramic (P) pictures from the same film cassette. The masking inside the viewfinder changes to match each format selection.

Double exposure protection (DEP)

• You don’t need to worry about accidentally re-exposing your film. Your camera reads the Film Status Indicator (FSI) on the film cassette to prevent double exposures.

Pop-up flash

• The extension of the flash helps to reduce red eyes in flash pictures and hand obstruction in front of the picture-taking lens.

Flash-recycle time

• Long life and quick flash recharge times with lithium battery.

Easy, drop-in loading

• Easy, drop-in loading is fast and virtually error-free. The camera uses KODAK ADVANTIX Film. The film cassette communicates the status of film and becomes the carrier and storage container for the processed film.

Look for this logo to be certain that the film you buy is made for this camera.

Look for this logo to select a certified photofinisher for developing your film and to assure that you get all the features of the Advanced Photo System.

Film Status Indicator (FSI)

• A highlighted indicator advances from one symbol to another to identify the status of the film inside the cassette.

PROCESSED NEGATIVES

UNEXPOSED PARTIALL Y

EXPOSED FULLY

EXPOSED

CONTENTS

CAMERA IDENTIFICA TION ....................5

ATTACHING THE STRAP ....................... 6

LOADING THE BATTERY ....................... 6

Low-battery indicator ........................ 7

Battery tips ...................................... 7

Power shutdown .............................. 8

LOADING THE FILM .............................. 9

TAKING PICTURES ............................. 10

Typical print sizes (formats) ........... 12

Tips for better pictures ................... 13

TAKING FLASH PICTURES ................. 14

Flash-to-subject distance ............... 15

USING THE SELF-TIMER .................... 15

UNLOADING THE FILM ........................ 16

Automat ic rew ind ........................... 16

Manual rewind ............................... 17

CARING FOR YOUR CAMERA ............. 18

TROUBLESHOOTING ........................... 19

SPECIFICATIONS................................ 21

CAMERA IDENTIFICA TION

1 SHUTTER BUTTON 2 FILM-REWIND BUTTON 3 SELF-TIMER BUTTON 4 LCD PANEL 5 SELF-TIMER LAMP 6 VIEWFINDER 7 FLASH 8 LENS

9 LENS COVER SWITCH 10 STRAP POST 11 FILM-DOOR LEVER

(

see inside cover flaps for camera diagrams

12 FORMAT-SELECTOR SWITCH 13 VIEWFINDER EYEPIECE 14 FLASH-READY LAMP 15 TRIPOD SOCKET 16 BATTERY DOOR 17 FILM CHAMBER 18 FILM DOOR 19 SELF-TIMER INDICATOR 20 PICTURE COUNTER 21 BATTERY SYMBOL

)

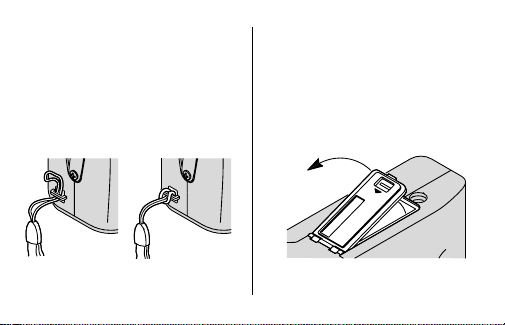

ATTACHING THE STRAP

Thread the shorter looped end of the strap under the

POST

(10); pull the longer end through the shorter loop and pull it tight.

STRAP

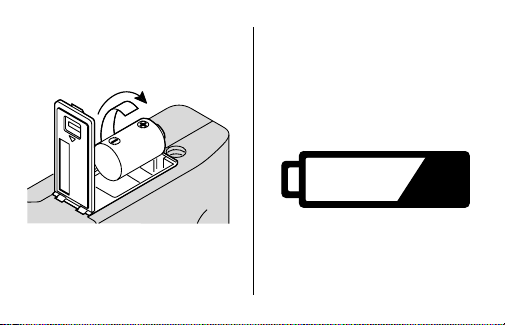

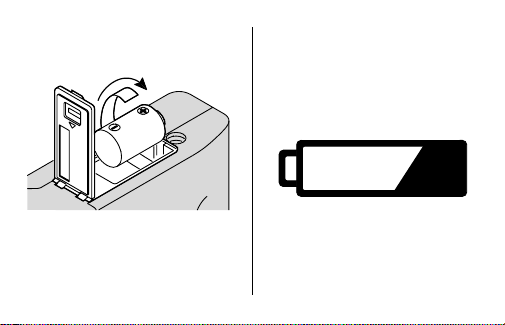

LOADING THE BATTERY

This camera uses one 3 V lithium KODAK KCR2 (or equivalent) Battery that supplies power for all camera operations.

1. Open the

• Before you remove the old battery, close the lens cover.

BATTERY DOOR

(16).

2. Place the battery over the battery-pull strap and insert into the chamber as shown.

3. Snap the battery door closed.

NOTE: Insert the battery into the camera before you load the film.

Low-battery indicator

It’s time to replace the battery when the

BATTERY SYMBOL

appears on the when the takes longer than 15 seconds to turn on.

LCD PANEL

FLASH-READY LAMP

(21) (4) or

(14)

Battery tips

• Dispose of batteries according to local regulations.

• Remember to keep spare batteries with you at all times.

• Read and follow all warnings and instructions supplied by the battery manufacturer.

• Keep batteries away from children.

• Do not try to take apart, recharge or short circuit the battery, or subject it to high temperature or fire.

• Store batteries in their original packaging prior to use.

Power shutdown

To reduce battery power, the camera will automatically go into a sleep mode if it is not operated for more than 4 minutes. You can awaken the camera by taking a picture or by closing and reopening the When the camera will not be used for an extended length of time, turn the camera completely off to further conserve the battery power.

LENS COVER

(9).

LOADING THE FILM

You can load film into the camera with the camera ON or OFF.

Insert the battery into the camera before you load the film.

1. Move the

to open the

FILM-DOOR LEVER

FILM DOOR

(18).

(11)

• The film door will open only when the film chamber is empty or the film in the camera is completely rewound into the film cassette.

2. Insert the film cassette completely into the

CHAMBER

(17).

FILM

• Make sure the Film Status Indicator (FSI) on the film cassette is at for a new cassette.

• Do not force the film cassette into the film chamber.

3. Close the film door to start the

auto-film prewind. The

COUNTER

will display the number of exposures remaining on the film.

• After you close the safetyinterlocked film door and the films starts to prewind, you cannot open the door until the film is completely rewound into the film cassette.

●

(20) on the

(#1 position)


LCD PANEL

(4)

TAKING PICTURES

You can take Classic (C), Group/ HDTV (H)*, and Panoramic (P) pictures on the same film cassette. Your photo-processing cost may be based on the format size(s) that you use to expose the film.

* High Definition T elevision (HDTV) prints

are the same aspect ratio as the TV for CD interface capabilities.

1. Slide the

LENS COVER SWITCH

to uncover the activate and raise the and to turn on the camera.

LENS

(8), to

FLASH

(9)

(7),

2. Move the

FORMAT-SELECTOR

(12) to select C, H, or

SWITCH

P format. The viewfinder will change to show the selected field of view.

3. Frame your subject within the

VIEWFINDER EYEPIECE

a sharp picture, stand at least

3.3 ft (1.0 m) from your subject.

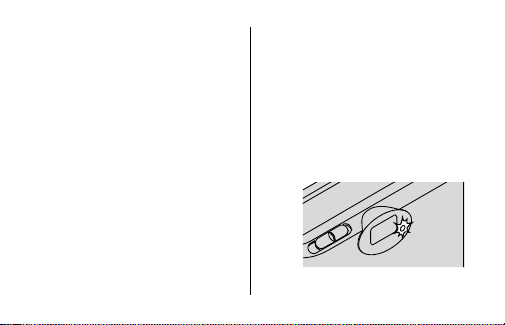

• For low-light conditions, wait

FLASH-READY

for the

(14) to turn green.

LAMP

Typical print sizes (formats)

CH P

(13). For

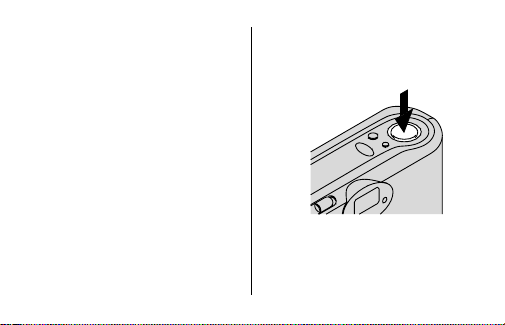

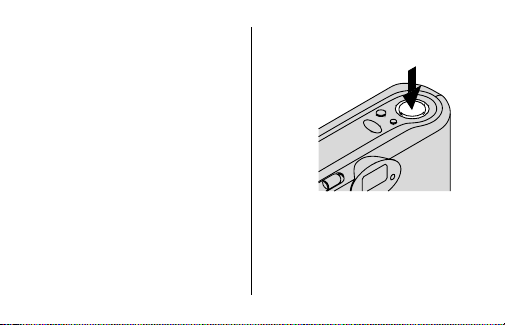

4. Press the

SHUTTER BUTTON

(1) to take the picture.

Classic Group (HDTV Panoramic

3.5 x 5 in. or 4 x 6 in. 3.5 x 6 or 4 x 7 in. 3.5 x 8.5 in. to 4 x 11.5 in. (88.9 x 127 mm or (88.9 x 152 mm or (88.9 x 216 mm to

102 x 152 mm) 102 x 178 mm) 102 x 292.7 mm)

NOTE: Your photofinisher will generally provide 4 x 6, 4 x 7, and 4 x 11.5 in. (102 x 152, 102 x 178, and 102 x 292.7 mm) sizes. Some local printers may offer 3.5 x 5,

3.5 x 6, and 3.5 x 8.5 in. (88.9 x 127, 88.9 x 152, and 88.9 x 216 mm) sizes. 12

Tips for better pictures

• Hold your camera steady by keeping your elbows close to your body when you press the shutter button to avoid blurry pictures.

• Keep your pictures simple. Move close enough to your subject so it fills the viewfinder but not closer than 3.3 ft (1.0 m).

• Take pictures at the subject’s level. Kneel down to take pictures of children and pets.

• Hold your camera vertically to capture tall, narrow subjects, such as a waterfall, skyscraper, or a single person.

• Add interest to your picture by framing it with a tree branch, a window, or even the rails of a fence.

• Keep the sun behind you. This provides the best subject illumination.

• Stand at an angle to shiny surfaces like windows or mirrors to avoid flash reflection and bright spots in your pictures.

• Turn on all the room lights and have your subject look at the lights. This will help to reduce red eyes in flash pictures.

TAKING FLASH PICTURES

In dim light, such as indoors or outdoors in heavy shade, or on dark overcast days, you need flash. Your camera features an automatic pop-up flash that fires when you need it. The pop-up flash helps to minimize red eyes in flash pictures (see Tips for

better pictures).

1. Slide the

2. Frame your subject within the

LENS COVER SWITCH

LENS

to uncover the activate and raise the and to turn on the camera.

VIEWFINDER EYEPIECE

(8), to

FLASH

(13).

(9)

(7),

3. Wait for the

LAMP

4. Press the to take a picture.

5. Keep the subject within the distance range for the speed of film in your camera (see Flash-to-subject distance). Don’t take pictures beyond the maximum distance or your pictures will be dark.

FLASH-READY

(14) to turn green.

SHUTTER BUTTON

(1)

Flash-to-subject distance

ISO film Flash-to-subject

speed distance

100 3.3 to 10 ft (1.0 to 3.1 m) 200 3.3 to 13 ft (1.0 to 4.0 m) 40 0 3.3 to 18 ft (1.0 to 5.5 m)

USING THE SELF-TIMER

Use this feature to include yourself in pictures.

1. Slide the

2. Press the

LENS COVER SWITCH

to uncover the activate and raise the and to turn on the camera.

LENS

(8), to

FLASH

SELF-TIMER BUTTON

(9)

(7), (3).

SELF-TIMER INDICATOR

• The appears on the

LCD PANEL

(19)

(4).

3. Frame your subject within the

VIEWFINDER EYEPIECE

4. Press the The front of the camera glows and then blinks during the last two seconds of countdown.

• To cancel the self-timer

• The self-timer automatically

SHUTTER BUTTON

SELF-TIMER LAMP

selection before the shutter releases, close the lens cover.

turns off after the shutter releases.

(13).

(1).

(5) on the

UNLOADING THE FILM

Automatic rewind

The camera automatically rewinds the film into the cassette after the last exposure.

1. Wait for the camera motor to stop to ensure that the film is completely rewound into the film cassette.

PICTURE COUNTER

• The

on the

LCD PANEL

“0.” The picture-counter display disappears when the lens cover is closed.

2. Move the to open the

FILM-DOOR LEVER

FILM DOOR

(20)

(4) displays

(11)

(18).

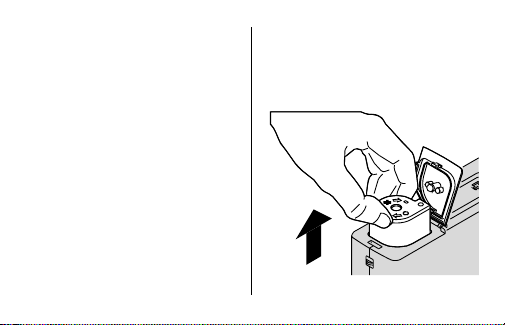

3. Remove the film cassette from the camera and reload with new KODAK ADVANTIX Film.

• The FSI on the fully-exposed

film cassette is at ✖ (#3 position).

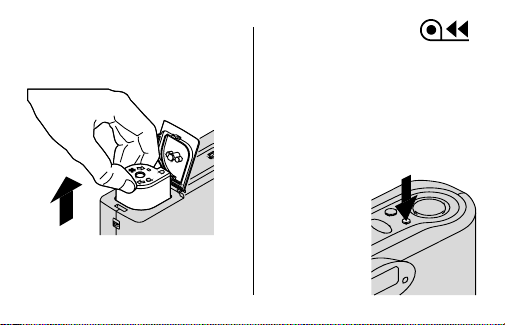

Manual rewind

If you don’t want to take pictures on the entire film, you can manually activate the automatic rewind.

1. Press the

2. See

NOTE: You cannot reload partially exposed film into this camera to continue picture-taking.

FILM-REWIND BUTTON

to start the auto-film rewind.

Automatic rewind,

steps 1–3.

(2)

CARING FOR YOUR CAMERA

1. Protect the camera from dust,

moisture, sudden impact, and excessive heat.

CAUTION: Do not use solvents or harsh or abrasive cleaners on the camera body.

2. If the lens appears dirty, breathe on it to form a mist and wipe the surface gently with a soft, lintless cloth or a camera lens-cleaning tissue. Never wipe a dry lens.

CAUTION: Do not use solvents or solutions not designed for cleaning camera lenses. Do not use chemically treated tissues intended for cleaning eyeglasses.

3. Remove the battery when you store the camera for an extended time.

CAUTION: To prevent possible damage and electrical shock, do not attempt to disassemble or repair the camera or flash unit by yourself.

TROUBLESHOOTING

What happened Probable cause Solution

Camera will There are no more Rewind film and not operate pictures remaining remove from camera

Film does not Battery weak, Replace or reload advance or dead, missing, or the battery rewind improperly inserted

LCD panel Battery weak, Replace or reload is blank dead, missing, or the battery

Battery weak, Replace or reload dead, missing, or the battery improperly inserted

improperly inserted

What happened Probable cause Solution

LCD panel is Camera in sleep mode Press shutter button blank

(continued)

Flash does Flash not fully charged Wait for flash-ready not fire lamp to turn green

Film cassette does Loaded exposed ( not fit completely or processed film (■) into the camera into film chamber; into the camera film door does not close

Lens cover closed Open lens cover

or close and reopen lens cover

✖

), Load only new film (●)

SPECIFICATIONS

Film Type: KODAK ADV ANTIX Film for

color and black-and-white prints

Lens: KODAK EKT ANAR Lens;

24 mm, 3-elements hybrid

Focus System: Fixed focus Focus Range (Daylight):

3.3 ft (1.0 m) to infinity

Viewfinder: Reverse galilean with

C, H, & P format display

Film-Speed: DXIX (ISO) 100–400 Flash Unit: Built-in, pop-up

Flash Range (ISO 200):

3.3–13 ft (1.0–4.0 m)

Apertures: Fixed at Shutter Speed: Programmed

1/60–1/250 seconds

Power Source: One 3 V lithium

KODAK KCR2 (or equivalent) Battery; 7 seconds flash-recycle time with fresh battery

Dimensions: 3.9 in. x 1.4 in. x 2.3 in.

(100.2 mm x 36.2 mm x 59.4 mm)

Weight (without batteries and film):

3.3 oz. (93 g)

/6.4

Kodak, Advantix, Ektanar, “e” mark, and the Advanced Photo System

symbol and logotype are trademarks.
