Kodak Ektalite Quick Reference Guide

Download
Quick Reference
EKTALITE
The Quick Reference - is designed to be your ultimate source to all applications, technical constellations, accessories etc. for Kodak
Ektalite Slide Projectors

Content

Accessories................................................................3
Remote Control
Cable ..................................................................4
Infrared...................................................5
IR + Extension Cable..........................................6
Parallel Projection
IR and 2 Receivers..............................................7
Cable Remote + Twin Socket..............................8
Endless Projection
Timer..................................................................9
Autofocus....................................................................10
Slide Recording..............................................................11
Lenses
General..............................................................12
Lamps
General..............................................................13
Extra Bright Light Module
General..............................................................14
Lumen Output / Compatibility.............................15
Safety Precautions............................................16
Carrying Case.............................................................17
Stackloader.................................................................18
External Control........................................................19
Specification
Dimensions.......................................................20
Connectors........................................................21
Applications
Control via MIDI.............................................22
Addresses.....................................................................23
Editorial......................................................................27
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
2

Accessories

Product CAT NO
EKTALITE IR Remote Control 873 5086 EKTALITE Cable Remote 861 8936 KODAK S-AV Extension Cable 4 m 701 5662 EKTALITE Extension Cable 16 m 866 0573 EKTALITE 12 Pin Adaptor 861 9629 EKTALITE Extra Bright Lamp Module 871 9767 EXR Projection Lamp - 35 h 145 2259 FHS Projection Lamp - 70 h 147 7678 EXY Projection Lamp - 200 h 145 2143 Lenses (see section "Lenses") EKTALITE Carrying (Soft) Case 162 5136 KODAK EC Stack Loader 151 4249 EKTAPRO 80 Slide Tray 712 8580 TRANSVUE 140 Slide Tra
y 184 0768
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
3
n General

Remote Control

Cable

EKTALITE
500, 1500 and
2000
CAT No
CAT No
701 5662
4 m
866 0573
16 m
CAT No
861 8936
3.5 m Max. 3 extension
cables (4m) or 1 ex­tension cable (16 m)
EKTALITE Cable Remot e 1 1 1 1 1 CAT No 861 3936 Ext ension Cable 4 m 1 2 3 CAT No 701 5662 Ext ension Cable 16 m 1 CAT No 866 0573
Total Cable Length 3.5 m 7.5 m 11.5 m 15.5 m 19,5 m
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
4
n General
Remote Control

Infrared

EKTALITE 500, 1500 and 2000
Receiver
IR Remote System
CAT No 873 5086
Note
Individual control of two IR systems in one room is not possible. Hand transmitter offers only one channel for transmitting data.
○○○○○○○○○
Note
Dimmed fluorescent light (neon) may reduce max. achievable IR distance!
An IR Control System always consists of a transmitter and a receiver!
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
5
Remote Control
IR + Extension Cable
n 1 Ektalite Projector, IR Remote Control and 16 m Extension
Cable for optimal placement of IR Receiver
EKTALITE
500, 1500 and
2000
CAT No 866 0573 16 m
IR Remote System
CAT No 873 5086
○○○○○○○○○
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
6
Parallel Projection

IR and 2 Receivers

n IR Remote System and a second receiver
EKTALITE 500, 1500 and 2000
○○○○○○○○○○○○○○○○○○○○○○
IR Remote System
CAT No 873 5086
○○○○○○○○○○○○○○○○○○○○○
Note
Parallel projection (side by side projection, projection in harmony is only possible with a second IR receiver. Unfortunately this item is not available as an accessory. So a second IR remote system is necessary.
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
7

Parallel Projection

g

Cable Remote + Twin Socket

n
Cable Remote and Twin Socket (OEM)
EKTALITE
500, 1500 and 2000
Projectors 2 3 4
CAT No 861 8936
3.5 m
Note
Twin Sockets (Simultaneous Interfaces) and Connecting Cables are not available from Kodak. Please see address list page 24 for OEM products.
EKTALITE Cable Remot e 1 1 1 CAT No 861 3936 OEM Tw in Socket 2 3 4 (Simultaneous Int erface) OEM Connectin
Cable 123
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
8
n
Integrated Timer

Endless Projection

Timer

EKTALITE
1500, 2000
Timer
Setting : 3 - 22 sec
n External Timer (no Kodak product)
EKTALITE 500
External Timer
Note
An external timer is offered by some compa­nies (see Addresses at page 24).
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
9

Autofocus

n Important Note for use of Autofocus
EKTALITE
1500, 2000
Important
Use either glass or glassless (cardboards) mounted slides! Never mix up!
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
10

Slide Recording

n Creating 35 mm slides with film recorders
Computer
Filmrecorder ( Addresses page 26)
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
11

Lenses

6
2
3
3
1
9
9
7
5
6
3

General

Kodak FF Lenses
75-120 Zoom CAT 847 034 100-150 Zoom CAT 143 343 100-200 Zoom CAT 712 574 85 mm CAT 712 550 100mm CAT 712 551 180mm CAT 712 552
Kodak Ektapro S elect FF Lenses
75-120 Zoom CAT 712 547 87-200 Zoom 200-300 Zoom 36 mm 93 mm
150mm
CAT 712 548 CAT 712 549 CAT 712 544 CAT 712 545
CAT 712 5461
Ektalite
X X X X X X
X X X
no
X
no
WEB User
You will find more details on lenses under
Lens Calculator
You do not know what kind of lens you need for your projection venue? There is a formular but before getting nervous we can offer you a better solution: There are two well made lens calculators available on the WEB. It is freeware and can be easily downloaded.
Lenscalculator by Bässgen company: Go to http://www.dia.de Click on
SCREEN 2.0.
on
Lenscalculator by Stumpfl company: Go to http://www.stumpfl.com/E/Service/
lenses.
Bässgen and go to Download and click
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
12

Lamps

h
General
CAT No
EXR 82V 300W 35h 145 2259 FHS 82V 300W 70h 147 7678 EXY 82V 250W 200
145 2143
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
13

Extra Bright Lamp Module

General
n How it works
All current Kodak Slide Projectors are equipped with the Extra Bright Lamp Module offering 30% more light than compared to former models:
Ö more light Ö more brillant colors Ö higher contrast Ö better legibility
According to a new cold light mirror the biggest part of the IR (heat) light will be absorbed and not reflected. Therefore the heatfilter could be re­moved (see illustration). This system is unique to Kodak.
IR Light
Condenser
Removed Heatfilter
Visible Light
IR Light
Cold Light Mirror
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
14
Extra Bright Lamp Module

Lumen Output/ Compatibility

n Lumen output for standard and economy setting
/XPH Q 2XWSXW
1400 1200
1000
800
600 400
200
0
Standard Extra Bright
Economy Standard
n Upgrade
All former Ektalite Projectors can be upgraded with the Extra Bright Lamp Module:
([WUD%ULJKW/DPS0RGXOHV &$712
Ektalite 816 7181
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
15
Extra Bright Lamp Module

Safety Precautions

According to a temperature increase in the slide gate which, therefore, needs more careful handling when using slides, mounts and lamps.
With the higher light output of the Extra Bright Lamp Module the temperature in the slide gate rises. To enable a smooth operation following hints should be considered:
√ Use only light respectively light gray slide mounts (e.g.
Wess slide mounts). Slide mounts with only one dark side or black side have to be sorted in respectively, mounted with the side facing the lamp. Please pay special attention when sorting your slide mounts in rear projections:
√ Do not use a lamp type EXW/15 h for the projector (higher temperature - lamp not
available from Kodak).
√ Consider the room temperature! It may not exceed 35 degrees C!
If these hints are not considered, mounts may deform!
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
16
n Less Weight n Flexible n Soft Case

Carrying Case

CAT No 162 5136
To take projector, lens and tray
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
17

Stackloader

General
For a quick inspection of a stack of slides without the need to arrange them beforehand in a tray. A stack of thin glassless slides is loaded directly in the Stack Loader. Use the transport forward button to project the slides.
EKTALITE models
CAT No 151 4249
max 1.5 mm
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
18
n Hardware Controllers
EKTALITE
2000

External Control

Hardware Controllers

12 Pin Adaptor (Extension Connector) CAT No 861 9629
Dissolve units (e.g. as former Kodak PDC, Stumpfl, Bässgen, ARION etc) for 12 Pin Standard (Addresses page 23 )
Note
Only necessary for all dissolvers with external TRIAC adaptor! It is not al­lowed to plug such an adaptor unit di­rectly on top of the projector`s 12 pin socket, as this could lead to a heat build-up.
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
19
n Projector Measurements

Specification

Dimensions

Weight without tray: approx. 6700 g Weight of tray without slides: 540 g
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
20
Specification

Connectors

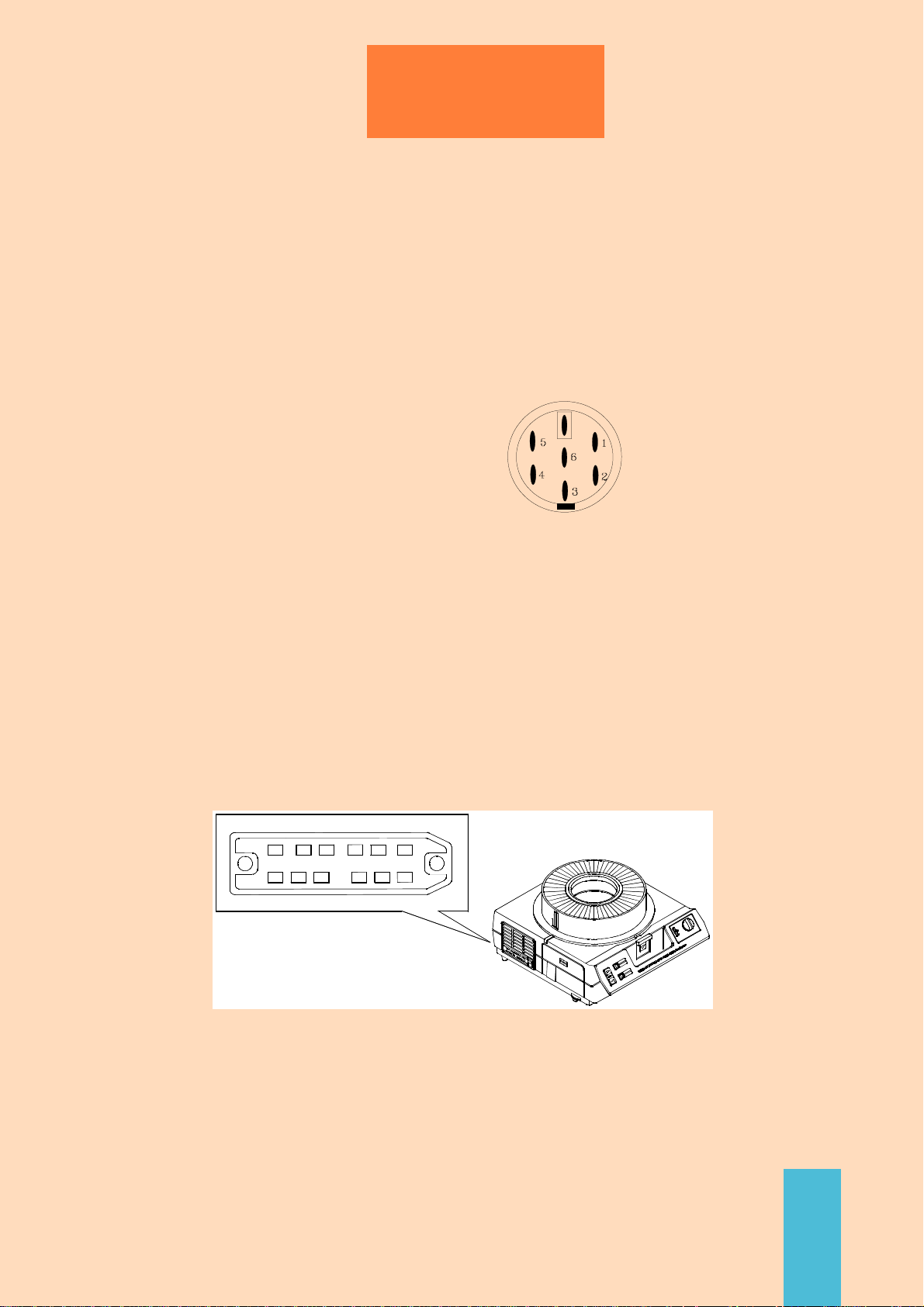

n 6-pin Standard Projector Socket (remote socket)
Pin 1 & 3 Slide Reverse Pin 2 & 3 Slide Forward Pin 3 Common (25.5 V ac) Pin 4 Focus motor (Lens in) when connecting Pins 5 & 6, and
Pins 4 & 3
Pin 5 Focus motor (Lens out) when connecting Pins 5 & 6, and
Pins 4 & 3
Pin 6 & 3 25.5 volts ac 500 mA
n 12 Pin DIN Socket
*a1 & b4 AC Power Supply 25.5 VAC 500 mA a2 Not used a3 & a4 For external lamp dissolve *a5 & b4 DC Power Supply, 20 VDC
Pulsating 500 mA a6 & b1 Gate slide sensing shutter switch b3 & b4 Forward slide change b5 & b6 Zero position switch
*The combined total AC and DC current draw from the projector must not exceed 500 mA.
a
6
5
4
3
2
1
b
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
21
Music-Stages
g

Applications

(Performance)

Control via MIDI

n
Use of slides on stage by musicians, artists
EKTALITE
2000
Interface (e.g. Schubert (
Keyboard with MIDI Interface
A n al o gy between mus i c and sl i d e seq u en c es
Music Image
Note is sent Slide t ransport will be execut ed Sound lev el is increasing Slide is f ading up Sound level stays const ant Freeze Sudden sound level changeFlash Sound lev el is decreasin
Addresses page 24)
Slide is f ading dow n
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
22

Addresses

(
y
(
j
g
,
,
(
Company Street City
Country
Phone/FAX/WEB
Project or Control Systems - Ha rdware
ARION 701 South 7th St r. Delano, MN 55328 USA (001) 612 972 3351
F: (001) 612 972 3524 www.arion-usa.com/
AV L 50 Barnes Park Nort h Wallingf ord, CT
06492
Bässgen Hauptstraße 58 79104 Freiburg Germany (0049) 761 23953
Datat on Box 257 S-581 02 Linköping Sw eden (0046) 13114325
Electrosonic Hawley M ill Haw ley RdDart ford Kent DA 2
7SY
HEP Road 3005 EC Rotterdam The
Müwo 72379 Hechingen-
Stetten
RMF 12 75 Paramount
PKW
Stumpfl Rudigierst r. 8 A-4701 Bad
Zygo
st . Ltd.
S
48 Fallow f ields Bicest er Oxon
Batavia, IL 60510 USA (001) 708 879 0020
Schallerbach
OX6 7Qs
USA (001) 203 269-8410
F: (001) 203 284-8414 www.usa.net/icia/avl
F: (0049) 761 35042 www.dia.de/
F: (0046) 13138445 www.dataton.se/
England (0044)-1322 282317
F: (0044)-1322 282215 www.electrosonic.co.uk (0031) 10 418 3689
Netherlands
Germany (0049) 7471 15830
001) 708 879 6749
F:
Aust ria (0043) 7249 42811
F: (0043) 7249 42811 18 www.stumpfl.com/
England (0044) 869 248261
F: (0044) 869 248 260
Softw are (Direct PC Control)
ARION 701 South 7th St r. Delano, MN 55328 USA (001) 612 972 3351
F: (001) 612 972 3524
www.arion-usa.com/ COMM­TEC M-Objects Auf dem Berg 7 59387 Ascheberg Germany (0049) 2593 988 88
P. Ziegler Van Gogh Plat z 6 53844 Troisdorf Germany (0049) 2241 946 217
Kodak Taiw an Ltd .
Siemensstr. 22 73066 Uhingen Germany (0049) 7161 3000 0 F:
0049)7161 3000 11
F:(0049) 2593 988 89
ects.com/
ler.av
35 , Chung Yang S,
Sec. 2
Rd.
www.mob
F:(0049) 2241 946 218
home.t-
online.de/home/zie
Pei Tou, Taipei Taiw an (0088) 6 2 2893 8178
0088) 6 2 2893
F:
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
23
Addresses
Company Street City Country Phone/FAX/WEB
Other Accessory (e.g. Slide Synchronizer )
AVSZ Tarweakker 63 2723 TB Zoetermeer The
Netherlands
Müw o In den
Maltw iesen 11
Zeller W ett steinallee 154058 Bas el Switz erland (0041) 6168 4343
72379 Hechingen­Stetten
Germany (0049) 7471 15830
DMX 516 Theatre C ontroller
AVAB Salsmästa-
regatan 32
422 46 Hisings Backa
Sweden (0046) 315 852 00
Midi Controller
Sc hubert Römerstr.29 52064 A ac hen G ermany
1000 H z Tape Decks
ARION
701 South 7t h Street
Delano, M N 55328 USA
(0031) 79 341 43 46 F: (0031) 793 425 687
F: (0041) 6168 3907
F. (0046) 31-582 999 www.avab.s e
(0049) 241 35 439 F:(0049) 241 406 961
(001) 612 972 3351 F:(001) 612 972 3534 www.arion-usa.com
3-Track Tape D ecks
Califone Superior S treet Yam aha 6600
Orangethorpe Avenue
Fostex
Gebuhr Imhoffs tr. 4 90429 Nuernberg Germany (0049) 911 260 304
Tascam 7733 Telegraph
15431 Blac kburn Avenue
Rd.
Chatsw orth CA 91311
Buena P ark, CA 90620
Norwalk, CA 90650 USA
Mont ebello, Ca 90640
USA USA (001) 714 522 9011
USA (001) 213 726-0303
(001) 800 722 0500 www.califone.com
www.yam aha.com
(001) 562 921-1112 F. (001) 562 802-1964 www.fostex .com
F:(0049) 911 268 738
F:(001) 213 727 7635 www.tasc am .com
Single Projector dissolve
Entré 2184 S E 53rd
Avenue
Hillsboro OR 97123 7800
USA (001) 503 649 4641
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
24
Addresses
(
(
g
(
Company Street City Country Phone/FAX/WEB
Racks
Baumann Hauptst raße 58 79104 Freiburg Germany (0049) 761 23953 F:
0049) 761 35042
Chief 14310 Ew ing
Av enue
Roha Bruno Jacoby
11
We
Project ion Lenses
Buhl 1009 Beech
Avenue
Doct er Industriegebiet 35641
Isco Robert Bosch
Bre i te 10
Navit ar 200 Commerce
Drv
Project ion Scre ens
Da-Lite 3100 N. Detroit
Str
Stumpfl Rudigierstr. 8 A-4701 Bad
South Burnsville, MN 55337 70597 Stuttgart Germany (0049) 711 723621
Pit t sburgh, PA 15233
Schoffengrund
37013 Goett ingen Germany (049) 551 5058 3
Ro ch e s t e r , N Y 14623
Warsaw, IN 46581 0137
Schallerbach
USA (001) 612 894-6280
001) 612 894-
F:
USA (001) 412 321-0076
001) 412 322
F:
Germany (0049) 6445 609 0
F:(0049) 6445 609 165
F: (0049) 551 5058 410
USA (001) 716 359 4000
F:(001) 716 359 4999
USA (001) 219 267 5101
F:(001) 219 267 5101 www .da-
Aust ria (0043) 7249 42811
F: (0043) 7249 42811 4
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
25
Addresses
g
g
g
q
j
g
(
(
(
Company Street City Country Phone/FAX/WEB
Slide Recorders
(0032) -3-4442111
Agfa Septestraat 27 B-2640 Mortsel Belgium
Lasergraphics 20 Ada Irvine, CA 92718 USA
Management Graphics,
Mirus
Polaroid 549 Technology
1401 E. 79th St reet
3350 Scott Boulevard, Bldg. 48
S
uare
Minneapolis, MN 55425
Santa Clar a, CA 95054
Cambridge, MA 02139
USA
USA
USA (001)(781) 386-2000
Ot her Places of Int erest
Gavi 33 3 W est M errik RD V alley Stream, NY
11580
Jobo Koelnerstr. 58 51645
Gummersbach
Leica Saarbrueckenerstr.
263
Pacon 106 Baker Techn.
Plaza 6121 Baker Road
Telex 9600 Aldrich Ave
Sou
h
38116 Braunschweig
Minnet onka, M N 55345
Minneapolis, MN 55420
USA F:(001) 516 568 2057
Germany (0049) 2261 54525
Germany (0049) 531 5900 479
USA (001) 612 936 9500
USA F: (001) 612 887 5588
Slide Mounts
Alfi P.O.B 10 20 47 86010 Augsburg Germany (0049)-821-80867-0
Geimuplast P.O.B 1364 82453 Garmisch-
Partenkirchen
GEPE Baarerst r. 43 6304 Zug Sw itzer-
Wess 70 Commerce Drive Hauppage, NY
11788
Germany (0049) 8821 6850
land
USA F:(001) 516 231 0608
F: (0032) - 3-444 7094 www.a (001) 714 753-8282 F: (001)(714) 727-9282 www.laser (001) 612 854-1220 F: (001) 612 851-6159 www.m (001) 408 980-660 F. (001) 408 980-6601 www.mirus.com
www.polaroid.com
F:(0049) 2261 54542 www.
F:(0049) 531 5900 489 www.leica-camera.com
F:(001) 612 936 9509 www.pakon.com
www.telex.com
F:
F: (0041) 41 711 7588 F:
www.wesspl.com
fa.com
raphics.com
i.com
obo.com
0049)-821-80867-40
0049) 8821 685100
oo41) 41 711 2870
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
26

Editorial

The Quick Reference was created and published by Kodak AG, Germany. In case of any ques­tions, requests, useful ideas, please get in direct contact with Kodak. The address is:
Kodak AG PT CMS Hedelfingerstr. 60 70327 Stuttgart Germany Phone: int +711 406 5151 Fax: int + 711 406 5367 E-mail: heinrich@kodak.com
Stuttgart, July 1998
Quick Reference -- The ultimate reference for Kodak EKTALITE Slide Projectors
27
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
