Kodak EasyShare Printer Dock 6000 User Guide

Kodak EasyShare printer dock
6000
User’s Guide
Visit Kodak on the World Wide Web at www.kodak.com
Eastman Kodak Company 343 State Street Rochester, New York 14650 © Eastman Kodak Company, 2003 Kodak and EasyShare are trademarks of Eastman Kodak Company. P/N 6B8312
Kodak EasyShare printer dock 6000
Front View
Product Overview
1
12
11
10
9
8
1 Printer dock
3 Color cartridge light 4 Print button 5 Arrow keys 6 Paper tray
2
3
4
5
6
7
7 Print mode button 8 Print mode lights2 Universal insert
9 Transfer button 10 Paper light 11 Slide show button 12 Camera connection
i
Back View
1 USB connector 2 DC power connector 3 Paper path
Product Overview
1
2
3
ii
Side Views
Product Overview
1
2
1 Color cartridge slot 2 Color cartridge door
1
1 A/V out connector
iii

Table of Contents

1 Getting Started with Your Printer Dock ......................1
Need This Guide in Larger Print?............................................1
What Can I Do With My Printer Dock? ..................................1
Printer Dock Package Contents............................................2
Finding a Location for the Printer Dock............................. 3
Installing the Camera Insert.................................................. 4
Connecting the Power .............................................................. 5
Loading the Color Cartridge...................................................6
Loading the Paper......................................................................7
Inserting the Paper Tray......................................................... 8
Indicator Lights and Buttons............................................... 9
2 Getting Started with Your Camera ............................ 11
Loading the Camera Battery ................................................ 11
Setting Picture Quality ......................................................... 12
Docking and Charging the Camera......................................13
3 Printing Without a Computer .......................................15
Printing from Your Camera ...................................................15
Removing Perforated Tabs from Prints ............................16
Canceling Printing .................................................................... 17
4 Reviewing Pictures and Videos .....................................19
Running a Slide Show..............................................................19
Displaying Pictures and Videos on a Television..............20
v
5 Using the Printer Dock with a Computer ................ 23
System Requirements...........................................................23
Installing the Software .........................................................24
Connecting to a Computer...................................................26
Transferring Pictures ............................................................ 27
Printing from a Computer ....................................................28
Removing Perforated Tabs from Prints ...........................30
Status Monitor—Windows only..........................................31
Canceling Printing ....................................................................31
Ordering Supplies....................................................................32
6 Care and Maintenance .................................................33
General Care.............................................................................33
Cleaning the Print Head........................................................34
Clearing a Paper Jam.............................................................35
Clearing a Color Cartridge Jam ......................................... 36
Cleaning the Printer Dock.................................................... 36
Traveling with your Printer Dock......................................... 37
7 Troubleshooting ...............................................................39
Printing Problems....................................................................39
Problems Transferring Pictures .........................................46
Printer Dock Status Lights.................................................47
8 Getting Help ..................................................................... 51
Helpful Web Links...................................................................... 51
Help in this User’s Guide.......................................................51
vi
Software Help............................................................................51
Telephone Customer Support ............................................. 52
9 Appendix ............................................................................ 55
Printer Dock Specifications ................................................55
Upgrading Your Software and Firmware .........................56
Accessories and Supplies.....................................................57
Safety Labels...........................................................................58
Regulatory Information.........................................................58
Disposal Information .............................................................59
vii
viii
1 Getting Started with Your
Printer Dock

Need This Guide in Larger Print?

For a large print version of this User’s Guide:
1 Go to the support page at www.kodak.com/go/printerdock. 2 Under Manuals/Guides, View PDF, click your language to open the User’s
Guide.
3 With the User’s Guide open on a Windows-based computer:
From the File menu, select Print.In the Print window, select Fit to Page.
With the User’s Guide open on Mac OS X:
From the File menu, select Page Setup.Change Scale to 200%.
4 Print as usual.

What Can I Do With My Printer Dock?

Use the Kodak EasyShare printer dock 6000 to make high-quality 4 x 6 in. (102 x 152 mm) photos, with or without a computer.
The printer dock works with Kodak EasyShare CX/DX 6000 series and LS600 series digital cameras.
Without a computer, you can:
Print pictures directly from your cameraView a slide show on your television
1
Chapter 1
Print from a slide show on your television
  Charge your camera battery pack
With a computer, you can:
Transfer pictures from your camera to the computerOrganize, edit, and print pictures

Printer Dock Package Contents

2
9
To purchase accessories see a retail dealer of Kodak products or visit
www.kodak.com/go/printerdock.
*The EasyShare Ni-MH rechargeable battery pack is for use with selected EasyShare digital cameras (see Loading the Camera Battery, page 11). If your camera uses a EasyShare Li-Ion rechargeable battery, it will be included with your camera.
**In some countries, the user’s guide is provided only on CD.
1
3
5
6
7
8
10
1 Printer dock 2 Universal insert (installed) 3 Paper tray 4 Kodak EasyShare Ni-MH rechargeable
battery pack *
4
5 AC power cord 6 AC power adapter 7 Sample color cartridge (10 pictures) 8 Sample photo paper pack(10 Pack) 9 Print head cleaning tool 10 Welcome kit; includes user’s guide**, quick
start guide, registration card, and Kodak EasyShare printer dock 6000 software CD
2
Chapter 1

Finding a Location for the Printer Dock

Allow 5 inches (12.7 cm) clearance on all
sides of the printer dock.
Place the printer dock on a flat, clean, dust-
free surface, out of direct sunlight.
Make sure airflow around the top and back
is not blocked.
Do not place the printer dock on cloth or
carpeted surfaces.
Avoid areas where ventilation ducts, open
doors, or frequent passersby might expose the printer dock and paper to high levels of dust and debris. Airborne dirt particles can cause image-quality problems.
3
Chapter 1

Installing the Camera Insert

The printer dock comes with a universal camera insert installed, which is used to fit the camera to the printer dock. The universal insert is used with most cameras.
If your camera comes with a custom insert, use that one instead of the universal insert. Do not discard the universal insert.
1 To remove the universal insert:
a Push the insert towards the front of the
printer and lift up the back edge.
b Push the insert towards the rear of the
printer and lift out the front edge.
2 To Install the custom insert (included with
your camera) See your camera manual. a Place the front tabs on the insert in the
slots in the printer dock.
b Fit the back of the insert down into the
dock and snap the insert into place.
NOTE: To order a custom insert for your camera, visit our Web site at
www.kodak.com/go/accessories.
4
Chapter 1

Connecting the Power

CAUTION:
Use only the AC adapter and power cord included with the printer dock. Other adapters and cords can damage your camera, printer dock, or computer.
IMPORTANT: Remove your camera from the printer dock when you
Bottom View
are connecting power.
1 Connect the AC power cord to the adapter,
then to the back of the printer dock.
2 Connect the AC power cord into a power
outlet.
NOTE: Your power cord may be different from
the one pictured. Use the plug that accommodates your type of power outlet.
3 Route the cable along the channels located
on the underside of the printer dock, so that the cable does not interfere with the paper path.
5
Chapter 1

Loading the Color Cartridge

The color cartridge provides the dyes and a protective laminate coating for making your photos.
A sample Kodak color cartridge & photo paper kit (10Pk) are included with the printer dock. To purchase a color cartridge, photo paper kit, and other accessories, see a retail dealer of Kodak products or visit www.kodak.com/go/
printerdock.
1 Open the color cartridge door on the side of
the printer dock.
2 Remove the slack in the color cartridge by
pushing in on the spool, then rotating the cartridge spool in the direction of the arrow.
3 Slide the color cartridge in, label side up
and with the arrow pointing toward the printer dock, until it locks into place.
CAUTION:
Do not force the cartridge into the slot.
4 Close the color cartridge door.

Handling and Storing the Color Cartridge

For best quality prints, store the cartridge in a location where the
temperature does not exceed 85 °F (30 °C).
To avoid fingerprints, handle the color cartridge by the spool ends.Store the color cartridge away from direct sunlight.
6
Chapter 1

Loading the Paper

IMPORTANT: To avoid getting fingerprints on the paper, handle
1
4
the paper by the edges or by the perforated tabs.
1 Remove the protective cap from the paper
2
3
tray. Do not discard.
2 Lift the paper tray cover.
CAUTION:
Use the upper limit line inside the paper tray as a guide to avoid overloading the paper. Do not load more than 25 sheets. Do not load paper that is missing perforated tabs. Use only the Kodak color cartridge & photo paper kit PH-40. Do not use inkjet paper.
3 Load a pack of paper (20 sheets) into the
paper tray, with the Kodak logo side facing down.
4 Close the paper tray cover.
7
Chapter 1

Inserting the Paper Tray

1 Open the paper tray door. 2 Slide the paper tray in until the tray locks
into place.
3 Replace the protective cap on the front of
the paper tray to catch the completed prints.

Handling and Storing the Paper

Do not touch the glossy side of the paper.Store the paper away from direct sunlight.
8
Chapter 1

Indicator Lights and Buttons

The lights and buttons on the printer dock indicate the status of the printer dock and the camera, as well as printing options based on the configuration of your camera. For Troubleshooting information, see Printer Dock Status Lights,
page 47.
9 8
7 6
Lights/Buttons Function:
1 Cartridge light Indicates the color cartridge needs replacing. 2 Battery light Indicates battery charge levels, for rechargeable
batteries.
3 Print button Used to print pictures directly from your camera
without a computer.
4 Arrow keys Used to select the number of copies to be printed.
Used to advance through pictures in current mode, tagged mode, print all mode, and slide show mode.

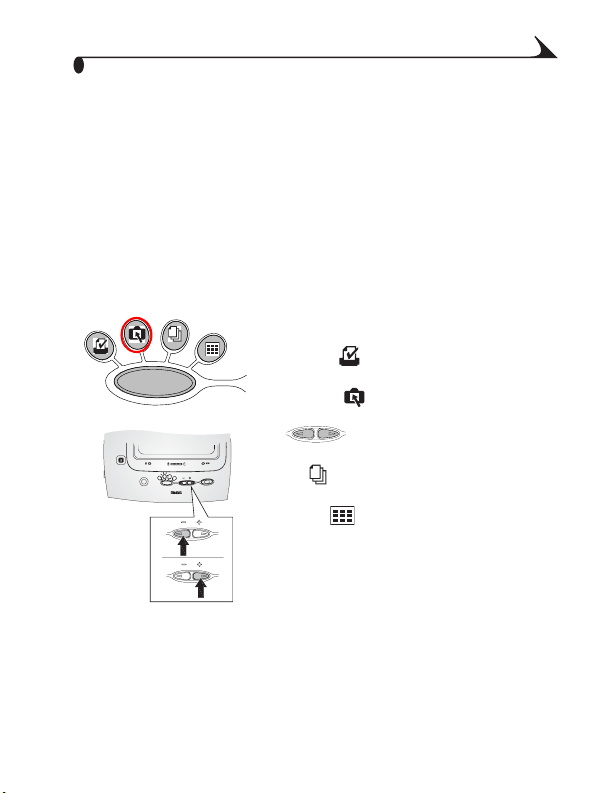

5 Print Mode button Used to select available print modes: Tagged,
Current, All, Index. 6 Print Mode lights Indicates print selection: Tagged, Current, All, Index. 7 Transfer button Used to transfer pictures to a computer. 8 Paper light Indicates paper tray is empty or jammed. 9 Slide Show button Used to run a slide show on your television or
camera display.
1 2
3 4
5
9
2 Getting Started with Your
Camera

Loading the Camera Battery

NOTE: The battery pack is not charged when you receive it. The battery needs
to be completely charged before using your camera.

Which Battery Do I Use?

IMPORTANT: The printer dock charges only the provided Kodak
If your camera came with: Install this rechargeable in your
EasyShare Ni-MH rechargeable battery pack and Li­Ion rechargeable battery (included with some cameras). If you use any other batteries, rechargeable or not, no charging takes pla ce.
camera:
Non-rechargeable starter batteries:
OR
CRV3 Lithium, 3V
2, AA
1.5V
The Ni-MH rechargeable battery pack that came with your printer dock.
Ni-MH rechargeable
11
Chapter 2
If your camera came with a Li-Ion rechargeable battery:
Install the Li-Ion rechargeable battery in your camera.
OR
Li-Ion, 1050 mAh Li-Ion, 1700 mAh
Do not use the Ni-MH battery pack
that came with the printer dock.

Setting Picture Quality

Your printer dock uses Best (3:2) aspect ratio for printing pictures. To take advantage of the aspect ratio and make sure your pictures are not cropped when printed, set your camera’s Picture Quality as follows.
Best (3:2)
See your camera user’s guide for details on Setting Picture Quality.
12
Chapter 2

Docking and Charging the Camera

Docking your camera lets you make prints directly from the camera, transfer pictures from the camera to the computer, and charge the camera battery.
1 Make sure the battery is installed in the camera. See your camera user’s
guide for details.
2 On the camera bottom, locate the
connector.
3 Place the camera in the printer dock and
push down to seat the connectors.
Charging begin when camera enters auto power-off. See your camera user’s guide for details.
The camera is now powered by the printer dock instead of the camera battery.
The Kodak EasyShare Ni-MH rechargeable
battery pack and Li-Ion rechargeable batteries take 2.5 to 3.0 hours to fully charge.
After the battery is charged, leave the
camera in the printer dock to maintain the full charge.
The three green charging lights monitor the
1 2 3
charging status (see Printer Dock Status
Lights, page 47).
1 Battery is less than half charged. 2 Battery is more than half charged. 3 Battery is fully charged.
13

3 Printing Without a Computer

Printing from Your Camera

1 Make sure the AC power cord is connected and the color cartridge and
paper are loaded (see Chapter 1, Getting Started with Your Printer Dock).
2 Take a picture with your camera. 3 Place the camera in the printer dock (see Chapter 2, Getting Started with
Your Camera).
4 On the printer dock, press the Print Mode
button to change print modes: Tagged —prints pictures tagged for
print in your camera’s Share menu. Current —prints the pictures displayed
on the camera screen. Use the arrow keys
picture. All —prints all the pictures in your
camera internal memory and memory card. Index —prints index prints of all the
pictures in your camera internal memory and memory card.
on the printer dock to select a
15
Chapter 3
Press the Print button.
5
The copy screen appears on your camera when current mode is highlighted on your printer dock.
Use the arrow keys on the printer dock to select the number of copies to print, then press the Print button again.
Printing starts.The paper cycles four
4X
times during the printing process before the finished print is ejected. Each of the first three passes places a layer of color (cyan, yellow, and magenta). The fourth pass places a clear coating that protects and preserves the image quality.
CAUTION:
Wait until printing is complete before removing prints, the paper tray or the camera. Failure to do so can cause paper misfeeds or jams and can damage the printer dock.

Removing Perforated Tabs from Prints

1 Fold the side tabs away from the print. 2 Remove each side tab and discard.
16

Canceling Printing

Press and hold the Print button for 2
4X
Chapter 3
seconds.
The print job is immediately canceled and ejected into the paper tray. If you cancel a print during the fourth pass (clear coat), the print is ejected upon completion.
17
4 Reviewing Pictures and
Videos
To review pictures and videos stored on your camera:
1 Make sure the power is connected to the printer dock (see Connecting the
Power, page 5).
2 Place the Kodak EasyShare camera in the printer dock (see Docking and
Charging the Camera, page 13).
3 Press the arrow keys on the printer dock to scroll through the
pictures and videos on your camera.

Running a Slide Show

Use the Slide Show to automatically review your pictures and videos, and to display pictures and videos on a television screen (see Displaying Pictures and
Videos on a Television, page 20).
1 Make sure the power is connected to the printer dock (see Connecting the
Power, page 5).
2 Place the Kodak EasyShare camera in the printer dock (see Docking and
Charging the Camera, page 13).
3 Press the Slide Show button .
The pictures and videos are displayed in the order in which you took them. The slide show is finished when "The End" appears on the screen.
To manually navigate through pictures and videos during the slide
show, press the arrow keys on the printer dock.
To select images to print during the slide show, press the Print button
and select the number of copies to print.
19
Chapter 4
IMPORTANT: If, after you press the Print button, you decide not to
print the picture, select 0 on the copies screen before resuming the slide show.
To resume the slide show, press the Print button again or press the
Slide Show button . If neither button is pressed, after a short time the slide show resumes automatically.
To cancel the slide show, press and hold the Slide Show button
until "The End" appears on the screen.
When the slide show ends, all the pictures you selected are printed.

Changing the Slide Show Display Interval

Use your Kodak EasyShare camera settings to change the length of time slides are displayed in the slide show. See your camera user’s guide for details.

Running a Continuous Slide Show Loop

When you turn on Loop on your Kodak EasyShare camera, the slide show is continuously repeated. See your camera user’s guide for details.
To cancel the slide show, press and hold the Slide Show button until
"The End" appears on the screen.

Displaying Pictures and Videos on a Television

You can display pictures and videos on a television, computer monitor, or any device equipped with a video input. (Images may not look as good on a television as on a computer monitor or when printed.)
An Audio/Video cable is required to connect to a television. Use the A/V cable that came with your Kodak EasyShare camera. To purchase one separately, see a retail dealer of Kodak products or visit www.kodak.com/go/printerdock.
You need at least one still image or video on your camera to display the picture on your television.
20
Chapter 4
Make sure the power is connected to the
1
printer dock (see Connecting the Power,
page 5).
2 Connect the Audio/Video cable from the
printer dock A/V out connector to the television video-in port.
3 Turn on your television, and change to a
video channel. See your television user’s guide for details.
4 Place the Kodak EasyShare camera in the
printer dock (see Docking and Charging the
Camera, page 13).
5 Press the Slide Show button .
The camera screen turns off; the television screen acts as the camera display. If a picture does not appear on your television screen see Chapter 7,
Troubleshooting.
To manually navigate through pictures
and videos during the slide show, press the arrow keys on the printer
dock.
For more information, see Running a Slide
Show, page 19.
21
5 Using the Printer Dock with a
Computer

System Requirements

Windows-based Computer

Personal computer running Windows 98, 98SE, ME, 2000*, or XP*233 MHz processor or greater64 MB of RAM (128 MB for Windows XP)200 MB of available hard disk spaceCD-ROM driveBuilt-in USB port Color monitor with a minimum resolution of 800 x 600 pixels; High Color
(16-bit) or true color (24-bit) recommended
Internet access for ordering supplies online

Mac OS X

Power Mac G3, G4, G4 Cube; iMac Powerbook G3, G4; iBookMac OS 10.1.5* minimum128 MB of available RAM200 MB of available hard disk space CD-ROM driveBuilt-in USB portColor monitor with a minimum resolution of 800 x 600 pixels; thousands
or millions of colors recommended
Internet access for ordering supplies online and for downloading software
* You must have Administrator rights to install software on these systems.
23
Chapter 5

Installing the Software

CAUTION:
Do not install the Kodak EasyShare printer dock 6000 software with the printer dock connected to the computer. It may cause the software to load incorrectly. If the printer dock is connected, disconnect it before you proceed.
NOTE: For more information on installing the software, see the ReadMe file on
the Kodak EasyShare printer dock 6000 software CD.
On a Windows-based computer:
1 Close all software applications that are open on your computer. 2 Place the Kodak EasyShare printer dock 6000 software CD into the CD
drive.
3 Load the software:
a If an install window does not appear, select Run from the Start menu
and type: d:\setup.exe (if d is the drive letter that contains the CD).
b Follow the on-screen instructions. Use the installer menus to select a
language. If prompted, restart the computer when the installation is complete.
The Kodak EasyShare printer dock 6000 is added to your computer.
On Mac OS X:
1 Close all software applications that are open on your computer. 2 Place the Kodak EasyShare printer dock 6000 software CD into the CD
drive.
24
Chapter 5
Load the software:
3
a Double-click the CD icon on the desktop, then double-click the
Kodak PD6000 Installer icon.
b Follow the on-screen instructions. Use the installer menus to select a
language. When prompted, restart the computer.
c Open the finder window and click the Applications button. If you don’t
see the Applications button, access the Applications folder on your operating drive.
d Open the Utilities folder, then double-click Print Center. e In the Printer List window, click the Add Printer button. f Select Kodak PD6000, then click Add.
The Kodak EasyShare printer dock 6000 is added to your computer.

Uninstalling

On a Windows-based computer:
1 From the Start menu, select Settings, then select Control Panel. 2 Double-click Add/Remove Programs. 3 Select the Kodak PD6000 program, then click Remove. Follow the
on-screen instructions. If prompted, restart the computer.
4 From the Start menu, select Settings, then select Printers. 5 Right-click the Kodak PD6000 printer icon, then select Delete. 6 Follow the on-screen instructions. For Windows 2000 or Windows XP,
continue to the next step. Otherwise stop here.
7 From the Start menu, select Settings, then select Printers. 8 Select Server Properties from the File menu, then click the Drivers tab. 9 Select Kodak PD6000, then click Remove. 10 Click OK when complete.
25
Chapter 5
On Mac OS X:
1 Double-click the operating drive for your system. 2 Select Library, then select Printers. 3 Open the Kodak folder, then double-click Kodak PD6000 Uninstaller.
Follow the on-screen instructions.

Connecting to a Computer

A USB cable is required to connect to a computer. Use the USB cable that came with your Kodak EasyShare camera. To purchase one separately, see a retail dealer of Kodak products or visit www.kodak.com/go/printerdock.
CAUTION:
Make sure your camera is NOT in the printer dock when you are connecting to the computer.
1 Make sure the power is connected to the printer dock (see Connecting the
Power, page 5), and the Kodak EasyShare printer dock 6000 software is
installed on the computer (see Installing the Software, page 24).
2 Plug the labeled end of a USB cable into
the labeled USB port on your computer. See your computer documentation for details.
3 Plug the other end of the USB cable into the
square USB connector on the back of the printer dock.
4 Route the cable through the channel located
on the underside of the printer dock, so that the cable does not interfere with the paper path.
26
Chapter 5

Transferring Pictures

You can transfer pictures directly from your Kodak EasyShare camera to your computer (see your camera user’s guide), or with the camera docked, you can transfer pictures through the printer dock.
1 Make sure the Kodak EasyShare printer dock 6000 software is installed
(see Installing the Software, page 24) and the printer dock is connected to your computer (see Connecting to a Computer, page 26).
2 Place the camera in the printer dock (see Docking and Charging the
Camera, page 13).
3 Press the Transfer button on the printer dock.
A new drive appears for the printer dock, and the Kodak EasyShare software opens on your computer (if it is installed).
4 Use the Kodak EasyShare software to transfer pictures from the printer
dock to your computer.
The printer dock Transfer light blinks green while the pictures are being transferred. Charging is suspended during transfer.
See your camera quick start guide or the Kodak EasyShare software Help for information on installing and using the Kodak EasyShare software.
NOTE: If the Kodak EasyShare software is not installed, you can transfer from
the printer dock to your computer by copying pictures from the newly established printer dock drive to your computer hard drive. See your computer documentation for details.
27
Chapter 5

Printing from a Computer

We recommend using the Kodak EasyShare software included with your Kodak EasyShare camera for printing. This software lets you to take advantage of a wide range of features, including full color enhancement, red eye reduction, picture organization, and much more.
See your camera quick start guide or the Kodak EasyShare software Help for information on installing and using the Kodak EasyShare software.
If there are no pictures on your computer, use the printer dock to transfer pictures from your camera before printing (see Transferring Pictures,
page 27).

Printing with Kodak EasyShare software

1 Make sure the Kodak EasyShare printer dock 6000 software is installed
(see Installing the Software, page 24) and the printer dock is connected to your computer (see Connecting to a Computer, page 26).
2 For borderless 4" x 6" prints, set the Kodak EasyShare software settings as
follows:
On a Windows-based computer:
Paper size—4.0 x 6.0 in. (102 x 152 mm) Paper type—Other or Kodak Photo Paper PH-10/40 Print layout—Full size
On Mac OS X:
Format for—Kodak PD6000 Paper size—Photo Paper Print layout—Full size Picture in print size—Fill Turn on One-Touch to Better Pictures feature—No
3 Change any other settings as needed. 4 On the Print at Home screen, click Print.
28
Chapter 5

Printing Using Other Applications

1 Make sure the Kodak EasyShare printer dock 6000 software is installed
(see Installing the Software, page 24), and the printer dock is connected to your computer (see Connecting to a Computer, page 26).
2 Open the pictures you wish to print in the application from which you want
to print.
3 Access printer settings by selecting Print or Page Setup from the File menu
(depending on your application and platform).
4 Make sure that Kodak PD6000 is selected as the printer and that paper size
in Windows is set to 4" x 6" (102 x 152 mm). On Mac OS X, make sure paper size is set to Photo Paper.
5 Change any other settings if needed, then click OK or Print. Depending on
your application and platform, you may first need to return to the main menu and select Print from the File menu.

Kodak Color Mode

The Kodak EasyShare printer dock 6000 features two Kodak color mode options:
Natural—to get clear prints with no adjustment in color. Enhanced—to get richer, more vivid colors from your pictures (default).
To change the Kodak color mode:
On Windows 2000/XP:
1 From the Start menu, select Settings, then select Printers. 2 Right-click the Kodak PD6000 printer icon, then select Printing
Preferences.
3 Click the Advanced button. 4 Under Document Options, select Printer Features, then select Kodak Color
Mode.
5 Select Natural or Enhanced, then click OK. 6 Click OK when complete.
29
Chapter 5
On Windows 98/ME:
1 From the Start menu, select Settings, then select Printers. 2 Right-click the Kodak PD6000 printer icon, then select Properties. 3 Click the Printer Options tab. 4 Under Color Control, select Natural or Enhanced. 5 Click OK when complete.
On Mac OS X:
Make sure the Kodak PD6000 is selected as the current printer.
1 From an application File menu, select Print. 2 Use to scroll through the available panels and select Color. 3 Select Kodak Color. 4 Choose Natural or Enhanced. 5 Click OK when complete.

Removing Perforated Tabs from Prints

1 Fold the side tabs away from the print. 2 Remove each side tab and discard.
30
Chapter 5
Status Monitor—Windows only
The Kodak EasyShare printer dock 6000 status monitor icon appears in the Windows taskbar in the lower-right corner of your computer screen. The status monitor provides information about the status of the printer and the current print job and lets you order supplies and accessories online.
Right-click the status monitor icon to select one of the following: Open Status Monitor—displays the current printer status and job progress.
You can also cancel the current print job (see Canceling Printing, page 31) and order supplies online.
Remove Icon from Taskbar—permanently removes the status monitor icon from the Windows taskbar (can be re-added by re-installing the software).
About Kodak Status Monitor—displays the version of the Kodak EasyShare printer dock 6000 status monitor.
Exit—temporarily disables the status monitor. The icon will reappear upon Windows startup.

Canceling Printing

On a Windows-based computer:
1 From the Start menu, select Settings, then select Printers.
2 Double-click the Kodak PD6000 printer icon. 3 Select the print job you want to cancel.
4 Select Document, then select Cancel.
NOTE: You may cancel the current print job using the status monitor (see
Status Monitor—Windows only).
On Mac OS X:
1 In Print Center, double-click the Kodak PD6000 printer icon. 2 Click the job you want to cancel, then select Delete.
31
Chapter 5

Ordering Supplies

For a full range of Kodak accessories and supplies, see your retailer of Kodak products or visit www.kodak.com/go/printerdock.
In addition, you can order printer dock supplies online using the Kodak EasyShare printer dock 6000 software.
On a Windows-based computer:
1 From the Start menu, select Settings, then select Printers. 2 Right-click the Kodak PD6000 printer icon, then select Printing
Preferences (in Windows 2000/XP) or Properties (in Windows 98/ME).
3 Click the About tab. 4 Click Order Supplies. 5 Click OK when complete.
NOTE: You can also order supplies by double-clicking the status monitor icon
in the taskbar (see Status Monitor—Windows only, page 31).
On Mac OS X:
1 From an application File menu, select Print. 2 Use to scroll through the available panels and select Printer
Support.
3 Click Order Supplies.
32

6 Care and Maintenance

General Care

Keep the printer dock, accessories and
supplies away from high temperatures, humidity and direct sunlight for extended periods of time.
Support the printer dock and tray by placing
it on a flat, level surface. Do not block the air vents.
Avoid blocking the back of the printer dock
and paper tray exit.
Keep power and USB cables away from the
paper path.
Keep the printer dock clean.Keep the surrounding area vacuumed and
litter-free.
Protect the printer dock from tobacco
smoke, dust, sand, and liquid spills.
Avoid placing objects on the printer dock.
33
Chapter 6

Cleaning the Print Head

Clean the print head when lines, streaks, or scratches appear on the prints. The head cleaning tool can be used several times, but should be replaced when the cleaning pad appears soiled or is no longer effective. Replacement cleaning tools are available at www.kodak.com/go/printerdock.
Use the print head cleaning tool to clean the print head.
1 Disconnect the power cord.
2 Open the color cartridge door. 3 Push up on the green lever and remove the
color cartridge.
4 Insert the cleaning tool, white pad facing
up, into the color cartridge slot.
3-4
IMPORTANT: Do not touch or remove the
x
5 Reinsert and remove the tool at least 3 to 4
times.
6 Reinstall the color cartridge (see Loading
the Color Cartridge, page 6).
7 Close the color cartridge door.
white cleaning pad on the cleaning tool. The cleaning tool can only be inserted one way. Do not force it into the slot.
34
Chapter 6

Clearing a Paper Jam

If a paper jam occurs, the Paper light
flashes red.(see Indicator Lights and
Buttons, page 9).
1 Remove the paper tray. 2 Disconnect the power cord, wait 5 seconds,
then plug it back in.
3 The printer will reset and eject the paper. if
the paper does not eject, try to remove it manually.
4 Replace the paper tray. 5 Press the Print button on the printer to
resume printing.
CAUTION:
Do not use force when removing the paper jam.
35
Chapter 6

Clearing a Color Cartridge Jam

If a color cartridge jam occurs the cartridge
light flashes red.
1 Open the color cartridge door. 2 Push up on the green lever and remove the
color cartridge.
3 Remove the slack in the color cartridge by
pushing in on the spool, then rotating the cartridge spool in the direction of the arrow.
4 Reinstall the color cartridge (see Loading
the Color Cartridge, page 6).

Cleaning the Printer Dock

CAUTION:
Do not use abrasives or harsh chemicals to clean any part of the printer dock. Disconnect the power before cleaning.
Wipe the printer dock and the paper tray with a dry, lint-free cloth.
36
Chapter 6

Traveling with your Printer Dock

IMPORTANT: Protect the printer, accessories and supplies from high
temperatures when transporting.
1 Disconnect the power cord and remove all
cables.
2 Remove the paper tray from the printer
dock, and close the door.
3 Protect the paper by removing the
protective cap from the front of the paper tray and placing it on the back of the paper tray.
4 Repack the printer dock in the original
packing box, or use the optional printer dock travel bag. See a retail dealer of Kodak products or visit
www.kodak.com/go/printerdock.
37

7 Troubleshooting

This chapter contains help for your printer dock. For updates to Troubleshooting information, visit our Web site at
www.kodak.com/go/printerdock.

Printing Problems

Printing Problem Cause Action/Solution
Paper misfeeds or pulls multiple sheets through the printer.
Paper stops during mid-print, Paper or Cartridge lights flash.
Paper stops traveling before print is completed.
Too much paper is loaded in the paper tray, or the paper is improperly loaded.
The paper tray is improperly installed.
The paper is jammed. Clear the paper jam (page 35). The color cartridge is
jammed.
The removable tabs may be missing, causing the paper to misfeed.
Reload the paper (page 7), using no more than 25 sheets.
Re-install the paper tray (page 7).
Clear the cartridge jam (page 36).
Remove the paper tray and make sure removable tabs have not been detached. Reload with new paper if necessary (page 7).
39
Chapter 7
Printing Problem Cause Action/Solution
Print is scratched along the length of the print.
Print is blank or light
Print is smudged. There were
Print is spotted The paper may be
The print head may need cleaning.
The paper may be dusty or dirty.
The color cartridge is improperly installed.
The color cartridge is empty.
The paper is loaded upside down.
The wrong paper is loaded.
fingerprints on the print side prior to printing.
dusty or dirty.
Clean the print head (page 34).
Remove dirty paper.
Re-install the color cartridge (page 6).
Install a new color cartridge (page 6).
Reload the paper with the print side facing up and Kodak logo facing down.(page 7).
Use only Kodak color cartridge & photo paper kit PH-40.
Handle paper by the edges or by the removable tabs.
Remove dirty paper.
40
Chapter 7
Printing Problem Cause Action/Solution
Print is dark. The captured image is
Pictures are cropped.
too dark.
High print head temperature.
Cooling vents may be blocked or dirty.
Your camera is set at (4:3) aspect ratio.
Try re-taking the picture under better lighting conditions or change the exposure compensation in your camera.
Edit the picture using the computer and Kodak EasyShare software.
Make sure the printer dock is not placed in direct sunlight or is not operating in a high-temperature environment. Let the printer dock cool down for 5 minutes.
Check that the cooling vents are not blocked or dirty (page 3).
Set your camera to Best (3:2) picture quality.
Adjust cropped pictures using the computer and Kodak EasyShare software.
41
Chapter 7
Printing Problem Cause Action/Solution
Nothing happens when you try to print.
...from the camera.
The AC power cord is not securely connected.
The paper tray is improperly installed.
The paper tray is empty.
The color cartridge is improperly installed.
The color cartridge is depleted.
The camera is not in the printer dock or is improperly seated.
There are no pictures in the camera.
Check the connections (page 5) and try again.
Remove the paper tray, check that paper is properly loaded, and re­install (page 7).
Check that the paper light appears, then load paper (page 7).
Re-install the color cartridge (page 6).
Check that the color cartridge light appears, then install a new color cartridge (page 6).
Replace the camera on the printer dock (page 13) and try again.
Check the camera’s internal memory and memory card.
42
Chapter 7
Printing Problem Cause Action/Solution
...from the computer.
The USB cable is not securely connected.
The print job is paused or held in the print queue.
The battery monitor or similar software runs constantly.
The computer is transferring images.
The computer is unable to detect the printer dock or the camera.
Check the connections (page 26) and try again.
Access the printer menu for your system. Make sure no check mark appears next to the Pause Printing option.
Close that software before starting the Kodak software.
Wait a few seconds, then try to print from the computer.
1 Finish the current print job (if
in standalone mode).
2 End slide show (if it is
running).
3 Check the connections
(page 26) and try again.
43
Chapter 7
Printing Problem Cause Action/Solution
...from the computer (continued).
There are too many applications running on your computer.
1 Disconnect the USB cable from
the printer dock (page 26).
2 Close all software applications. 3 Reconnect the USB cable
(page 26) to the printer dock.
Some Advanced Power Management utilities on laptops turn off ports to save battery life.
The software is not fully or properly installed on the computer.
See the power management section of your laptop user’s guide to disable this feature.
1 Disconnect the USB cable from
the printer dock.
2 Close all software applications. 3 Uninstall the software
(page 24).
4 Re-install the Kodak EasyShare
printer dock 6000 software (page 24).
5 Reconnect the USB cable to the
printer dock (page 26).
Computer is not running efficiently.
Consider upgrading your computer to meet the recommended system requirements (page 23).
44
Chapter 7
Printing Problem Cause Action/Solution
Printing is slow. High print head
temperature.
Cooling vents may be blocked or dirty
Picture file size is large.
There are too many applications running on your computer.
Make sure the printer dock is not placed in direct sunlight or is not operating in a high-temperature environment. Let the printer dock cool down for 5 minutes.
Check that the cooling vents are not blocked or dirty (page 3).
Check your computer configuration for memory.
1 Disconnect the USB cable from
the printer dock (page 26).
2 Close all software applications. 3 Reconnect the USB cable
(page 26) to the printer dock.
Computer is not running efficiently.
Consider upgrading your computer to meet the recommended system requirements (page 23).
45
Chapter 7

Problems Transferring Pictures

Transferring Pictures Problem Cause Action/Solution
Cannot transfer pictures to the computer.
The Transfer button was not pressed.
The AC power adapter or USB cable is not securely connected.
The camera was removed from the printer dock during picture transfer.
There are too many applications running on your computer.
The software is not fully or correctly installed on the computer.
Press the Transfer button.
Check the connections (page 26) and try again.
Replace the camera on the printer dock (page 13) and try again.
Close all software applications and try again.
1 Disconnect the USB cable
from the printer dock.
2 Close all software
applications.
3 Uninstall the software:
(page 24).
4 Re-install the Kodak
EasyShare software (page 24).
5 Reconnect the USB cable
to the printer dock (page 26).
46
Chapter 7

Printer Dock Status Lights

Cartridge Light Light Status Cause Action/Solution
Light glows steady red
Light blinks red The color cartridge is
Light off The color cartridge is
Paper Light
Light Status Cause Action/Solution Light glows steady
red Light blinks red The paper tray is improperly
Light off The paper tray is properly
The color cartridge is depleted.
improperly installed.
There is a color cartridge jam.
properly installed.
The paper tray is empty. Load paper (page 7).
installed.
There is a paper jam. Clear the paper jam
installed and has an ample supply of paper.
Install a new color cartridge (page 6).
Remove and re-install the color cartridge (page 6).
Install a new color cartridge (page 6).
None required.
Remove the paper tray, check that paper is properly loaded, and re­install (page 7).
(page 35). None required.
47
Chapter 7
Battery Charging Lights Light Status Cause Action/Solution
No lights Camera is not properly seated in
Green lights
One green light
the printer dock.
Camera is turned on. Turn off the camera. Correct battery is not installed. Install a Kodak EasyShare
Battery is less than half charged. Leave camera on dock to Battery is more than half charged. Battery is fully charged. Leave camera on the dock
Camera was placed in camera dock.
Place the camera in the printer dock (page 13) or readjust the camera placement.
Ni-MH rechargeable battery pack or Kodak EasyShare Li-Ion rechargeable battery (page 11).
continue charging.
to maintain charge. None; dock is checking the
charge status of the battery.
Red light (blinking)
48
Battery is not properly installed. Re-install the battery. Battery or connector pin is
damaged. Camera and battery have been
exposed to extreme temperatures.
Check for damage.
Slowly return the camera and battery to room temperature.
Chapter 7
Print Mode Lights Light Status Cause Action/Solution
One light glows steady green
All lights are off There are no pictures in the
Print Light Light Status Cause Action/Solution
Light glows steady green
Light blinks green The printer dock is printing.
Transfer Light Light Status Cause Action/Solution
Light glows steady green
Light blinks green Pictures are being
The respective print option is available and selected.
camera. The camera is in (auto
power-off).
The printer dock is ready for printing.
The printer dock is ready for transferring pictures.
transferred to the computer.
None required. To change modes, push
the Print mode button repeatedly (page 9).
Press the Print button or any button.
None required.
None required.
49
Chapter 7
Transfer Light Light Status Cause Action/Solution
Light is off There are no pictures in the
camera. The camera is not in the
printer dock or is improperly seated.
The printer dock is not connected to the computer.
The camera is in auto power­off.
The printer dock is either printing in standalone mode or running a slide show.
The computer is not running. Turn on the computer.
None required.
Place the camera in the printer dock (page 13) or readjust the camera placement.
Connect the printer dock to the computer (page 23).
Press any button.
The Transfer button is disabled.
50

8 Getting Help

Helpful Web Links

For help with your printer dock http://www.kodak.com/go/printerdock For help navigating through a
Windows-based computer and working with digital pictures
To download firmware, printer dock drivers, and EasyShare software.
For product support on cameras, software, accessories, and more
To purchase a full range of digital camera and dock accessories

Help in this User’s Guide

For help with problems you may have with your printer dock or computer connections, see Chapter 7, Troubleshooting.

Software Help

For help with the Kodak EasyShare printer dock 6000 software, see Installing
the Software, page 24.
http://www.kodak.com/go/pcbasics
http://www.kodak.com/go/ printdockdownloads
http://www.kodak.com/go/camerasupport
http://www.kodak.com/go/accessories
51
Chapter 8

Telephone Customer Support

If you have questions concerning the operation of the software or printer dock, you may speak directly to a customer support representative.
Customer support hours vary by location.

Before You Call

If the printer dock is connected to a computer, please be at the computer, and have the following information available:
Operating system__________________________________________ Processor speed (MHz)_____________________________________ Computer model __________________________________________ Amount of memory (MB)____________________________________ Exact error message you received_______________________________ Version of installation CD____________________________________ Printer dock serial number___________________________________ Camera model____________________________________________
52

Telephone Numbers

Australia 1 800 147 701 Austria/Osterreich 0179 567 357 Belgium/Belgique 02 713 14 45 Brazil 0800 15 0000 Canada 1 800 465 6325 China 800 820 6027 Denmark/Danmark 3 848 71 30 Ireland/Eire 01 407 3054 Finland/Suomi 0800 1 17056 France 01 55 1740 77 Germany/Deutschland 069 5007 0035 Greece 00800 441 25605 Hong Kong 800 901 514 India 91 22 617 5823 Italy/Italia 02 696 33452 Japan 03 5644 5050 Korea 0798 631 0024 Netherlands/Nederland 020 346 9372 New Zealand 0800 440 786 Norway/Norge 23 16 21 33 Philippines 1 800 1 888 9600 Portugal 021 415 4125 Singapore 800 6363 036
Chapter 8
53
Chapter 8
Spain/España 91 749 76 53 Sweden/Sverige 08 587 704 21 Switzerland/Schweiz/Suisse 01 838 53 51 Taiwan 0080 861 008 Thailand 001 800 631 0017 UK 0870 243 0270 United States 1 800 235 6325 Outside the United States 585 726 7260 International Toll Line +44 131 458 714 International Toll Fax Number +44 131 458 962
For the most up-to-date listings, visit: http://www.kodak.com/US/en/digital/
contacts/DAIInternationalContacts.shtml.
54

9 Appendix

This appendix serves as a resource for technical information about your printer dock.

Printer Dock Specifications

Specifications—Printer Dock
Printing Process Thermal Dye Transfer Operating Temperature-for best
picture quality DC Voltage input
AC Voltage Operating Humidity 10% to 86% Relative Humidity Printer Dimensions
(without insert)
Printer Dimensions (without paper tray)
Printer Dimensions (with paper tray)
Desk or surface space
Paper tray Width
Width Depth Height
Weight 38 oz (1.08 kg) Width
Depth Depth 13 in. (33 cm)
Depth 18 in. (45.7 cm)
Depth
° F (10 to 35°C)
49 to 95
24 V DC at 1.8 Amps 110 V to 240 V 50/60 Hz
7.9 in. (20.1 cm)
6.25 in. (15.8 cm)
3.0 in. (7.6 cm)
7.9 in.(20.1 cm)
6.25 in. (15.8 cm)
4.75 in.(12 cm)
7.75 in. (19.75 cm)
55
Chapter 9
Specifications—Printer Dock
Color cartridge Width
Depth
Photo size 4 x 6 in. (102 x 152 mm)
3.14 in.(8 cm)
5.21 in.(13.25 cm)
CAUTION:
Do not use inkjet paper
Paper size 4 x 7.13 in.(102 x 181 mm)

Upgrading Your Software and Firmware

Take advantage of the latest enhancements to your Kodak software and printer dock firmware. Software refers to the applications included on the Kodak EasyShare printer dock 6000 software. Printer dock firmware is the internal software that runs on the printer dock.
To download the latest versions of software and firmware, visit
www.kodak.com/go/printerdock.
56
Chapter 9

Accessories and Supplies

Kodak accessories and supplies for the printer dock include:
Accessories and Supplies Item Catalog Number
Kodak EasyShare printer dock 6000 823-7448 US w/sensormatic tag
EAMER LAR GCR APR Canada
Kodak color cartridge & photo paper kit (PH-40) 123-1349 (English)
Audio/Video cable (included with camera) 198-3881 EasyShare Li-Ion batteries (1050 mAh) 849-9741 EasyShare Ni-MH rechargeable battery pack 114-8683 Kodak camera and printer dock travel bag 126-8903
For a full range of Kodak accessories and supplies, see your retailer of Kodak products or visit www.kodak.com/go/printerdock.
867-0952 120-9105 173-1801 140-9390 149-5985 105-9948
116-5257 (Multi-lingual)
57
Chapter 9

Safety Labels

RISK OF ELECTRIC SHOCK:
Do not open. Dry location use only.
CAUTION:
To avoid electrical hazard, use only with products specified in this user manual. Read all instructions before using.

Regulatory Information

FCC Compliance and Advisory

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Where shielded interface cables have been provided with the product or
58
Chapter 9
specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation.

Canadian DOC Statement

DOC Class B Compliance—This Class B digital apparatus complies with Canadian ICES-003.
Observation des normes-Class B—Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Disposal Information

The printer dock and the AC adapter contain a small amount of lead in the circuit board. Disposal of this material may be regulated due to environmental considerations. For disposal or recycling information, contact your local authorities, or contact the Electronics Industry Alliance Web site at www.eiae.org.
59

Index

Numerics
800 number for customer
support, 54
A
AC power connector, 2 accessories and
supplies, 32, 51, 57
B
back view of printer dock, 2 batteries
loading, 11—12 ordering, 57
status lights, 48 buttons and lights, 9 buying accessories and
supplies, 57
C
cables, 26, 57 camera
battery, loading, 11—12
docking and charging, 13
printing from, 15 Canadian compliance, 59
canceling printing, 17, 31 care and maintenance of printer
dock, 33 cartridge door, color, 3 cartridges
clearing jams, 36 handling and storing, 6 loading, 6 specifications, 56 status lights, 47
catalog numbers for accessories
and supplies, 57 changing interval of slide show
display, 20 charging
batteries, 48 the camera, 13
cleaning
print head, 34 printer dock, 36
clearance around printer
dock, 3 clearing
cartridge jams, 36 paper jams, 35
color cartridge door, 3
61
Index
color cartridges
installing, 6
jams, clearing, 36 color mode options, 29 compliance with FCC
regulations, 58
computer
connecting to, 26
helpful Web sites, 51
and printer dock, 23
printing from, 28
system requirements, 23 connecting
to a computer, 26
power, 5 contacting Kodak, 52—54 contents of package, 2 continuous loop for slide
show, 20
customer support
numbers, 52—54
D
dimensions of printer, 55 displaying
pictures and videos, 20
slide show interval, 20 docking and charging the
camera, 13
door, color cartridge, 3
E
electricity, connecting, 5, 55 enhanced color mode, 29 environmental requirements, 55
F
FCC compliance, 58 firmware, upgrading, 51, 56 formatting page layout, 28 front view of printer dock, 1
H
handling and storing
color cartridges, 6 paper, 8
help
technical, 51—54, 56 telephone support, 52—54 troubleshooting printer
dock, 39
I
indicator lights and buttons, 9 inserting paper tray, 8 installing
cartridges, 6 software, 24
62
Index
international phone
numbers, 53—54
interval of slide show,
changing, 20
J
jams, clearing, 35, 36 jobs, monitoring print, 31
K
Kodak
contacting, 52—54 EasyShare software, 28, 51 Web sites, 51
L
layout, formatting, 28 lights, status, 9, 47—49 loading
camera battery, 11—12 color cartridge, 6 paper, 7
software, 24 location for printer dock, 3 loop, slide show, 20
M
Macintosh system
requirements, 23
maintenance of printer dock, 33
modes, color, 29 monitor, requirements, 23 monitoring print job status, 31 moving printer dock, 37
N
natural color mode, 29 numbers, telephone, 53—54
O
operating temperature and
humidity, 55
ordering supplies, 32
P
package contents, 2 packing printer dock for
moving, 37
paper
formatting, 28 jams, clearing, 35 loading, 7 path, 2 specifications, 56 status light, 47
tray,1,8 PC system requirements, 23 perforated tabs from prints,
removing, 16, 30
63
Index
pictures
reviewing, 19 setting quality, 12
transferring, 27 power, connecting, 5 print head, cleaning, 34 print job status, 31 Print Mode button and status
lights, 1, 49
printer dock
accessories and supplies, 57
back view, 2
care and maintenance, 33
cleaning, 36
and computer, 23
connecting, 26
front view, 1
location and setup, 3
print head, cleaning, 34
side view, 3
specifications, 55
status lights, 47—49
technical help, 51—54, 56
travelling with, 37
troubleshooting, 39
upgrading, 51, 56 printer, status monitor, 31 printing
canceling, 17, 31
64
from camera, 15 problems, 39 with a computer, 28 with other applications, 29
problems
printing, 39 transferring pictures, 46
product support, 51, 56
Q
quality, setting, 12
R
regulatory information, 58, 59 removing perforated tabs from
prints, 16, 30
requirements
environmental, 55 system, 23
resolving problems
with printing, 39 with transferring pictures, 46
reviewing pictures and
videos, 19
running a slide show, 19
S
service and support, 52—54 setting picture quality, 12 side view of printer dock, 3
Index
slide show, running, 19 software
help, 51 installing, 24 Kodak EasyShare, 28, 51 printing with other, 29 requirements, 23 uninstalling, 25 upgrading, 51, 56
specifications
Macintosh OS, 23 printer dock, 55
Windows-based OS, 23 status lights, 47—49 status monitor, 31 storing color cartridges, 6 strap, wrist, 4 supplies and
accessories, 32, 51, 57 support, technical, 51—54, 56 system requirements, 23
T
tabs from prints,
removing, 16, 30 technical support, 51—54, 56 telephone numbers, 53—54 television, displaying pictures
on, 20 temperature requirements, 55
toll free number for customer
support, 54
Transfer button and status
lights, 49 transferring pictures, 27, 46 travelling with printer dock, 37 tray, inserting paper, 8 troubleshooting
cartridge jams, 36 paper jams, 35 printing problems, 39 transferring pictures
problems, 46
U
uninstalling software, 25 upgrading software, 51, 56 URLs for Kodak Web sites, 51 USB cable connections, 2, 26
V
videos, reviewing, 19 views of printer dock, 1—3
W
Web sites for Kodak, 51 weight of printer dock, 55 Windows system
requirements, 23 wrist strap, 4
65
Loading...
