Kitvision Edge User Manual

User manual

HD30W

ACTION CAMERA

kitvision.co.uk

JB. 2958 © Kitvision™ 2013. Chr istchur ch, Dor set. BH2 3 4FL

1 1

With a wide range of cameras and accessories, Kitvision is here to help you record your memories.

We’re committed to developing the very latest technologies so you can capture, re-live and share

your experiences in the best way possible. By remembering the past and embracing the future,

our vision is for every single precious moment to be treasured forever.

2 3

Contents

Main features 6

Box contents 7

Functions 8

Before use 11

Instructions for use 12

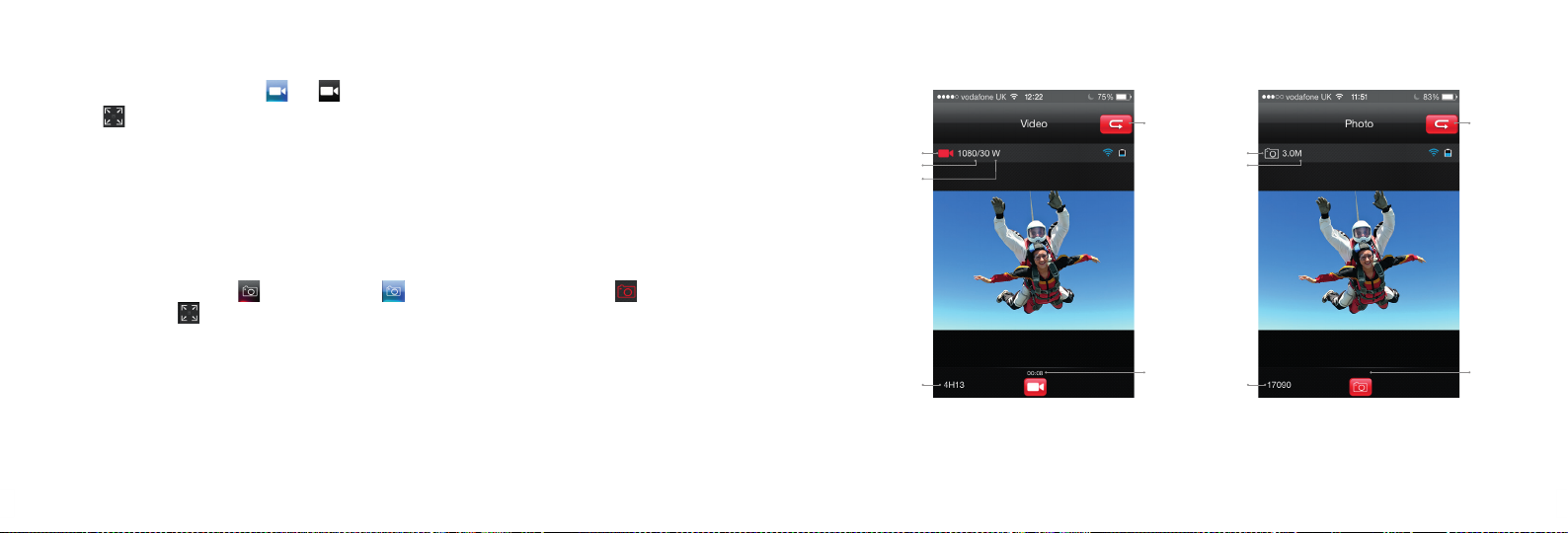

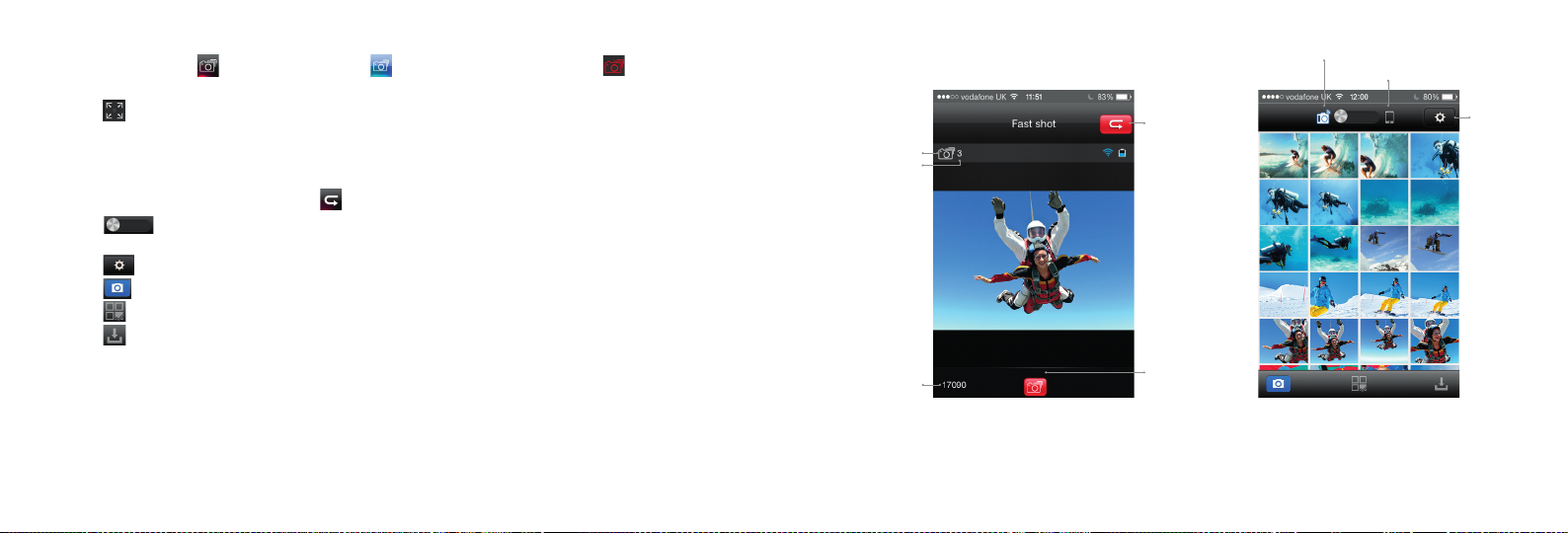

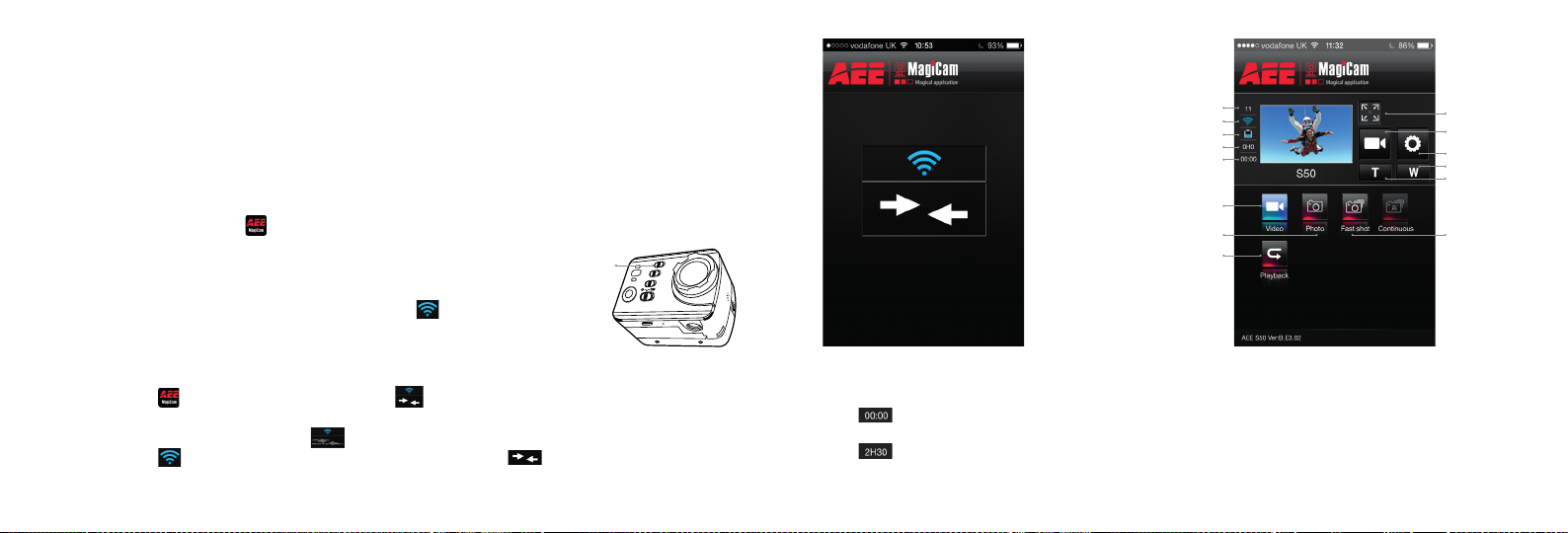

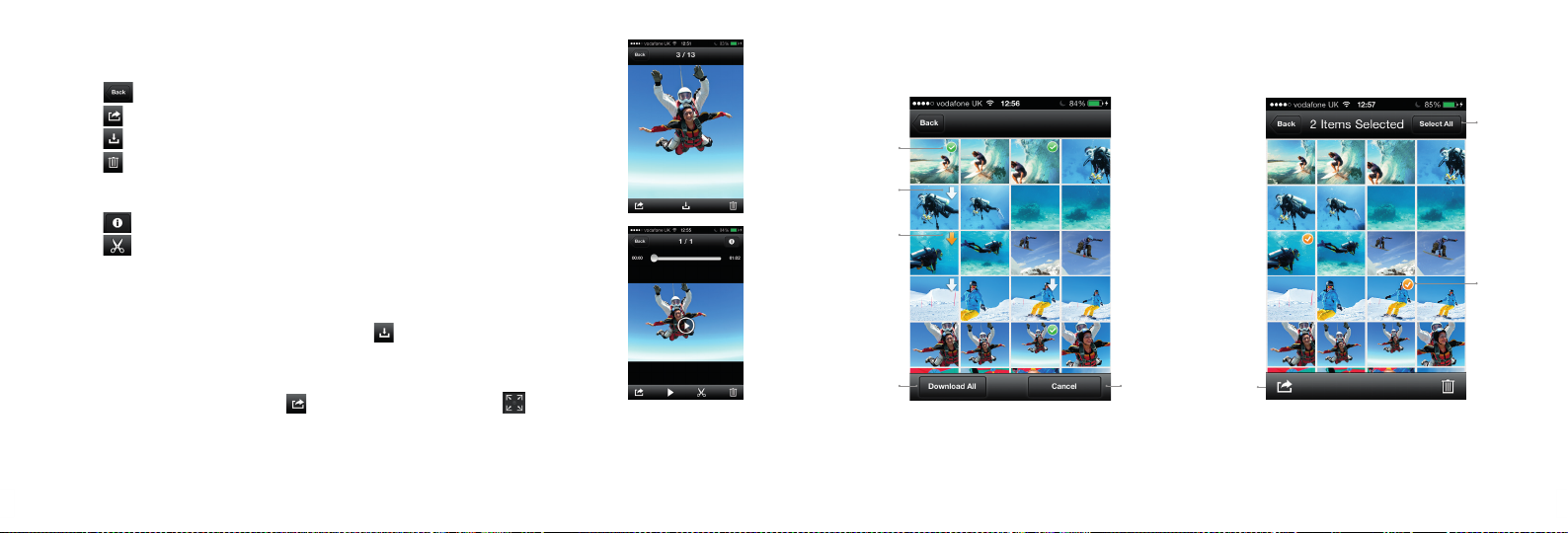

Using Wi-Fi 28

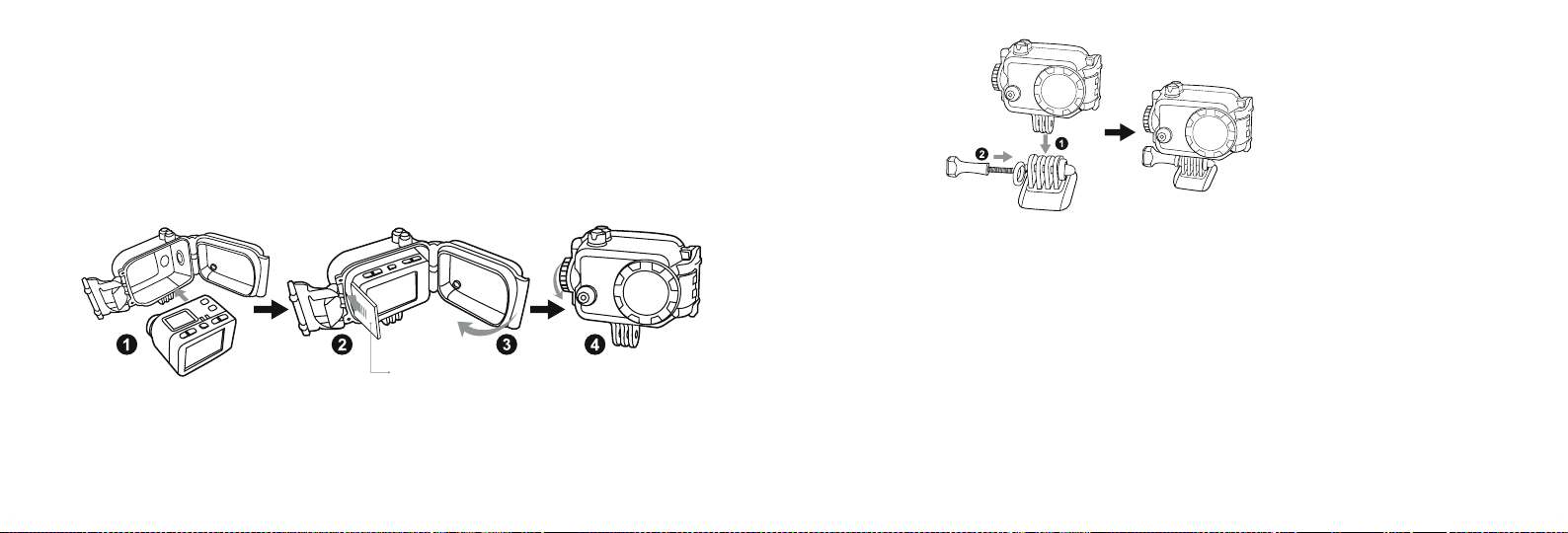

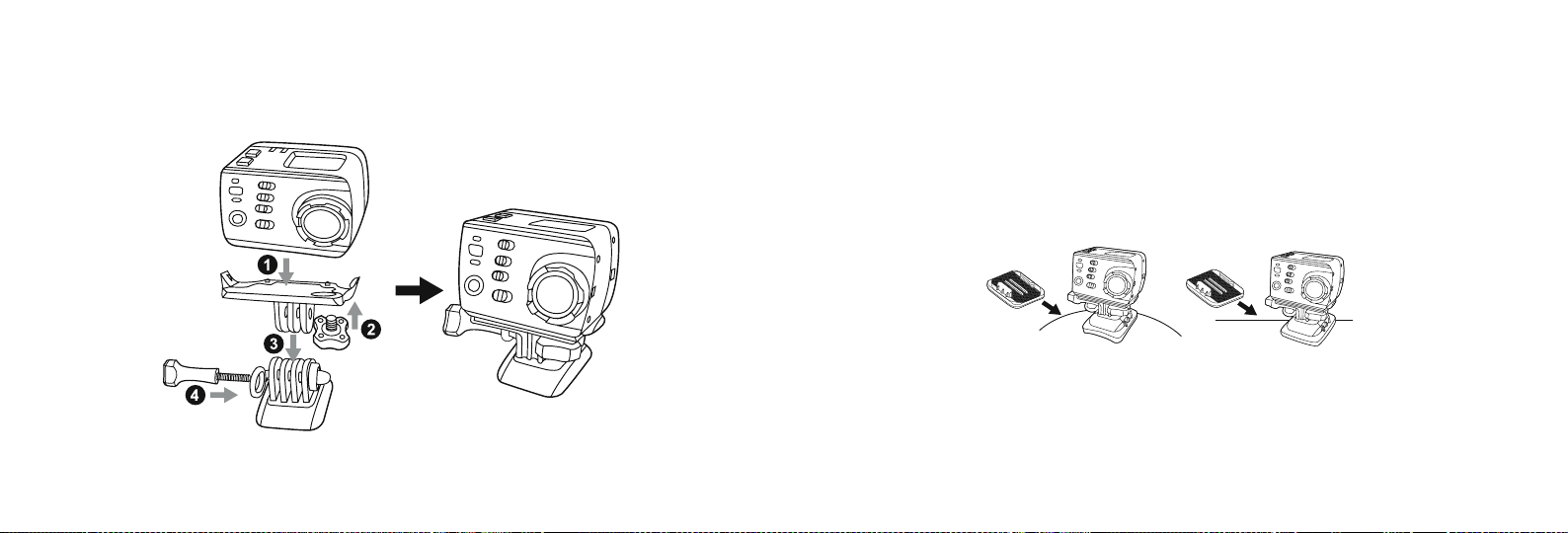

Accessory application 38

Troubleshooting 41

Specifications 42

4 5

Main features

• Built-in Wi-Fi to control the video camera remotely with your smartphone/tablet

• Full HD video recording with multiple interchangeable recording modes

• 8 Megapixel photo mode

• 175° ultra wide angle lens

• Waterproof up to 100 m with grade IP68 waterproof housing

• Supports micro SD/micro SDHC cards above Class 6 – up to 64 GB (not included)

• 10x digital zoom

• Automatic white balance and automatic exposure

• Built-in G-sensor (accelerator sensor for auto on/stop)

• Image 180° turnover recording

• 10 FPS fast shot mode

• Built-in high quality microphone

• High capacity rechargeable battery: up to 3 hours continuous recording

Box contents

1. Kitvision Edge HD30W action camera

2. TFT screen

3. Waterproof case

4. Waterproof case backdoor

5. Waterpro of case lens cover

6. Vertical connector

7. Mount connector

8. 3M adhesive flat mount

9. 3M adhesive curved mount

10. Mount screw

11. Li-battery

12. Anti-fog inserts

13. USB cable

14. User manual

Optional Accessories:

15. Wi-Fi remote control

16. Chest mount

17. Car mount

18. Bicycle mount

19. Adhesive mount set

1

5

10

2

6

11

7

12

3

8

13

4

9

14

15 16

6 7

17 18 19

Functions

8 9

LED indicator status

Red indicator Green indicator Blue indicator

Position

Status

Startup On

Video recording Flashes slowly

Audio recording Flashes slowly

Photo shooting Flashes once

Card full On

Charging (switched off) Flashes slowly

Fully charged (switched off) On

Low-battery indicator Flashes quickly for

Data transmission Flashes slowly

Wi-Fi on Flashes slowly

10 11

Front cover (1)
Top cover (1)
TFT display (1)

5 seconds and then
auto powers off

Front cover (1)
Top cover (1)
TFT display each (1)
Bottom side (2)

Front cover (1)

Before use

• Ensure that the battery “lock key” at the bottom of the camera is unlocked

• Push the battery into the slot completely as below

• Start up the unit to check the battery power. If the batter y level is low,
charge it using the supplied power adaptor or USB port of a PC

Instructions for use

Installing the TFT display

The Edge HD30W supports an external dedicated 2" TFT display, which can perform
setup, playback, delete and other functions on the camera, allowing you to preview
or play back the video. Install the display as shown below.

Startup

Turn the power switch to the “ON” position. Three red indicators will be
lit up (one on the front cover, one on the top cover and one on the display)

• The TFT display will be shown as right

• The LCD segment screen will be shown as right

Inserting and removing the memory card

The Edge HD30W supports external micro SD cards up to 64 GB.

Note: Although all micro SD cards above Class 6 can be used, high-speed cards
are recommended to enable smooth high-definition shooting.

Inserting the memory card

1. Ensure that the Edge HD30W is switched off

2. Insert the micro SD card into the memory card slot in the direction of the arrow
as shown. A “click” will indicate that the card has been inser ted correctly

Removing the memory card

1. Press the centre of the exposed part of the micro SD card and it will pop out slightly

2. You can then pull it out

Setting the time and date

Set the time and date by following thes e steps:

1. Turn on the camera to enter recording standby mode

2. Press the “M” button to enter the camera setting menu

3. Press the < or > button to s elect

4. Press the – or + button to selec t the time setting option and
press the “OK” but ton to confirm

5. Press the < or > but ton to move the cursor to the time or date
to be modified. Then press the – or + button to modify the time
and date and press “OK” to confirm

6. Press the “M” button to exit the menu and return to recording standby mode

Use the < or > button to select the item to the lef t or right, and use the + or – button to select the item above or
below of the selected item. Af ter selection, press the “OK” button to confirm.

TFT display

LCD screen

Note: Please ensure that the date and time are correctly set. The Edge HD30W will add the time to the photo/video

according to this setting.

12 13

Language

1. Turn on the camera to enter recording standby mode

2. Press the “M” button to enter the camera setting menu

3. Press the < or > button to s elect

4. Press the – or + button to selec t the language setting option and press
the “OK ” button to confirm

5. Press the < or > but ton to move the cursor to the language type to be modified.

Light meter

mode key

Video recording

button

Then press the “OK ” button to confirm

6. Press the “M” button to exit the menu and return to recording standby mode

Power on/of f key

Selecting light metering mode

To achieve the best exposure effect, use the central spot light metering mode
when the central spot is bright while the surrounding environment is dark

• Turn the “[

[ ]

]”to the “ON” position

Video recording

1. Turn on the camera to enter recording standby mode

2. Aim the lens at the subject and preview it in the TFT display

3. Press the “ Video recording” button once to start video recording

• The camer a will tick once to indicate that recording has begun

• The green indicators will flash slowly and the time counter will start

– The TFT display will be shown right
– The LCD segment will be shown right

14 15

TFT display

LCD screen

4. During video recording, press the “Stop” button once to stop recording

• The camer a will tick twice, indicating that the recording has stopped, and that the time counter has s topped

• The green indicators will turn off

• The display will return to recording standby mode

Starting video recording via G-SENSOR mode

Turn the G-Sensor key to “ON” s o that the Edge HD30W can actively sense the
change of gravity. The camera will automatically start video recording when it
is jolted or tilted etc. When this mode is applied in fixed installation, for example

G-Sens or

key

when it is mounted on a vehicle or helmet, video recording can begin without the
need to start the recording in advance, conserving batter y power and meaning
you won’t have to operate it manually. When the camera does not sense any
gravit y change for 3 minutes, it will exit video recording

Parameter setting for video recording

To set the parameters for video recording, per form the following operations:

1. Press the “M” but ton to enter the setting menu

2. Press the < or > but ton to select

3. Press the + or – button to move the blue cursor to the sub-menu you want to configure

4. Press the “OK” button to enter the sub-menu

5. Press the + or – but ton to select the par ameters you require

6. Press the “OK” button to confirm your selection

7. Press the “M” button again to exit the setting menu
