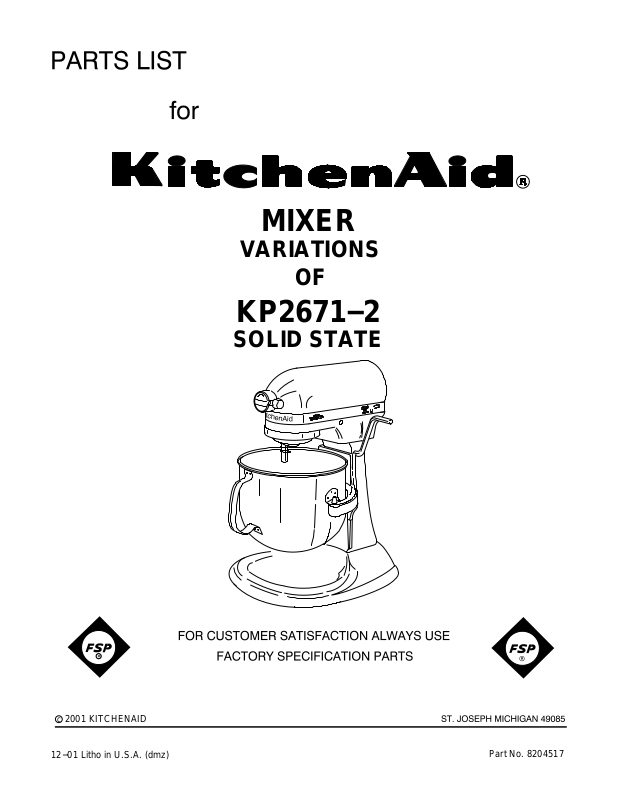

Page 1
MIXER
VARIATIONS
OF
KP2671−2
SOLID STATE
c
2001 KITCHENAID
12−01 Litho in U.S.A. (dmz)
Part No. 8204517
Page 2
MOTOR HOUSING
9703311 White
9703531 Imperial Gray
9703532 Imperial Black
9705296 Onyx Black
9705297 Navy Blue
9705298 Almond Cream
9705300 Empire Red
9705301 Majestic Yellow
9705380 Cobalt Blue
9705693 Caviar
9706162 Empire Green
COLOR VARIATION PARTS
For Models: KP2671−2
TRIM BAND
9703636 Silver & Black
9705695 Satin Finish &
Black
PLANETARY
9706042 White
9706293 Imperial Gray
9706298 Imperial Black
9706308 Onyx Black
9706313 Navy Blue
9706318 Almond Cream
9706328 Empire Red
9706333 Majestic Yellow
9706338 Cobalt Blue
9706343 Caviar
9706348 Empire Green
LOWER GEARCASE
9706047 White
9706296 Imperial Gray
9706301 Imperial Black
9706311 Onyx Black
9706316 Navy blue
9706321 Almond Cream
9706331 Empire Red
9706336 Majestic Yellow
9706341 Cobalt Blue
9706346 Caviar
9706351 Empire Green
COLUMN
9703673 White
9703525 Imperial Gray
9703526 Imperial Black
9705320 Onyx Black
9705321 Navy Blue
9705322 Almond cream
9705324 Empire Red
9705325 Majestic Yellow
9705384 Cobalt Blue
9705679 Caviar
9706148 Empire Green
BOWL SUPPORT
9703674 White
9703519 Imperial Gray
9703520 Imperial Black
9705356 Onyx Black
9705357 Navy Blue
9705358 Almond cream
9705360 Empire Red
9705361 Majestic Yellow
9705390 Cobalt blue
9705682 Caviar
9706151 Empire Green
Availability of All
Colors Subject to Change.
Any Color Not Listed is
No Longer Available.
If Additional Colors Are
Added, This Page Will Be
Updated.
8204517
BASE & FOOT ASSEMBLY
9703690 White
9703510 Imperial Gray
9703511 Imperial Black
9705344 Onyx Black
9705345 Navy Blue
9705346 Almond Cream
9705348 Empire Red
9705349 Majestic Yellow
9705388 Cobalt Blue
9705676 Caviar
9706145 Empire Green
2
Page 3
BASE AND PEDESTAL UNIT
For Models: KP2671−2
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2 9703414 Foot, Rubber (5)
3
4
5 9703474 Latch, Bowl Spring
6 9703470 Arm, Bowl Lift
7 9703458 Rod, Bowl Lift
8
9 9703439 Washer
10 9237 Spring
11 9703487 Clip
12 9703457 Handle, Bowl Lift
13 9703442 Roll Pin
14 9703687 Bowl (6 Qt)
15 9703485 Beater, Flat
16 9703655 Dough Hook
17 9703491 Wire Whip
18 9703534 Pouring Spout
19 9703533 Pouring Shield
20 9703426 Cam, Adjusting
21 3400200 Screw,
22 3400018 Screw,
23 9703307 Clip
24 9703698 Handle
LIT9703377
LIT8204517
Use & Care Guide
Repair Parts List
Column Assembly
Bowl Support
Base And Foot
Supports
1/4−20 x 3/4
10−24 x 1/2
Refer To Page 2
Color Variation Parts
3
8204517
Page 4
CASE, GEARING AND PLANETARY UNIT
For Models: KP2671−2
8204517
4
Page 5
CASE, GEARING AND PLANETARY UNIT
For Models: KP2671−2
Illus. Part
No. No. DESCRIPTION
1 Gearcase Motor Housing
2 9706251 Motor
3 9703315 Cap, Attachemnt
Hub (Hinged)
4 240374 Thumb Screw
5
6 Power Cord
9703626 White
9703627 Black
7 9703671 Transmission
8 Control Assembly
9703609 Black Knob
9 9703312 Sensor, Hall
10 9706090 Washer
11 9703434 Washer, Fiber
12 9703340 Gear, Pinion
13 9703438 Retaining Clip
14 9703314 Agitator Shaft
15
16 9703339 Gear, External
17 9703446 Worm Gear
18 4161950 Retaining Pin
19 9706529 Gear, Worm
20 9703338 Gear, Attachment
21 9703337 Gear, Bevel
22 3400617 Screw, 6−32 x 1/4
23 3400814 Screw, 8−32 x 5/8
24
25 9703680 Retaining Clip
26 9703630 Jumper Wire
27 3400200 Screw (3)
28 Bearing
9703560 Front
9703570 Rear
29 9703445 Thrust Bearing
30 9703581 Clip
Band, Trim
Housing
Effect
Planetary Assembly
Follower
Hub Bevel
Lower Gear Case
1/4 − 20 x 3/4
Refer To Page 2
Color Variation Parts
5
8204517
Page 6
ACCESSORY PARTS
For Models: KP2671−2
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
OPTIONAL ATTACHMENTS, ACCESSORIES
AND SERVICE ITEMS
4164778 Mixer Attachment
Pak (Includes Food
Grinder (FG−A),
Food Strainer
(FVSP), And
Vegetable Slicer,
(RVS−A)
(FPP−A)
4164749 Food Grinder
(FG−A)
4164751 Grain Mill
(GM−A)
4164768 Pasta Maker And
Food Grinder
(Includes SNP
Pasta Maker
Plates)
(SN/FG−A)
4164775 Fruit/Vegetable
Strainer Parts (Use
With FG−A Model
Only) (FVSP)
4164750 Rotor Slicer/Shredder
(With 4 Standard
Cones) Fine Shredder,
Coarse Shredder,
Thick Slicer, And
Thin Slicer (RVS−A)
4164824 Pasta Maker Plates
(SNP−A)
4164774 Fruit/Vegetable
Strainer And Food
Grinder (FVS/FG−A)
4162838 Food Tray (FT)
4164748 Juicer (JE)
4164747 Can Opener (CO)
4164803 Sausage Stuffer
Kit (SSA)
4160588 Grease, Planetary
8204517
6
