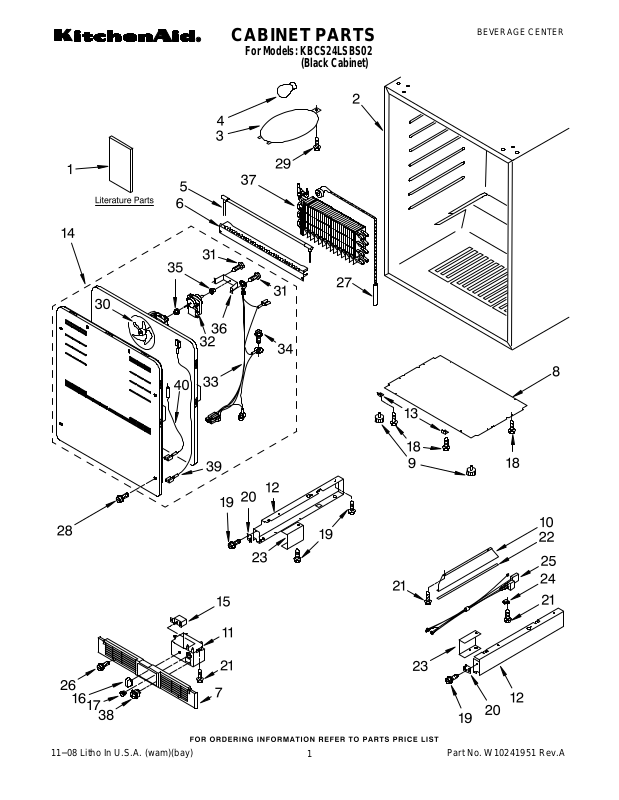

CABINET PARTS
For Models: KBCS24LSBS02
(Black Cabinet)
BEVERAGE CENTER
11−08 Litho In U.S.A. (wam)(bay)
1
Part No. W10241951 Rev.A
CABINET PARTS
For Models: KBCS24LSBS02
(Black Cabinet)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2300276 Use & Care Guide
4344901 Wiring Diagram
2 Cabinet (Not A
Service Part)
3 4344739 Lens, Light
4 4344740 Bulb, Light
5 4344746 Heater, Defrost
6 4344747 Heat Shield
7 4344761 Grille
8 4344762 Plate, Bottom
9 4344763 Foot, Leveling
W10204638
10
11 4344898 Control Box
12 Frame, Side
4344789 Left Side
4344790 Right Side
13 4344771 Bracket, Grille
W10239395
14
15 4344860 Thermostat
16 4344768 Knob, Thermostat
17 4344767 Switch, Plunger
18 4344826 Screw
W10243104
19
20 4344819 Clip, Grille
21 4344825 Screw
22 4344823 Seal
23 Frame, Support
4344821 Right
4344820 Left
24 4344824 Clip, Harness
25 4344857 Harness, Wire
26 4344826 Screw
27 4344792 Thermal Fuse
28 4344793 Screw
29 4344791 Screw
30 4344783 Fan Blade
31 4344878 Screw
32 4344865 Evaporator Fan
33 4344877 Harness, Wire
34 4344832 Screw, Ground
35 4344778 Grommet, Fan Motor
36 4344899 Bracket, Motor
37 Evaporator
38 4344858 Switch, Light
39 4344917 Transformer Cable
W10238027
40
Brace, Support
Evaporator Fan
Assembly
Screw
Motor
(Not Serviced)
Temperature Sensor
2
W10241951
SHELF PARTS
For Models: KBCS24LSBS02
(Black Cabinet)
W10241951
3
SHELF PARTS
For Models: KBCS24LSBS02
(Black Cabinet)
Illus. Part
No. No. DESCRIPTION
1
W10238032
2 4344866 Rubber Support
W10238029
3
W10187313
4
5 Ladder, Shelf
4344842 Left Side
4344843 Right Side
6 4344794 Screw
7 4344795 Washer
W10239367
8
9 4344851 Screw
10 4344882 Trim, Top And
11 4344867 Rubber Support
W10163279
12
13 Support, Bumper
4344886 Left
4344885 Right
14 Screw
4344915 Left
4344914 Right
W10238033
15
16 4344871 Glass, Shelf
17 4344868 Shelf, Small
18 4344869 Glass, Shelf
19 4344872 Trim, Shelf
20 4344873 Seal, Rear
21 4344874 Seal, Side (2)
22 4344875 Seal, Front
W10239364
23
W10239371
24
25
W10239368
W10162986
26
W10238187
27
W10238184
28
W10238024
29
W10238026
30
31
W10238025
W10238028
32
W10238180
33
Wine Rack
Top & Middle
Rail Assembly
Wine Rack, Lower
Shelf Support
Middle Racks
Trim, Lower Rack
Shelf, Large
Shelf Support
Shelf Support
Shelf Support
Screw W/Washer
Top Cover
Bottom Cover
Transformer Cable
Sensor Assy
Sensor Assy, Top
Extension Cable
PCB Display Board
Following Parts Not Illustrated
W10204809
W10238031
W10238384
W10238189
W10239385
W10243273
W10243310
W10243312
Screw, Cover
LED Spacer
Seal
Support
Support Spacer
Screw, Support
Screw, Support
Screw, LED
4
W10241951
DOOR PARTS
For Models: KBCS24LSBS02
(Black Cabinet)
Illus. Part
No. No. DESCRIPTION
1 4344854 Door Assembly
(Includes Gasket)
W10162992
2
3
W10163191
4 4344787 Hinge, Bottom
5 4344754 Hinge, Top
6 4344755 Spacer, Top Hinge
7 4344756 Spacer,
8 4344757 Actuator, Switch
9 4344758 Door Stop
10 4344852 Door Gasket
Washer−Bottom
Gasket−Push Plate
Bottom Hinge
Illus. Part
No. No. DESCRIPTION
11 4344810 Handle, Door
12 4344856 Door Skin,
Stainless Steel
13 4344760 Washer
14 4344803 Spacer, Door
W10238056
15
16 4344796 Screw
17 Screw, Lower Hinge
4344906 Quantity 1
W10243104
W10204865
18
Plate
Quantity 3
Screw
5
Illus. Part
No. No. DESCRIPTION
W10243123
19
20 4344801 Screw
21 4344808 Screw
W10239386
22
Screw
Nameplate
OPTIONAL PARTS
NOT ILLUSTRATED
8171420 Cleaner, Stainless
Steel (12 oz)
W10241951
UNIT PARTS
For Models: KBCS24LSBS02
(Black Cabinet)
Illus. Part
No. No. DESCRIPTION
1
W10163193
2 4344773 Bracket,
3 4344774 Defrost Timer
4 4344797 Screw
5 4344776 Start Device
W10238066
6
7 4344778 Grommet, Fan Motor
8 4344779 Grommet,
9 4344780 Bolt, Compressor
10 4344781 Fan Motor,
11 4344782 Baffle, Air
12 4344783 Fan Blade
Drain Pan
Defrost Timer
Mounting Plate,
Compressor
Compressor
Condenser
Illus. Part
No. No. DESCRIPTION
13 4344784 Bracket, Motor
14 4344785 Bracket, Motor
15 4344786 Cover, Rear
16 4344837 Capacitor
17 4344836 Clip
W10163276
18
19 4344861 Power Cord
20 4344829 Cable Tie
W10163273
21
22 4344907 Trim Edge
W10238022
23
W10163274
24
25 4344826 Screw
26 4344825 Screw
27 4344832 Screw
Trap, Drain
Drier
Clip
Pad−Rubber
6
Illus. Part
No. No. DESCRIPTION
28 4344775 Compressor
(Includes Items
5, 8, 16, 17 & 21)
29 4344834 Screw
30 4344833 Screw
W10238070
31
32
W10163278
33 4344864 Bracket,
Transformer
Thermostat
Thermostat
REFRIGERANT CHARGE
3.5 Ounces
(R−134A)
W10241951
