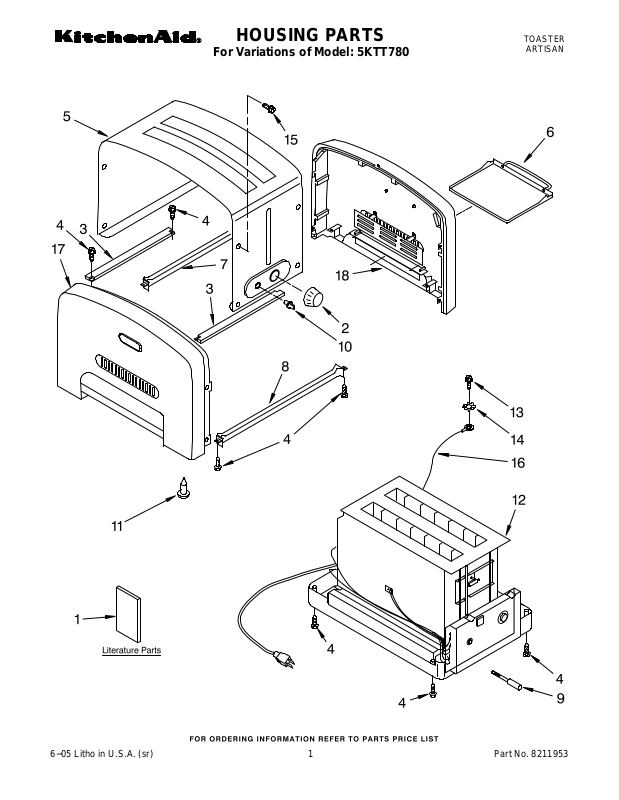

HOUSING PARTS

For Variations of Model: 5KTT780

TOASTER

ARTISAN

6−05 Litho in U.S.A. (sr)

1

Part No. 8211953

HOUSING PARTS

For Variations of Model: 5KTT780

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8204568 Guide, Use & Care

8211953 Repair Parts List
2 4176839 Knob, Darkness
3 4176737 Support
4 4176831 Screw
5 4176747 Wrap Assembly

(Includes Items

2 & 10)
6 4176814 Tray, Crumb
7 Bridge, Rear

4176742 Pearl Metallic
4176743 Empire Red
4176744 Tangerine
4176745 Cobalt Blue

8 Bridge, Front

4176738 Pearl Metallic
4176739 Empire Red
4176740 Tangerine
4176741 Cobalt Blue

9 4176832 Arm, Lifter

10 4176838 Knob, On/Off
11 4176837 Foot, Rubber

Illus. Part

No. No. DESCRIPTION

12 Chassis

(Includes Power
Cord, Base,
Control Boards, &

Heating Elements)
8211673 Europe
8211674 Swiss
8211675 Australia
8211676 Britain

13 4176829 Screw, Grounding
14 4176830 Lock Washer
15 4176828 Screw, Wrap
16 4176840 Wire, Ground

Illus. Part

No. No. DESCRIPTION

17 Panel Assembly

(Left)
(Includes Badge &

Vent)
8211677 Pearl Metallic
8211678 Empire Red
8211679 Tangerine
8211680 Cobalt Blue

18 Panel Assembly

(Right)
(Includes Badge &

Vent)
4176833 Pearl Metallic
4176834 Empire Red
4176835 Tangerine
4176836 Cobalt Blue
