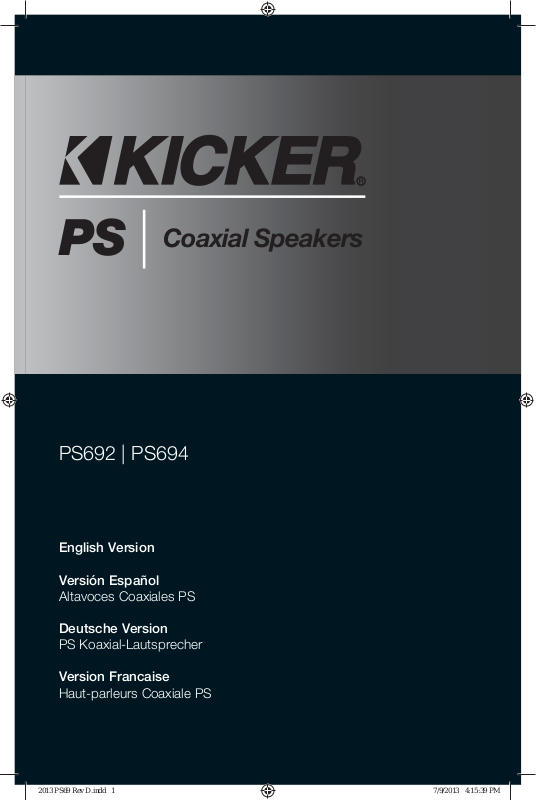

Kicker PS69 Owner's Manual

PS

Coaxial Speakers

PS692 | PS694

English Version

Versión Español

Altavoces Coaxiales PS

Deutsche Version

PS Koaxial-Lautsprecher

Version Francaise

Haut-parleurs Coaxiale PS

2013 PS69 Rev D.indd 12013 PS69 Rev D.indd 1 7/9/2013 4:15:39 PM7/9/2013 4:15:39 PM

PS69 Coaxial Speakers
Owner’s Manual

Authorized KICKER Dealer:

Purchase Date:

PERFORMANCE

Woofer Size | in [mm] 6 x 9 [150 x 230]

Tweeter Size | in [mm] 1 [25]

Frequency Response | Hz 40–20,000

Max Recommended Amplifi er Power [Watts] | PEAK/RMS 180/90

Sensitivity [SPLo] | dB @ 1W, 1m 87.2

Nominal Impedance [Zn] | ohm 2 (40PS692), 4 (40PS694)

Weight | oz [g] 43.5 [1234]

Mounting Hole Diameter | in [mm] 5 5/8 x 8 7/16 [143 x 214]

Mounting Depth | in [mm] 3 1/4 [83]

Top Mount Height | in [mm] 7/8 [23]

Package Contents:

(2) PS69 Speakers (2) 12” wiring harnesses
(8) M4 x 25mm pan cross head woodscrews (8) M4 speed nuts
(4) 22ga, red crimp-style butt connectors (2) Grilles
(2) Kicker badges

WIRING

We recommend using 16 gauge (or larger) wire. The PS Speakers are rated at 2 or 4 ohms. Make sure
you match the speaker impedance with the amplifi er load rating.

--

-

Two PS Speakers wired in
parallel to a single channel

+

+

2

+

2013 PS69 Rev D.indd 22013 PS69 Rev D.indd 2 7/9/2013 4:15:41 PM7/9/2013 4:15:41 PM

WOOFER MOUNTING

The KICKER PS Speakers are all-purpose, weather-proof and ready to meet the demands of any
environment. When possible, mount the speakers in a vehicle’s factory locations or in a location with a
semi-isolated rear chamber, such as saddle-bag lids on your motorcycle

Custom mounting locations will require more preparation and work. Make sure that the speaker will not
interfere with trunk and door opening and closing mechanisms and that the enclosed screws will not
puncture the fuel tank, puncture wiring, or interfere with any other mechanical parts on the underside of
the mounting surface. If you’re installing the speakers in a door, cycle the windows all the way down and
up.

If the speaker cut-out locations require you to cut metal, avoid structural metal and braces.

Connect wiring to speaker terminals

Mount the speakers to desired location using the included screws

Pro Tip: You’re a KICKER PX amplifi er and a few cables away from a full system upgrade! KICKER PX
amps provide audio-connectivity and low current draw for an easy install that won’t tax your electrical
system.

3

2013 PS69 Rev D.indd 32013 PS69 Rev D.indd 3 7/9/2013 4:15:43 PM7/9/2013 4:15:43 PM

Manual del propietario
de del Coax PS69

Distribuidor autorizado de KICKER:

Fecha de compra

RENDIMIENTO

Tamaño del woofer | pulg. [mm] 6 x 9 [150 x 230]

Tamaño del tweeter | pulg [mm] 1 [25]

Respuesta de frecuencia | Hz 40–20,000

Potencia máx. recomendada del amplifi cador [vatios] | PICO/RMS 180/90

Sensibilidad [SPL] | dB a 1W, 1m 87.2

Impedancia nominal [Zn] | ohmio 2 (40PS692), 4 (40PS694)

Peso | oz [g] 43.5 [1234]

Diámetro del orifi cio de montaje | pulg. [mm] 5 5/8 x 8 7/16 [143 x 214]

Profundidad de montaje | pulg. [mm] 3 1/4 [83]

Altura máxima del montaje | pulg. [mm] 7/8 [23]

Contenido del paquete:

(2) Parlantes PS69 (2) arneses del cableado de 12”
(8) Tornillos para madera con cabeza plana de cruz M4 x 25mm (8) M4 tuercas de velocidad
(4) Conectores de empalme de compresión rojos 22ga (2) rejillas
(2) Emblemas Kicker

INSTALACIÓN ELÉCTRICA

Recomendamos utilizar un cable de calibre 16 (o mayor). Los parlantes PS están clasifi cados para 2 o 4
ohmios. Asegúrese de que la impedancia del parlante corresponda a la capacidad de carga del

amplifi cador.

--

-

Dos parlantes PS conectados en
paralelo a un solo canal.

+

+

4

+
