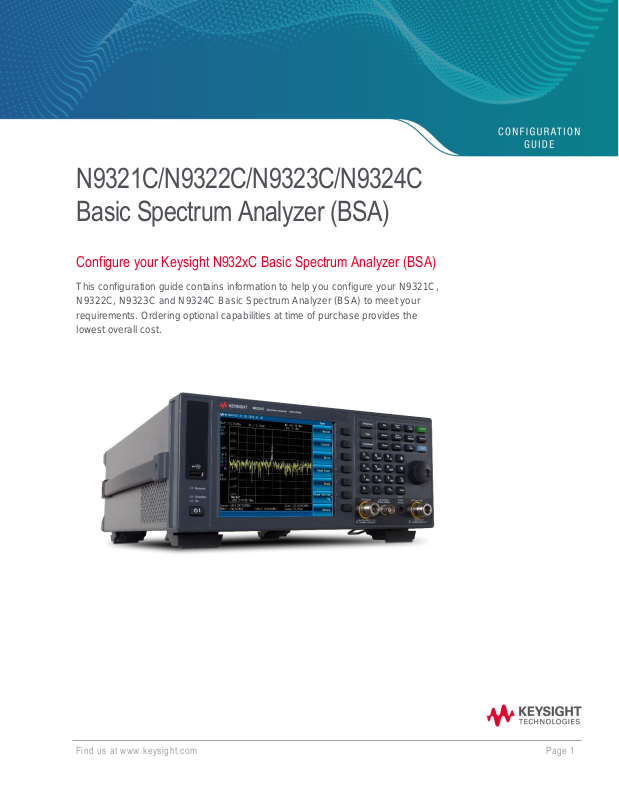

N9321C/N9322C/N9323C/N9324C
Basic Spectrum Analyzer (BSA)
Configure your Keysight N932xC Basic Spectrum Analyzer (BSA)
This configuration guide contains information to help you configure your N9321C,
N9322C, N9323C and N9324C Basic Spectrum Analyzer (BSA) to meet your
requirements. Ordering optional capabilities at time of purchase provides the
lowest overall cost.
Fi nd us at www.keysight.com Pa ge 2
Ordering Information
This step-by-step process will help you determine which option numbers to specify when ordering your
Keysight N932xC BSA.
Step 1. Select base model
Description
Model number
Additional information
Basic spectrum analyzer
9 kHz to 4 GHz
N9321C
Accessories supplied as standard with each
analyzer: USB cable, N-BNC adapter, BNC
cable and power cord.
Basic spectrum analyzer
9 kHz to 7 GHz
N9322C
Basic spectrum analyzer
1 MHz to 13.6 GHz
N9323C
Basic spectrum analyzer
1 MHz to 20 GHz
N9324C
Step 2. Add a preamplifier
Description
Option number
Additional information
Preamplifier, 4 GHz
N9321C-P04
For N9321C
Preamplifier, 7 GHz
N9322C-P07
For N9322C
Preamplifier, 13.6 GHz
N9323C-P13
For N9323C
Preamplifier, 20 GHz
N9324C-P20
For N9324C
Step 3. Add a tracking generator
Description
Option number
Additional information
Tracking generator, 4 GHz
N9321C-TG4
Provides transmission measurement of RF
devices. Output level from –20 dBm to 0 dBm,
in 1 dB steps.
Tracking generator, 7 GHz
N9322C-TG7
Tracking generator, 7 GHz
N9323C-TG7
Tracking generator, 7 GHz
N9324C-TG7
Fi nd us at www.keysight.com Pa ge 3
Step 4. Add reflection measurement capability
Description
Option number
Additional information
Reflection measurement
(requires Option TG7)
N9321C-RM4
•
Only available on N9321C and N9322C.
•
Provides reflection measurements including
return loss, VSWR, insertion loss, and distanceto-fault.
•
Requires the tracking generator module
(Option TG4/TG7).
•
Recommended accessories include N9311X201 precision mechanical calibrator (3-in-1
OSL) and N9311X-586 phase stable cable
N(m) to N(f).
N9322C-RM7
Step 5. Add precision frequency reference
Description
Option number
Additional information
Precision frequency
reference
N932xC-PFR
•
Reduces frequency drift for more accurate
measurements; aging rate: ± 1 x 10-7/year.
•
Orderable only with initial purchase of the
N932xC base model.
Step 6. Add baseband input capability
Description
Option number
Additional information
Baseband input
N9321C-BB1
•
Only available on N9321C and N9322C.
•
Optimizes DANL 1 and phase noise
performance in the low frequency band for
xDSL and AM/FM IBOC 2 measurements.
N9322C-BB1
1. DANL: Displayed average noise level.
2. IBOC: BOC: In-band On-channel.
Fi nd us at www.keysight.com Pa ge 4
Step 7. Add measurement features
Description
Option number
Additional information
Time-gated spectrum
analysis
N932xC-TMG
Measures any one of several signals separated in
time or excludes periodic interfering signals.
Signal monitor with
spectrogram record and
playback
N932xC-MNT
Adds spectrogram view, record, and playback for
spectrum monitoring.
Channel scanner
N932xC-SCN
Provides channel power measurement of multiple
channels, max. 20 channels.
Task planner
N932xC-TPN
Implements customized test task that includes 20
consecutive instrument setups. Improves test
efficiency for repetitive tasks. Find more
information at www.keysight.com/find/taskplanner
EMI filters and quasi-peak
detector
N932xC-EMC
Provides CISPR compliant resolution bandwidth
(200 Hz, 9 kHz, 120 kHz and 1 MHz) and quasipeak detector for basic EMI precompliance test.
AM and FM demodulation
analysis
N932xC-AMA
Provides modulation metrics of an AM or FM
signal: carrier power, modulation rate, AM depth,
frequency deviation, SINAD 3, and carrier
frequency offset.
ASK and FSK demodulation
analysis
N932xC-DMA
Provides modulation metrics of an ASK or FSK
signal: carrier power, ASK error, depth, and index,
FSK deviation, FSK error, magnitude error, and
carrier frequency offset.
Step 8. Add additional features and connectivity
Description
Option number
Additional information
USB average power sensor
support (U2000 Series)
N932xC-PWM
Requires the Keysight U2000 Series USB power
sensor.
USB peak and average
power sensor support
(U2020/2040 X-Series)
N932xC-PWP
Requires the Keysight U2020/2040 X-Series USB
power sensor.
Security features
N932xC-SEC
Includes user data sanitation and port control.
GPIB interface
N932xC-G01
IEEE-488 bus connector, used in test automation
systems
3. SINAD: Signal-to-noise and distortion ratio.
Fi nd us at www.keysight.com Pa ge 5
Step 9. Choose accessories
Description
Option number
Additional information
Hard transit case
Y1820A
645 x 444 x 268 mm, 13 kg nominal
Rack mount kit
Y1821A
Includes a rack mount flange. Fits standard 9-inch
rack and occupies three units (3U) of rack space.
Rack mount and handle kit
Y1822A
Includes a rack mount flange and front handle kit.
Fits standard 9-inch rack and occupies 3U rack
space.
Precision mechanical
calibrator, 3-in-1 OSL
N9311X-201
DC to 7 GHz, N (m) connector
Minimum loss pad
N9311X-548
50 to 75 Ω adapter, DC to 1 GHz
Near field probes
N9311X-100
4 pieces of H-field probes
RF training kit
Y1800A
Consists of RF transceiver and pre-written lab
sheets.
Looking for more N9311X series RF accessories? Visit www.keysight.com/find/n9311x
Step 10. Choose localized User’s Guide
Description
Option number
Additional information
English User’s Guide
N932xC-ABA
Simplified Chinese User’s
Guide
N932xC-AB2
Japanese User’s Guide
N932xC-ABJ
Step 11. Add calibration service
Description
Option number
Additional information
Commercial calibration
certificate with test data
N932xC-UK6
Keysight provides a commercial calibration
certification; only available at time of purchase;
provides measurement results.
3-year calibration
assurance plan (return to
Keysight)
R-50C-011-3
Priority calibration service covering all calibration
costs for 3 years; 15% cheaper than buying standalone calibrations.
5-year calibration
assurance plan (return to
Keysight)
R-50C-011-5
Priority calibration service covering all calibration
costs for 5 years; 20% cheaper than buying standalone calibrations.
•
Other calibration options may available, for more information on calibration, go to
www.keysigt.com/find/calibration
•
For more information on training and application support services, got to
www.keysight.com/find/training
Fi nd us at www.keysight.com Pa ge 6
Instrument Upgrades
Upgrade your existing N932xC
The majority of N932xC options support fast license-key that do not require additional hardware:
•
Place an order for the upgrade with Keysight and request to receive the software entitlement
certificate through email.
•
Install the license key in the N932xC BSA. Upgrade firmware to the latest revision if required.
•
Restart the N932xC.
•
Begin using the new capability.
Description
Upgrade number
Additional information
Preamplifier, 4 GHz
N9321CK-P04
For N9321C
Preamplifier, 7 GHz
N9322CK-P07
For N9322C
Preamplifier, 13.6 GHz
N9323CK-P13
For N9323C
Preamplifier, 20 GHz
N9324CK-P20
For N9324C
Baseband input
N9321CK-BB1
Only upgradable on N93221C and N9322C.
N9322CK-BB1
Tracking generator, 4 GHz
N9321CK-TG4
Requires additional hardware.
Upgrade at Keysight local service center.
Tracking generator, 7 GHz
N9322CK-TG7
N9323CK-TG7
N9324CK-TG7
Reflection measurement
N9321CK-RM4
Only upgradable on N9321C and N9322C.
Requires tracking generator option
(TG4/TG7).
N9322CK-RM7
Time-gated spectrum analysis
N932xCK-TMG
Signal monitor with spectrogram
record and playback
N932xCK-MNT
Channel scanner
N932xCK-SCN
Task planner
N932xCK-TPN
AM/FM demodulation analysis
N932xCK-AMA
ASK/FSK demodulation analysis
N932xCK-DMA
EMI filters and quasi-peak
detector
N932xCK-EMC
USB average power sensor
support (U2000 Series)
N932xCK-PWM
USB peak and average power
sensor support
N932xCK-PWP
Security features
N932xCK-SEC
GPIB interface
N932xCK-G01
Requires additional hardware
English User’s Guide
N932xCK-ABA
Simplified Chinese User’s Guide
N932xCK-AB2
Japanese User’s Guide
N932xCK-ABJ
