Kettler Bicycle User Manual
Pedelec Operating Instructions
Pedelec handleiding
Pédélec manuel
2
Introduction ( GB )
Dear Customer,
congratulations on the purchase of your new KETTLER Pedelec Cycle. These instructions will help you to operate and maintain your Pedelec.
Please read them carefully before using your cycle and familiarise yourself well with the functioning of the system.
Please also read the notes in the enclosed KETTLER general instructions for assembly and operation.
Introduction
Pedelec (Pedal Electric Cycle)
The motor responds to the force which you exert on the pedals. The motor power is adjusted automatically to your muscle strength by means of
a torque sensor. The pedalling assistance is reduced gradually as your speed increases and switched off as soon as it reaches 25 km/h or when
you stop pedalling altogether.
Legal provisions
Your Pedelec has a maximum rated continuous power of 250 W and therefore qualifies as a bicycle according to European Standard.
In Germany and most other EU countries, Pedelecs are approved for use without minimum age requirement, safety helmet or insurance
registration.
Your cycle is identified as a Pedelec by a marking on the saddle column and fulfils all the requirements of the EU Guideline 89/336/EEC
governing electromagnetic compatibility.
These Operating Instructions are not intended as a comprehensive repair or maintenance manual.
For all questions concerning service, repair and maintenance please contact your KETTLER dealer.
3
Contents
Introduction 2
Table of contents 3
General diagram 4
Charging the battery 5 - 6
Operation and control 7
Assistance mode / range 8
Technical data 9 - 12
Care and maintenance 13
Troubleshooting 14
Guarantee / general notes 15
4
Pedelec General Diagram
Pedelec General Diagram

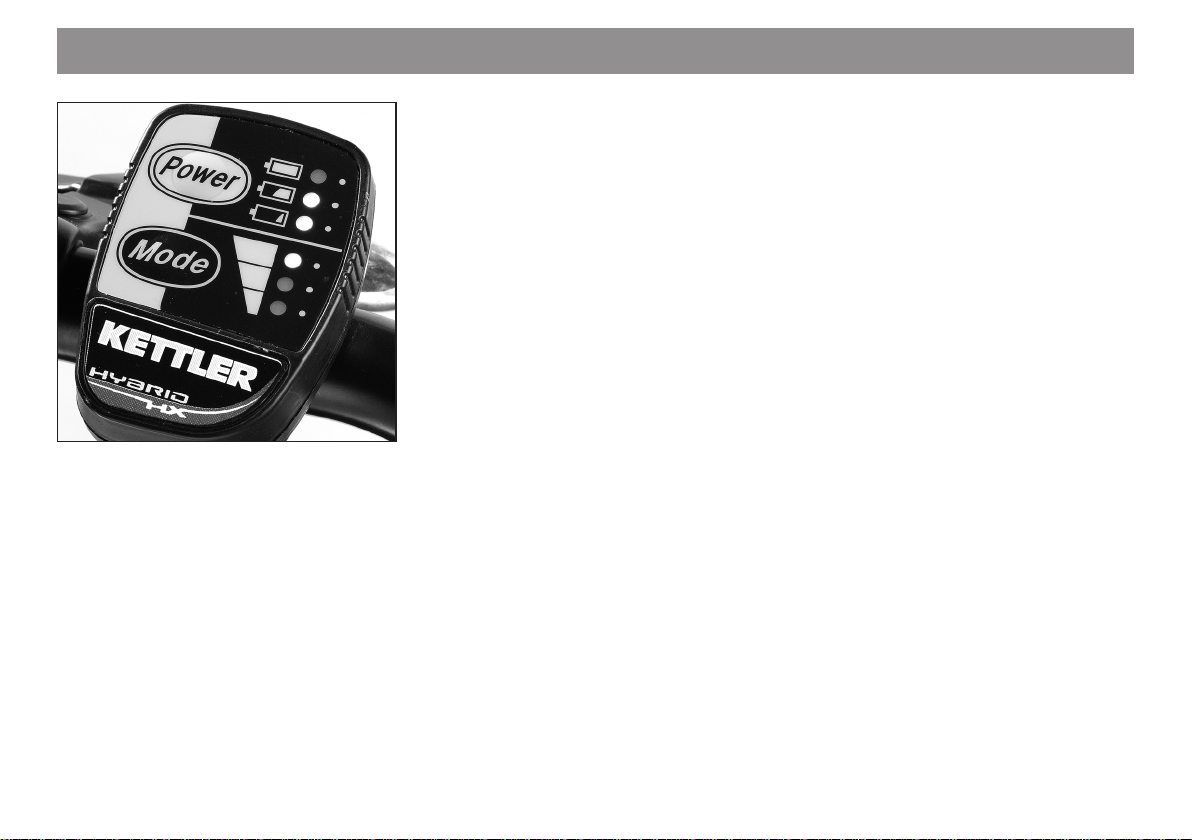

1. Operating unit
2. Motor unit with power sensor on bottom bracket
3. Battery
4. Battery lock
5. Charging unit
a
b
e
c
d
5
Charging the Battery

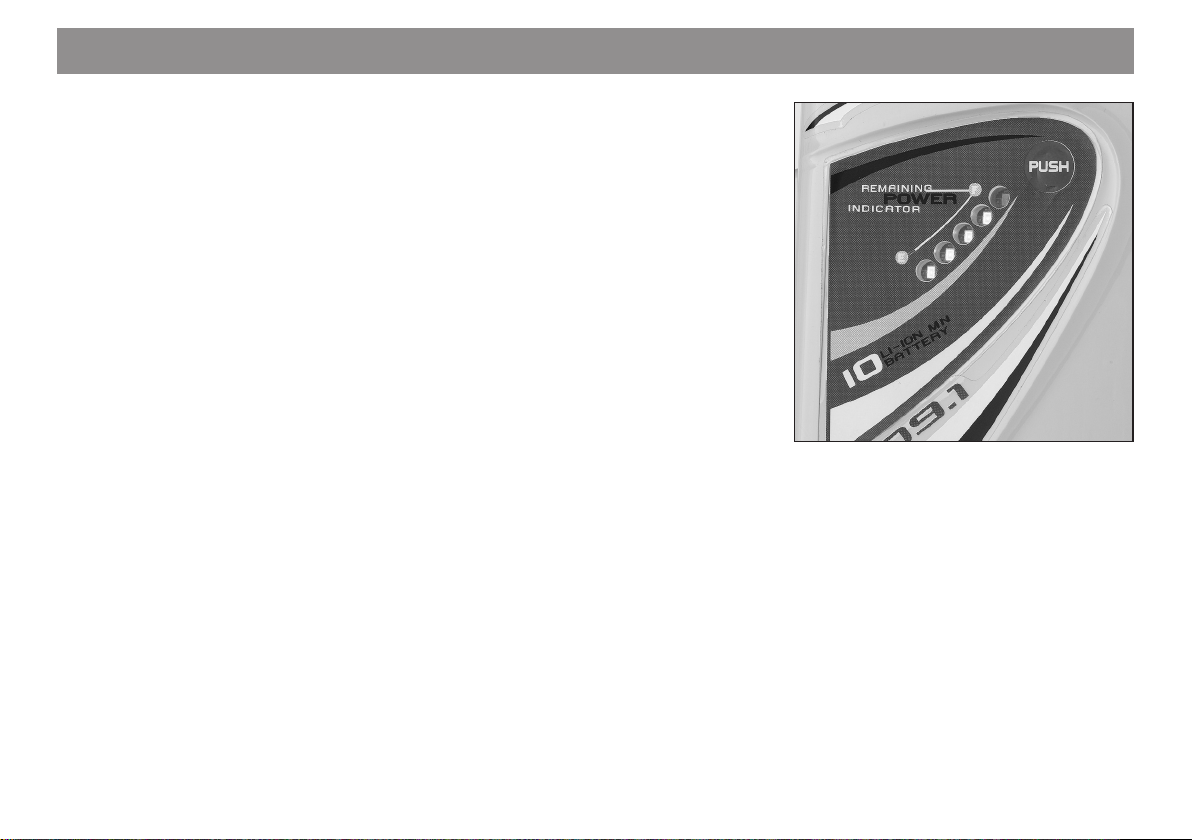

Before using it for the first time, the battery must be charged for at least four hours. When delivered, the battery is in the uncharged state and is in sleeping mode.
The battery can be charged in any state i.e. at any charge level.

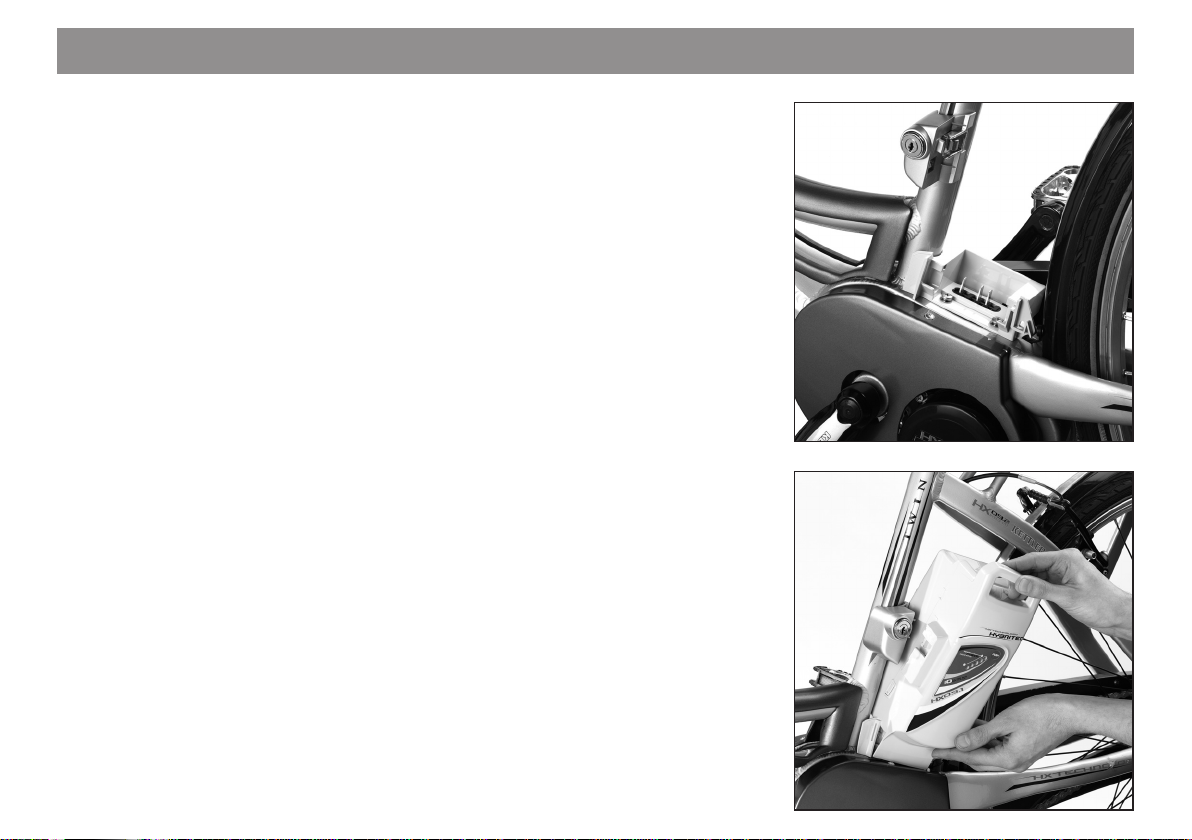

Removing the battery
To charge the battery, it first has to be removed from the cycle.
1. To release the lock, turn the key to the left in anticlockwise direction.
2. Hold the charger by the handle and tilt it 45° to the side.
3. Lift the battery out of its rack.
IMPORTANT: For safety reasons, always remove the key.
Charging process
1. Place the battery in the holder in the charging unit.
2. Connect the charging unit to the power supply by inserting the plug into a 220 V socket.
3. The battery is fully charged when all 5 LEDs light up. The current status of the charging
process is always displayed during charging.
4. Remove the plug from the power socket and then take the battery out of the charging unit.
Charging the Battery
