KETRON SD 2 Orchestral Wizard Owner's Manual

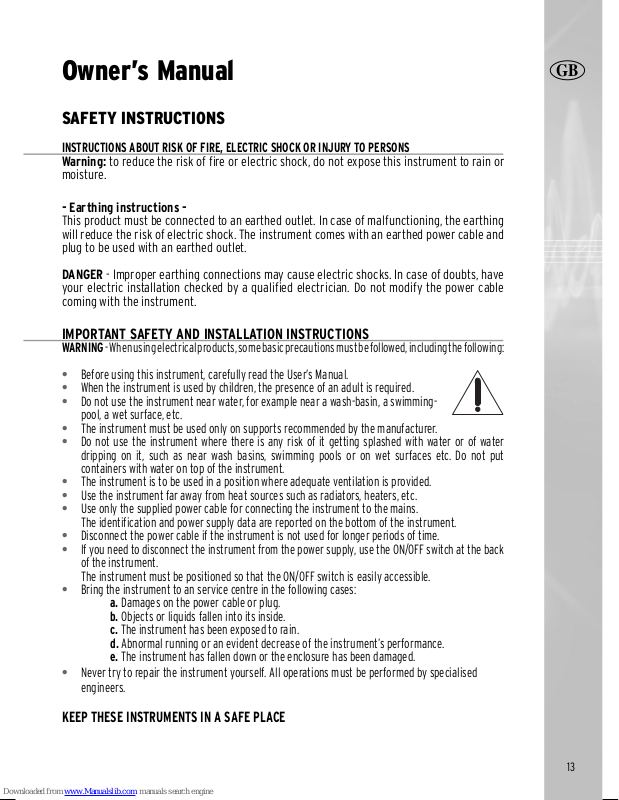

Owner’s Manual

SAFETY INSTRUCTIONS

INSTRUCTIONS ABOUT RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS
Warning: to reduce the risk of fire or electric shock, do not expose this instrument to rain or

moisture.

- Earthing instructions -

This product must be connected to an earthed outlet. In case of malfunctioning, the earthing
will reduce the risk of electric shock. The instrument comes with an earthed power cable and
plug to be used with an earthed outlet.

DANGER - Improper earthing connections may cause electric shocks. In case of doubts, have
your electric installation checked by a qualified electrician. Do not modify the power cable
coming with the instrument.

IMPORTANT SAFETY AND INSTALLATION INSTRUCTIONS

WARNING - When using electrical products, some basic precautions must be followed, including the following:

GB

•

Before using this instrument, carefully read the User’s Manual.

•

When the instrument is used by children, the presence of an adult is required.

•

Do not use the instrument near water, for example near a wash-basin, a swimming­pool, a wet surface, etc.

•

The instrument must be used only on supports recommended by the manufacturer.

•

Do not use the instrument where there is any risk of it getting splashed with water or of water
dripping on it, such as near wash basins, swimming pools or on wet surfaces etc. Do not put
containers with water on top of the instrument.

•

The instrument is to be used in a position where adequate ventilation is provided.

•

Use the instrument far away from heat sources such as radiators, heaters, etc.

•

Use only the supplied power cable for connecting the instrument to the mains.

The identification and power supply data are reported on the bottom of the instrument.

•

Disconnect the power cable if the instrument is not used for longer periods of time.

•

If you need to disconnect the instrument from the power supply, use the ON/OFF switch at the back
of the instrument.

The instrument must be positioned so that the ON/OFF switch is easily accessible.

•

Bring the instrument to an service centre in the following cases:
a. Damages on the power cable or plug.
b. Objects or liquids fallen into its inside.
c. The instrument has been exposed to rain.
d. Abnormal running or an evident decrease of the instrument’s performance.
e. The instrument has fallen down or the enclosure has been damaged.

•

Never try to repair the instrument yourself. All operations must be performed by specialised

engineers.

KEEP THESE INSTRUMENTS IN A SAFE PLACE

13

HOW TO AVOID RADIO/TV INTERFERENCE

This instrument operates at radio frequencies, and if not correctly installed according to the
instructions supplied, it may cause interference with radio and television reception.
Though this instrument has been designed according to the applicable standards and
notwithstanding the reasonable protections against interference it has been equipped with,
there is no guarantee that such events will not occur. In order to check if the interference is
actually caused by this instrument, switch it off and see if the interference disappears.
Then switch it on again and check if the interference appears again. Once you have made sure
that the interference is originated by this instrument, take one of the following measures:

• Modify the instrument’s position with respect to the receiver.

• Increase the distance between the instrument and the receiver.

• Connect the instrument’s plug to a different outlet to make sure that the instrument and

the receiver are connected to two different circuits.

• If necessary, contact a specialised technician.

POWER SUPPLY

• Before connecting this instrument to any other equipment (amplifier, mixer, other MIDI

instruments, etc.) make sure that all units are switched off.

• Read the instructions about Radio and TV interference.

HOW TO CLEAN THIS INSTRUMENT

• Use only a soft and dry cloth to clean the external surface of your instrument. Never use

petrol, thinners or solvents generally speaking.

OTHER PRECAUTIONS

If you wish to use your instrument abroad and if you have any doubts about the power supply,
contact a qualified engineer previously.
The instrument should never be subject to strong vibrations.

AC POWER ADAPTORS

To connect these instruments to the wall socket you will need the supplied KETRON AC
Power adaptors.
Use of other AC adaptors could result in damage to the instrument’s power circuit. So be
sure to ask for the right kind.

INFORMATION FOR USERS

”Observe European Directives 2002/95, 2002/96 and 2003/108 with regard to the reduced
use of harmful substances on electrical and electronic instruments and also observe waste
disposal regulations.”

The symbol with the bin crossed out on the instrument points out that it must be separated
from other waste at the end of its useful life span and not just thrown away in the bin.
The user must therefore hand the instrument over to differentiated waste disposal centres
authorised to process electronic and electro-technical waste at the end of its useful life span,
or give it back to the retailer when purchasing a new similar type of device on a basis of 1-to-1
ratio. The differentiated disposal of the equipment for the possible future recycling of its
constructional parts contributes in safeguarding the environment and human health.
The user is subject to administrative fines in the case of the abusive disposal of the product.

14

INTRODUCTION

Thank you for purchasing the new KETRON SD 2 Orchestral Wizard. The SD
2 instrument represents an interesting integration to the sector of sound
modules in terms of compactness and musical performance.
Not only does it avail of all the sound acoustics necessary for the perfect
reproduction of musical files in General Midi standard and Kar format, but it
also has other additional sound banks with an incredible variety of orchestral
Voices: Grand Piano Stereo over 88 notes, Acoustic and electric guitars, Brass and saxophones of
unique quality, sampled organs and Digital Drawbars section, Accordions, Bass, Strings, acoustic
and electronic Drum Sets and so on. The SD 2 unit is also equipped with a considerable number
of audio Drum and Percussion Loops split-up into a very wide variety of musical styles, which
definitely make SD 2 stand out from all other similar models on the market.
The applications of SD 2 are best exploited in combination with a MIDI player (such as KETRON
MIDJAY for example) or with sequencers on computer ( Logic®, Cubase®, Cakewalk® and others),
but it can also be connected to Master keyboards or multi-purpose keyboards (Arranger, Synth,
Digital pianos etc.).

Before you use your SD 2 instrument, make sure you read all the instructions carefully in
order to fully exploit its potentials and to ensure its long life. Keep this manual in a safe place
for future reference.

CONTENTS OF THE PACKAGE

The original package of your SD 2 instrument includes the following material:

a) SD 2 unit
b) Instruction manual

c) DC Feeder - 12 Volts
Optional accessory: Midi to USB cable. This is required to use SD 2 with a Laptop, due indeed
to the fact that portable computers do not have their own Midi interface (unless they are
equipped with additional boards such as Firewire, USB etc.).
This cable is used for the communication of the midi data from your portable computer with
the Midi In of SD 2 via the USB connection.

TURNING ON

To turn the SD 2 unit on, simply connect the feeder supplied with the instrument to the mains.
The LED on the front panel lights up to point out that the instrument is working.

1 On / Off: Main ON/OFF switch of the SD 2
instrument. When the LED lights up, it points out
that the instrument is working. The LED will flash
if there is any Midi In activity.
2 Volume: Slider that controls the general volume
of SD 2. This volume also affects the Headphone
output.
3 Headphone: Connection for stereo headphones
with low impedance.

15

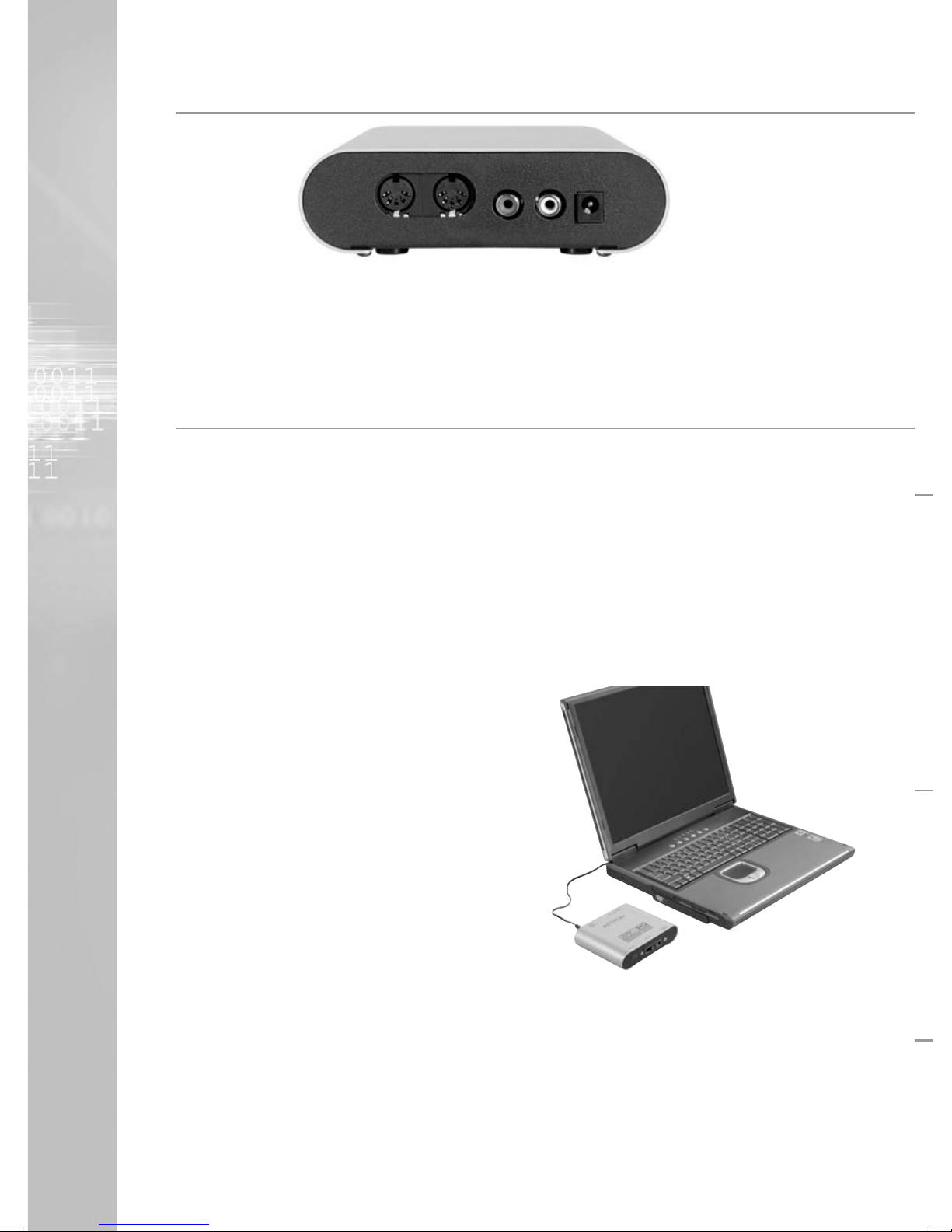

CONNECTIONS

4 Midi In / Thru: Midi In and Thru connection of SD 2. Connect the Midi In of SD 2 to the Midi

out of the computer, of the Midi player or of the Master keyboard. The Thru connection is used
to send a copy of the Midi In to another device (i.e.:Expander).

5 Out L / R: Left and Right audio outputs to be connected to the mixer or audio amplifier.
6 Power Dc In: Connection for the DC 12 V feeder of SD 2.

ADVICE ON USING THE INSTRUMENT

In this section we show you how we think you should use SD 2 to fully exploit its performance
in musical applications.

HOME STUDIO (with computer, sequencer or external players)

In this context, SD 2 is able to express its performance to the best.
It can be connected to your computer (Pc or Mac) via the Midi cable (if you already have a
board with Midi interface) or via the Midi to Usb cable supplied as an optional accessory by
KETRON. Using musical sequencer programs such as Cubase®, Logic®, Cakewalk® or similar
you will be able to successfully integrate SD 2 in your musical elaborations (Midi files, Jingles,
Audio Mix etc.) exploiting its amazing sound versatility in the best way possible.

Your SD 2 not only offers the sounds that are
by now part of the GM standard references but
you will also find other Sound Banks with many
characteristic sounds in the traditional families
(Piano, Strings, Sax, Brass etc.).
The main feature that definitely distinguishes
SD 2 from other sound modules is the presence
of the numerous audio Loops (Drum Loops
that you can download free of charge from our
Internet site: www.ketron.it. ).
Just imagine if you add these Loops to your
musical creations ...they can enrich, if not
indeed replace, the rhythm of your songs and
they could make the difference with everything
that you have elaborated up to now in the sphere of Midi files! Just a quick example: Think
of a Midi file of Caribbean music, where you often hear not very convincing parts of Latin
percussions.
Apply some of the Patterns available in the data base of the additional Loops (or rather
replacement loops) of the existent Drum track (Copy & Paste). In just a few steps you will be

16

able to replace the Midi rhythmic structure with audio Loops and the result will be amazing.
Once your musical file is complete and you have saved it in the format that your prefer, you
can naturally play it back with any type of sequencer or Midi player (i.e.: MIDJAY or similar) by
connecting it to your SD 2. The use of laptops has become more and more popular in the world
of musical entertainment to play back Midi files.
The advantage of having a musical board integrated in the computer is however often
penalised by the fact that such boards only avail of a few sounds and of rather modest quality.
In this case again, we think that the use of SD 2 instead of built-in boards offers a considerable
opportunity.

MIDI KEYBOARD (Master keyboard, Arranger, Accordion etc. )

SD 2 can be used as a supplementary module to enrich the sound palette of your keyboard.
Another ideal solution is that of coupling SD 2 with Master keyboards without sounds or with
current mini remote keyboards (multimedia keyboards) that are used increasingly in the live
set-up. We are sure that such a powerful and compact sound module will certainly become
part of your musical set-up.

OPERATING NOTES

As you will have already noticed, the SD 2 unit has external connections (described previously)
and one general volume control for the rear outputs and for the headphones.
Obviously everything else that may modify the Sound, the Volume, the Reverb, the Effects etc.
must be performed via MIDI messages.
For those who are already familiar with this type of Editing procedure, simply observe the
table of MIDI implementations of SD 2 to be able to manage the Sounds of the instrument in
all its potentials.
For those who are still learning, we have prepared a set of files on our Internet site www.
ketron.it (that you can download free of charge) with the configuration of the Map of sounds
that can be used to work with the most commonly used sequencer programs and musical
notes, such as Cubase®, Logic®, Cakewalk®.

HOW TO USE THE DRUM LOOPS

You can download the Drum Loops for SD 2 from our Internet site www.ketron.it .
The files appear with a set of Folders, which are catalogued per type of music (Salsa, Cha,
Merengue, Jazz etc. ).
These are actually Midi files that contain information on how to play the rhythm Patterns of
the various Loops contained in the sound generation of SD 2.
To better understand the sound possibilities that these loops offer, we suggest that you listen
to the Demo.mid files within the reference folders of the various musical rhythms.

We remind you that these patterns contain all the information necessary (program change,
volume etc.) to be played immediately without any other settings.

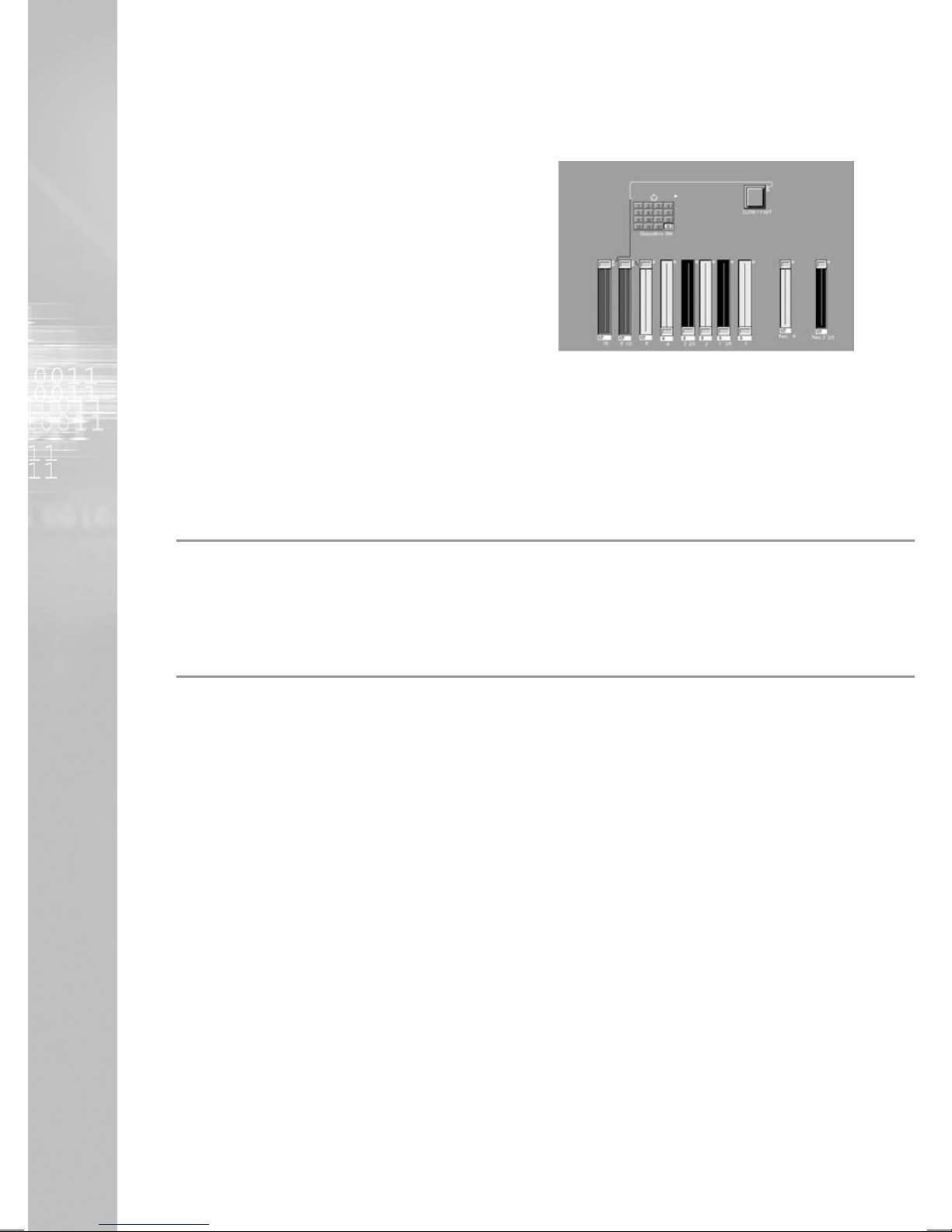

DRAWBARS SECTION

The sound generation of SD 2 also avails of a section of digital Drawbars, inspired by the
sounds of electro-magnetic organs: 16’,8’, 5’1/3, 4’, 2’2/3, 2’, 1’3/5, 1’. Percussion 4’ and 2’2/3
The Drawbars can play on any midi channel (and also on a number of midi channels
simultaneously). Using the environment created especially for the Logic ® (which you can

17

download free of charge from our Internet site www.ketron.it) you can play all the digital
Drawbars, thanks to the virtual sliders reproduced in this environment.

Here’s how the editor created on Logic® appears:
If, on the other hand, you do not use this
environment, you can pull-up the various
Drawbars by sending the relative controllers to
the SD 2 unit, which are described in the section
entitled Midi Implementation.

Example:

Drawbar 16’ is obtained by sending the following
controller string to the SD 2 unit:
Bank 67, Program Change 0, Controller 20 (with value 0/127 relative to the volume of the actual
drawbar) .
In the section of the Midi Implementation functions, you will also find all the information
necessary to be able to modify the Drawbars and their relative applicable effects (Rotary,
Chorus, Reverb etc.).

STEREO GRAND PIANO

The SD 2 unit has a professional Grand Piano Stereo sound over 88 notes (pre-arranged as the
default sound when you turn the instrument on in Progr. Change 01).
The availability of a Grand Piano sound of such quality proves extremely useful when the
instrument is connected to a Master Keyboard.

OTHER FEATURES

For those of you who have already worked with multi-timbre sound modules, you will already
know that the DSP’s (effects and sound post-treatment) are integral part of these systems,
which are used via the various controllers and/or Sys Exclusive.
However, you will be interested to know that together with the typical sections of Reverb,
Chorus and Delay, you will also find other DSP effects, such as:

Rotor (for digital Drawbars with Rate, Acceleration, Depth and Type controls)
Wha Wha (Amount. This controls the intensity of the Wha effect on the track)
Bass Boost (Gain, Frequency. Bass boosting device)
Distortion (Type, Resonance, Tone )

The Master Control section also envisages the following controls:

Tune: This controls the general tune of the module (Data Value)
Arabic Scale: This controls the intervals for the Arabic scale (Data Value)
Global Transposer: Global transposition of the instrument ( Data Value )

18

Technical Tables

VOICE BANK A (Control Change 00, Value = 0)

P. Ch.

Name

1 Grand Piano
2 Rock Piano
3 Upright
4 Honky
5 Rodes
6 DxPiano
7 Harpsichrd
8 Clavinet
9 Celesta
10 Glocken
11 MusicBox
12 Vibraphon
13 Marimba
14 Xylophon
15 Bell
16 Santur
17 Leslies
18 JazzOrg1
19 Rock B3
20 Church
21 Theatre
22 Musette
23 Harmonica
24 Accordion
25 Classic
26 Country
27 Jazz
28 Clean
29 Muted1
30 Overdrive
31 Blues
32 Harmonics
33 Jazzbass
34 Finger
35 Picked
36 Fretless
37 Slap
38 Funk
39 Synbas1
40 Synbas2
41 Violin1
42 Viola
43 Cello
44 Contrabass

45 Tremolos
46 Pizzicato
47 Harp
48 Timpani
49 Strings1
50 SlowStrings
51 Synstrgs1
52 Synstrgs2
53 Choir1
54 Choir2
55 Synvoice
56 Hits
57 Trumpet1
58 Trombone1
59 Tuba
60 Miles
61 Fr.Horn
62 Brass1
63 Synbras1
64 Synbras2
65 Altosoft
67 Contralto
68 Rock Tenor
68 Bariton
69 Oboe
70 Englishorn
71 Basson
72 Clarinet
73 Piccolo
74 Flute
75 Recorder
76 Andes
77 Bottle
78 Shakuhashi
79 Whistle
80 Ocarina
81 Squares
82 Saw
83 Calliope
84 Wha
85 Plate
86 Vox
87 Saw 5th
88 Fm Lead

89 Fantasy
90 Warmpad
91 Score
92 Space
93 Softpad
94 Metal
95 Halo
96 Sweep
97 Ice Rain
98 Soundtrack
99 Crystal
100 Atmosphere
101 Brightness
102 Goblin
103 Echodrops
104 Startheme
105 Sitar
106 Banjo
107 Shamisen
108 Koto
109 Kalimba
110 Bagpipe
111 Fiddle
112 Zurna
113 Tinkle
114 Agogo
115 Steeldrum
116 Woodblock
117 Taiko
118 Melotom
119 Syntom
120 Reverse
121 Fretslide
122 Breath
123 Seashore
124 Bird
125 Telephone
126 Helicopter
127 Applause
128 Gun shot

37

VOICE BANK B (Control Change 00, Value = 1)

P. Ch.

Name

38

1 Jingle
2 Electric
3 House
4 Elopiano
5 Vintage
6 Funky Pno
7 Fm Piano 1
8 Fm Piano 2
9 ToyBox
10 Chimes
11 Mallets
12 Long Vibes
13 Malimba
14 Mellow
15 Tinkles
16 Windchimes
17 Rotary
18 JazzOrg2
19 Drawbar
20 Positive
21 Master
22 Francaise
23 Cassotto
24 Tango
25 Nylon
26 Folk
27 Funk
28 60’ Stopped
29 Muted2
30 Lead
31 12Strings
32 Solid
33 Warm
34 Ms Finger
35 Mute
36 Bluebass
37 Precision
38 Synbas3
39 Synbas4
40 Synbas5
41 Philarmoni
42 Violas
43 GlockString
44 OctaStrgs1
45 OctaStrgs2
46 Marcato
47 Orchestra
48 Slow Arcos
49 Strings2

50 DarkStrings
51 Dah
52 Vocalize
53 Scat
54 Ooh
55 Aah
56 Corale
57 Golden Tpt
58 Cornet
59 Tuba&Bass
60 Muted Tpt
61 Flugelhrn1
62 Brass 2
63 GrowBras1
64 BrassFx
65 Soprano
66 Liscio Sax
67 Jazz Tenor
68 Graffi ato
69 Mariachi
70 GrowBras2
71 Blare
72 Slide Tbn
73 Clarino
74 Fife
75 Lip Flute
76 Chiff
77 Analogs
78 Flanger
79 Brightpad
80 Wiring
81 Wow
82 Starcase
83 Square
84 Sine
85 RockBas
86 Synbas6
87 Synbas7
88 Synbas8
89 2nd Perc
90 3th Perc
91 Click
92 Tonebar
93 Pop Organ
94 JazzOrg3
95 Lower 8’ - 4’
96 Jazzy
97 Pop
98 Telecast

99 Strato
100 Texas
101 Tremolo
102 Unplug
103 Stops
104 Wha guitar
105 Hawaian
106 Mandolin
107 Django
108 ClassicFx
109 Pedalsteel
110 Rock&Roll
111 Reed 8’
112 Blow
113 Fx
114 Tecnosynt1
115 Tecnosynt2
116 Rave1
117 Rave2
118 Rave3
119 Rave4
120 Rave5
121 Effects1
122 Effects2
123 Effects3
124 Effects4
125 Effects5
126 Effects6
127 Effects7
128 Effects8

VOICE BANK C (Control Change 00, Value = 10)

P. Ch.

Name

1 Grand mono
2 Rock mono
3 Piano L
4 Piano R
5 Mark
6 StagePno
7 Rodeslow
8 Rodeshi
9 Celestial
10 China
11 AirBell
12 DryVibes
13 Malimba
14 WoodMallet
15 Glock&Pad
16 Elpiano&Strings
17 Whiter
18 Rock Slow
19 Rock Fast
20 Pipe
21 Gospel
22 Fisa
23 Diatonic
24 Alpen
25 Brazilian
26 CountryFx
27 TexasFx
28 StratoFx
29 Fingerpick
30 PopFx
31 Spanish
32 Takamin
33 Subbas
34 Bass&Guit1
35 Oberbas1
36 60’ Bass
37 Slappin
38 Oberbas2
39 Pedalbass
40 Bass&Guit2
41 Slow Violin
42 Violin2
43 Quartet
44 Tzivago
45 Concert
46 Fast Strings
47 Harp&Orchestra
48 Symphonic
49 Strings3

50 Digistrings
51 Wiener
52 101Strings
53 Tuuh
54 Uuh
55 Vocals1
56 Vocals2
57 Trumpet2
58 Trombone2
59 Dixie Tpt
60 Trombones
61 Fall Off
62 Brass 3
63 Latin Tbn
64 Octabrass
65 Blowed
66 NightSax
67 Bebop
68 RockSax
69 Brasslips
70 Softrumpet
71 Hi Trumpet
72 Flugelhorn2
73 Posaune
74 Anderson
75 Lip Flute
76 Panfl ute
77 FluteVox
78 EthnicFlute
79 Whistling
80 Flute&Stgrs
81 Sawmix
82 Brassfx
83 Synclead
84 Chick
85 Minimug
86 Octasaw
87 Patlead
88 Maxisynth
89 Warmness
90 Sawpad
91 Large
92 Movie
93 Magic
94 Glockpad
95 Wisper
96 Airpad
97 Picking
98 Morphing

99 Ambience
100 Digipad
101 Movie
102 Newage
103 Voxing
104 Synfony
105 Cuatro
106 Hackbrett
107 Tres
108 Cajun
109 Peruvian
110 Fado
111 Jungle
112 Balama
113 Tinklebell
114 Triangle
115 Tambora
116 Claves
117 Ac.Tom
118 Brushtom
119 Snare
120 Crash
121 Scratch1
122 Scratch2
123 Scratch3
124 Scratch4
125 Scratch5
126 FxSlap
127 Laser
128 Wind

39

PRESETS BANK (Control Change 00, Value = 2)

Group

Pr.Ch.

Name

40

PIANO 1 Grand Piano
2 Rock Piano
3 Honky
4 Clavinet

EL.PIANO 5 Vintage
6 Rodes
7 Stagepno
8 DxPiano
9 Elopiano

CHROM 10 Long Vibes
11 Marimba

ORGAN 12 Leslies
13 JazzOrg1
14 JazzOrg2
15 Rock B3
16 Theatre
17 Rotary
18 Whiter
19 Rock Slow
20 Rock Fast
21 Jazzy
22 Gospel
23 Pipe
24 Positive

ACCORD 25 Musette
26 Accordion
27 Master
28 Francaise
29 Cassotto
30 Fisa
31 Tango
32 Diatonic
33 Alpen
34 Harmonica

AC. GUITAR 35 Classic
36 Country
37 Takamin
38 Django
39 Spanish
40 Folk
41 Nylon
42 Brazilian
43 Fingerpick
44 12Strings

EL.GUITAR 45 Strato
46 Jazz
47 Clean
48 Pop
49 Overdrive
50 Texas
51 Muted
52 Solid
53 Blues
54 60’ Stopped
55 Hawaian
56 Telecast
57 Lead
58 Wha guitar

STRINGS 59 101Strings
60 Violin1
61 Violin2
62 Fast Strings
63 Wiener
64 Harp
65 Tzivago
66 Strings1
67 Strings2
68 Strings3

CHOIR 69 Choir
70 Dah
71 Aah
72 Tuuh
73 Uuh
74 Synvoice
75 Vocals
76 Ooh

BRASS 77 Trumpet1
78 Trumpet2
79 Golden Tpt
80 Trombone1
81 Trombone2
82 Miles
83 Brass
84 Dixie Tpt
85 Flugelhrn
86 Mute Tpt
87 Fr.Horn
88 Octabrass
89 Synbrass

SAX 90 Altosoft
91 Jazz Tenor
92 Contralto
93 Rock Tenor
94 Liscio Sax
95 Blowed
96 Rock Sax
97 NightSax
98 Bariton
99 Clarinet

FLUTE 100 Flute
101 Andes
102 Recorder
103 Shakuhashi
104 Whistle

SYNTH 105 Sawmix
106 Brassfx
107 Synclead
108 Chick
109 Minimug
110 Octasaw
111 Patlead
112 Maxisynth
113 Squares

PAD 114 Warmness
115 Magic
116 Glockpad
117 Wisper
118 Morphing
119 Ambience
120 Wiring
121 Newage
122 Large

ETHINIC 123 Banjo
124 Mandolin
125 Sitar
126 Cuatro
127 Hackbrett
128 Peruvian

DRUM SETS LIVE DRUMS (Drums 2) (Control Change 00, Value = 4)

P. Ch.

Name

P.Ch.

Name

1 Standard1
2 Standard2
9 Folk
10 Acoustic
11 Jazz Dry
12 Vintage
17 Rock
25 House
26 Techno
28 Progressive
29 Rave
30 Hip-Hop
33 Fusion
41 Brush
49 Orchestra
57 Studio
58 Light Pop
59 Rap
65 Custom
66 Latin
73 Pop Jazz
97 Street
98 Analog
99 Citypop
100 Smooth
101 Acid
102 Kick&Snare
107 Jazzbrush
121 Urban
122 Electro
123 Country
124 R&B

1 Bachata
2 Bolero 1
3 Chacha 1
4 Cumbia 1
5 Guajra 1
6 Mambo
7 Salsa 1
8 Rhumba 1
9 Merengue 1
10 Merengue 2
11 Congas 1
12 Congas 2
13 Gipsy 1
14 Maracas 1
15 Tambourine
16 Brush
17 --------------­18 --------------­19 --------------­20 --------------­21 Dance 1
22 --------------­23 Ethnic 1
24 Ethnic 2
25 Latingr 1
26 Latingr 2
27 Latingr 3
28 Latingr 4
29 Latingr 5
30 Latingr 6
31 Latingr 7
32 Latingr 8
33 ------------­34 ------------­35 NewAge
36 ------------­37 ------------­38 ------------­39 Pop
40 ------------­41 ------------­42 Jazz 1
43 Shuffl e 1
44 Jazz 2
45 Bossanova
46 Samba 1
47 Samba 2
48 Pandero 1
49 Salsa 2

50 Eurolatin
51 Popdown
52 -----------­53 Dance 2
54 Dance 3
55 Tradition1
56 Bolero 2
57 Cumbia 2
58 Guajra 2
59 Rhumba 2
60 Merengue 3
61 Merengue 4
62 Congas 3
63 Congas 4
64 Gipsy 2
65 Maracas 2
66 -----------­67 Jazz 3
68 Shuffl e 2
69 Jazz 4
70 Samba 3
71 Samba 4
72 Pandero 2
73 Chacha 2
74 Afrohouse
75 Pop Jazz
76 Salsa3
77 Tradition2
78 Rock
79 R&Blues
80 JazzRock
81 Samba 5
82 Samba 6

41

42

MIDI IMPLEMENTATION

NOTE ON 9nH kk vv n(0-0FH) midi channel, kk(01H-7FH)=NOTE ON

vv=velocity(01H-7FH) (vv=0 means NOTE OFF)
NOTE OFF 8nH kk vv n(0-0FH) midi channel, kk(01H-7FH)=NOTE OFF
9nH kk 00H vv=don’t care if command 8nH
PITCH BEND EnH bl bh Pitch Bend as specified by bl(low)
bh(high), bl=(00H-7FH),bh=(00H-7FH) 14 bit
resolution.
Maximum swing is +/-1 tone (default).
(Can be changed using RPN 0000H)
Center position is bl=00H bh=40H
Min. bl=00H bh=00H, Max. bl=7FH bh=7FH
PROGRAM CHANGE CnH pp Program change. If n=09H Drumset change.
Refer to voices or drumset list.
CHANNEL AFTERTOUCH DnH vv v v=pressure value(00H-7FH).
see System excl. list for Aftertouch effect setting

CONTROL 00H BnH 00H cc Bank select. See voices list for details.
CONTROL 01H BnH 01H cc Modulation wheel. Rate, Assignment can be set

using System excl.

CONTROL 05H BnH 05H cc Portamento time
CONTROL 06H BnH 06H cc Data Entry. Provides data to RPN NRPN
CONTROL 07H BnH 07H cc Volume
CONTROL 0AH BnH 0AH cc Pan. (Default 40H)
CONTROL 0BH BnH 0BH cc Expression. (Default 7FH)
CONTROL 14H BnH 14H cc Draw Bar 16’ , cc=amount
CONTROL 15H BnH 15H cc Draw Bar 8’ , cc=amount
CONTROL 16H BnH 16H cc Draw Bar 5 ‘ 1/3 , cc=amount
CONTROL 17H BnH 17H cc Draw Bar 4’ , cc=amount
CONTROL 18H BnH 18H cc Draw Bar 2’ 2/3 , cc=amount
CONTROL 19H BnH 19H cc Draw Bar 2’ , cc=amount
CONTROL 1AH BnH 1AH cc Draw Bar 1’ 3/5 , cc=amount
CONTROL 1BH BnH 1BH cc Draw Bar 1’ , cc=amount
CONTROL 1CH BnH 1CH cc Draw Bar Perc 4’ , cc=amount
CONTROL 1DH BnH 1DH cc Draw Bar Perc 2’ 2/3 , cc=amount (see on bottom

of document)
CONTROL 1EH BnH 1EH cc Rotor cc=00H off, cc=40H slow, cc=7FH fast
00H = rotor OFF ( return to default chorus )
40H = rotor slow
7FH = rotor fast

CONTROL 40H BnH 40H cc Sustain. (Dumper pedal) On=7FH, Off=00H
CONTROL 41H BnH 41H cc Portamento. On/Off On=7FH, Off=00H
CONTROL 42H BnH 42H cc Sostenuto pedal On=7FH, Off=00H
CONTROL 43H BnH 43H cc Soft pedal On=7FH, Off=00H
CONTROL 54H BnH 54H cc Wha-Wha On/Off On=7FH Off=00h
CONTROL 55H BnH 55H cc Wha-Wha Amount cc=00H-7FH
CONTROL 5BH BnH 5BH cc Auxiliary channel1 Reverb send vv=00H-7FH
CONTROL 5DH BnH 5DH cc Auxiliary channel2 Effects send vv=00H-7FH

(chorus,delay,distorsor)

CONTROL 77H BnH 77H 00H Reset all NRPN (see note 1).
CONTROL 78H BnH 78H 00H All sound off. (Abrupt stop of sound on channel n)

CONTROL 79H BnH 79H 00H Reset all controllers
CONTROL 7BH BnH 7BH 00H All Notes Off
CONTROL 7EH BnH 7EH 00H Mono on
CONTROL 7FH BnH 7FH 00H Poly On (default)
RPN 0000H BnH 65H 00H 64H 00H 06H vv Pitch Bend sensivity in semitones (default vv=02H)
RPN 0001H BnH 65H 00H 64H 01H 06H vv Fine tuning in cents. vv=00H (-100) vv=40h (0)

vv=7FH (+100)
RPN 0002H BnH 65H 00H 64H 02H 06H vv Coarse tuning in half-tones vv=00H
(-64) vv=40H (0) vv=7FH (+64)

NRPN 0108H BnH 63H 01H 62H 08H 06H vv Lfo1 Rate modify (vv=40H no modify)
NRPN 0109H BnH 63H 01H 62H 09H 06H vv Dco Depth modify (vv=40H no modify)
NRPN 010AH BnH 63H 01H 62H 0AH 06H vv Lfo1 Delay modify (vv=40H no modify)
NRPN 0110H BnH 63H 01H 62H 10H 06H vv Lfo2 Rate modify (vv=40H no modify)
NRPN 0111H BnH 63H 01H 62H 11H 06H vv Lfo2 Delay modify (vv=40H no modify)
NRPN 0112H BnH 63H 01H 62H 12H 06H vv Dcf Depth modify (vv=40H no modify)
NRPN 0113H BnH 63H 01H 62H 13H 06H vv Dca Depth modify (vv=40H no modify)
NRPN 0120H BnH 63H 01H 62H 20H 06H vv TVF cutoff freq. modify (vv=40H no modify)
NRPN 0121H BnH 63H 01H 62H 21H 06H vv TVF Resonance modify (vv=40H no modify)
NRPN 0130H BnH 63H 01H 62H 30H 06H vv FM Amplitude1 (vv=40H no modify)
NRPN 0131H BnH 63H 01H 62H 31H 06H vv FM Amplitude2 (vv=40H no modify)
NRPN 0132H BnH 63H 01H 62H 32H 06H vv FM Amplitude3 (vv=40H no modify)
NRPN 0133H BnH 63H 01H 62H 33H 06H vv FM Amplitude4 (vv=40H no modify)
NRPN 0163H BnH 63H 01H 62H 63H 06H vv Env. attack time modify (vv=40H no modify)
NRPN 0164H BnH 63H 01H 62H 64H 06H vv Env. decay time modify (vv=40H no modify)
NRPN 0166H BnH 63H 01H 62H 66H 06H vv Env. release time modify (vv=40H no modify)
NRPN 016BH BnH 63H 01H 62H 6BH 06H vv Env. sustain time modify (vv=40H no modify)
NRPN 18rrH BnH 63H 18H 62H rr 06H vv Pitch Course of drum instr. in semitones rr=note

vv=40H no modify
NRPN 19rrH BnH 63H 19H 62H rr 06H vv Pitch Fine of drum instr. in semitones
rr=note vv=00h no modify vv=7FH +1/2 tone

NRPN 1ArrH BnH 63H 1AH 62H rr 06H vv Level of drum instr. note rr. vv=00h to 7FH
NRPN 1CrrH BnH 63H 1CH 62H rr 06H vv Pan of drum instr. note rr. vv=00h to 7FH
NRPN 1DrrH BnH 63H 1DH 62H rr 06H vv
NRPN 1ErrH BnH 63H 1EH 62H rr 06H vv

Reverb send level of drum instr. note rr. vv=00h to 7FH
Chorus send level of drum instr. note rr. vv=00h to 7FH

note 1:
Reset NRPN. reset following NRPN:
0108H,0109H,010AH,0110H,0111H,0112H,0113H,0120H,0121H,0130H,0131H,0132H
0133H,0163H,0154H,0166H,016BH.
If midi channel i a drumset channel following NRPN are also reset:
18rrH,19rrH,1ArrH,1CrrH,1Drrh,1ErrH.

43

SYSTEM EXCLUSIVE KETRON

BASS BOOST

F0H 26H 7BH 7DH 00H Boost_gain Freq F7H Boost_gain = 0-6
Freq = 0-7

PARAMETERS GENERAL FORM

F0H 26H 7BH Code Data_1..Data_n F7H

REVERB1 TYPE

F0H 26H 7BH 00H 00H Rev_type F7H
Rev_type = 00H Reverb_1 02 H Reverb_3 04 H Reverb_5 06 H Reverb_7
01H Reverb_2 03 H Reverb_4 05 H Reverb_6 7F H OFF

REVERB LEVEL

F0H 26H 7BH 02H 00H Level F7H Level = 00H - 10H

CHORUS TYPE

F0H 26H 7BH 01H 00H Cho_type F7H
Cho_type = 00H Chorus_1 02H Chorus_3 04H Chorus_5 06H Chorus_7 7FH OFF
01H Chorus_2 03H Chorus_4 05H Chorus_6 07H Chorus_8

DELAY TYPE

F0H 26H 7BH 06H 00H Delay_type F7H
Delay_type=
01H Delay_2 03H Delay_4 05H Delay_6 07H Delay_8

00H Delay_1 02H Delay_3 04H Delay_5 06H Delay_7 7FH OFF

DISTORSOR TYPE

F0H 26H 7BH 11H 00H Dist_type F7H
Dist_type = 00H Distorsor_1 01H Distorsor_3 01H Distorsor_5 01H Distorsor_7 7FH OFF
01H Distorsor_2 01H Distorsor_4 01H Distorsor_6 01H Distorsor_8

TYPE EFFECTS CHANNEL ASSIGN

F0H 26H 7BH 0BH 00H Chan Type F7H
Chan: 00H - 1FH Type: 0 = no effects 3 = Chorus 6 = Distorsor + Chorus
1 = Leslie 4 = Delay 7 = Distorsor + Delay
2 = Distorsor 5 = Delay + Chorus 8 = Distorsor + Delay + Chorus

CHORUS PARAMETERS

F0H 26H 7BH Cho_par 00H Value F7H
Cho_par: 3BH Chorus Volume Value 0 - 7FH 76H Chorus Rate Value 0 - 7FH
74H “” Delay “ 0 - 7FH 77H “” Depth “ 0 - 7FH
75H “” Feedback “ 0 - 7FH

DELAY PARAMETERS

F0H 26H 7BH Delay_par 00h Value F7H
Delay_par: 2BH Delay Feed Value 0 - 7FH 2CH Delay Filter Value 0 - 68H

DELAY TIME

F0H 26H 7BH 29h 00H Time_Center(0-7FH) Time_Left(0-7FH) Time_right(0-7FH) F7H

DELAY VOLUME

F0H 26H 7BH 2Ah 00H Vol_Center(0-7FH) Vol_Left(0-7FH) Vol_right(0-7FH) F7H

DISTORSOR PARAMETERS

F0H 26H 7BH Dist_par 00H Value F7H Dist_par: 22H Distorsor Volume Value 00H - 7FH
25H “” Tone “ 10H - 66H
26H “” Resonance “ 18H - 7FH

GLOBAL TRANSPOSER

F0H 26H 7BH 07H 00H Value F7H Value = 28H - 58H; 40H = no transp.

44

SCALE TUNING (ARABIC)

F0H 26H 7BH 0AH Chan Data1...Data12 F7H
Data: 00H-7FH; 40h = no detune Chan: 00H-1FH 7FH all channels ( not drum sections)

MASTER TUNE

F0H 26H 7BH 0CH 00h Data1,Data2 F7H
Data1 00H-0CH high nibble Es. Data1=06h Es. Data1=00h Es. Data1=0Ch
Data2 00H-0FH low nibble

Data2=04h (nominal) Data2=00h (-100%) ata2=08h +100%)

GLOBAL GM RESET

F0H 26H 7BH 0EH 00h Value F7H Value = 00H gm controls reset
Value = 01H gm controls reset + all note off

GM DRUM PART

F0H 26H 7BH 0FH 00H GMPart Value F7 Value = 00H voice
Value = 01H drum
GMPart = 00H-1FH

GM MIDI RX CHANNEL ASSIGN

F0H 26H 7BH 12H 00H GMPart Chan F7H Chan = 00H-20H, 20H=OFF
GMpart 00H-1FH

VELOCITY SLOPE

F0H 26H 7BH 3EH 00H Part Value F7H Part : 01H-20H Value: 00H-7fH

VELOCITY OFFSET

F0H 26H 7BH 3FH 00H Part Value F7H Part : 01H-20H Value: 00H-7fH

FILTER VELOCITY SLOPE

F0H 26H 7BH 40H 00H Part Value F7H Part : 01H-20H Value: 00H-7fH

FILTER VELOCITY OFFSET

F0H 26H 7BH 41H 00H Part Value F7H Part : 01H-20H Value: 00H-7fH

MODULATION, BEND, AFTERTOUCH, VOICES CONTROLS

F0H 26H 7BH CNTRL 00H Part Value F7H Part : 01H-20H Value: 00H-7fH
CNTRL: 42H mod. pitch ctrl 49H bend pitch control 5AH AfterTouch tvf cutoff 62h Voices amplitude
43H mod. tvf cutoff 4AH bend tvf cutoff 5BH AfterTouch amplitude 63h Voicse lfo pitch
44H mod. lfo amplitude 4BH bend amplitude 5CH AfterTouch lfo pitch 64h Voices lfo tvf dpth
45H mod. lfo rate 4CH bend lfo pitch 5DH AfterTouch lfo tvf depth 65h Voices lfo tva dpth
46H mod. lfo pitch depth 4DH bend lfo tvf 5EH AfterTouch lfo tva depth
47H mod. lfo tvf depth 4EH bend lfo tva 60h Voices pitch ctrl
48H mod. lfo tva depth 59H AfterTouch pitch ctrl 61h Voices tvf cutoff

GENERAL MIDI VOLUME

F0H 26H 7BH 38H 00H Value F7H Value 00-7FH default: 7FH

GENERAL MIDI PAN

F0H 26H 7BH 39H 00H Value F7H Value 00-7FH default: 40H

MIDI PORT

F0H 26H 7BH 30H 00H Value F7H Value: 00H == Channels 00H - 0FH 01H == Channels 10H -1FH

DRAWBARS SELECTION

Controller 0 Value 67 Bank MSB Program Change 0
Drawbar Controller:

20 = 16’ Value: 0-127 24 = 2 2/3 Value: 0-127 28 = percussion 4’ Value: 0-127

21 = 8’ Value: 0-127 25 = 2’ Value: 0-127 29 = percussion 2’ 2/3 Value: 0-127

22 = 5 1/3’

Value: 0-127 26 = 1’ 3/5 Value: 0-127

23 = 4’ Value: 0-127 27 = 1’ Value: 0-127

I.E ( in order to send a drawbars data 16’- 8’- 4’)

Controller 0 value 67 Controller 20 value 127 (16’) Controller 23 value 127 (4’)
Program change 0 Controller 21 value 127 (8’)

45
