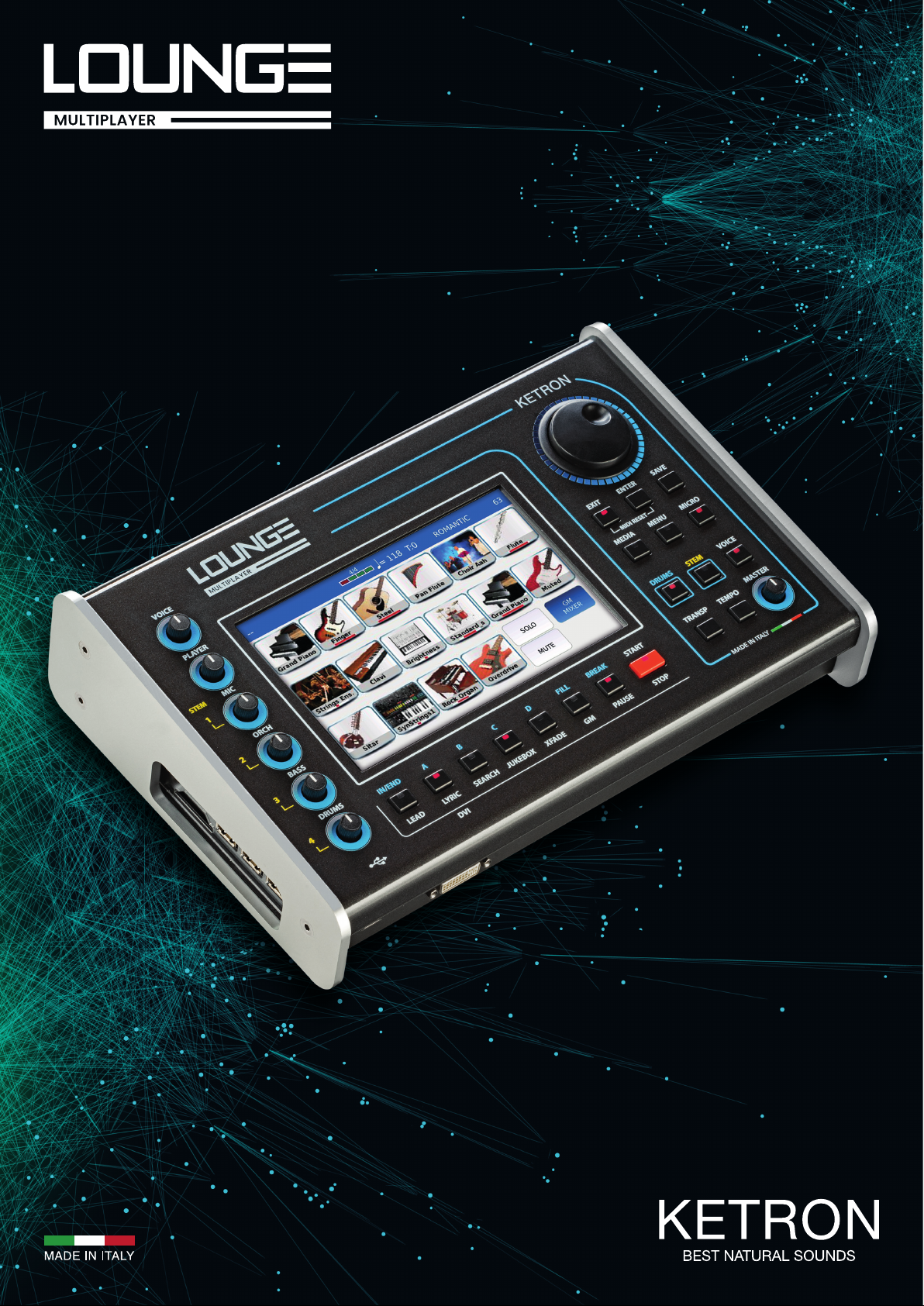

Ketron Lounge User guide

With a professional multimedia Player, a superb
Drum Machine, full Orchestral Voices and Basses,
Microphone inputs and Stem player, the LOUNGE
is a compact all-in-one instrument for a perfect live
performance.

MULTIPLAYER & SOUND MODULE

The Lounge is a professional multimedia player that can
read and play a wide set of le formats, including Midi,
Mp3, Wav, Txt, Pdf, Mp4 and more.
The Lounge comes with all the features and functions
you need for a great karaoke night, such as Lyrics,
Lead Mute, Crossfade, Search and XFade as weel as
2 x Microphone independent inputs with Effects and a
3 voice Vocalizer.
The Lounge features an high quality sound generation
engine, packed with the amazing KETRON Sounds and
with 62 new Acoustic and Electronic Stereo Drum kits
to ensure the best reproduction for the GM Midi songs.
The unique Drum Remix feature allows you to remix
the Midi le drum track with one of the more natural
sounding audio tracks of the huge Live Drums library
(all the Live Drums are recorded in studio with top
drummers).

replace the bassist with the left hand. All you need to do
is connect a master keyboard via the MIDI in port or via
USB.

GUITAR

The Lounge is particularly suitable also for the solo
Guitar entertainer, thanks to the Guitar Input with
dedicated Effects (Chorus, Reverb, Delay, Distortion,
Cabinet Speaker simulation etc.).

DRUM MACHINE

The Lounge incorporates an amazing Drum Machine
with up to 269 factory Drum Styles, which offers an
unprecedented high level of customization of the
rhythm, allowing you to mix together audio Live Drums,
3 Latin percussion Grooves, Loops and Midi Patterns.
Custom Drum Styles are available as weel: you can
load into the Lounge your own Drum Styles articulated
with 4 Variation, Fill, Break and Intro/End.
With the Drum Mixer utility, you can balance accurately
all the various sections of the Midi Drums such as
Kick, Snare, Hi Hat, Toms, Cymbals etc. by individually
adjusting volume, pan and reverb values. An additional
stereo equalizer available for the streaming Live Drum
tracks.

Thanks to the quality and variety of the patterns, the Lounge Drum machine is a
fabulous partner for any Piano or Jazz Organ players as weel as for professional
home studio productions.

STEM

Stem is a new special feature of the Lounge which allows you to play up to 5
audio tracks simultaneuosly in perfect synchronization.
The audio tracks have individual Mute, Volume controls and you can adjust the
transpose and the tempo of all the tracks simultaneously without modiyng the
pitch of the drums. This offers you the great exibility of Midi with the superior
quality of Audio: for example you can exclude the Piano or the Bass line in case
you want to play them live.

ACCORDION

Another unique solution of the Lounge Voices is
achieved in connection with a Midi Accordion.
By setting the Classic Mode, the accordionist has
at his disposal separate Sounds for Right hand, Left
hand Bass which can be saved on Registrations for a
complete concert perforrmance.
The jazz accordeonist can take a big advantage also
from the internal Drum Styles.

Typical applications for the Stems can be top-notch quality Songs with or without
lead line (Minus One) especially useful for entertainers like singers, guitarist or
saxofon players, or generical audio Riffs suitable for Jam improvisations.
You can load a Stem of you own or you can choose between one of the classical
international hits that will be supplied by KETRON.

VOICES & BASS

The Lounge is not only a player; it is in fact a complete stage keyboard with great
Grand Piano, Electric Piano, Strings, Organ, Brass, Guitar and Solos Sounds.
In Voice Edit mode you can combine up to 4 different timbres to create rich
multilayer Sounds.
It also features a very useful Manual Bass section for performers who are used to

Specifications

POLIPHONY

DISPLAY

MULTIMEDIA

PLAYER

JUKEBOX

AUDIO MULTITRACK

VIDEO

MENU

MEDIA

SOUNDS

VOICES

DRUM MACHINE

STEM

PLAY MODES

DSP

AUDIO RECORDING

128 notes, multitimbral (48 parts).

LCD colour TFT 7”, touch sensitive 800×480 resolution with Brightness control.

Wav, Midi, Mp3, Avi, Mov, Flv, Cdg, Jpg, Png, Txt, Pdf.

Transpose, Time Stretching, GM, Jukebox, Playlists, My Folder, Drum Remix, Markers, Lyrics, Cross Fade, Search, PFL, Midi Mix, Karaoke
Backgrounds.

Up to 7 programmable Sets.

5+1 audio tracks with separate slider control.

External monitor output (DVI) for Lyrics, video les and Mirror.

Play Modes, Midi, DSP, Audio Recording, Audio Edit, Video, Controls, Preferences, Metronome, Manual, Micro1/Vocalizer, Micro2/Guitar,
Footswitch.

Internal storage: SSD Card 8 GB, USB: 3 Host + 1 device.

632 GM Sounds, 62 Drum Sets.

368 Preset Voices, Stereo Grand Piano, 368 User Voice, 2nd voice, V-Tone, Double up/down, EFX Insert, Voice Editing.

391 Drum Styles. 269 Live Drums, 86 Midi Patterns, 372 Drum Loops, 397 Grooves, User Styles, Midi Drum Mixer, 4 Variation ABCD, 4 Fill,
4 Break, Intro, Ending.

4 Scenes, 5 audio tracks per scene to be played simultaneously, Lead track, Transpose, Time Stretching, Loop, Solo, Mute, Autoplay.

Master keyboard, Accordion Classic.

Chorus, Reverb, Flanger, Phaser, Tremolo, Rotary, Echo Delay, Tap Delay, Equalizer, Distortion, Amp simulator, Compressor, Filter, EFX Insert
(54 types), 10 programmable Insert Chains.

1 Stereo audio track.

AUDIO EDIT

MICRO

VOICETRON

MIDI CONNECTIONS

MIDI MODES

AUDIO OUTPUTS

AUDIO INPUTS

OPTIONAL

POWER SUPPLY

DIMENSIONS

WEIGHT

Cut, Normalize, Autoloop.

XLR input, Gain control, Volume, Reverb, Talk, Equalizer, Compressor, Echo, Pitch Shift, Noise gate.

3 Voice Voicetron, 6 Voicetron Presets + 4 User.

In 1 (GM), In 2 (Keyboard), Out, Thru.

Standard, Keyboard, Computer, Player Out, Accordion.

Left/Right stereo, Pedal volume, Micro1 out, Stereo Headphones.

Micro 1, Micro 2, Guitar.

Footswitch with 6 or 13 switches, Volume pedal, Sustain pedal, Bag, SSD card.

External 9V / 4a.

32 x 21 x 8 cm (13 x 8,2 x 3,1 inches).

2 Kg (4,4 lbs).

* All specications and appearances are subject to change without notice.
