Operating instructions
Bench scales
KERN GAB-N
Version 1.3
01/2011
GB
GAB-N-BA-e-1113
GB
KERN GAB-N
Version 1.3 01/2011
Operating Instructions Bench Scales
Table of Contents
1 Technical Data................................................................................................ 4
2 Basic Information (General).......................................................................... 6
2.1 Proper use .................................................................................................................................. 6
2.2 Improper Use.............................................................................................................................. 6
2.3 Warranty ..................................................................................................................................... 7
2.4 Monitoring of Test Resources .................................................................................................... 7
3 Basic Safety Precautions .............................................................................. 7
3.1 Pay attention to the instructions in the Operation Manual.......................................................... 7
3.2 Personnel training....................................................................................................................... 7
4 Transportation & Storage.............................................................................. 8
4.1 Testing upon acceptance ........................................................................................................... 8
4.2 Packaging / return transport ....................................................................................................... 8
5 Unpacking, Setup and Commissioning ....................................................... 8
5.1 Installation Site, Location of Use ................................................................................................ 8
5.2 Unpacking/erection..................................................................................................................... 9
5.2.1 Scope of delivery / serial accessories ........................................................................................ 9
5.3 Mains connection........................................................................................................................ 9
5.4 Rechargeable battery operation............................................................................................... 10
5.5 Connection of peripheral devices............................................................................................. 10
5.6 Initial Commissioning................................................................................................................ 10

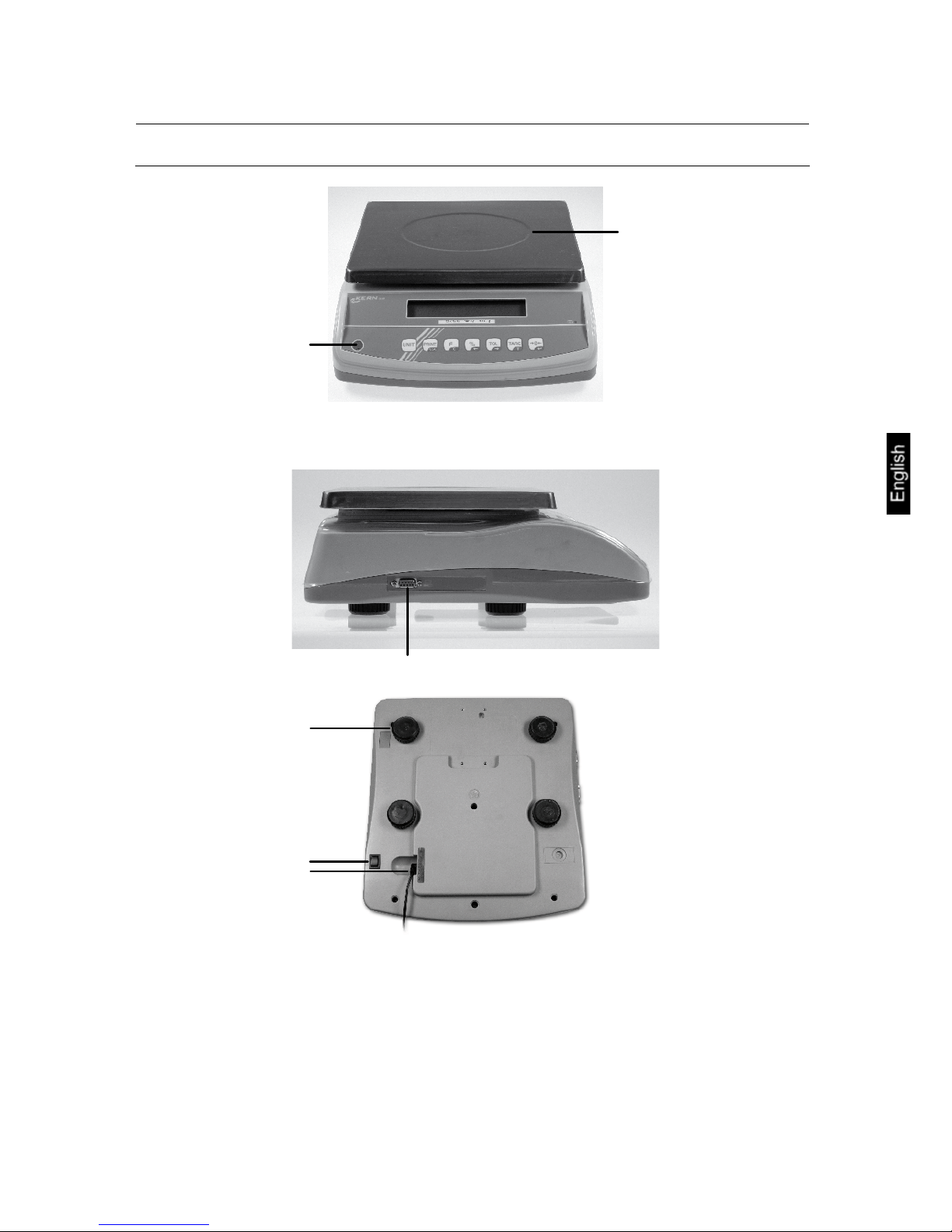

6 Appliance overview ..................................................................................... 11
7 Overview of displays ................................................................................... 12
8 Keyboard overview ...................................................................................... 13
9 Adjustment ................................................................................................... 14
9.1 Verified models......................................................................................................................... 15
9.2 Non-verifiable models:.............................................................................................................. 16
9.3 Verification................................................................................................................................17
10 Operation ...................................................................................................... 19
10.1 Weighing................................................................................................................................... 19
10.2 Weighing with tare .................................................................................................................... 19
10.3 Percent weighing ...................................................................................................................... 20
10.4 Parts counting........................................................................................................................... 21
10.5 Weighing with tolerance range ................................................................................................. 22
10.6 Manual totalizing....................................................................................................................... 24
10.7 Automatic adding-up................................................................................................................. 26
2 GAB-N-BA-e-1113
GAB-N-BA-e-1113 3
11 The menu ...................................................................................................... 28
11.1 Navigation in the menu:............................................................................................................ 28
11.1.1 Non verifiable models........................................................................................................... 28
11.1.2 Verifiable models.................................................................................................................. 28
11.2 Overview:.................................................................................................................................. 29
11.2.1 Non verifiable models........................................................................................................... 29
11.2.2 Verifiable models.................................................................................................................. 30
12 Service, maintenance, disposal.................................................................. 31
12.1 Cleaning ................................................................................................................................... 31
12.2 Service, maintenance............................................................................................................... 31
12.3 Disposal.................................................................................................................................... 31
12.4 Error messages ........................................................................................................................ 32
13 Instant help................................................................................................... 33
4 GAB-N-BA-e-1113
1 Technical Data
KERN GAB 6K1DNM GAB 15K2DNM GAB 30K5DNM
Readability (d) 1 g /2 g 2 g /5 g 5 g /10 g
Weighing range (max) 3 kg /6 kg 6 kg /15 kg 15 kg /30 kg
Reproducibility 1 g /2 g 2 g /5 g 5 g /10 g
Linearity ± 1 g / 2 g ± 4 g / 10 g ± 5 g / 10 g
Stabilization time 2 s 2 s 2 s
Verification value (e) 1 g /2 g 2 g /5 g 5 g /10 g
Verification class III III III
Minimum weight (min) 20 g 40 g 100 g
Weighing Units kg kg kg
Recommended adjusting
weight (not supplied)
6 kg (M1) 15 kg (F2) 30 kg (M1)
Warm-up time 10 min. 10 min. 10 min.
Minimum unit weight at
piece count
0.2 g 0.5 g 1 g
Admissible ambient
conditions
-10° C to +40° C
Humidity of air max. 80 % relative (not condensing)
Weighing surface (mm) 294 x 225
Dimensions of the housing
(B x D x H) (mm)
320 x 330 x 125
Electric Supply
Supply voltage: 220V-240V AC 50 Hz
Mains adapter: 9 V, 800 mA
Rechargeable battery,
not included
Working life approx. 70 h (with background light)
Working life approx. 90 h (without background light)
Loading time approx. 12 hrs.
Net weight (kg) 4.4 kg
interface RS 232C
GAB-N-BA-e-1113 5
KERN GAB 6K0.05N GAB 12K0.1N GAB 30K0.2N
Readability (d) 0.05 g 0.1 g 0.2 g
Weighing range (max) 6 kg 12 kg 30 kg
Reproducibility 0.05 g 0.1 g 0.2 g
Linearity ± 0.15 g ± 0.3 g ± 0.6 g
Stabilization time 2 s 2 s 2 s
Weighing Units kg, g kg, g kg, g
Recommended adjusting
weight (not supplied)
6 kg (F2)
12 kg (F2)
20 kg (F1)
10 kg (F1)
Warm-up time 2 h 2 h 2 h
Minimum unit weight at
piece count
0.05 g 0.1 g 0.2 g
Admissible ambient
conditions
0° C to 40° C
Humidity of air max. 80 % relative (not condensing)
Weighing surface (mm) 294 x 225
Dimensions of the housing
(B x D x H) (mm)
320 x 330 x 125
Electric Supply
Supply voltage: 220V-240V AC 50 Hz
Mains adapter: 9 V, 800 mA
Rechargeable battery,
not included
Working life approx. 70 h (with background light)
Working life approx. 90 h (without background light)
Loading time approx. 12 hrs.
Net weight (kg) 3.06 kg
interface RS 232C
Dimensions:
2 Basic Information (General)
2.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the
material to be weighed is manually and carefully placed in the centre of the weighing
plate. As soon as a stable weighing value is reached the weighing value can be read.
2.2 Improper Use
Do not use balance for dynamic weighing. In the event that small quantities are
removed or added to the material to be weighed, incorrect weighing results can be
displayed due to the “stability compensation“ in the balance.
(Example: Slowly draining fluids from a container on the balance.)
Do not leave permanent load on the weighing plate. This may damage the measuring
system.
Impacts and overloading exceeding the stated maximum load (max) of the balance,
minus a possibly existing tare load, must be strictly avoided. Balance may be
damage by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect
weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas of
use must be released by KERN in writing.
6 GAB-N-BA-e-1113
2.3 Warranty
Warranty claims shall be voided in case
• Our conditions in the operation manual are ignored
• The appliance is used outside the described uses
• The appliance is modified or opened
• Mechanical damage or damage by media, liquids, natural wear and tear
• The appliance is improperly set up or incorrectly electrically connected
• The measuring system is overloaded
2.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the
balance and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this test.
Information is available on KERN’s home page (www.kern-sohn.com with regard to
the monitoring of balance test substances and the test weights required for this. In
KERN’s accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
3 Basic Safety Precautions
3.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and
commissioning, even if you are already familiar with KERN
balances.
3.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
GAB-N-BA-e-1113 7
4 Transportation & Storage
4.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
4.2 Packaging / return transport
Ö Keep all parts of the original packaging for a possibly required
return.
Ö Only use original packaging for returning.
Ö Prior to dispatch disconnect all cables and remove loose/mobile
parts.
Ö Reattach possibly supplied transport securing devices.
Ö Secure all parts such as the glass wind screen, the weighing
platform, power unit etc. against shifting and damage.
5 Unpacking, Setup and Commissioning
5.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
8 GAB-N-BA-e-1113
Therefore, observe the following for the installation site:
• Place scales on a stable, even surface
• Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
• Protect the balance against direct draughts due to open windows and doors;
• Avoid jarring during weighing;
• Protect the balance against high humidity, vapors and dust;
• Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
• Avoid static charge of goods to be weighed or weighing container.
Major display deviations (incorrect weighing results) may be experienced should
electromagnetic fields (e.g. due to mobile phones or radio equipment), static
electricity accumulations or instable power supply occur. Change location or remove
source of interference.
5.2 Unpacking/erection
Carefully remove the balance from the packaging, remove plastic cover and setup
balance at the intended workstation.
Level balance with foot screws until the air bubble of the
water balance is in the prescribed circle.
5.2.1 Scope of delivery / serial accessories
Balance
Mains power supply
Operating instructions
5.3 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage.
Only use original KERN mains adapters. Using other makes requires consent by
KERN.
GAB-N-BA-e-1113 9
5.4 Rechargeable battery operation (option)
The internal battery is charged with the supplied mains cable.
Before the first use, the rechargeable battery should be charged by connecting it to
the mains power cable for at least 15 hours. The operating time of the battery is
about. 70h. Charging time until complete recharging ca. 12h.
To save battery life, the background light can be switched off in the menu
(See chpt. 11 menu).
An arrow [S] appearing on the weight display below the battery icon indicates
that the capacity of the rechargeable battery is low. The balance will be ready to
operate for about another 10 hrs., then it will switch off automatically. Connect the
power cable as soon as possible to load the rechargeable battery.
5.5 Connection of peripheral devices
Before connecting or disconnecting of additional devices (printer, PC) to the data
interface, always disconnect the balance from the power supply.
With your balance, only use accessories and peripheral devices by KERN, as they
are ideally tuned to your balance.
5.6 Initial Commissioning
In order to obtain exact results with the electronic balances, your balance must have
reached the operating temperature (see warming up time chap. 1).
During this warming up time the balance must be connected to the power supply
(mains, accumulator or battery).
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.
10 GAB-N-BA-e-1113
6 Appliance overview
1
2
3
4
5
6
1. Weighing plate / rechargeable battery compartment (under
weighing plate)
2. Bubble level
3. RS 232 interface
4. Footscrews
5. ON/OFF switch
6. Mains adapter connection
GAB-N-BA-e-1113 11
7 Overview of displays
00000.0
ZERO
NET
GROSS
LO
OK
HI
21
6
54 3
Display Designation Description
1
The battery capacity
display
Appears when the capacity of the battery is
getting low
2
Stability display Scales are in a steady state
3
ZERO
Zeroing display Should the balance not display exactly zero
despite empty scale pan, press the
0
button. The balance will be set to zero after a
short standby time.
4 NET
Net weight display Displays the net weight
5 GROSS
Gross weight display Showing gross weight
6
LO
OK
HI
Tolerance check
Checkweighing
Load above (HI), below (LO) or within (OK)
tolerance range
Power supply connected Icon is glowing for power supply via power
pack
12 GAB-N-BA-e-1113
8 Keyboard overview
Button Designation Function
UNIT
UNIT-key Weighing units switch-over
PRINT Data transfer via interface
Save value to memory if memory function
“automatic“, is disabled
PRINT
ESC
PRINT button
ESC Return to weighing mode
F Changes between weighing mode and
quantity counting mode
F
C
Function-key
C Delete displayed value
% Weight value displayed in %
%
Percentage key
Move to the left by one decimal point
TOL Enter upper, lower or both limits
TOL
Tolerance key
Check-weighing
Move to the right by one decimal point
TARE Tare balance
TARE
Tare key
Increase displayed value
0 Reset scales to zero
0
Zeroing key
Confirm entered value or select function
GAB-N-BA-e-1113 13
9 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordinated - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of location
(only if the balance has not already been adjusted to the location in the factory). This
adjustment process must be carried out for the first commissioning, after each
change of location as well as in case of fluctuating environment temperature. To
receive accurate measuring values it is also recommended to adjust the balance
periodically in weighing operation.
• For verified balances the adjustment is locked. In order to access the
menu you will have to short-circuit the two contacts of the circuit board
with a jumper (See chpt 9.3).
Attention:
After destruction of the seal the balance must be re-verified by an
authorised agency and a new verification wire/seal mark fitted before it
can be reused for applications subject to verification.
Observe the verification notes (see chapter 9.3).
• The weight to be used depends on the capacity of the balance. Carry
out adjustment as near as possible to the balance’s maximum weight.
Info about test weights can be found on the Internet at: http://www.kernsohn.com
• Observe stable environmental conditions.
Stabilisation requires a certain warm-up time.
14 GAB-N-BA-e-1113
9.1 Verified models
Ö Switch-on the appliance and during the selftest keep the
adjustment switch pressed and press
TARE
and %.
„UnLoAd“ appears.
UnLQAD
Ö Acknowledge by . Ensure that there are no objects on
the weighing plate.
Ö The currently set adjustment weight will be displayed.
Ö To change by using the navigation buttons (see operating
instructions chap. 8) select the desired setting, the active
digit is flashing.
22.000
Ö Acknowledge by .
LQAD
Ö Carefully place adjusting weight in the centre of the
weighing plate. Wait for stability display, then press .
„PASS“ appears
Ø
PASS
Ö After the adjustment the balance will carry out a self-test.
Remove adjusting weight during selftest, the appliance will
return into weighing mode automatically.
An adjusting error or incorrect adjusting weight will be
indicated by the error message; repeat adjustment
procedure.
0.0
GROSS
ZERO
GAB-N-BA-e-1113 15
9.2 Non-verifiable models:
Ö Switch on balance Whilst balance is carrying out self-test
(counts down from 99… to 00…)
TARE
and % press at the
same time.
“UnLoad“ will be displayed, followed by flashing numeric
value.
UnLQAD
Ø
22.000
(Example)
Ö Change by pressing the navigation keys (See manual chpt
8); select desired setting; currently enabled digit will be
flashing.
12.000
(Example)
Ö Confirm value by 0, “Load“ will be displayed.
LQAD
Ö Place adjustment weight, stability display appears
Ö After the adjustment the balance will carry out a self-test.
Remove adjusting weight during self test,
balance will return into weighing mode automatically.
In case of an adjustment error or incorrect adjusting weight
the display will show an error message, repeat adjustment
process.
0.0
GROSS
ZERO
16 GAB-N-BA-e-1113
9.3 Verification
General introduction:
According to EU directive 90/384/EEC balances must be verified if they are used as
follows (legally controlled area):
a) For commercial transactions if the price of goods is determined by weighing.
b) For the production of medicines in pharmacies as well as for analyses in the
medical and pharmaceutical laboratory.
c) For official purposes.
d) For manufacturing final packages.
In cases of doubt, please contact your local trade in standard.
Verification notes:
An EU Qualification Approval is in existence for verified weighing systems. If a
balance is used where obligation to verify exists as described above, it must verified
and re-verified in regular intervals.
Reverification is carried out according to relevant national statutory regulations. The
validity for verification of balances in Germany is e.g. 2 years.
The legal regulation of the country where the balance is used must be observed!
• Verification of the weighing system is invalid without the "seal".
GAB-N-BA-e-1113 17

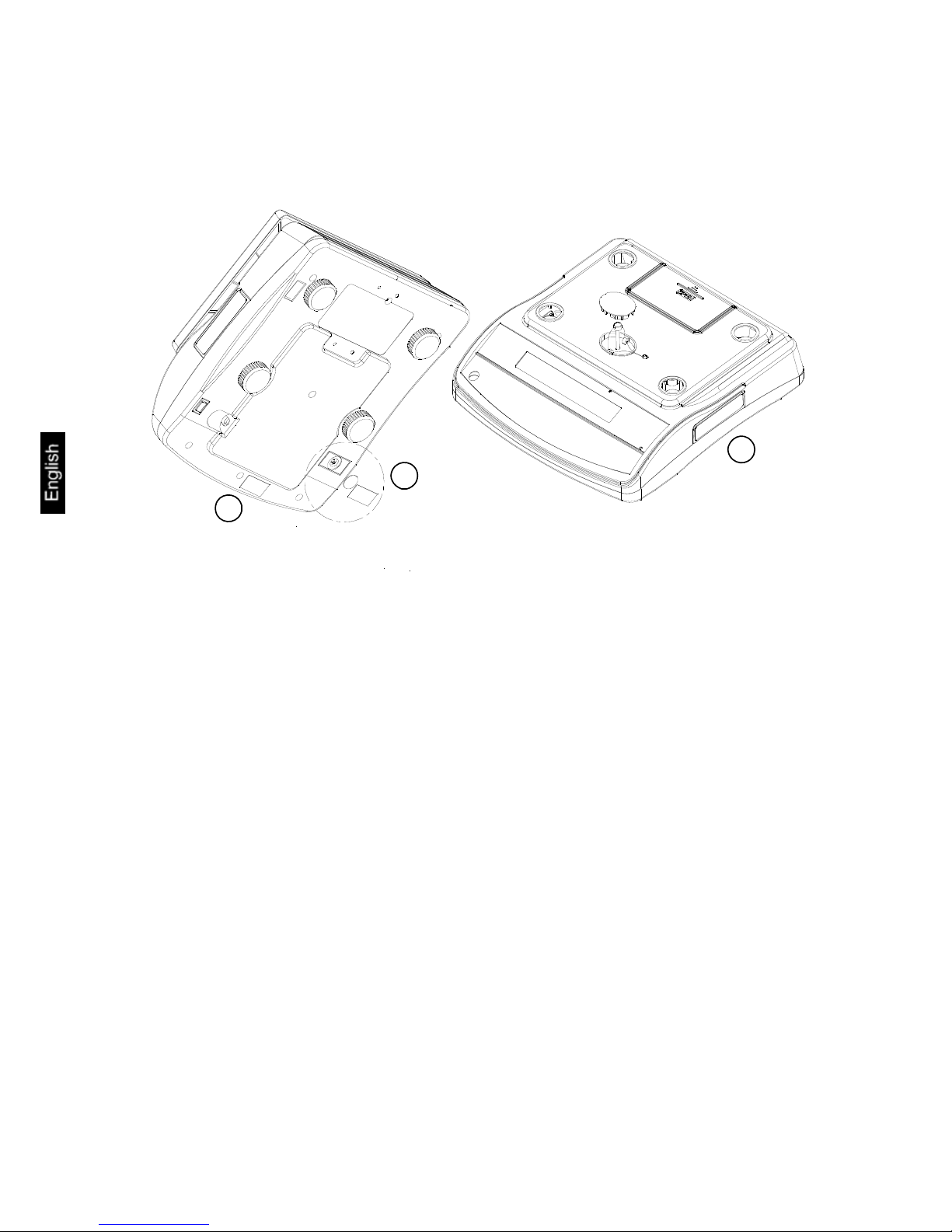

Notes on verified Waagen
Possible seals: B urgent, and A or C
A
B
C
1
2
3
4
1
1. Seal of approval
2. Cover
3. Verification switch
4. Verification wire
18 GAB-N-BA-e-1113
10 Operation
10.1 Weighing
9.9.9.9
Ø
0.0
GROSS
ZERO
Ö Turn on the scales by pressing the ON/OFF button
underneath the scales on the right.
The balance will carry out a self-test. The balance is ready for
weighing when the weight display „0.0“ appears.
When required, the scales can be reset to zero at any time
using
0
.
10.2 Weighing with tare
123
GROSS
(Example)
Ø
0.0
NET
123.4
-
ZERO
NET
Ö Deposit weighing receptacles
Ö After successful stop check press the
TARE
button.
The zero display and the symbol NET will appear.
The weight of the container is now internally saved.
Ö When the weighing container is removed, its weight will be
shown as a negative value.
Ö The taring process can be repeated any number of times,
e.g. when adding several components for a mixture (adding).
The limit is reached when the whole weighing range is
exhausted.
0.0
GROSS
ZERO
Ö To delete the tare value, remove load from weighing plate
and press
TARE
.
The taring process can be repeated any number of times, e.g. when adding several
components for a mixture (adding). The limit is reached when the whole weighing
range is exhausted.
GAB-N-BA-e-1113 19
10.3 Percent weighing
Percent weighing allows to display weight in percent, in relation to a reference
weight.
0.0
GROSS
ZERO
Ö Unload scales and set to zero
123
GROSS
(Example)
Ø
100.00
GROSS
%
Ö Put a reference weight on the weighing plate, which
corresponds to 100%
Ö Press %
100.00 % will appear on the display
0.00
ZERO
GROSS
%
Ö Remove the reference weight
The display will return to 0.00 %
20.00
GROSS
%
Ö Place a sample
The display will show the percentage value of the sample in
relation to the reference value.
Ö To return to gram / kilo mode, press
F
C
20 GAB-N-BA-e-1113
10.4 Parts counting
Before the balance can count parts, it must know the average part weight (i.e.
reference). Proceed by putting on a certain number of the parts to be counted. The
balance determines the total weight and divides it by the number of parts (the socalled reference quantity). Counting is then carried out on the basis of the calculated
average piece weight.
The higher the reference quantity the higher the counting exactness.
0.0
GROSS
ZERO
Ö Unload scales and set to zero
Ö Press
F
C
and the scales will change to quantity counting
mode. Reference quantity of 10, P 10 will appear.
Ö Reference quantities of 10, 20, 50, 100 and 200 can be set
by pressing
TARE
.
(Example)
Ø
----
GROSS
Ø
10
GROSS
pcs
Ö Place as many items as are required by the reference
quantity
Ö Confirm by pressing 0
You will briefly see a line on the screen before the scales
show the respective quantity.
Ö To change between reference weight, total weight and
quantity, press the % key.
Ö To return to weighing mode, press the
F
C
key.
GAB-N-BA-e-1113 21
10.5 Weighing with tolerance range
You can set an upper or lower limit when weighing with tolerance range and thus
ensure that the weighed load remains exactly within the set limits.
Exceeding or dropping below the tolerance range is indicated by an audio sound or
optical signal.
Audio signal:
The audio sound depends on the setting in menu block “BEEP“ (See chpt 11 menu).
Options:
• 0
No audio sound during tolerance weighing
• 1
An acoustic signal sounds when load is within tolerance limits
• 2
An acoustic signal sounds when load is beyond tolerance limits
Optical signal:
The arrow symbols indicate whether load is within the two set limits.
The icons provide the following information:
1. Goods to be weighed above tolerance limit
2. Goods to be weighed within tolerance range
3. Goods to be weighed below tolerance limit
22 GAB-N-BA-e-1113
Settings:
0.0
GROSS
ZERO
Ö Unload scales and set to zero
000.0
ZERO
GROSS
HI
Ö Press
TOL
The left digit will be flashing and icon HI will be displayed
0.500
ZERO
GROSS
HI
(Example)
Ö Enter upper limit by pressing
TOL
and
TARE
.
000.0
ZERO
GROSS
LO
Ø
(Example)
Ø
0.0
GROSS
ZERO
Ö Confirm upper limit by pressing 0 .
The weighing scales will change to the prompt for entering
the lower limit.
Ö Enter lower limit by pressing
TOL
and
TARE
.
Ö Confirm lower limit by pressing 0.
The scales will change to zero display.
To reset the enter value to zero, press
F
C
.
Weighing with tolerance range
Ö Tare when using a weighing container
Ö Put on goods to be weighed, tolerance control is started
The tolerance control is not active when the weight is under
20d.
To finish tolerance weighing, set both limit to zero by pressing
F
C
.
GAB-N-BA-e-1113 23
10.6 Manual totalizing
This function is used to add the individual weighing values to the summation memory
and, if a printer is connected to provide a printout when the stability display appear
and the
PRINT
ESC
key pressed.
(For details how to set this function see chpt 11 menu)
(Example)
Ø
(Example)
Ö Place load A
Wait until stability display appears
Ö Press
PRINT
ESC
ACC 1 followed by the weighing value will appear and the
weighing value will be saved to the summation memory and
possibly printed.
Ö Remove load A
Further loads can only be added after the display has
returned to zero.
(Example)
Ø
(Example)
Ø
0.0
GROSS
ZERO
Ö Place load B
Wait until stability display appears
Ö Press
PRINT
ESC
again
ACC 2, followed by the total weight will be displayed and the
weighing value added to the summation memory and
possibly printed.
Ö Remove load B
Further loads can only be added after the display has
returned to zero.
Ö Add more weighed goods as described before.
Please note that the balance must be unloaded between the
individual weighing procedures.
Ö You can repeat this process until the capacity of the scales is
exhausted.
24 GAB-N-BA-e-1113
Display of the saved weighing data:
Ö With the weighing platform unloaded, press
PRINT
ESC
and the number of weighing
processes, followed by the total weight will be displayed for 2 sec and afterwards
printed.
Delete weighing data:
Ö With the weighing platform unloaded, press
PRINT
ESC
followed by
F
C
.
The data in the summation memory are deleted.
Printout example:
1st weighing :
GS 0.200 kg
No. 1
Total 0.200 kg
2. Weighing
GS 0.050 kg
No. 2
Total 0.250 kg
Number of weighings / total :
No. 2
Total 0.250 kg
GAB-N-BA-e-1113 25
10.7 Automatic adding-up
This function is used to automatically add individual weighing values to the
summation memory and to receive a printout from a possibly connected optional
printer.
For details on how to set this function see chpt 11 menu: „ACC on“)
0.200
GROSS
Ö Place load A
After stabilisation control has taken place, you will hear an
audio sound.
The weighing value will be saved to the summation memory.
Ø
(Example)
Ø
0.0
GROSS
ZERO
Ö Remove load A
ACC 1, followed by the weighing value will be displayed and
possibly printed.
Afterwards the weighing scales change to zero display.
Ö Place goods to be weighed B.
After the standstill control sounds a signal tone.
The weighing value is added into the total adding memory.
Ø
(Example)
Ø
0.0
GROSS
ZERO
Ö Remove load B
Ö ACC 2, followed by the total weight will be displayed and
possibly printed.
Afterwards the weighing scales change to zero display.
Ö Add more weighed goods as described before.
Please note that the balance must be unloaded between the
individual weighing procedures.
Ö You can repeat this process until the capacity of the scales is
exhausted.
26 GAB-N-BA-e-1113
Display of the saved weighing data:
With the weighing platform unloaded, press
PRINT
ESC
and the number of weighing
processes, followed by the total weight will be displayed for 2 sec and afterwards
printed.
Delete weighing data:
Ö With the weighing platform unloaded, press
PRINT
ESC
followed by
F
C
.
The data in the summation memory are deleted.
Printout example:
1st weighing :
GS 0.200 kg
No. 1
Total 0.200 kg
2. Weighing
GS 0.050 kg
No. 2
Total 0.250 kg
Number of weighings / total :
No. 2
Total 0.250 kg
GAB-N-BA-e-1113 27
11 The menu
11.1 Navigation in the menu:
11.1.1 Non verifiable models
Call up menu
1nC1
ZERO
GROSS
In weighing mode press
F
C
and
PRINT
ESC
at the same time
The first menu item InC 1 will be displayed
Select menu block
Ö With help of
TOL
, the individual menu items can be
selected one after the other.
Change settings
Ö Switch into the available settings using
TARE
.
Acknowledge setting /
exit the menu
Ö Either save by pressing 0 or cancel by pressing
PRINT
ESC
.
Return to weighing
mode
Ö Press
F
C
to exit menu.
11.1.2 Verifiable models
Call up menu
Ö Switch on balance
While the balance carries out a self test,
press
F
C
and
PRINT
ESC
at the same time.
The first menu item r dUAL is displayed
Select menu block
Ö With help of
TOL
, the individual menu items can be
selected one after the other.
Change settings
Ö Use the verification switch and the
TARE
button to switch
over into the available settings.
Acknowledge setting /
exit the menu
Ö Either save by pressing 0 or cancel by pressing
PRINT
ESC
.
Return to weighing
mode
Ö Press
F
C
to exit menu.
28 GAB-N-BA-e-1113
GAB-N-BA-e-1113 29
11.2 Overview:
11.2.1 Non verifiable models
Menu block
Main menu
Menu item
Submenu
Available settings / explanation
InC 1
InC 2
InC 5
InC 1
InC 10
not documented
EL on
Background lighting on
EL Au
Background light automatic off
EL off
Background light
EL off
Background lighting off
Au on
Automatic data output of stable weighing values
Au off
No data output
Au on
Data output
P Cont
Continuous data output of stable weighing values
b600
Baud rate
Setting options for baud rate: 600/1200/2400/4800/9600
tp
Default
tP
Printout
IP -50
not documented
ACC on
Automatic add-up mode on
ACC on
Add-up mode
ACC off
Automatic add-up mode off
A 0,5d
A 1d
A 2d
A2 2d
A 4d
not documented
Ut on
not documented
0
No audio sound during tolerance weighing
1
Audio sound when weight is within tolerance range
bEEP 0
Acoustic
signal
2
Audio sound when weight is beyond tolerance range
SPd 7.5
SPd 15
SPd 30
SPd 7.5
SPd 60
not documented
30 GAB-N-BA-e-1113
oF 0
Auto off
Auto off after 0, 3, 5, 15, or 30 minutes
Ki 1
not documented
return
Return to weighing mode by
11.2.2 Verifiable models
Menu block
Main menu
Menu item
Submenu
Available settings / explanation
r 3000 r dUAL
r 6000
Weighing range
EL on
Background lighting on
EL Au
Background light automatic off
EL Au
Background light
EL off
Background lighting off
Au on
Automatic data output of stable weighing values
Au off
No data output
P Cont
Data output
P Cont
Continuous data output of stable weighing values
b4800
Baud rate
Setting options for baud rate: 600/1200/2400/4800/9600
ACC on
Automatic add-up mode on
ACC on
Add-up mode
ACC off
Automatic add-up mode off
Ut on
not documented
0
No audio sound during tolerance weighing
1
Audio sound when weight is within tolerance range
bEEP 1
Acoustic
signal
2
Audio sound when weight is beyond tolerance range
SPd 7.5
SPd 15
SPd 30
SPd 15
SPd 60
not documented
oF 0
Auto off
Auto off after 0, 3, 5, 15, or 30 minutes
return
Return to weighing mode by
GAB-N-BA-e-1113 31
12 Service, maintenance, disposal
12.1 Cleaning
Before cleaning, disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a cloth
dampened with mild soap suds. Take care that the device is not penetrated by fluids
and polish it with a dry soft cloth.
Loose residue sample/powder can be removed carefully with a brush or manual
vacuum cleaner.
Spilled weighing goods must be removed immediately.
12.2 Service, maintenance
The appliance may only be opened by trained service technicians who are authorized
by KERN.
Before opening, disconnect from power supply.
12.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to
valid national or regional law of the location where the appliance is used.
12.4 Error messages
Error message Description Possible causes
ERR4
Zeroing range exceeded
due to switching-on balance
or pressing 0 (normally
4% max)
• Object on the weighing
plate
• Overload when zeroing
• Improper adjustment
• Damaged weighing cell
• Damaged electronics
ERR5
Keyboard error
• Improper operation of the
balance
ERR6
Value outside the A/D
changer range
• Damaged weighing cell
• Damaged electronics
Should other error messages occur, switch balance off and then on again. If the error
message remains inform manufacturer.
32 GAB-N-BA-e-1113
GAB-N-BA-e-1113 33
13 Instant help
In case of an error in the program process, briefly turn off the balance and disconnect
from power supply. The weighing process must then be restarted from the beginning.
Help:
Fault Possible cause
The displayed weight does
not glow.
• The balance is not switched on.
• Mains power supply interrupted (mains cable
defective).
• Power supply interrupted.
• Rechargeable battery inserted incorrectly or empty
The displayed weight is
permanently changing
• Draught/air movement
• Table/floor vibrations
• Weighing plate has contact with other objects.
• Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
The weighing result is
obviously incorrect
• The display of the balance is not at zero
• Adjustment is no longer correct.
• Great fluctuations in temperature.
• Warm-up time was ignored.
• Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
Should other error messages occur, switch balance off and then on again. If the error
message remains inform manufacturer.
Loading...
