Kern FKB, DS100, DS150, DS65, DS36 Service Manual

GB

KERN 572/573/KB/DS/FKB

Version 5.1 05/2006

Operating Instructions
Electronic Precision and Platform Balances

Table of contents:

1 MODE - MENUE __________________________________________________________ 26
2 Technical data_____________________________________________________________ 27

2.1 KERN 572 __________________________________________________________________ 27

2.2 KERN 573 __________________________________________________________________ 28

2.3 KERN KB __________________________________________________________________ 29

2.4 KERN FKB _________________________________________________________________ 29

2.5 KERN DS___________________________________________________________________ 30

3 Fundamental information (general) ___________________________________________ 31

3.1 Intended use_________________________________________________________________ 31

3.2 Inappropriate use ____________________________________________________________ 31

3.3 Guarantee __________________________________________________________________ 31

3.4 Monitoring the test substances__________________________________________________ 31

4 Fundamental safety information ______________________________________________ 32

4.1 Observe the information in the operating instructions ______________________________ 32

4.2 Staff training ________________________________________________________________ 32

5 Transport and storage_______________________________________________________ 32

5.1 Acceptance check ____________________________________________________________ 32

5.2 Packaging___________________________________________________________________ 32

6 Unpacking, installation and commissioning _____________________________________ 32

6.1 Place of installation, place of use ________________________________________________ 32

6.2 Unpacking __________________________________________________________________ 33

6.2.1 Installation _______________________________________________________________________ 33

6.3 Mains supply ________________________________________________________________ 33

6.4 Connecting peripheral equipment_______________________________________________ 33

6.5 Initial start-up _______________________________________________________________ 33

6.6 Adjustment _________________________________________________________________ 33

6.7 Adjusting ___________________________________________________________________ 33

6.7.1 Adjusting for verification (KERN 573) _________________________________________________ 34

6.8 Verification _________________________________________________________________ 34

24

572/573/KB/DS/FKB-BA-defsi-0651

7 Operation_________________________________________________________________ 35

7.1 Display control panel _________________________________________________________ 35

7.2 Operation___________________________________________________________________ 36

7.2.1 Weighing with Tare ________________________________________________________________ 36

7.2.2 Count – Selection Preference Piece ____________________________________________________ 36

7.2.3 Percent % ________________________________________________________________________ 36

7.2.4 Formula Weighing _________________________________________________________________ 36

7.2.5 Tolerance Weighing ________________________________________________________________ 36

7.2.6 Adjust ___________________________________________________________________________ 38

7.2.7 Preselect Tare _____________________________________________________________________ 38

7.2.8 Auto Tare ________________________________________________________________________ 38

7.2.9 Speed ___________________________________________________________________________ 38

7.2.10 Auto Off_______________________________________________________________________ 38

7.2.11 Variable Factor__________________________________________________________________ 38

7.2.12 Preselect Unit___________________________________________________________________ 38

7.3 Interface RS 232 C ___________________________________________________________ 40

7.4 RS 232 C Data output via interface RS 232 C _____________________________________ 40

7.4.1 There are 4 methods for the data output via RS 232 C______________________________________ 40

7.4.2 Description of the data transfer________________________________________________________ 41

7.4.3 Numerator________________________________________________________________________ 41

7.5 Printer _____________________________________________________________________ 41

7.6 Underfloor weighing __________________________________________________________ 41

8 Maintenance, upkeep, disposal________________________________________________ 42

8.1 Cleaning ____________________________________________________________________ 42

8.2 Maintenance, upkeep _________________________________________________________ 42

8.3 Disposal ____________________________________________________________________ 42

9 Troubleshooting ___________________________________________________________ 42
10 Declaration of conformity__________________________________________________ 43

572/573/KB/DS/FKB-BA-defsi-0651

25

1 MODE - MENUE

MO DE

CAL?

Mod e

COUNT?

% ?

AUTOTARE?

FAST 3

AUTO OFF?

Variable Factor ?

Presel ect Un i ts ?

N/Y

Mod e

N/Y

Mod e

Presel ect Tare?

Mod e

N/Y

Mod e

Mod e

N/Y

Mod e

Mod e

Mod e

Y

PLACE CAL
WEIGHT

REF=1

Y

Mode Esc

REF = 5

Mode Esc

REF=10

Mode Esc

REF=20

Mode Esc

Y

1 l 0.000g

Y N - -

1 l 0.000g

Y

Y N - -

g

Y

Mode Esc

N/Y

N/Y

N/Y

N/Y

Mode

Mode

N/Y

Manufacture Setting:

Count?: YES
REF10: YES
9600bd: YES
Preselect
Units?: g/kg
Autotare: YES
Fast: 3

PRINTER?

Mod e

g, kg, oz, ozt,

mo, m, b,

b

N/Y

Mode Esc

2400Bd

Y

Mode Esc

4800Bd

Mode Esc

9600Bd

Mode Esc

19200Bd

Mode Esc

Numerator

Mode Esc

AUTOPRINT

Mode Esc

AUTOP RT P C

Mode Esc

*, dwt, GN,

lb, ct, tLT,

tLH, tLM,
tLS, tL, t,

N/Y

N/Y

N/Y

N/Y

N/Y

o,

N/Y

N/Y

26

weighing

572/573/KB/DS/FKB-BA-defsi-0651

2 Technical data

2.1 KERN 572

KERN 572-31 572-33 572-35 572-45 572-49 572-57

Readout 0,001 g 0,01 g 0,01 g 0,1 g 0,1 g 0,2 g
Weighing range 161 g 1.210 g 1.510 g 12.100 g 15.100 g 20.100 g
Taring range (subtractive) 161 g 1.210 g 1.510 g 12.100 g 15.100 g 20.100 g
Reproducibility 0,001 g 0,01 g 0,01 g 0,1 g 0,1 g 0,2g
Linearity ±0,003 g ±0,03 g ±0,03 g ±0,3 g ±0,3 g ± 0,6 g

Minimum weight for
counting parts
Test weight (included)
tolerance as per M1

Recommended adjusting
weight F2
Verifiable No No No No No No
Stabilisation time (typical) 3 sec.
Permissible ambient temperature +10 °C ... + 40 °C
Casing (W x H x D) mm 180 x 310 x 90
Weighing plate mm Ø 106 Ø 150 Ø 150 160 x 200
Net weight kg 4
Interface Yes (RS232)

0,001 g 0,01 g 0,01 g 0,1 g 0,1 g 0,2 g

50 g (F1)

100g 1 kg 1 kg 10 kg 10 kg 10 kg

500 g 500 g 5.000 g 5.000g 5.000 g

572/573/KB/DS/FKB-BA-defsi-0651

27

2.2 KERN 573

KERN 573-46 573-52

Class of accuracy II II
Readout (d) 0,1 g 0,2 g
Verification value (e) 1g 2g
Weighing range (max.) 6500 g 13000 g
Minimum load (Min) 5g 10g
Taring range (subtractive) 6500 g 13000 g
Reproducibility 0,1 g 0,2 g
Linearity ±0,2 g ±0,4 g
Minimum weight for counting parts 0,3 g 0,6 g
Test weight (included) tolerance as per M1 5000 g 5000 g
Recommended adjusting weight F2 5 kg 10 kg
Verifiable Yes Yes

Air humidity max. 80 % relative (not condensing)
Stabilization time 2 sec.

Permissible ambient temperature 0° C to + 50° C
Temperature range for verifiable applications +10 °C ... + 40 °C
Casing (W x H x D) mm 180 x 310 x 90
Weighing plate mm 160 x 200 160 x 200
Data interface Yes (RS232)
Weighing units g, kg
Vibratory filter Yes
Net weight (kg) 4

28

572/573/KB/DS/FKB-BA-defsi-0651

2.3 KERN KB

KERN KB100-3 KB1000-2 KB10000-1

Readout 0,001 g 0,01 g 0,1 g
Weighing range 101 g 1010 g 10.100 g
Taring range (subtractive) 101 g 1000 g 10.100 g
Reproducibility 0,001 g 0,01 g 0,1 g
Linearity ±0,003 g ±0,03 g ±0,3 g
Minimum weight for counting parts 0,001 g 0,01 g 0,1 g
Test weight (included) tolerance as per M1 50 g 200 g 1.000 g
Adjusting weight (not included)tolerance as per

F2
Verifiable No No No
Stabilisation time (typical) 3 sec.
Permissible ambient temperature + 10° C … + 40° C
Casing (W x H x D) mm 165 x 230 x 85
Weighing plate mm Ø 85 130 x 130 150 x 170
Net weight kg 1,8 2,7
Data interface Yes (RS232)

100 g F1 1000 g 10.000 g

2.4 KERN FKB

KERN

Readout 0,05 g 0,1 g 0,2 g 0,5 g 1 g
Weighing range 4.100 g 8.100 g 16.100 g 36.100 g 65.100 g
Taring range (subtractive) 4.100 g 8.100 g 16.100 g 36.100 g 65.100 g
Reproducibility 0,05 g 0,1 g 0,2 g 0,05 g 1 g
Linearity 0,15 g 0,3 g 0,6 g 1,5 g 3 g
Minimum weight for

counting parts
Adjusting weight (not

included ) tolerance as
per F2

Air humidity max. 80% relative (not condensing)
Verifiable No
Stabilisation time (typical) 2 sec.
Permissible ambient

temperature
Casing

(W x H x D) mm
Weighing plate mm 340 x 240
Vibratory filter Yes
Net weight kg 6,5
Data interface Yes (RS232)

FKB 4K0.5 FKB 8K0.1 FKB 16K0.2 FKB 36K0.5 FKB 65K1

0,05 g 0,1 g 0,2 g 0,5 g 1 g

2 kg 5 kg 10 kg 20 kg 50 kg

+ 10 °C ... + 40 °C

350 x 390 x 120

572/573/KB/DS/FKB-BA-defsi-0651

29

2.5 KERN DS

KERN

Readout 0,05 g 0,1 g 0,1 g 0,2 g 0,5 g 0,5 g 1g 1g 2g
Weighing range 4.100 g 8.100 g 8.100 g 16.100 g 36.100 g 36.100 g 65.100g 101.000g 151.000g
Taring range

(subtractive)
Reproducibility 0,05 g 0,1 g 0,1 g 0,2 g 0,5 g 0,5 g 1g 1g 2g
Linearity 0,15 g 0,3 g 0,3 g 0,6 g 1,5 g 1,5 g 3 g 3 g 6g
Minimum weight

for counting
parts

Adjusting weight
(not included )
tolerance as per
F2

Verifiable No
Stabilisation

time (typical)
Permissible

ambient
temperature

Vibratory filter
Casing

(W x H x D) mm
Weighing plate

mm
Net weight kg 5,5 8 12,5
Data interface Yes (RS232)

DS4

K0.05 S

4.100 g 8.100 g 8.100 g 16.100 g 36.100 g 36.100 g 65.100g 101.000g 151.000g

0,05 g 0,1 g 0,1 g 0,2 g 0,5 g 0,5 g 1g 1g 2g

2 kg 5 kg 5 kg 10 kg 10 kg 20 kg 50 kg 50 kg 50 kg

228 x 228 x 70

228x228

DS8

K0.1S

DS8

K0.1

2 sec.

DS16

K0.2

+ 10 °C ... + 40 °C

315 x 305 x 70

DS36

K0.5

Yes

DS36

K0.5L

315 x 305

DS65

K1

450 x 350 x 115

DS100

K1

DS150

K2

30

572/573/KB/DS/FKB-BA-defsi-0651

3 Fundamental information (general)

It is essential to read through and observe the complete operating instructions before installing and commis­sioning.

3.1 Intended use

The balance you have acquired serves to determine the weighing value of the material to be weighed. It is
intended to be used as a “non-automatic“ balance, i.e. the material to be weighed is manually and carefully
placed in the centre of the weighing plate. The weighing value can be read off after a stable weighing value
has been obtained.

3.2 Inappropriate use

Do not use the balance for dynamic weighing. In the event that small quantities are removed or added to the
material to be weighed, incorrect weighing results can be displayed due to the “stability compensation“ in the
balance. (Example: Slowly draining fluids from a container on the balance.)
Do not leave a permanent load on the weighing plate. This can damage the measuring equipment.
Be sure to avoid impact shock and overloading the balance in excess of the prescribed maximum load rating
(max.), minus any possible tare weight that is already present. This could cause damage to the balance.
Never operate the balance in hazardous locations. The series design is not explosion-proof.
Structural alterations may not be made to the balance. This can lead to incorrect weighing results, faults
concerning safety regulations as well as to destruction of the balance.
The balance may only be used in compliance with the described guidelines. Varying areas of applica­tion/planned use must be approved by KERN in writing.

3.3 Guarantee

The guarantee is not valid following

- non-observation of our guidelines in the operating instructions

- use outside the described applications

- alteration to or opening of the device

- mechanical damage and damage caused by media, liquids

- natural wear and tear

- inappropriate erection or electric installation

- overloading of the measuring equipment

3.4 Monitoring the test substances

The metrology features of the balance and any possible available adjusting weight must be checked at regu­lar intervals within the scope of quality assurance. For this purpose, the answerable user must define a suit­able interval as well as the nature and scope of this check. Information is available on KERN’s home page
(www.kern-sohn.com
for this. Test weights and balances can be adjusted quickly and at a reasonable price in KERN’s accredited
DKD calibration laboratory (return to national normal).

) with regard to the monitoring of balance test substances and the test weights required

572/573/KB/DS/FKB-BA-defsi-0651

31

4 Fundamental safety information

4.1 Observe the information in the operating instructions

Please read the operating instructions carefully before erecting and commissioning, even if you already have
experience with KERN balances.

4.2 Staff training

The device may only be operated and looked after by trained members of staff.

5 Transport and storage

5.1 Acceptance check

Please check the packaging immediately upon delivery and the device during unpacking for any visible signs
of external damage.
In the case of visible damages please obtain a signature from the bearer to serve as confirmation of dam­age. Do not make alterations to the goods and packaging, do not remove any consignment parts. Report
the damage to the parcel service immediately in writing ( within 24 hours).

5.2 Packaging

Please retain all parts of the original packaging in case it should be necessary to return items at any time.
Only the original packaging should be used for return consignments.
Before despatch, disconnect all attached cables and loose/movable parts, remove weighing plate.
Apply any intended transport security devices. Secure all parts, e.g. glass windshield, weighing plate, power
unit etc., to prevent slipping and damage.

6 Unpacking, installation and commissioning

6.1 Place of installation, place of use

The balance is constructed in such a way that reliable weighing results can be achieved under normal appli­cation conditions.
By selecting the correct location for your balance, you will be able to work quickly and precisely.

Therefore please observe the following at the place of installation:

- Place the balance on a firm, level surface;

- Avoid extreme heat as well as temperature fluctuation caused by installing next to a radiator or in the

direct sunlight;

- Protect the balance against direct draughts due to open windows and doors;

- Avoid jarring during weighing;

- Protect the balance against high humidity, vapours and dust;

- Do not expose the device to extreme dampness for longer periods of time. Inadmissible bedewing

(condensation of air moisture on the device) can occur if a cold device is taken into a significantly
warmer environment. In this case, please acclimatise the device for approx. 2 hours at room tem­perature after it has been disconnected from the mains.

- Avoid static charging of the material to be weighed, weighing container and windshield.

Major display deviations (incorrect weighing results) are possible if electromagnetic fields occur as well as
due to static charging and instable power supply. It is then necessary to change the location.

32

572/573/KB/DS/FKB-BA-defsi-0651

6.2 Unpacking

Carefully remove the balance from its packaging, remove the plastic wrapping and position the balance in its
intended working location.

6.2.1 Installation

Install the balance in such a fashion that the weighing plate is absolutely horizonta

6.3 Mains supply

Electric power supply is by means of the external mains supply circuit. The printed voltage level must comply
with the local voltage.
Only use original KERN mains supply circuits. The use of other makes is subject to approval by Kern.

6.4 Connecting peripheral equipment

The balance must be disconnected from the mains before connecting or disconnecting additional equipment
(printer, PC) to or from the data interface.

Only use KERN accessories and peripheral equipment with your balance. These have been ideally coordina­ted to your balance.

6.5 Initial start-up

A warm-up time of 15 minutes stabilises the measured values after switching on.
The accuracy of the balance depends on the local acceleration of the fall.

Please be sure to observe the information in the chapter on adjusting.

6.6 Adjustment

As the acceleration value due to gravity is not the same at every location on earth, each balance must be
coordinated – in compliance with the underlying physical weighing principle - to the existing acceleration
due to gravity at its place of location ( only if the balance has not already been adjusted to the location in the
factory). This adjustment process must be carried out during the initial start-up, after change in location and
variation of surrounding temperature. It is also recommendable to adjust the balance periodically during
weighing operation in order to obtain exact measured values.

6.7 Adjusting

Using a precision weight, the accuracy of the balance can be checked at any time and adjusted.

Warning:

With verified balances, this precision adjustment is not possible

Adjustment procedure:

Check that the surrounding conditions are stable.
A short warm-up time of about 15 minutes is recommended for stabilisation.

572/573/KB/DS/FKB-BA-defsi-0651

33

6.7.1 Adjusting for verification (KERN 573)

General Information:

Prior to the procedure of verification the balance has to be adjusted.
Remark: The adjusting is only possible when not being blocked by the adjusting switch.

The switch for this step is located at the bottom of the housing between the two turning feet.

Switch to the right

This setting has to be selected before starting the adjusting.
Executing the adjusting according to chapter 7.2 “Operation“.
After the adjusting has been completed successfully it is nec-

Switch to the left

Adjusting function is released.

essary to turn the adjusting switch to the left for blocking.
Adjusting function is blocked.
After the adjusting has been completed successfully the ad-

justing has to be blocked by switching to the left.
The balance is now prepared for the procedure of verification.
After the verification the adjusting switch has to be secured by

a verification mark against access.

6.8 Verification

General:
According to the EU guideline 90/384/EEC balances must be verified officially if they are to be used as fol­lows (legally regulated area):

a) For commercial transactions if the price of goods is determined by weighing
b) For the production of medines in pharmacies as well as for analyses in the medical and pharmaceu-

tical laboratory
c) For official purposes
d) For the production of finished packages

In case of doubt, please contact your local office of weights and measures.
Verification information

An EU qualification approval is available for those balances marked as appropriate for verification in the
technical data. In the event that the balance is applied in an area subject to verification as described above,
it must be officially verified and re-verified at regular intervals.
Re-verification of a balance is carried out in compliance with the respective legal provisions of the states.
The term of verification validity for balances in Germany, for example, is normally 2 years.
The legal provisions of the country of use are to be observed.

34

572/573/KB/DS/FKB-BA-defsi-0651

7 Operation

7.1 Display control panel

Keyboard

Display-Symbol Meaning

==OVERLOAD==

= ============
<< .
 .

PTA .

D .

Net .

SUM .

Æ .

Overload: Weighing range has been exceeded
Underload: Weighing range has been fallen short of
In counting and % mode: part too light
Automatic tare active

Preselect tare Tare pre-selection active

Difference in % during percentage weighing

Net weight of the components during formula preparation

Gross weight of several components during formula prepa­ration

Balance is in counting mode and currently displaying the
weight value of the counting amount

ON / OFF

Print weighing result

in MODE: No / descending

in % and counting mode:

Form reference

in MODE: Yes / ascending

MODE configuration

(see mode structure diagram page 2)

Formula weighing

in MODE: to left
Change g-pieces

Unit changeover

in MODE: to right

Tare

in MODE: back in weighing operation

572/573/KB/DS/FKB-BA-defsi-0651

35

7.2 Operation

7.2.1 Weighing with Tare

7.2.2 Count – Selection Preference Piece

7.2.3 Percent %

7.2.4 Formula Weighing

7.2.5 Tolerance Weighing

36

572/573/KB/DS/FKB-BA-defsi-0651

572/573/KB/DS/FKB-BA-defsi-0651

37

7.2.6 Adjust

7.2.7 Preselect Tare

7.2.8 Auto Tare

7.2.9 Speed

7.2.10 Auto Off

7.2.11 Variable Factor

7.2.12 Preselect Unit

38

572/573/KB/DS/FKB-BA-defsi-0651

572/573/KB/DS/FKB-BA-defsi-0651

39

7.3 Interface RS 232 C

Technical Data

 8-bit ASCII Code
 1 start bit, 8 data bits, 1 stop bits, no parity bit
 Baud rate adjustable to 2400, 4800 and 9600 baud (default), 19200 baud
 Sup-D- 9 pol. is necessary .
 When working with an interface correct operation is secured only if the corresponding KERN-interface-

cable (max. 2m) is used.

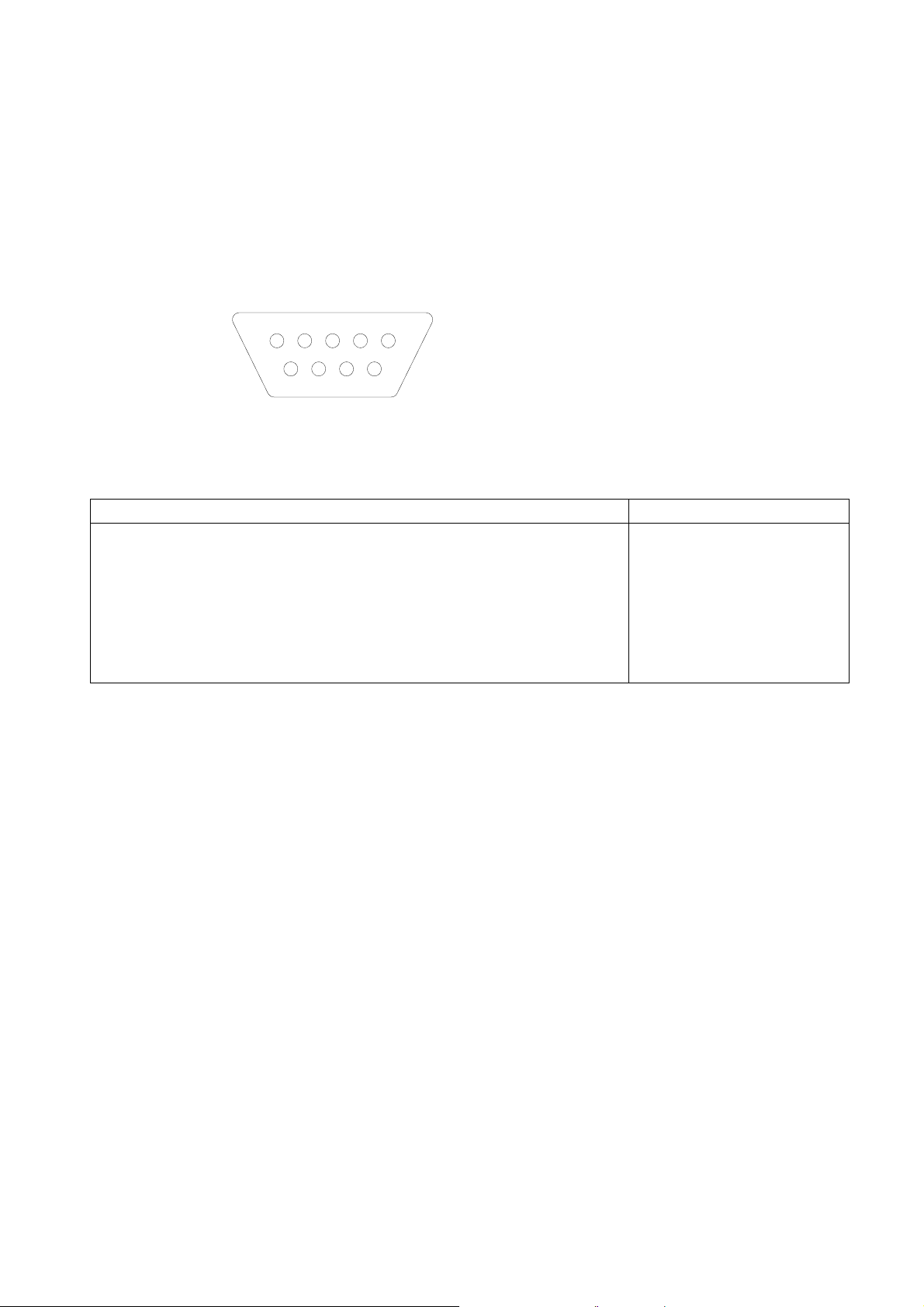

Description of the jack

Sup-D- 9 pol.

5 1

Pin 2: Transmit data
Pin 3: Receive data
Pin 5: Signal ground

9 6

Baudrate

The Baud rate for the data transfer is adjusted with the MODE-key. The following example demonstrates
how to set the Baud rate 4800.

Select Baud rate Display

1. Press MODE-key repeatedly until "PRINTER" is displayed.

2. Press YES-key.

3. Press MODE-key repeatedly until the desired Baud rate appears (for
instance 4800 Baud).

4. Press YES-key to select 4800 Baud. The tick-mark (X) confirms the new
setting.

5. Press MODE-key repeatedly until the balance displays in grams again,
or press tare key.

2400 Baud

4800 Baud

PRINTER?

4800 Baud X

0,0 g

7.4 RS 232 C Data output via interface RS 232 C

RS 232 C Data output via interface RS 232 C
General information

As a condition for the data transfer between the balance and a peripheral device (for instance printer, PC ...)
both devise have to be set on the same interface parameter (for instance baud rate, parity ...).

7.4.1 There are 4 methods for the data output via RS 232 C

Data output via PRINT-Key

The printing process can be released by the PRINT-key. In this case the settings AUTOPRINT and AUT­PRINT PC should be deselected.

AUTOPRINT (Data output, after having loaded the balance)

The setting AUTOPRINT is in the PRINTER-routine, and there it can be selected or deselected. When
AUTOPRINT is active the actual weighing value will be sent via the RS 232 interface when the balance has
been unloaded and then loaded after having achieved the stability.

AUTOPRINT PC (Continuous data output)

The setting AUTPRINT PC is in the PRINTER-routine, and there it can be selected or deselected. When
AUTOPRINT PC is active the actual weighing values will be sent continuously via the RS 232 interface.

Data output by transfer of remote controls

The following functions can be released by the remote controls that will be transferred as ASCII signs to the
balance.

t Tare.
w a weighing value (or unstable) is sent via RS 232 interface.
s a stable weighing value is sent via RS 232 interface.
If the balance receives the command w or s, it acts without printing delay.

40

572/573/KB/DS/FKB-BA-defsi-0651

7.4.2 Description of the data transfer

Structure of each data transfer:
Without Numerator:

Bit-Nr. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

.

B B B B B B B B 0

0 B g B B CR LF

B*

B*: = Blank or % in the range of zero point.

.

, g: = Blank or weighing value with unit, depending on the load on the weighing plate.

B, 0,
CR: = Carriage Return
LF: = Line Feed

With Enumerator:

Bit.Nr. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

.

N N N B* B B B B B B B 0

0 B G B B CR LF

N: = Enumerator

7.4.3 Numerator

The Numerator is found under the menu point “Printer” and can be activated and deactivated. When editing
data with the use of the print option, the range of the numerator will increase by one place.

7.5 Printer

With the serial data output RS 232 a printer can be connected.
The printout shows the weight in grams. When the counting mode is selected the number of pieces or the
weight is printed. When the percent mode is selected, the percentage or the weight will be printed. Press
The PRINT-key to print weighing results. Select the enumerator to number the weighing continuously. Turn
off the balance or use the CLEAR function to Reset the enumerator to (000).

7.6 Underfloor weighing

Objects which, because of their size or shape, cannot be put on the scale, can be weighed by means of un­derfloor weighing.

Proceed as follows:

• Switch off the balance.

• Turn the balance over,

without loading the balance plate.

• Open the cover plate on the base of the balance.

• Hang on the hook for underfloor weighing .

• Place the balance over an opening.

• Hang the item to be weighed on the hook and carry out weighing.

! CAUTION !

Take care that the hooks used for the underfloor weighing are stable enough to hold the goods
which you wish to weigh (risk of breakage).
Always make sure that there are no living beings or materials below the load that could be injured or
damaged.

! NOTE !

After completing the underfloor weighing, the opening in the floor of the balance must be closed
again (dust protection).

572/573/KB/DS/FKB-BA-defsi-0651

41

8 Maintenance, upkeep, disposal

8.1 Cleaning

Please disconnect the device from the operating voltage before cleaning.
Only use a cloth dampened with mild suds and not aggressive cleaning agents (solvents or similar). Please

ensure that fluids are not able to get into the device and rub off using a clean, soft cloth.
Loose sample residue/powder can be removed carefully using a brush or hand vacuum cleaner.

Remove any spilt material to be weighed immediately.

8.2 Maintenance, upkeep

The device may only be opened by trained service engineers authorised by KERN.
Disconnect from the mains supply before opening.

8.3 Disposal

The operating company shall dispose of the packaging and the device in compliance with the valid national
or regional law of the operating location.

9 Troubleshooting

The balance should be switched off for a short time following an interruption in the programme sequence
and disconnected from the mains supply. It is then necessary to repeat the weighing process from the be­ginning.

Help:

Interruption Possible cause

Weight display is not illuminated.

The weight display changes continually

The weighing result is obviously incorrect

Switch the balance off if other error messages should appear and then switch on again. Contact the manu­facturer if the error message does not disappear.

• The balance is not switched on.

• The mains supply connection has been interrupted

(mains cable not plugged in/faulty).

• Power supply interrupted. .

• Draught/air movement

• Table/floor vibrations

• The weighing plate is in contact with foreign mat-

ter.

• Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)

• The balance display is not set to zero

• Adjustment is no longer correct.

• Great fluctuations in temperature.

• Electromagnetic fields / static charging (choose

different location/switch off interfering device if
possible)

42

572/573/KB/DS/FKB-BA-defsi-0651

10 Declaration of conformity

Declaration of conformity

The electronic precision and platform balances
Typ: KERN 572-31

KERN 572-33
KERN 572-35
KERN 572-45
KERN 572-49
KERN 572-57
KERN KB 100-3
KERN KB1000-2

KERN KB10000-1

Correspond to the production model described in the EC type-approval certificate

and to the requirements of the following EC directives:

EC EMC directive Version 89/336/ECC

Applied harmonised norms, in particular

EN 61326: 1997

+ A1: 1998

EN 61000-3-2: 1995

+ A1/A2 1998

+A2:2001

KERN DS4K0.05 S
KERN DS8K0.1 + S
KERN DS16K0.2
KERN DS36K0.5 + L
KERN DS65K1
KERN DS100K1
KERN DS150K2

+ A14 2000

KERN FKB 4K0.05
KERN FKB 8K0.1
KERN FKB 16K0.2
KERN FKB 36K0.5
KERN FKB 65K1

EN 61000-3-3: 1995

If a change is made to the above mentioned appliances without consulting KERN
this declaration will become invalid.

Date: 07/01/2004 Signature:
Gottl. KERN & Sohn GmbH
Management

Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72322 Balingen-Frommern, Tel. [phone], Fax [phone]

572/573/KB/DS/FKB-BA-defsi-0651

43

Dichiarazione di conformitá per apparecchi contrassegnati con la marcatura CE

English

Deutsch

Français

Español

Italiano

KERN & Sohn GmbH

D-72322 Balingen-Frommern
Postfach 4052
E-Mail: [e-mail]

Tel: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.com

Konformitätserklärungen

Declaration of conformity for apparatus with CE mark

Konformitätserklärung für Geräte mit CE-Zeichen

Déclaration de conformité pour appareils portant la marque CE

Declaración de conformidad para aparatos con disitintivo CE

We hereby declare that the product to which this declaration refers conforms with the fol­lowing standards.

Wir erklären hiermit, daß das Produkt, auf das sich diese Erklärung bezieht, mit den nach­stehenden Normen übereinstimmt.

Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la présente
déclaration, est conforme aux normes citées ci-après.

Manifestamos en la presente que el producto al que se refiere esta declaración est´´a de
acuerdo con las normas siguientes

Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è confor­me alle norme di seguito citate.

Balance lines: 573

Mark applied EU Directive Standards

89/336EEC EMC EN45501

EN55022

Date: 03.06.2004

Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. [phone],Fax [phone]

Signature:

Gottl. KERN & Sohn GmbH
Management

44

572/573/KB/DS/FKB-BA-defsi-0651

KERN & Sohn GmbH

D-72322 Balingen-Frommern
Postfach 4052
E-Mail: [e-mail]

Tel: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.com

Konformitätserklärungen

Declaration of conformity for apparatus with CE mark

Konformitätserklärung für Geräte mit CE-Zeichen

Déclaration de conformité pour appareils portant la marque CE

Declaración de conformidad para aparatos con disitintivo CE

Dichiarazione di conformitá per apparecchi contrassegnati con la marcatura CE

English

Deutsch

Français

Español

Italiano

Model: 573

EU Directive Standards

90/384/EEC EN45501 D04-09-019 PTB

Date: 03.06.2004

Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. [phone],Fax [phone]

We hereby declare that the product to which this declaration refers conforms with the fol­lowing standards.

This declaration is only valid with the certificate of conformity by a notified body.

Wir erklären hiermit, daß das Produkt, auf das sich diese Erklärung bezieht, mit den nach­stehenden Normen übereinstimmt.

Diese Erklärung gilt nur in Verbindung mit der Konformitätsbescheinigung einer
benannten Stelle.

Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la présente
déclaration, est conforme aux normes citées ci-après.

Cette déclaration est valide seulement avec un certificat de conformité dún orga­nisme notifié.

Manifestamos en la presente que el producto al que se refiere esta declaración est´´a de
acuerdo con las normas siguientes.

Esta declaratión solo será válida acompañada del certificado de conformidad de
conformidad de la parte nominal.

Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è confor­me alle norme di seguito citate.

Questa dichiarazione sarà valida solo se accompagnata dal certificato di conformità
della parte nominale.

EC-type-approval
certificate no.

Signature:

Issued by

Gottl. KERN & Sohn GmbH
Management

572/573/KB/DS/FKB-BA-defsi-0651

45
