KERN FIS 30K10 IPM, FIS 3K1 IPM, FIS 60K20 IPM, FIS 150K50 IPM, FIS 6K1 IP Operating Instruction

KERN & Sohn GmbH

Ziegelei 1
D-72336 Balingen
E-Mail: [e-mail]

Tel: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com

Operating instruction
Platform scale

KERN FIS

Version 1.2
07/2005
GB

FIS-BA-e-0512

FIS-BA-e-0512

2

GB

KERN FIS

Version 1.2 07/2005

Operating instruction
Platform scale

List of contents:

1 TECHNICAL DATA (VERIFIABLE)..........................................................................................................4

2 DECLARATION OF CONFORMITY.........................................................................................................6

3 GENERAL .................................................................................................................................................9

3.1 CONSTRUCTION OF THE OPERATING INSTRUCTION:................................................................................9

3.2 WARRANTY .......................................................................................................................................10

3.3 SAFETY INFORMATION........................................................................................................................11

3.4 IMPORTANT INFORMATION ..................................................................................................................11

4 INSTALLATION AND COMMISSIONING, OPERATING INSTRUCTIONS...........................................12

4.1 CONDITIONS APPLICABLE TO THE PLACE OF INSTALLATION ...................................................................12

4.2 INSTALLATION OF THE WEIGHING SYSTEM............................................................................................12

4.3 FUNCTION TEST/READY-TO-OPERATE..................................................................................................12

4.4 SCOPE OF DELIVERY..........................................................................................................................13

4.5 LEVELLING THE WEIGHING SYSTEM .....................................................................................................13

4.6 MAINS CONNECTION ..........................................................................................................................13

4.7 POWER SUPPLY.................................................................................................................................13

4.7.1 Installation of the power supply by the customer .......................................................................13

5 CALIBRATION INFORMATION .............................................................................................................14

5.1 INFORMATION ON RECALIBRATION.......................................................................................................17

5.2 CALIBRATION INFORMATION FOR NON EU COUNTRIES..........................................................................17

5.3 LEVELLING DEVICE.............................................................................................................................17

6 OVERALL VIEW OF THE EQUIPMENT.................................................................................................18

6.1 DISPLAY AND CONTROL PANEL............................................................................................................18

6.1.1 Display........................................................................................................................................19

6.1.2 Keyboard.....................................................................................................................................19

6.1.3 General function keys.................................................................................................................20

6.1.4 Keys for weighing, recording and application functions .............................................................20

6.2 COMBINED FUNCTIONS.......................................................................................................................21

6.3 OPERATION AND CONTROL WHEN IN THE PARAMETER AND SERVICE MENU ............................................22

6.4 ALLOCATION OF THE FUNCTION KEY....................................................................................................23

7 WEIGHING OPERATION........................................................................................................................25

7.1 FUNCTION TEST.................................................................................................................................25

7.2 WEIGHT DISPLAY...............................................................................................................................26

7.3 ZERO SETTING...................................................................................................................................26

7.4 TARE FUNCTIONS...............................................................................................................................26

7.4.1 Net weighing with tare balancing................................................................................................26

7.4.2 Net weighing with fixed tare value..............................................................................................27

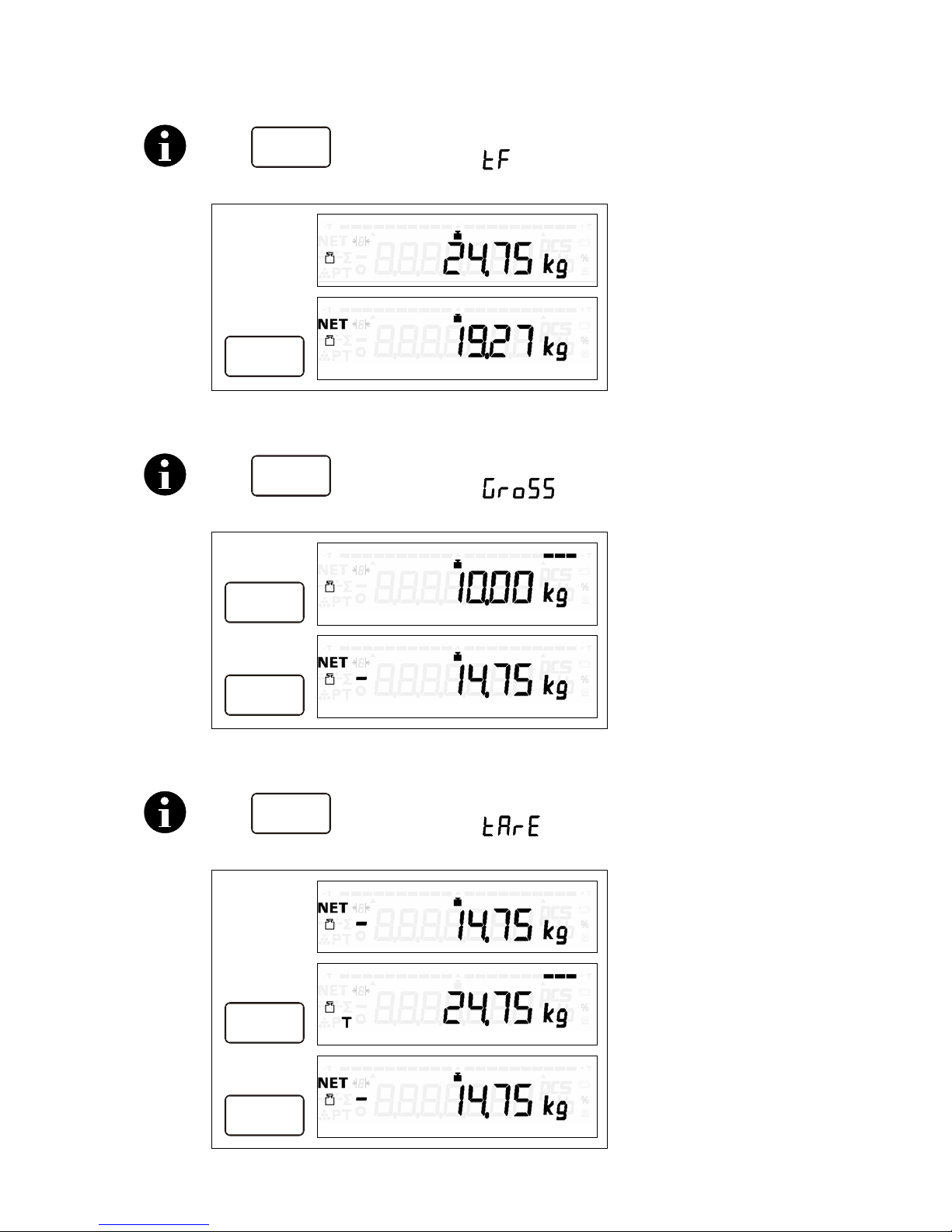

7.5 GROSS WEIGHT, DISPLAY...................................................................................................................27

7.6 TARE VALUE, DISPLAY........................................................................................................................27

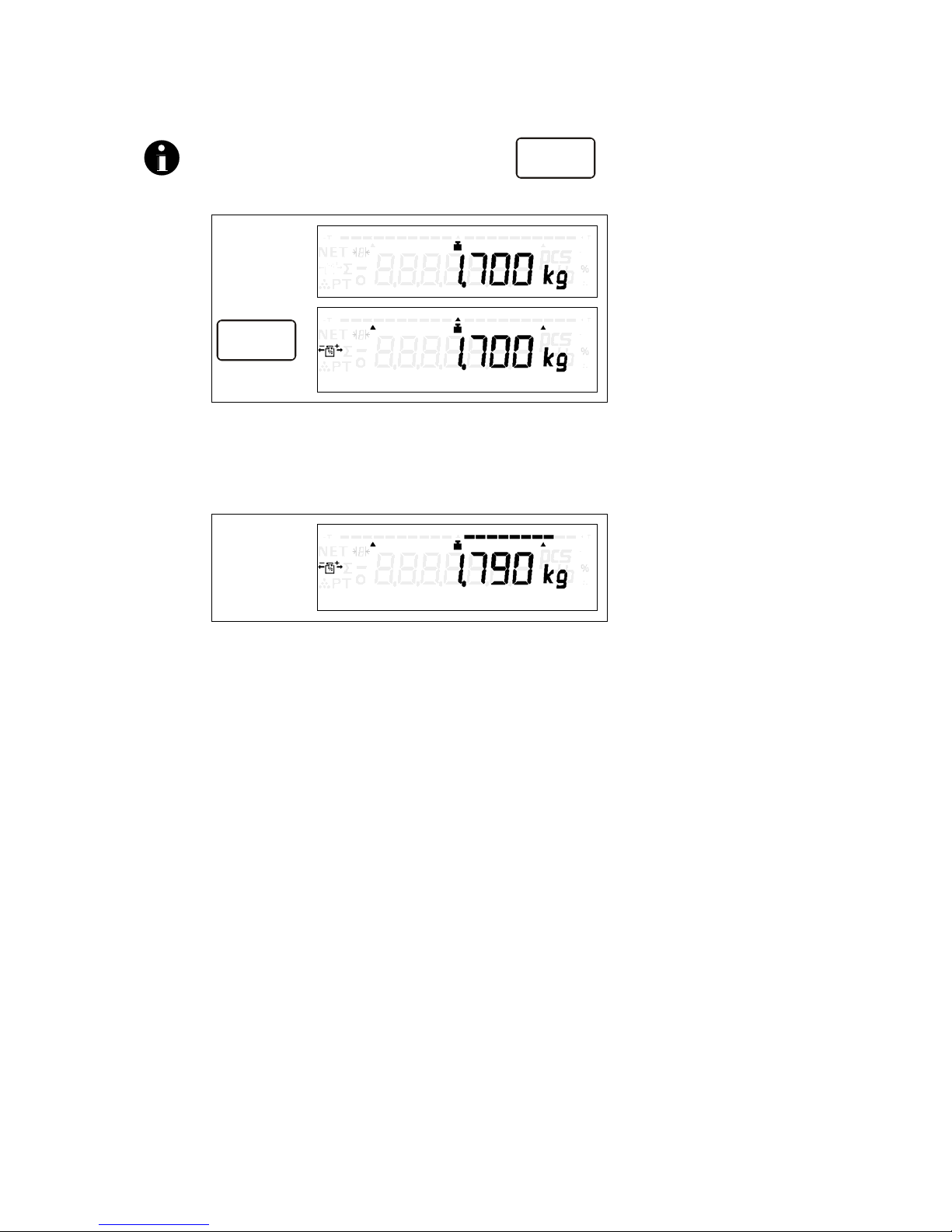

7.7 WEIGHT DISPLAY WITH INCREASED RESOLUTION (NON-VERIFIABLE)......................................................28

7.8 UNIT SWITCH-OVER KG/LB OR LB/KG ...................................................................................................28

7.9 STORAGE VALUES AND OPERATING MODES .........................................................................................29

7.9.1 Fixed tare value..........................................................................................................................29

FIS-BA-e-0512

3

8 TOLERANCE CHECK WEIGHING.........................................................................................................30

8.1 GENERAL..........................................................................................................................................30

8.2 INPUT OF NOMINAL VALUE AND TOLERANCE LIMITS, FUNCTION START....................................................31

8.2.1 Weighed nominal value and tolerances .....................................................................................31

8.2.2 Weighed nominal value, tolerance limits ± 2,5%, ± 5,0%, ± 7,5% .............................................32

8.2.3 Manual entry of Tu and To nominal value..................................................................................33

8.3 OPERATING MODES, SETTINGS...........................................................................................................34

9 COUNTING OPERATION.......................................................................................................................35

9.1 IMPORTANT NOTES CONCERNING PIECE COUNTING ..............................................................................35

9.2 START OF COUNTING PROCEDURE ......................................................................................................37

9.3 START OF COUNTING PROCEDURE WITH NUMBER OF REFERENCE PIECE RECOMMENDATION...................38

9.4 CLOSING OF COUNTING PROCEDURE...................................................................................................38

10 RECORDING (TOTALIZING)..................................................................................................................39

10.1 ITEM RECORDING, ADDING..................................................................................................................39

10.2 TOTAL DISPLAY..................................................................................................................................40

10.3 TOTAL RECORDING ............................................................................................................................40

11 APPLICATION AND OPERATIONAL SEQUENCES ............................................................................41

11.1 WEIGHING, RECORDING, TOTALIZING...................................................................................................41

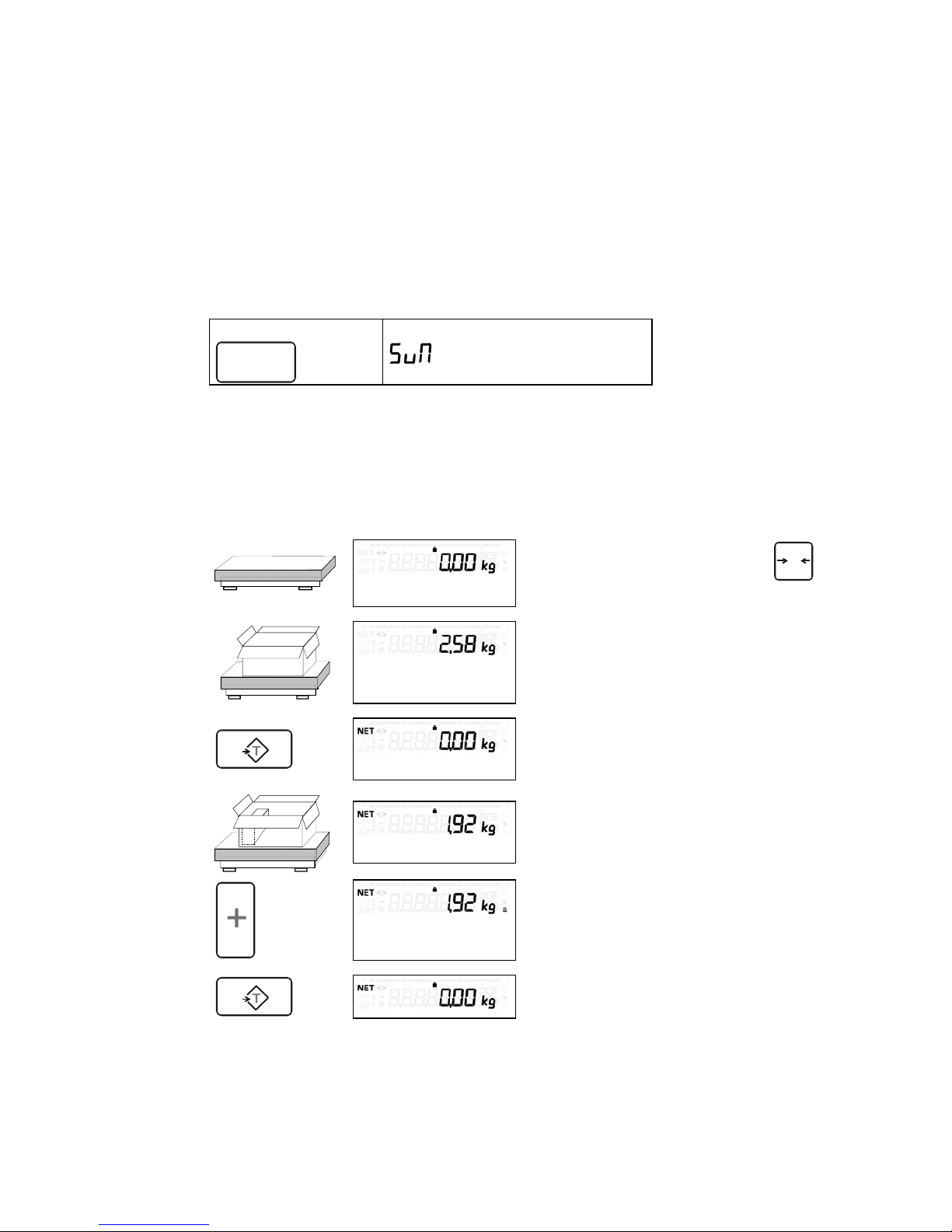

11.1.1 Additive weighing, recording, totalizing..................................................................................41

11.1.2 Subtractive weighing, recording, totalizing.............................................................................42

11.2 COUNTING, RECORDING, TOTALIZING ..................................................................................................43

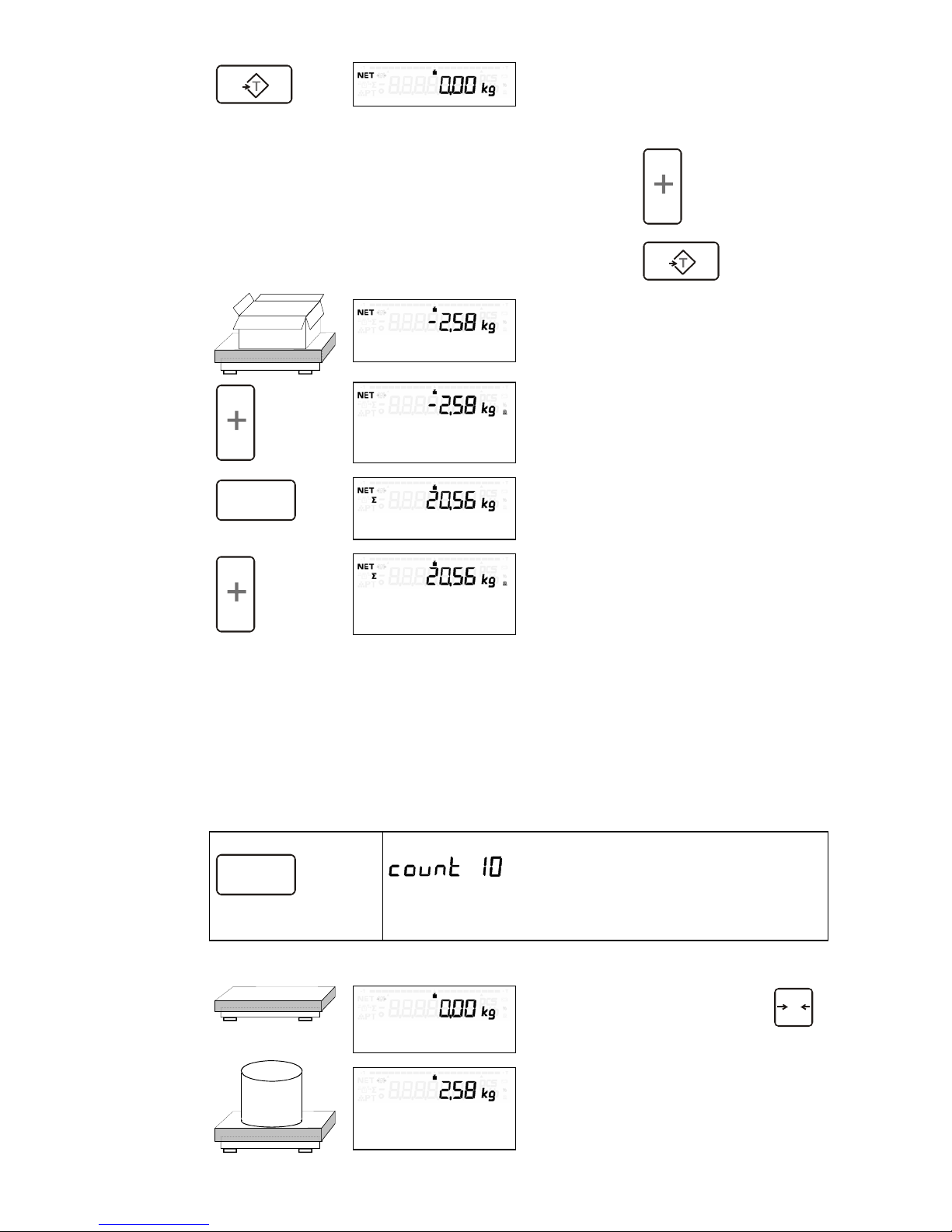

11.2.1 Additive weighing, counting, recording, totalizing..................................................................43

12 PARAMETER AND SERVICE MENU.....................................................................................................45

12.1 SERVICE PASSWORD..........................................................................................................................45

12.2 GENERAL PARAMETERS .....................................................................................................................46

12.3 BALANCE PARAMETERS......................................................................................................................47

12.3.1 QSF-Filter...............................................................................................................................48

13 CALIBRATION (CAL).............................................................................................................................49

13.1 GENERAL..........................................................................................................................................49

13.2 CALIBRATION OF THE BALANCE BY SETTING THE “GEO“ VALUE.............................................................50

13.3 CALIBRATION OF THE BALANCE USING TEST WEIGHTS ..........................................................................52

14 MISCELLANEOUS..................................................................................................................................53

14.1

DISTURBANCES, CAUSES, REMEDIAL ACTION ...................................................................53

14.2 CLEANING.........................................................................................................................................55

14.2.1 Weighing terminal...................................................................................................................55

15 APPENDIX – BRIEF OPERATING INSTRUCTIONS.............................................................................56

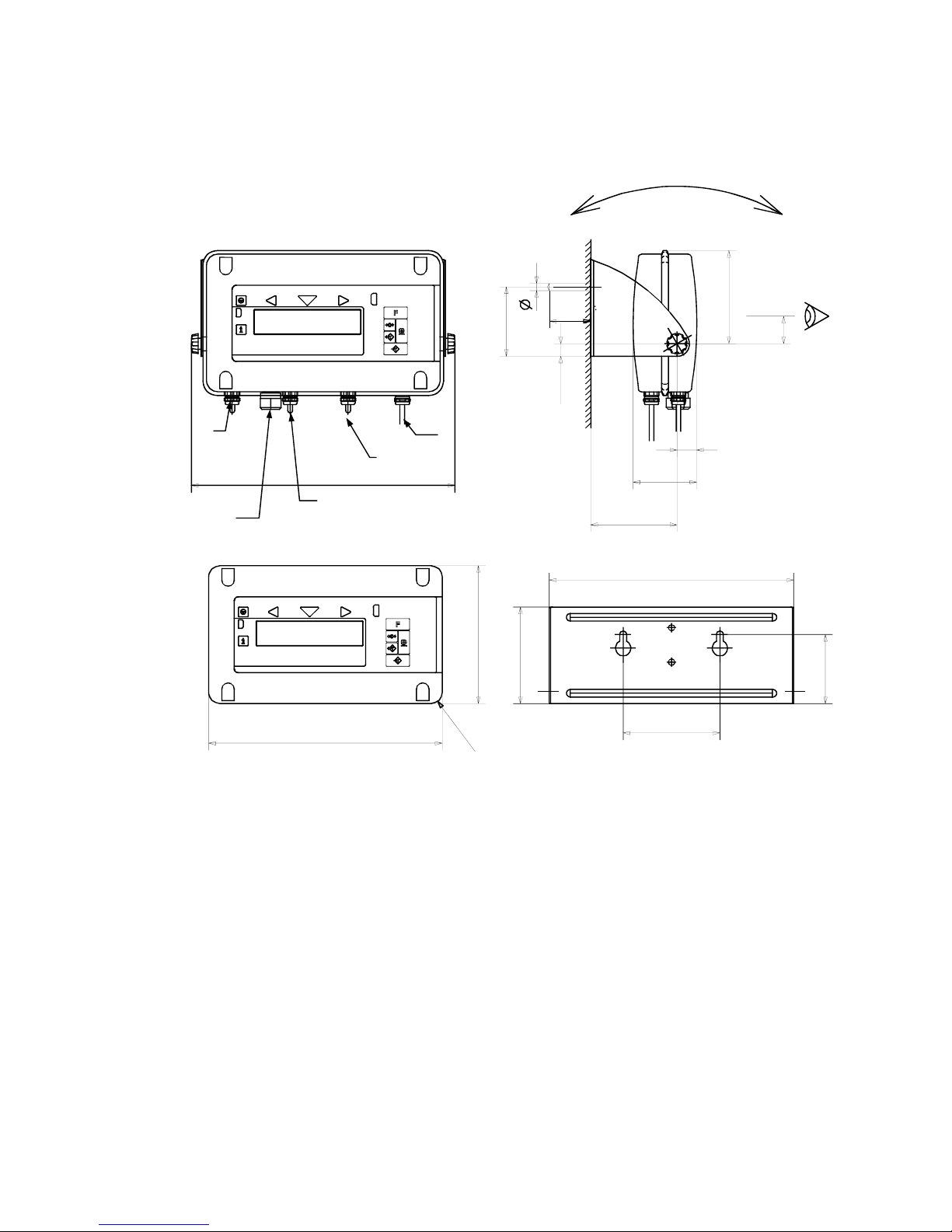

16 ATTACHMENT (TERMINAL DIMENSIONS)..........................................................................................57

16.1 TABLE MODEL....................................................................................................................................57

16.2 WALL MODEL.....................................................................................................................................58

FIS-BA-e-0512

4

1 Technical Data (verifiable)

Model FIS 3K1 IPM FIS 6K2 IPM FIS 15K5 IPM

Readability (d) 1 g 2 g 5 g
Weighing range (max.) 3 kg 6 kg 15 kg
Calibration value (e) 1 g 2 g 5 g
Minimum load (min.) 20 g 40 g 100 g
Reproducibility 1 g 2 g 5 g
Linearity ± 1 g ± 2 g ± 5 g

Minimum single weight,
piece counting

0.1 g 0.2 g 0.5 g

Calibration weight (not added) 3 kg (M1) 6 kg (M1) 15 kg (M1)
Net weight 12 kg
Weighing plate, stainless steel, width x

depth x height in mm

335 x 260

x ( min. 92 – max. 107)

Permissible ambient temperature - 10° .... + 40° C

Max. air humidity max. 80 % (non-condensing)
Display unit; width x depth x height in mm 380 x 150 x 260
Protective system

Terminal IP68

Weighing system IP 67
Mains supply depending on design (see

type plate)

without switch

either 230 V AC; +0.6%/-10%; 50 – 60 Hz

o or 120 V AC; +10%/-15%; 50 – 60 Hz

Model FIS 30K10 IPM FIS 60K20 IPM FIS 150K50 IPM

Readability (d) 10 g 20 g 50 g
Weighing range (max.) 30 kg 60 kg 150 kg
Calibration value (e) 10 g 20 g 50 g
Minimum load (min.) 200 g 400 g 1000 g
Reproducibility 10 g 20 g 50 g
Linearity ± 10 g ± 20 g ± 50 g

Minimum single weight,
piece counting

1 g 2 g 5 g

Calibration weight (not added) 30 kg 60 kg 150 kg
Net weight 30,5 kg
Weighing plate, stainless steel, width x

depth x height in mm

500 x 400

x ( min. 86 – max. 101)

Permissible ambient temperature - 10° .... + 40° C

Max. air humidity max. 80 % (non-condensing)
Display unit; width x depth x height in mm 380 x 150 x 260
Protective system

Terminal IP68

Weighing system IP 67

Mains supply depending on design (see
type plate)

without switch

either 230 V AC; +0.6%/-10%; 50 – 60 Hz

o or 120 V AC; +10%/-15%; 50 – 60 Hz

FIS-BA-e-0512

5

Technical Data (not verifiable)

Model FIS 6K1 IP FIS 12K2 IP

Readability (d) 1 g 2 g
Weighing range (max.) 6 kg 12 kg
Reproducibility 1 g 2 g
Linearity ± 2 g ± 4 g

Minimum single weight,
piece counting

0.1 g 0.2 g

Calibration weight (not added) 6 kg (M1) 12 kg (M1)
Net weight 12 kg
Weighing plate, stainless steel, width x

depth x height in mm

335 x 260

x ( min. 92 – max. 107)

Permissible ambient temperature - 10° .... + 40° C

Max. air humidity max. 80 % (non-condensing)
Display unit; width x depth x height in mm 380 x 150 x 260
Protective system

Terminal IP68

Weighing system IP 67
Mains supply depending on design (see

type plate)

without switch

either 230 V AC; +0.6%/-10%; 50 – 60 Hz

o or 120 V AC; +10%/-15%; 50 – 60 Hz

Model FIS 30K5 IP FIS 60K10 IP FIS 120K20 IP

Readability (d) 5 g 10 g 20 g
Weighing range (max.) 30 kg 60 kg 120 kg
Reproducibility 5 g 10 g 20 g
Linearity ± 10 g ± 20 g ± 40 g

Minimum single weight,
piece counting

1 g 2 g 5 g

Calibration weight (not added) 30 kg(M1) 60 kg(M1) 120 kg(M1)
Net weight 30,5 kg
Weighing plate, stainless steel, width x

depth x height in mm

500 x 400

x ( min. 86 – max. 101)

Permissible ambient temperature - 10° .... + 40° C

Max. air humidity max. 80 % (non-condensing)
Display unit; width x depth x height in mm 380 x 150 x 260
Protective system

Terminal IP68

Weighing system IP 67

Mains supply depending on design (see
type plate)

without switch

either 230 V AC; +0.6%/-10%; 50 – 60 Hz

o or 120 V AC; +10%/-15%; 50 – 60 Hz

FIS-BA-e-0512

6

2 Declaration of Conformity

KERN & Sohn GmbH

D-72322 Balingen-Frommern
Postfach 4052
E-Mail: [e-mail]

Tel: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.de

Declaration of conformity for apparatus with CE mark

Konformitätserklärung für Geräte mit CE-Zeichen

Déclaration de conformité pour appareils portant la marque CE

Declaración de conformidad para aparatos con distintivo CE

Dichiarazione di conformità per apparecchi con contrassegno CE

English

We hereby declare that the product to which this declaration refers conforms to the following
standards.
Please consider the chapter Calibration information in the user manual.

Deutsch

Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht, mit den nachstehenden
Normen übereinstimmt.
Unbedingt Kapitel Hinweise zur Eichung (Kap. 5 Eichhinweise) in der Bed.-Anleitung beachten.

Français

Nous déclarons par la présente que le produit auquel se rapporte cette déclaration est conforme aux
normes citées ci-après.
Il est impératif de prendre en considération les indications concernant l´étalonnage (chap. 5
Remarques relatives à l'étalonnage) dans le manuel d´utilisation.

Español

Manifestamos por medio de la presente que el producto al que se refiere esta declaración está de
acuerdo con las siguientes normas.
Le rogamos tener en consideración el capítulo "Indicaciones para la calibración" del presente manual
de instrucciones.

Italiano

Dichiariamo con la presente che il prodotto al quale la dichiarazione si riferisce è conforme alle norme
di seguito citate.
Attenersi in ogni caso alle indicazioni relative alla taratura (Cap. 5 Istruzioni per la taratura) riportate
nelle Istruzioni per l’uso della bilancia.

Electronic Balance: KERN FIS 3K1 IPM KERN FIS 30K10 IPM

KERN FIS 6K2 IPM KERN FIS 60K20 IPM
KERN FIS 15K5 IPM KERN FIS 150K50 IPM

Mark applied EU Directive Standards Approval/Test-

certificate N°

89/336/EEC EMC
73/23/EEC Low voltage

EN 50082-1,2
EN 50081-1,2
EN 55011

[year] 1) [code] M

90/384/EEC Non
automatic weighing
Instruments 1)

EN45501:1992 1) D02-09-001 1)

1) applies only to certified balances

gilt nur für geeichte Waagen
valable uniquement pour les balances étalonnées
sólo aplicable a balanzas verficadas
la dichiarazione vale solo per le bilance omologate

Date: 11.02.2004

Signature:

Gottl. KERN & Sohn GmbH
Management

Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. [phone],Fax [phone]

FIS-BA-e-0512

7

KERN & Sohn GmbH

D-72322 Balingen-Frommern
Postfach 4052
E-Mail: [e-mail]

Tel: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.de

Declaration of conformity for apparatus with CE mark

Konformitätserklärung für Geräte mit CE-Zeichen

Déclaration de conformité pour appareils portant la marque CE

Declaración de conformidad para aparatos con disitintivo CE

Dichiarazione di cofnromitá per apparecchi contrassegnati con la marcatura CE

English

We hereby declare that the product to which this declaration refers conforms with the following
standards.
Please consider the chapter Calibration information in the user manual.

Deutsch

Wir erklären hiermit, daß das Produkt, auf das sich diese Erklärung bezieht, mit den nachstehenden
Normen übereinstimmt.
Unbedingt Kapitel Hinweise zur Eichung (Kap. 5 Eichhinweise) in der Bed.-Anleitung beachten.

Français

Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la présente déclaration,
est conforme aux normes citées ci-après.
Veuillez prendre en considération le chapitre Indication concernant l'étalonnage dans le mode
d'emploi.

Español

Manifestamos en la presente que el producto al que se refiere esta declaración est´´a de acuerdo
con las normas siguientes
Le rogamos de considerar el capítulo Indicación para la calibración en el manual.

Italiano

Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è conforme alle
norme di seguito citate.
In ogni caso rispettare gli indicazioni quanto riguarda l'omologazione nel manuale di uso della bilancia

Electronic Balance: KERN FIS 3K1 IP KERN FIS 30K5 IP
KERN FIS 6K1 IP KERN FIS 60K10 IP
KERN FIS 12K2 IP KERN FIS 120K20 IP

Mark applied EU Directive Standards

89/336EEC EMC EN 50081-1

EN 50082-1
EN 55022

Date: 11.02.2004

Signature:

Gottl. KERN & Sohn GmbH
Management

Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. [phone],Fax [phone]

FIS-BA-e-0512

8

Notice

Certified balances and balances used for legal applications have the EU type approval. The year of the initial verification is
shown next to the CE mark. Such balances are verified in the factory and carry the „M“ mark on the actual balance. The
year of initial verification is shown next to the CE mark. The GEO value of verified balances explains for which location of
use the balance has been verified. This GEO value is shown on the balance itself and on the packing. Further details see
GEO value table.

Hinweise

Für geeichte/eichpflichtige Waagen liegt eine EU Bauartzulassung vor. Das Jahr der ersten Eichung ist neben dem CE
Zeichen aufgeführt. Solche Waagen sind ab Werk geeicht und tragen die Kennzeichnung „M“ auf dem Gerät. Der GEO­Wert gibt bei vom Hersteller geeichten Waagen an, für welchen Aufstellungsort die Waage geeicht ist. Dieser GEO-Wert
befindet sich auf der Waage sowie der Verpackung. Genaueres ist der GEO-Wert-Tabelle zu entnehmen.

Remarques

Il existe une homologation UE pour les balances étalonnées/soumises à l´obligation d´étalonnage. L’année du premier
étalonnage est indiquée à côté de la marque CE. Ces balances sont vérifiées à la sortie d´usine et portent la marque „M“
sur l’appareil lui-même. Dans le cas des balances étalonnées par le fabricant, la valeur GEO indique le lieu d’utilisation
pour lequel la balance été étalonnée. Cette valeur GEO se trouve sur la balance ainsi que sur l’emballage. Vous trouverez
plus de détails dans le tableau de valeurs GEO.

Notas

Las balanzas verificadas/verificables cuentan con una aprobación de modelo UE. El año de la primera verificación está
indicado al lado del distintivo CE. Estas balanzas están verificadas en fábrica y llevan la designación „M“ sobre el propio
aparato. El valor GEO indica el lugar de ubicación por lo cual la balanza está verificado. El valor se encuentra sobre la
balanza así como sobre el embalaje. Por favor toman demás detalles de la tabla GEO.

Avvertenza

Per le bilance sottoposte/sottoponibili a verifica esiste un’approvazione CE del tipo. L’anno della verifica prima è riportato a
fianco del contrassegno CE. Queste bilance sono sottoposte a verifica in fabbrica e sono marcate con contrassegno ”M“. Il
valore GEO nelle bilance verificate in fabbrica indica il luogo d’impiego per il quale la bilancia è stata verificata. Questo
valore GEO è riportato sulla bilancia e sull’imballo. Ulteriori dettagli si possono ricavare dalla tabella “valori GEO”.

Tableau de valeurs GEO / GEO-value table

Höhe über Meer in Metern /
height above sea level

geographische
Breite/
geographical­latitude

0-650 650-1300 1300-1950 1950-2600 2600-3250

0° 0‘ - 9° 52‘

4 / 5 3 / 4 2 / 3 1 / 2 0 / 1

9° 52‘ - 15° 6‘

5 / 6 4 / 5 3 / 4 2 / 3 1 / 2

15° 6‘ - 19° 2‘

6 / 7 5 / 6 4/ 5 3 / 4 2 / 3

19° 2‘ - 22° 22‘

7 / 8 6 / 7 5 / 6 4 / 5 3 / 4

22° 22‘ - 25° 21‘

8 / 9 7 / 8 6 / 7 5 / 6 4 / 5

25° 21‘ - 28° 6‘

9 / 10 8 / 9 7 / 8 6 / 7 5 / 6

28° 6‘ - 30° 41‘

10 / 11 9 / 10 8 / 9 7 / 8 6 / 7

30° 41‘ - 33° 9‘

11 / 12 10 / 11 9 / 10 8 / 9 7 / 8

33° 9‘ - 35° 31‘

12 / 13 11 / 12 10 / 11 9 / 10 8 / 9

35° 31‘ - 37° 50‘

13 / 14 12 / 13 11 / 12 10 / 11 9 / 10

37° 50‘ - 40° 5‘

14 / 15 13 / 14 12 / 13 11 / 12 10 / 11

40° 5‘ - 42° 19‘

15 / 16 14 / 15 13 / 14 12 / 13 11 / 12

42° 19‘ - 44° 32‘

16 / 17 15 / 16 14 / 15 13 / 14 12 / 13

44° 32‘ - 46° 45‘

17 / 18 16 / 17 15 / 16 14 / 15 13 / 14

46° 45‘ - 48° 58‘

18 / 19 17 / 18 16 / 17 15 / 16 14 / 15

48° 58‘ - 51° 13‘

19 / 20 18 / 19 17 / 18 16 / 17 15 / 16

51° 13‘ - 53° 31‘

20 / 21 19 / 20 18 / 19 17 / 18 16 / 17

53° 31‘ - 55° 52‘

21 / 22 20 / 21 19 / 20 18 / 19 17 / 18

55° 52‘ - 58° 17‘

22 / 23 21 / 22 20 / 21 19 / 20 18 / 19

58° 17‘ - 60° 49‘

23 / 24 22 / 23 21 / 22 20 / 21 19 / 20

60° 49‘ - 63° 30‘

24 / 25 23 / 24 22 / 23 21 / 22 20 / 21

63° 30‘ - 66° 24‘

25 / 26 24 / 25 23 / 24 22 / 23 21 / 22

66° 24‘ - 69° 35‘

26 / 27 25 / 26 24 / 25 23 / 24 22 / 23

69° 35‘ - 73° 16‘

27 / 28 26 / 27 25 / 26 24 / 25 23 / 24

73° 16‘ - 77° 52‘

28 / 29 27 / 28 26 / 27 25 / 26 24 / 25

77° 52‘ - 85° 45‘

29 / 30 28 / 29 27 / 28 26 / 27 25 / 26

FIS-BA-e-0512

9

3 General

Please read the operating instructions carefully before working with your new
balance.
After unpacking, please check the equipment for any signs of external damage.
Keep all packaging in case it should be necessary to despatch the equipment. This
can help to prevent unnecessary damage.

Please go through carefully and observe the operating conditions in chapter 4
and the entire operating instructions before carrying out installation and
commissioning.

3.1 Construction of the operating instruction:

Explanation of symbols:

Information/reference to another explanation, limitation or

extension.
Important additional information for correct operation or

function of the equipment.

SAFETY INFORMATION ; please always observe!

Help, e.g. in cases of disturbances

Function sequence description:

Operation of
keys

Display content after operation of the
keys

Description of the
function/process

0

Associated
process

FIS-BA-e-0512

10

3.2 Warranty

The weighing system is installed by staff members who have received training in
weighing techniques.

We cannot accept any liability for damage resulting from:

- non-observance of our operating conditions and operating instructions

- improper installation

- faulty electrical installation by the user

- modifications to our equipment

- removal of verification and protective marks

- improper operation

- improper handling of foil keyboard (for example, using sharp objects)

- natural wear and tear

- media/liquids which affect the following materials

Components Material

Weighing terminal Stainless steel 1.4301,
Load carriers Stainless steel 1.4301
Type WS . . . G sensors Stainless steel 1.4301, internal AlCuMg 2,

silicone caoutchouc diaphragms, polyethylene
cover

Housing seal Frame: Polyamid

Seals: Polyurethan
Keyboard foil Polyester
Adjusting knobs for slope of
equipment

Plastic, including brass nut and washer

(EPDM)
Mains line

PVC hose line, H05VV-F 3G0,75 incl.

integrally cast shockproof plug, 2.5 metres

long, or with plug for Switzerland or

USA/Canada.
Line screw fitting

Nickel-faced brass

Any claim to warranty is forfeited if faults/damages are caused due to intervention
by unauthorised persons, especially due to not using original KERN spare parts
or operating material.

All wear parts are excluded from warranty.

No warranty is offered for faults caused by the equipment being operated outside
its prescribed protective system. Damages caused due to environmental
influences such as sea water and unsuitable cleaning material are also excluded
from warranty.

FIS-BA-e-0512

11

When installing the equipment or changing equipment settings, always
carry out a test run with the known test weight at cyclic intervals. This avoids
incorrect results and evaluations.

Ensure that only trained personnel operate and take care of the equipment.
Please check that our products are handled appropriately.

Our products are regularly subjected to further development and are governed by
various regulations specific to the country. Illustrations and graphics used in the
operating instructions may differ from the model supplied.

3.3 Safety information

The equipment may only be opened by trained service engineers in compliance
with KERN directives.

Please disconnect the equipment from the mains before opening.
Warranty is forfeited if the equipment is opened.

The FIS weighing system may not be used in hazardous areas.

3.4 Important information

The measured values are stabilised by a short warm-up period lasting a few
minutes after switching on. Apply the items to be weighed carefully. Do not place
a permanent load on the weighing plate. Be sure to avoid knocks and
overloading in excess of the maximum load (max.), as this can cause damage to
the balance.

Switch the balance off for a short period of time following a disturbance in
programme sequence. The weighing process must now be repeated.

Check the balance regularly using external test weights.

Guarantee/warranty are forfeited if the balance is opened and following use
of the balance outside the prescribed directives.

Keep the packaging in case if should be necessary to return the equipment. Only
use the original packaging to return the equipment.

FIS-BA-e-0512

12

4 Installation and commissioning, operating instructions

4.1 Conditions applicable to the place of installation

- Level installation surface

- It must be ensured that the location is free from vibrations and that
installation is carried out in as dry an area as possible that is not subjected
to drafts.

- Arrange the equipment in such a way as to facilitate operation, working
procedures and service.

- As far as systems subjected to compulsory calibration are concerned, the
person weighing must have an unobstructed view from the evaluation
equipment to the place of weighing.

The weighing system is not suitable for the following environmental areas:

- Potentially explosive areas

- Areas subjected to vibrations and jarring

-

External temperature ranges with temperatures below -10°C or
above +40°C

4.2 Installation of the weighing system

Unpack the weighing system carefully at the place of installation paying special
attention to the connecting cables.

Weighing belts or roller conveyor tracks may only be installed on the load carrier
after consulting with KERN.

Moving parts must not be able to re-charge.
Power-driven weighing belts or roller conveyor tracks must comply with the
requirements of the 98/37/EC directive on machinery.

4.3 Function test/ready-to-operate

An automatic function test is carried out as soon as the FIS is connected to the
mains supply.
The weighing terminal is operative when a weight value is displayed.

Maximum weighing accuracy is reached following a short warm-up period.
It is favourable to leave the weighing terminal connected to the mains voltage
for the entire working day.
A consistent operating temperature and highest possible balance accuracy are
achieved in this way.

Please be sure to observe chapter 13 on calibration (CAL).

FIS-BA-e-0512

13

4.4 Scope of delivery

The weighing system is supplied with the following components:

- Load carriers

- FIS weighing terminal

- Operating instructions

4.5 Levelling the weighing system

The weighing system is levelled in the factory using the foot screws. Please
check that all 4 foot screws rest evenly on the supporting area.

The bubble level may also be installed underneath the load plate on small load
carriers.

Please compensate for any unevenness by adjusting the foot screws.

4.6 Mains connection

A separate mains switch is not available.

Maximum weighing accuracy is reached following a short warm-up period. It is
favourable to leave the weighing terminal connected to the mains voltage for
the entire working day.
A consistent operating temperature and highest possible balance accuracy are
achieved in this way.

4.7 Power supply

4.7.1 Installation of the power supply by the customer

Installation of the power supply for the connection of our equipment must be
carried out in compliance with the international standards and the regulations
deriving from these. They mainly include the recommendations of at least

one of the following commissions:

- International Electrotechnical Commission (IEC)

- European Committee for Electrotechnical Standardisation (CENELEC)

- Association of German Electrical Engineers (VDE)

Our equipment is designed according to VDE protection class III (protective low
voltage ).

FIS-BA-e-0512

14

5 Calibration Information

Weight symbol flashing:
Calibration switch (hardware seal) is not in secured condition.

Calibration switch (=equalising plug)

Traditionally, backup of the data relevant to calibration is carried out by means of
hardware backup (equalising plug on the circuit board in the terminal).

Equalising plug
on the circuit board in the terminal

Status

Plug not inserted Calibration data not saved
Plug inserted Calibration data saved

The calibration switch (equalising plug) can be seen through the right-hand window
on the terminal. This switch is secured by means of a sticker (stamp) when in
calibrated condition.

Balance calibration is not valid without the valid sticker.
The four screws on the rear side of the terminal must be opened in order to reach

the calibration switch (equalising plug).

Caution: Please remove the mains plug before opening the terminal.

The GEO value can only be changed or the balance calibrated if the calibration
switch (equalising plug) has been pulled out.

FIS-BA-e-0512

15

Position of the security mark above the calibration switch (equalising plug)

Balances that are subject to compulsory calibration must be taken out of
operation if:

- The weighing result of the balance is outside the error limit. Therefore,

apply a known test weight (approx. 1/3 of the nominal load) to the balance at
regular intervals and compare with the display value.

- The recalibration deadline has been exceeded.

Security mark

FIS-BA-e-0512

16

1787281

2002

1478071

M

20

6

0,04

0,002

Definition of the individual markings:

4591930100

= Identification plate no.

KERN

= Manufacturer

FIS

= Type designation (basic type)

CE 2002

= CE identification including the figures of the year in

which the CE identification was applied.

0103

= Identification number of the named office “Calibration

Management Stuttgart“

D02-09-001

= No. of the EU design approval
= Square green sticker (metrology)

GEO 20 = Calibrated for geo value area 20

= Balance accuracy class III

Made in Germany

= Manufacturing country

230V; 50/60 Hz

0.08 A

= Electric data

IP 68

=

Protective system of the FIS terminal according to EN

60529.
6: Protection against dust contamination
8: Protection against water penetration
The weighing system is fitted with an IP 67 protective
system

A security mark is fitted in the evaluation equipment. In compliance with the
legal regulations, recalibration is to be arranged by the operator of the
balance.

M

FIS-BA-e-0512

17

5.1 Information on recalibration

A balance is recalibrated according to the legal requirements applicable to the
individual countries. For instance, the calibration validity period for balances in
Germany is normally 2 years. The period of time for calibration validity begins
when the balance is put into operation (installation and commissioning). Also see
the identification plate (2002 in the preceding example as designated CE 2002).

5.2 Calibration information for non EU countries

The statutory provisions of the relevant countries are to be observed.

5.3 Levelling device

The FIS is fitted with a bubble level. This must be checked following every
change in location and the balance re-levelled if necessary.
The bubble level may also be installed underneath the load plate on small load
carriers.

FIS-BA-e-0512

18

6 Overall view of the equipment

6.1 Display and control panel

Illuminated LCD display

T

0

ON
OFF

Basic weighing
functions

Standby/Test

Service functions

Application functions

Weight and
application values

Weight w. tolerance LED green

Status display

Recording functions

Additional display for plus­minus weighing
Minus weight LED red

Plus weight LED yellow

Window for checking
protective mark
