KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Tel: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
Operating Manual
Counting balance/counting system
KERN CFS/CCS
Version 1.3
07/2010
GB
CFS/CCS-BA-e-1013
GB
KERN CFS/CCS
Version 1.3 07/2010
Operating instructions
Counting balance/counting system
Table of Contents
1 Technical Data.......................................................................................... 4
1.1 KERN CFS .......................................................................................................................... 4
1.2 KERN CCS.......................................................................................................................... 6
2 Declaration of conformity........................................................................ 7
3 Basic Information (General) .................................................................... 8
3.1 Proper use.......................................................................................................................... 8
3.2 Improper Use ..................................................................................................................... 8
3.3 Warranty ............................................................................................................................. 8
3.4 Monitoring of Test Resources.......................................................................................... 9
4 Basic Safety Precautions ........................................................................ 9
4.1 Pay attention to the instructions in the Operation Manual ........................................... 9
4.2 Personnel training ............................................................................................................. 9
5 Transportation & Storage ........................................................................ 9
5.1 Testing upon acceptance ................................................................................................. 9
5.2 Packaging / return transport ............................................................................................ 9
6 Unpacking, Setup and Commissioning................................................ 10
6.1 Installation Site, Location of Use................................................................................... 10
6.2 Unpacking/erection ......................................................................................................... 10
6.2.1 Counting balance............................................................................................................... 11
6.2.2 Counting system................................................................................................................ 12
6.2.3 Scope of delivery / serial accessories ............................................................................... 12
6.3 Overview of displays....................................................................................................... 13
6.3.1 Display weight ................................................................................................................... 13
6.3.2 Display average piece weight............................................................................................ 13
6.3.3 Display quantity ................................................................................................................. 14
6.4 Keyboard overview.......................................................................................................... 14
6.5 Mains connection ............................................................................................................ 16
6.6 Rechargeable battery operation .................................................................................... 16
6.7 Connection of peripheral devices.................................................................................. 16
6.8 Initial Commissioning ..................................................................................................... 16
7 Adjustment ............................................................................................. 17
7.1 Adjustment models KERN CFS/CCS ............................................................................. 17
7.2 Adjustment bulk weighing balance, not preconfigured by KERN.............................. 19
2 CFS/CCS-BA-e-1013
CFS/CCS-BA-e-1013 3
8 Basic Operation...................................................................................... 20
8.1 Switching on/off ...............................................................................................................20
8.2 Zeroing .............................................................................................................................. 20
8.3 Switch over balance/weighing bridge............................................................................ 20
8.4 Weighing with tare ...........................................................................................................21
8.4.1 Taring .................................................................................................................................21
8.4.2 Numeric entering of tare weight .........................................................................................22
9 Adding..................................................................................................... 22
9.1 Manual totalizing ..............................................................................................................22
9.2 Automatic adding-up ....................................................................................................... 25
10 Counting ................................................................................................. 26
10.1 Determination of the average piece weight by weighing.............................................26
10.2 Numeric input of the average piece weight...................................................................27
10.3 Automatic reference optimization..................................................................................27
10.4 Counting with counting system .....................................................................................28
11 Weighing to a certain target weight /target quantity and tolerance
control 29
11.1 Tolerance control in weighing mode .............................................................................29
11.2 Tolerance control in counting mode.............................................................................. 30
11.3 Data store (PLU = Product Look up) ..............................................................................32
11.3.1 Save ...................................................................................................................................32
11.3.2 Calling up ...........................................................................................................................34
11.3.3 Print ....................................................................................................................................35
12 Menu ........................................................................................................ 36
12.1 Navigation in the menu....................................................................................................36
12.2 Menu overview .................................................................................................................37
13 Configuration bulk material balance / technical parameters.............. 38
14 Second balance interface ...................................................................... 42
15 RS 232C interface................................................................................... 42
15.1 Technical Data..................................................................................................................43
15.2 Remote control instructions ...........................................................................................43
15.2.1 Control commands .............................................................................................................43
15.2.2 Printing commands ............................................................................................................44
16 Service, maintenance, disposal ............................................................ 44
16.1 Cleaning ............................................................................................................................ 44
16.2 Service, maintenance ......................................................................................................44
16.3 Disposal ............................................................................................................................44
17 Instant help ............................................................................................. 45
17.1 Error messages ................................................................................................................46
4 CFS/CCS-BA-e-1013
1 Technical Data
1.1 KERN CFS
KERN CFS 6K0.1
Readability (d) 0.1 g
Weighing range (max) 6 kg
Reproducibility 0.1 g
Linearity ± 0.2 g
Stabilization time 2 s
Weighing Units kg, lb
Recommended adjusting
weight (not supplied)
6 kg (F2)
Warm-up time 2 h
Minimum unit weight at
piece count
50 mg
Reference unit weights at
piece counting
freely selectable
Net weight (kg) 3.8 kg
Permissible ambient condition
0° C to 40° C
Humidity of air max. 80 % relative (not condensing)
Weighing plate, stainless
steel
294 x 225 mm
Dimensions of the housing
(B x D x H)
320 x 330 x 125 mm
Mains connection
Mains adapter 230 V AC, 50 Hz; balance 9 V DC, 500 mA
Rechargeable battery Operating duration approx. 70 h /
loading time approx. 12 hours
CFS/CCS-BA-e-1013 5
KERN CFS 15K0.2 CFS 30K0.5
Readability (d) 0.2 g 0.5 g
Weighing range (max) 15 kg 30 kg
Reproducibility 0.2 g 0.5 g
Linearity ± 0.4 g ± 1 g
Stabilization time 2 s
Weighing Units kg, lb
Recommended adjusting
weight (not supplied)
15 kg (F2) 30 kg (F2)
Warm-up time 2 h
Minimum unit weight at
piece count
100 mg
Reference unit weights at
piece counting
freely selectable
Net weight (kg) 3.8 kg
Permissible ambient condition
0° C to 40° C
Humidity of air max. 80 % relative (not condensing)
Weighing plate, stainless
steel
294 x 225 mm
Dimensions of the housing
(B x D x H)
320 x 330 x 125 mm
Mains connection Mains adapter 230 V AC, 50 Hz; balance 9 V DC, 500 mA
Rechargeable battery
Operating duration approx. 70 h /
loading time approx. 12 hours
Dimensions:
1.2 KERN CCS
Counting
system
KERN
Bulk material
balance
KERN
Weighing
range
(Max)
kg
Readability
(d)
g
Weighing
plate
stainless
steel
mm
Recommended
adjustment
weight, not
added, kg (class)
CCS 30K0.1 KFP 30V20M 30 10 400x300x78 30 (M2)
CCS 60K0.1 KFP 60V20M 60 20 400x300x78 50 (M2)
CCS 60K0.1L KFP 60V20LM 60 20 500x400x79 50 (M2)
CCS 150K0.1 KFP150V20M 150 50 500x400x79 150 (M3)
CCS 150K0.1L KFP 150V20LM 150 50 650x500x115 150 (M3)
CCS 300K0.1 KFP300V20M 300 100 650x500x115 300 (M3)
6 CFS/CCS-BA-e-1013
2 Declaration of conformity
KERN & Sohn GmbH
D-72322 Balingen-Frommern
Postfach 4052
E-Mail: info@kern-sohn.de
Tel: 0049-[0]7433- 9933-0
Fax: 0049-[0]7433-9933-149
Internet: www.kern-sohn.de
Declaration of conformity
EC-Konformitätserklärung EC-Declaration of -Conformity
EC-
Déclaration de conformité EC-Declaración de Conformidad
EC-Dichiarazione di conformità EC-Conformiteitverklaring
EC- Declaração de conformidade EC- Prohlášení o shode
EC-Deklaracja zgodności EC-Заявление о соответствии
D
Konformitätserklärung
Wir erklären hiermit, dass das Produkt, auf das sich diese Erklärung bezieht,
mit den nachstehenden Normen übereinstimmt.
GB
Declaration of
conformity
We hereby declare that the product to which this declaration refers conforms
with the following standards.
CZ
Prohlášení o
shode
Tímto prohlašujeme, že výrobek, kterého se toto prohlášení týká, je v souladu
s níže uvedenými normami.
E
Declaración de
conformidad
Manifestamos en la presente que el producto al que se refiere esta
declaración está de acuerdo con las normas siguientes
F
Déclaration de
conformité
Nous déclarons avec cela responsabilité que le produit, auquel se rapporte la
présente déclaration, est conforme aux normes citées ci-après.
I
Dichiarazione di
conformitá
Dichiariamo con ciò che il prodotto al quale la presente dichiarazione si riferisce è conforme alle norme di seguito citate.
NL
Conformiteitverklaring
Wij verklaren hiermede dat het product, waarop deze verklaring betrekking
heeft, met de hierna vermelde normen overeenstemt.
P
Declaração de
conformidade
Declaramos por meio da presente que o produto no qual se refere esta
declaração, corresponde às normas seguintes.
PL
Deklaracja
zgodności
Niniejszym oświadczamy, że produkt, którego niniejsze oświadczenie
dotyczy, jest zgodny z poniższymi normami.
RUS
Заявление о
соответствии
Мы заявляем, что продукт, к которому относится данная декларация,
соответствует перечисленным ниже нормам.
Electronic Scale: KERN CFS
Mark applied EU Directive Standards
2004/108/EC
EMC
EN 61000-6-1 :2007
EN 61000-6-3 :2007
EN 61000-3-3 : 1995+A1 :2001+A2 :2005
EN 61000-3-2 :2006
Date: 14.07.2010 Signature:
Gottl. KERN & Sohn GmbH
Management
Gottl. KERN & Sohn GmbH, Ziegelei 1, D-72336 Balingen, Tel. +49-[0]7433/9933-0,Fax +49-[0]7433/9933-149
CFS/CCS-BA-e-1013 7
8 CFS/CCS-BA-e-1013
3 Basic Information (General)
3.1 Proper use
The balance you purchased is intended to determine the weighing value of material
to be weighed. It is intended to be used as a “non-automatic“ balance, i.e. the material to be weighed is manually and carefully placed in the centre of the weighing
plate. As soon as a stable weighing value is reached the weighing value can be
read.
3.2 Improper Use
Do not use balance for dynamic weighing. In the event that small quantities are removed or added to the material to be weighed, incorrect weighing results can be
displayed due to the “stability compensation“ in the balance. (Example: Slowly
draining fluids from a container on the balance.)
Do not leave permanent load on the weighing plate. This may damage the measuring system.
Impacts and overloading exceeding the stated maximum load (max) of the balance,
minus a possibly existing tare load, must be strictly avoided. Balance may be damage by this.
Never operate balance in explosive environment. The serial version is not explosion
protected.
The structure of the balance may not be modified. This may lead to incorrect weighing results, safety-related faults and destruction of the balance.
The balance may only be used according to the described conditions. Other areas
of use must be released by KERN in writing.
3.3 Warranty
Warranty claims shall be voided in case
• Our conditions in the operation manual are ignored
• The appliance is used outside the described uses
• The appliance is modified or opened
• Mechanical damage or damage by media, liquids, natural wear and tear
• The appliance is improperly set up or incorrectly electrically connected
• The measuring system is overloaded
3.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com with regard to
the monitoring of balance test substances and the test weights required for this. In
KERN’s accredited DKD calibration laboratory test weights and balances may be
calibrated (return to the national standard) fast and at moderate cost.
4 Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and commissioning, even if you
are already familiar with KERN balances.
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
5 Transportation & Storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage.
5.2 Packaging / return transport
Keep all parts of the original packaging for a possibly required re-
turn.
Only use original packaging for returning.
Prior to dispatch disconnect all cables and remove loose/mobile
parts.
Reattach possibly supplied transport securing devices.
Secure all parts such as the glass wind screen, the weighing plat-
form, power unit etc. against shifting and damage.
CFS/CCS-BA-e-1013 9
10 CFS/CCS-BA-e-1013
6 Unpacking, Setup and Commissioning
6.1 Installation Site, Location of Use
The balances are designed in a way that reliable weighing results are achieved in
common conditions of use.
You will work accurately and fast, if you select the right location for your balance.
Therefore, observe the following for the installation site:
• Place the balance on a firm, level surface;
• Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
• Protect the balance against direct draughts due to open windows and doors;
• Avoid jarring during weighing;
• Protect the balance against high humidity, vapors and dust;
• Do not expose the device to extreme dampness for longer periods of time.
Non-permitted condensation (condensation of air humidity on the appliance)
may occur if a cold appliance is taken to a considerably warmer environment.
In this case, acclimatize the disconnected appliance for ca. 2 hours at room
temperature.
• Avoid static charge of goods to be weighed or weighing container.
Major display deviations (incorrect weighing results) may be experienced should
electromagnetic fields (e.g. due to mobile phones or radio equipment), static electricity accumulations or instable power supply occur. Change location or remove
source of interference.
6.2 Unpacking/erection
Carefully remove the balance from the packaging, remove plastic cover and setup
balance at the intended workstation.
Level balance with foot screws until the air bubble of the water balance is in the
prescribed circle.
When using as counting system balance and weighing bridge must be levelled.
6.2.1 Counting balance
KERN CFS
1. Weighing plate / rechargeable battery compartment (under
weighing plate)
2. Bubble level
3. RS 232 interface
4. Second balance interface
5. Foot screws
6. ON/OFF switch
7. Mains adapter connection
CFS/CCS-BA-e-1013 11
6.2.2 Counting system
KERN CCS
y y
Bulk material balance KERN KFP Reference balance KERN CFS
In factory the counting system KERN CCS is preconfigured in a way that no
more changes will be necessary.
When connecting a weighing bridge (not preconfigured by KERN) the following must be observed:
Connect weighing bridge with a suitable cable via the second-balance in-
terface.
Allocation of the interface connection see chapter 14.
Configure weighing bridge, see chapter 13
Adjust balance / weighing bridge, see chapter 7.2
6.2.3 Scope of delivery / serial accessories
KERN CFS KERN CCS
• Balance see chpt. 6.2.1) • Ref. balance KERN CFS, see chap. 6.2.1
• Power cable • Bulk mat. balance KERN CFS, see chap. 6.2.2
• Protective cover • Operating instructions KERN CFS/CCS
• Internal battery • Operating instructions KERN KFP
• Operating Manual
12 CFS/CCS-BA-e-1013
6.3 Overview of displays
Weight Average piece weight Quantity
CFS/CCS-BA-e-1013 13
6.3.1 Display weight
Here the weight of your goods is displayed in [kg].
The arrows [T] above the symbols show:
Rechargeable battery very low
NET
Net weight
Stability display
a
Zeroing display
lb/kg
Current weighing unit
6.3.2 Display average piece weight
Here the average reference weight of a sample is displayed in [g]. This value is either numerically entered by user or calculated by weighing on balance.
The arrows [T] above the symbols show:
Number of parts placed on balance
too small
Piece below minimum weight of piece
M+
Data in summation memory
1
2
Active balance:
1. Reference balance KERN CFS
2. Bulk material balance KERN KFP
6.3.3 Display quantity
Here the current piece quantity (PCS = pieces) or in totalizing mode the sum
Sum of the placed parts is displayed, see chapter 9.
The arrows [T] above the symbols show:
Tolerance control in counting mode
Tolerance control in weighing mode
+
Goods to be weighed above tolerance limit
TOL
Goods to be weighed within tolerance range
-
Goods to be weighed below tolerance limit

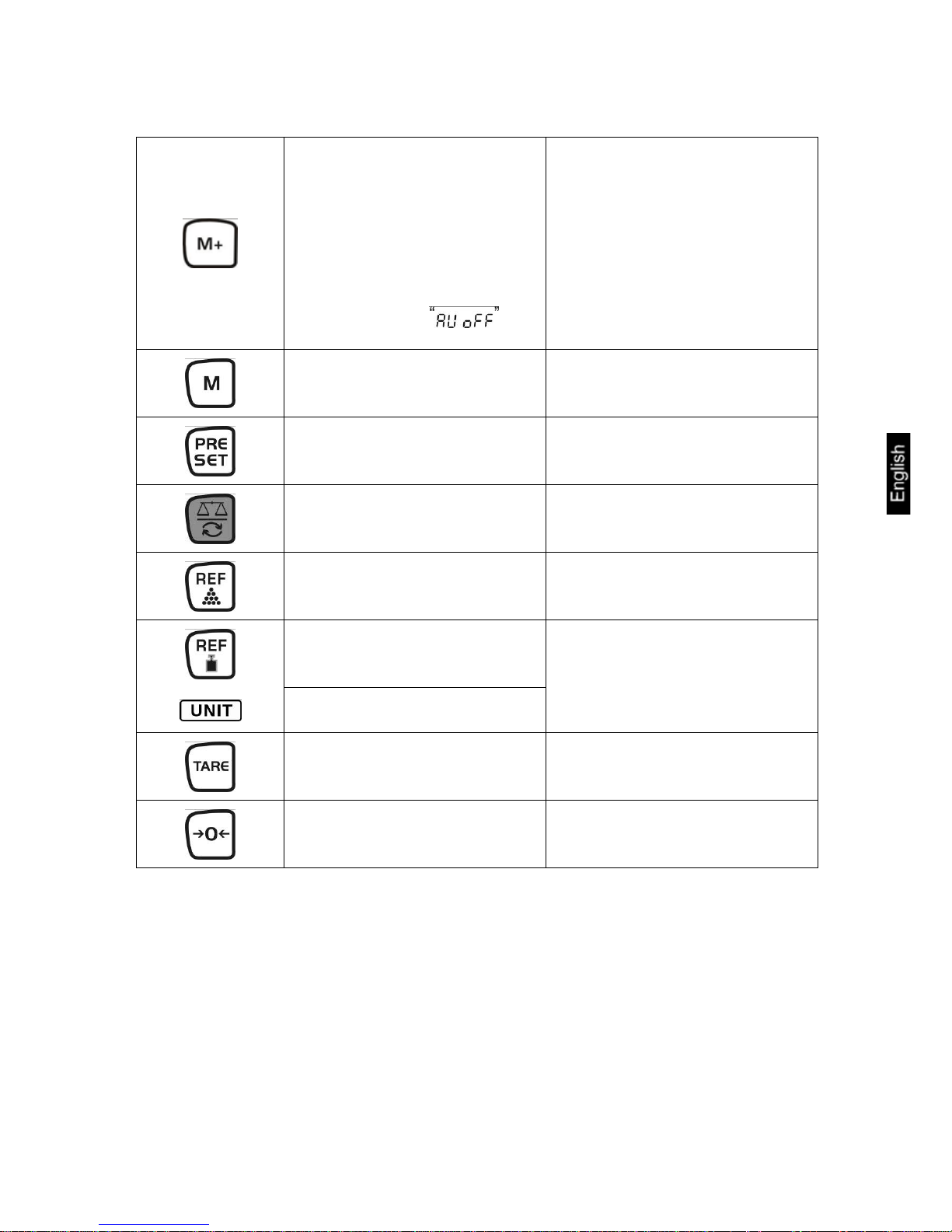

6.4 Keyboard overview
Choice Function in Weighing mode Function in Menu
…..
• Numeric keys
• Decimal point
• At numeric input number
selection to the left
• Delete key
14 CFS/CCS-BA-e-1013
• Addition in summation
memory
• Display total weight
/number of weighings / total
quantity
• At numeric input digit selection to the right
• Data output
(menu setting see
chapter 12.2)
• Set or call-up PLU,
see chpt. 11.3
• Tolerance control,
see chpt. 11
• Call up menu
• Switch-over balance,
see chpt. 8.3
• Input of the average piece
weight by weighing, see
chapter 10.1
• Numeric input of the average piece weight see chapter 10.2
• Function /parameter selection
• Switch-over weighing unit
• Taring key • Confirm
• Zeroing key
• Back to menu/weighing
mode
CFS/CCS-BA-e-1013 15
6.5 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage.
Only use original KERN mains adapters. Using other makes requires consent by
KERN.
6.6 Rechargeable battery operation
The internal battery is charged with the supplied mains cable.
Before the first use, the rechargeable battery should be charged by connecting it to
the mains power cable for at least 15 hours. The operation time of the rechargeable
battery is approx. 70 hours. When connecting a second balance, the operation time
will be reduced. The charging period for total charge is c. 12 hours
To save the rechargeable battery, in the menu (see chap.12.2) the automatic
switch-off function [„ “ „ „] can be activated, switch-off time selectable
after 0, 3, 5, 15, 30 minutes.
If an arrow appears on the weight display [T] above the battery symbol or "bat
lo" when turning on the balance, this is an indication that the capacity of the rechargeable battery will soon be exhausted. The balance will be ready to operate for
about another 10 hrs., then it will switch off automatically. Connect the power cable
as soon as possible to load the rechargeable battery.
The LED display under the piece number window informs you during charging about
the charging status of the rechargeable battery.
red: Voltage has dropped below prescribed minimum. Connect mains
adapter to load the rechargeable battery.
green: Rechargeable battery is completely charged
yellow: Rechargeable battery very low. Connect mains adapter as soon as pos-
sible to load the rechargeable battery.
6.7 Connection of peripheral devices
Before connecting or disconnecting of additional devices (printer, PC) to the data
interface, always disconnect the balance from the power supply.
With your balance, only use accessories and peripheral devices by KERN, as they
are ideally tuned to your balance.
6.8 Initial Commissioning
In order to obtain exact results with the electronic balances, your balance must have
reached the operating temperature (see warming up time chap. 1).
During this warming up time the balance must be connected to the power supply
(mains, accumulator or battery).
The accuracy of the balance depends on the local acceleration of gravity.
Strictly observe hints in chapter Adjustment.
16 CFS/CCS-BA-e-1013
7 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each balance must be coordinated - in compliance with the underlying physical
weighing principle - to the existing acceleration due to gravity at its place of location
(only if the balance has not already been adjusted to the location in the factory).
This adjustment process must be carried out for the first commissioning, after each
change of location as well as in case of fluctuating environment temperature. To
receive accurate measuring values it is also recommended to adjust the balance
periodically in weighing operation.
Procedure when adjusting:
Observe stable environmental conditions. A warming up time (see chapter 1) is required for stabilization. Ensure that there are no objects on the weighing plate.
• Info about adjustment weights can be found on the Internet at:
http://www.kern-sohn.com
• In order to avoid errors at the piece quantity determination, both balances
must be adjusted with the same acceleration due to gravity.
In case of non-compliance counting errors will result!

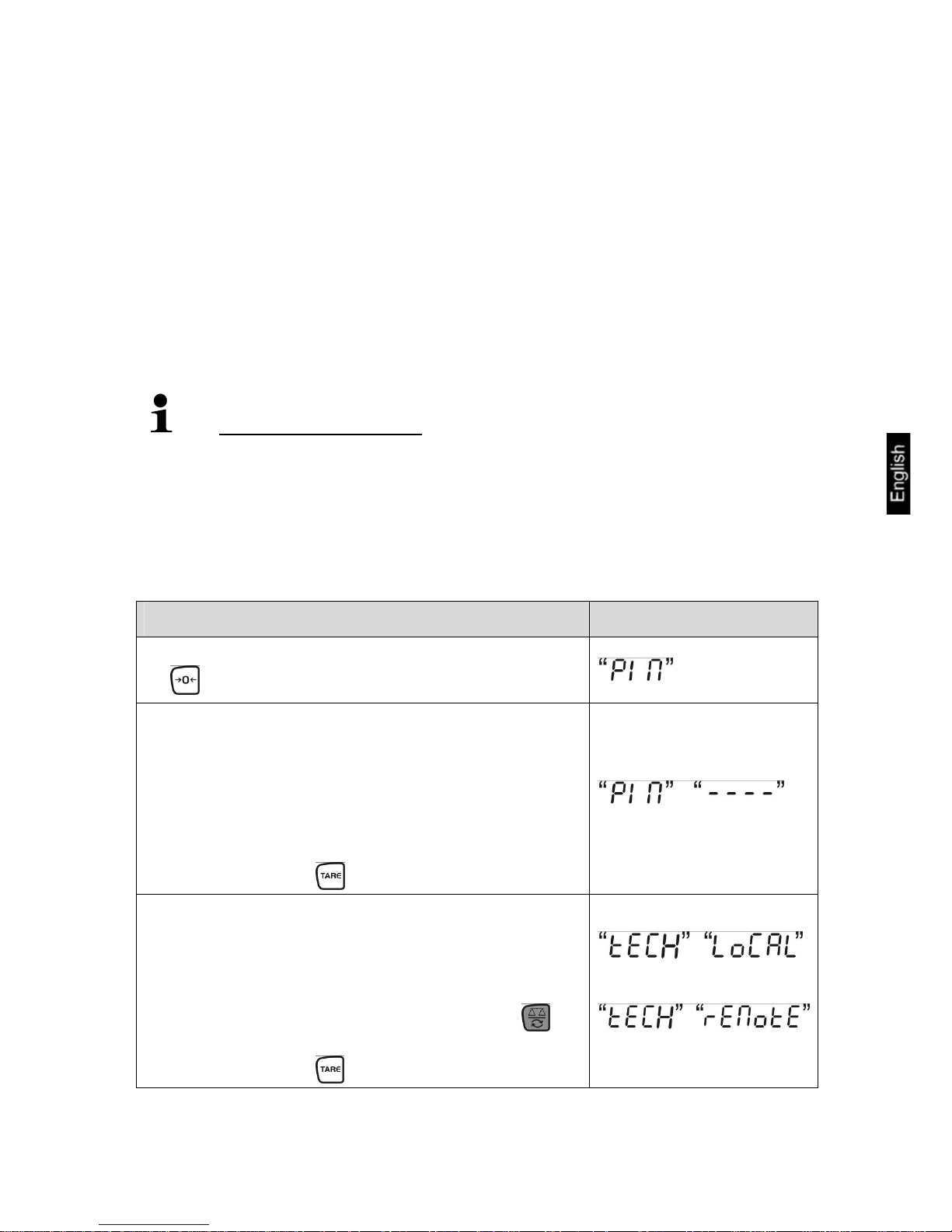

7.1 Adjustment models KERN CFS/CCS
Operation Display
Switch-on balance and during the self test press
.
Use the number keys to enter password:
Either
• Standard password „0000“
or
• personal password, input see chapter 13
Confirm input with .
When using as counting system, the bulk material
balance as well as the reference balance must be
adjusted. The adjustment process must be carried
out on both balances.
Select bulk material or reference balance via
.
The appeared [T] displays the current balance.
Acknowledge with
.
CFS/CCS-BA-e-1013 17

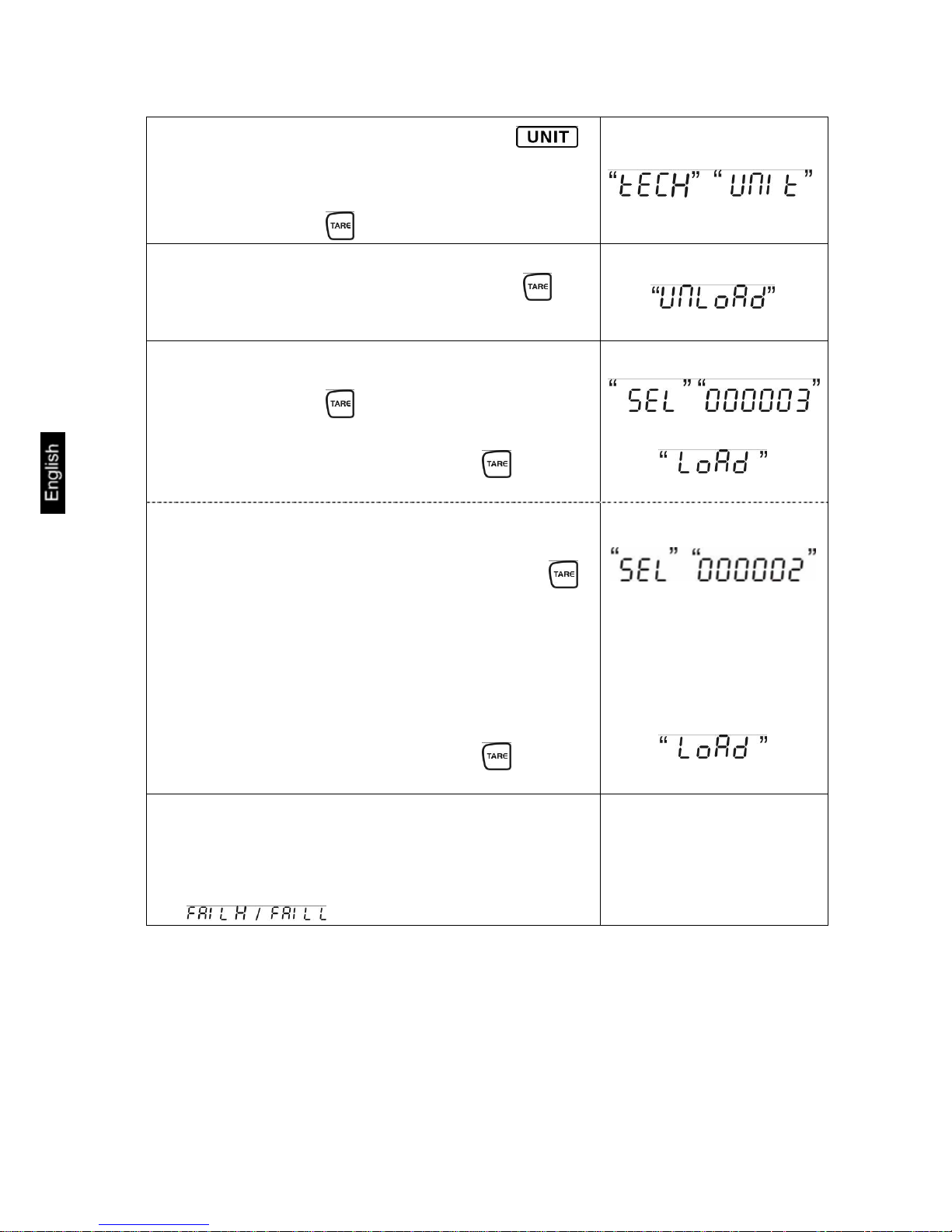

If necessary, at balance zero display using
select the weighing unit [kg or lb], which shall be
used for adjustment. The appeared [T] displays the
current weighing unit.
Acknowledge with .
Ensure that there are no objects on the weighing
plate. After successful stop check press the button.
The weight value of the required adjustment weight
will be displayed.
Acknowledge with
.
Place the required adjusting weight carefully in the
centre of the weighing plate and press to confirm.
or
Enter value of the necessary adjustment weight
using numeric keyboard and acknowledge with .
In order to achieve high-quality weighing results in
the sense of the measuring technology, it is recommended to select the nominal value as high as possible.
We recommend 80 % max.
Place the required adjusting weight carefully in the
centre of the weighing plate and press
to con-
firm.
After the adjustment the balance will carry out a self-
test. Remove adjusting weight during self test, balance will return into weighing mode automatically.
In case of an adjustment error or incorrect adjusting
weight the display will show an error message
( ), repeat adjustment process.
18 CFS/CCS-BA-e-1013
7.2 Adjustment bulk weighing balance, not preconfigured by KERN
Operation Display
Switch-on balance and during the self test press
.
Use the number keys to enter password:
Either
• Standard password „0000“
or
• personal password, input see chapter 13
Confirm input with .
Select bulk material balance using .
The appeared [T] displays the current balance.
Acknowledge with .
If necessary, at balance zero display using
select the weighing unit [kg or lb], which shall be
used for adjustment. The appeared [T] displays the
current weighing unit.
Acknowledge with .
Ensure that there are no objects on the weighing
plate. After successful stop check press the button.
Enter value of the necessary adjustment weight
using numeric keyboard and acknowledge with .
In order to achieve high-quality weighing results in
the sense of the measuring technology, it is recommended to select the nominal value as high as possible. We recommend 80 % max.
Place the required adjusting weight carefully in the
centre of the weighing plate and press
to con-
firm.
After the adjustment the balance will carry out a self-
test. Remove adjusting weight during self test,
balance will return into weighing mode automatically.
In case of an adjustment error or incorrect adjusting
weight the display will show an error message
(
), repeat adjustment process.
CFS/CCS-BA-e-1013 19
8 Basic Operation
8.1 Switching on/off
To switch-on actuate forward the switch-on/switch-out on the right lower side of
the balance. The balance will carry out a self-test The balance is ready for
weighing when the weight display appears.
To switch-off push backward the switch-on/switch-out on the right lower side of
the balance.
8.2 Zeroing
Resetting to zero corrects the influence of light soiling on the weighing plate. The
resetting range of the balance was adjusted to ± 2% max. by factory.
Further adjustments are possible in the menu, see chapter 13.
When using as counting system the zeroing range of both balances can be set in
the menu, see chapter 13.
Manual
Unload the balance
Press , the balance starts resetting to zero.
The [T] symbol over a appears.
Automatic
In the menu the automatic zero point correction can be switched off or the amount
can be changed, see chapter 13.
8.3 Switch over balance/weighing bridge
For piece counting a weighing bridge can be connected via the second balance interface. In the counting system KERN CCS the quantity counting is made on the
bulk material balance KERN KFP. The reference balance KERN CFS permits due
to its high resolution a very precise determination of the average piece weight.
The second balance can be operated in the same manner like the first balance.
20 CFS/CCS-BA-e-1013
By pressing the display changes from one to the other balance.

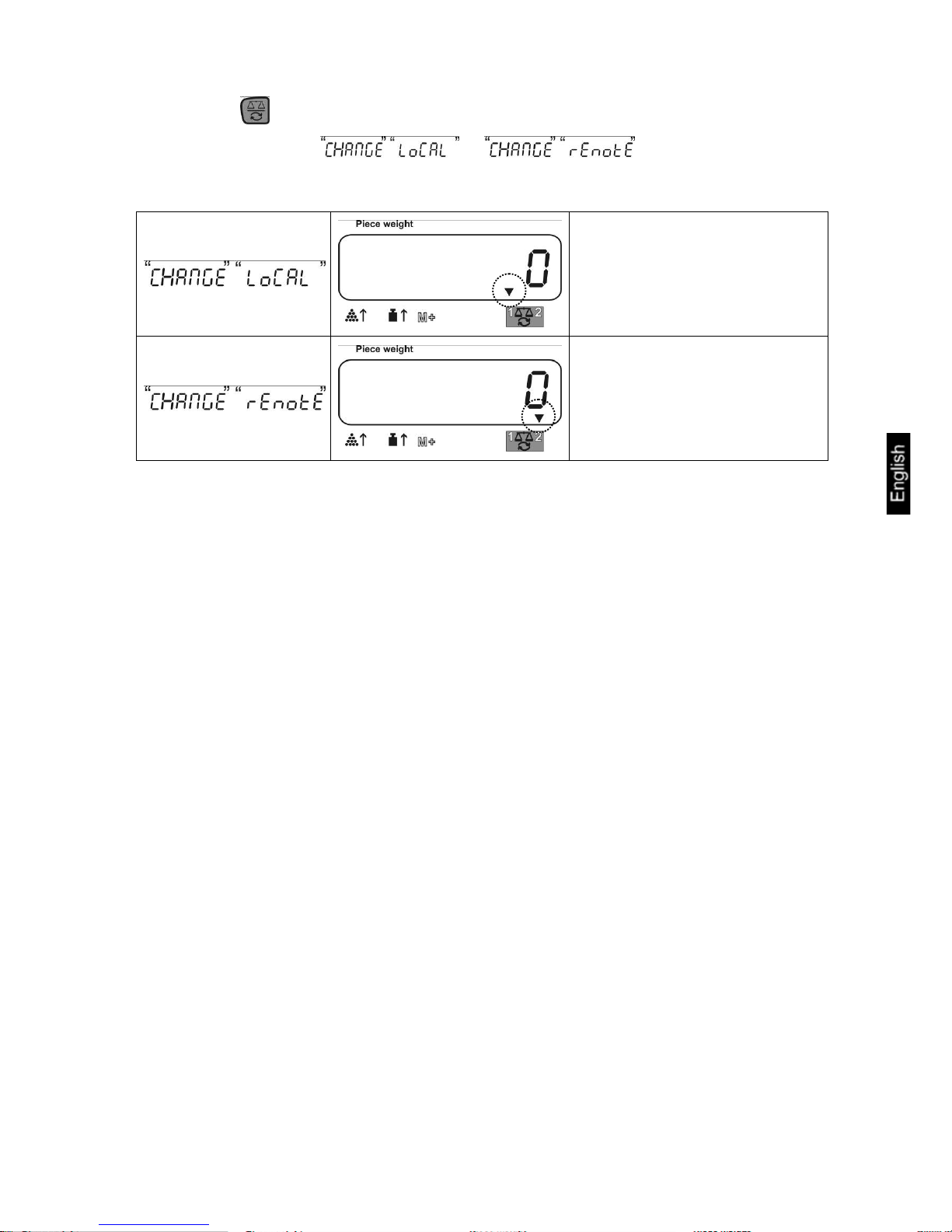

In the display appears or .
The appeared [T] displays the current balance.
(1) Reference balance KERN
CFS
(2) Bulk material balance KERN
KFP (counting system
CCS)
8.4 Weighing with tare
A tare value can be entered for the reference as well as for the bulk material balance. Before setting a tare value select an active balance,
see chpt 8.3
8.4.1 Taring
Deposit weighing vessel. After successful stop check press the TARE button.
The zero display and the [T] symbol over NET will appear.
The weight of the container is now internally saved.
Weigh the material, the net weight will be indicated.
The weight of the weighing container will be displayed as a minus number after
removing the weighing container.
To delete the tare value, remove load from weighing pan and press the TARE-
key.
The tare procedure can be repeated as many times as necessary, for example
with initial weighing of several components for a mix (add-on weighing). The limit
is reached when the total weighing range capacity is full.
CFS/CCS-BA-e-1013 21
8.4.2 Numeric entering of tare weight
Unload and reset to zero the balance
Enter known tare weight numerically with decimal dot and press .
The entered weight will be stored as tare weight and displayed with negative
sign.
The [T] symbol over NET appears.
Put the filled weighing container on the balance, the net weight will be displayed.
The tare value remains stored until it will be deleted by .
The tare value will be rounded up according to the readability of the balance,
e.g. at a balance 60 kg max/5 g readability the input value of 103 g will be
displayed as -105 g.
9 Adding
The balance can totalize weight values or piece quantities.
When using in the counting system, no matter, if the weighed goods are on the reference or on the bulk material balance.
Preparing:
When using as counting system select using the balance, on which will be
totalized. The appeared [T] displays the current balance.
When totalizing in counting mode set the average piece weight.
(see chpt. 10.1 or 10.2)
If necessary, tare the empty balance container.
9.1 Manual totalizing
With this function the individual weighing values are added into the summation
memory by pressing and edited, when an optional printer is connected.
• Menu settings:
„F1 off“ „ACC“ „ON“ and „F2 Prt“ „P mode“ „Print“ „Au OFF“,
see chpt. 12.2
• When using as counting system there can be totalized on the reference as
well as on the bulk material balance.
Before the totalizing process select the active balance, see chpt. 8.3.
22 CFS/CCS-BA-e-1013
Add up:
Place goods to be weighed A.
Wait until the stability display appears, then press . The weight value or the
number of items are stored and printed out.
Remove the weighed good. More weighed goods can only be added when the
display = zero.
Place goods to be weighed B.
Wait until the stability display appears, then press . The weight value or the
number of items are added in the summation memory and printed out. Total
weight, number of weighing procedures as well as total parts counting appear 2
sec.
Add more weighed goods as described before.
Please note that the balance must be unloaded between the individual weighing
procedures.
This process can be repeated 99 times or until the weighing range of the balance
is exhausted.
Display of the saved weighing data:
Press , the total weight, number of weighing procedures as well as total num-
ber of items are displayed.
Total weight placed on
balance:
Number of weighing
procedures:
Total number of pieces:
Delete weighing data:
Press
, the total weight, number of weighing procedures as well as total num-
ber of items are displayed. During this display press . The data in the summation memory are deleted.
CFS/CCS-BA-e-1013 23
24 CFS/CCS-BA-e-1013
1
2
3
4
5
6
7
8
Printout example:
1 LOCAL/REMOTE SCALE Active balance, see chpt. 8.3.
2 ID User identification number, see chapter 12.2
3 NET Currently placed net weight
4 U. W. Average piece weight (Unit weight)
5 PCS Currently placed number of pieces (Pieces)
6 TW Placed total weight (Total weight)
7 TPC Total number of pieces (Total pieces)
8 NO Number weighing processes
LOCAL SCALE
ID: 123ABC
0.9997 kg NET
10 g U.W.
100 PCS
TOTAL
_ _ _ _ _ _ _ _ _ _ _ _
4.400 kg TW
80 TPC
4 NO
9.2 Automatic adding-up
With this function the individual weighing values are automatically added into the
summation memory when the balance is unloaded without pressing and edited,
when an optional printer is connected.
• Menu settings:
„F1 off“ „ACC“ „ON“ and „F2 Prt“ „P mode“ „Print“ „Au ON“,
see chpt. 12.2
• When using as counting system there can be totalized on the reference as
well as on the bulk material balance.
Before the totalizing process select the active balance, see chpt. 8.3.
Add up:
Place goods to be weighed A.
After the standstill control sounds a signal tone. Unload the weighing good, the
weighing value is added into the summation memory and printed out.
Place goods to be weighed B.
After the standstill control sounds a signal tone. Unload the weighing good, the
weighing value is added into the summation memory and printed out.
Add more weighed goods as described before.
Please note that the balance must be unloaded between the individual weighing
procedures.
This process can be repeated 99 times or until the weighing range of the balance
is exhausted.
Display and delete the weighing data, as well as printout examples see chpt.
9.1.
CFS/CCS-BA-e-1013 25
10 Counting
During piece counting parts can either be counted into a container or out of a container. To count a greater number of parts the average weight per part has to be
determined with a small quantity (reference quantity). The larger the reference
quantity, the higher the counting exactness.
High reference must be selected for small parts or parts with considerably different
sizes.
The average piece weight can only be determined by stable
weighing values.
If weighing values are under zero, the piece counter display shows a
negative number of items.
The exactness of the average piece weight can be increased at any time
during piece counting, by entering the displayed number of items and con-
firming by . After the reference optimization sounds a signal tone. As
the additional pieces increase the base for the calculation, the reference
also becomes more exact.
10.1 Determination of the average piece weight by weighing
Set reference
Reset balance to zero or tare the empty weighing container if necessary.
Place on the weighing plate a known number (e.g. 10 items) of individual pieces
as a reference.
Wait for the stability display, than enter the number of individual items via the numeric keypad.
Confirm within 5 sec by pressing
.
The balance determines the average piece weight.
Count the items
Tare if necessary, place weighing good and read off the number of items.
When an optional printer is connected, the displayed value can be edited by
pressing (menu settings „P mode“ „Print“ „Au OFF“, chpt. 12.2).
26 CFS/CCS-BA-e-1013
10.2 Numeric input of the average piece weight
Set reference
Enter the average piece weight via the numeric keyboard and acknowledge within
5 sec using button .
If in the weight display as weighing unit [kg] is active, the average piece weight
will be displayed in [g]. If as weighing unit [lb] is active, the average piece weight
is also displayed in [lb].
Count the items
Tare if necessary, place weighing good and read off the number of items.
When an optional printer is connected, the displayed value can be edited by
pressing (menu settings „P mode“ „Print“ „Au OFF“, chpt. 12.2).
10.3 Automatic reference optimization
If at the reference determination the placed weight or the placed piece number is
too small, in the display of the average piece weight the triangle symbol will appear
over [ ] or [ ] .
To optimize the calculated average piece weight automatically, add further parts
whose number is smaller than that of the first reference determination. After the reference optimization sounds a signal tone. For each reference optimization the average piece weight is newly calculated. As the additional pieces increase the base for
the calculation, the reference also becomes more exact.
By pressing the
key, recalculation can be avoided and the reference weight can
be blocked.
Automatic reference optimization will be deactivated as soon as the number of
added parts exceeds the saved reference quantity.
CFS/CCS-BA-e-1013 27
10.4 Counting with counting system
y y
Bulk material balance e.g. KERN
KFP
Reference balance KERN CFS
• Here pieces of huge quantities will
be counted.
• Due to its high resolution it is useful
for accurate determination of the
average piece weight.
• Big parts (max > 3kg) are counted
on the weighing bridge.
• Smallest parts (max < 3kg) are
counted on the precise KERN CFS.
• If in the determination of the average piece weight no such high
resolution is asked for as that of
the KERN CFS, the reference
formation can also be made in the
bulk material balance.
Zählen mit Mengenwaage:
1. On the reference balance KERN CFS set average piece weight, see chpt. 10.1.
or chpt. 10.2.
2. Switch-over balance with , see chpt. 8.3
3. Put empty vessel on the weighing plate of the bulk material balance KERN KFP
and tare.
4. Fill counted quantity in the vessel on the bulk material balance. The piece number is shown in the display.
In order to avoid errors at the piece number determination, both balances
must be adjusted with the same acceleration due to gravity (see chpt. 7.1 or
chpt.7.2). In case of non-compliance counting errors will result!
28 CFS/CCS-BA-e-1013
11 Weighing to a certain target weight /target quantity and toler-
ance control
The balance allows weighing of goods to a certain target weight (net weight) or target piece number within defined tolerances. With this function one can also check if
the weighing good is within a defined tolerance range. Tolerance control is possible
in weighing or target mode.
Reaching the target value is indicated by an acoustic (if activated in menu) and an
optic signal (tolerance mark T).
11.1 Tolerance control in weighing mode
Operation Display
Press , the active tolerance weighing mode is
indicated.
If necessary, with "Tolerance control weighing
mode" select [ ]
Press , the currently set upper limit value is dis-
played.
Using numeric keyboard enter desired value or
delete using .
Press , the currently set lower limit value is dis-
played.
Using numeric keyboard enter desired value or
delete using .
Press , tolerance control is started. The T symbol over appears.
Place the weighing goods and with help of the tolerance mark T check if the net
weight of the weighed goods is under, within or over the specified tolerance.
Display of tolerance mark T, if weighing goods under the specified tolerance:
CFS/CCS-BA-e-1013 29
Display of tolerance mark T, if weighing goods within the specified tolerance:
Display of tolerance mark T, if weighing goods above the specified tolerance:
The indetermination if the goods to be weighed are within the tolerance limits, can
additionally be given by an acoustic signal (menu item „ „ see chpt. 12.2)
For tolerance control, just one limit value can be set.
If both limit values are deleted, the tolerance control is deactivated.
11.2 Tolerance control in counting mode
Operation Display
Press , the active tolerance weighing mode is
indicated.
If necessary, with "Tolerance control weighing
mode" select [ ]
Press , the currently set upper limit value is dis-
played.
Using numeric keyboard enter desired value e.g. 50
items or delete using
.
Press , the currently set lower limit value is dis-
played.
Using numeric keyboard enter desired value e.g. 40
items or delete using .
30 CFS/CCS-BA-e-1013
Press , tolerance control is started. The T symbol over appears.
Determine the average piece weight (see chpt. 10.1 or 10.2), place the weighing
goods and check using the tolerance mark T, if the number of the placed pieces
is under, within or above the specified tolerance.
Display of tolerance mark T, if weighing goods are under the specified tolerance
Display of tolerance mark T, if weighing goods within the specified tolerance
Display of tolerance mark T, if weighing goods above the specified tolerance:
The indetermination if the goods to be weighed are within the tolerance limits, can
additionally be given by an acoustic signal (menu item „ „ see chpt. 12.2)
For tolerance control, also only one limit value can be set.
If both limit values are deleted, the tolerance control is deactivated.
CFS/CCS-BA-e-1013 31
11.3 Data store (PLU = Product Look up)
The balance has more than 100 memory locations (PLU numbers) for often used
tare values, average piece weights and additional texts. These data can be calledup for a certain article by calling the respective PLU-number.
11.3.1 Save

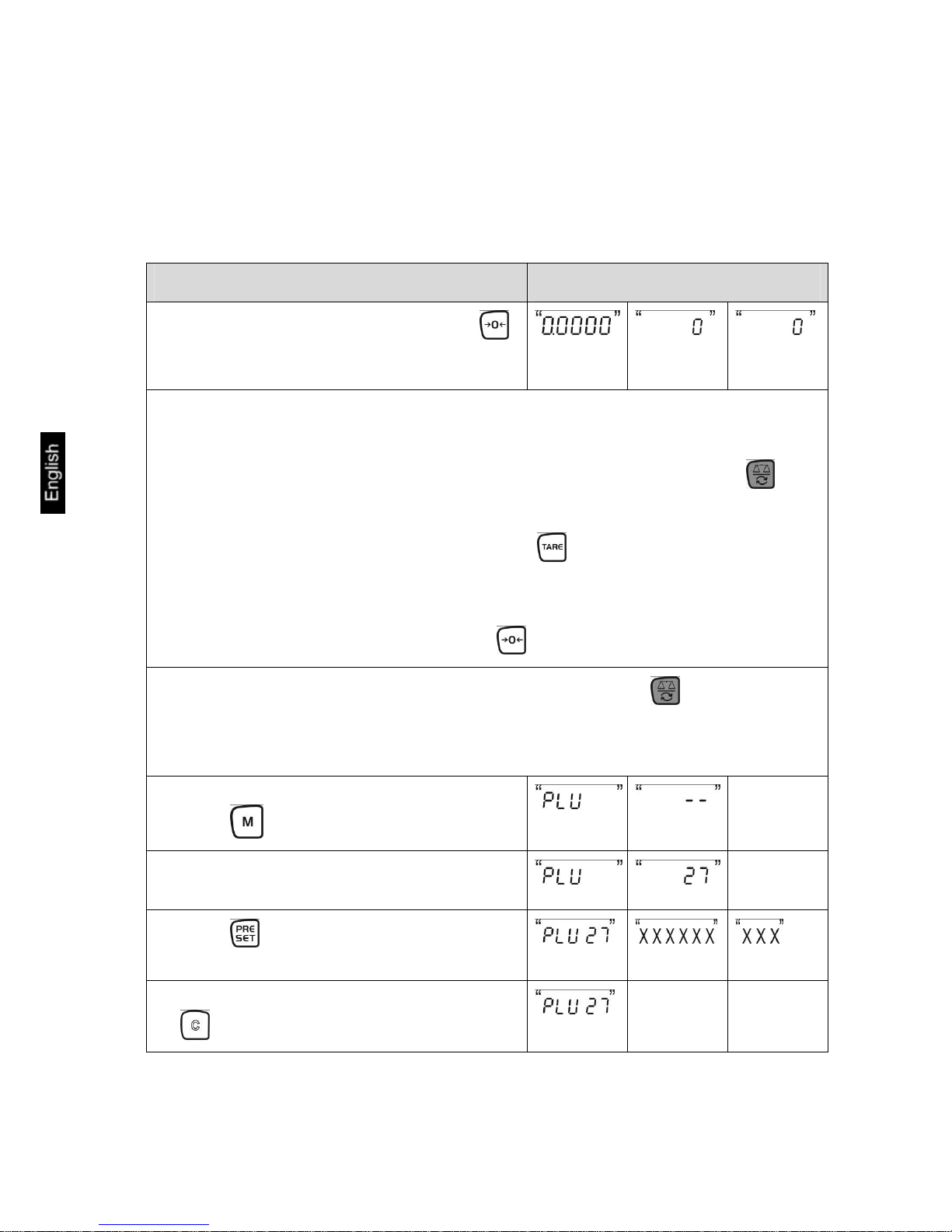

Operation Windows
1. If necessary set balance to zero using .
2. Tare, as required.
If it’s used as counting system, observe if bulk material or counting balance shall
be tared. Select using bulk material or reference balance accordingly via .
The appeared [T] displays the current balance.
Or place the weighing container and tare with (see chap. 8.4.1) or enter tare
value numerically (see chapter 8.4.2).
Tare values can only be saved when they are situated in the admitted taring range
(factory setting > 2 % max).
At values < 2 % max, reset balance with .
3. If used as a counting system select reference balance using .
4. Determine the average piece weight or by weighing (see chpt. 10.1) or enter via
numeric keyboard (see chpt. 10.2).
5. Enter memory location, e.g. B. PLU 27
Press
Via numeric keys "2" and "7" enter memory
location "27".
Press , the currently stored additional
text will appear. The first digit is flashing.
If necessary, delete additional text using
.
32 CFS/CCS-BA-e-1013

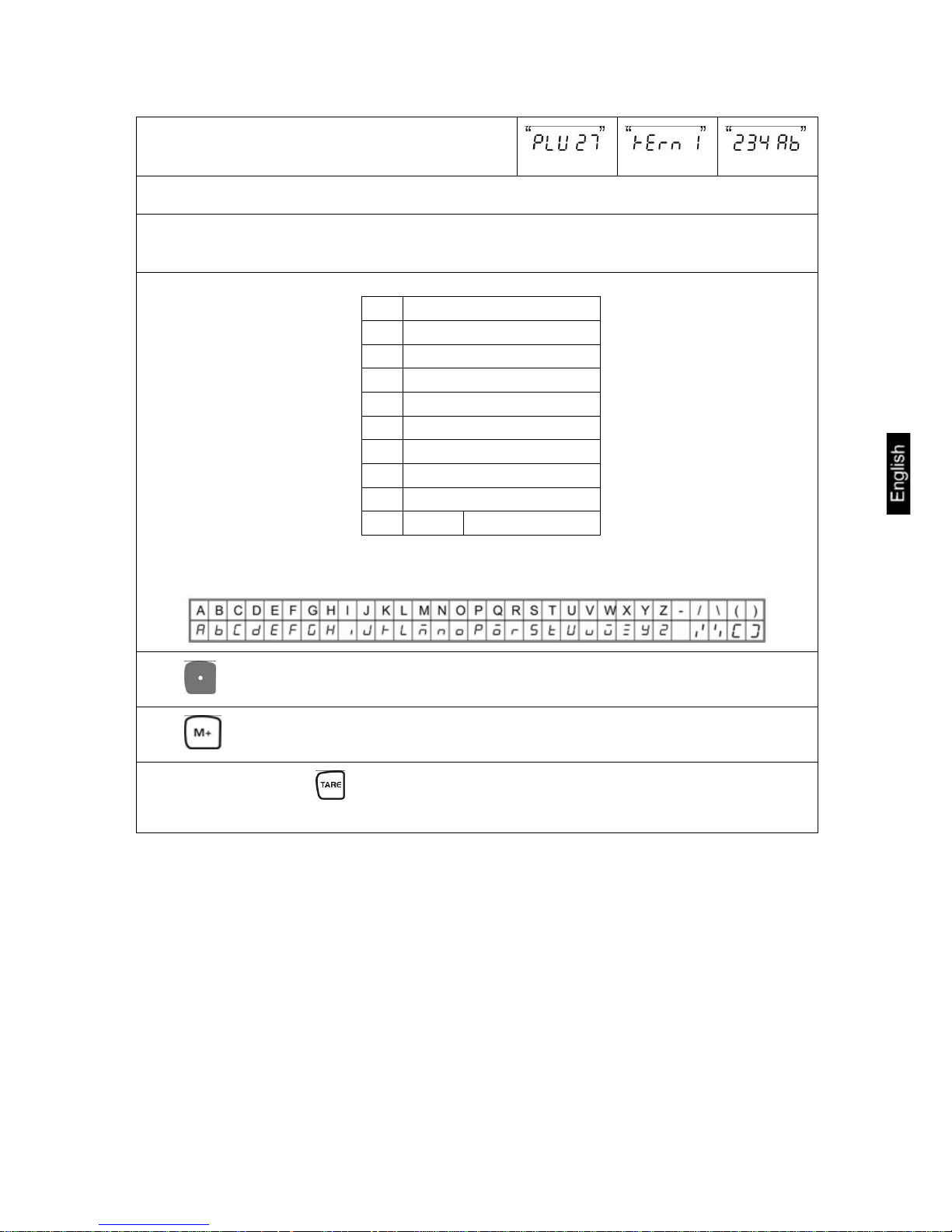

6. Enter the additional text as follows (max.
12 characters, e.g. "KERN 1234 AB").
For input of numbers, actuate shortly the numeric button
For input of letters press the numeric button and keep it pressed until the desired letter is displayed. The characters according to keyboard assignation run through.
1 - / \
2 A B C
3 D E F
4 G H I
5 J K L
6 M N O
7 P Q R S
8 T U V
9 W X Y Z
0 _ [ ] _ = Space
Overview data input / data output:
With number selection to the left, the respective active position flashes.
With number selection to the right, the respective active position flashes.
7. Confirm input with . The data are stored under the entered PLU-number; the
data can be called-up at any time by calling the respective PLU-number.
CFS/CCS-BA-e-1013 33

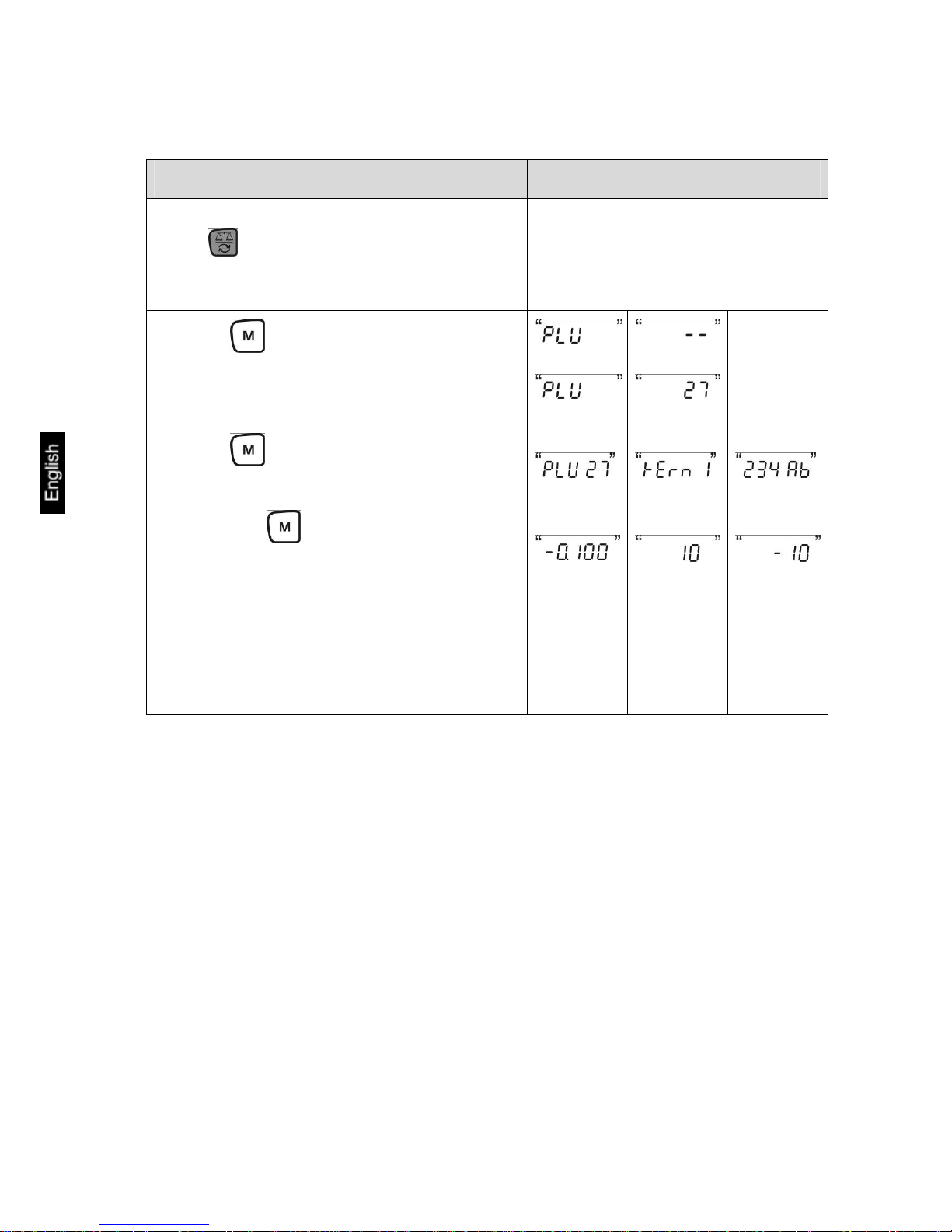

11.3.2 Calling up
Operation Windows
When using as counting system select us-
ing the balance, on which the tare
value is stored. The appeared [T] displays
the current balance.
Press
Via numeric keys "2" and "7" enter memory
location "27".
Press anew, the memory location and
the stored additional text are displayed for
1 s. If the data shall be displayed longer
time, keep pressed.
The display changes into the counting
mode, the stored tare value e.g. 100 g and
the average piece weight e.g. 10g /pce. are
displayed.
Place load on pan and read the number of
pieces.
34 CFS/CCS-BA-e-1013
11.3.3 Print
When connecting an optional printer, the data can be edited by pressing
Printout example:
1
2
3
4
5
6
LOCAL SCALE
ID: 123ABC
NAME: KERN 1234 AB
1.9003 kg NET
10 g U.W.
190 PCS
1 LOCAL/REMOTE SCALE Active balance, see chpt. 8.3.
2 ID User identification number, see chapter 12.2
3 NAME Additional text, see chpt. 11.3.1
4 NET Placed net weight
5 U. W. Average piece weight (Unit weight)
6 PCS Placed number of pieces (Pieces)
CFS/CCS-BA-e-1013 35
12 Menu
The menu is structured in the following menu blocks.
1.
Balance and application settings
2.
Settings serial interface
3.
Setting user identification number
4.
Setting balance identification number
5.
Configuration balance or balance bridge

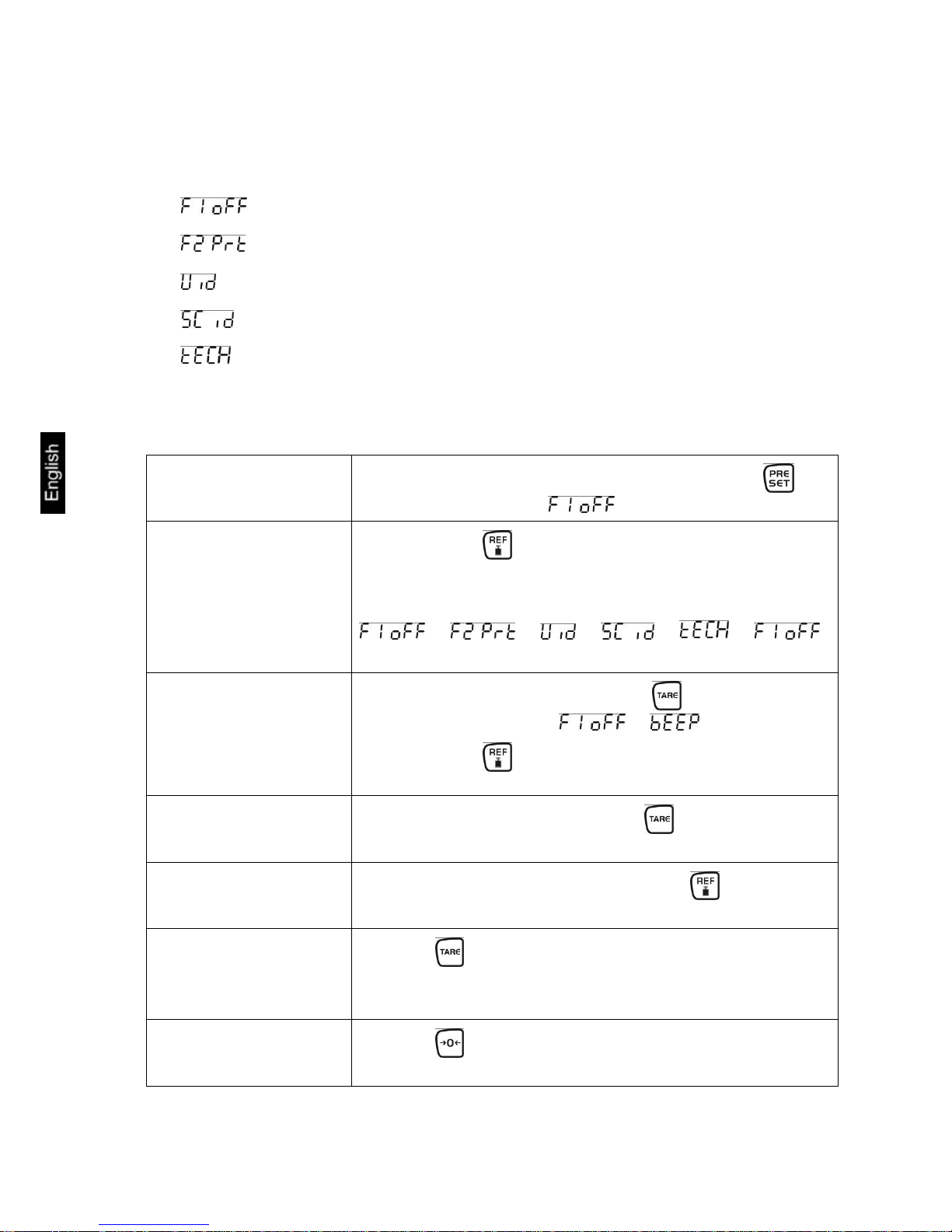

12.1 Navigation in the menu

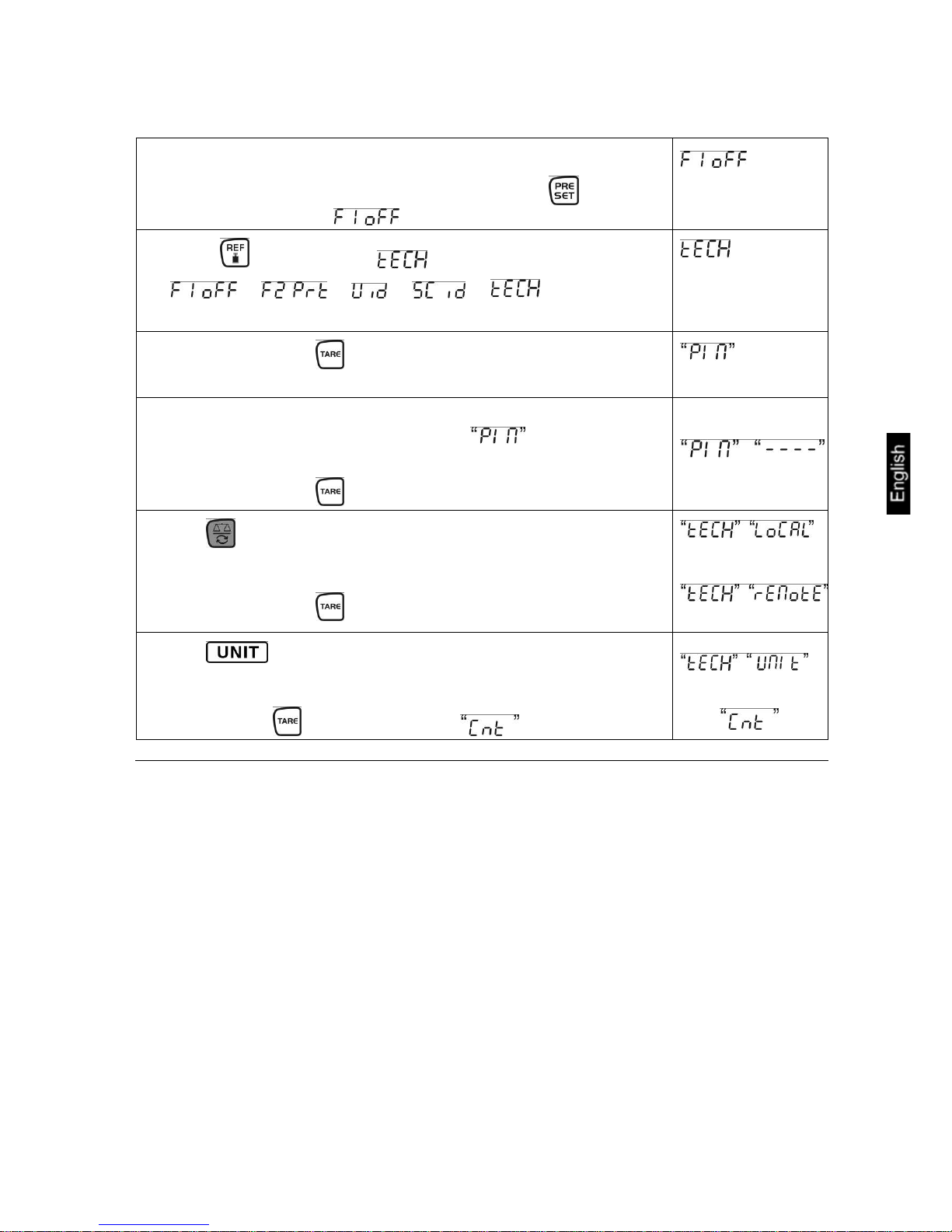

Call up menu
Switch-on balance and during the self test press .
The first menu block is displayed.
Select menu block
With help of , the individual menu blocks can be se-
lected one after the other.
Select menu item
Confirm selected menu block with . The first menu
item is displayed, e.g.
With help of
, the individual menu items can be se-
lected one after the other.
Select setting
Confirm selected menu item with
. The current set-
ting will be displayed.
Change settings
Switch into the available settings using .
Acknowledge setting /
exit the menu
Press , balance will return to submenu
Or make more adjustments in the menu or go back to
main menu using.
Return to weighing
mode
Press anew
36 CFS/CCS-BA-e-1013

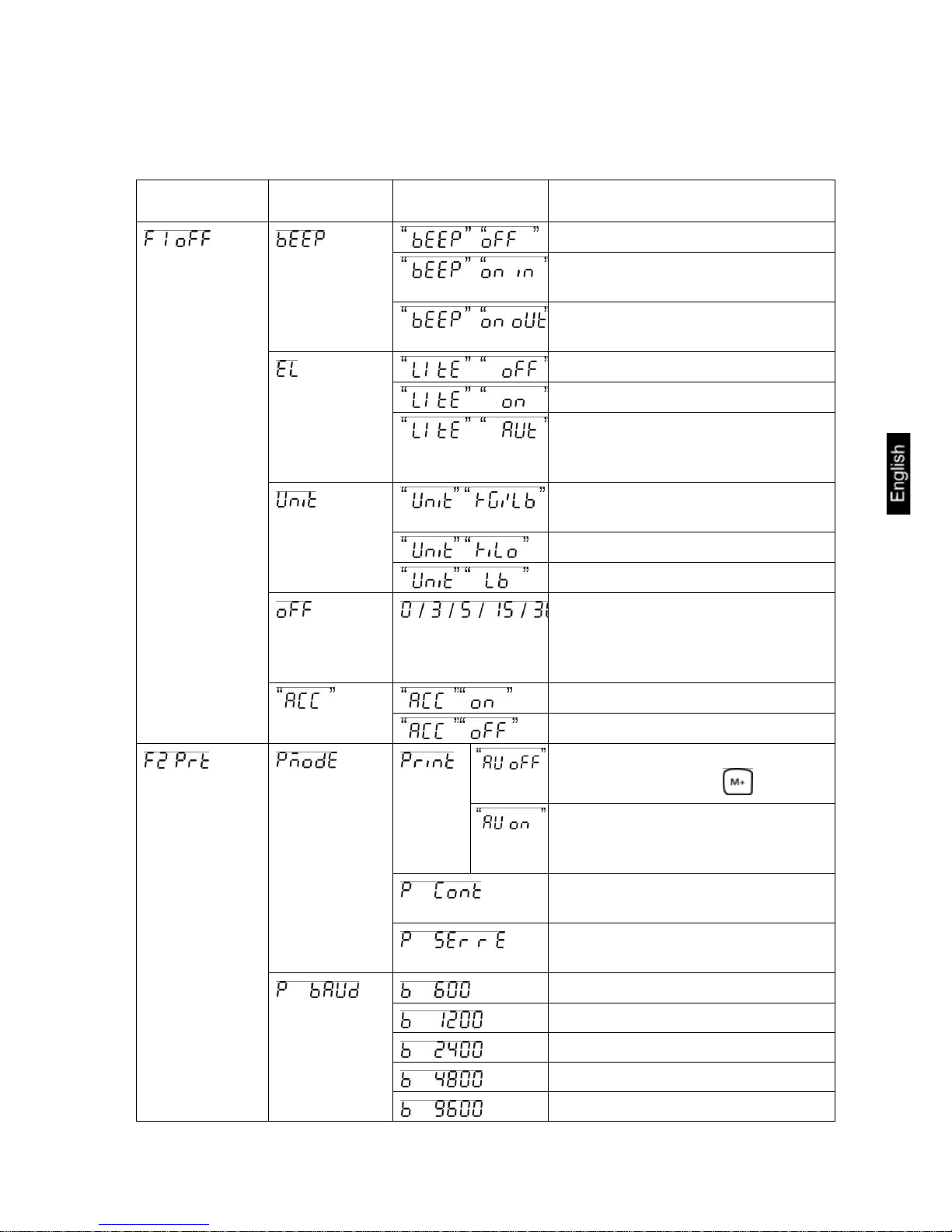

12.2 Menu overview
Menu block
main menu
Menu item
submenu
Disponible
adjustments
Explanation
Signal tone switched off
Signal tone on, if weighing value
within tolerance limits
Signal tone on, if weighing value
outside tolerance limits
Display background illumination off
Display background illumination on
Background illumination switches
on automatically when loaded or a
button is pressed
Weighing unit can be switched
over kg lb
Weighing unit "kg"
Weighing unit "lb"
Auto-off function, balance will
switch off automatically after the
set time.
Selectable 0/3/5/15/30 minutes.
Totalizing mode on
Totalizing mode off
Data output of stable weighing
values after pressing
Automatic data output of stable
weighing values after unloading
the balance
Continuous data output of all weighing
data, (totalizing deactivated)
Continuous data output only
weight value.
Baud rate 600
Baud rate 1200
Baud rate 2400
Baud rate 4800
Baud rate 9600
CFS/CCS-BA-e-1013 37
8 bits, no parity
7 bits, even parity
7 bits, odd parity
Standard printer setting
Not documented
Shows the current user identification number,
max. 6 characters, input see chpt. 11.3.1
Shows the current balance identification number,
max. 6 characters, input see chpt. 11.3.1
Details
see chpt. 13
password-protected
13 Configuration bulk material balance / technical parameters
Changes should only be carried out by trained specialized personnel.
Navigation in menu see chpt. 12.1
In factory the balance KERN CFS or the counting system KERN CCS are preconfigured in a way that normally no more changes will be necessary.
But if there are special conditions of use or if as bulk material balance an other
weighing bridge (not preconfigured by KERN) is connected, in the menu block
"
" the required settings can be made.
Technical data:
Supply voltage 5 VDC
Max. signal voltage 0-20 mV
Zeroing range 0-5 mv
Sensitivity > 0.02 μv
Resistance parameter 87 Ω Min., 4 x 350 Ω load cell
Connector 4 poles
Max. cable length 6 meter
Connection plug 9 pin d-subminiature bushing
38 CFS/CCS-BA-e-1013
Menu settings:
Call up menu
Switch-on balance and during the self test press .
The first menu block is displayed.
Press repeatedly until is displayed.
Acknowledge with . The request to enter the password ap-
pears.
Or as standard password enter four times zero "0000" or the
stored password (input see parameter
). Any other
password can be overwritten with "9999".
Acknowledge with .
Use to select the balance which should be configured (bulk
material/reference balance).
The appeared [T] displays the current balance.
Acknowledge with .
Use to select the weighing unit [kg or lb], where the
adjustment shall be made.
The appeared [T] displays the current weighing unit.
Confirm with , the first menu item appears.
CFS/CCS-BA-e-1013 39
Navigation in the menu
With help of , the individual menu items can be selected
one after the other.
Confirm selected menu item with . The current setting will
be displayed.
Switch into the available settings using .
Or store with or reject with .

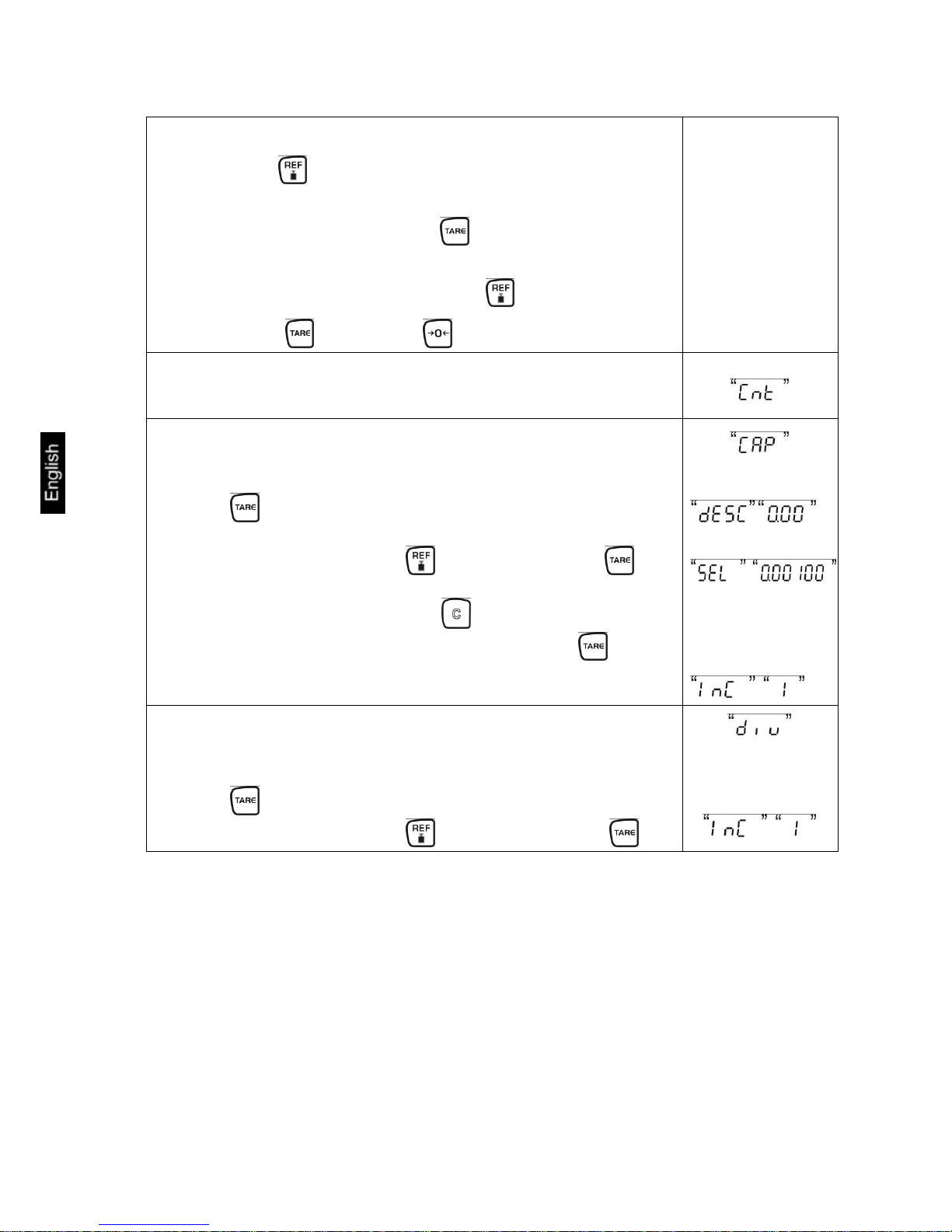

Parameter selection
1. Display internal resolution
2. Balance capacity.
Settings only possible on the bulk material balance.
Press , the currently set position of the decimal dot is dis-
played.
Select the desired setting by and acknowledge on .
The currently set capacity is displayed.
For changes delete display using and enter the desired
value via the numeric keyboard. Confirm input with .
The currently set readability is displayed, for changes see step
3 "Readability".
3. Readability
Display at selection
reference balance
Press , the currently set readability is displayed.
Select the desired setting by
and acknowledge on .
40 CFS/CCS-BA-e-1013
4. Automatic zero point correction (Autozero) by changing the
display, digits selectable (0.5d, 1d, 2d, 4d)
Press , the currently set value is displayed.
Press to select the desired setting (0.5d, 1d, 2d, 4d) and
acknowledge by pressing .
5. Zero setting range
Load range where the display after switching-on the balance is
set to zero
Press , the currently set zero setting range is displayed.
Press to select the desired setting (0 %, 2 %, 5 %, 10 , 20
%) and acknowledge by pressing .
6. Zero setting range
Load range where the display is set to zero by pressing
Press , the currently set auto-zero range is displayed.
Press to select the desired setting (0 %, 2 %, 5 %, 10 %,
20 %) and acknowledge by pressing .
CFS/CCS-BA-e-1013 41
7. Password input for menu block „
“
Press , is displayed. Use the numeric key-
board to enter the desired code and acknowledge with .
is displayed, request to repeat the password input.
Enter code anew and press to acknowledge. At successful
input, is displayed, at wrong input . In this
case repeat the code input.
14 Second balance interface
When using as counting system, the weighing bridge must be connected with a
suitable cable via the second-balance interface.
9 pin d-subminiature bushing of the
balance
Pin no.: Balance connection
Connection of weighing bridge KERN
KFP
Pin 1 or 2 EXC+ (5V)
Pin 4 or 5 EXC– (0)
Pin 7 SIG–
Pin 8 SIG+
see labelling of load cell
15 RS 232C interface
The balance is typically equipped with a RS 232C interface. Weighing data can be
edited according to menu setting or automatically or by pressing
via the interface.
This data exchange is asynchronous using ASCII - Code.
The following conditions must be met to provide successful communication between
the weighing balance and the printer.
• Use a suitable cable to connect the weighing balance to the interface of
the printer. Faultless operation requires an adequate KERN interface
cable.
• Communication parameters (baud rate, bits and parity) of balance and
printer must match. Detailed description of the interface parameters
see chpt. 11.2, Menu block " ".
42 CFS/CCS-BA-e-1013
CFS/CCS-BA-e-1013 43
15.1 Technical Data
Connector 9 pin d-sub bushing
Pin 2 output
Pin 3 input
Pin 5 signal earth
Baud rate
600/1200/2400/4800/9600
Parity
8 bits, no parity / 7 bits, even parity / 7 bits, odd parity
bold printed = factory setting
15.2 Remote control instructions
All inputs finish with <CR><LF> (carriage return / line feed).
At wrong inputs the command will be preceded by "ER", e.g. order "NN<CR><LF>",
error message "ER NN<CR><LF>".
15.2.1 Control commands
PLUxx Call-up PLU from data memory
T Tare placed weighing vessel
T123.456 Numeric tare value
Z Zeroing
P Print
M+ Add and print weighing data in the summation memory
MR Call-up data from memory
MC Delete memory
U123.456 Save the average piece weight 123.456 [g] or [lb]
S123 Input number of pieces e.g. 123 pieces
SL Reference balance
SR Bulk material balance
44 CFS/CCS-BA-e-1013
15.2.2 Printing commands
\L Selection reference or bulk material balance
\I User identification number
\S Balance identification number
\N Net weight
\G Gross weight
\U Average piece weight
\P Counting
\C Total number of pieces
\W Total weight
\M Number weighing processes
\B Insert space line
16 Service, maintenance, disposal
16.1 Cleaning
Before cleaning, disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a
cloth dampened with mild soap suds. Take care that the device is not penetrated by
fluids and polish it with a dry soft cloth.
Loose residue sample/powder can be removed carefully with a brush or manual
vacuum cleaner.
Spilled weighing goods must be removed immediately.
16.2 Service, maintenance
The appliance may only be opened by trained service technicians who are authorized by KERN.
Before opening, disconnect from power supply.
16.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to
valid national or regional law of the location where the appliance is used.
CFS/CCS-BA-e-1013 45
17 Instant help
In case of an error in the program process, briefly turn off the balance and disconnect from power supply. The weighing process must then be restarted from the beginning.
Fault Possible cause
• The balance is not switched on.
• The mains supply connection has been interrupted
(mains cable not plugged in/faulty).
• Power supply interrupted.
• (Rechargeable) batteries are inserted incorrectly or
empty
The displayed weight does
not glow.
• No (rechargeable) batteries inserted.
• Draught/air movement
• Table/floor vibrations
The displayed weight is
permanently changing
• Weighing plate has contact with other objects.
• Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
• The display of the balance is not at zero
• Adjustment is no longer correct.
The weighing result is obviously incorrect
• Great fluctuations in temperature.
• Warm-up time was ignored.
• Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
17.1 Error messages
Error message Description Possible causes
Zeroing range exceeded
due to switching-on balance
or pressing (normally
4% max)
• Object on the weighing
plate
• Overload when zeroing
• Improper adjustment
• Damaged weighing cell
• Damaged electronics
Keyboard error
• Improper operation of
the balance
Value outside the A/D
changer range
• Weighing plate not installed
• Damaged weighing cell
• Damaged electronics
Adjustment error
• Improper adjustment
Should other error messages occur, switch balance off and then on again. If the
error message remains inform manufacturer.
46 CFS/CCS-BA-e-1013
Loading...
