Operating manual
Floor scales
KERN BIC
Version 1.0
2 BIC-BA-e-1610
GB
KERN BIC
Version 1.0 09/2016
Operating instructions Floor scales
Contents
1 Technical data ................................................................................................... 4
2 Appliance overview display unit ...................................................................... 6
2.1 Keyboard overview .................................................................................................... 7
3 Basic Information (General ) ............................................................................. 7
3.1 Proper use ................................................................................................................. 7
3.2 Improper Use ............................................................................................................. 7
3.3 Warranty .................................................................................................................... 8
3.4 Monitoring of Test Resources .................................................................................... 8
4 Basic Safety Precauti on s .................................................................................. 9
4.1 Pay attention to the instructions in the Operation Manual .......................................... 9
4.2 Personnel training ...................................................................................................... 9
5 Transport and storage ...................................................................................... 9
5.1 Testing upon acceptance ........................................................................................... 9
5.2 Packaging / return transport ....................................................................................... 9
6 Unpacking and placing ................................................................................... 10
6.1 Installation Site, Location of Use ...............................................................................10
6.2 Unpacking/installation ...............................................................................................10
6.3 Scope of delivery / serial accessories: ......................................................................10
6.4 Mains connection ......................................................................................................10
6.5 Adjustment ................................................................................................................11
7 Operation ......................................................................................................... 13
7.1 Start-up .....................................................................................................................13
7.2 Switching Off ............................................................................................................
13
7.3 Zeroing .....................................................................................................................13
7.4 Simple weighing ........................................................................................................13
7.5 Weigh ing with tare ....................................................................................................14
7.6 Hold function (animal weighing function) ...................................................................15
8 Menu ................................................................................................................. 16
8.1 Navigation in the menu .............................................................................................16
8.2 Menu overview..........................................................................................................17
9 Servicing, maintenance, disposal .................................................................. 18
9.1 Cleaning ...................................................................................................................18
BIC-BA-e-1610 3
9.2 Servicing, maintenance .............................................................................................18
9.3 Disposal ....................................................................................................................18
10 Error messages, troubleshooting guide .................................................... 19
11 Declaration of conformity ........................................................................... 20
4 BIC-BA-e-1610
1 Technical data
KERN BIC 600K-1S BIC 600K-1 BIC 1T-4S
Readability (d) 100 g; 200 g 100 g; 200 g 200 g; 500 g
Weighing range (max) 300 kg; 600 kg 300 kg; 600 kg 600 kg; 1,500 kg
Reproducibility 100 g; 200 g 100 g; 200 g 500 g
Linearity ± 300g; 600 g ± 300g; 600 g ± 1 kg
Recommended
adjustment weight, not
added (class)
600 kg
(M2)
600 kg
(M2)
1.5t
(M2)
Warm-up time 10 minutes
Stabilization time (typical) 2 s
Weighing unit kg, lb
Auto Off 3 min.
Ambient temperature -10°C – 40°C
Humid environment 0 % - 80 % (non-condensing)
Electric Supply
Input voltage 100 V - 240 V, 50 / 60 Hz
Power pack secondary voltage 9V, 100mA
Dimensions display unit
(B x D x H) mm
235 x 114 x 51 235 x 114 x 51 235 x 114 x 51
Weighing surface mm 1000 x 1000 1200×1500 1000 x 1000
Net weight kg 130 150 130
BIC-BA-e-1610 5
KERN BIC 1T-4 BIC 3T-3 BIC 3T-3L
Readability (d) 200 g; 500 g 500 g; 1,000 g 500 g; 1,000 g
Weighing range (max) 600 kg; 1,500 kg 1,500 kg; 3,000
kg
1,500 kg; 3,000
kg
Reproducibility 500 g 500 g; 1,000 g 500 g; 1,000 g
Linearity ± 1 kg ± 1.5 kg; 3 kg ± 1.5 kg; 3 kg
Recommended
adjustment weight, not
added (class)
1.5t
(M2)
3000 kg
(M2)
3000 kg
(M2)
Warm-up time 10 minutes
Stabilization time (typical) 2 s
Weighing unit kg, lb
Auto Off 3 min.
Ambient temperature
-10℃ – 40℃
Humid environment 0 % - 80 % (non-condensing)
Electric Supply
Input voltage 100 V - 240 V, 50 / 60 Hz
Power pack secondary voltage 9V, 100mA
Dimensions display unit
(B x D x H) mm
235 x 114 x 51 235 x 114 x 51 235 x 114 x 51
Weighing surface mm 1200×1500 1200×1500 1500 x 1500
Net weight kg 150 150 150
6 BIC-BA-e-1610
2 Appliance overview display unit
1. Weight display
2. Buttons
3. Battery compartment
4. Guide rail support base / stand
5. End stop support base / stand
6. Mains adapter connection
7. Connection load cell cable
BIC-BA-e-1610 7
2.1 Keyboard overview
Button Function
Turn on/off balance
Hold/ animal weighing function
Tare balance
Switch-over weighing unit
Back to weighing mode, or menu
3 Basic Information (General)
3.1 Proper use
The display unit acquired by you is used in combination with a weighing plate and
serves to determine the weighing value of material to be weighed. It is intended to be
used as a “non-automatic weighing system”, i.e. the material to be weighed is
manually and carefully placed in the centre of the weighing plate. As soon as a stable
weighing value is reached the weighing value can be read.
3.2 Improper Use
Do not use display unit for dynamic weighing. In the event that small quantities are
removed or added to the material to be weighed, incorrect weighing results can be
displayed due to the “stability compensation“ in the display unit. (Example: Slowly
draining fluids from a container on the balance.)
Do not leave permanent load on the weighing pan. This may damage the measuring
system.
Impacts and overloading exceeding the stated maximum load (max) of the weighing
plate, minus a possibly existing tare load, must be strictly avoided. Both, the weighing
plate and the display unit may be damaged during this process.
Never operate display unit in explosive environment. The serial version is not
explosion protected.
Changes to the display unit's design are not permitted. This may lead to incorrect
weighing results, safety-related faults and destructi on o f the dis pl ay unit.
The display unit may only be operated in accordance with the described default
settings. Other areas of use must be released by KERN in writing.
8 BIC-BA-e-1610
3.3 Warranty
Warranty claims shall be voided in case
• Our conditions in the operation manual are ignored
• The appliance is used outside the described uses
• The appliance is modified or opened
• Mechanical damage or damage by media, liquids, natural wear and tear
• The appliance is improperly set up or incorrectly electrically connected
• The measuring system is overloaded
3.4 Monitoring of Test Resources
In the framework of quality assurance the measuring-related properties of the display
unit and, if applicable, the testing weight, must be checked regularly. The
responsible user must define a suitable interval as well as type and scope of this
test. In KERN’s accredited DKD calibration laboratory test weights and display
units may be calibrated (return to the national standard) fast and at moderate cost.
BIC-BA-e-1610 9
4 Basic Safety Precautions
4.1 Pay attention to the instructions in the Operation Manual
Carefully read this operation manual before setup and
commissioning, even if you are already familiar with KERN
balances.
4.2 Personnel training
The appliance may only be operated and maintained by trained personnel.
5 T ransport and storage
5.1 Testing upon acceptance
When receiving the appliance, please check packaging immediately, and the
appliance itself when unpacking for possible visible damage.
5.2 Packaging / return transport
Keep all parts of the original packaging for a possibly
required return.
Only use original packaging for returning.
Prior to dispatch disconnect all cables and remove
loose/mobile parts.
Reattach possibly supplied transport securing devices.
Secure all parts such as the glass wind screen, the
weighing platform, power unit etc. against shifting and
damage.
10 BIC-BA-e-1610
6 Unpacking and placing
6.1 Installation Site, Location of Use
The display units are designed in a way that reliable weighing results are achieved in
common conditions of use.
Precise and fast work is achieved by selecting the right place for your display unit
and your weighing plate.
On the installation site observe the following:
• Place the display unit and the weighing plate on a stable, even surface.
• Avoid extreme heat as well as temperature fluctuation caused by installing
next to a radiator or in the direct sunlight;
• Protect the display unit and the weighing plate against direct draft from open
windows or doors.
• Avoid jarring during weighing;
• Protect the display unit and the weighing plate against high humidity, vapours
and dust.
• Do not expose the display unit to extreme dampness for longer periods of
time. Non-permitted condensation (condensation of air humidity on the
appliance) may occur if a cold appliance is taken to a considerably warmer
environment. In this case, acclimatize the disconnected appliance for approx.
2 hours at room temperature.
• Avoid static charge of goods to be weighed or weighing container.
Major display deviations (incorrect weighing results) may be experienced should
electromagnetic fields (e.g. due to mobile phones or radio equipment), static
electricity accumulations or instable power supply occur. Change location or remove
source of interference.
6.2 Unpacking/installation
Carefully remove the display unit from packaging, remove plastic cover and place it
in the designated work area.
Mount the display unit in a way that facilitates operation and where it is easy to see.
Push support base in guide rail [11] up to end stop [12], see chap. 2.
6.3 Scope of delivery / serial accessories:
• Display Unit
• Platform
• Mains adapter
• Operating manual
Accurate weighing results require a balance with perfect horizontal alignment.
During initial installation and after each change of work area it is necessary to level
the balance.
6.4 Mains connection
Power is supplied via the external mains adapter. The stated voltage value must be
the same as the local voltage. Only use original KERN mains adapters. Using other
makes requires consent by KERN.
BIC-BA-e-1610 11
6.5 Adjustment
As the acceleration value due to gravity is not the same at every location on earth,
each display unit with connected weighing plate must be coordinated - in compliance
with the underlying physical weighing principle - to the existing acceleration due to
gravity at its place of location (only if the weighing system has not already been
adjusted to the location in the factory). This adjustment process must be carried out
for the first commissioning, after each change of location as well as in case of
fluctuating environment temperature. To receive accurate measuring values it is also
recommended to adjust the display unit periodically in weighing operation.
• The adjustment weight to be used depends on the capacity of the
weighing system. Carry out adjustment as near as possible to the
weighing system’s maximum weight.
•
Observe stable environmental conditions. Stabilisation requires a certain
warm-up time.

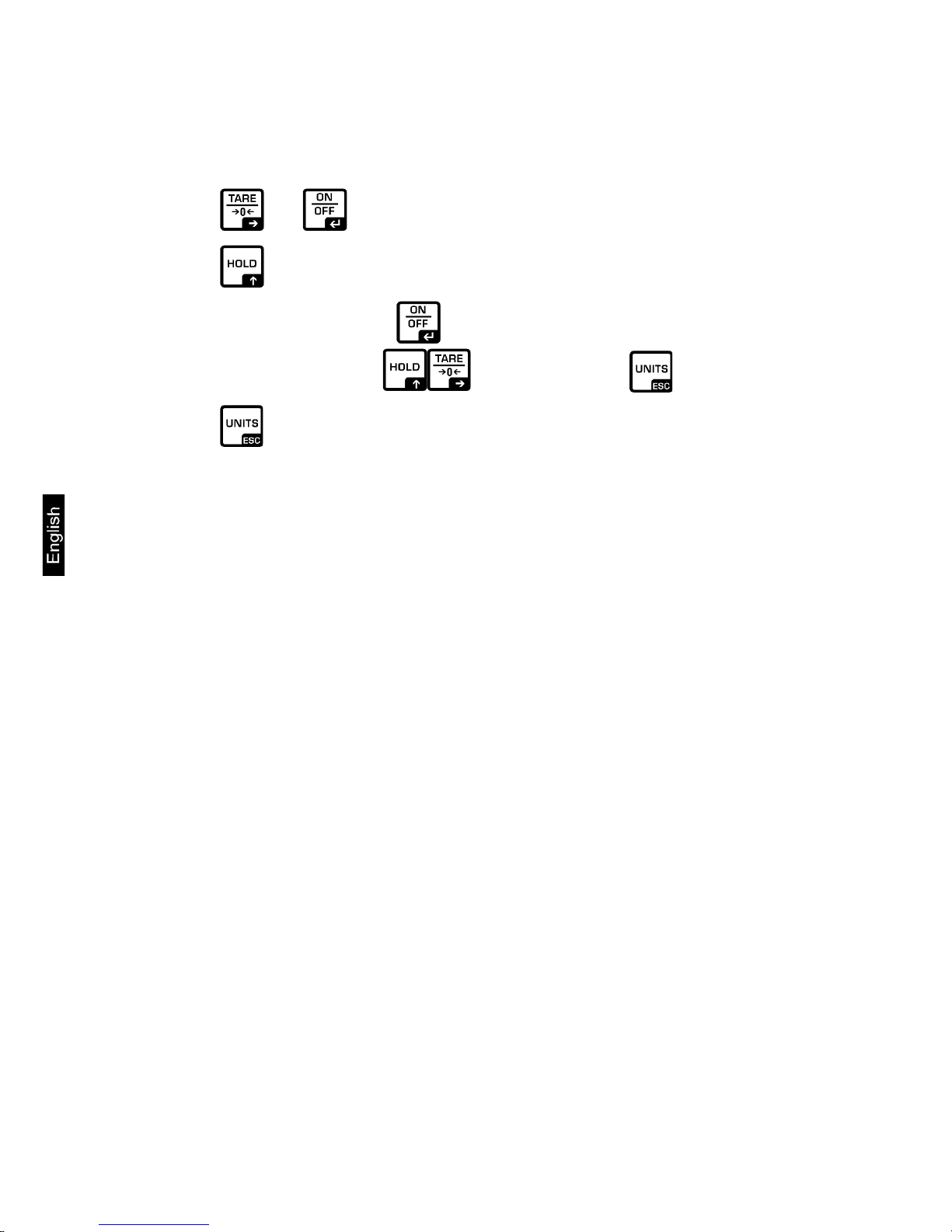

Press and at the same time in weighing
mode. [ECF 1] is displayed.
(The adjustment process can be exited at any time with . The balance returns then to
weighing mode.)
Confirm display of [ECF 1] with . [CAL Z] is
displayed.
Acknowledge with . [--------] followed by [LOAdi] will
be displayed briefly. Then the display to input the
recommended adjustment weight is displayed (see chap. 1
"Technical data")
The left digit flashes.
Enter the value of the adjustment weight as follows:
Switch to the next digit to the right with .
Increase number with .
Confirm the value entered with .
(example)
12 BIC-BA-e-1610
The specified adjustment weight is displayed flashing.
(example)

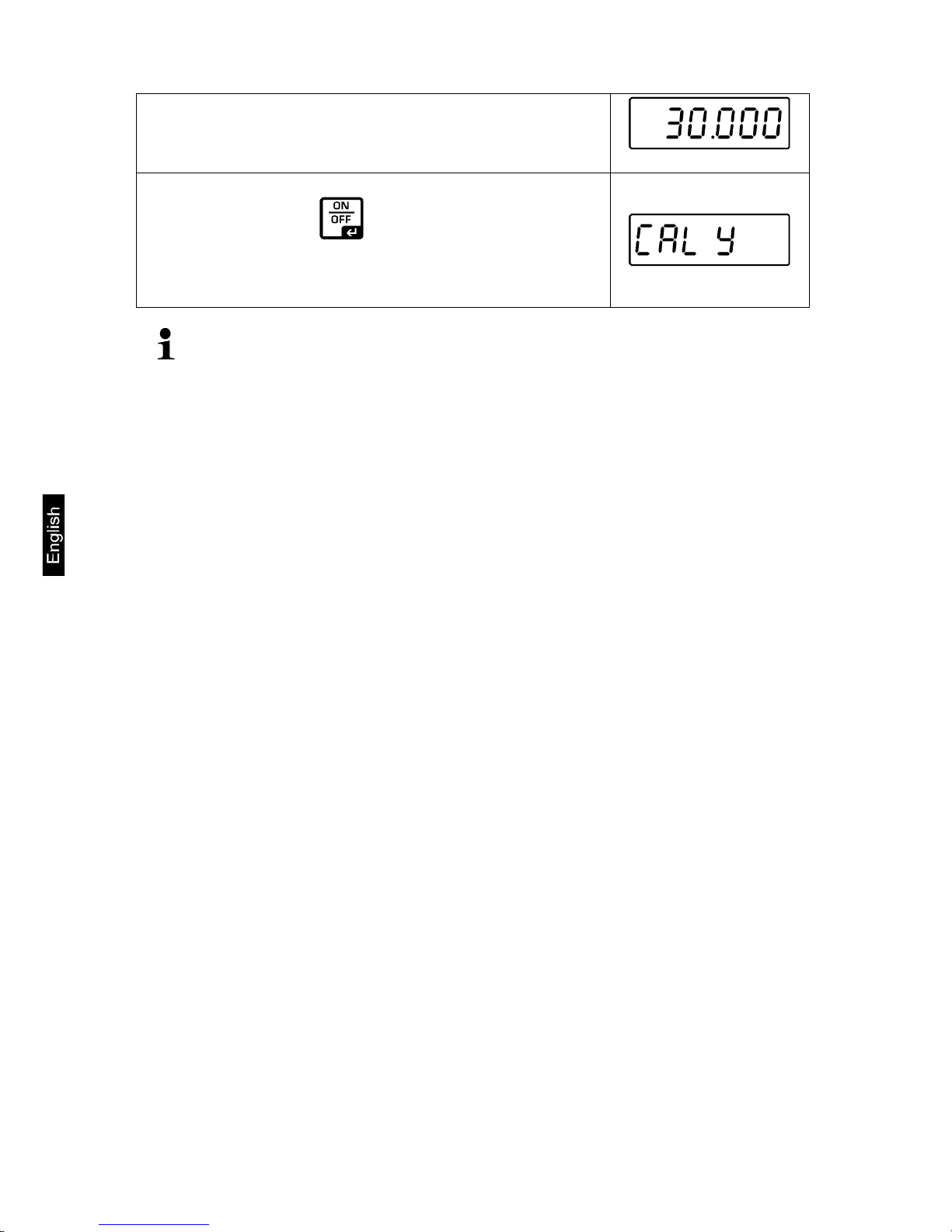

Place the adjustment weight centrically on the weighing
plate and confirm with . "CAL Y" will flash briefly and
a signalling tone will sound. Adjustment will be performed.
Then the balance returns automatically into the weighing
mode.
An error message will be displayed in the event of an adjustment error or
incorrect adjustment weight. Remove the adjustment weight and repeat the
adjustment process.
Keep the adjustment weight close to the balance. Daily control of the
weighing exactness is recommended for quality-relevant applications.
BIC-BA-e-1610 13
7 Operation
7.1 Start-up

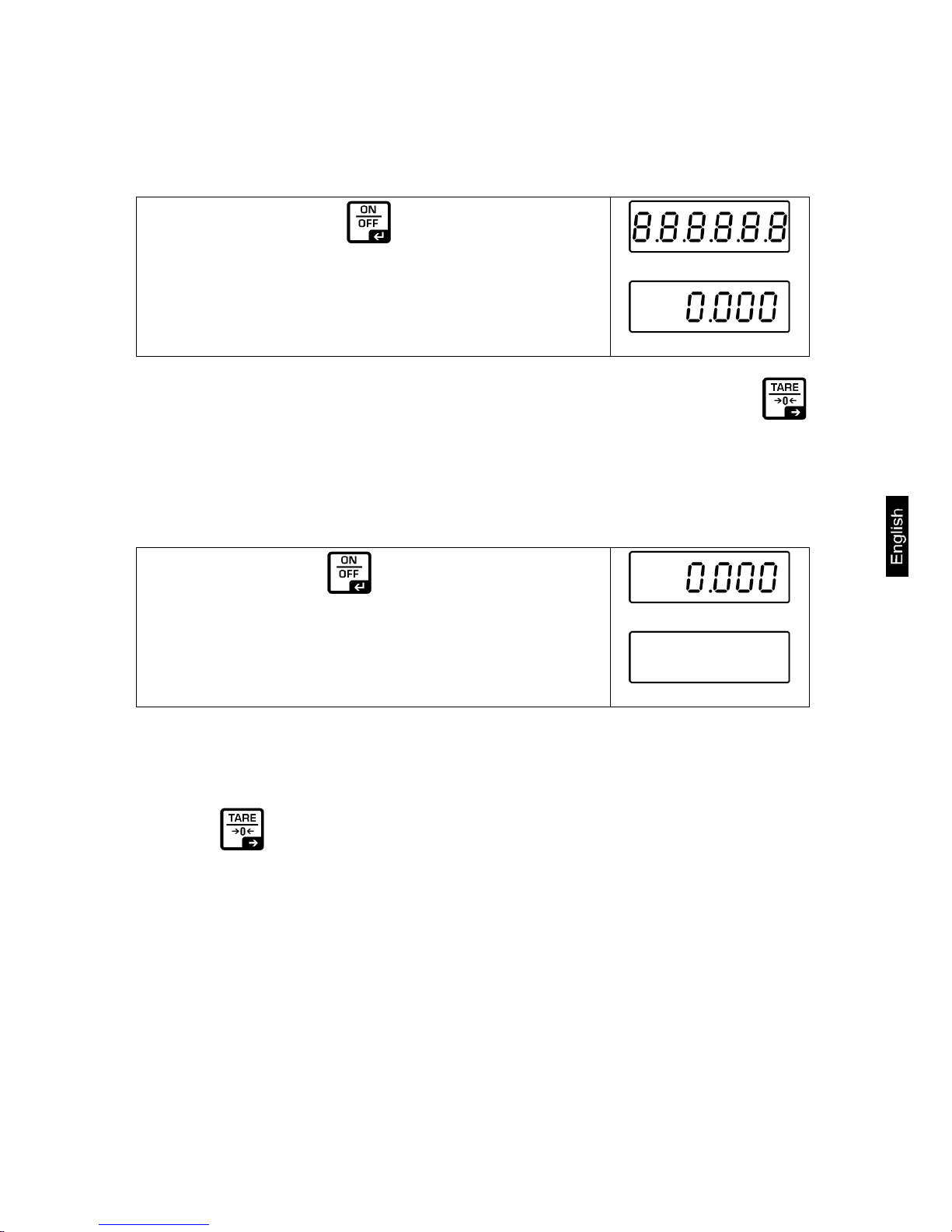

Start balance by pressing .
The balance will carry out a self-test As soon as the weight
display appears, the balance is ready for weighing.
Should the balance not display exactly zero despite empty scale pan, press the
button. The balance will be set to zero after a short standby time.
7.2 Switching Off
Switch off balance with , the display will go off.
7.3 Zeroing
Resetting to zero corrects the influence of light soiling on the weighing plate.
To unload the weighing system
Press , the zero display appears.
7.4 Simple weighing
Place goods to be weighed on balance.
Wait for stability display [].
Read weighing result.
14 BIC-BA-e-1610
Overload warning
Overloading exceeding the stated maximum load (max) of the device, minus a
possibly existing tare load, must be strictly avoided. This could damage the
instrument.
Exceeding maximum load is indicated by the display of „LLLLLL“, and a signal
sound. Unload weighing system or reduce preload.
7.5 Weighing with tare
Place an empty weighing container, the weight of the
weighing container will be displayed.
Press , the zero display appears. The indicator [NET]
is displayed. The tare weight is saved until it is deleted.
Weigh the material, the net weight will be indicated.
The taring process can be repeated any number of
times, e.g. when adding several components for a
mixture (adding). The limit is reached when the whole
weighing range is exhausted.
After removing the weighing container, the weight of
the weighing container appears as negative display.
The tare weight is saved until it is deleted.
Delete tare value:
Unload the balance and press , zero display will
appear.
BIC-BA-e-1610 15
7.6 Hold function (animal weighing function)
The balance has an integrated animal weighing function (mean value calculation).
Using this function it is possible to weigh domestic or small animals exactly (min. load
1% of the max. one), although they do not stand quiet on the weighing plate.
Place weighing goods and press . The display will be
blinking [-HOLD-] and the indicator [hold] appears. During
this time the balance takes up several measured values
and displays then the calculated mean value.
This value will be displayed until you press again.
The indicator [hold] turns off, the balance will return to the
normal weighing mode.
By pressing again, this function can be repeated any
number of times.
(example)
There is no average value calculation in the event of too much movement
(heavy display oscillation).
16 BIC-BA-e-1610
8 Menu
8.1 Navigation in the menu
Press and at the same time in weighing mode. [UF 1] is displayed.
Press as often as necessary until the required function is displayed.
Confirm selected function by . The current setting will be displayed. Select
the desired parameter with . Return to menu by .
Press to exit the menu. The balance returns automatically into weighing
mode.
BIC-BA-e-1610 17
8.2 Menu overview
(example)
Internal value
not documented
*
Auto-Off
Automatic shutdown func ti on
Can be set between 1-99 minutes
Display background illumination
Adjustable:
Background lighting on:
Background lighting off
*
Backlight turns off auto matic al l y
Hold function (animal weighing function)
Adjustable:
Average value is calculated for unstable
weighing conditions from approx. 20 d
Average value is calculated for unstable
weighing conditions from approx. 5 d
*
Average value is calculated for unstable
weighing conditions from approx. 10 d
Auto Zero
Adjustable:
ZP 0 * Auto Zero: Off
ZP 1
• 0.5 d/s
ZP 2
•
1 d/s
ZP 3
• 2 d/s
ZP 4
• 3 d/s
ZP 5
• 5 d/s
*
G-value (value of the local gravitational
acceleration)
Adjustable
Factory settings are marked by *.
18 BIC-BA-e-1610
9 Servicing, maintenance, disposal
9.1 Cleaning
Before cleaning, disconnect the appliance from the operating voltage.
Please do not use aggressive cleaning agents (solvents or similar agents), but a
cloth dampened with mild soap suds. Take care that the device is not penetrated by
fluids and polish it with a dry soft cloth.
9.2 Servicing, maintenance
The appliance may only be opened by trained service technicians who are authorized
by KERN.
Before opening, disconnect from power supply.
9.3 Disposal
Disposal of packaging and appliance must be carried out by operator according to
valid national or regional law of the location where the appliance is used.
BIC-BA-e-1610 19
10 Error messages, troubleshooting guide
In case of an error in the program process, briefly turn off the appliance and
disconnect from power supply. The weighing process must then be restarted from the
beginning.
Fault Possible cause
The displayed weight does
not glow.
• The appliance is not switched on.
• Mains power supply interrupted (mains cable
defective).
• Power supply interrupted.
• (Rechargeable) batteries are inserted incorrectly or
empty
• No (rechargeable) batteries inserted.
The displayed weight is
permanently changing
• Draught/air movement
• Table/floor vibrations
• Weighing pan has contact with other objects.
• Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
The weighing result is
obviously incorrect
• The display of the balance is not at zero
• Adjustment is no longer correct.
• Great fluctuations in temperature.
• Warm-up time was ignored.
• Electromagnetic fields / static charging (choose
different location/switch off interfering device if
possible)
Error message Possible cause
o-Err
• Weighing range exceeded
u-Err
• Insufficient preload, e. g. missing weighing pan
b-Err
• Missing internal memory
1-Err
• Incorrect adjusting wei g ht
2-Err
• Inappropriate adjustment
l-Err
• Item weight too low
Should other error messages occur, switch device off and then on again. If the error
message remains inform manufacturer.
1000x1000
1200 x 1500
A
A
B
B
1500
1290±0
.2
1450
276
23
145
67
5-M5
1500
1450
1290
±
0
.
2
25.4
76.2
±
0
.
1
30
180
30
27
23
25
25
Ø13
40
160
215
100
500
100
215
160
160
201
100
100
201
160
5
75
60
4-M12
1040
1040
508
40
1500 x 1500
Loading...
