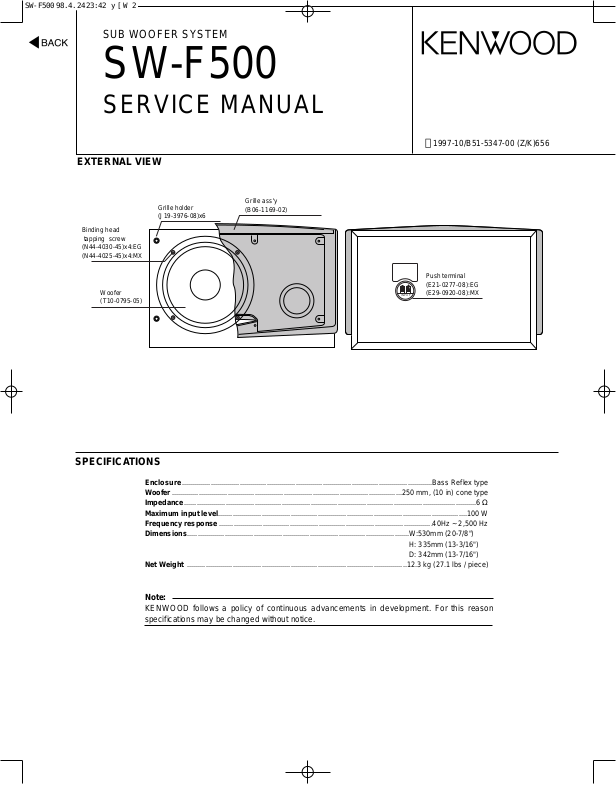

Kenwood SWF-500 Service Manual
SUB WOOFER SYSTEM
SW-F500
SERVICE MANUAL
EXTERNAL VIEW
1997-10/B51-5347-00 (Z/K)656
Binding head
tapping screw
(N44-4030-45)x4:EG
(N44-4025-45)x4:MX
Woofer
(T10-0795-05)
SPECIFICATIONS
Grille holder
(J19-3976-08)x6
Grille ass'y
(B06-1169-02)
INPUT
Push terminal
(E21-0277-08):EG
(E29-0920-08):MX
Enclosure.........................................................................................................................Bass Reflex type
Woofer...............................................................................................................250 mm, (10 in) cone type
Impedance.............................................................................................................................................6 Ω
Maximum input level........................................................................................................................100 W
Frequency response.......................................................................................................40Hz ~ 2,500 Hz
Dimensions...........................................................................................................W:530mm (20-7/8")
H: 335mm (13-3/16")
D: 342mm (13-7/16")
Net Weight ..........................................................................................................12.3 kg (27.1 lbs / piece)
Note:
KENWOOD follows a policy of continuous advancements in development. For this reason
specifications may be changed without notice.
SW-F500
INPUT
SP1
RED
BLK
NETWORK UNIT
PARTS LIST
∗ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
NETWORK UNIT/PARTS LIST
L:Scandinavia K:USA P:Canada R:Mexico
Y:PX(Far East, Hawaii) T:England E:Europe G:Germany
Y:AAFES(Europe) X:Australia M:Other Areas
Ref. No. Address
New
Parts
Parts No. Description
SW-F500: EG Type
- B06-1169-02 GRILLE ASSY
- B46-0310-03 WARRANTY CARD
- * B61-0915-00 INSTRUCTION MANUAL
- * E21-0277-08 PUSH TERMINAL
- * E30-5421-08 SPEAKER CORD
- * H10-6480-08 POLYSTYRENE FOAMED FIXTURE
- * H10-6481-08 POLYSTYRENE FOAMED FIXTURE
- * H21-1281-08 PROTECTION SHEET
- * H51-1042-08 ITEM CARTON CASE
- J19-3976-08 GRILLE HOLDER
SP1 * T10-0795-05 WOOFER
- * B06-1169-02 GRILLE ASSY
- B46-0096-53 WARRANTY CARD X
- * B61-0908-00 INSTRUCTION MANUAL
- E29-0920-08 PUSH TERMINAL
- * E30-5406-08 SPEAKER CORD
- * H10-6459-08 POLYSTYRENE FOAMED FIXTURE
- * H10-6460-08 POLYSTYRENE FOAMED FIXTURE
- * H21-1272-08 PROTECTION SHEET
- * H51-0993-08 ITEM CARTON CASE
- J19-3976-08 GRILLE HOLDER
SP1 * T10-0795-05 WOOFER
Y19-402
SW-F500: MX Type
Desti-
nation
Re-
marks
indicates safety critical components.
2
