CAW-COMUN2
Universal Steering Wheel Remote Control Adaptor
Universal-Lenkradfernbedienungsadapter
Interface Universelle pour télécommande au volant d'origine
Interfaccia Universale per comandi al volante d’origine
Interfase Universal para mandos de volante originales
Version 1.0 14
Please make sure
the connection details in the instruc-
tion manual of the
receiver.
WARRANTY
THIS PRODUCT IS COVERED BY TWO-YEAR GUARANTEE FOR ANY MANUFACTURING
TROUBLES. THE WARRANTY IS VALID IF
ACCOMPAINED BY THE INVOICE OF PURCHASE
The information in this guide are purely for information purposes, therefore, are subject to change without notice. At the time
of publication the information is correct and reliable.
However the distributor can not be held responsible for any consequences resulting from errors or omissions in this manual.
We reserves the right to improve / change the product or manual without obligation to notify users.
16
Radio protocol selection procedure
PRESS SEEK +
PRESS VOLUME + FOLLOWED BY SEEK +
After having completed the connections, turn on the ignition key to supply power to the CAW-COMUN2 .
The LED will flash RED quickly, indicating that the NO BUTTON PRESSED state has been memorized
Nachdem Sie alle Verbindungen hergestellt haben, schalten Sie die Zündung ein, um den Adapter CAW
- COMUN2 mit Strom zu versorgen. Die LED blinkt im schnellen Rhythmus ROT auf und zeigt so an,
dass keinerlei Steuerfunktionen programmiert sind.
Learning procedure
Lernvorgang
Une fois les connexions terminées, mettre le contact pour allumer le CAW-COMUN2 , le led clignottera
rapidement en rouge signifiant qu'aucune commande n'est mémorisée.
Eseguiti i collegamenti accendere il quadro vettura per dare alimentazione ad CAW-COMUN2,
il LED emetterà un breve lampeggio ROSSO indicando la memorizzazione della condizione
NESSUN TASTO PREMUTO.
Después de completar las conexiones, activar la alimentación del CAW-COMUN2 por la llave de
contacto. El LED rojo parpadeará rapidamente indicando que el estado de NINGÚN BOTON PULSADO
ha sido memorizado.
Now you must assign the functions of control of the radio to the buttons/levers of the vehicle's steering
wheel command.
The programming of the functions follows the sequential logic which is described in the chart.
For each button pressed the LED will blink RED to indicate that the function is associated.
The first function available is VOLUME -
Jetzt müssen Sie die Bedienfunktionen des Autoradios den Tasten und Steuerelementen der
Lenkradfernbedienung zuweisen. Die Programmierung der Bedienfunktionen erfolgt einzeln und
schrittweise und ist der nachfolgenden Tabelle zu entnehmen.
Nach jedem Druck auf die entsprechende Bedientaste der Lenkradfernbedienung blinkt die LED ROT auf
und zeigt an, dass die Steuerfunktion einprogrammiert wurde.
Die erste zu programmierende Funktion ist die Absenkung der Lautstärke (VOLUME -).
Procédure d'apprentissage
Procedura di apprendimento
Procedimiento de aprendisaje
ON
LED
BUTTON
Maintenant vous devez apprendre les fonctions de l'autoradio à la télécommande du véhicule. La
programmation des fonctions suit une logique séquentielle comme indiqué dans le schéma.
Pour chaque bouton pressé la led clignottera en rouge indiquant que la fonction est mémorisée.
La première fonction est Volume -
Ora bisogna assegnare le funzioni di controllo della radio aftermarket ad ognuno dei pulsanti / leve del
comando al volante della vettura. L’assegnazione delle funzioni per ogni pulsante / leva segue la logica
descritta nella tabella.
Ad ogni pressione di un pulsante , il LED emetterà un lampeggio breve ad indicare l’avvenuta
memorizzazione della funzione.
La prima funzione disponibile è VOLUME -.
Ahora pueden asignarse las funciones de control del receptor desde los mandos originales de volante. La
programación de las funciones segirá una logica secuencial que se decribe en el diagrama. Cada vez
que se pulse el botón del mando de volante el LED parpadeará indicando que la función ha sido
aceptada
La primera función disponible es VOLUMEN -
2
15
i20 - ix 20 - SANTA FE’
2010
SANTA
FE’
1
7
FREELANDER
FREELANDER II
Cable Connector
RED POSITIVE IGNITION KEY FEEDING
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
IX35
IX20
1
13
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
12
GREY
WHITE DON’T CONNECT
24
PAJERO
Cable Connector
RED POSITIVE IGNITION KEY
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY
OUTLANDER
WHITE DON’T CONNECT
FORESTER
12
24
1
9
10 18
IMPREZA 08 / OUTBACK 2010
Cable Connector
RED POSITIVE IGNITION KEY
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY
WHITE DON’T CONNECT
Cable Connector
RED POSITIVE IGNITION KEY
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY
WHITE DON’T CONNECT
POWER
DON’T CONNECT
FEEDING POWER
DON’T CONNECT
FEEDING POWER
DON’T CONNECT
FEEDING POWER
DON’T CONNECT
LED
BUTTON
To jump a fuction press the B U TT ON of the CAW-COMUN2 once.
It's possible to manage max. 10 buttons (functions)
If less than 10 buttons are present on the steering wheel, it will be necessary to force the end
programming manually.
In order to carry out this procedure, you only need to press the button of CAW-COMUN2 a few times, in
order to reach 10 functions (even if they are not handled)
To conclude the programming the LED will blink GREEN.
It must to select the radio protocol, to make this operation follow the description at page 1.
Switch on the radio. Use the steeringwheel controls to check the functions. Should any defects occur,
make a RESET and repeat the LEARNING PROCEDURE from the beginning.
To RESET the unit keep the button of the unit pressed untill the LED starts blinking RED.
Um auf eine Bedienfunktion zu springen, drücken Sie einmal kurz auf die Taste "BUTTON" des Adapters
CAW-COMUN2 . Sie können bis zu 8 Funktionen bzw. Tastenbelegungen programmieren.
Sofern die Lenkradfernbedienung über weniger als sieben Funktionen verfügt, muss der
Programmierungsvorgang manuell beendet werden.
Um die Programmierung der Bedienfunktionen durchzuführen, muss die "Button"-Taste lediglich
mehrmals gedrückt werden, um so beispielsweise 10 Steuerbefehle abspeichern zu können - auch wenn
sie nicht alle unterstützt werden.
Ist die Programmierung beendet, signalisiert eine ständig in grüner Farbe leuchtende LED die
Betriebsbereitschaft des Adapters.
Nun erfolgt die Auswahl des entsprechenden Radioprotokolls gemäß der Erklärung auf Seite 1
Nach Abschluss der Programmierung verbinden Sie den Adapter CAW-COMNUN2 und den
Lenkradradfernbedienungsanschluss auf der Rückseite des Autoradios miteinander.
Schalten Sie das Autoradio ein. Überprüfen Sie alle Funktionen der Lenkradfernbedienung. Sollte eine
Bedienfunktion nicht ordnungsgemäß arbeiten, setzen Sie den Adapter in den Ausgangszustand zurück
und wiederholen Sie den Vorgang.
Um die Programmierung des Adapters zurückzusetzen, drücken Sie die Button-Taste so lange, bis die
LED ROT zu blinken beginnt.
Pour sauter une fonction appuyer sur le bouton de CAW-COMUN2 . L'interface peut gérer au maximum 8
fonctions.
Si il y a moins de 8 fonctions sur la télécommande d'origine, il est nécéssaire de terminer manuellement
la procédure d'apprentissage
Pour terminer cette procédure il suffit de presser le bouton de CAW-COMUN2 le nombre de fois
nécessaire pour atteindre 10.fonctions
Pour indiquer la fin de la procédure le led de l'interface clignote en vert.
Voir page 1 pour la sélection du protocole radio.
Allumer l'autoradio et essayer toutes les fonctions de l'interface. En cas de fonctions défaillantes, faire un
RESET et recommencer la procédure d'apprentissage.
Pour faire le RESET de l'interface, maintenir le bouton de l'interface appuyé jusqu'au
clignottemet rouge de la led.
14
3
Per saltare una funzione premere il TASTO di CAW-COMUN2 una volta.
E’ possibile gestire massimo 8 pulsanti / leve.
Se fossero presenti meno di 8 pulsanti / leve sul volante è necessario forzare manualmente l’uscita dalla
programmazione.
Tale procedura richiede solamente di premere il tasto di CAW-COMUN2 un numero di volte tale ad
arrivare fino alla funzione 10 (anche se non gestita).
Conclusa la programmazione il LED lampeggia VERDE.
Selezionare il protocollo radio desiderato come descritto a pagina 1.
Accendere l’autoradio, sintonizzare la radio ed utilizzare i comandi al volante della vettura per gestirne le
funzioni; qualora si evidenziassero delle anomalie, eseguire il RESET e ripetere attentamente la
PROCEDURA DI APPRENDIMENTO dall’inizio.
Per eseguire il RESET tenere premuto il pulsante di CAW-COMUN2 fino a che il LED non lampeggia
ROSSO.
Para avanzar a la siguiente función pulsar una vez el BOTÓN en el CAW-COMUN2 .
Es posible asignar hasta 8 funciones
Si las funciones en el mando de volante son menores de 8, será necesario forzar manualmente el final de
programación.
Para terminar la programación de memorización, deberá pulsarse el BOTÓN del CAW-COMUN2 varias
veces hasta terminar las 10 funciones.
Al concluir la programación el LED parpadeará VERDE.
Para seleccionar el corecto protocolo seguir la descripcion a la pagina 1.
Encender la Radio y utlizar los mandos de volante para chequear las funciones. Si ocurre alguna
anomalía, hacer un RESET en el CAW-COMUN2 y repetir el procedimiento de aprendizaje.
Para hacer un RESET de la unidad, mantener pulsado el botón del CAW-COMUN2 hasta que el LED
ROJO empieze a parpadear.
FUNCTION KENWOOD
1 VOLUME —
2 VOLUME +
3 SEEK —
4 SEEK +
5 SRC / PHONE CLOSE CALL
6 MUTE
7 UP
8 DOWN
9 PHONE ANSWER A CALL
10 PHONE CLOSE CALL
PHONE ANSWER A CALL
PHONE CLOSE CALL
JVC
VOLUME —
VOLUME +
SEEK —
SEEK +
SOURCE
MUTE
UP
DOWN
ISO OPEL Connector
7 8 6
CONNECTOR
TERIOS
7 6 8
CONNECTOR
RAV4 YARIS
SX4 - GRAN VITARA
SWIFT
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK
BROWN DON’T CONNECT
GREEN DON’T CONNECT
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY DON’T CONNECT
WHITE DON’T CONNECT
Cable
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK POS 7
BROWN DON’T CONNECT
GREEN POS 6
YELLOW POS 8
BLUE DON’T CONNECT
GREY DON’T CONNECT
WHITE DON’T CONNECT
7 8 6
CONNECTOR
AVENSIS COROLLA AURIS
Cable Connector
RED
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY
WHITE DON’T CONNECT
OPEL Connector
BLUE / RED
Connectors
POSITIVE IGNITION KEY FEEDING
POWER
DON’T CONNECT
CIVIC
S2000 (09)
FRV
ACCORD
08
4
Cable Connector
RED POSITIVE IGNITION KEY FEEDING
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY
WHITE DON’T CONNECT
POWER
DON’T CONNECT
13
CAW-COMUN2 LED STATUS
Cable Connector
RED POSITIVE IGNITION KEY FEEDING
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN DON’T CONNECT
YELLOW DON’T CONNECT
BLUE SEE DIAGRAM
GREY
WHITE DON’T CONNECT
Cable Connector
RED POSITIVE IGNITION KEY FEEDING
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN DON’T CONNECT
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY
WHITE DON’T CONNECT
POWER
DON’T CONNECT
POWER
DON’T CONNECT
1 - LED OFF, IT BLINKS ONE TIME RED WHEN YOU TURN ON THE KEY
(OR CONNECT THE POWER SUPPLY)
- No SW Commands memorized - Reading CANBUS line
2 - LED BLINKS ONE TIME WHEN YOU PUSH A BUTTON
- SW Command memorized
3 - LED BLINKS ONE TIME WHEN YOU PUSH THE RESET BUTTON
- Radio function skipped
4 - LED GREEN SLOW BLINKING
- SW Commands memorized but radio profile not selected
5 - LED FIXED GREEN - SW Commands memorized
- Radio selected

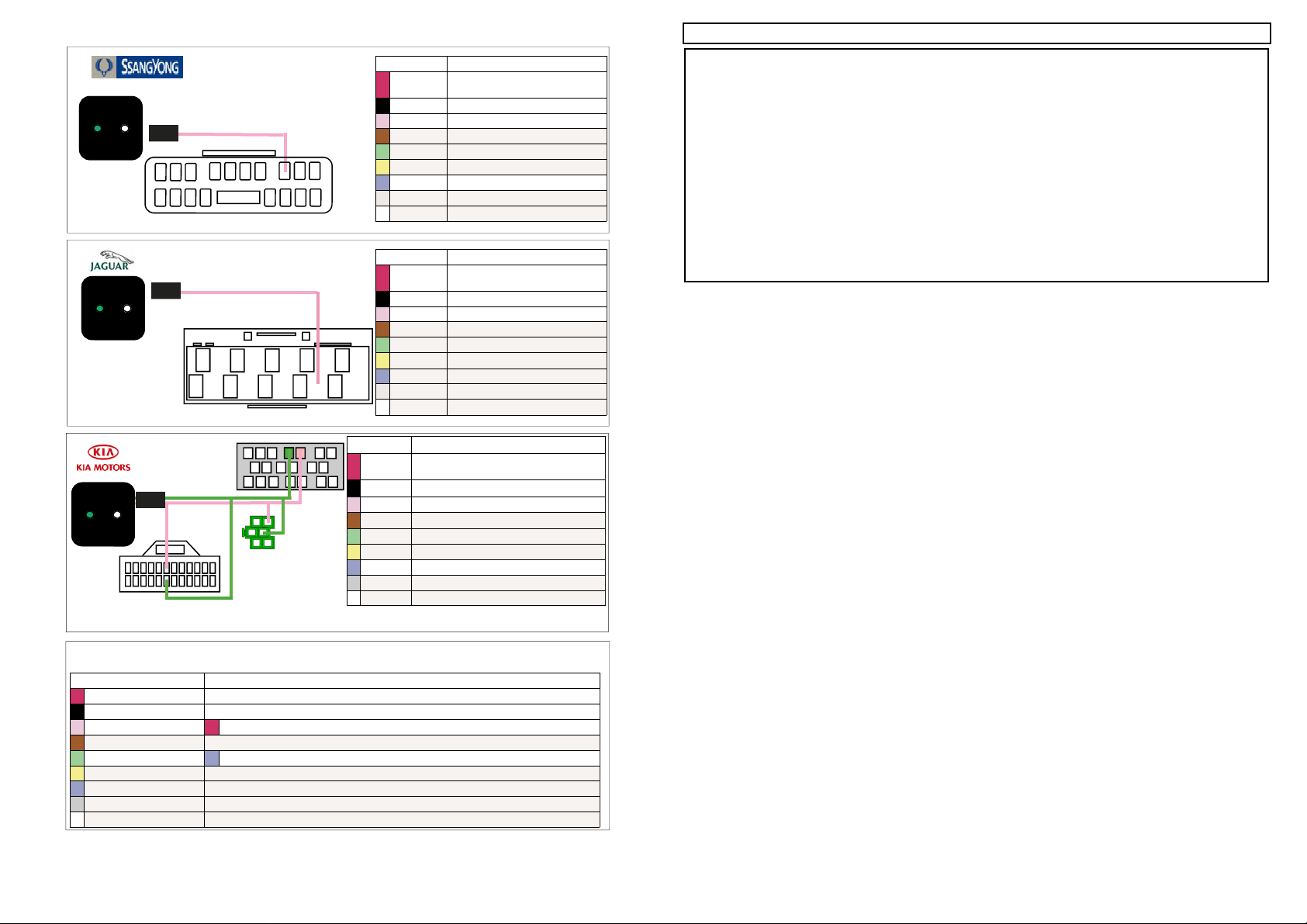

SORENTO
VENGA - SOUL
& CEED 2010
CEED
Cable KIA Connector
RED POSITIVE IGNITION KEY FEEDING
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN DON’T CONNECT
YELLOW DON’T CONNECT
BLUE
GREY DON’T CONNECT
WHITE DON’T CONNECT
POWER
SEE DIAGRAM
SORENTO <2009
FIAT ULISSE - LANCIA Z - PEUGEOT 805 - CITROEN EVASION
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK RED POS. 3
BROWN DON’T CONNECT
GREEN BLUE POS. 2
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY DON’T CONNECT
WHITE DON’T CONNECT
Connector
12
5
Cable Connector
RED POSITIVE IGNITION KEY FEEDING POWER
Multicom Cable MAZDA 6 connector
RED 12 Vdc IGNITION KEY
BLACK GND
PINK
BROWN DON’T CONNECT
GREEN
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY DON’T CONNECT
WHITE DON’T CONNECT
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY
WHITE DON’T CONNECT
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY
WHITE DON’T CONNECT
Cable CHEVROLET Connector
DON’T CONNECT
RED / BLACK
GREEN / WHITE
DON’T CONNECT
CAPTIVA
1 2 3 4 5 6 7
8 9 10 1112 1314
1 2 3 4 5 6 7 8
9 10 11121314 1516
Cable CHEVROLET CAPTIVA Connector
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY
WHITE DON’T CONNECT
DON’T CONNECT
CAR CONNECTORS
6
11
MINIISO
NISSAN MICRA - NOTE
RC/B
MASSA
RC/A
NISSAN
NAVARRA QASHQAI
1
10 18
PATHFINDER
1
7
X TRAIL
1
6
6
16
NAVARRA QASHQAI
XTRAIL 2008
1
10 18
7 15
Cavo Unicom NISSAN MICRA /
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK WHITE
BROWN DON’T CONNECT
GREEN BLUE
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY BLUE GREY GREEN/WHITE POS. 16
WHITE DON’T CONNECT
NOTE
DUCATO
NISSAN ALMERA
GREEN/PINK POS. 6
GREEN/
ORANGE
FIAT MINIISO
NISSAN
NAVARRA
QASHQAI
POS. 15
Cable ALFA Connector
RED POS. IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK SEE DIAGRAM
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW SEE DIAGRAM
BLUE DON’T CONNECT
GREY DON’T CONNECT
WHITE DON’T CONNECT
RED 12 Vdc IGNITION KEY
RC/B
GND
RC/A
BLACK GND
PINK
BROWN DON’T CONNECT
GREEN SEE DIAGRAM
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY SEE DIAGRAM
WHITE DON’T CONNECT
XTRAIL
POS. 12
POS. 10
Cable FIAT MAREA connector
PATHFINDER
POS. 3
NISSAN
POS 3
POS 12
POS 10
SEE DIAGRAM
9
9
NAVARRA
QASHQAI
XTRAIL 2008
POS 3
POS 4
POS 13
CONNECTIONS
REV 14.10
ALL THE CONNECTORS ARE SEEN FROM THE WIRES
ON EXIT SIDE.
DON’T CONNECT THE WIRES PRESENT ON THE UNICOM CABLE
BUT NOT MENTIONED ON THE DIAGRAMS.
Scenic Connector
1 2 3 4 5 6 7 8 9 10 11121314 15
Megane II Connector
1 2 3 4 5 6 7 8
IF THE COLOURS MENTIONED ARE NOT THE SAME AS THE CAR CONNECTOR PLEASE
FOLLOW THE POSITIONS
SCENIC MEGANE VEL SATIS CLIO LAGUNA
RED POSITIVE IGNITION FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK RED POS.9 GREY POS.2 BROWN POS.4
BROWN DON’T CONNECT
GREEN GREEN POS.10 BEIGE POS.5 ORANGE POS.3
YELLOW YELLOW POS.12 GREEN POS.3 BEIGE POS.6
BLUE BLUE POS.14 ORANGE POS.7 VIOLET POS.1
GREY BLACK POS.11 VIOLET POS.4 GREY POS.5
WHITE
ALWAYS DISCONNECT THE CONNECTOR FROM THE VEHICLE’S DISPLAY
1 2 3 4 5 6 7 8 9 10 11121314 15
DON’T CONNECT
SCENIC II
MEGANE SCENIC II - TRAFFIC
Connector 15 WAYS
TRAFFIC 07
TWINGO 08
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK WHITE POS.11 VIOLET
BROWN DON’T CONNECT
GREEN GREY POS.10 BROWN
YELLOW BROWN POS.8 BEIGE
BLUE ORANGE POS.9 YELLOW
GREY GREEN POS.12 RED
WHITE DON’T CONNECT
Vel Satis-Clio-Laguna
Connector
1 2 3
4 5 6
10
7
24-way connector
SOURCE
SELECT
1
13
VOL+
VOL—
1
2
12
24
For the 30-way connector, cut the wires from
16th position till the 21st,
For the 24-way connector, cut the wires from
the 1st position till the 6th,
Connect the Unicom wires towards the
steering wheel side. Once finished the
connections, connect the Oem connector in its
place on the display.
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK POS.19 POS. 4 POS. 16
BROWN DON’T CONNECT
GREEN POS.20 POS. 3 POS 13
YELLOW POS.18 PO S. 2 POS 14
BLUE POS.16 POS. 1 POS 15
GREY POS.21 POS. 5 POS. 17
WHITE DON’T CONNECT
30-way connector 24-way connector 40-way connector
Peugeot Connector (before 2002)
16
30-way connector
1
SOURCE
VOL+
VOL—
SELECT
For the 30-way connector, cut the wires from
13rd position till 18th and connect.
Connect the Unicom wires towards the steering
wheel side.
1
21
40-way connector
Citroen Connector (before 2002)
Check the wires before installing
1
6
2 3
15
30
SOURCE
SELECT
13 14 15 16 17 18
4
3
Connector is available under the steering wheel
Peugeot Connector (before 2002) Citroen Connector (before 2002)
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK POS.2
BROWN DON’T CONNECT
GREEN
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY POS. 3
WHITE DON’T CONNECT
POSITIVE IGNITION KEY FEEDING POWER
NEGATIVE FEEDING POWER
POS.2
DON’T CONNECT
POS.6
DON’T CONNECT
DON’T CONNECT
POS.1
DON’T CONNECT
POS.1
VOL+
VOL—
20
40
1
2
MONDEO
1 2 3 4 5 6
FORD MONDEO 2007 - SMAX
C-MAX KUGA FOCUS
The wires of the
SW on OLD FORD
are located in
position 10 & 11
OLD FORD
FOCUS FIESTA
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK
JGC 2001>
DISCONNECT RED YELLOW AND
CONNECT THE PINK WIRE
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK Pos. 6
BROWN DON’T CONNECT
GREEN POS. 3
YELLOW POS. 1
BLUE POS. 2
WHITE POS. 4
BROWN /
YELLOW
POS. 5
The command wires are on the FAKRA in the
position 6 and 8
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK
GREEN
PINK
GREEN
RED POSITIVE IGNITION KEY FEEDING POWER
BLACK NEGATIVE FEEDING POWER
PINK
BROWN DON’T CONNECT
GREEN
YELLOW DON’T CONNECT
BLUE DON’T CONNECT
GREY DON’T CONNECT
WHITE DON’T CONNE CT
VOYAGER GRAND CHEROKEE CHEROKEE
GREY WHITE
RED YELLOW
CHEROKEE 2003>04
DISCONNECT RED BLUE AND
CONNECT THE PINK WIRE
FORD Connector
YELLOW / GREY
WHITE / BLUE
WHITE / BLACK
YELLOW / BROWN
FORD Connector
WHITE / BLACK
YELLOW / BROWN
GREY ORANGE
CHEROKEE 2004>05
DISCONNECT GREY ORANGE AND
CONNECT THE PINK WIRE
VOYAGER 2001>
DISCONNECT GREY WHITE AND
CONNECT THE PINK WIRE
Connectors are
available under the
steering wheel
8
9
Loading...
