When the difference between the internal temperature of the unit and
external atmosphere is large, dew (mist) may be produced on the
internal parts of the unit. In such a case, turn the unit ON and leave
it for a few hours until the condensation has dried up.
Be especially careful in the following conditions:
When the unit is brought into a place where there is a large difference
in temperature between the previous location, when the humidity of
the listening room is high, etc.
Note related to transportation and
movement
Before transporting or moving this unit, carry out the following
operations.
1. Set the POWER key to ON without loading a disc.
2. Wait a few seconds and verify that the display shown appears.
3. Set the POWER key to OFF.
Operation to reset
The microprocessor may fall into malfunction (impossibility to operate
erroneous display, etc.) when the power cord is unplugged while power
is ON or due to an external factor. In this case, execute the following
procedure to reset the microprocessor and return it to normal condition.
÷ Please note that resetting the microprocessor clears the contents
stored in, it returns the microprocessor to the condition when it left
the factory.
While holding the 7 key, press and hold the 8 key until “INITIAL OK!”
appears.
While the POWER key is set to ON, this unit can be put to the standby mode using the graphical remote control unit provided
with a KENWOOD AUDIO VIDEO SURROUND RECEIVER. When the STANDBY indicator of this unit is lit, a small amount of
current flows in it to back up the internal memory. This status is referred to as the standby mode.
Display
VCD and CD related indicators
DVD related indicators
1
POWER key
2
Remote control sensor
3
VIRTUAL SURROUND indicator
Lights during playback of an AC-3 5.1-channel disc by setting virtual
surround.
4
96 kfs indicator
Lights during playback of a DVD LPCM disc with 96 kfs sampling
frequency.
5
DTS indicator
Lights during playback of a DVD DTS disc.
6
Open/close (0) key
7
Stop (7) key
8
Play (3) key
9
Tray panel
0
DVD badge
!
REPEAR key
@
Manual search (1,
¡
) keys
#
Skip down (4) / up (¢) keys
$
Pause (8) key
Display / Main unit (DVF-K7010)
L, STEREO, R indicators
Character information display
Operation indicators
3 :Play
8 :Pause
DVD, VCD, CD indicators
Special playback related indicators
Standby mode of the unit
While the POWER key is set to ON, this unit can be put to the standby mode using the graphical remote control unit provided
with a KENWOOD AUDIO VIDEO SURROUND RECEIVER. When the STANDBY indicator of this unit is lit, a small amount of
current flows in it to back up the internal memory. This status is referred to as the standby mode.
Displa
y
VCD and CD related indicators
DVD related indicators
1 POWER ( POWER) key
2 Remote control sensor
3 VIRTUAL SURROUND indicator
Lights during playback of an AC-3 5.1-channel disc by setting virtual
surround.
4 96 kfs indicator
Lights during playback of a DVD LPCM disc with 96 kfs sampling
frequency.
5 DTS indicator
Lights during playback of a DVD DTS disc.
6 Open/close (0) key
7 Stop (7) key
8 Play (3) key
9 MIC 1 VOLUME control
0 MIC 1 jack
! MIC CONTROL jack
@ MIC 2 jack
# MIC 2 VOLUME control
$ Tray panel
% DVD badge
^ KARAOKE key
& Flat ( ) keyI
*The key name
indications on the
unit are variable
depending on the
area where it is
marketed.
Ii
Control and Indication
PHONES LEVEL
MAXMIN
PHONES
ON SCREEN
PANEL UP / DOWN
RETURN
3
7
4¢
OPEN/CLOSE
DVD MENU
ENTER
1¡
VIRTUAL
SURROUND
96 kfs
DTS
ON
OFF
POWER
DVD VCD CD
P.B.C. DOLBY DIGITALRANDOM PROG.
STEREO
ANGLE
PCM
REPEAT ALL
KARAOKE
LR
TITLE CHAPTER TRACK CD TEXT
A B
•••••••••••••••
¡
!
@
# $%
*(^&
)
7
3
1
2
0
9
654
8
Display / Main unit (DVF-9010)
L, STEREO, R indicators
Character information display
Operation indicators
3 :Play
8 :Pause
DVD, VCD, CD indicators
Special playback related indicators
Standby mode of the unit
While the POWER key is set to ON, this unit can be put to the standby mode using the graphical remote control unit provided
with a KENWOOD AUDIO VIDEO SURROUND RECEIVER. When the STANDBY indicator of this unit is lit, a small amount of
current flows in it to back up the internal memory. This status is referred to as the standby mode.
Display
VCD and CD related indicators
DVD related indicators
1
POWER key
2
DVD indicator
Lights up when a DVD disc is loaded.
3
Remote control sensor
4
DTS indicator
Lights during playback of a DTS-encoded DVD disc.
5
96 kfs indicator
Lights during playback of a DVD LPCM disc with 96 kfs sampling
frequency.
6
VIRTUAL SURROUND indicator
Lights during playback of an AC-3 5.1-channel disc by setting virtual
surround.
7
OPEN/CLOSE (0) key
8
PANEL UP/DOWN key
9
Stop (7) key
0
Play (3) key
!
PHONES LEVEL control
@
PHONES jack
#
Tray panel
$
Manual search (1,
¡
) keys
%
Cursor (%,
fi, @, #
) keys
^
ENTER key
&
ON SCREEN key
*
RETURN key
(
DVD MENU key
)
Pause (8) key
¡
Skip down (4) / up (¢) keys
DV-203/2070/DVF-5010/9010/K7010
CONTROLS
DVD VCD CD
P.B.C. DOLBY DIGITALRANDOM PROG.
TITLE CHAPTER TRACK CD TEXT
PCM
ANGLE
REPEAT ALL
A B
•••••••••••••••
1
POWER
ON OFF
0
9
2
LR
4
3
VIRTUAL SURROUND
96 kfs
DTS
STEREO
5
6
!
8
7
7
3
8
REPEAT
4¢
1
@
¡
#$
POWER
ON OFF
DVD VCD CD
TITLE CHAPTER TRACK
P.B.C. DOLBY DIGITALRANDOM PROG.
PCM
ANGLE
REPEAT ALL
A B
•••••••••••••••
1
POWER
ON OFF
MIC1 VOLUME
9
MIC2 VOLUME
MIC CONTROL
MIC1
MIC2
MIN MAXMIN MAX
0
@
!
2
STEREO
LR
KARAOKE
6
3
4
5
VIRTUAL SURROUND
96 kfs
DTS
KEY CONTROLKARAOKE
È
^%
)™
(*&#$£
8
7
7
3
8
REPEAT
4¢
1
¡
¡
3
Page 4
DV-203/2070/DVF-5010/9010/K7010
S-VIDEO
VIDEO OUTPUT
COMPONENT
VIDEO OUTPUT
Y
Cb Cr
AUDIO
OUTPUT
L
R
(PCM/BIT STREAM)
COAXIAL OPTICAL
DIGITAL OUTPUT
1
2
1
2
DV-203
CENTER
S-VIDEO
VIDEO OUTPUT
MIX LINE
OUTPUT
6CH. OUTPUT
L
R
L
R
(PCM/BIT STREAM)
COAXIAL OPTICAL
DIGITAL OUTPUT
1
2
FRONT SURROUND SUBWOOFER
DVF-5010/DVF-K7010
S-VIDEO 1
VIDEO OUTPUT
COMPONENT VIDEO OUTPUT
S-VIDEO 2
Y
Cb Cr
AUDIO OUTPUT
L
R
(PCM/BIT STREAM)
COAXIAL OPTICAL
DIGITAL OUTPUT
1
2
1
2
DV-2070
(PCM/BIT STREAM)
COAXIAL OPTICAL
DIGITAL OUTPUT
CENTER
S-VIDEO 1
VIDEO OUTPUT
MIX LINE
OUTPUT
S-VIDEO 2
FRONT SURROUND SUBWOOFER
6CH. OUTPUT
L
R
L
R
1
2
DVF-9010 (E,M,T)
DVF-9010 (Y)
COMPONENT VIDEO OUTPUT
Y
Cb Cr
(PCM/BIT STREAM)
COAXIAL OPTICAL
DIGITAL OUTPUT
CENTER
S-VIDEO 1
VIDEO OUTPUT
MIX LINE
OUTPUT
S-VIDEO 2
FRONT SURROUND SUBWOOFER
6CH. OUTPUT
L
R
L
R
1
2
CONTROLS
REAR PANEL
4
Page 5
Remote control unit
The remote control unit incorporates the basic operation keys as well as a variety of applied operation keys so that it can be
used in a wide range of purposes.
Use care to store the remote control unit in a safe place so as not to lose it.
* The proper positioning of the mode switch (DVD, CD, DVD SET UP) is variable depending on the control and play modes.
Set the mode switch according to the desired control and play modes.
Information inside ( ) below indicates the mode switch setting position to implement the function in question.
(DVD, CD, DVD SET UP)
ON SCREEN key (DVD, CD, DVD SET UP)
PLAY (
3
) key (DVD, CD, DVD SET UP)
STOP (
7
) key (DVD, CD, DVD SET UP)
MENU key (DVD, DVD SET UP)/P.MODE key (CD)
RETURN key (DVD, CD, DVD SET UP)
4
DISPLAY key (DVD, CD, DVD SET UP)
5
TV monitor related control keys
Numeric (0 to 9) keys (CD)
C (Clear) key (DVD, CD, DVD SET UP)
REPEAT key (DVD, CD, DVD SET UP)
A-B REPEAT key (CD)
SET UP key (DVD SET UP)
MEMORY key (DVD)
VIRTUAL SURR. key (DVD)
TITLE key (DVD)
ANGLE key (DVD)
AUDIO key (DVD)
SUB TITLE key (DVD)
OPEN/CLOSE (
0
) key (DVD)
6
CD-TEXT related control keys
TEXT DISP. key (DVD)
ALL INFO. key (DVD)
TITLE SEARCH key (DVD)
VIRTUAL
SURR.
DISPLAY
OPEN
/CLOSE
12
3
4
56
A-B
REPEAT
REPEAT
7
8
9
CLEARP.MODE
0
TITLEMENU
RETURN
ON
SCREEN
4¢
ANGLE AUDIO SUB TITLE
MEMORY
7
3
1¡
8
ASSIST
VOCAL
KARAOKE
HIT
MASTER
SET UP
KARAOKE
MODE MELODY
UP
DIGITAL
ECHO
DOWN
REQUEST
I
È
Si
KEY
CONTROL
7
2
1
5
6
3
4
5
6
6
ENTER
0
Remote control unit
The remote control unit incorporates the basic operation keys as well as a variety of applied operation keys so that it can be
used in a wide range of purposes.
Use care to store the remote control unit in a safe place so as not to lose it.
Model: RC-D0505
Infrared ray system
1 DISPLAY key
2 VIRTUAL SURR. key
3 CD, VCD and DVD related control keys
Skip down (4) and Skip up (¢) keys
Stop (7) key
Play (3) key
Cursor (%, fi, @, #) keys
ENTER key
Pause (8) key
Forward and reverse search (1, ¡) keys
TITLE key
MENU key
RETURN key
ON SCREEN key
5 TV monitor related control keys
ANGLE key
AUDIO key
SUB TITLE key
MEMORY key
SET UP key
1. How to open the door panel and the tray
if not comes out.
(1) See the bottom of a set, then move the arm of the
door mechanism by a screw driver (1) and pull out
the door panel (2).
(2) Move the rotary cam of the DVD mechanism by a
screw driver (3), then pull out the tray and remove
the tray panel (4).
3. How to remove the moving door mechanism
1. Remove the 1 screw (9), Then pull the slider (0) till last
2. While raise the slider of left side, remove the slider from the
bosses (-,=)
2. How to remove the door panel.
(1) Remove 2 screws (5), then remove the door
panel (6).
(2) Remove 2 bosses (7), then remove the door
escutcheon (8).
6
Page 7
DV-203/2070/DVF-5010/9010/K7010
DISASSEMBLY FOR REPAIR
How to Disassemble mechanism.
1. The disc is not coming out by pressing the open botton.
1. Remove the case and DVD disc in the unit.
2. Insert the small screw driver into the hole on
the bottom chassis.
3. Travel the rotary cam to the tray open position.
4. Travel the tray to open position by hand.
5. Remove the dress panel.
OPEN
CLOSE
OPEN
2. The Loading Tray
1. Travel the rotary cam to the tray open position.
2. Travel the tray to open position by hand.
3. Open the hooks of the tray holder and pull out it.
TRAY
CLOSE
PUSH
TRAY
TRAY
OPEN
OPEN
7
Page 8
DV-203/2070/DVF-5010/9010/K7010
DISASSEMBLY FOR REPAIR
3. Traverse Unit
1. Remove the screws fixing the plate spring, the chassis
stopper and the spring.
2. Lift the back of the traverse unit and remove it.
CONNECTING
POINT
How to Assemble
1. Loading Mechanism
This mechanism has no order for assembling the loading parts.
TRAY GEAR
2. Traverse Unit
1. Pass the flexible cable from the inside of the loading
base to the outside of that.
2. Insert the top of the traverse unit to the groove of the
rotary cam and fix it with screws.
4. Loading Mechanism Parts
1.The loading parts is avalable without disassemble.
Refer to the followings.
BELT
PULLEY
GEAR
GEAR
TRAY
GEAR
ROTARY
CAM
ROTARY CAM
TRAVERSE
UNIT
TRAY GEAR
LOADING BASE
LOADING
MOTOR
8
Page 9
DV-203/2070/DVF-5010/9010/K7010
DISASSEMBLY FOR REPAIR
3. Loading Tray
1.Turn the tray gear to move the traverse unit at the bottom position counterclockwisely.
2. Push the A of the rotary cam to the arrow direction.
3. Check the hook to be locked.
4. Load the tray to the loading base straightly.
TRAY GEAR
HooK
How to Replace
1. Preparation
1. Short the pickup short lands for protecting the damage of the statics.
2. Remove all of the flexible cables on the connection
pcb.
3. Remove screws to divide the traverse unit
SHORT
4. Clamper
1. Mount the clamper plate before assembling the
loading base to the unit.
9
Page 10
DV-203/2070/DVF-5010/9010/K7010
DISASSEMBLY FOR REPAIR

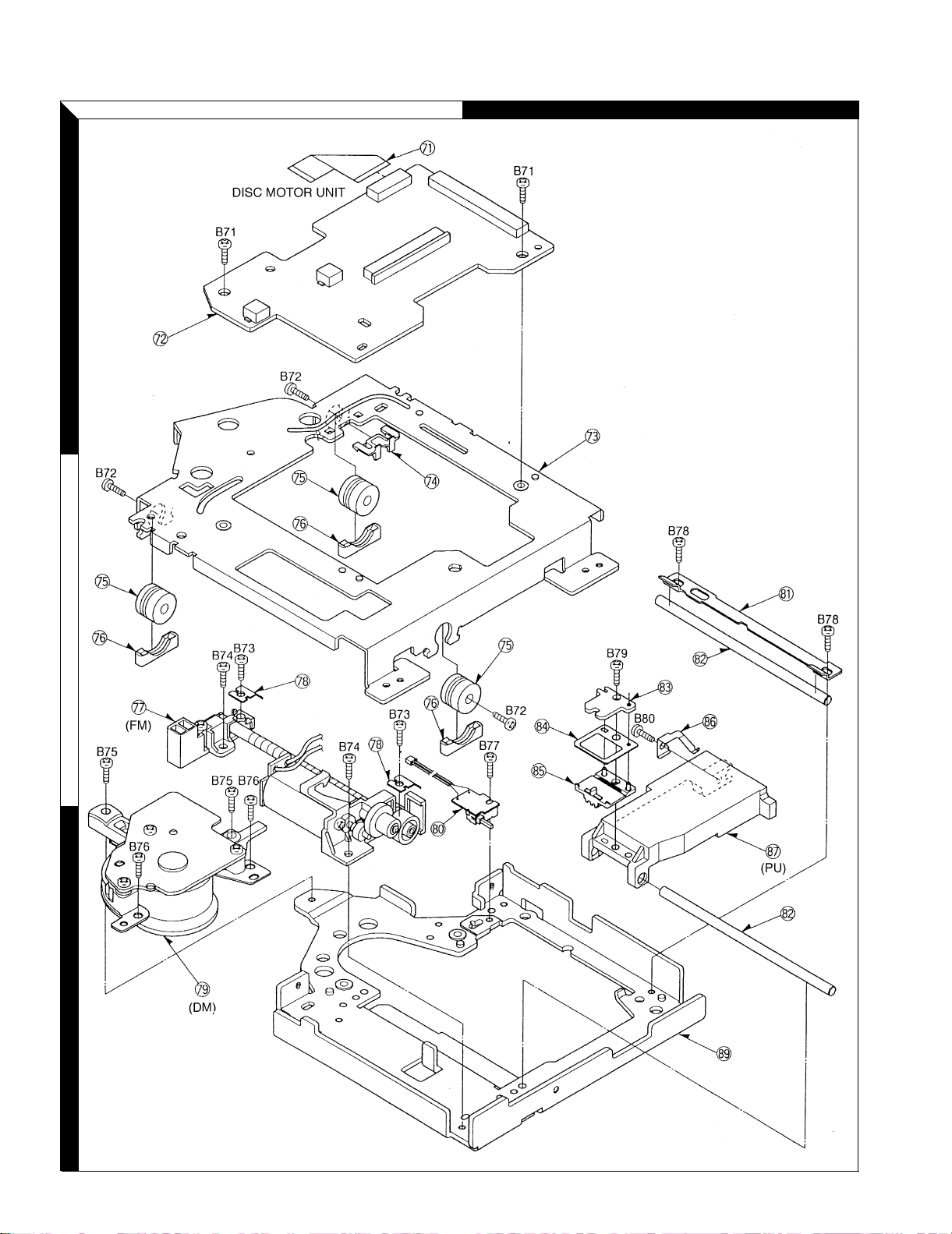

2. Laser Pickup
1.Remove the screws fixing the pickup.
2.Remove the screws fixing the traverse motor.
Pickup
4. Assemble
1. Assemble the traverse unit and the pickup in the
reverse order of disassembly.
2. Fix the A screw and the B adjusting screw when the
disc motor unit mount.
3. Fix the B screw so that the disc motor unit is at a level
with the traverse unit.
TRAVERSE MOTOR
UNIT
3. Disc Motor
1. Remove the A screw and the B screw in the order.
Note: No need to remove the laser pickup when disc
motor replace procedure.
B SCREW
(BLK)
4. After assembled the pickup, the traverse motor unit or
the disc motor, adjust "TANGENTIAL" and "TILT" of
the adjustment.
(Need not adjust this adjustment to exchange the traverse unit.)
DVF-9010 Y type, DVF-5010 M type, DVF-K7010 M type
DV-S701 E1T1M2 type, DV-K751
13
Page 13
DV-203/2070/DVF-5010/9010/K7010
(X14) IC1
FL (VFD) dot driver
CE
DI
CL
SCLK
SRDT
DQSY
DSPSCLK
SCK0
SCK1
HD6433396A65F
Main u-com
D0~D7
RD, WR
A0~A15
RxD1
IRQ1
TxD0
RxD0
CMD
STATUS
IRQ0
TxD1
AN2, 3, 4
VERSION
3
1
2
8
A1, A0, SF1, SF0,
IW1, IW0, DEM, MUT
POWER-MUTE
CE
bit0, 1 fs1
READ/WRITE
AS
DATA
Address
BANK
IFS, IFD
IFL
motor drive2
2
8
4
1
2
3
11
2 lid switch
2channel
CD TEXT
EXCEPT
DVF-K7010
DVD mecha u-com
LC75712N
LC 89170M
MN102L25D
Remote sensor
Operation key
Model distinction
DVF-K7010
DAC
MIC remote control
(X25) IC26
DVD PCB (IC6201)
(X14) A1
(X25) IC3~5
(X14) J103
Other circuit
SRAM
LED
DVD mark
96k sampling
DTS. MPEG
Virtual surround
KARAOKE DSP
MIC jack detect
Moving panel
TC9409BF
D40-1600-02
DV-2070
DVF-9010
DVF-K7010
EXCEPT
DVF-K7010
N345256SOA-55
(X25) IC29
(X25) IC25
(X14)
(DVD PCB) IC4631
(DVD PCB) IC4631
KARAOKE DSP
IFS
IFD
IFL
CE
DI
CL
SCLK
SRDT
DQSY
TC9409BF
LC75712N
LC89170M
DSPSCLK
CMD
STATUS
MN102L25D
Remote sensor
Operation key
Model distinction
DAC
DVD PCB (IC6201)
DVD Mecha u-com
2
1
8
A1, A0, DEM, MUT
(X14) A1
(X25) IC3~5
(X14) IC1
FL(VFD) dot driver
CD TEXT
(X25) IC26
(X25) IC25
SCK0
SCK1
HD6433396A65F
Main u-com
D0~D7
RD, WR
A0~A15
RxD1
IRQ1
TxD0
RxD0
IRQ0
TxD1
AN2, 3, 4
VERSION
POWER-MUTE POWER
CE
MUTE, EMPH
BUSY, DATA
STB
CK
DATA
READ/WRITE
AS
DATA
Address
BANK
2
8
2
1
2
2
2
11
2ch downmix
DV-S701
DV-S701
DV-K751
Other circuit
MIC VOL.
SRAM
LED
DVD mark
STANDBY
Shuttle encoder
DV-S701
N345256SOA-55
System control
TC9412F
(X25) IC29
(X14) IC102
(X14)
CIRCUIT DESCRIPTION
2. Main microprocessor : HD6433396A65F (X25: IC25)
2-1 Block diagram
DV-2070, DVF-5010, DVF-9010, DVF-K7010
DV-K751/S701
14
Page 14
DV-203/2070/DVF-5010/9010/K7010
CIRCUIT DESCRIPTION
2-2 Pin description
Pin No.Pin NameI/ODescription
1/RESIInput port of the microprocessor reset
2,3X/ETALI/OPort of ceramic oscillator
4,5MD1/0IOperation mode0(fixed H) and 1(fixed L)
6/NMI–No use
7/STBY–No use
8VCC–Power supply(+5V)
9DSPCLKIInput port of the clock signal from the mechanism microprocessor
10STATUSIInput port from the mechanism microprocessor reset
11CMDOOutput port to the mechanism microprocessor reset
12VSS–GND
13,14––No use
15/ASOAccess mode of extra-address
16/WRORead mode of extra-address
17/RDOWrite mode of extra-address
18REMOCONOInput port of remote control signal
19DQSYIInput port of read signal from CD-TEXT IC
20
21
22SDATAI/OSynchro data signal
23IFSOKaraoke DSP serial clock output
24IFDOKaraoke DSP serial data output
25
26
27POWEROPower supply control portH : standby, L : power on
28
29AVCC–Standard voltage for A/D
30
31
32,33KEY0,1IKey input port 0,1
34KEY2IKey input port 2
35VERSIONIModel selector
36,37––No use
38AVSS–GND for A/D
39LED 96kHzO96kHz sampling indicatorH : on, L : off
40
41LED DVDODVD indicatorH : on, L : off
42
43BB-A1IDAC data register address A1
44
45
46
47VCC–Power supply
48
/2 CHANNELO2 channelH : except 2CH, L : 2CH
/CDOCDH : except CD, L : CD
BIT 0OBit 0H : 16 or 20bit, L : 24bits
SYNCHRO BUSYI/OSynchro busy signal
PANEL OPENOMoving panel motor driver 0
CKOKARAOKE DSP/MIC volume IC clock output
PANEL CLOSEOMoving panel motor driver 1
DATAOKARAOKE DSP/MIC volume IC data output
MUTEODAC muteH : on, L : off
IFLOKaraoke DSP serial latch output
FS1OSampling frequency(FS)1H : 44.1 or 48kHz, L : 96kHz
MIC-MUTEOMic muteH : off, L : on
BIT 1OBit 1H : 16bit, L : 20 or 24bits
ECHO-MUTEOEcho muteH : off, L : on
PANEL CLOSE SWIMoving panel close switchL : on
MIC REMOTE 1IMic remote control 1
PANEL OPEN SWIMoving panel open switchL : on
MIC REMOTE 0IMic remote control 0
LED DTS/MPEGODTS/MPEG indicatorH : on, L : off
2CH DOWN MIXO2 channel down mix H : on, L : off
LED VIRTUAL SURROVirtual Surround indicatorH : on, L : off
1DGNDIDigital GND.
2MCLKIMaster clock input. Connect to an external clock source at either 256,384 or 512Fs.
3CLATCHILatch input for control data. This input is rising edge sensitive.
4CCLKI
5CDATAI
6384/256I
7X2MCLKISelect internal clock doubler(LO) or internal clock =MCLK(HI).
8ZERORO
9DEEMPIa 50/15 ms response characteristic on the output audio spectrum at an assumed 44.1kHz
1048/96ISelects 48kHz(LO) or 96kHz sampling frequency control.
11AGNDIAnalog GND
12OUTR+ORight channel positive line level analog output
13OUTR-O Right channel negative line level analog output
14FILTERO
15AGNDIAnalog GND
16OUTL-OLeft channel negative line level analog output
17OUTL+OLeft channel positive line level analog output
18AVDDIAnalog power supply. Connect to the analog +5V supply.
19FILTB-Filter capacitor connection, connect 10uF capacitor to AGND.
20IDPM1IInput serial data port mode control one. With IDPM0, defines 1 of 4 serial modes.
21IDPM0IInput serial data port mode control zero. With IDPM1, defines 1 of 4 serial modes.
22ZEROLO
23MUTEIMute. Assert HI to mute both stereo analog outputs. Dessert LO for normal operation.
24PD/RSTIheld LO. The AD1855 is reset on the rising edge of this signal. The serial control port registers
25LRCLKILeft/right clock input for input data. Must run continuously.
26BCLKIBit clock input for input data. Need not run continuously;may be gated or used in a burst fashion.
27DSDATI
28DVDDIDigital power supply. Connect to the digital +5V supply.
Control clock input for control data. Control input data must be valid on the rising edge of CCLK.
CCLK may be continuos or gated.
Serial control input, MSB first, containing 16 bits of unsigned data per channel.
Used for specifying channel specific attenuation and mute.
Select the master clock mode as either 384 times the intended sampling frequency(HI) or 256
times the intended sampling frequency(LO). The state of this input should be hardwired to logic
HI or logic LO or may be changed while the AD1855 is in power down/reset.
It must not be changed while the AD1855 is operational.
Right channel zero flag output. This port goes HI when left channel has no signal input
for more than 1024 LR clock cycles.
Deemphasis. Digital deemphasis is enabled when this input signal is HI. This is used to impose
sample rate.
Voltage reference filter capacitor connection. Bypass and decouple the voltage reference
with parallel 10uF and 0.1uF capacitor to the AGND.
Left channel zero flag output. This port goes HI when right channel has no signal input
for more than 1024 LR clock cycles.
Power down/reset. The AD1855 is placed in a low power consumption mode when this port is
are reset to the default values. Connect HI for normal operation.
Serial input, MSB first, containing two channels of 16/18/20/24 bits of twos compliment data
per channel.
6-2 SERIAL DATA INPUT MODE
IDPM1 (PIN20)IDPM0 (PIN21)Serial data input format
1MUTEIMute(H:on)
2BCKIBCK input port
3DATAIData input port
4LRCKILRCK input port
5RSTIReset input port(L:reset)
6VSS-GND
7IBFIInput format setting(1)
8IISIInput format setting(2)
9IUDIInverted input port of LRCK
10IW0IInput data period setting(1)
11IW1IInput data period setting(2)
12VSS-GND
13-16NCON3-0OTest port
17VDD-Power supply port
18DR0N0IROM compensation on/off
19DR0N1IFilter compensation on/off
20NTIConnect H level
21RND0IOpen
22RND1IOpen
23OBFIOutput format setting(1)
Pin No. Pin Name I/ODescriptions
24OISIOutput format setting(2)
25OLRRLIOutput change port
26OUDIEdge setting of LRCK0
27FILNIConnect H level
28VSS-GND
29LRCKOOLRCK output port
30DATAOODATA output port
31BCKOO BCK output port
32DRVWIConnect H level
33THRMNIThrough mode
34ICTHIPhase setting of internal
oscillation
35VDD-Power supply port
36CKIMaster clock input port
37X0OCrystal output port
38VSS-GND
39VDD-Power supply port
40,41MCK0,1O Master clock output port
42VSS-GND
43,44MMOD0,1IMaster clock frequency setting

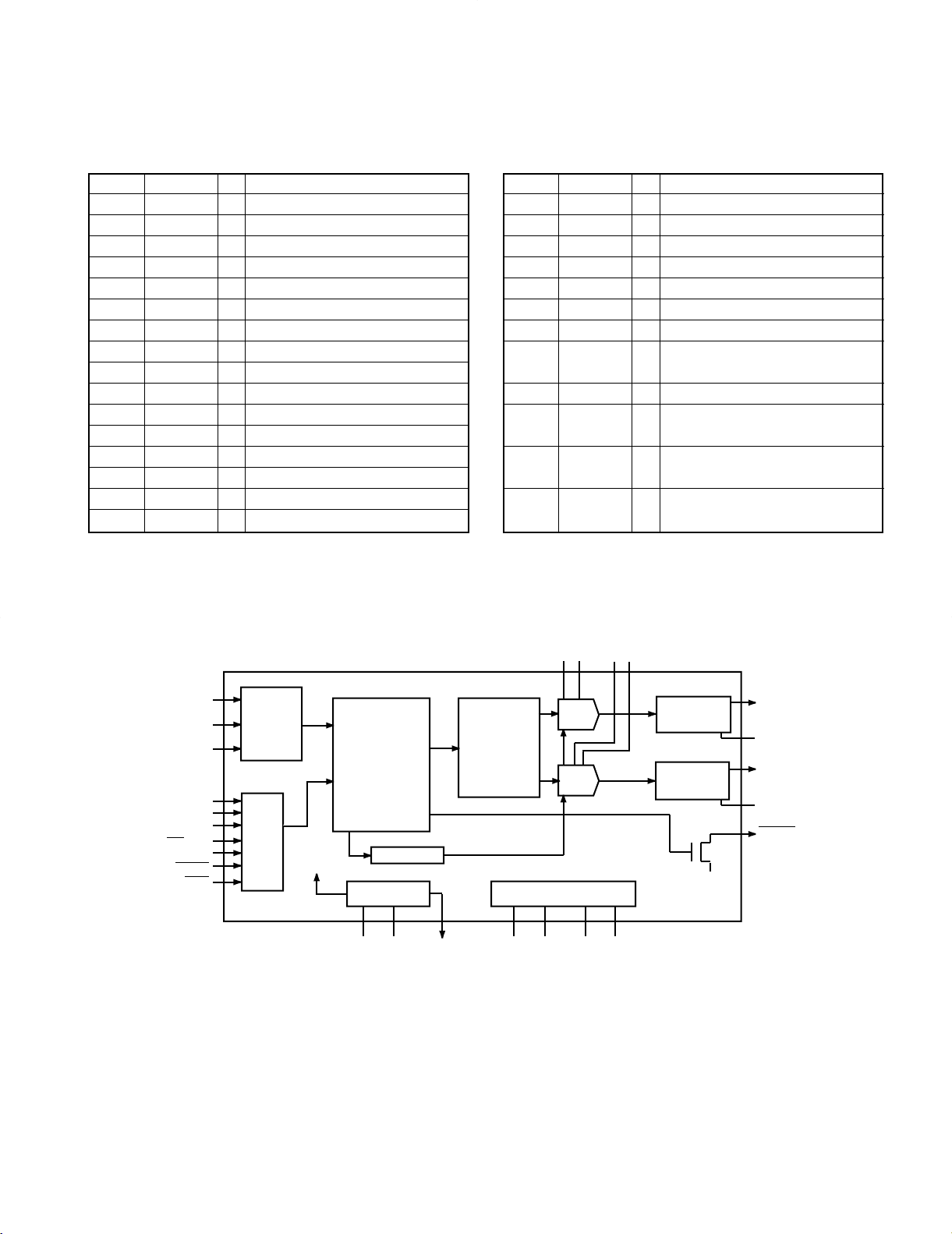

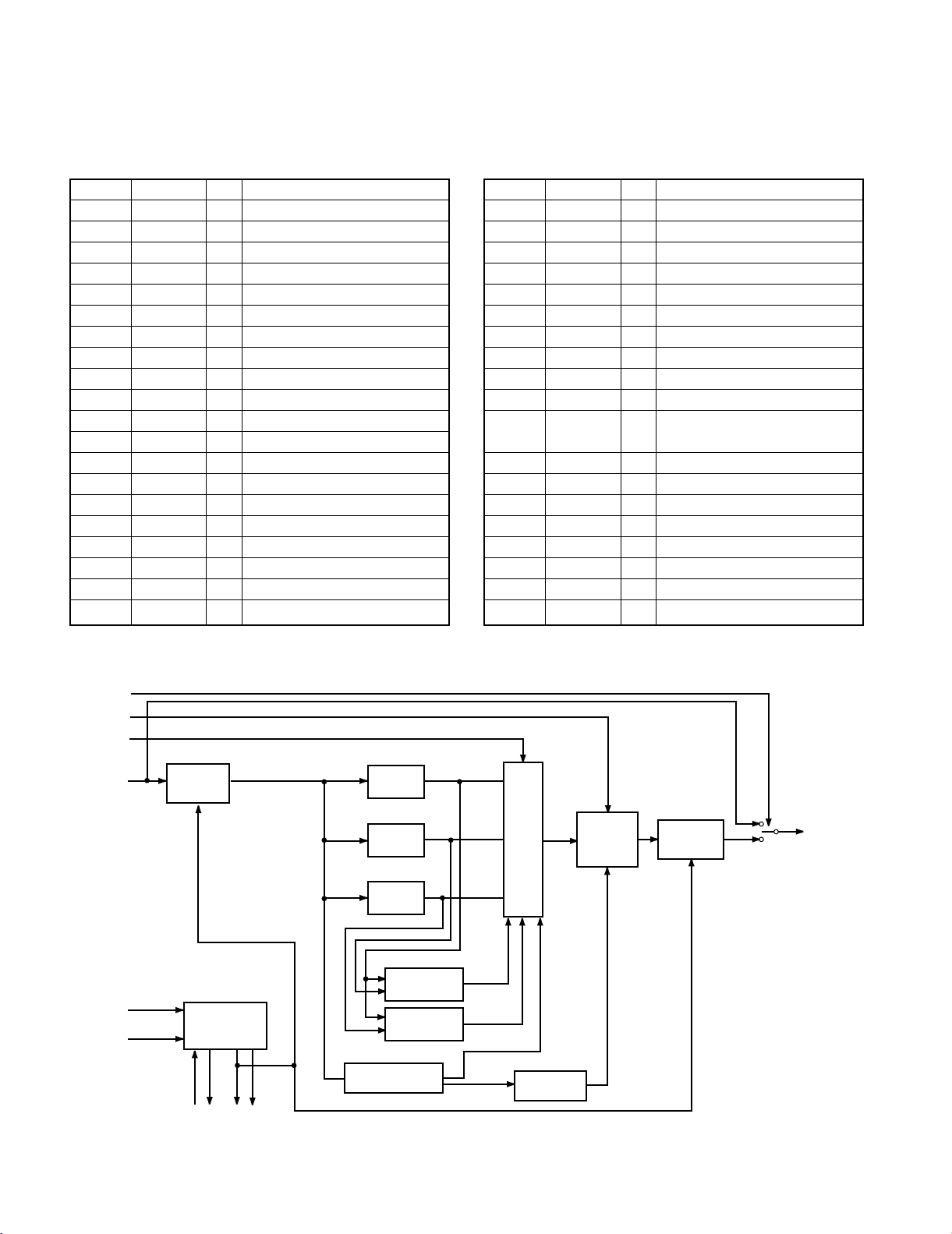

7-2 Block diagram
20
Page 20
CIRCUIT DESCRIPTION
Serial
input
I/F
BCK
LRCK
DATA
ML/IIS
MC/DM1
MD/DM0
CS/IWO
MODE
MUTE
RST
Mode
control
I/F
Function
controller
8fs over
sampling
digital filter
MPX level
delta sigma
modulator
SCK
BPZ-Cont
Power supply
LPF
LPF
VoutL
AGND2R
Vcc2R
AGND2L
Vcc2L
EXTL
VoutR
EXTR
ZERO
Crystal OSC
XTI XTOCLKOVcc1
DAC
DAC
AGND1 Vdd DGND
8. DAC : PCM1716E (X25 : IC3~5)
8-1 Pin description
Pin No. Pin Name I/ODescriptions
1LRCKI LRCK clock input port
2DATAI Data input port
3BCKI Bit clock input port of data
4CLKOO System clock buffer output port
5XTII Clock input port
6XTOO Crystal connection port
7DGND– Digital GND
8VDD– Digital power supply(+5V)
9VCC2R– Analog power supply(+5V)
10AGND2R– Analog GND
11EXTRO R-ch, analog output
12NC– No connection
13VOUTRO R-ch, analog output port
14AGND1– Analog GND
15VCC1– Analog power supply(+5V)
16VOUTLO L-ch, analog output port
DV-203/2070/DVF-5010/9010/K7010
Pin No. Pin Name I/ODescriptions
17NC– No connection
18EXTLO L-ch, analog output
19AGND2L– Analog GND
20VCC2L– Analog power supply(+5V)
21/ZEROO Zero data flag
22/RSTIReset port
23/CS/IWOI Chip select/input format select
24MODEI Mode control selector
(H:soft,L:hard)
25/MUTEIMute control
26MD/DM0I Mode control data/deemphasis
selector
27MC/DM1I Mode control BCK/deemphasis
selector
28ML/IISI Mode control latch/input format
selector
8-2 Block diagram
21
Page 21
DV-203/2070/DVF-5010/9010/K7010
POWER OFF
NO
YES
YES
YES
NO
NO
With pressing
PAUSE key,
Push the POWER
button.
KARAOKE : OFF
After display shows
Model name
(9010 : DVF-9010)
and destination
for 1.5 secs, it shows
"Niagara" demonstration.
TEST MODE
STOP key
pressed?
STOP key
pressed?
STOP key
pressed?
NORMAL MODE
TEST MODE vs
KEYS
DVF-9010/
DV-2070
VDF-K7010
DVF-5010/
DV-203
DV-S701DV-K751
KEY CONTROL
–KEY CON DOWN––
MIC1 UP
MIC ECHO
–KEY CON NATURAL––
MIC2 UP
MIC VOL
––––
MIC1 DOWN
TRACK JUMP
MENU
FF (¡)FF (¡)
TITLE SEARCHMIC2 DOWN
DISPLAY
RETURN
FB (1)FB (1)
FL DISPLAYFL DISPLAY
TEST MODE vs OPERATION KEY
DISPLAYDescriptions
KEY CONTROL TEST*
KEY CON NATURAL 0 cent(level 0)
KEY CON SHARP 600 cent(level 6)
KEY CON FLAT-600 cent(level-6)
MIC ECHO TEST*
ECHO HIGHECHO VALUE 15
ECHO MIDECHO VALUE 8
ECHO LOWECHO VALUE 0
MIC VOLUME TEST*
MIC HIGHATTENUATION :0dB
MIC MIDATTENUATION :-6dB
MIC LOWATTENUATION :MAXIMUM
TRACK JUMP TEST
JUMP TO THE 41 TRACK IF PLAYBACK THE 1ST
TRACK. JUMP TO THE 1ST TRACK IF NOT PLAYBAK
THE 1ST TRACK. DISPLAY SHOWS "TEST MODE"
AFTER TACK JUMP.
* FWD OR BWD KEYS IS AVAILABLE FOR DISPLAY CHANGE
IN EVRY TEST .
CIRCUIT DESCRIPTION
9. TEST MODE

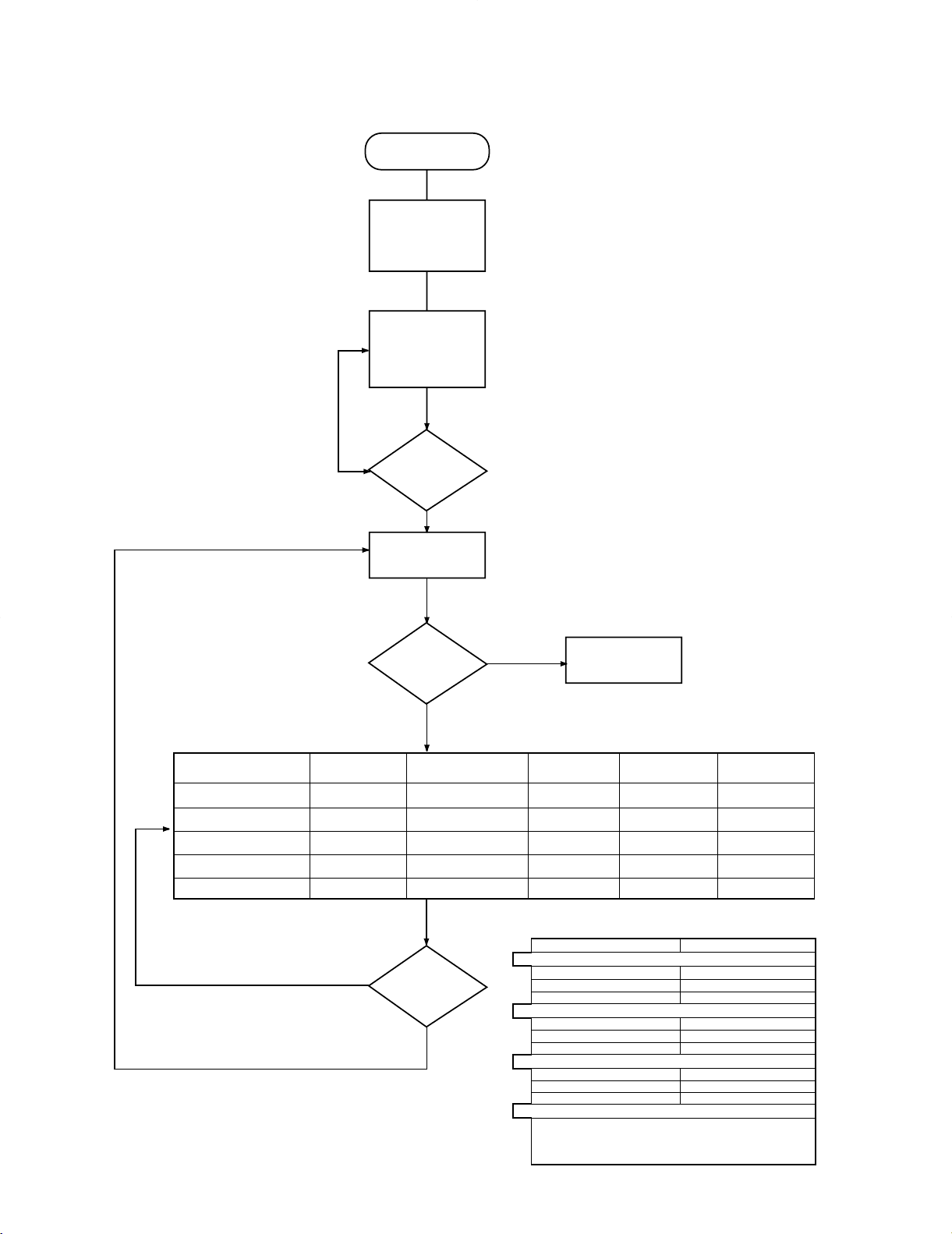

9-1 FOLLOW CHART
22
Page 22

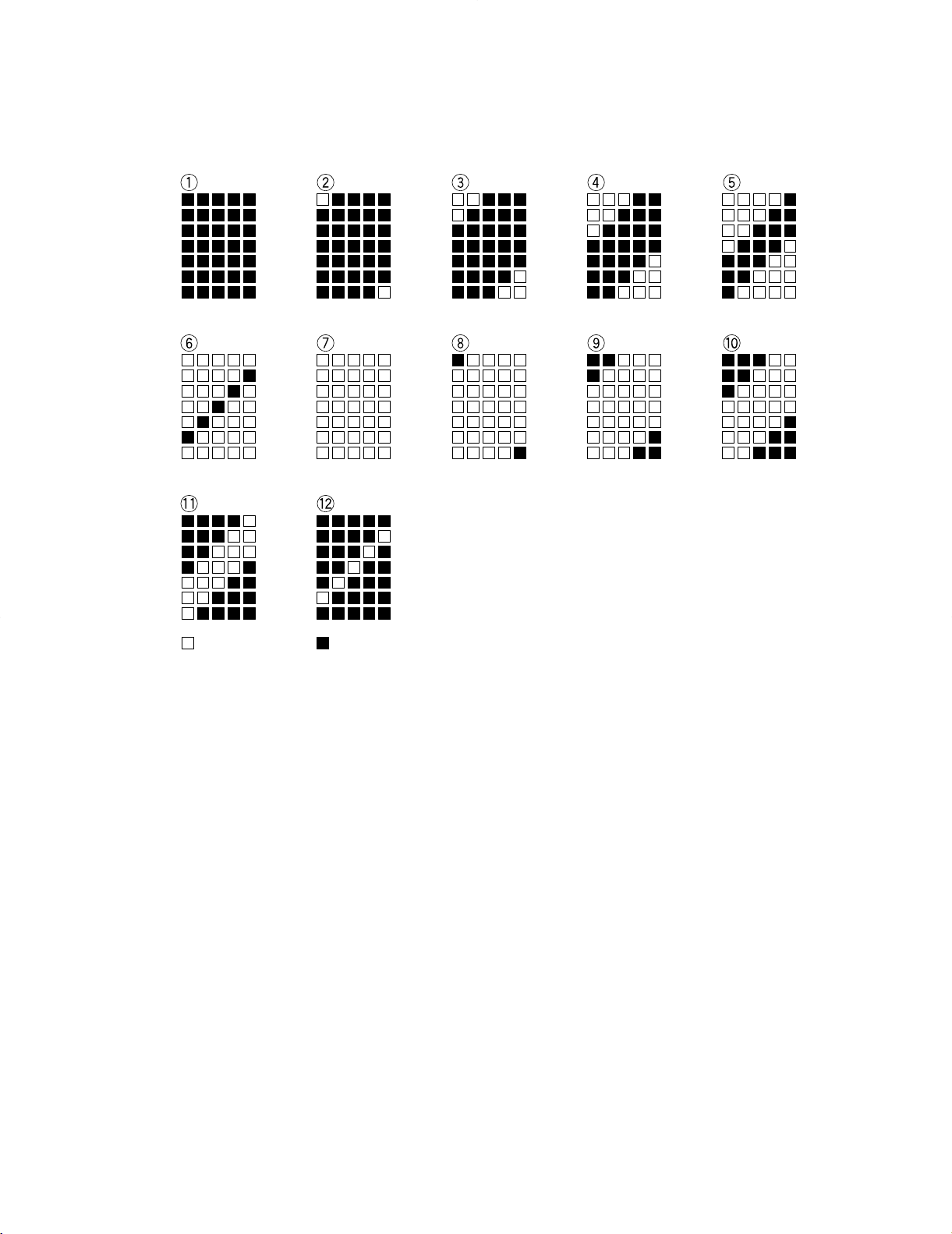

9-2 NIAGARA Display
: ON: OFF
DV-203/2070/DVF-5010/9010/K7010
CIRCUIT DESCRIPTION
• Figure in odd number.
Initial : 7.7 î = î 1 î 7 every change is 200m/s
• Figure in even number
Initial : 1.1 î = î 1 every change is 200m/s
23
Page 23
DV-203/2070/DVF-5010/9010/K7010
Flate wave
Tangential adjustTilt adjust
DC OUTPUT
(Bottom view)
FRONT
Minimum
DC level ( 1.6V)
0 [V]
ADJUSTMENT

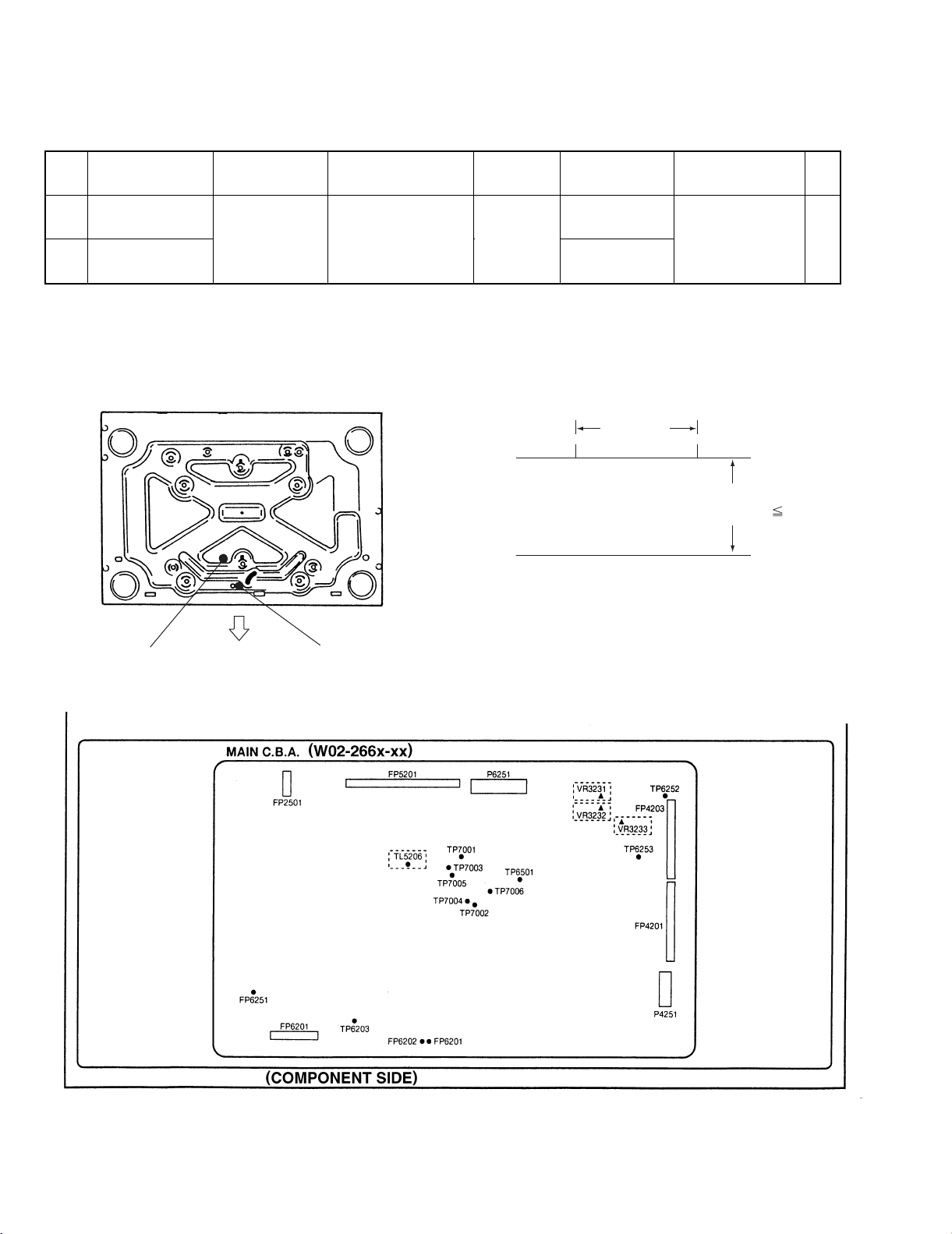

MECHANISM ADJUSTMENT PROCEDURE
No.ITEM
< 1 >
< 2 >
Note : Adjust to repeat No. < 1 > and < 2 > about 2~3 times by a hexagon driver on the bottom chassis of set
TANGENTIAL
TILT
(DV-2070, DVF-9010 : DVD MECHA.), then complete No. < 2 >.
: After complete adjustment, confirm to play MD, CD and Video CD disc the correct.
INPUT
SETTING
DV DISC
OUTPUT
SETTING
Connect an oscillo-
scope to TL5206 and
chassis GND
(DVD main unit :
W02-266x-xx)
PLAYER
SETTING
STILL
ALIGNMENT
POINT
Tangential nut
Minimum DC level
and flat wave.
Tilt nut
(a)
ALIGN
FOR
FIG.
(a)
24
Page 24
DV-203/2070/DVF-5010/9010/K7010
WHITE
BURST
BURST
NTSCPAL
1.00V
±0.05Vp-p
1.00V
±0.05Vp-p
NTSCPAL
0.7V
±0.02Vp-p
0.66V
±0.02Vp-p
100% COLOR BAR (oscilloscope)75% COLOR BAR (oscilloscope)
COLOR BAR (TV)
(b)(c)
CYAN
WHITE
VELLO
CYAN
GREEN
MAGENTA
RED
BLACK
BLUE
MAIN C.B.A
WHITE
VELLO
BLUE
BACK
NTSC
Cb
0.648V
±0.03Vp-p
100% COLOR BAR (oscilloscope)
100% COLOR BAR (oscilloscope)
(d)(d)
CYAN
RED
NTSC
0.648V
±0.03Vp-p
Cr
FP6201
FP5201
P6251
VR3231
VR3233
VR3232
FP4203FP4201P4251
FP2501
(COMPONENT SIDE)

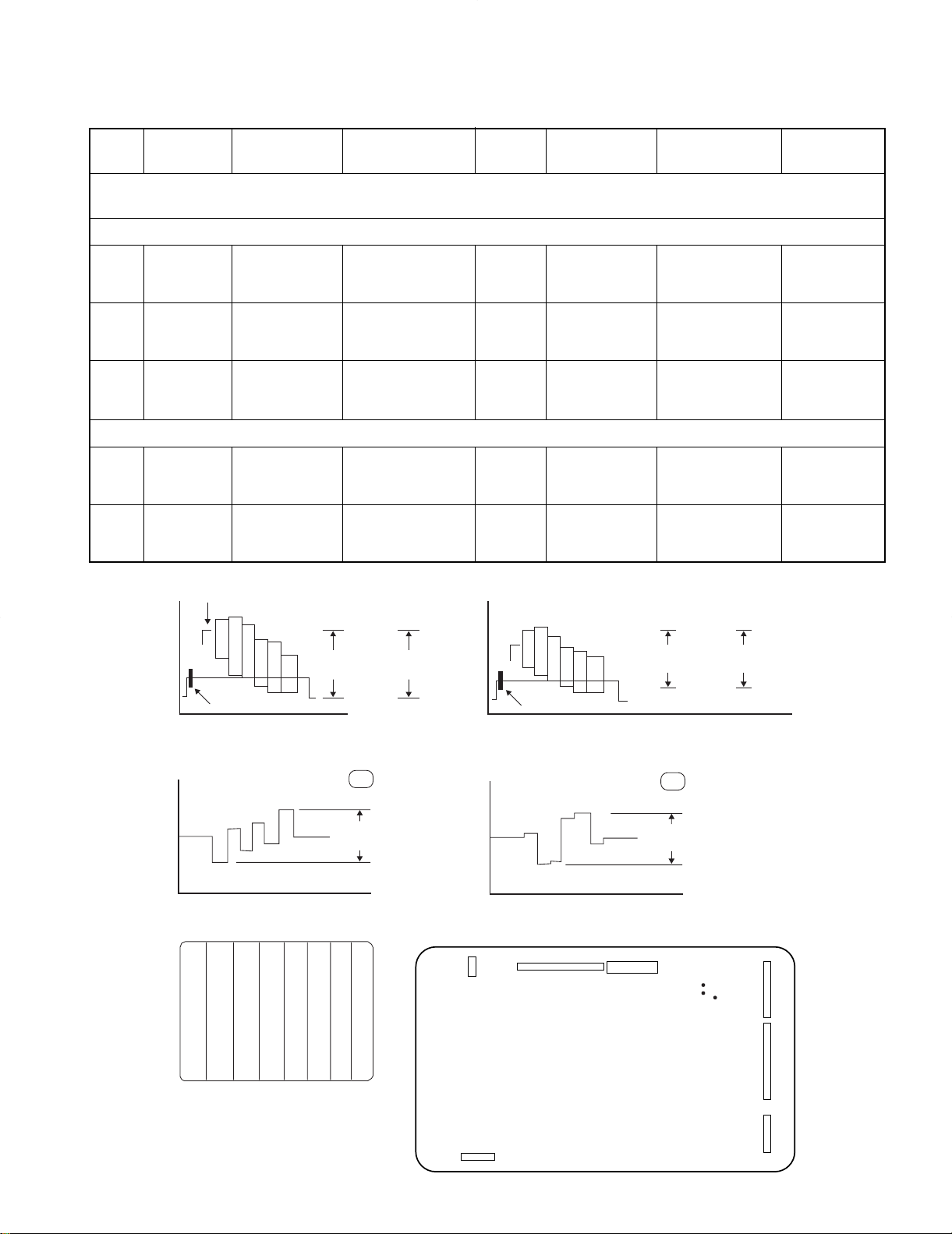

ADJUSTMENT
No.ITEM
DVD DISC : 100% and 75% color bar
OUTPUT : Video output (composite or component / RCA PIN)
CAUTION: For continued safety, replace safety critical
components only with manufacturer's recommended parts
(refer to parts list). indicates safety critical components.
For continued protection against risk of fire, replace only
with same type and rating fuse(s). To reduce the risk of
electric shock, leakage-current or resistance measurements
shall be carried out (exposed parts are acceptably insulated
from the supply circuit) before the appliance is returned to
the customer.

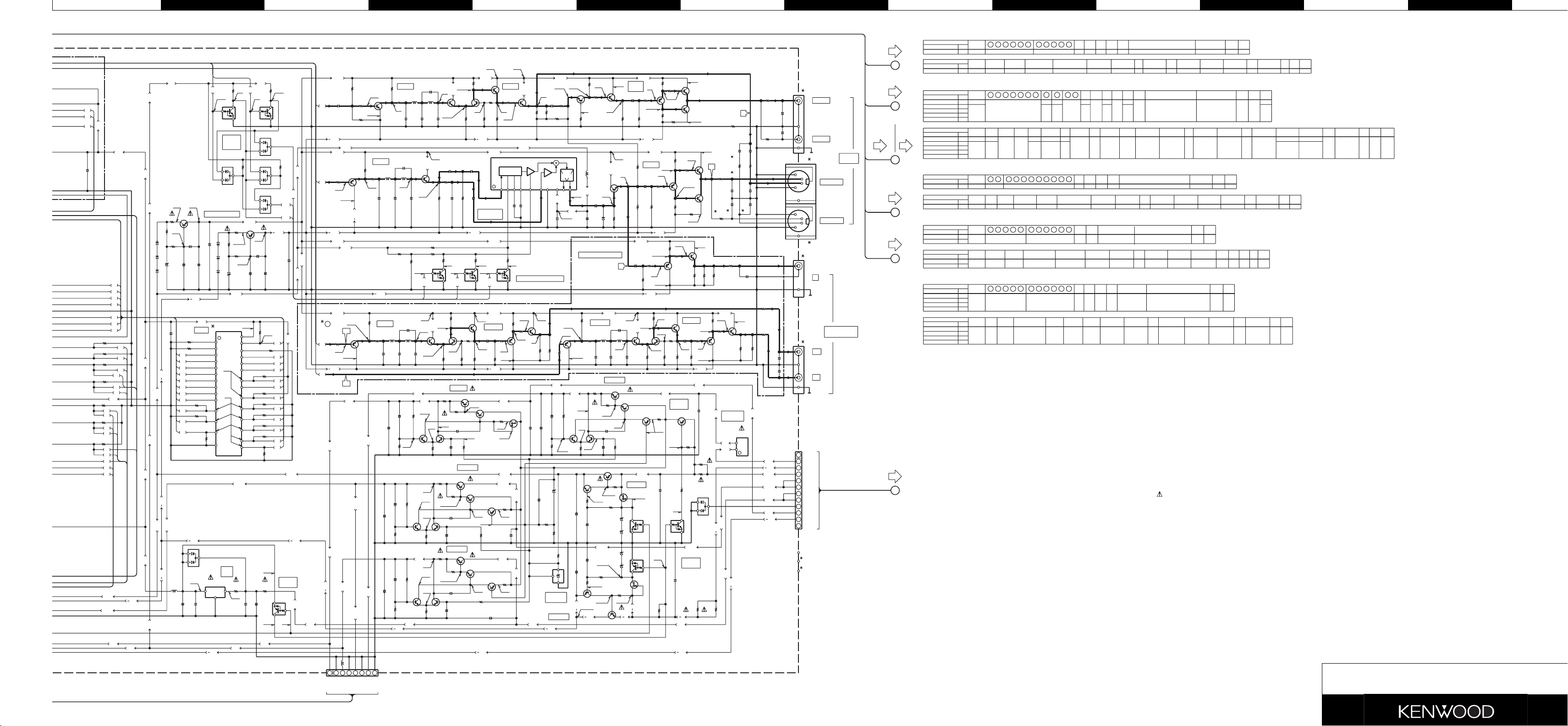

R137-140,148,
158,160,238,240
YES
J10J11 WH4
R137-140,148,158,160,
238,240,587,589
YES
J5J6J8
E63-1060-05E63-1063-05YES
R165,
R137-140,
166
J10
E63-1062-05E63-0128-05NOE63-0014-05
R165,
166
3.3K 56K
NO NOE63-1064-05 E63-0128-05 E63-0014-05
R165,
166
47K
R165,
R171
166
100K
47K
E63-1057-05E63-1061-05YES
R165,
166
47K
R171
12K47KYES
J11 WH4L198
E63-1058-05L92-0075-05NO
YESE2NOE3YES
R171
27K
E3
L198
L92-0131-05
R171R116
R641
NO
270K
YES
J9J10J11 WH4
E63-1061-05
E63-0021-05NO
D405
E2,3
NO
E2,3
D405
NO
NO
D405C115
NO
YES
D405
NO
E63-1057-05
NO
YES
L198
L92-0131-05
D405C115
NOE2YESE3YES
The DC voltage is an actual reading measured with a high
impedance type voltmeter with a cassette loaded at
playback mode. The measurement value may vary
depending on the measuring instruments used or on the
product. Bias circuit DC voltage is measured while in the
record mode.
CAUTION: For continued safety, replace safety critical
components only with manufacturer's recommended parts
(refer to parts list). indicates safety critical components.
For continued protection against risk of fire, replace only
with same type and rating fuse(s). To reduce the risk of
electric shock, leakage-current or resistance measurements
shall be carried out (exposed parts are acceptably insulated
from the supply circuit) before the appliance is returned to
the customer.

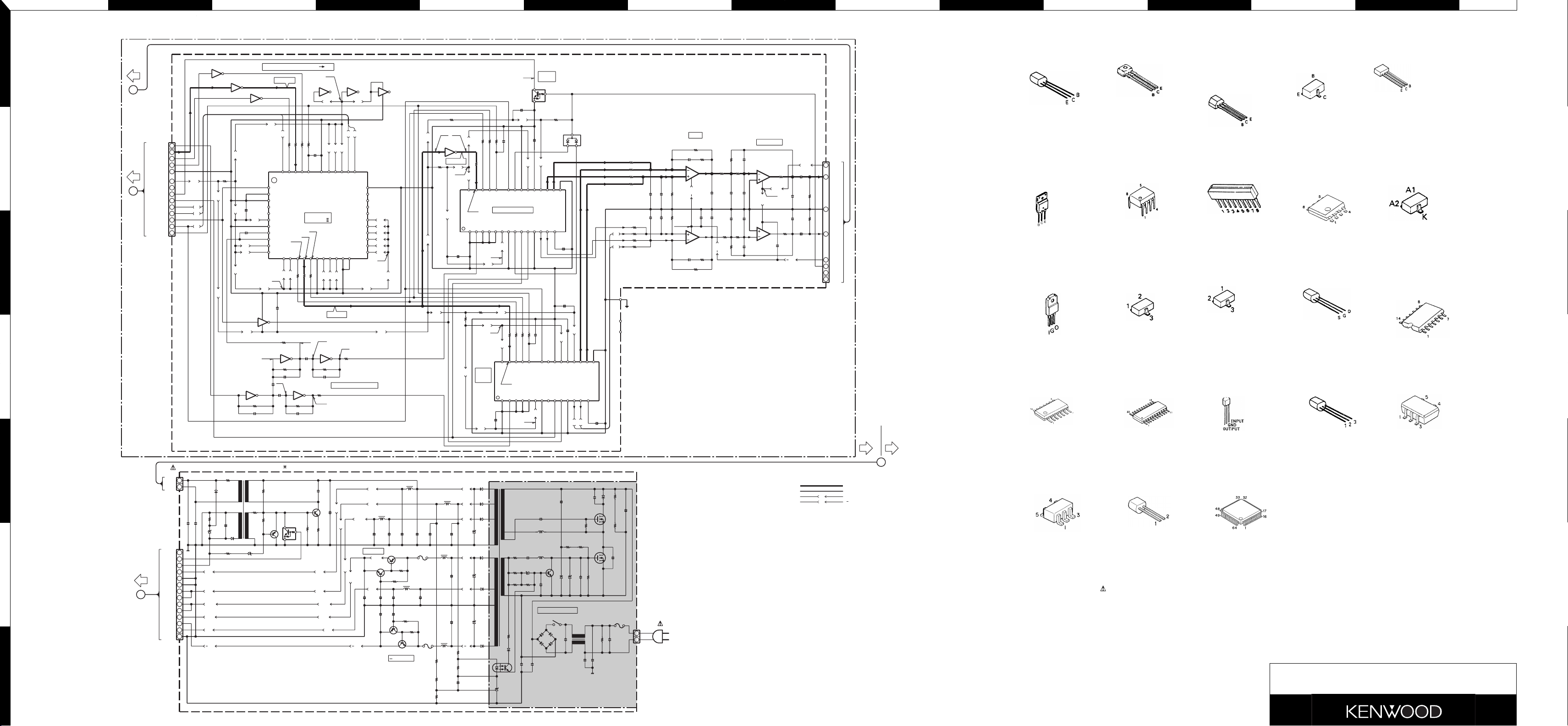

ICP-N20LC75712E
2SC1740S
2SC2458
UN52122SK246
TL431CLP
The DC voltage is an actual reading measured with a high
impedance type voltmeter with a cassette loaded at
playback mode. The measurement value may vary
depending on the measuring instruments used or on the
product. Bias circuit DC voltage is measured while in the
record mode.
DV-203/2070/DVF-5010/9010/K7010
Y22-7820-00
NJM4580ED
S-80740AL-A4
DAN202U
TC74HCT7007AFE
TC74HC14AF
TC74VHCU04F
PST9128NR

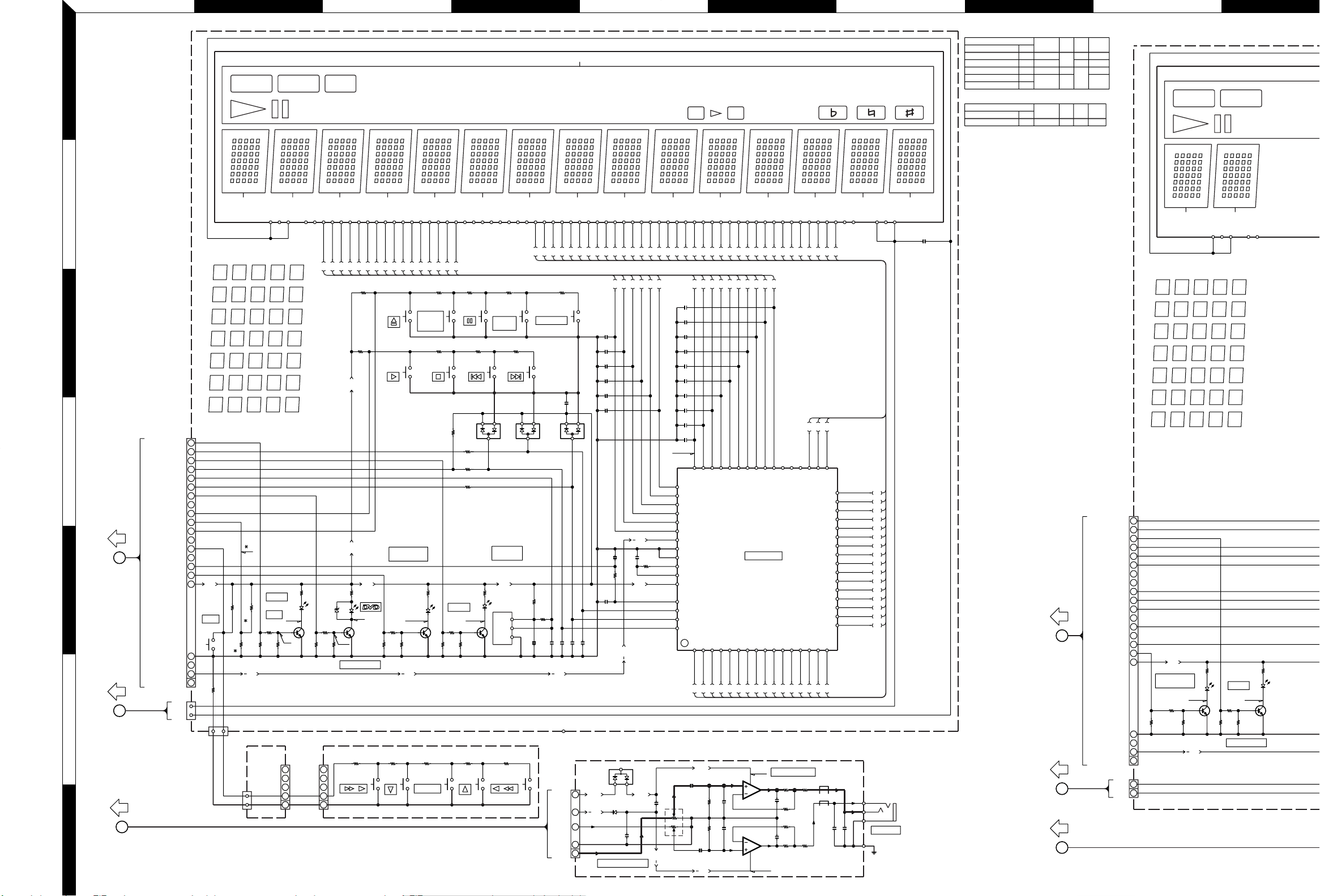

Page 35

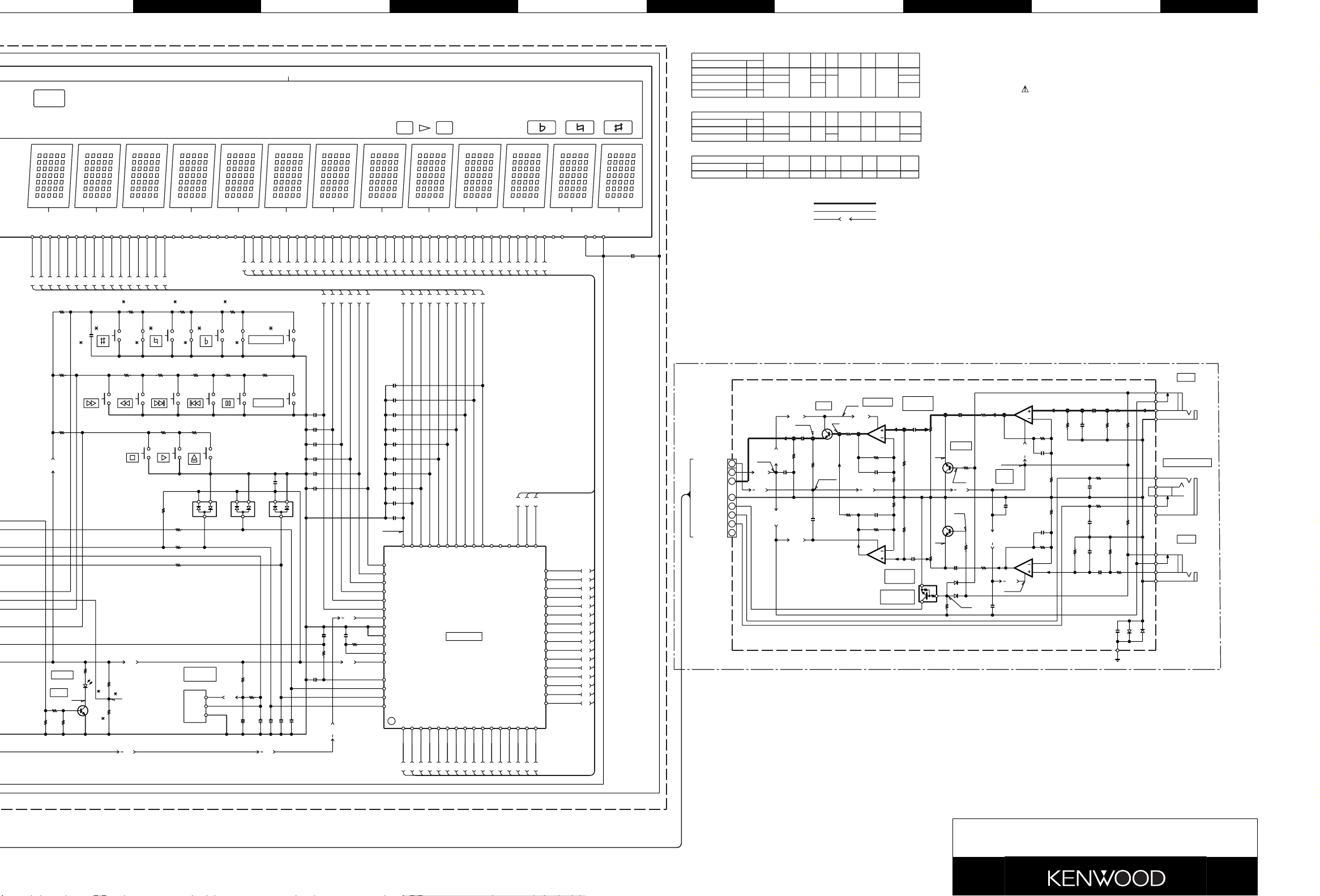

BIBKBMBOBQBJBLBNBPBR
2/3
CN202
W02-
X25-
1/3
CN3
1/3
CN8
X25-
CN3
X25-
1/3
CN202
W02-
2/3
X25WH4
1/3
()()
+5V
1
2
3
4
5
6
7
8
9
10
11
12
14
13
15
17
16
18
19
20
21
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
AM32
AM31
AM30
AM29
AM28
AM27
AM26
AM25
AM24
AM23
AM22
AM21
AM20
AM19
AM18
AM17
G6
G5
G4
G3
G2
G1
VFL
TEST
VSS
OSCO
OSCI
VDD
RES
CE
CL
DI
1
2
34567
8
9
101112
131415
16
484746454443424140393837363534
33
AM1
AM2
AM3
AM4
AM5
AM6
AM7
AM8
AM9
AM10
AM11
AM12
AM13
AM14
AM15
AM16
G7
G8
G9
G10
G11
G12
G13
G14
G15
G16
AA3
AA2
AA1
AM35
AM34
AM33
NC
NP
2
1
4
3
NPF1F1
10
675
8
9
1GNP3G4G2G
13
121115
14
7G5G6G
9G
10G
8G
16G
181617
20
21
19
13G
11G
12G
15G
14G
22
23
NC
69
35
262425
282927
NCNCNCNCNC
32
31
303433
P34
P35
NC
P31
P32
P33
P25
373640
38
39
P28
P29
P30
P26
P27
42
4341464445
P22
P24
P23
P20
P21
52
49
484750
51
P18
P17
P19
P14
P16
P15
53
54
57
56
55
P11
P13
P12
P9P8P10
P2
60
59
58
63
62
61
P5P7P6P3P4
6564666867
P1
NP
F2
NPNPF2
1-7
1-64-6
4-73-72-7
3-62-6
5-7
5-6
1-5
1-4
1-3
4-53-52-55-5
4-3
4-43-42-4
2-3 3-3
5-4
5-3
1-2
1-1
4-23-22-25-2
4-12-1 3-15-1
27
28
29
30
31
32
24
25
26
23
21
22
19
20
18
17
121913
14
15
16
17
18
4
11
567
8
9
10
1
2
3
20
22
21
26
252423
34
32
3331302928
27
35
100P
C16
100P
C15
100P
C14
100P
C13
100P
C12
100P
C11
C22
C21
100P
100P
C20
100P
C19
100P
100P
C17
C18
100P
C26
100P
330P
C25
C24
100P
100P
C23
40
54
5352505148
49
44
4746454243
41
39
NC
FLAC
FLAC
FL-35V
GND
NC
D+5V
VSSLED
RESET
NC
KEY0
NC
KEY1
REG
KEY2
NC
DVDLED
DCLK
REM
DDATA
96K-LED
DLATH
DTS/MPEG LED
47K
R34
4.7K
R41
3.3K
R42
47K
R38
3.3K
R2
4.7K
R1
47K
R40
3.3K
R4
4.7K
R3
R60
R59 56K
R43
330
150
R33
+5V+5V
R31
330
R35
R6
47K
3.3K
4.7K
R5
R32
330
1
2
3
R39
10
47K
R37
1000P
C40
1u50
C1
+
C27
0.01
OTHER
E,T
Q1-4
100PC8R16
10K
35
33
34
1
2
34567
8
9
11
101312
151416
0.1
C9C4 100P
C5 100P
C3 100P
470
470
R27
R26
R25
470
47K
R36
2
1
2
1
E100
2
1
5
4
3
2
11
2
3
4
5
4
2
1
3
5
3
2
8
1
6
5
4
7
VR1
50K
0.01
C29
100P
C28
56
R51
330
R57
330
R58
56
R52
100P
C34
100P
C35
100P
C33
100P
C32
100K
R50
100K
R49
22u16
C31
+
22u16
C30
+
L1
L2
C37 470P
C36 470P
LOUT
GND
ROUT
A-15V
A+15V
2.7K
R20
3K
R21
5.6K
R22
11K
R23
33K
R24
VR1
+15V
+15V
15V
+15V
15V
15V
39
40
41
42
43
474546
44
48
49
53
54
51
52
50
11K
R14
2.7KR83K
R10
5.6K
R12
11K
R15
11K
R13
2.7K
R7
3K
R9
5.6K
R11
1K
R28
+5V+5V+5V
35V35V35V
35V
35V
R30 11K
DESTINATION
GENERAL MARKET
EUROPE
U.K.
PX
COUNTRY
0-11
0-21
E
T
Y
M
ABB.
UNIT No.
100K
27K
R60
M2GENERAL MARKET
0-22
2-71
NO
YES
R59
YES
56K
DESTINATION
COUNTRY
R59
YES
UNIT No.
0-11
ABB.
100K
R60
U.S.A.K
1u50
C6
+
0.01
C7
GND 4
FLAC
FLAC
FL-35V 2
NC 1
NC 3
35V
Q5-7
R54
47K
R33
3.3K
4.7K
R32
47K
R55
3.3K
R36
R35
4.7K
330
R34
330
R37
+5V
VSSLED
D+5V65
NC
RESET87
NC
KEY0109
REG
KEY11211
NC
KEY2 13
14
DCLKNC16
15
DDATA
REM1817
DLATH
96K-LED2019
1-6
1-7
DTS/MPEG LED 21
2-7 3-7
2-6 3-6
5-74-7
4-6 5-6
1-5 2-5 3-5 4-5 5-5
2-41-43-4
2-31-33-3
4-4 5-4
4-3 5-3
NP
2-2 3-21-25-24-2
2-11-13-1 4-1 5-1
312
5
4
F1F1NP
NP
2
1
100
R29
OUT
GND
+B
R53
47
R54
47
FL DRIVER
1G2G3G4G5G10G8G6G7G9G11G12G13G14G15G
(1G-15G)
16G
CN1
WH1
Q4
Q1
Q2Q3
D6
D1
D4
D2
D3
A1
SENSOR
REMOTE
MPEG
DTS
VIRTUAL
SURROUND
LED DRIVER
96kHz
S5
S6
S7S8S9
S4S3S2S1
PANEL
OPEN/
RETURNDVD
MENU
CLOSE
D7D5D9
WH2
WH2
S11S12S13S14S15
ENTER
CN3CN2
(PANEL DOOR)
WH4
D11
D12
PHONES
J1
PHONES AMP
PHONES LEVEL
IC2
(2/2)
(1/2)
IC2
S10
OSD
IC1 : LC75712E
: NJM4580EIC2
: 2SC1740S(Q,R) orQ1-4
: B30-2430-05
: B30-2526-05
D2,3,6
D1
D5,7,9D4: DA204U
: RD5.6ES(B2) or
: DAP204U
D12
D11
: MA111
ED1 : 16-ST-20GK
: W02-2571-05A1
2SC2785(F,E)
DVF-9010 (X14-482X-XX)
DV-2070 (X14-4820-11)
WH1
LED DRIVER
SURROUND
VIRTUAL
Q5Q6
96kHz
D1
D2
CN1
(1G-15G)
1G2G
HZS5.6N(B2)
P1
P2
P3
P5P7
P4P6
P9
P8
P10
P31P34P33P32P35
P12
P11
P14
P13
P15
P17
P16
P19
P18
P21
P22
P20P23
P24P25
P27
P28P29
P26
P21
P16
P24
P29P28P27
P22 P23
P30
P25
P19P18P17P20
P26
P11
P6
P30
P1
P9
P14P12 P13
P7P8
P15
P10
P4P3P2P5
+3.2V
+1.62V
A
0V
+2.5V
+3.2V
A
P31 P32 P33 P34 P35
P26 P27 P28
P22P21P23
P29 P30
P24 P25
P17 P18P16P20P19
P12P11P13
P7P6P8
P14 P15
P9 P10
P2P1P3P4P5
P5
P1
P2
P3
P4
A
-34.3V
-22.4V
-27.0V
-27.3V
-27.3V
-25.0V
-27.1V
-27.1V
-27.3V
-27.3V
-32.6V
-27.2V
-34.3V
-27.2V
-34.3V
-25.0V
-22.5V
0V
-32.4V
-32.4V
-32.4V
-32.4V
-32.4V
-32.4V
-32.4V
-32.4V
-32.4V
-34.3V
4.5V
0.7V
4.8V
4.8V
2.4V
2.4V
-35.1V
0.3V
-32.4V
-32.4V
-32.4V
-32.4V
-32.4V
-32.4V
-29.5V
-22.7V
-20.0V
-19.8V
-29.7V
-24.8V
-27.1V
-27.5V
-33.9V
-20.2V
-27.1V
-32.0V
-29.5V
-22.6V
-27.3V
-27.3V
4.8V
3.7V
0V
3.7V
0V
0V
4.8V
0.7V
0V
3.7V
11.3V
-11.2V
-32.4V
3.7V
0V
3.7V
0V
IC1
(X14- ) (D/4)(X14- ) (B/4)
(X14- ) (C/4)

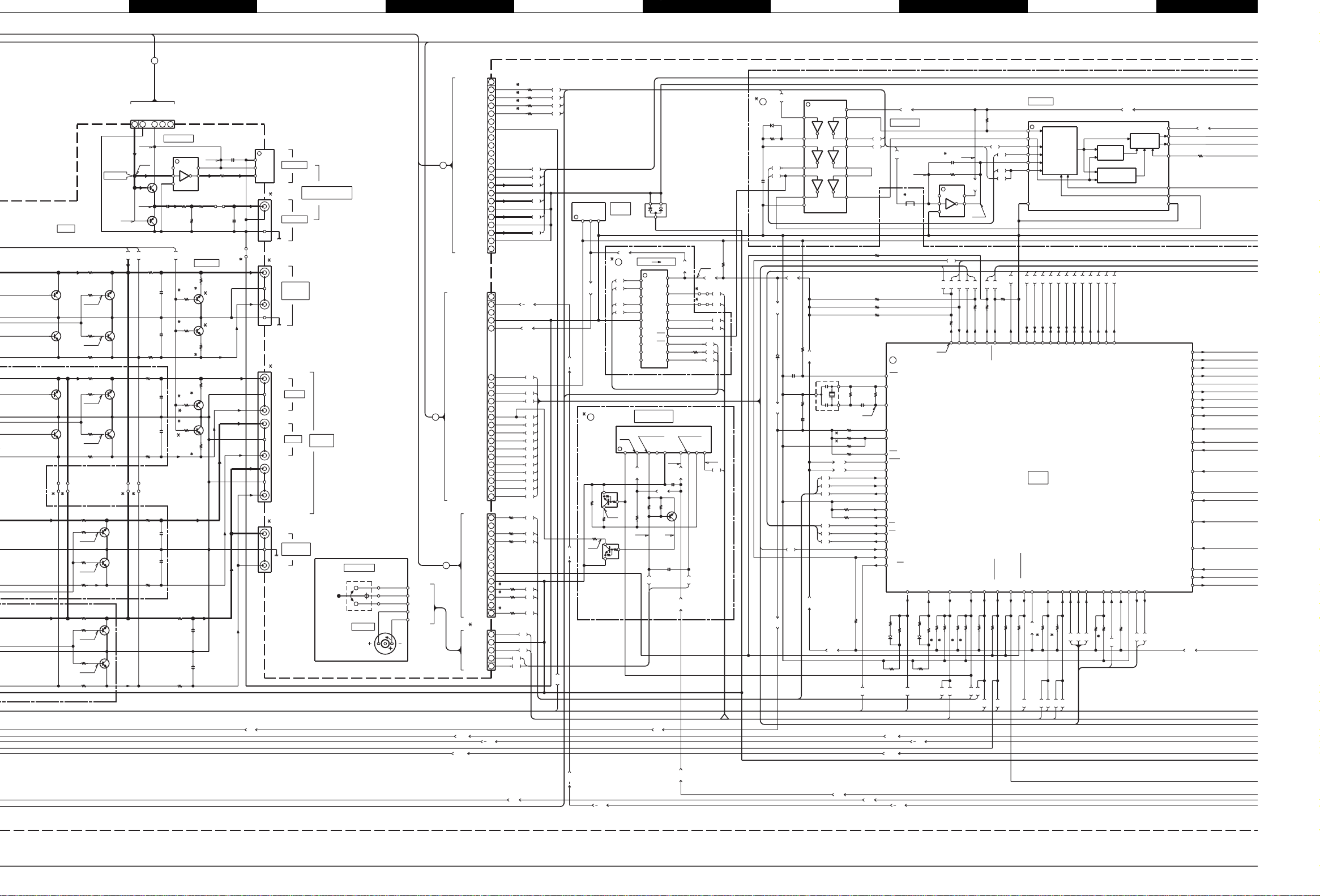

DISPLAY UNIT (X14-482X-XX) (A/4) DVF-9010(J,Y,M,M2,T,E), DV-2070(K)
C
G
D
G
C
ED1
DISPLAY UNIT (X14-483X-XX) (A/2)
DVF-5010(M,M2,T,E), DVF-K7010(M,C),
DV-203(K)
E
ED1
TRACK
DOLBY DIGITAL
DVD
CHAPTERTITLE
VCDCD
P.B.C.STEREO
KARAOKE
CD TEXTTOTAL
MPEG
ANGLE
PCM
INDEX
A
B
PROG.
ALLREPEAT
RANDOM
L
R
TITLE
DVDVCD
Q2
A1
1
2
3
4
5
6
7
Page 36
BSBTBVBXBZCBBUBWBYCA
+B LINE
GND LINE
SIGNAL LINE
+B
220
R51
47K
R39
3.3K
R38
4.7K
OTHER
E,T
330
R40
35V
1
2
3
+5V
+5V
+5V
R3
220
R2
220
21
4
35V
3
2
1
C4 100P
+
1u50
1000P
C6
C50
C3 100P
C5 100P
10
R50
R56
47K
C7
0.01
35V
1
AM3
AM2
AM1
3
2
DI
64
CL
CE
63
62
RES
61
16
15
14
13
12
11
10
15
9
8
765
4
14
12
13
10
11
16
AM15
AM6
AM5
AM4
6
5
AM9
AM8
AM7
9
8
7
AM14
AM13
AM12
AM11
AM10
17
AM16
AM1717
19
AM18
AM19
18
AM20
AM21
20
18
19
20
21
45
53
R41
1K
C1
1u50
10K
+
C8
100P
R1
VDD
OSCI
60
59
OSCO
VSS
58
57
35V
55
TEST
VFL
56
G1
G2
54
49
51
G3
G4
52
G5
G6
50
G9
G8
G7
484647
25
23
AM22
AM23
22
AM24
AM25
24
22
23
25
24
AM26
AM27
26
AM28
AM29
27
28
26
27
29
28
AM34
G12
G11
G10
G15
G14
G13
434440
41
42
AA2
AA3
G16
AM35
AA1
37
38
39
34
35
36
AM31
AM30
29
30
AM32
31
32
31
30
32
AM33
33
R11
5.6K
R42
R52
+5V
47K
11K
R14
2.7K3K
R7R9
R15
11K
53
54
51
50524749484546
44
R10
3K
41
43
423940
11
876
9
10
2G1G5G
4G
3G
14
12
131615
8G6G7G
11G
10G
9G
NC
19
17
18
22
21
20
14G
12G
13G
15G
16G
25
24
23
272826
NC
NCNCNC
NC
ABB.
GENERAL MARKET
EUROPE
U.K.
M2
T
E
GENERAL MARKET M
COUNTRY
DESTINATION
2-71
0-22
56K
YES
NO
0-21YES 27K
UNIT No.R59 R60
C9
0.1
C11
100P
C12
100P
C17
100P
100P
C18
100P
C19
C20
100P
100P
C13
100P
C14
100P
C16
C15
100P
100P
100P
C21
100P
C22
C24
C23
100P
C25
100P
34
35
33
51
5426
R12
11K
353332
34
29
303127
28
51
525350
49
330P
C26
484647
23
24
252122
20
1819171615
P26
34
31
302933
32
NC
P35NCP33
P32
P34
36
353938
37
P30
P29
P31
P27
P28
41
424045
44
43
P23
P24
P25
P21
P22
48
474650
49
P19
P18
P20
P15
P16
P17
3
44
4543424140
39
14
131210
9
11
6
8
7
5
4
2
1
P3
535255
56
54
P12
P13
P14
P10P9P11
585957
61
62
60
P6
P7P8P4
P5
64
656366
P1P2NP
NP
67
68
69
NPF2F2
0.01
C30
11K
R16
2.7K
R17
3K
R18
5.6K
R19
2.7K
R8R13
33K
56K
R59
R60
1
2
3
4
5
6
7
8
A-12V
A+12V
MIC MIX
GND
MIC SW
KARA UP
KARA DOWN
NC
568
7
R117
4.7K
0.01
C111
+12V
+12V+12V
+12V
12V12V12V
12V
100K
R121
+12V+12V
4.7K
R120
10u50
C117
+
3
4
1
2
47K
R131
100P
C115
4.7K
R115
22K
R113
4.7K
R116
C116
100P
R114
22K
6
8
7
5
47K
R130
VR101
0.1
C113
R111
1K2.2u50
C109
+
10K
R123
VR102
R122
47K
2.2u50
C110
+
560
R107
12V
12V
120P
C105
27K
R109
3
2
1
4
R108
560
C106
120P
R110
27K
0.01
C108
0.1
C103
47K
R105
47K
R103
1u50
C101
+
R101
220
100
R132
0.01
C122C123
0.01
R126
100
0.01
C118
VR102
VR101
15K
R125
4.7K
R118
0.1
C114
10K
R124
1K
R112
47K
R106
0.1
C104
47K
R104
1u50
C102
+
220
R102
15K
R133
NO
S10-13
DESTINATION
COUNTRY
GENERAL MARKET
CHINA
12K
UNIT No.
M
ABB.
C
3-01
0-20
R60
27K
YES
R59
DESTINATION
COUNTRY
U.S.A.K
0-11100KYES
UNIT No.
ABB.
R60R59
1000P
C112
1000P
C107
0.01
C10
W47
W46
W45
R17-19
NO
R17-19
YES
R17-19
NO
S10-13
S10-13
YES
NO
C10
NO
C10
C10
NO
YES YES
W45-47
NO
W45-47
NO
W45-47
REMOTE
SENSOR
Q7
DTS
D3
MPEG
A1
FL DRIVER
S7S5
D10
S1S2S3
S6
3G4G5G6G
DVF-5010 (X14-483X-XX)
S9S8
D8D9
REPEAT
11G7G8G9G10G13G12G14G15G
16G
S11
KARAOKE
S12S13
S4
S10
WH101
D104
D103
KEY CONTROL
J103
MIC2
J102
MIC1
J101
D102
D101
Q104
Q103
Q101
MIX
BUFFER
VOLUME
MIC1
AMP
MIC
(2/2)
IC101
MUTE
VOLUME
MIC2
(2/2)
IC102
Q105
IC102
(1/2)
(1/2)
IC101
DETECT
MIC JACK
IC1: LC75712E
IC101,102: NJM4580ED
Q101,103,104 : 2SC1740S(Q,R) or
2SC2785(F,E)
Q105: DTC124ESA
D1-3: B30-2430-05
D8-10: DA204U
D101-104: 1SS133 or
DVF-K7010 (X14-483X-XX)
DV-203 (X14-4830-11)
A1
ED1
W02-2571-05
16-ST-20GK
:
:
Q5-72SC4081(R,S):
HSS104
+2.5V
0V
+1.62V
C
P9P7
P6
P8
P10P30
P17
P16
P13P11
P12
P14
P15
P19
P20
P18
P21
P23
P22P27
P24P25
P28P29
P26
C
+1.62V
+0.88V
C
+3.2V
C
-32.0V
-20.2V
-33.8V
-20.0V
-33.8V
0V
-19.7V
-26.8V
-24.5V
-26.9V
0V
0V
-24.5V
-24.5V
-26.9V
0V
-26.6V
-33.8V
-27.3V
0V
-24.5V
-29.3V
-17.4V
-20.0V
-29.3V
-26.7V
-22.2V
-33.8V
-29.3V
-26.8V
-26.8V
-24.6V
-20.0V
-22.1V
-26.8V
-29.3V
-32.0V
-32.0V
-32.0V
-32.0V
-32.0V
-32.0V
-32.0V
-32.1V
-32.0V
-32.0V
-32.0V
-32.0V
-32.0V
-32.0V
-32.0V
0V
0.2V
0.5V
4.6V
4.9V
2.4V
2.4V
4.9V
3.7V
0V
4.8V
4.8V
11.2V
-11.2V
-0.6V
0V
11.2V
11.2V
0.6V
0V
0V
0.6V
3.8V
-11.2V
-11.2V
DVF-9010 (3/3)
DV-2070 (3/3)
IC1
(X14-483X-XX) (B/2)
DVF-K7010(M,C) TYPE ONLY
DVF-K7010 (3/3)
DVF-5010 (3/3)
DV-203 (3/3)
DOLBY DIGITAL
CHAPTERTRACK
P.B.C.
CD
R
RANDOM
REPEAT
CD TEXTTOTAL
A
MPEG
ANGLE
PCM
INDEX
B
ALL
PROG.
KARAOKE
STEREO
L
CAUTION: For continued safety, replace safety critical components only with manufacturer's recommended parts (refer
to parts list). indicates safety critical components. For
continued protection against risk of fire, replace only with
same type and rating fuse(s). To reduce the risk of electric
shock, leakage-current or resistance measurements shall
be carried out (exposed parts are acceptably insulated from
the supply circuit) before the appliance is returned to the
customer.
The DC voltage is an actual reading measured with a high
impedance type voltmeter with a cassette loaded at playback mode. The measurement value may vary depending
on the measuring instruments used or on the product. Bias
circuit DC voltage is measured while in the record mode.
DV-203/2070/DVF-5010/9010/K7010
Y22-7820-00
Page 37
DV-203/2070/DVF-5010/9010/K7010

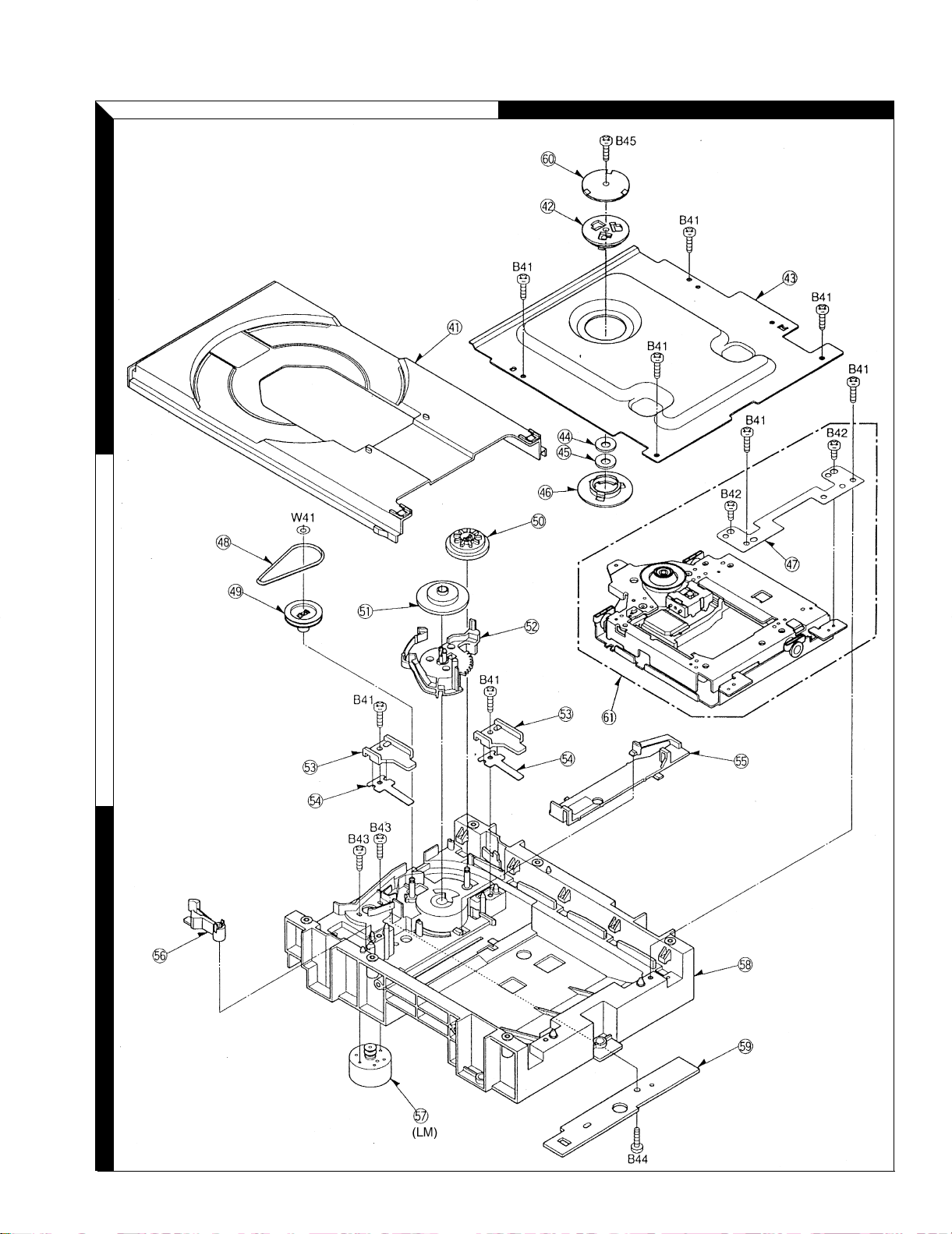

EXPLODED VIEW (MECHANISM : 1)
AB
1
2
3
Parts with exploded view numbers larger than 700 are not supplied.
49
Page 38
DV-203/2070/DVF-5010/9010/K7010
EXPLODED VIEW (MECHANISM : 2)
CD
1
2
3
Parts with exploded view numbers larger than 700 are not supplied.
Parts with exploded numbers larger than 700 are not supplied.
2

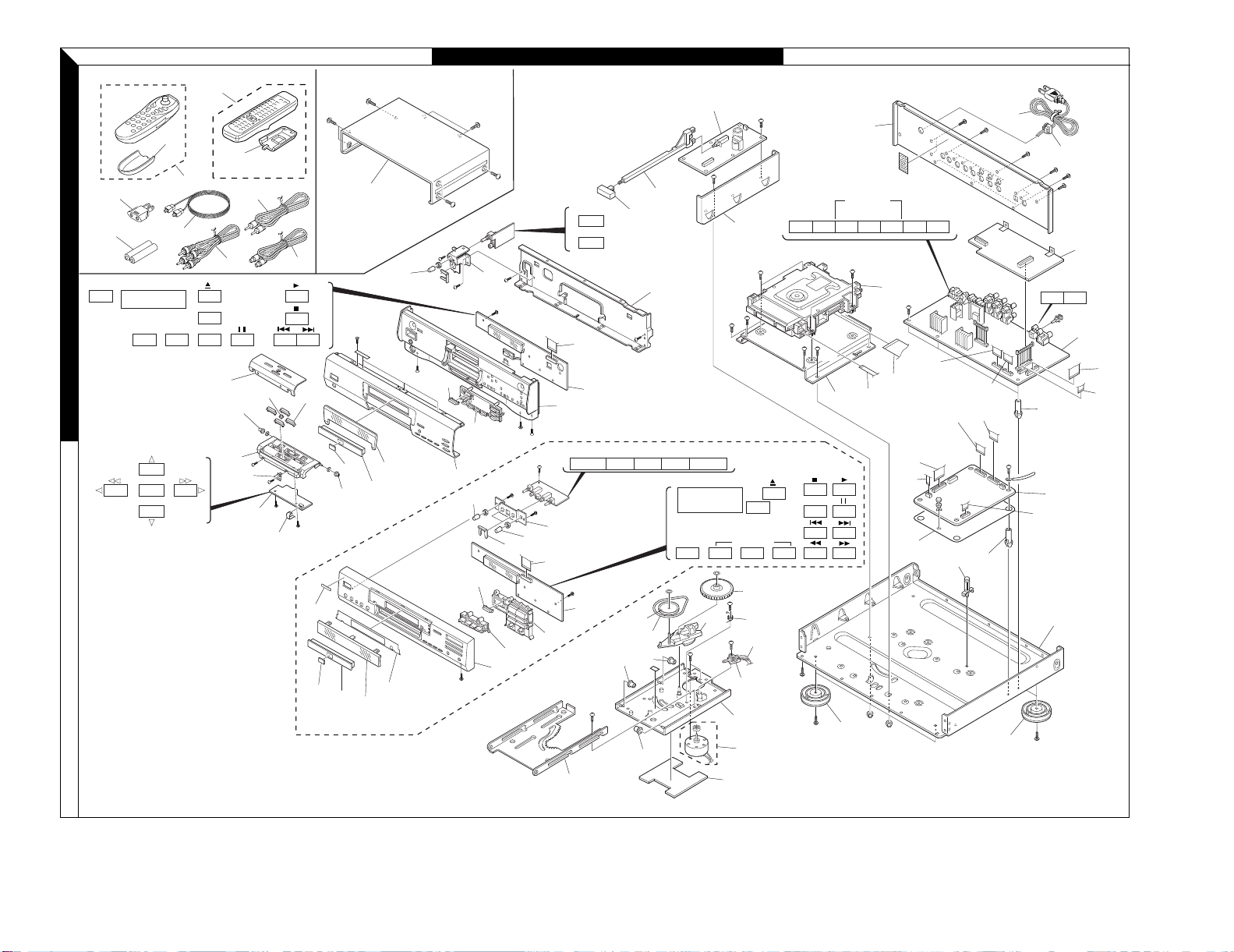

EXPLODED VIEW (UNIT)
Page 40
52
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
6371EE03-0115-05AC PLUG ADAPTERM9
6381EE30-0505-05AUDIO CORD
6391EE30-1427-05AUDIO CORD (VIDEO)
6401GE30-2592-15AC POWER CORDM9E9
6401GE30-2605-05AC POWER CORDY9
6401GE30-2650-05AC POWER CORDK9
6401GE30-2717-05AC POWER CORDM0
6401GE30-2721-05AC POWER CORDT9
6411EE30-2725-05CORD WITH PLUG (S-VIDEO)
6421G,2GE35-2051-05FLAT CABLE35P
6092F✽ A60-1549-01PANELFRONTM7
6092F✽ A60-1550-01PANELFRONTM5
6092F✽ A60-1551-01PANELFRONTM6
6101E✽ A70-1229-05REMOTE CONTROL ASSY(RC-D0505)C7M7
6101E✽ A70-1230-05REMOTE CONTROL ASSY(RC-D0305)K5T5E5
6101E✽ A70-1230-05REMOTE CONTROL ASSY(RC-D0305)M5M6
Re-
marks
PARTS LIST
DV-203/2070/DVF-5010/9010/K7010
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 41
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
6381EE30-0505-05AUDIO CORD
6391EE30-1427-05AUDIO CORD
6401GE30-2592-15AC POWER CORDM5E5M7
6401GE30-2650-05AC POWER CORDK5
6401GE30-2717-05AC POWER CORDM6
6401GE30-2721-05AC POWER CORDT5
6401GE30-2867-05AC POWER CORDC7
6421G,2GE35-2051-05FLAT CABLE35P
6431G,2GE35-2054-05FLAT CABLE5P
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
53
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 42
DV-203/2070/DVF-5010/9010/K7010
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
54
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
✽ New Parts
Parts without Parts No. are not supplied.
56
Re-
marks
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
ress
Parts
Parts No.
Description
Desti-
nation
Re-
marks
PARTS LIST
Page 43
55
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
Add-
Ref. No
ress
New
Parts
Parts No.
Description
Desti-
nation
CONTROL (X25-6160-11)
C2CK73FB1H103KCHIP C0.010UF K
C4CK45FB1H102KCERAMIC1000PFK
C5CE04KW1A470M ELECTRO47UF10WV
C6CE04KW1C100M ELECTRO10UF16WV
C7CE04KW1A221M ELECTRO220UF10WV
C10CK73FB1H103KCHIP C0.010UF K
C12CK45FB1H102KCERAMIC1000PFK
C13CE04KW1A101M ELECTRO100UF10WV
C14CE04KW1C100M ELECTRO10UF16WV
C15CE04KW1A221M ELECTRO220UF10WV
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
✽ New Parts
Parts without Parts No. are not supplied.
78
Re-
marks
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
ress
Parts
Parts No.
Description
Desti-
nation
Re-
marks
PARTS LIST
DV-203/2070/DVF-5010/9010/K7010
Page 44
56
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 45
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
57
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 46
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
58
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 47
59
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 48
60
DV-203/2070/DVF-5010/9010/K7010
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 49
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
61
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 50
62
DV-203/2070/DVF-5010/9010/K7010
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 51
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
IC10UPC7805AHFANALOGUE IC
IC11-16NJM4580EDANALOGUE ICE5C7M7
IC11-16NJM4580EDANALOGUE ICM5M6T5
IC11-16NJM4580EDANALOGUE ICT9E9
IC11-16NJM4580EDANALOGUE ICY9M9M0
IC17-20NJM4580EDANALOGUE IC
IC21NJM4565MIC(OP AMP X2)C7M7
IC22S-80740AL-A4IC(VOLTAGE DETECTOR)
IC23NJU3715GMOS-ICE9
IC23NJU3715GMOS-ICM9M0T9
IC24TA8409SMOS-ICT9E9K9
IC24TA8409SMOS-ICY9M9MO
IC25HD6433396A65FMI-COM IC
IC26LC89170MMOS-ICK5T5E5
IC26LC89170MMOS-ICM5M6
ress
Parts
Parts No.
Description
Desti-
nation
marks
Re-
PARTS LIST
DV-203/2070/DVF-5010/9010/K7010
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
63
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 52
64
DV-203/2070/DVF-5010/9010/K7010
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Page 53
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
65
✽ New Parts
Parts without Parts No. are not supplied.
¶•
Re-
marks
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
Re-
marks
PARTS LIST
DV-203/2070/DVF-5010/9010/K7010
Page 54
66

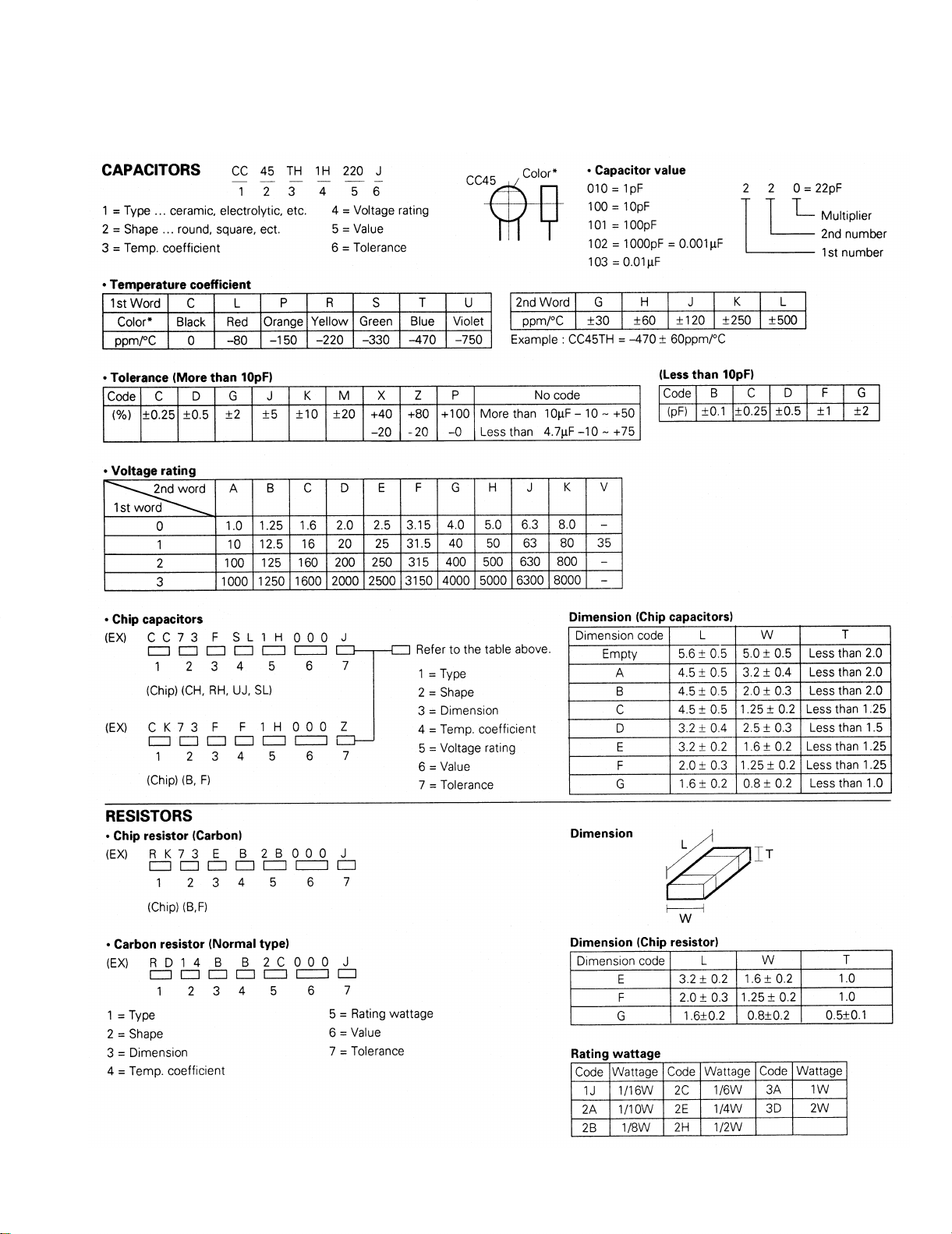

HOW TO READ THE PARTS LIST
ABBREVIATION OF MODEL AND MASS PRODUCTION'S DESTINATIONS
MODELABB. Australia CanadaChinaEnglandEurope Germany KoreaMalaysia
DV-203
-- --- --- -
DV-2070
-- --- --- -
DVF-5010
----T5E5---
DVF-K7010
-- -C7- --- -
DVF-9010
----T9E9---
MODEL
ABB.
Mexico PX/AAFES Russia Scandinavia Shanghai USA Other area Other area(M2)
DV-203
-- - - - - K5--
DV-2070
-- - - - - K9--
DVF-5010
-- - - - - -M5 M6
DVF-K7010
-- - - - - -M7 -
DVF-9010
--Y9----M9M0
DV-203/2070/DVF-5010/9010/K7010
✽ New Parts
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
563AD10-3806-08SWITCH LEVER
573AT42-0915-08LOADING MOTOR UNIT
583BA10-3430-08LOADING BASE
593BJ70-1226-08LOADING MOTOR PCB
601BN19-1457-08CLAMPER WEIGHT
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
✽ New Parts
Parts without Parts No. are not supplied.
ªº
Re-
Desti-
marks
nation
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
Add-
Ref. No
612BD40-1595-08TRAVERSE UNIT
711CE35-2160-08PIN CABLE,11P
721CJ70-1227-08REPEATER PCB
731DA10-3431-08D-CHASSIS UNIT
742CJ19-5925-08CLAMPER
752C,2DJ02-1413-08DAMPER
762CJ19-5926-08DAMPER HOLDER
772CT42-0916-08TRAVERSE MOTOR UNIT,FEED
782CJ21-6618-08MAIN SHAFT HOLDER
793CT42-0917-08DISC MOTOR UNIT
803CJ26-0082-08CHIP SWITCH UNIT
812DJ21-6619-08SUB SHAFT HOLDER
822D,3DD10-3807-08GUIDE SHAFT
832DJ21-6620-08NUT STOPPER
842DG02-1657-08NUT STOP SPRING
852DD13-1879-08SCREW NUT
862DG02-1658-08PICKUP STOP SPRING
873DT25-0077-08PICKUP
893DA11-1143-08H-CHASSIS
B411BN80-2608-46SCREW
L : ScandinaviaK : USAP : Canada R : MexicoC : ChinaI : Malaysia
Y : PX(Far East, Hawaii) T : EuropeE : EuropeG : Germany V : China (Shanghai)
Y : AAFES(Europe)X : Australia Q : RussiaH : KoreaM : Other Areasindicates safety critical components.
ress
New
Parts
Parts No.
Description
Desti-
nation
Re-
marks
PARTS LIST
Page 55
[Type]
System..................................................... DVD video player system
Signal read system ......................................... Semiconductorlaser
[D/A Conversion Section]
D/A conversion ....................................................................... 24 Bit
PAL .........................................................0.300 Vp-p (75 Ω)
Horizontal resolution ................................. More than 500 lines
Video signal to noise ratio .............................. More than 65 dB
[General]
Power consumption ........................................................... 35 W
Dimensions ..............................................W:440 mm (17-5/16”)
H: 93 mm (3-11/16”)
D: 390 mm (15-3/8”)
Weight (net) ..........................................................4.5 kg (9.9lb)
KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be
changed without notice.
÷ Sufficient performance may not be exhibited at extremely cold locations (Where water freezes).
DVF-K7010
DV-203/2070/DVF-5010/9010/K7010
SPECIFICATIONS
69
Page 58
DV-203/2070/DVF-5010/9010/K7010
Note:
Component and circuit are subject to modification to insure best
operation under differing local conditions. This manual is based on
Europe (E) standard, and provides information on regional circuit
modification through use of alternate schematic diagrams, and information on regional component variations through use of parts list.
14-6,Dogenzaka 1-chome, Shibuya-ku, Tokyo, 150-8501 Japan
KENWOOD SERVICE CORPORATION
P.O BOX 22745, 2201 East Dominguez St., Long Beach, CA 90801-5745, U.S.A.
