Kenmore W10133487A User Manual

Front-Loading Automatic Washer

Use & Care Guide

Lavadora automática de carga frontal

Manual de uso y cuidado

Laveuse automatique à chargement frontal

Guide d’utilisation et d’entretien

Models/Modelos/Modèles 110.4674✼, 4675✼ ✼ = color number, número de color, numéro de couleur

Designed to use only HE High Efficiency detergent

Diseñado para utilizar solamente detergente de alta eficacia

Conçu pour l'utilisation d'un détergent haute efficacité seulement

Certified to Sanitize Certificado para esterilizar Certifié pour aseptiser

461970239131 Sears Roebuck and Co., Hoffman Estates, IL 60179, U.S.A. www.sears.com ✔ W10133487A Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

TABLE OF CONTENTS

PROTECTION AGREEMENTS.......................................................2

WARRANTY.....................................................................................3

WASHER SAFETY ..........................................................................4

INSTALLATION REQUIREMENTS ................................................5

Tools and Parts ............................................................................5

Options .........................................................................................5

Location Requirements ................................................................6

Drain System ................................................................................7

Electrical Requirements................................................................8

INSTALLATION INSTRUCTIONS ..................................................8

Remove Transport System...........................................................8

Connect the Inlet Hoses...............................................................9

Route the Drain Hose ...................................................................9

Secure the Drain Hose .............................................................. 10

Level the Washer....................................................................... 10

Complete Installation................................................................. 10

FEATURES AND BENEFITS ....................................................... 11

WASHER USE .............................................................................. 12

Starting Your Washer ................................................................ 12

Using the Proper Detergent ...................................................... 12

PROTECTION AGREEMENTS

Using the Dispenser .................................................................. 13

Pausing or Restarting................................................................ 14

Changing Cycles, Options and Modifiers ................................. 14

Status Lights.............................................................................. 15

Cycles ........................................................................................ 16

Normal Washer Sounds ............................................................ 17

Options ...................................................................................... 17

Modifiers .................................................................................... 18

Laundry Guide ........................................................................... 19

LAUNDRY TIPS............................................................................ 20

Loading...................................................................................... 20

WASHER CARE............................................................................ 21

Cleaning Your Washer............................................................... 21

Water Inlet Hoses ...................................................................... 22

Vacation, Storage, and Moving Care ........................................ 22

TROUBLESHOOTING.................................................................. 23

SERVICE NUMBERS ...............................................BACK COVER

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That’s when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here’s what the Agreement* includes:

✔ Parts and labor needed to help keep products operating

properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage— real protection.

✔ Expert service by a force of more than 10,000 authorized

Sears service technicians, which means someone you can

trust will be working on your product.

✔ Unlimited service calls and nationwide service, as often as

you want us, whenever you want us.

✔ “No-lemon” guarantee – replacement of your covered

product if four or more product failures occur within twelve months.

✔ Product replacement if your covered product can’t be fixed. ✔ Annual Preventive Maintenance Check at your request – no

extra charge.

✔ Fast help by phone – we call it Rapid Resolution – phone

support from a Sears representative on all products. Think of us as a “talking owner’s manual.”

✔ Power surge protection against electrical damage due to

power fluctuations.

✔ $250 Food Loss Protection annually for any food spoilage

that is the result of mechanical failure of any covered refrigerator or freezer.

✔ Rental reimbursement if repair of your covered product takes

longer than promised.

✔ 10% discount off the regular price of any non-covered repair

service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details

call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME

KENMORE ELITE® APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME repair.

LIMITED LIFETIME WARRANTY ON STAINLESS STEEL DRUM

For the lifetime of the washer from the date of purchase, when this washer is installed, operated and maintained according to all instructions supplied with the product, Sears will replace the stainless steel wash drum due to defective materials or workmanship. After the first year, customer assumes any labor costs associated with replacement of this part.

TEN YEAR LIMITED WARRANTY ON PLASTIC TUB

For ten years from the date of purchase, when this washer is installed, operated and maintained according to all instructions supplied with the product, Sears will replace the plastic tub due to defective materials or workmanship. After the first year, customer assumes any labor costs associated with replacement of this part.

FIVE YEAR LIMITED WARRANTY ON DRIVE SYSTEM PARTS

For five years from the date of purchase, when this washer is installed, operated and maintained according to all instructions supplied with the product, Sears will replace the following drive system parts if defective in materials or workmanship: drive pulley and drive belt. After the first year, customer assumes any labor costs associated with replacement of these parts.

TWO YEAR LIMITED WARRANTY ON SENSOR SMART™ ELECTRONIC BOARD

For two years from the date of purchase, when this washer is installed, operated and maintained according to all instructions supplied with the product, Sears will replace the electronic control board if defective in materials or workmanship. After the first year, customer assumes any labor costs associated with replacement of these parts.

If this appliance is used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

THIS WARRANTY COVERS ONLY DEFECTS IN MATERIAL AND WORKMANSHIP. SEARS WILL NOT PAY FOR:

1. Expendable items that can wear out from normal use,

including but not limited to filters, belts, light bulbs, and bags.

2. A service technician to instruct the user in correct product

installation, operation or maintenance.

3. A service technician to clean or maintain this product.

to arrange for free

4. Damage to or failure of this product if it is not installed,

operated or maintained according to all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident,

abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of

detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from

unauthorized modifications made to this product.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States and Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co.

Dept. 817WA, Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2B8

PRODUCT RECORD

In the space below, record your complete model number, serial number, and purchase date. You can find this information on the model and serial number label located on the product.

Have this information available to help you obtain assistance or service more quickly whenever you contact Sears concerning your appliance.

Model number __ __ __. __________________________________________

Serial number___________________________________________________

Purchase date __________________________________________________

Save these instructions and your sales receipt for future reference.

WASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions,

including the following:

follow instructions.

can be killed or seriously injured if you don't

You instructions.

■ Read all instructions before using the washer.

■ Do not wash articles that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode.

■ Do not add gasoline, dry-cleaning solvents, or other

flammable, or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

■ Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washing machine, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

SAVE THESE INSTRUCTIONS

■ Do not allow children to play on or in the washer. Close

supervision of children is necessary when the washer is used near children.

■ Before the washer is removed from service or discarded,

remove the door or lid.

■ Do not reach into the washer if the drum, tub or agitator is

moving.

■ Do not install or store the washer where it will be exposed to

the weather.

■ Do not tamper with controls.

■ Do not repair or replace any part of the washer or attempt any

servicing unless specifically recommended in this manual or in published user-repair instructions that you understand and have the skills to carry out.

■ See “Electrical Requirements” for grounding instructions.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. The parts supplied are in the washer drum.

Tools needed for connecting the water inlet hoses

■ Pliers (that open to 1⁹⁄₁₆" [39.5 mm])

■ Flashlight (optional)

Tools needed for installation

■ Open end wrenches 17 mm and 13 mm

■ Level

■ Wood block

■ Ruler or measuring tape

Parts supplied:

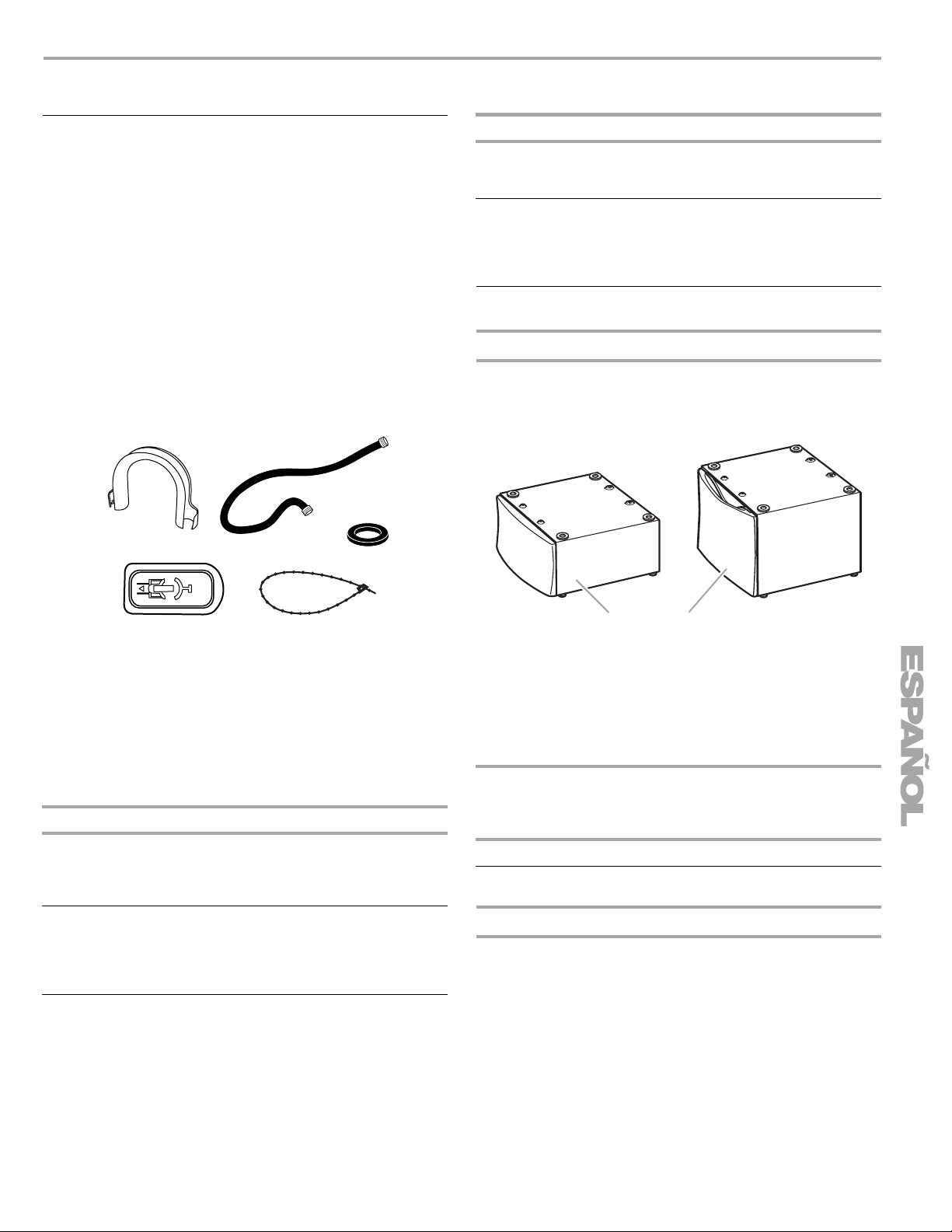

A. Drain hose form B. Inlet hose (2) C. Inlet hose washers (4) D. Transport bolt hole plug (4) E. Beaded strap

Options

Pedestal

You have the option of purchasing pedestals of different heights separately for this washer. You may select a 10" (25.4 cm) or a

15.5" (39.4 cm) pedestal. The pedestal will add to the total height of the washer.

A. 10" (25.4 cm) pedestal B. 15.5" (39.4 cm) pedestal

This pedestal (with storage drawer) is available in several colors. To order, call your local Sears store. For further information,

please call 1-800-4-MY-HOME

Pedestal

Height

10" (25.4 cm) 48" (122 cm) White 46822

15.5" (39.4 cm) 53" (135 cm) White 57822

Approximate Height with Washer

(1-800-469-4663).

Color Part

Number

Alternate Parts

Parts listed are available from your local Sears store or Sears Service Center. For further information, please call

1-800-4-MY-HOME

If You H ave You Wil l N eed to B uy

Laundry tub or standpipe taller than 96" (2.4 m)

Overhead sewer Standard 20 gal. (76 L), 30" (76.2 cm) tall

Floor drain Siphon break, Part Number 285834;

Drain hose too short

Water faucets beyond reach of fill hoses

(1-800-469-4663).

Sump pump system (if not already available)

drain tub or utility sink and sump pump (available from local plumbing suppliers)

additional drain hose, Part Number 8318155; and connector kit, Part Number 285835

4 ft (1.2 m) drain hose extension kit, Part Number 285863

2 longer water fill hoses: 6 ft (1.8 m) Part Number 76314, 10 ft (3.0 m) Part Number 350008

Stack Kit

Are you planning to stack your Kenmore washer and dryer? To do so, find the stack kit (8541503) in the drum of the matching Kenmore dryer. Follow instructions included with the kit. See “Location Requirements.”

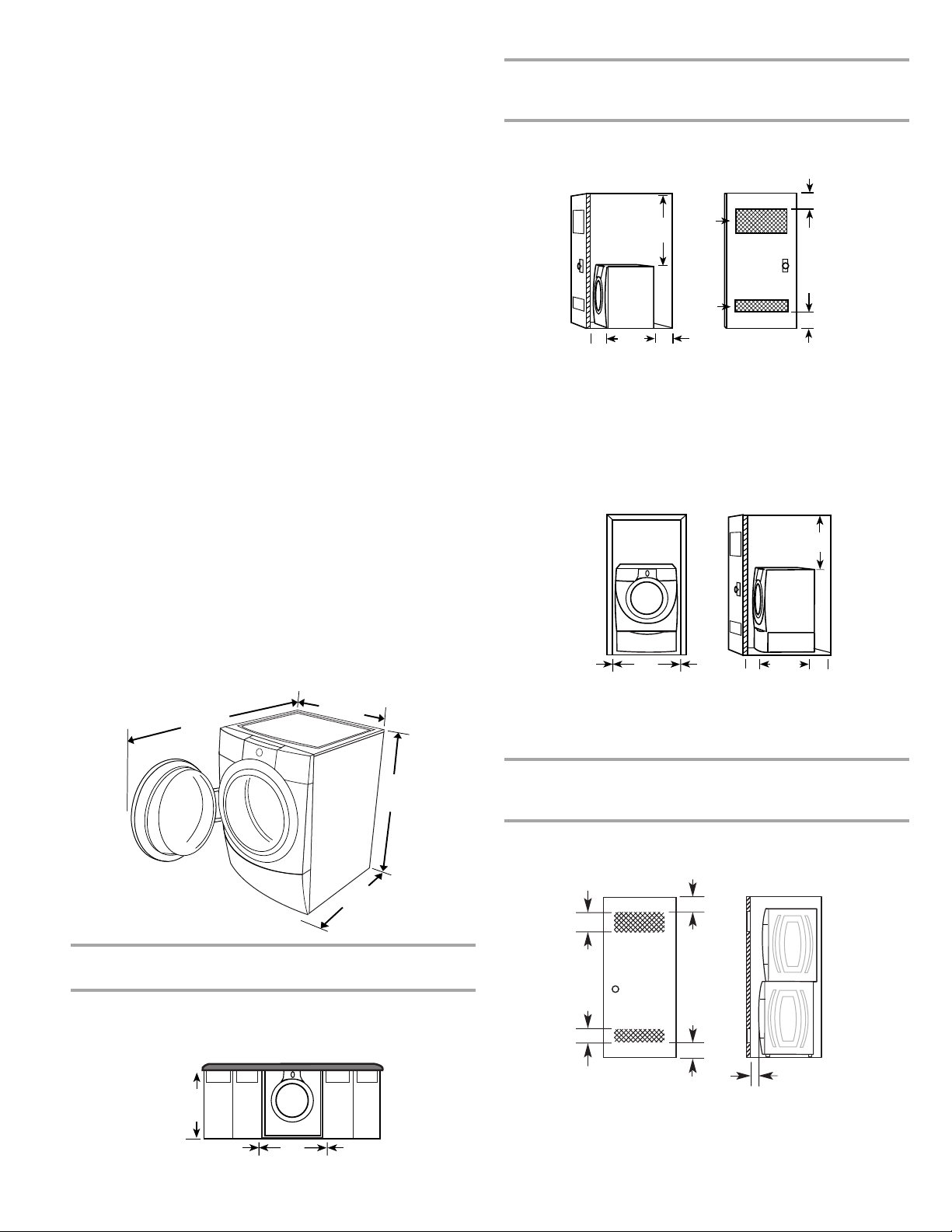

Location Requirements

Selecting the proper location for your washer improves performance and minimizes noise and possible washer “walk.”

Your washer can be installed under a custom counter, or in a basement, laundry room, closet, or recessed area. See “Drain System.”

Companion appliance location requirements should also be considered. Proper installation is your responsibility.

You will need

■

A water heater set to deliver 120°F (49°C) water to the washer.

■ A grounded electrical outlet located within 6 ft (1.8 m) of

where the power cord is attached to the back of the washer. See “Electrical Requirements.”

■ Hot and cold water faucets located within 4 ft (1.2 m) of the

hot and cold water fill valves, and water pressure of 20-100 psi (137.9-689.6 kPa).

■ If you live in a hard water area, use of a water softener is

recommended to control the buildup of scale in the steamer and other areas of the washer. Over time the buildup of lime scale may clog the steamer, which will reduce steamer efficiency and performance. Excessive buildup of scale may lead to the need for steamer replacement or repair.

■

A level floor with a maximum slope of 1" (2.5 cm) under entire washer. Installing the washer on soft floor surfaces, such as carpets or surfaces with foam backing, is not recommended.

■ A sturdy and solid floor to support the washer with a total

weight (water and load) of 400 lbs (180 kg).

Do not operate your washer in temperatures below 32°F (0°C). Some water can remain in the washer and can cause damage in low temperatures.

Installation clearances

■ The location must be large enough to allow the washer door

to be fully opened.

■ Additional spacing should be considered for ease of

installation and servicing.

■ Additional clearances might be required for wall, door, and

floor moldings.

■ Additional spacing of 1" (2.5 cm) on all sides of the washer is

recommended to reduce noise transfer.

■ Companion appliance spacing should also be considered.

Recommended installation spacing for custom undercounter installation

The dimensions shown are for the recommended spacing.

Custom undercounter installation - Washer only

39" min.

(99.0 cm)

(2.5 cm

)

27"

(68.6 cm)

(2.5 cm)

Recommended installation spacing for recessed or closet installation, with or without a pedestal

The dimensions shown are for the recommended spacing.

Recessed area or closet installation

48 in.

(310 cm2)

24 in.

(155 cm

)

(2.5 cm)

34" (86.4 cm)

31¹⁄₂"

(80 cm)

(10.2 cm)

A. Side view - closet or confined area B. Closet door with vents

*Min. top and bottom air openings for closet door. Recessed or closet installation - Washer on pedestal

(7.6 cm)

18" min.

(45.7 cm)

Washer Dimensions

51"

(129.5 cm)

27"

(68.6 cm)

31¹⁄₂"

(80.0 cm)

38"

(96.5 cm)

(2.5 cm)

27"

(68.6 cm)

(2.5 cm)

A. Recessed area B. Side view - closet or confined area

(2.5 cm)

¹⁄₂"

(80 cm)

(10.2 cm)

Recommended installation spacing for recessed or closet installation, with stacked washer and dryer

The dimensions shown are for the recommended spacing.

48 in.2 *

(310 cm2)

3"* (7.6 cm)

24 in.

(155 cm2)

*Required spacing

5¹⁄₂"**

(14 cm)

6"* (15.2 cm)

76"

(193 cm)

(2.5 cm)

27"

(68.6 cm)

1"* (2.5 cm)

(2.5 cm)

Drain System

The washer can be installed using the standpipe drain system (floor or wall), the laundry tub drain system, or the floor drain system. Select the drain hose installation method you need. See “Tools and Parts.”

Standpipe drain system - wall or floor (views A & B)

The standpipe drain requires a minimum diameter standpipe of 2" (5 cm). The minimum carry-away capacity can be no less than 17 gal. (64 L) per minute.

The top of the standpipe must be at least 30" (76.2 cm) high and no higher than 96" (2.4 m) from the bottom of the washer.

30" min.

(76.2 cm)

Laundry tub drain system (view C)

The laundry tub needs a minimum 20 gal. (76 L) capacity. The top of the laundry tub must be at least 30" (76.2 cm) above the floor.

Floor drain system (view D)

The floor drain system requires a siphon break that may be purchased separately. See “Tools and Parts.”

The siphon break must be a minimum of 28" (71 cm) from the bottom of the washer. Additional hoses might be needed.

*Required spacing

**For venting out the side, 1" (2.5 cm) spacing is allowed.

Recommended installation spacing for cabinet installation

■ The dimensions shown are for the recommended spacing.

■ For cabinet installation, with a door, the minimum ventilation

openings in the top are required.

7" (17.8 cm)

(10.2 cm)

31½"

(80.0 cm)

(2.5 cm)1"(2.5 cm)

27"

(68.6 cm)

9" (22.9 cm)

(2.5 cm)

28" min.

30" min.

(76.2 cm)

(71 cm)

WARNING

Electrical Requirements

■ If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the ground path is adequate.

■ Do not ground to a gas pipe.

■ Check with a qualified electrician if you are not sure the

washer is properly grounded.

■ Do not have a fuse in the neutral or ground circuit.

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

■ A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical

supply is required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit serving only this appliance be provided.

■ This washer is equipped with a power supply cord having a

grounded 3 prong plug.

■ To minimize possible shock hazard, the cord must be

plugged into a mating, grounded 3 prong outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected washer:

This washer must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electric current. This washer is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING:

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected washer:

This washer must be connected to a grounded metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Improper connection of the equipment-

INSTALLATION INSTRUCTIONS

Remove Transport System

WARNING

Excessive Weight Hazard Use two or more people to move and install washer. Failure to do so can result in back or other injury.

IMPORTANT: Position the washer so that the rear of the washer is within approximately 3 ft (90 cm) of its final location.

There are 4 bolts in the rear panel of the washer that support the suspension system during transportation. These bolts also retain the power cord inside the washer until the bolts are removed.

1. Using a 13 mm wrench, loosen each of the bolts.

2. Once the bolt is loose, move it to the center of the hole and

completely pull out the bolt, including the plastic spacer covering the bolt.

3. Once all 4 bolts are removed, discard the bolts and spacers.

Then pull the power cord through the opening of the rear panel and close the hole with the attached cap.

4. Close the bolt holes with the 4 transport bolt hole plugs. NOTE: If the washer is to be transported at a later date, call your

local service center. To avoid suspension and structural damage to your washer, it must be properly set up for relocation by a certified technician.

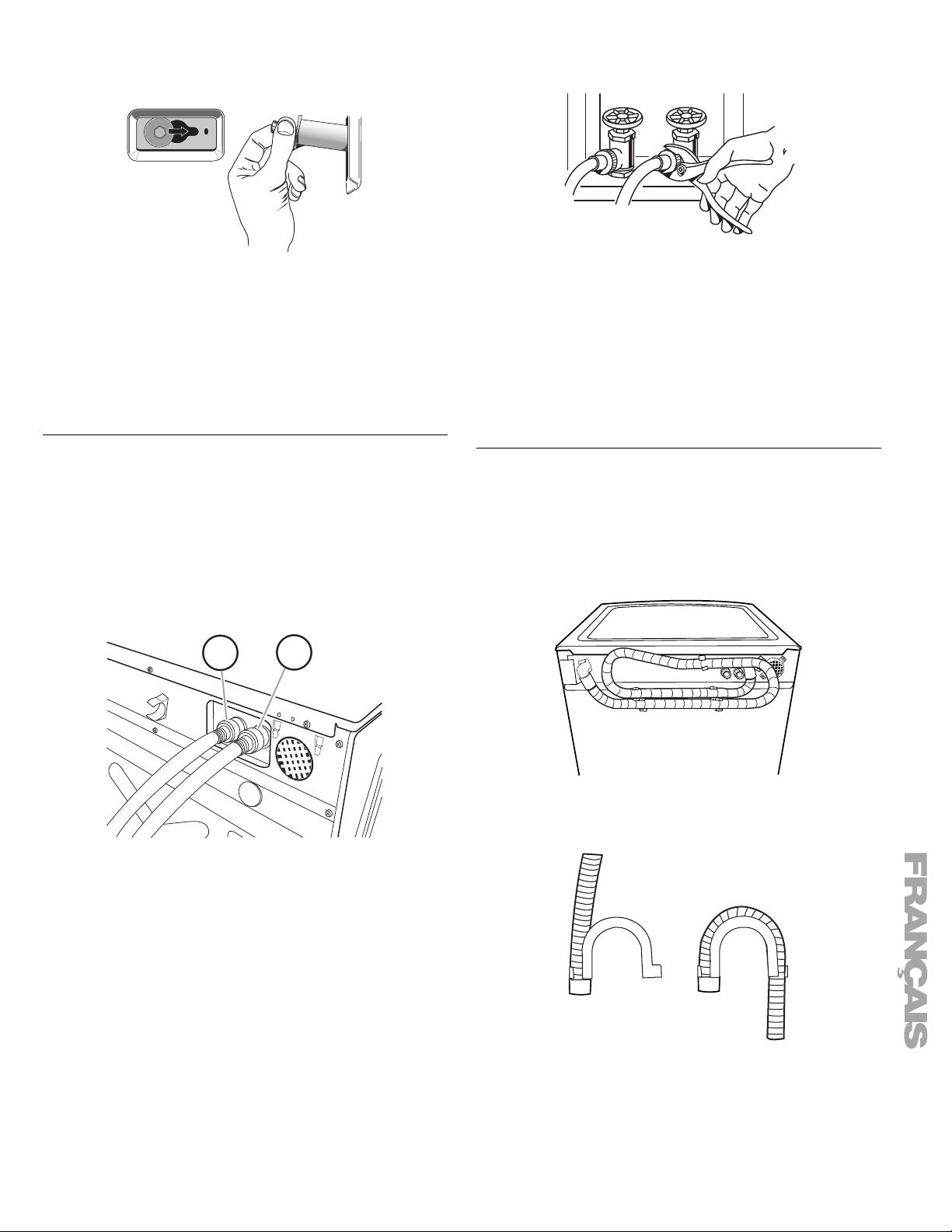

Connect the Inlet Hoses

Make sure the washer drum is empty.

1. Attach the hose with the red color indicator to the Hot (left)

inlet valve. Attaching the red coupling first makes it easier to tighten connection with pliers. Screw on coupling by hand until it is seated on the washer.

2. Attach the hose with the blue color indicator to the Cold

(right) water inlet valve. Screw on coupling by hand until it is seated on the washer.

6. Using pliers, tighten the couplings with an additional

two-thirds turn.

NOTE: Do not overtighten. Damage to the coupling can result.

7. Turn on the water faucets and check for leaks. NOTE: Replace inlet hoses after 5 years of use to reduce the

risk of hose failure. Record hose installation or replacement dates on the hoses for future reference.

Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

Route the Drain Hose

Proper routing of the drain hose protects your floors from damage due to water leakage. Read and follow these instructions.

Remove drain hose from washer cabinet

Gently pull the corrugated drain hose from the shipping clips.

H. Hot water inlet C. Cold water inlet

3. Using pliers, check the tightness of the hose couplings

already attached to the washer. NOTE: Do not overtighten. Damage to the coupling can

result.

4. Attach hot water hose to the hot water faucet. Screw on

coupling by hand until it is seated on the washer.

5. Attach cold water hose to the cold water faucet. Screw on

coupling by hand until it is seated on the washer.

Laundry tub drain or standpipe drain

Connect the drain hose form to the corrugated drain hose.

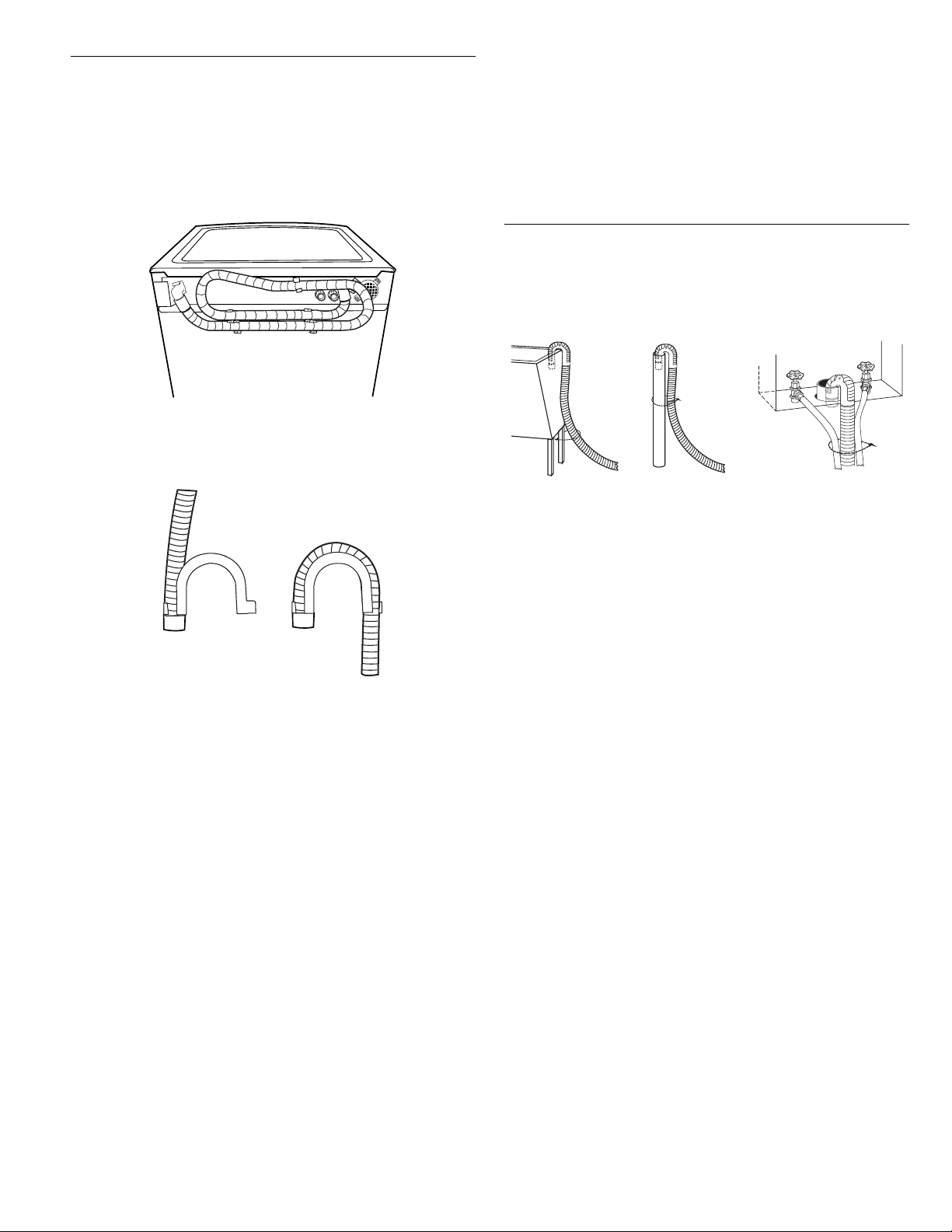

A. Snap either end of the drain hose form to the drain hose at

the point where the corrugation begins.

B. Bend drain hose over drain hose form and snap into place.

To keep drain water from going back into the washer:

■ Do not straighten the drain hose, and do not force excess

drain hose into standpipe. Hose should be secure, but loose enough to provide a gap for air.

■ Do not lay excess hose on the bottom of the laundry tub.

Floor drain

You may need additional parts. See Floor drain under “Tools and Parts.”

Secure the Drain Hose

1. Drape the power cord over the washer top.

2. Secure the drain hose to the laundry tub leg or standpipe with

the beaded strap provided. (See illustrations A and B.)

Complete Installation

1. Check the electrical requirements. Be sure that you have the

correct electrical supply and the recommended grounding method. See “Electrical Requirements.”

2. Be sure all parts are now installed. If there is an extra part, go

back through the steps to see which step was skipped.

3. Be sure you have all of your tools.

4. Dispose of/recycle all packaging materials.

5. Be sure the water faucets are on.

6. Check for leaks around faucets and inlet hoses.

AB C

If the washer faucets and the drain standpipe are recessed (see illustration C), put the hooked end of the drain hose in the standpipe. Tightly wrap the beaded strap around the water inlet hoses and the drain hose.

Do not force excess drain hose into the standpipe.

Level the Washer

Properly leveling your washer avoids excessive noise and vibration.

1. Check the levelness of the washer by placing a level on the

top edge of the washer, first side to side, then front to back.

If the washer is against a wall, move the washer out slightly before tipping back. If the washer is not level, first prop the front with a wood block and adjust the feet as necessary; then prop the back and adjust feet as necessary. Repeat this step until washer is level.

2. Make sure that all four feet are stable and resting on the floor.

Then check that the appliance is perfectly level (use a level).

3. After the washer is level, use a 17 mm open-end wrench to

turn the nuts on the feet tightly against the washer cabinet. IMPORTANT: All four feet must be tightened. If the nuts are

not tight against the washer cabinet, the washer may vibrate. When you are pushing on the edges of the washing machine

top plate, the machine should not move front to back, side to side, or diagonally.

4. Slide the washer to its final location.

5. Confirm the levelness of the washer.

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

7. Plug into a grounded 3 prong outlet.

8. Read “Washer Use.”

9. To test and to clean your washer, measure ¹⁄₂ of the

manufacturer’s recommended amount of powdered or liquid High Efficiency (HE) detergent for a medium-size load. Pour the detergent into the detergent dispenser. Select EXPRESS WASH, and then select START. Allow the washer to complete one whole cycle.

Use only HE High Efficiency detergent.

FEATURES AND BENEFITS

Audio Visual Electronic Controls

Flexible electronic controls are easy to use whether you are a beginner or an expert. Green lights indicate a selected cycle, option, or modifier. If a cycle or option uses STEAMCARE™, the light will be blue instead to indicate that steam will be used during the cycle. Amber lights are used to indicate modifier settings that are available for the selected cycle. If a specific modifier setting is not available, the light will not be illuminated. Different tones are also used to make selecting options and modifiers easier.

Detergent Advantage System Dispenser

The Smart Dispensers make your washer truly automatic. This washer provides a three-compartment dispenser which includes separate compartments for High Efficiency “HE” detergent, fabric softener, and liquid chlorine bleach. The dispenser can easily be removed for cleaning. Laundry products are dispensed automatically at the proper time during the wash cycle, making it unnecessary for you to return to the washer during the cycle to add them and ensuring that these cleaning products perform their very best.

STEAM TREAT™

This washer has a built-in steaming unit which is combined with the STEAM TREAT™ option to provide multiple temperatures to help remove a variety of stains from garments.

Clean Washer cycle with STEAMCARE™

This cycle uses steam to raise the temperature of the unit and makes the washer self-cleaning, flushing the machine's interior free of dirt and other residue. The use of liquid chlorine bleach with this cycle, will remove and avoid odor-causing residue.

Auto Water Level

Adjusting to the size of the load, this feature allows the washer to use the minimal amount of water needed to clean and rinse the clothes. With a low water level, you can obtain the same results with smaller amounts of laundry products. Because only the required amount of water is used, the washer saves energy, too.

Larger Load Size

Since there is no agitator, you can wash larger, bulkier items such as an average size sleeping bag, pillow or a king size bedspread. You are also able to wash more clothes at one time, which means fewer loads.

Suspension System

To reduce washer “walk” and “off-balance” conditions, your new washer combines:

■ 2 Springs to isolate vibration

■ 4 Shock absorbers at the washer base to minimize movement

Stainless Steel Drum

The stainless steel drum eliminates corrosion and enables higher spin speeds for more water extraction, helping to reduce drying time.

High-Efficiency Wash System

Your new front-loading, high-efficiency washer saves time with fewer, larger loads. It also conserves resources and lowers your water and energy bills.

Spin Speeds

This washer automatically selects a spin speed based on the cycle selected. This factory setting can be changed, however, with up to 5 different spin speed choices.

Thermal Optimizer with Smart Wash Technology

The heating system ensures that the wash water is heated to the preset temperature for Normal/Casual, Heavy Duty, Whitest Whites and the STEAM TREAT™ option. It also provides Smart Wash Technology with “Stepped Cleaning” when you are using the STEAM TREAT™ option. “Stepped Cleaning” starts the wash cycle with warm water to remove stains.

Add Clothes

This option is available in all wash cycles except Rinse/Spin, Drain/Spin and Clean Washer. When this option is available at the beginning of the cycle, the Add Clothes status light will illuminate for the first 4-8 minutes. This washer allows a 4-8 minute period in which other garments may be added to a load.

CATALYST® Cleaning Action

A concentrated detergent solution is sprayed onto the clothes at the beginning of the cycle to ensure that the detergent comes into contact with the clothes as quickly as possible, helping to remove stains from your clothes without pretreating.

Dynamic Balance

A precision balancing system that allows the washer to reach spin speeds of up to 1,050 rpm. The washer spins faster so that clothes coming out of the washer will dry faster. In addition, if the Dynamic Balance system detects off-balance loads during spinning, it redistributes the clothes so that they are evenly balanced.

WASHER USE

Starting Your Washer

WARNING

Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids.

No washer can completely remove oil. Do not dry anything that has ever had any type of oil on

it (including cooking oils). Doing so can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

The following is a guide to using your washer. Please refer to specific sections of this manual for more detailed information.

Do not store laundry products on the top surface of this washer. Vibration is normal during operation.

Using the Proper Detergent

Use only High Efficiency detergents. The package for this type of detergent will be marked “HE” or “High Efficiency.” This wash system, along with less water, will create too much sudsing with a regular non-HE detergent. Using regular detergent will likely result in washer errors, longer cycle times and, reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer's instructions to determine the amount of detergent to use.

First Wash Cycle Without Laundry

Before washing clothes for the first time, if not completed during the final installation step, choose the Express Wash cycle and run it without clothes. Use only HE High Efficiency detergent. Use ¹⁄₂ the manufacturer’s recommended amount for a medium-size load. This initial cycle serves to ensure the interior is clean before washing clothes.

For All Wash Cycles

1. Open the washer door by pulling on the handle. Sort laundry

according to color and type of fabric. Place a load of sorted clothes in the washer. Do not overload washer. Overloading can cause poor cleaning.

■ The washer can be fully loaded, but not tightly packed.

Washer door should close easily.

■ Mix large and small items. Avoid washing a single item.

Load evenly.

■ Wash small items such as infant socks in mesh garment

bags. It is recommended that more than one garment bag be used and that each garment bag be filled with equal amounts of material.

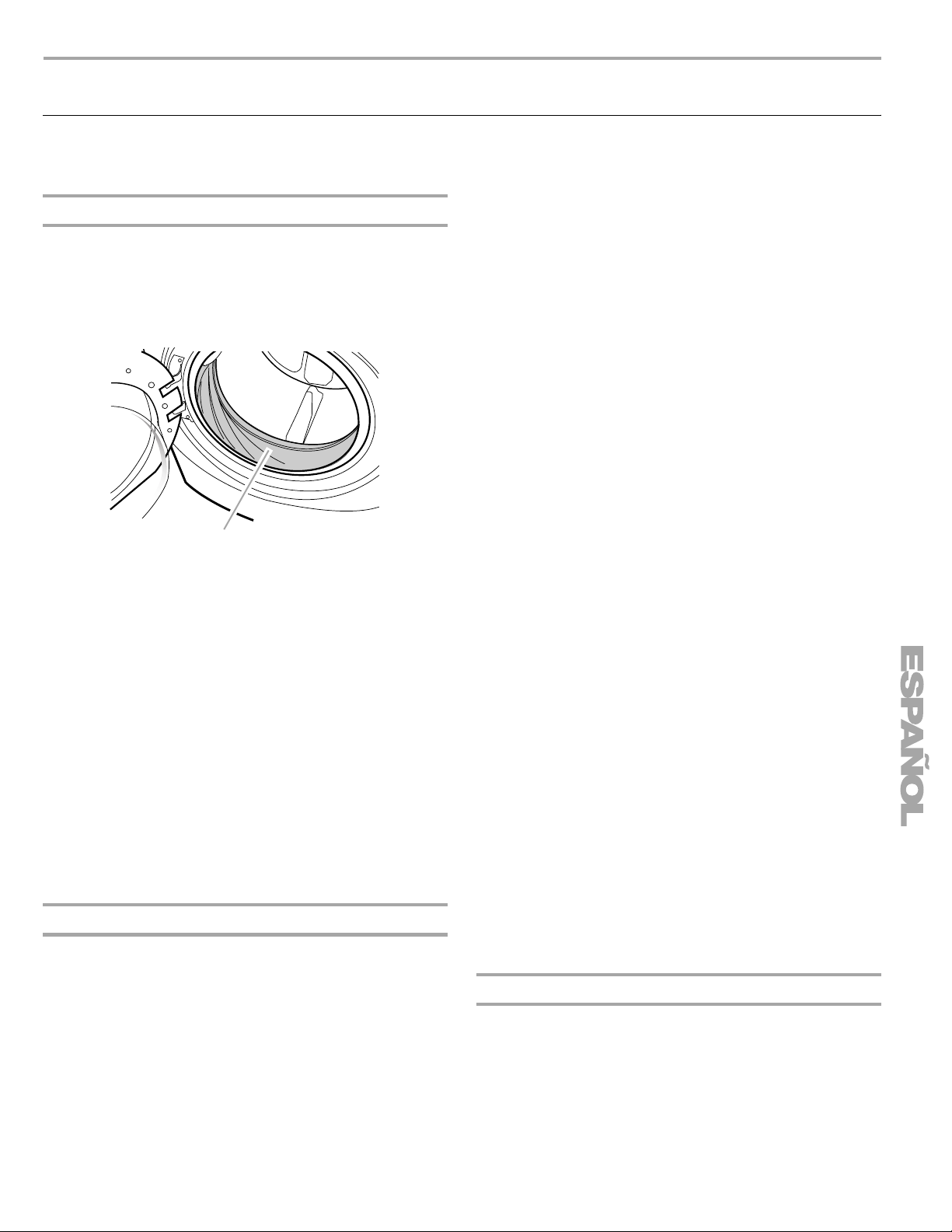

■ When unloading garments, check under the gray colored

seal at the front of the tub for small items.

2. Close the washer door by pushing it firmly until the lock

clicks. The washer door will remain locked during the wash cycle.

NOTES:

■ After any wash cycle is completed, the door must be

opened and then closed before a new cycle can begin.

■ The door can be opened if STOP is selected while the

ADD CLOTHES light is glowing or if the cycle has been canceled.

■ See “To cancel a cycle” in “Changing Cycles, Options and

Modifiers” section.

3. Open the dispenser drawer and add laundry products to the

detergent, bleach, or fabric softener compartments. Close drawer slowly to avoid spills. See “Using the Dispenser.”

Use only “HE” High Efficiency detergent.

4. Turn on the washer by selecting POWER. Select one of the

cycles by turning the cycle selector. The indicator light for the selected cycle will illuminate. When you are selecting a wash cycle, the preset modifiers (Soil Level, Wash Temp and Spin Speed) for the cycle, will illuminate. Selectable modifier settings will glow amber. If an option or modifier is unavailable with the selected cycle, the light will not illuminate. The preset settings provide the recommended fabric care for the selected cycle. The display shows the estimated time remaining. See “Cycles.”

5. Select the desired OPTIONS. Not all Options are available

with all cycles. See “Options.”

6. Select the desired MODIFIERS. Not all Modifiers are available

with all Cycles and Options. See “Modifiers.”

7. If desired, select the CYCLE SIGNAL. The signal is helpful

when you are washing items that should be removed from the washer as soon as it stops. Select LOUD, SOFT or OFF.

8. To begin the wash cycle immediately

Select and hold START (for approximately 1 second).

■ If you do not select START within 5 minutes of choosing a

cycle, the washer automatically shuts off.

■ When the wash cycle is complete, the CLOTHES CLEAN

status light glows, the door unlocks, and the wash load can be removed from the washer. The washer powers down automatically 60 minutes after the cycle is complete and the CLOTHES CLEAN light goes off.

9. To begin the wash cycle later

Select Delay Start until the desired delay time (in hours) shows in the Estimated Time Remaining display. Select START. The countdown to the wash cycle will show in the display window, and the button indicator will blink until the cycle begins.

IMPORTANT: When delaying a cycle, use only powdered detergents in the main wash compartment since liquid detergents may seep out of the compartment during Delay Start, before the wash cycle begins.

Choosing the Right Detergent

Use only “HE” High Efficiency detergent.

To fill dispenser compartments

1. Pull out the dispenser drawer.

2. Add the desired laundry product to the proper compartment.

3. Push in the dispenser drawer slowly and completely (to avoid

a spill).

Using the Dispenser

Your new washer has a dispenser drawer with three separate compartments for your laundry products—one is for high efficiency detergent, one is for liquid chlorine bleach, and one is for liquid fabric softener. Laundry products are diluted and dispensed automatically at the proper time during the wash cycle, making it unnecessary for you to return to the washer during the cycle to add them.

It is normal for small amounts of water to remain in the dispensers when the wash cycle is complete.

Do not put laundry products directly into the wash tub. Always use the proper dispensers when adding laundry products.

Dispenser

A. Dispenser release lever B. Detergent type selector C. High Efficiency “HE” detergent compartment D. Chlorine bleach compartment E. Fabric softener compartment

High Efficiency “HE” detergent compartment

((Letters B and C in Dispenser Illustration) Add liquid or powdered HE detergent to this compartment for

your wash cycle. The detergent type selector (B) must always be in the correct position for the detergent type used. Slide the detergent type selector to the correct position.

IMPORTANT: If you are using the Delay Start option, powdered detergent should be used in the compartment since liquid detergents may seep out of the compartment, before the wash begins.

■ Use the detergent manufacturer’s recommended amount for

the load size.

■ Liquid detergent:

Pausing or Restarting

1. To pause the washer at any time, select STOP.

2. To continue the cycle, select and hold START (for

approximately 1 second).

Changing Cycles, Options and Modifiers

Not all Options and Modifiers are available with all Cycles. Available modifier selections will glow. Selectable options will glow amber. If an option or modifier is unavailable with the selected cycle, the light will not illuminate. Once an option or modifier is selected it will glow green. Chosen options or modifiers will glow green.

Cycles, Options and Modifiers can be changed anytime before START is selected.

Selector in position for liquid detergent

A. Detergent type selector

■ Powdered detergent:

Selector in position for powdered detergent

A. Detergent type selector

Chlorine bleach compartment

(Letter D in Dispenser Illustration) Add no more than ²⁄₃ cup (160 mL) liquid chlorine bleach to this

compartment. The bleach will be automatically diluted and dispensed at the best time during the first rinse after the wash cycle. This compartment cannot dilute powdered bleach.

■ Always measure liquid chlorine bleach. Use a measuring cup

with a pour spout; do not guess. Follow the manufacturer’s directions for proper use.

■ Do not fill beyond the “MAX” level.

NOTE: Overfilling could cause garment damage.

Fabric softener compartment

(Letter E in Dispenser Illustration) Pour measured liquid fabric softener into the fabric softener

dispenser, if desired.

■ Do not overfill. The dispenser holds ¼ cup (60 mL) of fabric

softener.

■ The fabric softener is dispensed in the rinse cycle. If 2nd

Rinse is selected, the fabric softener will be dispensed during the 2nd Rinse.

■ Do not use fabric softener dispensing balls in this washer.

Dispensing balls will not operate correctly with this washer.

■ Do not spill or drip any fabric softener onto the clothes.

■ At the end of the cycle, a small amount of water may be left in

the dispenser. This is normal.

NOTE: Use only liquid fabric softener in this dispenser.

To cancel a cycle and select a new cycle

1. Select STOP twice.

2. Select POWER.

3. Select desired cycle.

4. Select the desired OPTIONS and MODIFIERS. Not all options

or modifiers are available to all cycles. See “Laundry Guide.”

5. Select and hold START (for approximately 1 second) to restart

the washer at the beginning of the new cycle.

To cancel a cycle

1. Select STOP twice.

2. The washer powers down, the door unlocks, and clothes can

be removed.

NOTE: If the water level or the temperature is too high, the washer will drain automatically before the door unlocks.

To change Options or Modifiers after the cycle has started

1. Select STOP once.

2. Select the desired OPTIONS or MODIFIERS. Not all options

or modifiers are available to all cycles. See “Laundry Guide.”

3. Select and hold START (for approximately 1 second) to

continue the cycle.

To drain the washer manually

1. Select STOP twice to cancel the wash cycle.

2. Select POWER.

3. Select DRAIN & SPIN.

4. Select and hold START (for approximately 1 second) to begin

the drain.

5. When the spin is complete, the door unlocks. Items can be

removed from the washer.

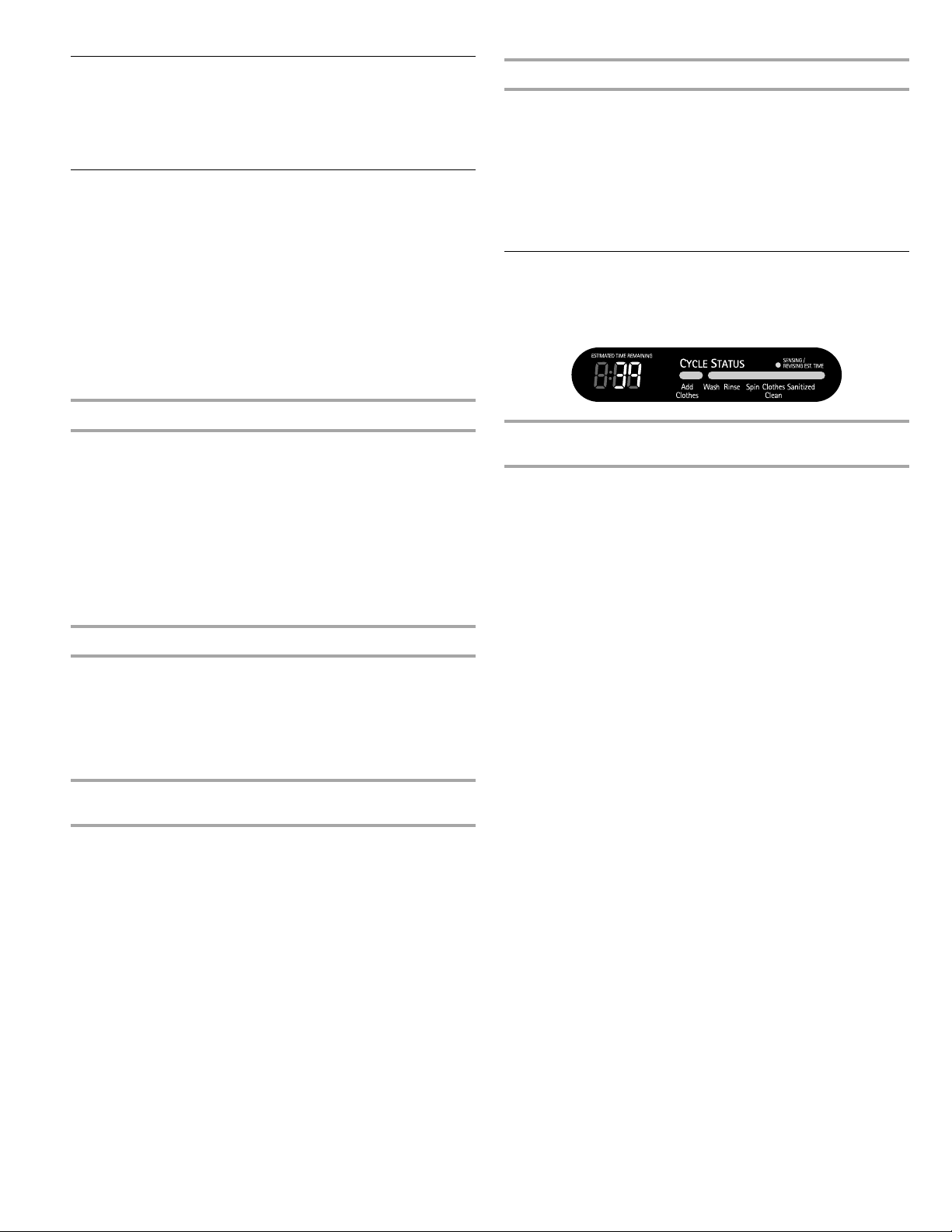

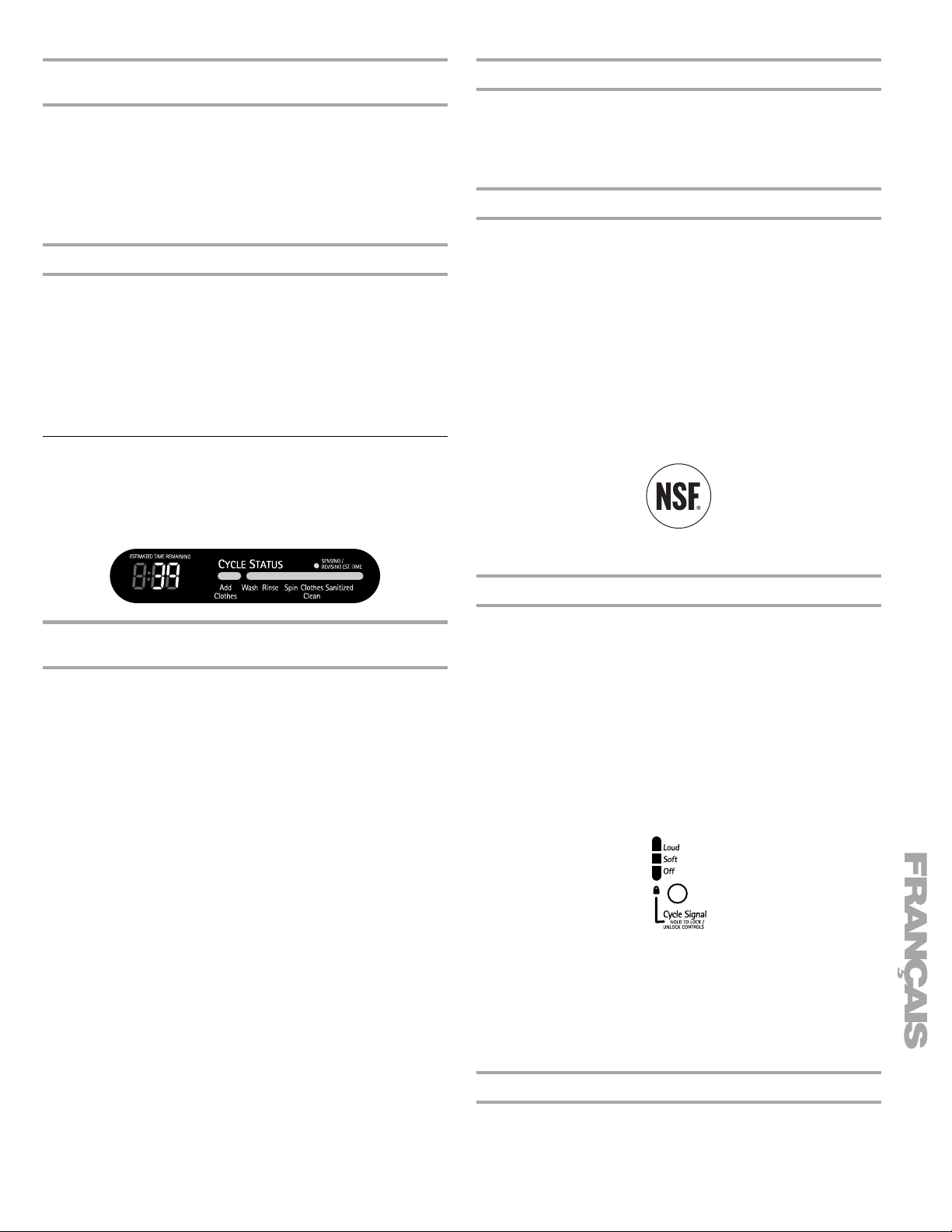

Status Lights

These lights show which portion of the cycle the washer is operating. They also indicate when you can add an additional item to the wash cycle and when the controls are locked.

Adding clothes after wash cycle has begun

This washer allows an 4-8 minute period in which other garments may be added to the load and still be cleaned properly. You can add items to the washer if the ADD CLOTHES status light is glowing.

To add items when ADD CLOTHES light is glowing

1. Select STOP once. The washer will pause for a moment, the

washer door unlocks, and then items can be added.

2. To continue the cycle, close the door and select and hold

START (for approximately 1 second).

To add items when ADD CLOTHES light is not glowing

1. You must cancel the current cycle by pressing STOP twice.

This will cancel the wash cycle and options. The washer door unlocks, and items can be added.

2. Close the door and select the new cycle and options. Select

and hold START (for approximately 1 second).

NOTES:

■ When selecting a new cycle do not add additional detergent.

■ Adding an item after the “Add Clothes” light is off may not

allow for proper cleaning of that item.

Clothes Clean

When the wash cycle is complete, the CLOTHES CLEAN status light glows, the door unlocks, and the wash load can be removed from the washer. The washer powers down automatically 60 minutes after the cycle is complete and the CLOTHES CLEAN light goes off.

Sanitized

Locking controls

The Control Lock avoids unintended use of the washer. You can also use the control lock feature to avoid unintended cycle or option changes during a cycle. When CONTROL LOCKED is lit, all buttons are disabled except for STOP and START. You can lock the controls after a cycle begins or before POWER is pressed.

To lock the controls

Select and hold CYCLE SIGNAL for 3 seconds after the cycle starts, or when the washer is powered off.

The status light next to the CYCLE SIGNAL button will glow.

To unlock the controls

Select and hold CYCLE SIGNAL for 3 seconds until the status light turns off.

NOTE: To lock or unlock the controls when the washer is off, press and hold CYCLE SIGNAL for 3 seconds.

Door Locked

When the status light glows, the door is locked.

Sensing/Revising Est. Time

The cycle times vary automatically based on your water pressure, water temperature, detergent, and clothes load.

The washer will automatically sense the progress in the cycle and adjust the Estimated Time Remaining display. While the washer is sensing, the estimated time will flash and the Sensing/Revising Est. Time status light will glow. When the sensing is complete, the flashing stops, the status light goes off and the Estimated Time Remaining display is updated.

The cycle time will be extended if oversudsing occurs or the load is unbalanced. The SUD routine removes extra suds and assures proper rinsing of your garments. See “Troubleshooting.” During the unbalance routine the time displayed may pause until this activity is complete, then resume with the remainder of the cycle.

This Kenmore washer has a sanitizing temperature, that is certified by NSF International, an independent third-party testing and certification organization. The certification verifies that the sanitizing cycle reduces 99.9% of bacteria typically found on clothing, bedding and towels, and there is no carryover of bacteria between loads after the cycle is complete.

If the “Steam Sanitize” wash temperature was selected, when the wash cycle is complete, the SANITIZED status light glows, (the CLOTHES CLEAN status light will glow green), the door unlocks, and the wash load can be removed from the washer. The washer powers down automatically 60 minutes after the cycle is complete and the SANITIZED light and CLOTHES CLEAN light turn off.

Certified to Sanitize

Cycles

Wash Cycles

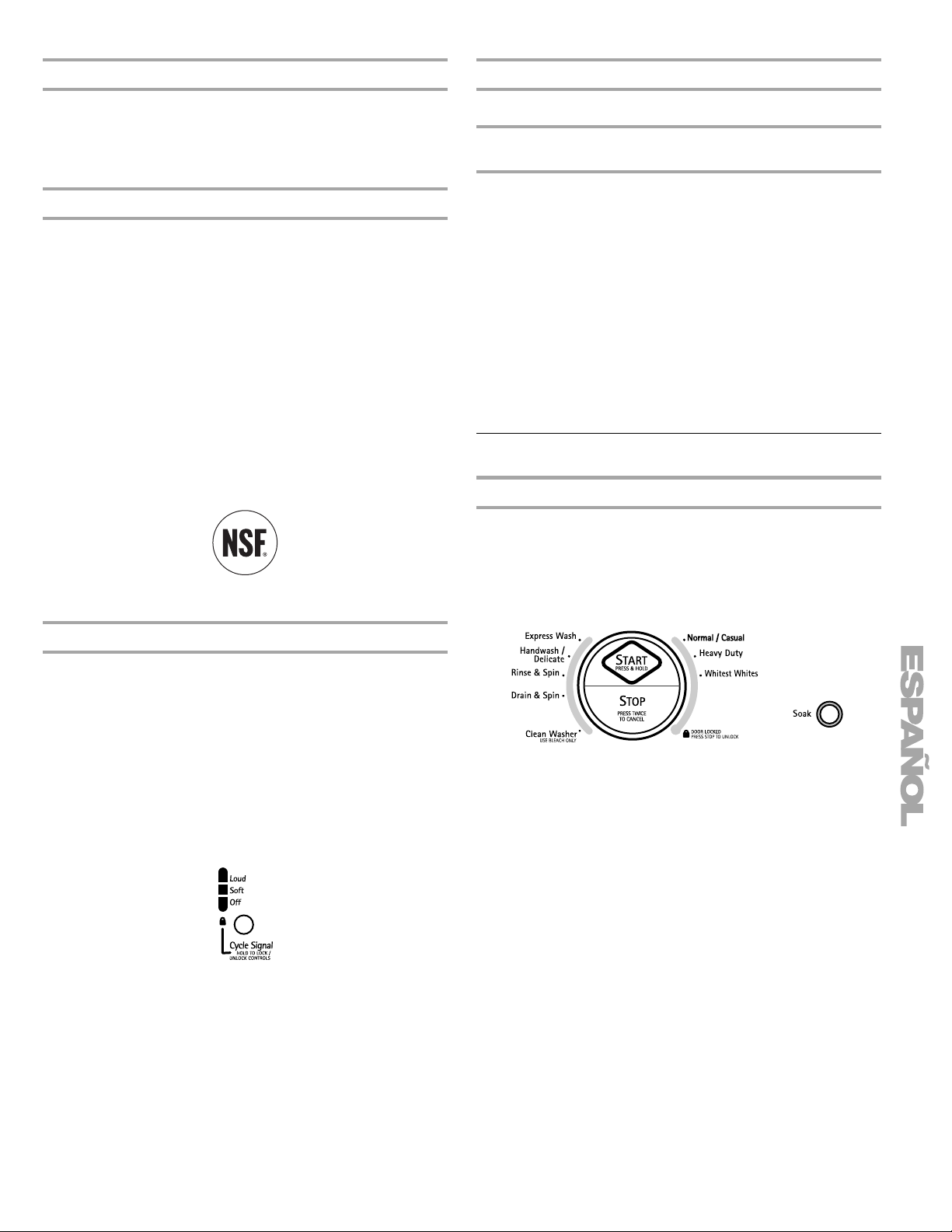

Choose Wash Cycles by turning the selector knob. The cycle indicator light will glow when selected. Each cycle is designed for different types of fabric and soil levels. The modifier indicator lights, on the right-hand side of the panel, will change as cycles are selected.

■ Each cycle has a preset Soil Level (estimated cycle time),

Water Temperature and Spin Speed and may have preset Options. The preset settings provide the recommended fabric care for the selected cycle.

■ The preset settings will glow green to show the preselected

options and modifiers, and can be changed anytime before START is selected. Not all Options and Modifiers are available with all cycles. Available modifier selections will glow amber. (To change settings after the cycle has started, select STOP once, then select the desired settings. Select and hold START [for approximately 1 second] to continue the cycle.)

Preset cycle settings

Each cycle has a preset Cycle Time, Water Temp, and Spin Speed. The preset settings provide the recommended fabric care for the selected cycle. See chart.

Cycle

Soil Level

(hr:min)

Express Wash

(2-3 items)

Handwash/ Delicate

Rinse & Spin N/A

Drain & Spin N/A

Clean Washer N/A

Whitest Whites Heavy

Heavy Duty Heavy

Normal/Casual Normal

Light (0:30)

Normal (0:35)

(0:22)

(0:13)

(1:05)

(1:30)

(1:20)

(0:50)

Water Temp

(Wash/Rinse)

Warm/Cold High

Cold/Cold Low

Cold/Cold High

N/A High

N/A N/A

Hot/Cold High

Warm/Cold High

Spin Speed

Express Wash

Use this cycle to wash small loads of 2-3 lightly soiled garments that are needed in a hurry. This cycle combines fast-speed tumbling, a shortened wash time, and high speed spin to shorten drying time. Large wash loads will result in the machine increasing the wash time.

Handwash/Delicate

Use this cycle to clean hand washable items and ultra delicate garments. (Check label instructions to make sure that garment is washable.) This cycle gently tumbles and spins with low-speed to gently clean garments and minimize wrinkling.

■ Use mesh garment bags to wash undergarments such as

underwire bras, items with strings, and small items such as infant socks.

■ Powdered detergents may not dissolve well in a slow-speed

cycle. For best results, use liquid detergent for slow-speed cycles.

Rinse & Spin

Use this cycle to rinse, drain, and spin your wash load. This cycle combines fast-speed tumbling and high-speed spin. If desired, you can reduce the spin speed by selecting the speed you want from the SPIN SPEED modifier.

Rinse & Spin is useful for

■ Loads that need rinsing only.

■ Adding fabric softener to a load using the fabric softener

dispenser.

Drain & Spin

Use this cycle to drain your washer or to drain and spin your wash load. The spin speed is preset to high. If desired, you can reduce the spin speed by selecting the speed you want from the SPIN SPEED modifier.

NOTE: Loads of synthetics, delicate fabrics, handwashables, and woolens should be drained with no spin or low spin to avoid fabric stress.

Clean Washer

Use the Clean Washer cycle once a month to keep the inside of your washer fresh and clean. This cycle uses a higher water level in combination with liquid chlorine bleach and steam, to thoroughly clean the inside of your washing machine. This cycle should not be interrupted. See “Cleaning Your Washer” in the “Washer Care” section.

IMPORTANT: Do not place garments or other items in the washer during the Clean Washer cycle. Use this cycle with an empty wash drum.

Soak Normal

(0:30)

To change the preset cycle settings

Press the selector of each available setting until the desired setting glows green.

Warm No Spin

Whitest Whites

Soak

This cycle is especially designed for cleaning loads of soiled white fabrics with the addition of bleach. Hot washing temperatures assure optimal bleach activity. An additional rinse provides optimal rinse performance to avoid chlorine residues on your laundry. This cycle combines fast-speed tumbling, longer wash time, and high speed spin to shorten drying time.

Heavy Duty

Use this cycle to wash loads of sturdy, colorfast fabrics and heavily soiled garments. This cycle combines fast-speed tumbling, longer wash time, and high speed spin to shorten drying times. If the water temperature is lower than needed for this cycle, the heater will warm the water to the optimum temperature.

Normal/Casual

Use this cycle to wash loads of no-iron fabrics such as sport shirts, blouses, casual business clothes, permanent press blends, cottons and linens, and synthetic fabrics. This cycle combines medium-speed tumbling, high-speed spin, and a load cooling process to reduce wrinkling.

NOTE: For the best energy performance, use the Normal/Casual Cycle.

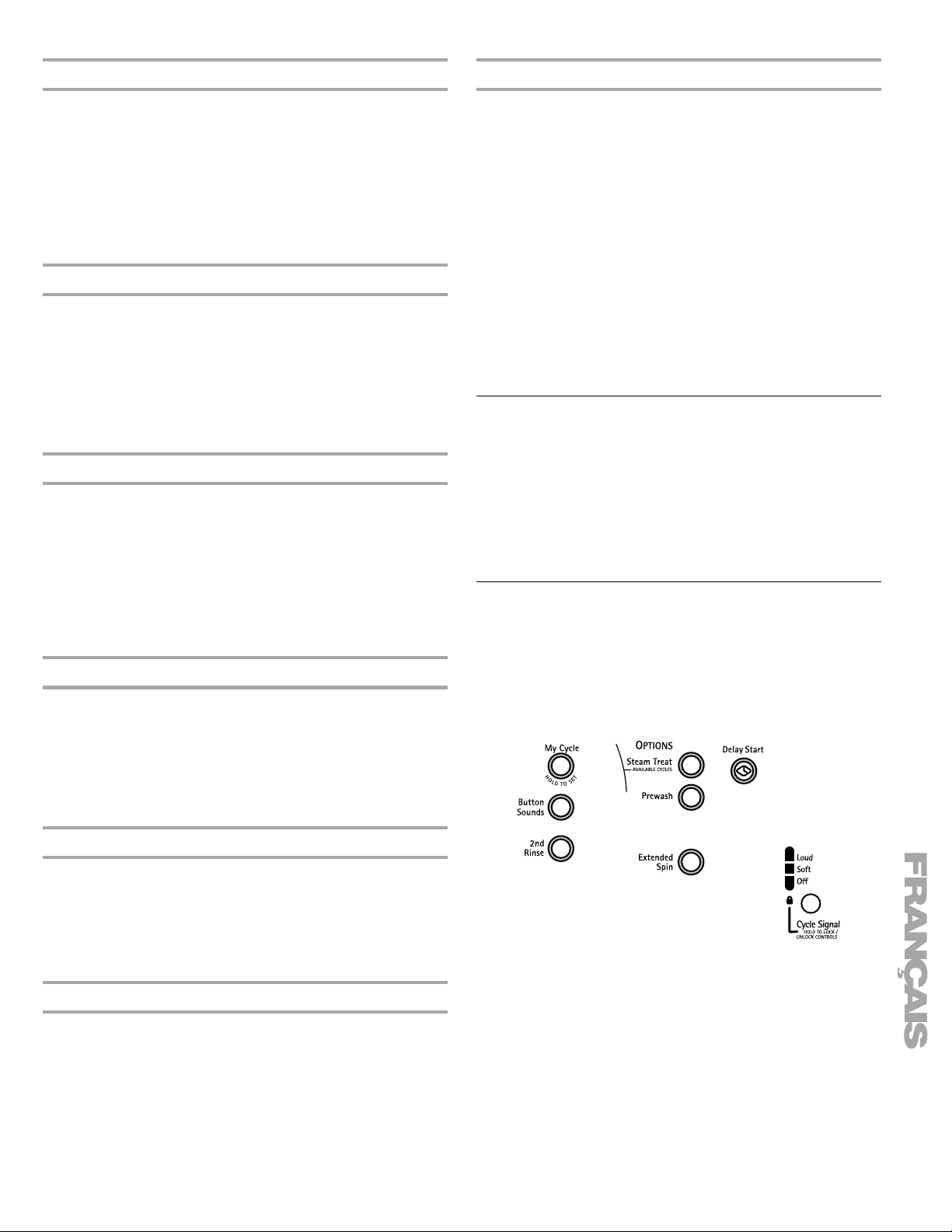

Options

You can customize your wash by adding options to your cycle selections. You can add or change an option after starting a cycle anytime before the selected option begins. Not all Options are available with all cycles. Current selections will glow green. If an option is unavailable with a selected cycle, the light will not illuminate.

Use the Soak cycle to remove small spots or stains on fabrics. This cycle provides up to a 30-minute soak time with warm or cold water followed by drain. Extra water, a short tumbling phase for equal distribution of the laundry, and a soaking time without drum movement improve the removal of stains. Drain without spin assures gentle treatment, even for delicate articles.

Using the Soak Cycle: The Soak cycle provides a soak time with warm or cold water followed by drain.

1. Add detergent only to the High Efficiency “HE” detergent

compartment of the dispenser drawer.

2. Press the SOAK button.

3. Choose the desired soak temperature.

4. Select and hold START (approximately 1 second).

Normal Washer Sounds

As with any new product, you will hear sounds that you are not accustomed to. You may hear various sounds when the door is locked or unlocked, and during the washing, rinsing, or spinning process. Between changes in wash actions, there will be momentary pauses. You will hear water spraying and splashing during the wash and rinse cycles. These new sounds and pauses are part of normal washer operation. (See “Troubleshooting.”)

3. Select the desired MODIFIERS.

4. To save the cycle press and hold MY CYCLE (approximately

3 seconds) until a beep sounds.

5. Press START.

6. To reuse this cycle at another time, select MY CYCLE and

press START.

■ See the “Laundry Guide” section for an overview of possible

options for each Wash Cycle selection.

■ You can select more than one option for a cycle. Some

options cannot be added to some cycles. For example, STEAM TREAT™ cannot be added to the Express Wash cycle.

■ If an option is unavailable with a selected cycle, there will be

3 short tones, and the light for that option will not glow when selected.

My Cycle

My Cycle allows you to store a customized wash cycle for future use.

To Customize a Wash Cycle:

1. Select a cycle.

2. Select the desired OPTIONS.

Button Sounds

Button sounds are used to notify you of what has been selected or to let you know when something is not available. Button sounds may be turned on or off by selecting BUTTON SOUNDS.

2nd Rinse

A second rinse can be used to aid in the removal of detergent or bleach residue from garments. This option provides an additional rinse with the same water temperature as the normal rinse. This is the default rinse setting for the Whitest Whites cycle. When 2nd Rinse is selected, the indicator light will glow green.

STEAM TREAT™

Use this option for heavily soiled loads that need improved stain treatment, loads with multiple types of stains, or loads you suspect as having stains, but are afraid may have been missed (no sorting or searching for stains). When STEAM TREAT™ is selected, the water temperature of the selected wash cycle is automatically set to warm. The water will then be slowly heated to the temperature selected, along with steam, to aid in stain removal. This option will provide optimal removal of organic stains such as blood. This option is available on the following cycles: Normal/Casual, Heavy Duty, Whitest Whites.

Prewash

Delay Start

Use this option for loads of heavily soiled items that need pretreatment. This option adds a 20-minute prewash without drain to the main wash cycle.

Add detergent to the High Efficiency “HE” detergent compartment of the Dispenser Drawer.

NOTE: The Prewash option cannot be selected with the Soak, Express, Handwash/Delicate Rinse/Spin cycles.

Extended Spin

Use this option to add an additional spin to any cycle to improve drying times for some heavy fabrics or special-care items by reducing excess water, which may save energy.

Modifiers

Preset cycle settings of Water Temperature, Spin Speed, and Rinse Options can be changed. You can change a modifier after starting a cycle anytime before the selected Modifier begins. Not all Modifiers are available with all options and cycles. Available modifier settings will glow amber. Current selections will glow green. If an option is unavailable with a selected cycle, the light will not illuminate.

To begin the wash cycle later, select DELAY START until the desired delay time (in hours) shows in the Estimated Time Remaining display, and then select START. The countdown to the wash cycle will show in the display window, and the button indicator will blink until the cycle begins.

IMPORTANT: When delaying a cycle, use only powdered detergents in the high efficiency “HE” detergent compartment since liquid detergents may seep out of the compartment during DELAY START, before the wash cycle begins.

Cycle Signal

This signal is helpful when you are removing items from the washer as soon as it stops. Select Loud, Soft or Off.

Wash Temp

Select a water temperature based on the type of load you are washing. Use the warmest wash water safe for fabrics. Follow garment label instructions.

■ This Kenmore washer has a sanitizing temperature, that is

certified by NSF International, an independent third-party testing and certification organization. The certification verifies that the sanitizing cycle reduces 99.9% of bacteria typically found on clothing, bedding and towels, and there is no carryover of bacteria between loads after the cycle is complete.

■ To change cycle time, select SOIL LEVEL button.

■ To change the water temperature, select the WASH TEMP

button until the desired setting glows green.

■ To change the spin speed, select the SPIN SPEED button

until the desired setting glows green.

Certified to Sanitize

■ The Steam Sanitize temperature provides an extra-high

temperature to remove 99.9% of certain bacteria. It is recommended that you set your hot water heater to 120ºF (49ºC) to ensure proper performance during this cycle.

■ The Steam Sanitize temperature uses high water

temperatures. Please check garment care label to avoid garment damage.

■ In wash water temperatures colder than 60°F (15.6°C),

detergents do not dissolve well. Soils may be difficult to remove.

Warm rinses leave the loads dryer than cold rinses. Warm rinses increase wrinkling. In cold climates, a warm rinse makes the load more comfortable to handle. Cold rinses save energy.

Auto Temp Control

ATC (Auto Temp Control) electronically senses and maintains a uniform water temperature. ATC regulates incoming hot and cold water. The ATC is automatically turned on when a cycle is selected. (See “Preset Cycle Settings” in “Cycles.”)

■ ATC works for all wash temperatures.

■ ATC works for the rinse temperature where the wash

temperature setting is marked with an asterisk, such as Warm*. All other rinse temperatures are cold, and depend on the cold water at your faucet.

Laundry Guide

Refer to this chart for suggested load types and their corresponding cycles. Listed to the right are the options available to each of these washer cycles.

CYCLE SUGGESTED LOAD TYPE AVAILABLE OPTIONS

Delay Start

Express Wash Small loads of 2-3 lightly soiled cotton, polyester, nylon,

Handwash/ Delicate

Rinse & Spin All loads ✔✔✔ Drain & Spin All loads ✔✔ Clean Washer No clothes ✔ Whitest Whites Soiled white fabrics ✔✔ ✔ ✔ ✔ Heavy Duty Heavily soiled underwear, towels, shirts, etc., made of

Normal/Casual Normally soiled blouses, shirts, overalls, etc., made of

Soak All loads ✔

and cotton blends. Silk or Ultra Delicate fabrics identified as machine

washable.

cotton

polyester, nylon, cotton, linen, or cotton blends

STEAM TREAT™

✔✔✔

✔✔

✔✔ ✔ ✔ ✔

Prewash Extended

Spin

2nd Rinse

LAUNDRY TIPS

Preparing clothes for washing

Follow these recommendations to help you prolong the life of your garments.

■ Use only High Efficiency detergents. The package for this type

of detergent will be marked “HE” or “High Efficiency.” This wash system, along with less water, will create too much sudsing with a regular non-HE detergent. Using regular detergent will likely result in washer errors, longer cycle times and reduced rinsing performance. It may also result in component failures and noticeable mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer's instructions to determine the amount of detergent to use.

Use only HE High Efficiency detergent.

■ Close zippers, snaps, and hooks to avoid snagging other

items. Remove pins, buckles, and other hard objects to avoid scratching the washer interior. Remove non-washable trim and ornaments.

■ Empty pockets and turn them inside-out.

■ Turn down cuffs; brush away lint and dirt.

■ Turn wool and synthetic knits inside-out to avoid pilling.

■ Tie strings and sashes so they will not tangle.

■ Mend tears, loose hems, and seams.

■ Treat spots and stains.

■ Stained or wet garments should be washed promptly for best

results.

■ Mix large and small items, avoid washing single items, and

load evenly.

■ Wash small items, such as infant socks, in a mesh garment

bag. To create a balanced load it is recommended that more than one garment bag be used, and that each garment bag be filled with equal amounts of material.

NOTE: If you are washing only small items, it is recommended that more than one mesh garment bag be used, and that each garment bag be filled with equal amounts of material.

Sorting

■ Separate heavily soiled items from lightly soiled ones, even if

they would normally be washed together. Separate lint-givers (towels, chenille) from lint-takers (corduroy, synthetics, permanent press). When possible, turn lint-givers inside-out.

■ Separate dark colors from light colors, colorfast items from

noncolorfast items.

■ Sort by fabric and construction (sturdy cottons, knits, delicate

items).

Unloading

■ Remove clothes from washer after the cycle is completed.

Metal objects such as zippers, snaps, and buckles may rust if left in the washer basket for a long time.

■ When unloading garments, occasionally check under the gray

colored seal at the front of the tub for small items.

Loading suggestions

Heavy Work Clothes

4jeans 4workpants 4workshirts

Towels

10 bath towels 10 hand towels

Mixed Load

3 sheets (1 king, 2 twin) 4 pillowcases 3shirts 3blouses

Delicates

3 camisoles 4slips 4 panties

EXPRESS WASH cycle

(2-3 garments)

2dress shirts 1pair dress pants

2 sweatpants 2 sweatshirts

14 washcloths

9T-shirts 9shorts

10 handkerchiefs

2bras 2 nighties

WASHER CARE

Cleaning Your Washer

The Washer Maintenance Procedure should be performed on a monthly basis.

Washer Maintenance Procedure

Cleaning the door seal

1. Open the washer door and remove any clothing or items from

the washer.

2. Inspect the gray colored seal between the door opening and

the basket for stained areas. Pull back the seal to inspect areas under the seal. Remove any foreign objects.

A. Seal

3. If stained areas are found, wipe down these areas of the

seals, using the procedure that follows. a) Mix a dilute solution, using ³₄ cup (177.4 mL) of liquid

chlorine bleach, and 1 gal. (3.8 L) of warm tap water.

b) Wipe the seal area with the dilute solution, using a damp

cloth.

c) Let stand 5 minutes. d) Wipe down area thoroughly with a dry cloth and let the

washer interior air dry with door open.

IMPORTANT:

■ Wear rubber gloves when cleaning for prolonged periods.

■ Refer to the bleach manufacturer’s instructions for proper

use.

This washer has a special cycle that uses higher water volumes and steam, in combination with liquid chlorine bleach to thoroughly clean the inside of the washer.

NOTES:

■ Read these instructions completely before beginning the

cleaning process.

■ If necessary, the cleaning cycle may be interrupted by

pressing the STOP button. However, this will not immediately stop the cycle. The machine will display “int” (interrupt) and continue with several rinse and drain steps to ensure that all remaining bleach is rinsed from the washer.

Begin procedure

1. Open the washer door and remove any clothing or items from

the washer.

2. Open the dispenser drawer and immediately add ²⁄₃ cup

(160 mL) of liquid chlorine bleach to the bleach compartment. NOTE: Do not add any detergent to this cycle. Use of more

than ²⁄₃ cup (160 mL) of bleach will cause product damage over time.

3. Close the washer door and dispenser drawer.

4. Select the CLEAN WASHER cycle.

5. Press START. NOTE: The basket will rotate, then the door will unlock, lock

again, and then the cycle will continue.

■ The machine will bring in some inlet water, and the basket

will rotate while the washer runs a short sensing cycle. This will take approximately 3 minutes.

6. The cycle will determine whether clothing or other items are in the washer.

a)b)If no items are detected in the washer, it will proceed to

Step 7. If any items are detected in the washer, “rL” will be

displayed, and the WASH and CONTROLS LOCKED lights will remain lit. The door will unlock. Open and remove any garments in the wash drum.

■ Press STOP to cancel the failure code. Then repeat

steps 3, 4 and 5 to start the cycle again.

7. Once the cycle has begun, allow the cycle to complete.

8. After the cycle is complete, leave the door open slightly, to

allow for better ventilation and drying of washer interior.

Always do the following to maintain washer freshness

■

Use only HE High Efficiency detergent.

■

Leave the door slightly open after each cycle to allow for better ventilation and drying of washer interior.

■

Repeat the cleaning procedure monthly.

■

If the procedure does not sufficiently improve the machine freshness, evaluate your installation and usage conditions for other causes.

Cleaning the exterior

To use washer again:

1. Flush water pipes. Reconnect water inlet hoses to faucets.

Turn on both water faucets.

WARNING

Use a soft damp cloth or sponge to wipe up any spills. Occasionally wipe the outside of your washer to keep it looking new. Use mild soap and water. Do not use abrasive products.

Cleaning the dispenser drawer

The dispenser drawer is removable for easy cleaning.

1. Unlock the dispenser drawer by pressing the Release Lever.

See “Using the Dispenser.” Remove the drawer.

2. Remove the inserts (the siphon from the softener and bleach

compartments and the selector).

3. Wash the parts under running water.

4. Replace the inserts and return the dispenser to the drawer.

Water Inlet Hoses

Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, record the date of replacement.

Vacation, Storage, and Moving Care

Install and store your washer where it will not freeze. Because some water may stay in the hoses, freezing can damage your washer. If storing or moving your washer during freezing weather, winterize it.

Non-use or vacation care:

Operate your washer only when you are at home. If you will be on vacation or not using your washer for an extended period of time, you should:

■ Unplug washer or disconnect power.

■ Turn off the water supply to the washer. This helps avoid

unintended flooding (due to a water pressure surge) while you are away.

■ Slightly open door to provide ventilation.

To winterize washer:

1. Put 1 qt (1 L) of R.V.-type antifreeze in the drum.

2. Run washer on a Drain & Spin cycle.

3. Unplug washer or disconnect power.

4. Shut off both water faucets.

5. Disconnect water inlet hoses from faucets and drain.

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

2. Plug in washer or reconnect power.

3. Run the washer through the Normal/Casual cycle with ¹₂ the

manufacturer’s recommended amount of HE detergent for a medium-size load, to clean the washer and remove the antifreeze, if used.

To transport the washer:

1. If washer will be moved during freezing weather, put in 1 qt

(1 L) of R.V.-type antifreeze in the drum. Run washer on a Drain & Spin cycle.

2. Unplug the power cord.

3. Disconnect the drain hose from the drain system and attach

to rear panel clips.

4. Shut off both water faucets.

5. Disconnect the water inlet hoses from faucets, then drain the

hoses and clip them to the rear panel of the washer.

IMPORTANT: Call for service. Do not reuse transport bolts. Washer must be transported in the upright position. To avoid suspension and structural damage to your washer, it must be properly set up for relocation by a certified technician.

Reinstalling the washer

1. Follow the “Installation Instructions” to locate, level and

connect the washer.

2. Run the washer through the Normal/Casual cycle with ¹₂ the

manufacturer’s recommended amount of HE detergent for a medium-size load, to clean the washer and remove the antifreeze, if used.

TROUBLESHOOTING

First try the solutions suggested here to possibly avoid the cost of a service call...

Washer displaying code message and tone sounds

■ “F20” (Water Inlet Problem—no water or insufficient

water supply)

Select STOP twice to cancel the cycle. Unplug washer or disconnect power.

Check the following:

Are water faucets completely turned on? Are screens at inlet hose connection to washer clogged? Are water inlet hoses kinked? Are water inlet hoses frozen? Plug in washer or reconnect power. Re-select cycle and press

START. If the problem remains, call for service.

■ “F21” (Drain Problem)

Select STOP twice to cancel the cycle. Unplug washer or disconnect power.

Check the following:

Is the drain hose kinked? Is the drain hose frozen? Is the drain hose clogged? Is the drain hose more than 96" (2.4 m) above the floor? Plug in washer or reconnect power. Re-select cycle and press

START. If the problem remains, call for service.

■ “SUD” (Suds Routine)

When excessive suds are detected, a suds routine automatically starts. This routine removes extra suds and assures proper rinsing of your garments. “SUD” is displayed during rinsing to inform you that Suds Routine was activated. Use only HE (High Efficiency) detergents.

■ “F22” (Front door lock)

Select STOP twice to cancel the cycle. Is the washer door firmly shut?

The door must be completely closed for the washer to operate. The door may look closed, but may not be latched. Open the door and close firmly.

Were you washing a large load? Before you close the washer door, check for laundry items sticking out beyond the door opening. Leave enough space in the washer to allow the clothes to tumble freely. An overloaded basket may keep the door from shutting completely. Reduce your load size if needed.

Press POWER, re-select cycle and press START.

■ “F” Codes other than F20, F21 and F22

Select STOP twice to cancel the cycle. Select DRAIN & SPIN if there is excessive water in the washer.

Re-select cycle and press START. If the problem remains, call for service.

Washer won’t start

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

■ Check the following:

Is the power cord plugged into a grounded 3 prong outlet? Is the washer door firmly shut? Has a cycle been selected, but START has not been selected

and held for 1 second? Was the door open after completion of last cycle?

Washer won’t fill, wash or rinse

■ Check the following:

Is the power cord plugged into a grounded 3 prong outlet? Is there power at the plug? Check electrical source or call

electrician. Are the hot and cold water faucets turned on? Is the water inlet hose kinked? Are the water inlet valve screens clogged?

Turn off the water and remove inlet hoses from the washer. Remove any accumulated film or particles. Reinstall hoses, turn water on and check for leaks.

Washer stops

■ Check the following:

Is the power cord plugged into a grounded 3 prong outlet? Is there power at the plug?

Check electrical source or call electrician. Has a household fuse blown, or has a circuit breaker tripped?

Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

Are you using an extension cord? Do not use an extension cord.

+ 53 hidden pages

Kenmore W10133487A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
