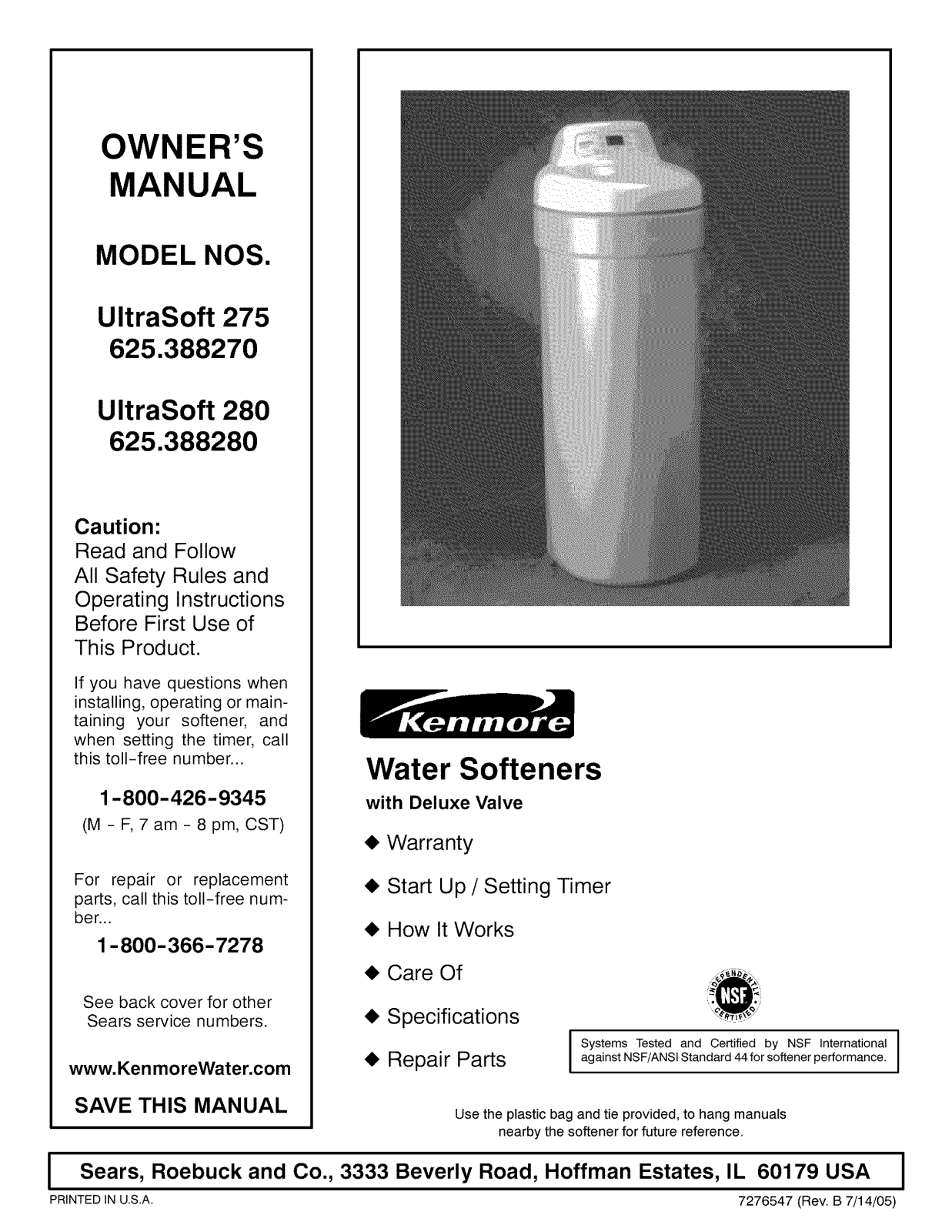

Kenmore Ultrasoft 275 625.388270 User Manual

0 (0)

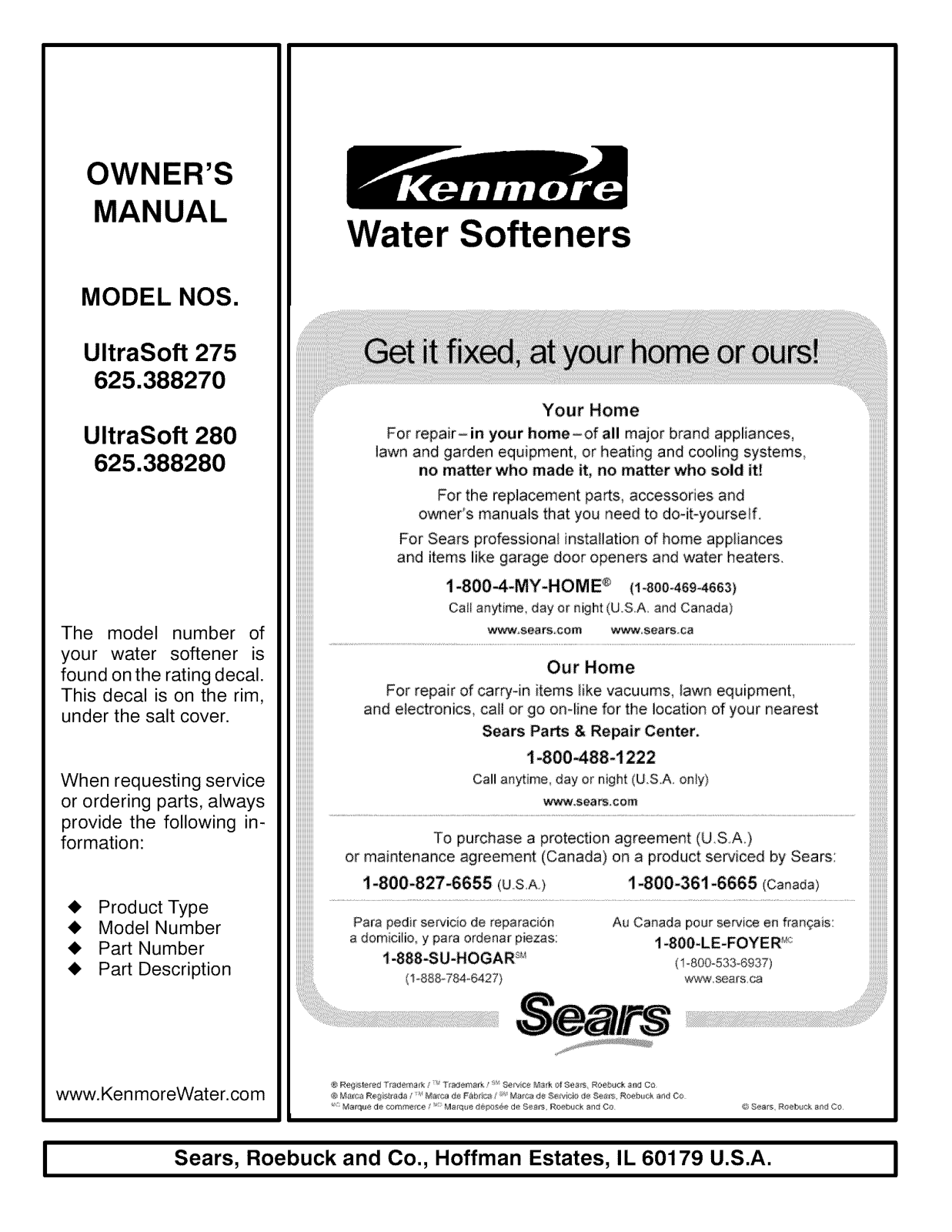

OWNER'S

MANUAL

MODEL NOS.

UltraSoft 275

625.388270

UltraSoft 280

625.388280

Caution:

Read and Follow

All Safety Rules and

Operating Instructions Before First Use of

This Product.

If you have questions when

installing, operating or main- taining your softener, and when setting the timer, call

this toll-free number...

Water Softeners

1-800-426-9345

(M - F, 7 am - 8 pm, CST)

For repair or replacement

parts, call this toll-free num-

ber...

1-800-366-7278

See back cover for other

Sears service numbers.

www.Ken moreWater.com

SAVE THIS MANUAL

Sears, Co., Beverly Road, Estates,

I Roebuck and 3333 Hoffman IL 60179 USA I

PRINTED IN U.S.A. 7276547 (Rev. B 7/14/05)

with Deluxe Valve

4, Warranty 4, Start Up / Setting Timer 4, How It Works 4, Care Of

4, Specifications 4, Repair Parts I Systems Tested and Certified by NSF International I

Use the plastic bag and tie provided, to hang manuals

nearby the softener for future reference,

against NSF/ANSl Standard 44 for softener performance.

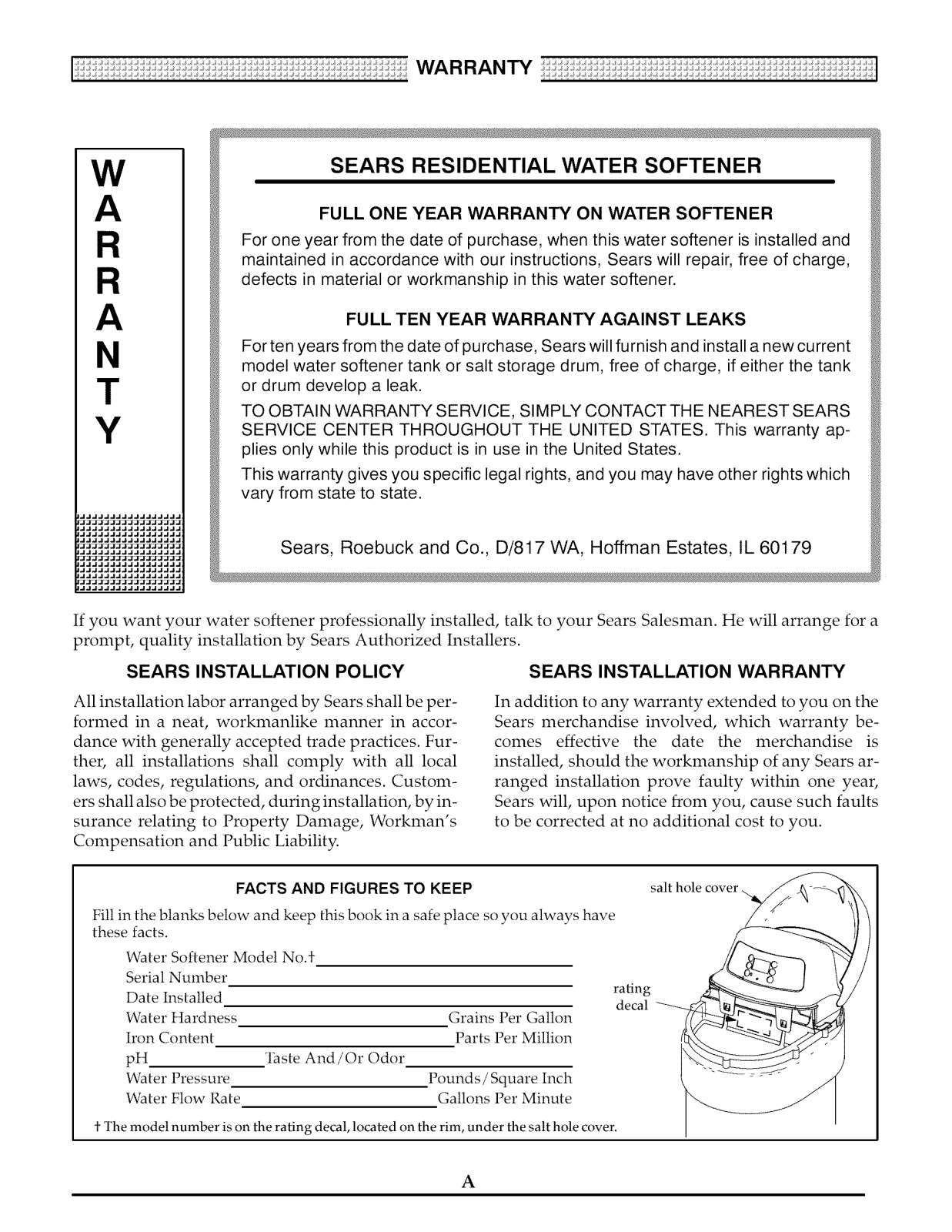

WARRANTY

SEARS RESIDENTIAL WATER SOFTENER

For one year from the date of purchase, when this water softener is installed and maintained in accordance with our instructions, Sears will repair, free of charge,

defects in material or workmanship in this water softener.

N T

If you want your water softener professionally installed, talk to your Sears Salesman. He will arrange for a prompt, quality installation by Sears Authorized Installers.

For ten years from the date of purchase, Sears will furnish and install a new current model water softener tank or salt storage drum, free of charge, if either the tank

or drum develop a leak. TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE NEAREST SEARS

SERVICE CENTER THROUGHOUT THE UNITED STATES. This warranty ap-

plies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

FULL ONE YEAR WARRANTY ON WATER SOFTENER

FULL TEN YEAR WARRANTY AGAINST LEAKS

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

SEARS INSTALLATION POLICY

All installation labor arranged by Sears shall be per- formed in a neat, workmanlike manner in accor-

dance with generally accepted trade practices. Fur- ther, all installations shall comply with all local laws, codes, regulations, and ordinances. Custom- ers shall also be protected, during installation, by in-

surance relating to Property Damage, Workman's Compensation and Public Liability.

FACTS AND FIGURES TO KEEP

Fill in the blanks below and keep this book in a safe place so you always have these facts.

Water Softener Model No.t Serial Number

Date Installed Water Hardness Grains Per Gallon

Iron Content Parts Per Million pH 'Ihste And/Or Odor

Water Pressure Pounds/Square Inch Water Flow Rate Gallons Per Minute

SEARS INSTALLATION WARRANTY

In addition to any warranty extended to you on the Sears merchandise involved, which warranty be-

comes effective the date the merchandise is installed, should the workmanship of any Sears ar-

ranged installation prove faulty within one year, Sears will, upon notice from you, cause such faults

to be corrected at no additional cost to you.

salt hole cover

rating

decal

± The model number is on the rating decal, located on the rim, under the salt hole cover.

Iii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iii_ii_i_iiTABLE OF CONTENTS

C O

B. C.

D. E.

C. D.

WATER SOFTENER START UP

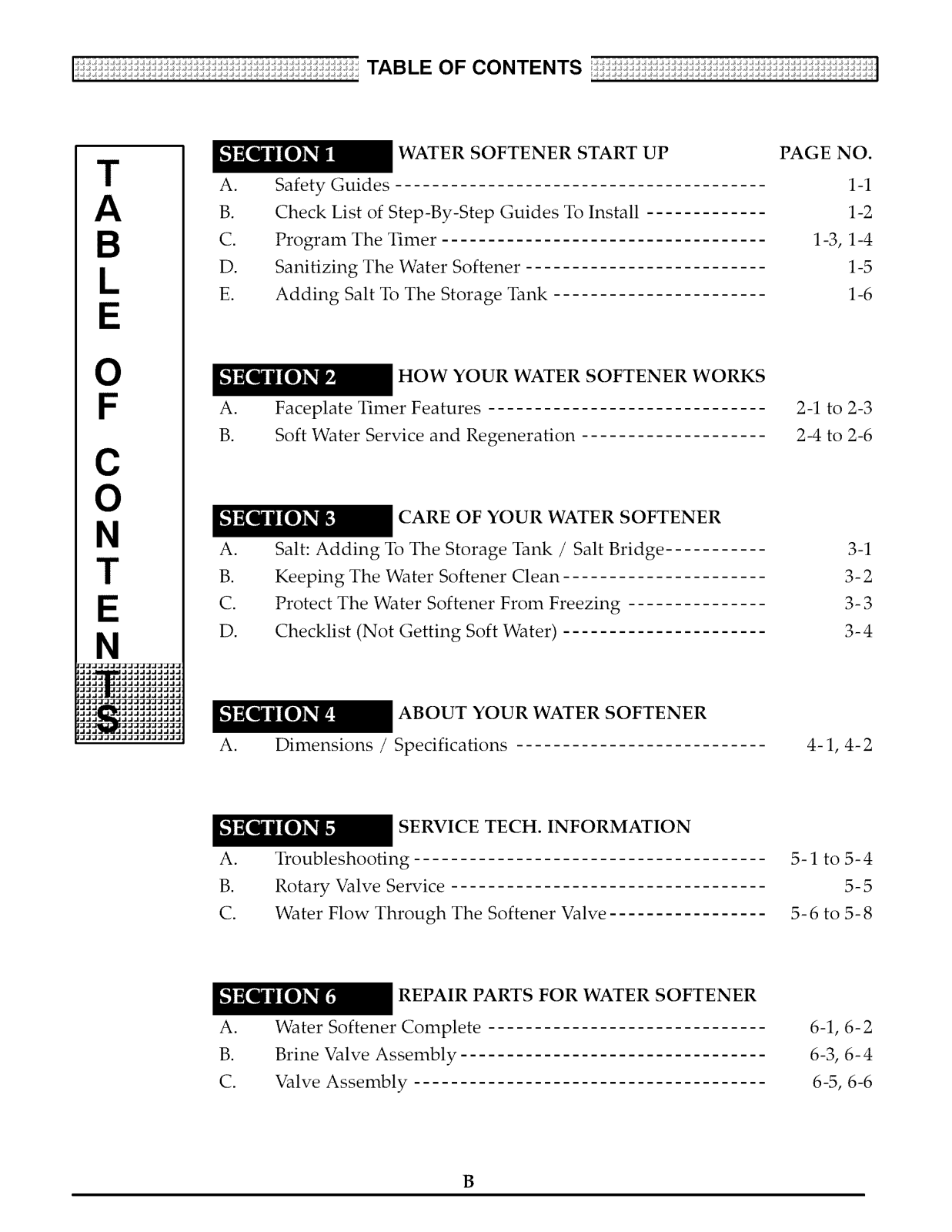

Safety Guides Check List of Step-By-Step Guides To Install Program The Timer

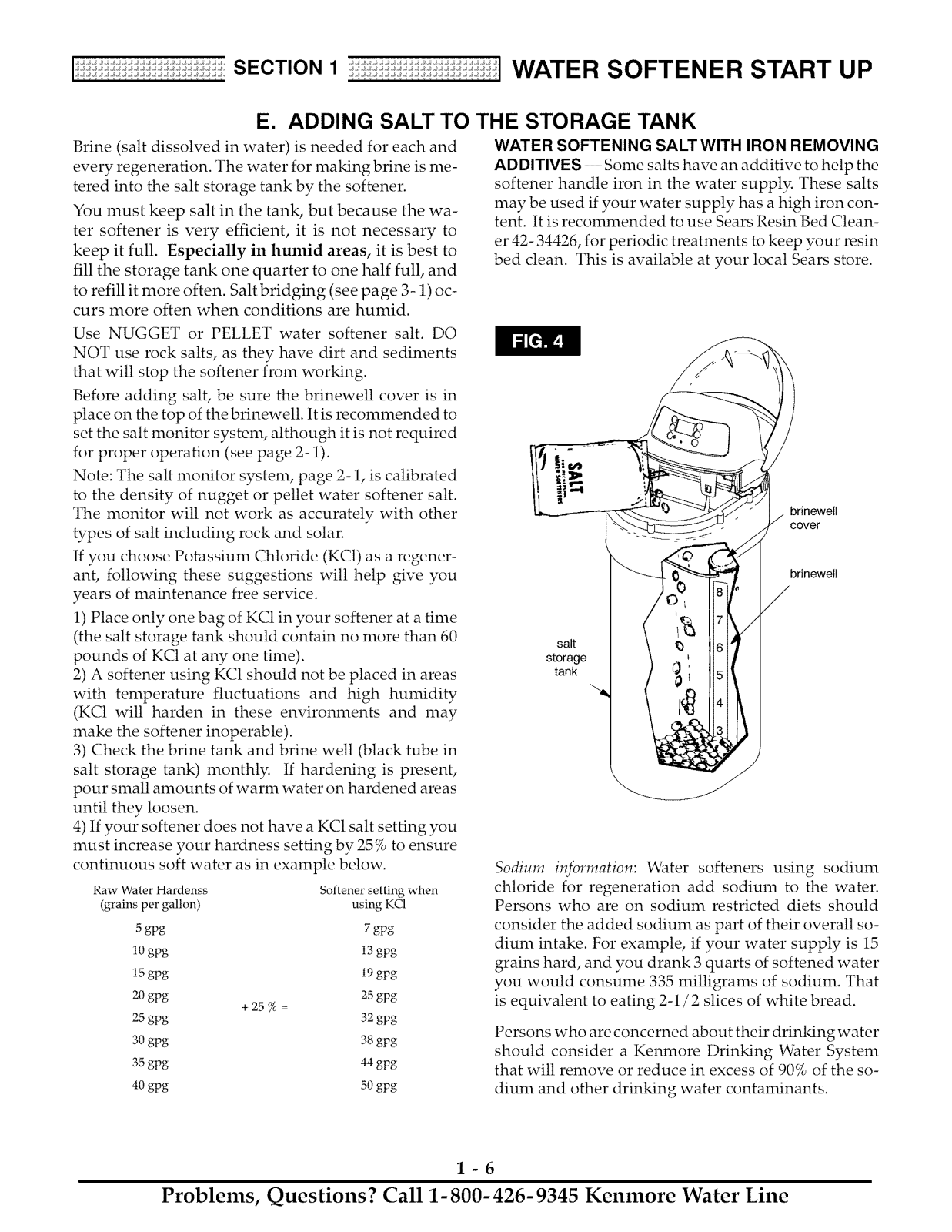

Sanitizing The Water Softener Adding Salt To The Storage Tank

HOW YOUR WATER SOFTENER WORKS

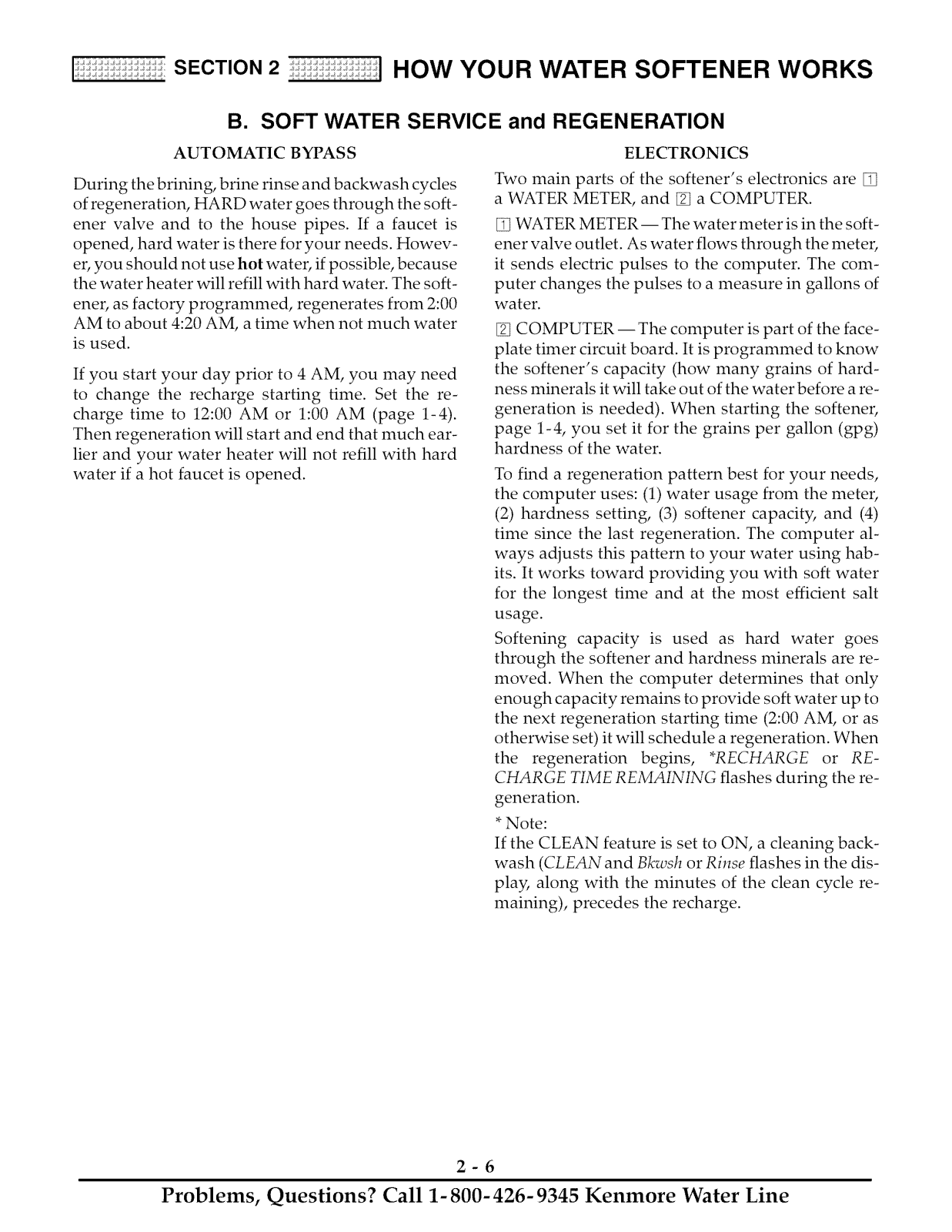

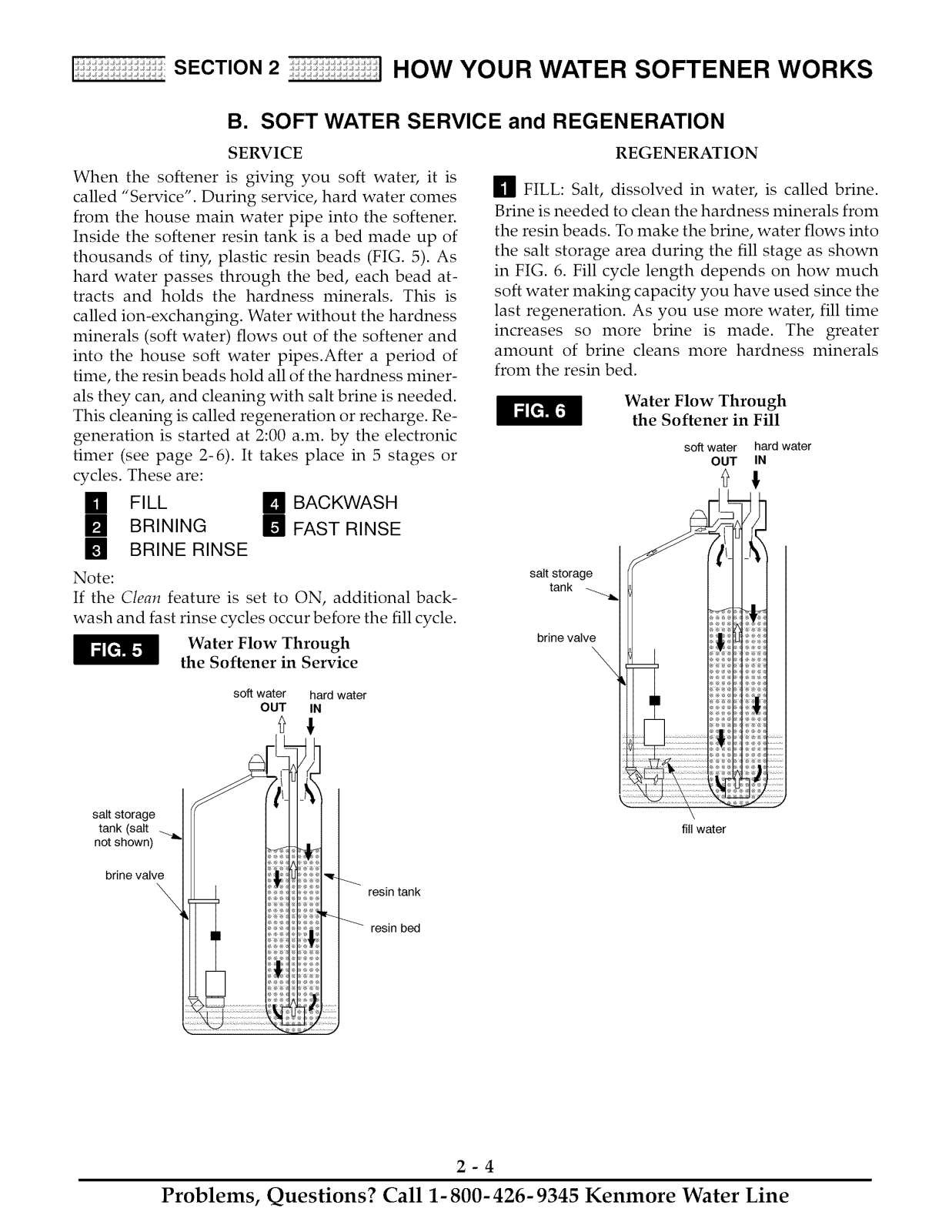

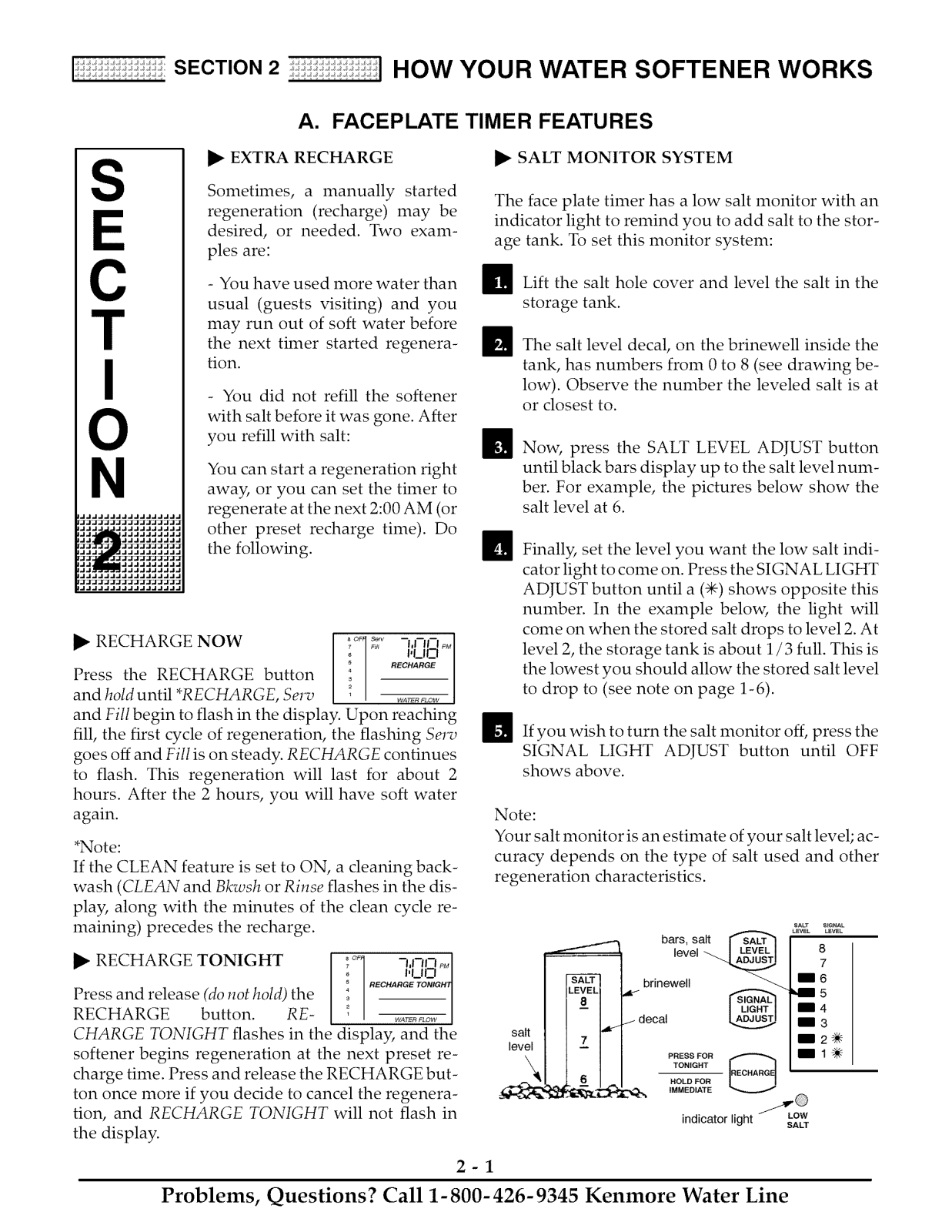

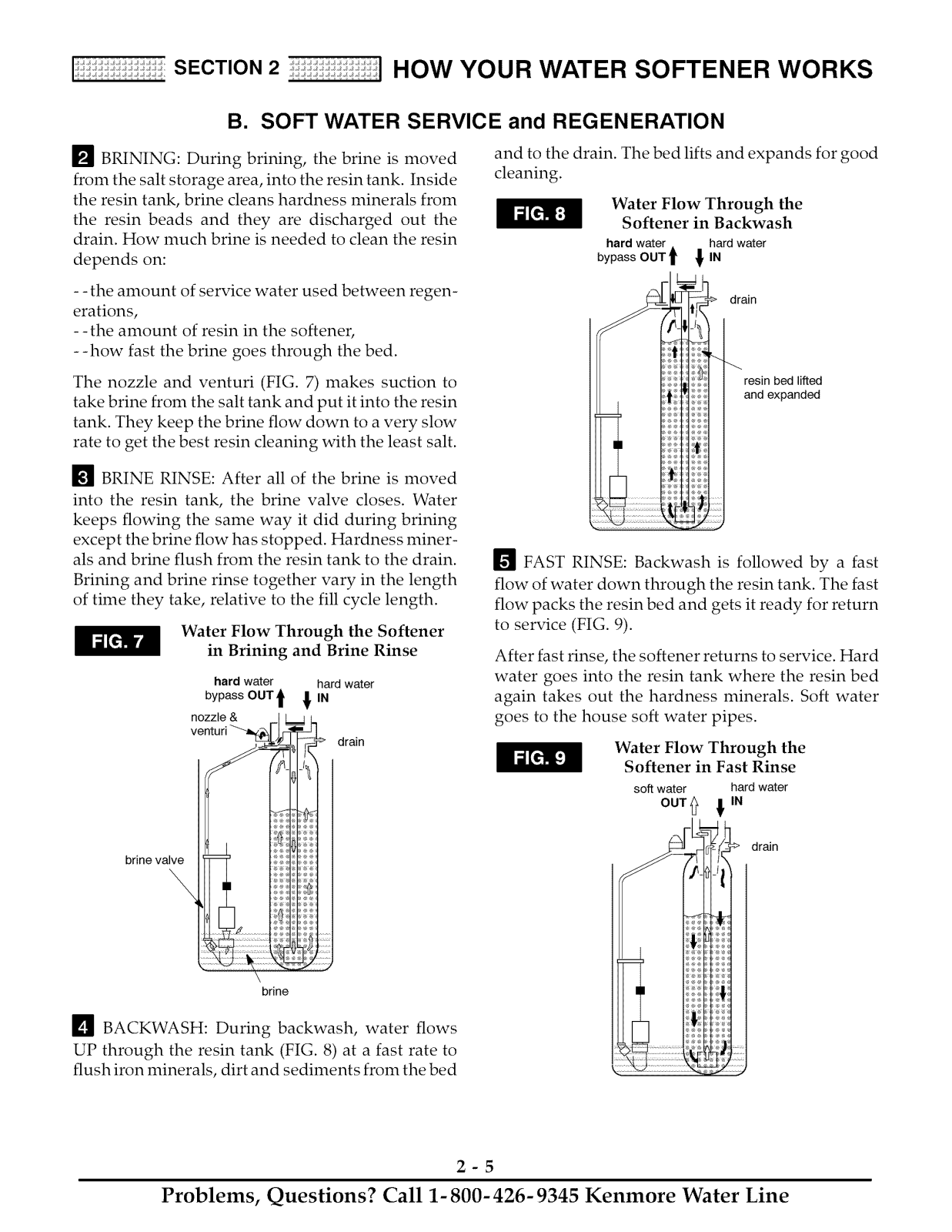

Faceplate Timer Features Soft Water Service and Regeneration

CARE OF YOUR WATER SOFTENER

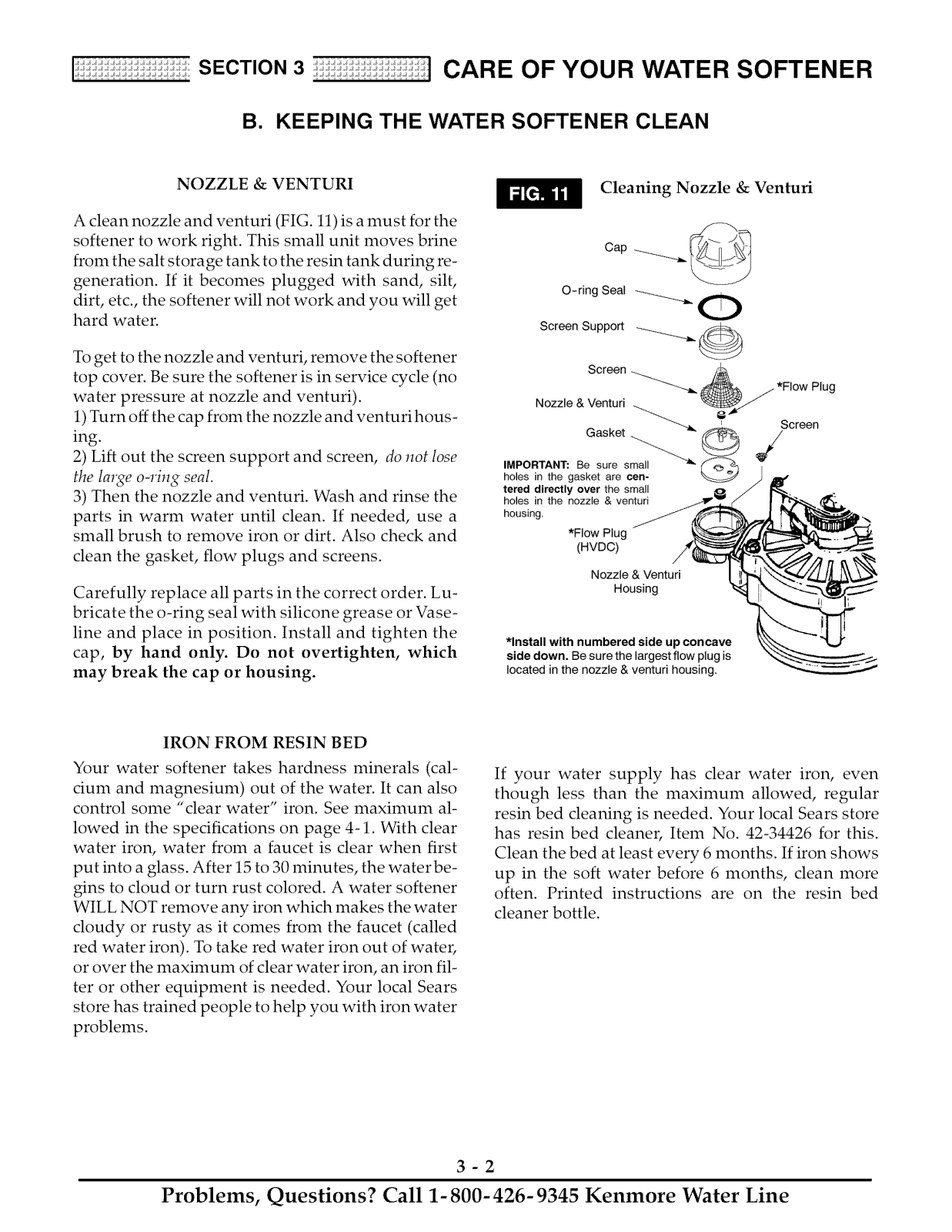

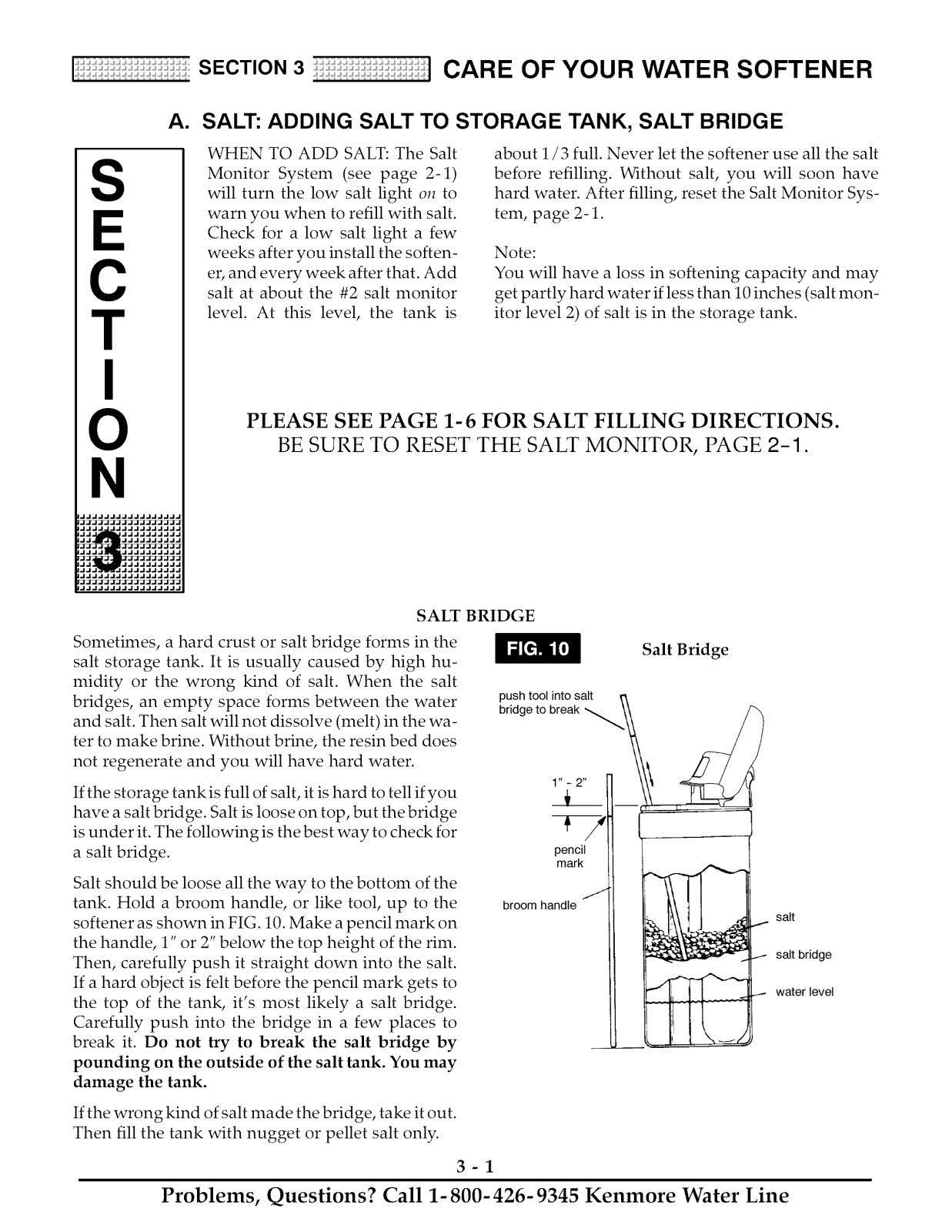

Salt: Adding To The Storage Tank / Salt Bridge ........... Keeping The Water Softener Clean Protect The Water Softener From Freezing

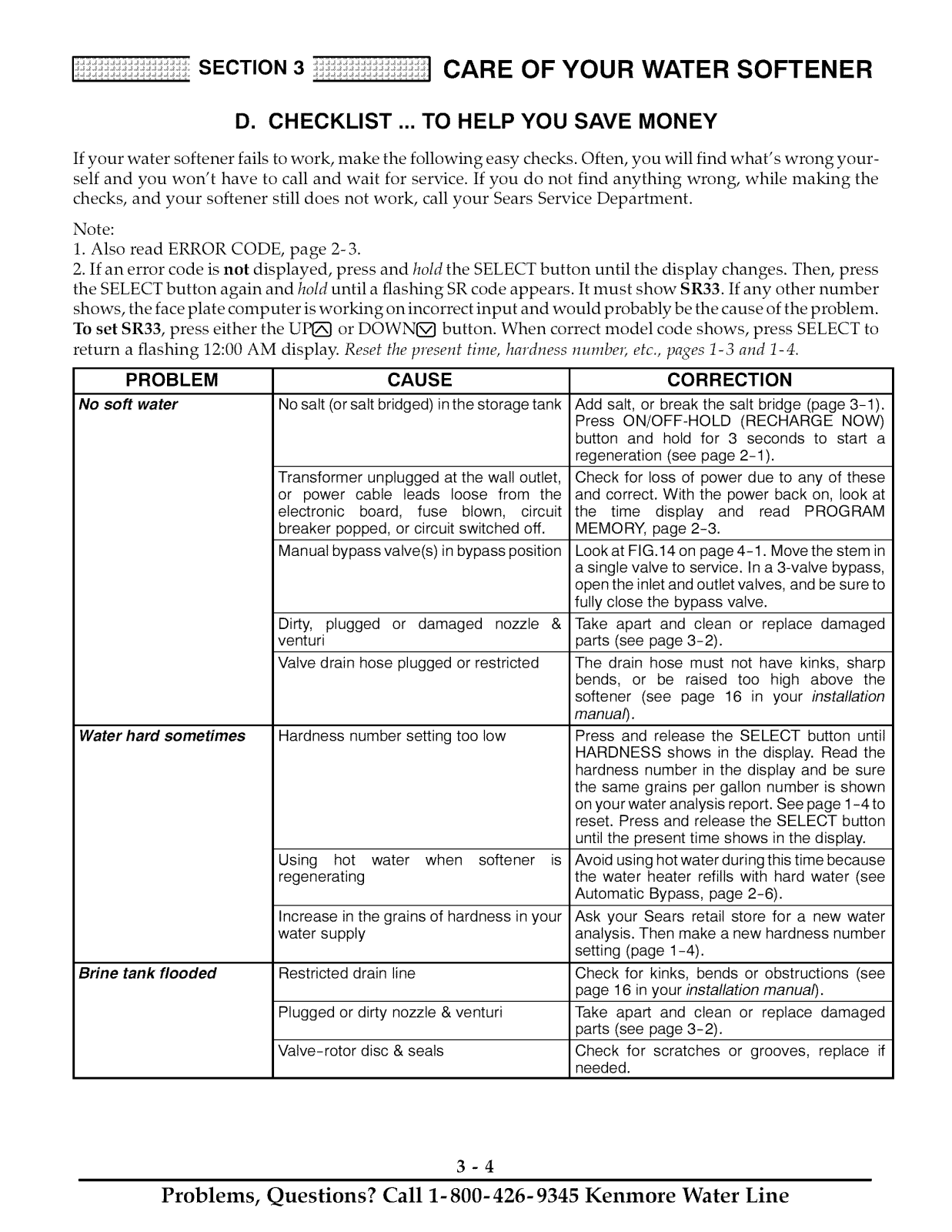

Checklist (Not Getting Soft Water)

PAGE NO.

1-1 1-2

1-3, 1-4

1-5 1-6

2-1 to 2-3 2-4 to 2-6

3-1

3-2 3-3

3-4

,JJJJ JJJ_J_J_J_J,

ABOUT YOUR WATER SOFTENER

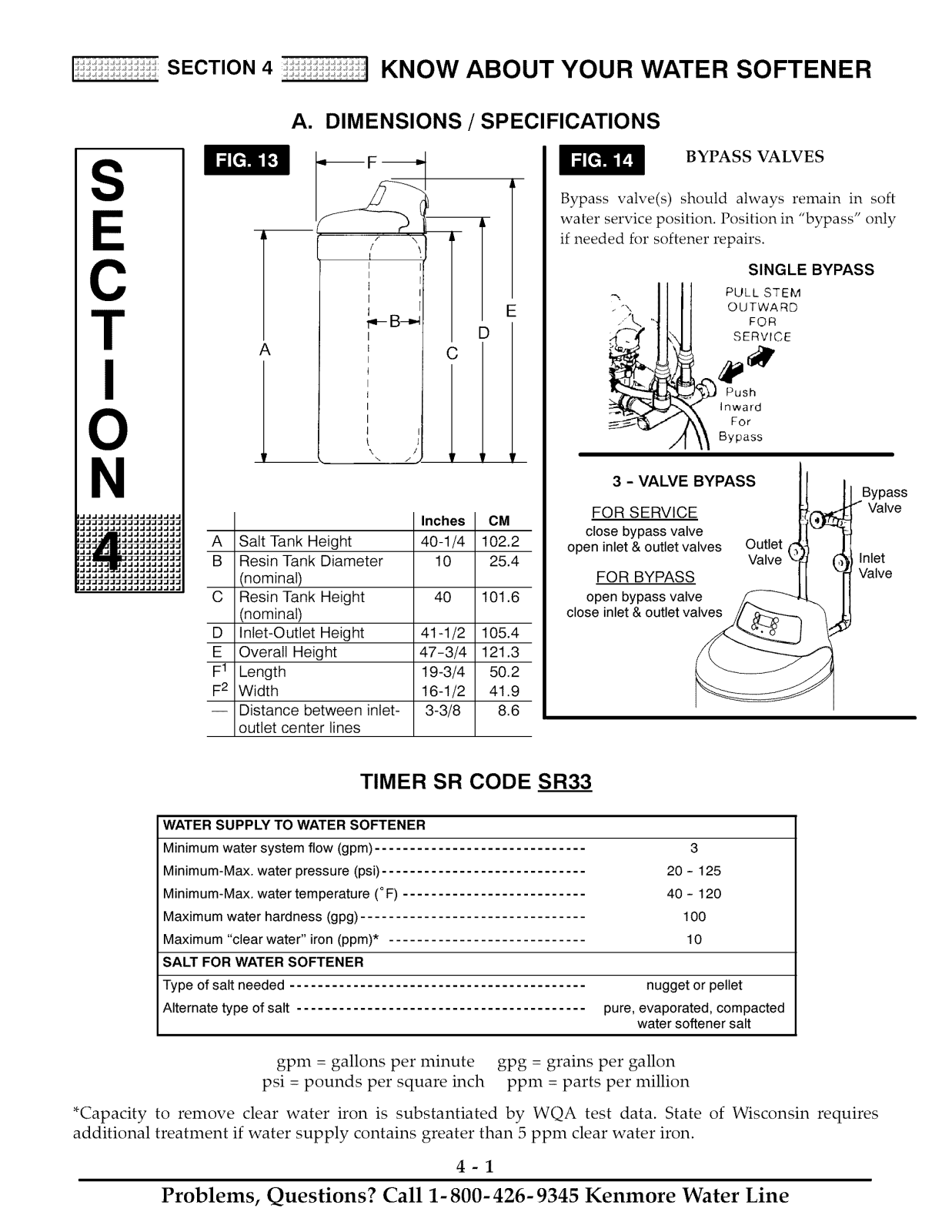

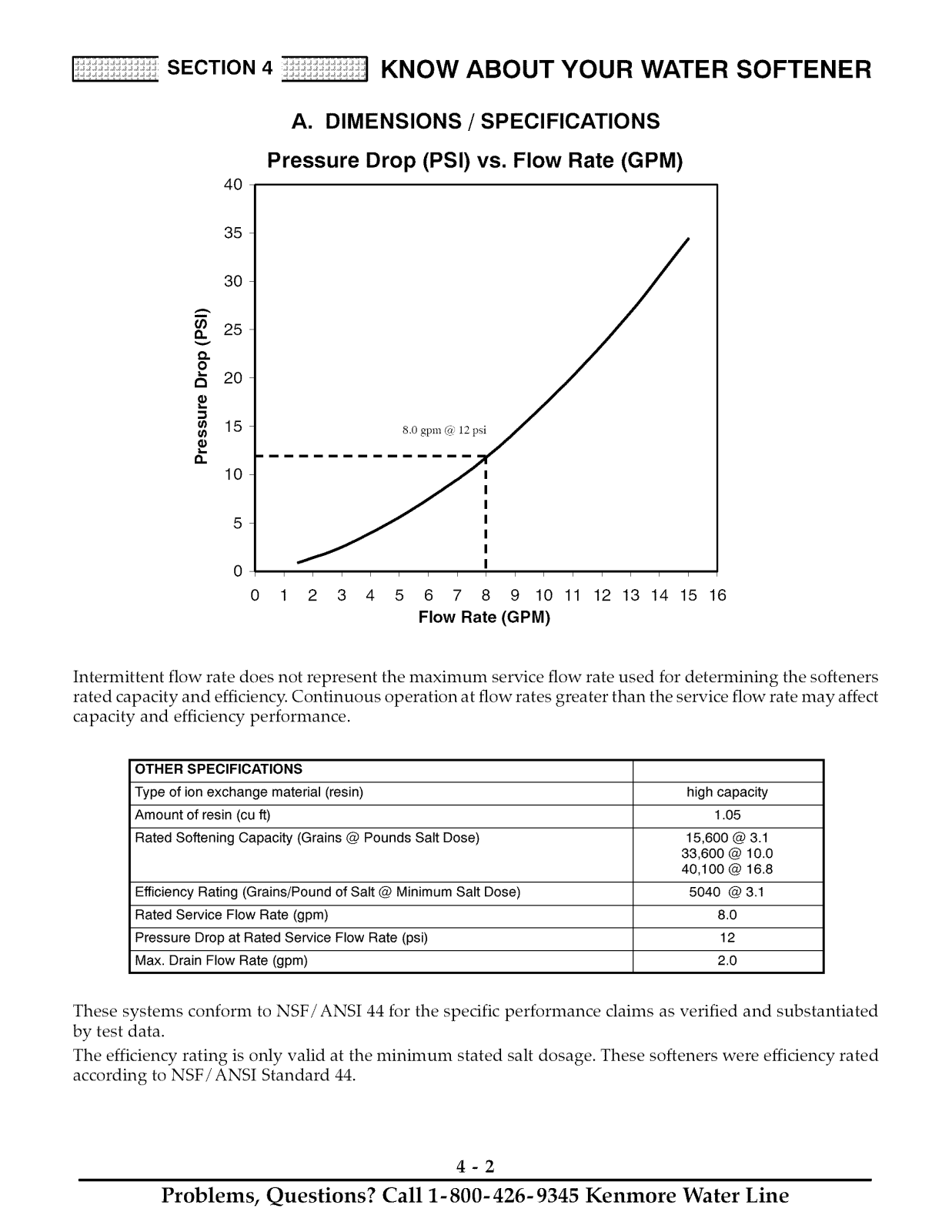

Dimensions / Specifications

SERVICE TECH. INFORMATION

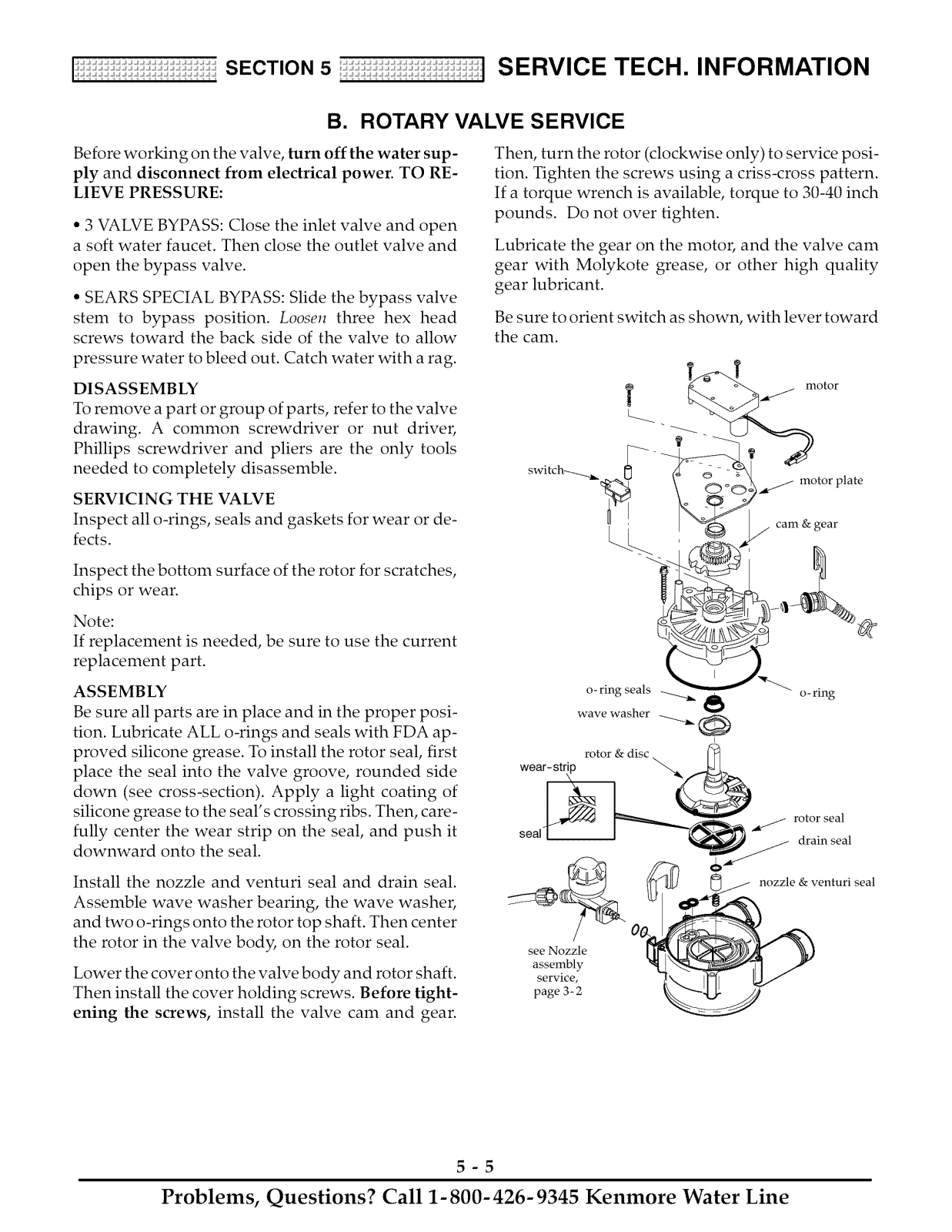

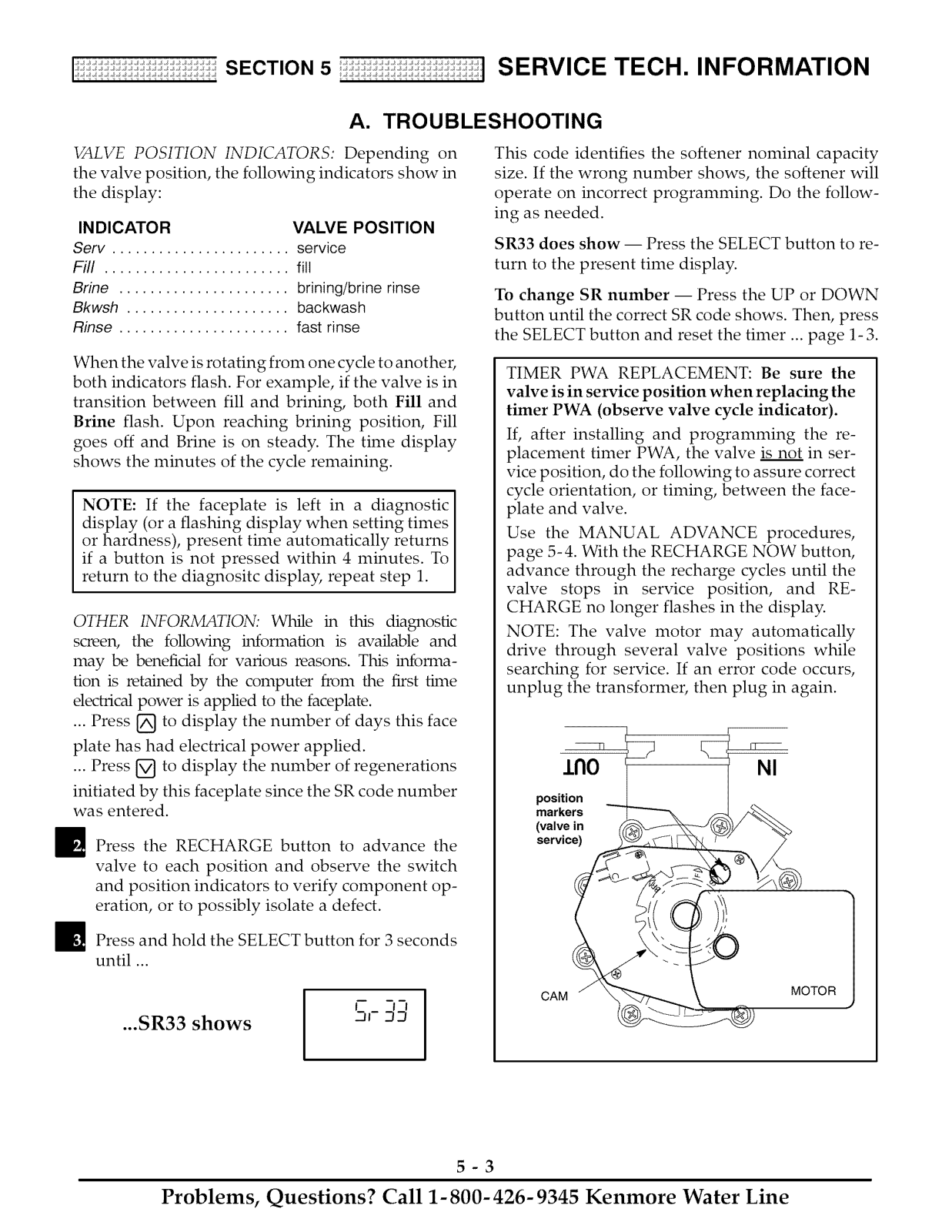

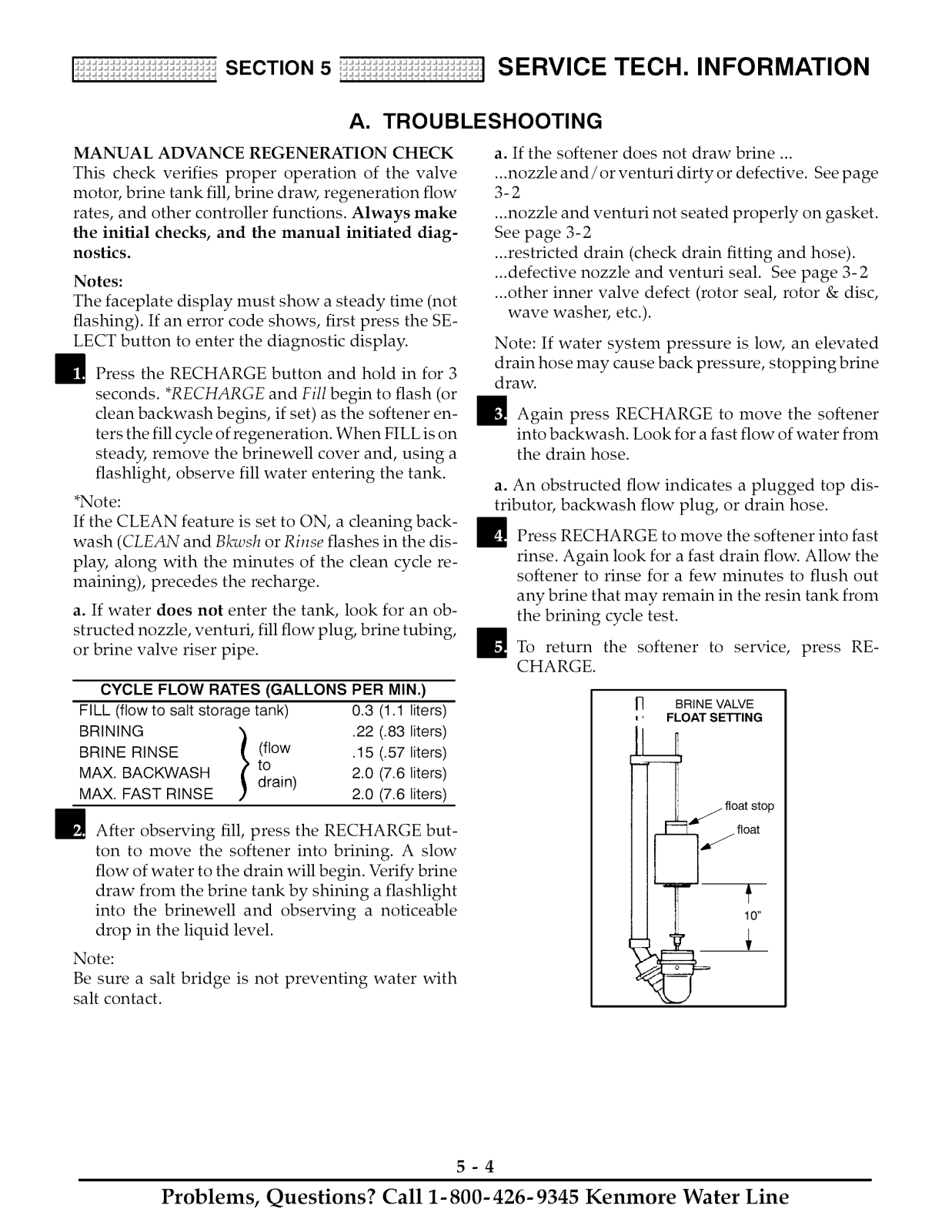

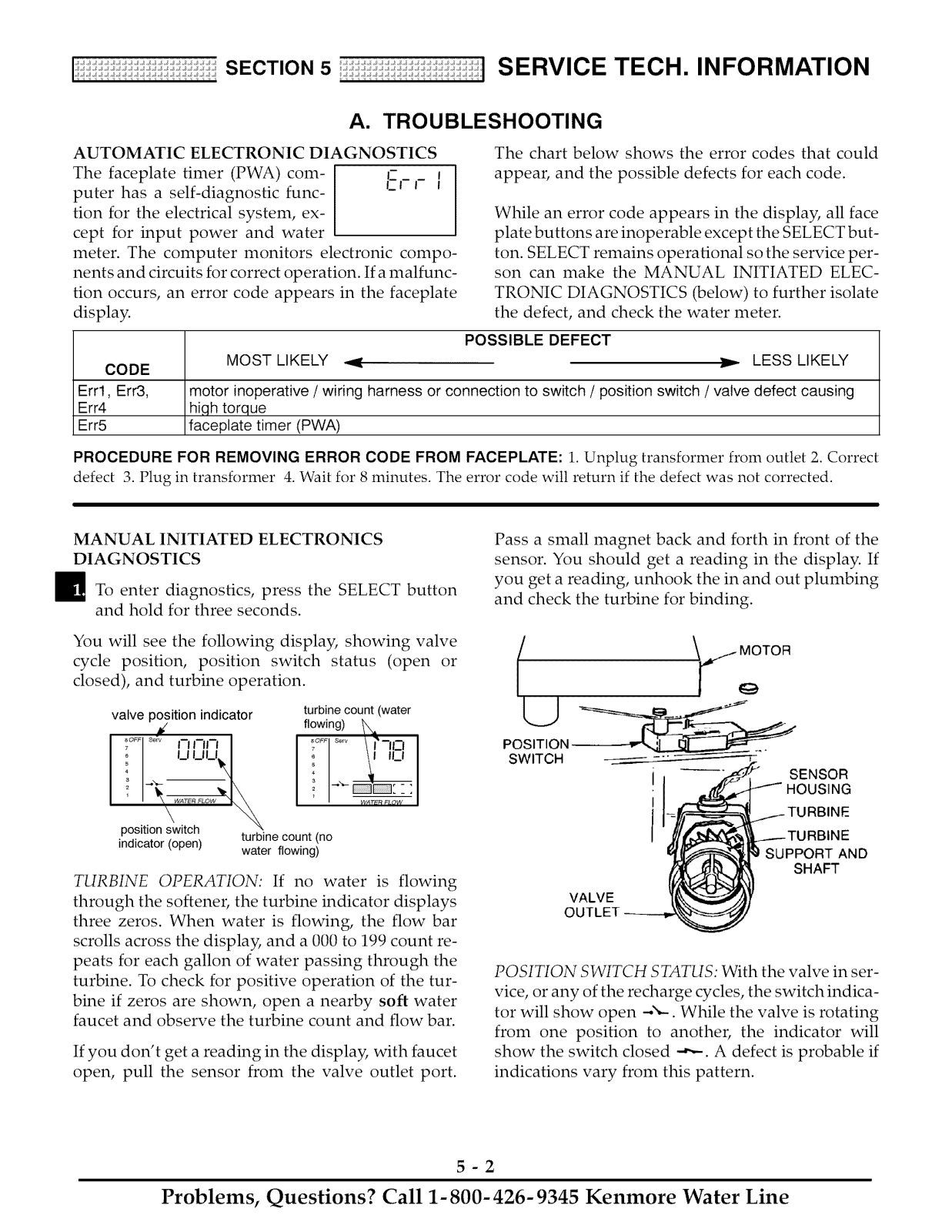

Troubleshooting .... Rotary Valve Service

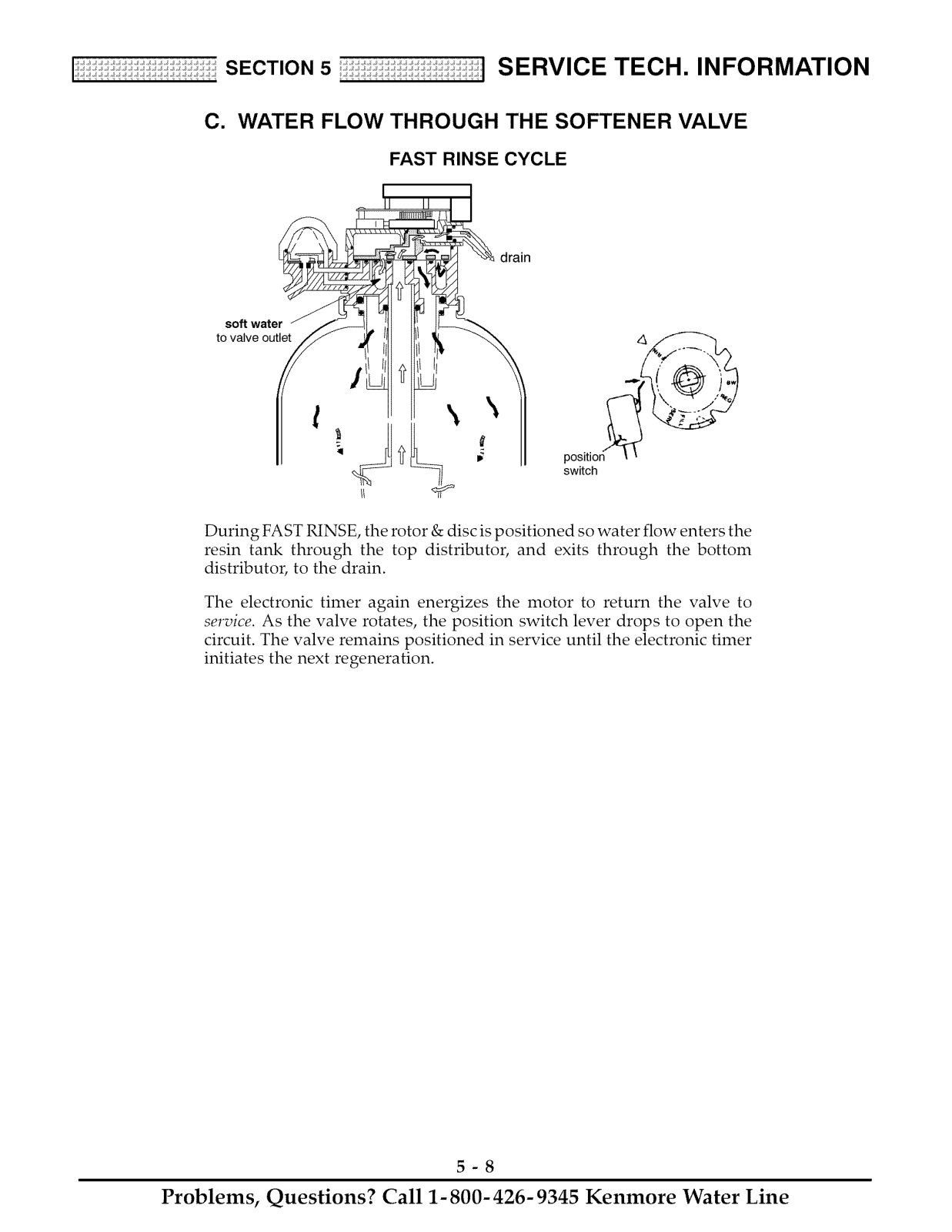

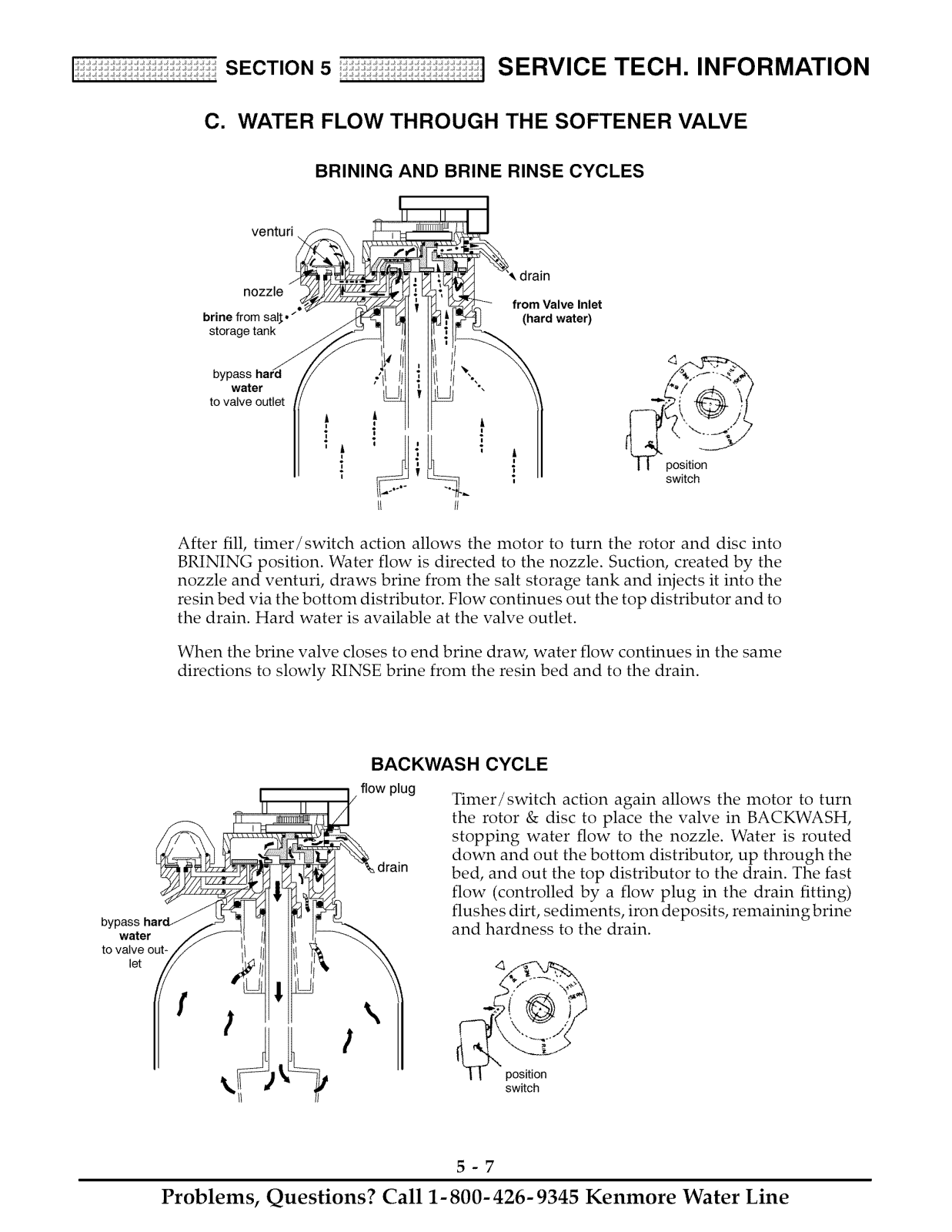

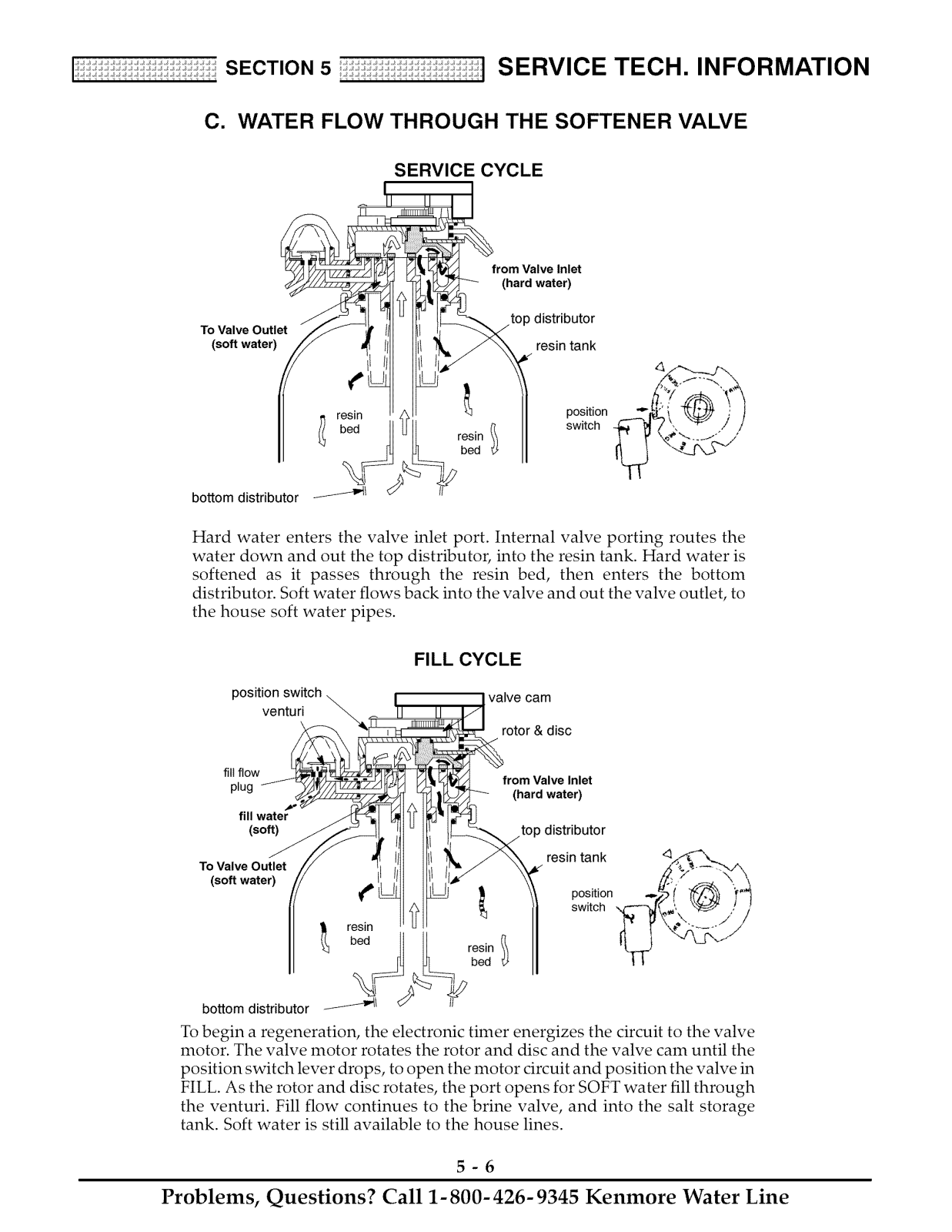

Water Flow Through The Softener Valve-

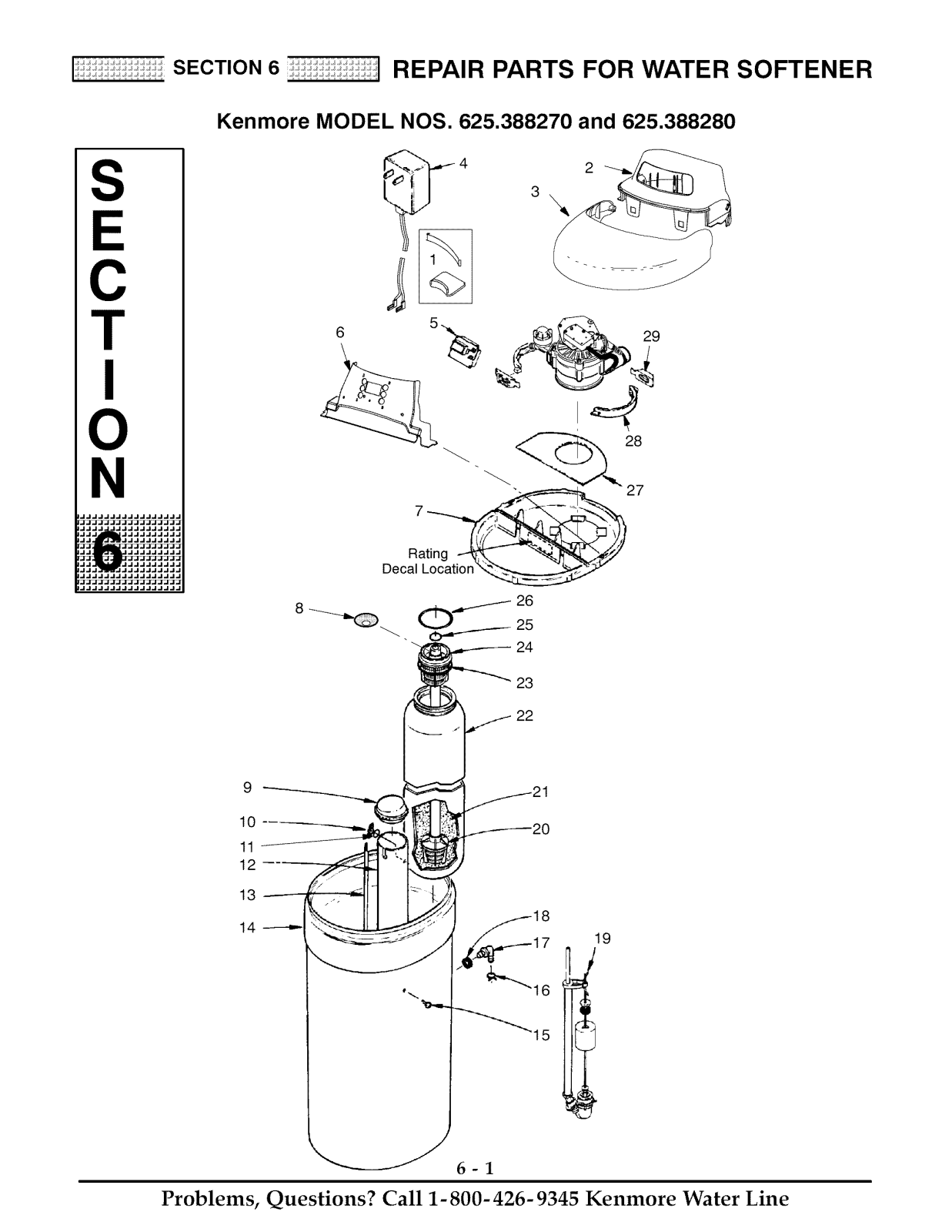

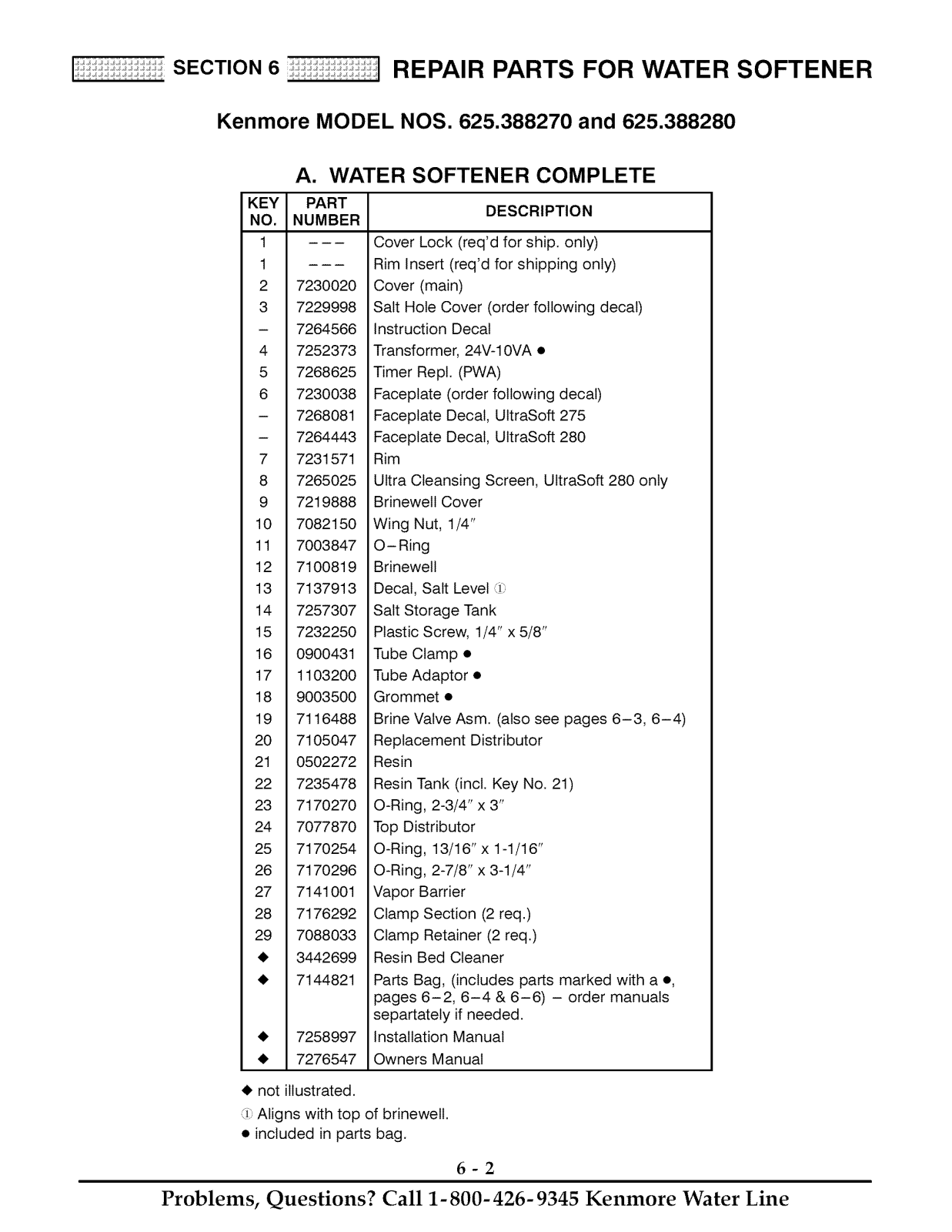

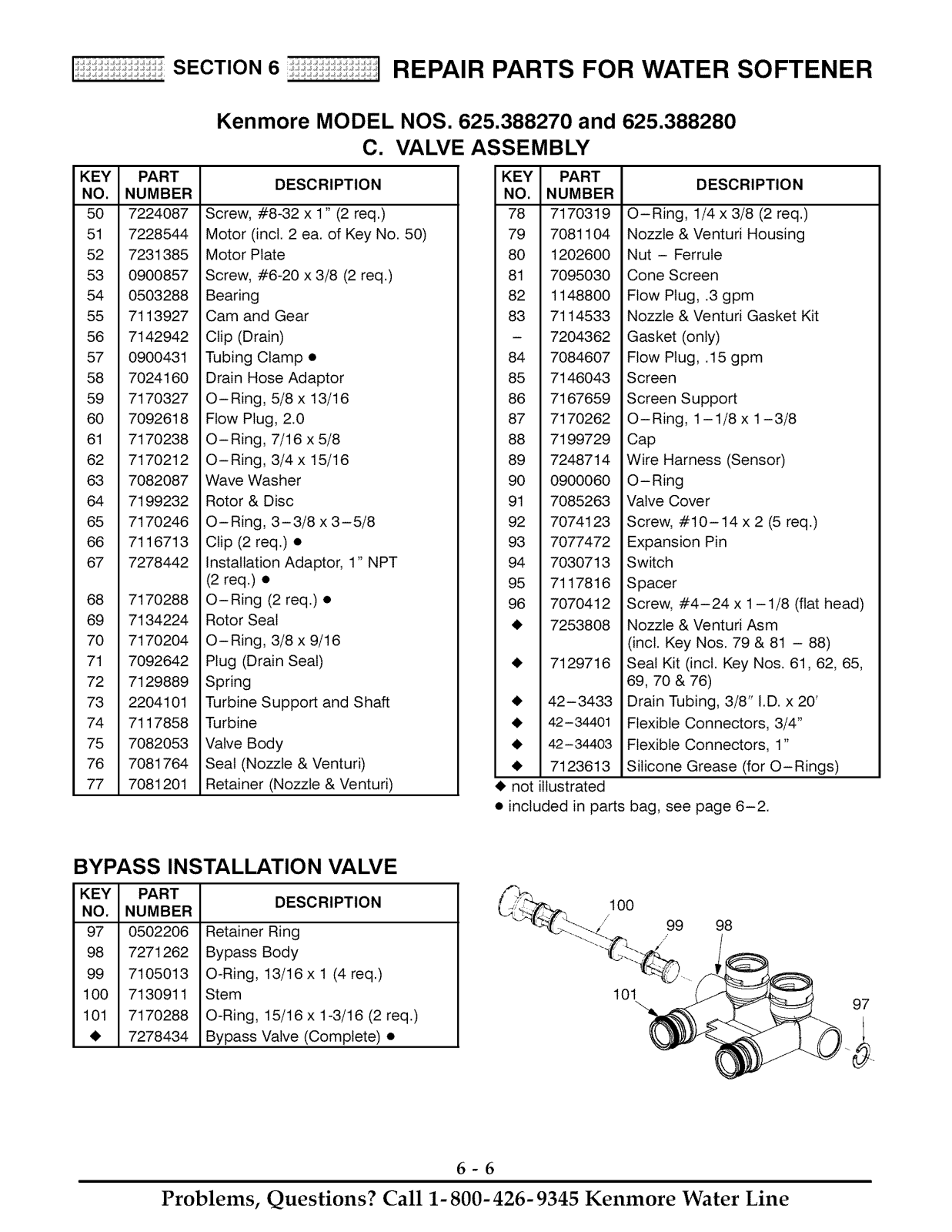

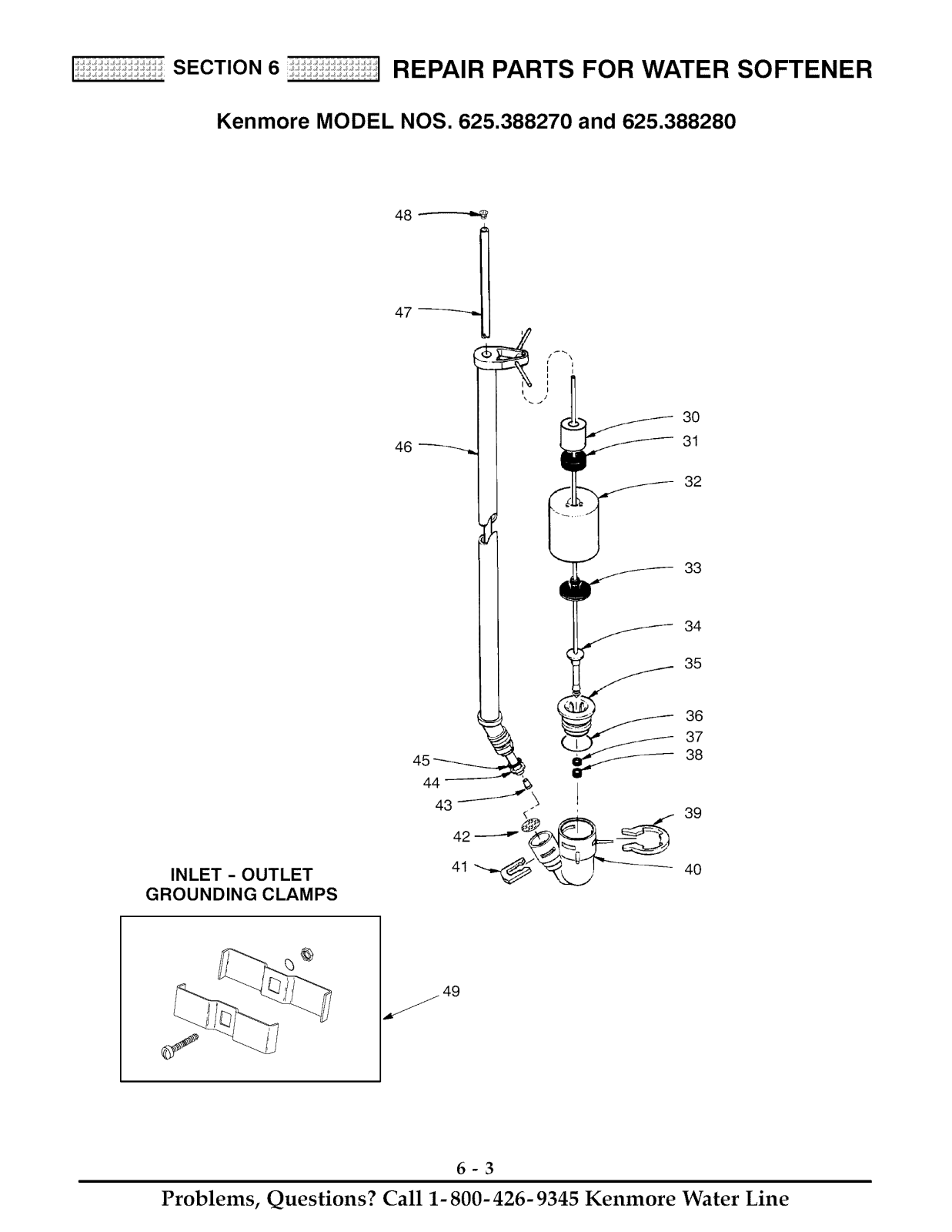

REPAIR PARTS FOR WATER SOFTENER

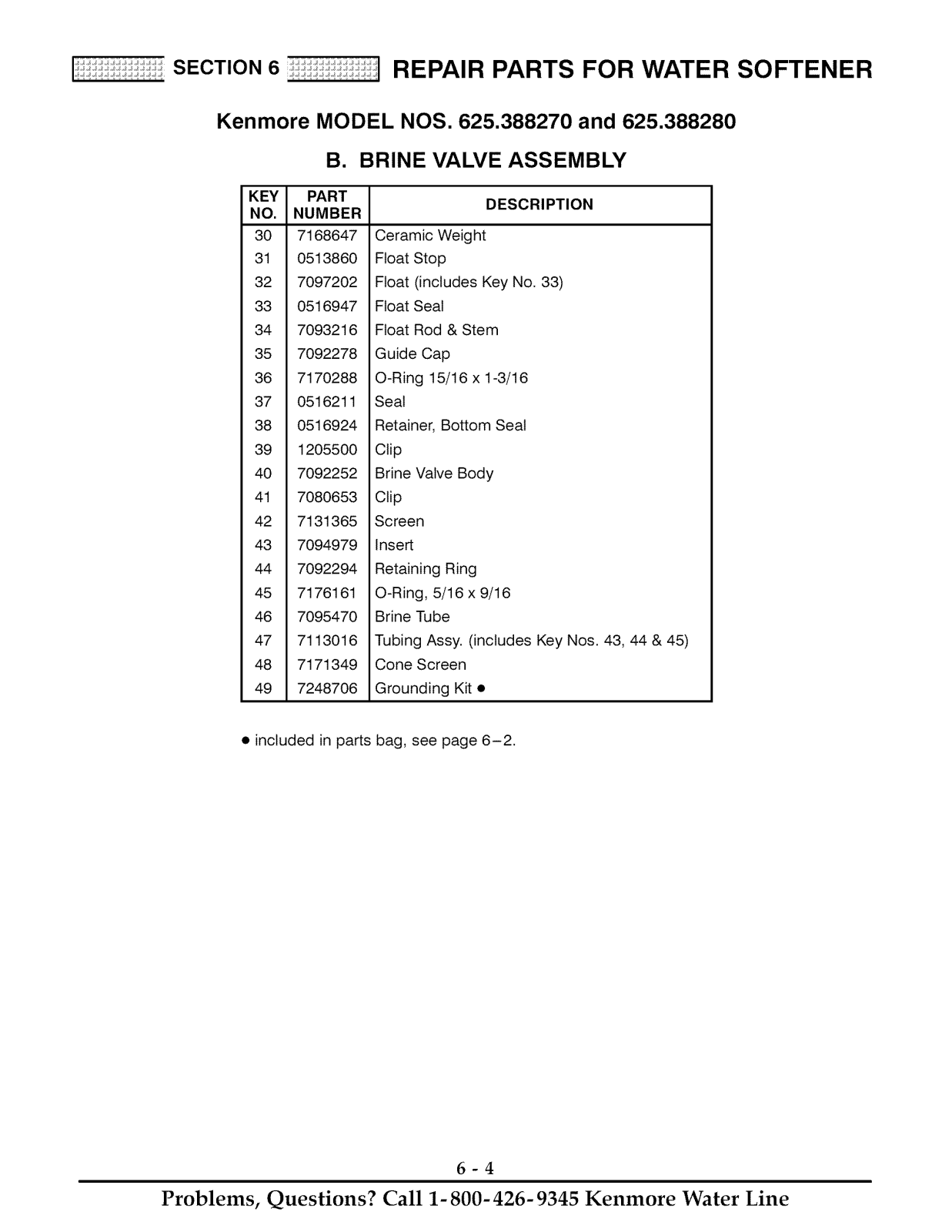

Water Softener Complete Brine Valve Assembly ....

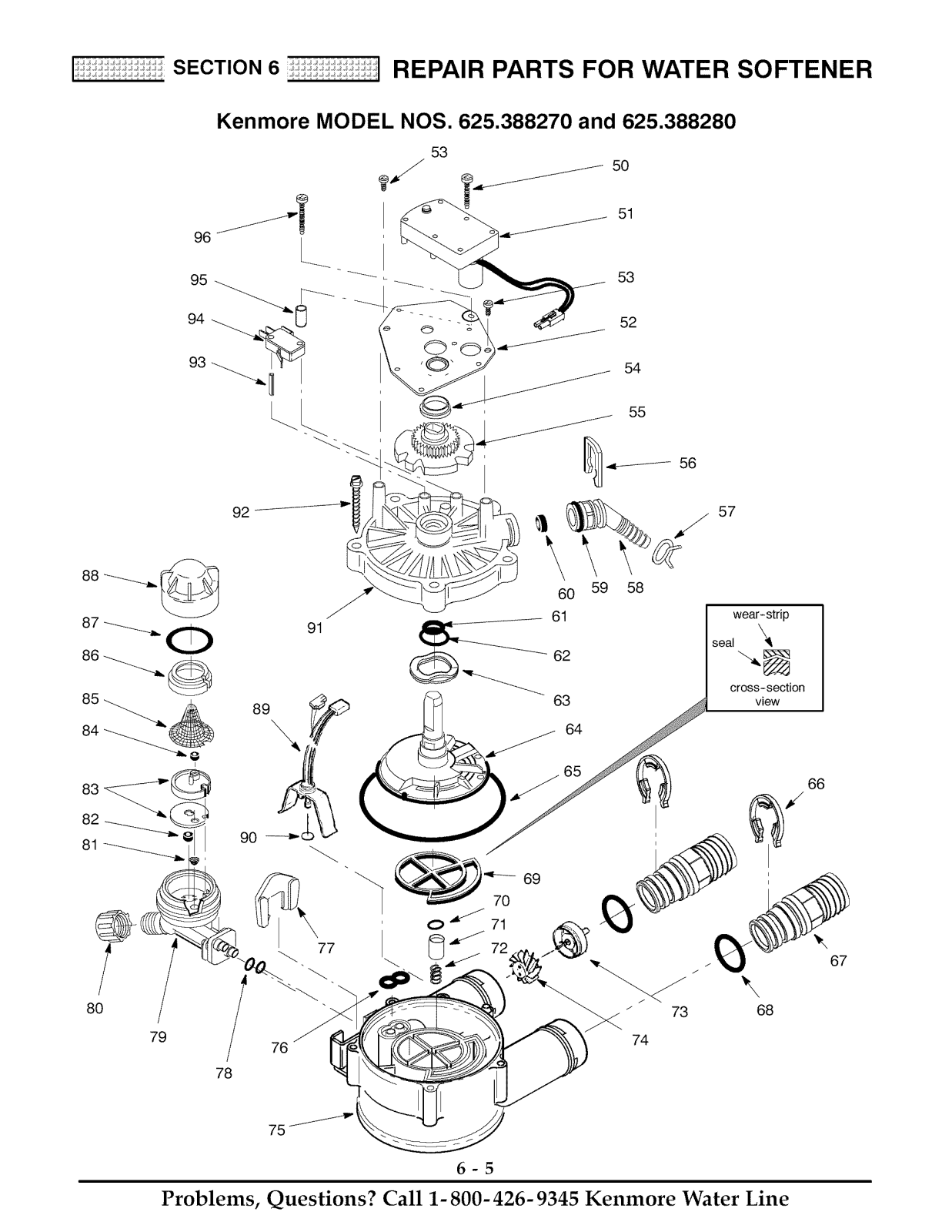

Valve Assembly

4-1,4-2

5-1 to 5-4

5-5

5-6 to 5-8

6-1, 6-2 6-3, 6-4

6-5, 6-6

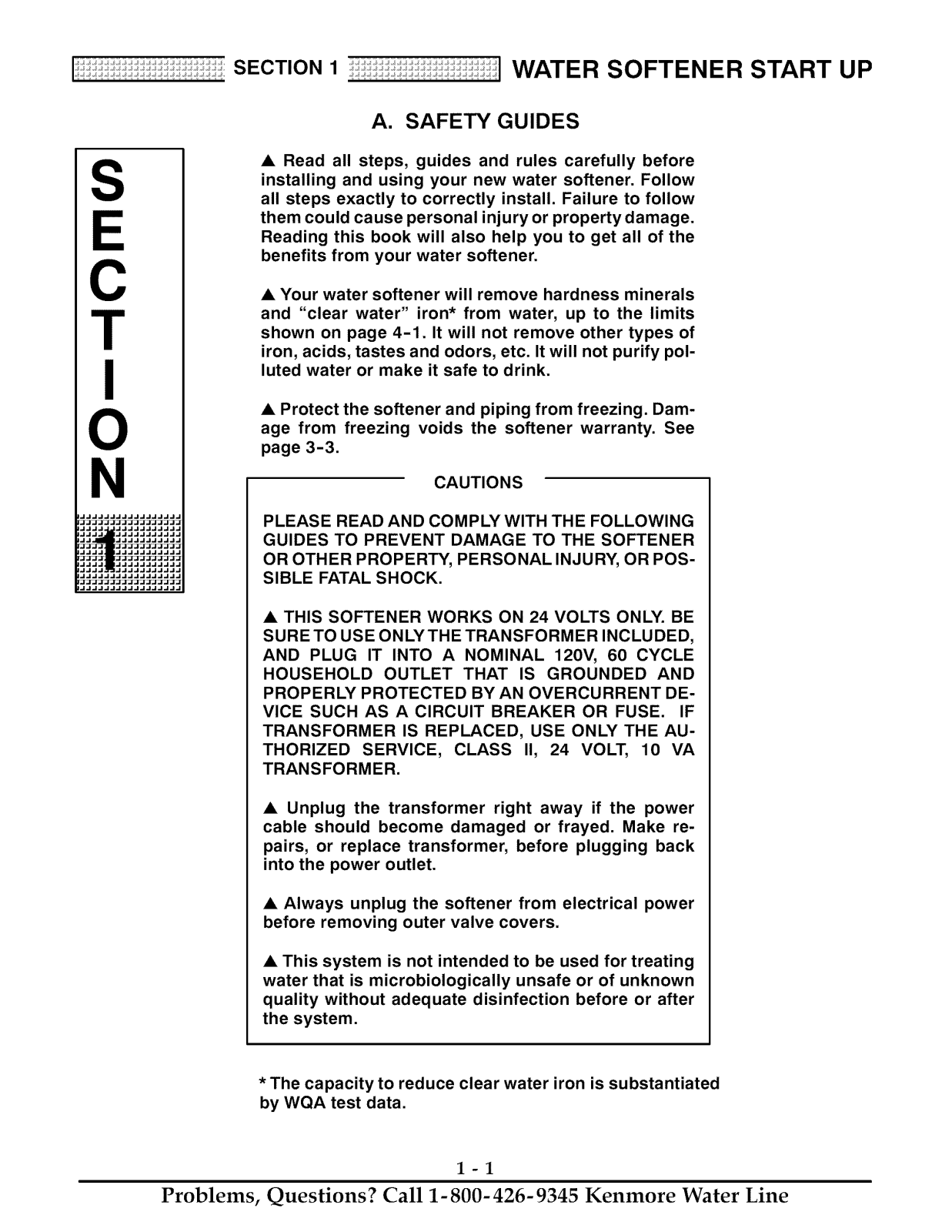

[i!i!!:i:_!!:i:_!!:i:_!!:i SECTION 1 WATER SOFTENER START UP

A. SAFETY GUIDES

• Read all steps, guides and rules carefully before

installing and using your new water softener. Follow all steps exactly to correctly install. Failure to follow

them could cause personal injury or property damage.

Reading this book will also help you to get all of the benefits from your water softener.

,JJJJJJJJJJJJJJJJ. ,JJJJ JJJJJJJJJJ.

,JJJJ JJJJJJJJJJ.

'JJ_i JJJJJJJJJ"

,JJJJ JJJJJJJJJJ.

_dJ JdJdJdJdJ.

,JJJJJJJJJJJJJJJJ. ,JJJJJJJJJJJJJJJJ.

• Your water softener will remove hardness minerals and "clear water" iron* from water, up to the limits

shown on page 4-1. It will not remove other types of

iron, acids, tastes and odors, etc. It will not purify pol- luted water or make it safe to drink.

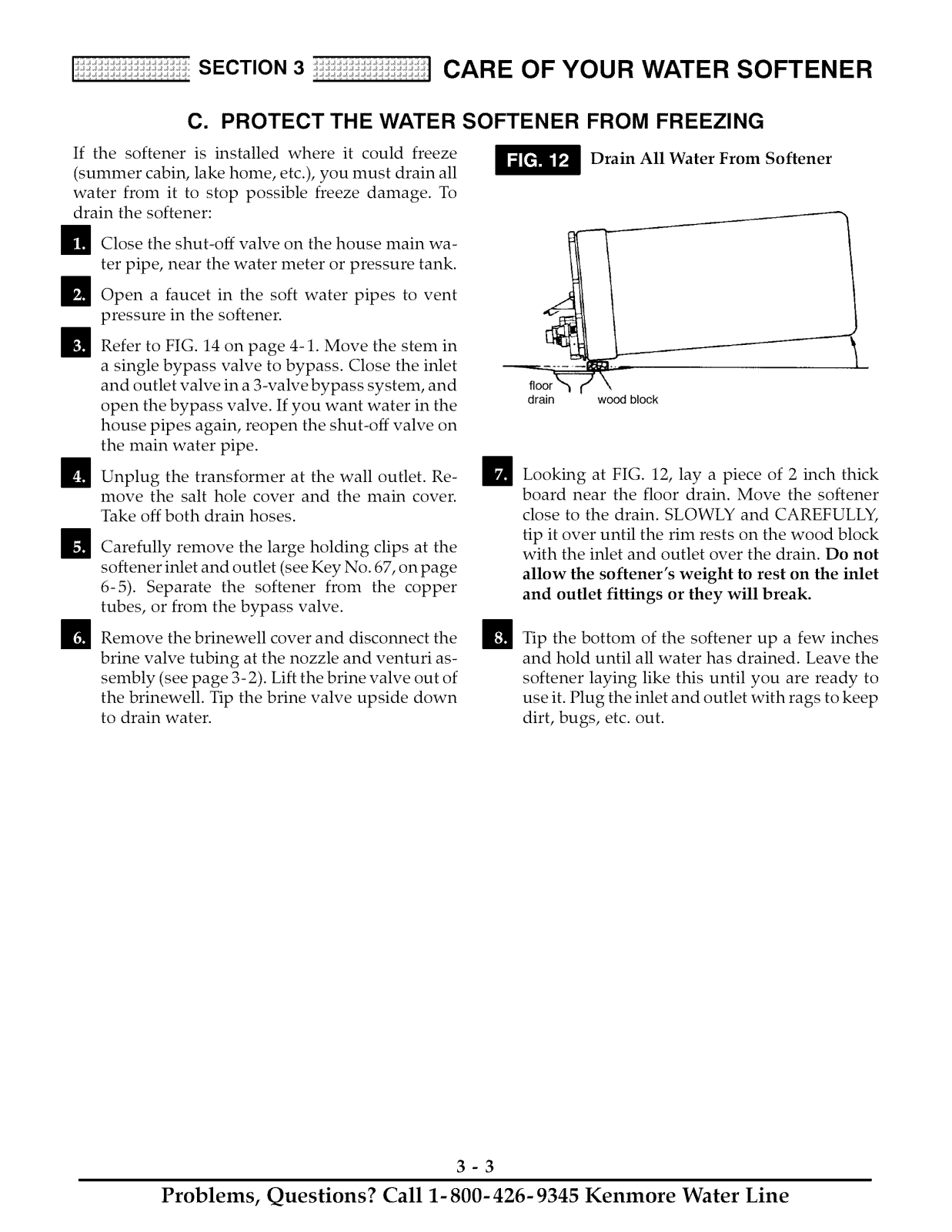

• Protect the softener and piping from freezing. Dam- age from freezing voids the softener warranty. See

page 3-3.

CAUTIONS

PLEASE READ AND COMPLY WITH THE FOLLOWING GUIDES TO PREVENT DAMAGE TO THE SOFTENER OR OTHER PROPERTY, PERSONAL INJURY, OR POS-

SIBLE FATAL SHOCK.

• THIS SOFTENER WORKS ON 24 VOLTS ONLY. BE SURE TO USE ONLY THE TRANSFORMER INCLUDED, AND PLUG IT INTO A NOMINAL 120V, 60 CYCLE

HOUSEHOLD OUTLET THAT IS GROUNDED AND PROPERLY PROTECTED BY AN OVERCURRENT DE- VICE SUCH AS A CIRCUIT BREAKER OR FUSE. IF

TRANSFORMER IS REPLACED, USE ONLY THE AU- THORIZED SERVICE, CLASS II, 24 VOLT, 10 VA TRANSFORMER.

• Unplug the transformer right away if the power cable should become damaged or frayed. Make re-

pairs, or replace transformer, before plugging back into the power outlet.

• Always unplug the softener from electrical power before removing outer valve covers.

• This system is not intended to be used for treating water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after

the system,

* The capacity to reduce clear water iron is substantiated

by WQA test data.

1-1

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i!! :i:_!!:i:_!!:i:_!!:i SECTION 1 WATER SOFTENER START UP

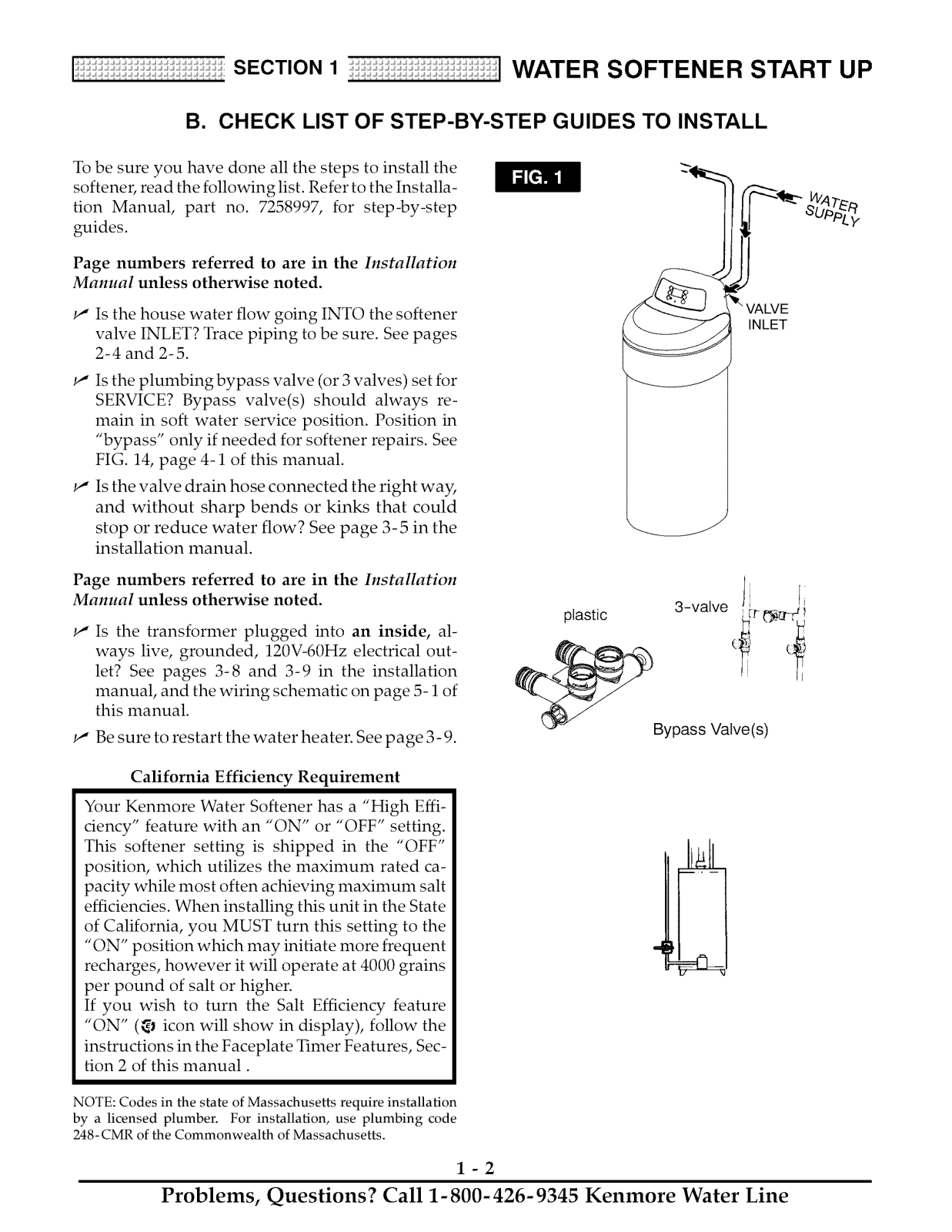

B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL

To be sure you have done all the steps to install the softener, read the following list. Refer to the Installa- tion Manual, part no. 7258997, for step-by-step

guides.

Page numbers referred to are in the Installation

Manual unless otherwise noted.

Is the house water flow going INTO the softener valve INLET? Trace piping to be sure. See pages

2-4 and 2-5.

Is the plumbing bypass valve (or 3 valves) set for SERVICE? Bypass valve(s) should always re- main in soft water service position. Position in

"bypass" only if needed for softener repairs. See FIG. 14, page 4-1 of this manual.

Is the valve drain hose connected the right way, and without sharp bends or kinks that could

stop or reduce water flow? See page 3-5 in the installation manual.

Page numbers referred to are in the Installation

Manual unless otherwise noted.

Is the transformer plugged into an inside, al- ways live, grounded, 120V-60Hz electrical out- let? See pages 3-8 and 3-9 in the installation

manual, and the wiring schematic on page 5-1 of this manual.

_-" Be sure to restart the water heater. See page 3- 9.

INLET

3va,veJf, J

l__Bypass Valve(s)

California Efficiency Requirement

Your Kenmore Water Softener has a "High Effi- ciency" feature with an "ON" or "OFF" setting.

This softener setting is shipped in the "OFF" position, which utilizes the maximum rated ca-

pacity while most often achieving maximum salt efficiencies. When installing this unit in the State of California, you MUST turn this setting to the

"ON" position which may initiate more frequent recharges, however it will operate at 4000 grains per pound of salt or higher. If you wish to turn the Salt Efficiency feature "ON" (_ icon will show in display), follow the instructions in the Faceplate Timer Features, Sec-

tion 2 of this manual.

NOTE: Codes in the state of Massachusetts require installation

by a licensed plumber. For installation, use plumbing code

248- CMR of the Commonwealth of Massachusetts,

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

1-2

[i!i!! :i:_!!:i:_!!:i:_!!:i SECTION 1 WATER SOFTENER START UP

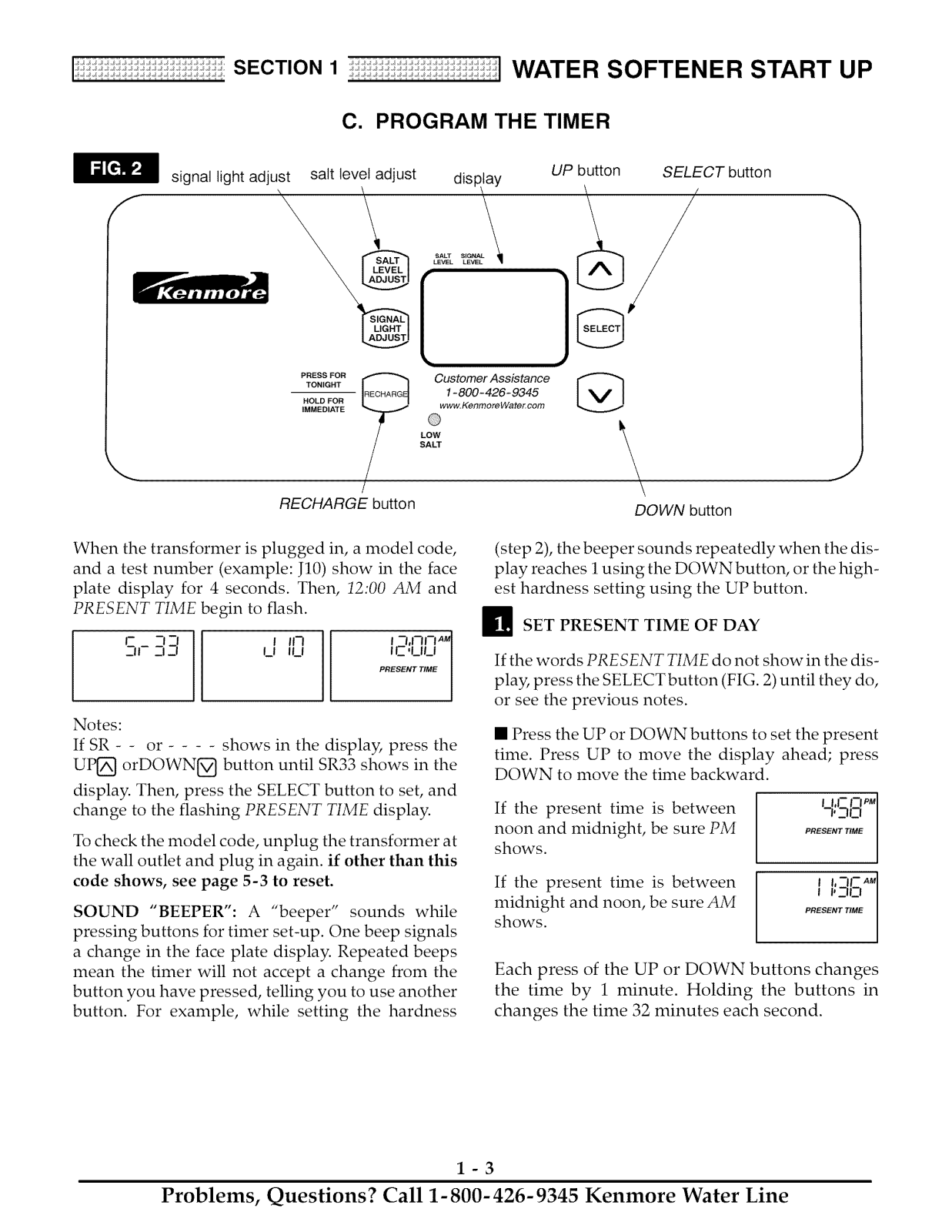

C. PROGRAM THE TIMER

signal light adjust

salt level adjust UP button

....diii

t.EVEL LEVEL •

TONIGHT 1-800-426-9345 [_

HOLD FOR www.KenmoreWatercom

IMMEDIATE

LOW SALT

P ss oR cus omerAss nce

RECHARGE button DOWN button

When the transformer is plugged in, a model code, and a test number (example: J]0) show in the face

plate display for 4 seconds. Then, J2:O0 AM and PRESENT TIME begin to flash.

! I1-1

U fU

I I "-I,1--| I--I AMI

Notes: If SR - - or .... shows in the display, press the

UP[] orDOWN[_ button until SR33 shows in the display. Then, press the SELECT button to set, and

change to the flashing PRESENT TIME display.

To check the model code, unplug the transformer at the wall outlet and plug in again, if other than this

code shows, see page 5-3 to reset.

SOUND "BEEPER": A "beeper" sounds while pressing buttons for timer set-up. One beep signals

a change in the face plate display. Repeated beeps

mean the timer will not accept a change from the button you have pressed, telling you to use another button. For example, while setting the hardness

II_-,LILI /

PRESENT TIME I

SELECT button

I /

(step 2), the beeper sounds repeatedly when the dis- play reaches 1 using the DOWN button, or the high-

est hardness setting using the UP button.

_SET PRESENT TIME OF DAY

If the words PRESENT TIME do not show in the dis- play, press the SELECT button (FIG. 2) until they do,

or see the previous notes.

• Press the UP or DOWN buttons to set the present time. Press UP to move the display ahead; press

DOWN to move the time backward.

If the present time is between noon and midnight, be sure PM

shows.

If the present time is between midnight and noon, be sure AM

shows.

Each press of the UP or DOWN buttons changes the time by 1 minute. Holding the buttons in

changes the time 32 minutes each second.

I_I,I-"I"1PM

'DO I

PRESENT TIME

I h-II -AM

I I,_-I1_-I I

PRESENT TIME

1-3

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i!! :i:_!!:i:_!!:i:_!!:i SECTION 1 WATER SOFTENER START UP

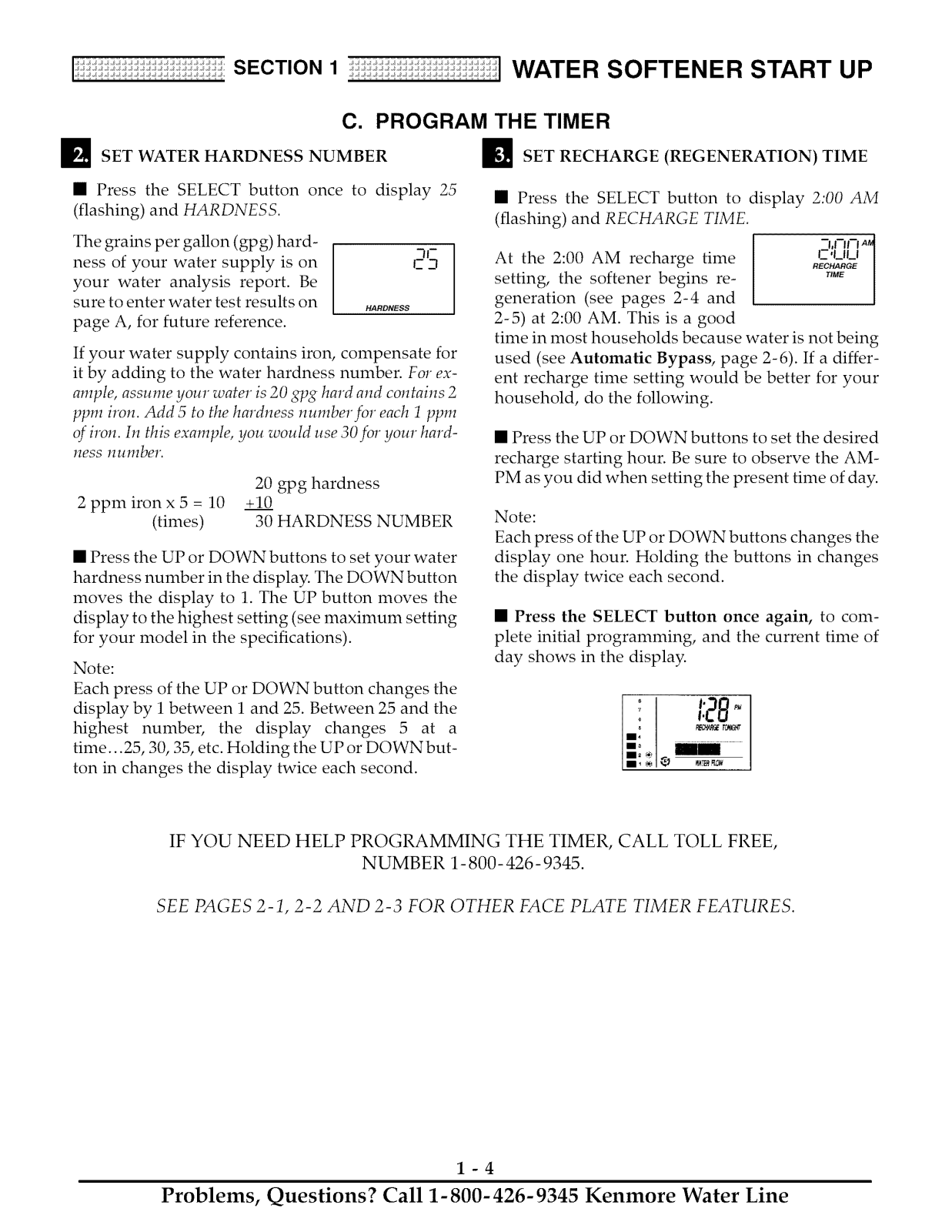

C. PROGRAM THE TIMER

SET WATER HARDNESS NUMBER E! SET RECHARGE (REGENERATION) TIME

• Press the SELECT button once to display 25

(flashing) and HARDNESS.

The grains per gallon (gpg) hard-

ness of your water supply is on

your water analysis report. Be

sure to enter water test results on

page A, for future reference.

If your water supply contains iron, compensate for

it by adding to the water hardness number. For ex-

ample, assume your water is 20 gpg hard and contains 2

ppm iron. Add 5 to the hardness number for each 1 ppm

of iron. In this example, you would use 30for your hard-

hess numbel:

20 gpg hardness

2 ppmironx 5 = 10 +10

(times) 30 HARDNESS NUMBER

• Press the UP or DOWN buttons to set your water

hardness number in the display. The DOWN button

moves the display to 1. The UP button moves the

display to the highest setting (see maximum setting

for your model in the specifications).

Note:

Each press of the UP or DOWN button changes the

display by 1 between 1 and 25. Between 25 and the

highest number, the display changes 5 at a

time...25, 30, 35, etc. Holding the UP or DOWNbut-

ton in changes the display twice each second.

123

HARDNESS

• Press the SELECT button to display 2:00 AM (flashing) and RECHARGE TIME.

nFI Ad

At the 2:00 AM recharge time setting, the softener begins re- generation (see pages 2-4 and

C'UU |

RECTIHA_GE I

2-5) at 2:00 AM. This is a good time in most households because water is not being

used (see Automatic Bypass, page 2-6). If a differ- ent recharge time setting would be better for your

household, do the following.

• Press the UP or DOWN buttons to set the desired recharge starting hour. Be sure to observe the AM-

PM as you did when setting the present time of day.

Note: Each press of the UP or DOWN buttons changes the

display one hour. Holding the buttons in changes the display twice each second.

• Press the SELECT button once again, to com- plete initial programming, and the current time of

day shows in the display.

=° _

IF YOU NEED HELP PROGRAMMING THE TIMER, CALL TOLL FREE,

NUMBER 1- 800- 426- 9345.

SEE PAGES 2-1, 2-2 AND 2-3 FOR OTHER FACE PLATE TIMER FEATURES.

1-4

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i!! :i:_!! :i:_!! :i:_!! :i SECTION 1 WATER SOFTENER START UP

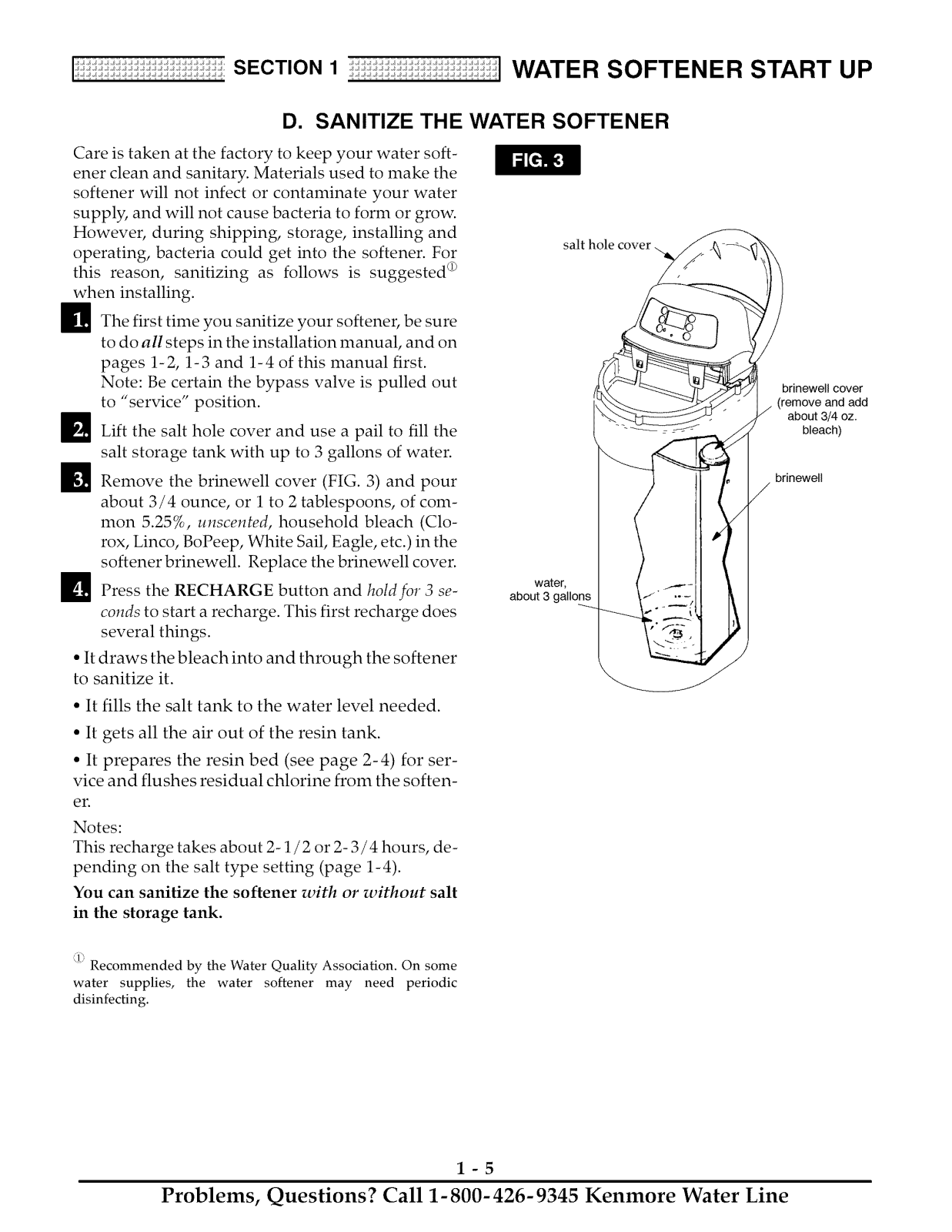

D. SANITIZE THE

Care is taken at the factory to keep your water soft-

ener clean and sanitary. Materials used to make the

softener will not infect or contaminate your water

supply, and will not cause bacteria to form or grow.

However, during shipping, storage, installing and

operating, bacteria could get into the softener. For

this reason, sanitizing as follows is suggested (i9

when installing.

_The first time you sanitize your softener, be sure

to do all steps in the installation manual, and on pages 1-2, 1-3 and 1-4 of this manual first.

Note: Be certain the bypass valve is pulled out to "service" position.

_Lift the salt hole cover and use a pail to fill the

salt storage tank with up to 3 gallons of water.

_1 Remove the brinewell cover (FIG. 3) and pour

about 3/4 ounce, or 1 to 2 tablespoons, of com- mon 5.25%, unscented, household bleach (Clo-

fox, Linco, BoPeep, White Sail, Eagle, etc.) in the softener brinewell. Replace the brinewell cover.

D Press the RECHARGE button and holdfor 3 se-

conds to start a recharge. This first recharge does several things.

• It draws the bleach into and through the softener

to sanitize it.

• It fills the salt tank to the water level needed.

WATER SOFTENER

brinewelI cover

(remove and add

about 3/4 oz.

bleach)

brinewell

water,

about 3 gallons

• It gets all the air out of the resin tank.

• It prepares the resin bed (see page 2-4) for ser-

vice and flushes residual chlorine from the soften-

er.

Notes:

This recharge takes about 2-1/2 or 2- 3/4 hours, de-

pending on the salt type setting (page 1-4).

You can sanitize the softener with or without salt

in the storage tank.

Recommended by the Water Quality Association, On some water supplies, the water softener may need periodic disinfecting.

1-5

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i!! :i:_!!:i:_!!:i:_!!:i SECTION 1 WATER SOFTENER START UP

ADDING SALT TO THE STORAGE TANK

Brine (salt dissolved in water) is needed for each and every regeneration. The water for making brine is me- tered into the salt storage tank by the softener.

You must keep salt in the tank, but because the wa- ter softener is very efficient, it is not necessary to keep it full. Especially in humid areas, it is best to

fill the storage tank one quarter to one half full, and to refill it more often. Salt bridging (see page 3-1) oc-

curs more often when conditions are humid. Use NUGGET or PELLET water softener salt. DO

NOT use rock salts, as they have dirt and sediments that will stop the softener from working.

Before adding salt, be sure the brinewell cover is in place on the top of the bfinewelt. It is recommended to set the salt monitor system, although it is not required

for proper operation (see page 2-1). Note: The salt monitor system, page 2-1, is calibrated

to the density of nugget or pellet water softener salt. The monitor will not work as accurately with other

types of salt including rock and solar. If you choose Potassium Chloride (KC1) as a regener-

ant, following these suggestions will help give you years of maintenance free service.

1) Place only one bag of KC1 in your softener at a time (the salt storage tank should contain no more than 60

pounds of KC1 at any one time).

2) A softener using KC1 should not be placed in areas with temperature fluctuations and high humidity (KC1 will harden in these environments and may make the softener inoperable).

3) Check the brine tank and brine well (black tube in salt storage tank) monthly. If hardening is present,

pour small amounts of warm water on hardened areas until they loosen.

4) If your softener does not have a KC1 salt setting you must increase your hardness setting by 25% to ensure

continuous soft water as in example below.

Raw Water Hardenss

(grains per gallon)

5 gpg 7 gpg

50 gpg 13 gpg 55 gpg 19 gpg 20 gpg 25 gpg

25gpg 32gpg 30 gpg 38 gpg

35gpg 44 gpg 40 gpg 50 gpg

+ 25 % =

Softener setting when

using KC1

WATER SOFTENING SALT WITH IRON REMOVING

ADDITIVES -- Some salts have an additive to help the

softener handle iron in the water supply. These salts may be used if your water supply has a high iron con-

tent. It is recommended to use Sears Resin Bed Clean- er 42- 34426, for periodic treatments to keep your resin

bed clean. This is available at your local Sears store.

Sodium information: Water softeners using sodium chloride for regeneration add sodium to the water.

Persons who are on sodium restricted diets should consider the added sodium as part of their overall so-

dium intake. For example, if your water supply is 15 grains hard, and you drank 3 quarts of softened water

you would consume 335 milligrams of sodium. That is equivalent to eating 2-1/2 slices of white bread.

Persons who are concerned about their drinking water should consider a Kenmore Drinking Water System

that will remove or reduce in excess of 90% of the so- dium and other drinking water contaminants.

1-6

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i!! _;_!!_;_ SECTION 2 _i:!!!_;_!!_;_i] HOW YOUR WATER SOFTENER WORKS

A. FACEPLATE TIMER FEATURES

EXTRA RECHARGE

,JJJJJJJJJJJJJJJJ. ,JJJJ JJJJJJJJJJ.

,JJ JJJJJJJJJ. ,JJJ JJJJJJJJJ.

,JJ_JJJJJdJJJ.

,JJ JJJJJJJJJ. ,JJJJJJJJJJJJJJJJ. ,JJJJJJJJJJJJJJJJ.

Press the RECHARGE button _,_G_ I1_RECHARGE NOW [i°_] _7 -_nn_'_'L0

and hold until *RECHARGE, Serv .......... and Fill begin to flash in the display. Upon reaching

fill, the first cycle of regeneration, the flashing Serv goes off and Fill is on steady. RECHARGE continues

to flash. This regeneration will last for about 2 hours. After the 2 hours, you will have soft water again.

*Note:

If the CLEAN feature is set to ON, a cleaning back- wash (CLEAN and Bkwsh or Rinse flashes in the dis-

play, along with the minutes of the clean cycle re- maining) precedes the recharge.

I1_RECHARGE TONIGHT ;°'_ -u-nq _

Press and release (do not hold) the _o,_G_ _O_,_,T RECHARGE button. RE-

CHARGE TONIGHT flashes in the display, and the softener begins regeneration at the next preset re- charge time. Press and release the RECHARGE but-

ton once more if you decide to cancel the regenera- tion, and RECHARGE TONIGHT will not flash in

the display.

Sometimes, a manually started regeneration (recharge) may be

desired, or needed. Two exam- ples are:

- You have used more water than usual (guests visiting) and you

may run out of soft water before the next timer started regenera-

tion.

- You did not refill the softener with salt before it was gone. After

you refill with salt:

You can start a regeneration right away, or you can set the timer to

regenerate at the next 2:00 AM (or other preset recharge time). Do the following.

HjO

WATER FLOW

I1_ SALT MONITOR SYSTEM

The face plate timer has a low salt monitor with an indicator light to remind you to add salt to the stor-

age tank. To set this monitor system:

_1_ Lift the salt hole cover and level the salt in the

storage tank.

m The salt level decal on the brinewell inside the

tank, has numbers from 0 to 8 (see drawing be- low). Observe the number the leveled salt is at or closest to.

Now, press the SALT LEVEL ADJUST button until black bars display up to the salt level num-

ber. For example, the pictures below show the salt level at 6.

Finally, set the level you want the low salt indi- cator light to come on. Press the SIGNAL LIGHT

ADJUST button until a (÷) shows opposite this number. In the example below, the light will come on when the stored salt drops to level 2. At level 2, the storage tank is about 1/3 full. This is

the lowest you should allow the stored salt level to drop to (see note on page 1-6).

_If you wish to turn the salt monitor off, press the

SIGNAL LIGHT ADJUST button until OFF shows above.

Note: Your salt monitor is an estimate of your salt level; ac-

curacy depends on the type of salt used and other regeneration characteristics.

bars, salt

level

brinewell

salt

level

8 ,

7 ,

decal

TONIGHT

PRESS FOR

HOLD FOR

IMMEDIATE

indicator light s_°w

2-1

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

[i!i!! :;:_!!:;:_ SECTION 2 :i:!!!:;:_!!:;:_i] HOW YOUR WATER SOFTENER WORKS

A. FACEPLATE TIMER FEATURES

OPTIONAL SETTINGS - SALT EFFICIENCY,

CLEAN FEATURE, CLEAN FEATURE MINUTES, MAXIMUM DAYS BETWEEN REGENERA-

TIONS and 12 / 24 HOUR CLOCK:

1. To set any of the following options, press and hold SELECT for 3 seconds until 000 shows in the display. Then press once until the SALT EFFICIENCY dis- play shows. Use the UP or DOWN buttons to change the ON / OFF displays.

U I- F I_1I-1

I I

[]SALT EFFICIENCY: _,_ When this feature is ON, the unit will operate at salt efficiencies of 4000 grains of hardness per pound of salt or higher, which will reduce the softeners salt usage. (May recharge more often using smaller salt dosage and less water).

When installing this unit in the State of California, this setting MUST be ON.

2. Press SELECT again to show the CLEAN display.

DFF PJn

[]CLEAN: This feature is beneficial on water sup- plies containing iron and/or high amounts of sedi-

ments (sand, silt, dirt, etc.). When set to ON, a back- wash and fast rinse cycle will occur first, preceeding

the normal regeneration sequence (see page 2-4). This provides extra cleaning of the resin bed before it is regenerated with the salt brine. To conserve wa- ter, if your water supply does not contain iron or

sediments, be sure this feature is set to OFF. For UltraSoft 280 the default is ON, for UltraSoft 275 the

default is OFF.

3. Press SELECT again until the CLEAN TIME dis- play shows.

1,- [ 3"

4. Press SELECT again to show the following RE- CHARGE display.

ot i R c ARo :'°At

default display example: set to 4 days maxi-

[]Maximum days between iKgenerations: The face- plate timer automatically controls regeneration fre- quency (see page 2-5). This provides the greatest

operating efficiency, and under most conditions this feature will be left in its default mode. However,

you can modify this feature if you want to force a regeneration every set number of days. For exam- ple, if your water supply contains iron and you want the softener to regenerate at least once every few days to keep the resin bed clean, set the display as typically shown above. Setting is available from

1 to 15 days by using the UP and DOWN buttons.

5. Press SELECT to show the 12 HOUR display. [12 or 24 hour clock: All time J-aC _

displays are shown in standard Ir I ,-pM clock time (1 to 12 PM; and 1 to T,M_ 12 AM) at the 12 hr default set-

ting. If military time displays are L IJ . desired, set to 24 hr by pressing

the UP button. T_M_

6. Press SELECT to return to the present time dis- play.

WATER FLOW THROUGH THE SOFTENER

If soft water is in use, the water flow bars continually scroll

across the display. The bars scroll slowly when water flow is slow, and move faster as water flow increases. The flow bars do not show when all faucets and

water using appliances are off.

mum between regenerations

.Ziu i_ _

default minutes example: time set to 3 minutes

[CLEAN feature minutes: If you are using this fea- ture, the length of the extra backwash cycle auto- matically sets to 7 minutes. However, you can ad-

just this time from 1 to 15 minutes in length. To

change this cycle time, use the UP button to increase the time, or the DOWN button to shorten the time.

If no change is desired, continue below.

Problems, Questions? Call 1- 800- 426- 9345 Kenmore Water Line

Flow bars scroll when _'_ I ID:_8 "

2-2

+ 25 hidden pages
