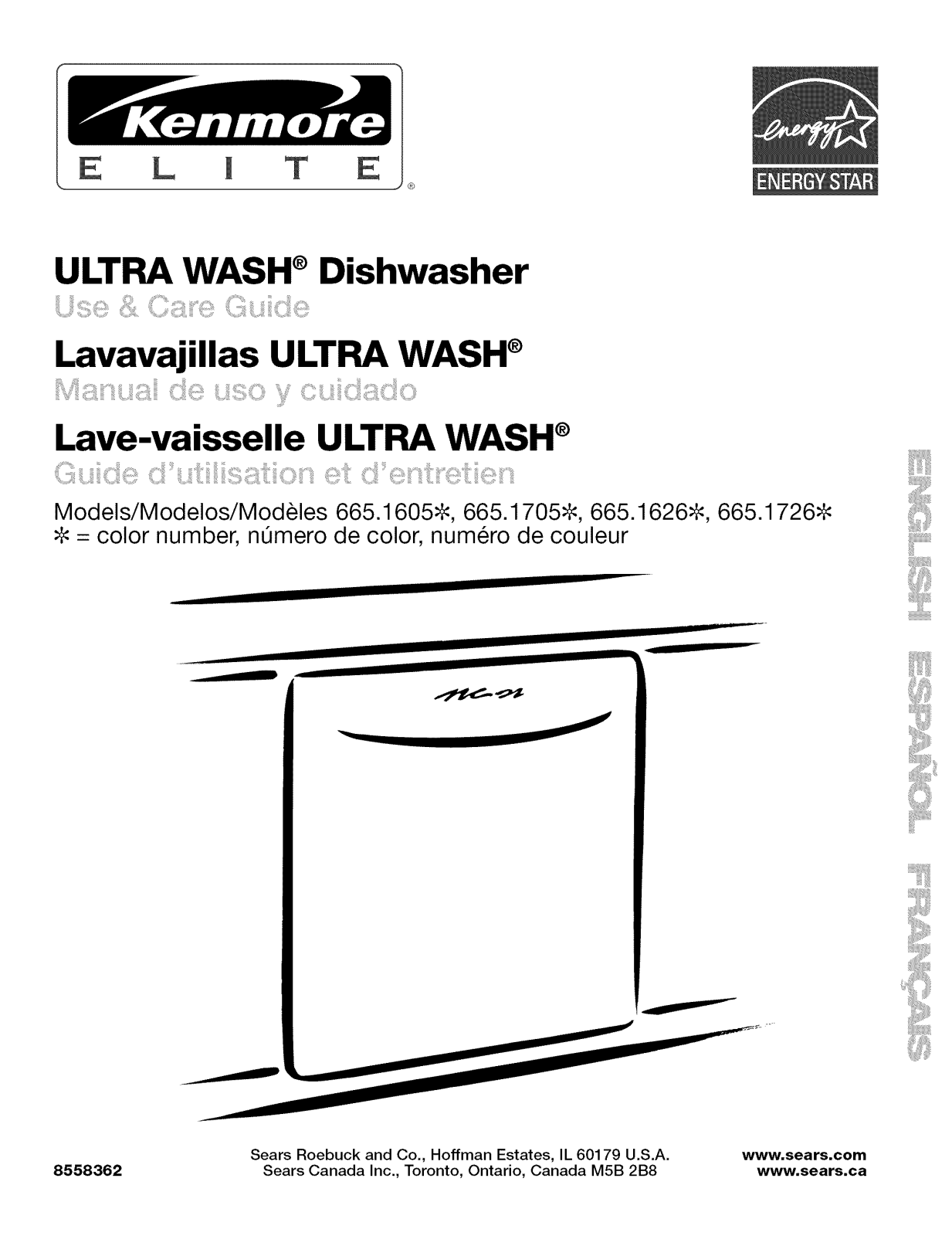

Kenmore Elite 665.16264400 User Manual

ULTRA WASH ®Dishwasher

Lavavajillas ULTRA WASH ®
Lave-vaisselle ULTRA WASH ®

Models/Modelos/Modeles 665.1605_, 665.1705_, 665.1626:_, 665.1726:_

= color number, nQmero de color, numero de couleur

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

8558362 Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8 www.sears.ca

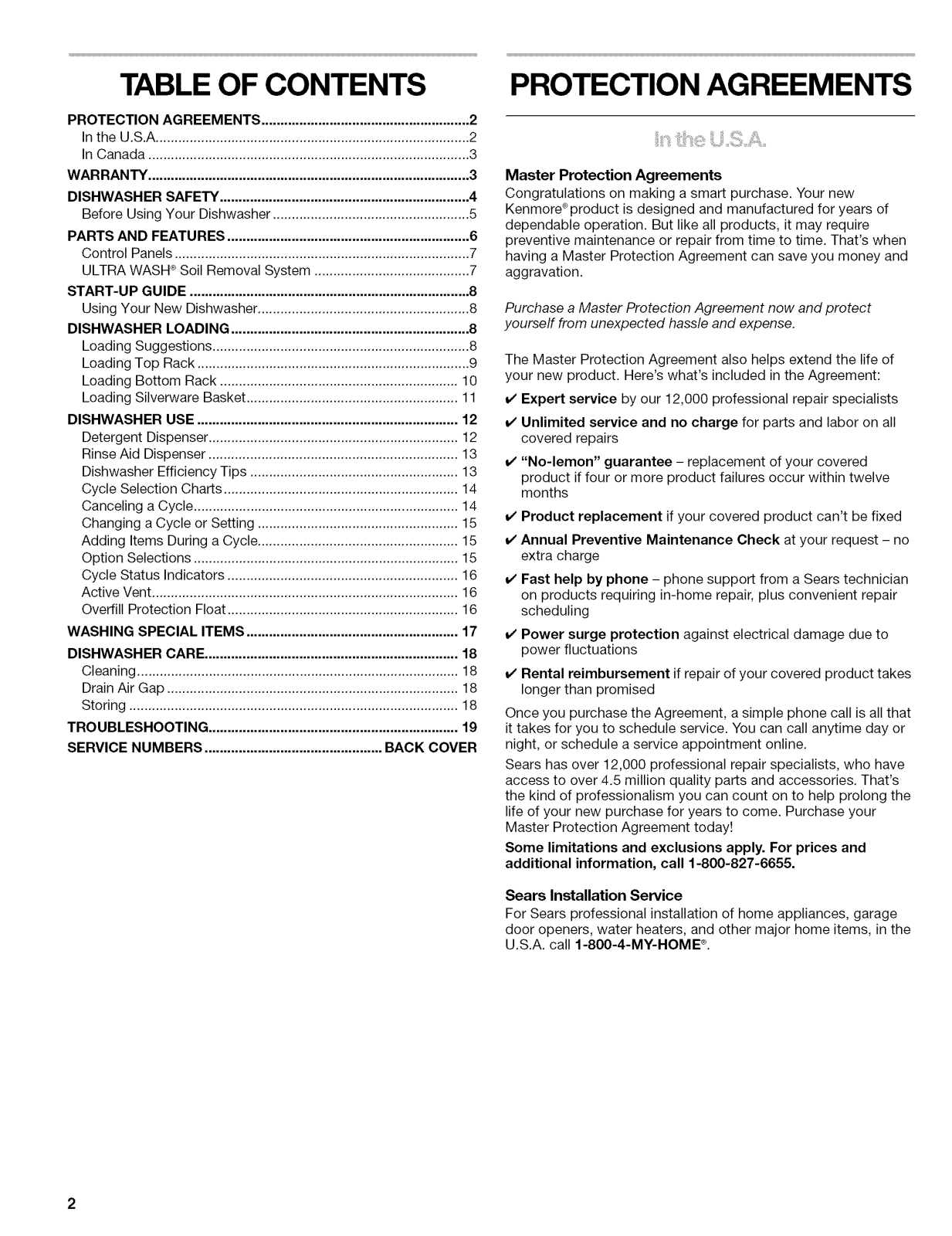

TABLEOF CONTENTS

PROTECTION AGREEMENTS ....................................................... 2

In the U.S.A ................................................................................... 2

In Canada ..................................................................................... 3

WARRANTY ..................................................................................... 3

DISHWASHER SAFETY .................................................................. 4

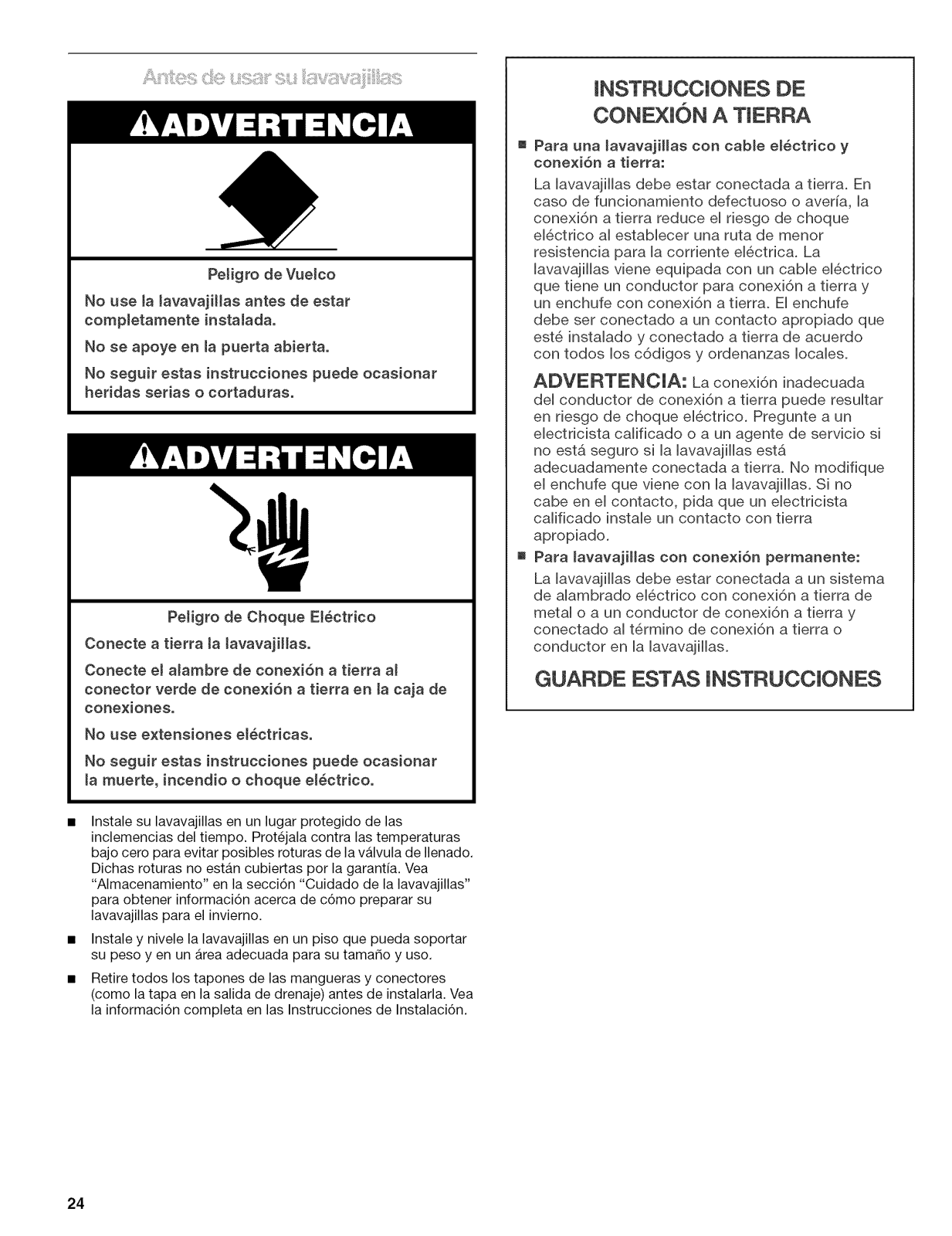

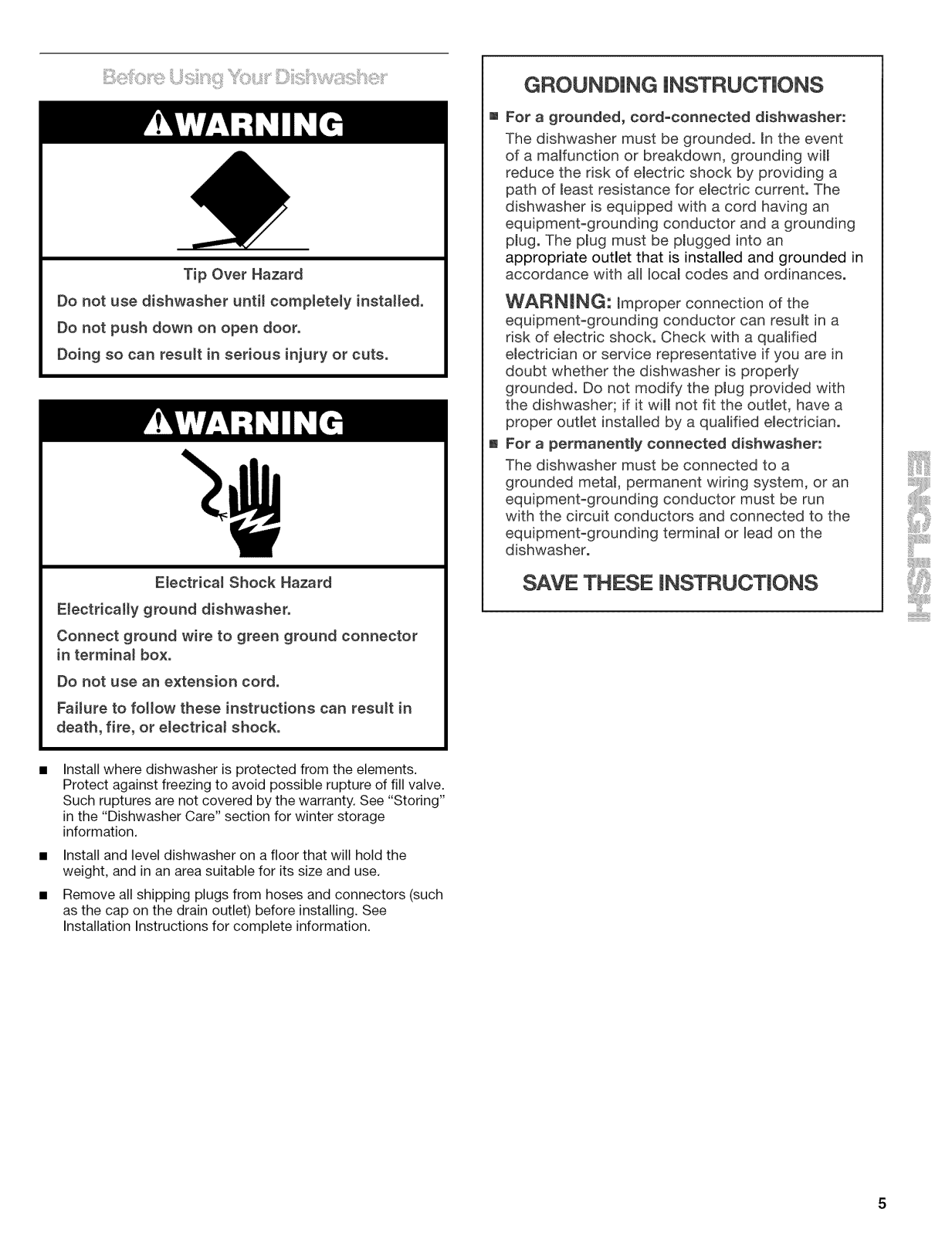

Before Using Your Dishwasher .................................................... 5

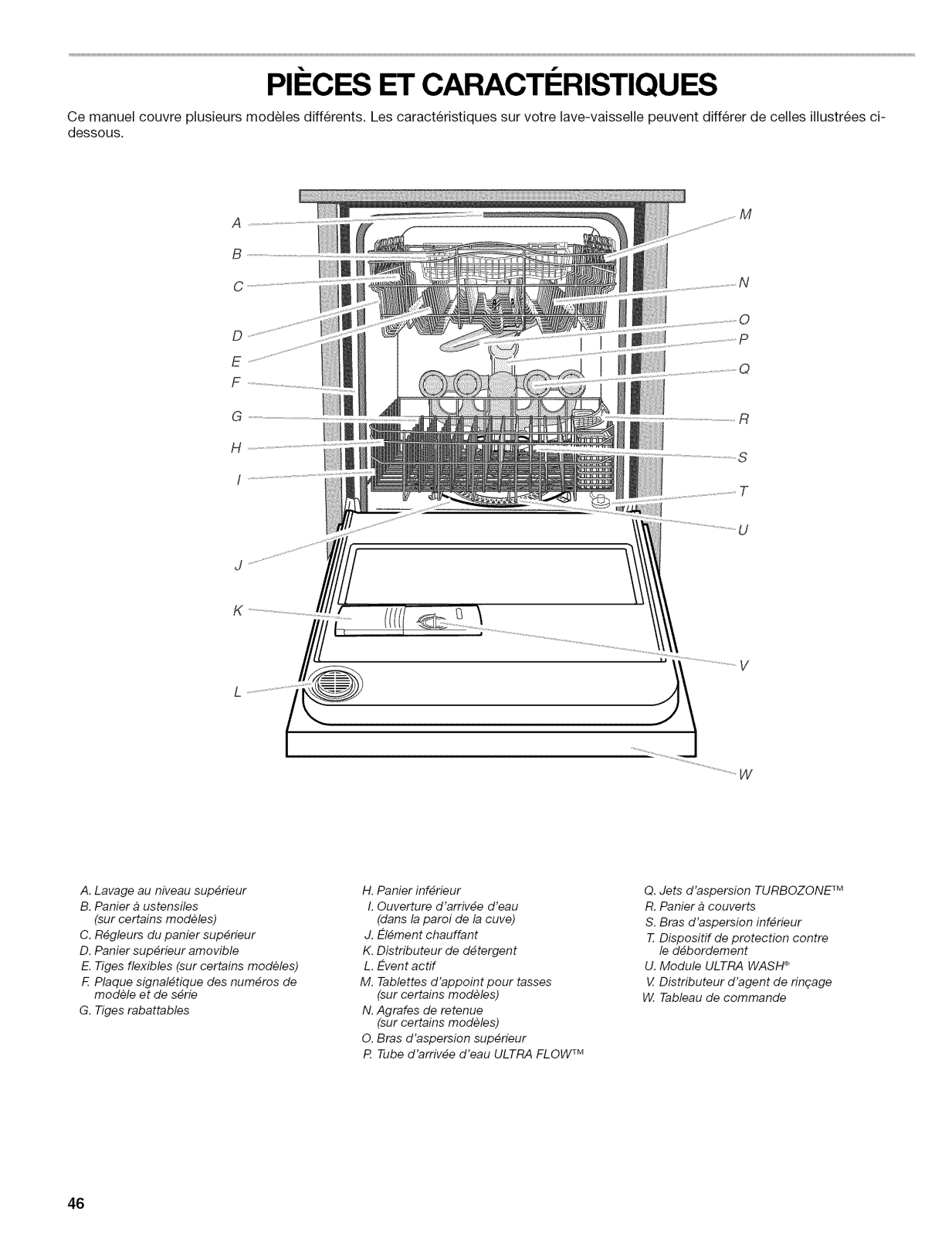

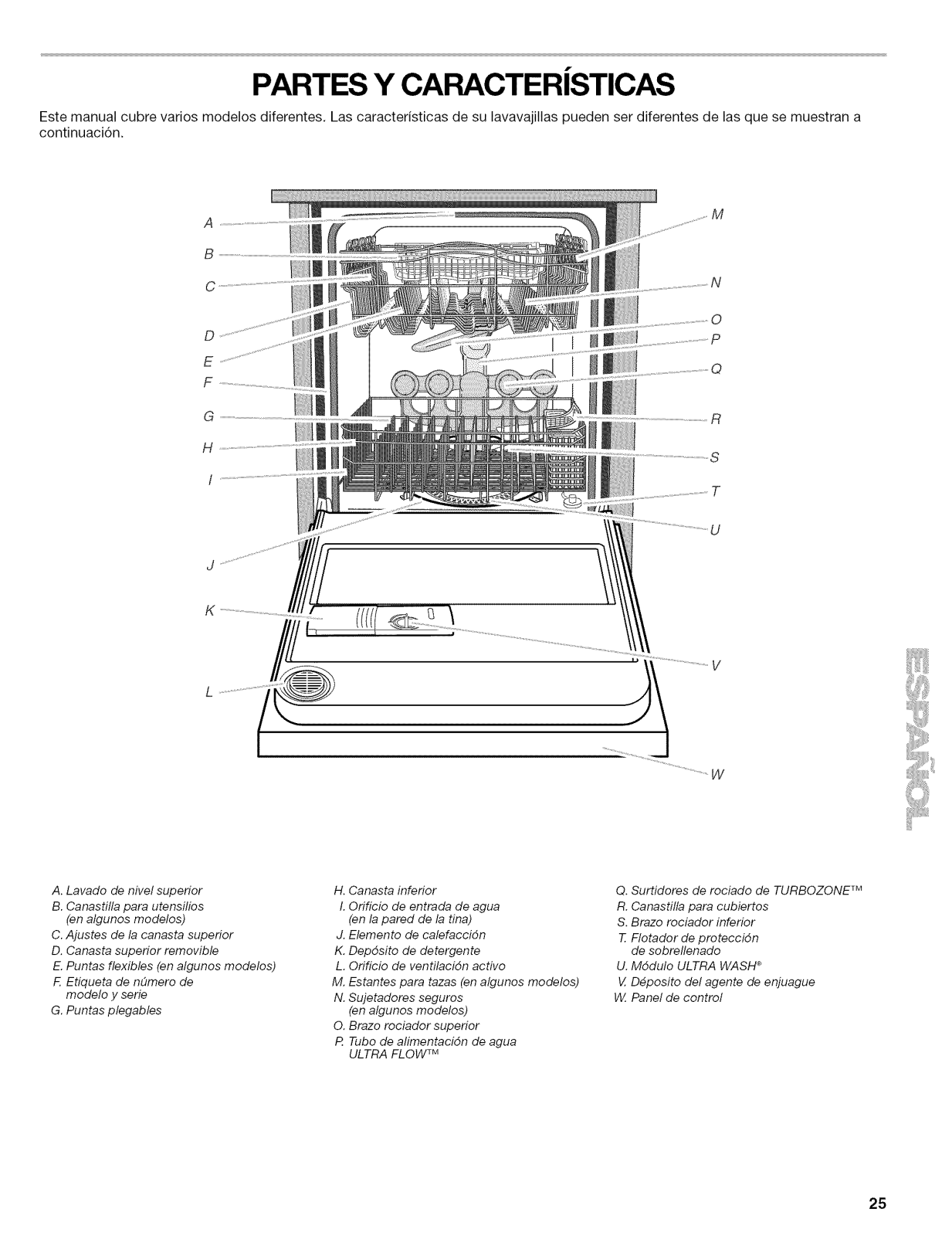

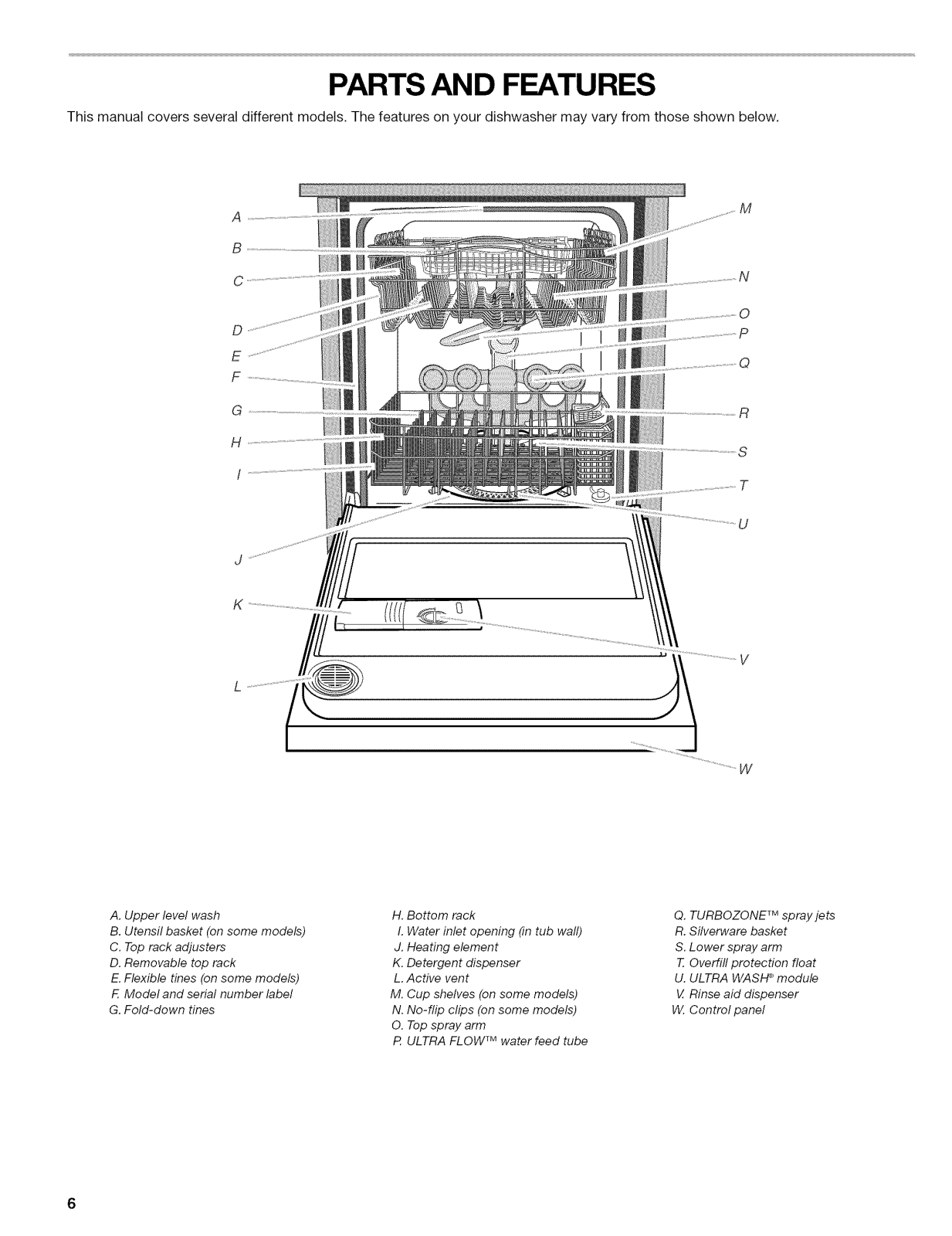

PARTS AND FEATURES ................................................................ 6

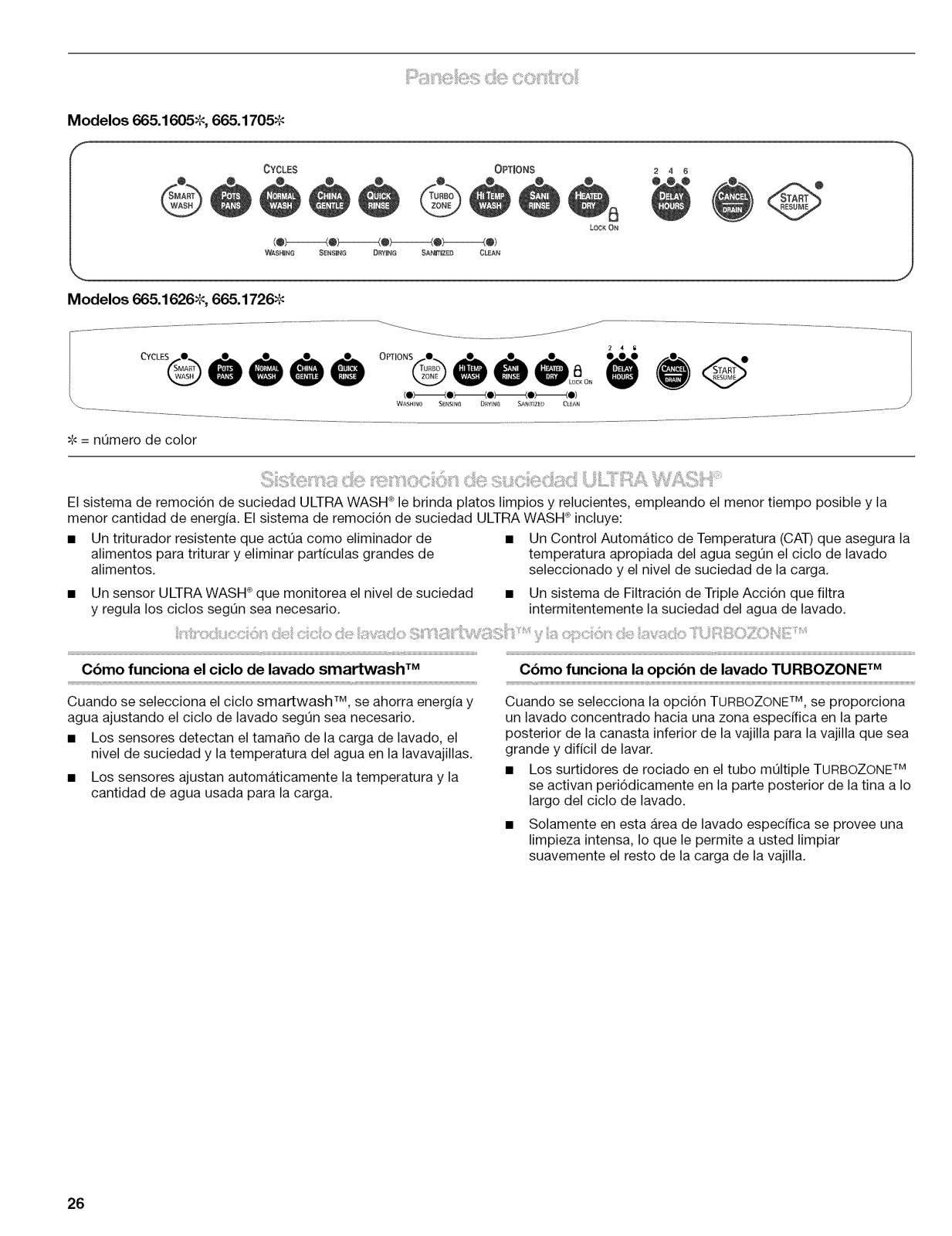

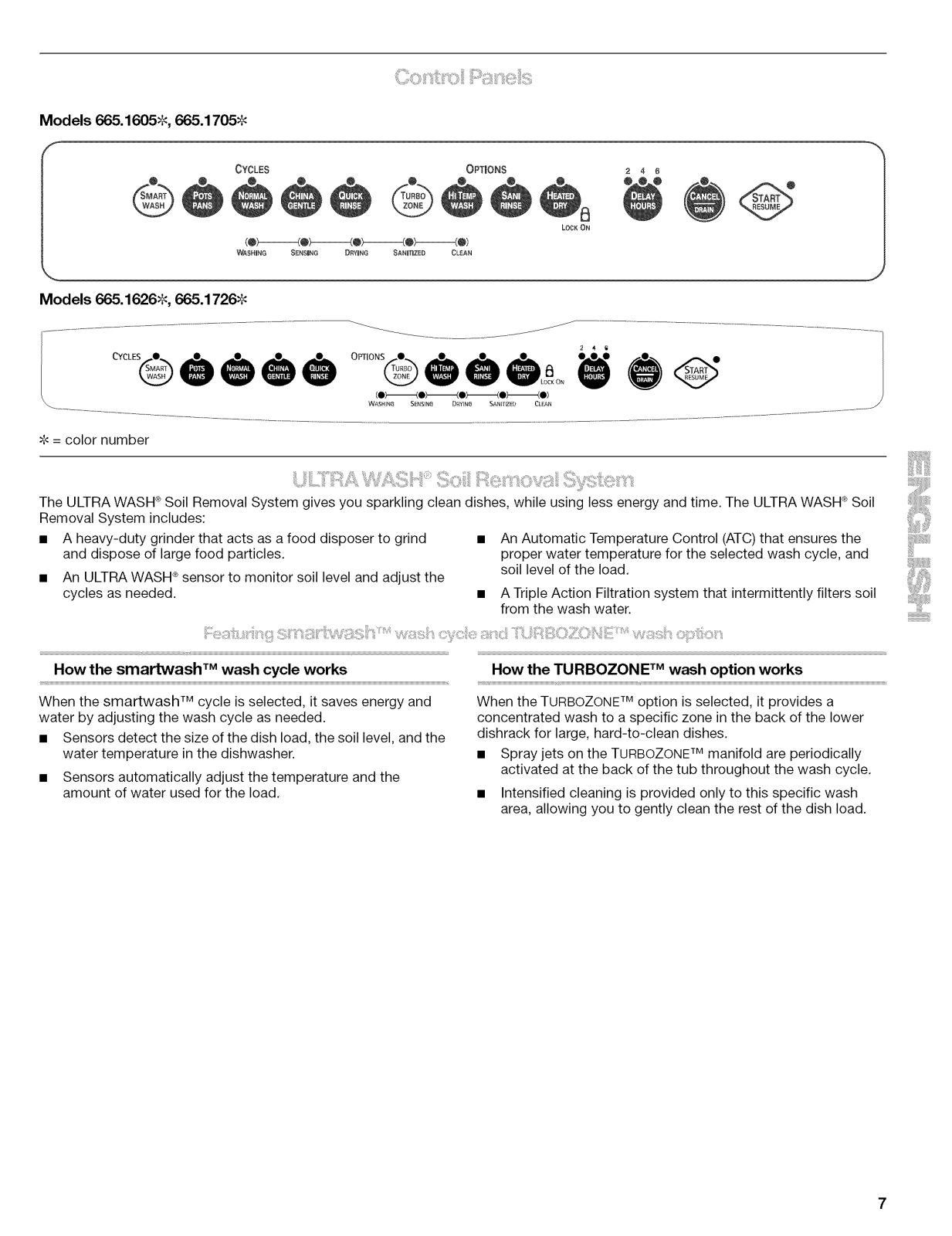

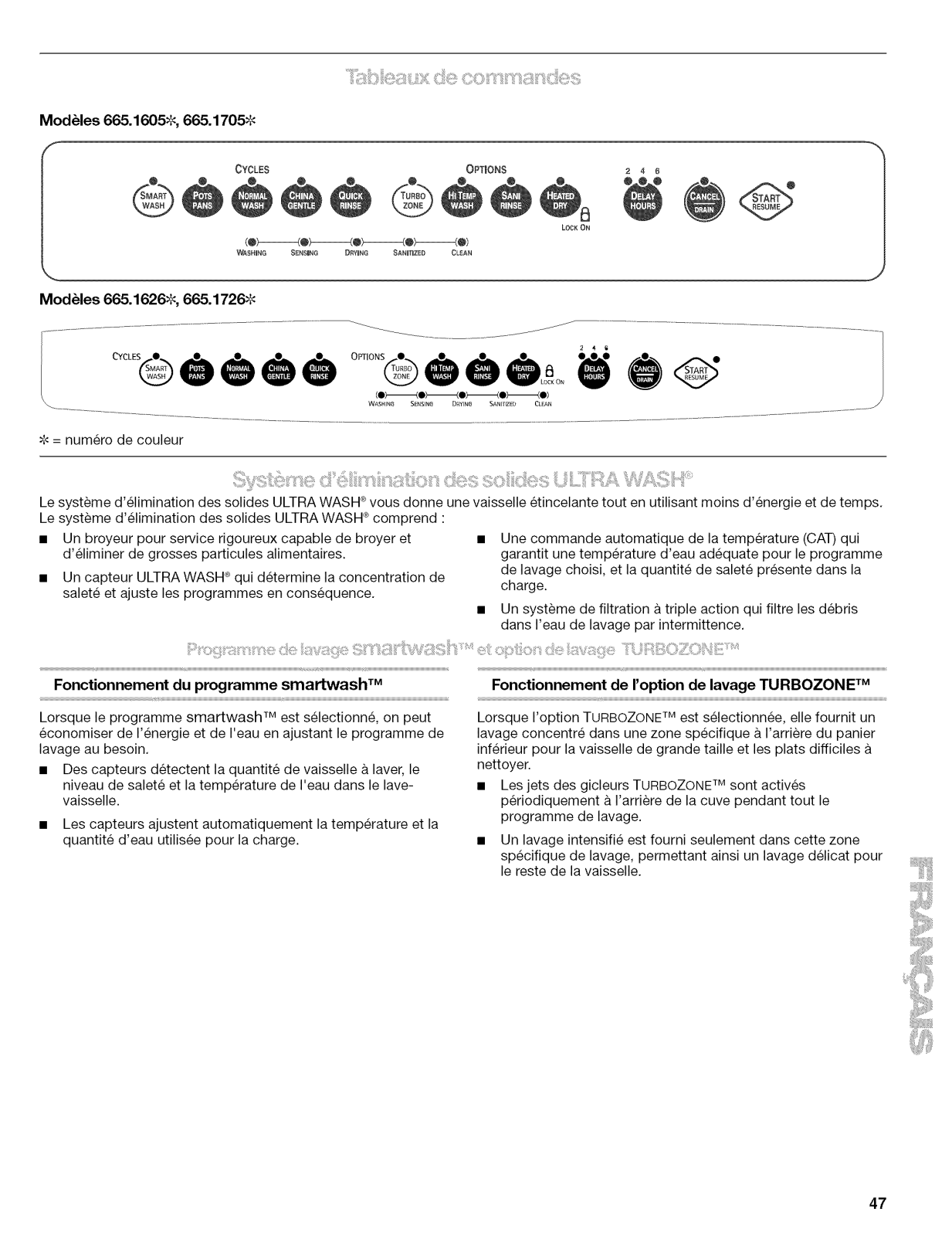

Control Panels .............................................................................. 7

ULTRA WASH ° Soil Removal System ......................................... 7

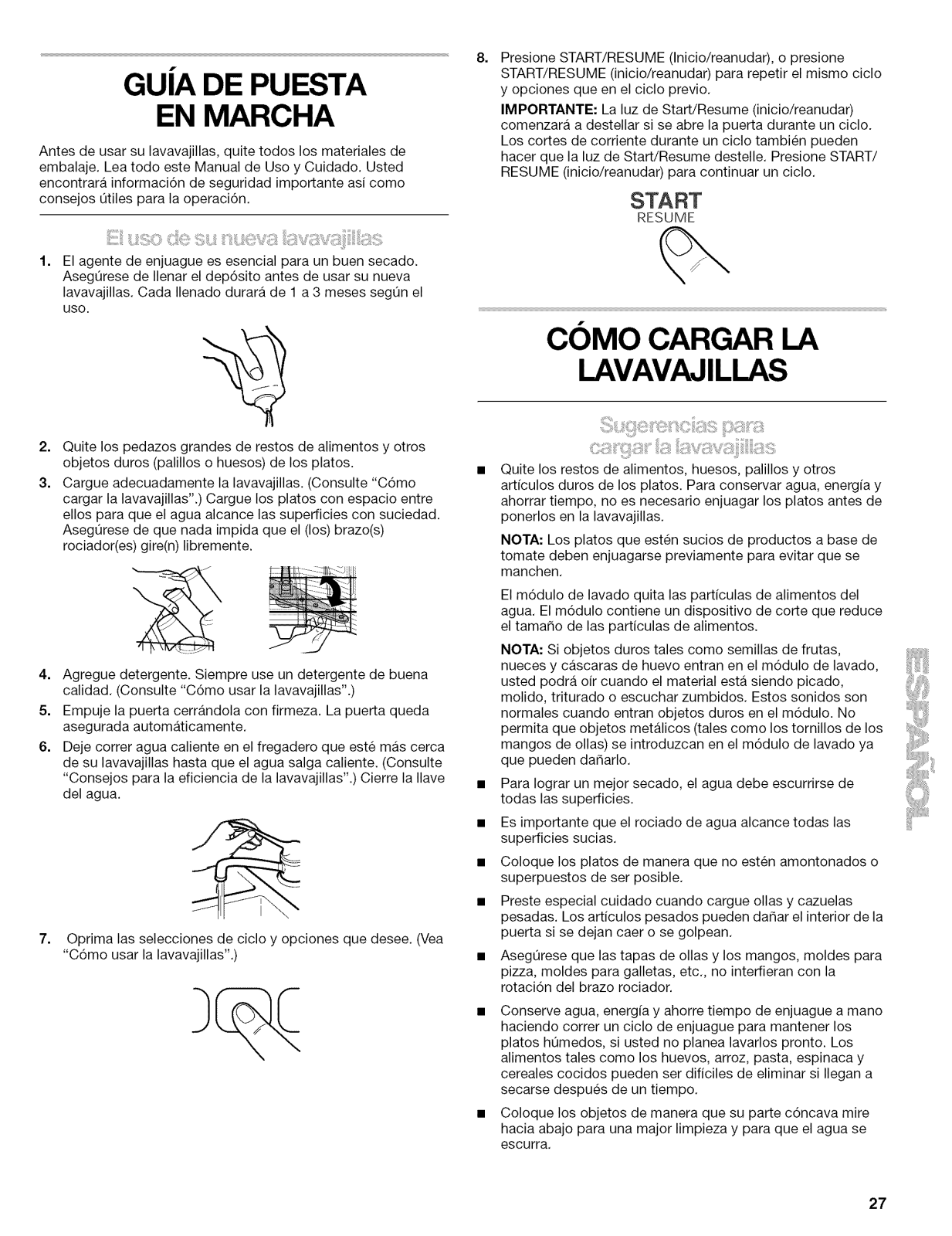

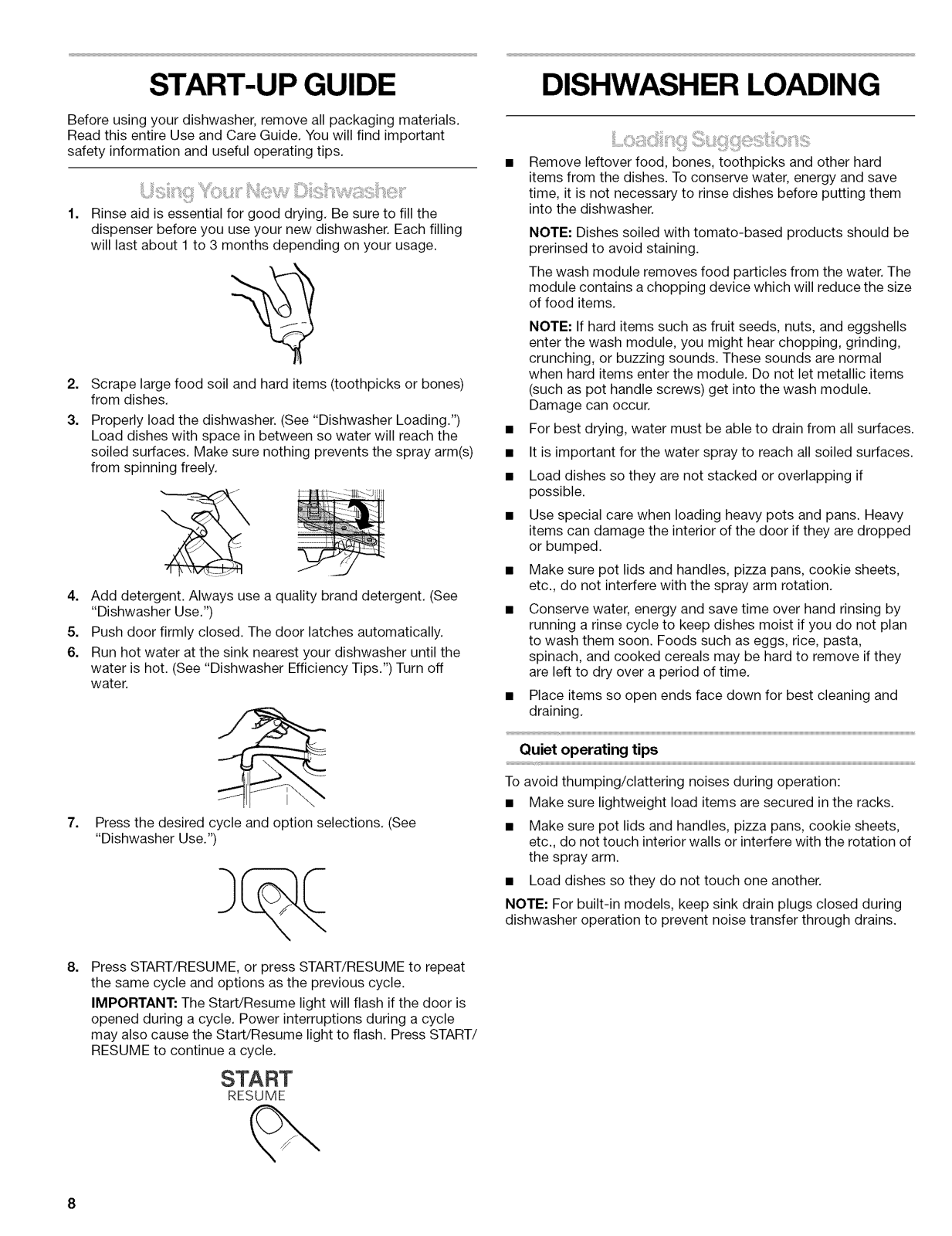

START-UP GUIDE .......................................................................... 8

Using Your New Dishwasher ........................................................ 8

DISHWASHER LOADING ............................................................... 8

Loading Suggestions .................................................................... 8

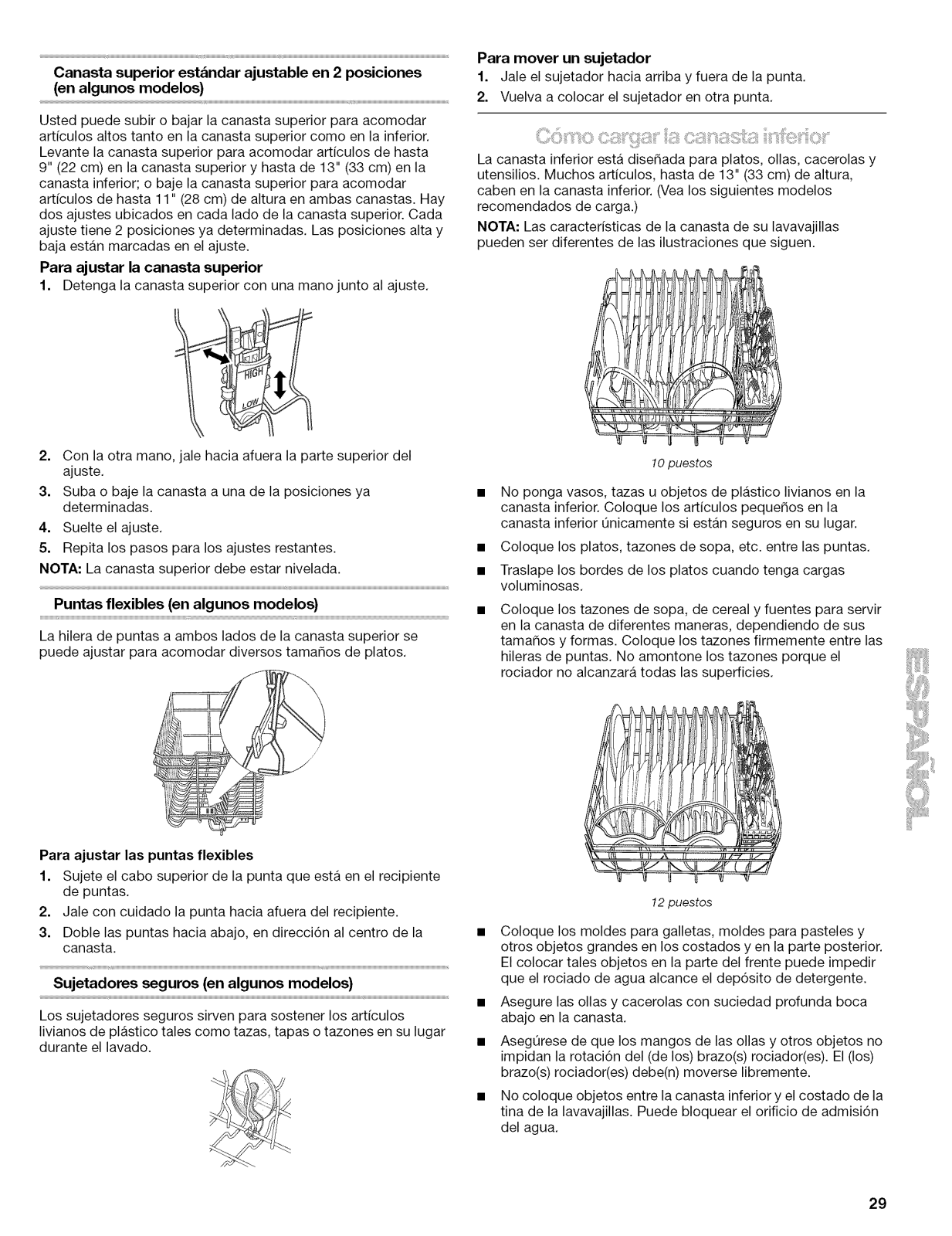

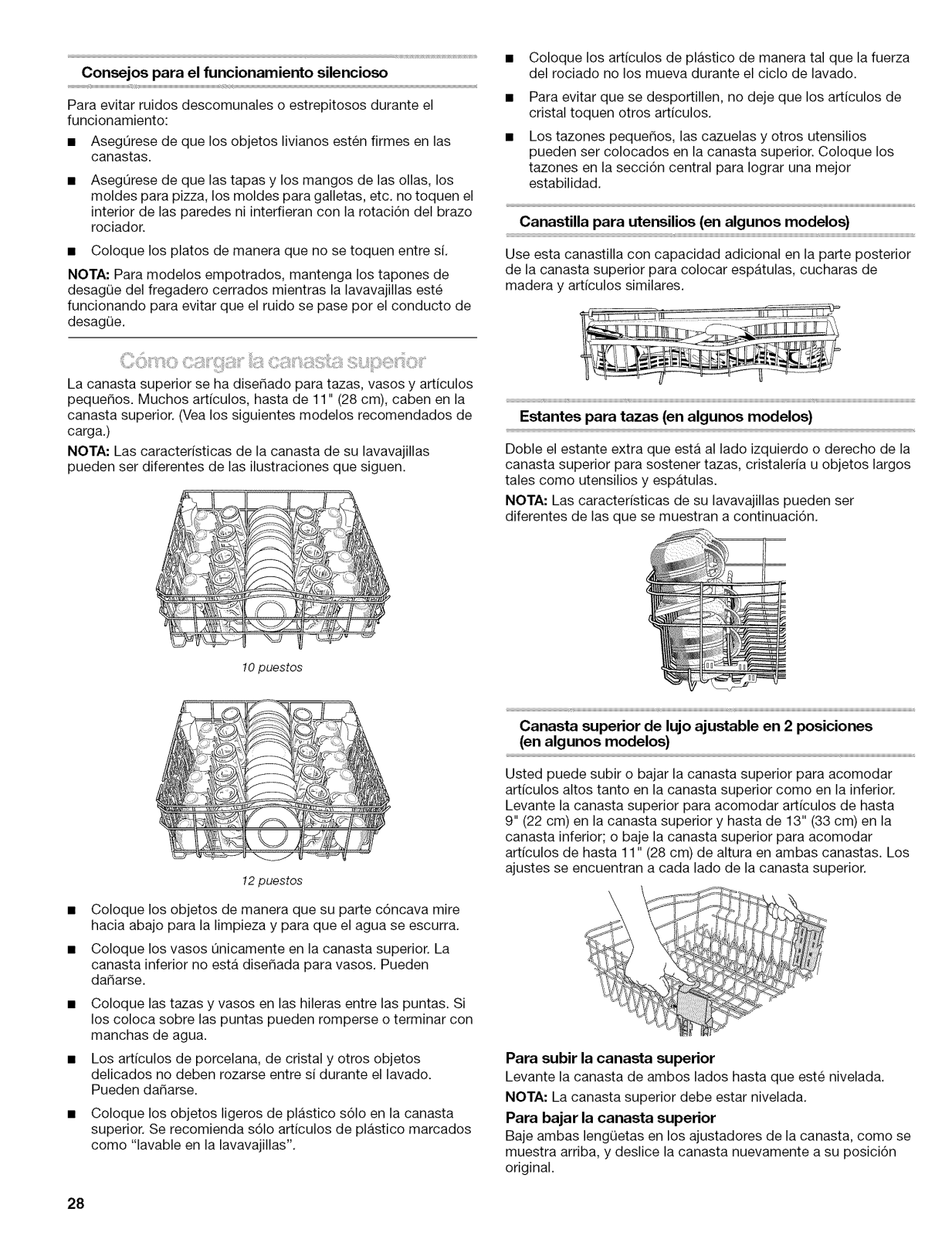

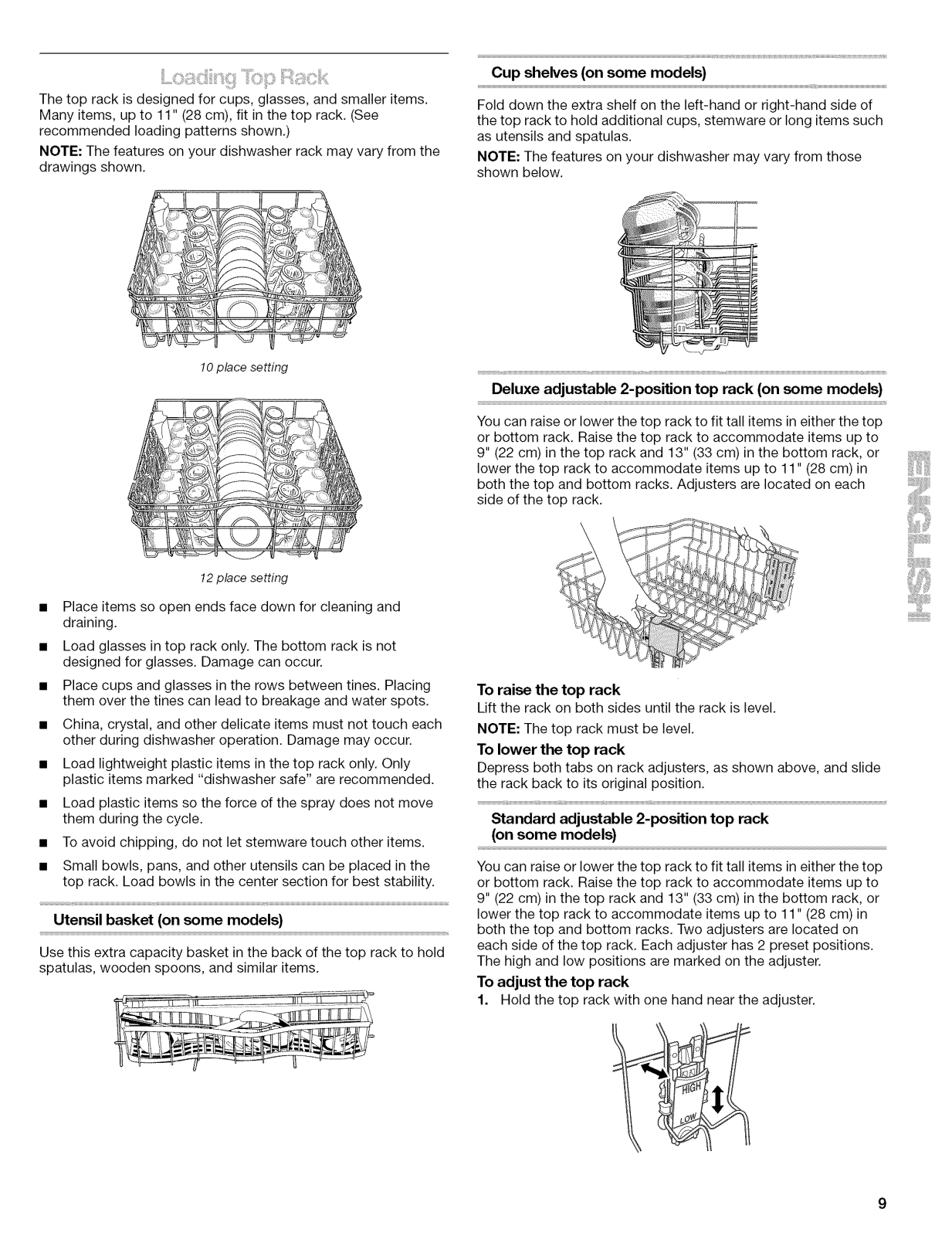

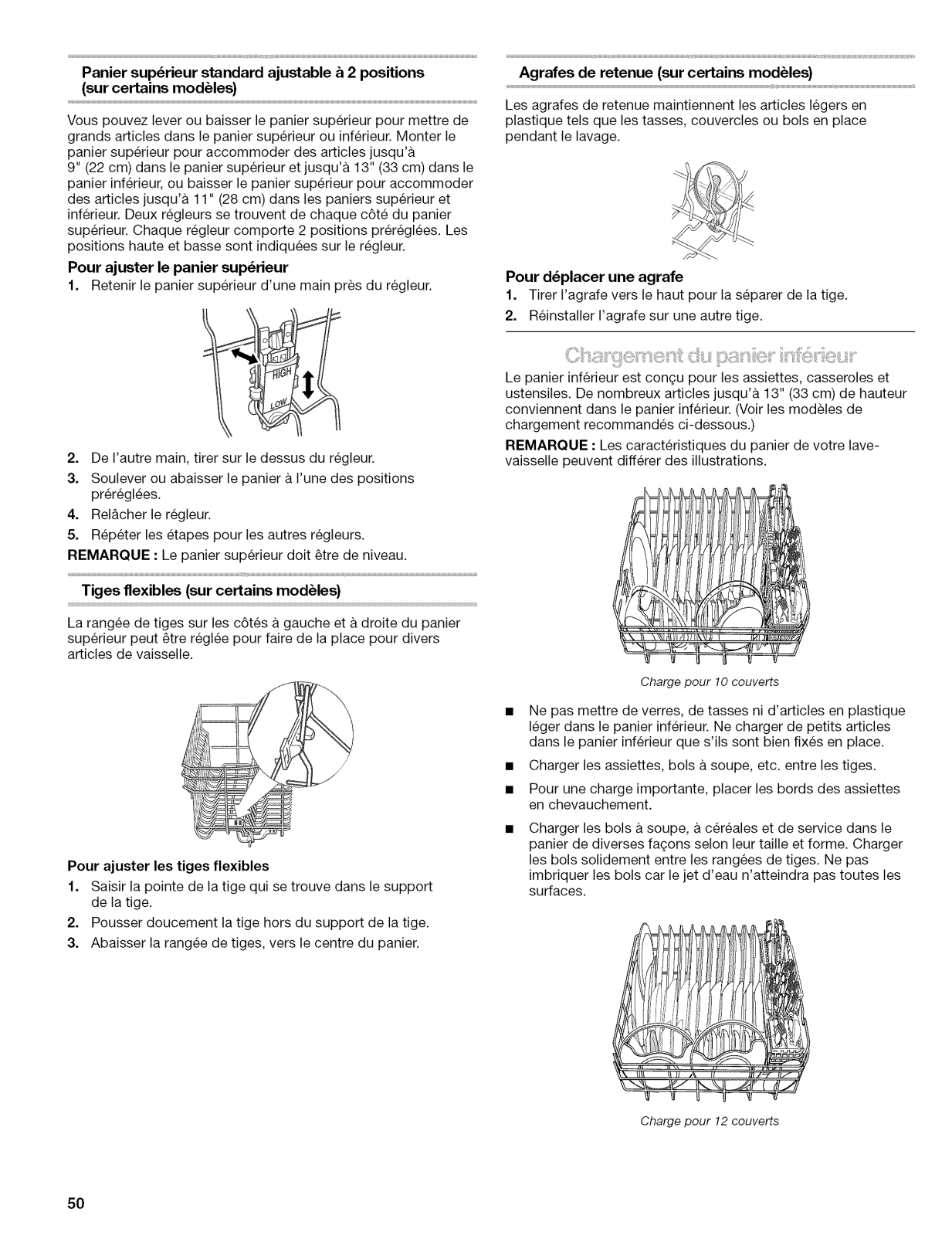

Loading Top Rack ........................................................................ 9

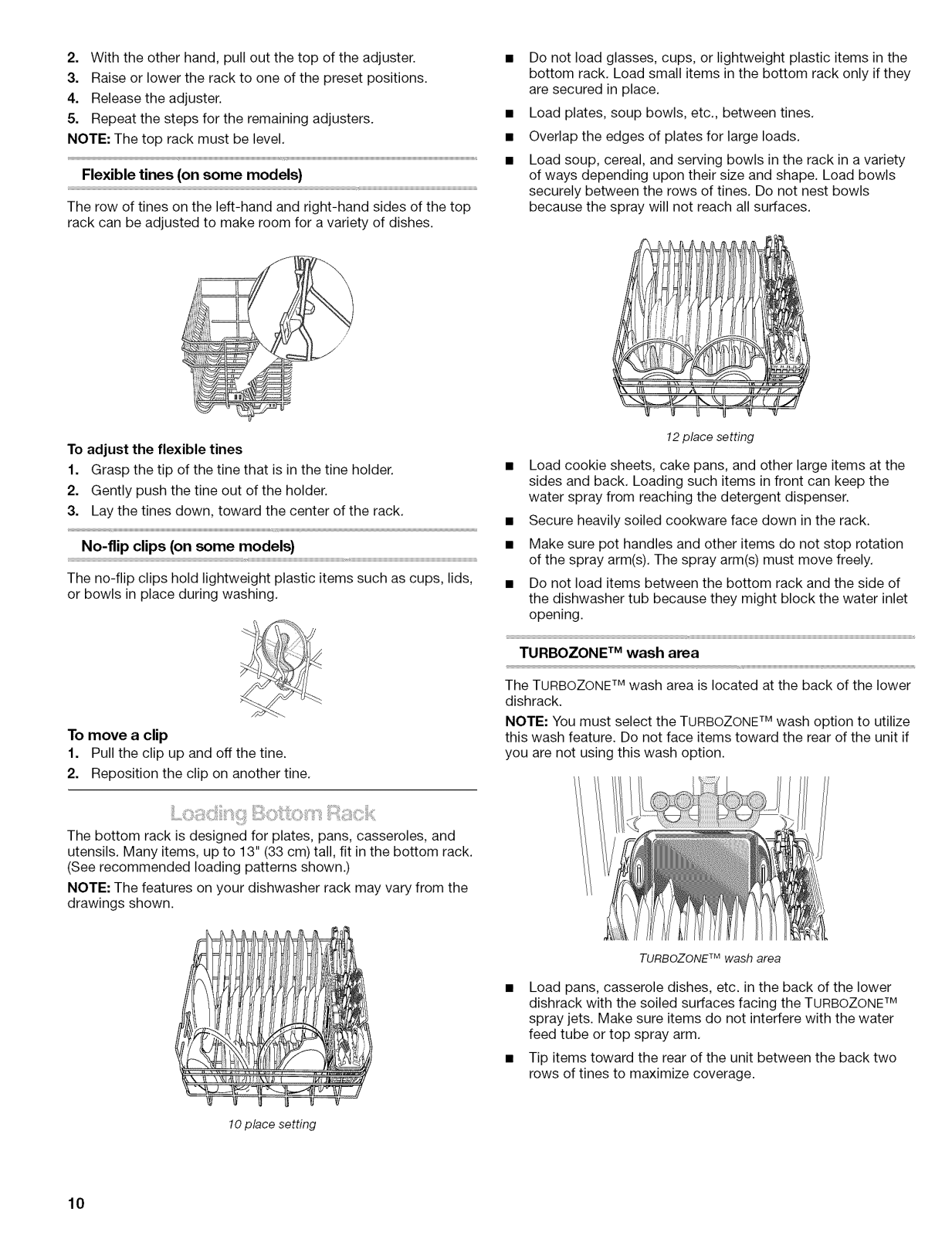

Loading Bottom Rack ............................................................... 10

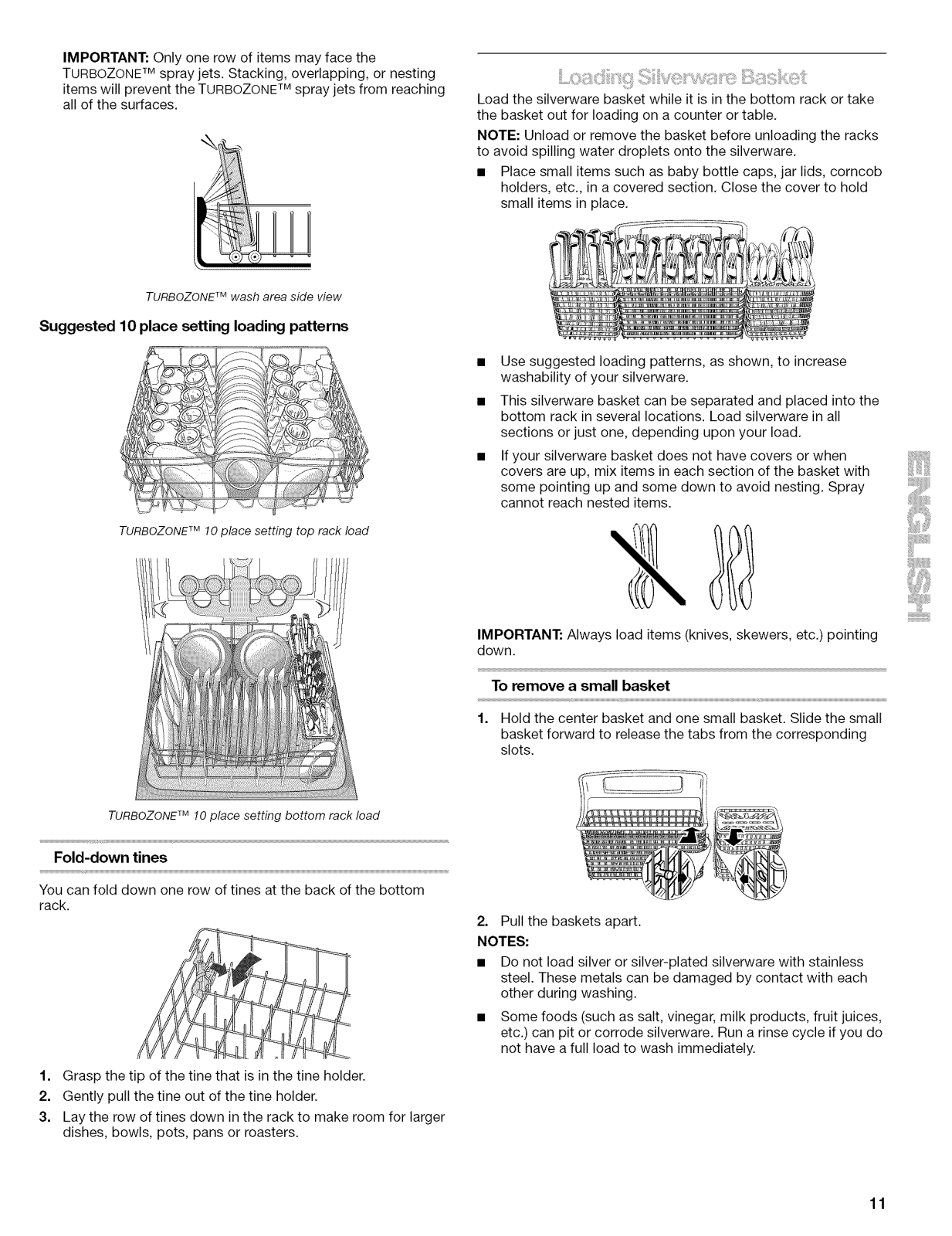

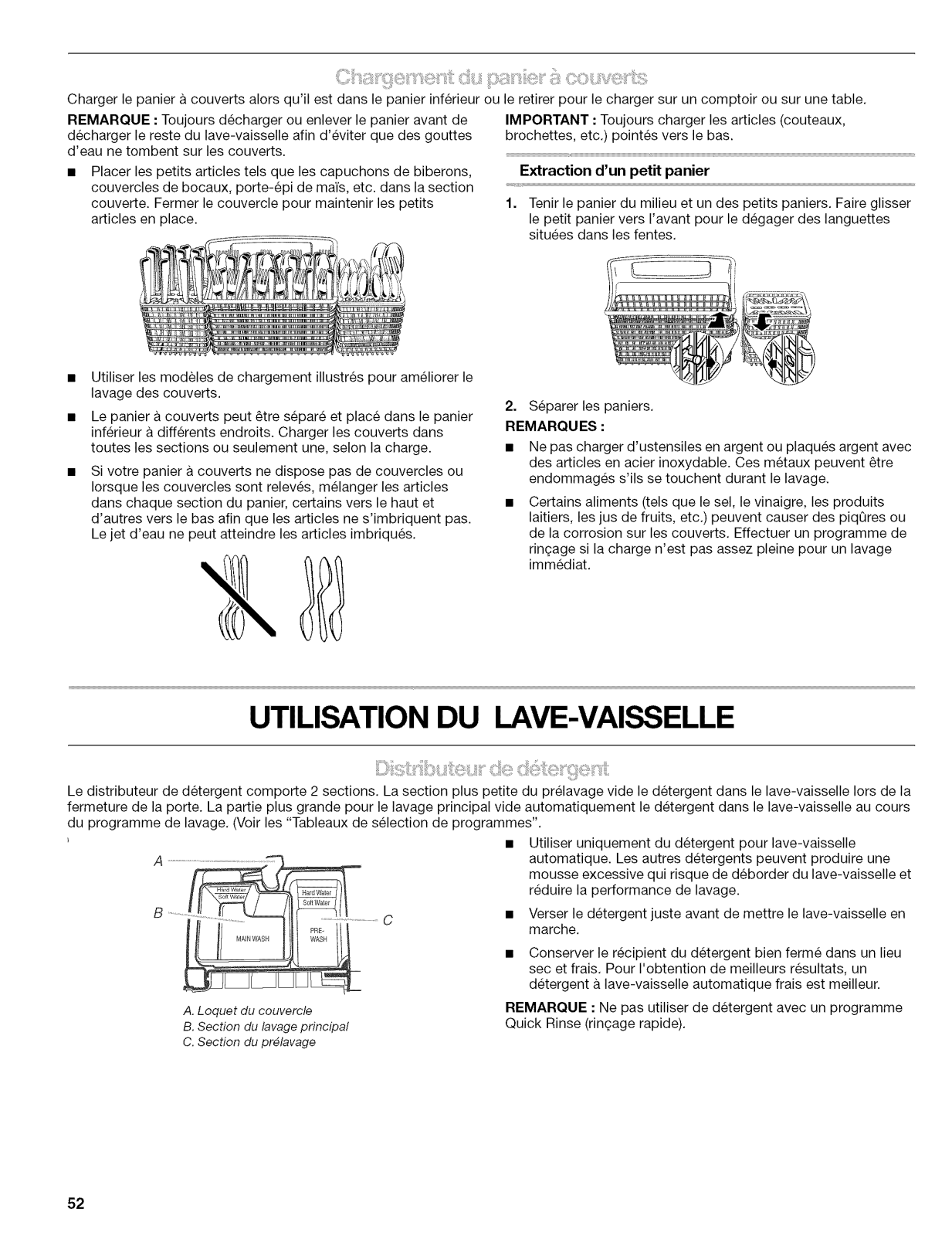

Loading Silverware Basket ........................................................ 11

DISHWASHER USE ..................................................................... 12

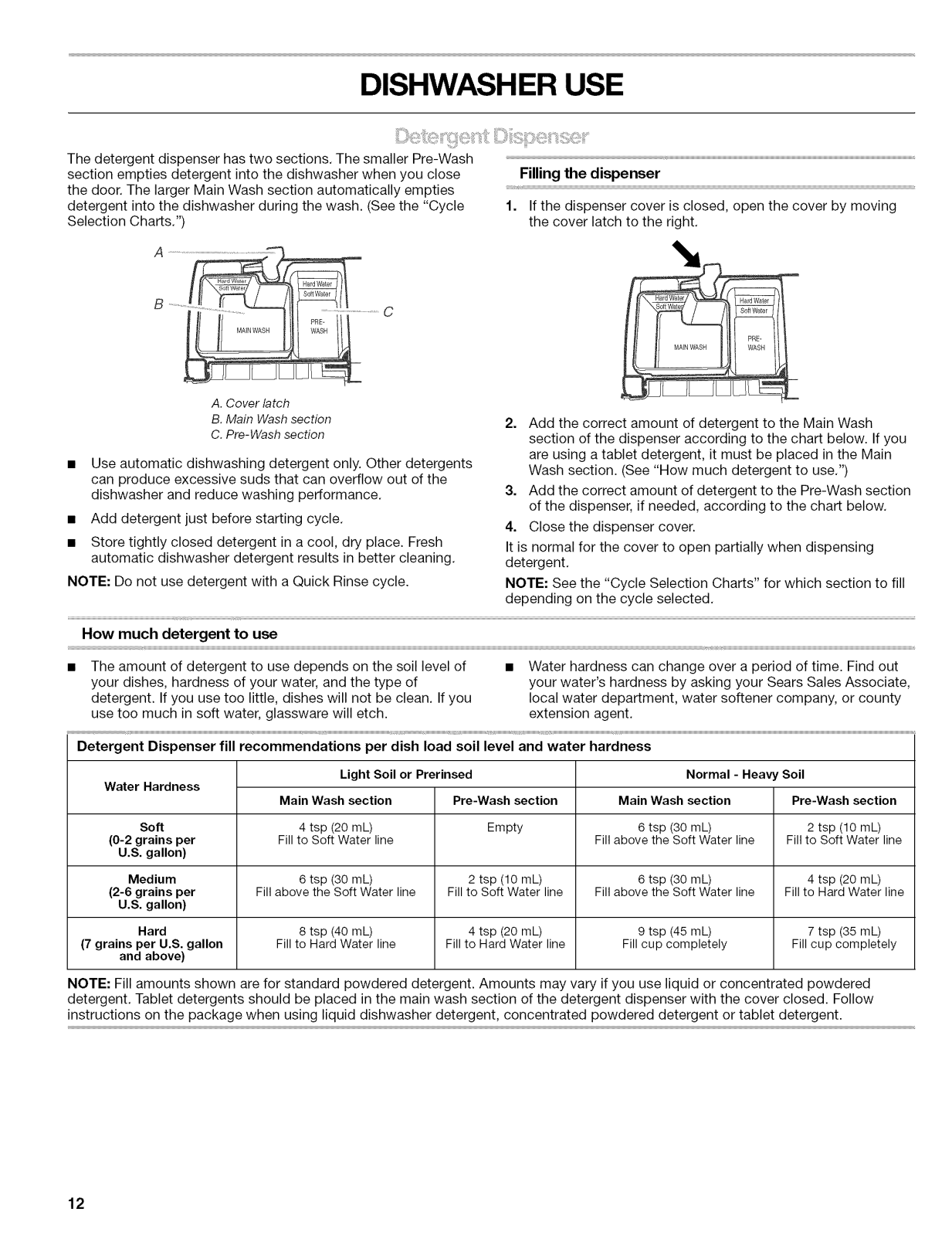

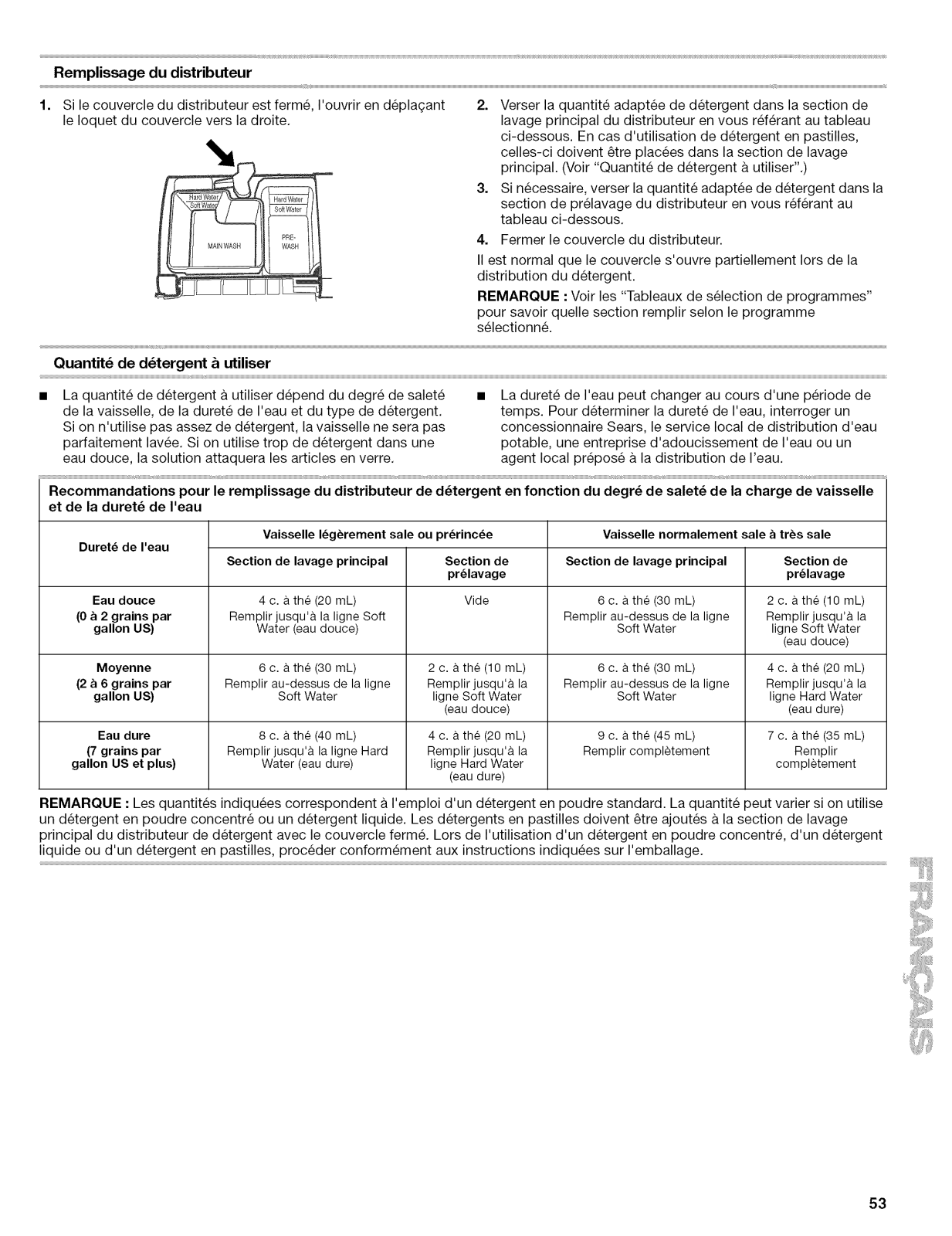

Detergent Dispenser .................................................................. 12

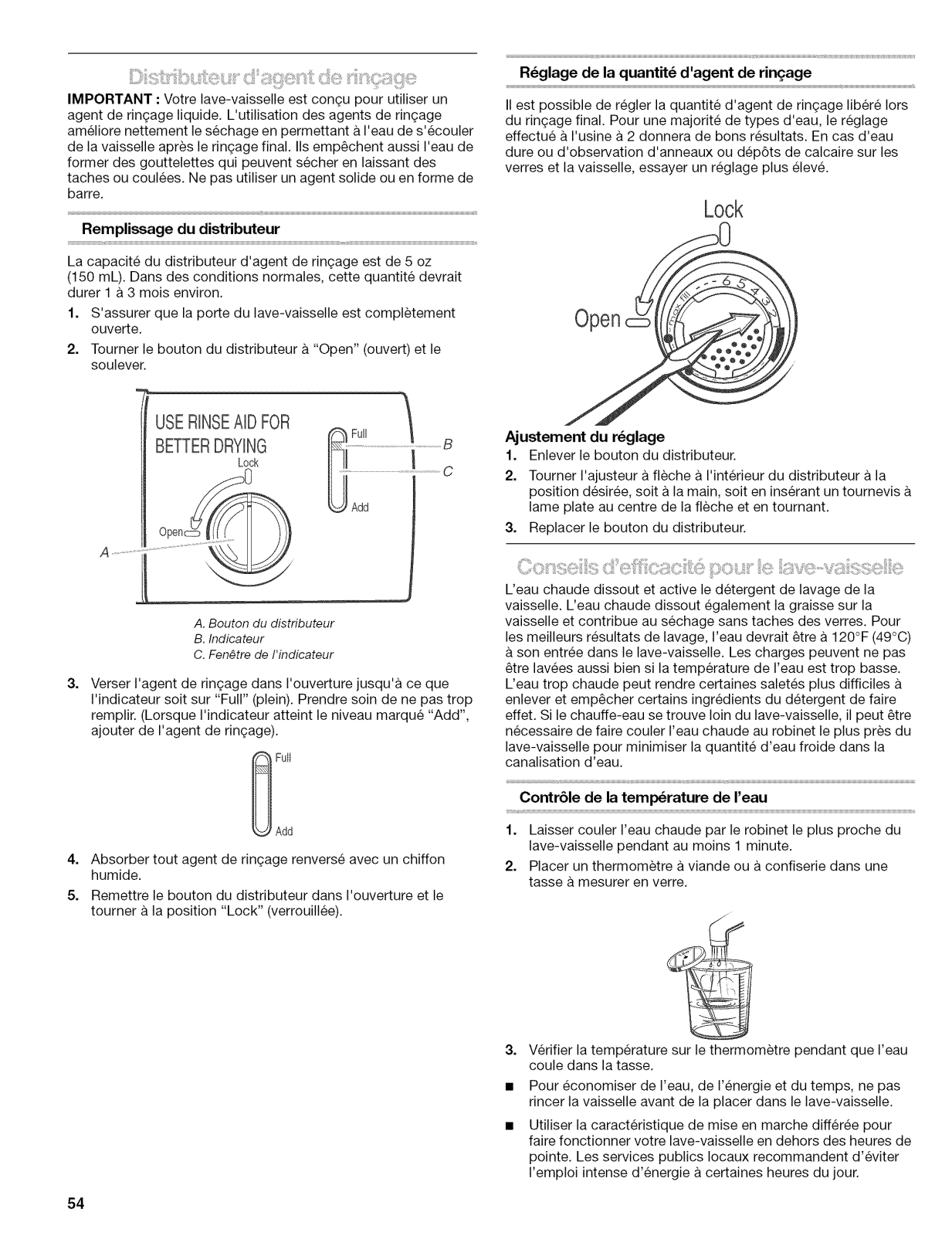

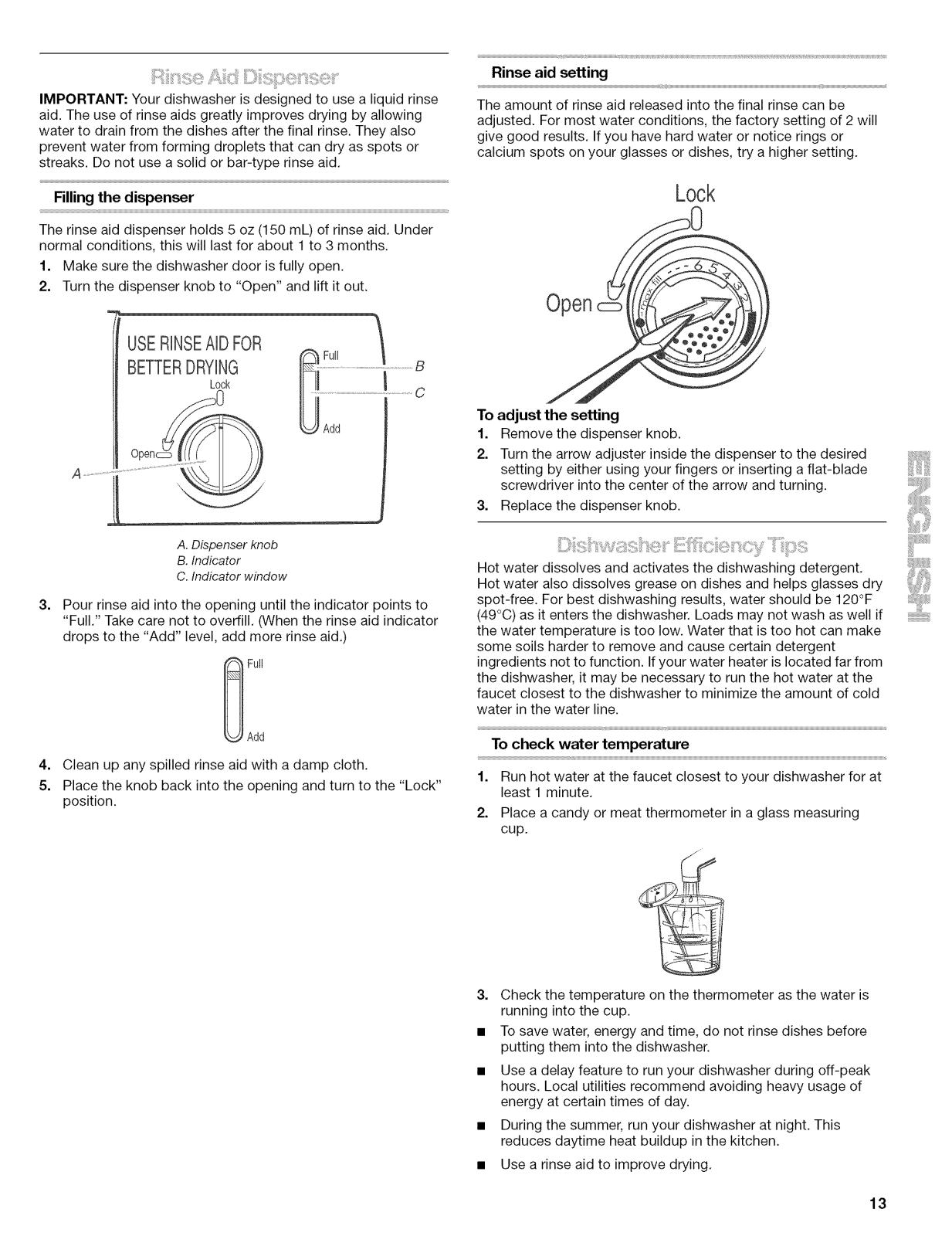

Rinse Aid Dispenser .................................................................. 13

Dishwasher Efficiency Tips ....................................................... 13

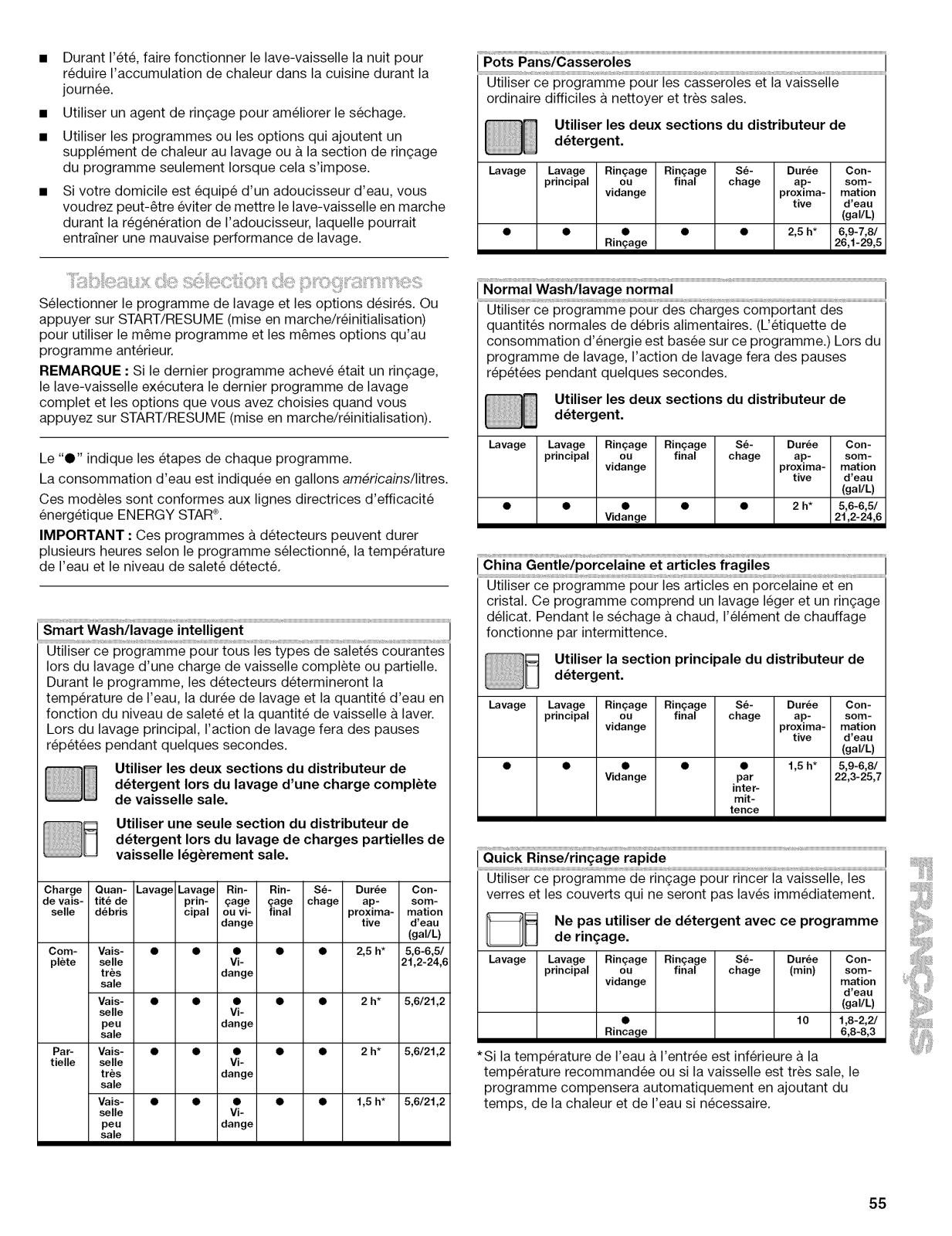

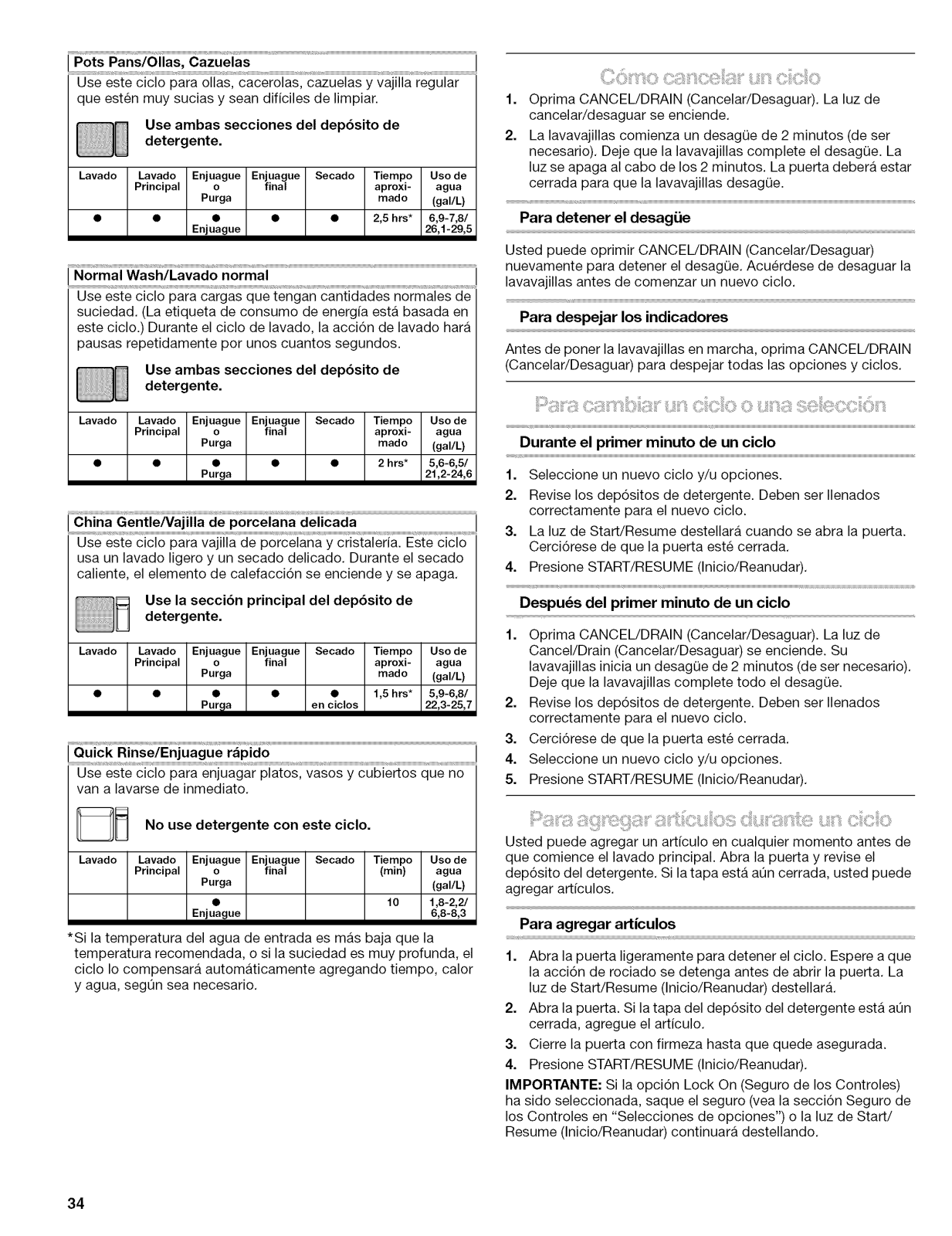

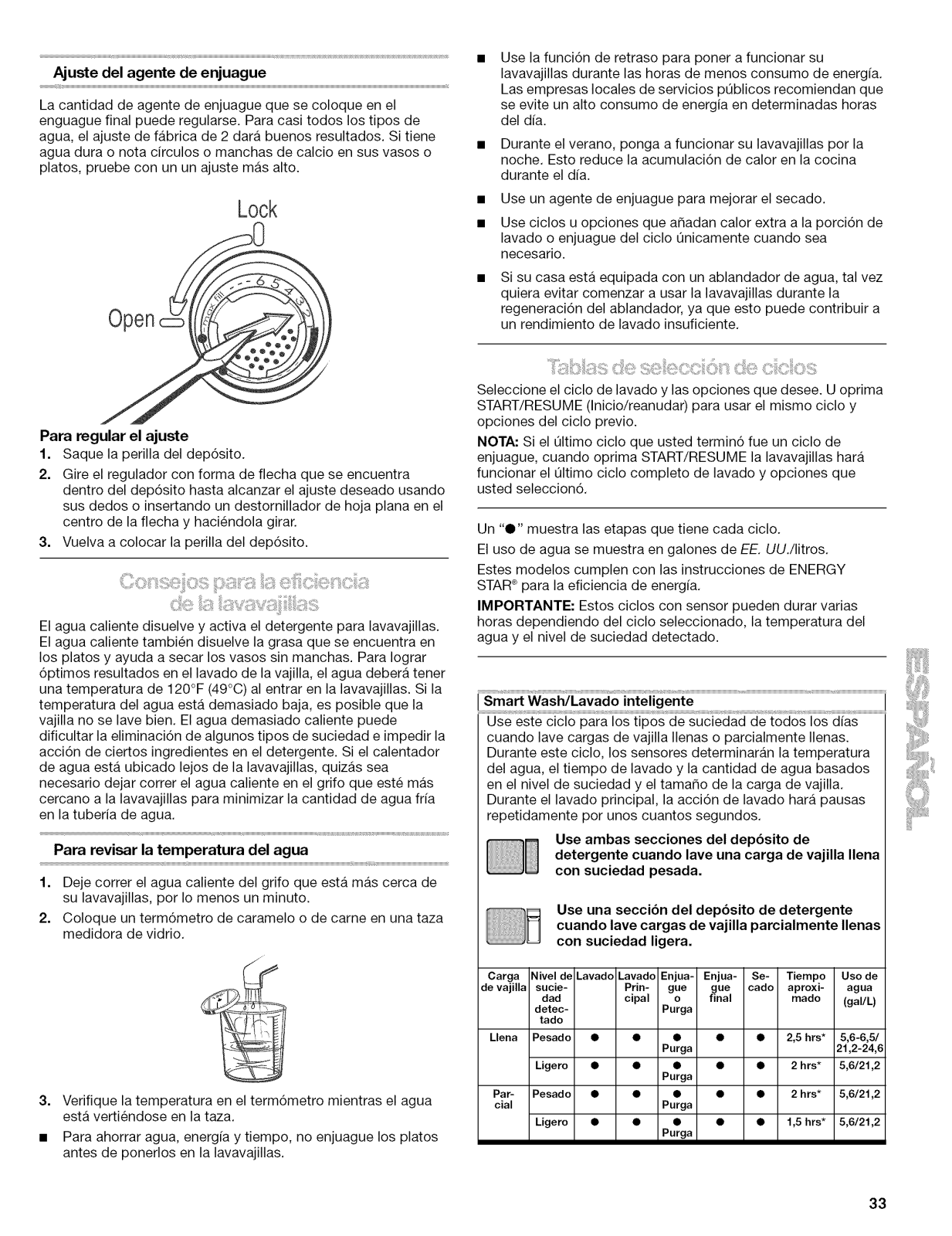

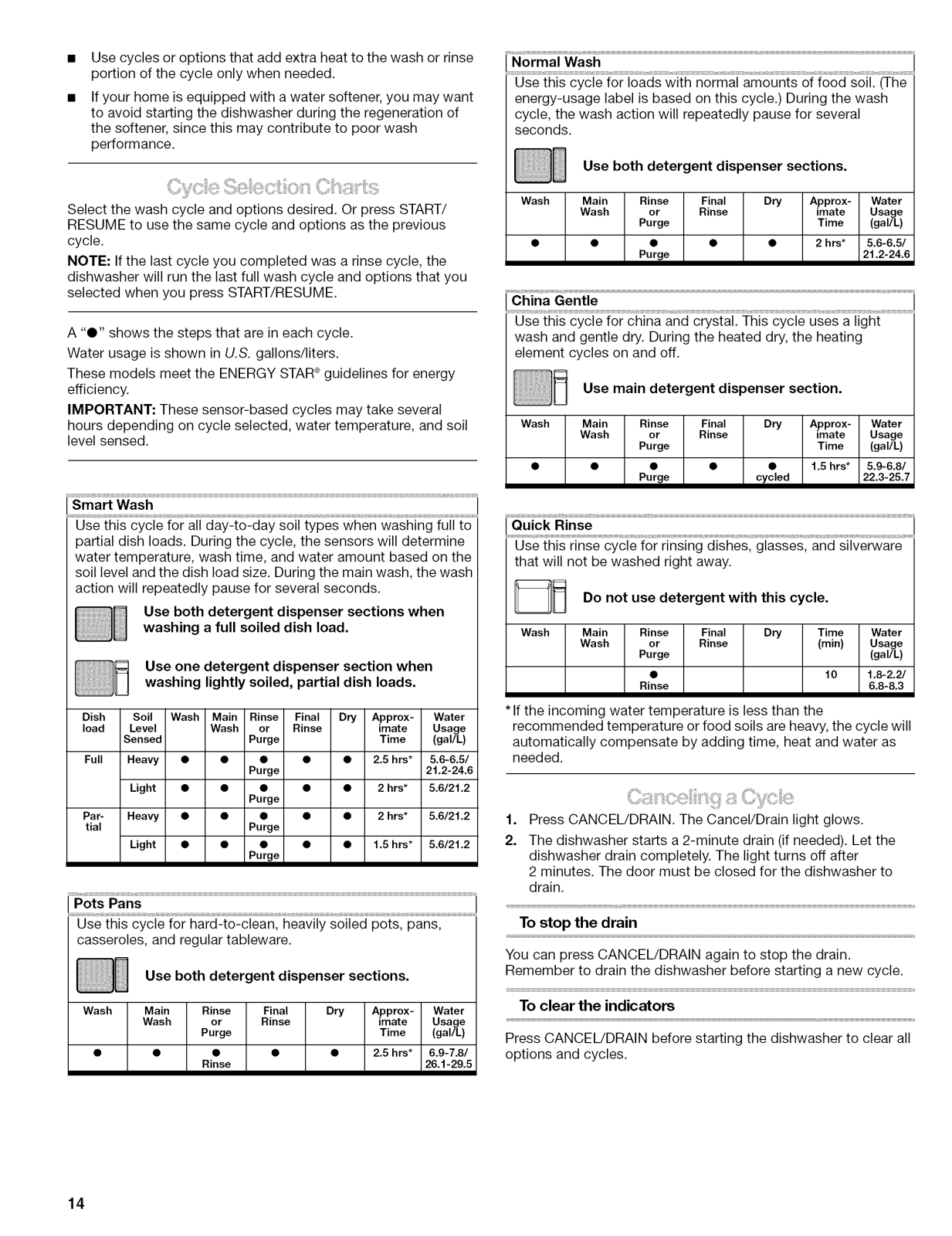

Cycle Selection Charts .............................................................. 14

Canceling a Cycle ...................................................................... 14

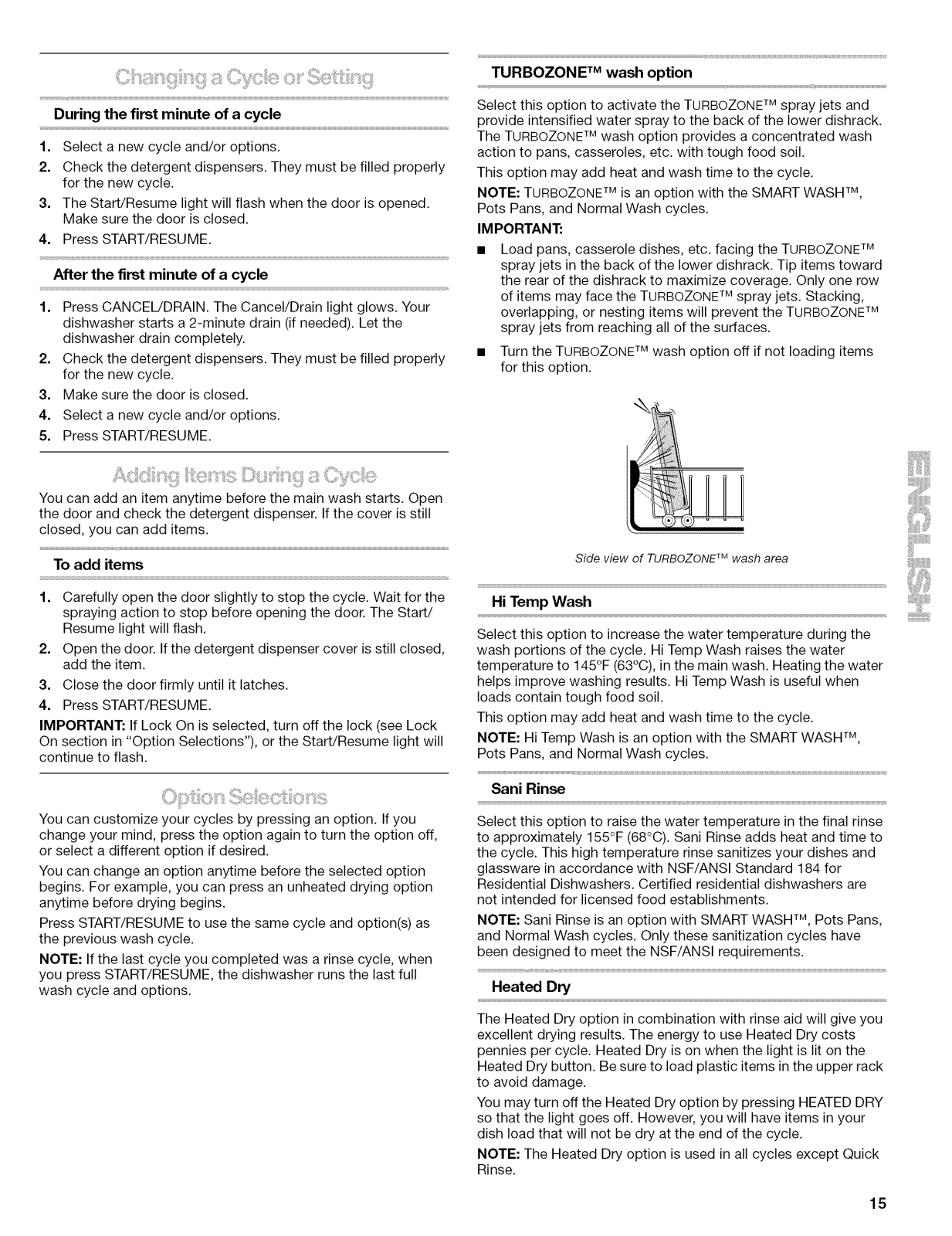

Changing a Cycle or Setting ..................................................... 15

Adding Items During a Cycle ..................................................... 15

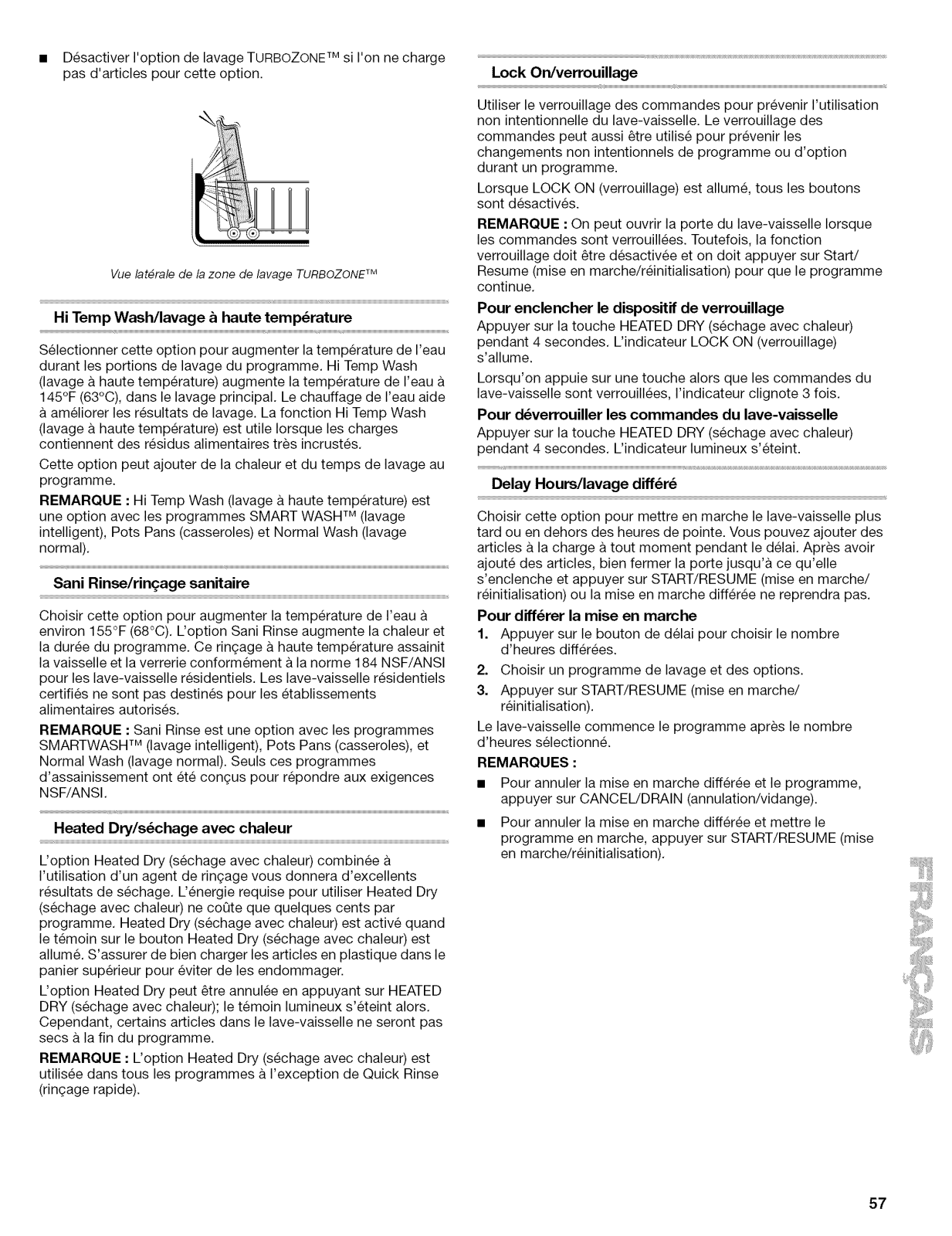

Option Selections ...................................................................... 15

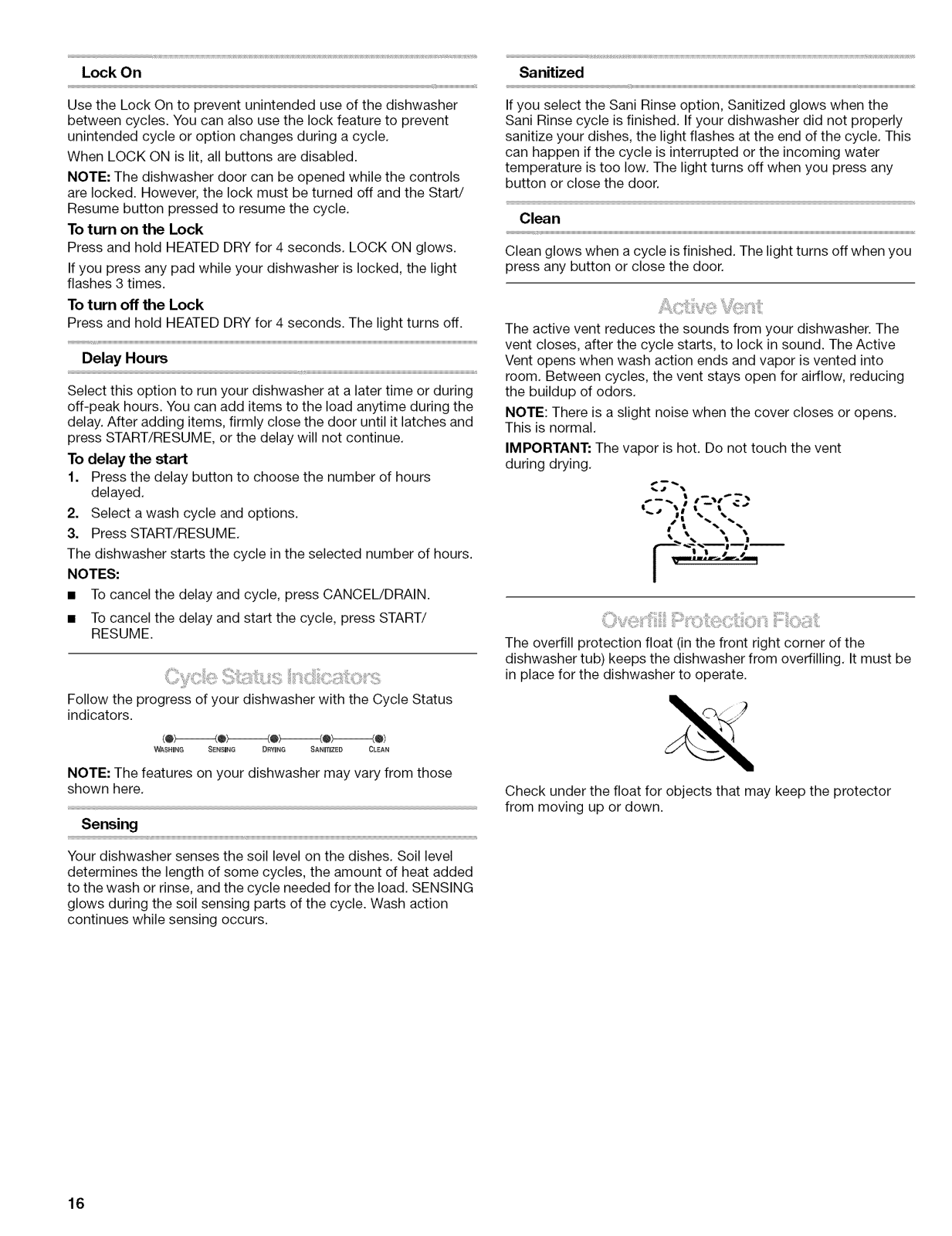

Cycle Status Indicators ............................................................. 16

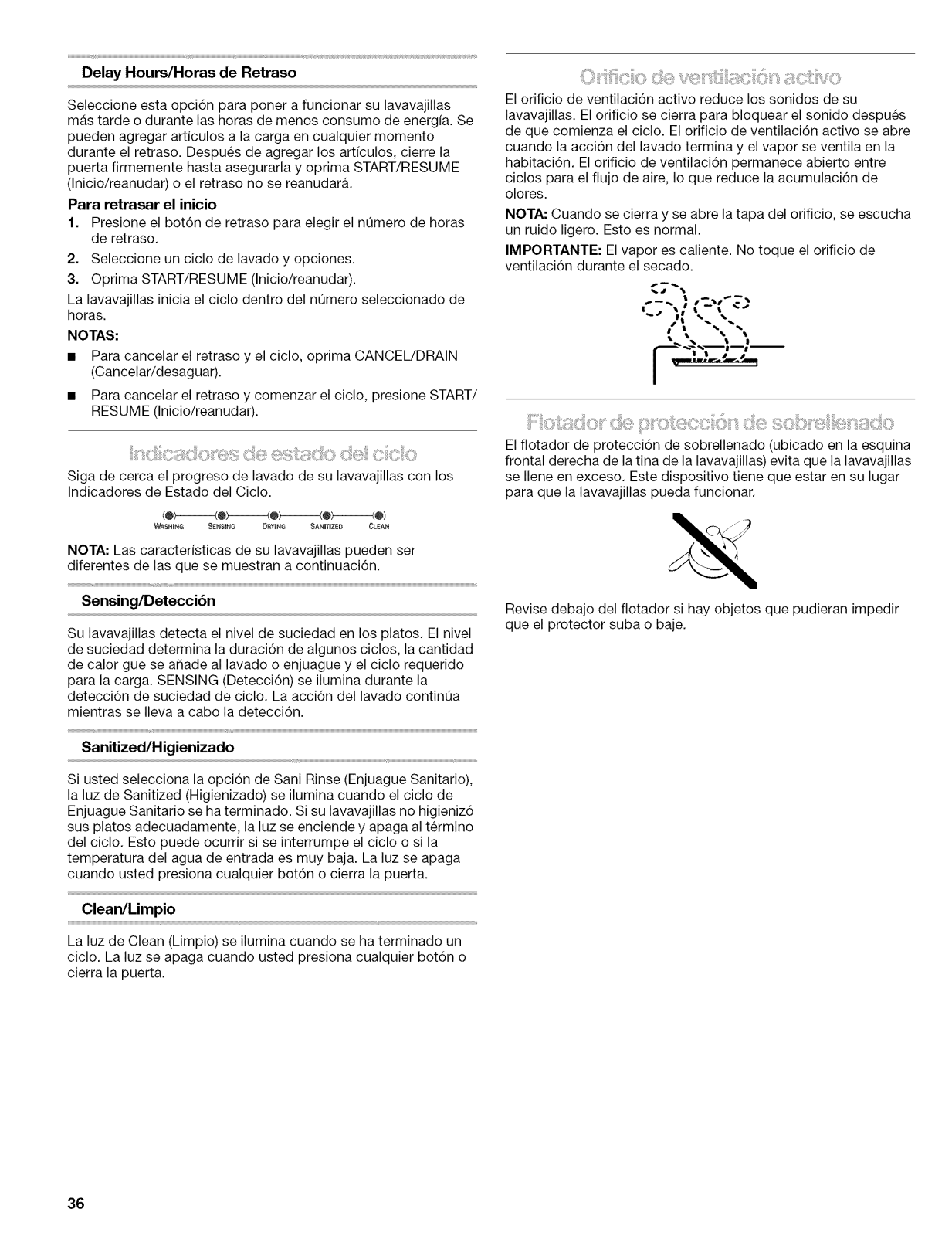

Active Vent ................................................................................. 16

Overfill Protection Float ............................................................. 16

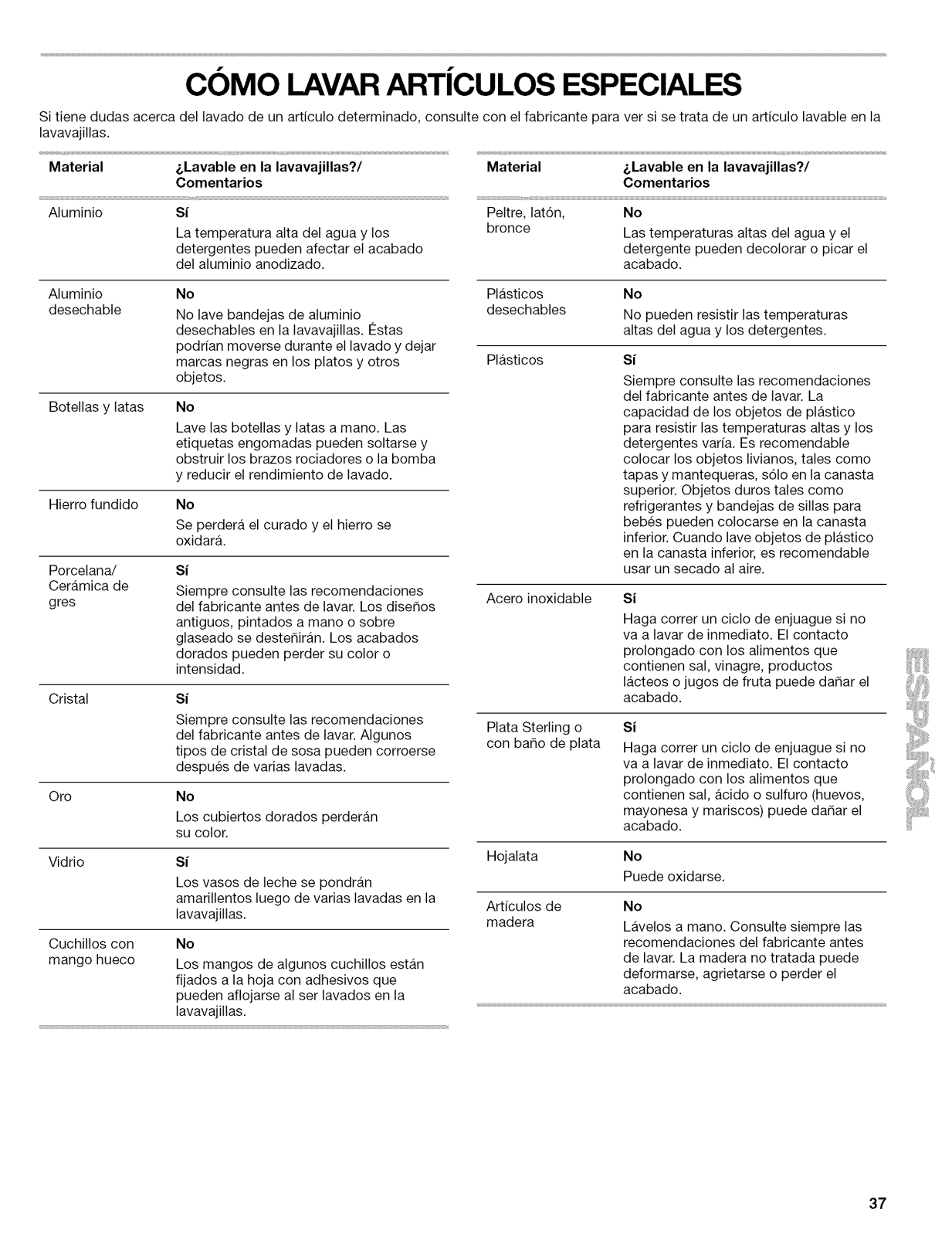

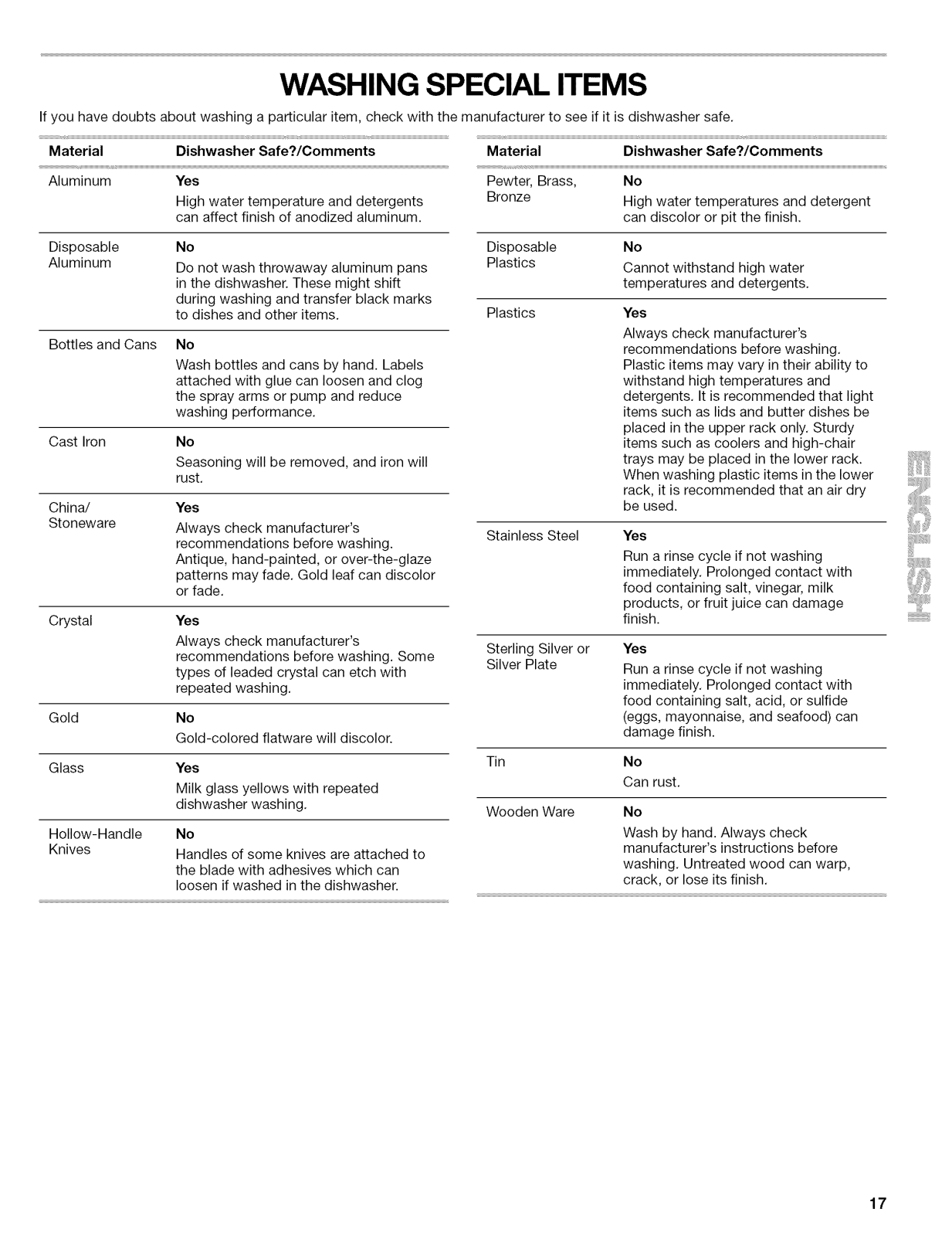

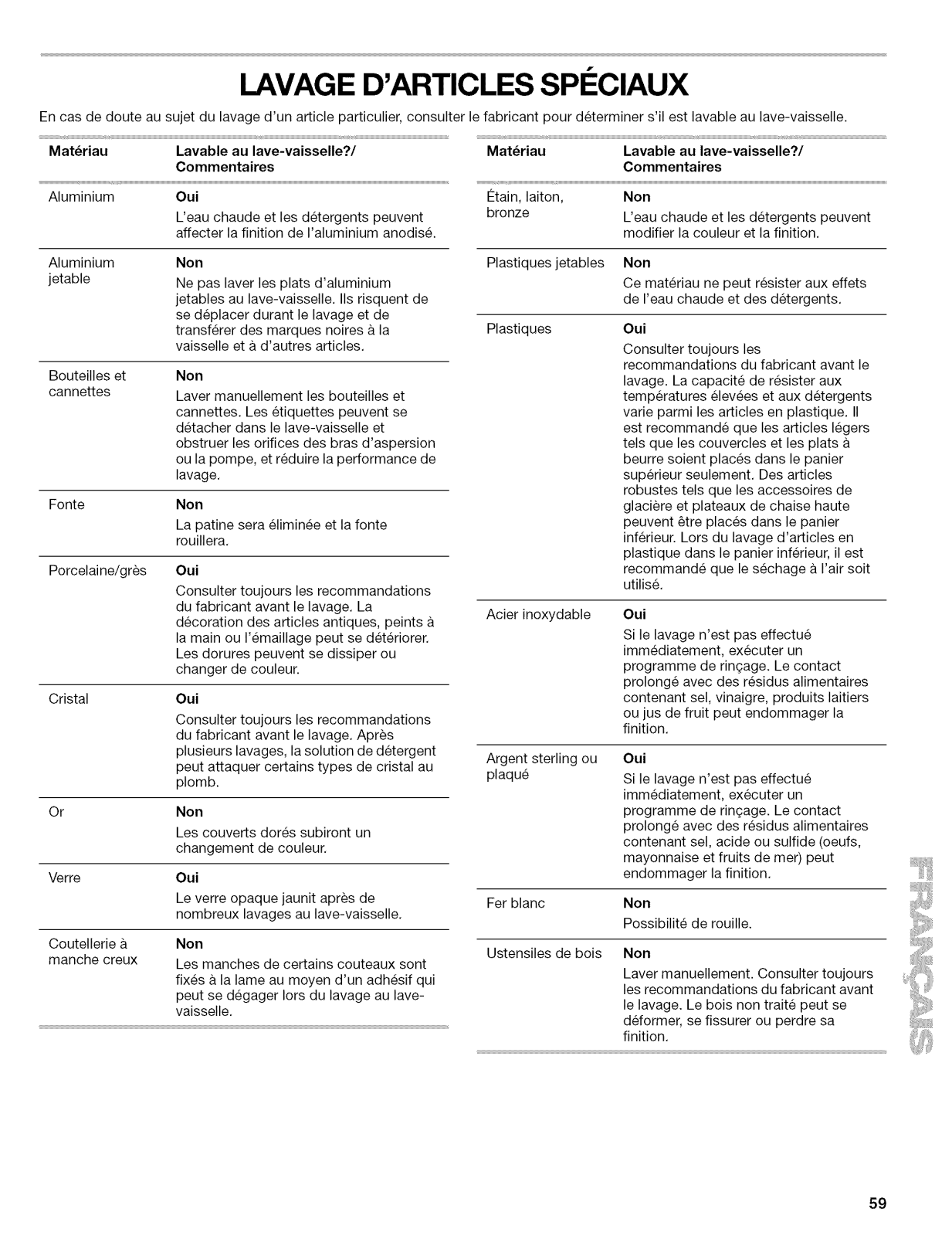

WASHING SPECIAL ITEMS ........................................................ 17

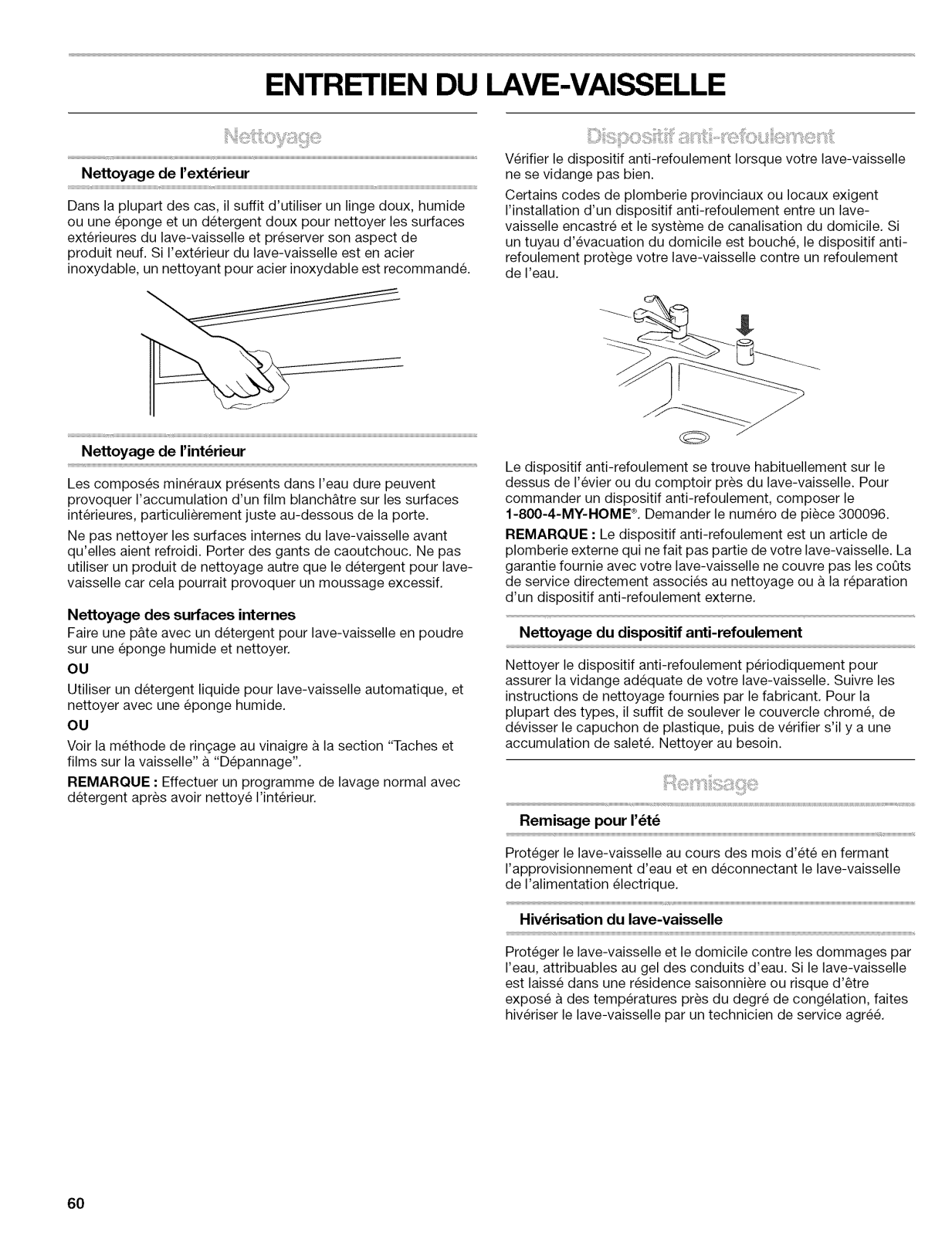

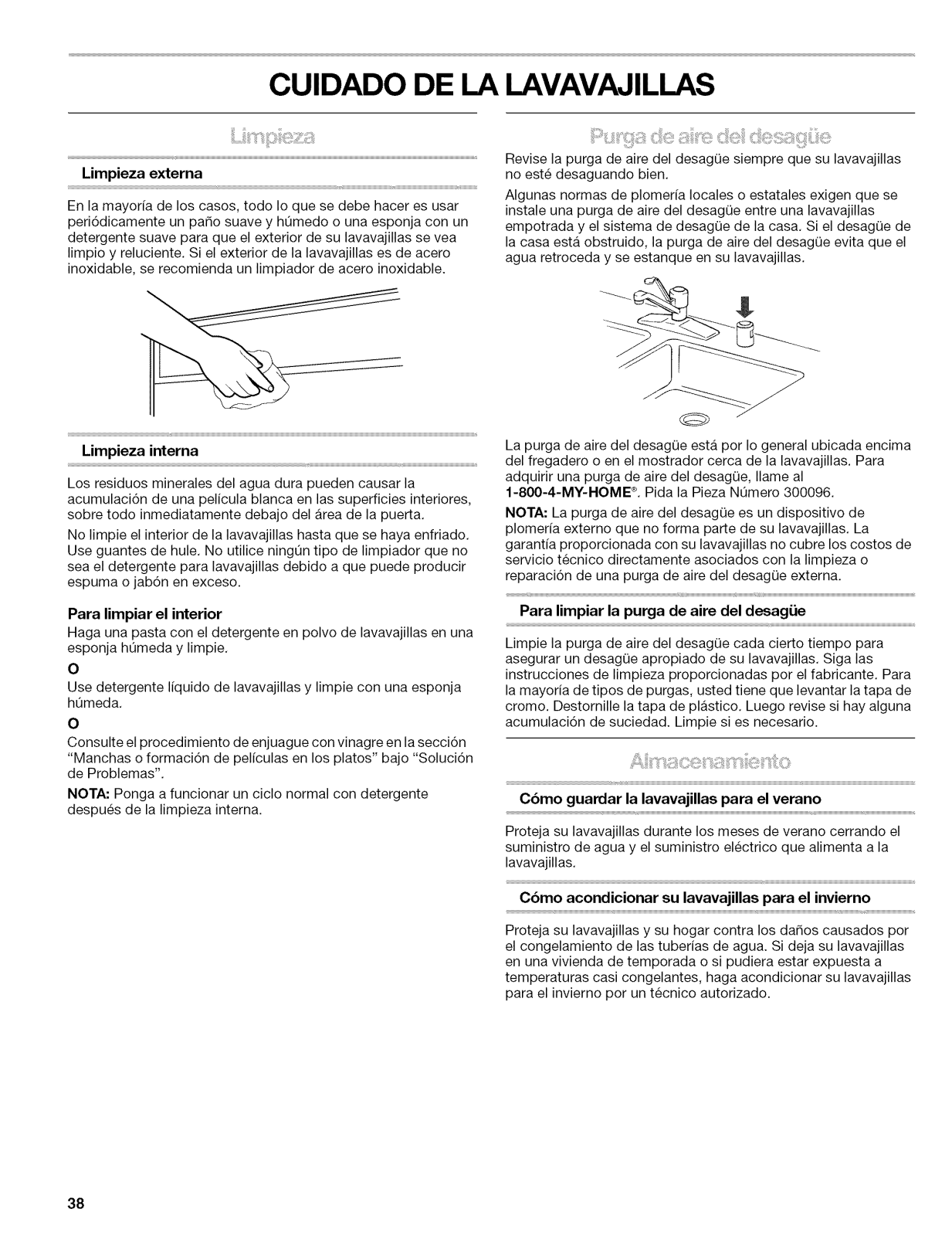

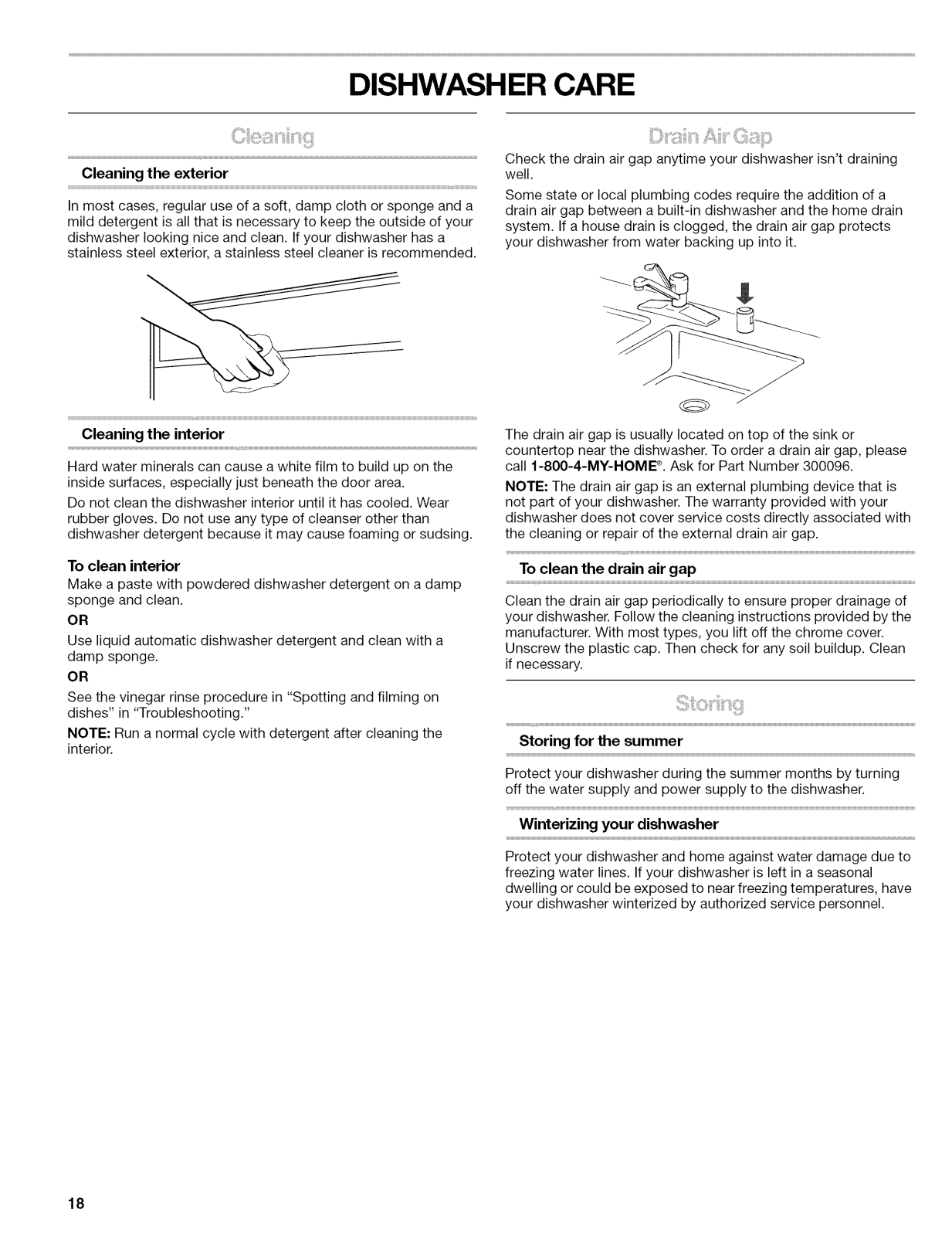

DISHWASHER CARE ................................................................... 18

Cleaning ..................................................................................... 18

Drain Air Gap ............................................................................. 18

Storing ....................................................................................... 18

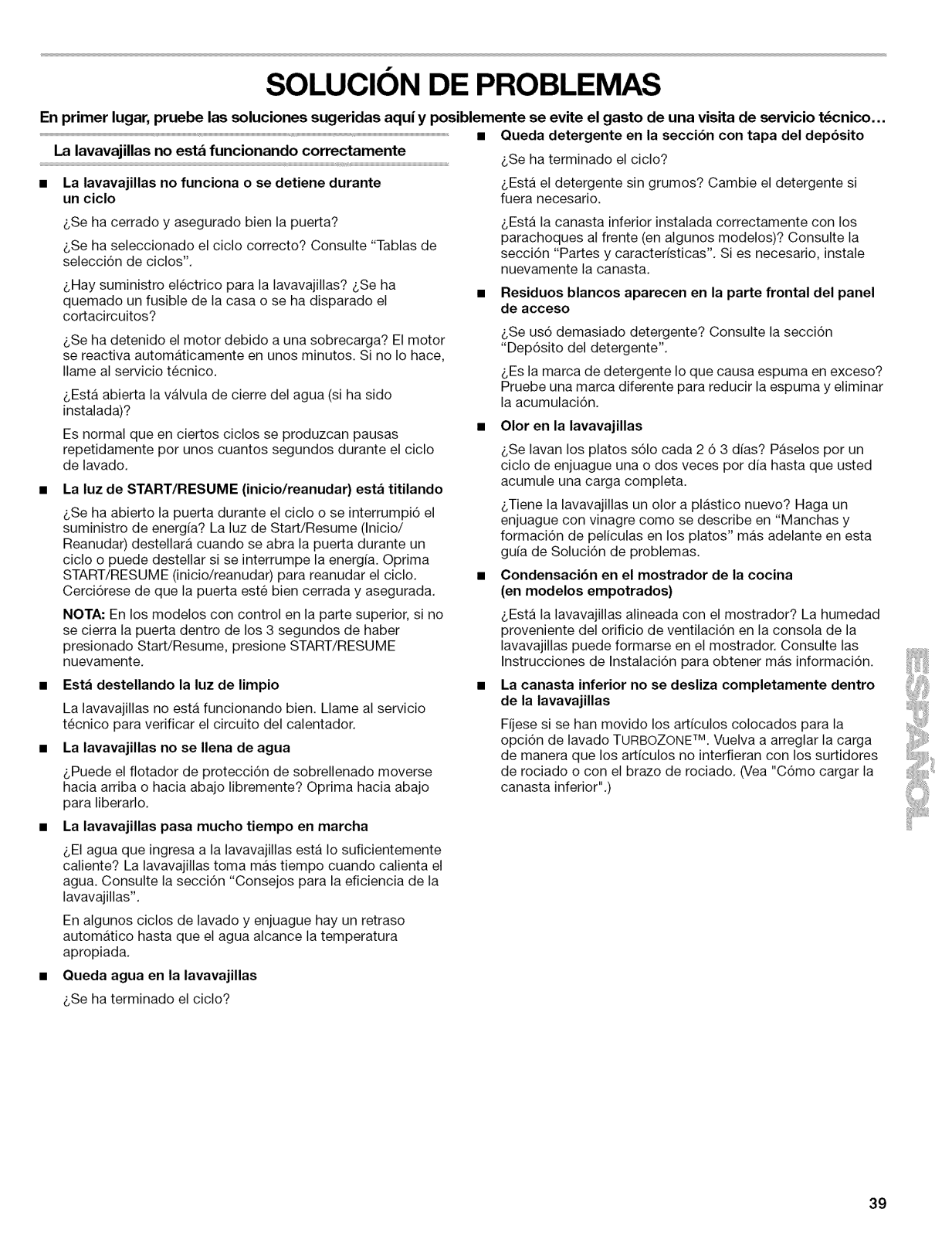

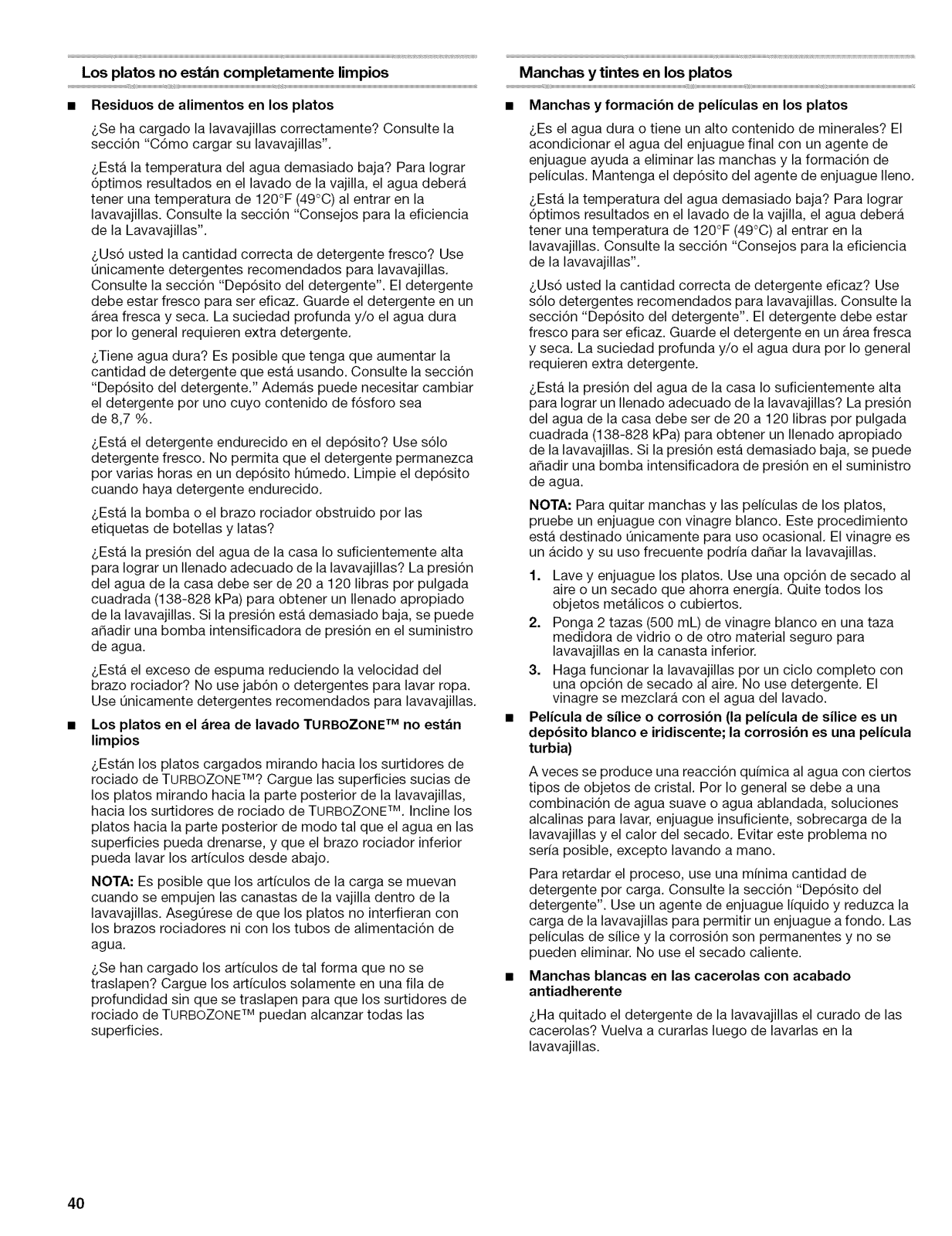

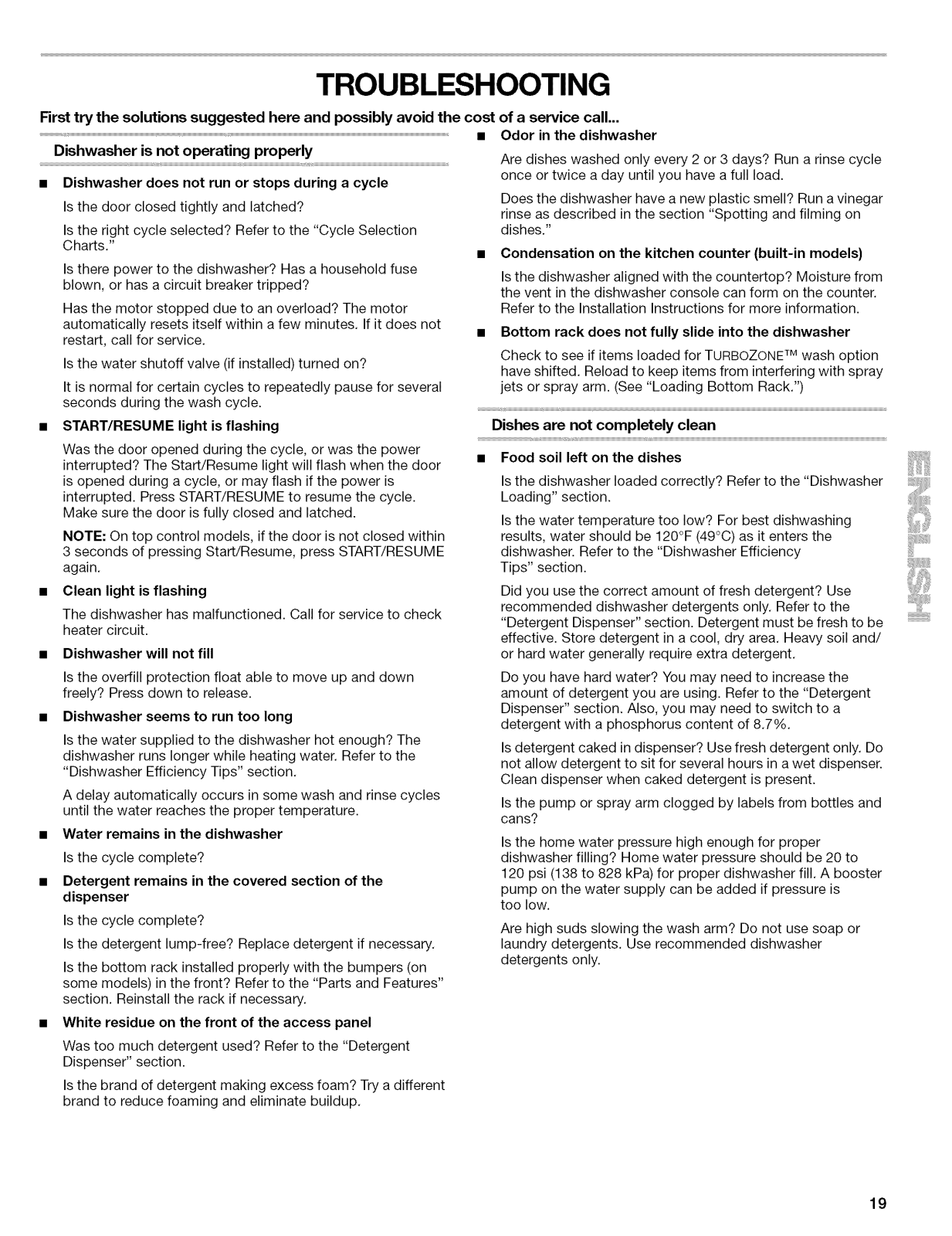

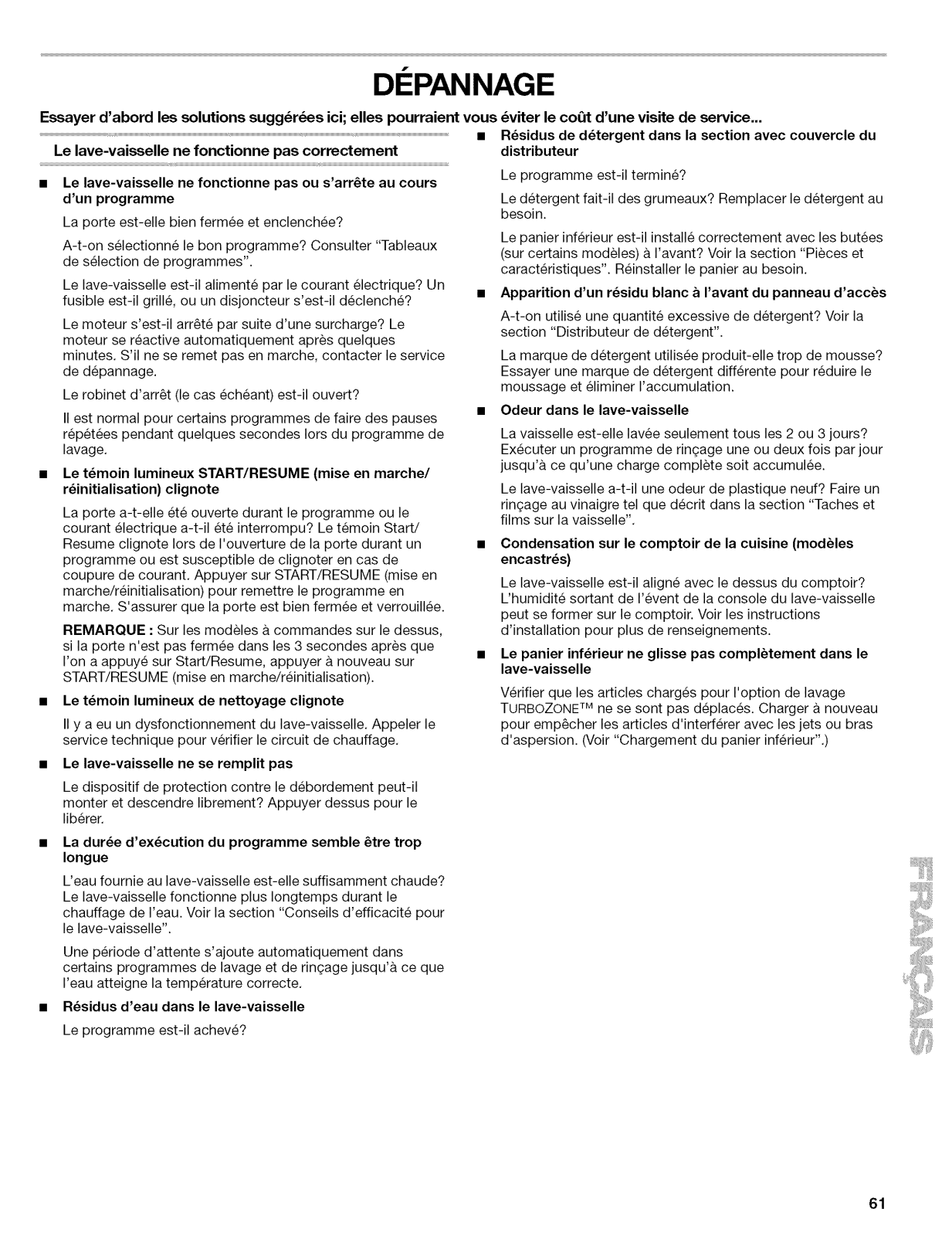

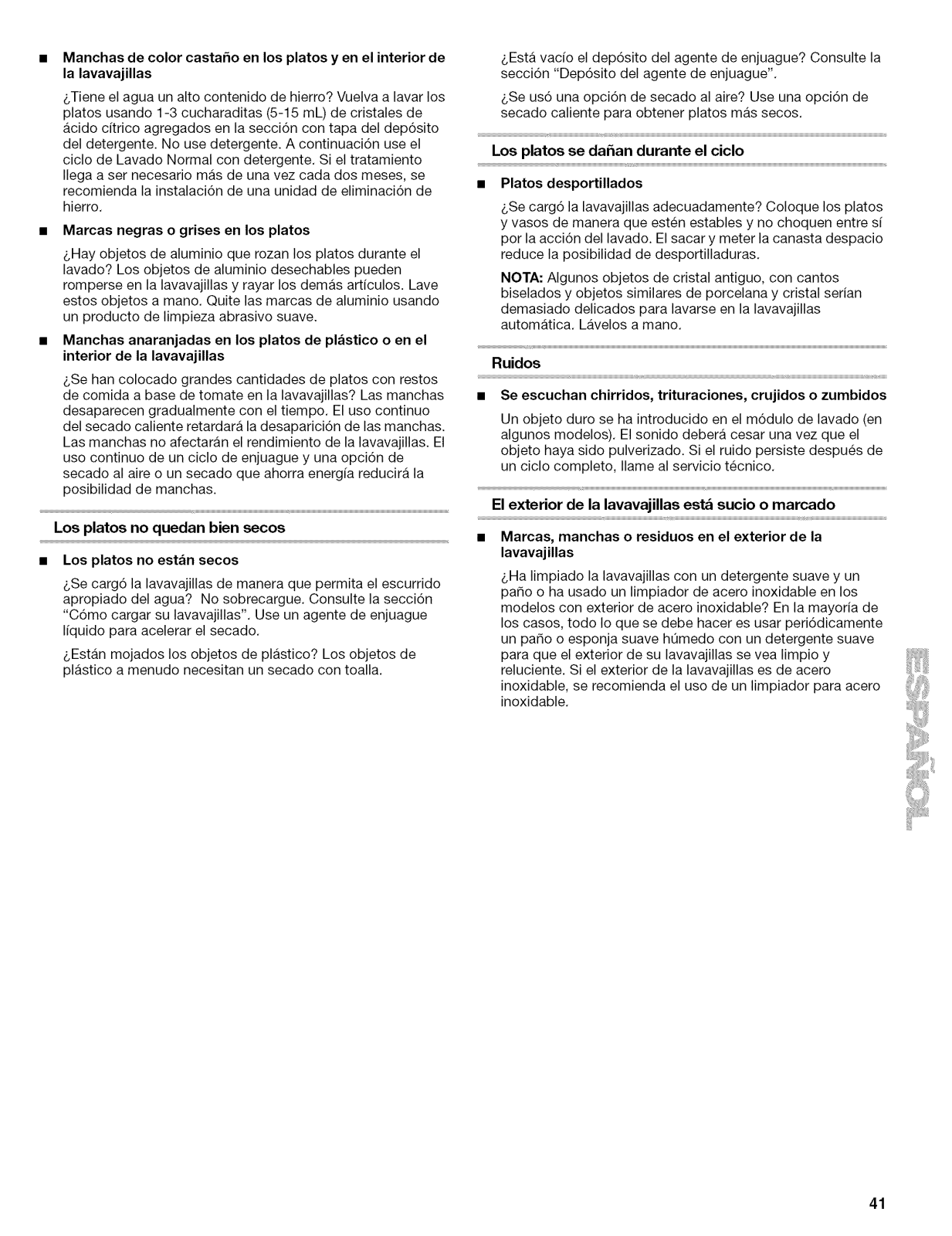

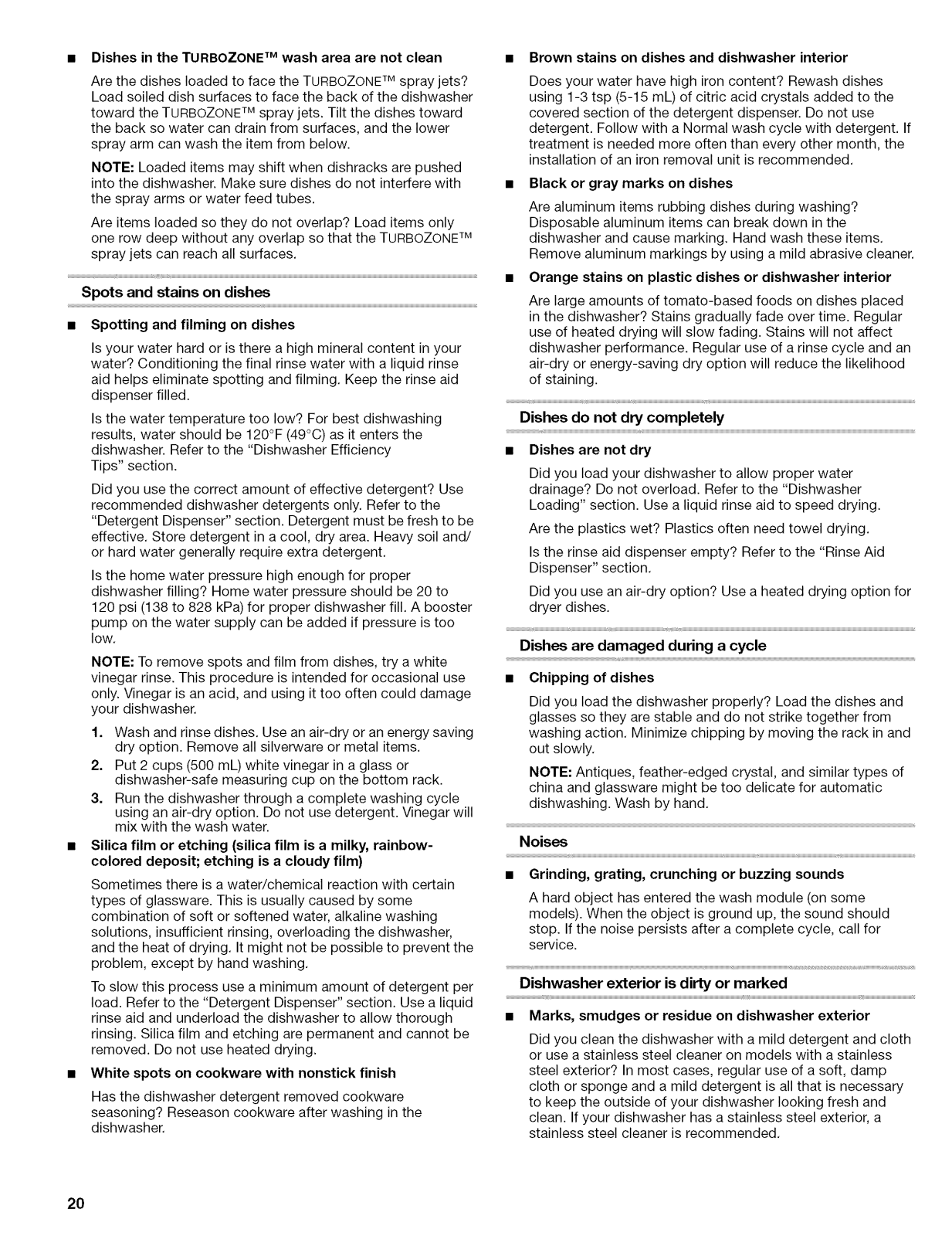

TROUBLESHOOTING .................................................................. 19

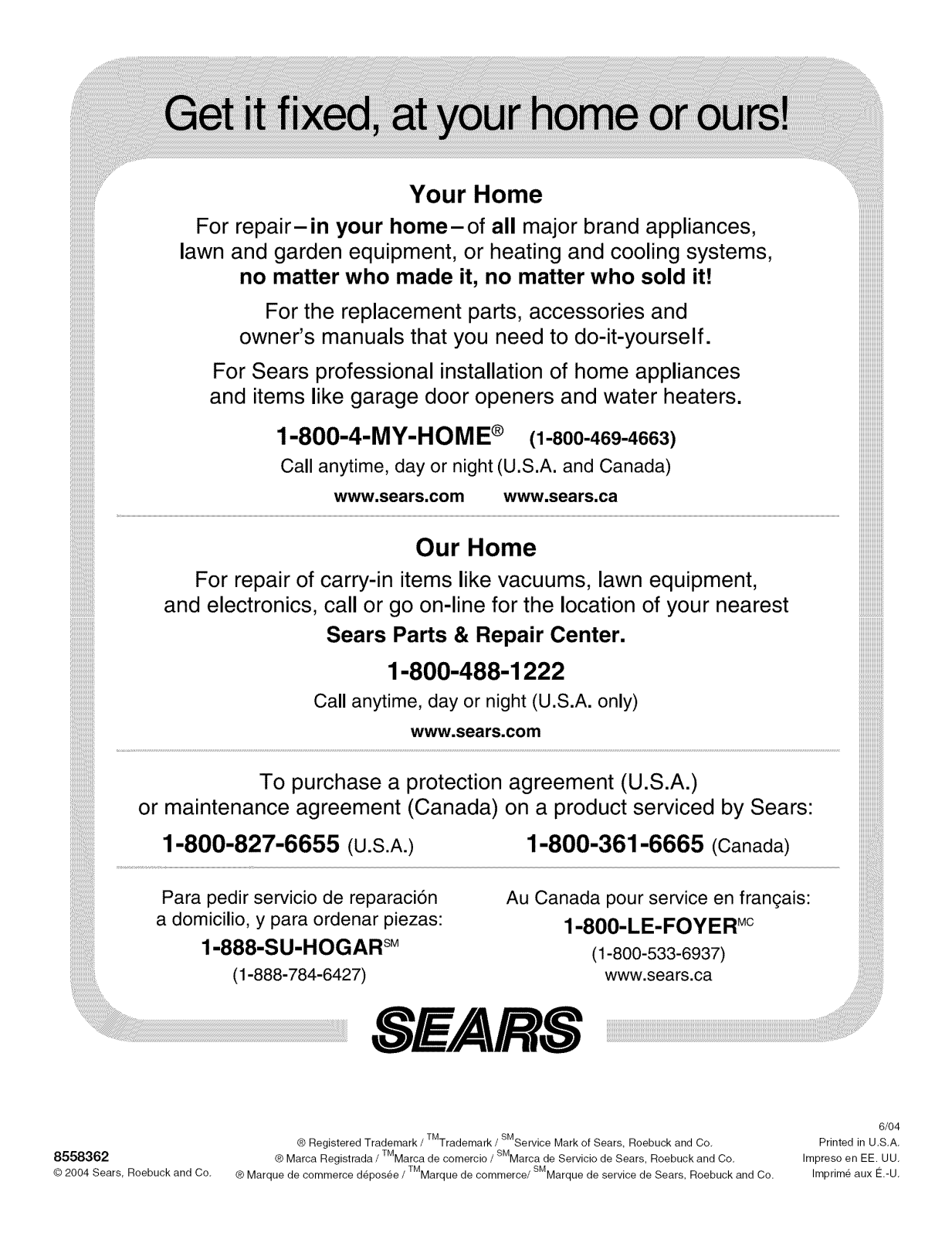

SERVICE NUMBERS ............................................... BACK COVER

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new
Kenmore ®product is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That's when
having a Master Protection Agreement can save you money and
aggravation.

Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend the life of
your new product. Here's what's included in the Agreement:

v' Expert service by our 12,000 professional repair specialists
v' Unlimited service and no charge for parts and labor on all

covered repairs

v' "No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within twelve
months

v' Product replacement if your covered product can't be fixed
v' Annual Preventive Maintenance Check at your request - no

extra charge

v' Fast help by phone - phone support from a Sears technician

on products requiring in-home repair, plus convenient repair
scheduling

v' Power surge protection against electrical damage due to

power fluctuations

v' Rental reimbursement if repair of your covered product takes

longer than promised

Once you purchase the Agreement, a simple phone call is all that
it takes for you to schedule service. You can call anytime day or
night, or schedule a service appointment online.

Sears has over 12,000 professional repair specialists, who have
access to over 4.5 million quality parts and accessories. That's

the kind of professionalism you can count on to help prolong the

life of your new purchase for years to come. Purchase your
Master Protection Agreement today!

Some limitations and exclusions apply. For prices and
additional information, call 1-800-827-6655.

Sears Installation Service
For Sears professional installation of home appliances, garage

door openers, water heaters, and other major home items, in the
U.S.A. call 1-800-4-MY-HOME ®.

Maintenance Agreements
Your purchase has added value because you can depend on

Sears HomeCentraP for service. With over 2,400 Service
Technicians and more than a million parts and accessories, we

have the tools, parts, knowledge and skills to back our pledge:
We Service What We Sell.

Your Kenmore ®product is designed, manufactured and tested to
provide years of dependable operation. But like all products, it
may require service from time to time. The Sears Maintenance
Agreement offers you an outstanding service program, affordably
priced.

The Sears Maintenance Agreement

• Is your way to buy tomorrow's service at today's price

• Eliminates repair bills resulting from normal wear and tear

• Provides phone support from a Sears technician on products
requiring in-home repair

• Even if you don't need repairs, provides an annual Preventive
Maintenance Check, at your request, to ensure that your
product is in proper running condition.

Some limitations apply. For more information about Sears

Canada Maintenance Agreements, call 1-800-361-6665.

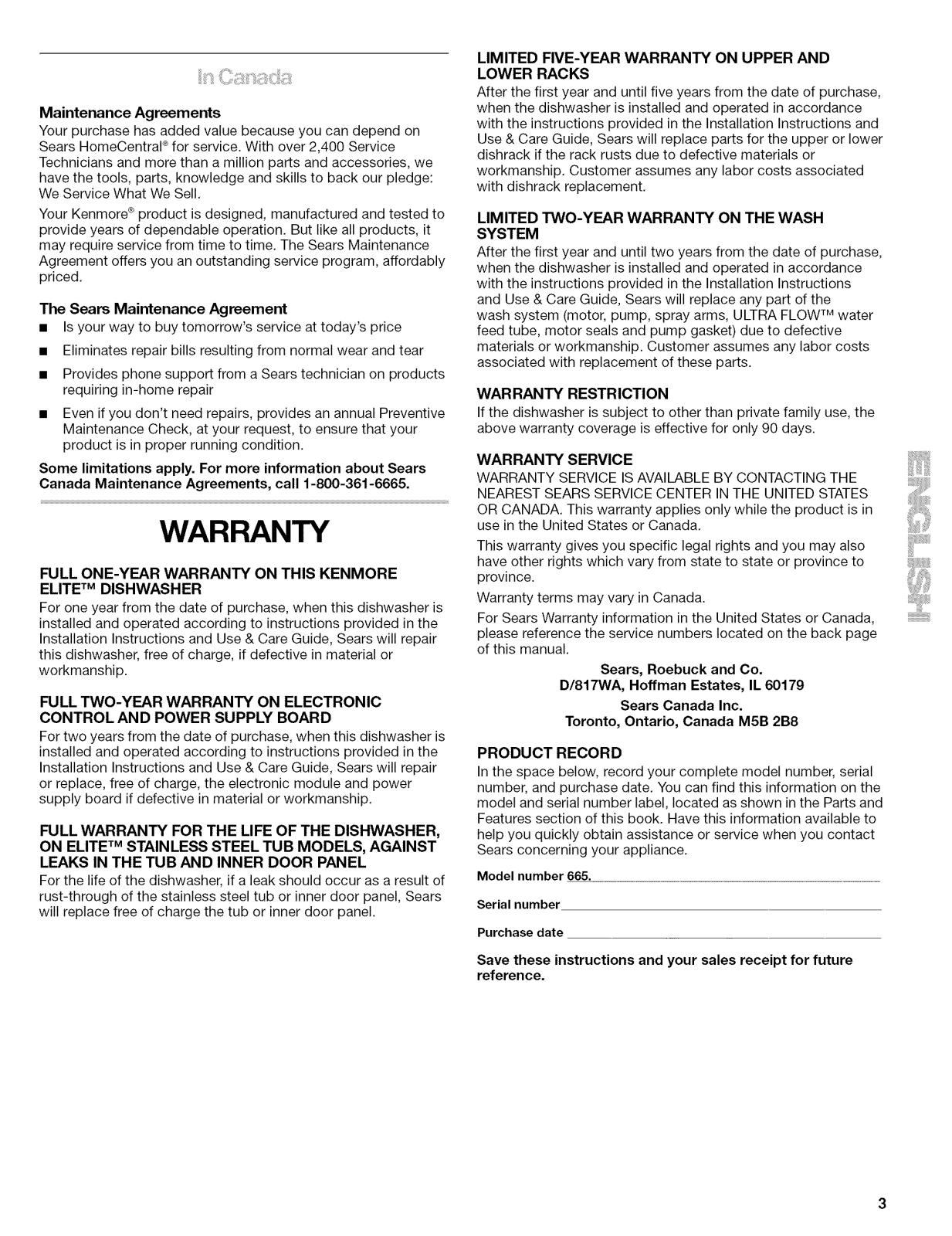

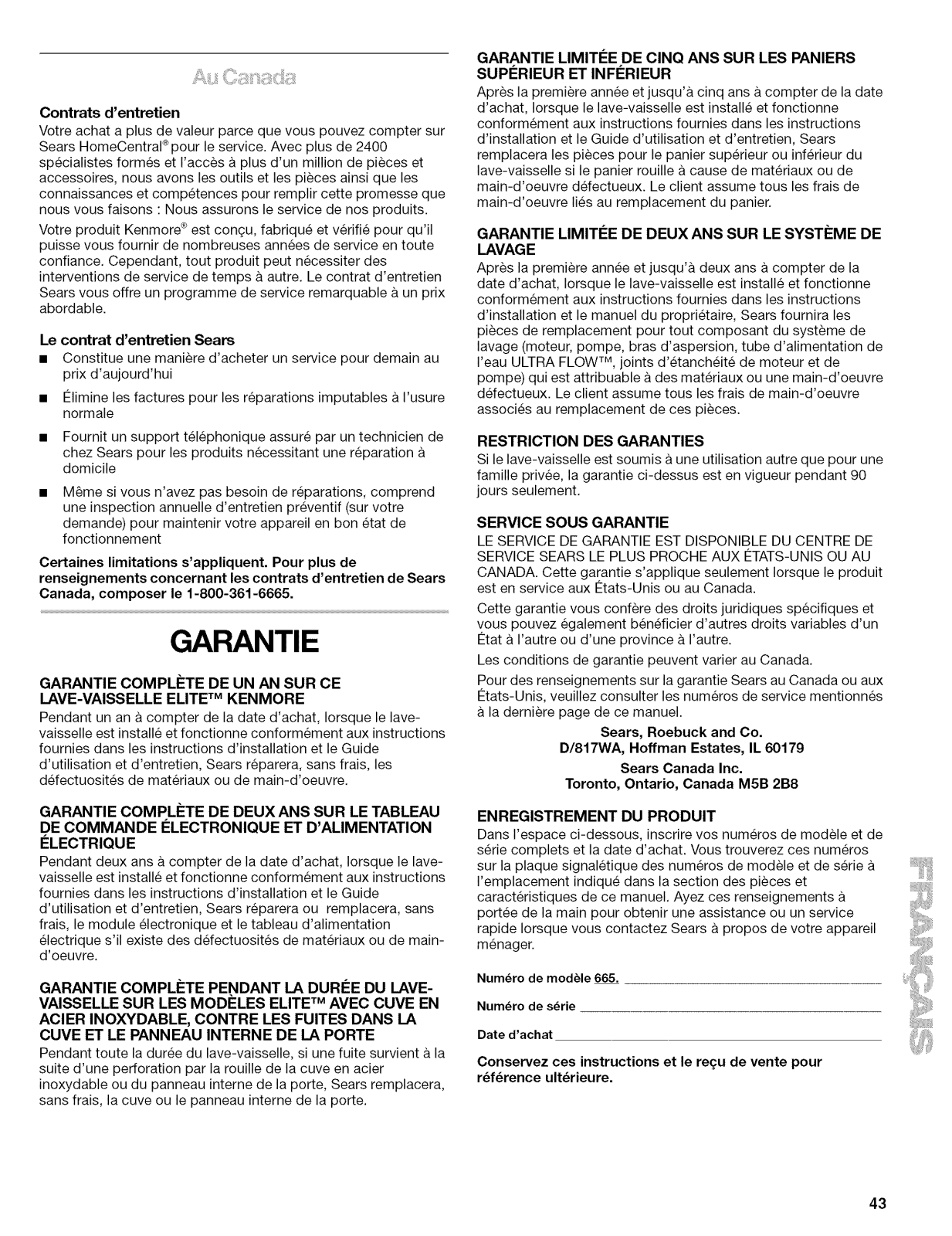

WARRANTY

FULL ONE-YEAR WARRANTY ON THIS KENMORE
ELITE TMDISHWASHER

For one year from the date of purchase, when this dishwasher is
installed and operated according to instructions provided in the
Installation Instructions and Use & Care Guide, Sears will repair
this dishwasher, free of charge, if defective in material or
workmanship.

FULL TWO-YEAR WARRANTY ON ELECTRONIC
CONTROL AND POWER SUPPLY BOARD

For two years from the date of purchase, when this dishwasher is
installed and operated according to instructions provided in the
Installation Instructions and Use & Care Guide, Sears will repair
or replace, free of charge, the electronic module and power
supply board if defective in material or workmanship.

FULL WARRANTY FOR THE LIFE OF THE DISHWASHER,
ON ELITETMSTAINLESS STEEL TUB MODELS, AGAINST

LEAKS IN THE TUB AND INNER DOOR PANEL

Forthe lifeof the dishwasher,if a leakshould occur as a result of
rust-through of the stainless steel tub or inner door panel, Sears

will replace free of charge the tub or innerdoor panel.

LIMITED FIVE-YEAR WARRANTY ON UPPER AND
LOWER RACKS

After the first year and until five years from the date of purchase,
when the dishwasher is installed and operated in accordance
with the instructions provided in the Installation Instructions and
Use & Care Guide, Sears will replace parts for the upper or lower

dishrack if the rack rusts due to defective materials or
workmanship. Customer assumes any labor costs associated

with dishrack replacement.

LIMITED TWO-YEAR WARRANTY ON THE WASH
SYSTEM

After the first year and until two years from the date of purchase,
when the dishwasher is installed and operated in accordance
with the instructions provided in the Installation Instructions
and Use & Care Guide, Sears will replace any part of the
wash system (motor, pump, spray arms, ULTRA FLOW TMwater
feed tube, motor seals and pump gasket) due to defective
materials or workmanship. Customer assumes any labor costs
associated with replacement of these parts.

WARRANTY RESTRICTION

If the dishwasher is subject to other than private family use, the
above warranty coverage is effective for only 90 days.

WARRANTY SERVICE

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE
NEAREST SEARS SERVICE CENTER IN THE UNITED STATES

OR CANADA. This warranty applies only while the product is in
use in the United States or Canada.

This warranty gives you specific legal rights and you may also
have other rights which vary from state to state or province to
province.

Warranty terms may vary in Canada.
For Sears Warranty information in the United States or Canada,

please reference the service numbers located on the back page
of this manual.

Sears, Roebuck and Co.

D/817WA, Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada MSB 2B8

PRODUCT RECORD

In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label, located as shown in the Parts and

Features section of this book. Have this information available to
help you quickly obtain assistance or service when you contact

Sears concerning your appliance.

Model number 665.

Serial number

Purchase date

Save these instructions and your sales receipt for future
reference.

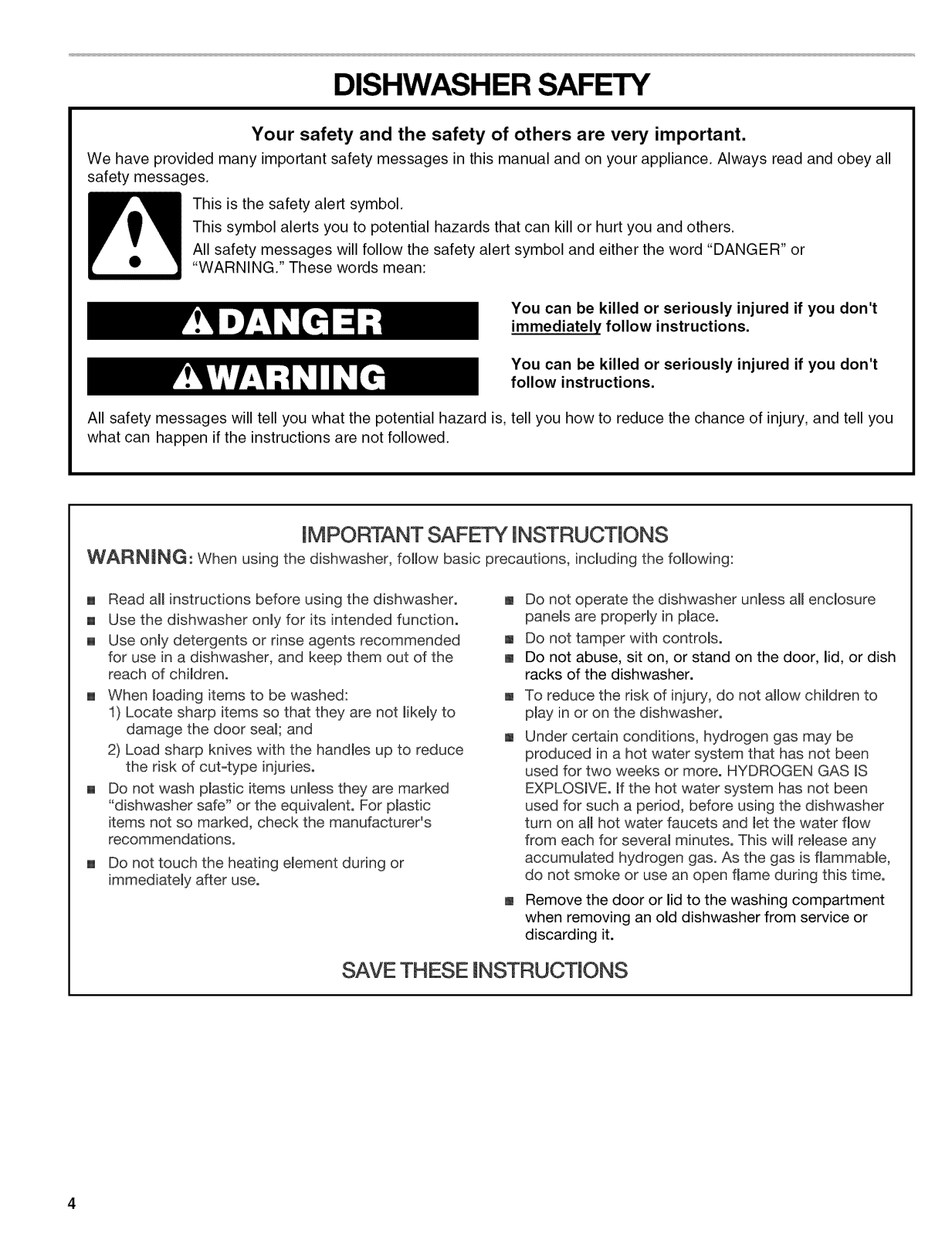

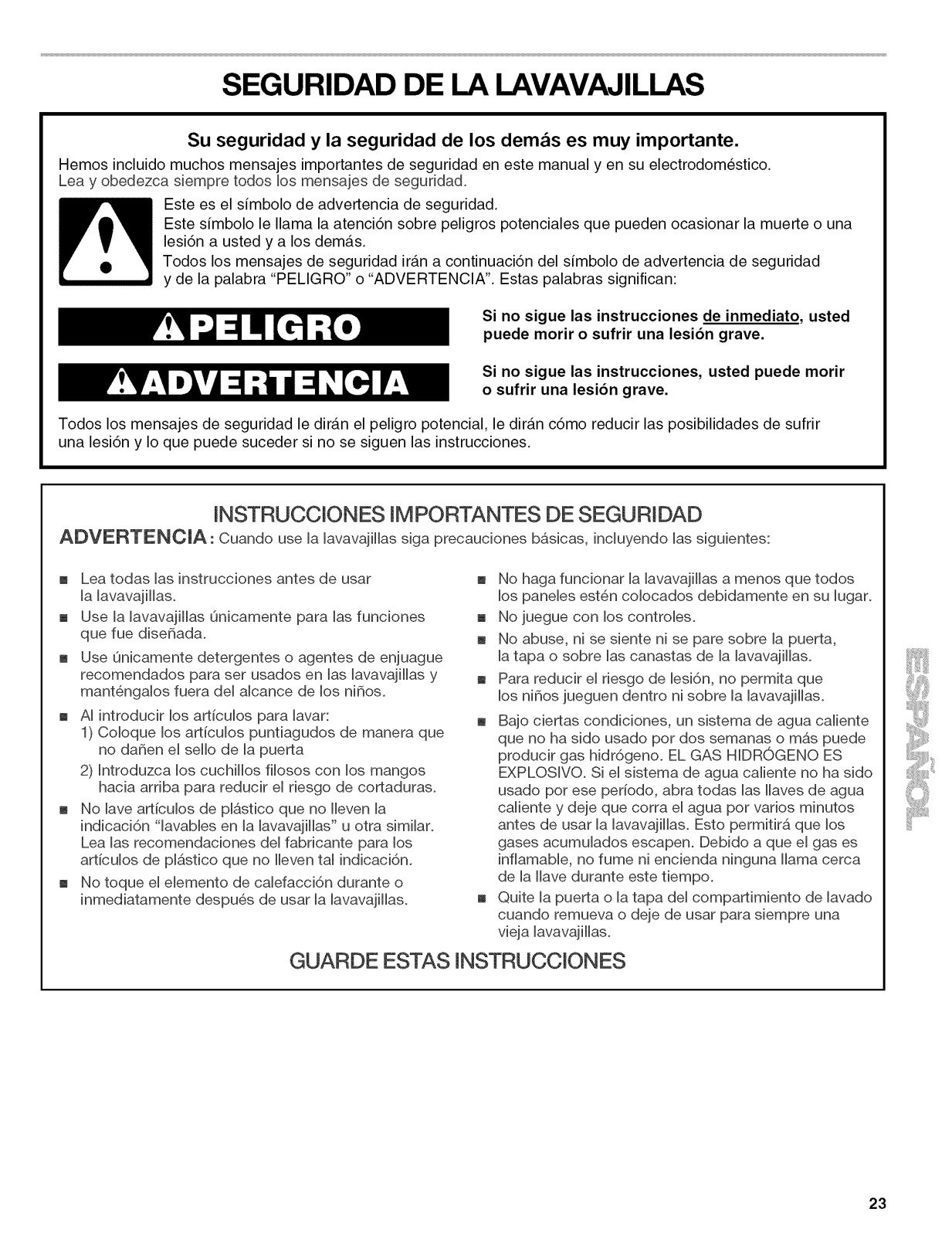

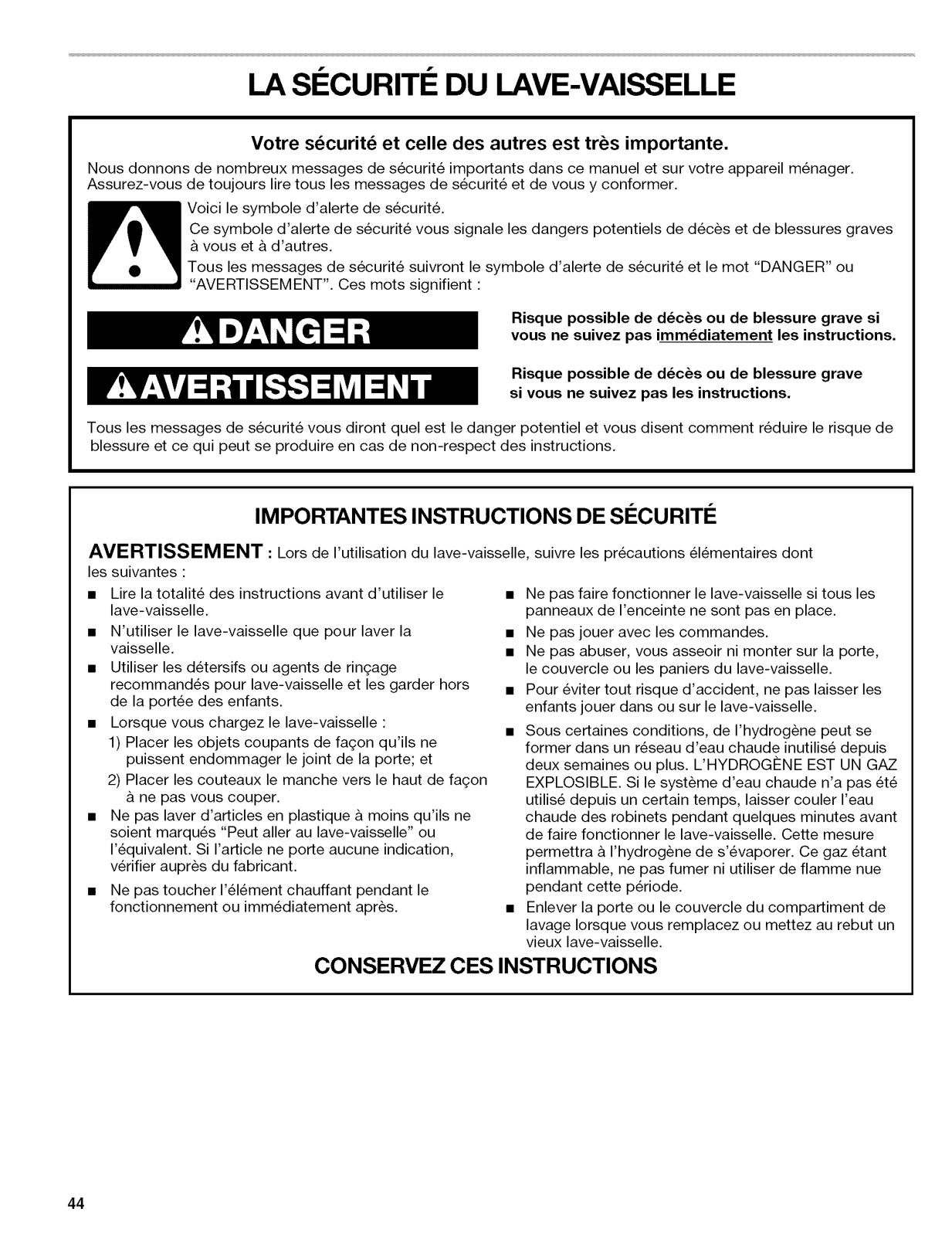

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all

safety messages.

This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or

This is the safety alert symbol.
"WARNING." These words mean:

You can be killed or seriously injured if you don't
immediately follow instructions.

You can be killed or seriously injured if you don't

follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.

MMPORTANT SAFETY MNSTRUCTMONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

[] Read all instructions before using the dishwasher.
[] Use the dishwasher only for its intended function.
[] Use only detergents or rinse agents recommended

for use in a dishwasher, and keep them out of the
reach of children.

[] When loading items to be washed:

1) Locate sharp items so that they are not likely to
damage the door seal; and

2) Load sharp knives with the handles up to reduce
the risk of cut-type injuries.

[] Do not wash plastic items unless they are marked

"dishwasher safe" or the equivaUent. For plastic
items not so marked, check the manufacturer"s

recommendations.
Do not touch the heating element during or

immediately after use.

SAVE THESE mNSTRUCTUONS

[] Do not operate the dishwasher unless all enclosure

panels are properly in place.

[] Do not tamper with controls.
[] Do not abuse, sit on, or stand on the door, lid, or dish

racks of the dishwasher.

[] To reduce the risk of injury, do not allow children to

play in or on the dishwasher.

[] Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS IS

EXPLOSIVE. If the hot water system has not been
used for such a period, before using the dishwasher

turn on all hot water faucets and let the water flow
from each for several minutes. This will release any

accumulated hydrogen gas. As the gas isflammable,
do not smoke or use an open flame during this time.

Remove the door or lid to the washing compartment

when removing an old dishwasher from service or
discarding it.

iib!i!i!A_o_i@Li!:siii!'_ii!yi])!i:ii!,¸¸_i!iiil)_iS;iiiiw_i!!!!:lSil,i@t....

Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cute.

GROUNDmNG mNSTRUCTmONS

For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event

of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a
path of least resistance for electric current. The

dishwasher is equipped with a cord having an
equipment-grounding conductor and a grounding
plug. The plug must be plugged into an
appropriate outlet that is installed and grounded in

accordance with all local codes and ordinances.
WARNING: Improper connection of the

equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified

electrician or service representative if you are in
doubt whether the dishwasher is properly
grounded. Do not modify the plug provided with

the dishwasher; if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.

For a permanentJy connected dishwasher:
The dishwasher must be connected to a
grounded metal, permanent wiring system, or an

equipment-grounding conductor must be run
with the circuit conductors and connected to the

equipment-grounding terminal or lead on the
dishwasher.

Electrical Shock Hazard

Electricaly ground dishwasher.
Connect ground wire to green ground connector

in terminal box.
Do not use an e×teneion cord.
Failure to follow these instructions can result in

death, fire, or electrical shock.

Install where dishwasher is protected from the elements.
Protect against freezing to avoid possible rupture of fill valve.
Such ruptures are not covered by the warranty. See "Storing"
in the "Dishwasher Care" section for winter storage

information.
Install and level dishwasher on a floor that will hold the

weight, and in an area suitable for its size and use,
Remove all shipping plugs from hoses and connectors (such

as the cap on the drain outlet) before installing. See
Installation Instructions for complete information.

SAVE THESE iNSTRUCTiONS

iiiiiiiiiiiiiiiiiiiili

PARTSAND FEATURES

This manual covers several different models. The features on your dishwasher may vary from those shown below.

A

B

L_

D

E
F

G

H

R

S

/

U

W

A. Upper level wash

B. Utensil basket (on some models)
C. Top rack adjusters
D. Removable top rack
E. Flexible tines (on some models)

F. Model and serial number label

G. Fold-down tines

H. Bottom rack

I. Water inlet opening (in tub wall)

J. Heating element

K. Detergent dispenser

L.Active vent

M. Cup shelves (on some models)

N. No-flip clips (on some models)
O. Top spray arm

tq ULTRA FLOW TM water feed tube

Q. TURBOZONE TM spray jets

R. Silverware basket
S. Lower spray arm

T. Overfill protection float

U. ULTRA WASt-P module

V.Rinse aid dispenser

Vt4Control panel

(0)------_@)-------(@)-------(@)------_0)

WASHHNG SENSRNG DHYHNG $ANmZED CLEAN

OPTmONS

LOCK ON

2 4 6

Models 665.1626_, 665.1726_

_;<= color number

The ULTRA WASH _Soil Removal System gives you sparkling clean dishes, while using less energy and time. The ULTRA WASH _ Soil
Removal System includes:

• A heavy-duty grinder that acts as a food disposer to grind
and dispose of large food particles.

• An ULTRA WASH _sensor to monitor soil level and adjust the
cycles as needed.

An Automatic Temperature Control (ATC) that ensures the
proper water temperature for the selected wash cycle, and

soil level of the load.
A Triple Action Filtration system that intermittently filters soil

from the wash water.

How the smarkvash TMwash cycle works

When the smartwash TMcycle is selected, it saves energy and
water by adjusting the wash cycle as needed.

• Sensors detect the size of the dish load, the soil level, and the
water temperature in the dishwasher.

• Sensors automatically adjust the temperature and the
amount of water used for the load.

How the TURBOZONE TMwash option works

When the TURBOZONETM option is selected, it provides a
concentrated wash to a specific zone in the back of the lower
dishrack for large, hard-to-clean dishes.

• Spray jets on the TURBOZONETM manifold are periodically
activated at the back of the tub throughout the wash cycle.

• Intensified cleaning is provided only to this specific wash
area, allowing you to gently clean the rest of the dish load.

START-UP GUIDE

Before using your dishwasher, remove all packaging materials.
Read this entire Use and Care Guide. You will find important
safety information and useful operating tips.

Rinse aid is essential for good drying. Be sure to fill the
dispenser before you use your new dishwasher. Each filling
will last about 1 to 3 months depending on your usage.

2=

Scrape large food soil and hard items (toothpicks or bones)
from dishes.

3.

Properly load the dishwasher. (See "Dishwasher Loading.")
Load dishes with space in between so water will reach the
soiled surfaces. Make sure nothing prevents the spray arm(s)
from spinning freely.

\

4. Add detergent. Always use a quality brand detergent. (See
"Dishwasher Use.")

5. Push door firmly closed. The door latches automatically.

6. Run hot water at the sink nearest your dishwasher until the
water is hot. (See "Dishwasher Efficiency Tips.") Turn off

water.

DISHWASHER LOADING

Remove leftover food, bones, toothpicks and other hard
items from the dishes. To conserve water, energy and save
time, it is not necessary to rinse dishes before putting them

into the dishwasher.
NOTE: Dishes soiled with tomato-based products should be

prerinsed to avoid staining.
The wash module removes food particles from the water. The

module contains a chopping device which will reduce the size
of food items.

NOTE: If hard items such as fruit seeds, nuts, and eggshells
enter the wash module, you might hear chopping, grinding,
crunching, or buzzing sounds. These sounds are normal

when hard items enter the module. Do not let metallic items
(such as pot handle screws) get into the wash module.

Damage can occur.

• For best drying, water must be able to drain from all surfaces.

• It is important for the water spray to reach all soiled surfaces.

• Load dishes so they are not stacked or overlapping if
possible.

• Use special care when loading heavy pots and pans. Heavy
items can damage the interior of the door if they are dropped
or bumped.

• Make sure pot lids and handles, pizza pans, cookie sheets,
etc., do not interfere with the spray arm rotation.

Conserve water, energy and save time over hand rinsing by
running a rinse cycle to keep dishes moist if you do not plan
to wash them soon. Foods such as eggs, rice, pasta,
spinach, and cooked cereals may be hard to remove if they
are left to dry over a period of time.

• Place items so open ends face down for best cleaning and
draining.

7.

Press the desired cycle and option selections. (See
"Dishwasher Use.")

8=

Press START/RESUME, or press START/RESUME to repeat
the same cycle and options as the previous cycle.

IMPORTANT: The Start/Resume light will flash if the door is
opened during a cycle. Power interruptions during a cycle
may also cause the Start/Resume light to flash. Press START/
RESUME to continue a cycle.

START

RESUME

Quiet operating tips

To avoid thumping/clattering noises during operation:

• Make sure lightweight load items are secured in the racks.

• Make sure pot lids and handles, pizza pans, cookie sheets,
etc., do not touch interior walls or interfere with the rotation of
the spray arm.

• Load dishes so they do not touch one another.

NOTE: For built-in models, keep sink drain plugs closed during
dishwasher operation to prevent noise transfer through drains.

Thetoprackisdesignedforcups,glasses,andsmalleritems.
Manyitems,upto11"(28cm),fitinthetoprack.(See
recommendedloadingpatternsshown.)

NOTE:Thefeaturesonyourdishwasherrackmayvaryfromthe
drawingsshown.

10place setting

Cup shelves (on some models)

Fold down the extra shelf on the left-hand or right-hand side of
the top rack to hold additional cups, stemware or long items such

as utensils and spatulas.
NOTE: The features on your dishwasher may vary from those

shown below.

Deluxe adjustable 2-position top rack (on some models)

You can raise or lower the top rack to fit tall items in either the top
or bottom rack. Raise the top rack to accommodate items up to
9" (22 cm) in the top rack and 13" (33 cm) in the bottom rack, or
lower the top rack to accommodate items up to 11" (28 cm) in
both the top and bottom racks. Adjusters are located on each
side of the top rack.

!2 place setting

• Place items so open ends face down for cleaning and
draining.

• Load glasses in top rack only. The bottom rack is not
designed for glasses. Damage can occur.

• Place cups and glasses in the rows between tines. Placing
them over the tines can lead to breakage and water spots.

• China, crystal, and other delicate items must not touch each
other during dishwasher operation. Damage may occur.

• Load lightweight plastic items in the top rack only. Only
plastic items marked "dishwasher safe" are recommended.

• Load plastic items so the force of the spray does not move
them during the cycle.

• To avoid chipping, do not let stemware touch other items.

• Small bowls, pans, and other utensils can be placed in the
top rack. Load bowls in the center section for best stability.

Utensil basket (on some models)

Use this extra capacity basket in the back of the top rack to hold
spatulas, wooden spoons, and similar items.

To raise the top rack
Lift the rack on both sides until the rack is level.

NOTE: The top rack must be level.
To lower the top rack

Depress both tabs on rack adjusters, as shown above, and slide
the rack back to its original position.

Standard adjustable 2-position top rack
(on some models)

You can raise or lower the top rack to fit tall items in either the top
or bottom rack. Raise the top rack to accommodate items up to
9" (22 cm) in the top rack and 13" (33 cm) in the bottom rack, or
lower the top rack to accommodate items up to 11" (28 cm) in
both the top and bottom racks. Two adjusters are located on
each side of the top rack. Each adjuster has 2 preset positions.
The high and low positions are marked on the adjuster.

To adjust the top rack

1. Hold the top rack with one hand near the adjuster.

2. Withtheotherhand,pulloutthetopoftheadjuster. •

3. Raiseorlowertheracktooneofthepresetpositions.

4. Releasetheadjuster.

5. Repeatthestepsfortheremainingadjusters. •
NOTE:Thetoprackmustbelevel. •

Flexible tines (on some models)

The row of tines on the left-hand and right-hand sides of the top

rack can be adjusted to make room for a variety of dishes.

Do not load glasses, cups, or lightweight plastic items in the
bottom rack. Load small items in the bottom rack only if they
are secured in place.

Load plates, soup bowls, etc., between tines.
Overlap the edges of plates for large loads.
Load soup, cereal, and serving bowls in the rack in a variety

of ways depending upon their size and shape. Load bowls
securely between the rows of tines. Do not nest bowls
because the spray will not reach all surfaces.

To adjust the flexible tines

1. Grasp the tip of the tine that is in the tine holder.

2. Gently push the tine out of the holder.

3. Lay the tines down, toward the center of the rack,

No-flip clips (on some models)

The no-flip clips hold lightweight plastic items such as cups, lids,

or bowls in place during washing.

To move a clip

1. Pull the clip up and off the tine.

2. Reposition the clip on another tine.

The bottom rack is designed for plates, pans, casseroles, and

utensils. Many items, up to 13" (33 cm) tall, fit in the bottom rack.
(See recommended loading patterns shown.)

NOTE: The features on your dishwasher rack may vary from the
drawings shown.

12place setting

• Load cookie sheets, cake pans, and other large items at the
sides and back. Loading such items in front can keep the
water spray from reaching the detergent dispenser.

• Secure heavily soiled cookware face down in the rack.

• Make sure pot handles and other items do not stop rotation
of the spray arm(s). The spray arm(s) must move freely.

• Do not load items between the bottom rack and the side of
the dishwasher tub because they might block the water inlet

opening.

TURBOZONE TM wash area

The TURBOZONETM wash area is located at the back of the lower

dishrack.
NOTE: You must select the TURBOZONETM wash option to utilize

this wash feature. Do not face items toward the rear of the unit if
you are not using this wash option.

10

TURBOZONETM wash area

Load pans, casserole dishes, etc. in the back of the lower
dishrack with the soiled surfaces facing the TURBOZONETM
spray jets. Make sure items do not interfere with the water
feed tube or top spray arm.

Tip items toward the rear of the unit between the back two
rows of tines to maximize coverage.

10 place setting

IMPORTANT: Only one row of items may face the
TURBOZONETM spray jets. Stacking, overlapping, or nesting
items will prevent the TURBOZONETM spray jets from reaching

all of the surfaces.

TURBOZONETM wash area side view

Suggested 10 place setting loading patterns

Load the silverware basket while it is in the bottom rack or take
the basket out for loading on a counter or table.

NOTE: Unload or remove the basket before unloading the racks
to avoid spilling water droplets onto the silverware.

• Place small items such as baby bottle caps, jar lids, corncob
holders, etc., in a covered section. Close the cover to hold
small items in place.

Use suggested loading patterns, as shown, to increase
washability of your silverware.

This silverware basket can be separated and placed into the
bottom rack in several locations. Load silverware in all

sections or just one, depending upon your load.
If your silverware basket does not have covers or when

covers are up, mix items in each section of the basket with
some pointing up and some down to avoid nesting. Spray

cannot reach nested items.

TURBOZONETM 10place setting top rack load

TURBOZONETM 10 place setting bottom rack load

Fold-down tines

You can fold down one row of tines at the back of the bottom
rack.

1. Grasp the tip of the tine that is inthe tine holder.

2. Gently pull the tine out of the tine holder.

3. Lay the row of tines down in the rack to make room for larger
dishes, bowls, pots, pans or roasters.

IMPORTANT: Always load items (knives, skewers, etc.) pointing
down.

To remove a small basket

1. Hold the center basket and one small basket. Slide the small
basket forward to release the tabs from the corresponding

slots.

2. Pull the baskets apart.

NOTES:

• Do not load silver or silver-plated silverware with stainless
steel. These metals can be damaged by contact with each

other during washing.

• Some foods (such as salt, vinegar, milk products, fruit juices,
etc.) can pit or corrode silverware. Run a rinse cycle if you do

not have a full load to wash immediately.

11

DISHWASHER USE

The detergent dispenser has two sections. The smaller Pre-Wash

section empties detergent into the dishwasher when you close

the door. The larger Main Wash section automatically empties

detergent into the dishwasher during the wash. (See the "Cycle
Selection Charts.")

A. Cover latch

B. Main Wash section

C. Pre-Wash section

• Use automatic dishwashing detergent only. Other detergents
can produce excessive suds that can overflow out of the
dishwasher and reduce washing performance.

• Add detergent just before starting cycle.

• Store tightly closed detergent in a cool, dry place. Fresh
automatic dishwasher detergent results in better cleaning.

NOTE: Do not use detergent with a Quick Rinse cycle.

Filling the dispenser

1. If the dispenser cover is closed, open the cover by moving
the cover latch to the right.

2. Add the correct amount of detergent to the Main Wash
section of the dispenser according to the chart below. If you
are using a tablet detergent, it must be placed in the Main
Wash section. (See "How much detergent to use.")

3. Add the correct amount of detergent to the Pre-Wash section
of the dispenser, if needed, according to the chart below.

4. Close the dispenser cover.

It is normal for the cover to open partially when dispensing
detergent.

NOTE: See the "Cycle Selection Charts" for which section to fill
depending on the cycle selected.

How much detergent to use

• The amount of detergent to use depends on the soil level of • Water hardness can change over a period of time. Find out
your dishes, hardness of your water, and the type of your water's hardness by asking your Sears Sales Associate,
detergent. If you use too little, dishes will not be clean. If you local water department, water softener company, or county
use too much in soft water, glassware will etch. extension agent.

Detergent Dispenser fill recommendations per dish load soil level and water hardness

Water Hardness

Main Wash section Pre-Wash section Main Wash section Pre-Wash section

Soft 4 tsp (20 mL) Empty 6 tsp (30 mL) 2 tsp (10 mL)

(0-2 grains per Fill to Soft Water line Fill above the Soft Water line Fill to Soft Water line

U.S. gallon}

Medium 6 tsp (30 mL) 2 tsp (10 mL) 6 tsp (30 mL) 4 tsp (20 mL)

(2-6 grains per Fill above the Soft Water line Fill to Soft Water line Fill above the Soft Water line Fill to Hard Water line

U.S. gallon}

Hard 8 tsp (40 mL) 4 tsp (20 mL) 9 tsp (45 mL) 7 tsp (35 mL)

(7 grains per U.S. gallon Fill to Hard Water line Fill to Hard Water line Fill cup completely Fill cup completely

and above)

NOTE: Fill amounts shown are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered

detergent. Tablet detergents should be placed in the main wash section of the detergent dispenser with the cover closed. Follow
instructions on the package when using liquid dishwasher detergent, concentrated powdered detergent or tablet detergent.

Light Soil or Prerinsed Normal - Heavy Soil

12

IMPORTANT: Your dishwasher is designed to use a liquid rinse
aid. The use of rinse aids greatly improves drying by allowing
water to drain from the dishes after the final rinse. They also
prevent water from forming droplets that can dry as spots or
streaks. Do not use a solid or bar-type rinse aid,

Rinse aid setting

The amount of rinse aid released into the final rinse can be
adjusted. For most water conditions, the factory setting of 2 will

give good results. If you have hard water or notice rings or
calcium spots on your glasses or dishes, try a higher setting.

Filling the dispenser

The rinse aid dispenser holds 5 oz (150 mL) of rinse aid. Under
normal conditions, this will last for about 1 to 3 months.

1. Make sure the dishwasher door is fully open.

2. Turn the dispenser knob to "Open" and lift it out.

Opon ll/ )))

A. Dispenser knob

B. Indicator

C. Indicator window

3=

Pour rinse aid into the opening until the indicator points to
"Full." Take care not to overfill. (When the rinse aid indicator
drops to the "Add" level, add more rinse aid.)

Full
Add

4. Clean up any spilled rinse aid with a damp cloth.

5. Place the knob back into the opening and turn to the "Lock"
position.

Lock

Open

To adjust the setting

1. Remove the dispenser knob.

2. Turn the arrow adjuster inside the dispenser to the desired
setting by either using your fingers or inserting a flat-blade
screwdriver into the center of the arrow and turning.

3. Replace the dispenser knob.

Hot water dissolves and activates the dishwashing detergent.
Hot water also dissolves grease on dishes and helps glasses dry

spot-free. For best dishwashing results, water should be 120°F
(49°C) as it enters the dishwasher. Loads may not wash as well if

the water temperature is too low. Water that is too hot can make
some soils harder to remove and cause certain detergent

ingredients not to function. Ifyour water heater is located far from
the dishwasher, it may be necessary to run the hot water at the

faucet closest to the dishwasher to minimize the amount of cold
water in the water line.

To check water temperature

1. Run hot water at the faucet closest to your dishwasher for at
least 1 minute.

2. Place a candy or meat thermometer in a glass measuring
cup.

55555S_

3. Check the temperature on the thermometer as the water is
running into the cup.

• To save water, energy and time, do not rinse dishes before
putting them into the dishwasher.

• Use a delay feature to run your dishwasher during off-peak
hours. Local utilities recommend avoiding heavy usage of
energy at certain times of day.

• During the summer, run your dishwasher at night. This
reduces daytime heat buildup in the kitchen.

• Use a rinse aid to improve drying.

13

Use cycles or options that add extra heat to the wash or rinse
portion of the cycle only when needed.

If your home is equipped with a water softener, you may want
to avoid starting the dishwasher during the regeneration of
the softener, since this may contribute to poor wash
performance.

Normal Wash

Use this cycle for loads with normal amounts of food soil. (The
energy-usage label is based on this cycle.) During the wash
cycle, the wash action will repeatedly pause for several

seconds.

Use both detergent dispenser sections.

Select the wash cycle and options desired. Or press START/
RESUME to use the same cycle and options as the previous
cycle.

NOTE: If the last cycle you completed was a rinse cycle, the
dishwasher will run the last full wash cycle and options that you
selected when you press START/RESUME.

A "O" shows the steps that are in each cycle.

Water usage is shown in U.S. gallons/liters.

These models meet the ENERGY STAR®guidelines for energy

efficiency.
IMPORTANT: These sensor-based cycles may take several

hours depending on cycle selected, water temperature, and soil
level sensed.

Smart Wash

Use this cycle for all day-to-day soil types when washing full to
partial dish loads. During the cycle, the sensors will determine

water temperature, wash time, and water amount based on the
soil level and the dish load size. During the main wash, the wash

action will repeatedly pause for several seconds.

Use both detergent dispenser sections when

washing a full soiled dish load.

Use one detergent dispenser section when

washing lightly soiled, partial dish loads.

Dish Soil Wash Main Rinse Final Dry Approx- Water
load Level Wash or Rinse imate Usage

Sensed Purge Time (gal/L)

Full Heavy • • • • • 2,5 hrs* 5.6-6.5/

Light • • • • • 2 hrs* 5.6/21.2

Par- Heavy • • • • • 2 hrs* 5.6/21.2

tial Purge

Light • • • • • 1.5 hrs* 5.6/21.2

Purge 21,2-24.6

Purge

Purge

Pots Pans

Use this cycle for hard-to-clean, heavily soiled pots, pans,
casseroles, and regular tableware.

Use both detergent dispenser sections.

Wash Main Rinse Final Dry Approx- Water

• • • • • 2 hrs* 5,6-6.5/

Wash or Rinse imate Usage

Purge Time (gal/L)

Purge 21.2-24.6

_hina Gentle

Use this cycle for china and crystal. This cycle uses a light
wash and gentle dry. During the heated dry, the heating
element cycles on and off.

Use main detergent dispenser section.

Wash Main Rinse Final Dry Approx- Water

• • • • • 1,5 hrs* 5,9-6.8/

Wash or Rinse imate Usage

Purge Time (gal/L)

Purge cycled 22.3-25.7

Quick Rinse

Use this rinse cycle for rinsing dishes, glasses, and silverware
that will not be washed right away.

Do not use detergent with this cycle.

Wash Main Rinse Final Dry Time Water

Wash or Rinse (rain) Usage

Purge (gal/L)

• 10 1,8-2.2/

Rinse 6.8-8.3

*If the incoming water temperature is less than the

recommended temperature or food soils are heavy, the cycle will

automatically compensate by adding time, heat and water as

needed.

1. Press CANCEL/DRAIN. The Cancel/Drain light glows.

2. The dishwasher starts a 2-minute drain (if needed). Let the
dishwasher drain completely. The light turns off after

2 minutes. The door must be closed for the dishwasher to
drain.

To stop the drain

You can press CANCEL!DRAIN again to stop the drain.
Remember to drain the dishwasher before starting a new cycle.

Wash Main Rinse Final Dry Approx- Water

• • • • • 2,5 hrs* 6.9-7,8/

Wash or Rinse imate Usage

Purge Time (gal/L)

Rinse 26.1-29.5

14

To clear the indicators

Press CANCEL!DRAIN before starting the dishwasher to clear all
options and cycles.

TURBOZONE TM wash option

During the first minute of a cycle

1. Select a new cycle and/or options.

2. Check the detergent dispensers. They must be filled properly
for the new cycle.

3. The Start/Resume light will flash when the door is opened.
Make sure the door is closed.

4. Press START/RESUME.

After the first minute of a cycle

1. Press CANCEL/DRAIN. The Cancel/Drain light glows. Your
dishwasher starts a 2-minute drain (if needed). Let the
dishwasher drain completely.

2. Check the detergent dispensers. They must be filled properly
for the new cycle.

3. Make sure the door is closed.

4. Select a new cycle and/or options.

5. Press START/RESUME.

You can add an item anytime before the main wash starts. Open
the door and check the detergent dispenser. If the cover is still
closed, you can add items.

To add items

Select this option to activate the TURBOZONETM spray jets and
provide intensified water spray to the back of the lower dishrack.

The TURBOZONETM wash option provides a concentrated wash
action to pans, casseroles, etc. with tough food soil.

This option may add heat and wash time to the cycle.
NOTE: TURBOZONETM is an option with the SMART WASH TM,

Pots Pans, and Normal Wash cycles.
IMPORTANT:

• Load pans, casserole dishes, etc. facing the TURBOZONETM
spray jets in the back of the lower dishrack. Tip items toward
the rear of the dishrack to maximize coverage. Only one row
of items may face the TURBOZONETM spray jets. Stacking,
overlapping, or nesting items will prevent the TURBOZONETM
spray jets from reaching all of the surfaces.

• Turn the TURBOZONETM wash option off if not loading items
for this option.

Side view of TURBOZONE TM wash area

1. Carefully open the door slightly to stop the cycle. Wait for the
spraying action to stop before opening the door. The Start/
Resume light will flash.

2. Open the door. Ifthe detergent dispenser cover is still closed,
add the item.

3. Close the door firmly until it latches.

4. Press START/RESUME.

IMPORTANT: If Lock On is selected, turn off the lock (see Lock
On section in "Option Selections"), or the Start/Resume light will

continue to flash.

You can customize your cycles by pressing an option. If you
change your mind, press the option again to turn the option off,
or select a different option if desired.

You can change an option anytime before the selected option
begins. For example, you can press an unheated drying option
anytime before drying begins.

Press START/RESUME to use the same cycle and option(s) as
the previous wash cycle.

NOTE: If the last cycle you completed was a rinse cycle, when
you press START/RESUME, the dishwasher runs the last full
wash cycle and options.

Hi Temp Wash

Select this option to increase the water temperature during the
wash portions of the cycle. Hi Temp Wash raises the water
temperature to 145°F (63°C), in the main wash. Heating the water
helps improve washing results. Hi Temp Wash is useful when
loads contain tough food soil.

This option may add heat and wash time to the cycle.
NOTE: Hi Temp Wash is an option with the SMART WASH TM,

Pots Pans, and Normal Wash cycles.

Sani Rinse

Select this option to raise the water temperature in the final rinse
to approximately 155°F (68°C). Sani Rinse adds heat and time to
the cycle. This high temperature rinse sanitizes your dishes and
glassware in accordance with NSF/ANSI Standard 184 for

Residential Dishwashers. Certified residential dishwashers are
not intended for licensed food establishments.

NOTE: Sani Rinse is an option with SMART WASH TM, Pots Pans,
and Normal Wash cycles. Only these sanitization cycles have
been designed to meet the NSF/ANSI requirements.

Heated Dry

The Heated Dry option in combination with rinse aid will give you
excellent drying results. The energy to use Heated Dry costs
pennies per cycle. Heated Dry is on when the light is lit on the
Heated Dry button. Be sure to load plastic items in the upper rack
to avoid damage.

You may turn off the Heated Dry option by pressing HEATED DRY
so that the light goes off. However, you will have items in your
dish load that will not be dry at the end of the cycle.

NOTE: The Heated Dry option is used in all cycles except Quick
Rinse.

15

Lock On

Sanitized

Use the Lock On to prevent unintended use of the dishwasher
between cycles. You can also use the lock feature to prevent

unintended cycle or option changes during a cycle.
When LOCK ON is lit, all buttons are disabled.
NOTE: The dishwasher door can be opened while the controls

are locked. However, the lock must be turned off and the Start/
Resume button pressed to resume the cycle.

To turn on the Lock

Press and hold HEATED DRY for 4 seconds. LOCK ON glows.
If you press any pad while your dishwasher is locked, the light

flashes 3 times.

To turn off the Lock

Press and hold HEATED DRY for 4 seconds. The light turns off.

Delay Hours

Select this option to run your dishwasher at a later time or during
off-peak hours. You can add items to the load anytime during the

delay. After adding items, firmly close the door until it latches and
press START/RESUME, or the delay will not continue.

To delay the start

1. Press the delay button to choose the number of hours
delayed.

2. Select a wash cycle and options.

3. Press START/RESUME.

The dishwasher starts the cycle in the selected number of hours.

NOTES:

• To cancel the delay and cycle, press CANCEL/DRAIN.

• To cancel the delay and start the cycle, press START/
RESUME.

Follow the progress of your dishwasher with the Cycle Status
indicators.

(@)------(@)------(@)------(@)-----_@)

WASHING £SNS_N6 D_Y_NG SANmZED CLEAN

NOTE: The features on your dishwasher may vary from those

shown here.

Sensing

If you select the Sani Rinse option, Sanitized glows when the
Sani Rinse cycle is finished. If your dishwasher did not properly

sanitize your dishes, the light flashes at the end of the cycle. This
can happen if the cycle is interrupted or the incoming water

temperature is too low. The light turns off when you press any

button or close the door.

Clean

Clean glows when a cycle is finished. The light turns off when you
press any button or close the door.

The active vent reduces the sounds from your dishwasher. The

vent closes, after the cycle starts, to lock in sound. The Active

Vent opens when wash action ends and vapor is vented into

room. Between cycles, the vent stays open for airflow, reducing

the buildup of odors.

NOTE: There is a slight noise when the cover closes or opens.

This is normal.

IMPORTANT: The vapor is hot. Do not touch the vent
during drying.

! ......... .... : i .........

The overfill protection float (in the front right corner of the

dishwasher tub) keeps the dishwasher from overfilling. It must be
in place for the dishwasher to operate.

Check under the float for objects that may keep the protector

from moving up or down.

Your dishwasher senses the soil level on the dishes. Soil level
determines the length of some cycles, the amount of heat added

to the wash or rinse, and the cycle needed for the load. SENSING

glows during the soil sensing parts of the cycle. Wash action
continues while sensing occurs.

16

WASHING SPECIAL ITEMS

If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe.

Material Dishwasher Safe?/Comments Material Dishwasher Safe?/Comments

Aluminum Yes Pewter, Brass, No

High water temperature and detergents Bronze High water temperatures and detergent
can affect finish of anodized aluminum, can discolor or pit the finish.

Disposable No
Aluminum

Bottles and Cans No

Cast Iron No

China/ Yes
Stoneware Always check manufacturer's

Crystal

Gold No

Glass Yes

Hollow-Handle No
Knives Handles of some knives are attached to

Do not wash throwaway aluminum pans
in the dishwasher. These might shift
during washing and transfer black marks

to dishes and other items.

Wash bottles and cans by hand. Labels
attached with glue can loosen and clog
the spray arms or pump and reduce
washing performance.

Seasoning will be removed, and iron will
rust.

recommendations before washing.
Antique, hand-painted, or over-the-glaze
patterns may fade. Gold leaf can discolor

or fade.

Yes

Always check manufacturer's
recommendations before washing. Some
types of leaded crystal can etch with
repeated washing.

Gold-colored flatware will discolor.

Milk glass yellows with repeated
dishwasher washing.

the blade with adhesives which can
loosen if washed in the dishwasher.

Disposable No
Plastics Cannot withstand high water

temperatures and detergents.

Plastics Yes

Always check manufacturer's
recommendations before washing.
Plastic items may vary in their ability to
withstand high temperatures and
detergents. It is recommended that light

items such as lids and butter dishes be
placed in the upper rack only. Sturdy

items such as coolers and high-chair
trays may be placed in the lower rack.
When washing plastic items in the lower
rack, it is recommended that an air dry

be used.

Stainless Steel Yes

Run a rinse cycle if not washing
immediately. Prolonged contact with
food containing salt, vinegar, milk
products, or fruit juice can damage

finish.

Sterling Silver or
Silver Plate

Tin No

Wooden Ware No

Yes

Run a rinse cycle if not washing
immediately. Prolonged contact with
food containing salt, acid, or sulfide
(eggs, mayonnaise, and seafood) can
damage finish.

Can rust.

Wash by hand. Always check
manufacturer's instructions before

washing. Untreated wood can warp,
crack, or lose its finish.

17

DISHWASHER CARE

Cleaning the exterior

In most cases, regular use of a soft, damp cloth or sponge and a
mild detergent is all that is necessary to keep the outside of your
dishwasher looking nice and clean. If your dishwasher has a

stainless steel exterior, a stainless steel cleaner is recommended.

Check the drain air gap anytime your dishwasher isn't draining
well.

Some state or local plumbing codes require the addition of a
drain air gap between a built-in dishwasher and the home drain
system. If a house drain is clogged, the drain air gap protects

your dishwasher from water backing up into it.

Cleaning the interior

Hard water minerals can cause a white film to build up on the
inside surfaces, especially just beneath the door area.

Do not clean the dishwasher interior until it has cooled. Wear
rubber gloves. Do not use any type of cleanser other than

dishwasher detergent because it may cause foaming or sudsing.
To clean interior

Make a paste with powdered dishwasher detergent on a damp
sponge and clean.

OR
Use liquid automatic dishwasher detergent and clean with a

damp sponge.
OR

See the vinegar rinse procedure in "Spotting and filming on
dishes" in "Troubleshooting."

NOTE: Run a normal cycle with detergent after cleaning the
interior.

The drain air gap is usually located on top of the sink or

countertop near the dishwasher. To order a drain air gap, please
call 1-800-4-M¥-I-IOME _. Ask for Part Number 300096.

NOTE: The drain air gap is an external plumbing device that is
not part of your dishwasher. The warranty provided with your

dishwasher does not cover service costs directly associated with

the cleaning or repair of the external drain air gap.

To clean the drain air gap

Clean the drain air gap periodically to ensure proper drainage of

your dishwasher. Follow the cleaning instructions provided by the

manufacturer. With most types, you lift off the chrome cover.
Unscrew the plastic cap. Then check for any soil buildup. Clean
if necessary.

Storing for the summer

Protect your dishwasher during the summer months by turning
off the water supply and power supply to the dishwasher.

Winterizing your dishwasher

Protect your dishwasher and home against water damage due to

freezing water lines. If your dishwasher is left in a seasonal

dwelling or could be exposed to near freezing temperatures, have

your dishwasher winterized by authorized service personnel.

18

TROUBLESHOOTING

First try the solutions suggested here and possibly avoid the cost

Dishwasher is not operating properly

• Dishwasher does not run or stops during a cycle
Is the door closed tightly and latched?
Is the right cycle selected? Refer to the "Cycle Selection

Charts."
Is there power to the dishwasher? Has a household fuse

blown, or has a circuit breaker tripped?
Has the motor stopped due to an overload? The motor

automatically resets itself within a few minutes. If it does not
restart, call for service.

Is the water shutoff valve (if installed) turned on?
It is normal for certain cycles to repeatedly pause for several

seconds during the wash cycle.

• START/RESUME light is flashing
Was the door opened during the cycle, or was the power

interrupted? The Start/Resume light will flash when the door
is opened during a cycle, or may flash if the power is
interrupted. Press START/RESUME to resume the cycle.
Make sure the door is fully closed and latched.

NOTE: On top control models, if the door is not closed within
3 seconds of pressing Start/Resume, press START/RESUME
again.

• Clean light is flashing
The dishwasher has malfunctioned. Call for service to check

heater circuit.

• Dishwasher will not fill
Is the overfill protection float able to move up and down

freely? Press down to release.

• Dishwasher seems to run too long
Is the water supplied to the dishwasher hot enough? The

dishwasher runs longer while heating water. Refer to the
"Dishwasher Efficiency Tips" section.

A delay automatically occurs in some wash and rinse cycles
until the water reaches the proper temperature.

• Water remains in the dishwasher
Is the cycle complete?

• Detergent remains in the covered section of the

dispenser
Is the cycle complete?

Is the detergent lump-free? Replace detergent if necessary.
Is the bottom rack installed properly with the bumpers (on

some models) in the front? Refer to the "Parts and Features"
section. Reinstall the rack if necessary.

• White residue on the front of the access panel
Was too much detergent used? Refer to the "Detergent

Dispenser" section.
Is the brand of detergent making excess foam? Try a different

brand to reduce foaming and eliminate buildup.

• Bottom rack does not fully slide into the dishwasher

• Food soil left on the dishes

of a service call...

Odor in the dishwasher

Are dishes washed only every 2 or 3 days? Run a rinse cycle
once or twice a day until you have a full load.

Does the dishwasher have a new plastic smell? Run a vinegar
rinse as described in the section "Spotting and filming on

dishes."

Condensation on the kitchen counter (built-in models)

Is the dishwasher aligned with the countertop? Moisture from
the vent in the dishwasher console can form on the counter.

Refer to the Installation Instructions for more information.

Check to see if items loaded for TURBOZONETM wash option
have shifted. Reload to keep items from interfering with spray
jets or spray arm. (See "Loading Bottom Rack.")

Dishes are not completely clean

Is the dishwasher loaded correctly? Refer to the "Dishwasher
Loading" section.

Is the water temperature too low? For best dishwashing
results, water should be 120°F (49°C) as it enters the
dishwasher. Refer to the "Dishwasher Efficiency
Tips" section.

Did you use the correct amount of fresh detergent? Use
recommended dishwasher detergents only. Refer to the
"Detergent Dispenser" section. Detergent must be fresh to be
effective. Store detergent in a cool, dry area. Heavy soil and/
or hard water generally require extra detergent.

Do you have hard water? You may need to increase the
amount of detergent you are using. Refer to the "Detergent
Dispenser" section. Also, you may need to switch to a
detergent with a phosphorus content of 8.7%.

Is detergent caked in dispenser? Use fresh detergent only. Do
not allow detergent to sit for several hours in a wet dispenser.
Clean dispenser when caked detergent is present.

Is the pump or spray arm clogged by labels from bottles and
cans?

Is the home water pressure high enough for proper
dishwasher filling? Home water pressure should be 20 to
120 psi (138 to 828 kPa) for proper dishwasher fill. A booster
pump on the water supply can be added if pressure is

too low.
Are high suds slowing the wash arm? Do not use soap or

laundry detergents. Use recommended dishwasher
detergents only.

19

• Dishes in the TURBOZONETM wash area are not clean
Are the dishes loaded to face the TURBOZONETM spray jets?

Load soiled dish surfaces to face the back of the dishwasher
toward the TURBOZONETM spray jets. Tilt the dishes toward

the back so water can drain from surfaces, and the lower
spray arm can wash the item from below.

NOTE: Loaded items may shift when dishracks are pushed
into the dishwasher. Make sure dishes do not interfere with

the spray arms or water feed tubes.
Are items loaded so they do not overlap? Load items only

one row deep without any overlap so that the TURBOZONETM
spray jets can reach all surfaces.

Spots and stains on dishes

• Spotting and filming on dishes
Is your water hard or is there a high mineral content in your

water? Conditioning the final rinse water with a liquid rinse
aid helps eliminate spotting and filming. Keep the rinse aid
dispenser filled.

Is the water temperature too low? For best dishwashing
results, water should be 120°F (49°C) as it enters the
dishwasher. Refer to the "Dishwasher Efficiency
Tips" section.

Did you use the correct amount of effective detergent? Use
recommended dishwasher detergents only. Refer to the
"Detergent Dispenser" section. Detergent must be fresh to be

effective. Store detergent in a cool, dry area. Heavy soil and/
or hard water generally require extra detergent.

Is the home water pressure high enough for proper
dishwasher filling? Home water pressure should be 20 to
120 psi (138 to 828 kPa) for proper dishwasher fill. A booster
pump on the water supply can be added if pressure is too

low.
NOTE: To remove spots and film from dishes, try a white

vinegar rinse. This procedure is intended for occasional use
only. Vinegar is an acid, and using it too often could damage
your dishwasher.

1. Wash and rinse dishes. Use an air-dry or an energy saving

dry option. Remove all silverware or metal items.

2. Put 2 cups (500 mL) white vinegar in a glass or

dishwasher-safe measuring cup on the bottom rack.

3. Run the dishwasher through a complete washing cycle

using an air-dry option. Do not use detergent. Vinegar will
mix with the wash water.

Silica film or etching (silica film is a milky, rainbow-
colored deposit; etching is a cloudy film)

Sometimes there is a water/chemical reaction with certain
types of glassware. This is usually caused by some

combination of soft or softened water, alkaline washing
solutions, insufficient rinsing, overloading the dishwasher,

and the heat of drying. It might not be possible to prevent the
problem, except by hand washing.

Toslow this process use a minimum amount of detergent per
load. Refer to the "Detergent Dispenser" section. Use a liquid
rinse aid and underload the dishwasher to allow thorough
rinsing. Silica film and etching are permanent and cannot be
removed. Do not use heated drying.

• White spots on cookware with nonstick finish
Has the dishwasher detergent removed cookware

seasoning? Reseason cookware after washing in the
dishwasher.

• Brown stains on dishes and dishwasher interior
Does your water have high iron content? Rewash dishes

using 1-3 tsp (5-15 mL) of citric acid crystals added to the
covered section of the detergent dispenser. Do not use
detergent. Follow with a Normal wash cycle with detergent. If
treatment is needed more often than every other month, the

installation of an iron removal unit is recommended.

• Black or gray marks on dishes
Are aluminum items rubbing dishes during washing?

Disposable aluminum items can break down in the
dishwasher and cause marking. Hand wash these items.
Remove aluminum markings by using a mild abrasive cleaner.

• Orange stains on plastic dishes or dishwasher interior
Are large amounts of tomato-based foods on dishes placed

in the dishwasher? Stains gradually fade over time. Regular
use of heated drying will slow fading. Stains will not affect
dishwasher performance. Regular use of a rinse cycle and an
air-dry or energy-saving dry option will reduce the likelihood
of staining.

Dishes do not dry completely

• Dishes are not dry
Did you load your dishwasher to allow proper water

drainage? Do not overload. Refer to the "Dishwasher
Loading" section. Use a liquid rinse aid to speed drying.

Are the plastics wet? Plastics often need towel drying.
Is the rinse aid dispenser empty? Refer to the "Rinse Aid

Dispenser" section.
Did you use an air-dry option? Use a heated drying option for

dryer dishes.

Dishes are damaged during a cycle

• Chipping of dishes
Did you load the dishwasher properly? Load the dishes and

glasses so they are stable and do not strike together from
washing action. Minimize chipping by moving the rack in and

out slowly.
NOTE: Antiques, feather-edged crystal, and similar types of

china and glassware might be too delicate for automatic
dishwashing. Wash by hand.

Noises

• Grinding, grating, crunching or buzzing sounds
A hard object has entered the wash module (on some

models). When the object is ground up, the sound should
stop. If the noise persists after a complete cycle, call for

service.

Dishwasher exterior is dirty or marked

• Marks, smudges or residue on dishwasher exterior
Did you clean the dishwasher with a mild detergent and cloth

or use a stainless steel cleaner on models with a stainless
steel exterior? In most cases, regular use of a soft, damp

cloth or sponge and a mild detergent is all that is necessary
to keep the outside of your dishwasher looking fresh and
clean. If your dishwasher has a stainless steel exterior, a

stainless steel cleaner is recommended.

20
