Kenmore 22-90830, 22-90831 User Manual
22-90831/0
22-90831.PDF
Because of our continuous program of product improvement, Sears
reserves the right to change materials and specifications without
notice. Consult installation instructions packed with the product for
final dimensional data. For complete warranty information, contact
your local Sears Contract Sales Account Manager.
Effective 08/07/06
16406
Selection
White w/Black 22-90831
Bisque w/Black 22-90830
Oven Features
Oven Capacity (cu. ft.) 4.6
Cleaning System Manual-Clean
Electronic Dial/Oven Controls Easy Set™105
Automatic Oven Shutoff •
Broiling System Variable
Hi/Normal/Lo
Total Adjustable Oven Racks 2
Broiler Pan and Grill Mail-In Offer
Oven Light •
Removable Glass Door •
Frameless Door •
Window •
Deluxe Reach-Through Handle •
Oven Interior WxHxD (Inches) 23 x 18 13/
16
x 19 3/
16
Cooktop Features
Element Type Deluxe Coil
8-in. (Watts) 2@2,600
6-in. (Watts) 2@1,500
Dishwasher-Safe Knobs •
Removable Knobs •
Removable Drip Pans Chrome
Upswept Cooktop •
Lift-Up Cooktop •
Cooktop On Indicator Light •
General Features
Drawer Storage
Power Rating (kW) @ 240V/208V 11.5/8.5
Bake/Broil @ 240V Watts) 2,600/3,000
Bake/Broil @ 208V Watts) 1,950/2,250
Breaker/Copper Wire Size (240V) 40/8
Shipping Weight (Approx. Lbs.) 150
Warranty
1-Year Limited Warranty –
Entire Appliance Parts & Labor
If used for other than private family purposes, warranty applies for only
90 days.

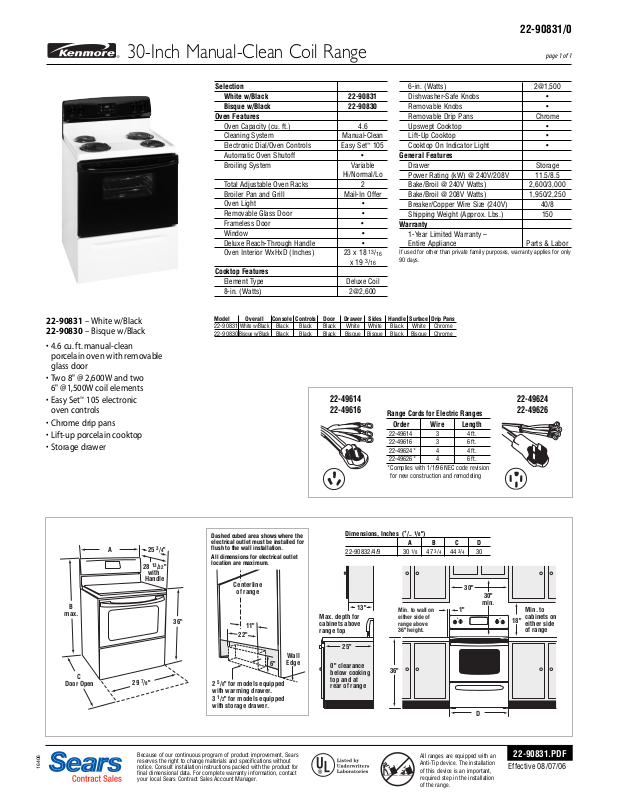

30-Inch Manual-Clean Coil Range
page 1 of 1
All ranges are equipped with an
Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
22-90831 – White w/Black
22-90830 – Bisque w/Black
• 4.6 cu. ft. manual-clean
porcelain oven with removable
glass door
• Two 8" @ 2,600W and two
6" @1,500W coil elements
• Easy Set
™
105 electronic
oven controls
• Chrome drip pans
• Lift-up porcelain cooktop
• Storage drawer
Range Cords for Electric Ranges
Order Wire Length
22-49614 3 4 ft.
22-49616 3 6 ft.
22-49624* 4 4 ft.
22-49626* 4 6 ft.
*Complies with 1/1/96 NEC code revision
for new construction and remodeling
22-49624
22-49626
22-49614
22-49616
Dimensions, Inches (+/
–
1
/8")
ABCD
22-90832/4/9 301/8473/4443/430
44 3/4"
Door Open
C
Door Open
29 7/8"
36"
47
3
/4"
max.Bmax.
30 1/8"A
25 3/4"
28 13/32"
with
Handle
30"
30"D
13"
18"
Min. to
cabinets on
either side
of range
36"
1"
Min. to wall on
either side of
range above
36" height.
30"
min.
0" clearance
below cooking
top and at
rear of range
Max. depth for
cabinets above
range top
25"
Dashed cubed area shows where the
electrical outlet must be installed for
flush to the wall installation.
All dimensions for electrical outlet
location are maximum.
Model Overall Console Controls Door Drawer Sides Handle Surface Drip Pans
22-90831
White w/Black
Black Black Black White White Black White Chrome
22-90830
Bisque w/Black
Black Black Black Bisque Bisque Black Bisque Chrome
Centerline
of range
22"
2 5/8" for models equipped
with warming drawer.
3 1/2" for models equipped
with storage drawer.
11"
Wall
Edge
6"
