Kenmore 116.35623 User Manual [en, es]
Owner’s Manual
Manual Del Propietario
Kenmore
Vacuum Cieaner
Aspiradora
Model, Modelo 116.35622
116.35623
CAUTION:
Read and follow all
safety and operating
instructions before first
use of this product.
CUIDADO:
Lea y sigue todas las
instrucciones de operación
y seguridad antes del uso de
este producto.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com
Part No. C01ZCKA00U00-KC01ZCKAZ0U0
Printed in Mexico
Impreso en Mexico
Before Using Your New
Vacuum Cleaner ........................................2
Kenmore Vacuum Cleaner Warranty ... 2
Important Safety Instructions
Parts and Features
Assembly Instructions
Operating Instructions
Cord Release
Pile Height Selection and Setting
Carpet/Bare Floor Selector
Releasing the Handle
Touch Control ....................................... 8
Attachments.......................................8-10
Attachment Use Chart...........................10
Vacuuming Tips
Please read this guide. It will help you assemble and operate your new Kenmore vacuum
cleaner In the safest and most effective way.
For more information about vacuum cleaner care and operation, call your nearest Sears store.
You will need the complete model and serial numbers when requesting information. Your vacu
um cleaner’s model and serial numbers are located on the Model and Serial Number Plate.
....................................
..............................
..........................................
........
............................11
...................
..........................
...........
....................
.............................
3
4
5-6
6
6
7
7
8
Performance Features
Vacuum Cleaner Care..............................13
Vacuum Cleaner Storage
Cleaning Exterior and Attachments
Dust Bag Replacement
Filter Replacement................................15
Belt Changing and Agitator
Cleaning........................................... I6-I8
Clog Removal
Light Bulb Replacement
Agitator Servicing
Troubleshooting.......................................22
Requesting Assistance
Or Service
......................................
.....................................
....................
.....................
.......................
.......................
.................................
11-12
.....
Back Page
13
13
14
19
20
21
Use the space below to record the model number and serial number of your new Kenmore
vacuum cleaner.
Model No,.
Serial No.
Date of Purchase
Keep this book and your sales check (receipt) in a safe place for future reference.
lKENMORE vacuum cleaner warranty
LIMITED ONE YEAR WARRANTY ON KENMORE VACUUM CLEANER
This warranty is for one year from the date of purchase, and includes only private household
vacuum cleaner use. During the warranty year, when this vacuum cleaner is operated and
maintained according to the owner’s manual instructions, Sears will repair any defects in
material or workmanship free of charge.
This warranty excludes vacuum cleaner bags, belts, light bulbs, and filters, which are
expendable parts and become worn during normal use.
For warranty service, return this vacuum cleaner to the nearest Sears Service Center in
the United States.
This warranty applies only while this product is in use in the United States. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179
IMPORTANT SAFETY INSTRUCTIONS
Your safety Is Important to us. To reduce the risk
A
WARNING:
of fire, electrical shock, injury to persons or
damage when using your vacuum cleaner, follow
basic safety precautions including the following:
Read all instructions in this manual before
assembling or using your vacuum cleaner.
Use your vacuum cleaner only as
described in this manual. Use only with
Sears recommended attachments.
Disconnect electricai supply before per
forming maintenance to the brush area.
Failure to do so could result in electrical
shock or injury from moving parts.
Do not leave vacuum cleaner when
plugged in. Unplug from outlet when not in
use and before performing maintenance.
To reduce the risk of electrical shock - Do
not use outdoors or on wet surfaces.
Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
Do not use with a damaged cord or plug.
If vacuum cleaner is not working as it
should, has been dropped, damaged, left
outdoors, or dropped in water, return it to a
Sears Service Center.
Do not pull or carry by cord, use cord as
a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run
vacuum cleaner over cord. Keep cord
away from heated surfaces.
Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
Do not handle plug or vacuum cleaner with
wet hands.
Do not put any objects into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair, and anything
that may reduce air flow.
Keep hair, loose clothing, fingers, and ail
parts of body away from openings and
moving parts.
Turn off ail controls before unplugging.
Do not rest vacuum cleaner on steps.
Do not put on chairs, tables, etc. Keep
on floor.
Do not use vacuum cleaner to pick up
flammable or combustible liquids (gaso
line, cleaning fluid, perfumes, etc.), or
use in areas where they may be present.
The fumes from these substances can cre
ate a fire hazard or explosion.
Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
Do not use vacuum cleaner without dust
bag and/or filters in place.
Always change the dust bag after vacu
uming carpet cleaners or freshener, pow
ders, and fine dust. These products clog
the bag, reduce airflow and can cause the
bag to burst. Failure to change the bag
promptly could cause permanent damage
to the cleaner.
Do not use the vacuum cleaner to pick up
sharp hard objects, small toys, pins, paper
clips, etc. They may damage the cleaner or
dustbag.
Always turn off and unplug the vacuum
cleaner before connecting or disconnect
ing either hose, Handi-mate Jr.
You are responsible for making sure that
your vacuum cleaner is not used by any
one unable to operate it properly.
Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your
SAVE THESE INSTRUCTIONS
cleaner is intended for Household use. Read this Owner's Manual carefully for important
use and safety information. This guide contains safety statements under warning and
caution symbols.

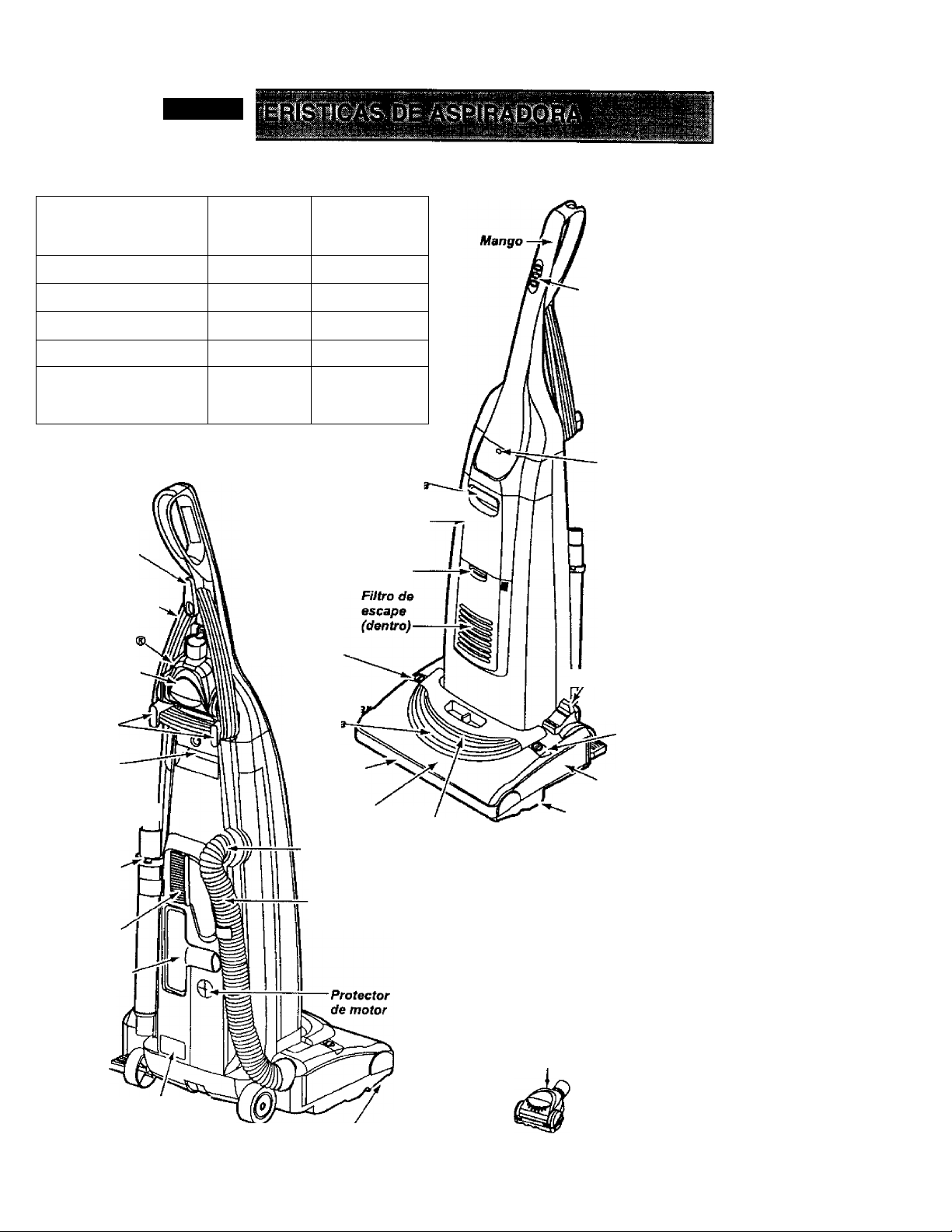

It is important to know your vacuum cleaner’s parts and features to assure its proper and safe use. Review these before using your vacuum cleaner.
Item
Dust Bag
Headlight Bulb
Belt
Exhaust Filter
Motor Safety Filter
Quick Release
Upper Cord Hook
Power Cord—*
Handi-Mate Jr.®
Caddy
Handl-Mate Jr.®
Lower
Cord Hooks
Crevice
Tool
Telescoping
Wand
Part No.
In U.S.
20-50690
20-5240
20-5275
20-86889
20-86884
Part No.
In Canada
20-50690C
20-40600
20-40096
20-86889C
20-86884C
Bag Cover-
Exhaust
Filter Cover
Release
Exhaust Filter
(Inside)
Nozzle
Cover
Latch
Height
Adjustment
Lever
Furniture
Guard
Nozzle
Cover
II Ready-to~Use
Swivel Hose
Bag Cover
Release
Headlight
Handle-
Touch
Control
Dirt
Sensor
Carpet/Bare
Floor Selector
Belt
(Underneath)
Dusting
Brush
Combination
Brush
Handle
Release
Pedal —
Model/Serial
Numbers
Stretch Hose
Agitator
(Underneath)
EXTENSION HOSE KITS
Extension Hose
Ed
Handi-Mate Jr. <
D
Please pay special attention to these hazard alert boxes, and follow any instructions
given. WARNING statements alert you to such dangers as fire, electnc shock, burns
A
A
Before assembling your vacuum cleaner, be
sure you have all the parts as shown in
PARTS AND FEATURES.
and personal injury. CAUTION statements aiert you to such dangerous personal
injury and/or property damage.
WARNING
Electrical Shock Hazard
Do not plug into the electrical sup
ply until the assembly is complete.
Failure to do so could result In elec
trical shock or injury.
mw

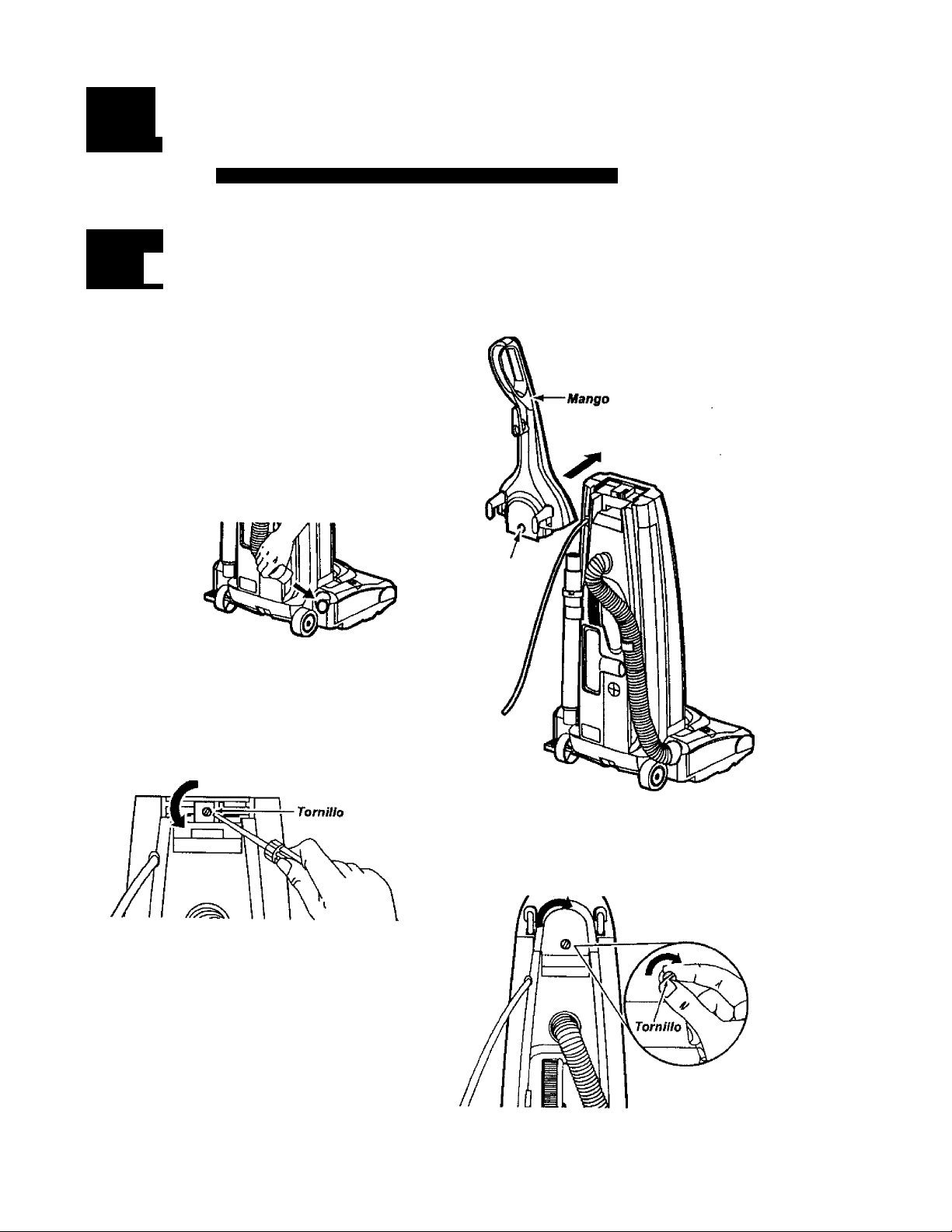

Position the handle as shown in the illustra
tion below.
Slide the handle into the opening at the top
of the vacuum cleaner.
Handle

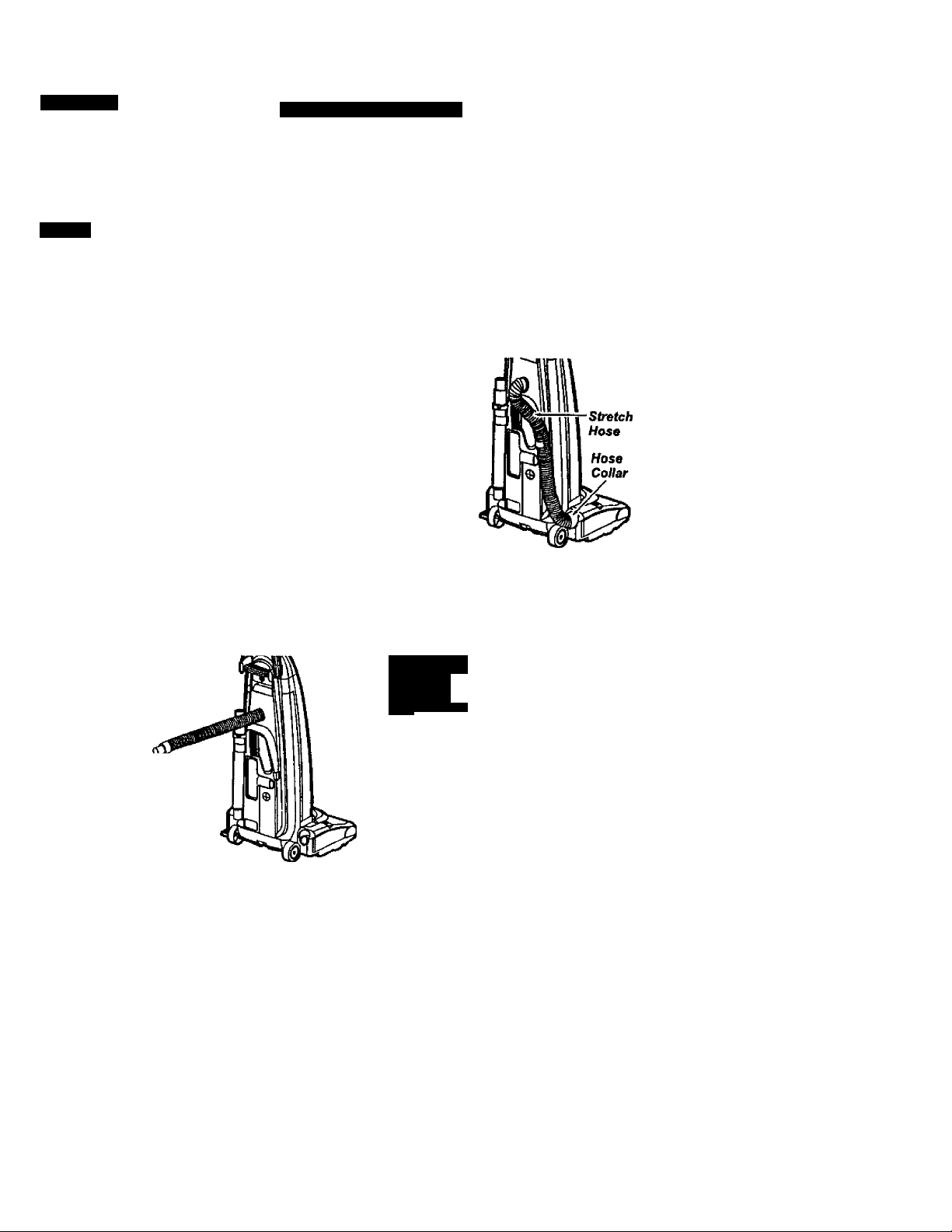

Attach stretch hose
end to nozzle as
shown.
HANDLE ASSEMBLY
Remove the screw located just below the
top edge of the back of the vacuum cleaner.
Handle
Screw
Hole
Insert the screw so it passes through the
handle into the vacuum cleaner.
Begin to tighten the screw with your fingers.
It may be necessary to adjust the handle
slightly. Using a screwdriver, tighten the
screw.
A
CAUTION
Do not overtighten.
Overtightening could strip the
screw holes.
Do not operate the vacuum cleaner
without the screw In place.

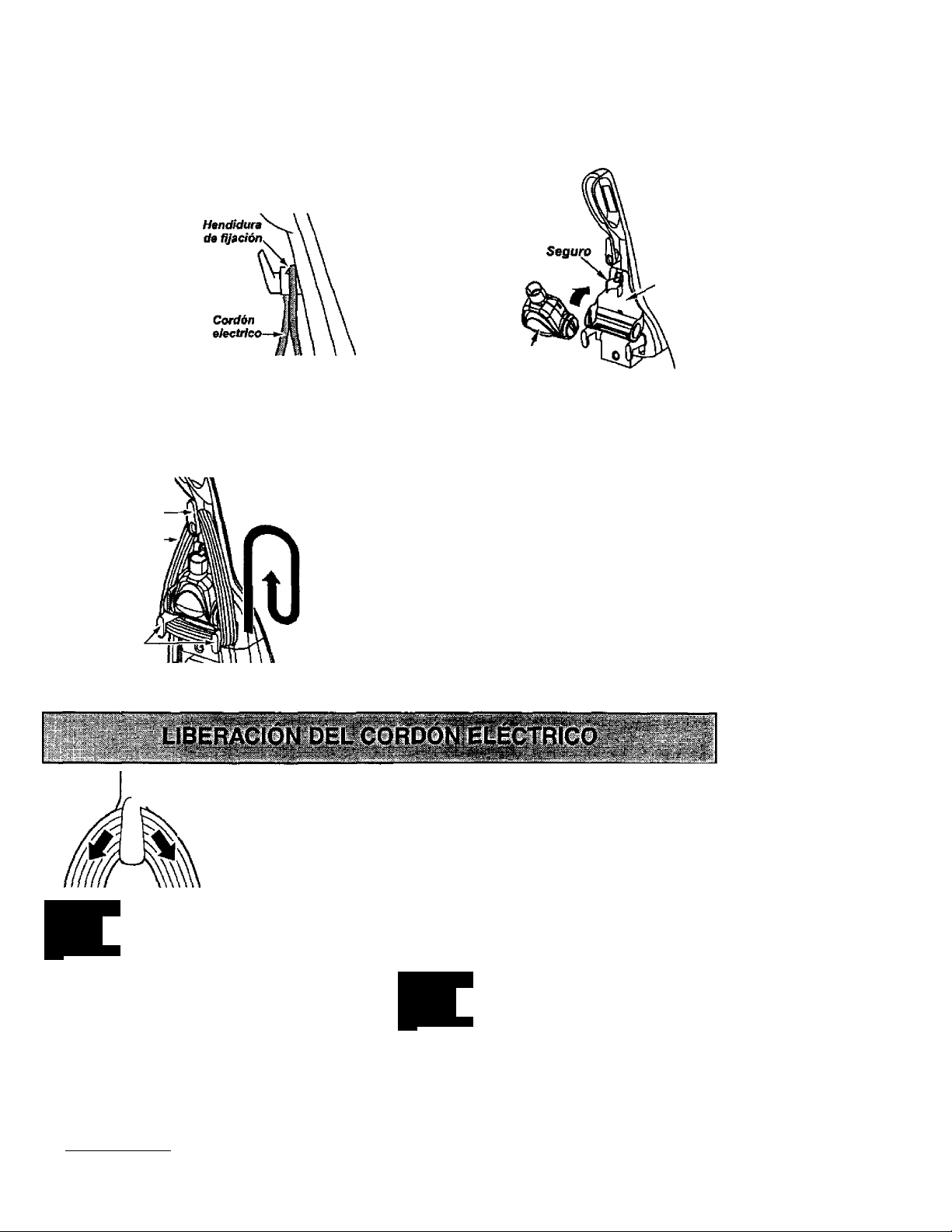

CORD ASSEMBLY
Make sure the quick release upper cord
hook is in the upright position. Remove
the wire tie from the power cord.
Lock the power cord
into the locking notch
base by pressing it
into the quick release
upper cord hook as
shown. This helps
keep the power cord
out from under the
vacuum cleaner agi
tator.
Wrap the power cord around the upper
and lower cord hooks and lock the power
cord plug onto the power cord.
Quick RetBsse
Upper Cord Hook -
Power Cord-*-
Locking
Notch
Power
Cord -
HANDI-MATE JR.®
For operation of Handi-Mate Jr.® see
separate Owners Manual.
Caddy
Handi-Mate Jr.<&
TO INSERT HANDI-MATE JR®
Place the rear of the Handi-Mate Jr.® into
the caddy. Rotate the Handi-Mate Jr.®
back until it snaps into place.
TO REMOVE HANDI-MATE JR.®
Rotate Handi-Mate Jr.® out of the caddy.
Lower
Cord Hooks
OPERATING INSTRUCTIONS
Quick Release
Upper Cord
Hook
A
WARNING
• To reduce the risk of electric shock,
this vacuum cleaner has a polarized
plug (one blade is wider than the
other).
• The plug will fit in a polarized outlet
only one way. If the plug does not fit
fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified
technician to install the proper outlet.
Do not change the plug in any way.
1. Turn the
quick release
upper cord
hook to either
side and down
to release the
power cord.
SAQEi ' • . N
2. Detach the power cord plug from the
power cord and pull the cord off the quick
release upper cord hook. Be sure the power
cord is still locked into the locking notch of
the upper cord hook.
3. Be sure the vacuum cleaner has bag
installed. See DUST BAG REPLACEMENT.
4. Plug the polarized power cord into a 120
Volt outlet located near the floor.
5. To replace cord, turn upper hook counter^gjwjsep^ting up, then wrap cord.
A
WARNING
Personal Injury and Product Damage
Hazard
■ DO NOT place hands or feet under
the unit at any time.
• DO NOT use outlets above coun
ters. Damage from cord to items in
surrounding area could occur.
_________
To select a pile height setting:
Turn off vacuum cleaner. Select a pile height
setting by tilting the vacuum cleaner back
until front wheels are lifted slightly off the
floor.
Slide the adjustment lever to the correct
setting.
There are four (4) pile height settings on the
vacuum cleaner. Use the LOW setting for
most low-pile carpets and bare floor
cleaning (with agitator OFF), and the HIGH
setting for high-pile carpets like shag carpet,
scatter rugs, etc. Use the other settings as
needed for carpet heights in-between low
and high pile.
■E
A
CARPET/BARE FLOOR SELECTOR,^
CAUTION
Do not allow vacuum cleaner to
remain in one spot for any length
of time when the agitator is turn
ing. Damage to carpet may occur.
SOME MODELS
Bare floor setting: Slide the carpet/bare
floor selector all the way back and down
toward the bottom of the nozzle until it
locks into place.
In this position the brush assembly does
not revolve. This setting should be used
for cleaning hardwood and tile floors and
when any attachments (tools) are
used.
Carpet setting; Slide the selector ali the
way forward and up to the carpet
position.
In this position the brush assembly will
turn. When carpets are being cleaned the
selector should be in this position.
Attention: Refer to your carpet manufac
turers cleaning recommendations. Some
more delicate carpets may require that
they be vacuumed with the agitator turned
off, to prevent carpet damage.
A
Note: For longer belt life, turn the vacuum
cleaner off before moving selector, other
wise make sure the selector is pushed
fully and quickly as possible to the
desired position. Failure to do so can
cause the belt to rub on the selector shaft
and may result in the belt becoming hot
and creating a burning rubber smell.

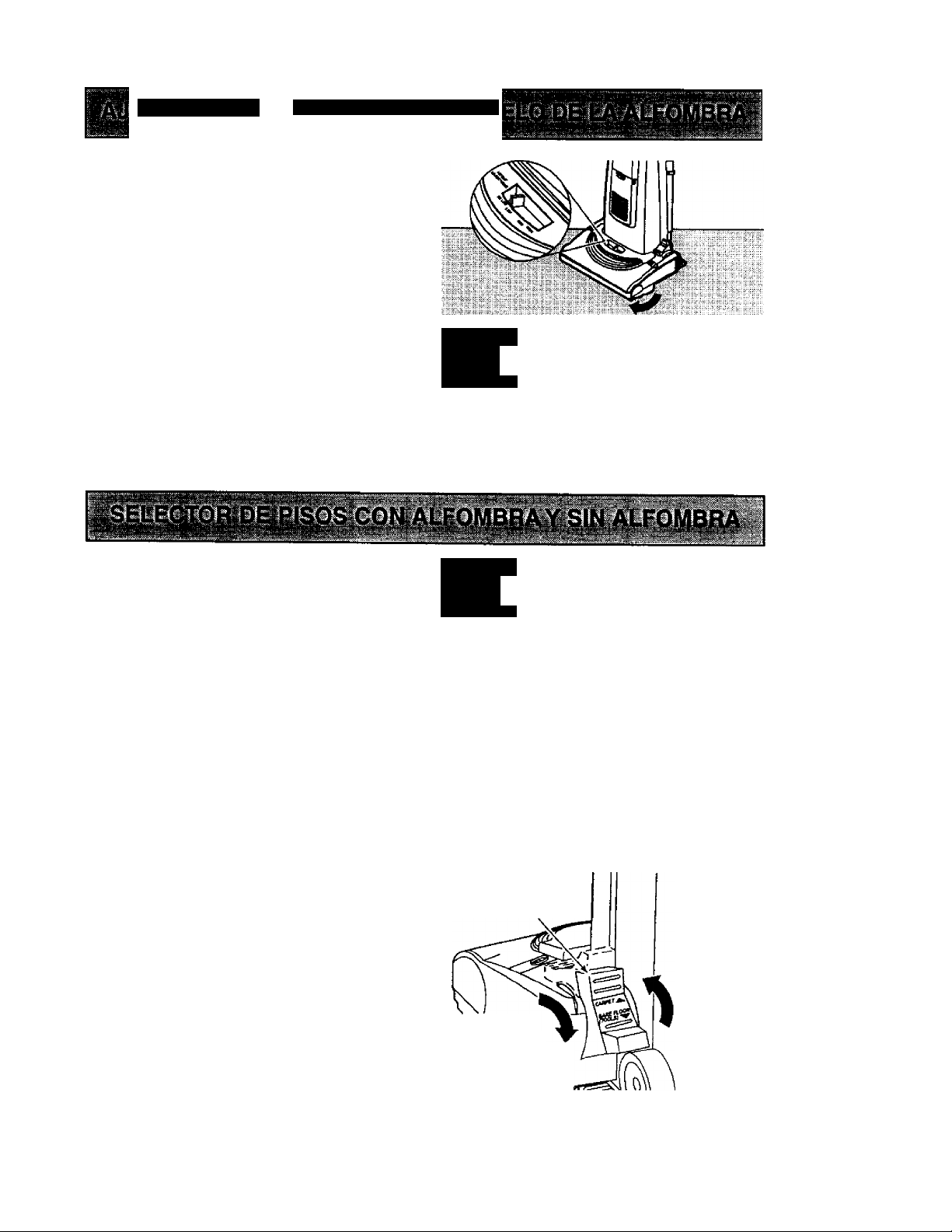

Position
CAUTION
Do not allow vacuum cleaner to
remain in one spot for any length
of time when the agitator is turn
ing. Damage to carpet may occur.
Carpet/Bare
Floor Selector
To Bare Floor
¡ jä ä »■; ! ~ . 1 ■. ( 'S)

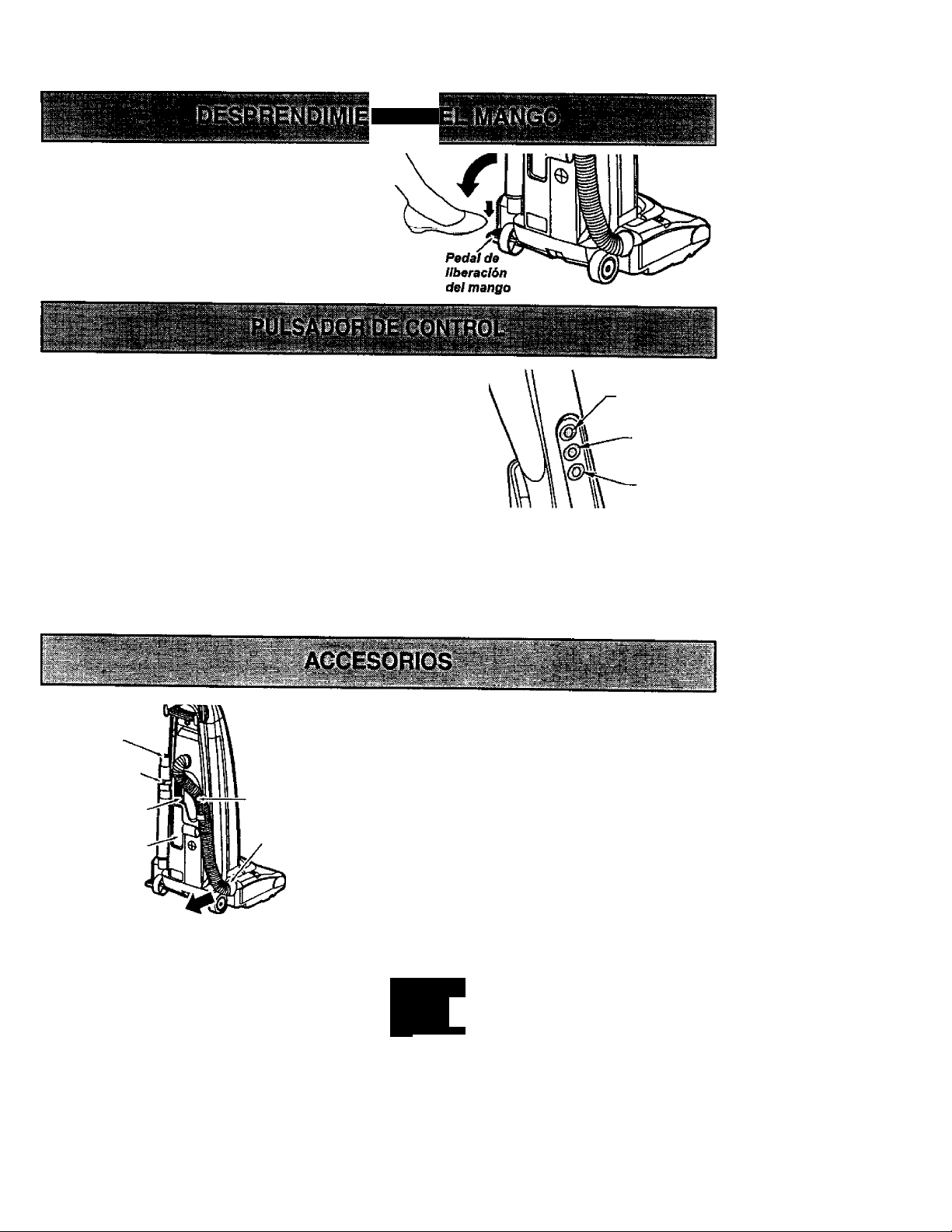

Release the handle by pressing down on
the handle release pedal with your foot
and pulling back and down on the handle
with your hand.
Ham
Ralease Pedal
OFF - Turns OFF the vacuum (suction)
motor.
ON - Turns ON the vacuum motor to HIGH
suction level for cleaning of most carpets
and rugs. In order to get MEDIUM and
LOW suction levels for cleaning, press the
SUCTION button to cycle the vacuum
motor through MEDIUM, LOW, and HIGH
suction levels respectively.
SUCTION - Changes the suction level of
the vacuum cleaner motor, if the unit is
OFF, pressing the SUCTION button turns
ON the vacuum cleaner motor to HIGH
suction level for cleaning of most carpets,
ATTACHMENTS
Crevice
Tool
Telescoping
Wand
Dusting
Brush
Combination
Brush
Identify each of the attachments shown
above.
rugs, and fabrics. If the unit is ON, press
ing the SUCTION button cycles the vacu
um cleaner motor through suction levels.
Remove the lower end of the stretch hose
from the cleaner by grasping the hose
collar, twisting and pulling straight out.
The attachments can now be added to
the hose.
Note: The motor protector may open
when using attachments or when cleaning
new carpet, due to reduced airflow
caused by the attachments themselves or
by new carpet lint filling the bag quickly.
See the
TROUBLESHOOTING section.
TO USE ATTACHMENTS
Place the carpet/bare floor selector in the
bare floor setting by rotating the selector
back and down to the bare floor setting.
See CARPET/BARE FLOOR SELEC
TOR section.
When returning the bare floor selector to
the carpet setting, use caution as the
selector can move quickly to that set
ting due to tension created by the belt.
A
WARNING
Electrical Shock And Personal
Injury Hazard
Disconnect electrical supply before
performing maintenance to the
unit. Failure to do so could result in
electrical shock or personal injury
from vacuum cleaner suddenly
starting.
Remove the
hose from the
hose clip by
pulling straight
out.
To achieve maximum
reach with the attach
ments, add the crevice
tool to the end of suction
the wand by Control
inserting and snde
twisting slightly.

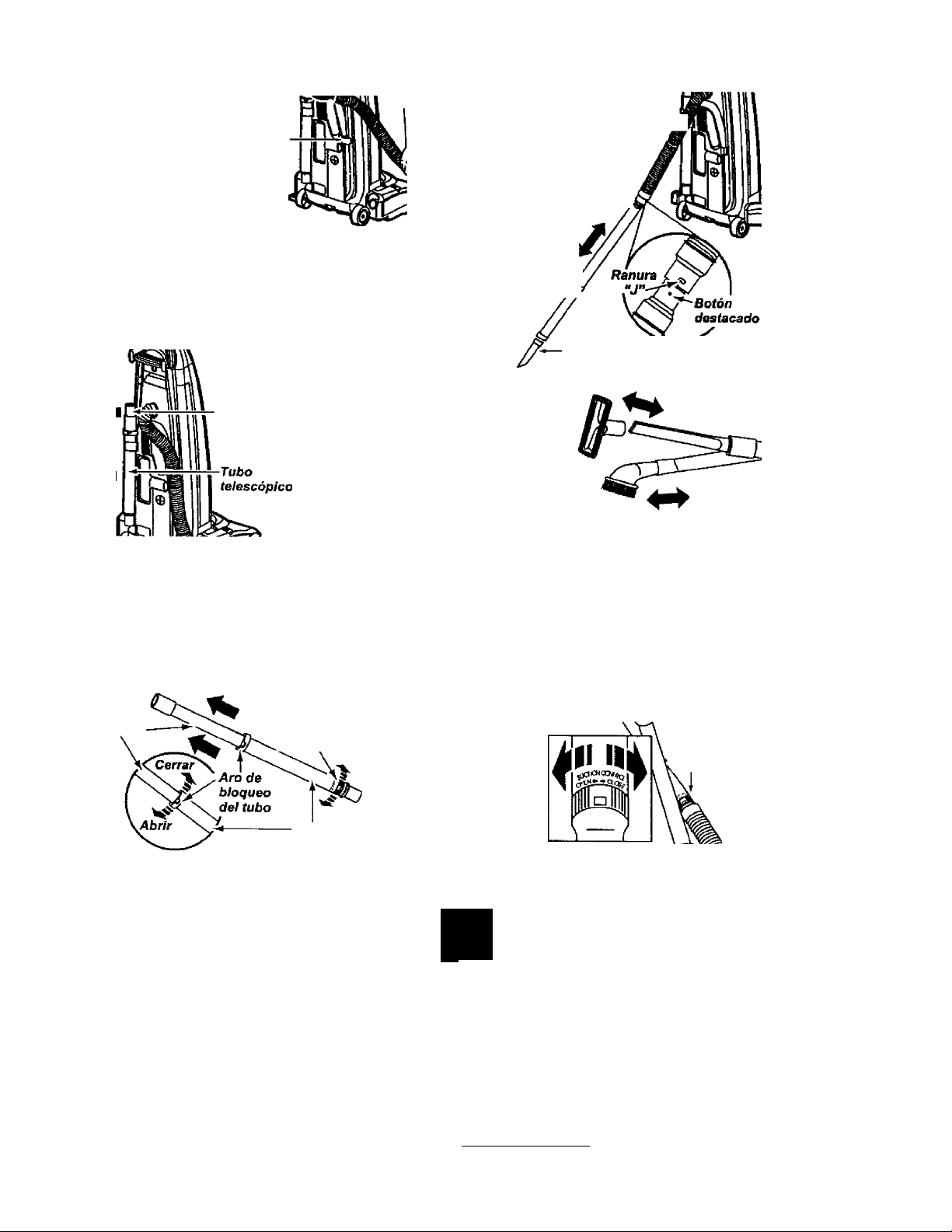

TELESCOPIC WAND WITH
SUCTION CONTROL SLIDE
CreW ce
Tool
Remove the
Telescopic
Wand
Remove the crevice tool from its storage
position in the wand. Turn the locking ring to
the UNLOCK position.
Extend the wand to its full length. Turn the
locking ring to the LOCK position. Attach
the extension wand onto the open end of
the hose.
Lower
Wand
Wand
\ Locking Ring
Align the tabs on the extension wand with
the “J" slots in the hose (as illustrated above
right). Push the wand into the hose and
twist to the right to lock.
telescopic
wand from
its storage
position.
Suction
Control Slide
Upper
Wand
Telescopic
Wand
Crevice
Tool
The dusting
brush or the
combination
brush may be
attached direct
ly to the wand
or placed on
the end of the
crevice tool.
TO OPERATE SUCTION
CONTROL SLIDE
Telescopic Wand
When using
attachments for
cleaning
draperies, small
rugs with low pile
and other
delicate items,
twist the suction
control slide to
the open
position. This slide is located on the
telescopic wand, close to the hose.
This will reduce suction for ease of cleaning.
Note: Return suction control slide to the
closed position for normal cleaning.
Suction
Controi
Slide
A
CAUTION
When using attachments, be careful not
to overextend the stretch hose when
reaching. Trying to reach beyond the
hose stretch capability could cause the
vacuum cleaner to tip over. Make sure the
carpet/bare floor selector is in the bare
floor position. Damage to the floor sur
face may occur if the carpet setting is
used.
TO STORE ATTACHMENTS
Remove dusting brush or combination
brush. Snap into appropriate storage iocation.
Remove crevice tool from the wand by twist
ing, Lay aside.
Remove the extension wand from the hose.
Twist the wand to the left and puil from the
hose end.
EXTENSION HOSE
Some models include an extension hose
which connects to the stretch hose on the
vacuum cleaner for a longer cleaning reach.
Insert the two tabs on the end of the
Unit Ho5»
fCnïïïïfïïniîn
extension hose into the two “J" shaped slots
on the stretch hose and twist to connect.
All attachments and the telescopic wand can
be attached to the open end of the hose.
t
Extension Hose
T'tmwmi'm

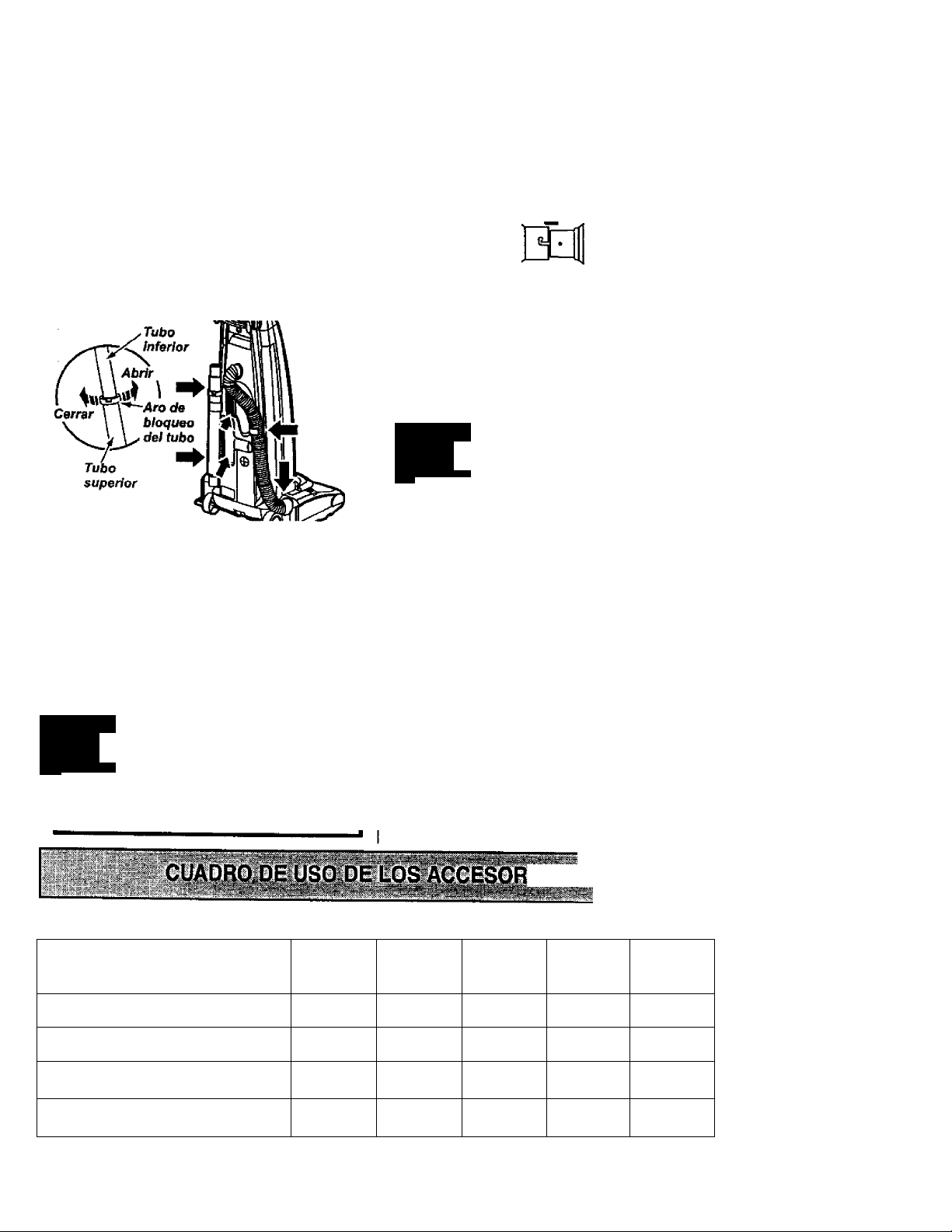

Unlock the wand by turning the wand lock
ing ring to the UNLOCK position.
Slide the tower wand into the upper wand.
Turn the wand locking ring to the LOCK
position.
Place the crevice toot down into the com
pressed wand. Snap into the appropriate
storage location.
Reinsert the hose fully into the opening on
the nozzle body from which it was removed.
Press firmly to assure connection
A
CAUTION
DO NOT pull the vacuum cleaner
around the room by the hose.
Property damage or personal injury
could result.
ATTACHMENT USE .CHART
A
CAUTION
When using the stretch hose or with
the extension hose attached, the
vacuum cleaner should be on a solid
surface on the same level or below
the level of the user's feet DO NOT
use the hoses when the vacuum
cleaner is above the level of the
user’s feet.
ATTACHMENT
DUSTING BRUSH
CREVICE TOOL
COMBINATION BRUSH
Handi-Mate Jr.®
Always clean attachments before using on fabrics.
Furniture*
✓
✓
✓
✓
Between
Cushions*
10
CLEANING AREA
Drapes*
✓
✓
✓
Stairs
✓
✓
✓
✓ = Applicable
Walls
✓
Carpet edges.
Guide either side or the front of the noz
zle along a baseboard. The full length
brushes help remove dirt at carpet edges.
Stairs.
Put handle in full upright position. Slide the
carpet/bare floor selector all the way back
and down toward the bottom of the nozzle
until it locks into place. Use the crevice tool
or fabric brush or Handi-Mate Jr.® when
vacuum cleaner is running. Pressing the
SUCTION button will cycle the vacuum
motor through HIGH, MEDIUM and LOW
suction levels.

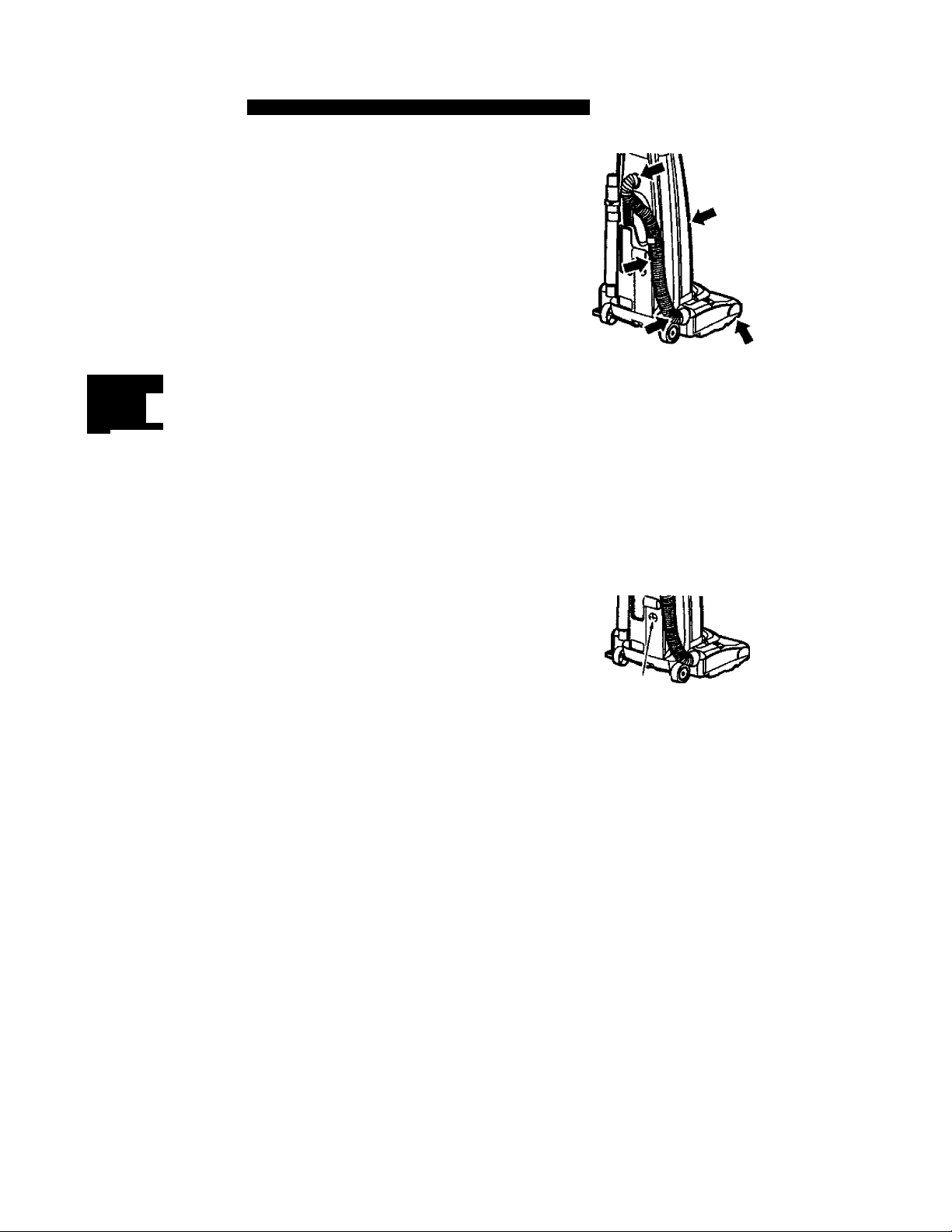

For best cleaning
results, keep the
airflow passage
clear.
Occasionally,
check each of the
areas indicated for
clogs.
Unplug the vacu
urn cleaner from the
outlet before checking
A
WARNING
Personal Injury Hazard
DO NOT place the vacuum cleaner
on stairs. If it falls, personal injury
or property damage could result.
MOTOR PROTECTION SYSTEM
This vacuum cleaner is also equipped with
a motor protector by-pass valve which
automatically opens to provide cooling air
to the motor when a clog prevents the
normal flow of air to the motor. If the by
pass valve opens to prevent motor
overheating and possible damage to the
vacuum cleaner, you will notice a change
of sound as air rushes through the valve
opening.
Note: Do not block
motor protector
To correct
problem: See the
TROUBLE
SHOOTING table. Motor
Protector
Note: The motor protector may open when
using attachments or when cleaning new
carpet, due to reduced airflow caused by
the attachments themselves or by new
carpet lint filling the bag quickly. See the
TROUBLESHOOTING table
11

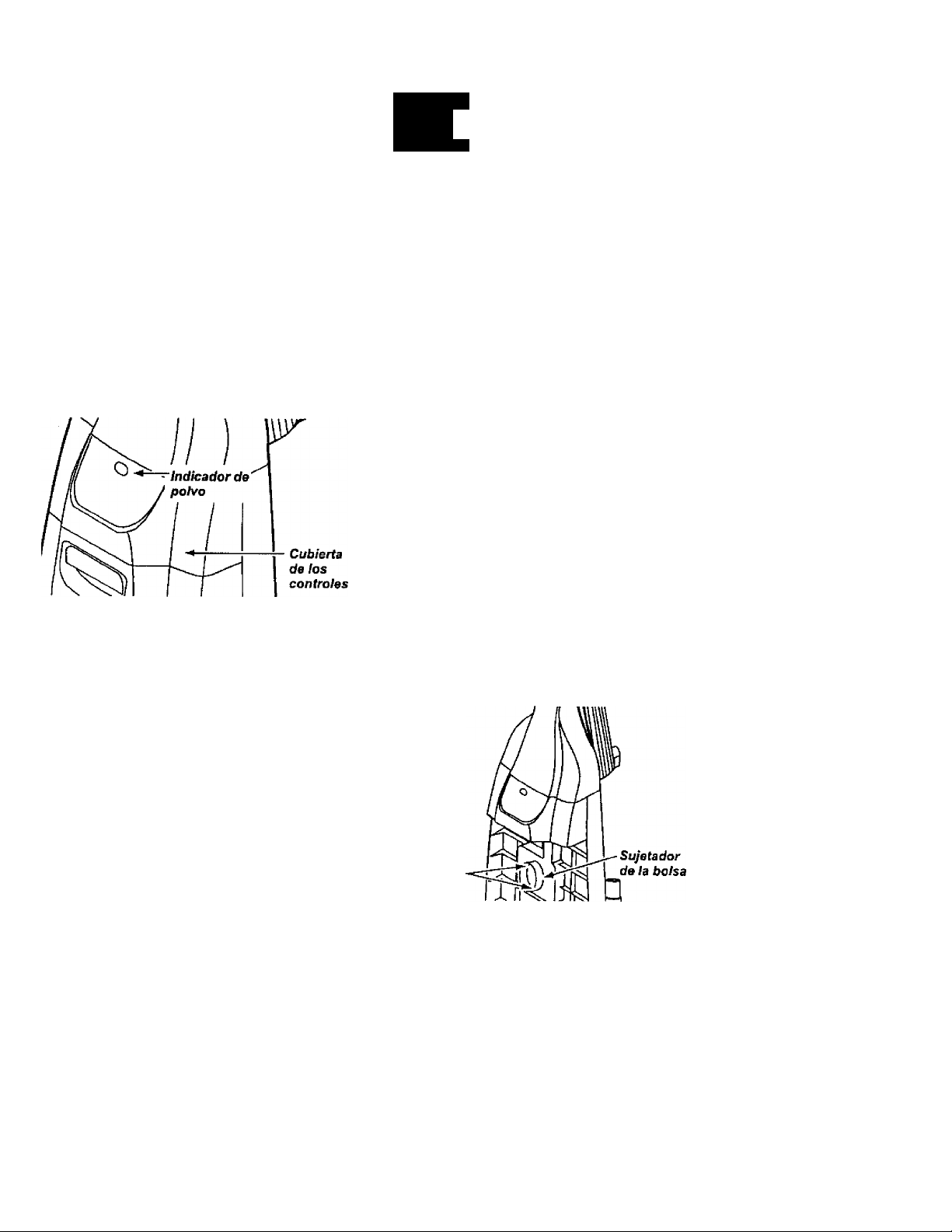

DIRT SENSOR
The electronic dirt sensor is a feature
which will detect particles as they pass
through the vacuum cleaner.
The dirt sensor indicator is located on the
front of the switch cover.
The red light indicates dirt is being picked
up by the cleaner.
OPERATION
As you vacuum, the red indicator light wilt
come on and stay on as long as the
sensor detects a high concentration of
particles passing through the vacuum
cleaner.
No tight indicates that most of the
cleaning is complete.
A
WARNING
Electrical Shock And Personal
Injury Hazard
Disconnect electrical supply before
performing maintenance to the
unit. Failure to do so could result in
electrical shock or personal injury
from cleaner suddenly starting.
TO CLEAN DIRT SENSOR OPTICS
The dirt sensor optics consist of two optic
cells located inside the bag holder.
Occasionally, it may become necessary to
clean the two optic cells to assure
maximum performance. It is
recommended the optic cells be cleaned:
•When the red light stays on
continuously.
•When dirt or dust adheres to the
optic cells.
•Whenever the dust bag is changed.
To clean the sensor, wipe the optic cells
with a soft, dry cloth. Never use cleaners
or liquids as they can help speed the
recoating of the optic cells and make it
necessary to clean them much sooner
than normal. The dirt sensor area can be
reached by removing the dust cover and
the dust bag.
12

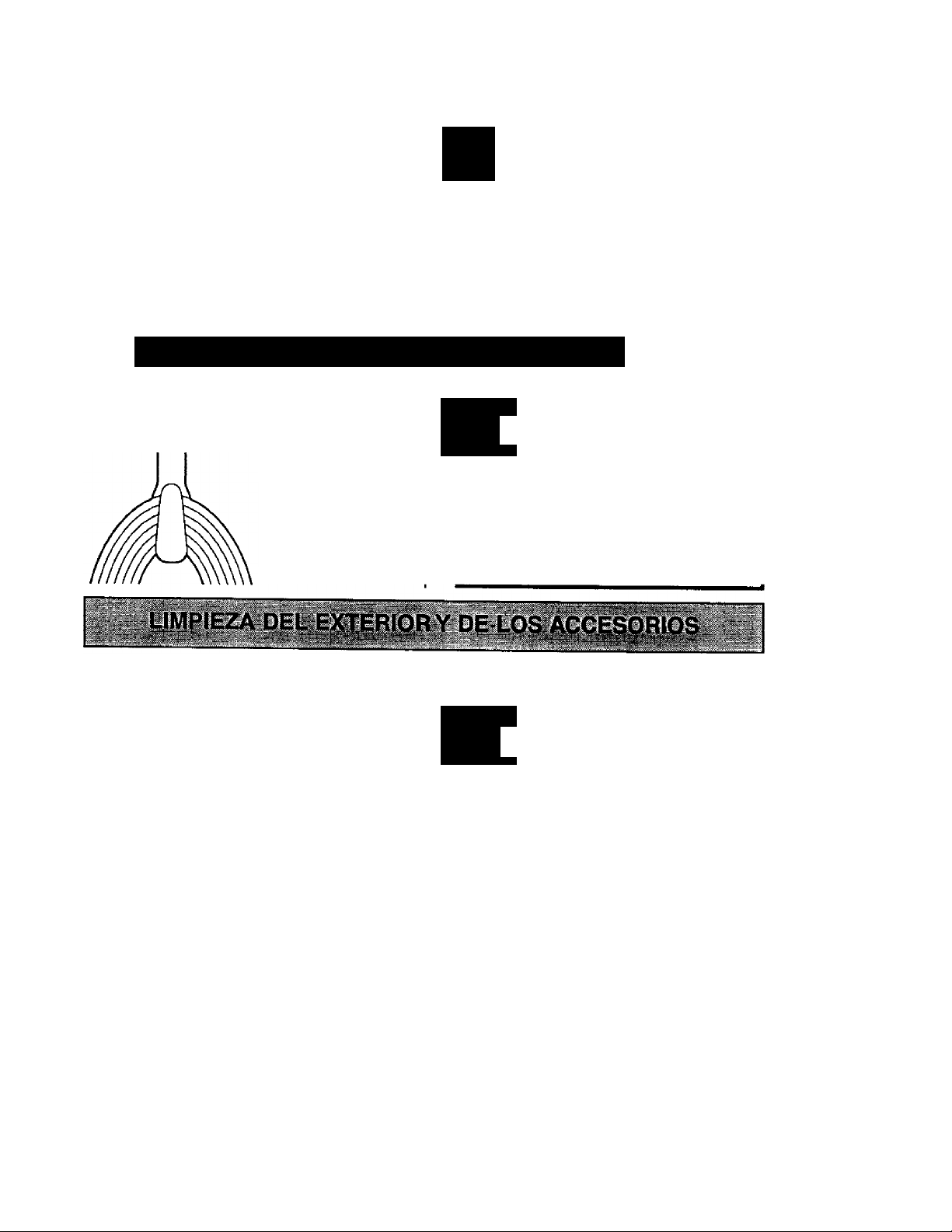

VACUUM CLEANER CARE
Always follow all safety precautions when
cleaning and servicing the vacuum
cleaner.
Gather the cord and wrap it loosely
around the upper and lower cord hooks.
Store the vacu
um cleaner in a
dry, indoor area,
on the floor with
the handle
locked in the
upright
position.
A
A
WARNING
Electrical Shock And Personal Injury Hazard
Disconnect electrical supply before
performing maintenance to the
unit. Failure to do so could result
in electrical shock or personal
injury from cleaner suddenly
starting.
WARNING
Electrical Shock And Personal
Injury Hazard
Wrapping the cord too tightly
puts stress on the cord and can
cause cord damage. A damaged
cord is an eiectrical shock haz
ard and could cause personal
injury or damage.
CLEANING EXTERiOR'AND ATTACHMENTS
Unplug cord from wall outleL DO NOT drip
water on vacuum cleaner.
Clean exterior using a clean, soft doth that has
been dipped in a solution of mild liquid deter
gent and water, then wrung dry. Wipe dry after
cleaning.
To reduce static electricity and dust build-up,
wipe outer surfece of vacuum cleaner and
attachments.
Wash attachments in warm soapy water, rinse
and air dry Do not clean in dishwasher.
A
CAUTION
Do not use attachments if they are
wet. Attachments used in dirty
areas, such as under a refrigerator,
should not be used on other
surfaces until they are washed. They
could leave marks.
13
-J» I ;*C I-J .i 5

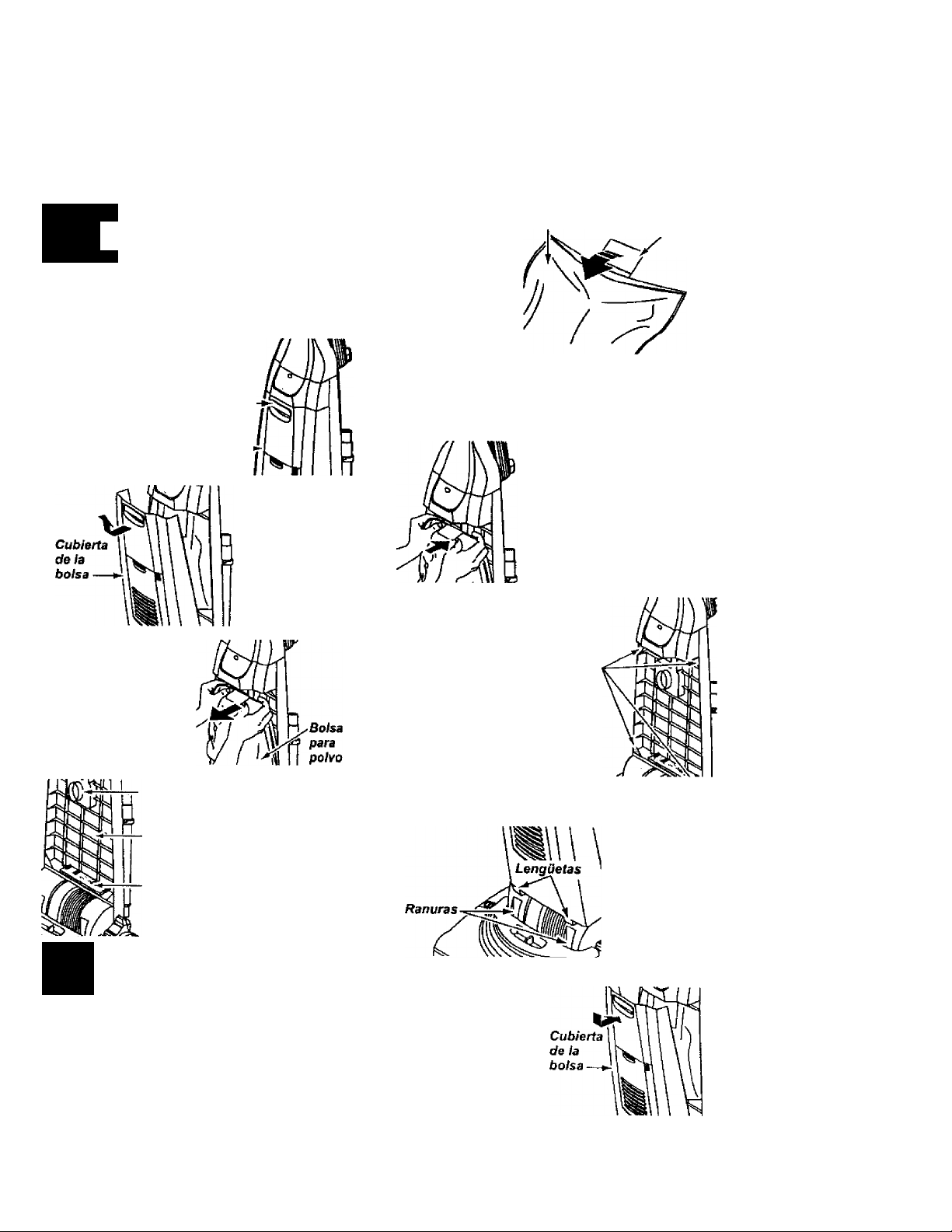

TO REMOVE DUST BAG
A
Pull out on the
bag cover
release located
near the top of
the bag cover.
Grasp the dust bag
collar and pull gen
tly, carefully remov
ing the dust bag.
Throw away the
used dust bag.
WARNING
Always unplug power cord from
electrical outlet before performing
maintenance to the vacuum clean
er.
Bag Cover
Release
Pull the bag
cover forward
and lift up.
Remove and
lay aside.
TO REPLACE DUST BAG
Unfold the
new dust bag.
Fold the safety
seal tab on the
new dust bag
away from the
opening that
fits on the bag
holder.
Note: See PARTS AND FEATURES for
Bag number.
insert the dust bag
onto the bag holder
completely by holding
the bag collar.
Place the dust bag
collar into position.
Tuck the bag
behind each of
the four bag
retention corner
flaps shown here.
Be sure the bot
tom and sides of
the dust bag are
completely within
bag cavity prior to
replacing the bag
cover.
Bag
Retention
Comer
Flaps
Seal Tab
Do not reuse dust bag.
Sag Holder
Bag Cavity
Motor
Safety
Filter
A
CAUTION
NEVER REUSE A DUST BAG. Very
fine materials, such as carpet
freshener, face powder, fine dust,
plaster, soot, etc. can clog the bag
and cause it to burst before it is
full. Change bag more often when
vacuuming these materials.
Check the bag
holder and the
motor safety fil
ter. If either is
blocked, check
TROUBLE
SHOOTING.
Position the bag
cover so its
positioning tabs
fit into the body
positioning tab
slots.
Close the bag cover.
You will hear a
distinct snap
when cover is
securely closed.
Check to see
that the dust
bag is fully
enclosed in the
bag cover.
14
Loading...
