Owner’s Manual
Manual Del Propietario
Kenmore
Vacuum Cleaner
Aspiradora
Model, Modelo 116.36722
CAUTION:
Read and follow all
safety and operating
instructions before first
use of this product.
CUIDADO:
Lea y sigue todas las
instrucciones de operación
y seguridad antes del uso de
este producto.
Sears, Roebuck and Co,, Hoffman Estates, IL 60179 U.S.A.
www.sears.com
Part No, C01ZCUY20U00 - KC01ZCUYZ0U0
Impreso en China
Printed in China
Page 2
TABLE OF CONTENTS
Before Using Your New
Vacuum Cleaner ...................................2
Kenmore Vacuum Cleaner Warranty
Important Safety Instructions
Parts and Features
Assembly Instructions
.........................
..................
........
. .3
. .4
. . 5
6-7
Operating Instructions.................................7
How To Start .......................................................7
Pile Height Selection and Setting
Releasing the Handle
ON/OFF Switch ...................................................8
Attachments.........................................................9
Attachment Use Chart
Vacuuming Tips
Performance Features
..........................................
......................................
...............................................
...................................
........................
10
10
11
8
8
Vacuum Cleaner Care
Cleaning Exterior and Attachments ..................12
Dust Bin Cleaning .............................................13
Dust Bin Assembly
Dust Bin Filter Changing/Cleaning
Primary Filter Replacement ..............................15
Secondary Filter Cleaning
Filter Changing/Cleaning ..................................17
Belt Changing and Agitator Cleaning .. 18-20
Clog Removal
Light Bulb Changing..........................................22
Agitator Servicing
..................................................
..............................................
.......................
............................................
...................
................................
12
14
15
16
21
23
Troubleshooting............................................24
Requesting Assistance
Or Service...........................................Back Page
BEFORE USING YOUR NEWVACUUM CLEANER
Please read this guide. It will help you assemble and operate your new Kenmore vacuum
cleaner in the safest and most effective way.
For more information about vacuum cleaner care and operation, call your nearest Sears store.
You will need the complete model and serial numbers when requesting information. Your vacu
um cleaner’s model and serial numbers are located on the Model and Serial Number Plate.
Use the space below to record the model number and serial number of your new Kenmore
vacuum cleaner.
Model No._
Serial No.
Date of Purchase
Keep this book and your sales check (receipt) in a safe place for future reference.
Page 3
KENMORE VACUUM CLEANER WARRANTY
One Year Limited Warranty
When assembled, operated and maintained according to all Instructions supplied with
the product, if this vacuum cleaner fails due to a defect in material or workmanship within
one year from the date of purchase, return it to any Sears store. Sears Parts & Repair
Center or other Kenmore outlet for free repair.
If this vacuum cleaner is used for other than private family purposes, this warranty
applies for only 90 days from the date of purchase.
This warranty covers only defects in material and workmanship. Sears wiii NOT
pay for;
1. Expendable items that can wear out from normal use, including but not limited to
filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product assembly, operation or
maintenance.
3.
A service technician to clean or maintain this product.
4.
Damage to or failure of this product if it is not assembled, operated or maintained
according to all instructions supplied with the product.
Damage to or failure of this product resulting from accident, abuse, misuse or use for
other than its intended purpose.
Damage to or failure of this product caused by the use of detergents, cleaners,
chemicals or utensils other than those recommended in all instructions supplied with
the product.
Damage to or failure of parts or systems resulting from unauthorized modifications
made to this product.
Disclaimer of impiied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair
as provided herein. Implied warranties, including warranties of merchantability or fitness
for a particular purpose, are limited to one year or the shortest period allowed by law.
Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on the duration of implied warranties of merchantability or fitness, so these
exclusions or limitations may not apply to you.
This warranty applies only while this vacuum cleaner is used in the United States and
Canada.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada MSB 2B8
Page 4
IMPORTANT SAFETY INSTRUCTIONS
^WARNING
Your safety is important to us. To reduce the risk of fire, eiectrical shock,
injury to persons or damage when using your vacuum cieaner, foiiow basic
safety precautions Including the foiiowing;
Read all instructions in this manual before
assembling or using your vacuum cleaner.
Use your vacuum cleaner only as described in
this manual. Use only with Sears recommend
ed attachments.
Disconnect electrical supply before servicing or
cleaning out the brush area. Failure to do so
could result in the brush unexpectedly starting,
causing personal injury from moving parts.
Do not leave vacuum cleaner when plugged in.
Unplug from outlet when not in use and before
servicing.
To reduce the risk of electrical shock - Do not
use outdoors or on wet surfaces.
Do not allow to be used as a toy. Close atten
tion is necessary when used by or near chil
dren.
Do not use with a damaged cord or plug. If
vacuum cleaner is not working as it should, has
been dropped, damaged, left outdoors, or
dropped in water, return it to a Sears Service
Center,
Do not pull or carry by cord, use cord as a
handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run
vacuum cleaner over cord. Keep cord away
from heated surfaces.
Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
Do not handle plug or vacuum cleaner with wet
hands.
Do not put any objects into openings.
Do not use with any opening blocked; keep
free of dust, lint, hair, and anything that may
reduce air flow.
Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
Turn off all controls before unplugging.
Use extra care when cleaning on stairs. Do not
put on chairs, tables, etc. Keep on floor.
Do not use vacuum cleaner to pick up flamma
ble or combustible liquids (gasoline, cleaning
fluid, perfumes, etc.), or use in areas where
they may be present. The fumes from these
substances can create a fire hazard or explo
sion.
Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or hot
ashes.
Do not use vacuum cleaner without dust bin
and/or filters in place.
Always clean the dust bin after vacuuming car
pet cleaners or freshener, powders, and fine dust.
These products clog the filters, reduce airflow
and can cause damage to the vacuum cleaner.
Failure to clean the dust bin could cause perma
nent damage to the vacuum cleaner.
Do not use the vacuum cleaner to pick up
sharp hard objects, small toys, pins, paper
clips, etc. They may damage the vacuum
cleaner or dust bin.
Unplug before connecting Handi-mate Jr. (if
applicable).
You are responsible for making sure that your
vacuum cleaner is not used by anyone unable
to operate it properly.
^ SAVE THESE INSTRUCTIONS
Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your
vacuum cleaner is intended for HousehoJd use. Read this Owner's Manual carefully for
important use and safety information. This guide contains safety statements under warnina
and caution symbols.
Page 5
PARTS AND FEATURES
It is important to know your vacuum cleaner’s parts and features to assure its proper and safe
use. Review these before using your vacuum cleaner.
Object
Exhaust Filter
Primary Filter
Headlight Bulb
Belt
Style No.
EF-2
DCF-1
—
UB-1
Part No.
in USA
20-86880
20-82720
20-5248
20-5275
Part No.
in Canada
20-40320
20-40319
—
20-40096
Power Cord
On/Off
Switch
Carry
Handle.
Handle
Release
Pedal-^
Model/Serlai
Numbers
Headlight
Nozzle
Base
Belt
(Underneath)
Agitator
(Underneath)
Page 6
Please pay special attention to these hazard alert boxes, and follow any instructions
given. WARNING statements alert you to such dangers as fire, eiectric shock, burns
A
and personal injury, CAUTION statements aiert you to such dangers as personal
injury and/or property damage.
ASSEMBLY INSTRUCTIONS
^WARNING
Electrical Shock Hazard
Do not plug into the electrical supply
until the assembly is complete. Failure
to do so could result in electrical shock
or injury.
Before assembling vacuum cleaner, check
the PACKING LIST on the cover of the sep
arate Repair Parts List. Use this list to verify
that you have received all the components
of your new Kenmore vacuum cleaner.
HANDLE
Remove the
screw located
just below the top
edge of the back
of the vacuum
cleaner.
Slide the handle into the opening at the top
of the vacuum cleaner.
Insert the screw so it passes through the
handle into the vacuum cleaner.
Screw
Begin to tighten the
screw with your fin
gers, It may be nec
essary to adjust the
handle slightly.
Using a screwdriver, tighten the screw.
A CAUTION
Do not overtighten.
Overtightening could strip the
screw holes.
Do not operate the vacuum cleaner
without the screw in place.

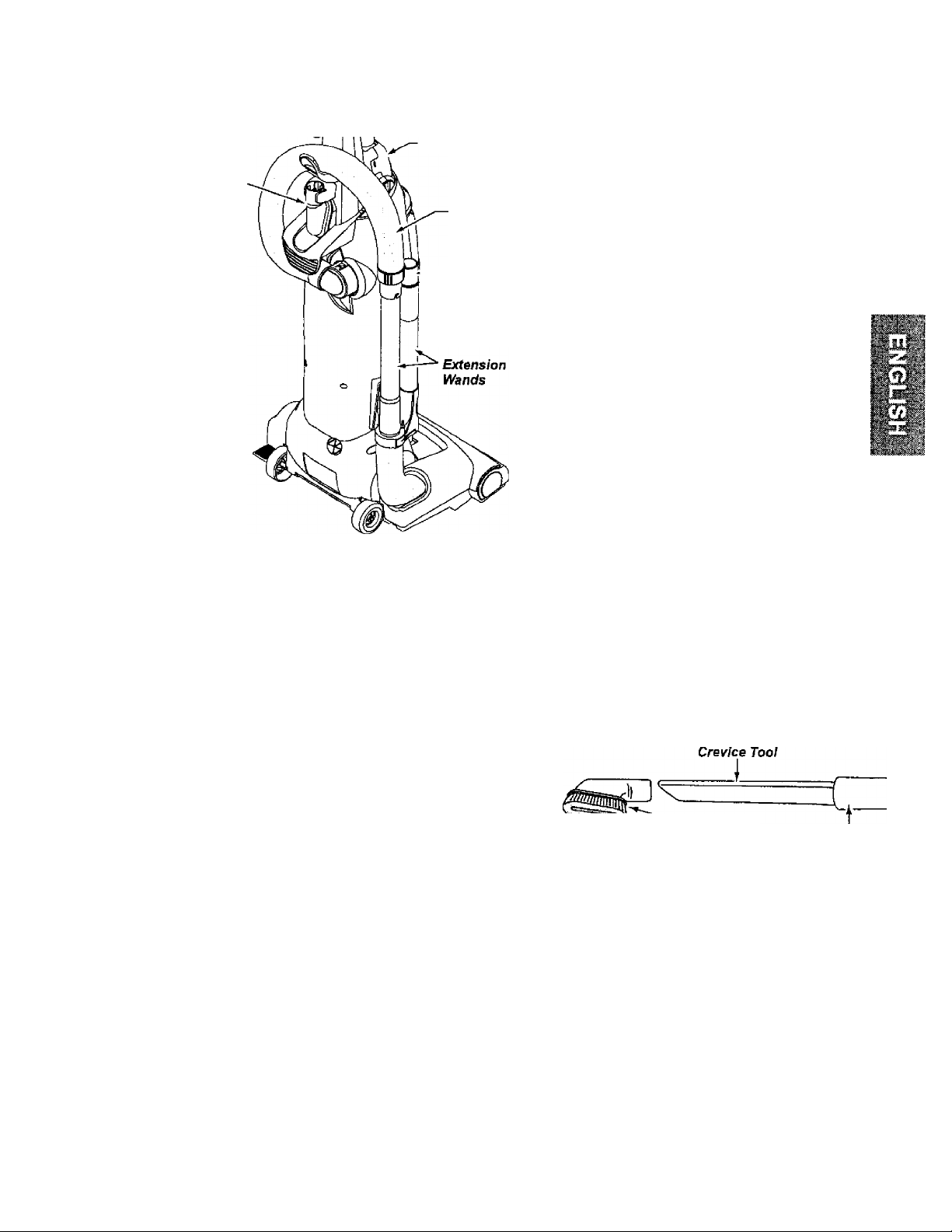

HOSE
Loop the hose
over handle and
align “J" slots in
hose with tabs
on the exten
sion wand.
Push the hose
onto the wand
and twist to lock
in place.
Page 7
ATTACHMENTS
DUSTING BRUSH
Place the dusting brush
into the back of the handle
in the storage location as
shown.
HANDI-MATE JR.®
For operation of HandiMate Jr.® see separate
owners manual.
TO INSERT HANDI-MATE JR®
Place Handi-Mate Jr.® into the storage
compartment.
Push the Handi-Mate Jr.® down until it
snaps into place.
TO REMOVE HANDI-MATE JR.®
Pull Handi-Mate Jr.® out of the storage
compartment.
OPERATING INSTRUCTIONS
HOW TO START
Push the power
cord into the cord
locking notch on
the back of the
handle.
Plug the polarized
power cord into a
120 Volt outlet
located near the
floor.
Note: To reduce the risk of electric shock,
this vacuum cleaner has a polarized plug,
one blade is wider than the other.
This plug will fit in a polarized outlet only
one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the
proper outlet Do not change the plug in any
way.
Locking
notch
WARNING
A
Personal Injury and Product Damage
Hazard
• DO NOT plug in if switch is in the ON
position. Personal injury or damage
could result.
• DO NOT use outlets above counters.
Damage from cord to Items in sur
rounding area could occur.
Page 8
PILE HEIGHT SELECTION AND SETTING
To select a pile height setting:
Turn off vacuum cleaner. Select a pile height
setting by tilting the vacuum cleaner back
until front wheels are lifted slightly off the
floor as illustrated.
Slide the adjustment lever to the correct
setting.
RELEASING THE HANDLE
Release the handle by pressing down on
the handle release pedal with your foot and
pulling back and down on the handle with
your hand.
SUGGESTED PILE HEIGHT SETTINGS
You may need to raise the height to make
some jobs easier, such as scatter rugs and
longer pile carpets. Suggested settings are:
HIGH: shag carpet, long pile, plush, scatter
rugs.
MED: medium to long pile.
LOW; short to medium pile.
BARE FLOOR; very low pile.
ON/OFF SWITCH
To start the vacuum cleaner, push the
On/Off switch from the OFF position to the
ON position. To stop the vacuum cleaner,
push the On/Off switch to the OFF position.
Page 9
ATTACHMENTS
Handi-Mate Jr.®
Dusting
Brush
Stretch
Hose
Crevice
Tool
Identify each of the attachments shown
above.
TO USE ATTACHMENTS

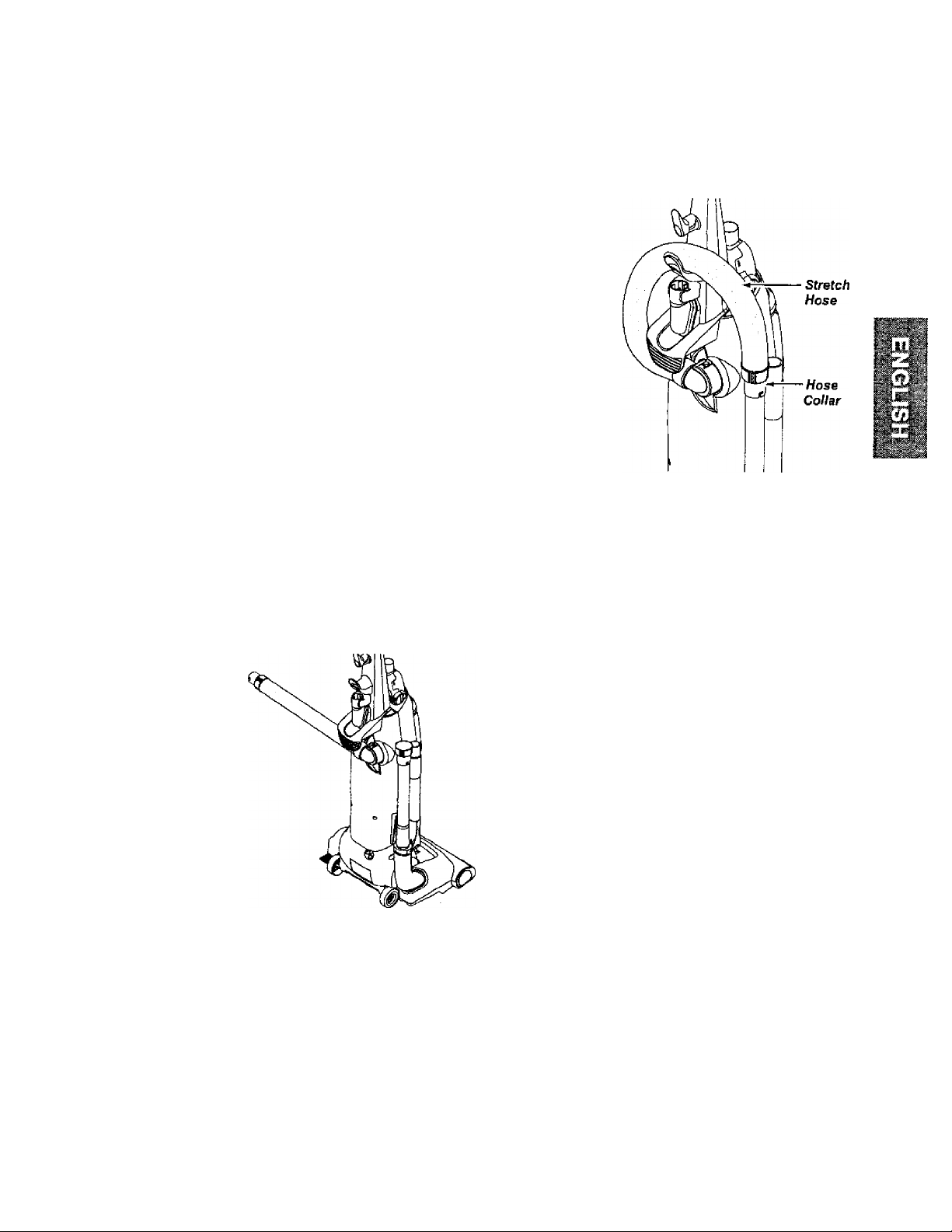

Remove the lower end of the stretch hose
from the vacuum cleaner by grasping the
hose collar, twisting and pulling straight out.
The attachments can now be added to the
hose.
Note: The motor protector may open
when using attachments or when clean
ing new carpet, due to reduced airflow
by the attachments themselves or by
new carpet fuzz filling the dust bin
quickly. See the
TROUBLESHOOTING section.
The attachments will fit on the hose or
the wand. In addition, the dusting brush
will also fit on the crevice tool.
The hose can be pulled off the wand by
grasping the cuff and twisting while pulling
up.
The attachments can be added to the hose
if the item to be cleaned is not far from the
vacuum cleaner,
A CAUTION
When using attachments, be careful
not to overextend the stretch hose
when reaching. Trying to reach
beyond the hose stretch capability
could cause the vacuum cleaner to tip
over.
A CAUTION
Attachments used in dirty areas, such
as under refrigerator, should not be
used on other surfaces until they are
washed. They could leave marks.
A WARNING
Electrical Shock And Personal Injury
Hazard
Disconnect electrical supply before
servicing or cleaning the vacuum
cleaner. Failure to do so could result in
electrical shock or personal injury from
vacuum cleaner suddenly starting.
NOTE: When vacuum cleaner is turned on,
the hose will have a tendency to collapse
due to suction of the vacuum cleaner.
If more reach is needed:
Dusting Brush
An extra wand, without tabs, is included.
This extra wand can be added to the wand
with tabs for extra reach. Insert wand and
twist a quarter of a turn to secure fit.
If the dusting brush/combination brush is
being used and more reach is needed, the
crevice tool can be added to the wand, then
the dusting brush can be added to the
crevice tool.
Wand
TO STORE ATTACHMENTS
Return the hose to its position on the wand
and the attachments to their holders.
Page 10
ATTACHMENT USE CHART
CLEANING AREA
ATTACHMENT
Dusting Brush
Crevice Tool
Handi-Mate Jr.*
*Always clean attachments before using on fabrics.
Furniture*
/
/
/
VACUUMING TIPS
Carpet edges
Guide either side or the front of the nozzle
along a baseboard. The full width agitator
brushes help remove dirt at carpet edges.
Stairs
Put handle in full upright position. Use the
crevice tool or fabric brush. Set the On/Off
switch to ON.
^WARNING
Personal Injury Hazard
Use care if vacuum cleaner is placed on
stairs. If it falls, personal injury or
property damage could result.
Between
Cushions*
/
Drapes*

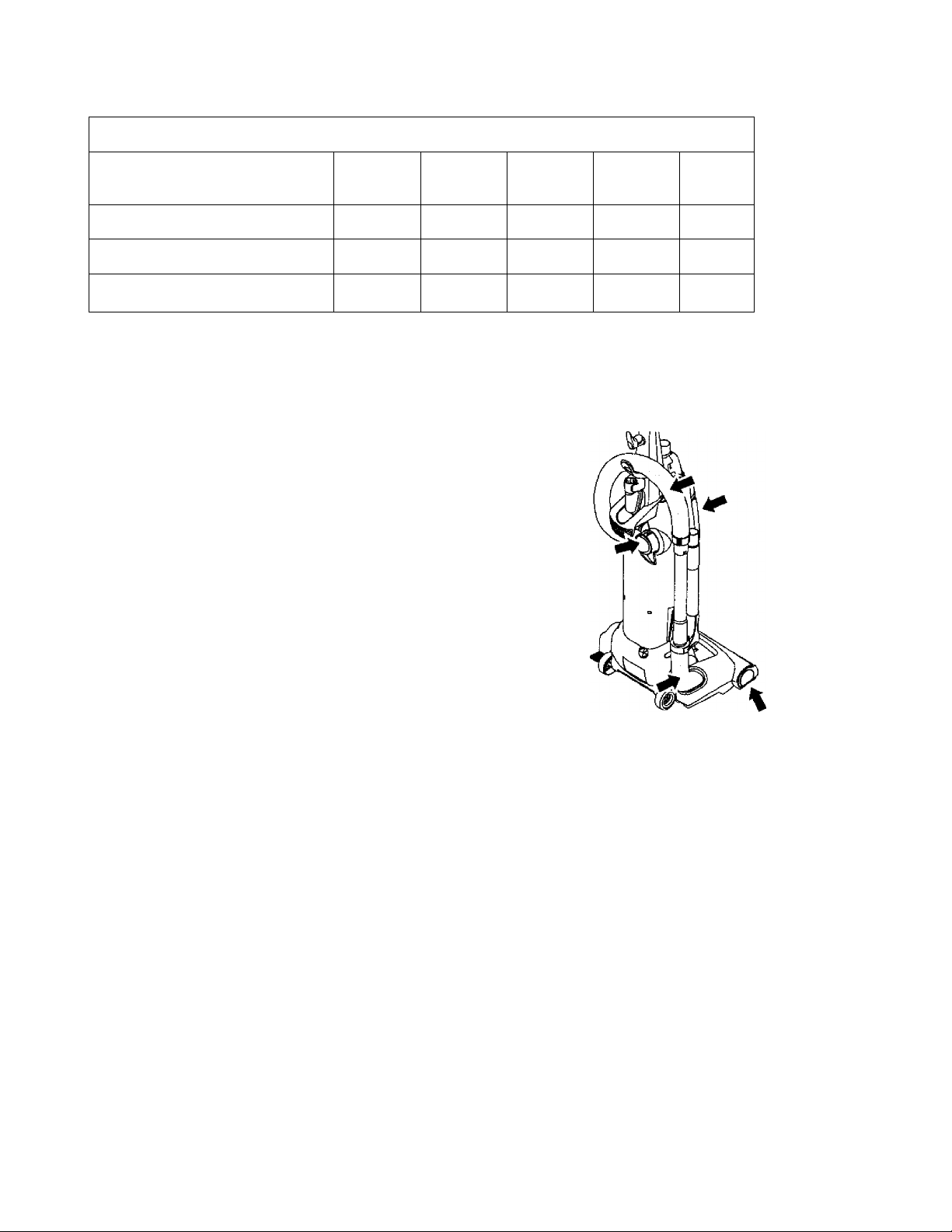

For best cleaning
results, keep the
airflow passage
clear.
Occasionally,
check each of the
areas indicated
for clogs.
Unplug the
vacuum cleaner
from the outlet
before checking.
Stairs
/
/
/
Wails
/
10
Page 11
PERFORMANCE FEATURES
MOTOR PROTECTION
SYSTEM
Thermaí Protector
This vacuum cleaner has a thermal protector
which automaticaily trips to protect the
vacuum cleaner from overheating. If a clog
prevents the normal flow of air to the motor,
the thermal protector turns the motor off
automatically to allow the motor to cool in
order to prevent possible damage to the
vacuum cleaner.
To correct problem: If this occurs, turn the
vacuum cleaner off and unplug the power
cord from the outlet to allow the vacuum
cleaner to cool and the thermal protector to
reset. Check for and remove clogs, if
necessary. Also check and clean/replace
any clogged filters. Wait approximately
thirty (30) minutes and plug the vacuum
cleaner in and turn back on to see if the
motor protector has reset. The motor
protector will not reset if the vacuum
cleaner is not turned off even if the
vacuum cleaner has cooled down.
Motor Protector
This vacuum
cleaner has a
motor protector
by-pass valve
which
automatically
opens to provide
cooling air to the
motor when a
clog prevents the normal flow of air to
the motor. If the by-pass valve opens to
prevent motor overheating and possible
damage to the vacuum cleaner, you will
notice a change of sound as air rushes
through the valve opening.
Note: Do not block motor protector.
To correct problem: See the TROUBLE
SHOOTING chart.
Note; The motor protector may open when
using attachments or when cleaning new
carpet, due to reduced airflow by the
attachments themselves or by new carpet
fuzz filling the dust bin quickly. See the
TROUBLESHOOTING section.
Motor
Protector
11
Page 12
VACUUM CLEANER CARE
Always follow all safety precautions when
cleaning and servicing the vacuum
cleaner.
CLEANING EXTERIOR AND ATTACHMENTS
Unplug cord from wall outlet.
Awarning
Electrical Shock And Personal Injury
Hazard
Disconnect electrical supply before
servicing or cleaning the vacuum
cleaner. Failure to do so could result in
electrical shock or personal injury from
vacuum cleaner suddenly starting.
Clean exterior using a clean, soft cloth that
has been dipped in a solution of mild liquid
detergent and water, then wrung dry. Wipe
dry after cleaning. DO NOT drip water on
vacuum cleaner.
Wash attachments in warm soapy water,
rinse and air dry. Do not clean in dish
washer.
A CAUTION
Do not use attachments if they are
wet. Attachments used in dirty
areas, such as under a refrigerator,
should not be used on other
surfaces until they are washed. They
could leave marks.
12
Page 13
DUST BIN CLEANING
A CAUTION
Electrical Shock And Personal Injury
Hazard
Always unplug power cord from electri
cal outlet before performing any service
on vacuum cleaner.

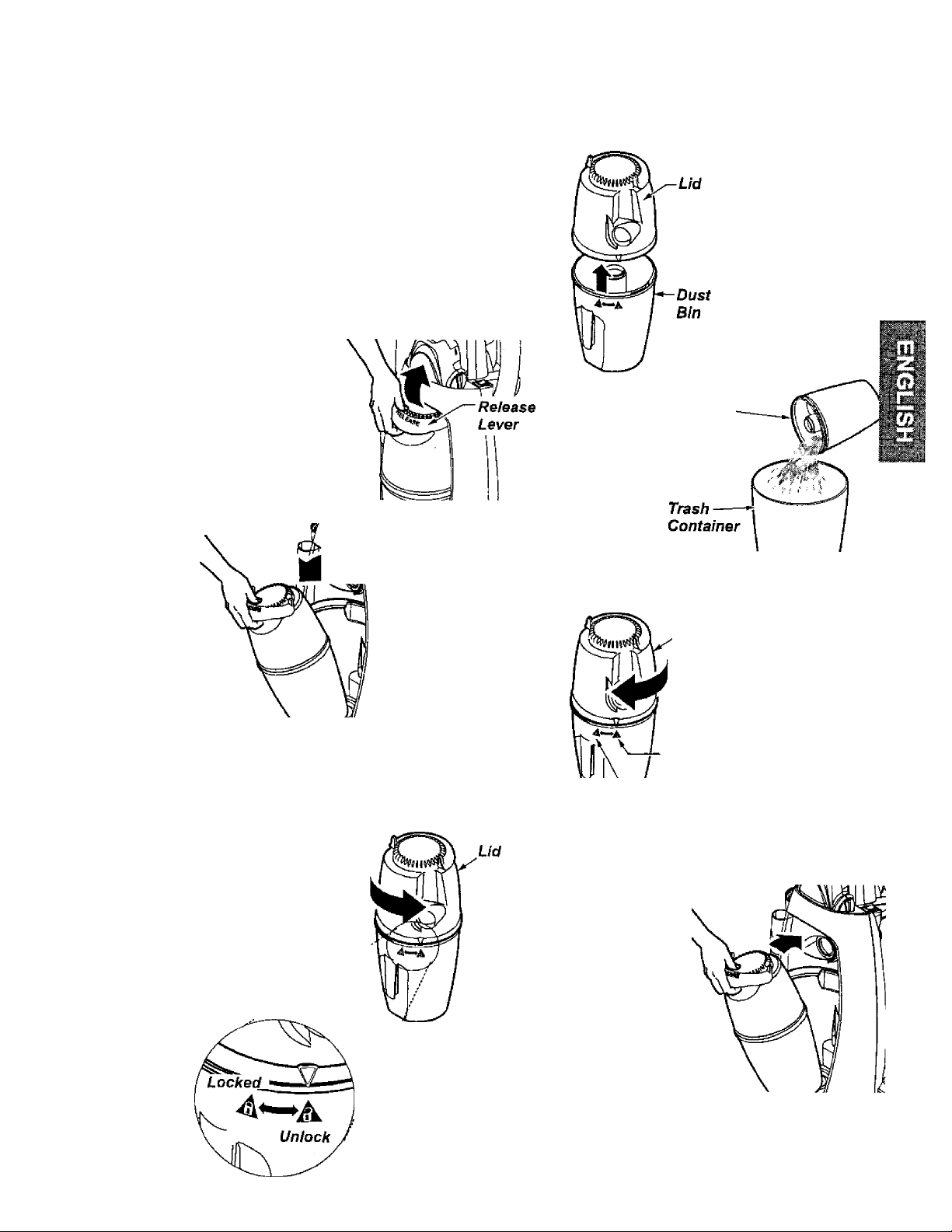

TO REMOVE DUST BIN
Remove dust
bin assembly
from vacuum
cleaner by lift
ing the release
lever as
shown.
Empty con
tents into a
trash con
tainer.
Separate the lid from
the dust bin by lifting
it straight off.
Dust Bin
Remove dust
bin from vacu
um cleaner by
tilting out as
shown.
i
TO EMPTY DUST BIN
Hold dust bin over a trash container.
Rotate lid counter
clockwise from the
locked position to
the unlocked
position as shown.
TO REPLACE DUST BIN LID
Lid
Unlock
Locked
TO REPLACE DUST BIN
First align base
of dust bin with
the vacuum
cleaner. Then
rotate dust bin in
place making
sure dust bin is
securely latched.
Place dust bin lid
assembly back
onto top of dust
bin. Align marks
with bin marks as
shown. Rotate lid
clockwise while
pressing downward
so that marks align
as shown.
13
Page 14
DUST BIN ASSEMBLY
Lid
The Lid houses the filter.
Primary Filter
Filter traps dirt and debris that is picked
up by the suction motor.
Primary Fitter
Fitter Screen
Dust Bin
Filter Screen
The fitter screen traps larger particles of
dirt and debris from reaching the filter.
Dust Bin
Captures dirt and debris picked up from
the suction motor.
14
Page 15

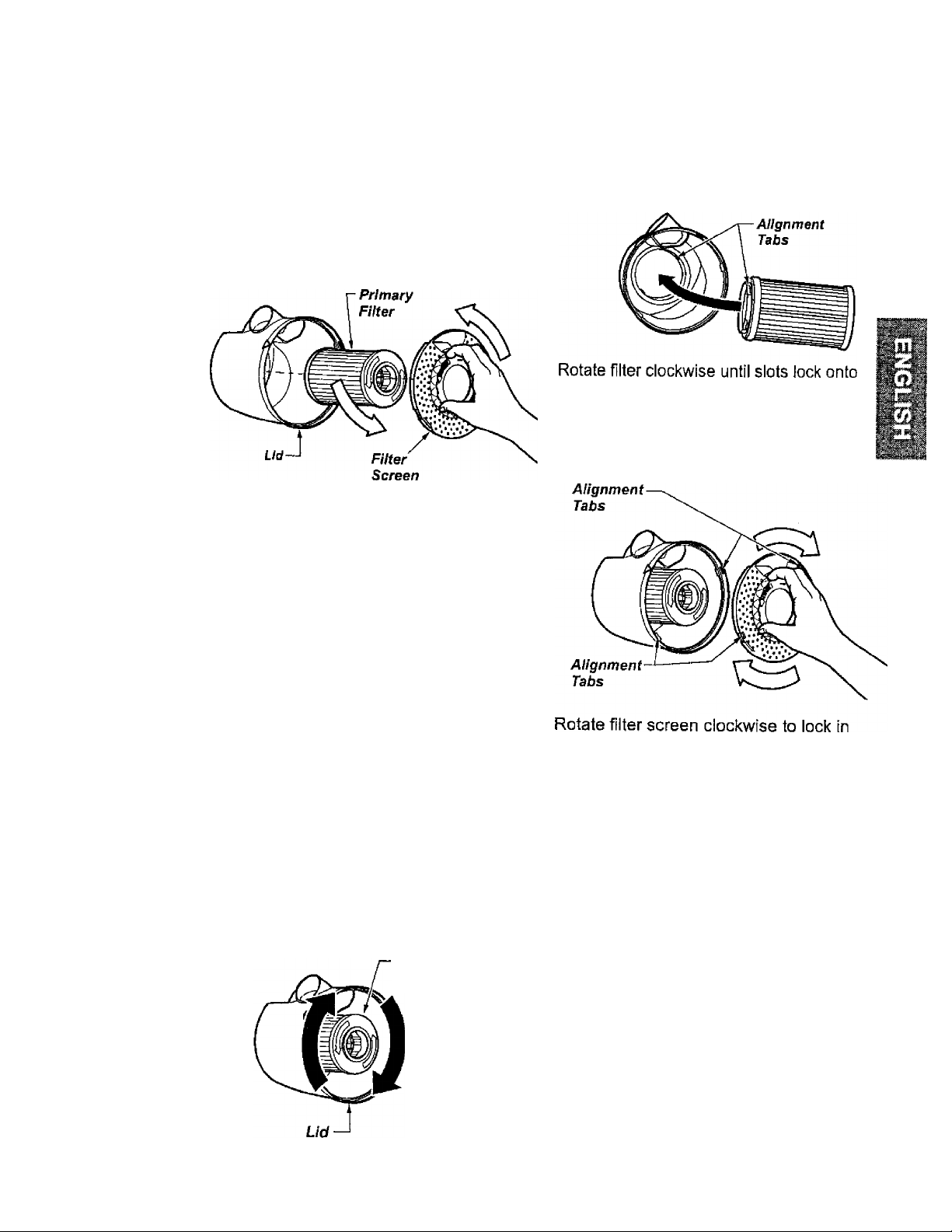

DUST BIN FILTER CHANGING / CLEANING
Check primary filter frequently and clean
when dirty. Remove the dust bin assembly
as outlined in the DUST BIN CLEANING
section and empty contents of dust bin.
Make sure dust bin is empty before filter is
removed. Grasp fitter screen, rotate
counter-clockwise and lift out.
Grasp primary filter, rotate counter
clockwise and lift out. Clean primary filter
by gently tapping over a trash container.
The filter may be cleaned by tapping it on a
firm surface. Tap on several sides to
ensure best cleaning.
Before replacing the primary filter it is a good
idea to clean the inside of the dust bin and lid
area.
tabs in lid.
To re-install the filter screen, align tabs on
filter screen with tabs on lid.
Every 6 months rinse filter exterior with
water under a faucet. Once the filter is
rinsed clean, dry with a cloth and let air dry
for 24 hours.
Rinse with water only, do not use detergent
or soap. Allow filter to dry 24 hours
before putting it back into the dust bin.
When the cleaning of the filter no longer
restores vacuum cleaner suction to full
power you need to replace the filter.
PRIMARY FILTER REPLACEMENT
Primary
Filter
place.
Before replacing the filter it is a good idea to
dean the inside of the dust bin and lid area.
Rotate filter clockwise until slots lock onto
tabs in lid.
NOTE: Under normal use and care, your fil
ter can be expected to last up to 3 years.
NOTE: See Parts and Features for Filter
number.
15
Page 16

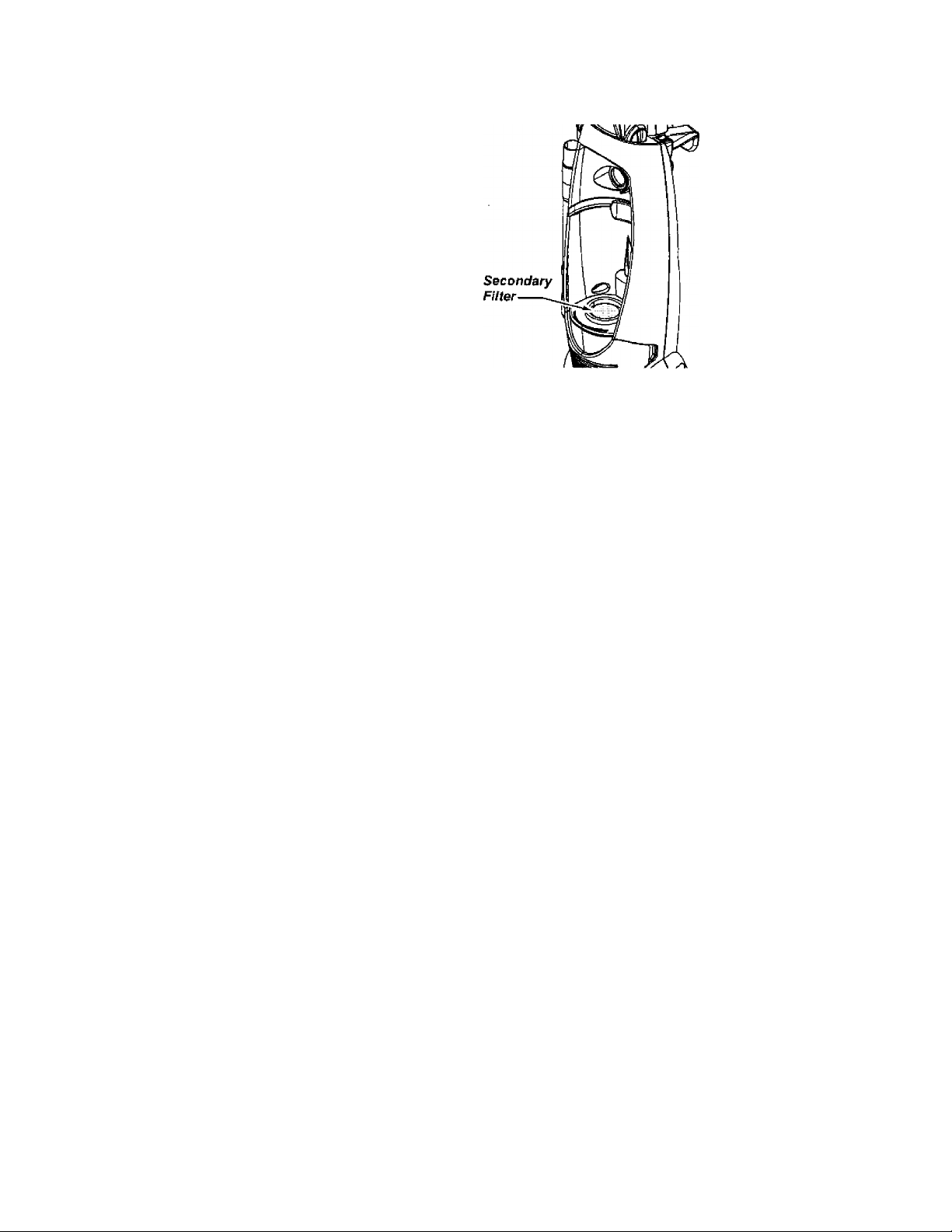

SECONDARY FILTER CLEANING
The secondary filter screen protects the
motor.
Always check filter screen when cleaning
dust bin.
If dirty or clogged, remove debris from
filter screen.
16
Page 17
FILTER CHANGING/CLEANING
A WARNING
Electrical Shock Hazard
Unplug power cord from electrical out
let. Do not operate the vacuum cleaner
without the primary or exhaust filters.
Be sure the filters are properly installed
to prevent motor failure and/or electri
cal shock.

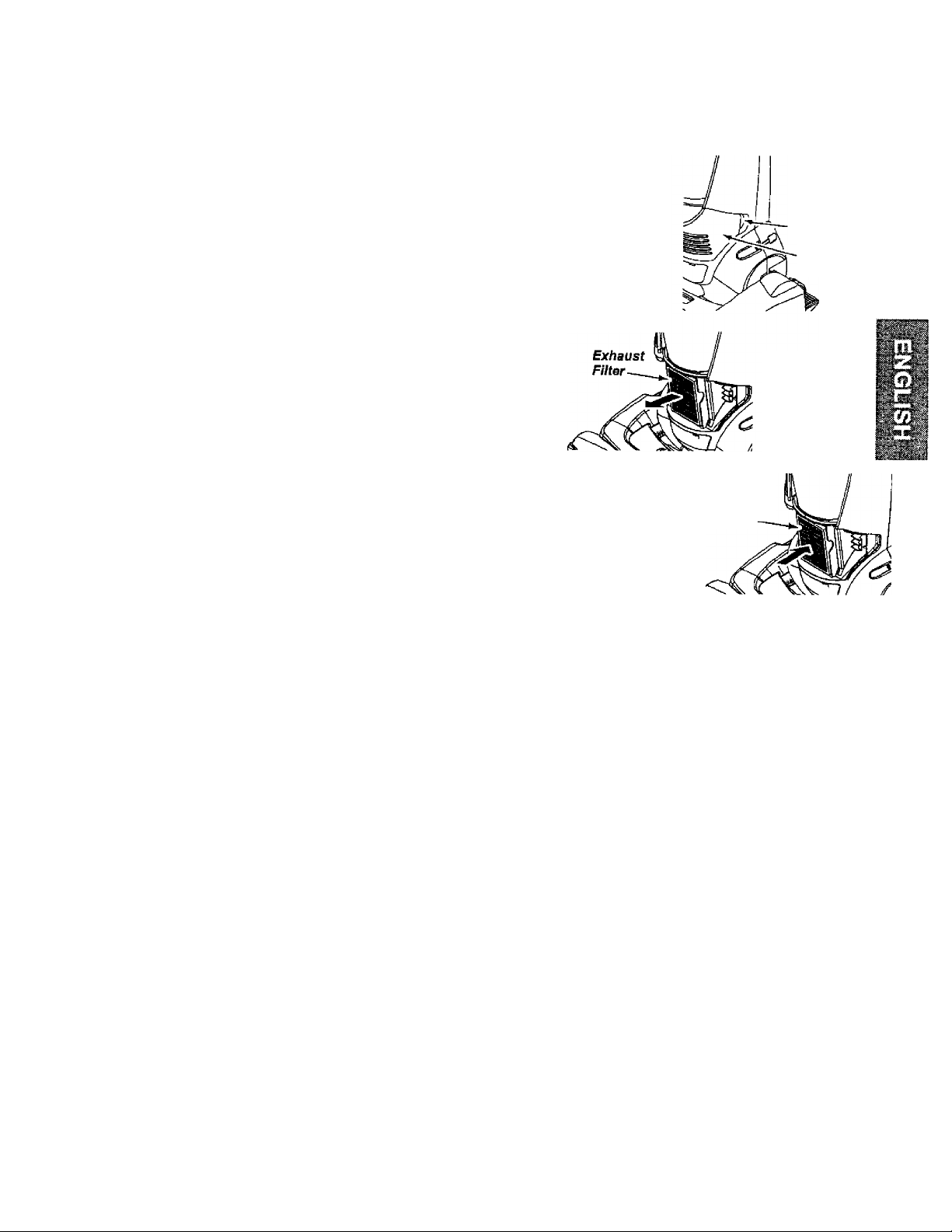

EXHAUST FILTER
The exhaust filter must be replaced when
dirty. It should be replaced regularly
depending on use conditions.
The filter CANNOT be washed as it will
lose its dust trapping ability.
NOTE; See PARTS AND FEATURES
for the exhaust filter number.
Pull out on
both sides of
the exhaust
filter cover,
and pull out to
remove from
vacuum
cleaner.
Push only on filter
cartridge frame,
not on filter
material itself.

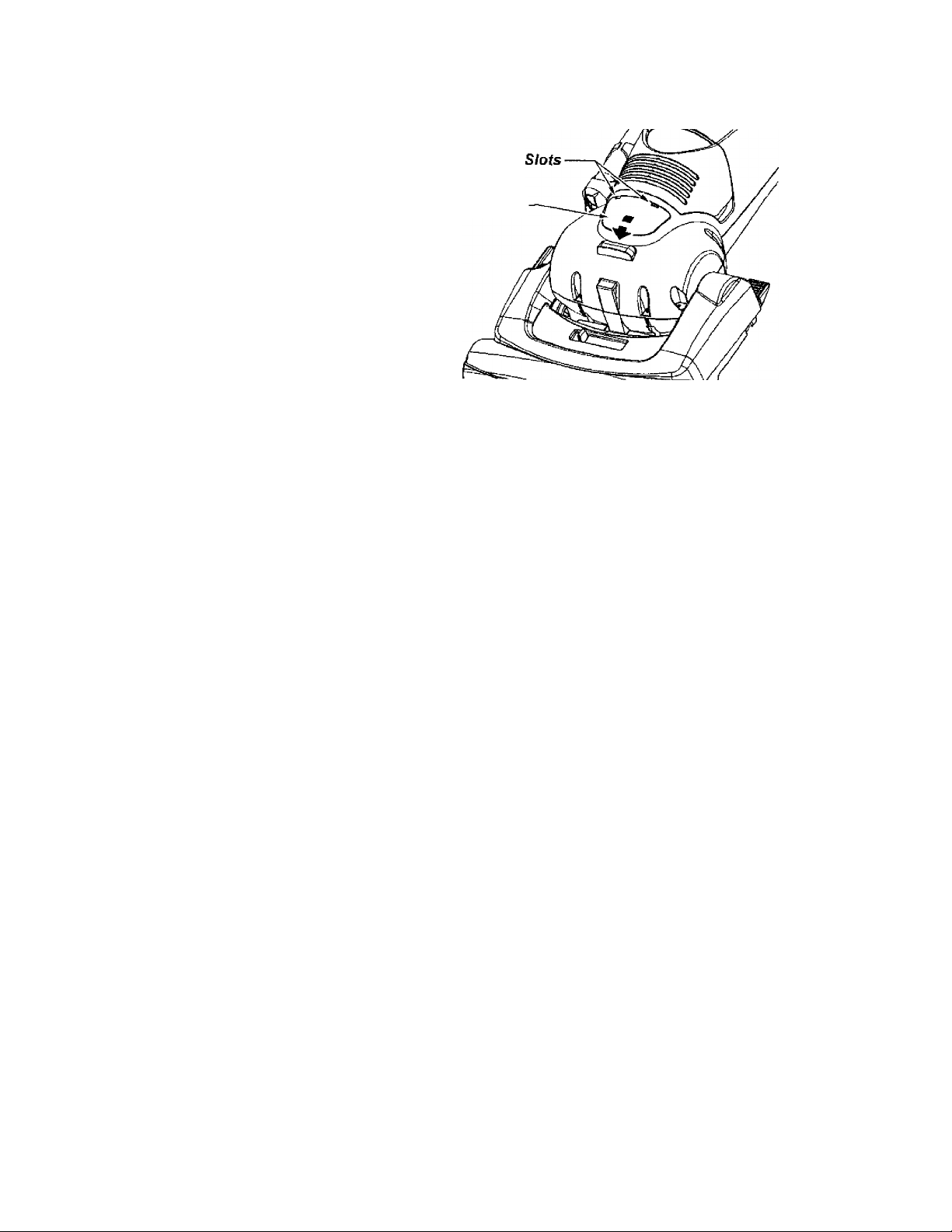

Replace the exhaust filter cover by placing
tabs in slots and pushing in until cover
snaps into place.
Exhaust
Filter
Pull Here
Exhaust
Filter Cover
Remove the
exhaust filter
cartridge.
17
Page 18
BELT CHANGING AND AGITATOR CLEANING
^WARNING
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before
servicing or cleaning the vacuum
cleaner. Failure to do so could result in
electrical shock or personal injury
from vacuum cleaner suddenly
starting.

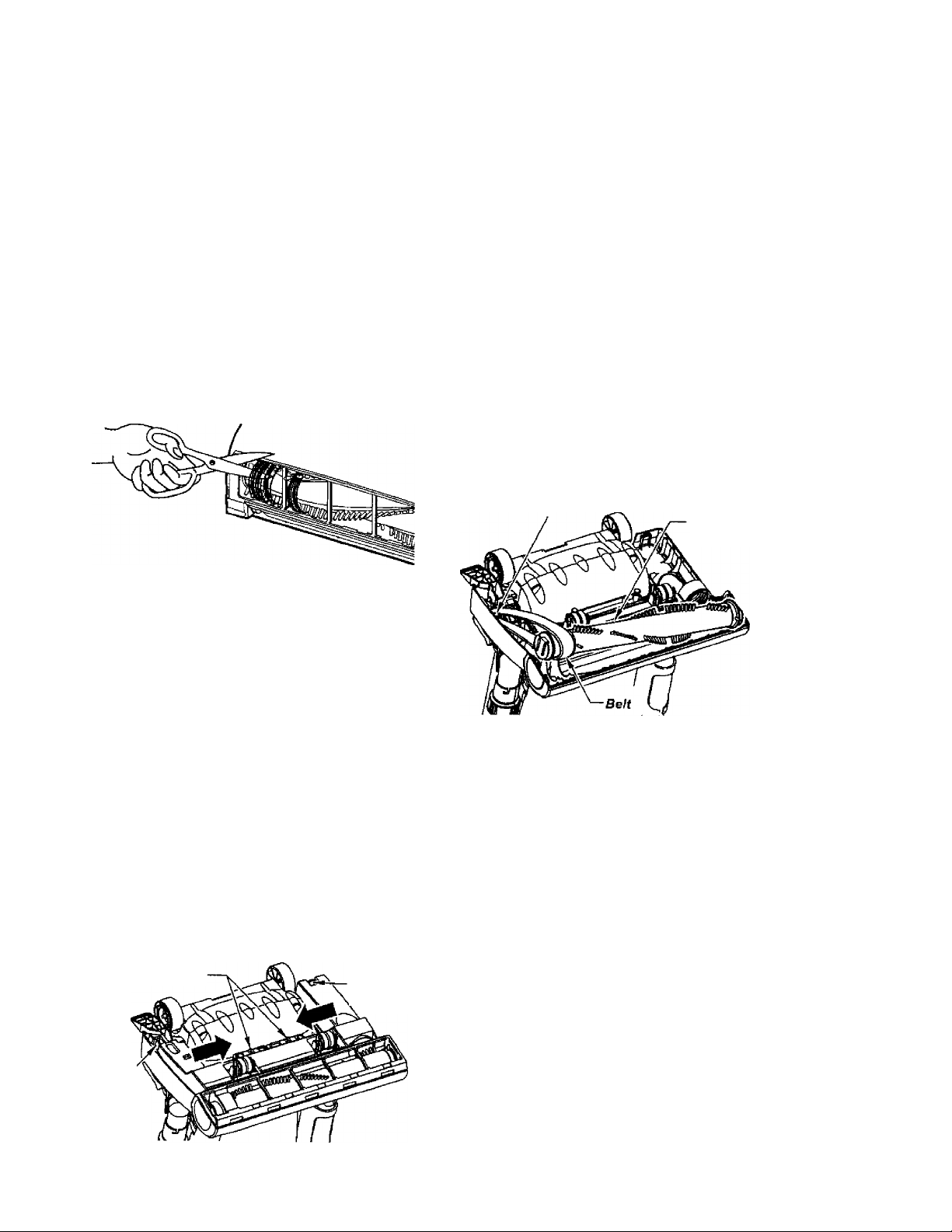

CLEANING AGITATOR

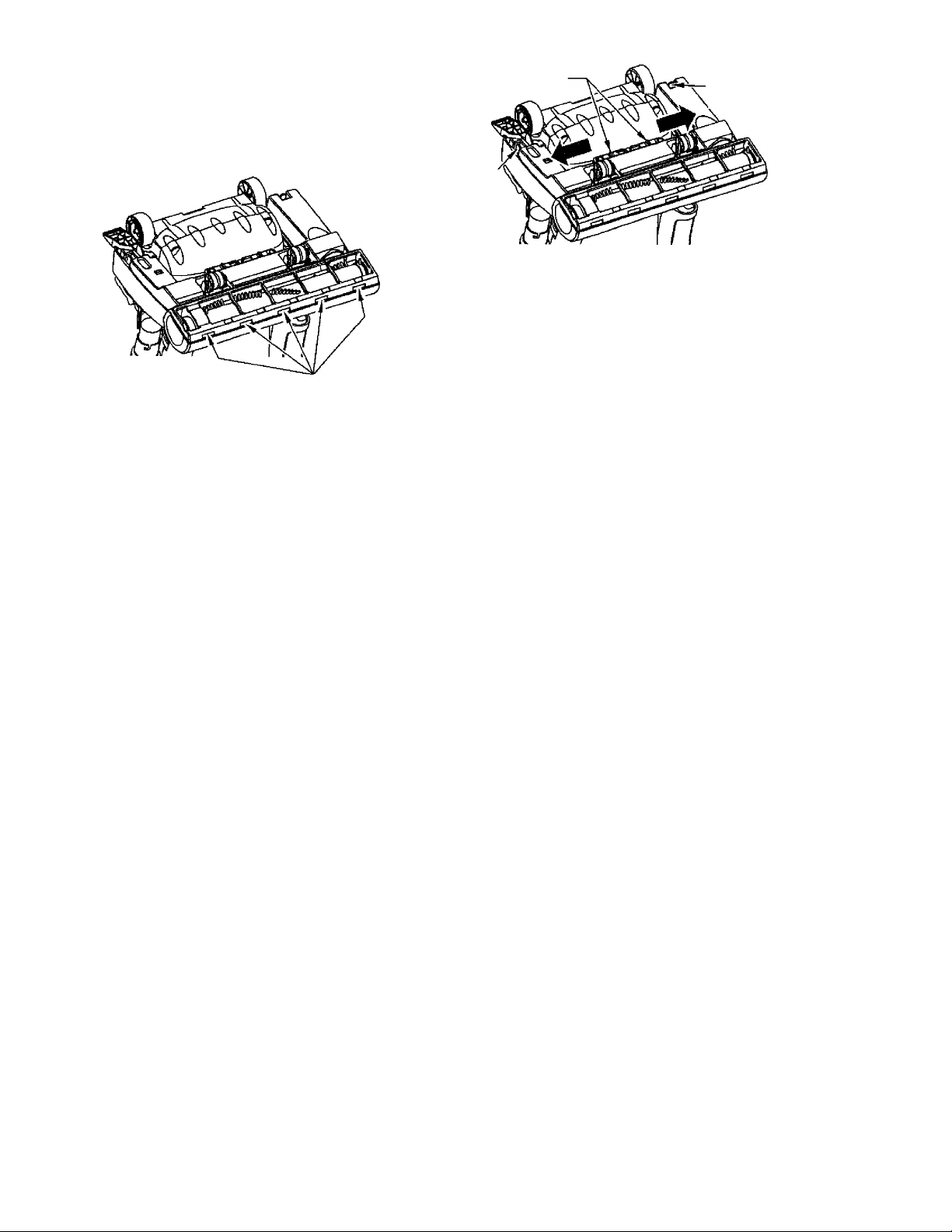

Locate the two latches and the two lock
ing tabs which secure the base plate.
To remove the base plate, press the two
latches inward.
Push in on the locking tabs toward the
center of the vacuum cleaner.

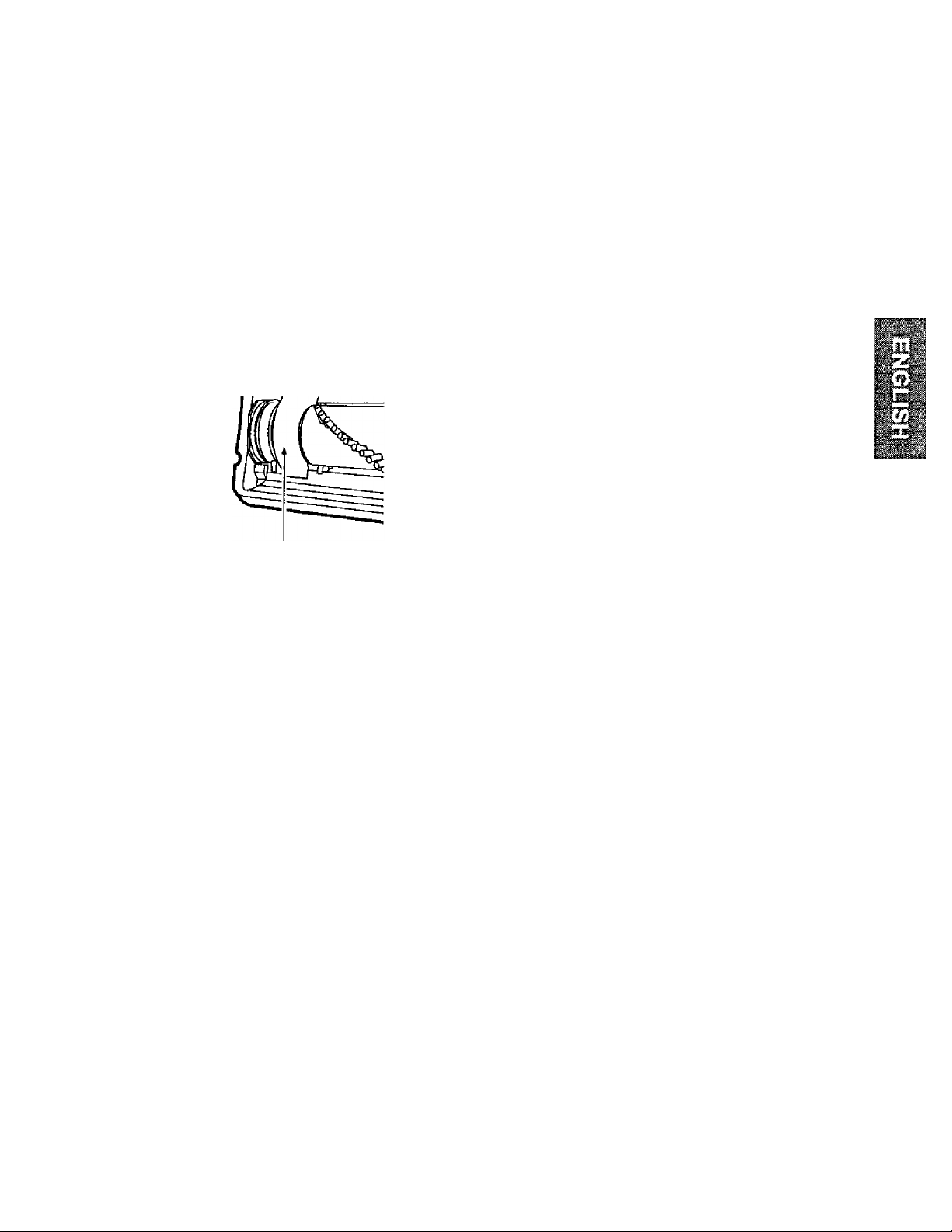

Rotate the base plate away from the noz
zle housing. The sides of the base plate
need to be pulled slightly outward to clear
the wheels.
The agitator and belt are now exposed.
Carefully remove any residue that may
exist in the belt area.
Motor
Shaft
Agitator
Assembly
To clean agitator turn vacuum cleaner
over, cut off any carpet pile and lint
entangled around agitator with a pair of
scissors as shown.
Frequently check and remove hair, siring
and lint build-up in the brush area. If
build-up becomes excessive, follow the
steps below.
TO REMOVE BELT
Disconnect power cord from electrical
outlet, and place on paper to protect the
floor surface. Place vacuum cleaner in
the full upright posliton.
Turn the vacuum cleaner over so the agi
tator and base plate are facing upward.
Latches
Locking
Tabs
Locking
Tabs
If the belt is still attached to the motor
shaft, there will be tension on the agitator.
If the belt is not broken, remove it from
the motor shaft before lifting the agitator.
Carefully lift the one end of the agitator
and then lift the other end.
Awarning
Personal Injury Hazard
Be careful when removing the agitator
as the belt tension is high. Failure to
do so could result in personal injury
from the agitator releasing quickly
and snapping away.
18
Page 19
TO CLEAN AGITATOR
NOTE: In order to keep cleaning efficiency
high and to prevent damage to your vacuum
cleaner, the agitator must be cleaned every
time the belt is changed.
The agitator must also be cleaned accord
ing to the following schedule;
Vacuum Cleaner Use
HEAVY -
Clean Agitator
every week
(used daily)
BELT ROUTING
Press firmly, checking to see that each end
is completely inserted.
Belt
MODERATE -
every month
(used 2-3 times/week)
LIGHT -
every 2 months
(used 1 time/week)
Remove any dirt or debris in the belt path
area or in the agitator area.
TO REPLACE BELT
NOTE: See PARTS AND FEATURES for
belt number.
Loop the new belt on the motor shaft.
Loop the end of the new belt on the agitator.
Agita tor Assembly
Check to see that the belt is centered in
the belt groove. Turn the agitator with your!T;^;i'^' ^
fingers to see that it turns freely.
Insert the agitator by placing the rounded
portion of the end cap down into the slot
in the nozzle base.
Motor
Shaft
NOTE; Care must be taken due to the belt
tension during reassembly.
19
Page 20
To re-attach the base plate, insert the tabs
into the slots along the front edge of the
base. Place the vacuum cleaner in full
upright position. Lower the base plate to its
original position.
Latches
Locking
Tabs
Locking
Tabs
A gentle pull outward may assist in reassem
bly.
Press the base plate down until the two lock
ing tabs snap into place.
Tabs
As the base is lowered the inner areas will
brush against the dust compartment wheels.
Slide the right latch to the right and the left
latch to the left to secure.
Return the vacuum cleaner to the upright
position before plugging into the electrical
outlet.
20
Page 21
CLOG REMOVAL
Always follow all safely precautions when
cleaning and servicing the vacuum cleaner.
^WARNING
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before
servicing or cleaning the vacuum
cleaner. Failure to do so could result in
electrical shock or personal injury from
vacuum cleaner suddenly starting.
If the vacuum cleaner does not seem to
have adequate suction, first check if the
dust bin is full or if a filter is clogged. See
DUST BIN CLEANING and FILTER
CHANGING.
If the dust bin and fiiter areas are free of
clogs, check the hose area. Remove the
lower end of the stretch hose from the vacu
um cleaner by grasping the hose collar,
twisting, and puliing straight out.
Reassemble the stretch hose to the exten
sion wand.
If the dust bin and filter areas and the hose
areas are free of clogs, check the nozzle
area. To check this area, see the section on
BELT CHANGING AND AGITATOR
CLEANING.
Awarning
Personal Injury Hazard
DO NOT place hands or feet underneath
the vacuum cleaner at any time. The
agitator wili be revoiving rapidiy when
the vacuum cleaner is turned on and is
in the carpet setting.
Plug in the vacuum cieaner and turn it on.
Stretch the hose to maximum length and
then allow the hose to return to its storage
length.
Turn the vacuum cieaner off and unplug the
vacuum cleaner.
Visually inspect the hose and the base area
into which the hose is inserted.
Remove any visible clog.
Return vacuum cleaner to the upright posi
tion before plugging into an electrical outlet.
21
Page 22
LIGHT BULB CHANGING
WARNING
▲
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before ser
vicing or cleaning the vacuum cleaner.
Failure to do so could result in electri
cal shock or personal injury from vacu
um cleaner suddenly starting.
A CAUTION
Do not use a bulb rated over 13 V AC9W. During extended use, heat from the
bulb could overheat surrounding plastic
parts.
A CAUTION
Do not plug in or turn on until the vacu
um cleaner is completely reassembled.
Light Lens
Ensure ON-OFF switch is OFF,
Disconnect power cord from electrical outlet.
Press handle release pedal and rotate the
handle down so the vacuum cleaner is lay
ing flat on the floor.
Pry out light lens at slots. Remove old bulb
from the socket by pulling from socket.
Replace bulb by pressing into socket. Only
use a bulb rated 13 V AC-9 Watts.
Reinstall light lens by snapping into place.
Return the vacuum cleaner to the upright
position.
22
Page 23
AGITATOR SERVICING
WARNING
A
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before ser
vicing or cleaning the vacuum cleaner.
Failure to do so could result in electri
cal shock or personal injury from vacu
um cleaner suddenly starting.
TO CHECK AGITATOR
Turn the vacuum
cleaner over to
check for worn
brushes. When
brushes are worn
to the level of the
base belt guard,
Base Plate Belt Guard
replace the agita
tor.
TO REPLACE AGITATOR
Remove the nozzle cover, agitator cover,
and agitator assembly. See BELT CHANG
ING AND AGITATOR CLEANING.
Replace the agitator assembly with a new
one.
Reassemble the belt, agitator, agitator cover
and nozzle cover. See “To replace belt” in
BELT CHANGING AND AGITATOR
CLEANING section.
23
Page 24
TROUBLESHOOTING
Review this chart to find do-it-yourself solutions for nninor performance problems. Any service
needed, other than those described in this owner’s manual, should be performed by a Sears
authorized service representative.
Awarning
Electrical Shock Or Personal Injury Hazard
Disconnect electrical supply before servicing or cleaning the vacuum cleaner. Failure
to do so could result in electrical shock or personal injury.
PROBLEM
Vacuum cleaner
won’t run.
Poor job of dirt pick-up.
Vacuum cleaner picks up
moveable rugs or
pushes too hard.
Light won't work.
Agitator does not turn.
Air flow restricted
with attachment use.
Sound changes.
POSSIBLE CAUSE
1. Unplugged at wall outlet.
2. Tripped circuit breaker/blown fuse
at household service panel,
3. On/off switch not turned on.
4. Thermal protector tripped.
1. Full or clogged dust bin.
2. Wrong pile height setting.
3. Worn agitator.
4. Clogged nozzle or dust bin port.
5. Clogged hose.
6. Hole in hose.
7. Broken/misplaced belt,
B. Hose not inserted fully.
9. Motor protection system activated.
10. Dirty filters.
1. Wrong pile height setting.
1. Burned out light bulb.
1. Broken belt.
2. Belt installed Incorrectly.
1. Attachment use restricts air flow.
2, New carpet fuzz clogged air path.
1. Plug in firmly, push on/off switch to on.
2. Reset circuit breaker or replace fuse.
3. Push on/off switch to on.
4. Reset thermal protector.
1. Clean dust bin.
2. Adjust setting.
3. Replace agitator.
4. Check CLOG REMOVAL.
5. Check for clogs.
6. Replace hose.
7. Replace/fix belt.
B. Insert hose fully.
9. Check for clogs.
10. Clean/change filters.
1. Adjust setting.
1. Change light bulb.
1. Replace belt.
2. Check BELT CHANGING AND
AGITATOR CLEANING.
1. Check ATTACHMENTS.
2. Check CLOG REMOVAL and clean
hose.
24
Page 25
Get it fixed, at your home or ours!
Your Home
For repair - in your home - of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME® Anytime, day or night
(1-800-469-4663) (U.SA.and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in products like vacuums, lawn equipment,
and electronics, call or go on-line for the nearest
Sears Parts and Repair Center.
1 -800-488-1222 Anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears;
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada )
Para pedir servido de reparadón
a domicilio, y para ordenar piezas;
1.888-SU-HOGAR®
(1-888-764-6427)
© Sears, Roebuck and Co.
® Registered Trademark / ™ Trademark / Service Mark of Sears Brand, LLC
® Marca Registrada / ™ Marca de Fábrica / Marca de Servicio de Sears Bra Roebuck ands, LLC
Marque de commerce / Marque déposée de Sears Brands, LLC
Au Canada pour service en français;
1-800-LE-FOYER^'^
(1-800-533-6937)
www.sears.ca
Loading...
