Kenmore 110.4292 User Manual [en, es, fr]
Front-Loading Automatic Washer Lavadora automática de carga frontai Laveuse automatique à chargement frontai
Models/Modelos/Modèles 110.4292^, 4492^, 4493^
^ = color number, número de color, numéro de couleur
ENERGYSTAR
4619 7022 0311
Sears Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.
Sears Canada Inc., Toronto, Ontario, Canada MSB 2B
www.sears.com
www.sears.ca
ws/mm/ffMm/mm/mm/mm/mwmmrmmm/mmmmmm/mmmmmm/mmmiiiiimimsmmmmmmmmmmmmmmmmmmmfmmmmmm
TABLE OF CONTENTS
PROTECTION AGREEMENTS..................................................2
In the U.S.A
In Canada...............................................................................3
WARRANTY...............................................................................3
PEDESTAL OPTION WARRANTY............................................3
WASHER SAFETY.....................................................................4
INSTALLATION REQUIREMENTS
Tools and Parts.......................................................................5
Alternate Parts
Options....................................................................................5

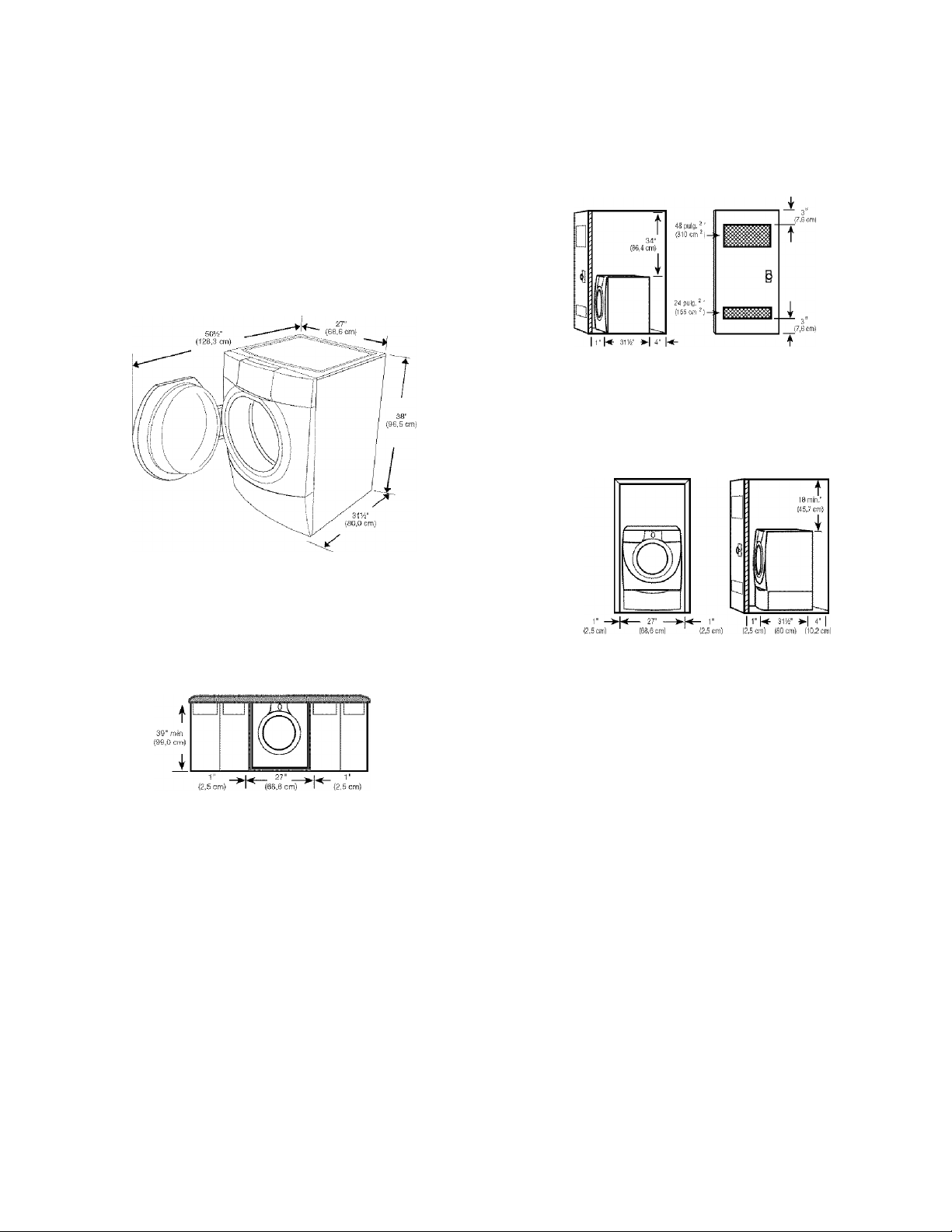

Location Requirements...........................................................5
Drain System..........................................................................7
Electrical Requirements..........................................................7
INSTALLATION INSTRUCTIONS
Remove T ransport System
Connect the Inlet Hoses..........................................................9
Route the Drain Hose
Secure the Drain Hose............................................................9
Level the Washer....................................................................9
Complete Installation
FEATURES AND BENEFITS...................................................10
WASHER USE.........................................................................11
Starting Your Washer.............................................................11

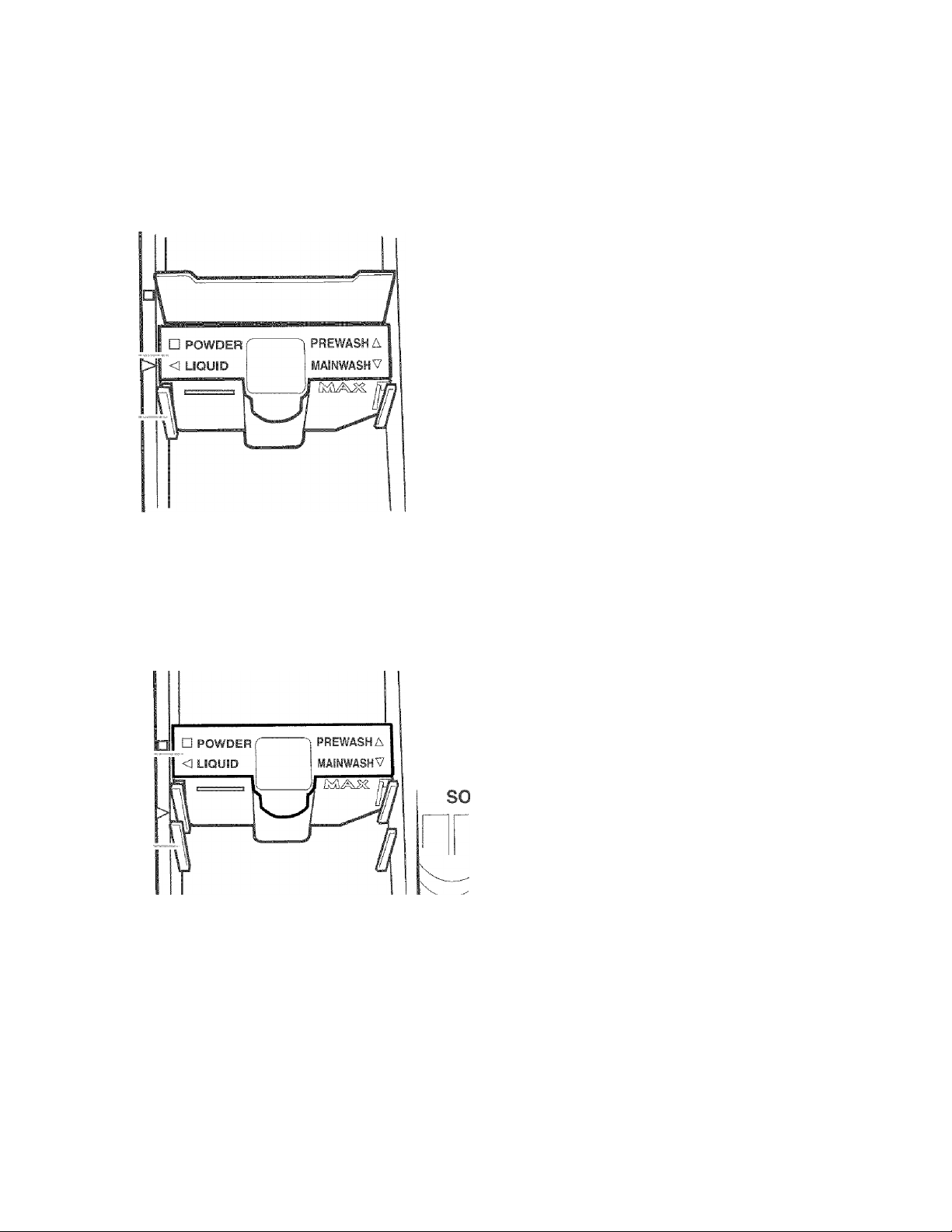

Using the Dispenser
Pausing or Restarting
Changing Cycles, Options and Modifiers
Status Lights
Cycles...................................................................................14
Normal Sounds.....................................................................15
Options..................................................................................15
Modifiers...............................................................................16
Laundry Guide......................................................................17
LAUNDRY TIPS.......................................................................17
Loading.................................................................................18
WASHER CARE.......................................................................18
Cleaning Your Washer..........................................................18
Water Inlet Hoses..................................................................18
Vacation, Storage, and Moving Care
TROUBLESHOOTING
SERVICE NUMBERS.............................................BACK COVER
............................................................................
...........................................
........................................................................
.............................................
....................................................
.............................................................
............................................................
.............................................................
...........................................................
..............................
..........................................................................
....................................
.............................................................
2
5
5
8
8
9
10
12
13
13
13
18
19
PROTECTION
AGREEMENTS
:ri tl
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore®appliance is designed and manufactured for years of
dependable operation. But like all products, it may require
preventive maintenance or repair from time to time. That’s when
having a Master Protection Agreement can save you money and
aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend the life of
your new appliance. Here’s what’s included in the Agreement:
✓ Expert service by our 12,000 professional repair specialists
✓ Unlimited service and no charge for parts and labor on all
covered repairs
✓ “No-lemon” guarantee - replacement of your covered
product if four or more product failures occur within twelve
months
✓ Product replacement If your covered product can’t be fixed
✓ Annual Preventive Maintenance Check at your request - no
extra charge
✓ Fast help by phone - phone support from a Sears technician
on products requiring in-home repair, plus convenient repair
scheduling
✓ Power surge protection against electrical damage due to
power fluctuations
✓ Rental reimbursement if repair of your covered product takes
longer than promised
Once you purchase the Agreement, a simple phone call Is all that
it takes for you to schedule service. You can call anytime day or
night, or schedule a service appointment online.
Sears has over 12,000 professional repair specialists, who have
access to over 4.5 million quality parts and accessories. That’s
the kind of professionalism you can count on to help prolong the
life of your new purchase for years to come. Purchase your
Master Protection Agreement today!
Some limitations and exclusions apply. For prices and
information, call 1-800-827-6655.
: ■
Sears Installation Service
For Sears professional installation of home appliances, garage
door openers, water heaters, and other major home items, in the
U S A. call 1-800-4-MY-HOME®.
Ill
Maintenance Agreements
Your purchase has added value because you can depend on
Sears HomeCentral® for service. With over 2,400 Service
Technicians and access to over 900,000 parts and accessories,
we have the tools, parts, knowledge and skills to back our
pledge: We Service What We Sell.
Your Kenmore® appliance is designed, manufactured and tested
to provide years of dependable operation. Yet any major
appliance may require service from time to time. The Sears
Maintenance Agreement offers you an outstanding service
program, affordably priced.
The Sears Maintenance Agreement
■ Guarantees tomorrow’s service at today’s price.
■ Eliminates repair bills resulting from normal wear and tear.
■ Covers non-technical and instructional service calls.
■ Provides an annual Preventive Maintenance Check, at your
request, to ensure that your appliance is in proper running
condition.
Some limitations apply. For information concerning Sears
HomeCentral® Maintenance Agreements, call
1-800-361-6665.
Warranty Restriction
If this washer is operated for any purpose other than private
family use, all warranty coverage is restricted to 90 days from the
date of purchase.
Warranty Service
Warranty service is available by contacting the nearest Sears
Service Center in the United States or Canada. This warranty
applies only while the product is in use in the United States or
Canada.
This warranty gives you specific legal rights and you may also
have other rights which vary from state to state or province to
province.
For Sears warranty information or to contact a Sears Service
Center, please reference the service numbers located on the
back page of this manual.
Sears, Roebuck and Co.
D/817WA, Hoffman Estates, IL 60179
Toronto, Ontario, Canada MSB 2B8
*ln Canada a different warranty may apply.
Product Record
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label.
Have this information available to help you quickly obtain
assistance or service when you contact Sears concerning your
appliance.
Model number 110
________________________________________________________
Sears Canada Inc.
KENMORE
WASHER WARRANTY
Limited Lifetime Warranty on Stainless Steel Drum
For the lifetime of the washer from the date of purchase, Sears
will replace the Stainless Steel wash drum due to defective
material or workmanship. After the first year, you will be charged
for labor.
Limited 10-Year Warranty on Plastic Tub*
For the second through tenth year from the date of purchase.
Sears will replace the plastic tub If It is defective in material or
workmanship. After the first year, you will be charged for labor.
Limited 5-Year Warranty on Gearcase Parts*
For the second through fifth year from the date of purchase,
Sears will replace any gearcase parts that are defective in
material or workmanship. After the first year, you will be charged
for labor.
Limited 2-Year Warranty on SENSOR SMART™
Control Board
For two years from the date of purchase, Sears will replace the
SENSOR SMARF“ control board if it is defective In material or
workmanship. You will be charged for labor after the first year.
Full 1-Year Warranty on Mechanical and Electrical Parts
For one year from the date of purchase, when this washer is
installed and operated according to the instructions that come
with it, Sears will repair or replace any of its mechanical or
electrical parts if they are defective in material or workmanship.
Service must be provided by a Sears Service Department in the
United States or Canada or an authorized agent.
Serial number
Purchase date
Save these instructions and your sales receipt for future
reference.
____________ ___________________
_____________________
PEDESTAL OPTION
WARRANTY
Full One-Year Warranty on Mechanical Parts
For one year from the date of purchase, supplier will repair or
replace any of its mechanical parts if defective in material or
workmanship. This Pedestal must be installed with this washer
according to the instructions provided in the Pedestal Installation
Instructions.
Warranty Restriction
If the pedestal is subject to other than private family use and or if
the pedestal is used with any other product than those listed in
the installation instructions, the above warranty coverage is null
and void.
Product Record
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label.
Have this information available to help you quickly obtain
assistance or service when you contact Sears concerning your
pedestal.
Model number 110.________________________________________________________
Serial number
Purchase date
____________ ___________________
_____________________
Save these instructions and your sales receipt for future reference.
WASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or
“WARNING.” These words mean;
You can be killed or seriously injured if you don't
ADANGER
AWARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
immediately follow instructions.
You can be killed or seriously injured if you don't follow instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic
precautions, including the following:
■ Read all instructions before using the washer.
■ Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable,
or explosive substances as they give off vapors
that could ignite or explode.
■ Do not add gasoline, dry-cleaning solvents, or
other flammable, or explosive subsfances to the
wash water. These substances give off vapors
fhat could ignite or explode.
■ Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not
been used for such a period, before using the
washing machine, turn on all hot water faucets
and let the water flow from each for several
minutes. This will release any accumulated
hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is
used near children.
Before the washer is removed from service or discarded,
remove fhe door or lid.
Do not reach into the washer if the drum, tub or agitator
is moving.
Do not install or store the washer where it will be
exposed to the weather.
Do not tamper with controls.
Do not repair or replace any part of the washer or
attempt any servicing unless specifically recommended
in this manual or in published user-repair instructions
that you understand and have the skills to carry out.
See “Electrical Requirements” for grounding instructions.
.pi_iggg instructions
INSTALLATION REQUIREMENTS
Assemble the necessary tools and supplies before beginning the
washer installation. The parts supplied are In the washer drum.
Tools needed for connecting the water inlet hoses
■ Pliers (that open to 1 ®/i5 in. [39.5 mm])
■ Flashlight (optional)
Tools needed for installation
■ Open end wrench 17 mm and 13 mm
■ Level
■ Wood block (2" X 4" [5.8 X 10.2 cm])
■ Ruler or measuring tape
Parts supplied
Beaded strap Transport bolt hole plug (4)
Parts listed are available from your local Sears store or Sears
Service Center. For further information, please call
1-800-4-MY-HOME® (1-800-469-4663).
If You Have You Will Need to Buy
Laundry tub or
standpipe taller
than 96 in. (2.4 m)
Sump pump system (if not already
available)
Pedestal
A pedestal may be purchased separately for this washer. This
pedestal will add about 13 in. (33 cm) to the height of your unit
for a total vertical height of approximately 51 in. (130 cm).
This pedestal (with storage drawer) is available in three colors:
White - Part Number 42842
Bisque - Part Number 42844
Graphite - Part Number 42846
To order, call your local Sears store. For further information,
please cal 11-800-4-MY-HOME” (1-800-469-4663).
Stack Kit
Are you planning to stack your Kenmore HE3t washer and dryer?
To do so, find the stack kit (8541503) in the drum of the matching
Kenmore dryer.
Overhead sewer Standard 20 gal. (76 L), 30 In. (76.2 cm)
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
Eloor drain Siphon break, Part Number 285834;
additional drain hose Part
Number 8318155; and connector kit.
Part Number 285835
Drain hose too
short
Water faucets
beyond reach of
fill hoses
4 ft drain hose extension kit, Part
Number 285863
2 longer water fill hoses:
6 ft (1.8 m) Part Number 76314,
10 ft (3.0 m) Part Number 350021
Selecting the proper location for your washer improves
performance and minimizes noise and possible washer “walk.”
Your washer can be installed under a custom counter, or in a
basement, laundry room, closet, or recessed area, (See “Drain
System.”)
Companion appliance location requirements should also be
considered. Proper installation is your responsibility.
You will need
■ A water heater set to deliver 120°F (49°C) water to the
washer.
■ A grounded electrical outlet located within 5 ft (1.5 m) of
where fhe power cord is attached to the back of the washer.
(See “Electrical Requirements.”)
■ Hot and cold water faucets located within 4 ft (1.2 m) of the
hot and cold water fill valves, and water pressure of
20-100 psi (137.9-689.6 kPa).
■ A level floor with a maximum slope of 1 in. (2.5 cm) under
entire washer. Installing the washer on carpeting is not
recommended.
■ A sturdy and solid floor to support the washer with a total
weight (water and load) of 400 lbs (180 kg).
Do not operate your washer in temperatures below 32°E (0°C).
Some water can remain in the washer and can cause damage in
low temperatures.
Installation clearances
■ The location must be large enough to allow the washer door
to be fully opened.
■ Additional spacing should be considered for ease of
installation and servicing.
■ Additional clearances might be required for wall, door, and
floor moldings.
■ Additional spacing of 1 in. (2.5 cm) on all sides of the washer
is recommended to reduce noise transfer.
■ Companion appliance spacing should also be considered.
Recessed or closet installation - Washer on pedestal
Washer Dimensions
Recommended installation spacing for custom undercounter installation
The dimensions shown are for the recommended spacing.
Custom undercounter installation - Washer only
1. Recessed area
2. Side view - closet or confined area
Recommended installation spacing for recessed or
closet installation, with stacked washer and dryer
The dimensions shown are for the recommended spacing.
48 in.^ *
Recommended installation spacing for recessed or
closet installation, with or without a pedestal
The dimensions shown are for the recommended spacing.
Recessed area or closet installation
(7,ecm)
(310 cm
6.4 cm)
□
I 1" 31 íé" H 4"
!2.5cni) (&0cm) (10.2 cm)
1. Side view - closet or confined area
2. Closet door with vents
(7.6 cm)
*Min. top and bottom air openings for closet door.
'External exhaust elbow requires additional space.
’'Wall, door and floor molding may require
additional spacing.
Recommended installation spacing for cabinet installation
The dimensions shown are for the recommended spacing.
For cabinet installation, with a door, the minimum ventilation
openings in the top are required.
7'(17.8 cm)
Laundry tub drain system (view 1)
The laundry tub needs a minimum 20 gal. (76 L) capacity. The top
of the laundry tub must be at least 30 in. (76.2 cm) above the
floor.
Floor drain system (view 2)
The floor drain system requires a siphon break that may be
purchased separately. (See “Alternate Parts.”)
The siphon break must be a minimum of 28 in. (71 cm) from the
bottom of the washer. Additional hoses might be needed.
Electrical F
, g-l
.(22.9 cm)
4"
(10.2 cm)
The washer can be installed using the standpipe drain system
(floor or wall), the laundry tub drain system, or the floor drain
system. Select the drain hose installation method you need. (See
“Alternate Parts.”)
Standpipe drain system - wall or floor (views 1 & 2)
The standpipe drain requires a minimum diameter standpipe of
2 in. (5 cm). The minimum carry-away capacity can be no less
than 17 gal. (64 L) per minute.
The top of the standpipe must be at least 30 in. (76.2 cm) high
and no higher than 96 in. (2.4 m) from the bottom of the washer.
31F 1" 1" 27' f
(BO.Oom) (2.5 cm) (2.6 cm) (68.6 cm) (2.5 cm)
AWARNING
%r
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
A 120-volt, 60-Hz., AC-only, 15- or 20-ampere, fused
electrical supply is required. Time-delay fuse or circuit
breaker is recommended. It is recommended that a separate
circuit serving only this appliance be provided.
This washer is equipped with a power supply cord having a
3 prong grounding plug.
To minimize possible shock hazard, the cord must be
plugged into a mating, 3 prong, grounding-type outlet,
grounded in accordance with local codes and ordinances. If a
mating outlet is not available, it is the personal responsibility
and obligation of the customer to have the properly grounded
outlet installed by a qualified electrician.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not sure the
washer is properly grounded.
Do not have a fuse in the neutral or ground circuit.
1. 3 prong grounding plug
2. 3 prong grounding-type
wall receptacle
3. Grounding prong
4. Power supply cord
GROUNDING INSTRUCTIONS
INSTALLATION
INSTRUCTIONS
flernoh'^" ^ ■■.■/stBiii
AWARNING
Excessive Weight Hazard
Use two or more people to move and install
washer.
Failure to do so can result in back or other injury.
IMPORTANT: Position the washer so that the rear of the unit is
within approximately 3 ft (90 cm) of the final location.
There are 4 bolts in the rear panel of the washer that support the
suspension system during transportation. These bolts also retain
the power cord inside the washer until the bolts are removed.
For a grounded, cord-connected washer:
This washer must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electrical shock by providing a path of least
resistance for electric current. This washer is
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or
serviceman if you are in doubt as to whether the
appliance is properly grounded.
Do not modify the plug provided with the appliance if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
For a permanently connected washer:
This washer must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or
lead on the appliance.
I
«»
1.
Using a 13 mm wrench, loosen each of the bolts.
2.
Once the bolt is loose, move it to the center of the hole and
completely pull out the bolt, including the plastic spacer
covering the bolt. The power cord will be attached to all
4 bolts inside the washer.
3. Once all 4 bolts are removed, pull the power cord through the
opening of the rear panel and close the hole with the attached
cap.
4. Close the bolt holes with the 4 transport bolt hole plugs.
NOTE: If the washer is to be transported at a later date, call
your local service center. To prevent suspension and structural
damage, your machine must be properly set up for relocation
by a certified technician.
1€
miSits
Connect the inlet hoses to the water faucets
Make sure the washer drum is empty.
1. Using pliers, check for tightness of hose couplings already
attached to the washer.
NOTE: Do not overtighten. Damage to the connection can
result.
2. Attach the hose with the red color indicator to the hot water
faucet. Screw on coupling by hand until it is seated on the
washer.
3. Attach the hose with the blue color indicator to the cold water
faucet. Screw on coupling by hand until it is seated on the
washer.
4. Using pliers, tighten the couplings with an additional two-
thirds turn.
a, ■
iM
MriSfa!
1. Drape the power cord over the washer top.
2. Secure the drain hose to the laundry tub leg or standpipe with
the beaded strap provided. (See illustrations 1 and 2.)
If the washer faucets and the drain standpipe are recessed
(see illustration 3), put the hooked end of the drain hose in the
standpipe. Tightly wrap the beaded strap around the water
inlet hoses and the drain hose.
Do not force excess drain hose into the standpipe.
Properly leveling your washer prevents excessive noise and
vibration.
1. Check the levelness of the washer by placing a level on the
top edge of the washer, first side to side, then front to back.
NOTE: Do not overtighten. Damage to the coupling can result.
5. Turn on the water faucets and check for leaks.
NOTE: Replace inlet hoses after 5 years of use to reduce the
risk of hose failure. Record hose Installation or replacement
dates on the hoses for future reference.
Periodically inspect and replace hoses if bulges, kinks, cuts,
wear, or leaks are found.
Proper routing of the drain hose protects your floors from
damage due to water leakage. Carefully read and follow these
instructions.
The drain hose is connected to your washer.
To prevent drain water from going back into the washer:
■ Do not straighten the drain hose, and do not force excess
drain hose into standpipe. Hose should be secure, but loose
enough to provide a gap for air.
■ Do not lay excess hose on the bottom of the laundry tub.
Floor drain
You may need additional parts. (See Floor Drain under “Alternate
Parts.”)
If the washer is against a wall, move the washer out slightly
before tipping back. If the washer is not level, first prop the
front with a wood block (2” x 4”) and adjust the feet as
necessary: then prop the back and adjust feet as necessary.
Repeat this step until washer is level.
After the washer is level, use a 17 mm open-end wrench to
turn the nuts on the feet tightly against the washer cabinet.
All 4 feet must be tightened. If the nuts are not tight against
the washer cabinet, the washer may vibrate.
Slide the washer to its final location.
Confirm the levelness of the washer.
1. Check the electrical requirements. Be sure that you have the
correct electrical supply and the recommended grounding
method. (See “Electrical Requirements.”)
2. Check to be sure all parts are now installed. If there is an
extra part, go back through the steps to see which step was
skipped.
3. Check to be sure you have all of your tools.
4. Dispose/recycle all packaging materials.
5. Check to be sure the water faucets are on.
6. Check for leaks around faucets and inlet hoses.
▲ WARNIN
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
7. Plug into a grounded 3 prong outlet.
8. Read “Washer Use.”
9. To test and to clean your washer, measure % the normal
recommended amount of powdered or liquid High Efficiency
(HE) detergent. Pour the detergent into the detergent
dispenser. Select NORMAL/CASUAL, and then select START.
Allow the washer to complete one whole cycle.
FEATURES AND
BENEFITS
Auto Water Level
Adjusting to the size of the load, this feature allows the washer to
use the minimal amount of water needed to clean and rinse the
clothes. With a low water level, you can obtain the same results
with smaller amounts of additives. Because only the required
amount of water is used, the washer saves energy, too.
Larger Load Size
Since there is no agitator, you can wash larger, bulkier items such
as an average size sleeping bag. You are also able to wash more
clothes at one time, which means fewer loads. You can wash a
pillow or a large stuffed teddy bear.
Suspension System
To reduce washer “walk” and “off-balance” conditions, your new
washer combines:
■ 2 Springs to isolate vibration
I
■ 4 Shock absorbers at the washer base to minimize movement
Stainless Steel Drum
The Stainless Steel drum eliminates corrosion and enables higher
spin speeds for more water extraction, reducing drying time.
Adaptive Variable Speed Motor
The motor adapts to the load size and to the cycle selected to
give the optimum cleaning, rinsing, and spinning conditions. The
motor can handle slow speeds needed for wool and delicate
items and is powerful enough fo drive a large clothes load into a
1,200 rpm spin.
High-Efficiency Wash System
Your new front-loading, high-efficiency washer saves time with
fewer, larger loads, conserves resources and lowers your water
and energy bills too.
Spin Speeds
This washer automatically selects the spin speed based on the
cycle selected. This factory setting can be changed, however.
This washer offers up to six different spin speed choices.
Thermal Optimizer
The heating system ensures that the wash water is heated to the
preset temperature for Heavy Duty, Whitest Whites, Sanitary, and
the Stain Treat option. It also provides “stepped cleaning” when
using the sanitary cycle or the stain treat option. “Stepped
cleaning" starts the wash cycle with warm water to remove stains
(such as blood or grass). The water continues heating in order to
remove stains such as dirty mechanical oil. During the sanitary
cycle, the thermal optimizer can heat the water to temperatures
that will destroy 99.999% of three common types of bacteria
found in soiled laundry.
SENSOR SMART’^'^ Electronic Controls
Flexible electronic controls are easy to use whether you are a
beginner or an expert.
Detergent Advantage System Dispenser
The four compartments in the dispenser allow loading of all
laundry additives before the washer is started. The additives will
be dispensed into the wash at the optimal time for high
performance cleaning. TIMED BLEACH"^'^ release is included in
the detergent advantage system. The detergent is added at the
beginning of the cycle and the bleach is added after the enzymes
have had a chance to do their cleaning. The fabric softener is
dispensed in the rinse cycle. The Detergent Advantage System
Dispenser tray is easily removed for cleaning.
10
Add A Garment
When lighted. Express Wash, Normal/Casual, Heavy Duty,
Whitest Whites, and Sanitary can be paused and the door
unlocked so you can add a garment that may have been
forgotten when loading the washer. The ADD A GARMENT status
light will stay lit for the first 8 minutes of a cycle.
CATALYST® Cleaning Action with Direct Injection
A concentrated detergent solution is sprayed onto the clothes at
the beginning of the cycle to ensure that the detergent comes
into contact with the clothes as quickly as possible, removing
stains from your clothes without pretreating.
Dynamic Balance
A precision balancing system that allows the washer to reach
spin speeds of 1,200 rpm. The washer spins faster so that
clothes coming out of the washer will dry faster. In addition, if the
Dynamic Balance system detects off balance loads during
spinning, it redistributes the clothes so that they are evenly
balanced.
WASHER USE
A WARN ING
Fire Hazard
Never place items in the washer that are
dampened with gasoline or other flammable
fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type of
oil on it {including cooking oils).
Doing so can result in death, explosion, or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
The following is a guide to using your washer. Please refer to
specific sections of this manual for more detailed Information.
Do not store laundry products on the top surface of this washer.
Vibration is normal during operation.
First Wash Cycle Without Laundry
Before washing clothes for the first time, choose NORMAL/
CASUAL cycle and run it without clothes. After installation, it a
complete cycle has not been run without clothes, use y2 the
normal recommended amount of powdered or liquid High
Efficiency {HE) detergent. This initial cycle serves to ensure the
interior is clean before washing clothes.
1. To load washer
Open the washer door by pulling on the handle.
Sort laundry according to color and type of fabric. Place a
load of sorted clothes In the washer. Do not overload washer.
Overloading can cause poor cleaning.
■ The washer can be fully loaded, but not tightly packed.
Washer door should close easily.
■ Mix large and small items. Avoid washing a single item.
Load evenly.
rubber rim at the front of the tub for small items.
2. Close the washer door by pushing it firmly until the lock
clicks. The washer door will remain locked during the wash
cycle.
NOTE: After any wash cycle is completed, the door must be
opened and then closed before a new cycle can begin. The
door can be opened only if PAUSE/CANCEL is selected while
the ADD A GARMENT light is glowing or if the cycle has been
canceled. See “To Cancel a Cycle.”
3. Open the Dispenser Drawer and add laundry products to the
detergent, bleach, or fabric softener compartments. Close
drawer slowly to avoid spills. See “Using the Dispenser.”
NOTE: For best performance, use High Efficiency detergents.
The package tor this type of detergent will be marked “HE” or
“High Efficiency.”
4. Turn on the washer by selecting one of the WASH CYCLES.
The indicator light for the selected cycle will glow. When
selecting a Wash Cycle, the preset options, Water Temp, Spin
Speed, and Soil Level for the selected cycle will glow. The
display shows the estimated time remaining. The preset
settings provide the recommended fabric care for the
selected cycle. See “Wash Cycles.”
5. Select the desired OPTIONS, Not all Options are available
with all cycles. See “Options.”
6. Select the desired MODIFIERS. Not all Modifiers are available
with all Cycles and Options. See “Modifiers.”
7. If desired, select the END OF CYCLE SIGNAL. The signal is
helpful when you are washing items that should be removed
from the washer as soon as it stops. Select HIGH or LOW.
8. To begin the wash cycle immediately
Select and hold START (for approximately 1 second).
■ If you do not select START within 5 minutes of choosing a
cycle, the washer automatically shuts off.
■ When the wash cycle is complete, the CLOTHES CLEAN
status light glows, the door unlocks, and the wash load
can be removed from the washer. The washer powers
down automatically 5 minutes after the cycle is complete
and the CLOTHES CLEAN light goes off. To power down
the washer manually after the wash cycle is complete,
select PAUSE/CANCEL once.
9. To begin the wash cycle later
Select DELAY until the desired delay time (in hours) shows in
the Estimated Time Remaining display. Select START. The
countdown to the wash cycle will show in the display window.
11
1,1 i'c7
Your new washer has a dispenser drawer with four separate
compartments for your laundry products—two are for detergent,
one is for liquid chlorine bleach, and one is for liquid fabric
softener. Laundry products are diluted and dispensed
automatically at the proper time during the wash cycle, making it
unnecessary for you to return to the washer during the cycle to
add them.
It is normal for small amounts of water to remain in the
dispensers when the wash cycle is complete.
Do not put laundry additives directly into the wash tub. Always
use the proper dispensers when adding laundry products.
Choosing the Right Detergent
For best washing performance, use a High Efficiency (HE), or
low-sudsing, detergent.
To fill dispenser compartments
1. Pull out the dispenser drawer.
2. Add the desired laundry product to the proper compartment.
3. Push in the dispenser drawer carefully and completely (to
avoid spillage).
Main Wash detergent compartment
(Number 3 in Dispenser Illustration)
Add liquid or powdered detergent to this compartment for your
main wash cycle. The detergent separator must always be in
place, either in the front or back position.
IMPORTANT: If you are using the Prewash option, the Auto Soak
with a wash cycle, or Delay, powdered detergent must be used in
the main wash compartment since liquid detergents may seep
out of the main wash compartment during the prewash, soak
time, or delay before the main wash begins.
■ Do not fill beyond the “MAX” level.
■ Liquid or powdered color-safe bleach may be added to the
Main Wash compartment along with the same type of
detergent, liquid or powdered.
■ Liquid detergent: Put the SEPARATOR in the front position,
between the guides, as shown following. There will be no gap
between the bottom of the wash cycle detergent
compartment and the bottom of the separator.
LIQUI
SO
7. Prewash detergent compartment
2. Separator
3. Main Wash detergent compartment
4. Dispenser release lever
5. Chlorine bleach compartment
6. Fabric softener compartment
Prewash detergent compartment
(Number 1 in Dispenser Illustration)
Add detergent to this compartment when using the Prewash
option or Auto Soak. Liquid or powdered detergent may be used
in this compartment. The detergent wili automatically be
dispensed during Prewash if the Prewash option is selected or
during the soak time if Auto Soak is selected.
■ Using High Efficiency (HE) detergent, add Vs the
recommended amount to the prewash compartment and %
the recommended amount to the main wash compartment.
Separator in front position, between guides
1. Separator
2. Guide
Powdered detergent: Put the SEPARATOR in the back
position, behind the guides, as shown following. There will
be
a gap between the bottom of the wash cycle detergent
compartment and the bottom of the separator.
LiQUi
SO
Separator in back position, behind guides
1. Separator
2. Guide
NOTE: The separator will be in the powder (back) position when
shipped from the factory.
12
Chlorine bleach compartment
(Number 5 in Dispenser Illustration)
Add NO MORE THAN Vs cup (80 mL) liquid chlorine bleach to this
compartment. The bleach will be automatically diluted and
dispensed at the best time during the first rinse after the wash
cycle. This compartment cannot dilute powdered bleach.
■ Always measure liquid chlorine bleach. Use a measuring cup
with a pour spout; do not guess. Follow the manufacturer’s
directions for safe use,
■ Do not fill beyond the “MAX” level.
NOTE: Overfilling could cause severe garment damage.
Fabric Softener compartment
(Number 6 in Dispenser Illustration)
Add '/4 cup (60 mL) liquid fabric softener to this compartment.
Fabric softener will be automatically dispensed in the final rinse.
■ Do not fill beyond the “MAX” level.
These lights show which portion of the cycle the washer is
operating. They also indicate when you can add an additional
item to the wash cycle and when the controls are locked.
Status
ADD A GARMENT •
Soak / Prewash •
Wash*
Rinse •
SPIN*
Clothes Clean •
Control Locked •
1. To pause the washer at any time, select PAUSE/CANCEL.
2. To continue the oycle, select and hold START (for
approximately 1 second).
Not all Options and Modifiers are avaiiable with all Cycles.
Cycles, Options and Modifiers can be changed anytime before
START is selected.
Options and Modifiers can be changed anytime after START is
selected and before the start of the selected Option or Modifier.
To cancel a cycle and select a new cycle
1. Select PAUSE/CANCEL twice.
2. Select desired cycle.
3. Select the desired OPTIONS.
4. Select and hold START (for approximately 1 second) to restart
the washer at the beginning of the new cycle.
To cancel a cycle
1. Select PAUSE/CANCEL twice.
2. The washer powers down, the door unlocks, and clothes can
be removed.
NOTE: If the water level or the temperature is too high, the
washer will drain automatically before the door unlocks.
To change Options or Modifiers after the cycle has started
1. Select PAUSE/CANCEL.
2. Select the desired OPTIONS or MODIFIERS.
3. Select and hold START (for approximately f second) to
continue the cycle.
To drain the washer manually
1. Select PAUSE/CANCEL.
2. Select DRAIN/SPIN.
3. Select and hold START (for approximately 1 second) to begin
the drain.
4. When the spin is complete, the door unlocks. Items can be
removed from the washer.
Adding items
You can add items to the washer after the cycle has started for
Express Wash, Normal/Casual, Heavy Duty, Whitest Whites, and
Sanitary it the ADD A GARMENT status light is glowing.
To add items
1. Select PAUSE/CANCEL The washer door unlocks, and items
can be added.
2. To continue the cycle, close the door and select and hold
START (for approximately 1 second).
Clothes Clean
The Clothes Clean light stays on for 5 minutes after the cycle is
complete. The washer will then power down.
13
Locking controls
The Control Lock prevents unintended use of the washer. You
can also use the control lock feature to prevent unintended cycle
or option changes during a cycle. When CONTROL LOCKED is
lit, all buttons are disabled except for Pause/Cancel and Start.
You can lock the controls while the washer is operating.
To lock the controls
Select and hold DRAIN/SPIN for 3 seconds.
Preset cycle settings
Each cycle has a preset Cycle Time, Water Temp, and Spin
Speed. The preset settings provide the recommended fabric care
for the selected cycle. See chart.
Cycle
Soil Level
Water Temp Spin Speed
(hr:min)
Sanitary Heavy
Extra Hot/Cold Extra High
(2:00)
Drain / Spin
PRESS & HOLD 3
SECONDS TO LOCK /
UNLOCK CONTROL
The CONTROL LOCKED status light glows.
To unlock the controls
Select and hold DRAIN/SPIN for 3 seconds until the CONTROL
LOCKED Status light turns off.
Estimated Time Remaining
The cycle times vary automatically based on your water pressure,
water temperature, detergent, and clothes load. The cycle time
will be extended if oversudsing oocurs or the load is unbalanoed.
Wash Cycles
Choose Wash Cycles by selecting the button next to the desired
cycle. Each cycle is designed for different types of fabric and soil
levels.
Wash Cycles
Express Wash
Normal/
CASUAL
Heavy
DUTY
Whitest
WHITES
Sanitary
HANDWASH
Wool
Ultra
Each cycle has a preset Soil Level (cycle time), Water
Temperature, Spin Speed and may have preset Options. The
preset settings provide the recommended fabric care for the
selected cycle.
The preset settings can be changed anytime before START is
selected. Not all Options and Modifiers are available with all
Cycles. (To change settings after the cycle has started, select
PAUSE/CANCEL, then select the desired settings. Select and
hold START [for approximately 1 second] to continue the
cycle.)
Whitest Whites
Heavy Duty
Normal/ Casual
Express
Wash
Delicate
Heavy
(1:10)
Heavy
(1:35)
Normal
(0:45)
Light
(0:30)
Normal
Hot/Cold Extra High
Hot/Cold Extra High
Warm/Cold High
Warm/Cold Extra High
Warm/Cold Low
(0:35)
Silk Normal
Cold/Cold No spin
(0:30)
Wool Normal
Cold/Cold Low
(0:35)
Ultra
Handwash
Normal
(0:35)
Cold/Cold Extra Low
Sanitary
Use this cycle to clean heavily soiled colorfast fabrics. This cycle
combines a very hot water temperature and fast-speed tumbling
to help ensure the removal of heavy soils and stains. It is
recommended that you set your hot water heater to 120°F (49°C)
to ensure proper performance during this cycle. The Sanitary
cycle also helps eliminate 99.999% of 3 common infectious
bacteria, even when no bleach is used. Extra high speed spin
helps shorten drying time.
Whitest Whites
This cycle is especially designed for cleaning loads of soiled
white fabrics with the addition of bleach. Hot washing
temperatures assure optimal bleach activity. An additional rinse
provides optimal rinse performance to avoid chlorine residues on
your laundry. This cycle combines fast-speed tumbling, longer
wash time, and extra high speed spin to shorten drying time.
Heavy Duty
Use this cycle to wash loads of sturdy, colorfast fabrics and
normally soiled garments. This cycle combines fast-speed
tumbling, longer wash time, and extra high speed spin to shorten
drying times. If the water temperature is lower than needed for
this cycle, the heater will warm the water to the optimum
temperature.
NOTE: Stain Treat is a default option for this cycle. To ensure
best performance, the water is heated as the cycle progresses.
This gradual heating assists in the removal of organic soils such
as blood. Stain Treat must be turned off to change the modifiers.
14
Normal/Casual
Use this cycle to wash loads of no-iron fabrics such as sport
shirts, blouses, casual business clothes, permanent press
blends, cottons and linens, and synthetic fabrics. This cycle
combines medium-speed tumbling, high-speed spin, and a load
cooling process to reduce wrinkling.
Express Wash
Use this cycle to wash small loads of lightly soiled garments that
are needed in a hurry. This cycle combines fast-speed tumbling,
a shortened wash time, and extra high speed spin to shorten
drying time.
Delicate
Use this cycle to wash sheer fabrics and lingerie. This cycle
combines low-speed tumbling and low-speed spin for gentle
fabric care.
Silk
Use this cycle to clean washable silk garments. (Check label
instructions to make sure that garment is washable.) This cycle
gently tumbles and drains without spinning to gently clean
garments and minimize wrinkling. Because there is no spinning
action, garments will contain a higher amount of water at the end
of this cycle.
Wool
Use this cycle to clean washable woolen garments. (Check label
instructions to make sure that garment is washable.) This cycle
features gentle tumbling and low-speed spin to minimize
creasing and shrinkage.
Ultra Handwash
Use this cycle to clean hand washable and special-care
garments. Similar to the way garments are hand washed In a
sink, the wash action of this cycle combines periods of extra low
speed tumbling and soaking. Extra low speed spin reduces
wrinkling.
Extra Cycles
Extra Cycles can be chosen by selecting the button above the
desired cycle.
RiMse/SPiN
DRAIN / SPIN
You can change the selection anytime before START is selected.
Rinse/Spin
Use this cycle to get a rinse and spin only. This cycle combines
fast-speed tumbling and extra high speed spin. If desired, you
can reduce the spin speed by selecting the speed you want from
the SPIN SPEED modifier.
Rinse/Spin is usefui for
■ Loads that need rinsing only.
■ Adding fabric softener to a load using the fabric softener
dispenser.
Drain/Spin
Use this cycle to drain your washer or to drain and spin your
wash load. The spin speed is preset to extra high. If desired, you
can reduce the spin speed by selecting the speed you want from
the SPIN SPEED modifier.
NOTE: Loads of synthetics, delicate fabrics, handwashables, and
woolens should be drained with no spin or low spin to avoid
fabric stress.
Normal Sounds
As with any new product, you wili hear sounds that you are not
accustomed to. You may hear various sounds when the door is
locked or unlocked, and during the washing, rinsing, or spinning
process. Between changes in wash actions, there will be
momentary pauses. You will hear water spraying and splashing
during the wash and rinse cycles. These new sounds and pauses
are part of normal washer operation. (See “Troubleshooting.”)
You can customize your wash by adding OPTIONS to your cycle
selections. You can add or change an option after starting a cycle
anytime before the selected option begins. Not all Options are
available with all cycles.
Options
PREWASH
®
STAIN TREAT
AUTO Soak
2nd Rinse
EXTENDED Spin
■ See the “Laundry Guide” section for an overview of possible
options for each Wash Cycle selection.
■ You can select more than one option for a cycle. Some
options cannot be added to some cycles, for example. Stain
Treat cannot be added to the Express Wash cycle.
■ If an option is available with a selected cycle, the light for that
option will glow when selected.
■ If an option is unavailable with a selected cycle, there will be a
short tone and the light for that option will not glow when
selected.
Prewash
Use this option for loads of heavily soiled items that need
pretreatment. This option adds a 15-minute prewash and drain to
the main wash cycle,
■ Add detergent to the Prewash and Main Wash compartments
of the Dispenser Drawer.
■ When using Prewash, do not use liquid detergent in the Main
Wash compartment. Use powdered detergent for the main
wash cycle (see “Using the Dispenser”).
NOTE: The Prewash and Auto Soak options cannot be selected
in the same cycle.
15
stain Treat
Use this option for heavily soiied loads that need improved stain
treatment. When Stain Treat is seiected, the water temperature of
the selected wash cycle is automatically set to warm. The water
will then be heated to a hot water temperature to aid in stain
removal. This option will provide optimal removal of organic
stains such as blood.
NOTE: If Stain Treat is selected with the Sanitary cycle, the water
will be heated to a very hot temperature.
Auto Soak
Use the Auto Soak option for loads of heavily soiled cotton, linen,
polyester or nylon with set-in stains. During Auto Soak, water will
be added to the drum and the laundry will be equally distributed
by a short tumbling phase. Laundry will then be soaked by
phases without drum movement. After soaking, the washer
drains without spinning.
Added to a Wash Cycle: A 30 minute soak time is added to the
main wash cycle to improve removal of set-in stains.
1. Add detergent to both the Prewash and Main Wash
compartments of the Dispenser Drawer.
NOTE: The Auto Soak and Prewash options cannot be
selected in the same cycle. Use powdered detergent for the
main wash cycle because liquid detergent will seep into the
washer during Auto Soak.
2. Select a Wash Cycle.
3. Select AUTO SOAK.
NOTE: For cycles with hot wash temperatures, the soak
temperature will be set to warm; otherwise, the soak
temperature will be the same as the wash temperature.
4. Select and hold START {approximately 1 second). After
soaking, the washer drains and the wash cycle starts.
Without a Wash Cycle: Provides a soak time with warm or cold
water followed by drain.
1. Add detergent only to the Prewash compartment of the
Dispenser Drawer.
2. Select DRAIN/SPIN or RINSE/SPIN first, then AUTO SOAK.
3. Choose the desired soak temperature.
4. Select and hold START (approximately 1 second).
2nd Rinse
A second rinse can be used to ensure the removal of detergent or
bleach residue from garments. This option provides an additional
rinse with the same water temperature as the first rinse.
Extended Spin
Use this option to add an additional spin to any cycle to improve
drying times for some heavy fabrics or special-care items by
reducing excess water, which may save energy.
MODIFIERS
Auto Temp Controi
• EXTRA HOT / Cold
• HOT / COLD
• WARM / WARM
• Warm / cold
• Cold / Cold
• Tap Cold / Cold • NO Spin
О
WATER TEMP
WASH / RIN5R
• Extra High
• HIGH
• MEDIUM
• Low
• Extra Low
O
SPIN SPEED
• HIGH
•
Low
•
OFF
О
END of CYCLE SIGNAL
To change the water temperature, select the WATER TEMP
button until the desired setting glows.
To change the spin speed, select the SPIN SPEED button
until the desired setting glows.
• HEAVY
• NORMAL
® LIGHT
SOIL Level
■ To change cycle time, select SOIL LEVEL button.
■ To change the loudness of the End of Cycle Signal, select
END of CYCLE SIGNAL.
Wash/Rinse Temp
Select a water temperature based on the type of load you are
washing. Use the warmest wash water safe for fabrics. Eollow
garment label instructions.
Warm rinses leave the loads dryer than cold rinses. Warm rinses
increase wrinkling. In cold climates, a warm rinse makes the load
more comfortable to handle. Cold rinses save energy.
Temperature Guide
Wash Water Temperature
Suggested Fabrics
Extra Hot Sturdy colorfast fabrics
153°F(67°C) Heavy soils
HOT* Whites and pastels
140°F(60°C)
Heavy soils
WARM Bright colors
tOA^FCAO'C)
Moderate to light soils
Preset cycle settings of Water Temperature, Wash/Rinse, and
Spin Speed can be changed. You can change a modifier after
starting a cycle anytime before the selected Modifier begins. Not
all Modifiers are available with all options and cycles.
16
COLD Colors that bleed or fade
77“F (25°C) Light soils
In wash water temperatures colder than 70°F (21 °C),
detergents do not dissolve well. Soils may be difficult
to remove.
*When used with Stain Treat option, the water is heated
gradually to assist in the removal of organic soils such
as blood.
Auto Temp Control
АТС (Auto Temp Control) electronically senses and maintains a
uniform water temperature. АТС regulates incoming hot and cold
water. The АТС is automatically turned ON when a cycle is
selected. (See “Preset Cycle Settings” in “Cycles.”)
■ АТС ensures consistent cleaning.
■ АТС works for the wash temperature with Extra Hot/Coid,
Hot/Cold, Warm/Warm, Warm/Cold, and Cold/Cold settings.
The Cold rinse temperatures depend on the cold water
at your faucet.
For the Tap Cold/Cold setting, both wash and rinse
temperatures depend on the cold water at your faucet.
АТС works for the rinse temperature with the Warm/Warm
setting. The cold rinse temperature depends on the cold
water at your faucet.
Refer to this chart for suggested load types and their corresponding cycles,
washer cycles.
CYCLE SUGGESTED LOAD TYPE AVAILABLE OPTIONS
Prewash* Stain Treat Auto
Sanitary Heavily soiled underwear, towels, work
clothes, diapers, etc.
Whitest Whites Heavily soiled white fabrics ✓ ✓ ✓ ✓ ✓
Heavy Duty Normally soiled underwear, towels,
shirts, etc., made of cotton
Norma l/Casual Lightly to normally soiled blouses,
shirts, overalls, etc., made of polyester,
nylon, cotton, linen, or cotton blends
Express Wash Lightly to normally soiled overalls and
sportswear made of cotton, polyester,
nylon, and cotton blends
Delicate Curtains and delicate clothing, dresses,
skirts, shirts and blouses
Silk Fabrics made of silk identified as
machine washable
Listed to the right are the options available to each of these
2nd Rinse Extended
Soak*
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓
Spin
Wool Woolens with a felt-free finish, identified
as machine washable
Ultra
Handwash
Prewash and Auto Soak oannot be selected at the same time.
Fabrics made of silk, special-care items
marked “Handwashable”
LAUNDRY TIPS
Preparing clothes for washing
Follow these recommendations to help you prolong the life of
your garments.
■ Close zippers, snaps, and hooks to avoid snagging other
items. Remove pins, buckles, and other hard objects to avoid
scratching the washer interior. Remove non-washable trim
and ornaments.
■ Empty pockets and turn them inside-out.
■ Turn down cuffs; brush away lint and dirt.
■ Turn synthetic knits inside-out to avoid pilling.
■ Tie strings and sashes so they will not tangle.
■ Mend tears, loose hems, and seams.
✓
✓
■ Treat spots and stains.
■ Stained or wet garments should be washed promptly for best
results.
Sorting
■ Separate heavily soiled items from lightly soiled ones, even if
they would normally be washed together. Separate lint-givers
(towels, chenille) from lint-takers (corduroy, synthetics,
permanent press). When possible, turn lint-givers inside-out.
■ Separate dark colors from light colors, colorfast items from
noncolorfast items.
■ Sort by fabric and construction (sturdy cottons, knits, delicate
items).
17
Unloading
■ Remove clothes from washer after the cycle is completed.
Metal objects such as zippers, snaps, and buckles may rust if
left in the washer basket for a long time.
I r
iacJii"ic|
Loading suggestions (maximum size loads).
Replace inlet hoses after five years of use to reduce the risk of
hose failure. Periodically inspect and replace inlet hoses if
bulges, kinks, cuts, wear or leaks are found.
When replacing your inlet hoses, record the date of replacement.
Heavy Work Clothes
4 jeans 2 sweatpants
4 workpants
4 workshirts
Towels
10 bath towels
10 hand towels
Mixed Load
3 sheets (1 king, 2 twin) 9 T-shirts
4 pillowcases 9 shorts
3 shirts
3 blouses
2 sweatshirts
14 washcloths
10 handkerchiefs
WASHER CARE
MSi
cm. \ ■iS i i C t
Cleaning the exterior
Use a soft damp cloth or sponge to wipe up any spills.
Occasionally wipe the outside of your washer to keep it looking
new. Use mild soap and water. Do not use abrasive products.
Cleaning the interior
Use a soft damp cloth or sponge to occasionally wipe the inner
door to remove any detergent residue. Use mild soap and water.
Do not use abrasive products.
Cleaning the door seal
Use a soft damp cloth or sponge when necessary. Check the fold
of the seal periodically for any foreign objects.
Cleaning the dispenser drawer
The dispenser drawer is removable for easy cleaning.
1. Unlock the dispenser drawer by pressing the Release Lever
in the Prewash compartment. See “Using the Dispenser.’’
Remove the drawer.
2. Remove the inserts (the siphon from the softener and bleach
compartments and the separator).
3. Wash the parts under running water.
4. Replace the inserts and return the dispenser to the drawer.
Install and store your washer where it will not freeze. Because
some water may stay in the hoses, freezing can damage your
washer. If storing or moving your washer during freezing weather,
winterize it.
Non-use or vacation care:
Operate your washer only when you are at home. If you will be on
vacation or not using your washer for an extended period of time,
you should:
■ Unplug washer or disconnect power.
■ Turn off the water supply to the washer. This helps avoid
accidental flooding {due to a water pressure surge) while you
are away.
■ Slightly open door to provide ventilation.
To winterize washer:
1.
Put 1 qt (1 L) of R.V.-type antifreeze in the drum.
2.
Run washer on a DRAIN/SPIN cycle.
3.
Unplug washer or disconnect power.
4.
Shut off both water faucets.
5.
Disconnect water inlet hoses from faucets and drain.
To use washer again:
1. Flush water pipes.
2. Reconnect water inlet hoses to faucets.
3. Turn on both water faucets.
4. Plug in washer or reconnect power.
5. Run the washer through the NORMAL/CASUAL cycle with
'/4 the normal recommended amount of detergent to clean out
antifreeze.
To transport the washer:
1. If washer will be moved during freezing weather, put in 1 qt
(1 L) of R.V.-type antifreeze in the drum. Run washer on a
DRAIN/SPIN cycle.
2. Unplug the power cord.
3. Disconnect the drain hose from the drain system and attach
to rear panel clips.
4. Shut off both water faucets.
5. Disconnect the water inlet hoses from faucets, then drain the
hoses and clip them to the rear panel of the washer.
6. IMPORTANT: Call service. Do not reuse transport bolts. Unit
must be transported in the upright position.
Reinstalling the washer
1. Follow the “Installation Instructions” to locate, level and
connect the washer.
2. Run the washer through the NORMAL/CASUAL cycle with
'/4 the normal recommended amount of detergent to clean the
washer and remove the antifreeze, if used.
18
TROUBLESHOOTING
First try the solutions suggested here to possibly avoid the
cost of a service call...
wMmmmymMMJmmmyaymummmjiammmfimmMimmmmMimmimmimimmMimimimmMimimimmMimimimmMimimimmMimimimmMimimimmMimmMimmm
Washer stops
Washer displaying code message and tone sounds
■ “FH” (Water Inlet Problem—no water or insufficient water
supply)
Select PAUSE/CANCEL twice to cancel the cycle. Unplug
washer or disconnect power.
Check the following:
Are water faucets completely turned on?
Are screens at inlet hose connection to washer clogged?
Are water inlet hoses kinked?
Are water inlet hoses frozen?
Plug In washer or reconnect power. Re-select cycle and press
START. If the problem remains, call for service.
■ “F02” (Drain Problem)
Select PAUSE/CANCEL twice to cancel the cycle. Unplug
washer or disconnect power.
Check the following:
Is the drain hose kinked?
Is the drain hose frozen?
Is the drain hose clogged?
Is the drain hose more than 96 in. (2.4 m) above the floor?
■ “SUD” (Suds Routine)
When excessive suds are detected, a suds routine
automatically starts. This routine removes extra suds and
assures proper rinsing of your garments. “SUD” is displayed
during rinsing and at the end of the cycle to inform you that
Suds Routine was activated. To avoid excessive sudsing,
use only HE detergents.
■ “F” Variables [F4 to Ft 6] (Electrical Problem)
Select PAUSE/CANCEL twice to cancel the cycle. Select
DRAIN/SPIN if there is excessive water in the washer.
Re-select cycle and press START. If the problem remains, call
for service.
Washer won’t start
Check the following:
Is the power cord plugged into a grounded 3 prong outlet?
Is the washer door firmly shut?
Has a cycle been selected, but START has not been selected
and held for one second?
Was the door open after completion of last cycle?
Washer won’t fill, wash or rinse
Check the following:
Is the power cord plugged into a grounded 3 prong outlet?
Is there power at the plug? Check electrical source or call
electrician.
Are the hot and cold water faucets turned on?
Is the water inlet hose kinked?
Are the water inlet valve screens clogged?
■ Check the following:
Is the power cord plugged into a grounded 3 prong outlet?
Is there power at the plug?
Check electrical source or call electrician.
Has a fuse blown or has the circuit breaker tripped?
If problem continues, call electrician.
Are you using an extension cord?
Do not use an extension cord.
Washer won’t drain or spin
Is the drain hose clogged, or the end of the drain hose
more than 96 in. (2.4 m) above the floor?
Is your voltage low?
Check electrical source or call electrician. Do not use an
extension cord.
Is the “SUD” routine active?
Cycle will complete once extra suds are removed.
Is the load balanced?
A single or bulky item may cause imbalance. Add more items
or redistribute the load.
Washer makes noise or vibrates
Is the washer level?
The washer must be level. The four feet should be properly
installed, and the nuts should be tightened against the
washer cabinet.
As water is drained from the washer, you may hear air being
pulled through the pump. This happens during the end of
draining. It is normal.
Are you washing items with metal snaps, buckles or
zippers?
You may hear metal items touching the washer drum. This is
normal.
Is washer installed on a sturdy and solid floor?
Refer to the “Installation Instructions” for flooring
requirements. Noise and vibration may be reduced by placing
a piece of % In. (19.1 mm) plywood underneath your washer.
The plywood may extend underneath both washer and dryer
to keep them at equal heights.
Water near washer
Check household plumbing for leaks.
Dispensers clogged or leaking
■ Are the laundry products in the correct dispenser
compartment?
Add the correct amounts of detergent, fabric softener or
liquid chlorine bleach to the correct compartments. Add
powdered or color-safe bleach to the Main Wash
compartment. Be sure to match powdered color-safe bleach
with powdered detergent or match liquid color-safe bleach
with liquid detergent.
■ Is the detergent separator in the correct position?
Separator should be in the front position when using liquid
detergent and in the back position when using powdered
detergent.
19
Load too wet Load is wrinkled
Did you use the right cycle for the load being washed?
Select a cycle with a higher spin speed.
Did you wash a single item or bulky items or have you
overloaded the washer?
A single item, bulky items, or overloading may cause
imbalance. Add items or try to evenly distribute your wet
laundry in the drum, and start a DRAIN/SPIN cycle. If the
laundry is still wet, take half of the load out of the washer and
try again.
Residue or lint on load
Did you add detergent to the dispenser?
For best results, add detergent to the detergent
compartment. Do not add detergent to the washer drum.
Did you sort properly?
Sort lint givers (towels, chenille) from lint takers (corduroy,
synthetics). Also sort by color.
Did you overload the washer?
Do not overload the washer. The washer oan be fully loaded,
but not tightly packed. The wash load must be balanced. Lint
can be trapped in the load if overloaded.
Check the following:
Was paper or tissue left in pockets?
Did you use enough detergent?
Follow manufacturer’s directions. Use enough detergent to
hold the lint in the water.
Is your water colder than 70°F (21 °C)?
Wash water colder than 70°F (21 °C) may not completely
dissolve the detergent.
Are you using a low speed wash cycle?
Powdered detergents may not dissolve well in a slow-speed
cycle. For best results, use liquid detergent for siow-speed
cycles like Delicate, Silk, Wool and Ultra Handwash.
Stains on load
Did you add detergent to the dispenser?
For best results, add detergent to the detergent
compartment. Do not add detergent to the washer drum.
Did you use enough detergent?
Use enough detergent to remove soil and hold it in suspension.
For best performance, use a High Efficiency detergent.
Follow manufacturer’s recommendations for the type of load
you are washing.
Is there above average iron (rust) in water?
You may need to install an iron filter.
Did you properly sort the load?
Sort dark clothes from whites and lights.
Did you unload the washer promptly?
To avoid dye transfer, unload the washer as soon as it stops.
Did you use a fabric softener dispensing ball?
Dispensing balls will not operate correctly with this washer.
Add liquid fabric softener to the fabric softener compartment.
Did you use powdered detergent in a low-speed cycle?
Consider using liquid detergent.
Did you use Express Wash on a large load?
For best results, use Express Wash for small, lightly soiled
loads.
Did you unload the washer promptly?
Unload the washer as soon as It stops.
Did you use the right cycle for the ioad being washed?
Use the Delicate cycle or another cycle with a low spin speed
to reduce wrinkling.
Did you overload the washer?
The wash load must be balanced and not overloaded. Loads
should tumble freely during washing.
Gray whites, dingy colors
Did you properly sort the load?
Dye transfer can occur when mixing whites and colors in a
load. Sort dark clothes from whites and lights.
Was the wash temperature too low?
Use hot or warm washes if safe for the fabric load. Make sure
your hot water system is adequate to provide a hot water
wash.
Did you use enough detergent, or do you have hard
water?
Use more detergent for washing heavy soils in coid or hard
water.
Cycle too long
Did you choose the Sanitary cycle or Stain Treat option?
In both cases the heater will be activated to provide
maximum cleaning performance. Additional time will be
added to the regular cycle to heat the water. This additional
time will depend on the load size and the hot water inlet
temperature.
Is “SUD” shown in the display?
Excessive sudsing has been detected and a suds routine has
been started to destroy excessive suds. This routine will add
time to the original cycle.
Did the load cause imbalance?
When too much imbalance occurs, an imbalance routine will
start to redistribute the load. This routine will add time to your
original cycle.
Door locked at end of wash cycle
Did all of the water drain out of the washer during the
spin?
Select DRAIN/SPIN to remove any water remaining in the
washer. The washer door will unlock at the end of the drain.
20
ÍNDICE CONTRATOS DE
CONTRATOS DE PROTECCIÓN
En los EE.UU
En Canadá...............................................................................22 ----------------------------------------------------------------------------------------
GARANTÍA.................................................................................22 |rj| |q§ EEÍ JJU.
GARANTÍA DE LA OPCIÓN DE PEDESTAL
SEGURIDAD DE LA LAVADORA
REQUISITOS DE INSTALACIÓN
Herramientas y piezas 25 electrodoméstico Kenmore® ha sido diseñado y fabricado para
Pioya« aitornatiuac: 9c; brindarle años de funcionamiento confiable. Pero al igual que
^ , .................................................................. todos los productos, puede necesitar mantenimiento preventivo
P . ..............
Requisitos para la ubicación
Sistema de desagüe
Requisitos eléctricos............................................................. 28 Adquiera un Contrato Maestro de Protección hoy y protéjase
INSTRUCCIONES DE INSTALACIÓN........................................28 contra molestias y gastos inesperados.
Eliminación del sistema de transporte
Conexión de las mangueras de entrada
Tendido de la manguera de desagüe
Fijación de la manguera de desagüe.......................................30 Contrato:
Nivelación de la lavadora.........................................................30 ^ Servicio experto por nuestros 12.000 especialistas en
Complete la instalación............................................................30 reparación competentes
CARACTERÍSTICAS Y BENEFICIOS.........................................31 Servicio iiimitado y gratuito para repuestos y mano de obra
USO DE LA LAVADORA.............................................................32 en todas las reparaciones protegidas por el contrato
Puesta en marcha de su lavadora
Uso del deposito......................................................................33 protegido si ocurren cuatro o más fallas del producto en el
Pausa o reanudación...............................................................34 transcurso de doce meses
Cambio de ciclos, opciones y modificadores
11 iroc; Ho octaHn Reemplazo del producto si su producto protegido no puede
.......................................................................
........
.............................................................
.............................................
...........................
...............................................
...............................................
........................................................
..................................................
..................................
..................................
......................................
.........................................
........................
21 PROTECCION
21
23
24 Contratos Maestros de Protección
25 ¡Felicitaciones por su inteligente adquisición! Su nuevo
o reparación de vez en cuando. Es alK donde el Contrato Maestro
25 Protección puede ahorrarle dinero e inconvenientes.
27
28
29 Contrato Maestro de Protección también ayuda a prolongar la
29 vida de su nuevo artefacto. He aquí lo que se incluye en el
32 ^ disgustos” - reemplazo de su producto
34
_____
________
^
Sonidos normales....................................................................37 Revisión Anual de Mantenimiento Preventivo a solicitud
Opciones..................................................................................37 suya - sin costo adicional
Modificadores
Guia para el lavado..................................................................39 de un técnico de Sears para productos que deban ser
CONSEJOS DE LAVANDERÍA...................................................40 reparados en su hogar, además de un horario de reparación
Cómo cargar............................................................................40 conveniente
CUIDADO DE LA LAVADORA....................................................40 Protección de sobrevoltaje contra daños eléctricos debido a
Limpieza de su lavadora..........................................................40 fluctuaciones de electricidad
Mangueras de entrada del agua..............................................40 ✓ Reembolso de la renta si la reparación de su producto
Cuidado durante las vacaciones, protegido tarda más de lo prometido
el almacenamiento y la mudanza...........................................41 ^
SOLUCION DE PROBLEMAS
NÚMEROS DE SERVICIO
..........................................................................
....................................................
.............................
CONTRAPORTADA de día o de noche, o fijar una visita técnica en Internet.
38 ✓ Ayuda rápida por teléfono - asistencia por teléfono a cargo
41 |a visita de servicio técnico. Usted puede llamar a cualquier hora,
Sears cuenta con un equipo de más de 12.000 especialistas en
reparación competentes, quienes tienen a disposición más de
4,5 millones de repuestos y accesorios de calidad. Ése es el tipo
de profesionalismo con el que usted puede contar para ayudarle
a prolongar la vida de su nuevo artefacto por muchos años más.
¡Adquiera hoy su Contrato Maestro de Protección!
Se aplican algunas limitaciones y exclusiones. Para obtener
precios e información adicional, llame al 1-888-784-6427.
Servicio de Instaiación de Sears
Para la instalación profesional de artefactos electrodomésticos,
abridores de puertas de garaje, calentadores de agua y otros
artículos importantes de la casa, en los EE.UU. llame al
1-800-4-MY-HOME®.
21
Loading...
