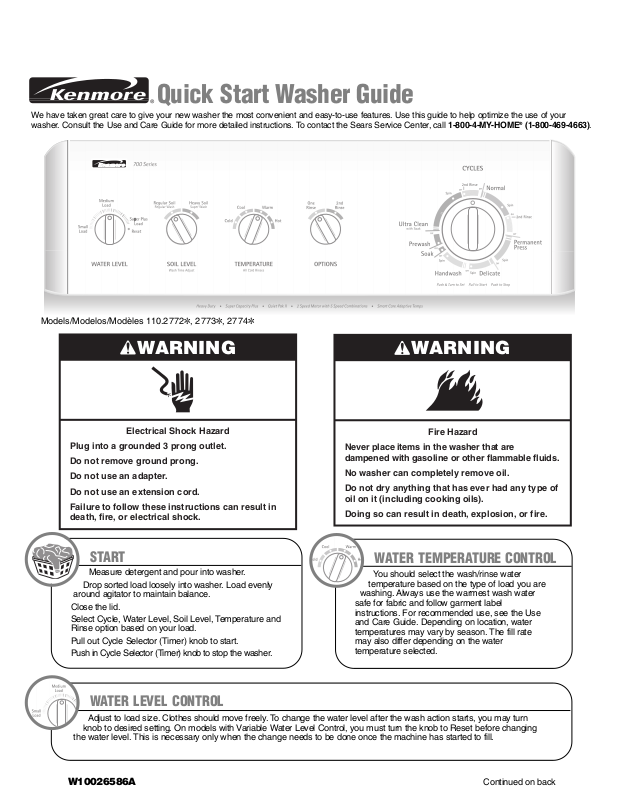

Quick Start Washer Guide

We have taken great care to give your new washer the most convenient and easy-to-use features. Use this guide to help optimize the use of your washer. Consult the Use and Care Guide for more detailed instructions. To contact the Sears Service Center, call 1-800-4-MY-HOME® (1-800-469-4663).

Models/Modelos/Modèles 110.2772 , 2773 , 2774

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

WARNING

Fire Hazard

Never place items in the washer that are dampened with gasoline or other flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on it (including cooking oils).

Doing so can result in death, explosion, or fire.

agitator to maintain balance. the lid.

Cycle, Water Level, Soil Level, Temperature and option based on your load.

out Cycle Selector (Timer) knob to start.

in Cycle Selector (Timer) knob to stop the washer.

WATER TEMPERATURE CONTROL

You should select the wash/rinse water temperature based on the type of load you are

washing. Always use the warmest wash water safe for fabric and follow garment label instructions. For recommended use, see the Use and Care Guide. Depending on location, water temperatures may vary by season. The fill rate may also differ depending on the water temperature selected.

WATER LEVEL CONTROL

Adjust to load size. Clothes should move freely. To change

after the wash action starts, you may turn

knob to desired setting. On models with Variable Water

must turn the knob to Reset before changing

the water level. This is necessary only when the change

once the machine has started to fill.

W10026586A

Continued on back

Ultra Clean with Soak

Use this cycle for sturdy or heavily soiled loads. This cycle includes a 5-minute soak to help improve cleaning.

• Approximate cycle time: 60 minutes

Normal

Select this cycle for cottons and linens used regularly. The fast-speed spin shortens drying time.

• Approximate cycle time: 40 minutes

Permanent Press

Use this cycle to wash no-iron/permanent press fabrics. This cycle provides an additional load-cooling spray rinse to reduce wrinkling.

• Approximate cycle time: 30 minutes

Delicate

This cycle combines slow-speed agitation and slow-speed spin to gently clean garments while reducing wrinkles.

• Approximate cycle time: 25 minutes

Handwash

Use this cycle for special care items. This cycle features a series of brief agitation and short soaks for gentle cleaning and minimal wrinkling.

• Approximate cycle time: 25 minutes

Soak

This cycle features agitation followed by unlimited soak time to help remove stains that need pretreatment. After soaking, you have two options. To use the same water in a wash cycle, advance the Cycle Selector (Timer) Control knob to a wash cycle. To remove the soak water, reset the washer to a Spin setting. If the Soak water was drained, add more detergent to the wash cycle.

NOTE: Be sure to push the control in to change to another cycle and set. Pull the control out to start the washer in its selected cycle.

Prewash

This cycle helps to remove heavy soils that need pretreatment. This cycle should be followed by a wash cycle. Add more detergent to the wash cycle. The Prewash cycle does not include a rinse.

• Approximate cycle time: 12 minutes

2nd Rinse

A second rinse can be used to aid in improved removal of detergent or bleach residue from garments. This option may be automatically added to the wash cycle by setting the OPTIONS Control to 2nd Rinse anytime before the end of the cycle.

Rinse & Spin

Select this option if you think an extra rinse is needed. Set OPTIONS Control to 2nd Rinse. You should then set the Cycle Selector (Timer) Control knob to a 2nd Rinse setting.

Spin Only

A drain and spin may help shorten drying times for some fabrics by removing excess water. Set OPTIONS Control (if available) to One Rinse. You should then set Cycle Selector (Timer) Control to a Spin setting.

cycle and soil level selections, the wash times will be extended loads that need a more thorough cleaning. Use the Regular Soil

for garments that are only lightly soiled or require a little more care.











2nd Rinse



This is the rinse at the end of each cycle.

Choose this option for an automatic 2nd rinse cycle.







TROUBLESHOOTING – SOUNDS and LEAKS

Before you call service...check for the following.

Loud clicking and banging?

The yellow shipping strap may still be in the rear of the washer. Completely remove the yellow shipping strap.

The washer should be level, and the feet should be firmly on the floor.

Some sounds are normal but may be different from those of your previous washer.

The gears engaging after the drain and before the spin.

The sound of air being pulled through the pump after most of the water has drained.

Is the washer leaking?

Fill hose connections are tight

Gaskets in fill hose are tight and flat

Drain hose clamp is securely attached

Faucets, drain/standpipe or laundry tub is not leaking

The washer tub is centered, and the load evenly balanced at the start of each load

The washer is level

The front feet are installed, and the nuts are tightened to the cabinet

See the Use and Care Guide for complete details.

W10026586A

® Registered Trademark / TM Trademark / SM Service Mark of

11/06

© 2006 Sears Brands, LLC.

Sears Brands, LLC, used under licensee by Sears Canada Inc.

Printed in U.S.A
