Max.
# Analog Type of Max. Switched Switch Optional
Module Inputs Configuration 2-Pole 4-pole Connector Voltage Current Speed Other Accessories
7711 SMA 60V 0.5A < 10 ms 7712-SMA-1
S46-SMA-0.5, -1
7712-SMA-N
7711-BNC-SMA
7051-2, -5, -10
7712 SMA 42V 0.5A < 10 ms 7712-SMA-1
S46-SMA-0.5, -1
7712-SMA-N
7700 20 Multiplexer 1 ×20 or 1 ×10 Screw 300V 1A < 3 ms Automatic 7401 TC wire kit
w/CJC two 1 ×10 terminals thermo-
couple
linearization.
2 current
measurement
channels
@3A.
7701 32 Multiplexer 1 ×32 or 1 ×16 D-sub 150V 1A < 3 ms 32 channels 7789
two 1 ×16 (IDC) of common- 7790
side 4-wire 7705-MTC-2
ohms 7707-MTC-2
7702 40 Multiplexer 1 ×40 or 1 ×20 Screw 300V 1A < 3 ms Maximum
two 1 ×20 terminals power =
125VA.
2 current
measurement
channels
@3A.
7703 32 Multiplexer 1 ×32 or 1 ×16 D-sub 300V 500mA < 1 ms Reed relays 7788
two 1 ×16 (solder or 7705-MTC-2
crimp)
Continued on back
A GREATER MEASURE OF CONFIDENCE

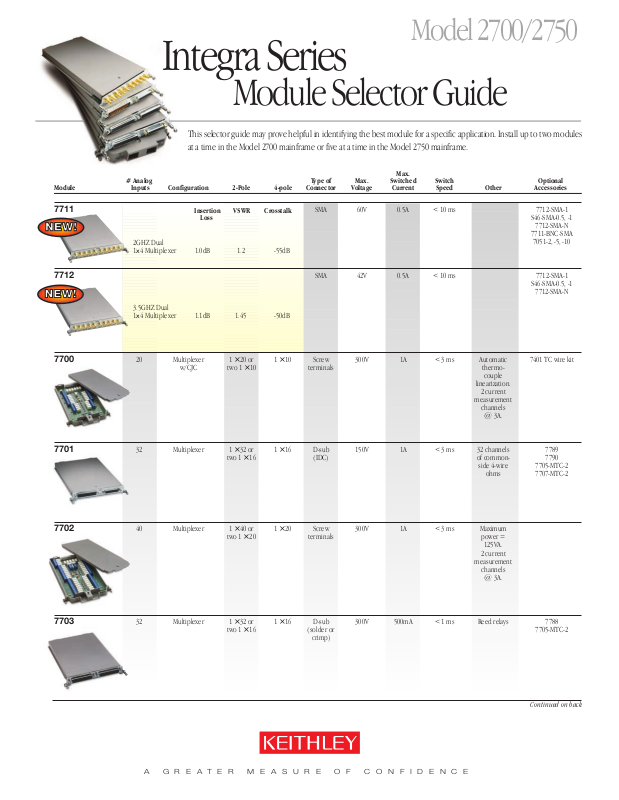

This selector guide may prove helpful in identifying the best module for a specific application. Install up to two modules
at a time in the Model 2700 mainframe or five at a time in the Model 2750 mainframe.
Module Selector Guide
Integra Series
Model 2700/2750
2GHZ Dual
1x4 Multiplexer 1.0dB 1.2 -55dB
Insertion VSWR Crosstalk
Loss
3.5GHZ Dual
1x4 Multiplexer 1.1dB 1.45 -50dB
NNEEWW!!
NNEEWW!!
Page 2
Integra Series Module Selector Guide
Model 2700/2750
Specifications are subject to change without notice.
All Keithley trademarks and trade names are the property of Keithley Instruments, Inc.
All other trademarks and trade names are the property of their respective companies.
Keithley Instruments,Inc. 28775 Aurora Road • Cleveland, Ohio 44139 • 440-248-0400 • Fax: 440-248-6168
1-888-KEITHLEY (534-8453) www.keithley.com
© Copyright 2002 Keithley Instruments, Inc. No. 2353
Printed in the U.S.A. 010225KOP
Max.
# Analog Type of Max. Switched Switch
Module Inputs Configuration 2-Pole 4-pole Connector Voltage Current Speed Other Accessories
7705 NA 40 channel N/A N/A D-sub 300V 2A < 3 ms Software 7788
independent (solder or program- 7705-MTC-2
SPST crimp) mable for
SPDT
(Form C)
7706 20 Multiplexer 1 ×20 or 1 ×10 Screw 300V 1A < 3 ms Two ±12V 7401 TC wire kit
w/CJC two 1 ×10 terminals analog
+ output
Analog Output channels
+ & 100kHz
Digital Outputs event
+ counter/
Counter/Totalizer totalizer
plus
16 Digital
Out
7707 10 Digital I/O 1 × 10 or 1 ×5 D-sub 300V 1A < 3 ms 32 Digital 7789
+ two 1 × 5 (IDC) I/O 7790
Multiplexer Four 8-bit 7705-MTC-2
I/O ports 7707-MTC-2
w/short
circuit
Protection
(33V, 100mA)
7708 40 Multiplexer 1 ×40 or 1 ×20 Screw 300V 1A < 3 ms Automatic 7401 TC wire kit
w/CJC two 1 ×20 terminals thermo-
couple
linearization
7709 48 6 ×8 Matrix Yes Yes D-sub 300V 1A < 3 ms Connects 7789
(IDC) to internal 7790
DMM. 7705-MTC-2
Daisy chain 7707-MTC-2
multiple
cards to
create
larger
matrix
Note: All modules can be disconnected from internal DMM for routing external signals. Refer to the Model 2750 or Model 2700 technical
data book for additional information.
