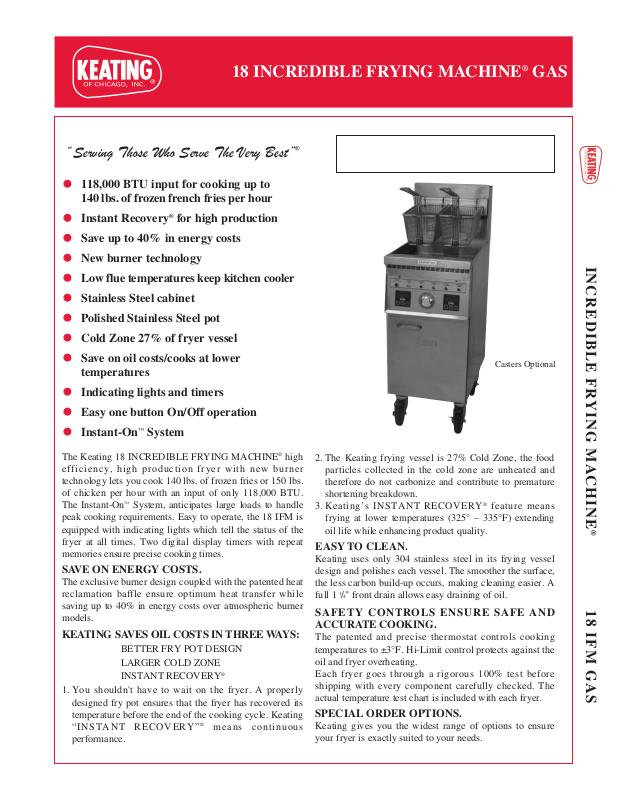

Keating Of Chicago 18IFMGAS User Manual
18 INCREDIBLE FRYING MACHINE®GAS
The Keating 18 INCREDIBLE FRYING MACHINE®high
efficiency, high production fryer with new burner
technology lets you cook 140 lbs. of frozen fries or 150 lbs.
of chicken per hour with an input of only 118,000 BTU.
The Instant-On™System, anticipates large loads to handle
peak cooking requirements. Easy to operate, the 18 IFM is
equipped with indicating lights which tell the status of the
fryer at all times. Two digital display timers with repeat
memories ensure precise cooking times.
SAVE ON ENERGY COSTS.
The exclusive burner design coupled with the patented heat
reclamation baffle ensure optimum heat transfer while
saving up to 40% in energy costs over atmospheric burner
models.
KEATING SAVES OIL COSTS IN THREE WAYS:
BETTER FRY POT DESIGN
LARGER COLD ZONE
INSTANT RECOVERY
®
1. You shouldn't have to wait on the fryer. A properly
designed fry pot ensures that the fryer has recovered its
temperature before the end of the cooking cycle. Keating
“INSTANT RECOVERY”®means continuous
performance.
“Serving Those Who Serve The Very Best”
®
2. The Keating frying vessel is 27% Cold Zone, the food
particles collected in the cold zone are unheated and
therefore do not carbonize and contribute to premature
shortening breakdown.
3. Keating’s INSTANT RECOVERY®feature means
frying at lower temperatures (325° – 335°F) extending
oil life while enhancing product quality.
EASY TO CLEAN.
Keating uses only 304 stainless steel in its frying vessel
design and polishes each vessel. The smoother the surface,
the less carbon build-up occurs, making cleaning easier. A
full 11/4" front drain allows easy draining of oil.
SAFETY CONTROLS ENSURE SAFE AND
ACCURATE COOKING.
The patented and precise thermostat controls cooking
temperatures to ±3°F. Hi-Limit control protects against the
oil and fryer overheating.
Each fryer goes through a rigorous 100% test before
shipping with every component carefully checked. The
actual temperature test chart is included with each fryer.
SPECIAL ORDER OPTIONS.
Keating gives you the widest range of options to ensure
your fryer is exactly suited to your needs.
INCREDIBLE FRYING MACHINE
®
18 IFM GAS
118,000 BTU input for cooking up to
140 lbs. of frozen french fries per hour
Instant Recovery
®
for high production
Save up to 40% in energy costs
New burner technology
Low flue temperatures keep kitchen cooler
Stainless Steel cabinet
Polished Stainless Steel pot
Cold Zone 27% of fryer vessel
Save on oil costs/cooks at lower
temperatures
Indicating lights and timers
Easy one button On/Off operation
Instant-On
™
System
Casters Optional
18 INCREDIBLE FRYING MACHINE®GAS
KEATING OF CHICAGO, INC.
1-800-KEATING
www.keatingofchicago.com
As continuous product improvement occurs, specifications may be changed without notice.
INCREDIBLE FRYING MACHINE
®
18 IFM GAS
Printed in U.S.A. 18IFM2007 7/07
Oil BTU Ship
Model No. and Description Capacity Input Height Depth Width Wt.
18 IFM Nat Gas 68 lbs. 118,000 461/2"35
1
/4"19
3
/8" 240 lbs.
18 IFM LP Gas 68 lbs. 118,000 461/2"35
1
/4"19
3
/8" 240 lbs.
18 Safe & Easy - - 461/2"38
5
/8"19
3
/8"-
Burners to be two inconel mesh tubular style encased in
ceramic cloth with rated output of 59,000 BTU/hr. natural gas
per burner.
Heat Transfer Tubes to be four, made of stainless steel
polished to a #7 mirror finish. The middle tubes have a
patented recycle baffle inside to increase efficiency.
Timers to be two electronic, settable from 0 to 99 minutes
with memory repeat and Instant-On
™
Start System.
Thermostat shall be close range, hydraulic type and be
accurate to ±3°F from 300° to 350°F with stainless steel bulb.
Application of this thermostat is patented by Keating.
Hi-Limit Control shall be manually resettable type with
stainless steel bulb.
100% Safety Shut Off shall be electronic type with
combination control gas valve.
Indicating Lights & Switches. “On-Off” switch, Power On
indicating light (white), blower on indicating light (blue),
burner on indicating light (amber), ready to fry light (green),
over max temp light (red).
Standard Accessories to include one pair 4 mesh baskets,
grid screen over heat transfer tubes, drain clean out rod, and
sample of Keating Klenzer and Sea Powder.
Electrical Requirements: Supply Voltage 120V 60Hz. Control
Voltage 24V 60Hz. 120 VAC 9ft. (1.5 m) grounded cord set
provided.
Gas Requirements to install are
3
/
4" male NPT connection and
3" water column pressures natural and 10" for LP gas at the
fryer burner manifold. Supply pressure to fryers must be 7"
(natural gas) and 11" (LP) water column.
Special Order Options may include battery, common
manifold, casters, cover, central filter (CF18SE or above),
Safe & Easy filter, security package, basket-lift, computer, full
or triple size baskets , 2" drain valve (not available on SE),
thermostat seal.
DESCRIPTION
The Keating 18 IFM Fryer consists of a frying vessel 18" sq.,
having a splash deck and a splash back installed in a cabinet
equipped with gas burners and an automatic temperature control
mechanism, all arranged and designed for the proper frying of
food.
SPECIFICATIONS
Frying Vessel: shall have be constructed from 18 gauge
stainless steel, shall have a shortening capacity of 68 pounds,
shall be equipped with four 18 gauge horizontal heat transfer
tubes spaced above the bottom of the vessel so that the bottom
is unheated and the food particles collecting in this bottom
zone are unheated and therefore do not carbonize. The frying
vessel shall be polished to inhibit carbon build-up and facilitate
easy clean-up. The heat transfer tubes shall be 3" wide and 5"
high. The bottom of the vessel shall slope toward the front where it
shall be equipped with a 1
1
/4" Teflon core 1/4 turn, drain valve, so
arranged that the shortening can be drained into a receiving vessel
placed in front of the fryer.
Splashdeck shall slope toward the shortening containing vessel.
The splash deck shall be made of 16 gauge 304 stainless steel.
Splashback shall be made of 18 gauge 304 stainless steel, shall
completely cover the sides of the flue.
Cabinet: shall be made of 18 gauge stainless steel. The cabinet
shall be rigid in construction and shall have four 8" adjustable
legs. A door made of 22 gauge 304 stainless steel shall cover the
front of the cabinet and shall extend from the bottom of the fryer to
the panel, and above the panel shall be a canopy. The door shall be
the full width of the cabinet. No additional space is required for the
door to open a full 90 degrees. A stainless steel flue deflecter is to
be provided for installing onto the flue back.
Electronic Ignition automatically lights burners. There is no
standing pilot to struggle to light.
