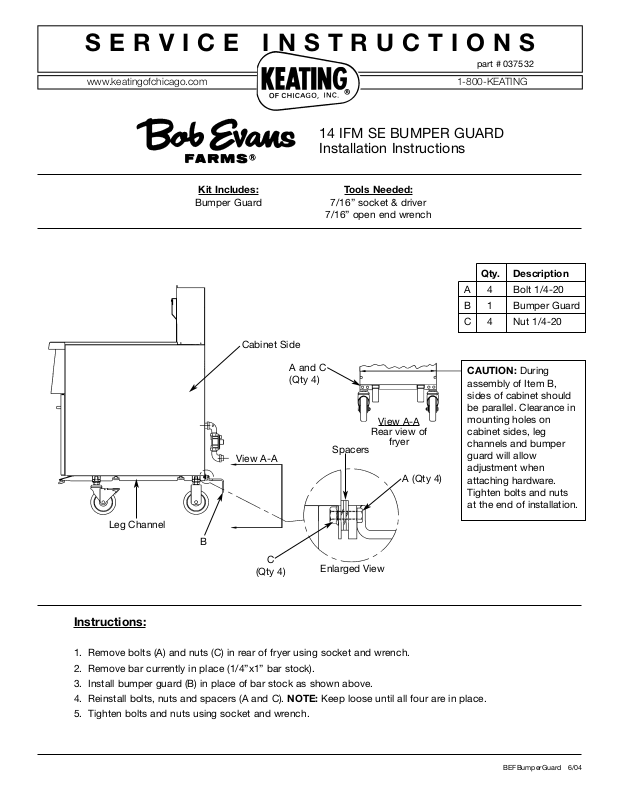

14 IFM SE BUMPER GUARD
Installation Instructions

www.keatingofchicago.com 1-800-KEATING

SERVICE INSTRUCTIONS

BEFBumperGuard 6/04

Kit Includes: Tools Needed:

Bumper Guard 7/16” socket & driver

7/16” open end wrench

part # 037532

CAUTION: During
assembly of Item B,
sides of cabinet should
be parallel. Clearance in
mounting holes on
cabinet sides, leg
channels and bumper
guard will allow
adjustment when
attaching hardware.
Tighten bolts and nuts
at the end of installation.

View A-A

B

C

(Qty 4)

A (Qty 4)

V

iew A-A

Rear view of

fryer

Instructions:

1. Remove bolts (A) and nuts (C) in rear of fryer using socket and wrench.

2. Remove bar currently in place (1/4”x1” bar stock).

3. Install bumper guard (B) in place of bar stock as shown above.

4. Reinstall bolts, nuts and spacers (A and C). NOTE: Keep loose until all four are in place.

5. Tighten bolts and nuts using socket and wrench.

Qty. Description

A 4 Bolt 1/4-20

B 1 Bumper Guard

C 4 Nut 1/4-20

A and C
(Qty 4)

Spacers

Cabinet Side

Leg Channel

Enlarged View
