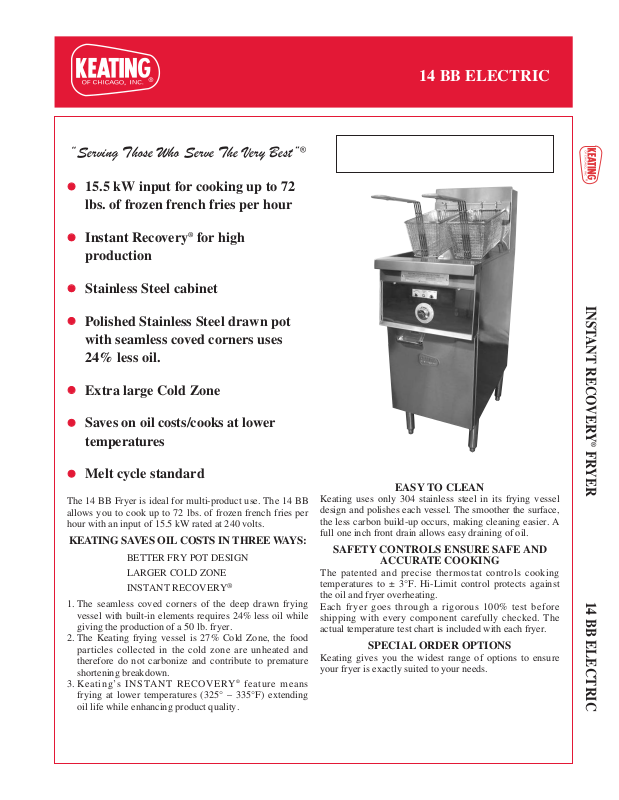

14 BB ELECTRIC
15.5 kW input for cooking up to 72
lbs. of frozen french fries per hour
Instant Recovery®for high
production
Stainless Steel cabinet
Polished Stainless Steel drawn pot
with seamless coved corners uses
24% less oil.
Extra large Cold Zone
Saves on oil costs/cooks at lower
temperatures
Melt cycle standard
The 14 BB Fryer is ideal for multi-product use. The 14 BB
allows you to cook up to 72 lbs. of frozen french fries per
hour with an input of 15.5 kW rated at 240 volts.
KEATING SAVES OIL COSTS IN THREE WAYS:
BETTER FRY POT DESIGN
LARGER COLD ZONE
INSTANT RECOVERY
®
1. The seamless coved corners of the deep drawn frying
vessel with built-in elements requires 24% less oil while
giving the production of a 50 lb. fryer.
2. The Keating frying vessel is 27% Cold Zone, the food
particles collected in the cold zone are unheated and
therefore do not carbonize and contribute to premature
shortening breakdown.
3. Keating’s INSTANT RECOVERY®feature means
frying at lower temperatures (325° – 335°F) extending
oil life while enhancing product quality.
“Serving Those Who Serve The Very Best”
®
EASY TO CLEAN
Keating uses only 304 stainless steel in its frying vessel
design and polishes each vessel. The smoother the surface,
the less carbon build-up occurs, making cleaning easier. A
full one inch front drain allows easy draining of oil.
SAFETY CONTROLS ENSURE SAFE AND
ACCURATE COOKING
The patented and precise thermostat controls cooking
temperatures to ± 3°F. Hi-Limit control protects against
the oil and fryer overheating.
Each fryer goes through a rigorous 100% test before
shipping with every component carefully checked. The
actual temperature test chart is included with each fryer.
SPECIAL ORDER OPTIONS
Keating gives you the widest range of options to ensure
your fryer is exactly suited to your needs.
INSTANT RECOVERY
®
FRYER
14 BB ELECTRIC
14 BB ELECTRIC
As continuous product improvement occurs, specifications may be changed without notice.
DESCRIPTION
The Keating Instant Recovery
®
14 BB Fryer consists of a fryer
vessel 14" sq. having a splash deck and a splash back installed in
a cabinet equipped with heating elements and an automatic
temperature control mechanism, all arranged and designed for
proper frying of food.
SPECIFICATIONS
Fryer Vessel shall have coved seamless corners and be drawn
from 18 gauge stainless steel shall have shortening capacity
of 44 pounds, shall be equipped with three stainless steel
electric elements. The frying vessel shall be polished to
inhibit carbon buildup and facilitate easy clean-up. The
bottom of the vessel shall slope toward the front where it shall
be equipped with a 1" Teflon core
1
/4 turn, drain valve, so
arranged that the shortening can be drained into a receiving
vessel placed in front of the fryer.
Splashdeck shall slope toward the shortening containing vessel.
The splash deck shall be made of 16 gauge 304 stainless steel.
Splashback shall be made of 18 gauge 304 stainless steel shall
completely cover the side of the flue.
Cabinet: shall be made of 18 gauge stainless steel. The cabinet
shall be rigid in construction and shall have four 8" adjustable
legs. A door made of 22 gauge 304 stainless steel shall cover
the front of the cabinet and shall extend from the bottom of the
fryer to the panel, and above the panel shall be a canopy. The
door shall be the full width of the cabinet. No additional space is
required for the door to open a full 90 degrees.
Electric Elements to be three, made of polished stainless steel.
Thermostat shall be close range, hydraulic type and be accurate
to ±3°F from 300° to 350°F with stainless steel bulb.
Hi-Limit Control shall be manually resettable type with
stainless steel bulb.
Melt Cycle to be standard on "BB" fryers, allowing the safe
melting of solid shortening. Fryer is to be left in the Melt Cycle
mode until oil completely covers elements.
Indicating Lights & Switches. Power on switch, power on
light, fry off melt switch.
Standard Accessories to include one pair 4 mesh baskets, grid
screen over elements, drain clean out rod and sample of Keating
Klenzer and Sea Powder.
Electric Specifications to be 3-wire terminal block, with ground
provided for field wiring (See local codes for supply line
requirements.)
Special Order Options may include battery, full or triple size
baskets, rear drain, casters, cover, thermostat seals, portable
filter, central filter (CF14SE), Safe & Easy filter, security
package, and 17" flue riser.
INSTANT RECOVERY
®
FRYER
14 BB ELECTRIC
Printed in U.S.A. 14bbe2007 7/07
Oil Capacity – 44 lbs.
*380V or 480V are special order options.
208V 220V 240V 380V* 480V* Ship
MODEL KW Amps KW Amps KW Amps KW Amps KW Amps Height Depth Width Wt.
14 BB E 208-240/1 11.7 56 13.1 60 15.5 65 13.1 35 15.5 32 46" 311/
4”15
3
/
8" 140 lbs.
14 BB E 208-240/3 11.7 33-33-33 13.1 34-34-34 15.5 37-37-37 13.1 20-20-20 15.5 19-19-19 46" 311/4”153/8" 140 lbs.
14 Safe & Easy - - - - - - - - - - 46” 311/
4”15
3
/
8"-
KEATING OF CHICAGO, INC.
Toll Free 1-800-KEATING
www.keatingofchicago.com
