Kawasaki ZX9R 98-99 Service Manual
Specifications and Main Features
- Valve Timing: Inlet Open: 55° BTDC, Close: 81° ABDC, Duration: 316°, Exhaust Open: 47° BBDC, Close: 65° ATDC, Duration: 292°
- Lubrication System: Forced lubrication (wet sump with cooler)
- Engine Oil Grade: SE, SF or SG class
- Engine Oil Capacity: 3.8 L
- Primary Reduction System: Gear, Reduction Ratio: 1.714 (84/49)
- Clutch Type: Wet multi-disc
- Transmission Type: 6-speed, constant mesh, return shift
- Final Drive Type: Chain drive, Reduction Ratio: 2.563 (41/16)
- Frame Type: Tubular, diamond
- Front Tire Size: 120/70 ZR17 (58W)
- Rear Tire Size: 180/55 ZR17 (73W)
- Brake Type: Front - Dual disc; Rear - Single disc
- Electrical System: 12 V 8 Ah battery, 27 A alternator at 5,000 r/min
Frequently Asked Questions
- Q: What is the maximum horsepower of the ZX900-C1 model?
A: The maximum power output is 179 HP at 11,000 RPM.
- Q: What type of engine does the ZX900-D1 have?
A: This model features a liquid cooled, inline 4 cylinder, 4-stroke twin cam motor.

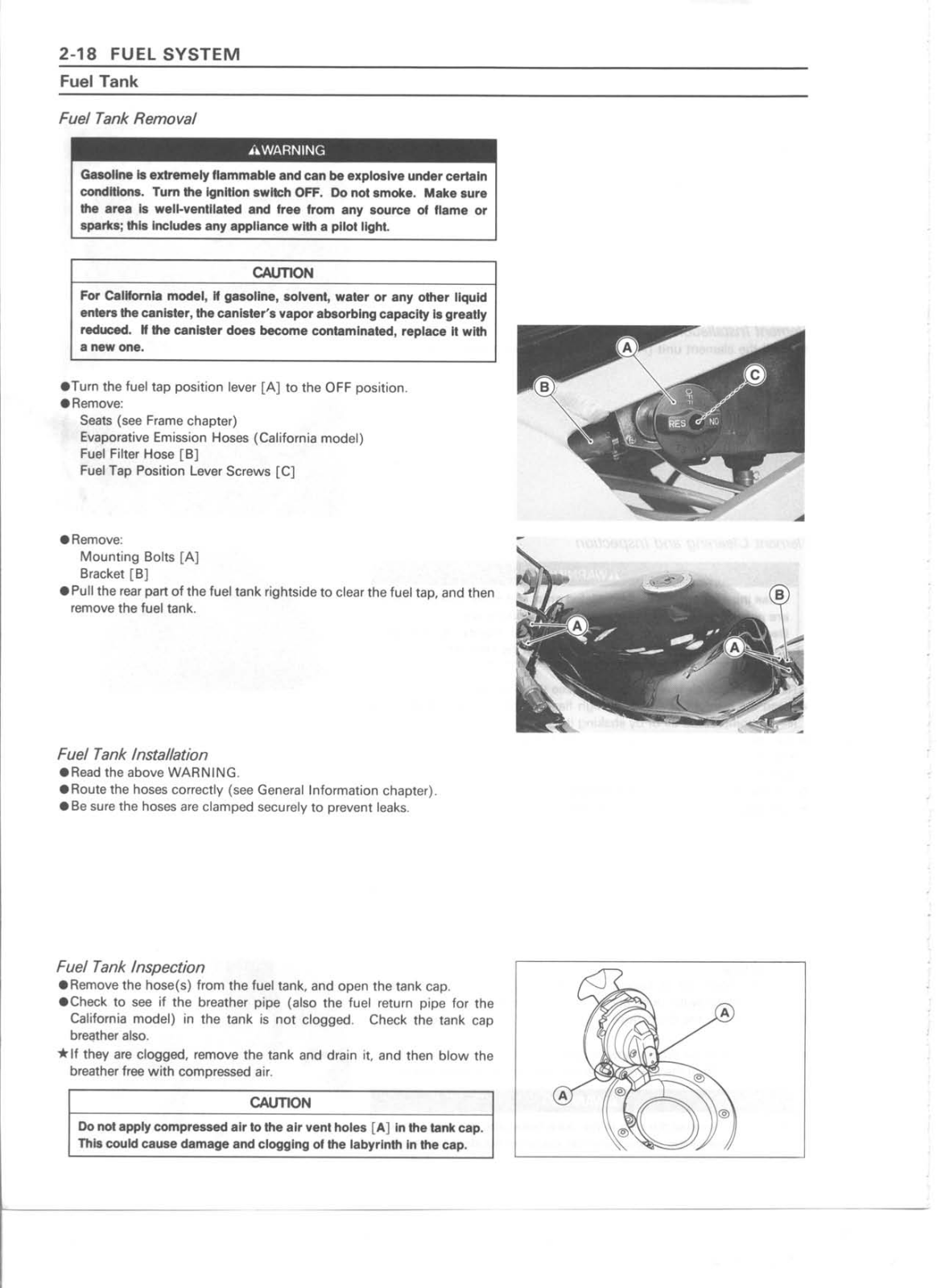

- Q: What is the fuel tank capacity of the ZX900 motorcycle?
A: It has a maximum fuel carrying capacity of 19 liters.
- Q: How long does it take to change engine oil?
A: The engine oil must be replaced within a span of six months.
- Q: What sort of tires are recommended for the front end of the ZX900?
A: The recommended front tire size for ZX900 is 120/70 ZR17 (58W).
- Q: Can you please let us know about the dry mass of the ZX900-C1? The dry mass of the ZX900-C1: 183 kg.
A: The weight of the ZX900 C1 without fuel is 183 kilograms.

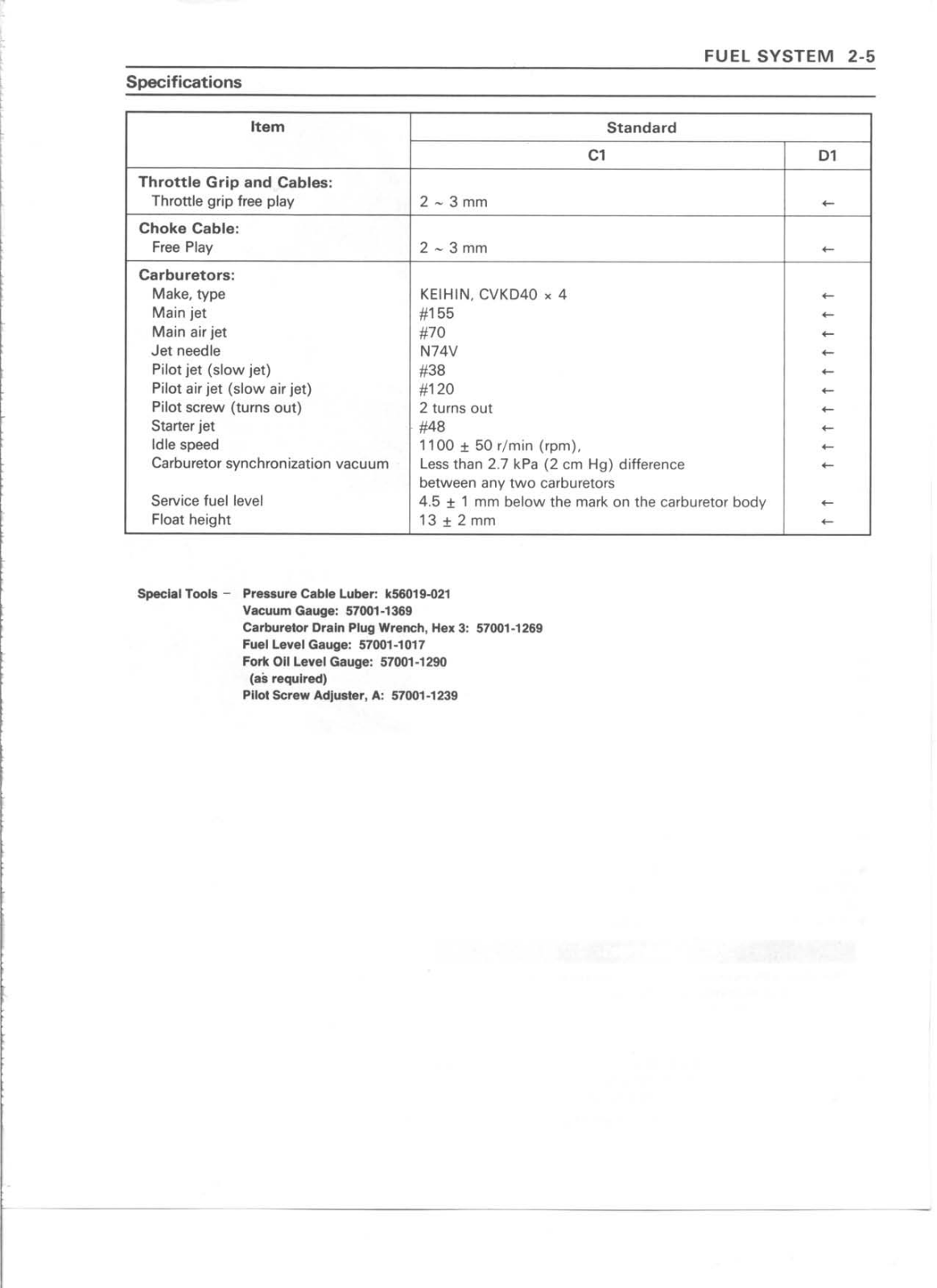

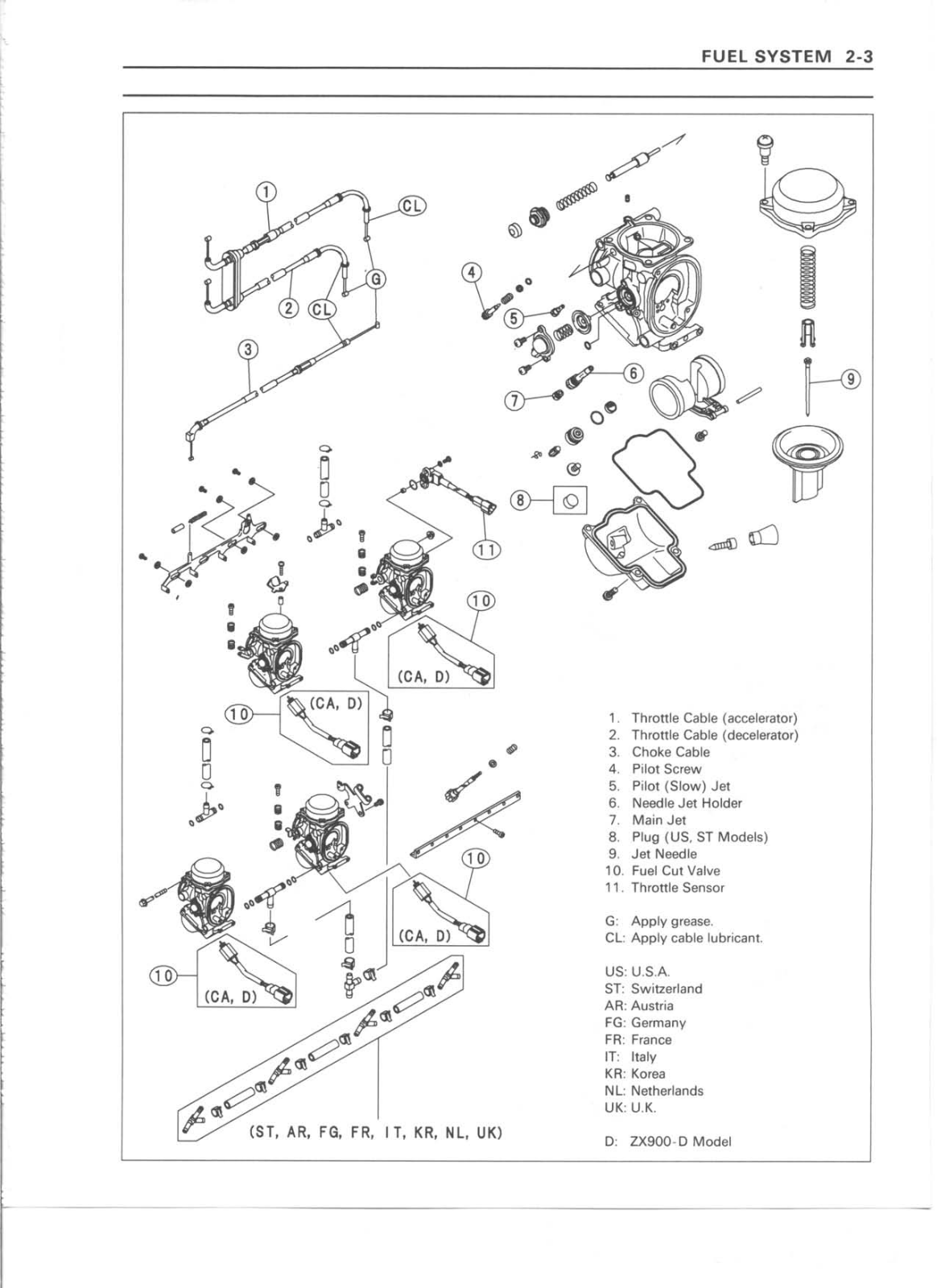

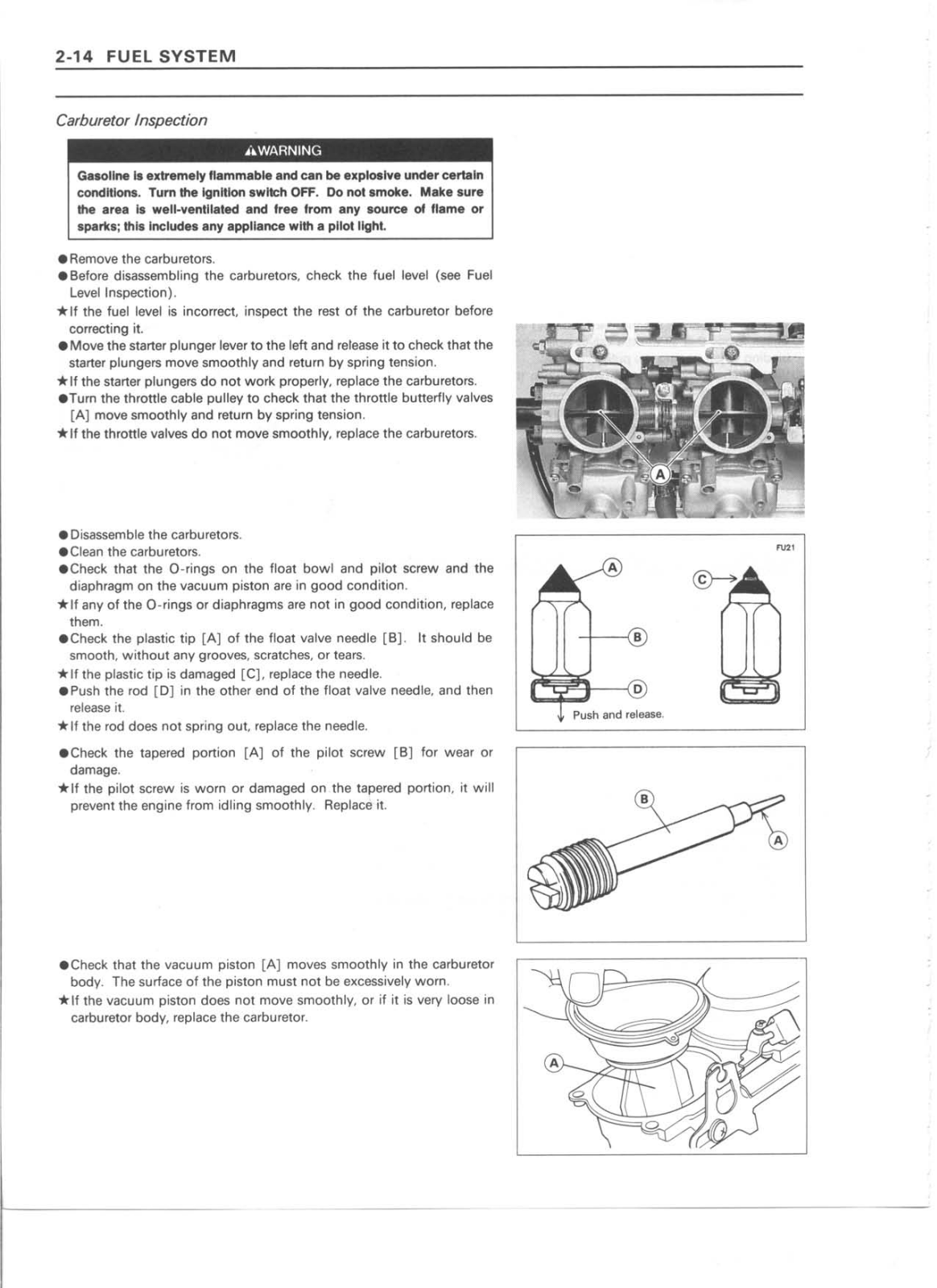

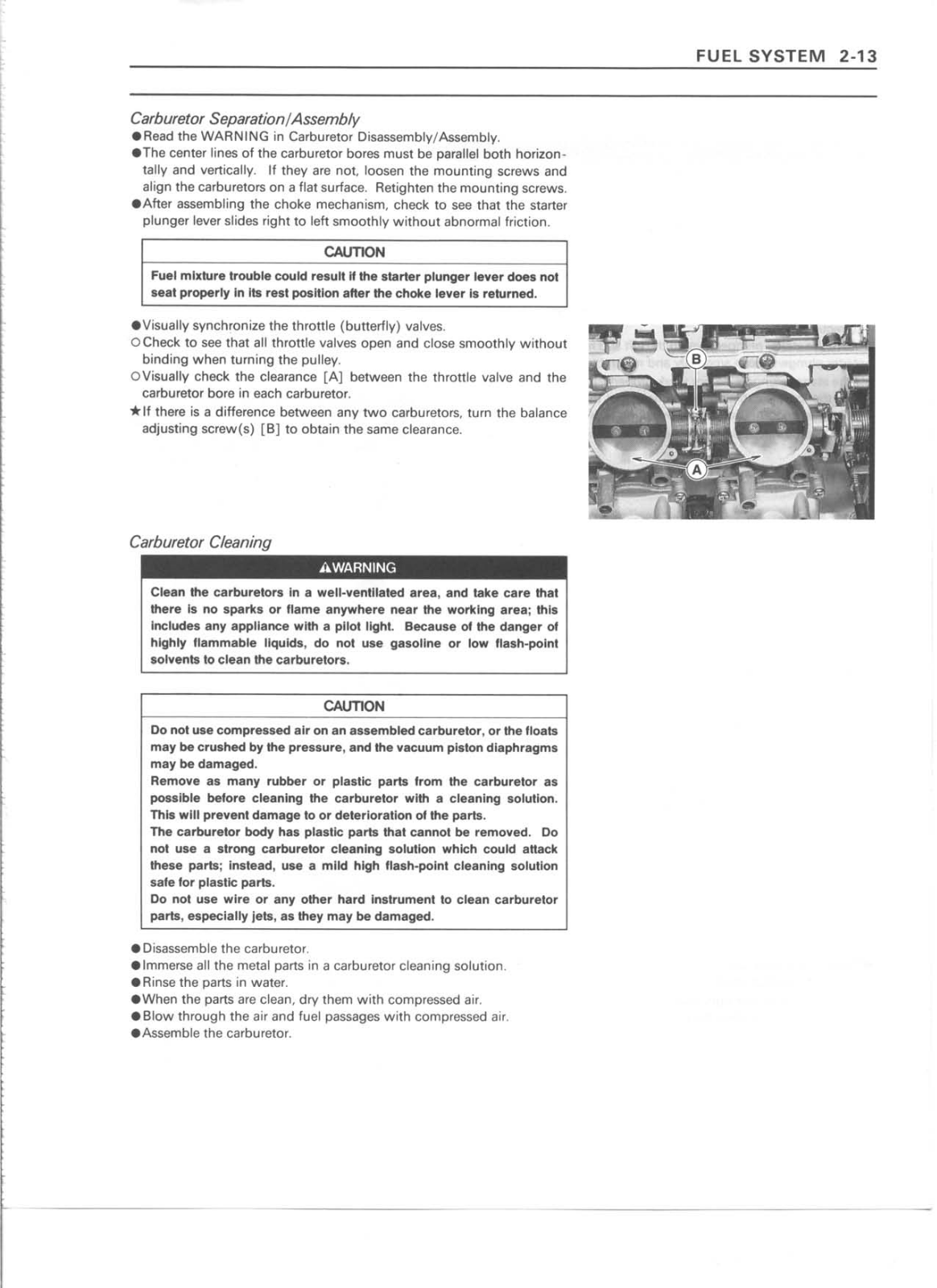

- Q: What kind of carburetors does the ZX900 utilize?
A: It utilizes 4 carburetors which are Keihin CVKD 40 x 4 type.

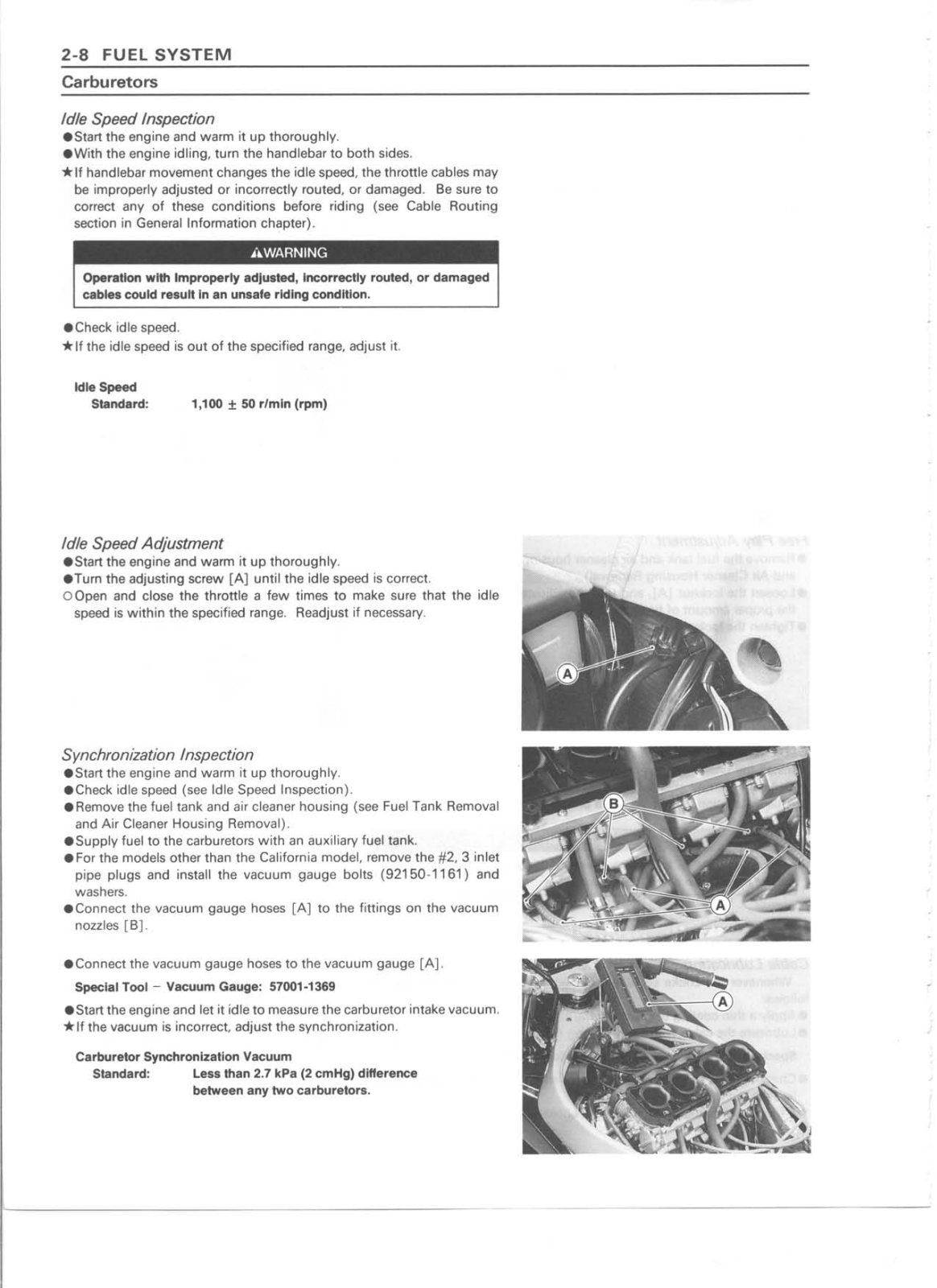

- Q: What is the idle speed for the ZX900?
A: It has an idle speed of 1100 rondo minute with a variance of plus minus 50.
- Q: How is ignition structured for the ZX900?
A: The configuration is battery and coil (transistorized) with electronically advanced (digital igniter) ignition.
- Q: Can you tell us the frame type of the ZX900 motorcycle?
A: The frame is of tubular diamond type.
