Page 1
Kawasaki GPX600R ’91 ZX600C-4
Part Diagrams
Kawasaki GPX600R
1991 ZX600C-4
Kawasaki GPX600R Fiche Page 1 of 121
Page 2
Kawasaki GPX600R ’91 ZX600C-4
Kawasaki GPX600R Fiche Page 2 of 121
Page 3
Kawasaki GPX600R ’91 ZX600C-4
Kawasaki GPX600R Fiche Page 3 of 121
Page 4
Kawasaki GPX600R ’91 ZX600C-4
AIR CLEANER
Ref # Part # Description Qty Spec Code
11011 11011-1252 CASE-AIR FILTER 1 [US]
11011 A 11011-1256 CASE-AIR FILTER 1 [CA]
11012 11012-1619 CAP,AIR FILTER 1
11013 11013-1154 ELEMENT-AIR FILTER 1
13091 13091-1467 HOLDER,ELEMENT 1
13091A 13091-1468 HOLDER,ELEMENT 1
14073 14073-1211 DUCT,CARBURETOR 4
16126 16126-1005 VALVE,AIR SWITCH 1
92005 92005-1017 FITTING,TUBE,T-TYPE 1
92037 92037-072 CLAMP,TUBE 2
92037A 92037-1076 CLAMP,T UBE 1
92037B 92037-1730 CLAMP 1
92037C 92037-213 C LAMP,TUBE 4
92059 92059-1031 TUBE,19X25X260 1
92059A 92059-1040 TUBE,4X9X220 1
92059B 92059-1365 TUBE,4X9X80 1
92059C 92059-1674 TUBE,AIR SWITCH VALVE,LH 1
92059D 92059-1675 TUBE,AIR SWITCH VALVE,RH 1
92059E 92059-1712 TUBE,4X9X260 1
92059F 92059-1798 TUBE,BREATHER 1
92071 92071-1013 GROMMET,AIR FILTER 1
92071A 92071-1114 GROMMET,AIR FILTER 1 [CA]
92071B 92071-1123 GROMMET,AIR FILTER 1
92093 92093-1212 SEAL,AIR FILTER CAP 1
92144 92144-1771 SPRING,AIR FILTER DUCT 4
235 235B0616 SCREW-PAN-WP-CROS 2
702 702A05100 TUBE-RUBBER 1
Kawasaki GPX600R Fiche Page 4 of 121
Page 5
Kawasaki GPX600R ’91 ZX600C-4
AIR CLEANER
Kawasaki GPX600R Fiche Page 5 of 121
Page 6
Kawasaki GPX600R ’91 ZX600C-4
CYLINDER HEAD
Ref # Part # Description Qty Spec Code
11004 11004-1152 GASKET-HEAD 1
11008 11008-1195 HEAD-COMP-CYLINDER 1
11012 11012-1491 CAP 4
16065 16065-1129 HOLDER-CARBURETOR 4
32033 32033-1942 PIPE 1
32033A 32033-1943 PIPE 1
49002 49002-1081 GUIDE-VALVE 16
92001 92001-1105 BOLT,FLANGED,6X38 20
92004 92004-066 STUD,6X27 8
92015 92015-1151 NUT,CAP,8MM 12
92043 92043-1263 PIN,6.2X8X14 20
92170 92170-1438 CLAMP 8
410 410B0800 WASHER-PLAIN-SMALL,8MM 12
670 670D1505 O RING 4
Kawasaki GPX600R Fiche Page 6 of 121
Page 7
Kawasaki GPX600R ’91 ZX600C-4
CYLINDER HEAD
Kawasaki GPX600R Fiche Page 7 of 121
Page 8
Kawasaki GPX600R ’91 ZX600C-4
CYLINDER HEAD COVER
Ref # Part # Description Qty Spec Code
11009 11009-1497 GASKET,CYLIND ER HEAD COVER 1
11009A 11009-1905 GASKET,REED VALVE 2
11012 11012-1481 CAP,REED VALVE 2
11060 11060-1509 GASKET 2
12021 12021-1053 VALVE-ASSY-REED 2
14024 14024-1144 COVER,CYLINDER HEAD 1
92001 92001-1352 BOLT,FLANGED,6X22 4
92005 92005-1006 FITTING,REED VALVE 2
92022 92022-1637 WASHER,HEAD COVER BOLT 6
92043 92043-1263 PIN,6.2X8X14 4
92055 92055-1225 RING-O,HEAD COVER BOLT 6
92150 92150-1447 BOLT,HEAD COVER 6
Kawasaki GPX600R Fiche Page 8 of 121
Page 9
Kawasaki GPX600R ’91 ZX600C-4
CYLINDER HEAD COVER
Kawasaki GPX600R Fiche Page 9 of 121
Page 10
Kawasaki GPX600R ’91 ZX600C-4
CYLINDER/PISTON(S)
Ref # Part # Description Qty Spec Code
11005 11005-1493 CYLINDER-ENGINE 1
11007 11007-1086 LINER-CYLINDER 4
11009 11009-1578 GASKET,CYLINDER BASE 1
13001 13001-1254 PISTON-ENGINE,STD 4
13002 13002-1003 PIN-PISTON 4
13008 13008-1088 RING-SET-PISTON,STD 4
13025 13025-1086 RING-SET-PISTON L,O/S 0.50 4
13029 13029-1164 PISTON-ENGINE L,O/S 0.50 4
92002 92002-1104 BOLT,6X28 4
92015 92015-1170 NUT,CAP,6MM,BLACK 2
92033 92033-116 1 RING-SNAP,PISTON PIN 8
92043 92043-1264 PIN,8.2X10X14 4
92055 92055-1287 RING-O,66.5MM 8
Kawasaki GPX600R Fiche Page 10 of 121
Page 11
Kawasaki GPX600R ’91 ZX600C-4
CYLINDER/PISTON(S)
Kawasaki GPX600R Fiche Page 11 of 121
Page 12
Kawasaki GPX600R ’91 ZX600C-4
VALVE(S)
Ref # Part # Description Q ty Spec Code
12004 12004-1075 VALVE-INTAKE 8
12005 12005-1062 VALVE-EXHAUST 8
12009 12009-1060 RETAINER-VALVE SPRING 16
12011 120 11 - 10 51 COLLET 3 2
12016 12016-1062 ARM-ROCKER 8
12020 12020-105 8 SHAFT-ROCKER 4
16007 16007-1143 SEAT-SPRING,12.1X16.2X0.5 16
16007A 16007-1144 SEAT-SPRING,17.5X23.8X0.5 16
49078 49078-1060 SPRING-ENGINE VALVE,OUTER 16
49078A 49078-1061 SPRING-ENGINE VALVE,INNER 16
92 009 92009-1109 SCREW,VALVE ADJUST 16
92015 92015-1529 NUT,5MM 16
92049 92049-1218 SEAL-OIL,VSB58.558 16
920 6 6 92 0 6 6-1 1 9 2 PLUG,14X11 .5 4
92081 92081-1636 SPRING,ROCKER ARM 8
551 551A0540 PIN-DOWEL 4
670 670B2015 O RING,15MM 4
Kawasaki GPX600R Fiche Page 12 of 121
Page 13
Kawasaki GPX600R ’91 ZX600C-4
VALVE(S)
Kawasaki GPX600R Fiche Page 13 of 121
Page 14
Kawasaki GPX600R ’91 ZX600C-4
CAMSHAFT(S)/TENSIONER
Ref # Part # Description Qty Spec Code
11044 11044-1079 BRACKET,CHAIN GUIDE 1
12044 12044-1203 CAMSHAFT-VALVE,INTAKE 1
12044A 12044-1204 CAMSHAFT-VALVE,EXHAUST 1
12046 12046-1078 SPROCKET,CAMSHAFT,42 T 2
12049 12049-1009 TENSIONER,CAM CHAIN 1
12053 12053-1158 GUIDE-CHAIN,RR 1
12053 A 12053-1159 GUIDE-CHAIN,FR 1
12053B 12053-1160 GUIDE-CHAIN,HEAD 1
13107 13107-1142 SHAFT,8X25 1
13116 13116-1012 ROD-PUSH,TENSIONER 1
13116 A 13116-1020 ROD-PUSH,CAM CHAIN 1
92003 92003-208 BOLT,FLANGED,6X11 4
92015 92015-1100 NUT,CAP,18MM1
92022 92022-1175 WASHER,18.3X24X1.4 1
92057 92057-1190 CHAIN,CAM,82RH2010-136L 1
92081 92081-1075 SPRING,TENSIONER 1
92081A 92081-1302 SPRING,TENSIONER 1
120 120P0618 BOLT-SOCKET,6X18 2
130 130Y0625 BOLT-FLANGED 2
610 610A0408 ROLLER,4X8 1
670 670B2021 O RING,21MM 1
Kawasaki GPX600R Fiche Page 14 of 121
Page 15
Kawasaki GPX600R ’91 ZX600C-4
CAMSHAFT(S)/TENSIONER
Kawasaki GPX600R Fiche Page 15 of 121
Page 16
Kawasaki GPX600R ’91 ZX600C-4
CRANKSHAFT
Ref # Part # Description Qty Spec Code
11044 11044-1075 BRACKET,CHAIN GUIDE 1
12053 12053-1156 GUIDE-CHAIN,UPP 1
12053 A 12053-1157 GUIDE-CHAIN,LWR 1
13031 13031-1245 CRANKSHAFT-COMP 1
13034 13034-1016 METAL,CRANKSHAFT,BROWN 4
13034A 13034-1017 METAL,CRANKSHAFT,BLACK AR
13034B 13034-1018 METAL,CRANKSHAFT,BLUE AR
13034C 13034-1064 BUSHING,CRANKSHAFT,BLUE 6
13034D 13034-1065 BUSHING,CRANKSHAFT,BLACK AR
13034E 13034-1066 BUSHING,CRANKSHAFT,BROWN A R
13034F 13034-1067 BUSHING,CONNECTING ROD,BLUE 8
13034G 13034-1068 BUSHING,CONNECTING ROD,BLACK AR
13034H 13034-1069 BUSHING,CONNECTING ROD,BROWN AR
13107 13107-1142 SHAFT,8X25 1
13251 13251-1081-HH ROD-ASSY-CONNECTING,H 4
13251A 13251-1081-II ROD-ASSY-CONNECT I NG,I 4
13251B 13251-1081-JJ ROD-ASSY-CONNECTING,J 4
13251C 13251-1081-KK ROD-ASSY-CONNECTI NG,K 4
92001 92001-1887 BOLT,CONNECTING ROD,8MM 8
92002 92002-1479 BOLT 1
92002A 92002-1592 BOLT,SOCKET,6X14 4
92015 92015-1311 NUT,FLANGED,8MM 8
92043 92043-076 PIN 1
92049 92049-1013 SEAL-OIL,HSCY25367 1
92050 92050-081 SEAL-OIL,HSCY25397 1
92057 92057-1011 CHAIN,PRIMARY,MA0364X50L 1
92081 92081-112 SPRING 1
555 555A0408 PIN-SPRING,4X8 1
670 670B2016 O RING,16MM 1
Kawasaki GPX600R Fiche Page 16 of 121
Page 17
Kawasaki GPX600R ’91 ZX600C-4
CRANKSHAFT
Kawasaki GPX600R Fiche Page 17 of 121
Page 18
Kawasaki GPX600R ’91 ZX600C-4
SECONDARY SHAFT
Ref # Part # Description Qty Spec Code
13097 13097-1141 GEAR-PRIMARY SPUR,28T 1
13127 13127-1123 SHAFT,SECONDARY 1
42034 42034-1004 COUPLING,OUTER,SECONDARY SHAFT 1
42034 A 42034-1005 COUPLING,INNER,SECONDARY SHAFT 1
59051 59051-1137 GEAR-SPUR,10T,SECONDARY 1
92016 92016-028 NUT,20MM 1
92027 92027-1438 COLLAR,22X34X7.3 1
92028 92028-1037 BUSHING,20X25X16.6 1
92045 92045-1017 BEARING-BALL,#63/ 22X 1
92075 92075-1070 DAMPER,COUPLING 8
480 480J2200 CIRCLIP-TYPE-C,22MM1
480A 480J2800 CIRCLIP-TYPE-C,28MM1
601 601B6205 BEARING-BALL,#6205C3 1
Kawasaki GPX600R Fiche Page 18 of 121
Page 19
Kawasaki GPX600R ’91 ZX600C-4
SECONDARY SHAFT
Kawasaki GPX600R Fiche Page 19 of 121
Page 20
Kawasaki GPX600R ’91 ZX600C-4
CLUTCH
Ref # Part # Description Qty Spec Code
13087 13087-1052 HUB-CLUTCH 1
13088 13088-040 PLATE-FRICTION 7
13089 13089-026 PLATE-CLUTCH,T=2.0 5
13089A 13089-1067 PLATE-CLUTCH,T=2.6 1
13095 13095-1128 HOUSING-COMP-CLUTCH 1
13102 13102-1089 RELEASE-COMP-CLUTCH 1
13187 13187-1012 PLATE-CLUTCH OPERATING1
46102 46102-1030 ROD,CLUTCH 1
92001 92001-1066 BOLT,FLANGED,6X18 5
92015 92015-1555 NUT,20MM 1
92022 92022-1116 WASHER,20.3X36X2.3 1
92026 92026-022 SPACER,25.5X47X2.5 1
92026A 92026-116 SPACER,THRUST,T=5.5 1
92028 92028-178 BUSHING,25X32X23.6 1
92045 92045-1235 BEARING-BALL,6001 C3ML01 1
92046 92046-028 BEARING-NEEDLE,KTV323723 1
92081 92081-139 SPRING,CLUTCH 5
Kawasaki GPX600R Fiche Page 20 of 121
Page 21
Kawasaki GPX600R ’91 ZX600C-4
CLUTCH
Kawasaki GPX600R Fiche Page 21 of 121
Page 22
Kawasaki GPX600R ’91 ZX600C-4
TRANSMISSION
Ref # Part # Description Qty Spec Code
13127 13127-1151 SHAFT-TRANSMISSION INPUT,14T 1
13128 13128-1119 SHAFT-TRANSMISSION OUTPUT 1
13129 13129-1077 GEAR,INPUT 2ND,18T 1
131 29A 13129-1078 GEAR,OUTPUT 2ND,32T 1
131 29B 13 129-1 083 GEAR,OUTPUT 5TH,25T 1
13129C 13129-1564 GEAR,OUTPUT LOW,36T 1
13129D 13129-1657 GEAR,INPUT 5TH,26T 1 ( - ZX600AE094804)
13129E 13129-1658 GEAR,INPUT TOP,27T 1
131 29F 13129-16 59 GEAR,OUTPUT 3RD,29T 1
131 29G 131 29-1660 GEAR,OUTPUT 4TH,27T 1
131 29H 13129-1662 GEAR,OUTPUT TOP,23T 1
13144 13144-1117 SPROCKET-OUTPUT,15T(#530) 1
132 6 0 1326 0 -1195 GEAR,INPUT 3RD&4TH,21T&24T 1
132 6 0 B 132 6 0 -1203 GEAR,INPUT 5TH,26T 1 ( ZX600AE094805 -
13270 13270-1060 PLATE,SPROCKET 1
92022 92022-112 WASHER,20.5X30X1,STEEL 1
92022A 92022-1139 WASHER,TOOTHED,28.3X33.5X1 3
92022B 92022-1861 WASHER,TOOTHED,25.3X31.8X1.6 1
92024 92024-033 WASHER,TOOTHED,25.5X32X1 2
92026 92026-1022 SPACER,20.3X30X2.0 1
92027 92027-1106 COLLAR,25X32X23.5 1
92028 92028-1199 BUSHING,INPUT SHAFT 1
92028A 92028-1364 BUSHING,OUTPUT 3RD&4TH GEAR 1
92028B 92028-1552 BUSHING,INPUT TOP GEAR 1
92028D 92028-1639 BUSHING 1 ( ZX600AE094805 -
92028E 92028-180 BUSHING,26X34X16.6 1
92033 92033-015 RING-SNAP,20MM2
92033A 92033-026 RING-SNAP,24MM3
92033B 92033-1037 RING-SNAP,25.9 MM 3
92045 92045-035 BEARING-BALL,83993SH2-CS 2
92046 92046-1030 BEARING-NEEDLE,VS20/14A 1
92046A 92046-1045 BEARING-NEEDLE,20V2715 1
132 1 32G06 0 8 BOLT-FLANGED-SMALL 2
600 600A0500 BALL-STEEL,5/32\" 3
)
)
Kawasaki GPX600R Fiche Page 22 of 121
Page 23
Kawasaki GPX600R ’91 ZX600C-4
TRANSMISSION
Kawasaki GPX600R Fiche Page 23 of 121
Page 24
Kawasaki GPX600R ’91 ZX600C-4
GEAR CHANGE DRUM/SHIFT FORK(S)
Ref # Part # Description Qty Spec Code
13091 13091-1104 HOLDER,CHANGE DRUM PIN 1
13140 13140-1016 FORK-SHIFT,DRIVE 1
13140A 13140-1062 FORK-SHIFT,OUTPUT 2
131 45 13145-1058 CAM-CHANGE DRUM 1
1315 1 1 3151 -10 07 SWITCH-COMP,NEUTRAL 1
132 39 132 39 - 111 9 DRUM-ASSY-CHANGE 1
49047 49047-1069 ROD-SHIFT 1
92 03 3 92 0 33 - 03 5 R IN G-SNAP,3 7 MM1
92042 92042-014 PIN,DOWEL,4X15.8 1
92042A 92042 -021 PIN,DOWEL,8X18 1
92042B 92042-030 PIN,DOWEL,4X13.8 5
92065 92065-058 GASKET,10.5X16X1,DRAIN PLUG 1
221 221B0620 SCREW-CSK-CROS,6X20 1
480 480J3000 CIRCLIP-TYPE-C,30MM1
482 482J0100 CIRCLIP-TYPE-E,10MM 1
550 550D3020 PIN-COTTER,3.0X20 1
610 610A0406 ROLLER,4X6 1
Kawasaki GPX600R Fiche Page 24 of 121
Page 25
Kawasaki GPX600R ’91 ZX600C-4
GEAR CHANGE DRUM/SHIFT FORK(S)
Kawasaki GPX600R Fiche Page 25 of 121
Page 26
Kawasaki GPX600R ’91 ZX600C-4
GEAR CHANGE MEC HANISM
Ref # Part # Description Qty Spec Code
13161 13161-042 LEVER-COMP-CHAN GE SHAFT 1
13242 13242-1190 LEVER-ASSY-CHANGE,BOSS 1
13242A 13242-1191 LEVER-ASSY-CHANGE,PEDAL 1
39110 39110-1010 ROD-ASSY-TIE,CHANGE LE VER 1
92001 92001-10 37 BOLT,NEUTRAL POSITION 1
92001A 92001-1455 BOLT,RETURN SPRING 1
92001B 92001-174 BOLT,10X26 1
92002 92002-1926 BOLT,CHANGE PEDAL 1
92022 92022-072 WASHER,12.5X21X1.2 1
92022A 92022-1561 WASHER,8.5X20X1.6 1
92024 92024-074 WASHER,LOCK,10MM1
92043 92043-076 PIN 1
92081 92081-112 SPRING 1
92083 92083-018 SPRING 1
92144 92144-1074 SPRING,CHANGE PEDAL RETURN 1
92160 92160-1036 DAMPER,CHANGE PEDAL 1
130 130S0620 BOLT-FLANGED,6X20,BLACK 1
Kawasaki GPX600R Fiche Page 26 of 121
Page 27
Kawasaki GPX600R ’91 ZX600C-4
GEAR CHANGE MEC HANISM
Kawasaki GPX600R Fiche Page 27 of 121
Page 28
Kawasaki GPX600R ’91 ZX600C-4
CRANKCASE
Ref # Part # Description Qty Spec Code
11009 11009-1344 GASKET,OIL PIPE,8.2X14X1.0 4
11009A 11009-1376 GASKET,12.4X17X1.5 2
13169 13169-1966 PLATE,BREATHER 1
14001 14001-5217 SET-CRANKCASE 1
14013 14013-004 RING-POSITION 2
14014 14014-1006 PLATE-POSITION 1
14055 14055-1078 CASE-GEAR 1
32033 32033-1858 PIPE,OIL 1
51044 51044-1071 TUBE-ASSY 1
92001 92001-1871 BOLT,BANJO,12X23 1
92002 92002-1449 BOLT,6X10 4
92002A 92002-1858 BOLT,BANJO,8X24 2
92004 92004-059 STUD,6X22 2
92004A 92004-1161 STUD,8X128.5 12
92005 92005-1129 FITTING,BREATHER 1
92037 92037 -1181 CLAMP 1
92042 92042-016 PIN,DOWEL,6X16 2
92043 92043-1263 PIN,6.2X8X14 6
92043A 92043-1264 PIN,8.2X10X14 2
92046 92046-051 BEARING-NEEDLE,37BTM4312 1
92055 92055-1146 RING-O 1
92059 92059-1544 TUBE 1
92062 92062-011 NOZZLE,BLACK 1
92062A 92062-014 NOZZLE 1
92062B 92062-015 NOZZLE,SILVER 1
92066 92066-1096 PLUG,MAIN GALLERY,18X9,BLACK 1
132 132J0625 BOLT-FLANGED-SMALL 2
671 671B2555 O RING,55MM 1
Kawasaki GPX600R Fiche Page 28 of 121
Page 29
Kawasaki GPX600R ’91 ZX600C-4
CRANKCASE
Kawasaki GPX600R Fiche Page 29 of 121
Page 30
Kawasaki GPX600R ’91 ZX600C-4
CRANKCASE BOLT PATTERN
Ref # Part # Description Qty Spec Code
92002 92002-1077 BOLT,8X95 10
92002A 92002-1078 BOLT,6X95 4
92002B 92002-1080 BOLT,6X40 13
92002C 92002-1483 BOLT,6X75 2
Kawasaki GPX600R Fiche Page 30 of 121
Page 31
Kawasaki GPX600R ’91 ZX600C-4

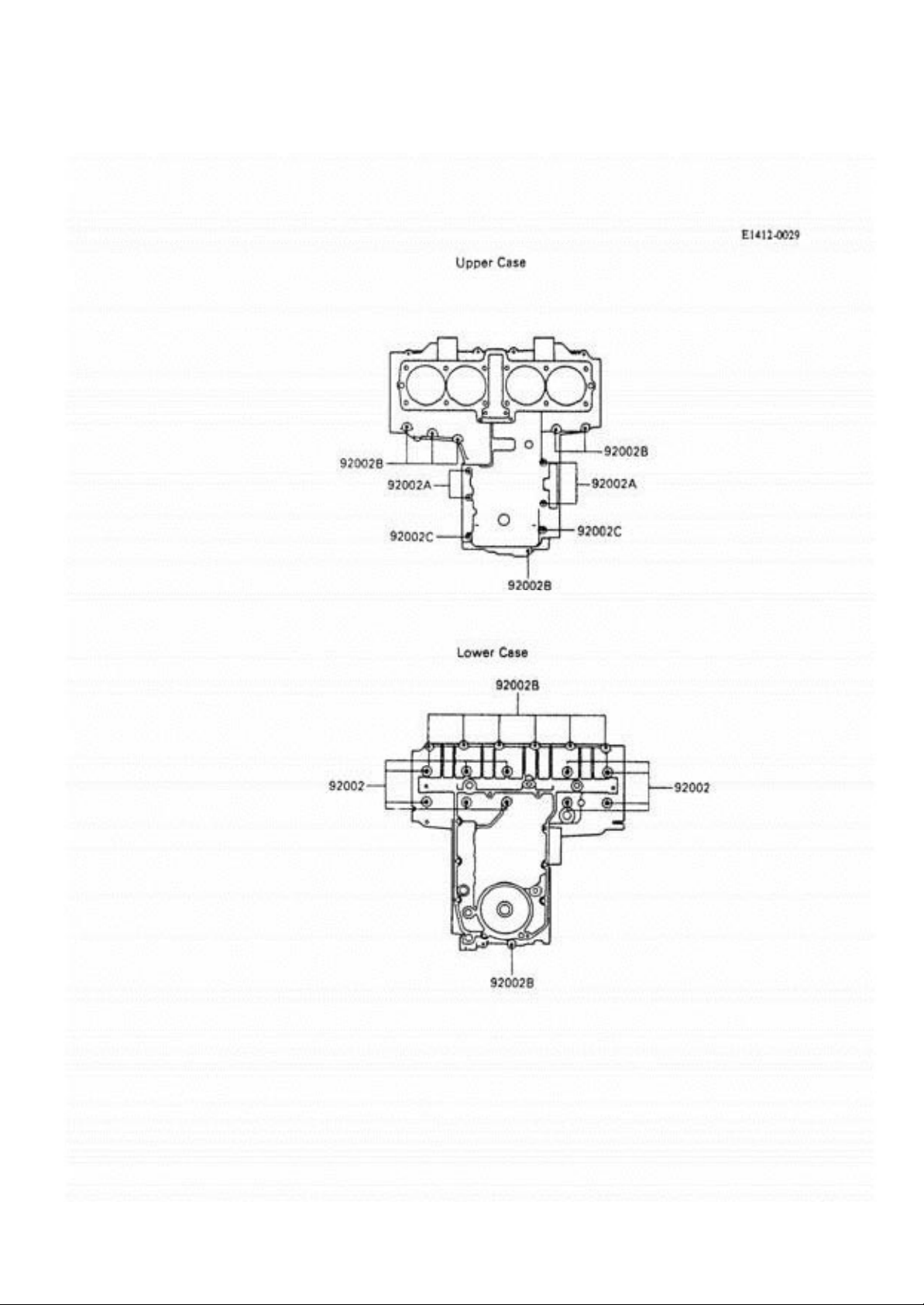

CRANKCASE BOLT PATTERN
Kawasaki GPX600R Fiche Page 31 of 121
Page 32
Kawasaki GPX600R ’91 ZX600C-4

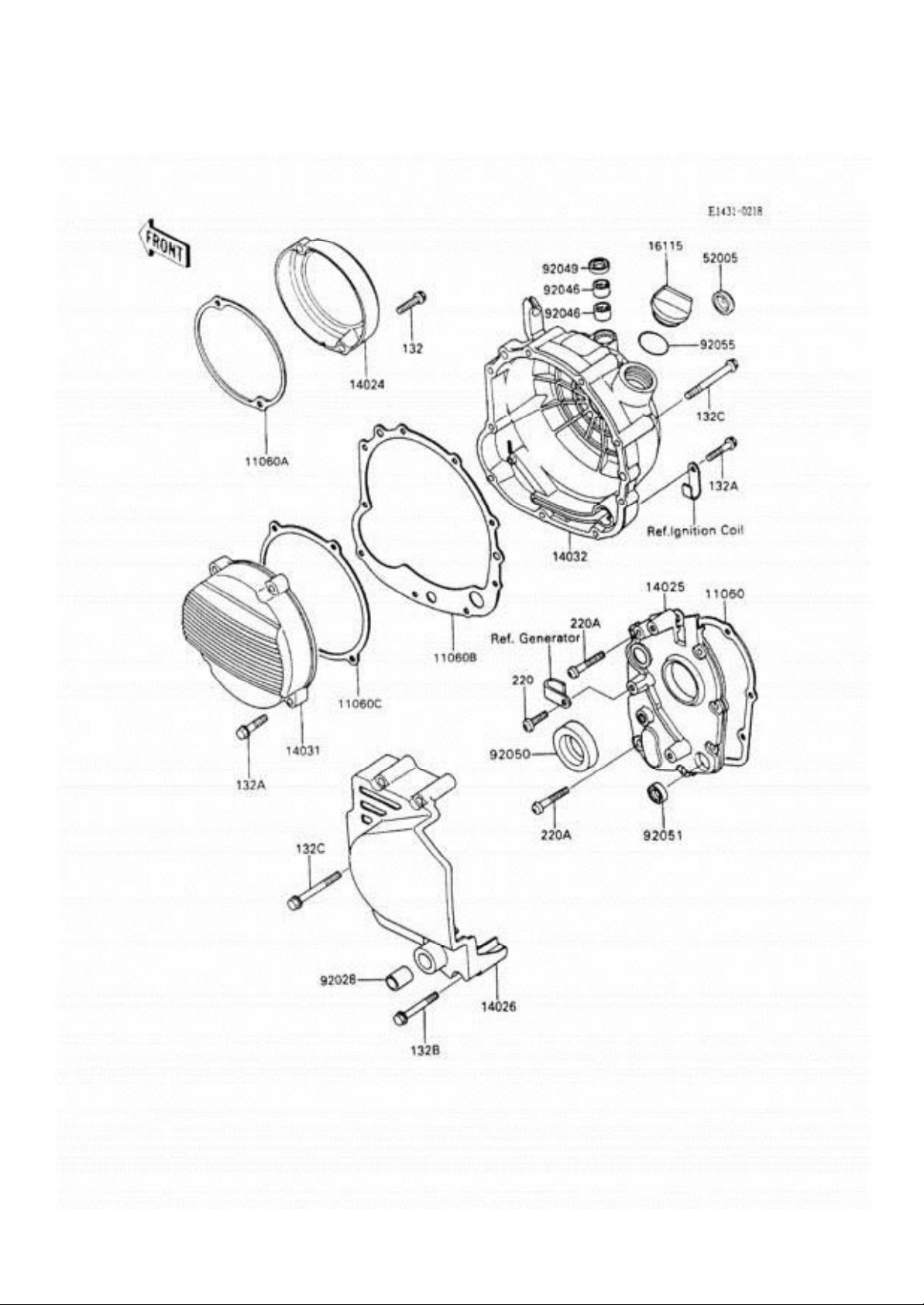

SIDE COVERS/CHAIN COVER (1/2)
Ref # Part # Description Qty Spec Code
11060 11060-1056 GASKET,TRANSMISSION COVER 1
11060A 11060-1098 GASKET,PULSING COIL COVER 1
11060B 11060-1148 GASKET,CLUTCH COVER 1
11060C 11060-1150 GASKET,GENERATOR COVER 1
14024 14024-1425 COVER,PULSING COIL 1
14025 14025-1700 COVER,TRANSMISSION 1
14026 14026-1134 COVER-CHAIN 1
14031 14031-1208 COVER-GENERATOR 1
14032 14032-1254 COVER-CLUTCH 1
16115 16115-1009 CAP-OIL FILLER 1
520 0 5 520 0 5 - 10 0 9 GAUG E,OIL LEVE L 1
92028 92028-1251 BUSHING,13X15X20 1
92046 92046-1010 BEARING-NEEDLE,HK1210 2
92049 92049-1271 SEAL-OIL,TB12205.5 1
92050 92050-024 SEAL-OIL,SC325210 1
92051 92051-005 SEAL-OIL,TB13225.5 1
92055 92055-049 RING-O,31.5X2.6 1
132 132J0625 BOLT-FLANGED-SMALL 2
132A 132J0630 BOLT-FLANGED-SMALL 8
132B 132J0650 BOLT-FLANGED-SMALL 1
132C 132J0660 BOLT-FLANGED-SMALL 8
220 220B0620 SCREW-PAN-CROS,6X20,WHITE 5
220A 220B0640 SCREW-PAN-CROS,6X40 2
Kawasaki GPX600R Fiche Page 32 of 121
Page 33
Kawasaki GPX600R ’91 ZX600C-4
SIDE COVERS/CHAIN COVER (1/2)
Kawasaki GPX600R Fiche Page 33 of 121
Page 34
Kawasaki GPX600R ’91 ZX600C-4

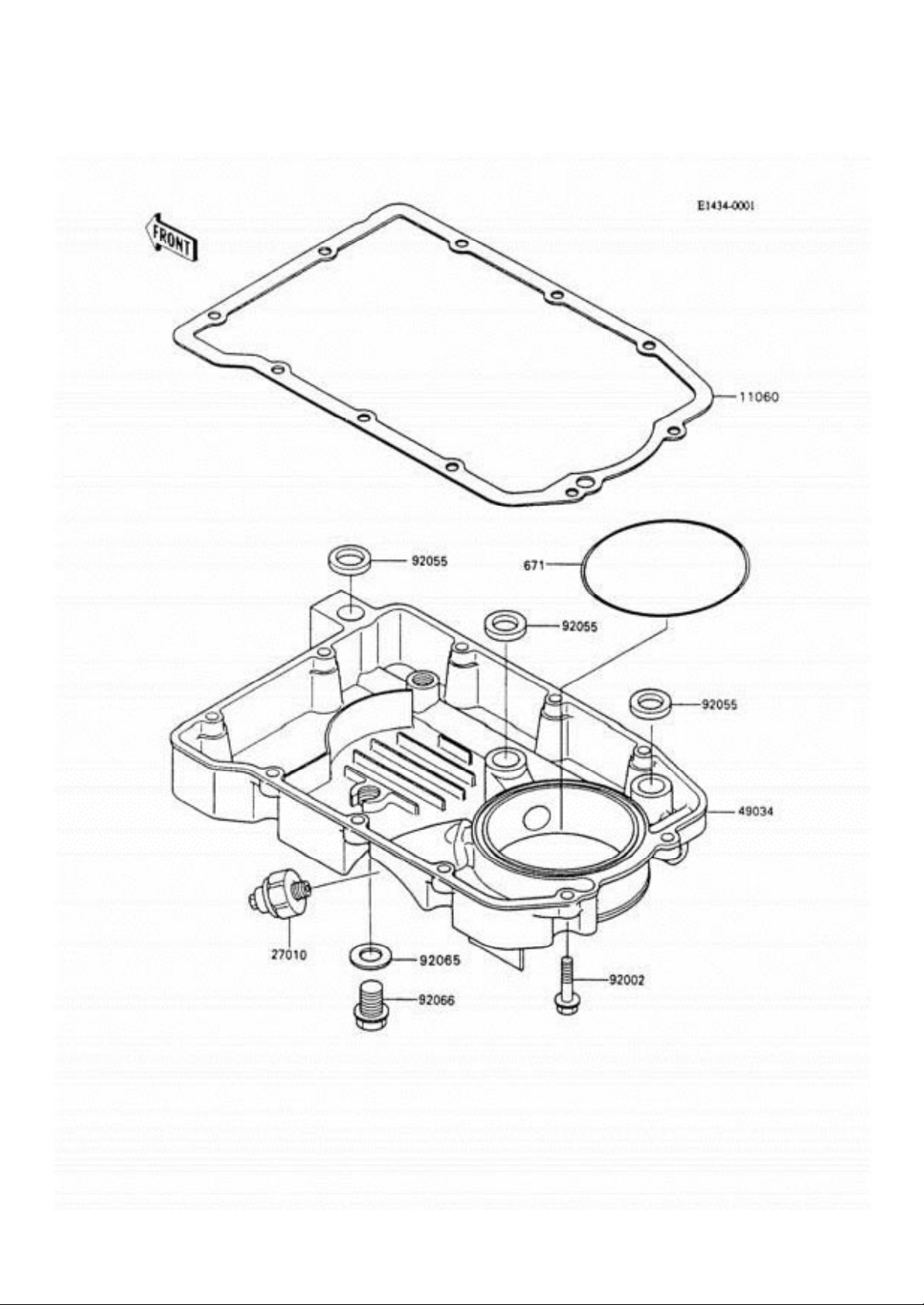

OIL PAN
Ref # Part # Description Q ty Spec Code
11060 11060-1149 GASKET,OIL PAN 1
27010 27010-1313 SWITCH,OIL PRESSURE 1
49034 49034-1060 PAN-OIL 1
92002 92002-1089 BOLT,6X25 10
92055 92055-077 RING-O,19.5MM 3
92065 92065-097 GASKET,12X22X2,DRAIN PLUG 1
92066 92066-1174 PLUG,OIL DRAIN,12X15 1
671 671B2590 O RING,90MM 1
Kawasaki GPX600R Fiche Page 34 of 121
Page 35
Kawasaki GPX600R ’91 ZX600C-4
OIL PAN
Kawasaki GPX600R Fiche Page 35 of 121
Page 36
Kawasaki GPX600R ’91 ZX600C-4

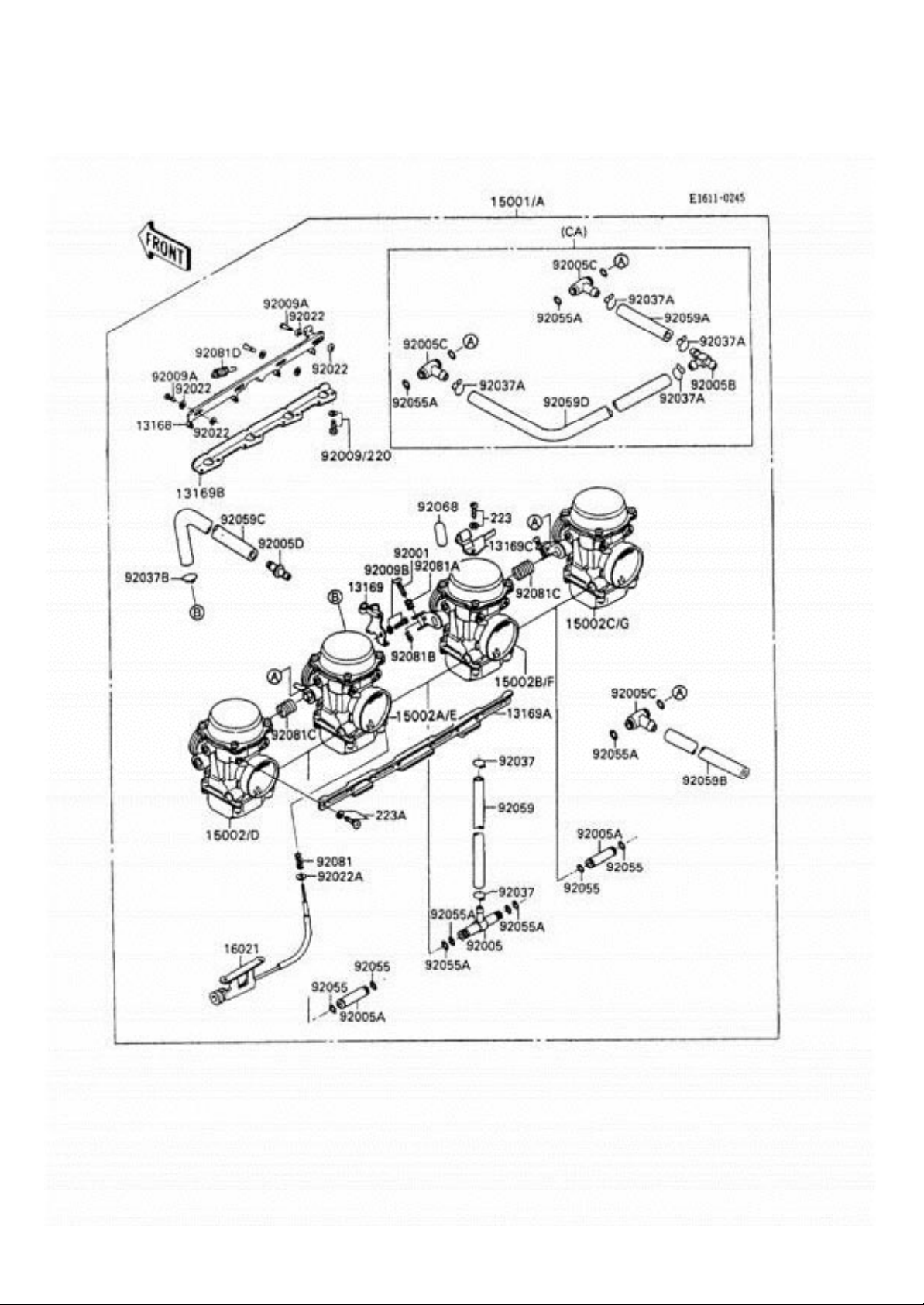

CARBURETOR (1/2)
Ref # Part # Description Q ty Spec Code
13168 13168-1280 LEVER,STARTER 1
13169 13169-1962 PLATE,THROTTLE CABLE 1
13169A 13169-1963 PLATE,CARBURETOR STAY,UPP 1
13169B 13169-1964 PLATE,CARBURETOR S TAY,LWR,6MM 1
13169C 13169-1965 PLATE,STARTER CABLE 1
15001 15001-1357 CARBURETOR-ASSY 1 [US]
15001A 15001-1359 CARBURETOR-ASSY 1 [CA]
15002 15002-1537 CARBURETOR,LH,OUTSIDE 1 [US]
15002A 15002-1538 CARBURETOR,LH,INSIDE 1 [US]
15002B 15002-1539 CARBURETOR,RH,INSIDE 1 [US]
15002C 15002-1540 CARBURETOR,RH,OUTSIDE 1 [US]
15002D 15002-1545 CARBURETOR,LH,OUTSIDE 1 [CA]
15002E 15002-1546 CARBURETOR,LH,INSIDE 1 [CA]
15002F 15002-1547 CARBURETOR,RH,INSIDE 1 [CA]
15002G 15002-1548 CARBURETOR,RH,OUTSIDE 1 [CA]
16021 16021-1114 SCREW-THROTTLE STOP 1
92001 92001-1998 BOLT,THROTTLE ADJUST 3
92005 92005-1108 FITTING,FUEL,T-TYPE 1
92005A 92005-1109 FITTING,FUEL,I-TYPE 2
92005B 92005-1119 FITTING,T-TYPE 1 [CA]
92005C 92005-1125 FITTING,T-TYPE 2
92005D 92005-1167 FITTING 1
92009 92009-1129 SCREW,6X16 8
92009A 92009-1262 SCREW 3
92009B 92009-1365 SCREW,5X10 1
92022 92022-1199 WASHER,6.1X11X0.8,POLYACETAL 6
92022A 92022-1480 WASHER,PLAIN,STOP SPRING1
92037 92037-1075 CLAMP,FUEL TUBE 2
92037 A 92037-1194 CLAMP,TUBE 4 [CA]
92037B 92037-1477 CLAMP,TUBE 1
92055 92055-1004 RING-O 4
92055A 92055-1223 RING-O,FUEL FITTING 8
92059 92059-1236 TUBE,FUEL,7.3X12.5X220 1
92059A 92059-1476 TUBE,7X11X100 1 [CA]
92059B 92059-1861 TUBE,6.5X9.5X320 2 [US]
92059C 92059-1862 TUBE,5X9X340 1
92059D 92059-1863 TUBE,7X11X220 1 [CA]
92068 92068-006 PLUG,12X25 1 [US]
92081 92081-1617 SPRING,THROTTLE STOP SCREW 1
92081A 92081-1620 SPRING,THROTTLE ADJUST UPP 3
92081B 92081-1621 SPRING,THROTTLE ADJUST LWR 3
92081C 92081-1622 SPRING,THROTTLE ADJUST CNT 2
92081D 92081-1913 SPRING,STARTER LEVER 1
220 220D0514 SCREW-PAN-CROS,5X14 8
223 223C0420 SCREW-PAN-WS-CROS 1
223A 223C 0510 SCREW-PAN-WS-CROS 8
Kawasaki GPX600R Fiche Page 36 of 121
Page 37
Kawasaki GPX600R ’91 ZX600C-4
CARBURETOR (1/2)
Kawasaki GPX600R Fiche Page 37 of 121
Page 38
Kawasaki GPX600R ’91 ZX600C-4

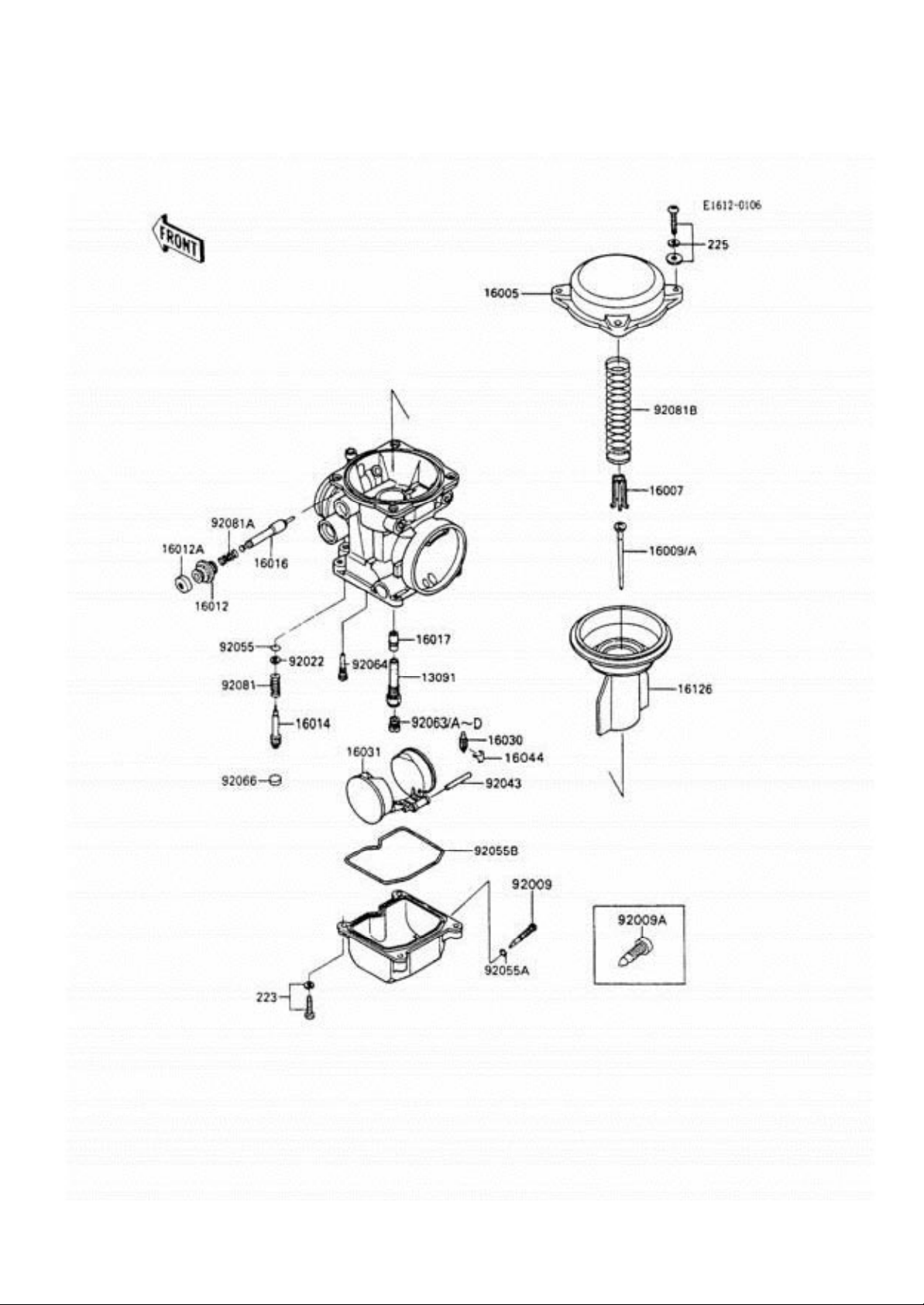

CARBURETOR PARTS
Ref # Part # Description Q ty Spec Code
13091 13091-1406 HOLDER,NEEDLE J ET 4
16005 16005-1056 TOP-CHAMBER,MIXING4
16007 16007-1120 SEAT-SPRING,THROTTLE VALVE 4
16009 16009-1354 NEEDLE-JET,N52Q 4 [US]
16009A 16009-1355 NEEDLE-JET,N52R 4 [CA]
16012 16012 -1051 CAP-STARTER PLUNGER 4
16012A 16012-1052 CAP-STARTER PLUNGER 4
16014 16014-1054 SCREW-PILOT AIR 4
16016 16016-1061 PLUNGER,STARTER 4
16017 16017-1286 JET-NEEDLE,01D34 4
16030 16030-1007 VALVE-FLOAT 4
16031 16031-1056 FLOAT 4
16044 16044-007 CLAMP,FLOAT VALVE 4
16126 16126-1160 VALVE,VACUUM 4
92009 92009-1095 SCREW,DRAIN, M6X1.0 4
92009A 92009-1551 SCREW,DRAIN, M6X0.75 4
92022 92022-1003 WASHER,PLAIN 4
92043 92043-1207 PIN,FLOAT 4
92055 92055-1002 RING-O,PILOT ADJUST 4
92055A 92055-1053 RING-O,DRAIN SCREW 4
92055B 92055-1222 RING-O,FLOAT CHAMBER 4
92063 92063-1008 JET-MAIN,2ND,#100 4 (RACING USE ONLY)
92063A 92063-1009 JET-MAIN,2ND,#105 4
92063B 92063-1114 JET-MAIN ,#110 4 (RACING USE ONLY)
92063C 92063-1115 JET-MAIN,#102 4 (RACING USE ONLY)
92063D 92063-1116 JET-MAIN,#108 4 (RACING USE ONLY)
92064 92064-1035 JET-PILOT,#35 4
92066 92066-1051 PLUG,PILOT AIR SCREW,6.9X2 4
92081 92081-1002 SPRING,PILOT ADJUST SCREW 4
92081A 92081-1761 SPRING,STARTER PLUNGER 4
92081B 92081-1775 SPRING,VACUUM VALVE 4
223 223C0416 SCREW-PAN-WS-CROS 16
225 225C0418 SCREW-PAN-WSP-CROS 15
Kawasaki GPX600R Fiche Page 38 of 121
Page 39
Kawasaki GPX600R ’91 ZX600C-4
CARBURETOR PARTS
Kawasaki GPX600R Fiche Page 39 of 121
Page 40
Kawasaki GPX600R ’91 ZX600C-4

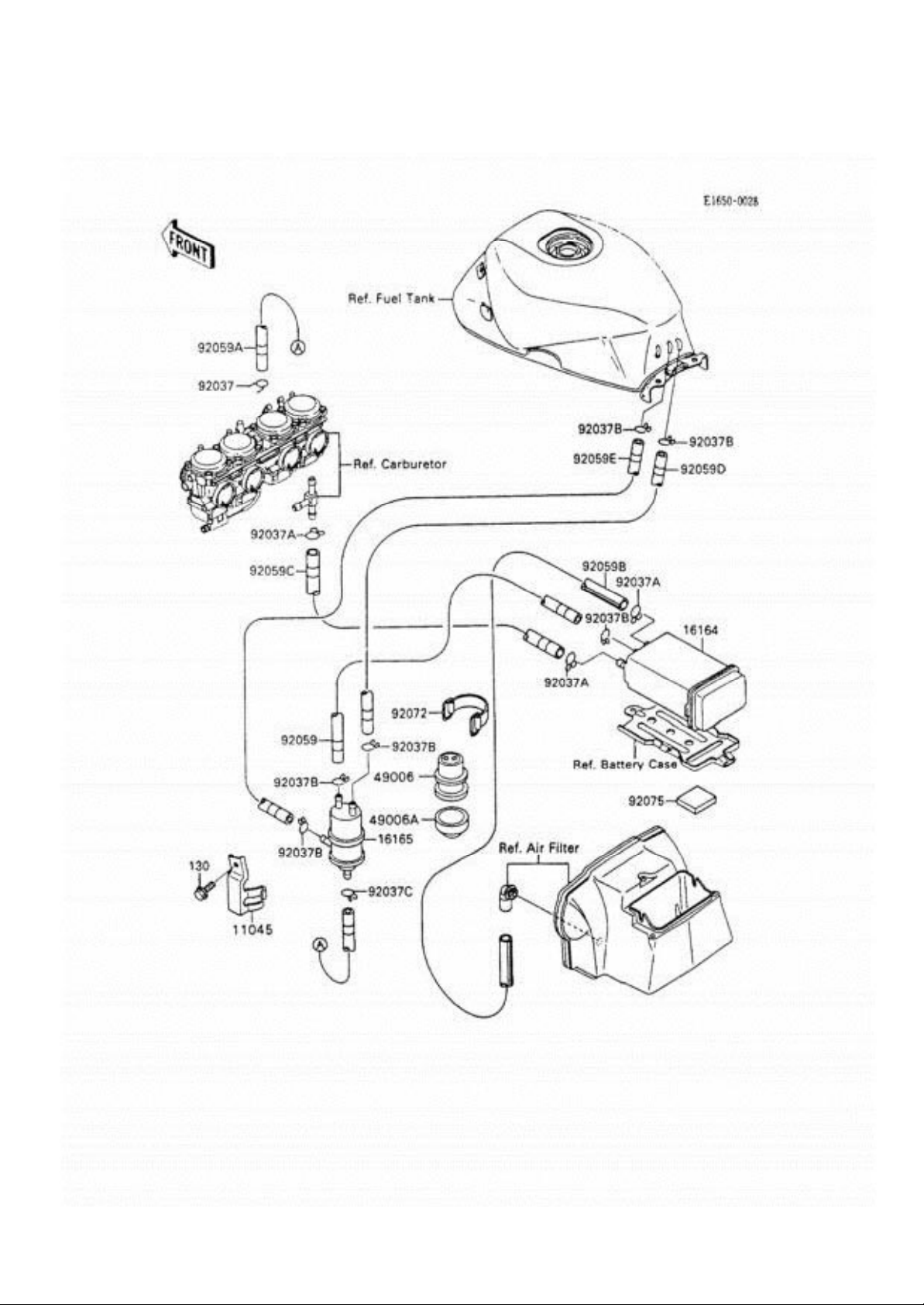

FUEL EVAPORATIVE SYSTEM (1/2)
Ref # Part # Description Q ty Spec Code
11045 11045-1597 BRACKET,SEPARATOR 1 [CA]
16164 16164-1052 CANISTER 1 [CA]
16165 16165-1001 SEPARATOR 1 [CA]
49006 49006-1263 BOOT 1 [CA]
49006A 49006-1264 BOOT 1 [CA]
92037 92037-072 CLAMP,TUBE 1 [CA]
92037A 92037-1104 CLAMP,HOSE 3 [CA]
92037B 92037-147 CLAMP,TUBE 6 [CA]
92037C 92037 -1712 CLAMP 1 [CA]
92059 92059-1604 TUBE,5X10X380,BLUE 1 [CA]
92059A 92059-1690 TUBE,4X9X705,WHITE 1 [CA]
92059B 92059-1806 TUBE,7X12X830 ,GREEN 1 [CA]
92059C 92059-1855 TUBE,7X12X630,YELLOW 1 [CA]
92059D 92059-1856 TUBE,5X10X290,BLUE 1 [CA]
92059E 92059-1857 TUBE,5X10X320,RED 1 [CA]
92072 92072-066 BAND,L=50 1 [CA]
92075 92075-1215 DAMPER 1 [CA]
130 130 C0612 BOLT-FLANGED,6X12 1 [CA]
Kawasaki GPX600R Fiche Page 40 of 121
Page 41
Kawasaki GPX600R ’91 ZX600C-4
FUEL EVAPORATIVE SYSTEM (1/2)
Kawasaki GPX600R Fiche Page 41 of 121
Page 42
Kawasaki GPX600R ’91 ZX600C-4

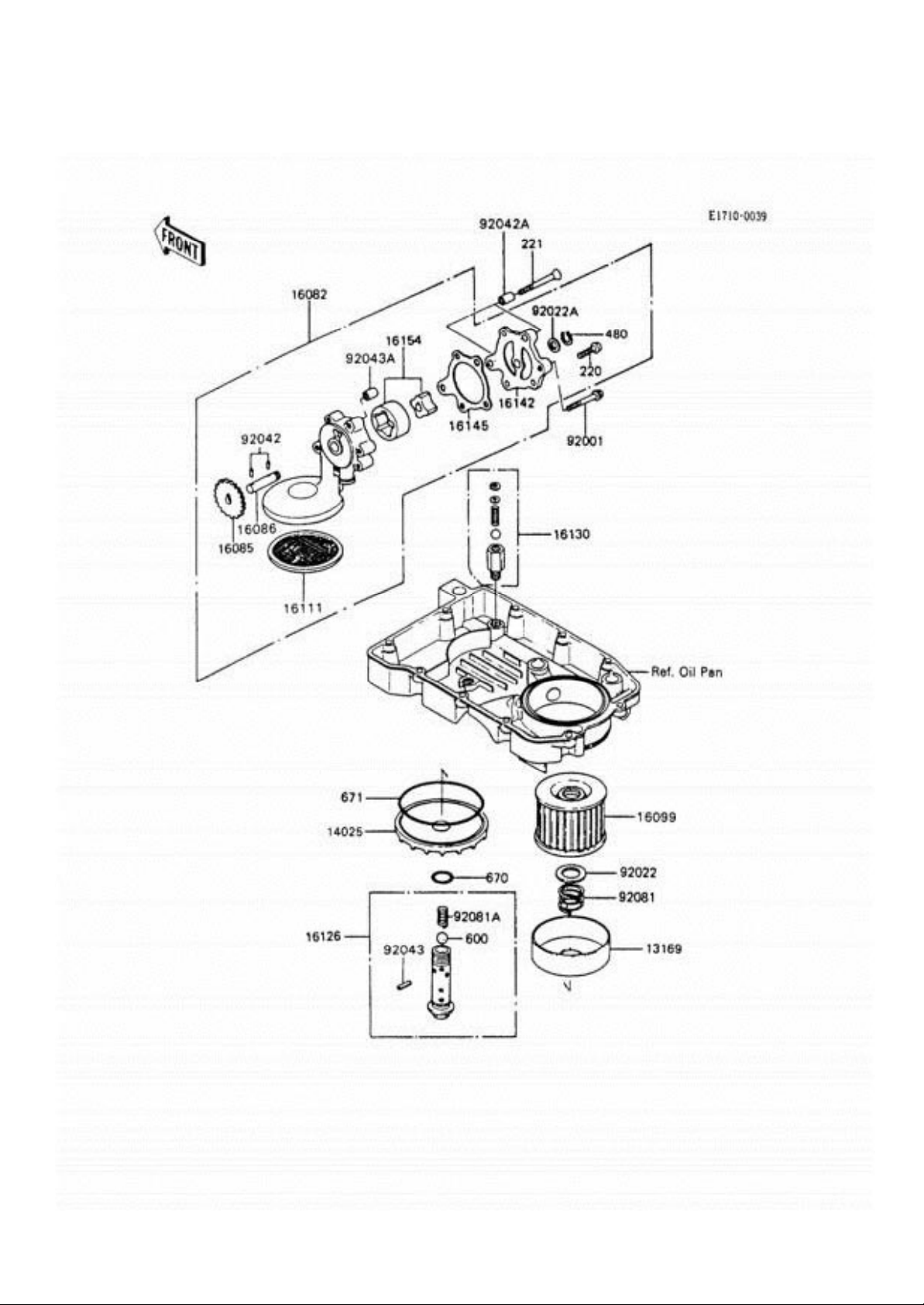

OIL PUMP/OIL FILTER
Ref # Part # Description Q ty Spec Code
13169 13169-1110 PLATE,OIL FILTER 1
14025 14025-1422 COVER,OIL FILTER,F.BLACK 1
16082 16082-064 PUMP-ASSY-OIL 1
16085 16085-025 GEAR,OIL PUMP,57 T 1
16086 16086-004 SHAFT,OIL PUMP 1
16099 16099-003 ELEMENT-OIL FILTER 1
16111 16111-004 FILTER,OIL PUMP 1
16126 16126-1108 VALVE,OIL FILTER 1
16130 16130-1001 VALVE-ASSY-RELIEF 1
16142 16142-005 COVER-PUMP 1
16145 16145-004 GASKET,OIL PUMP COVER 1
16154 16154-003 ROTOR-PUMP 1
92001 92001-165 BOLT,FLANGED,6X45 1
92022 92022-1012 WASHER,20.5X30X1 1
92022A 92022-311 WASHER,11.2X15X1 1
92042 92042-041 PIN,DOWEL,4X12.8 2
92042 A 92042-050 PIN,DOWEL,8X28 2
92043 92043-111 PIN,SPRING,2X20 1
92043 A 92043-1302 PIN,DOWEL,8X10 1
92081 92081-1018 SPRING,OIL FILTER 1
92081A 92081-109 SPRING 1
220 220B0618 SCREW-PAN-CROS,6X18 3
221 221B0655 SCREW-CSK-CROS,6X55 2
480 480J1100 CIRCLIP-TYPE-C,11MM1
600 600A1200 BALL-STEEL,3/8\" 1
670 670B2016 O RING,16MM 1
671 671B2590 O RING,90MM 1
Kawasaki GPX600R Fiche Page 42 of 121
Page 43
Kawasaki GPX600R ’91 ZX600C-4
OIL PUMP/OIL FILTER
Kawasaki GPX600R Fiche Page 43 of 121
Page 44
Kawasaki GPX600R ’91 ZX600C-4

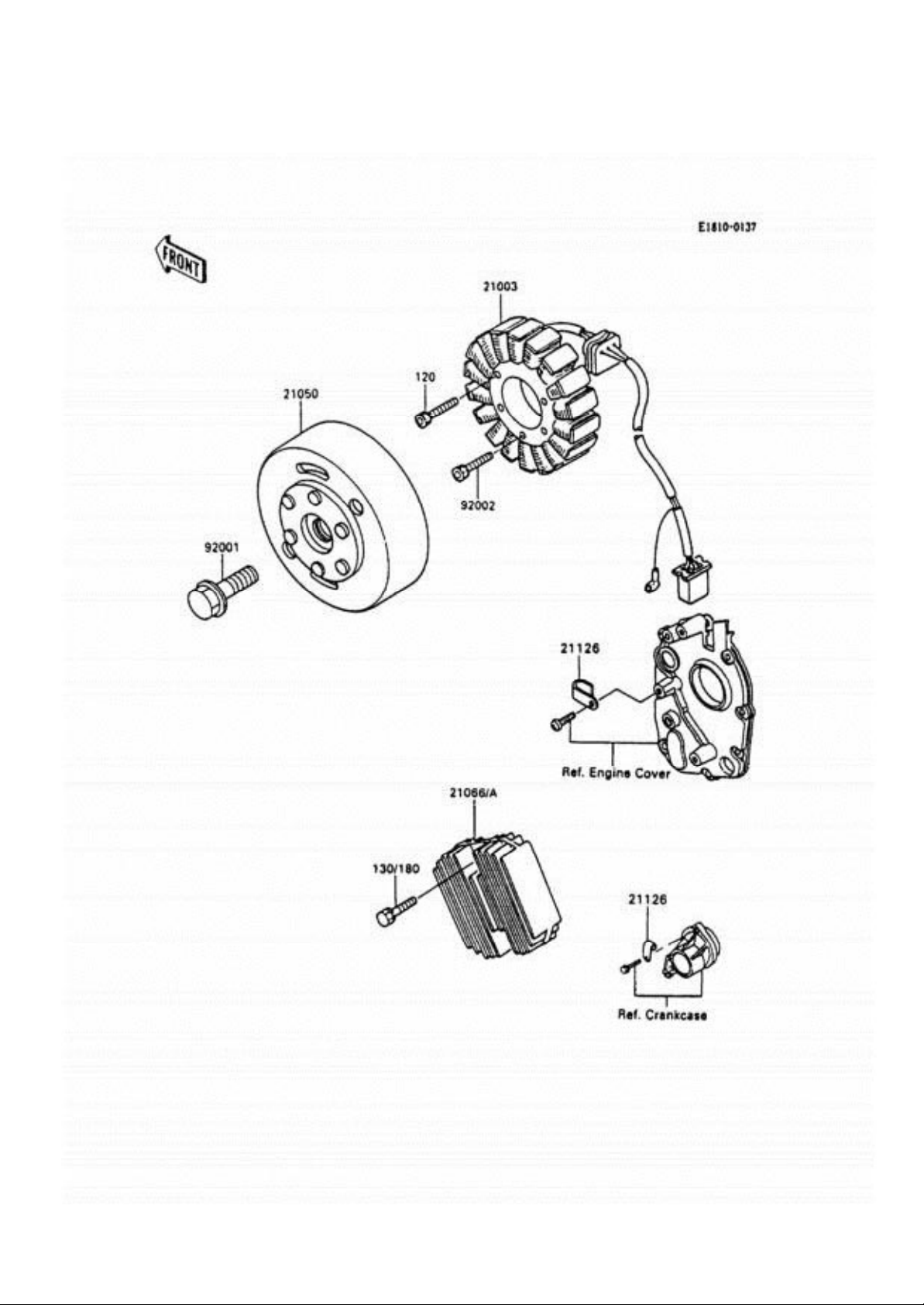

GENERATOR
Ref # Part # Description Q ty Spec Code
21003 21003-1124 STATOR 1
21050 21050-1111 FLYWHEEL 1
21066 21066-1055 REGULATOR-VOLTAGE 1
21126 21126-008 CLAMP,WIRING H ARNESS 2
92001 92001-1146 BOLT,FLANGED,12X40 1
92002 92002-1537 BOLT,6X28 1
120 120P0628 BOLT-SOCKET,6X28 2
180 18 0 B0 6 20 BOLT-UPSET-WS 2
Kawasaki GPX600R Fiche Page 44 of 121
Page 45
Kawasaki GPX600R ’91 ZX600C-4
GENERATOR
Kawasaki GPX600R Fiche Page 45 of 121
Page 46
Kawasaki GPX600R ’91 ZX600C-4

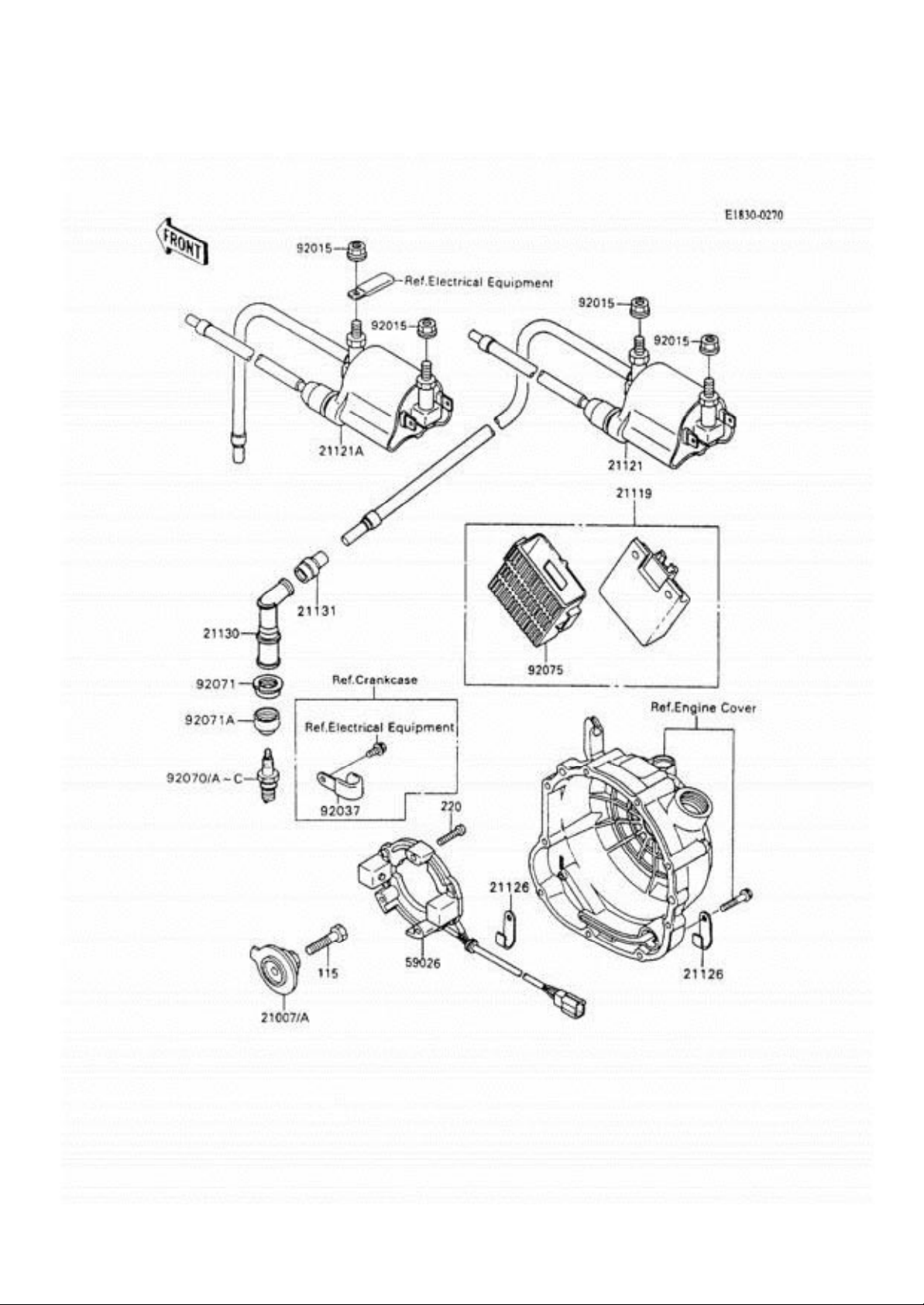

IGNITION SYSTEM
Ref # Part # Description Q ty Spec Code
21007 21007-1135 ROTOR,PULSING COIL 1 [CA]
21007 A 21007-1159 ROTOR 1 [US]
21119 21119-1167 IGNITER 1
21121 21121-1157 COIL-IGNITION,#1_ 1
21121A 21121-1158 COIL-IGNITION,#2_ 1
21126 21126-008 CLAMP,WIRING H ARNESS 2
21130 21130-1068 CAP-SPARK PLUG 4
21131 21131-005 GROMMET,HIGH TENSION 4
59026 59026-1078 COIL-PULSING 1
92015 92015-1193 NUT,FLANGED,6MM 4
92037 92037-1539 CLAMP,WIRING HARNESS 1
92070 92070-1011 PLUG-SPARK,D8EA(N G K) 4 (OPTION)
92070A PLUG-SPARK,X24ES-U(N D) 4 (LOCAL
PROCUREMEN T
ITEM) (OPTION)
92070B 92070-1034 PLUG-SPARK,D9EA(NG K) 4
92070 C PLUG-SPARK,X27ES-U(ND) 4 (LOCAL
PROCUREMEN T
92071 92071-1144 GR OMME T 4
92071A 92071-1184 G ROMMET,PLU G C A P 4
92075 92075-1504 DAMPER,IGNITER 1
115 115G0835 BOLT-SMALL-UPSET 1
220 220B0525 SCREW-PAN-CROS,5X25 3
ITEM)
Kawasaki GPX600R Fiche Page 46 of 121
Page 47
Kawasaki GPX600R ’91 ZX600C-4
IGNITION SYSTEM
Kawasaki GPX600R Fiche Page 47 of 121
Page 48
Kawasaki GPX600R ’91 ZX600C-4
STARTER MOTOR
Ref # Part # Description Q ty Spec Code
11012 11012-1354 CAP,TERMINAL 1
13107 13107-1144 SHAFT,IDLE GEAR 1
13193 13193-1002 CLUTCH-ASSY-ONEWAY 1
16085 16085-1030 GE AR,ONEWAY CLUTCH 1
21017 21017-017 GROMMET,STARTER TERMINAL 1
21025 21025-011 WASHER,9.1X18X0.2 4
21039 21039-1062 BRUSH,CARBON 1
21040 21040-1057 SPRING-BRUSH 2
21163 21163-1158 STARTER-ELECTRIC 1
26006 26006-1006 FUSE,30A-G 1
26011 26011-1251 WIRE-LEAD,STARTER MOTOR 1
27010 27010-1213 SWITCH,MAGNETIC 1
59051 59051-1138 GEAR-SPUR,IDLE 1
92001 92001-1424 BOLT,SOCKET,8X10 3
92015 92015-1476 NUT,STARTER MOTOR 2
92022 92022-1132 WASHER,9.1X18X0.8 1
92026 92026-1025 SPACER,25X36X3.2 2
92043 92043-132 PIN 3
92055 92055-1276 RING-O 1
92055A 92055-1370 RING-O,4.5X2.0 1
92055B 92055-1381 RING-O,STARTER MOTOR 2
92075 92075-1863 DAMPER,MAG NETIC SWITCH 1
92081 92081-159 SPRING,COIL 3
92122 92122-006 ROLLER 3
92150 92150-1243 BOLT 2
132 132J0625 BOLT-FLANGED-SMALL 2
311 311B0600 NUT-HEX,6MM2
461 461F0600 WASHER-SPRING ,6MM2
482 482J0300 CIRCLIP-TYPE-E 1
Kawasaki GPX600R Fiche Page 48 of 121
Page 49
Kawasaki GPX600R ’91 ZX600C-4

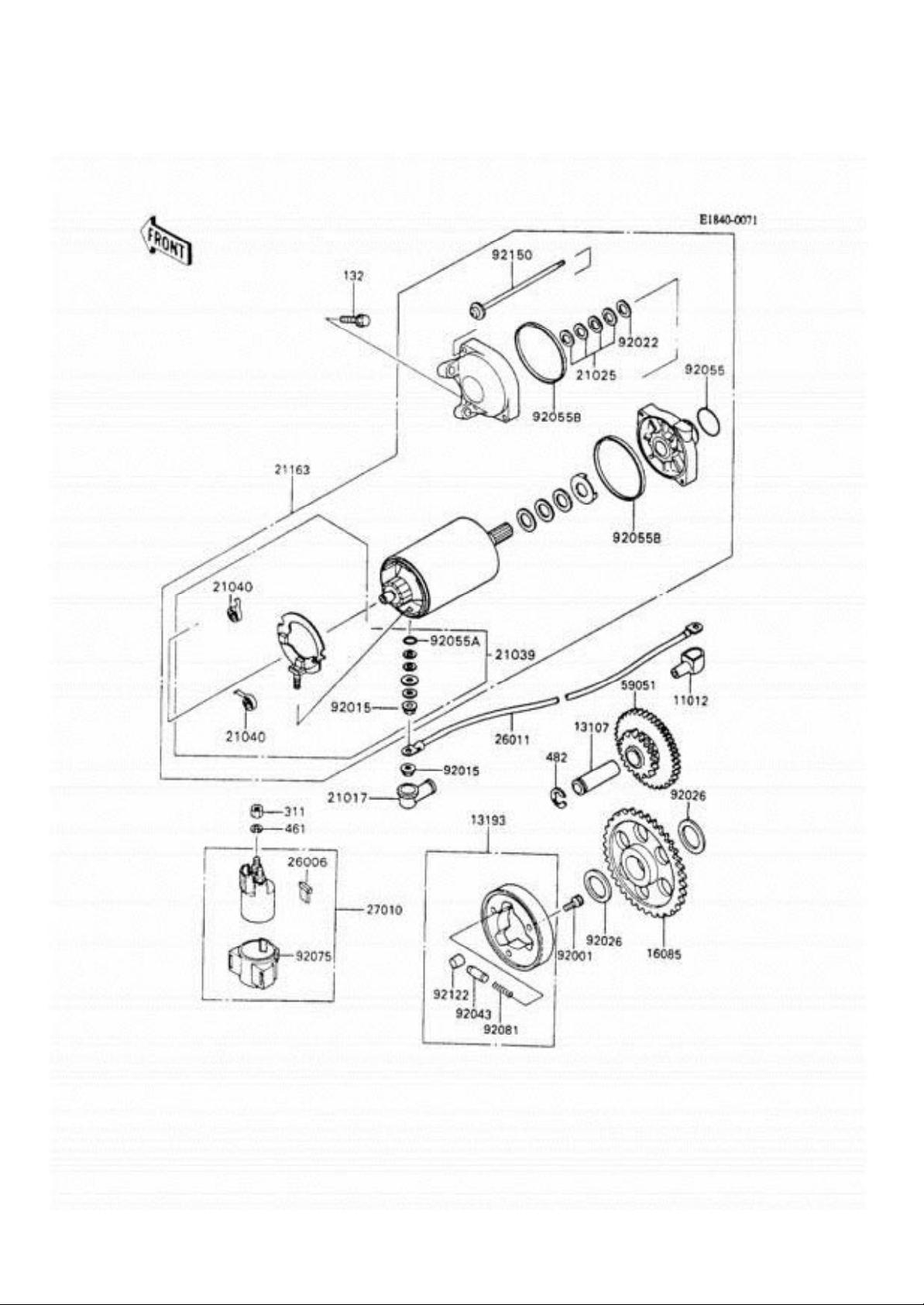

STARTER MOTOR
Kawasaki GPX600R Fiche Page 49 of 121
Page 50
Kawasaki GPX600R ’91 ZX600C-4
RADIATOR (1/2)
Ref # Part # Description Q ty Spec Code
11009 11009-1145 GASKET,RESERVOIR TANK CAP 1
11012 11012-1084 CAP 1
14024 14024-1426 COVER,RESERVOIR 1
14024A 14024-1441 COVER 1
14037 14037-1091 SCREEN 1
14075 14075-1061 CAP-ASSY,RADIATOR 1
16160 16160-1112 BODY,THERMOSTAT,LWR 1
16160A 16160-1129 BODY,THERMOSTAT,UPP 1
21176 21176-1054 SENSOR,WATER 1
27010 27010-1304 SWITCH,THERMOSTAT 1
32033 32033-1593 PIPE 1
32102 32102-1043 PIPE 2
39060 39060-1085 RADIATOR 1
39062 39062-1111 HOSE-COOLING,PUMP-CYLINDER 1
39062 A 39062-1235 HOSE-COOLING,HEAD-THERMOS,LH 1
39062B 39062-1236 HOSE-COOLING,HEAD-THERMOS,RH 1
39062 C 39062-1237 HOSE-COOLING,CAP-THEROMOSTAT 1
39062D 39062-1238 HOSE-COOLING,CAP-RADIATOR 1
39062E 39062-1240 HOSE-COOLING,RESERVOIR-CAP 1
39062F 39062-1256 HOSE-COOLING,RADIATOR-PUMP 1
39062G 39062-1269 HOSE-COOLING,RESERVOIR 1
43078 43078-1086 RESERVOIR 1
49044 49044-1054 PUMP-WATER 1
49054 49054-1059 THERMOSTAT 1
49085 49085-1066 CAP-ASSY-PRESSURE 1
59502 59502-1081 FAN-ASSY 1
92002 92002-1392 BOLT,6X22 3
92002A 92002-1720 BOLT,6X16 2
92009 92009-1436 SCREW,TAPPING,6X16 2
92015 92015-1487 NUT 3
92015A 92015-1758 NUT,6MM 2
92022 92022-1976 WASHER,6MM 1
92027 92027-1134 COLLAR,L=14 2
92037 92037-147 CLAMP,TUBE 3
92055 92055-1279 RING-O,44.7X2.4 1
92055A 92055-1315 RING-O,WATER PUMP 1
92055B 92055-1424 RING-O,33.2X2.4 1
92150 92150-1187 BOLT,6X16 3
92160 92160-1007 DAMPER 3
92170 92170 -1074 CLAMP 1
92170A 92170-1284 CLAMP,COOLING HOSE 2
92170B 92170-1285 CLAMP,COOLING HOSE 10
120 120S0612 BOLT-SOCKET 2
130 130 C0610 BOLT-FLANGED,6X10,BLACK 1
132 132G0620 BOLT-FLANGED-SMALL 4
132A 132J0612 BOLT-FLANGED-SMALL 2
132B 132J0645 BOLT-FLANGED-SMALL 1
132C 132J0825 BOLT-FLANGED-SMALL 2
186 186C0614 BOLT-UPSET-WP 2
186A 186C0616 BOLT-UPSET-WP 2
670 670B2016 O RING,16MM 6
Kawasaki GPX600R Fiche Page 50 of 121
Page 51
Kawasaki GPX600R ’91 ZX600C-4

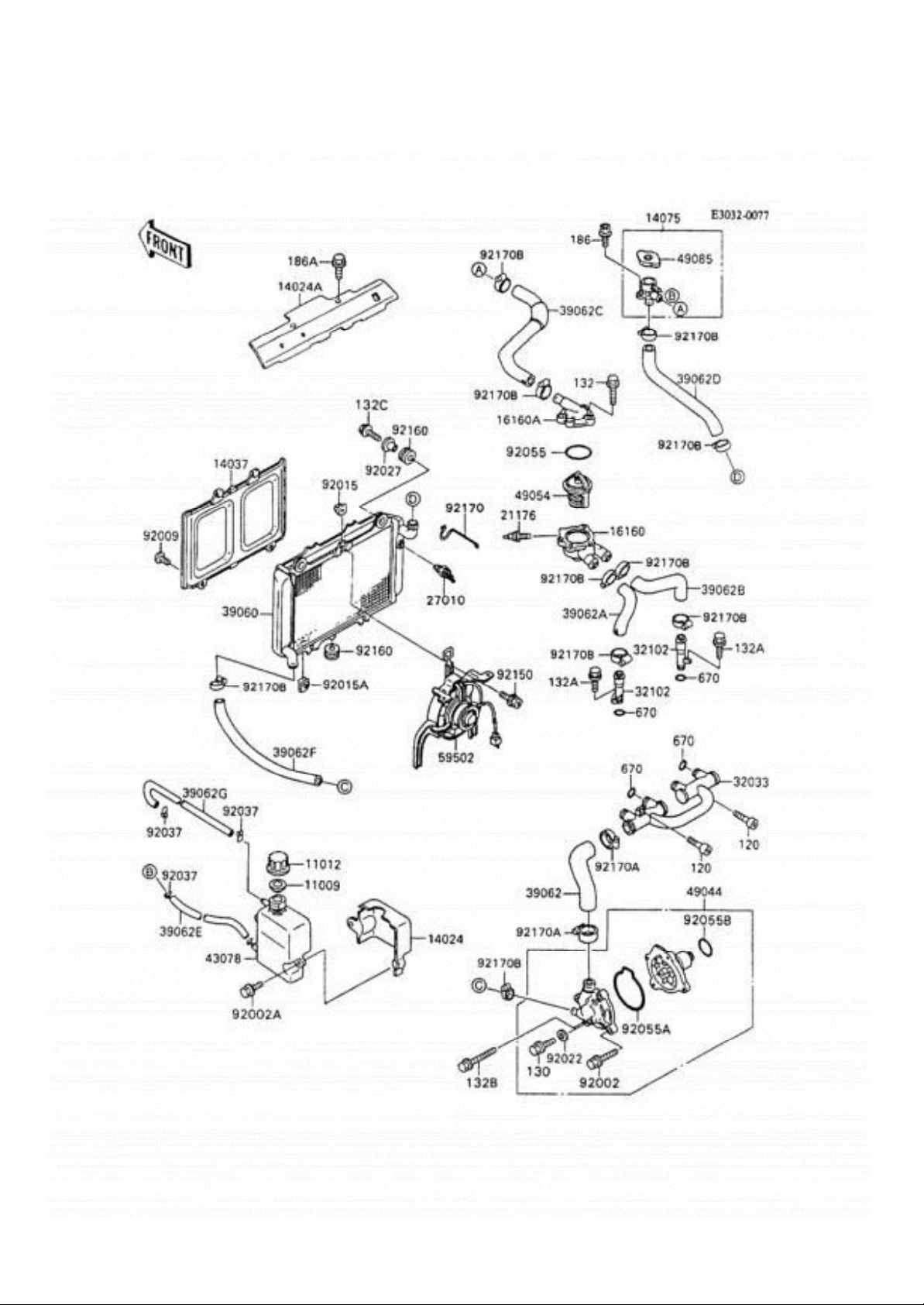

RADIATOR (1/2)
Kawasaki GPX600R Fiche Page 51 of 121
Page 52
Kawasaki GPX600R ’91 ZX600C-4

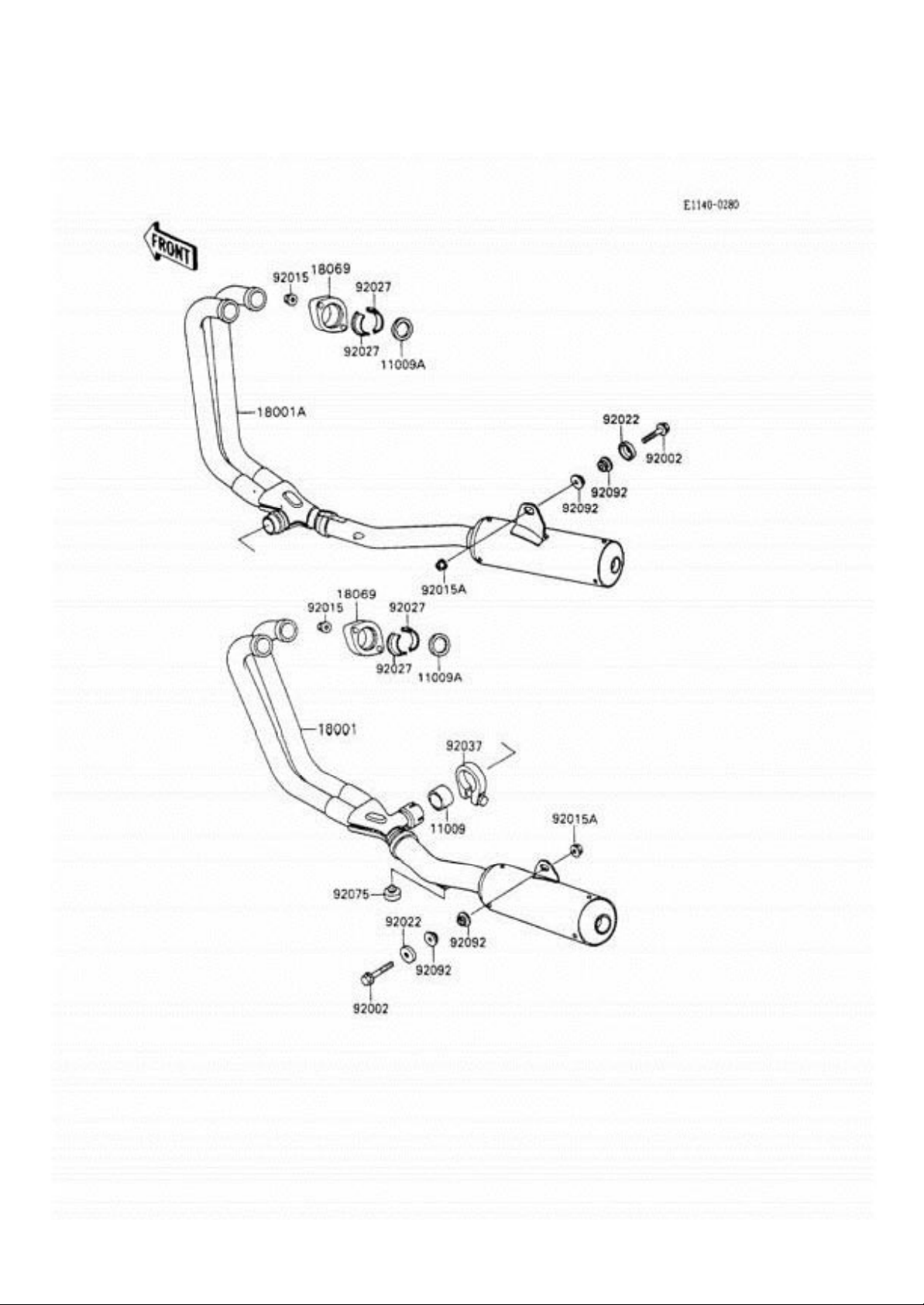

MUFFLER(S)
Ref # Part # Description Q ty Spec Code
11009 11009-1718 GASKET,EXHAUST PIPE CONNECTING 1
11009A 11009-1866 GASKET,EXHAUST PIPE HOLDER 4
18001 18001-1719 MUFFLER,LH 1
18001A 18001-1720 MUFFLER,RH 1
18069 18069-1025 HOLDER-EXHAUST PIPE 4
92002 92002-1127 BOLT,10X55 2
92015 92015-1365 NUT,6MM 8
92015A 92015-1387 NUT,FLANGED,10MM2
92022 92022-289 WASHER 2
92027 92027-1365 COLLAR 8
92037 92037-1221 CLAMP,CONNECTIN G P IPE 1
92075 92075-015 DAMPER 1
92092 92092-1013 BUSHING-RUBBER,MUFFLER 4
Kawasaki GPX600R Fiche Page 52 of 121
Page 53
Kawasaki GPX600R ’91 ZX600C-4
MUFFLER(S)
Kawasaki GPX600R Fiche Page 53 of 121
Page 54
Kawasaki GPX600R ’91 ZX600C-4
FRAME
Ref # Part # Description Q ty Spec Code
11012 110 12 -1442 CAP,STEERING STEM 1
32002 32002-1938 FRAME-COMP,RR 1
32160 32160-1005 FRAME-COMP,FR 1
92002 92002-1927 BOLT,SOCKET,8X32 2
92002A 92002-1928 BOLT,SOCKET,10X25 2
92015 92015-1404 NUT,18MM 1
92015A 92015-1546 NUT,25MM,T=12 1
92015B 920 15-1792 NUT,POP,6MM,L=16.5 5
92022 92022-1555 WASHER,CLAW,18.5X30X2.3 1
92049 92049- 1162 SEAL-OIL,XMHE36X52X4J 1
92049A 92049-1214 SEAL-OIL,STEERI NG STEM 1
92055 92055-1459 RING-O,ID=24.5 1
92116 92116-1009 BEARING-ROLLER,HR320/28XJ 1
92116A 92116-1056 BEARING-ROLLER,HI-CAP32005JR-1 1
92160 92160-1075 DAMPER 1
410 410F1800 W-PLAIN-S 1
Kawasaki GPX600R Fiche Page 54 of 121
Page 55
Kawasaki GPX600R ’91 ZX600C-4

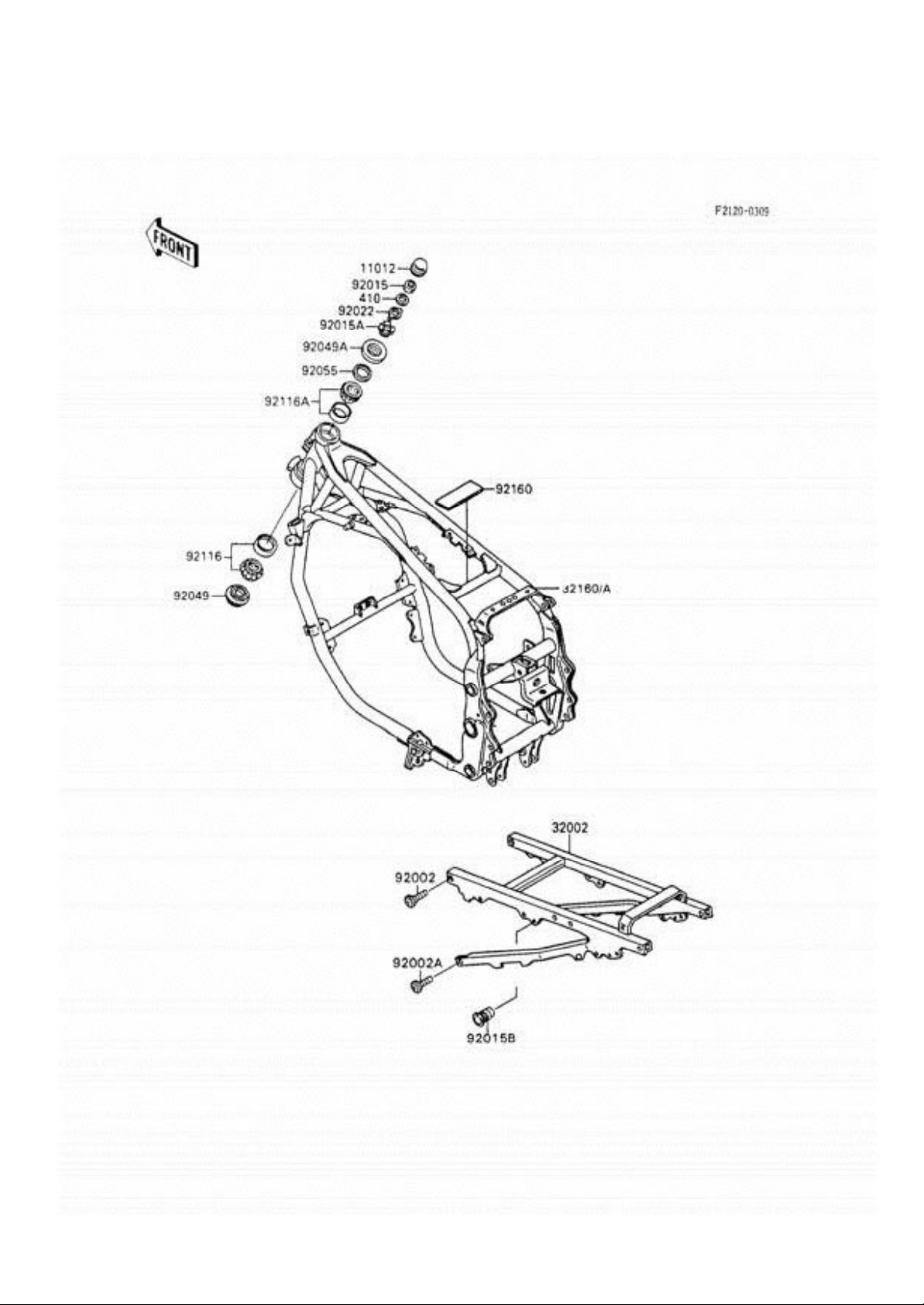

FRAME
Kawasaki GPX600R Fiche Page 55 of 121
Page 56
Kawasaki GPX600R ’91 ZX600C-4

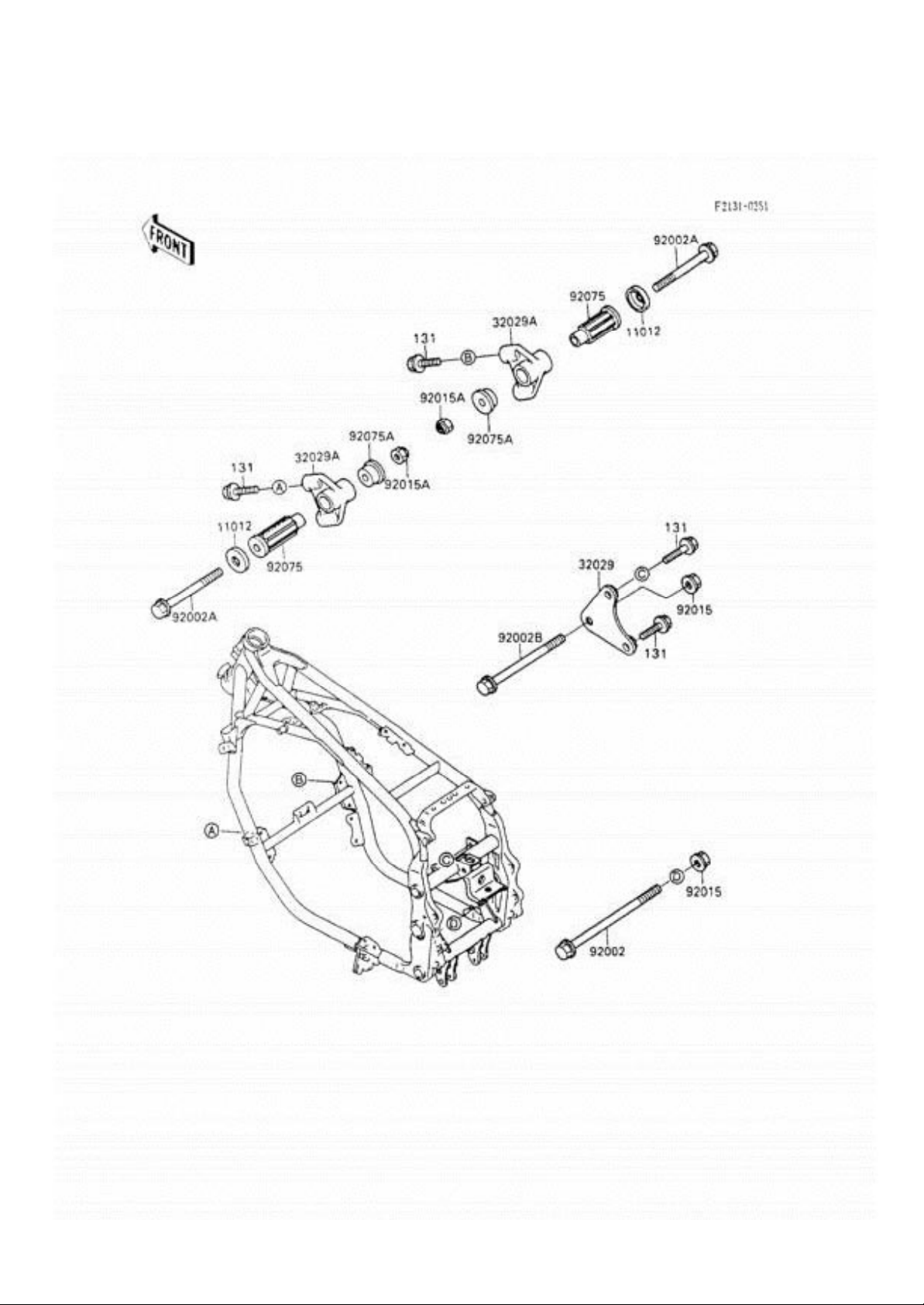

FRAME FITTINGS
Ref # Part # Description Q ty Spec Code
11012 11012-1228 CAP,ENGINE BRACKE T 2
32029 32029-1541 BRACKET-ENGINE,RR,UPP 1
32029A 32029-1698 BRACKET-ENGINE,FR 2
92002 92002-1337 BOLT,10X183 1
92002A 92002-1491 BOLT,FLANGED,10X105 2
92002B 92002-1492 BOLT,FLANGED,10X138 1
92015 92015-1180 NUT,FLANGED,10MM2
92015A 92015-1429 NUT,LOCK,10MM2
92075 92075-1377 DAMPER,ENGINE MOUNT,MAIN 2
92075A 92075-1462 DAMPER,ENGINE BRACKET 2
131 13 1J0820 BOLT-FLANGED,8X 2 0 6
Kawasaki GPX600R Fiche Page 56 of 121
Page 57
Kawasaki GPX600R ’91 ZX600C-4
FRAME FITTINGS
Kawasaki GPX600R Fiche Page 57 of 121
Page 58
Kawasaki GPX600R ’91 ZX600C-4
BATTERY CASE (1/2)
Ref # Part # Description Q ty Spec Code
11012 11012-1459 CAP,SWING ARM BRACKET 2
11012A 11012-1558 CAP,SWING ARM BRACKET 2
11012B 11012-1598 CAP,BUNGEE CORD HOOK 4
11044 110 44-1133 BRACKET,CANISTER 1 [CA]
11045 11045-1284 BRACKET,MUFFLER STAY 2
11045 A 11045-1599 BRACKET,REGULATOR 1
11045B 11045-1600 BRACKET,REAR SHOCKABSORBER 1
11045C 11045-1601 BRACKET,RADIATOR 1
11045D 11045-1602 BRACKET,BUNGEE CORD HOOK,LH 1
11045E 11045-1603 BRACKET,BUNG EE CORD HOOK,LH 1
11045F 11045-1890 BRACKET,BUNGEE CORD HOOK,RH 1
11045G 11045-1891 BRACKET,BUNGEE CORD HOOK,RH 1
11045H 11045-1892 BRACKET,BUNGEE CORD HOOK 2
27012 27012-1366 HOOK,BUNGEE CORD,RH 1
27012A 27012-1382 HOOK,BUNGEE CORD,LH 1
32099 32099-1074 CASE 1 [US]
32099A 32099-1075 CASE,TOOL 1
35011 35011-1342 STAY,MUFFLER,LH 1
35011A 35011-1343 STAY,MUFFLER,RH 1
35011B 35011-1344 STAY,STEP HOLDER, FR,LH 1
35011C 35011-1345 STAY,STEP HOLDER,FR,RH 1
46075 46075-1072 GRIP,GRABRAIL 1
92002 92002-1334 BOLT,SOCKET,8X22 6
92002A 92002-1417 BOLT,FLANGED,8X20 1
92002B 92002-1493 BOLT,SOCKET,8X20 4
92002C 92002-1511 BOLT,SOCKET,6X24 4
92005 92005-1143 FITTING,T-TYPE 1
92009 92009-1261 SCREW,TAPPING,6MM 2
92015 92015-1406 NUT,FLANGED,8MM 3
92037 92037-1069 CLAMP,WIRING HARNESS 1
92037A 92037-1712 CLAMP 1
92037B 92037-1941 CLAMP,TUBE 1
92037 C 92037-1942 CLAMP,TUBE 1
92059 92059-1 821 TUBE 1
92059A 92059-1822 TUBE 1
92072 92072-006 BAND,L=142.1 2 [CA]
92072 92072-006 BAND,L=142.1 1 [US]
130 130 C0610 BOLT-FLANGED,6X10,BLACK 4
130 A 130C 0612 BOLT-FLANGED,6X12 3
130B 130C 0614 BOLT-FLANGED,6X14 4
130 C 130J0610 BOLT-FLANGED 1
130D 130J0814 BOLT-FLANGED,8X14 2
Kawasaki GPX600R Fiche Page 58 of 121
Page 59
Kawasaki GPX600R ’91 ZX600C-4

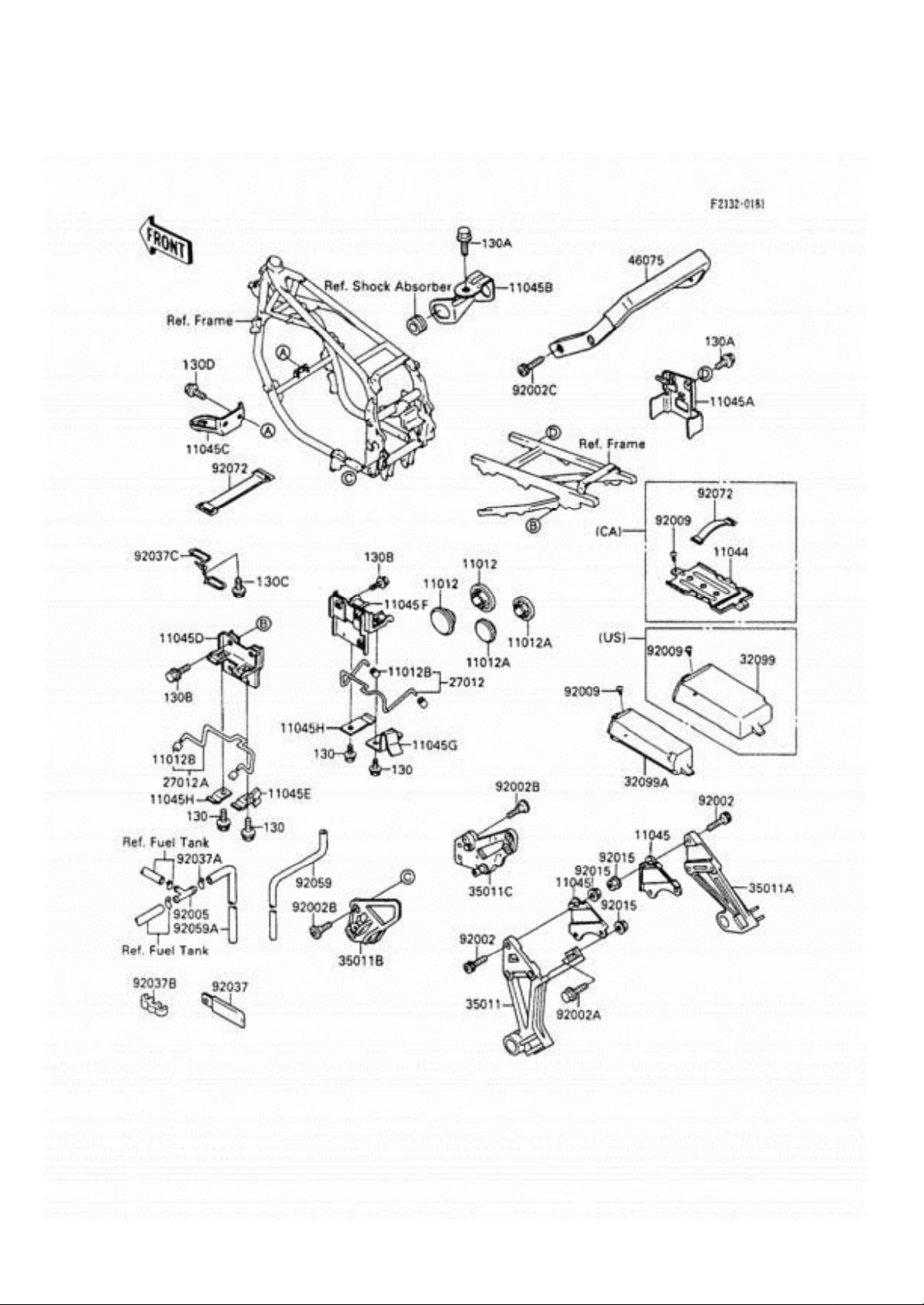

BATTERY CASE (1/2)
Kawasaki GPX600R Fiche Page 59 of 121
Page 60
Kawasaki GPX600R ’91 ZX600C-4

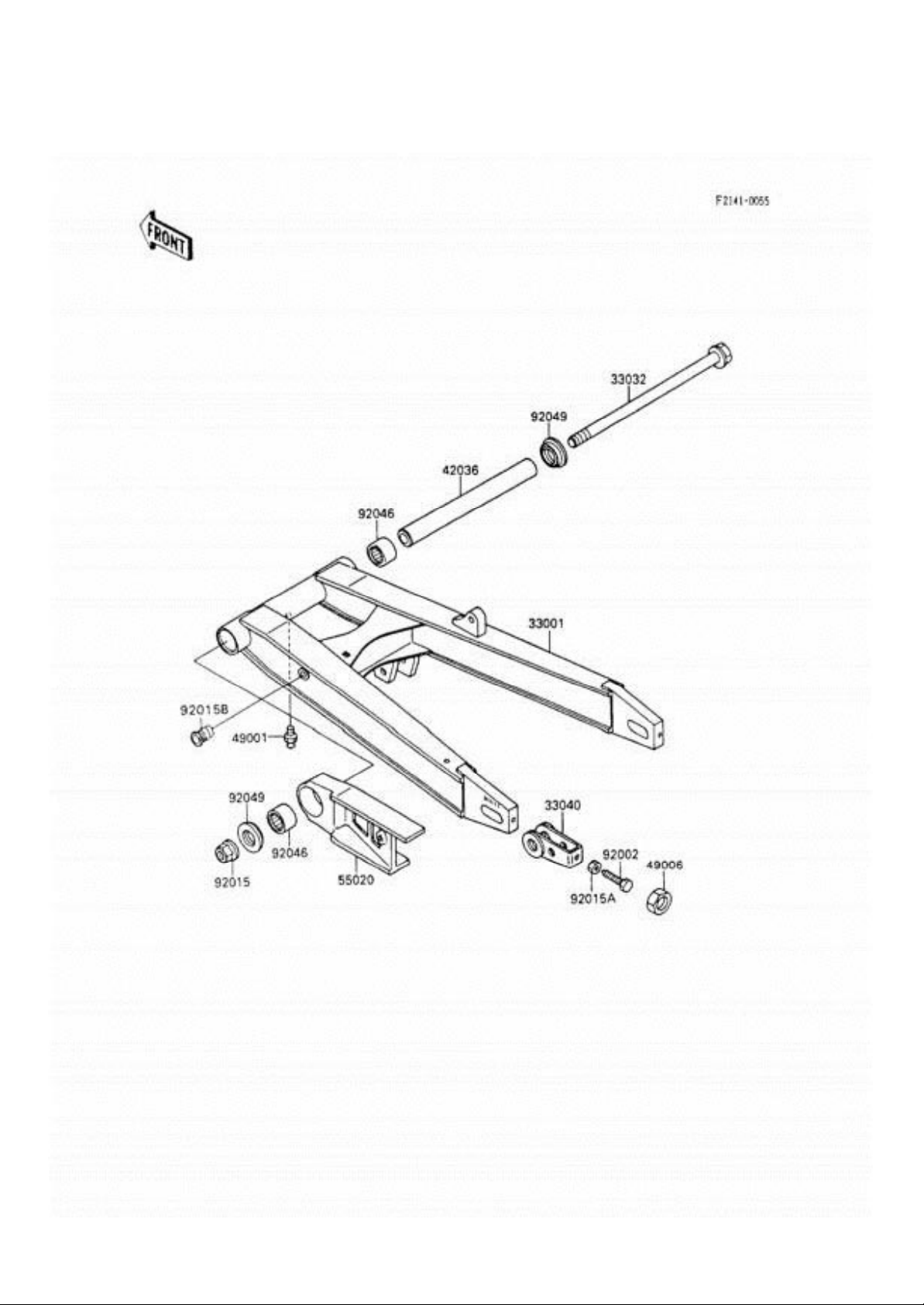

SWINGARM
Ref # Part # Description Q ty Spec Code
33001 33001-1288-CE ARM-COMP-SWING,SILVER NO.25 1
33032 33032-1136 SHAFT-SWING ARM 1
33040 33040-1063 ADJUSTER-CHAIN 2
42036 42036-1220 SLEEVE,17.1X25X 230 1
49001 49001-1051 NIPPLE-GREASE 1
55020 55020-1267 GUARD,CHAIN 1
92002 92002-1076 BOLT,CHAIN ADJUSTER,8X50 2
92015 92015-1041 NUT,16MM 1
92015A 92015-1364 NUT,8MM 2
92015B 92015-1792 NUT,POP,6MM,L=16.5 1
92046 92046-1035 BEARING-NEEDLE,BHTM2530-1 2
92049 92049-1166 SEAL-OIL 2
Kawasaki GPX600R Fiche Page 60 of 121
Page 61
Kawasaki GPX600R ’91 ZX600C-4
SWINGARM
Kawasaki GPX600R Fiche Page 61 of 121
Page 62
Kawasaki GPX600R ’91 ZX600C-4

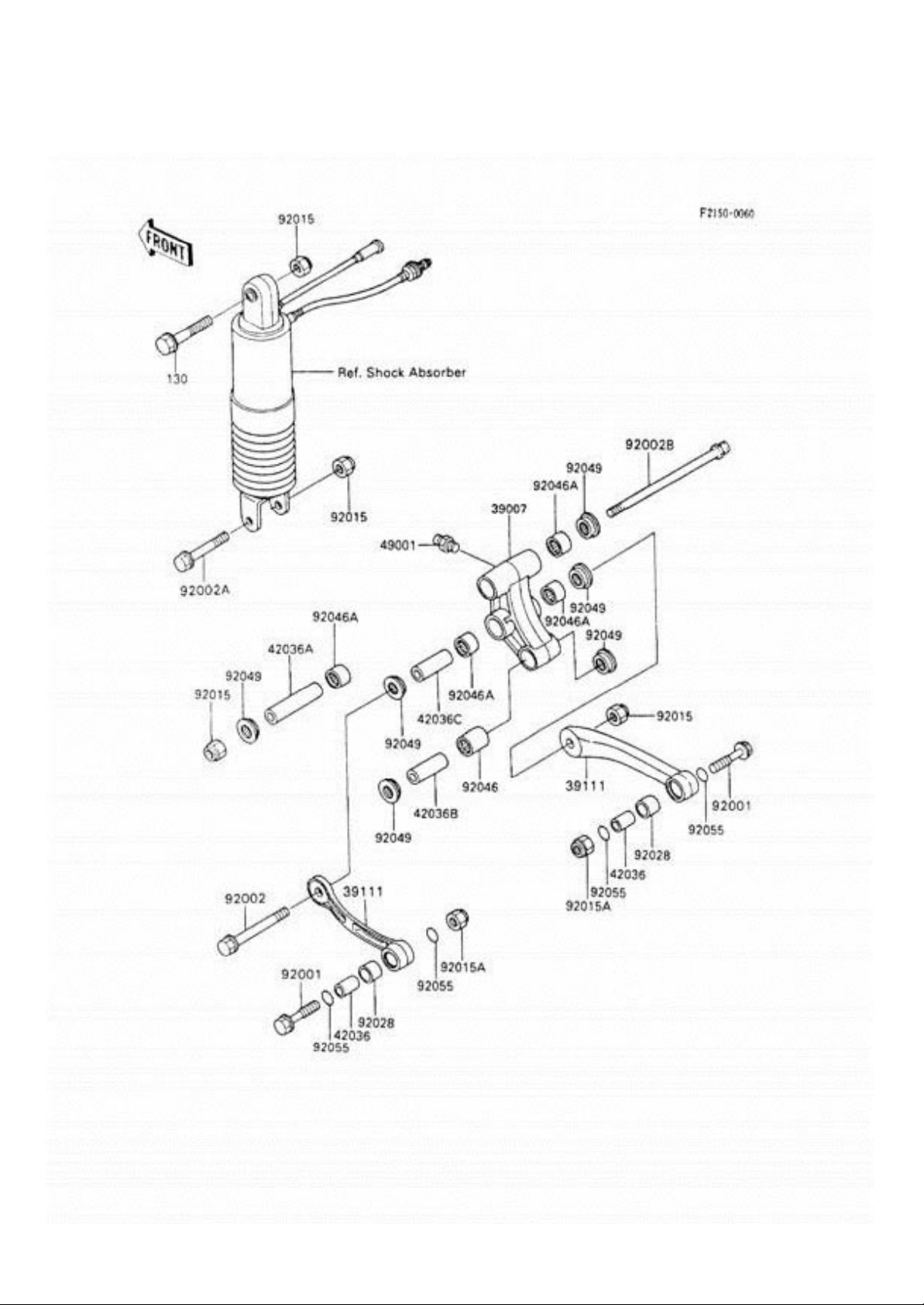

REAR SUSPENSION
Ref # Part # Description Q ty Spec Code
39007 390 07-1126 ARM-SUSP,UN I TRAK 1
39111 39111-1092 ROD-TIE,SUSPENSION 2
42036 42036-1076 SLEEVE,12.1X20X22 2
42036A 42036-1102 SLEEVE,12.1X20X74 1
42036B 42036-1108 SLEEVE,12.1X20X40 1
42036C 42036-1111 SLEEVE,12.1X20X50 1
49001 49001-1051 NIPPLE-GREASE 3
92001 92001-1939 BOLT,12X45 2
92002 92002 -146 3 BOLT,FLANGED,12X85 1
92002A 920 02- 1464 BOLT,FLANGED,12X 60 1
92002B 92002-1490 BOLT,SUSPENSION ARM 1
92015 92015-1190 NUT,LOCK,12MM,BLACK 4
92015A 92015-1375 NUT,12MM 2
92028 92028-1202 BUSHING,20X23X15 2
92046 92046-1110 BEARING-NEEDLE,BM202726 1
92046A 92046-1112 BEARING-NEEDLE,BM202715 4
92049 92049-1109 SEAL-OIL,ARM,CNT 6
92055 92055-1215 RING-O,19.8X2.2 4
130 130G1250 BOLT-FLANGED 1
Kawasaki GPX600R Fiche Page 62 of 121
Page 63
Kawasaki GPX600R ’91 ZX600C-4
REAR SUSPENSION
Kawasaki GPX600R Fiche Page 63 of 121
Page 64
Kawasaki GPX600R ’91 ZX600C-4
FOOTRESTS
Ref # Part # Description Q ty Spec Code
34028 34028-1191 STEP,RR,LH 1
34028A 34028-1192 STEP,RR,RH 1
34028D 34028-1334 STEP,FR,LH 1
34028E 34028-1335 STEP,FR,RH 1
92001 92001-1905 BOLT,6X10 2
92022 92022-1507 WASHER,STEP,RR 2
92027 92027-1732 COLLAR,STEP 2
92043 92043-1145 PIN,12X42.5 2
92043A 92043-1238 PIN,6X38.5 2
92081 92081-1612 SPRING,STEP,RR 2
92144 92144-1567 SPRING,STEP RE T URN,LH 1
92144A 92144-1568 SPRING,STEP RET URN 1
482 482L0100 CIRCLIP-TYPE-E,10MM 2
482A 482L5000 CIRCLIP-TYPE-E,5MM2
Kawasaki GPX600R Fiche Page 64 of 121
Page 65
Kawasaki GPX600R ’91 ZX600C-4

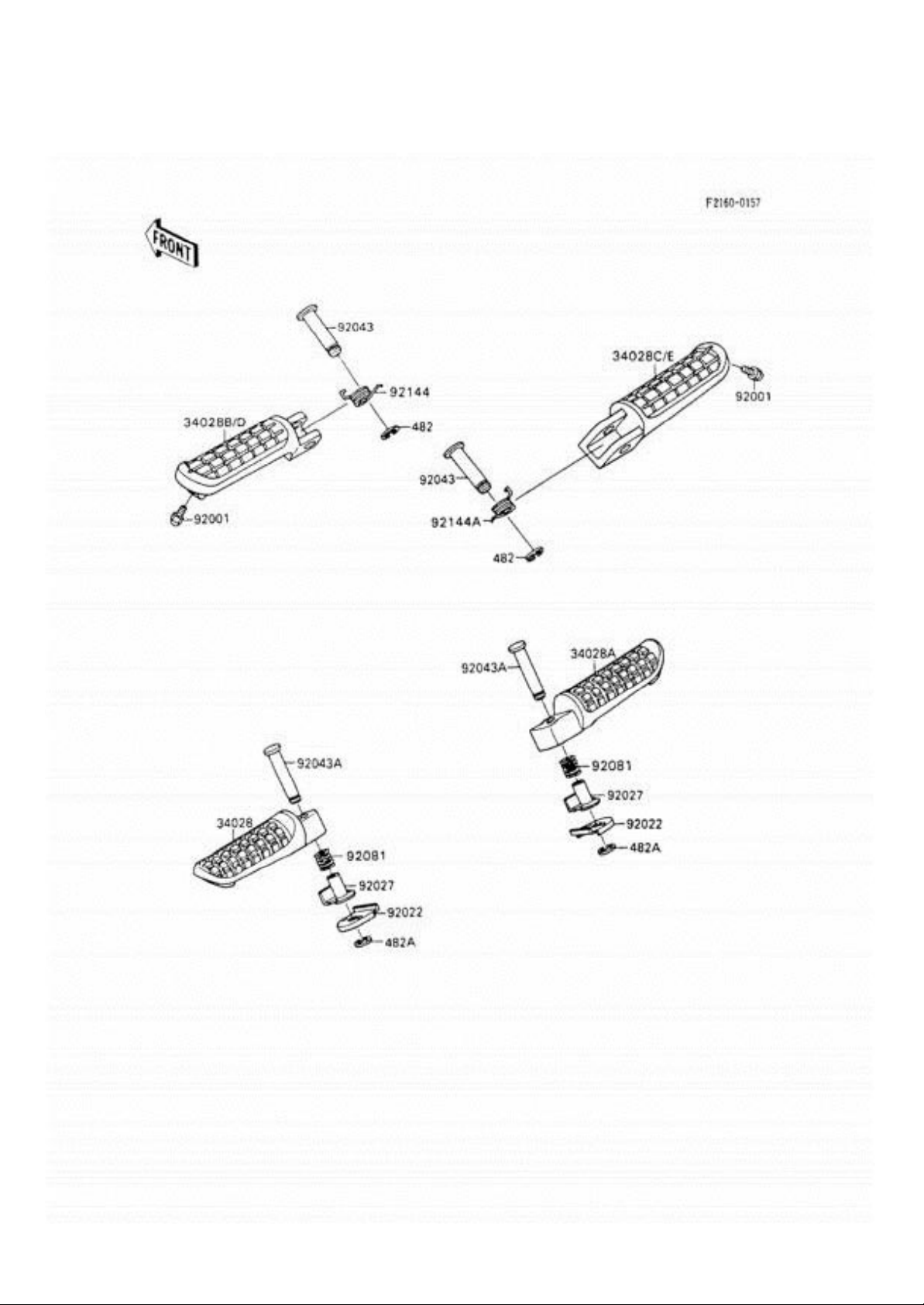

FOOTRESTS
Kawasaki GPX600R Fiche Page 65 of 121
Page 66
Kawasaki GPX600R ’91 ZX600C-4
FENDERS
Ref # Part # Description Q ty Spec Code
35004 35004-1202-H8 FENDER-FRONT,EBONY 1
35023 35023-1185 FENDER-REAR,FR 1
35023A 35023-1186-6Z FENDER-REAR,RR,BLACK 1
59437 59437-1060 STABILIZER 1
92001 92001-1763 BOLT,W/SP,6X16 4
92002 92002-1972 BOLT,FLANGED,8X14 2
92015 92015-1367 NUT,FLANGED,6MM 2
92027 92027-1879 COLLAR,9.5X12.7X4.5 2
92071 92071-1058 GROMMET,SENSOR LEAD 1
130 130G0635 BOLT-FLANGED,6X35 2
132 132G0820 BOLT-FLANGED-SMALL 2
Kawasaki GPX600R Fiche Page 66 of 121
Page 67
Kawasaki GPX600R ’91 ZX600C-4

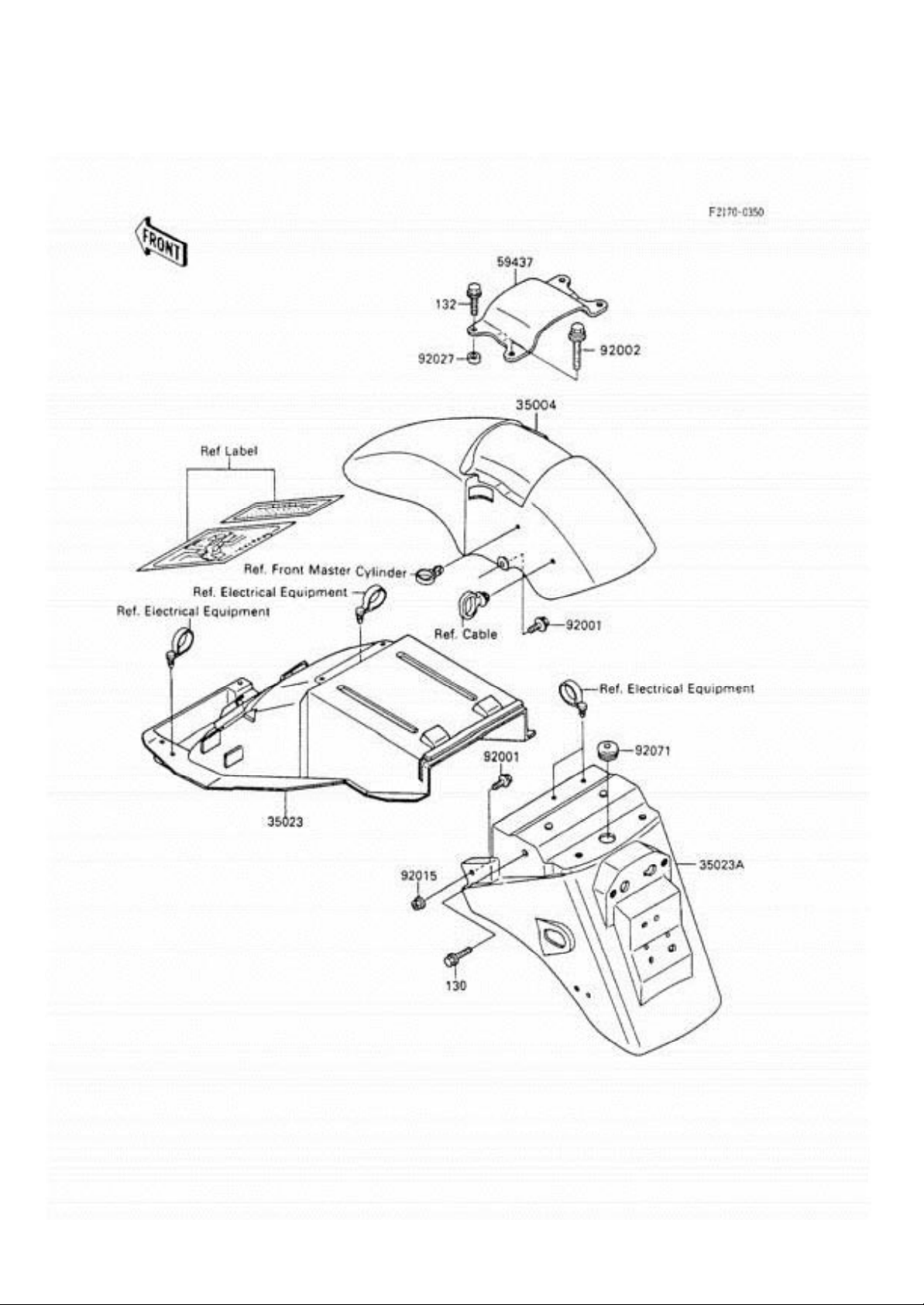

FENDERS
Kawasaki GPX600R Fiche Page 67 of 121
Page 68
Kawasaki GPX600R ’91 ZX600C-4

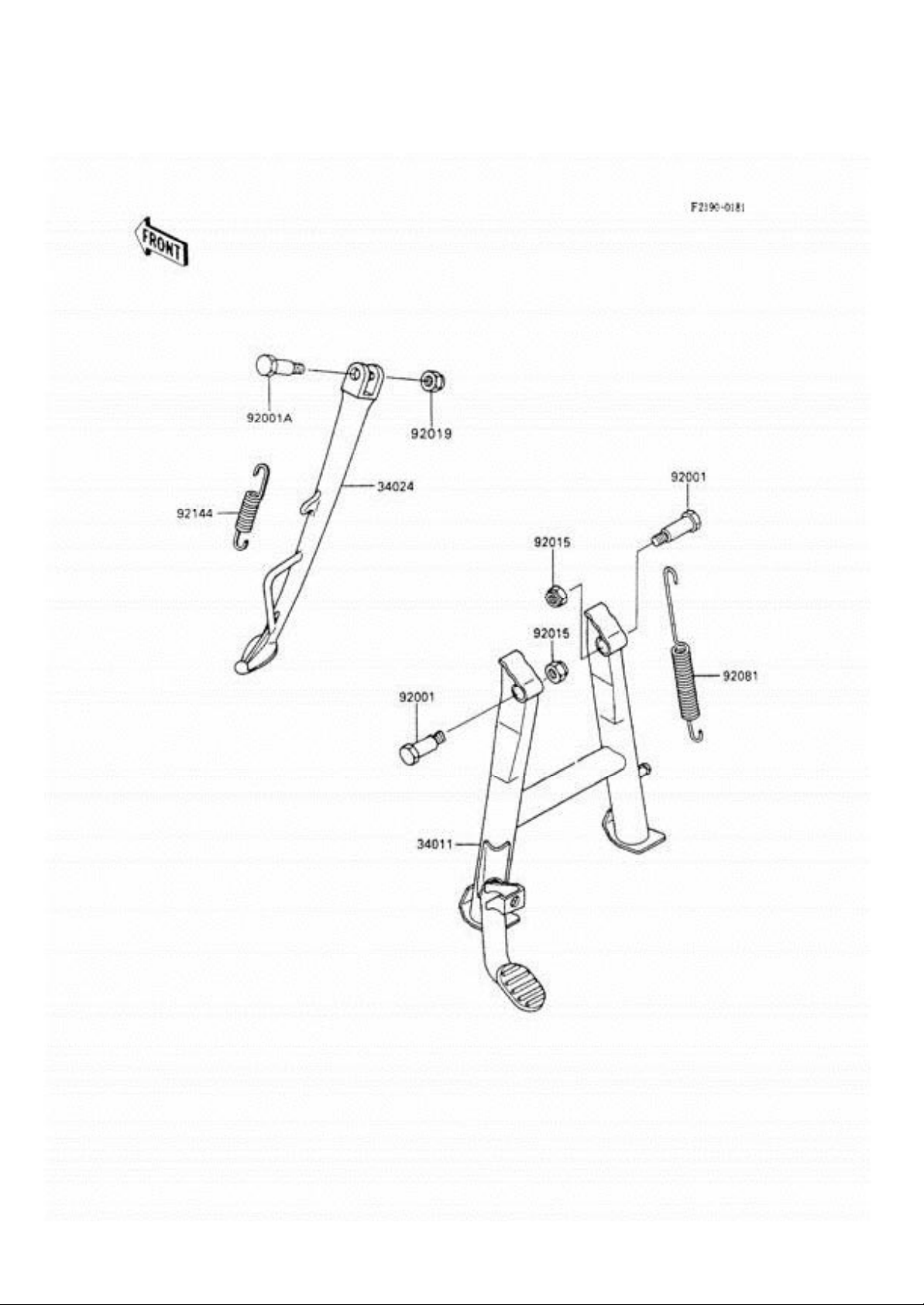

STAND(S)
Ref # Part # Description Q ty Spec Code
34011 34011-1136 STAND-CENTER 1
34024 34024-1228 STAND-SIDE 1
92001 92001-1214 BOLT,CENTER STAND 2
92001A 92001-1788 BOLT,SIDE STAND 1
92015 92015-1188 NUT,LOCK,10MM,BLACK 2
92019 92019-021 NUT,LOCK,10MM1
92081 92081-1834 SPRING,CE N T ER STA ND 1
92144 92144-1127 SPRING,SIDE STAND 1
Kawasaki GPX600R Fiche Page 68 of 121
Page 69
Kawasaki GPX600R ’91 ZX600C-4
STAND(S)
Kawasaki GPX600R Fiche Page 69 of 121
Page 70
Kawasaki GPX600R ’91 ZX600C-4
TIRES
Ref # Part # Description Q ty Spec Code
16126 16126-1140 VALVE,TIRE 2
41002 41002-1662 TIRE,FR,110/80V16-V240,K205F(D 1
41002A 41002-1663 TIRE,RR,130/90V16-V240,K205(D) 1
41075 41075-1014 BALANCER-WHEEL,10G,SILVER AR
41075A 41075-1015 BALANCER-WHEEL,20G,SILVER AR
41075B 41075-1016 BALANCER-WHEEL,30G,SILVER AR
Kawasaki GPX600R Fiche Page 70 of 121
Page 71
Kawasaki GPX600R ’91 ZX600C-4

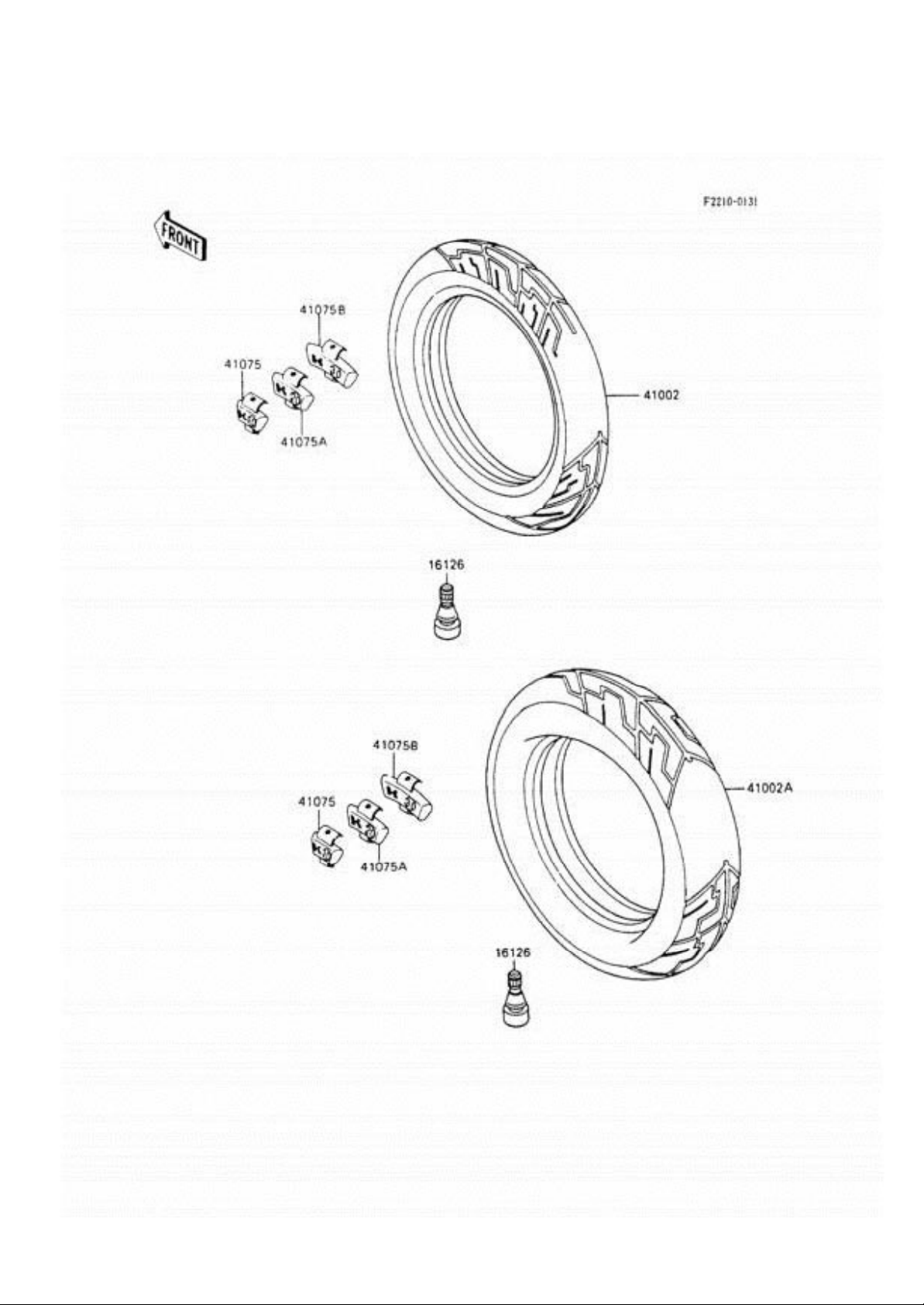

TIRES
Kawasaki GPX600R Fiche Page 71 of 121
Page 72
Kawasaki GPX600R ’91 ZX600C-4
FRONT WHEEL
Ref # Part # Description Q ty Spec Code
41060 41060-1106 G EAR-METER S CREW, 9T 1
41060A 41060-1107 GE AR-METER SCREW, 23T 1
41063 41063-001 WASHER,5.1X9X0.4 2
410 64 410 64-10 06 RECEIVER-SPEEDOMETER 1
41068 41068-1240 AXLE,FR 1
41073 41073-1452-CW WHEEL-ASSY,FR,F.RE D 1
41078 41078-1062 CASE-ASSY-METER GE AR 1
4108 2 41082-00 1 PIN,SPRING 1
92015 92015-1407 NUT,14MM 1
92027 92027-1225 COLLAR,L=30 1
92033 92033-1041 RING-SNAP,42MM2
92049 92049-1057 SEAL-OIL,BJN30427-C3 1
92049A 92049-1058 SEAL-OIL,BJN22425 1
92087 92087-1002 BUSHING-ME TER GEA R 1
92143 92143-1079 COLLAR,15.2X22X61 1
601 601B6302UG BEARING-BALL,#6302UG 2
Kawasaki GPX600R Fiche Page 72 of 121
Page 73
Kawasaki GPX600R ’91 ZX600C-4

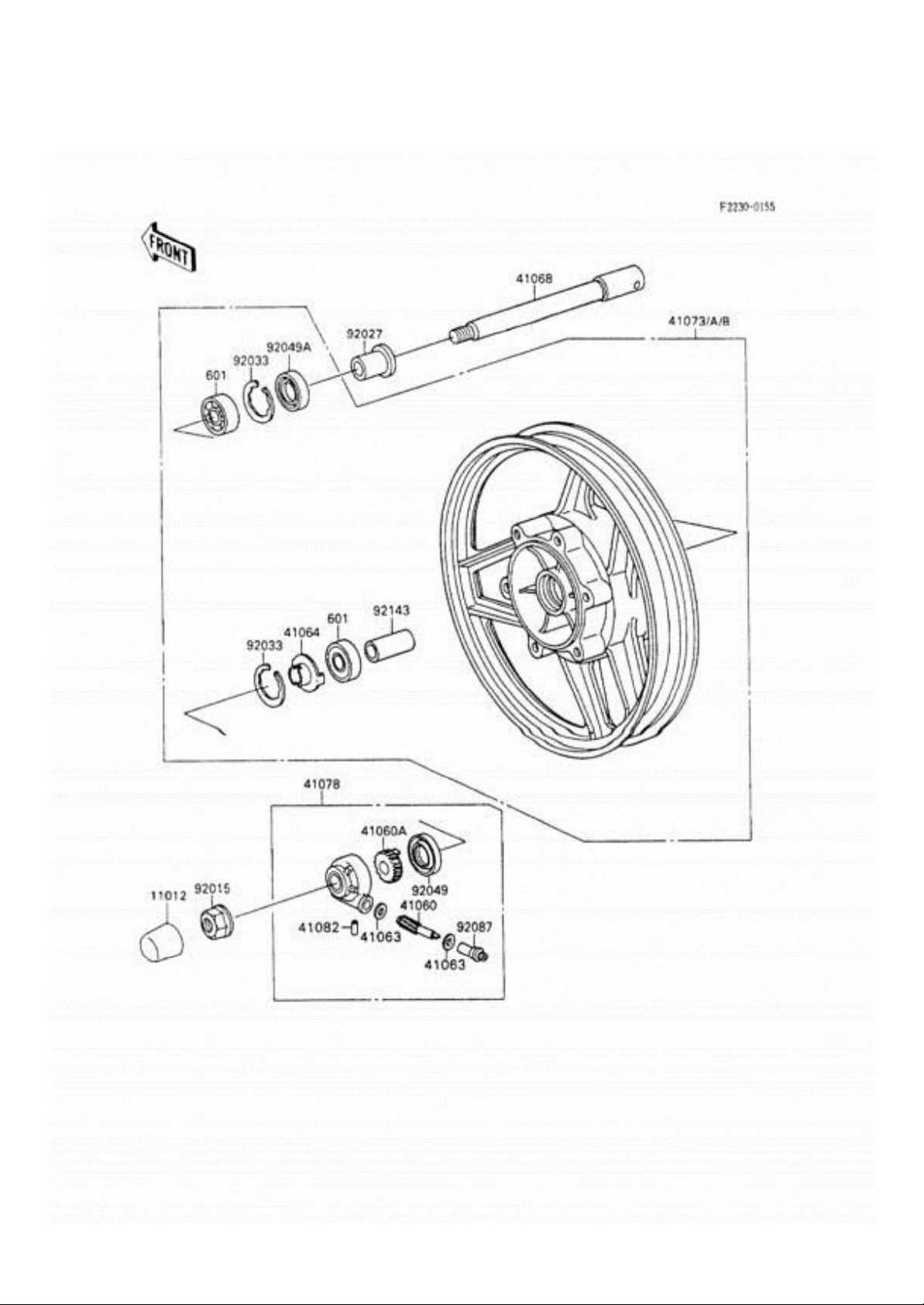

FRONT WHEEL
Kawasaki GPX600R Fiche Page 73 of 121
Page 74
Kawasaki GPX600R ’91 ZX600C-4
REAR WHEEL/CHAIN
Ref # Part # Description Q ty Spec Code
41068 41068-1232 AXLE,RR 1
41073 41073-1436-CW WHEEL-ASSY,RR,F.RED 1
420 33 42033-1114 COUPLING-ASSY,RR HUB 1
42036 42036-1149 SLEEVE, RR HUB,L=26 1
42041 42041- 1287 SPROCKET-HUB,39 T 1
42045 42045-014 NUT,CASTLE,16MM1
92004 92004-1146 STUD,10X24 6
92015 92015-1720 NUT,10MM 6
92027 92027-1874 COLLAR,RR AXLE,L=20 1
92027A 92027-1875 COLLAR,RR AXLE,L=28 1
92027B 92027-1876 COLLAR,L=106 1
92033 92033-1042 RING-SNAP,47MM1
92033A 92033-1043 RING-SNAP,52MM1
92049 92049-1056 SEAL-OIL,BJN28475 1
92052 92052-006 SEAL-OIL,TWC35527 1
92057 92057-1232 CHAIN,DRIVE,EK50MV-OX102L 1
92075 92075-1687 DAMPER,SHOCK,RR HUB 1
550 550D4035 PIN-COTTER,4.0X35 1
601 601B6205G BEARING-BALL,#6205G 1
601A 601B6303Z Z BEARING-BALL,#6303ZZC3 2
Kawasaki GPX600R Fiche Page 74 of 121
Page 75
Kawasaki GPX600R ’91 ZX600C-4

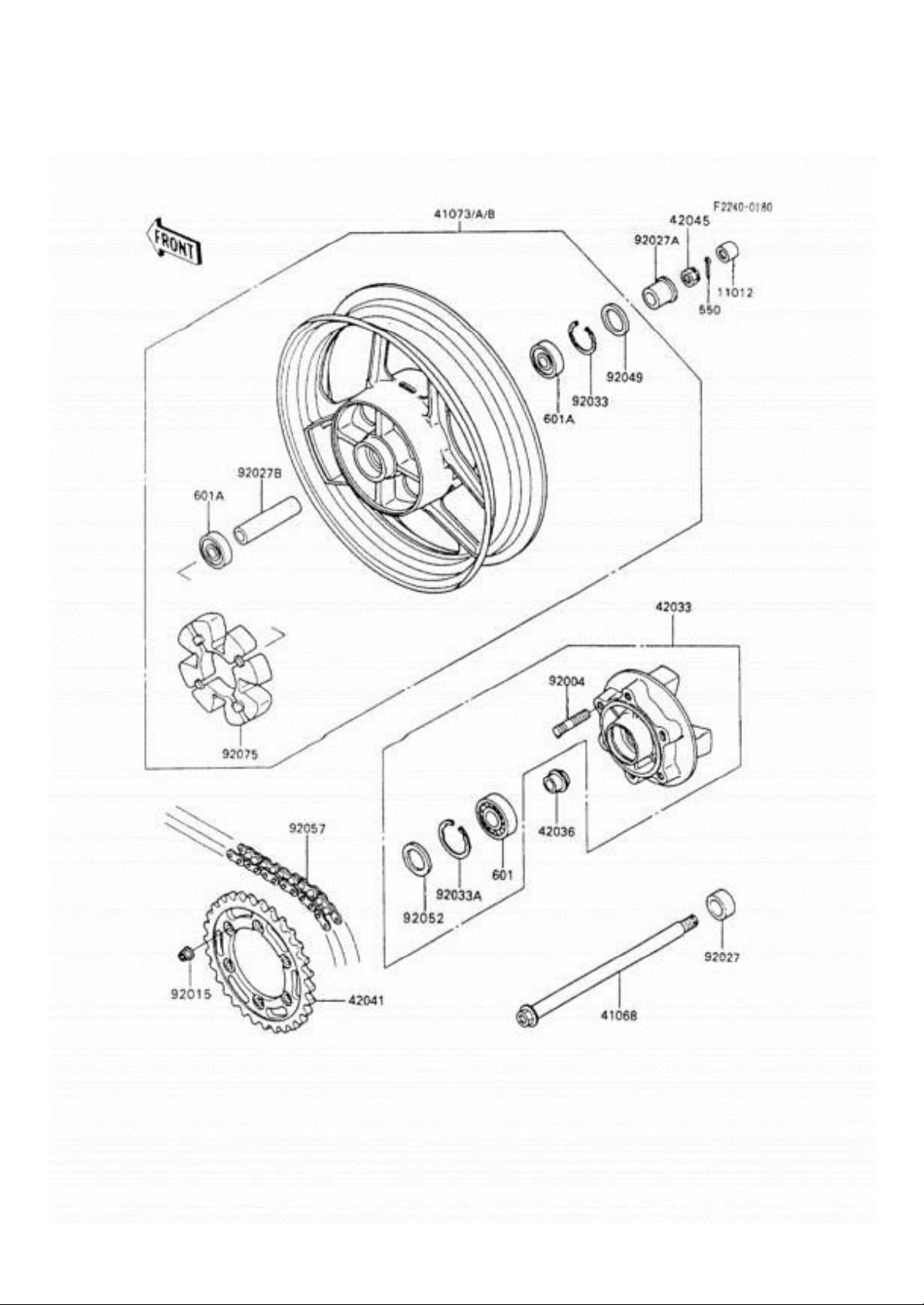

REAR WHEEL/CHAIN
Kawasaki GPX600R Fiche Page 75 of 121
Page 76
Kawasaki GPX600R ’91 ZX600C-4

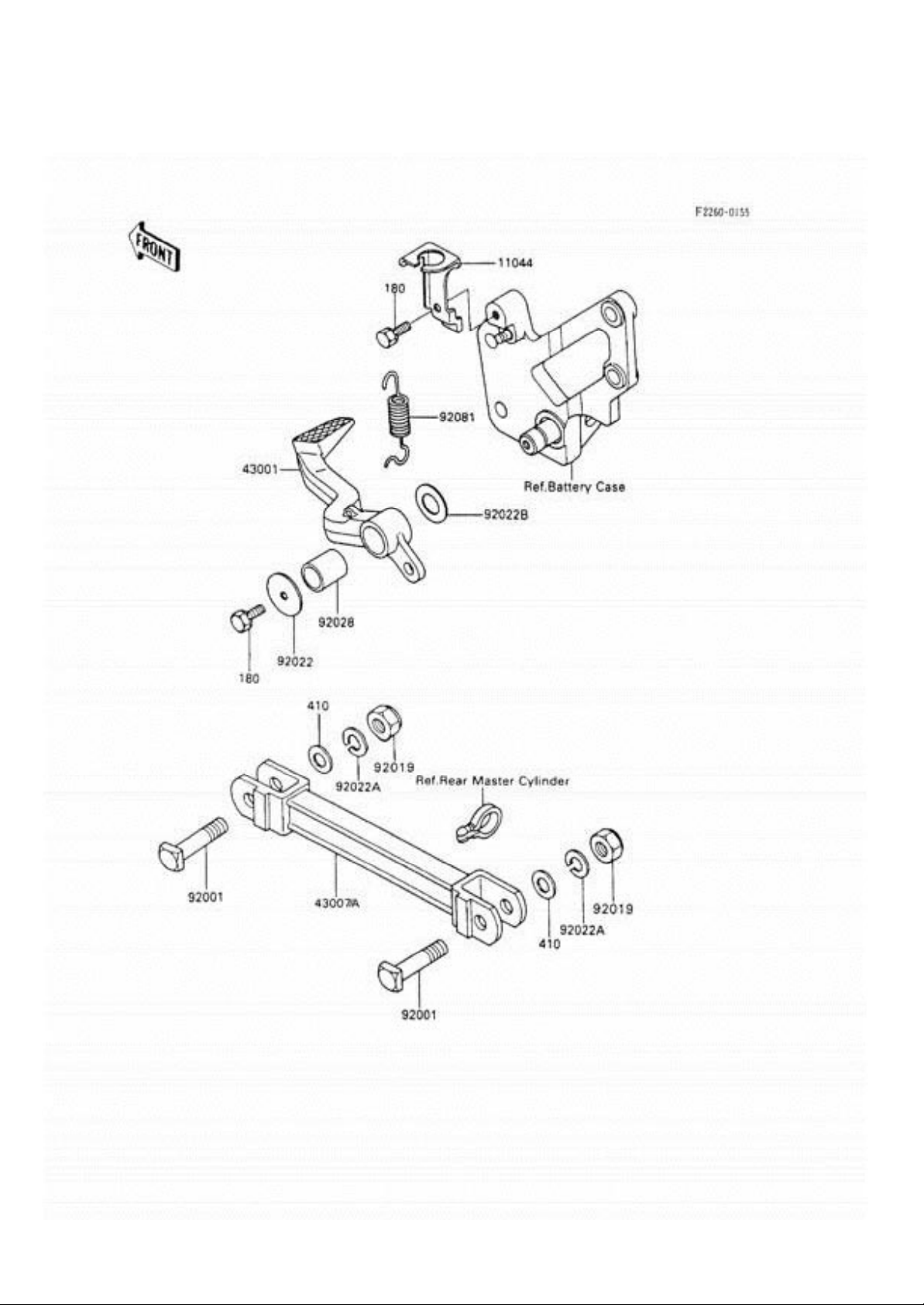

BRAKE PEDAL/TORQUE LINK
Ref # Part # Description Q ty Spec Code
11044 11044-1107 BRACKET,RR BRAKE SWITCH 1
43001 43001-1224 LEVER-BRAKE,PEDAL 1
43007 43007-1133 ROD-TORQUE 1
92001 92001-1307 BOLT,10X37 2
92019 92019-021 NUT,LOCK,10MM2
92022 92022-1282 WASHER,7X28X1.6 1
92022A 92022-1540 WASHER,SPRING ,10MM 2
92022B 92022-326 WASHER,15.3X24X1 1
92028 920 28-1282 BUSHING,BRAKE PEDAL 1
92081 92081-1833 SPRING,BRAKE PEDAL 1
180 180H0614 BOLT-UPSET-WS 2
410 410B1000 WASHER-PLAIN-SMALL,10MM 2
Kawasaki GPX600R Fiche Page 76 of 121
Page 77
Kawasaki GPX600R ’91 ZX600C-4
BRAKE PEDAL/TORQUE LINK
Kawasaki GPX600R Fiche Page 77 of 121
Page 78
Kawasaki GPX600R ’91 ZX600C-4
SHOCK ABSORBER(S)
Ref # Part # Description Q ty Spec Code
16126 16126-1143 VALVE,AIR 1
45014 45014-1367 SHOCKABSORBER 1
46102 46102-1151 ROD,RR SHOCKABSORBER,ADJUST 1
49006 49006-1220 BOOT,SHOCKABSORBER 1
92015 92015-1305 NUT,14MM 1
92022 92022-1494 WASHER 1
92059 92059-1364 TUBE,SHOCKABSORBER,L=170 1
92071 92071-056 GROMME T 1
92075 92075-1654 DAMPER,SHOCKABSORBER 1
92077 92077-1051 KNOB,SHOCKABSORBER,ADJUST 1
Kawasaki GPX600R Fiche Page 78 of 121
Page 79
Kawasaki GPX600R ’91 ZX600C-4

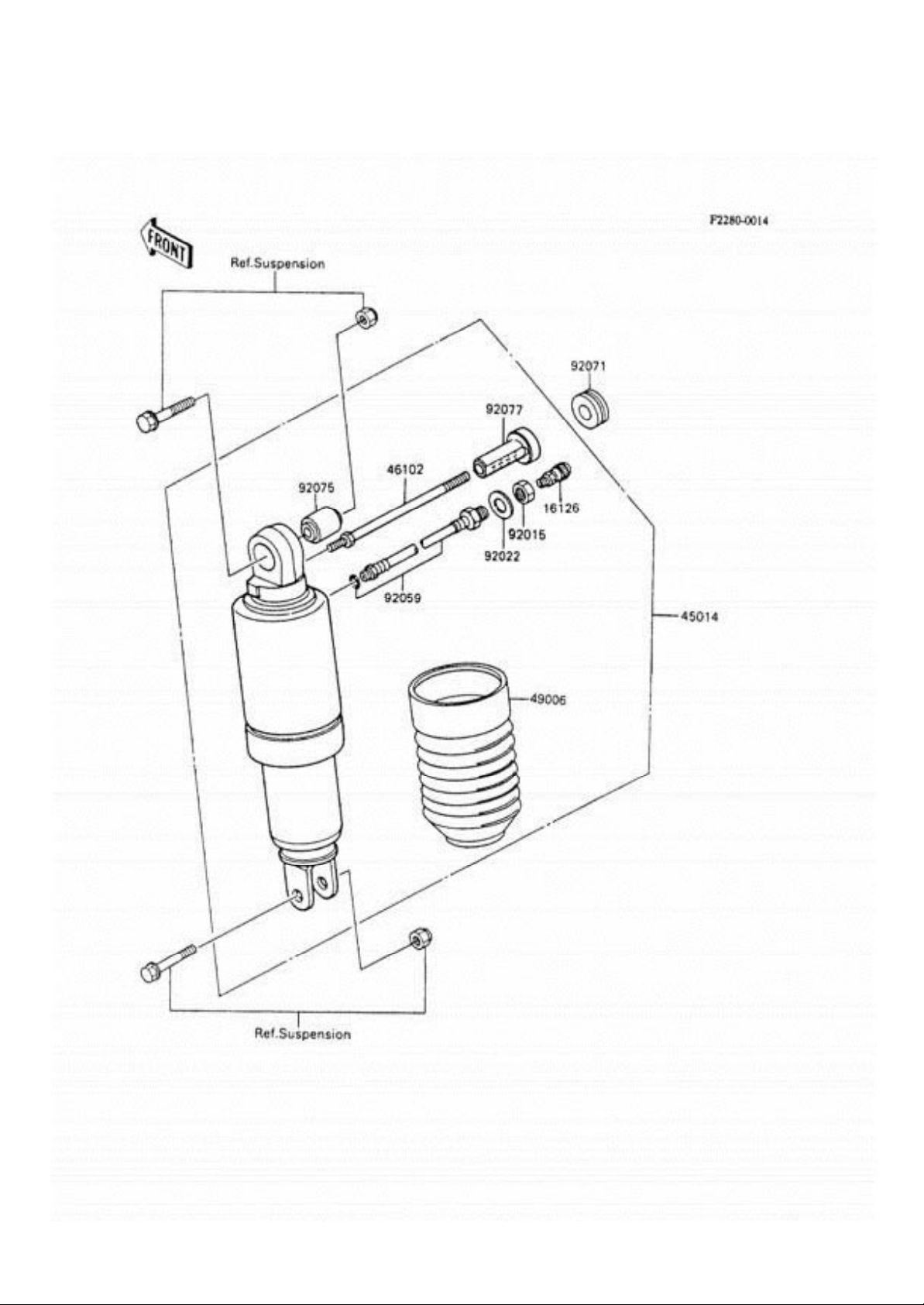

SHOCK ABSORBER(S)
Kawasaki GPX600R Fiche Page 79 of 121
Page 80
Kawasaki GPX600R ’91 ZX600C-4

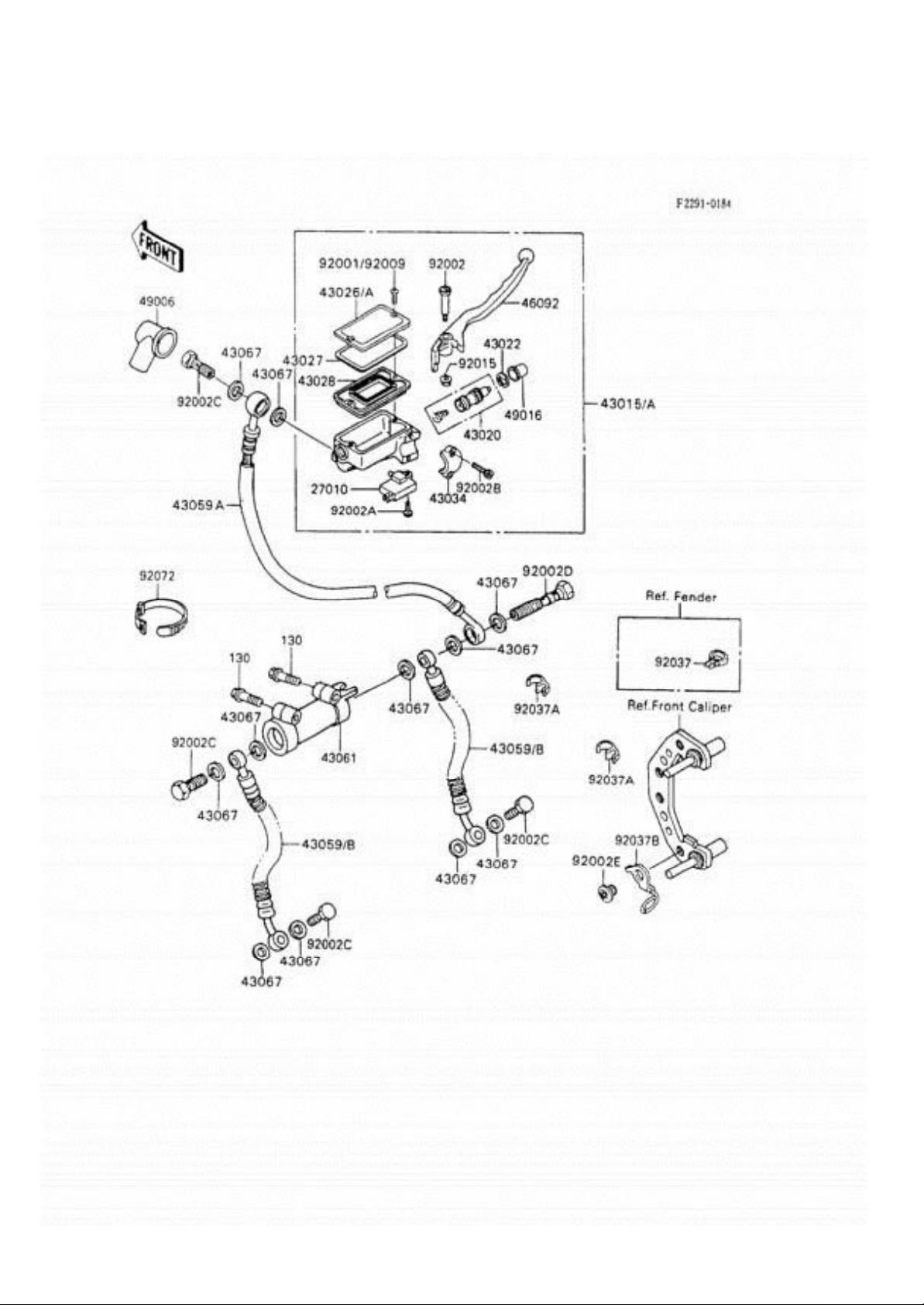

FRONT MASTER CYLINDER
Ref # Part # Description Q ty Spec Code
27010 27010-1170 SWITCH,BRAKE 1
43015 43015-1345 CYLINDER-ASSY-MASTER,FR 1
43020 43020-1054 PISTON-COMP-BRAKE,FR 1
43022 43022-1010 STOPPER-BRAKE,PISTON 1
43026 43026-1055 CAP-BRAKE,FR 1
43028 43028-1058 DIAPHRAGM,MASTER CYLINDER 1
43034 43034-1053 HOLDER-BRAKE,MASTER CYLINDER 1
43059A 43059-1616 HOSE-BRAKE,FR 1
43059B 43059-1647 HOSE-BRAKE,FR 2
43061 43061-1002 JOINT-BRAKE 1
43067 43067-001 WASHER,10.5X15X1.5 11
46092 46092-1117 LEVER-GRIP,FRONT B RAKE 1
49006 49006-1040 BOOT,DUST 1
49016 49016-1044 COVER-SEAL,MASTER CYLINDER 1
92001 92001-1727 SCREW,5M M 2
92002 92002-1322 BOLT,LEVER SET 1
92002A 92002-1323 BOLT,SCREW,4X12 1
92002B 92002-1324 BOLT,SOCKET,6X20 2
92002C 92002-1888 BOLT,OIL,L=23 4
92002D 92002-1909 BOLT,OIL,L=37 1
92002E 92002-1973 BOLT,10X10 1
92015 92015-1233 NUT,FLANGED,6MM 1
92037 92037-1827 CLAMP,HOSE 2
92037A 92037-1858 CLAMP,HOSE 2
92037B 92037-1917 CLAMP,CABLE 1
92072 92072-056 BAND,L=186 1
130 130G0635 BOLT-FLANGED,6X35 2
Kawasaki GPX600R Fiche Page 80 of 121
Page 81
Kawasaki GPX600R ’91 ZX600C-4
FRONT MASTER CYLINDER
Kawasaki GPX600R Fiche Page 81 of 121
Page 82
Kawasaki GPX600R ’91 ZX600C-4
FRONT BRAKE
Ref # Part # Description Q ty Spec Code
41080 41080-1183 DISC,FR,LH 1
41080A 41080-1184 DISC,FR,RH 1
43020 43020-1068 PISTON-COMP-BRAKE 2
43020 A 43020-1069 PISTON-COMP-BRAKE 2
43041 43041-1319-DJ CALIPER-ASSY,FR,LH,BLACK 1
43041A 43041-1320-DJ CALIPER-ASSY,FR,RH,BLACK 1
43044 43044-1067 HOLDER-COMP-CALIPER 2
43049 43049-1054 PACKING,PISTON SEAL 2
43049A 43049-1055 PACKING,PISTON 2
43049B 43049-1056 PACKING,PISTON SEAL 2
43049 C 43049-1057 PACKING,PISTON 2
43056 43056-003 BREATHER 1
43056A 43056-1054 BREATHER-BRAKE 1
43057 43057-003 CAP-BREATHER 2
43082 43082-1068 PAD-ASSY-BRAKE 2
49006 49006-1094 BOOT,CALIPER 2
49006A 49006-1095 BOOT,CALIPER 2
92001 92001-1951 BOLT,DISC PLATE,8X30 12
92002 92002-1468 BOLT,FLANGED,10X41 4
92081 92081-1661 SPRING,PAD STOPPER 4
92144 92144-1070 SPRING,PAD 2
Kawasaki GPX600R Fiche Page 82 of 121
Page 83
Kawasaki GPX600R ’91 ZX600C-4

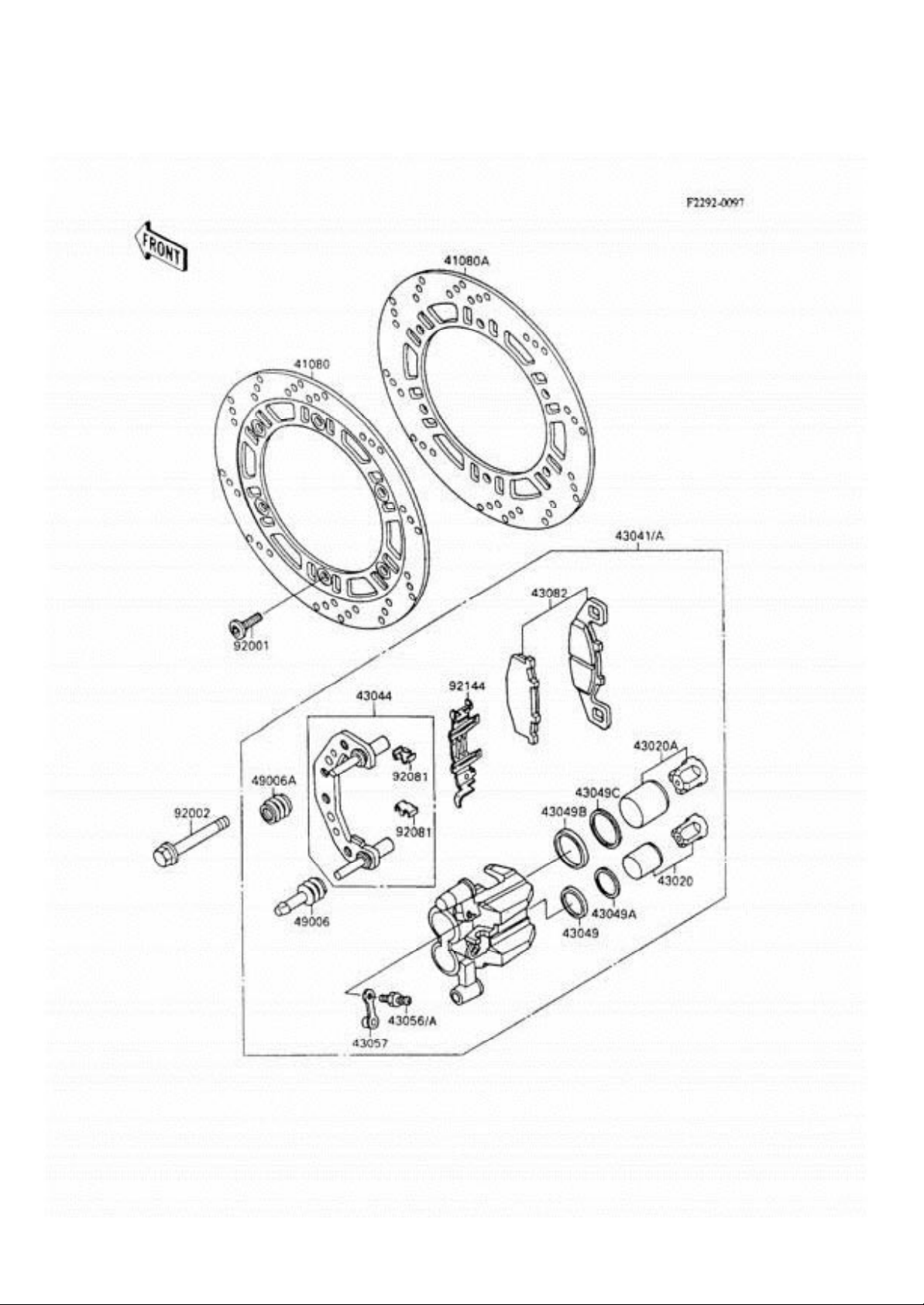

FRONT BRAKE
Kawasaki GPX600R Fiche Page 83 of 121
Page 84
Kawasaki GPX600R ’91 ZX600C-4
REAR MASTER CYLINDER
Ref # Part # Description Q ty Spec Code
13159 13159-1052 CONNECTOR,RR MASTER CYLINDER 1
43010 43010-1055 ROD-ASSY-BRAKE 1
43015 43015-1346 CYLINDER-ASSY-MASTER,RR 1
43020 43020-1057 PISTON-COMP-BRAKE 1
43026A 43026-1054 CAP-BRAKE 1
43027 43027-1051 PLATE-DIAPHRAGM1
43028 43028-1057 DIAPHRAGM,MASTER CYLIND ER 1
43059A 43059-1404 HOSE-BRAKE,RR MASTER CYLINDER 1
43059B 43059-1612 HOSE-BRAKE,RR 1
43067 43067-001 WASHER,10.5X15X1.5 4
43078 43078-1082 RESERVOIR,RR MASTER CYLINDER 1
92001 92001-1860 BOLT,W/P,6X16 1
92002 92002-1485 BOLT,8X30 2
92002A 92002-1888 BOLT,OIL,L=23 2
92022 92022-1601 WASHER,CIRCRIP 1
92033 92033-1186 RING-SNAP,20.5 MM 1
92037 92037-1547 CLAMP,BRAKE HOSE 2
92037A 92037-1827 CLAMP,HOSE 1
92043 92043-1013 PIN,8X16 1
92055 92055-1251 RING-O,MASTER CYLINDER 1
92081 9208 1-17 37 SPRING,MASTER CYLINDER 1
550 550 D2015 PIN-COTTER,2.0X15 1
Kawasaki GPX600R Fiche Page 84 of 121
Page 85
Kawasaki GPX600R ’91 ZX600C-4

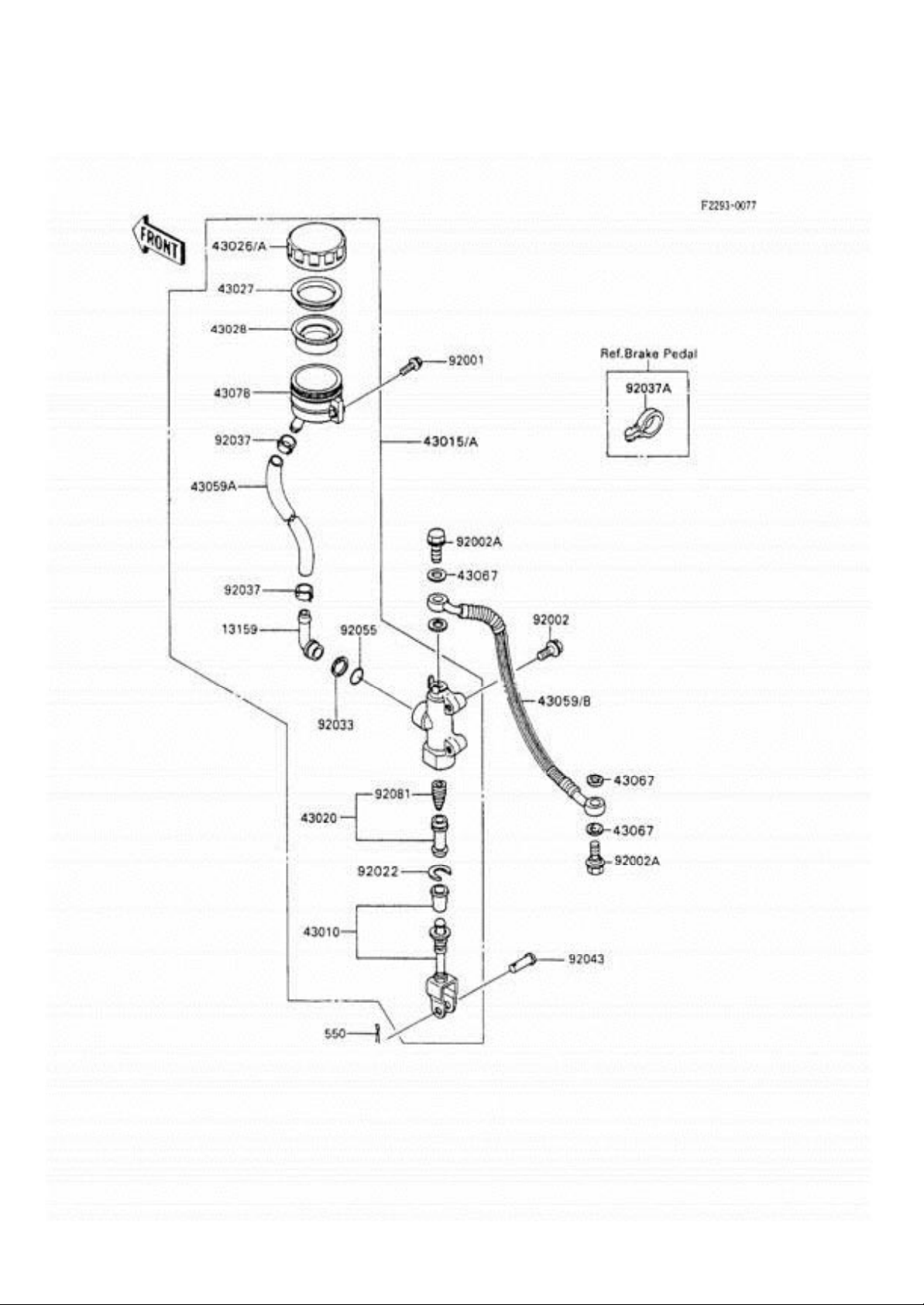

REAR MASTER CYLINDER
Kawasaki GPX600R Fiche Page 85 of 121
Page 86
Kawasaki GPX600R ’91 ZX600C-4
REAR BRAKE
Ref # Part # Description Q ty Spec Code
41080 41080-1192 DISC,RR 1
43020 43020-1068 PISTON-COMP-BRAKE 1
43020 A 43020-1069 PISTON-COMP-BRAKE 1
43034 43034-1079 HOLDER-BRAKE,REAR CALIPER 1
43041A 43041-1362-DJ CALIPER-ASSY,RR,BLACK 1
43044 43044-1067 HOLDER-COMP-CALIPER 1
43049 43049-1054 PACKING,PISTON SEAL 1
43049A 43049-1055 PACKING,PISTON 1
43049B 43049-1056 PACKING,PISTON SEAL 1
43049 C 43049-1057 PACKING,PISTON 1
43056 43056-003 BREATHER 1
43056A 43056-1054 BREATHER-BRAKE 1
43057 43057-003 CAP-BREATHER 2
43082 43082-1077 PAD-ASSY-BRAKE 1
49006 49006-1094 BOOT,CALIPER 1
49006A 49006-1095 BOOT,CALIPER 1
92001 92001-1951 BOLT,DISC PLATE,8X30 6
92002 92002-1713 BOLT,SOCKET,10X17 2
92081 92081-1661 SPRING,PAD STOPPER 2
92144 92144-1070 SPRING,PAD 1
Kawasaki GPX600R Fiche Page 86 of 121
Page 87
Kawasaki GPX600R ’91 ZX600C-4

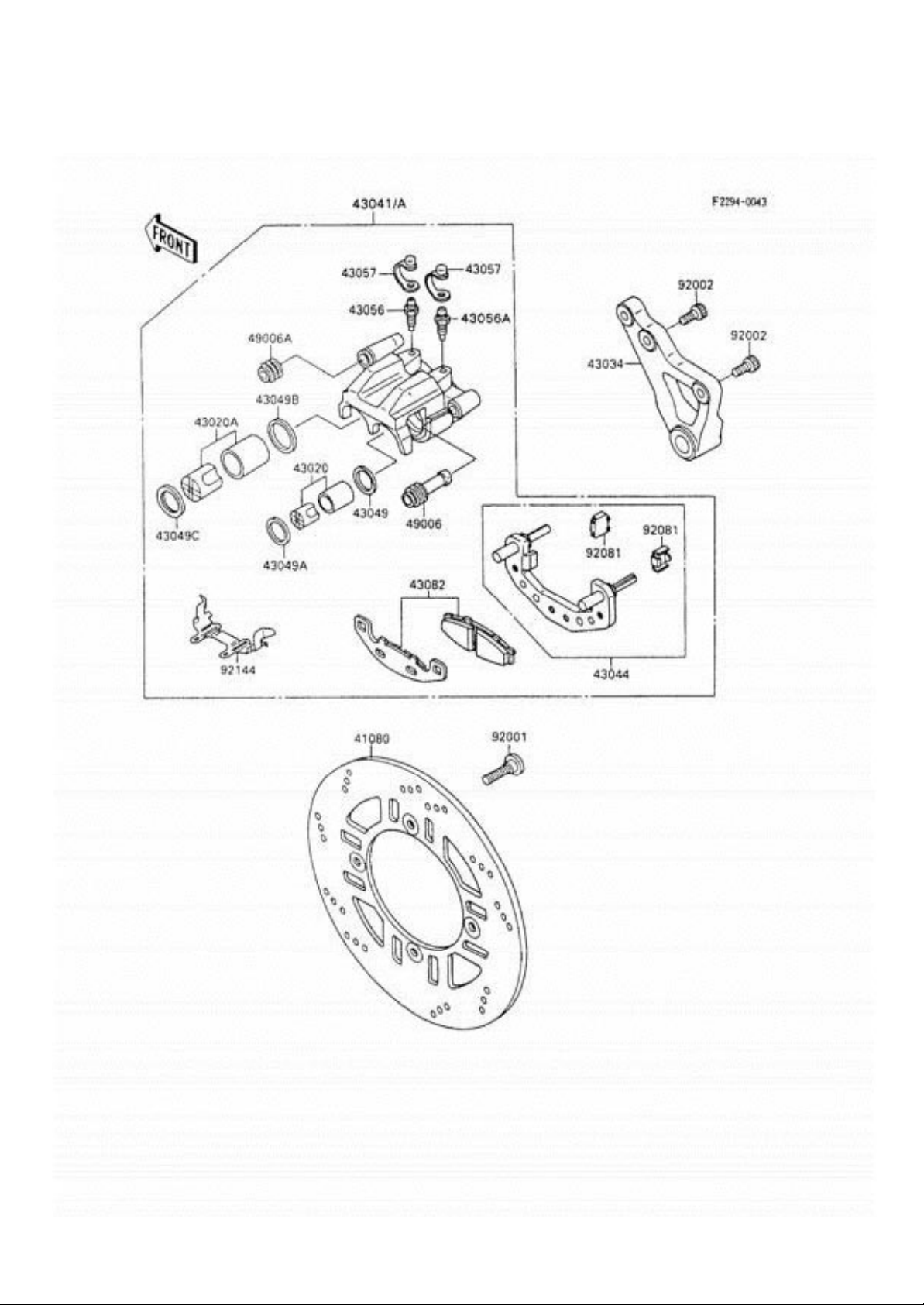

REAR BRAKE
Kawasaki GPX600R Fiche Page 87 of 121
Page 88
Kawasaki GPX600R ’91 ZX600C-4
HANDLEBAR
Ref # Part # Description Q ty Spec Code
11012 11012-1549 CAP,CLUTCH LEVER 1
13042 13042-1005 WEIGHT,HANDLE 2
13070 13070-1248 GUIDE,CLUTCH CABLE 1
13091 13091-1445 HOLDER,LEVER 1
13168A 13168-1448 LEVER,CHOKE 1
27010 27010-1094 SWITCH,CLUTCH,BLACK 1
46003 46003-1244 HANDLE 2
46012 46012-1175 HOLDER-HANDLE,LH 1
46012A 46012-1176 HOLDER-HANDLE,RH 1
46019 46019-1059 GRIP-ASSY,THROTTLE 1
46075 46075-1028 GRIP,LH 1
46076 46076-1139 LEVER-ASSY-GRIP,CLUTCH 1
46091B 46091-1553 HOUSING-ASSY-CONTROL,RH 1
46091C 46091-1561 HOUSING-ASSY-CONTROL,LH 1
46092 46092-1050 LEVER-GRIP,CLUTCH,BLACK 1
92001 92001-1548 BOLT,CLUTCH LEVER,BLACK 1
92002 92002-1178 BOLT,SOCKET,8X20 4
92009 92009-1134 SCREW,CABLE ADJUST,8MM,BLACK 1
92009A 92009-1257 SCREW,8X45 2
92015 92015-1191 NUT,LOCK,6MM,BLACK 1
92015 A 92015-1197 NUT,CABLE ADJUST LOCK,BLACK 1
92066 92066-1216 PLUG 6
92150 92150-1425 BOLT,8X30 2
110 110C0622 BOLT,6X22,BLACK 1
220 220C0308 SCREW-PAN-CROS 1
220A 220C0520 SCREW-PAN-CROS 4
221 221C 0316 SCREW-CSK-CROS 2
410 410F0600 WASHER-PLAIN-SMALL,6MM,BLACK 1
Kawasaki GPX600R Fiche Page 88 of 121
Page 89
Kawasaki GPX600R ’91 ZX600C-4

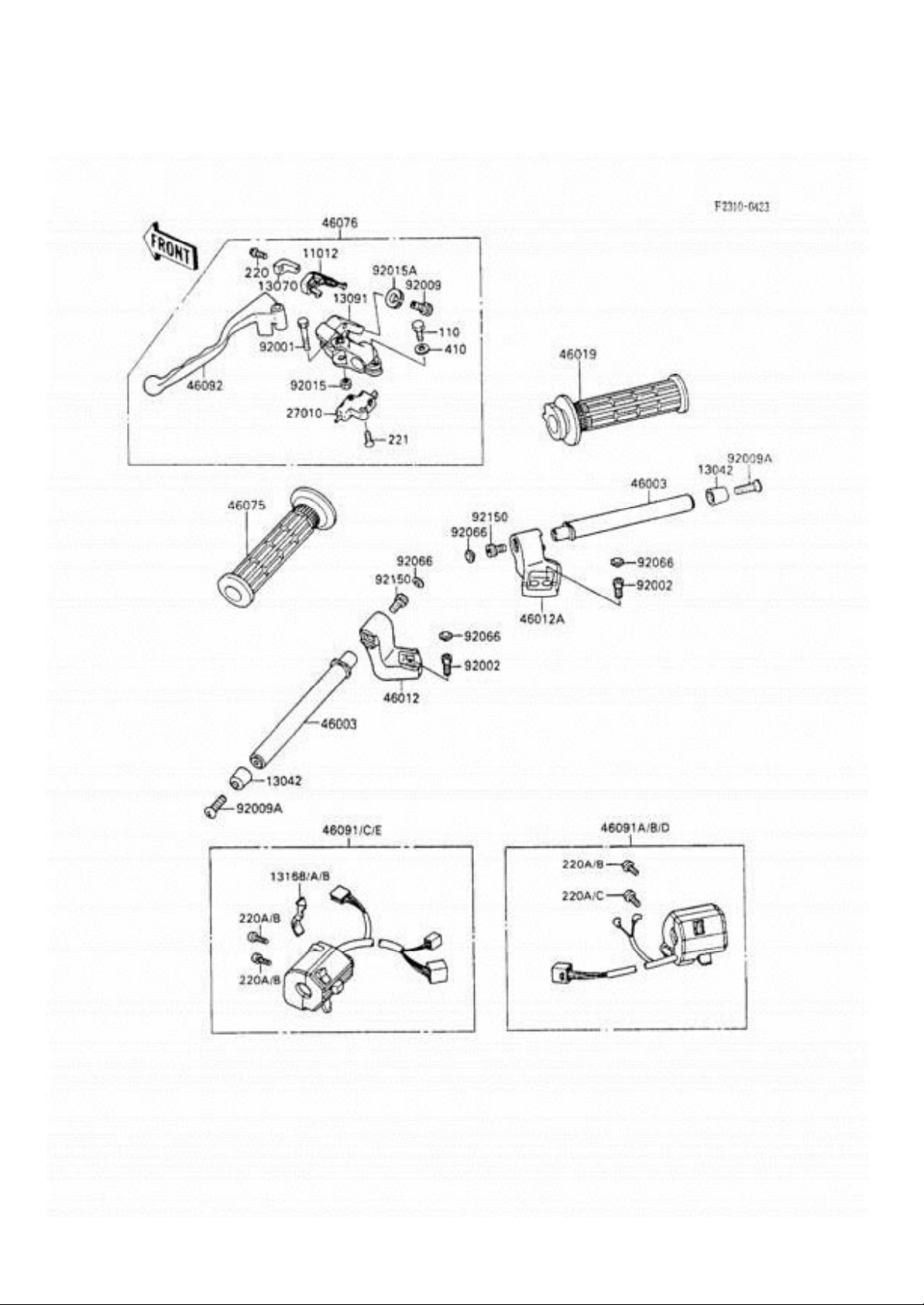

HANDLEBAR
Kawasaki GPX600R Fiche Page 89 of 121
Page 90
Kawasaki GPX600R ’91 ZX600C-4
FRONT FORK
Ref # Part # Description Q ty Spec Code
11009 11009-1127 GASKET,FORK CYLINDER BOLT 2
43017 43017-1067 VALVE-COMP-BRAKE 1
44001 44001-1653 FORK-FRONT 1
44005 44005-1259 PIPE-LEFT FORK OUTER 1
44006 44006-1256 PIPE-RIGHT FORK OUTER 1
44013 44013-1260 PIPE-FORK I NNER 2
44022 44022-120 3 CYLINDER-FORK,RH 1
44022A 44 022-1207 CYLINDER-FORK 1
44026 44026-1363 SPRING-FRONT FORK 2
44028 44028-10 03 GUIDE-FOR K SPRING 2
44029 44029-1126 SEAT-FORK SPRING 2
44037 44037-1213 HOLDER-FORK UNDER 1
44039 44039-1150 HOLDER-FORK UPPER 1
44045 44045-002 GASKET,FORK DRAIN PLUG 2
44065 44065-1012 BUSHING-FRONT FORK 2
44065A 44065-1057 BUSHING-FRONT FORK,INNER PIPE 2
56030 56030-1095 LABEL,ESCS MARK 2
92001 92001-1188 BOLT,FLANGED,8X40 2
92001A 92001-1309 BOLT,FORK CYLINDER 2
92002 92002-1163 BOLT,8X60 1
92002A 92002-1166 BOLT,SOCKET,6X16 2
92009 92009-1324 SCREW,4X8 2
92015 92015-1400 NUT,8MM 1
92022 92022-1262 WASHER,FORK OUTER PIPE 2
92022A 92022-1552 WASHER,SPRING,8MM1
92022B 92022-1554 WASHER,PLAIN,8MM2
92022 C 92022-1599 WASHER,FORK OUTER PIPE,UPP 2
92026 92026-1258 SPACER,L=40 2
92033 92033-1047 RING-SNAP,FORK 2
92049 92049-1178 SEAL-OIL,FORK 2
92055 92055-1379 RING-O 2
92055A 92055-1380 RING-O,FORK TOP 2
92093 92093-1162 SEAL,FORK 2
131 131G0840 BOLT-FLANGED,8X40 4
Kawasaki GPX600R Fiche Page 90 of 121
Page 91
Kawasaki GPX600R ’91 ZX600C-4

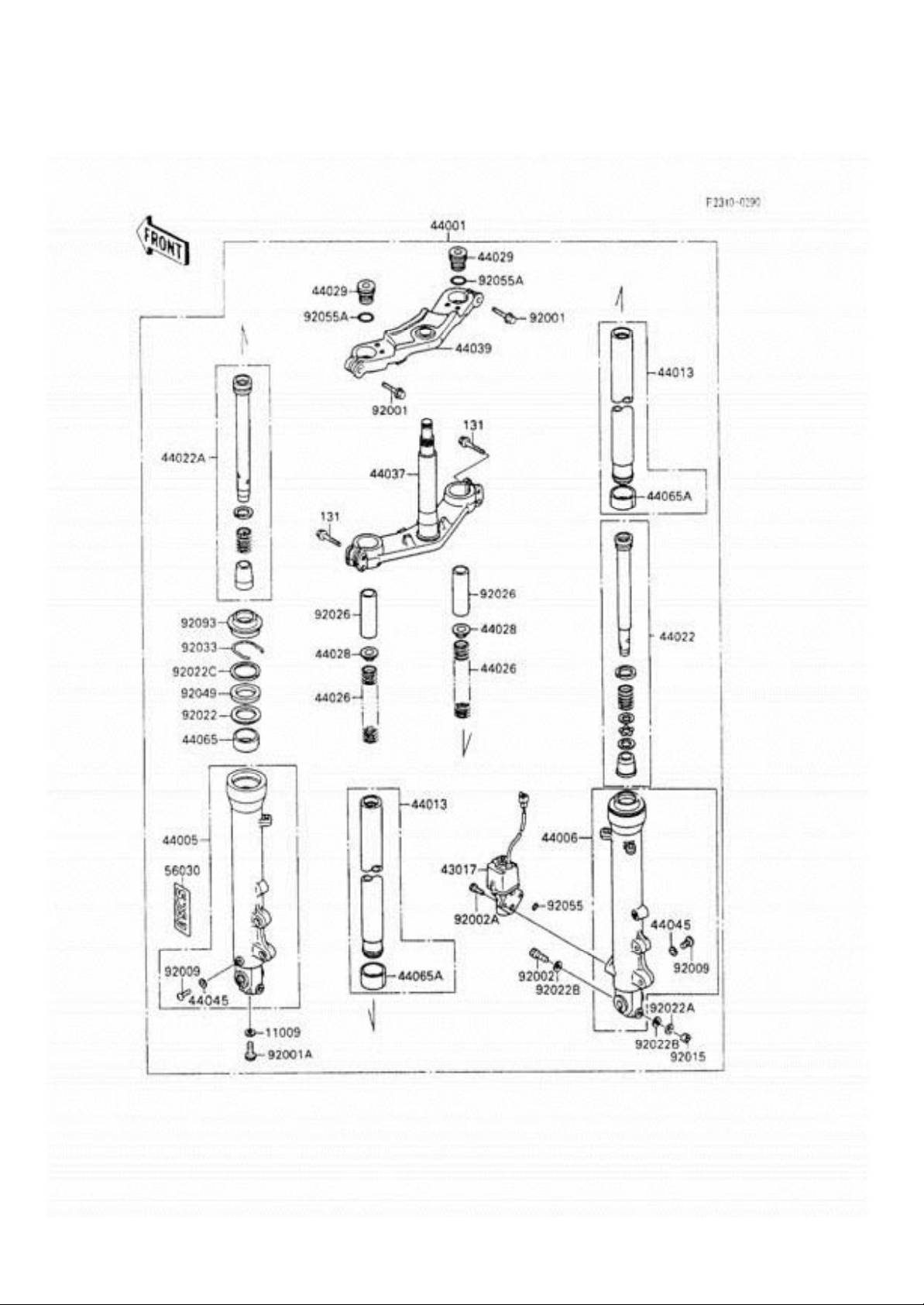

FRONT FORK
Kawasaki GPX600R Fiche Page 91 of 121
Page 92
Kawasaki GPX600R ’91 ZX600C-4

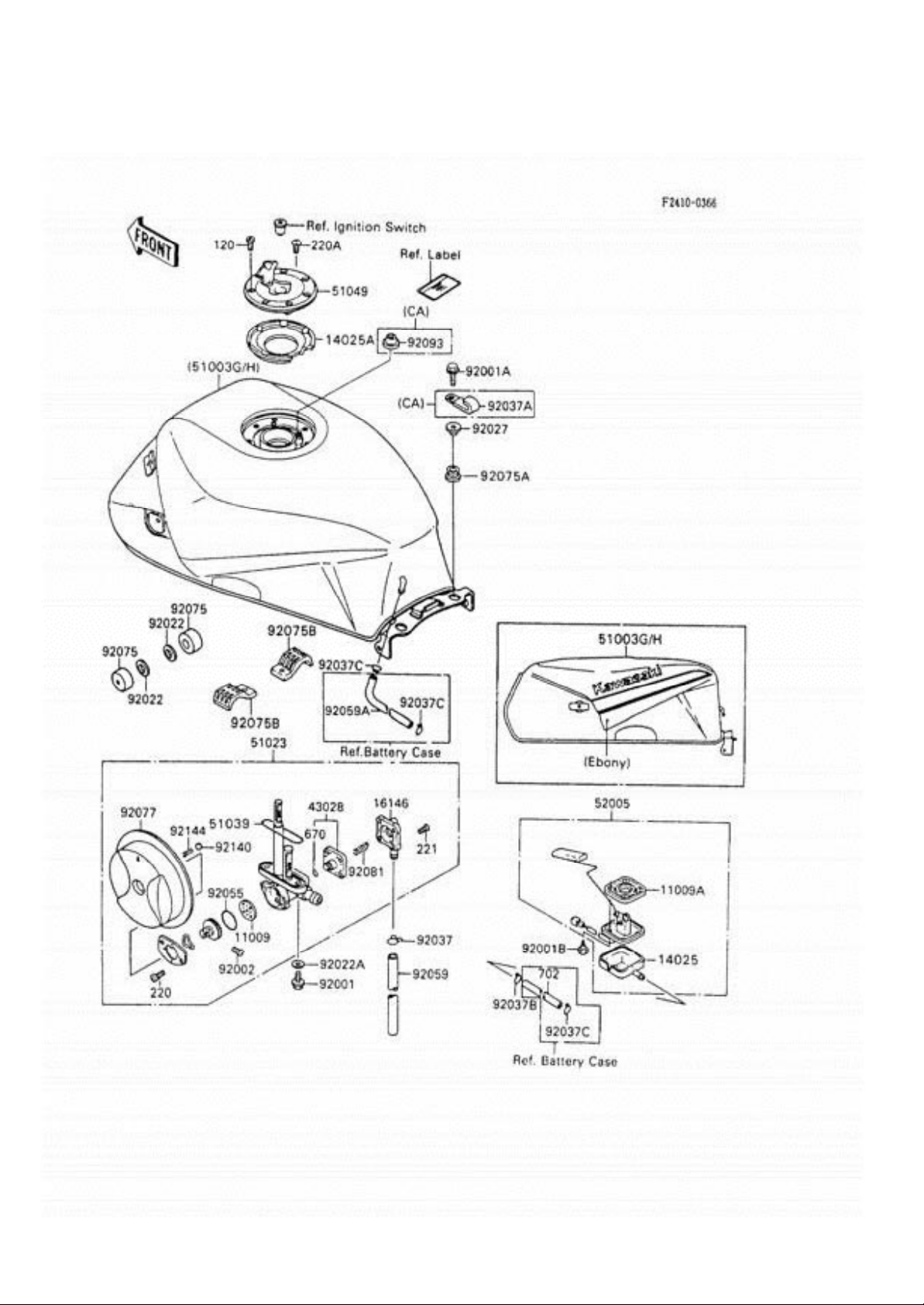

FUEL TANK (1/3)
Ref # Part # Description Q ty Spec Code
11009 11009-1188 GASKET,TAP VALVE 1
11009A 11009-1656 GASKET,FUEL G AUGE 1
14025 14025-1536 COVER,FUEL GAUG E 1
14025A 14025-1913 COVER,TANK CAP 1
16146 16146-1061 COVER-ASSY,TAP DIAPHRAG M 1
43028 43028-1033 DIAPHRAGM 1
51003G 51003-5083-H8 TANK-COMP-FUEL,EBONY 1 [US]
51003H 51003-5087-H8 TANK-COMP-FUEL,EBONY 1 [CA]
51023 51023-1158-BK TAP-ASSY,FUEL,BLACK 1
51039 51039-003 RING,TAP FLANGED 1
51049 51049-1079 CAP-TANK,FUEL 1
520 0 5 520 0 5 - 10 8 9 GAUGE,FUEL 1
92001 92001-1091 BOLT,6X20 2
92001A 92001-1352 BOLT,FLANGED,6X22 2
92001B 92001-1705 BOLT,FUEL GAUGE 4
92002 92002-1996 BOLT,SCREW,4X12 1
92022 92022-044 WASHER,10.5X26X2.3 2
92022A 92022-183 WASHER,6.2X11X1.5 2
92027 92027-251 COLLAR,L=13.1 2
92037 92037-010 CLAMP,TUBE 1
92037A 92037-1069 CLAMP,WIRING H ARNESS 1 [CA]
92037B 92037-147 CLAMP,TUBE 1
92037C 92037 -1712 CLAMP 3
92055 92055-1085 RING-O,TAP LEVER 1
92059 92059-1890 TUBE,5X9X470 1
92059A 92059-3011 TUBE,6X10X200 1
92075 92075-125 DAMPER,FUEL TANK 2
92075A 92075-1690 DAMPER 2
92075B 92075-1932 DAMPER,FUEL TANK,CNT 2
92077 92077-1089-BK KNOB,FUEL TAP,BLACK 1
92081 92081-1240 SPRING,TAP DIAPHRAGM 1
92093 92093-1030 SEAL,FUEL TANK CAP 1 [CA]
92140 92140-1051 BALL,STAINLESS,5/32\" 1
92144 92144-1212 SPRING,FUEL TAP KNOB 1
120 120S0512 BOLT-SOCKET 7
220 220B0308 SCREW-PAN-CROS 2
220A 220C0508 SCREW-PAN-CROS 1
221 221B0418 SCREW-CSK-CROS 4
670 670B1504 O RING,4MM1
702 702A07380 TUBE-RUBBER,7X10X380 1
Kawasaki GPX600R Fiche Page 92 of 121
Page 93
Kawasaki GPX600R ’91 ZX600C-4
FUEL TANK (1/3)
Kawasaki GPX600R Fiche Page 93 of 121
Page 94
Kawasaki GPX600R ’91 ZX600C-4
SEAT
Ref # Part # Description Q ty Spec Code
14024 14024-1456 COVER,SEAT LOCK 1
14024F 14024-5169-FG COVER,SEAT,EBONY/GRAY 1
32074 32074-1132 BRACKET-LOCK,SEAT 1
53001 53001-1503-MA SEAT-ASSY,FR,BLACK 1
53001A 53001-1504-MA SEAT-ASSY,RR,BLACK 1
53003 53003-1181-MA LEATHER,FRONT SEAT,BLACK 1
53003A 53003-1182-MA LEATHER,REAR SEAT,BLACK 1
92002 92002-1932 BOLT,6MM 2
92009 92009-1256 SCREW,6X22,BLACK 2
92015 92015-1367 NUT,FLANGED,6MM 2
92075 92075-1931 DAMPER,SEAT COVER 2
92081 92081-1581 SPRING,SEAT LOCK 1
130 130B0614 BOLT-FLANGED 4
Kawasaki GPX600R Fiche Page 94 of 121
Page 95
Kawasaki GPX600R ’91 ZX600C-4

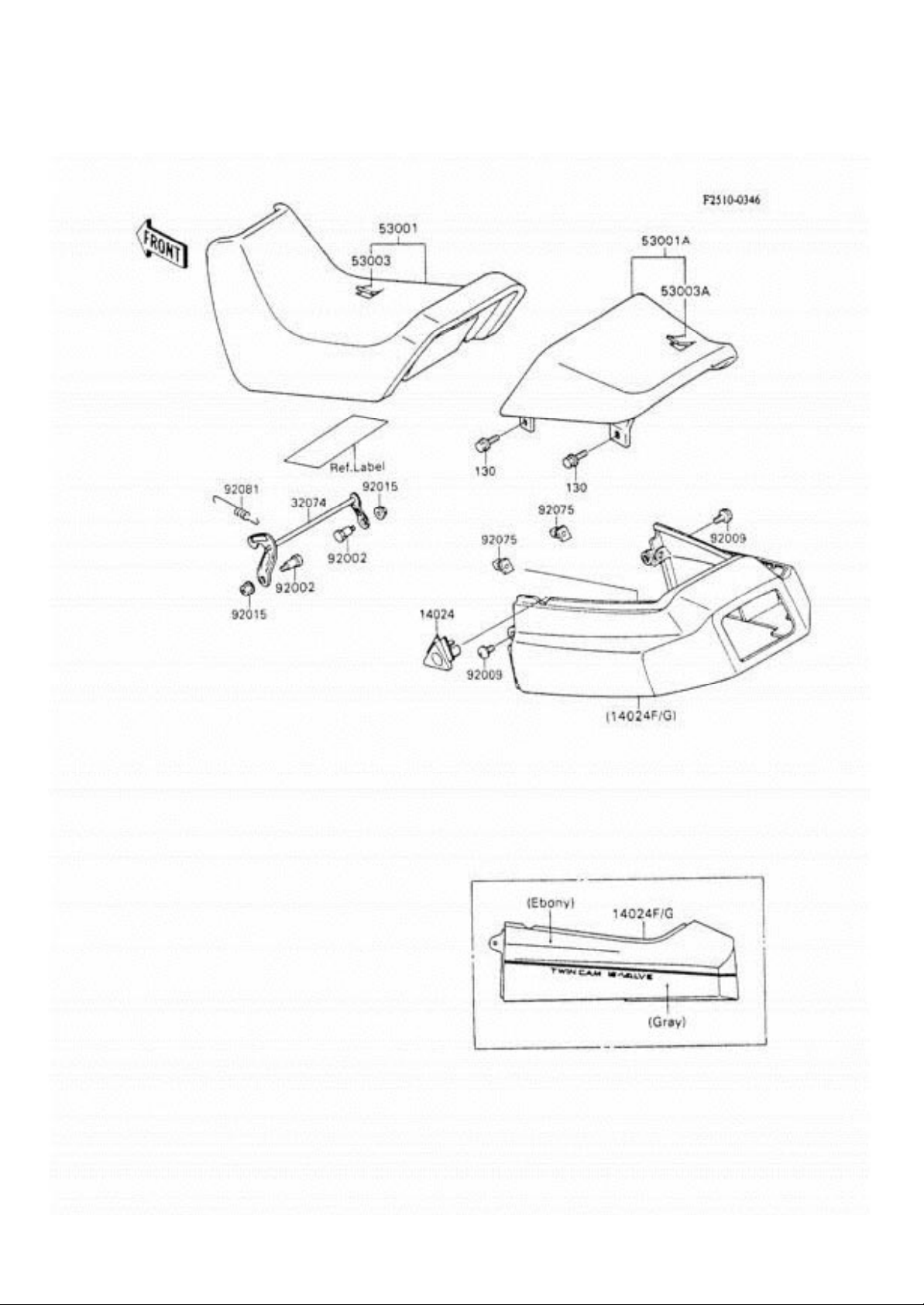

SEAT
Kawasaki GPX600R Fiche Page 95 of 121
Page 96
Kawasaki GPX600R ’91 ZX600C-4
METER(S)
Ref # Part # Description Q ty Spec Code
14024 14024-1438 COVER,METER HOUSING 1
23008 23008-1335 SOCKET-ASSY,METER 1
25001 25001-1685 METER-ASSY,MPH 1
25005 25005-1354 SPEEDOMETER,MP H 1
25008 25008-1138 BRACKET-METER 1
25015 25015-1269 TACHOMETER,X1000R/MIN 1
25023 25023-1154 COVER-METER CASE,UPP 1
28011 28011-1092 METER,FUEL 1
28011A 28011-1098 METER,TEMP 1
52014 52014-1006 ELBOW,SPEEDOMETER GEAR 1
92009 92009-1163 SCREW,TAPPING,4X16 6
92022 92022-263 WASHER,5.2X16X1.2 3
92069 92069-1007 BULB,12V 3.4W 10
92075 92075-1805 DAMPER 3
92077 92077-1061 BOOT,TRIP RESET KNOB 1
130 130 C0614 BOLT-FLANGED,6X14 2
311 311B0500 NUT-HEX 3
Kawasaki GPX600R Fiche Page 96 of 121
Page 97
Kawasaki GPX600R ’91 ZX600C-4

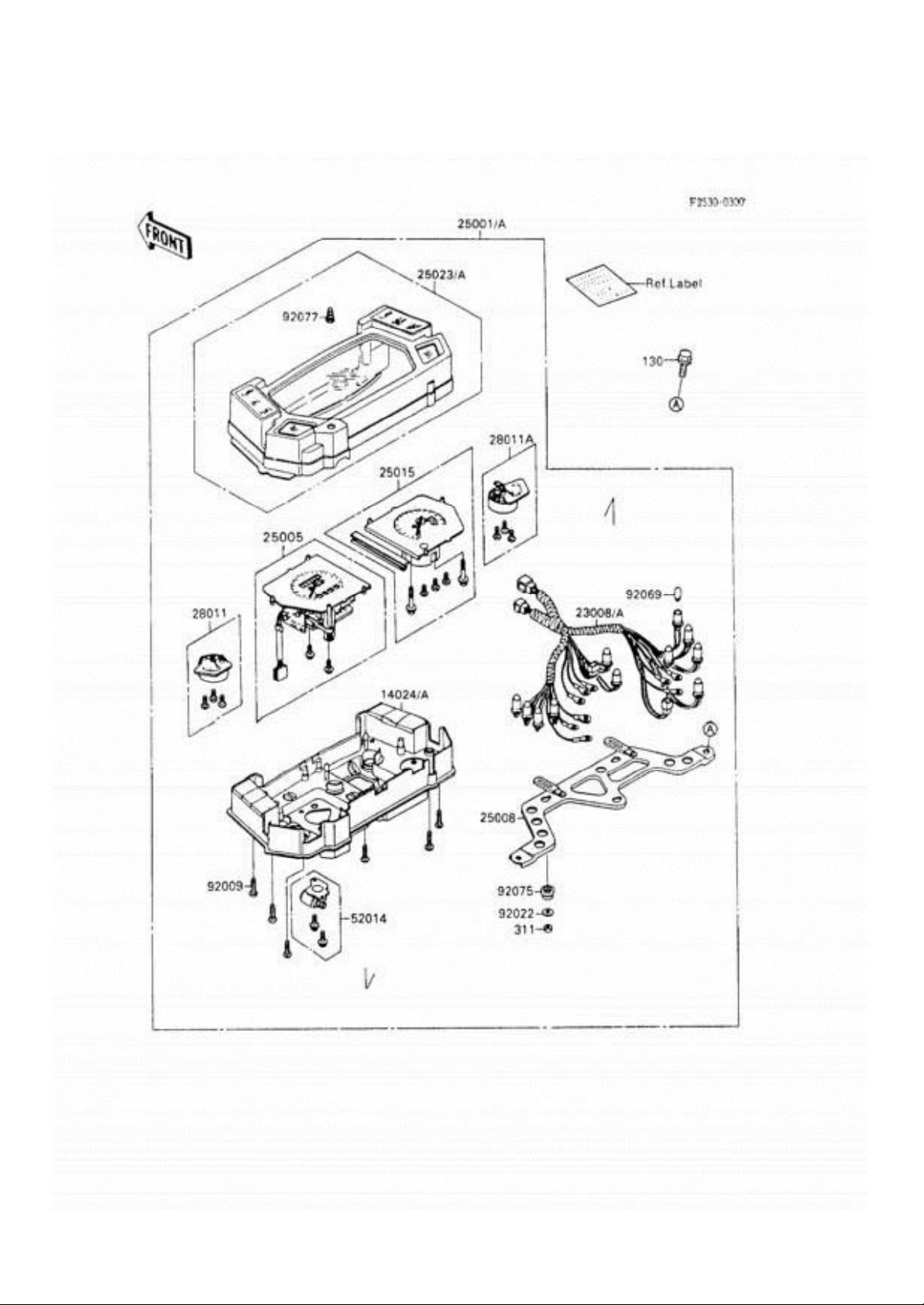

METER(S)
Kawasaki GPX600R Fiche Page 97 of 121
Page 98
Kawasaki GPX600R ’91 ZX600C-4
CABLES
Ref # Part # Description Q ty Spec Code
54001 54001-1195 CABLE-SPEEDOME TER 1
54011 54011-1293 CABLE-CLUTCH 1
54012 54012-1325 CABLE-THROTTLE,OPENING1
54012A 54012-1326 CABLE-THROTTLE,CLOSING 1
54017 54017-1089 CABLE-STARTER 1
92037 92037-1459 CLAMP,CABLE 1
92037A 92037-1892 CLAMP,CABLE 1
92037B 92037-1893 CLAMP,CABLE 1
Kawasaki GPX600R Fiche Page 98 of 121
Page 99
Kawasaki GPX600R ’91 ZX600C-4

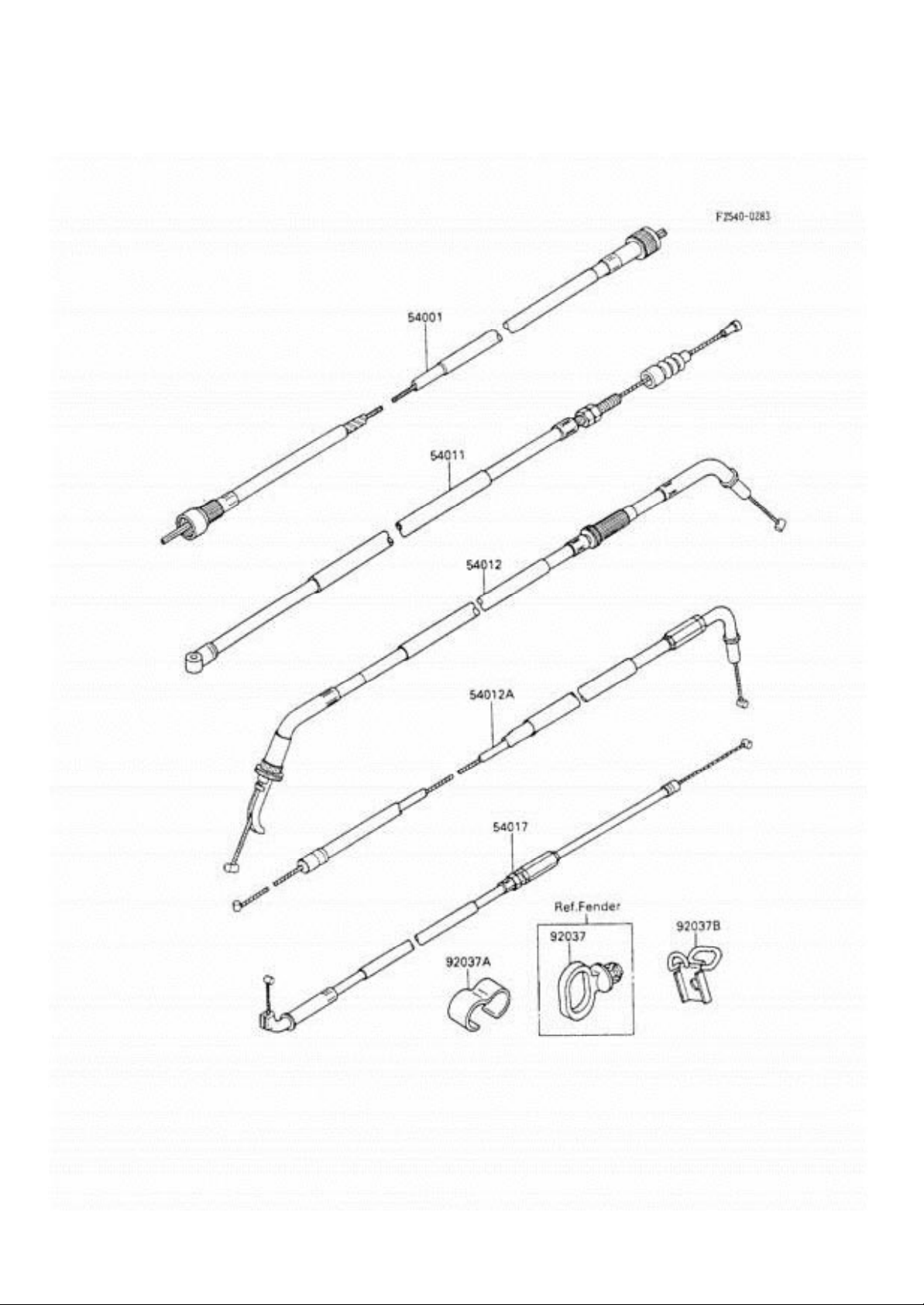

CABLES
Kawasaki GPX600R Fiche Page 99 of 121
Page 100
Kawasaki GPX600R ’91 ZX600C-4
ENGINE COVER(S)
Ref # Part # Description Q ty Spec Code
16146 16146-1079-MA COVER-ASSY,KNEEGRIP,LH,BLACK 1
16146A 16146-1080-MA COVER-ASSY,KNEE GRIP,RH,BLACK 1
36010R 36010-5276-FG COVER-SIDE,LH,EBONY/GRAY 1
36010T 36010-5277-FG COVER-SIDE,RH,EBONY/GRAY 1
36014 36014-1145 CASE-CHAIN 1
92009 92009-1181 SCREW,6X18,BLACK 4
92022 92022-1346 WASHER,6.5X20X1.6,BLACK 1
92027 92027-169 COLLAR,6.8X10X16 1
92027 A 92027-1935 COLLAR,L=9.1,BLACK 2
92071 92071-056 GROMME T 4
92075 92075-1634 DAMPER 2
92075A 92075-1979 DAMPER,50X50X10 2
92143 92143-1088 COLLAR,L=6.6 1
130 130J0614 BOLT-FLANGED,6X14,BLACK 1
220 220C0630 SCREW-PAN-CROS,6X30,BLACK 1
Kawasaki GPX600R Fiche Page 100 of 121
Loading...
