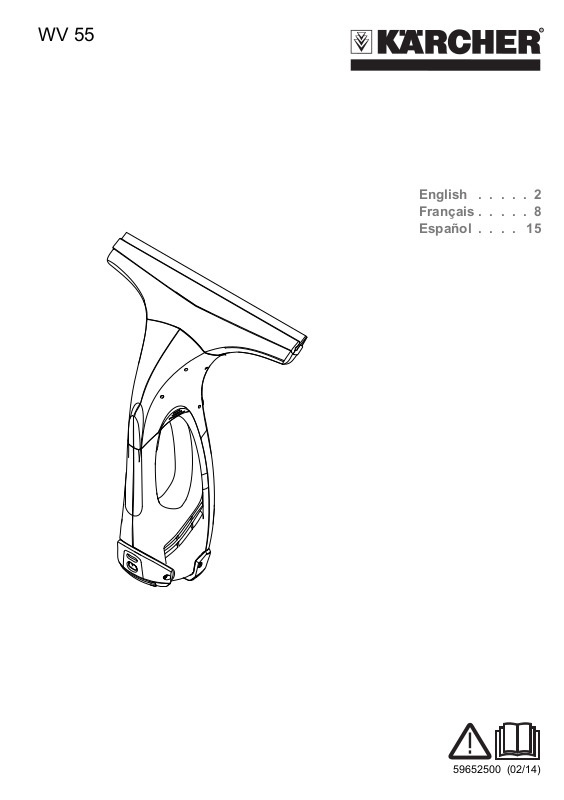

WV 55

English . . . . . 2
Français . . . . . 8
Español . . . . 15
59652500 (02/14)
Window Cleaner OPERATOR MANUAL
IMPORTANT SAFETY INSTRUC-
TIONS . . . . . . . . . . . . . . . . . . . . . 3
Start up . . . . . . . . . . . . . . . . . . . . 4
Finish up your work / clean appliance 6
Troubleshooting . . . . . . . . . . . . . 7
Disposal of Appliances . . . . . . . . 7
Specifications
Type of protection IP X4 Volume of dirt water reservoir 3,3 oz. Operating time with full
charge Rated power of appliance 12 W Charging current for empty
battery Rated charger voltage 5,5 V Nominal current of charger 600 mA Weight 1,5 lbs Battery type Li-Ion Nominal battery voltage 3,6 V Power Input 120-127 V
Part No. 1.633-132.0
Subject to technical modifications!
20 min
3h
60 Hz
Proper use
Use this battery operated appliance
only for personal use, for cleaning moist, smooth surfaces such as win­dows, mirrors or tiles. Not meant for the vacuum of dust.
The appliance is not intended to vacu-
um up larger amounts of fluids from hor­izontal surfaces, such as from a tipped drinking glass (max. 0,8 oz.).
Only use this appliance with conven-
tional window cleaners (no spirit, no foam cleaners).
Please use this appliance only with ac-
cessories and spare parts approved by
KÄRCHER. Any use extending beyond what is listed above is not considered as proper use. The manufacturer is not liable for any losses re­sulting from improper use.
Customer Support
USA and Canada
To register this product, please visit:
www.karcher-register.com
For technical support, go to:
www.karcher-help.com
If you need to file a warranty claim, please call: 1-800-537-4129 You will need to fax or email your receipt to a customer service agent. All other informa­tion can be found at:
www.karcherresidential.com
2 English
Customer Support
Mexico
Call: 01-800-024-13-13 for help or visit our website: www.karcher.com.mx
IMPORTANT SAFETY INSTRUCTIONS
When using this product basic precautions should always be followed, including the following:
Warning
To reduce the risk of fire, electric shock, or injury:
Do not leave appliance unattended
when plugged in. Unplug from outlet when not in use and before servicing.
Warning
To reduce the risk of electric shock:
Do not expose to rain. Store indoors.Do not allow to be used as a toy. Close
attention is necessary when used by or near children.
Use only as described in this manual.
Use only manufacturer’s recommended attachments.
Do not use with damaged cord or plug.
If appliance is not working as it should, has been dropped, damaged, left out­doors, or dropped into water, return it to a service center.
Do not pull or carry by the cord, do not
use cord as a handle, do not close a door on the cord, or pull cord around sharp edges or corners. Do not run ap­pliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling cord. To un-
plug, grasp plug.
Do not handle plug or appliance with
wet hands.
Do not put any objects into openings.
Do not use if openings are blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
Keep hair, loose clothing, fingers, and
all parts of the body away from open­ings and moving parts.
Use extra care when cleaning on stairs.Turn off all controls before unplugging.
Do not use to pick up flammable or
combustible liquids, such as gasoline,
or use in areas where they may be pre-
sent.
Do not charge the unit outdoors.Use only the charger supplied by the
manufactures to recharge.
Do not incinerate the appliance even if
it severely damaged. The batteries can
explode in fire.
Information regarding the battery
Short circuit hazard! Do not insert
conductive objects (such as screwdriv-
ers or similar) into the charger plug. You may recharge the battery using
only the original charger provided with
the appliance or a charger approved by
KÄRCHER.
Tips for using the battery charger
In case of visual damage, replace the
charger with original manufacturer sug-
gested parts. The voltage indicated on the type plate
must correspond to the supply voltage. Only use and store the charger in dry
rooms, ambient temperature 41 -
104 °F (5 - 40 °C). Never touch the mains plug with wet
hands.
Information regarding the transport
The battery has been tested as per the
relevant directives for international
transport and can be transported/
shipped.
English 3
Start up
Description of the Appliance
When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged. If you detect any transport dam­ages please contact your retailer.
1 Charger with charging cable 2 Basic appliance 3 Charging box 4 Charge/operations display 5 Support leg 6 Handle 7 ON/OFF switch for appliance 8 Dirt water reservoir, removable 9 Lock, dirt water reservoir 10 Suction head 11 Release, suction head 12 Attachment with removable lips 13 Release, attachment 14 Attachment with removable lips, narrow
For household use only!
4 English
Assemble the appliance
Place the attachment on the suction
head with the removable lips until you hear it lock in.
Charge the battery
Insert the charger delivered with the ap-
pliance into a proper socket.
Insert the charging cable plug to the
back of the appliance.
Start working
Apply conventional window cleaner to
cleaning area. Switch the appliance on, the charge/op-
erations display will illuminate. Pull the appliance from the top to the
bottom to vacuum up the cleaning solu-
tion residue.
Note: Hard to reach areas can be vacu­umed vertically or horizontally (limited are­as).
Notes:
If the battery is low, the charging / power in­dicator starts flashing slowly and the appli­ance switches off after a certain time. If this is the case, charge the battery.
Switch the appliance off after each cleaned surface. This will increase your operatin­time per battery charge.
Note: During the charging process, the charge/operating display blinks. Once the battery is fully charged, it will be perma­nently illuminated.
Recharge the battery after finishing your work.
Interrupting the work
Set the appliance on the support leg
(parking position) and switch it off.
English 5
Emptying the reservoir during
operation
Once the max. fill level (mark) of the dirt water reservoir is reached, please empty the tank.
Turn off the appliance. Pull off the lock of the dirt water reser-
voir and empty the tank.
Close the dirt water reservoir.
Finish up your work / clean
appliance
Turn off the appliance. First, release the attachment with the
pull-off lips and remove it from the suc-
tion head, then release the suction
head and remove.
Clean the suction head and the attach-
ment with the pull-off lips under running
water (do not wash in dishwater). Caution: The basic appliance contains electrical components. Do not clean this under running water! Remove the dirt water reservoir, rotate
the lock and pull out.
6 English
Empty the reservoir and rinse with clear
water. Close the reservoir again. Let the cleaned appliance dry prior to
assembly. Charge the battery.
Storing the Appliance
Store the appliance upright in a dry
room.
Troubleshooting
Machine does not start
Check the charge/operations display: No signal or slowly blinking signal:
Charge the battery.
With a rapidly blinking signal: Inform
your dealer.
Streaks while cleaning
Clean the pull-off lip.Turn the upper pull-off lip around by
pulling it out to the side, turning it around and reinserting it.
Replace pull-off lip if required.Adjust the dosing of cleaning solution.
Water is leaking from the air louvers
Empty the dirt water reservoir (max.
3,3 oz. content).
Replacement parts
To purchase replacement parts please visit
www.buykarcher.com
Disposal of Appliances
This appliance includes a built-in battery pack; please remove this battery pack be­fore disposing of the old appliance.
Remove battery pack and dispose of
The appliance may only be opened in
order to dispose of the battery pack.
Caution when opening the appliance
avoid short circuits.
Remove the battery pack and dispose
of properly (at a collection site or the
dealer).
Warning
Do not open the battery, as there is a
risk of an electrical shock; also, irritating
or caustic vapors can escape.
Do not expose the battery to direct
sunlight, heat or fire, there is a risk of
explosion.
English 7
INSTRUCTIONS DE SERVICE Lave-vitre
CONSIGNES DE SECURITE IM-
PORTANTES . . . . . . . . . . . . . . . 9
Mise en service . . . . . . . . . . . . . . 11
Terminer le travail / nettoyer l'appareil 13
Service de dépannage . . . . . . . . 14
Elimination de l’appareil hors d'usage 14
Caractéristiques techniques
Type de protection IP X4 Volume réservoir d'eau sale 3,3 oz. Durée de service avec
charge d'accumulateur totale Puissance nominale de l'ap-
pareil Temps de charge d'un accu-
mulateur vide Tension nominale chargeur 5,5 V Intensité nominale chargeur 600 mA Poids 1,5 lbs Type d'accumulateur Li-Ion Tension nominale accumula-
teur Alimentation électrique 120-127 V
N° de pièce 1.633-132.0
Sous réserve de modifications techniques !
20 min
12 W
3h
3,6 V
60 Hz
Utilisation conforme
Utiliser cette appareil fonctionnant avec
accumulateur uniquement à des fins
privées, pour le nettoyage de surfaces
humides et lisses comme les fenêtres,
les miroirs ou le carrelage. L'appareil ne
doit pas aspirer de poussières.
L'appareil n'est pas adapté pour l'aspi-
ration de grandes quantités de liquides
sur des surfaces horizontales, par ex.
du liquide provenant d'un verre renver-
sé (max. 25 ml).
Utiliser cet appareil uniquement en liai-
son avec des nettoyants à vitre cou-
rants dans le commerce (par
d'essence, pas de détergent mous-
sant).
Seuls des accessoires et des pièces de
rechange d’origine autorisés par
Kärcher Toute utilisation sortant du cadre donné est considérée comme non conforme. Le constructeur décline toute responsabilité pour des dommages en résultant, seul l'uti­lisateur en assume le risque.
®
doivent être utilisés.
Service client
USA et Canada
Pour enregistrer ce produit, veuillez visiter :
www.karcher-register.com
Pour l'assistance technique, aller à :
www.karcher-help.com
Pour faire valoir une demande en garantie, appeler : 1-800-537-4129 Il vous faudra faxer votre reçu, ou l'envoyer par courriel, à un agent du service après­vente. Tous les autres informations sont disponibles sous :
www.karcherresidential.com
8 Français
Assistance Mexique
Appeler : 01-800-024-13-13 pour obtenir de l'aide ou visitez notre site Web :
www.karcher.com.mx
