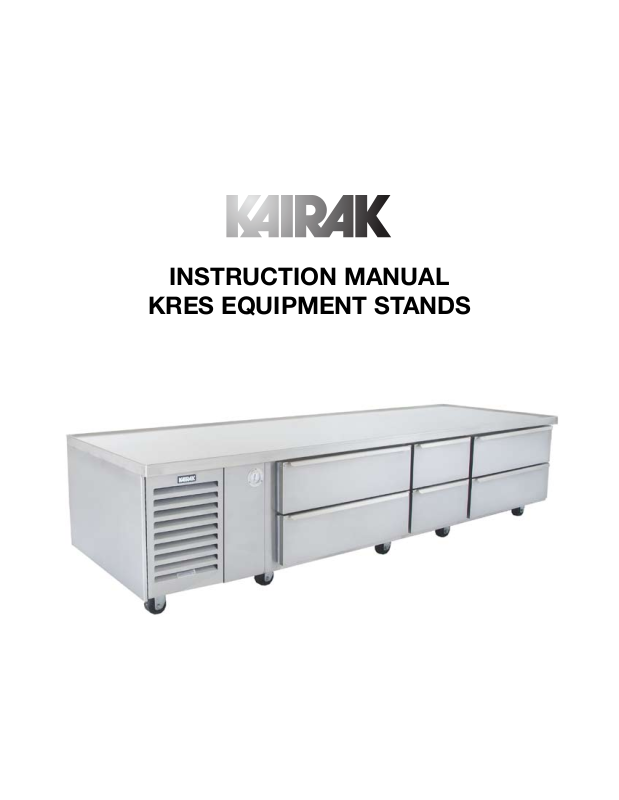

Kairak KRES Installation Manual
InstructIon Manual
KrEs EQuIPMEnt stanDs
InstructIon Manual
KrEs EQuIPMEnt stanDs
sElF-contaInED anD rEMotE
Kairak KRES model refrigerated equipment stand units are available in many lengths
from 36 to 120 inches long. These units are available as a refrigerated or freezer storage
compartment. The condensing systems are designed to be installed with minimal
clearance to walls or other equipment.
These models are available as self-contained or remote. Standard features on these
models include electronic temperature control, all stainless steel construction (galvanized
back), 4-inch casters for self-contained models and 6-inch legs for remote models,
double or single wide drawers and exterior dial thermometer. Available options include,
marine or at top, stainless steel back, 6-inch casters and drawer locks. Some options
are not available on all models.
500 S. State College Blvd. Fullerton, CA 92831 | Phone: (714) 870-8661, Fax: (714) 870-6473
www.kairak.com
© KAIRAK, a division of ITW Food Equipment Group LLC. All Rights Reserved.
KrEs EQuIPMEnt stanDs
PaGE 2
taBlE oF contEnts
1. tHE sErIal taG
2. rEcEIPt InsPEctIon
3. InstallatIon
a-Unpacking
B-Locating The Equipment
c-Installing Parts Shipped Loose: Compressor Filter
D-Installing Parts Shipped Loose: Electric Condensate Evaporator
4. rEFrIGEratIon lInEs
5. ElEctrIcal connEctIons
6. PrEstart cHEcKs
a-Defrost Time Clock Settings
B-Temperature Control Settings
7. oPEratIon
8. MaIntEnancE ProcEDurEs
a-Cleaning
B-Storage Cabinet
c-Condensing Unit
D-Evaporator Coils
PaGE 3
PaGE 4
PaGE 4
PaGE 4
PaGE 4
PaGE 5
PaGE 6
PaGE 6
PaGE 7
PaGE 8
PaGE 9
PaGE 9
PaGE 9
PaGE 11
PaGE 11
9. trouBlEsHootInG GuIDE
10. WarrantIEs
PaGE 12
PaGE 13
KrEs EQuIPMEnt stanDs
PaGE 3
1. tHE sErIal taG
The serial tag is a permanently afxed label on which is recorded vital electrical and
refrigeration data about your Kairak product, as well as the model and serial number.
This tag is located inside the storage cabinet on all standard KRES model refrigerated
equipment stand units. Prior to installation, test the electrical service to assure that it
agrees with the specications of the equipment marked on the serial tag.
rEaDInG tHE sErIal taG
• Serial = The permanent ID# of your Kairak unit
• Model = The model # of your Kairak unit
• Volts = Voltage
• Hz = Cycle
• PH = Phase
• Total Current = Maximum amp draw
• Minimum Circuit = Minimum circuit ampacity
• Lights = Light wattage
• Heaters = Heater amperage (Hot Food units only)
• Refrigerant = Refrigerant type used
• Design Pressure = High & low side operating pressures and refrigerant charge
• Agency Labels = Designates agency listings
sErIal MoDEl
Volts Hz PH
total currEnt aMPs
MInIMuM cIrcuIt aMPs
MaXIMuM oVErcurrEnt ProtEctIon aMPs
lIGHts Watts
HEatErs aMPs
rEFrIGErant tYPE oz
DEsIGn PrEssurE HIGH loW
rEFrIGErant tYPE oz
DEsIGn PrEssurE HIGH loW
FIG. 1
KrEs EQuIPMEnt stanDs
PaGE 4
2. rEcEIPt InsPEctIon
All Kairak products are factory tested for performance and are free from defects when
shipped. The utmost care has been taken in crating this product to protect against damage
in transit.
You should carefully inspect your Kairak unit for damage during delivery. If damage is
detected, you should save all the crating materials and make note on the carrier’s Bill Of
Lading describing the damage. A freight claim should be led immediately. If damage
is subsequently noted during or immediately after installation, contact the respective
carrier and le a freight claim. There is a fteen (15) day limit to le freight damage with
the carrier. Under no condition may a damaged unit be returned to Kairak without rst
obtaining written permission (return authorization). You may contact Kairak customer care
at (714) 870-8661 to request a return.
3. InstallatIon
3a - unPacKInG:
Some components are packed and shipped inside the storage cabinet to avoid damage
during shipment. Remove these items from the cabinet and remove packing materials.
See “Installing Parts Shipped Loose” for installation instructions. Cut the plastic ties
holding the shelves in place.
3B - locatInG tHE EQuIPMEnt:
All model lengths can be installed with minimal clearance at the back and sides of the
units.
3c - InstallInG Parts sHIPPED loosE:
coMPrEssor FIltEr
Remove louvered panel by lifting up and pulling out entire panel. Slide the lter into the
tracks located below the compressor compartment. Be careful not to catch the lter on
sharp edges when installing. Replace louvered panel by installing top of panel into track
and pushing in the bottom so that the locking clips t inside the opening. (See Fig. 2)
InstallInG
FIltEr
rEPlacInG
louVErED
PanEl
FIG. 2
KrEs EQuIPMEnt stanDs
PaGE 5
