USER AND INSTALLATION MANUAL
Note: The H6 models are certified for use in Canada only.
XP100U-H2/ XP100U-H4
XP83U-H6*/ XP90U-H6*/ XP100U-H6*
*CANADA CERTIFICATION ONLY
Page 2
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions for the Inverter1 that shall be followed during installation,
operation, and maintenance of the inverter.
Warning - These service instructions are for use by qualified personnel only. To reduce the risk of electric
shock, do not perform work other than that specified in the operating instructions unless you are qualified to
do so.
Caution - To reduce the risk of fire, connect only to a circuit provided with 150 (H4 models), 400 (H2 models)
and, 125 (H6 models) amperes maximum branch-circuit over current protection in accordance with the
National Electrical Code, ANSI/NFPA 70.
NOTE: THE H6 models are certified for use in Canada only.
Warnings
A warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice, which,
if not correctly performed, could result in damage to or destruction of part or all of the Inverter equipment
and/or other equipment connected to the Inverter equipment or personal injury.
DANGER!
“DANGER” indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING!
"WARNING" indicates a hazardous situation which, if not avoided, could result in death or serious injury.
1
Hereinafter referred to as all five Models (XP100U-H2, XP100U-H4, XP100U-H6, XP83U-H6, and XP90U-H6), unless specific model names are
indicated.
Page 3
CAUTION!
"CAUTION" indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
BURN HAZARD!
Do not touch. The Inverter contains components that become hot during normal operation.
Other Symbols
INFORMATION!
This symbol accompanies notes that you should know and use to ensure optimal operation of the system.
Wiring Requirements
All wiring methods and materials shall be in accordance with the National Electrical Code ANSI/NFPA 70, as
well as all state and local code requirements. Cable sizes in the chart below are the minimum. Because the
field connections are bus bars for accepting crimp lugs, larger cables can be used if needed.
Grid Connection
XP100U-H4/ XP83U-H6/ HP90U-H6/ XP100U-H6
Number of GRID cables
Cable Size
Torque
A, B, C, N
4
1AWG
All 194℉ (90℃) copper wire, 40 lbs-ft
tightening torque
PE 1 4AWG
194℉ (90℃) copper wire, 40 lbs-ft
tightening torque
Page 4
XP100U-H2
Number of GRID cables
Cable Size
Torque
A, B, C, N
4
300kcmil
All 194℉ (90℃) copper wire, 40 lbs-ft
tightening torque
PE 1 4AWG
194℉ (90℃) copper wire, 40 lbs-ft
tightening torque

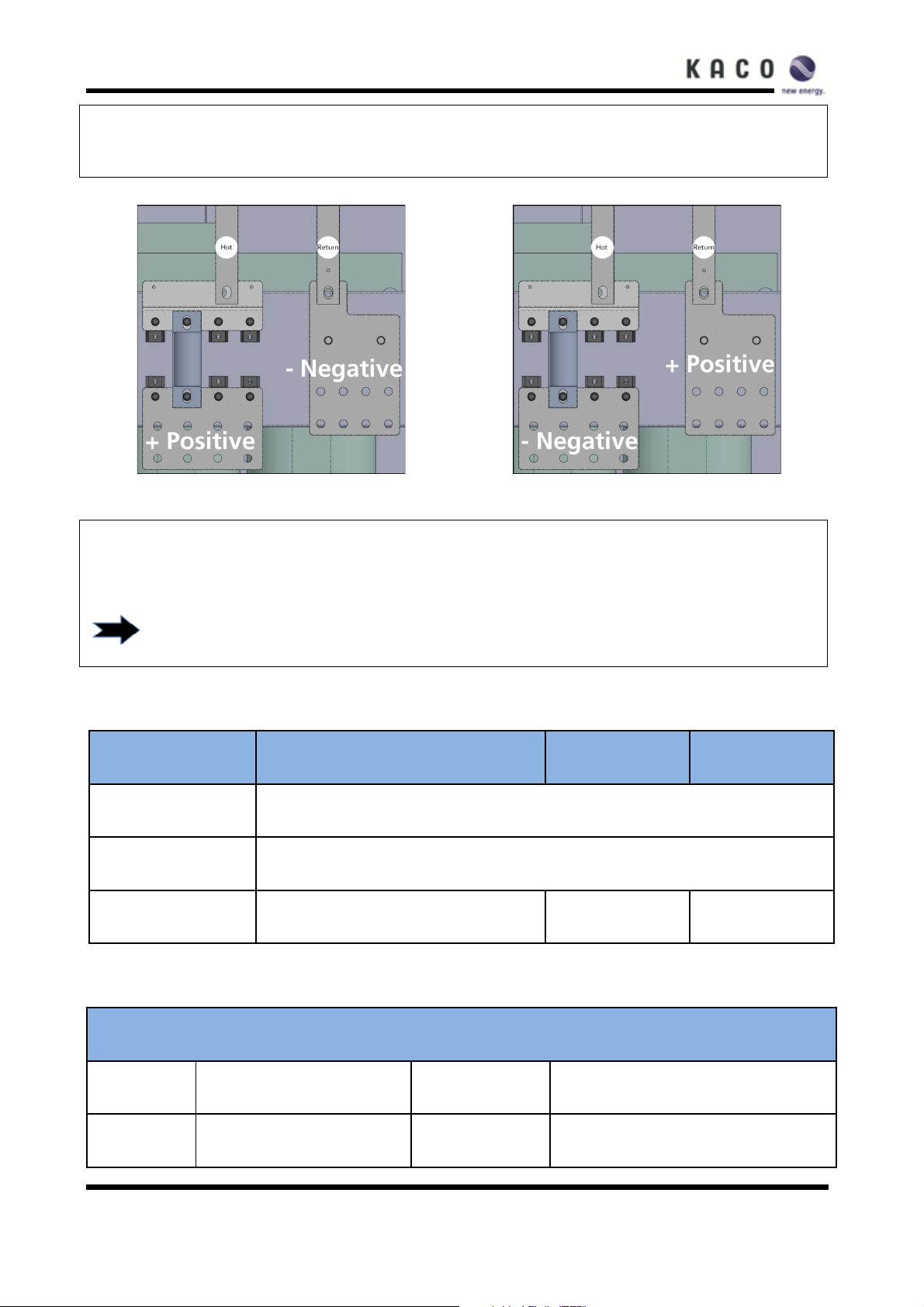

PV Connection
XP100U-H2/ XP100U-H4/ XP83U-H6/ XP90U-H6/ XP100U-H6
Number of PV strings
Cable Size
Torque
Hot,
Return
1
600kcmil
All 194℉ (90℃) copper wire, 40 lbs-ft
tightening torque
2
300kcmil
All 194℉ (90℃) copper wire, 40 lbs-ft
tightening torque
4
1/0AWG
All 194℉ (90℃) copper wire, 40 lbs-ft
tightening torque
PE 1 2AWG
194℉ (90℃) copper wire, 40 lbs-ft
tightening torque
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ........................................................................................... 2
1. About This Manual ............................................................................................................... 6
2. Safety ................................................................................................................................... 7
3. The blueplanet Inverter Overview ...................................................................................... 13
4. Unpacking .......................................................................................................................... 17
5. Installation & Transportation .............................................................................................. 18
6. Connecting the Conduit ..................................................................................................... 23
7. Electrical Connection ......................................................................................................... 26
8. Connecting User Interfaces ............................................................................................... 34
9. Commissioning .................................................................................................................. 45
10. Opening the Inverter .......................................................................................................... 47
11. Operating ........................................................................................................................... 49
12. Parameters ........................................................................................................................ 53
13. Faults & Warnings .............................................................................................................. 56
14. Maintenance ...................................................................................................................... 60
15. Error Codes ........................................................................................................................ 65
16. Specifications ..................................................................................................................... 69
17. Configuration ...................................................................................................................... 74
18. Certifications ...................................................................................................................... 75
Page 6
1. ABOUT THIS MANUAL
This manual provides information about the Inverter. This manual contains instructions to install, operate,
maintain and troubleshoot the KACO Inverter. The user must keep this manual available at all times.
This manual contains 5 sections and 3 appendixes.
Safety is important. The Inverter operates with high voltages. Improper use or control of the inverter can
cause an accident and damage to the inverter or the user. The user must understand directions thoroughly in
each section in order to properly install, operate, and maintain the Inverter.
1. The introduction describes the features of Inverter and details the components in the Inverter.
2. The installation & operation section details how to install and operate the Inverter and how to use the
Graphic User Interface (GUI).
3. The fault & warning section contains a list of error codes of the Inverter and their descriptions.
4. The maintenance section contains directions on how to clean and replace fans, and periodically check the
parts of the Inverter.
5. The parameters section contains parameter settings for the Inverter.
A. The specification section details the Inverter specifications.
B. The user Interface section will provide information about the digital interface, analog interface, Ethernet
and RS485 serial connection of the Inverter.
C. The configuration section shows the configuration of the Inverter.
Contact Information
KACO new energy Inc.
USA
Tel: +1 (415) 931-2046
Fax: +1 (415) 931-1688
E-mail: kacoinfo@kaco-newenergy.com
Page 7
2. SAFETY
Appropriate Usage
Any other application of the Inverter or installation of components and modifications which are not explicitly
allowed endanger the safety and void the warranty as well as the operation permit.

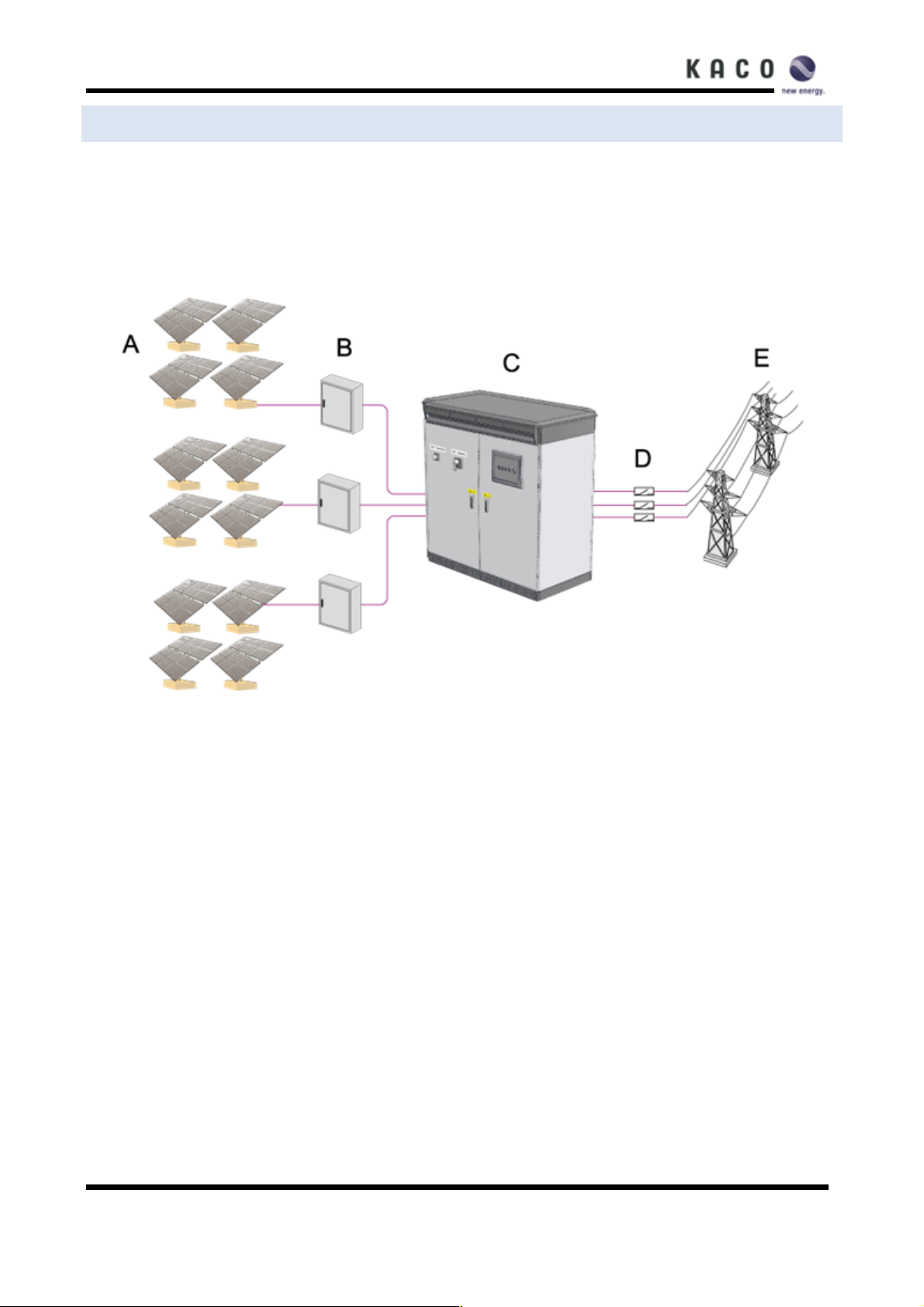

A: PV Modules
B: String Combiner Box
C: Inverter
D: AC overcurrent protection
E: Grid
Basic Solar Power System with the Inverter
Page 8
Safety Instructions
DANGER!
High voltages are present in the live components of the low voltage grid.
Death may result from burns and electric shock.
Do not touch the live components of the Inverter or low-voltage grid.
Pay close attention to all safety precaution measures regarding the low voltage grid.
Page 9
DANGER!
During operation, high voltages are present in the Inverter.
Death may result from burns and electric shock.
Before commencing work on the Inverter disconnect completely and ensure that the device will not be
accidentally energized.
Ensure that no voltage is present.
Ground and short-circuit.
Cover any nearby live parts.
DANGER!
Normally grounded conductors may be ungrounded and energized when a ground-fault is indicated.
Risk of electric shock.
Test before touching.
Contact customer support for information at KACO new energy, Inc. +1 (415) 931-2046.
WARNING!
Failure to follow the manual, the operating instructions and the safety precautions may lead to severe injury
from electrocution.
All work on the Inverter may only be done as described in this manual and must be performed by qualified
personnel.
Pay attention to all safety instructions.
Follow all operating instructions.
If problems occur when performing the work described here, contact the customer support department at
KACO new energy Inc. +1 (415) 931-2046.
Page 10
WARNING!
Operating the Inverter if it’s damaged may cause severe injury from electrocution.
The Inverter may only be used when it is functioning correctly.
Regularly check the XP Inverter for visible damage and operate only if there is no visible damage.
Ensure that all safety features are accessible at any time and that their correct operation is tested regularly.
ATTENTION!
The printed circuit board (PCB) components in the Inverter can be damaged by electrostatic discharge!
When working on the Inverter and when handling the PCB components observe all ESD safety
regulations. Discharge electrostatic charge by touching the grounded Inverter enclosure. Only
then is it safe to touch any electronic components.
Technical rules
The installation must be in compliance with the local regulations and technical rules, in particular with regard
to electrical connections. (National Electric Code NEC)
The installer is responsible for knowing and understanding local standards and regulations as well as utility
interconnection requirements.
Page 11
Regulations concerning the prevention of accidents
During the operation of the inverter, certain parts of the device carry high voltages, which may lead to severe
personal injury or even death. The following precautions should be followed to minimize the risk of lethal
hazards or personal injuries.
The installation of the device must be in compliance with the relevant safety regulations or other applicable
national or local provisions. Proper ground, conductor dimensioning and an appropriate short-circuit
protection must be provided to ensure operational safety.
All instrument covers must remain closed during operation.
Prior to performing some visual checks and maintenance work the inverter must be disconnected from all
power sources and protected against inadvertent activation. If measurements have to be conducted while
the inverter is connected to power, NEVER touch live terminals. Remove all jewelry from your wrists and
fingers. Ensure that the test equipment is in a proper and safe operating condition.
When working on the inverter while energized, make sure to stand on an insulated surface and ensure that
there is no connection to ground.
Follow the instructions exactly as given in these operating and installation instructions and especially
observe all information concerning possible hazards, warnings and precautions.
This manual may not cover all possible scenarios. Should a specific problem occur that is not sufficiently
explained, please contact your dealer or KACO new energy.
Modifications/Changes
CAUTION!
Hazard of damage due to unauthorized modifications/manipulation! By no means manipulate the inverter or
modify or change the inverter or any other parts of the installation
Performing any modifications or changes on the inverter is generally prohibited. Performing any changes or
modifications to the installation of the inverter is only permitted if in compliance with national standards and
performed by qualified personnel.
Page 12
Inverter shutdown
WARNING!
Hazardous live voltages can be present in the inverter even if the electrical connections are switched off or
disconnected. Please wait for 1 minute before accessing the inverter
The inverter must be switched off for adjusting, maintenance and repair work. Please proceed as follows:
1. Turn the inverter off by pushing the off button in the GUI.

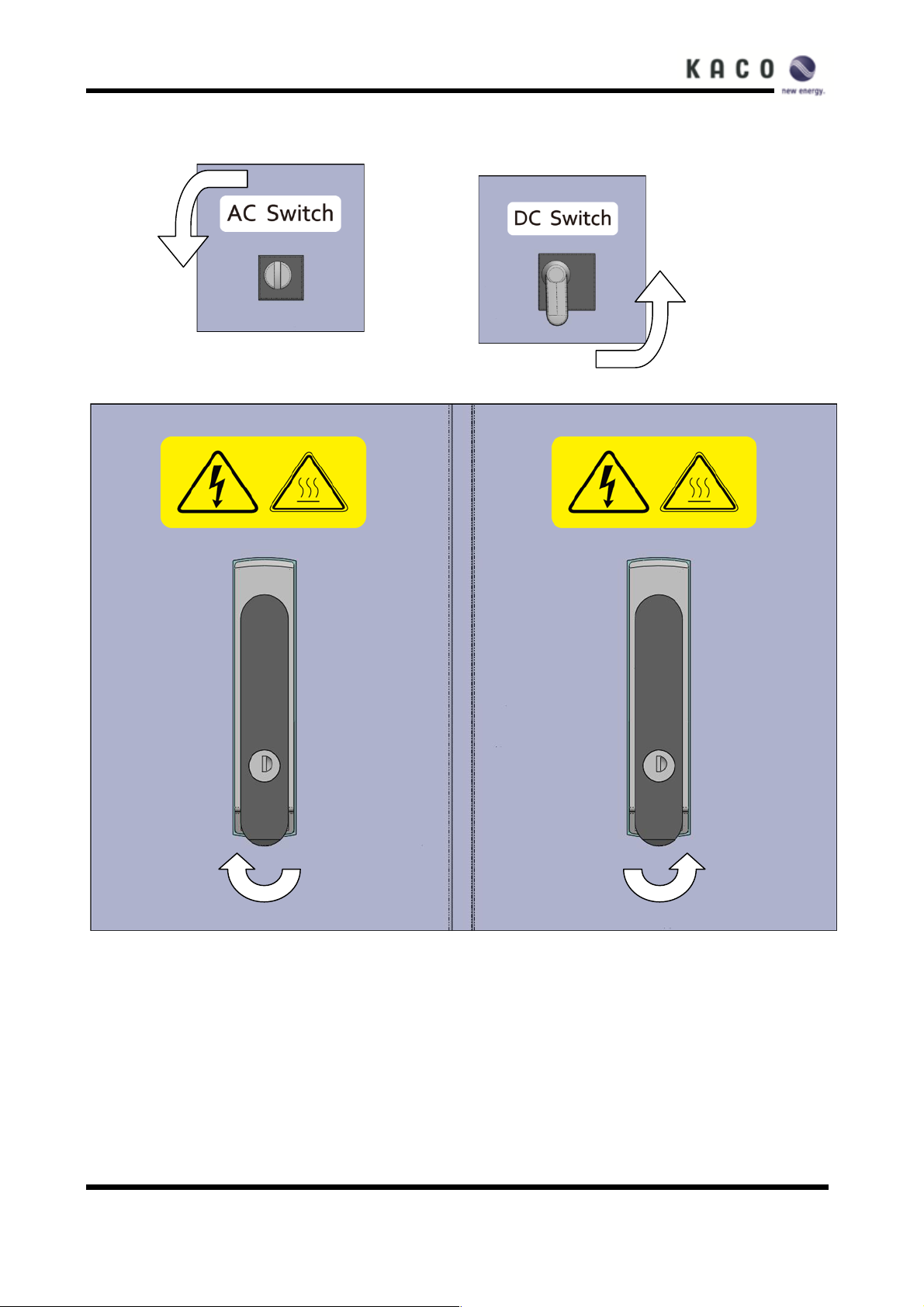

2. Turn the AC and DC switches to the OFF position
a. (The off position is green and the on position is color coded red).
3. Disconnect the inverter from the PV array.
4. Disconnect the inverter from the grid.
5. Check that the inverter is disconnected from all voltage sources.
6. If possible Install lockout devices on the utility connection circuit breaker, AC and DC disconnect
switches.
7. Wait 1 minute for all capacitors inside inverter to discharge.
8. When reactivating the XP inverter expect a five minute commission window.
Page 13
3. THE BLUEPLANET INVERTER OVERVIEW
Full digital control using digital signal processing (DSP)
The KACO XP uses two DSPs to control the inverter and an ARM processor for user and external interface.
These full digital control schemes offer enhanced reliability, accuracy, efficiency, flexibility and convenience.
High reliability
The KACO Inverter features built in reliability with redundant power supplies, highly efficient cooling of critical
components and intelligent cooling fans. The fans are monitored and controlled according to load and
environmental temperature conditions. All components used in the KACO XP are designed for industrial use.
The IGBT stack was designed based on the IEEE WG PEBB TF2 standards. These standards mandate the
use of laminated DC bus-bars that provide for very low stray inductance and gate drive interfacing with
differential signaling. This feature enhances reliability and ease of maintenance. Full digital control
technology of the XP also enhances reliability by reducing component count compared to traditional analog
electronics.
Powerful human interface and networking
The Inverter’ features a powerful and friendly Graphic User Interface (GUI). The “all-in-one” design for the
GUI provides for more convenient operation and monitoring. The GUI is a big, easy to use display with color
TFT LCD (480 x 272 dots) and provides detailed operating information in different languages. RS232,

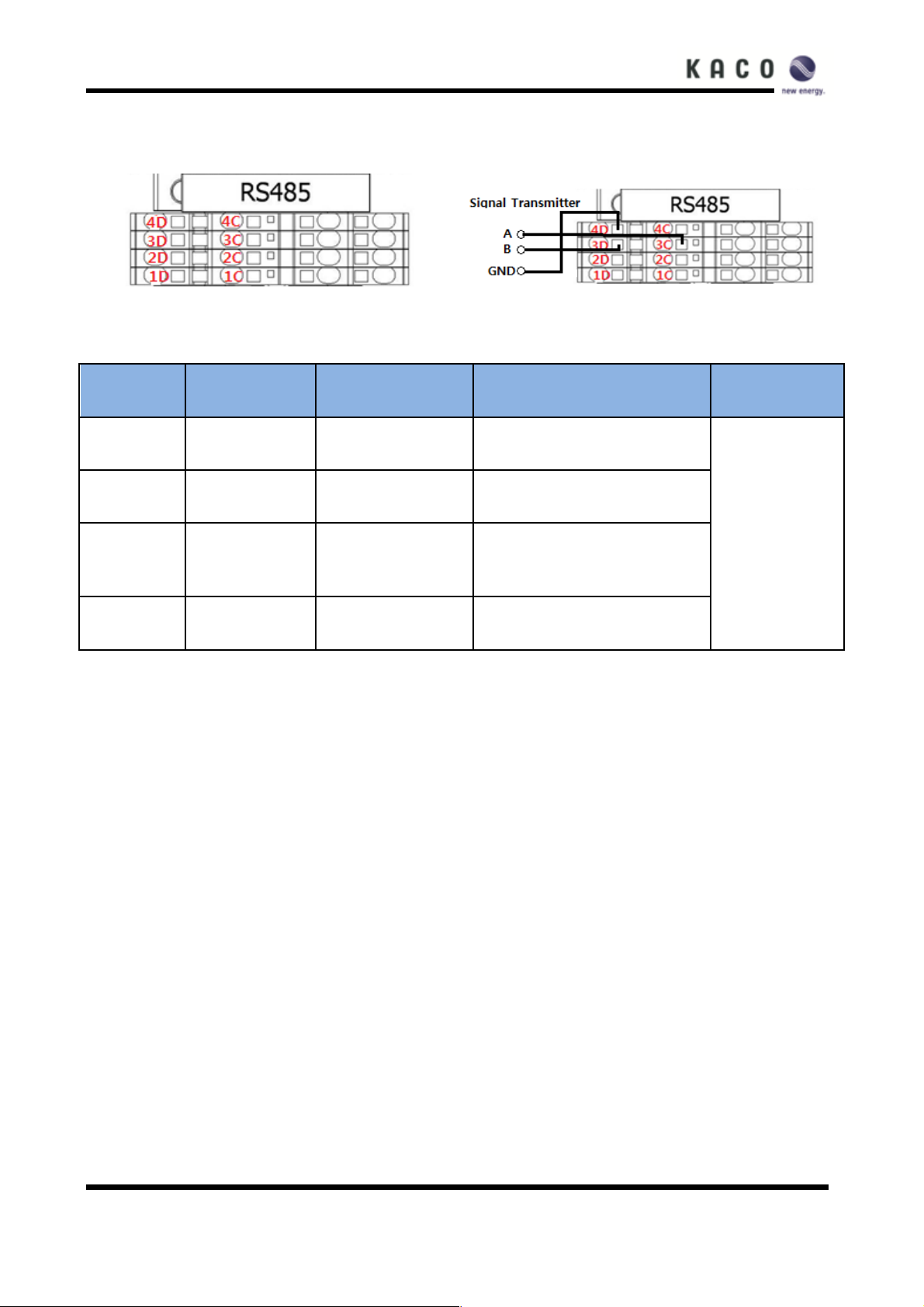

RS485, and Ethernet interfaces for networking are standard in the Inverter.
System flexibility
The Inverter provides 4 analog inputs, an S0 input, 1 programmable dry contact output A type (Normally
open) and B type (Normally closed), and 1 digital input. The analog inputs are preconfigured for the user and
allow easy connection of temperature sensors and a reference cell. The S0 input is preconfigured for smart
metering.
.
Page 14
Shape & Components

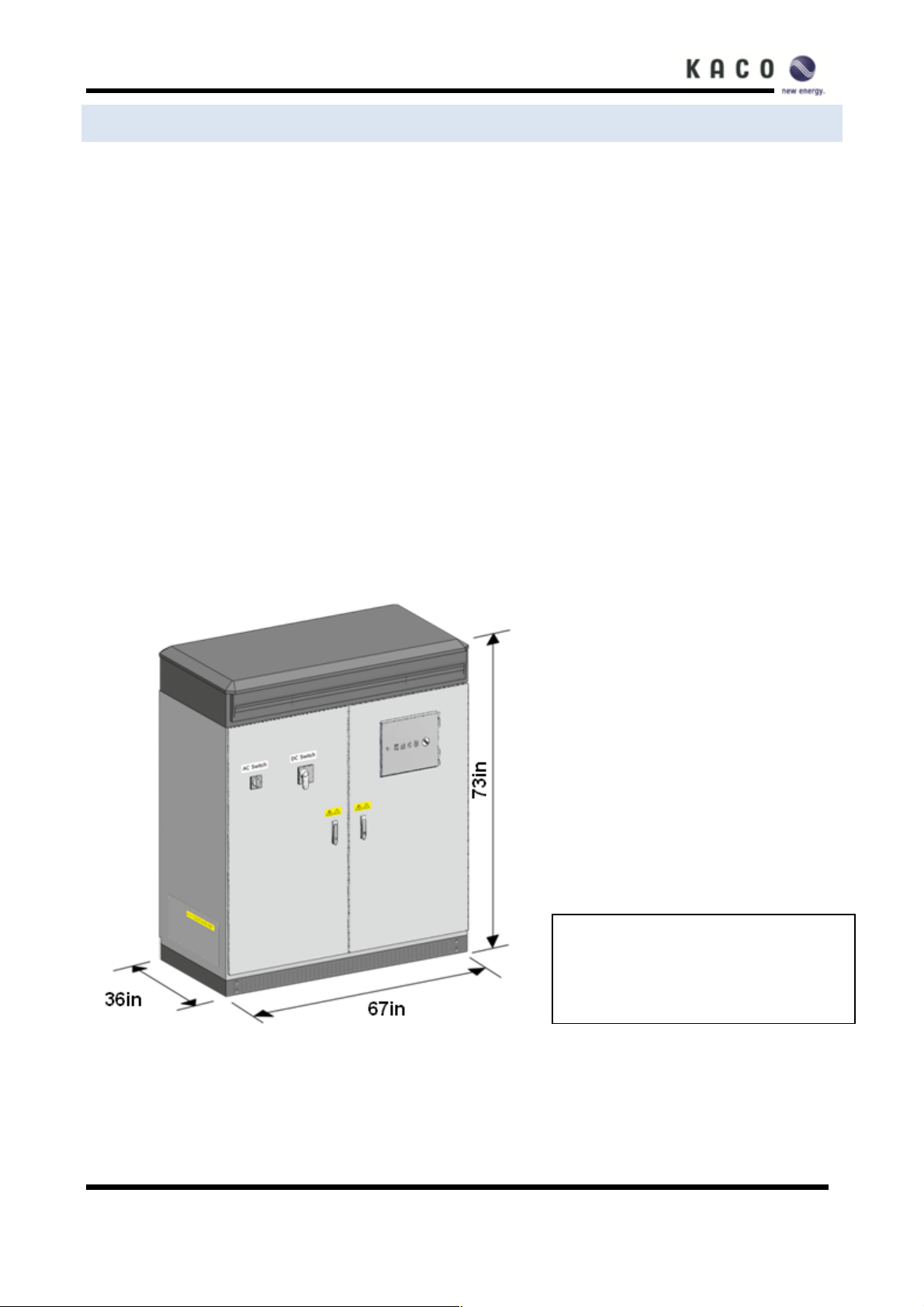

External shape
Front
Page 15
Left, Right and Back
Page 16

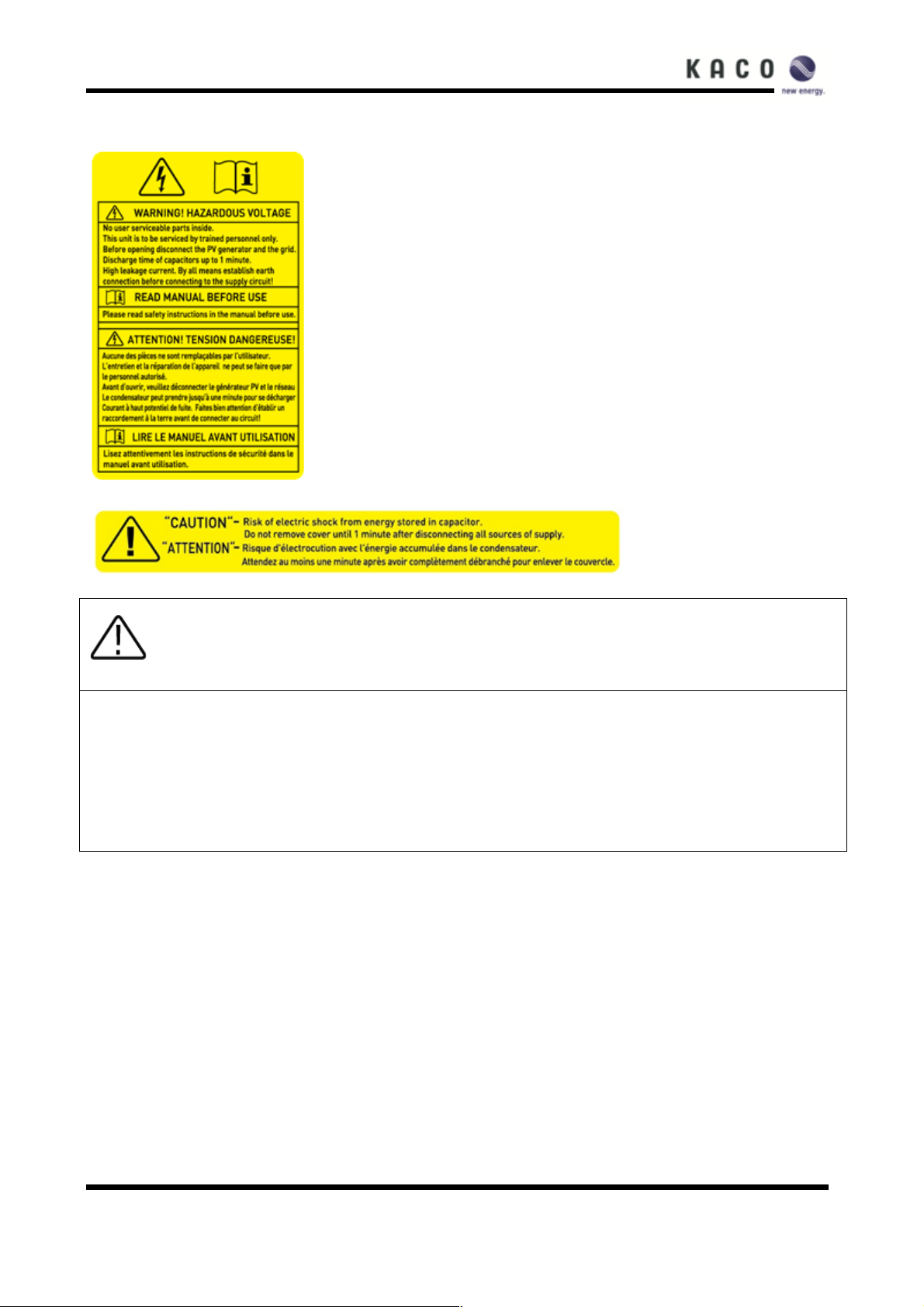

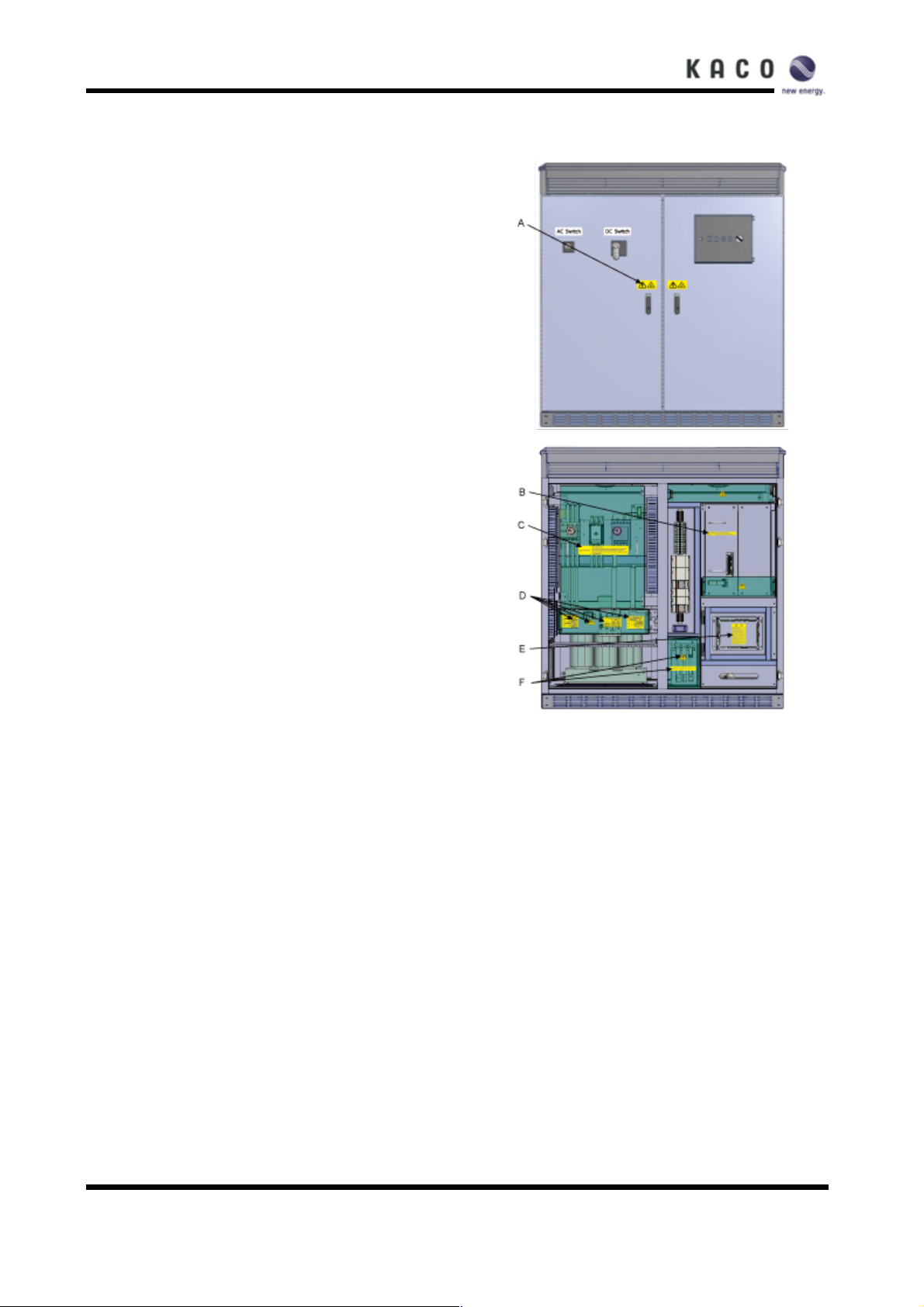

Location of the Safety Notices
The figure to the right shows the location of the
safety notice on the Inverter.
A. Front door handle.
Caution, risk of electric shock, hot surface
B. PEBB cover
Caution, risk of electric shock
C. Switch panel cover
Caution, risk of electric shock
D. Fuse panel cover
Caution, risk of electric shock
E. Control system panel
Caution, risk of electric shock
Refer to the operating instructions
F. Filter capacitor cover
Caution, risk of electric shock
The Inverter identification
You can identify the Inverter using the type plate. The inverter type identification plate can be found inside on
the doors of the cabinet.
Firmware
The Inverter’ firmware is shown on the display of the GUI. The Inverter’ operator manual describes how to
obtain the firmware version.
Page 17
4. UNPACKING
This section describes unpacking and inspection of the inverter.
Unpacking and inspection
All KACO inverters are thoroughly inspected before packing. Although they are shipped in sturdy packaging,
damage can still occur during shipping and delivery. It is important to carefully inspect the shipping container
and contents prior to installation. When you detect any external damage before or after unpacking, report the
damage immediately to your KACO dealer and the shipping company that delivered the unit. If it is
necessary to return the Inverter, please use the original packing material.
If you need assistance with damaged inverter, contact your dealer or KACO new energy Inc.

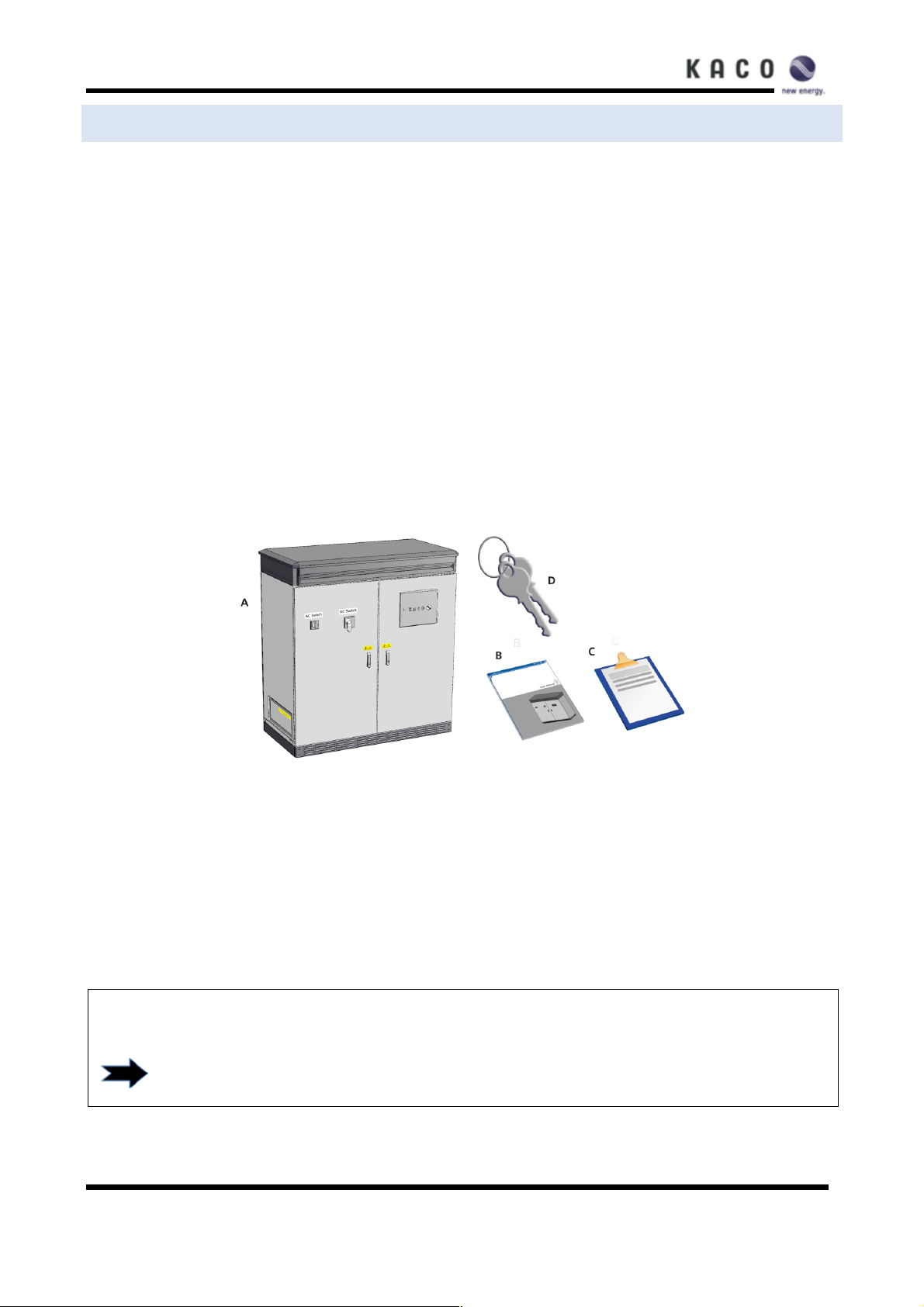

Contents
A: Inverter
B: User and Installation Manual
C: Test Report
D: Keys for GUI cover and front door
Storage
ATTENTION!
The inverter should be properly stored to ensure optimal performance.
The inverter should be closed when stored to protect from dust and moisture.
If the storage period is longer, the inverter should be kept in a dry place.
Page 18
5. INSTALLATION & TRANSPORTATION
Selecting an appropriate place of installation
If possible the inverter should be installed in an area that is as dry as possible. This is to ensure maximum
product longevity. Additionally, if the ambient temperature at the installation site is above or below the
specifications designated by the manufacturer, the inverter should then be mounted indoors where the
ambient temperature can be controlled within the specifications. Again, this is in order to ensure maximum
product longevity.
The following rules should be observed while choosing the site for the installation of your inverter:
1. Ensure good access for assembly or service work.
2. Please ensure free air circulation at the sides of the housing.
3. The place of installation must ensure proper heat dissipation. If necessary, provide forced ventilation of
the room to ensure that heat is dissipated adequately.
4. Ensure that the supporting area has an adequate load-bearing capacity.
Weights and Dimensions
The installation site must be easily accessible for installation or service work and should preferably not
expose the inverter to direct sunlight or enclose the inverter in an unventilated space.
XP100U-H2: Weight: 1400Kg
XP100U-H4: Weight: 1400Kg
XP83/90/100U-H6: Weight: 1100kg
Page 19
Minimum Workspace Requirements
The minimum clearance space shown below should be maintained for ventilation and access.
* If you use a left side conduit plate, the minimum clearance is 4 inches on the left side for installation but
actual clearance will be dictated by the requirements of conduit fitting installation and maintenance
accessibility.
Installation Site Requirements
The foundation must guarantee a solid and safe surface to bear the weight of the inverter.
*
Page 20
Preparation of the mounting surface
Prepare the mounting surface structure appropriately based on the chosen site
Secure the Inverter to the chosen site with the pre-installed L-brackets.
Position of the mounting holes (bottom view)
Page 21

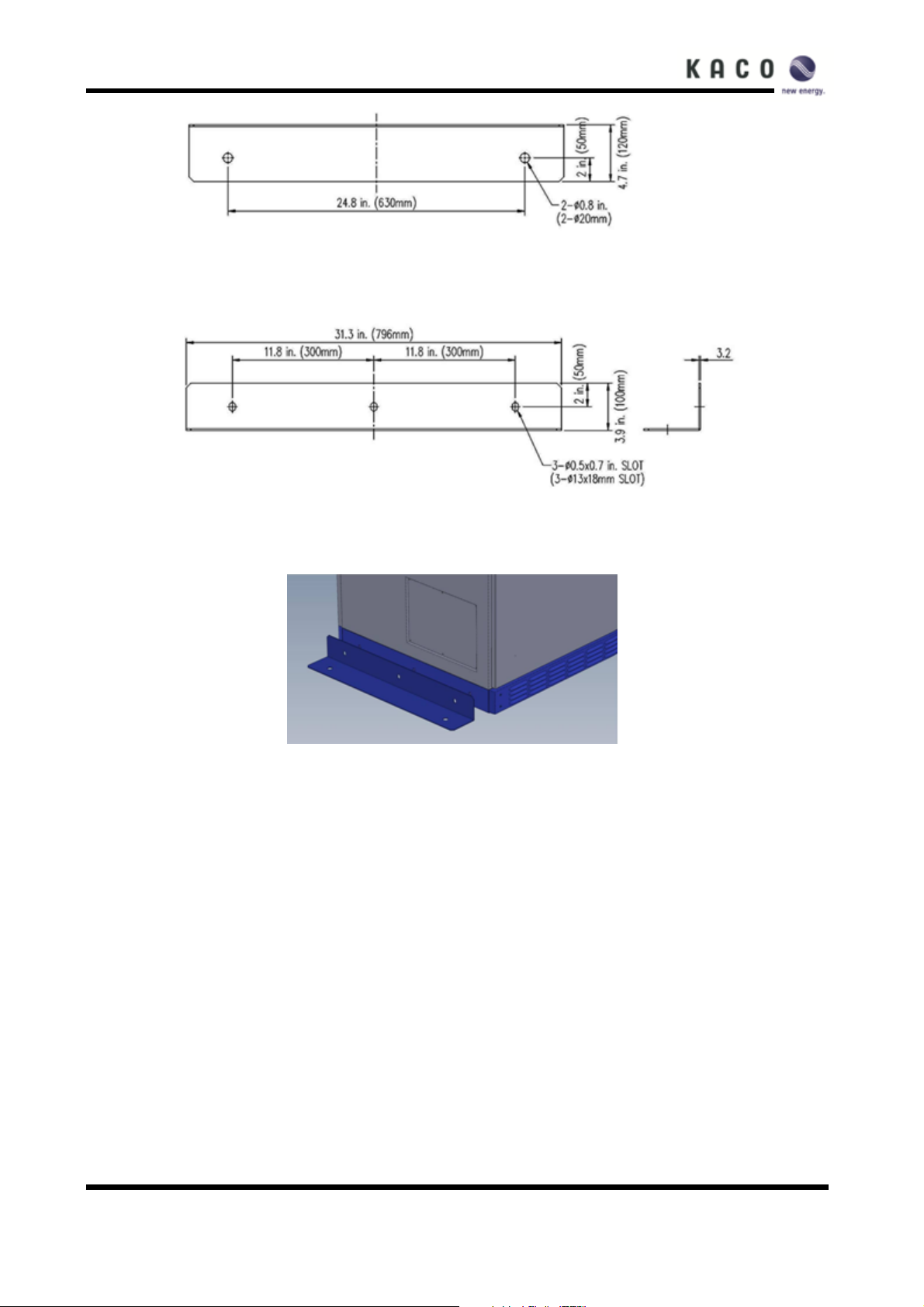

Foundation L-bracket surface mount
Mounting L-bracket to the inverter
L-bracket for mounting
Transport Instructions
Please note the weight of the inverter and follow the instructions below.
The mode of transportation must support the weight the inverter.
During transport be certain to center the weight of the inverter as the center is closer to the left side.
Do NOT tilt the inverter while transporting.
The pictures below are examples for transportation.
Page 22
Fork lift from front or rear
Crane fork from front or rear
Eye nuts with crane rack
Slope angle = 0° in any direction
Page 23
6. CONNECTING THE CONDUIT
In this section, see how to insert the cables in the inverter and where to punch the holes for the
conduit fittings.
NOTICE!
When installing, please be cautious that water is not able to enter into the inside of the cabinet.
Only recognized NEC compliant watertight conduit and fittings must be used for outdoor
applications. Moisture can affect the performance of the inverter through improper conduit or
hubs.
How to install the cables
There are two ways of connecting cables shown in the following figures.
The field wiring area is designed for DC cable, AC cable and data cables.
The conduit entry points can be used for any cables. Example: Left side for DC conduit and bottom for AC
conduit.

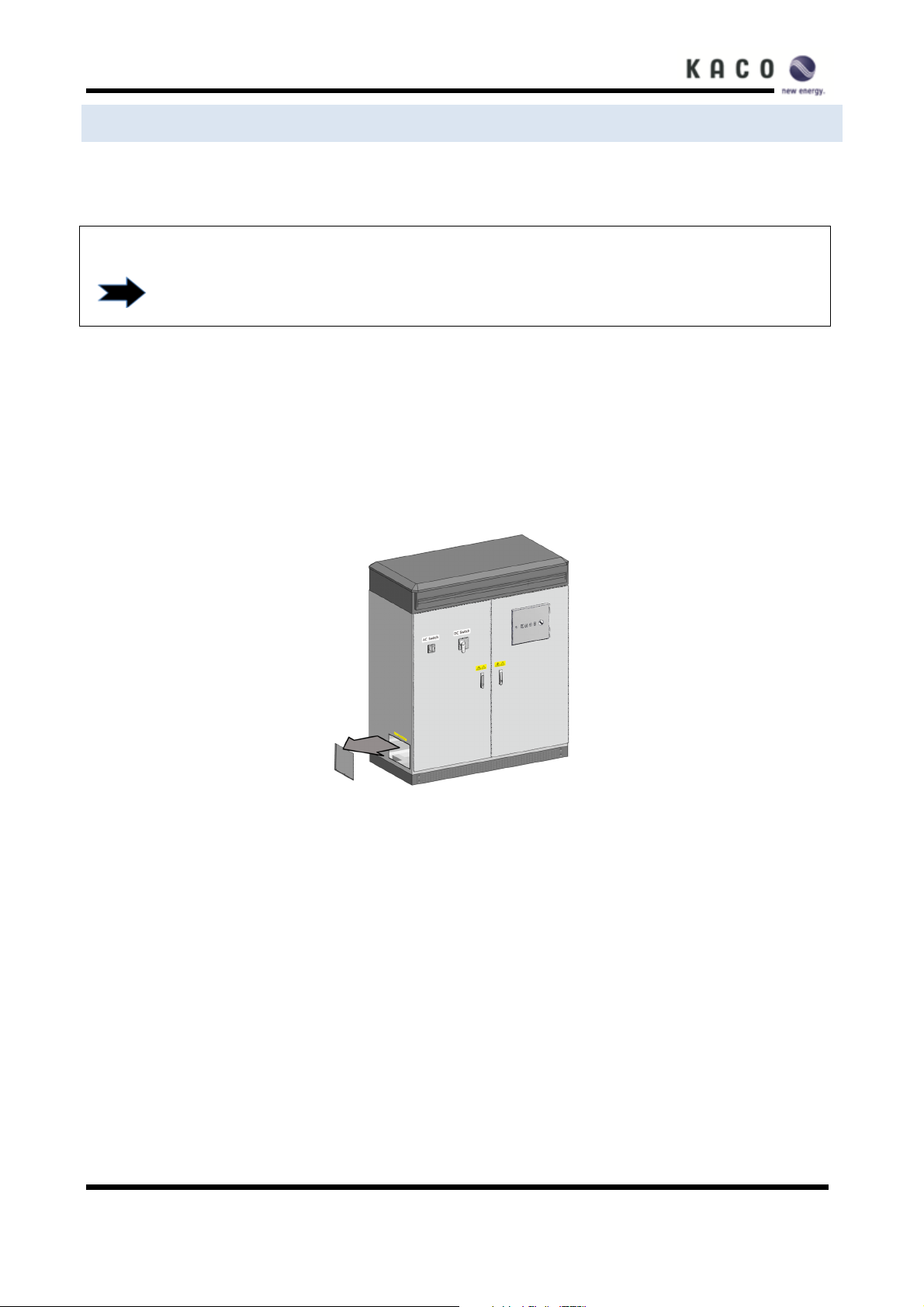

Using the left side panel for cables
1. Remove the bolts which secure the plate to the inverter.
2. Remove the plate.
3. Mark all the holes for the conduit. You need conduit for the AC, DC and data cables.
4. Punch holes for the conduit.
5. Attach the plate to the Inverter.
6. Attach the bolts and tighten.
7. Attach the conduit with the appropriate conduit fittings.
a. Ensure that proper conduit duct sealant is used to prevent rodent and insect infestation.
b. The bottom plate must be secured in place during operation. If conduit is used, the
proper conduit fittings must be used.
Page 24
Left panel dimensions for conduit
Page 25
Using the bottom panel for conduit
Bottom access panel for conduit
Page 26
7. ELECTRICAL CONNECTION
The electrical connections should only be made after the inverter has been installed in its final location. To
complete the electrical connections, the AC and DC terminal connections must not be connected to any
source of voltage. This will protect the installer from harm and ensure that the inverter is not accidentally
activated.
CAUTION!
After the inverter has been installed in the fixed location, the electrical connection can be established
Please be sure that both AC and DC side are disconnected from all voltage sources.
Please be sure that the switches are locked out and switching-on unintentionally is not possible.
NOTICE!
The electronic printed circuit board components in the inverter can be damaged by static electricity.
When handling the printed circuit boards, please follow ESD safety regulations.
To prevent the damage from static electricity, touch the enclosure of the grounded inverter.
Please go to the next step when you are sure it is safe.
Page 27

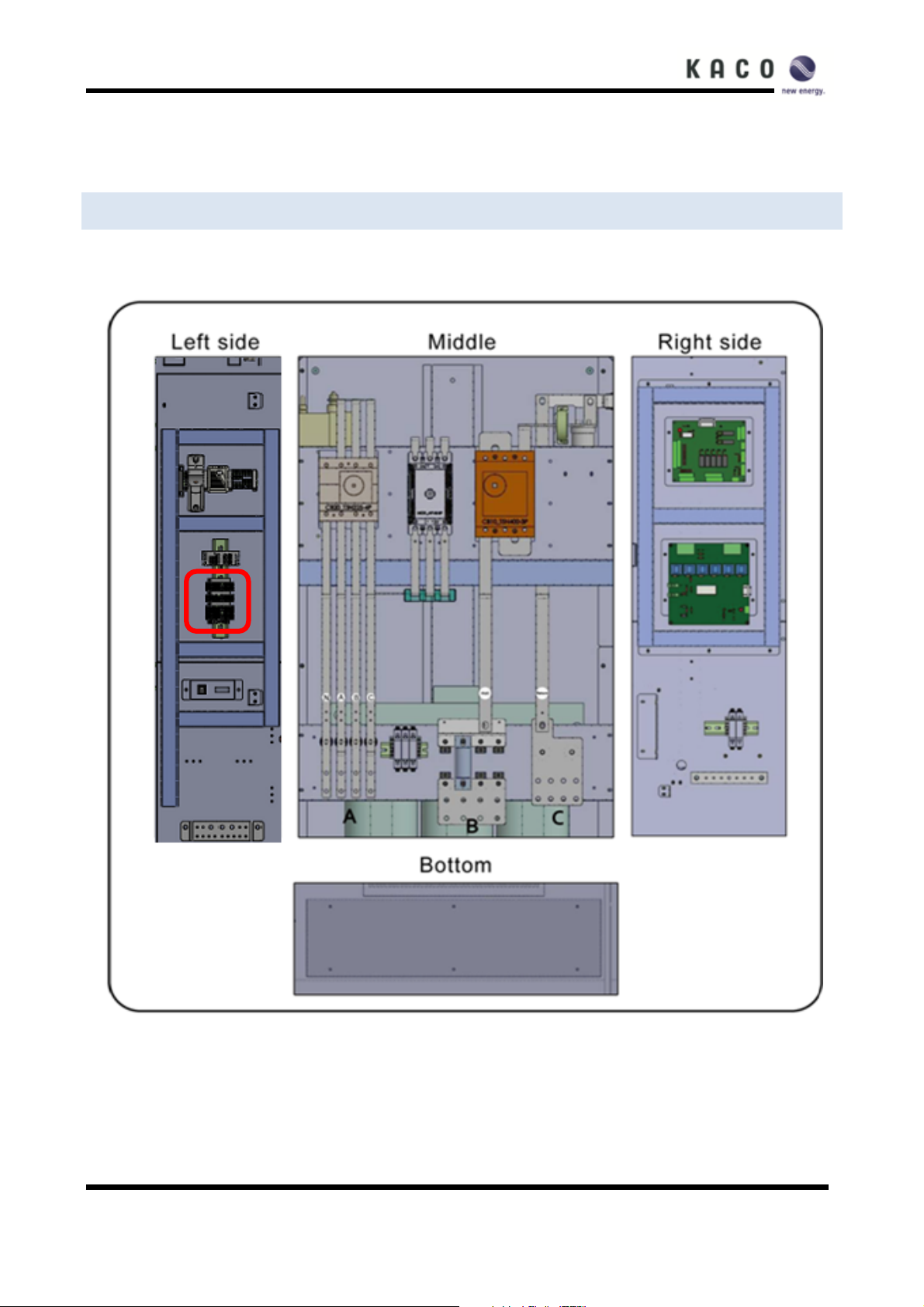

Connection Area
A: AC Connection
B: DC Hot Connection
C: DC Return Connection
D: Ground Connection
D
D
Page 28
PE Connection
PE (Protective Earth) or Ground rails are located on both sides of the field wiring enclosure. Please ensure
the Ground rails are connected with cables. Any of these connection points can be used for the Grounding
Electrode Conductor (GEC) and bonding conductors.
CAUTION!
Before connection, please check that all external cabling is connected properly and not able to be
energized accidentally.
Page 29

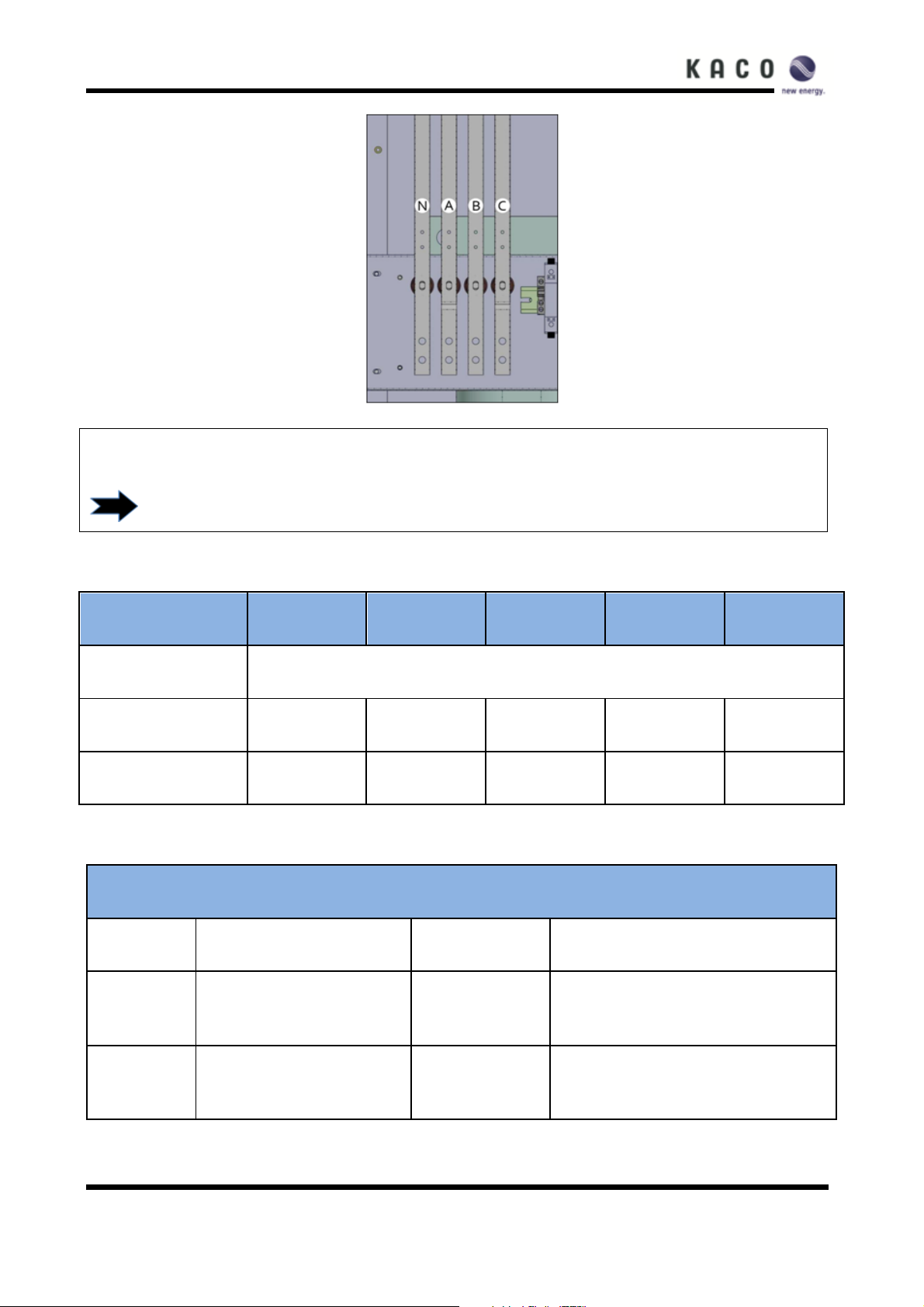

Grid Connection
The inverter is connected to the grid through AC bus bars which are located on the left bottom of the field
wiring area of the inverter which are labeled A, B, C, and N. The minimum cable size is 1 AWG for both H4
and H6, and 300kcmil for the H2 model. The torque value for AC terminal connections is 40 lb-ft. The
maximum AC overcurrent protection is 125A for the H6 model, 150A for the H4 model, and 400A for the H2
model.
NOTE: The AC service must be a three phase wye connection and the neutral conductor must be used.
DANGER!
Electric shock can result from handling the components with high-voltage present.
Please be sure that all voltage sources are disconnected and cannot be accidentally energized.
CAUTION!
The inverter AC connections must have the proper phase rotation in order to connect to the grid and
operate. Proper rotation is A-B-C. Please check with a phase rotation meter.
If the phase rotation is incorrect an error will be displayed on the user interface and the inverter will not
connect to the grid, if this happens reverse any two phases to correct the rotation.
Page 30
IMPORTANT!
Please check that the cables are connected and torqued properly.
Use 90℃ copper conductors only.
XP100U-H2
XP100U-H4
XP83U-H6
XP90U-H6
XP100U-H6
AC connection cable
A, B, C, N and PE
Nominal AC voltage
208V
480V
600V
600V
600V
Maximum AC current
278A
120A
80A
87A
96A
XP100U-H4/ XP83U-H6/ XP90U-H6/ XP100U-H6
Number of GRID cables
Cable Size
Torque
A, B, C, N
4
1AWG
All 194℉(90℃) copper wire, 40 lb-ft
tightening torque
PE 1 4AWG
194℉(90℃) copper wire, 40 lb-ft
tightening torque
Page 31
XP100U-H2
Number of GRID cables
Cable Size
Torque
A, B, C, N
4
300kcmil
All 194℉(90℃) copper wire, 40 lb-ft
tightening torque
PE 1 4AWG
194℉(90℃) copper wire, 40 lb-℉t
tightening torque
PV Connection
PV Array is connected to the inverter through the DC input bus bars which are located on the bottom right of
the field wiring area of the inverter.
CAUTION!
Risk of damage!
Make sure NOT to reverse polarity of the DC input.
DANGER!
Ensure protection against hazardous live voltages during the assembly of the PV installation.
Both positive and negative leads must be correctly isolated.
CAUTION!
Page 32
Each cable is related to certain polarity.
During cable connection, make sure that the cable is connected to the proper location
DC Port for Negative ground system
DC Port for Positive ground system
IMPORTANT!
Please check if all cables are securely fastened and torqued.
Use copper conductors only.
Check that all conduit fittings are installed correctly.
Check that all fittings are sealed correctly if installed outdoors.
XP100U-H2/ XP100U-H4/ XP100U-H6
XP83U-H6
XP90U-H6
Number of strings
1, 2, 3 or 4 (1 fuse is standard and 2, 3, or 4 fuses are optional)
DC input voltage
300V ~ 600V
Maximum DC current
350A
290A
317A
XP100U-H2/ XP100U-H4/ XP83U-H6/ XP90U-H6/ XP100U-H6
Number of PV strings
Cable Size
Torque
Hot, Return
1
600kcmil
All 194℉ (90℃) copper wire, 40 lb-ft
Page 33
tightening torque
2
300kcmil
All 194℉ (90℃) copper wire, 40 lb-ft
tightening torque
4
1/0AWG
All 194℉ (90℃) copper wire, 40 lb-ft
tightening torque
PE 1 2AWG
194℉ (90℃) copper wire, 40 lb-ft
tightening torque
Connection Diagram
Model Name
Ground System
PV(+) Terminal
PV(-) Terminal
DC Ground Terminal
XP100U-H2
XP100U-H4
XP83U-H6
XP90U-H6
XP100U-H6
Negative Ground
Hot
Return
PV GND
Positive Ground
Return
Hot
PV GND
DC Terminal Polarity
Page 34

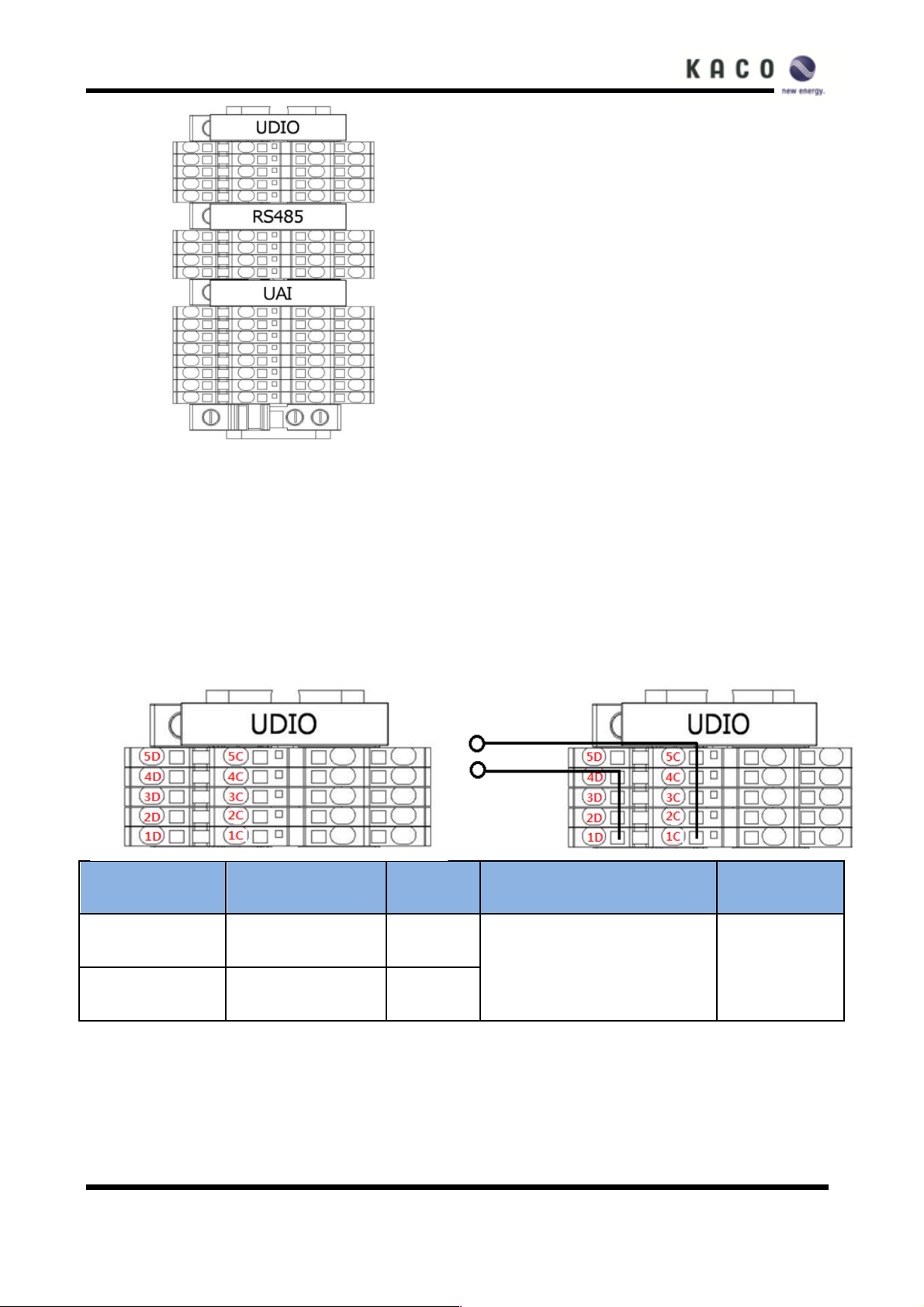

8. CONNECTING USER INTERFACES
User Interface of the Inverter
Page 35
UDIO – User digital input output terminal
blocks

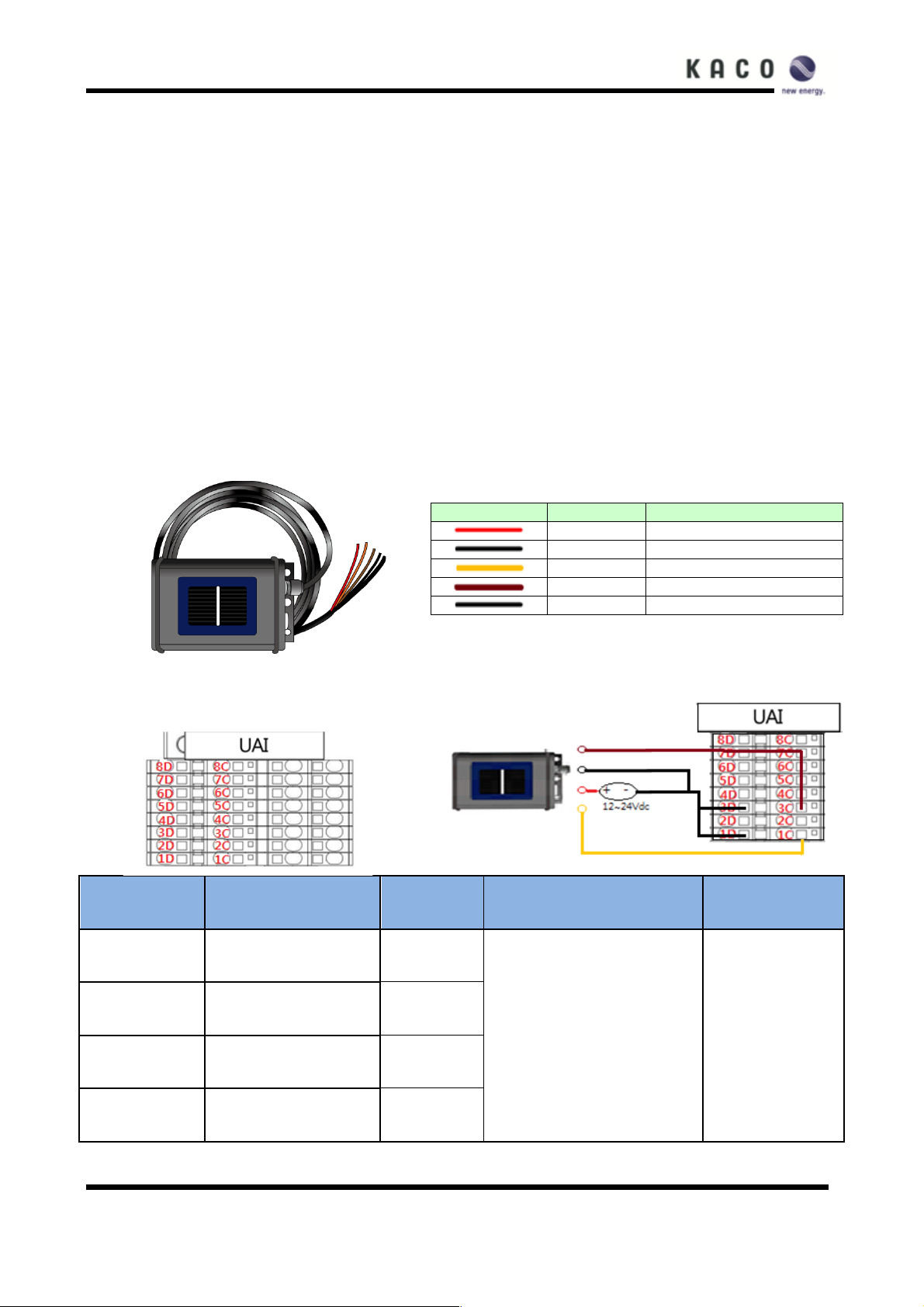

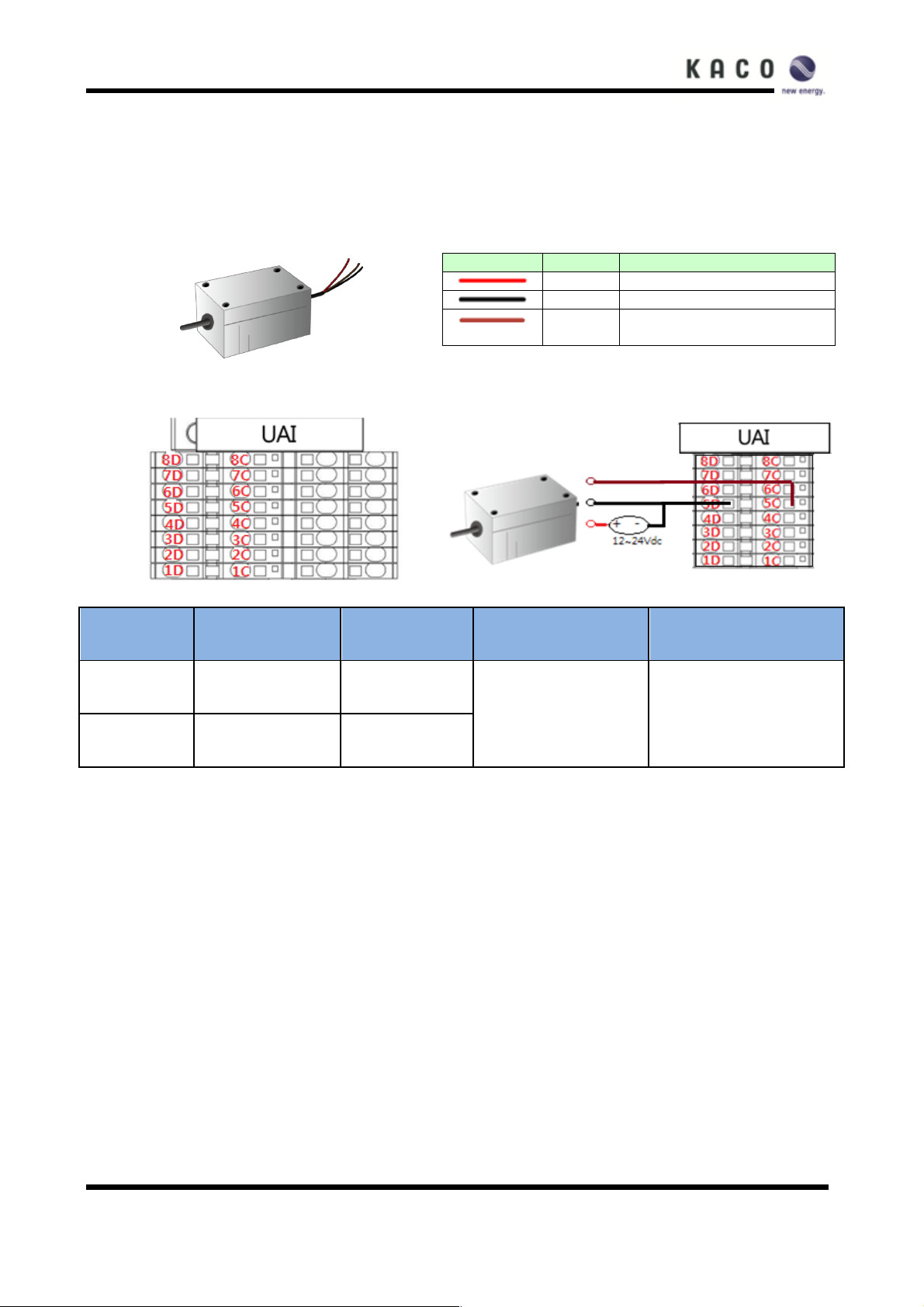

UAI – User analog input output terminal
blocks
Note: On some inverters the exact location of the wires in the terminal blocks may vary. Please
verify the wire numbers using the given charts.
UDIO – User digital input
Target port figure
Connect the wires
Port num.
Port name
Wire #
Specification
Wire size
1C
UDI1 P
C300
Dry contact input
(24Vdc, 10mA)
18-24 AWG
(0.82-0.20㎟)
1D
UDI1 N
C299
Page 36
UDIO – S0 input
Target port figure
Connect the wires
Port num.
Port name
Wire #
Specification
Wire size
2C
S0in P
C301
MAX 27Vdc, 27mA
18-24 AWG
(0.82-0.20㎟)
2D
S0in N
C302
UDIO – S0 output
Target port figure
Connect the wires
Port num.
Port name
Wire #
Specification
Wire size
3C
S0in P
C303
MAX 27Vdc, 27mA
18-24 AWG
(0.82-0.20㎟)
3D
S0in N
C304
Page 37
UDIO – User digital output (relay contacts)
Target port figure
Connect the wires
Normally Open
Normally Closed
Port num.
Port name
Wire #
Specification
Wire size
4C
UDO1A
C305
External output N/O
18-24 AWG
(0.82-0.20㎟)
4D
UDO1C
C306
External output common
5C
UDO1B
C307
External output N/C
5D
UDO1C
C308
External output common
Page 38
RS 485 terminal blocks
The Inverter provides two RS485 interfaces. RS485-1 communicates with the control board (XCU) and is
reserved
for future use. RS485-2 communicates with the GUI and is used for standard datalogger monitoring. The
connection method for each RS 485 port is detailed below.
Note: Not all RS485 systems use the A and B signals in the same way thereby reversing the polarity. On
some
applications, if there is no communication, reversing the polarity will allow communication.
Note: On some inverters the exact location of the wires in the terminal blocks may vary. Please verify the
wire
number in the given charts.
RS485-1 (Future Use) connections
Target port figure
Connect the wires
▶ To add termination resistance, a jumper should be connected between 1D and 2C.
Port num.
Port name
Wire #
Specification
Wire size
1C
RS485A1
C322
RS485 signal A1
18-24 AWG
(0.82-0.20㎟)
1D
RS485B1
C323
RS485 signal B1
2C
RS485C1
C324
Termination resistance setup port
2D
RS485G1
C325
RS485 communication GND1
Note: Termination resistance should only be used at the beginning and the end of the
RS485 chain.
Page 39
RS485-2 (Data logging)
Target port figure
Connect the wires
▶ To add termination resistance, a jumper should be connected between 3D and 4C.
Port num.
Port name
Wire #
Specification
Wire size
3C
RS485A2
C326
RS485 signal A2
18-24 AWG
(0.82-0.20㎟)
3D
RS485B2
C327
RS485 signal B2
4C
RS485C2
C328
Termination resistance setup
port
4D
RS485G2
C329
RS485 communication GND2
Note: Termination resistance should only be used at the beginning and the end of the
RS485 chain.
Page 40
UAI terminal blocks (User Analog Inputs)
The Inverter provides 4 user analog input interface connections and 4 extra terminal blocks are provided as
well for further uses. The User analog inputs are connected to an Irradiation sensor, a PV cell temperature
sensor, and a PT1000 temperature sensor and a Wind Speed sensor. The user analog input interface
voltage range is 0 ~ 10V. The terminal block diagrams depicted below are representative of inverters with the
optional 24VDC power supply. If the inverter does not have the optional power supply, the wire numbers
should be used to identify the proper connections for the sensors.
Note: On some inverters the exact location of the wires in the terminal blocks may vary. Please verify the
wire number in the given charts.
Irradiance and Cell temperature Sensor (Si-12TC)
Si-12TC figure
Wire description
Wire
Color
Specification
Red
VCC(12~24Vdc)
Black
GND
Yellow
Irradiation value(0-10V)
Brown
Cell Temperature(0-10V)
Black
Frame GND
Target port figure
Connect the wires
Port num.
Port name
Wire #
Specification
Wire size
1C
IVP(Yellow)
C311
0V ~ 10Vdc
18-24 AWG
(18-24 AWG㎟)
1D
IVN(Black)
C310
3C
CTP(Brown)
C312
3D
CTN(Black)
C313
Page 41
PT1000 (external temperature) sensor
PT1000 figure
Wire description
Wire
Color
Specification
Red
VCC(15~24Vdc)
Black
GND
Brown
Ambient Temperature(010V)
Target port figure
Connect the wires
Port num.
Port name
Wire #
Specification
Wire size
5C
PTP(Brown)
C314
0V ~ 10Vdc
18-24 AWG (0.82-
0.20 ㎟)
5D
PTN(Black)
C315
Page 42
Wind Speed sensor
Wind Speed Sensor figure
Wire description
Wire
Color
Specification
Red
VCC(5~24Vdc)
Black
GND
Brown
Signal
Target port figure
Connect the wires
Port num.
Port name
Wire #
Specification
Wire size
7C
WSP(Black)
C316
Wind Speed signal
(0Hz~125Hz)
18-24 AWG (0.82-0.20㎟)
7D
WSN(Brown)
C317
Page 43
To get the most accurate data from the analog interface, the user must calculate gain and offset. Then the
user must change the parameters of the Inverter. The symbols for gain and offset are listed here:
Ml: lower limit of analog input by sensor.
Mu: upper limit of analog input by sensor.
Dl: lower limit of displayed value.
Du: upper limit of displayed value.
M: input value in range of Ml and Mu.
D: displayed value in range of Dl and Du.
Gain: G= (Du –D1) / (Mu – M1)
Offset: O = D1 – (G x M1)
Displayed value: D = (G x M) + O
After calculating gain and offset, the user must change the values through the GUI or use the CMT (change
the settings in the analog tab located in parameter panel).
CAUTION!
Voltages > 10Vdc or reversed polarity may lead to damage of the sensor input circuits
IMPORTANT!
System will show unexpected values if gain and offset are not properly set. Ensure that
calculations are exact.
Page 44
Ethernet
Target port figure
Connect the wires
Connector Type
Cable Type
RJ45
Direct (1:1)
NOTE: If using a direct cable connection to a computer, please use a crossover cable.
Page 45
9. COMMISSIONING
DANGER!
Electric shock is possible from improper startup of the Inverter.
Death may result from burns and electric shock.
! All procedures described in this section may only be conducted by qualified personnel.
If problems occur when performing the work described here, contact the technical support dept. at
KACO new energy Inc. +1 (415) 931-2046.
Visual Inspection
Inspect all large power cables and bus connections throughout the inverter to verify that they are tight.
Verify that all PV wires are connected with the proper polarity and tightened to the proper torque
specification.
Check the AC connections for proper phase rotation and that they are tightened to the proper torque
specification.
Verify that the AC and DC ground wires are connected correctly and tightened to the proper torque
specification.
Inspect the interior of the Inverter to insure that it is clear of tools, foreign objects, water, debris or documents.
Page 46
How to check the Ventilation
The Inverter is cooled by top quality variable speed fans.
In the Inverter, air flow is from the top front and expelled at the bottom in the front and back.
1. Check the ventilation air flow by placing a sheet of paper near the vents to ensure air is flowing.
2. If the Inverter does not suck air in or does not blow it out, contact the technical support dept. at KACO
new energy Inc. +1 (415) 931-2046.
Page 47
10. OPENING THE INVERTER
DANGER!
Electric shock is possible from improper startup of the Inverter.
Death may result from burns and electric shock.
! All procedures described in this section may only be conducted by qualified personnel.
If problems occur when performing the work described here, contact the technical support dept. at
KACO new energy Inc. +1 (415) 931-2046.
Opening the Inverter cabinet
1. Insert the key into the GUI lock and open the GUI cover.
2. Press the ‘OFF’ button on screen for the Inverter to turn off and wait 1 minute.
Page 48
3. Turn off the DC and AC switches.
4. Put the key into the cabinet’s locks and open it. – The handle flips up then turns the handle.
Page 49
11. OPERATING
Startup Instructions
Inside of the Inverter
After installation and electrical connection, the Inverter will be ready for operation.
Follow these instructions.
• Check that the switches in the part1 are turned on. If not, turn on the switches.
• Check that the switches in the part2 are turned on. If not, turn on the switches.
• Turn on the switch in the part3.
• Close the cabinet doors.
• Turn on the AC and DC, and disconnect switches on the left cabinet door.
DANGER!
High voltage may be present inside inverter. When turning off or on the switches, be careful not to touch
conductors.
Part 1
Part 2
Part 3
Page 50
Switch on the grid voltage via the external breaker or switch. Switch on the solar generator via the DC
disconnecting switch or DC plug-type connectors.
Once the inverter is connected, the GUI turns on. After about two minutes, the GUI will ask if you would like
to
change the country settings. Select "NO". Note: If the GUI gives the warning "Current settings don't match
and countries. Wrong country setting may result in damage!!", this is a bug , select 'Ok' and disregard. If the
dialog "Current country settings are set to USA CANADA MEXICO" displays, select "OK" and disregard.
See GUI screen.
Touch the “ON” button on GUI screen.
If no fault is present the inverter will begin
operation.
The inverter will start operating and GUI
icons will be green.
Page 51
IMPORTANT!
The inverter can’t be started when a fault is present. Use the ‘fault reset’ procedure and
retry the start operation. Refer to the ‘Fault & Warning’ section for a description of the ‘fault
reset’ procedure.
If the GUI gives a Code F16 or 'Inv. Phase Order' failure message, the phase rotation is
reversed. Shut down the system, power off all AC and DC voltage to the inverter, and
reverse the phase A and B connections on the AC field wiring terminals.
CAUTION!
If the fault isn`t resolved after ‘fault reset’ procedure is complete, contact the KACO technical dept. at +1
(415) 931-2046
Operating State
The Inverter has eight operating states. The explanations about each state are below.
Disconnected (default): Before operation has commenced the inverter is in the disconnected state. In
this state, the inverter is totally isolated from the PV array and the utility grid.
Connecting to the PV array: When the inverter is in the "Disconnect" state, the ‘Inverter On’ button on
the GUI is selected and the PV voltage is kept above 200V for 5 seconds, the system turns on the PV Array
side contactor (PV_MC). In this state, if the PV voltage falls below 100V, the inverter returns to the
Disconnect state.
Connecting to Grid: When the inverter is in the “Connecting to PV Array" state and the PV voltage is kept
above the value of “MPPT V Start” parameter during the time set by “MPPT T start” parameter, the contactor
on the grid side is turned on. The inverter keeps this state for 8 seconds.
Initializing MPP: The inverter calculates the MPPT start voltage which is product of measurement of PV
voltage and the parameter “MPP Factor”. After 5 seconds, the inverter system enters into the "MPP start"
state.
MPP start: In this state, the inverter controls the PV voltage. Reference of the PV voltage (“V
dc
reference”
parameter) the inverter changes from “open circuit” voltage to the value of the “MPPT V start” parameter.
GUI during proper operation
Page 52
MPPT: If the PV voltage approximates the MPP start voltage (value of “MPPT V Start” parameter), the
MPPT will start. The inverter follows the MPP target value automatically, which is varied by irradiance values.
If the MPP target value is out of the allowable MPPT range ([MPP start voltage – MPP Range lower] ~ [MPP
start voltage + MPP range upper]), the system will return to the “Initializing MPP” state and will recalculate
the MPPT start voltage.
System stop: When the “OFF” button in the GUI is selected, the PV Array side contactor and the Grid side
contactor are turned off and the system stops. If the output power of inverter is kept below value of “MPPT P
stop” parameter during time of “MPPT T stop” parameter, connection to the grid is terminated. In addition, If
PV voltage is below 100V, the inverter stops.
Fault: If a fault occurs during operation, the system stops. The system resets the fault and tries to remove
the fault. In the case that system removes a fault successfully, system restarts all by itself. The system
allows three auto fault resets within 30 minutes. After three attempts, the system will log an error and the
system will not try to restart.
[Vpv >= {Vpv_start}
&& T > {Tstart}]
Inverter Off
Disconnect
[T > {Tbuildup} + 3.5 sec]
PV_MC
(K10) ON
(2)
Grid_MC
ON
(3)
Fault
Heavy Fault
Fault Reset
Inverter On
[200 <= Vpv <= 630
&& T>5 sec]
MPP
Init.
[Vpv<200 && T>120 sec]
[Vpv>Vmpp_min
&& T > 5sec]
[Out of range]
MPPT
(6)
MPP
Start
[Vpv == MPP Ref.]
[Ppv < {Pstop}
&& T > {Tstop}]
Operating start
Page 53

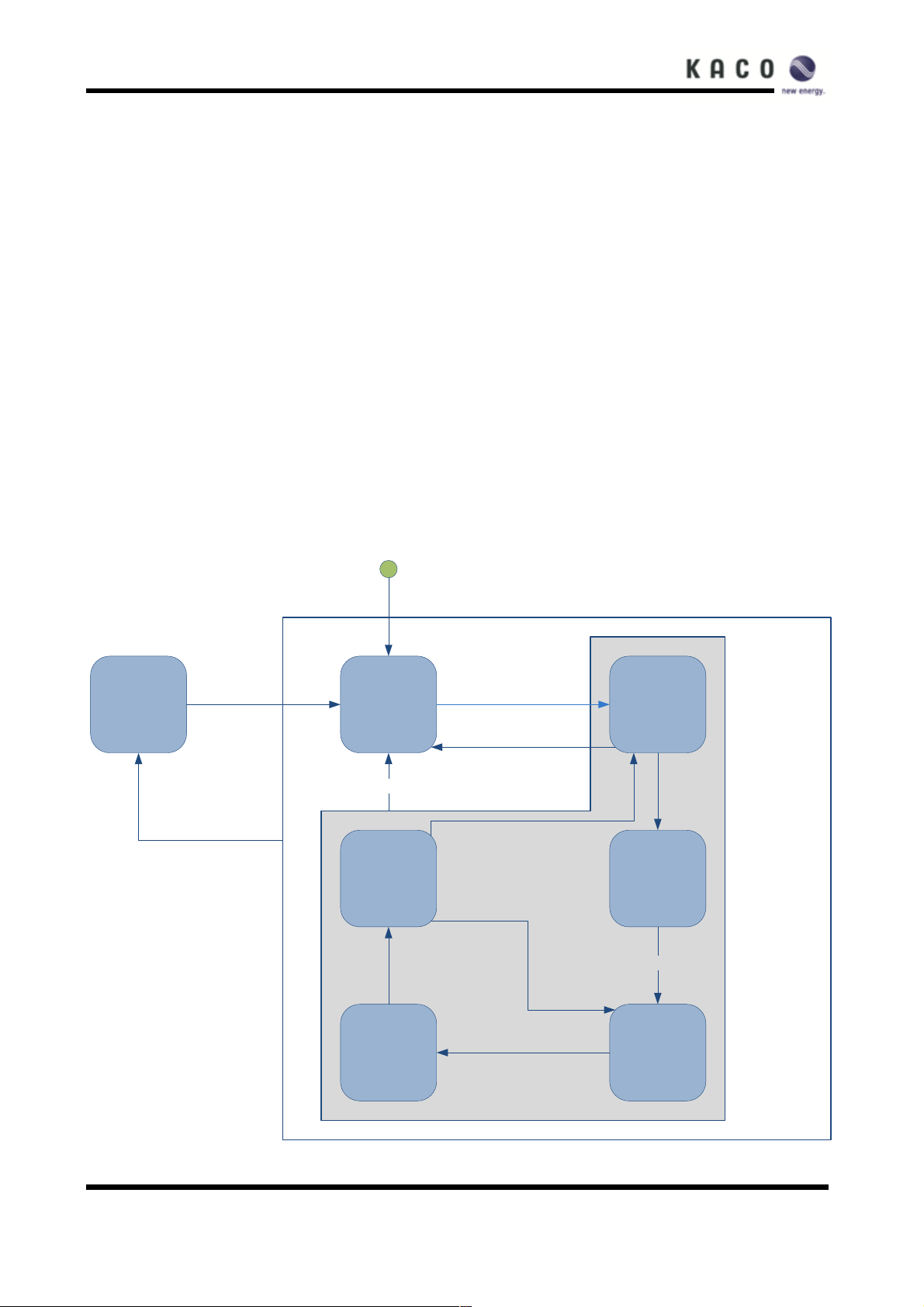

Operating states chart of the Inverter
12. PARAMETERS
DATE-TIME PARAMETERS
Parameters
Units
Ranges
Descriptions
Default
Year
N/A
2000~3000
Current year.
-
Month
N/A
1~12
Current month.
-
Date
N/A
1~31
Current day.
-
Time
N/A
0~23
Current hour
Minute
N/A
0~59
Current minute.
Second
N/A
0~59
Current second.
DIGITAL INTERFACE PARAMETERS
Parameters
Units
Ranges
Descriptions
Default
DI1 Select
N/A
0~20
Selection for digital input1
0
DO1 Select
N/A
0~20
Selection for digital output1
0
DO2 Select
N/A
0~20
Selection for digital output2
0
Power Meter
kWh
0~99999999
0
RS485 Protocol
N/A
0~999
0 : ACI protocol
1 : Protocol for the prolog
2 : Protocol for the PVI-go
0
Page 54
RS485 ID
N/A
0~999
ID for communication with RS485
0
CAN ID
N/A
0~999
ID for communication with CAN
0
ANALOG INTERFACE PARAMETERS
Parameters
Units
Ranges
Descriptions
Default
AI1 Offset
N/A
-300~300
Value of offset for analog input1
0
AI1 Gain
N/A
-300~300
Value of gain for analog input1
120
AI2 Offset
N/A
-300~300
Value of offset for analog input2
20
AI2 Gain
N/A
-300~300
Value of gain for analog input2
10.87
AI3 Offset
N/A
-300~300
Value of offset for analog input3
50
AI3 Gain
N/A
-300~300
Value of gain for analog input3
10
NETWORK PARAMETERS
Parameters
Units
Ranges
Descriptions
Default
Config
N/A
0,1
0:DHCP 1:Static
1
IP
N/A IP address in the form of “xxx.xxx.xxx.xxx”
1
Netmask
N/A Netmask used for the Network. Its form is
“xxx.xxx.xxx.xxx”
0
Gateway
N/A Address for the router in the form of
“xxx.xxx.xxx.xxx”
1
Page 55
RECORDING PARAMETERS
Parameters
Units
Ranges
Descriptions
Default
Recording Interval
min
10~60
A period for recording parameters
10
Grid Power
N/A
On(1),
Off(0)
If off the Grid power isn’t recorded
On(1)
PV Power
N/A
On(1),
Off(0)
If off the PV Power isn’t recorded
On(1)
PV Voltage
N/A
On(1),
Off(0)
If off the PV Voltage isn’t recorded
On(1)
PV Current
N/A
On(1),
Off(0)
If off the PV current isn’t recorded
On(1)
PV Temp.
N/A
On(1),
Off(0)
If off the PV Temperature isn’t recorded
On(1)
Irradiation
N/A
On(1),
Off(0)
If off the Irradiation isn’t recorded
On(1)
Delete All Statistics
N/A
N/A
Delete all statistics data.
N/A
Page 56
13. FAULTS & WARNINGS
When a problem occurs in the system, the Inverter will beep and inform the user on the GUI. The Inverter
displays two basic error messages. The first, the fault, is a serious problem that causes the inverter to stop
running. The second, a warning, is a minor problem that does not cease the system operation. The GUI will
indicate faults in red and warnings in yellow. The user can find a description of the different fault and
warnings in the following tables.
WARNING AND FAULT TABLES
Warning
Message
Code
Description
SP1(PV SP) Failure
W01
Failure of the PV side surge protector(SP1)
Reserved
W02
Reserved
PV Fuse Failure
W03
PV side Fuse failure(option)
Ground Fault Warning
W04
The insulation resistance of the PV falls short of the limit set in the
ground fault monitoring for Alert1(option)
Reserved
W05~W19
Reserved
PEBB Over Temp.
Warning
W20
The temperature of the PEBB(Power Electronics Building Block)
heatsink exceeds 75℃(167℉)
PEBB Fan Failure
W21
Failure of a PEBB(Power Electronics Building Block) fan
Reserved
W22~W29
Reserved
SP2(Grid SP) Failure
W30
Failure of the grid side surge protector(SP2)
Reserved
W31~W39
Reserved
Test Mode
W40
The system is working in test mode
Page 57
Reserved
W41~W49
Reserved
Cabinet Over Temp.
Warning
W50
The temperature of the cabinet exceeds the operational parameter
[Cabinet Temperature Maximum]
Cabinet Under Temp.
Warning
W51
The temperature of the cabinet falls below the operational
parameter [Cabinet Temperature Minimum]
Reserved
W52~W53
Reserved
Control SMPS Failure
W54
Failure of the control SMPS (Switching Mode Power Supply)
Reserved
W55
Reserved
Fan SMPS Failure
W56
Failure of the fan SMPS (Switching Mode Power Supply)
Reserved
W57
Reserved
Cabinet Fan Failure
W58
Failure of a cabinet fan
Fault
Message
Code
Description
PV Over Voltage
F01
PV voltage exceeds the parameter [DC over voltage Level]
PV Over Current
F02
PV current exceeds the parameter [DC over current Level]
PV Under Voltage
F03
Voltage of the DC input is below the minimum running voltage
K10 (PV Contactor) Failure
F04
PV side contactor (K10) failure
PV Polarity Failure
F05
Polarity (+, -) of PV side is reversed
Ground Fault
F06
PV side ground fault
S10(PV Switch) Trip
F07
S10 (PV Disconnect Switch) tripped during operation
Reserved
F08~F09
Reserved
Page 58
Inv. Over Voltage
F10
Over voltage on the inverter side
Inv. Under Voltage
F11
Under voltage on the inverter side
Inv. Over Frequency
F12
Over frequency on the inverter side
Inv. Under Frequency
F13
Under frequency on the inverter side
Inv. Over Current
F14
Over current on the inverter side
MC21(Inv. MC) Failure
F15
Inverter side contactor (MC21) failure
Inv. Phase Order
F16
Phase order failure on the inverter side, wrong phase rotation
Inductor or TR Over Temp.
F18
Inductor or Transformer temperature is above 150 C
Reserved
F19
Reserved
PEBB 1 IGBT Fault
F20
PEBB 1 IGBT failure
PEBB 2 IGBT Fault
F21
PEBB 2 IGBT failure
PEBB 3 IGBT Fault
F22
PEBB 3 IGBT failure
Reserved
F23
Reserved
PEBB Over Temp. Analog
F24
The temperature of the heat-sink exceeds 90℃ (194 F).
PEBB Over Temp. Digital
F25
The heat-sink temperature generated by the thermal trip device
has exceeded operational parameters (Thermal Switch)
Reserved
F26~F29
Reserved
Grid Over Voltage
F30
Over voltage on the grid side
Grid Under Voltage
F31
Under voltage on the grid side
Grid Over Frequency
F32
Over frequency on the grid side
Page 59
Grid Under Frequency
F33
Under frequency on the grid side
CB20(Grid SW) Trip
F34
CB20 (AC Disconnect/Grid circuit breaker) was tripped during
operation
Reserved
F35~F39
Reserved
Parameters Version Error
F40
Different version between the NVSRAM parameter table and
the program parameter table
Flash Memory Failure
F41
C6000 DSP program flash memory failure in XCU (main
control) board
FPGA Failure
F42
FPGA failure in XCU (main control) board
DSP28x Failure
F43
F2000 DSP failure in XCU (main control) board
ADC Failure
F44
ADC block failure in XCU (main control) board
Reserved
F45~F49
Reserved
Emergency Stop
F50
A door is open
Cabinet Over Temp.
F51
Temperature of cabinet is too high. Inverter has stopped
operation
Page 60
14. MAINTENANCE
Insulating gloves must be used during maintenance.
The Inverter needs to be periodically maintained.
IMPORTANT!
All service MUST be done by authorized personnel only.
DANGER!
DC terminals may be energized. Allow ten minutes for all capacitors within the main Enclosure to disch
arge after disconnecting the Inverter from AC and DC sources. Before touching any electrical connectio
ns make certain that no hazardous live voltage is present.
Page 61
De-Energize/Isolation Procedure
The following procedure should be followed to de-energize the Inverter for maintenance.
To isolate the Inverter:
1. Turn the main ON/OFF switch in the GUI to the OFF position.
2. Open the utility connection circuit breaker.
3. Open the AC Disconnect.
4. Open the DC Disconnect Switch.
5. Install lockout devices on the utility connection circuit breaker, AC and DC disconnect switches.
6. Before touching any electrical connections make certain that no hazardous live voltage is present.
Maintenance includes:
A. Inspection of parts which may become worn and repairing or exchanging them
B. Functional testing of components
C. Inspection of connections
D. If needed - cleaning of the cabinet exterior / interior
NOTE: Maintenance frequency is dependent on the location and environmental conditions.
The Inverter can function in dusty environments but must be maintained more frequently than is
recommended in the following table.
Page 62
Time intervals for maintenance work
Maintenance work
maintenance interval
(recommended)
Cleaning or replacing of the filter mats in the air intake
6 months *
Clean the heat sink-power section
12 months *
Inspection of a cabinet for strong dust sedimentation, pollution, moisture
and water penetration from the outside.
12 months
Inspection of all warning labels, replace if necessary.
12 month
Function test of the fans
12 month
Visual inspection of fuses, breakers and surge protection
12 month
Visual inspection of redundant auxiliary power supplies
12 month
Function test of the door contacts
12 month
Inspection of the run and fault indicators
12 month
* If the installation site is especially dirty, maintenance intervals will be reduced.
Page 63
Cleaning and replacing fans
The fans should be cleaned periodically to ensure optimum performance. They should be replaced and/or
serviced if an air flow issues arises. The Inverter includes two cabinet fans and one PEBB fan assembly.
Cabinet fan
1. Switch off the inverter according to the inverter shutdown directions in the safety instruction section.
2. Open the front doors. You can find the fans on the top of the cabinet as below pictures.
3. Clean or replace fans.
Left cabinet fan
Right cabinet fan
Caution!
When assembling a new fan ensure that the air flow direction is correct!
Page 64

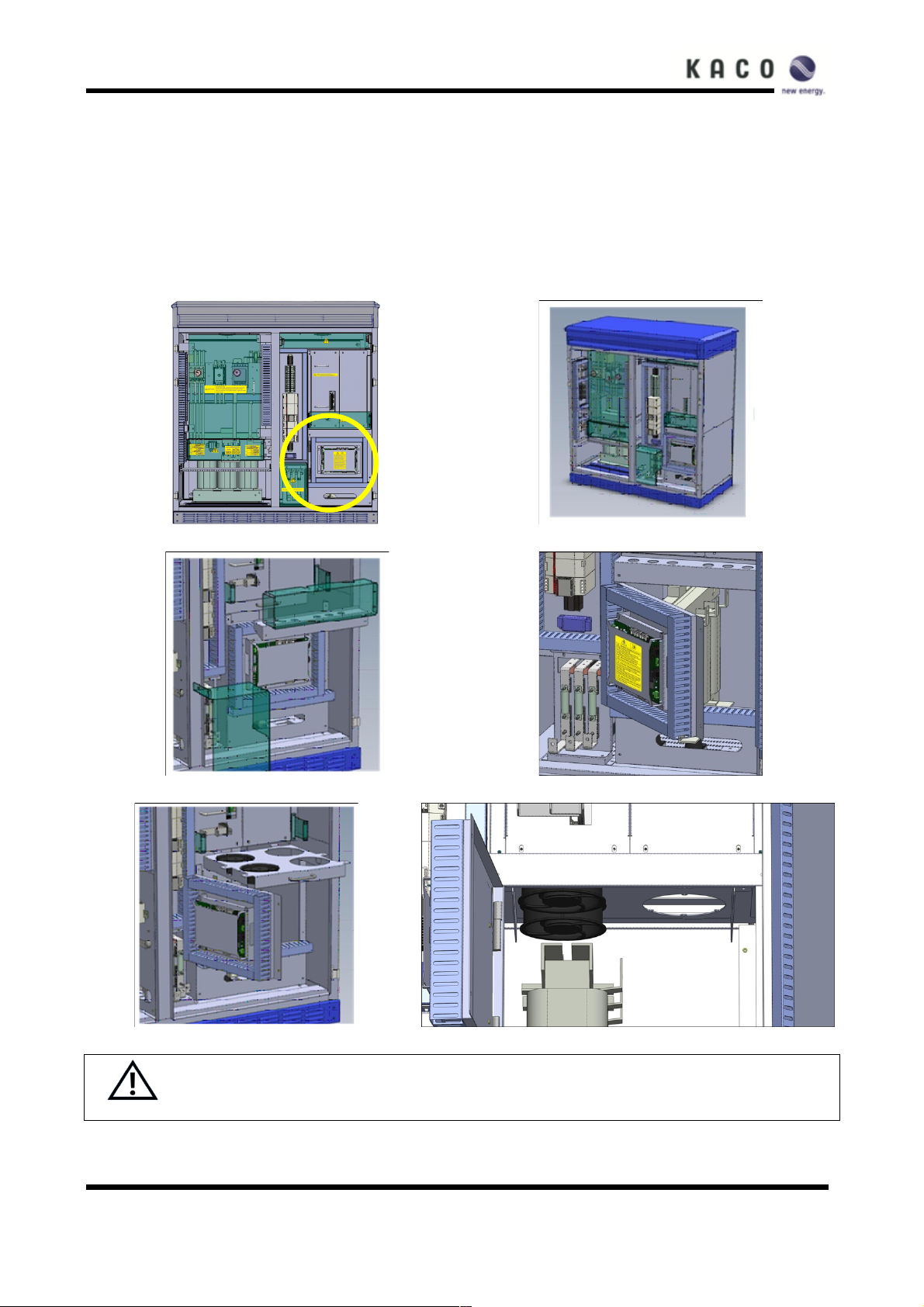

PEBB fan assembly
1. Switch off the inverter according to inverter shutdown direction in safety instruction section.
2. Open the PCB module doors. Find the PEBB fans under the IGBT stack as shown in the pictures
below.
3. Clean or replace fans.
Caution!
When assembling a new fan ensure that the air flow direction is correct!
Page 65
15. ERROR CODES
The Inverter can detect faults during operation. The inverter will display the fault in the GUI. Faults are
indicated in the GUI with an error code, and a plain text message with the error code and system plant name
in the text line will be sent to the system operator (only available if purchased and configured during setup).
This section describes how to recognize the types of faults and how to correct these faults.
Warnings
Code
Message
Warning description
Possible causes/Diagnosis
W01
SP1(PV SP) Failure
Failure of the PV side surge protector
(SP1)
Problem
• Lightning strike on or near the PV
system wiring
Solution(s)
• Visual inspection
• Change the SPD
W03
PV Fuse Failure
PV side Fuse failure(option)
Problem
• PV system wiring short
• Short circuit in the IGBT
Solution(s)
• Check the input current
• Check module wiring
• Change the FUSE
W20
PEBB Over Temp.
Warning
The temperature of the heat-sink of
the PEBB exceeds 75°C (167°F)
Problem
• PEBB Fan Failure
Solution(s)
• Clean the filters or PEBB heat-sink fins
• Change the PEBB Fan
W21
PEBB Fan Failure
PEBB heat-sink fan failure
Problem
• PEBB Fan Failure
Solution(s)
• Change the PEBB Fan
W30
SP2(Grid SP) Failure
Failure of the grid side surge
protector (SP2)
Problem
• Lightning strike on or near the grid
system wiring
Solution(s)
• Visual inspection
• Change the SPD
W40
Test Mode
The system is working in test mode
Problem
• The system is working in test mode
Solution(s)
• Change the parameters in the GUI
W50
Cabinet Over
Temp. Warning
The temperature of the cabinet
exceeds operational parameters
Problem
• Cabinet Fan Failure
Solution(s)
• Clean the air filters
• Change the cabinet fan
W51
Cabinet Under
Temp. Warning
The temperature of the cabinet falls
below operational parameters
Problem
• Ambient temperature is too low for
operation
W52
Control SMPS
Failure
Failure of the control SMPS
Possible causes
• Failure of the control SMPS
Solution(s)
• Change the control SMPS
Page 66
Fault
Code
Message
Warning Description
Possible problem and solution(s)
F01
PV Over Voltage
PV voltage exceeds the
parameter
Problem
• The voltage of the solar generator is too high
Solution(s)
• Check the input voltage
• Check module wiring and system
F02
PV Over Current
PV current exceeds the
parameter
Problem
• The current of the solar generator is too high
• PV system wiring short
Solution(s)
• Check the input current
• Check module wiring and system
F04
CB10 (PV CB)
Trip
PV side circuit breaker(CB10)
tripped
Problem
• CB10 disconnect switch is open
• Auxiliary switch is inoperable, K10 contactor
failed closed
Solution(s)
• Check the wiring connection
• Change the CB10, replace K10 contactor
F05
PV Polarity
Failure
Polarity (+, -) of PV side is
reversed
Problem
• Polarity of PV side is reversed
Solution(s)
• Check the wiring connection and change if
necessary
F06
Ground Fault
PV side ground fault
Problem
• DC & ground are shorted causing the GFDI fuse
to open
Solution(s)
• Check the solar generator for a ground fault and
Replace the GFDI Fuse
F10
Inv. Over Voltage
Over voltage on the inverter
side
Problem
• The inverter voltage is too high
Solution(s)
• Check the inverter voltage
• Check the inverter parameter
F11
Inv. Under
Voltage
Under voltage on the inverter
side
Problem
• The inverter voltage is too low
Solution(s)
• Check the inverter voltage
• Check the inverter parameter
• Check the MC21
F12
Inv. Over
Frequency
Over frequency on the inverter
side
Problem
• The grid frequency is outside the permitted
range
Solution(s)
• Check the grid frequency
F13
Inv. Under
Frequency
Under frequency on the
inverter side
Problem
• The grid frequency is outside the permitted
range
Solution(s)
• Check the grid frequency
F14
Inv. Over Current
Over current on the inverter
side
Problem
• Short circuit in the IGBT
• Short circuit in the Grid
Solution(s)
• Check the grid connection
• Check the inverter connection
Page 67
F15
MC21 Failure
Inverter AC side contactor
failure
Problem
• MC21 contactor is open
• Auxiliary switch is inoperable
Solution(s)
• Check the wiring connection
• Change the MC21
F16
Inv. Phase Order
Phase order failure on the
inverter side
Problem
• Phase order failure on the inverter
• Wrong phase rotation
Solution(s)
• Check the wiring connection
• Reverse two phases
F18
Inductor or TR
Over Temp
Inductor or transformer
temperature is above 150°C.
Problem
• Cabinet fan failure
Solution(s)
• Cleaning the filters
• Change the cabinet Fan
F20
PEBB 1 IGBT
Fault
PEBB IGBT U failure
Problem
• Short circuit in the IGBT
Solution(s)
• Visual inspection
• Change the PEBB
F21
PEBB 2 IGBT
Fault
PEBB IGBT V failure
F22
PEBB 3 IGBT
Fault
PEBB IGBT W failure
F24
PEBB Over
Temp. Analog
The temperature of the heatsink exceeds operational
parameters
Problem
• PEBB fan failure
Solution(s)
• Clean the filters
• Inspect and if necessary clean the heat-sink fins
• Change the PEBB Fan
F25
PEBB Over
Temp. Digital
The heat-sink over
temperature
generated by the thermal trip
device
Problem
• PEBB Fan Failure
Solution(s)
• Inspect and if necessary clean the heat-sink fins
Change the PEBB Fan
F30
Grid Over Voltage
Over voltage on the grid side
Problem
• The grid voltage is too high
Solution(s)
• Check the grid voltage
• Check the grid parameter
F31
Grid Under
Voltage
Under voltage on the grid side
Problem
• The grid voltage is too low
Solution(s)
• Check the grid voltage
• Check the grid parameter
• Check the MCB24
F30
Grid Over Voltage
Over voltage on the grid side
Problem
• The grid voltage is too high
Solution(s)
• Check the grid voltage
• Check the grid parameter
F31
Grid Under
Voltage
Under voltage on the grid side
Problem
• The grid voltage is too low
Solution(s)
• Check the grid voltage
• Check the grid parameter
• Check the MCB24
F32
Grid Over
Frequency
Over frequency on the grid
side
Problem
• The grid frequency is outside the permitted rang
Solution(s)
• Check the grid frequency
Page 68
F33
Grid Under
Frequency
Under frequency on the grid
side
Problem
• The grid frequency is outside the operation
range
Solution(s)
• Check the grid frequency
F34
CB20(Grid SW)
Trip
CB20(AC disconnect grid
circuit breaker) was tripped
during operation
Problem
• Short circuit in the grid
Solution(s)
• Check the wiring connections
F40
Parameters
Version Error
Different version between the
NVSRAM parameter table and
the program parameter table
Problem
• Different version between the NVSRAM
parameter table and the program parameter
table
Solution(s)
• Initialize the parameter menu setting in the GUI
and reset faulted parameter
• Change the PCB module
F41
Flash Memory
Failure
C6000 DSP program flash
memory failure in XCU (main
control) board
Problem
• Internal C6000 error
Solution(s)
• Change the PCB module
F42
FPGA Failure
FPGA failure in XCU (main
control) board
Problem
• Internal FPGA error
Solution(s)
• Change the PCB module
F43
DSP28x Failure
F2000 DSP failure in XCU
(main control) board
Problem
• Internal F2000 error
Solution(s)
• Change the PCB module
F44
ADC Failure
ADC block failure in XCU
(main control) board
Problem
• Internal A to D converter error
Solution(s)
• Change the PCB module
F50
Emergency Stop
The door is open
Problem
• Front door is open
• Broken or out of alignment door switch
Solution(s)
• Close the door
• Align or replace door switch
Page 69
16. SPECIFICATIONS
The Inverter Specifications
1. DC
Specification
XP100U-H2
XP100U-H4
XP83U-H6
XP90U-H6
XP100U-H6
Maximum PV Power
105kW
87.5kW
95kW
105kW
Range of input operating voltage
300 ~ 600V
Maximum input voltage
600V
Maximum input current
350A
292A
317A
350A
Maximum input short circuit current
410A
380A
380A
476A
Maximum input source backfeed current
0A
2. AC
Specification
XP100U-H2
XP100U-H4
XP83U-H6
XP90U-H6
XP100U-H6
Rated power
100kW
83kW
90kW
100kW
Output Power
factor
≥ 0.99 at rated power
Nominal output
voltage
(+10% to -12%
acceptable range)
3-phase
208V
(184 to 228V)
3-phase
480V
(422 to 528V)
3-Phase 600V
(528 to 660V)
Canada certification Only
Nominal output
frequency
(acceptable range)
60Hz
(59.3 to 60.5Hz)
Maximum
continuous output
current
277A
120A
80A
87A
96A
Page 70
Maximum
continuous output
power
100kW
83kW
90kW
100kW
Maximum output
fault current
277A
121A
80A
87A
96A
Maximum output
over current
protection
400A
150A
125A
Synchronization
in-rush current
20A
AC current
distortion
< 3% at rated power
Trip limit and trip
time accuracy
Voltage trip limit: 1%
Voltage trip time: 1 %
Frequency trip limit: 0.1 %
Frequency trip time: 0.1%
3. Efficiency
Specification
XP100U-H2/ XP100U-H4/XP83U-H6/ XP90U-H6/ XP100U-H6
CEC efficiency
(H2 and H4 models only)
96%
Maximum efficiency
96.5%
Page 71
4. Power Consumption
Specification
XP100U-H2/ XP100U-H4/ XP83U-H6/ XP90U-H6/ XP100U-H6
Stand-by and Night tare loss
< 65W
5. Environmental Parameters
Specification
XP100U-H4/ XP100U-H2
XP83U-H6/ XP90U-H6/ XP100U-H6
Storage temperature range
-5℉ (-20℃) ~ +158℉ (+70℃)
Normal Operating temperature range
-5℉ (-20℃) ~ +122℉ (+50℃)
Full power operating ambient
-5℉ (-20℃) ~ +122℉ (+50℃)
Relative humidity
0 - 95% (non-condensing-internal dehumidifier standard)
Elevation
6600ft (2000m)
Cooling
Fan forced, max 4460m3/h
Audible noise
< 65dB
6. Standard
Specification
XP100U-H2/
XP100U-H4
XP83U-H6/ XP90U-H6/
XP100U-H6
General Standard
UL1741 Rev 2005, IEEE1547,
IEEE1547.1
CAN/CSA C22.2 No. 107.1
IEEE1547, IEEE1547.1
CAN/CSA C22.2 No.107.1
(Canada certification Only)
Emitted Interference
FCC Class A
Page 72
7. Interface
Specification
XP100U-H2/ XP100U-H4
XP83U-H6/XP90U-H6/XP100U-H6
Display
TFT‐LCD with Touch Screen
Digital/Analog I/O Ports
1 Digital input
1 Digital output
1 S0 input
1 S0 output
4 Analog inputs
Data communication
2 RS485/1 CAN/1 Ethernet
Memory
SD-Card up to 8GB
8. Enclosure
Specification
XP100U-H2
XP100U-H4
XP83U-H6/
XP90U-H6/
XP100U-H6
Height Width
Depth(mm)
73 x 68 x 36in.
(1840 x 1724 x 930mm: H, W, D)
Weight(kg)
3086lbs (1400kg)
3086lbs (1400kg)
2425lbs (1100kg)
Protection Class
NEMA 3R
9. Overvoltage, under voltage and Frequency ranges
Voltage Range
(% of Nominal)
System Condition
XP100U-H2
XP100U-H4
XP83U-H6/
XP90U-H6/
XP100U-H6
Trip Time
Vac<50%
Grid Minimum Voltage
Vac<104
Vac<240
Vac<300
10 cycles
50%≤Vac<88%
Grid Under Voltage
104≤Vac<184
240≤Vac<423
300≤Vac<528
2 seconds
88%<Vac≤110%
Normal Operation
184<Vac≤228
422<Vac≤528
528<Vac≤660
-
110%<Vac≤120%
Grid Over Voltage
228<Vac≤249
528<Vac≤576
660<Vac≤720
1 second
120%≤Vac
Grid Maximum Voltage
249≤Vac
576≤Vac
720≤Vac
10 cycles
Page 73
Grid Frequency Range
Every voltage and frequency range is adjustable and password protected.
Frequency Range
System Condition
XP100U-H2/ XP100U-H4
XP83U-H6/XP90U-H6/XP100U-H6
Trip Time
f<rated-3.0
Grid Minimum Frequency
f<57.0
10 cycles
f<rated-0.7
Grid Under Frequency
f<59.3
10 cycles
rated-0.7≤f≤rated+0.5
Normal Operation
59.3≤f≤60.5
-
f>rated+0.5
Grid Over Frequency
f>60.5
10 cycles
17. CONFIGURATION
The Inverter Block Diagram
Block Diagram of the Inverter
Page 75
18. CERTIFICATIONS
Page 76
Page 77
Page 78
Loading...
