KACO proLOG quick start
CAUTION!
HAZARDOUS VOLTAGE
Before opening disconnect the
PV generator and the grid.
Note the order of the electrical connection.
1. Disconnect and verify AC and DC
wiring is not energized
2. GND
3. N
4. L1 and L2
5. Interfaces
6. Return
7. Hot
Disconnect in reverse order
ON ON
1 2
pro
LOG
XL
Power
Status
Connect
Alarm
ESC
+ –
AI2
+ –
AI1
Modem
Analog
ISDN
+ –
24V
extern
+ –
DI4
+ –
DI3
+ –
DI2
+ –
DI1
+ –
D0
B A
RS485
Ethernet
+ –
24V intern
RESET

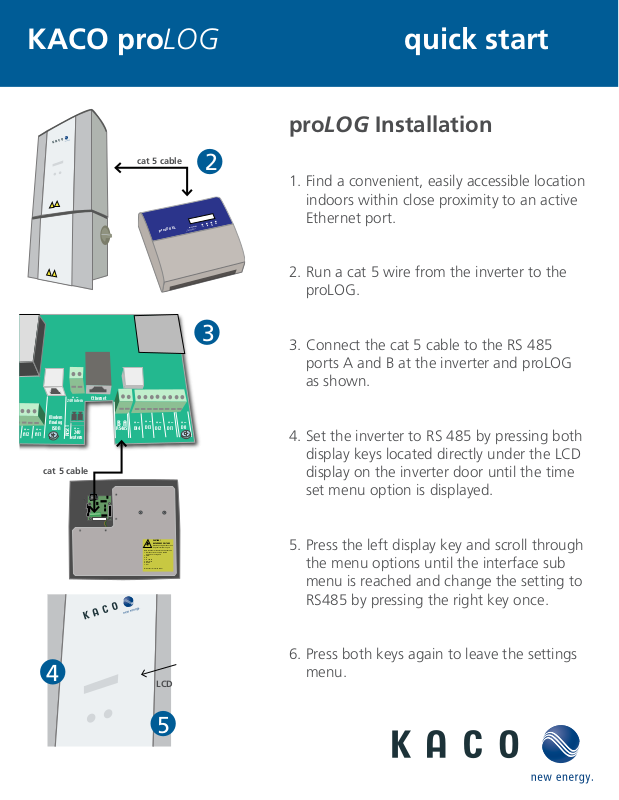

proLOG Installation
cat 5 cable
2
1. Find a convenient, easily accessible location
indoors within close proximity to an active
Ethernet port.
2. Run a cat 5 wire from the inverter to the
proLOG.
3
3. Connect the cat 5 cable to the RS 485
ports A and B at the inverter and proLOG
as shown.
4. Set the inverter to RS 485 by pressing both
display keys located directly under the LCD
cat 5 cable
display on the inverter door until the time
set menu option is displayed.
5. Press the left display key and scroll through
the menu options until the interface sub
menu is reached and change the setting to
RS485 by pressing the right key once.
6. Press both keys again to leave the settings
4
LCD
5
menu.
KACO proLOG quick start
Power
Status
Connect
Alarm
ESC
7. Plug in the proLOG using the provided
110V power cord.
9
10
8. Wait 3-5 minutes for the proLOG to boot.
9. Successful data transfer is confirmed when
the first “Power” LED is illuminated and the
second “Status1” LED is blinking.
10. On your home computer, direct browser
to www.kaco-newenergy.com to register
your system.
11. Please enter all information requested in
the form to ensure correct registration.
12. Once the system is registered and the
data transfer has been confirmed, we will
send a username and password. Use this
information to access your PV production
data from anywhere in the world or from
a PC or mobile web enabled device.
For technical assistance please call KACO technical support
Monday - Friday, 8AM - 6PM at +1 (866) 522 - 6765
KACO inSIGHT quickstart - specifications and guidelines subject to change without notification. 3300345-2020-111909
