JVC UX-H100UJ User Manual

MICRO COMPONENT SYSTEM

UX-H100

—Consists of CA-UXH100 and SP-UXH100

INSTRUCTIONS

LVT1190-010A

[UJ]

Warnings, Cautions and Others

CAUTION— STANDBY/ON button !

Disconnect the mains plug to shut the power off completely (all lamps and indications go off). The STANDBY/ON button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY lamp lights red.

• When the unit is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

G-1

10 cm

15 cm

1 cm

15 cm

1 cm

15 cm

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION:Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

CAUTION: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1 Front:

No obstructions and open spacing.

2 Sides/ Top/ Back:

No obstructions should be placed in the areas shown by the dimensions below.

3 Bottom:

Place on a level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Front view

SP-UXH100 SP-UXH100

CA-UXH100

Side view

CA-UXH100

G-2

Introduction

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

for future reference.

About This Manual

This manual is organized as follows:

• This manual mainly explains operations using the buttons on the remote control. You can use the buttons both on the remote control and on the unit for the same operations if they have the same or similar names (or marks), unless mentioned otherwise.

• Basic and common information that is the same for many functions is grouped in one place, and is not repeated for each procedure. For instance, we do not repeat the information about turning on/off the unit, setting the volume, changing the sound effects, and others, which are explained in the section “Basic and Common Operations” on pages 8 and 9.

• The following symbols are used in this manual:

Gives you warning and caution to prevent damage or risk of fire/electric shock. In addition, we put information here about conditions which will prevent getting the best possible performance from the unit.

Gives you information and hints you need to know.

Power sources

• When unplugging the unit from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the unit in the following cases:

• After starting to heat the room.

• In a damp room.

• If the unit is brought directly from a cold to a warm place.

Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Others

• Should any metallic object or liquid fall into the unit, unplug the AC power cord and consult your dealer before operating any further.

• If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet.

DO NOT disassemble the unit since there are no user serviceable parts inside.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor too cold—between 5˚C and 35˚C.

• Install the unit in a location with adequate ventilation to prevent internal heat buildup.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Contents

Location of the Buttons and Controls ............................. 3

Main Unit .................................................................................. 3

Remote Control ......................................................................... 5

Getting Started .................................................................. 6

Unpacking ................................................................................. 6

Putting the Batteries into the Remote Control .......................... 6

Connections ............................................................................... 6

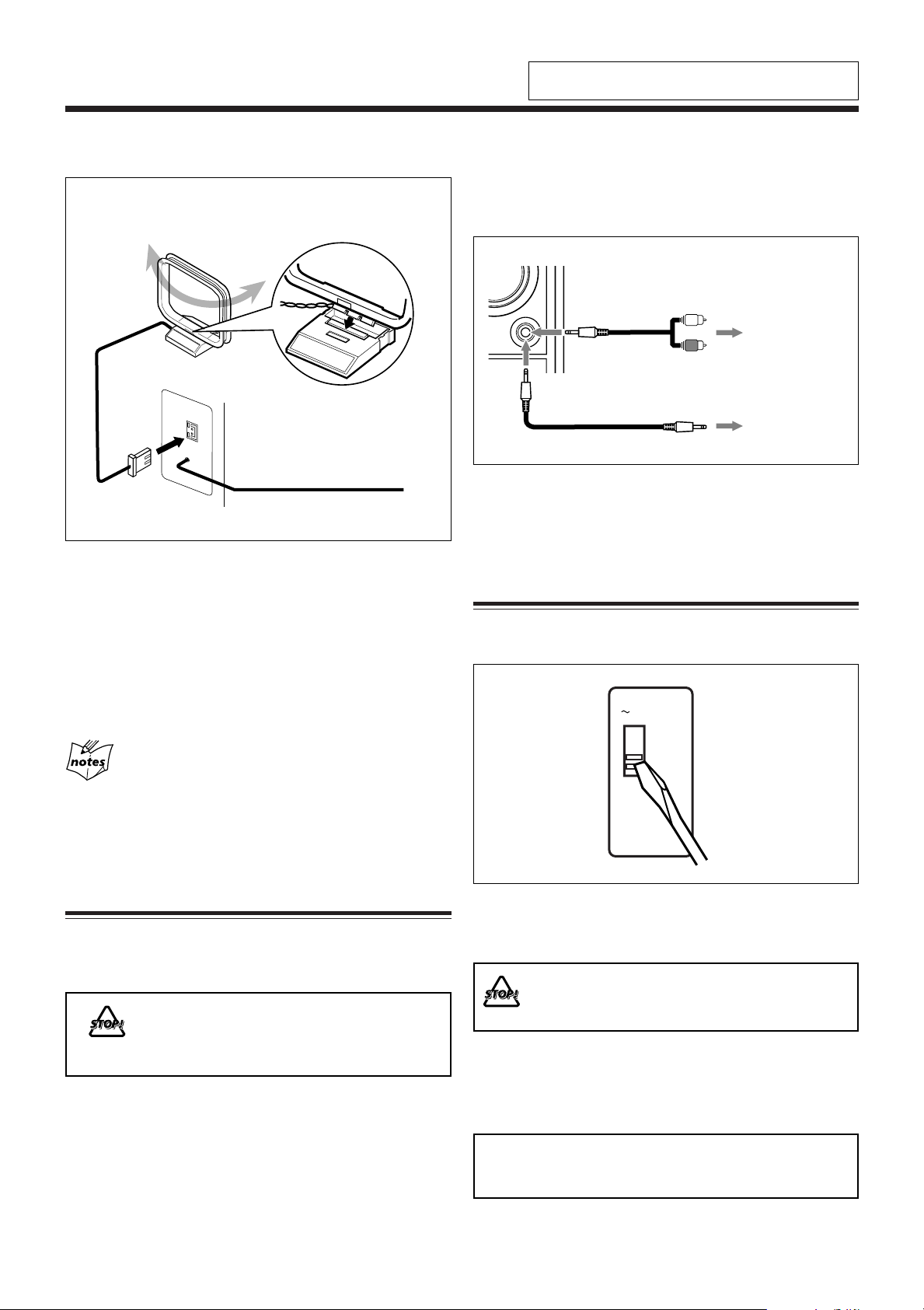

Connecting Other Equipment .................................................... 7

Adjusting the Voltage Selector .................................................. 7

Basic and Common Operations ....................................... 8

Setting the Clock ....................................................................... 8

Turning On the Power ............................................................... 8

Selecting the Source .................................................................. 9

Adjusting the Volume ................................................................ 9

Fade Muting .............................................................................. 9

Selecting the Sound Modes ....................................................... 9

Adjusting the Tone (Bass/Treble) .............................................. 9

Listening to FM and AM Broadcasts ............................. 10

Setting the Tuner Interval Spacing .......................................... 10

Tuning in to a Station .............................................................. 10

Presetting Stations ................................................................... 11

Tuning in to a Preset Station ................................................... 11

Playing Back Discs .......................................................... 12

Playing Back the Entire Disc—Normal Play .......................... 12

Basic Disc Operations ............................................................. 13

Programming the Track Playing Order—Program Play.......... 13

Repeating Tracks—Repeat Play .............................................. 14

Playing at Random—Random Play ......................................... 14

Displaying the Remaining Time during Playback................... 14

Playing Back Tapes.......................................................... 15

Playing Back a Tape ................................................................ 15

Using an External Equipment ........................................ 16

Listening to the External Equipment ....................................... 16

Recording ......................................................................... 17

Recording on a Tape ................................................................ 17

Recording Discs—Disc Synchronized Recording .................. 18

Using the Timers.............................................................. 19

Using the Daily Timer ............................................................. 19

Using the Sleep Timer ............................................................. 20

Maintenance..................................................................... 21

Troubleshooting ............................................................... 22

Specifications ................................................................... 22

Location of the Buttons and Controls

OPEN

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL AUDIO

STANDBY

PHONES DOWN

#/8

7¢TIMER

UP AUX

TAPE FM/AM AUX

VOLUME

+—

UX–H100

MICRO COMPONENT SYSTEM

Become familiar with the buttons and controls on your unit.

Main Unit

Top view

Front view

Display window

ALL RANDOM MONO ST

SLEEP

PRGM

SOUND

REC

6 74

See pages in parentheses for details.

Continued

Main unit

1 Disc cover (12) 2 0 OPEN (disc cover open) (12) 3 Remote sensor (5) 4 STANDBY lamp (8) 5 (STANDBY/ON) button (8, 19) 6 Source buttons

• CD #¥8, TAPE, FM/AM, AUX

Pressing one of these buttons also turns on the unit.

7 PHONES jack (9) 8 MULTI CONTROL buttons

• DOWN 4, 7, UP ¢

9 Cassette holder (15) p Display window q VOLUME control (9) w AUX jack (7, 17) e TIMER button (20) r Tape operation buttons (15, 17)

• ‡ (recording), # (play), ! (fast backward), ⁄ (fast forward), &/) (stop/cassette holder open), * (pause)

Display window

1 SLEEP indicator 2 (timer) indicator 3 Timer number indicators 4 MP3 indicator 5 Repeat indicators

• , ALL

6 PRGM (program) indicator 7 RANDOM indicator 8 FM mode indicators

• MONO, ST (stereo)

9 REC indicator p SOUND indicator q Main display

SLEEP

DISPLAY

CANCEL

SET

PRESET UP

REPEAT

PLAY

MODEFMMODE

CLOCK/

TIMER

SOUND

BASS/

TREBLE

FADE

MUTING

VOLUME

RM- SUX

H100A R

EMOTE CONTROL

STANDBY/ON

+10

REMAIN

PRESET DOWN

CD3/8 TAPE FM/AM AUX

4 5

6 7

Location of the Buttons and Controls (continued)

Remote Control

See pages in parentheses for details.

1 Number buttons (10, 11, 13) 2 Multi control buttons

• PRESET UP, PRESET DOWN

• 4, 7, ¢

3 Source buttons

• CD #¥8, TAPE, FM/AM, AUX

Pressing one of these buttons also turns on the unit.

4 REPEAT button (14) 5 PLAY MODE button (11, 13, 14) 6 SOUND button (9) 7 BASS/TREBLE button (9) 8 STANDBY/ON button (8, 10, 19) 9 SLEEP button (20) p CLOCK/TIMER button (8, 19) q DISPLAY button (8) w REMAIN button (14) e SET button (8, 19) r CANCEL button (19) t FM MODE button (10) y VOLUME + / – buttons (9) u FADE MUTING button (9)

STANDBY

When using the remote control, point it at the

#/8

PHONES DOWN

TAPE FM/AM AUX

7¢TIMER

UP AUX

remote sensor on the front panel.

VOLUME

DIGITAL AUDIO

COMPACT

+—

Getting Started

2,3

LEFT

RIGHT

Do not connect the AC power cord until all other connections have been made.

Continued

Unpacking

After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied.

• AM loop antenna (1)

• Remote control (1)

• Batteries (2)

• AC plug adaptor (1)

If any item is missing, consult your dealer immediately.

Putting the Batteries into the Remote Control

Insert the batteries—R6(SUM-3)/AA(15F)—into the remote control by matching the polarity (+ and –) on the batteries with the + and – marking on the battery compartment. When the remote control can no longer operate the unit, replace both batteries at the same time.

Connections

To connect speakers

You can connect the speakers using the speaker cords.

Gray

Speaker cord

Gray with black stripe

Speaker cord

R6(SUM-3)/AA(15F)

Right speaker

Hold the clamp of the speaker terminal.

Insert the end of the speaker cord into the

Left speaker

terminal.

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery

compartment when you are not going to use the remote control for an extended period of time. Otherwise, the remote control will be damaged from battery leakage.

Match the polarity of the speaker terminals: gray cord (ª) to red (ª) and gray cord with black stripe (·) to black (·).

Release your finger from the clamp.

IMPORTANT:

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the unit.

• DO NOT connect more than one speaker to one speaker terminal.
